Spectroscopic observations of Earth-like exoplanets and ultra-faint galaxies–top scientific priorities for the coming decades–involve measuring broadband signals at rates of only a few photons per square meter per hour. This imposes exceptional requirements on the detector performance, necessitating dark currents below 1 e⁻/pixel/kilo second, read noise under 1 e⁻/pixel/frame, and the ability to handle large-format arrays–capabilities that are not yet met by most existing infrared detectors. In addition, spaceborne LiDAR systems require photodetectors with exceptional sensitivity, compact size, low power consumption, and multi-channel capability to facilitate long-range range finding, topographic mapping, and active spectroscopy without increasing the instrument burden. MCT Avalanche photodiodes arrays offer high internal gain, pixelation, and photon-counting performance across SW to MW wavelengths needed for multi-beam and multi-wavelength measurements, marking them as a critical enabling technology for next-generation planetary and Earth science LiDAR missions. This work reports the latest progress in developing Hg_1−xCd_xTe linear-mode e-APDs at premier industrial research institutions, including relevant experimental data, simulations and major project planning. Related studies are summarized to demonstrate the practical and iterative approach for device fabrication, which have a transformative impact on the evolution of this discipline. Full article

HgCdSe has recently been proposed as a potential alternative material to HgCdTe for fabricating high-performance infrared detectors. This work presents a study on the growth of high-crystalline-quality HgCdSe materials on GaSb (211)B substrates via molecular beam epitaxy and demonstration of the first prototype HgCdSe-based mid-wave infrared detectors. By optimizing the MBE growth parameters, and especially the thermal cleaning process of the GaSb substrate surface prior to epitaxial growth, high-quality HgCdSe material was achieved with a record XRD full width at half maximum of ~65 arcsec. At a temperature of 77 K, the mid-wave infrared HgCdSe n-type material demonstrated a minority carrier lifetime of ~1.19 µs, background electron concentration of ~2.2 × 10¹⁷ cm⁻³, and electron mobility of ~1.6 × 10⁴ cm²/Vs. The fabricated mid-wave infrared HgCdSe photoconductor presented a cut-off wavelength of 4.2 µm, a peak responsivity of ~40 V/W, and a peak detectivity of ~1.2 × 10⁹ cmHz^1/2/W at 77 K. Due to the relatively high background electron concentration, the detector performance is lower than that of state-of-the-art low-doped HgCdTe counterparts. However, these preliminary results indicate the great potential of HgCdSe materials for achieving next-generation IR detectors on large-area substrates with features of lower cost and larger array format size. Full article

Compared with conventional detectors, a circularly polarized detector operating at 4.26 μm effectively suppresses background noise (e.g., solar scattering and atmospheric interference), enabling high-precision CO₂ monitoring across ecosystems like farmland, forests, and wetlands. This capability allows the precise quantification of carbon sink potential and ecosystem health. Our design employs a mid-wave HgCdTe detector—a well-established platform—combined with a CMOS-compatible Si/SiO₂ metasurface. Geometric displacements were applied to break C₂ symmetry, achieving a chiral design. Through multiparameter optimization, we realized a circularly polarized photodetector (CPPD) with a CPER of 18 dB, expected to demonstrate superior CO₂ monitoring performance. These advances may offer researchers and practitioners a robust tool for both fundamental studies and field deployments. Full article

Multi-messenger astronomy and time-domain astronomy are strongly linked even if they do not have the same objectives. Multi-messenger astronomy is an astrophysical observation approach born by the simultaneous, even if casual, detection of a few events discovered up to now. In contrast, time-domain astronomy is a recent technological trend that aims to make observations to explore the sky not with imaging, astrometry, photometry or spectroscopy but through the fast dynamic behavior of celestial objects. Time-domain astronomy aims to detect events on a temporal scale between seconds and nanoseconds. In this paper, a time-domain infrared fast detector for ground-based telescopes is proposed. This instrument can be useful for multi-messenger observations, and it is able to detect fast astronomical signals in the order of 1 ns. It is based on HgCdTe photoconductors, but the InAsSb photovoltaic detector has also been tested. The detection system designed to detect fast mid-infrared bursts includes trigger modules, an off-line noise-canceling strategy, and a classifier of the transients. Classification is derived from the analysis of fast instabilities in particle circular accelerators. This paper aims to be a preliminary feasibility study. Full article

Photodetectors play a critical role in space lidars designed for scientific investigations from orbit around planetary bodies. The detectors must be highly sensitive due to the long range of measurements and tight constraints on the size, weight, and power of the instrument. The detectors must also be space radiation tolerant over multi-year mission lifetimes with no significant performance degradation. Early space lidars used diode-pumped Nd:YAG lasers with a single beam for range and atmospheric backscattering measurements at 1064 nm or its frequency harmonics. The photodetectors used were single-element photomultiplier tubes and infrared performance-enhanced silicon avalanche photodiodes. Space lidars have advanced to multiple beams for surface topographic mapping and active infrared spectroscopic measurements of atmospheric species and surface composition, which demand increased performance and new capabilities for lidar detectors. Higher sensitivity detectors are required so that multi-beam and multi-wavelength measurements can be performed without increasing the laser and instrument power. Pixelated photodetectors are needed so that a single detector assembly can be used for simultaneous multi-channel measurements. Photon-counting photodetectors are needed for active spectroscopy measurements from short-wave infrared to mid-wave infrared. HgCdTe avalanche photodiode arrays have emerged recently as a promising technology to fill these needs. This paper gives a review of the photodetectors used in past and present lidars and the development and outlook of HgCdTe APD arrays for future space lidars. Full article

In the last twenty years, nanofabrication progress has allowed for the emergence of a new photodetector family, generally called low-dimensional solids (LDSs), among which the most important are two-dimensional (2D) materials, perovskites, and nanowires/quantum dots. They operate in a wide wavelength range from ultraviolet to far-infrared. Current research indicates remarkable advances in increasing the performance of this new generation of photodetectors. The published performance at room temperature is even better than reported for typical photodetectors. Several articles demonstrate detectivity outperforming physical boundaries driven by background radiation and signal fluctuations. This study attempts to explain these peculiarities. In order to achieve this goal, we first clarify the fundamental differences in the photoelectric effects of the new generation of photodetectors compared to the standard designs dominating the commercial market. Photodetectors made of 2D transition metal dichalcogenides (TMDs), quantum dots, topological insulators, and perovskites are mainly considered. Their performance is compared with the fundamental limits estimated by the signal fluctuation limit (in the ultraviolet region) and the background radiation limit (in the infrared region). In the latter case, Law 19 dedicated to HgCdTe photodiodes is used as a standard reference benchmark. The causes for the performance overestimate of the different types of LDS detectors are also explained. Finally, an attempt is made to determine their place in the global market in the long term. Full article

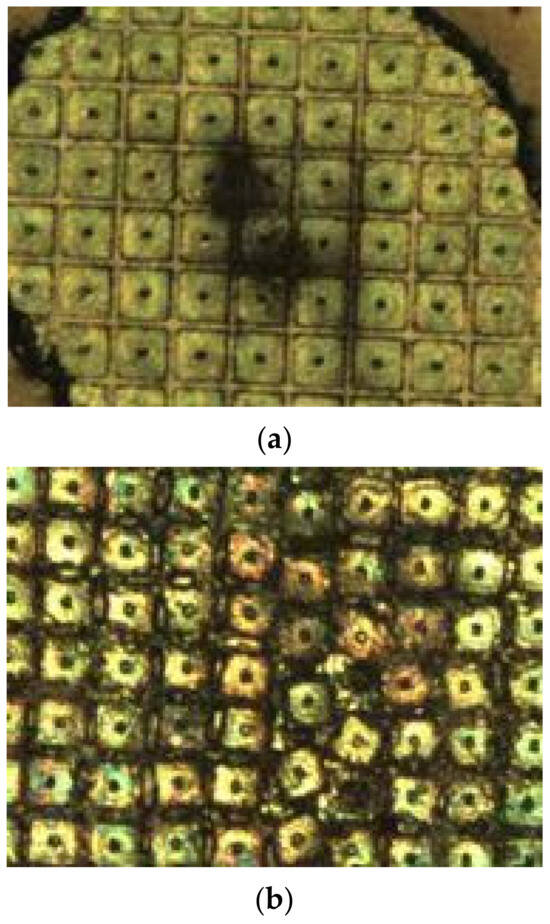

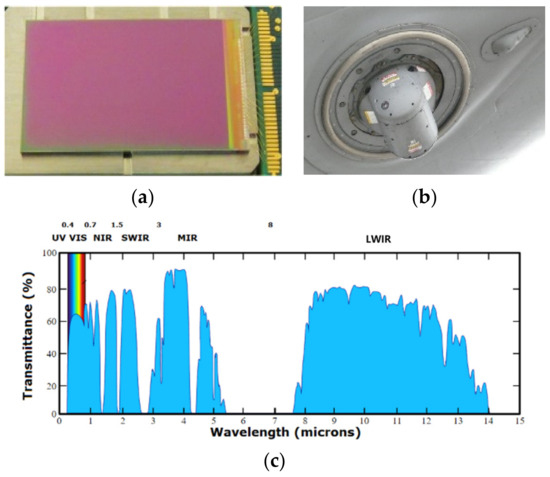

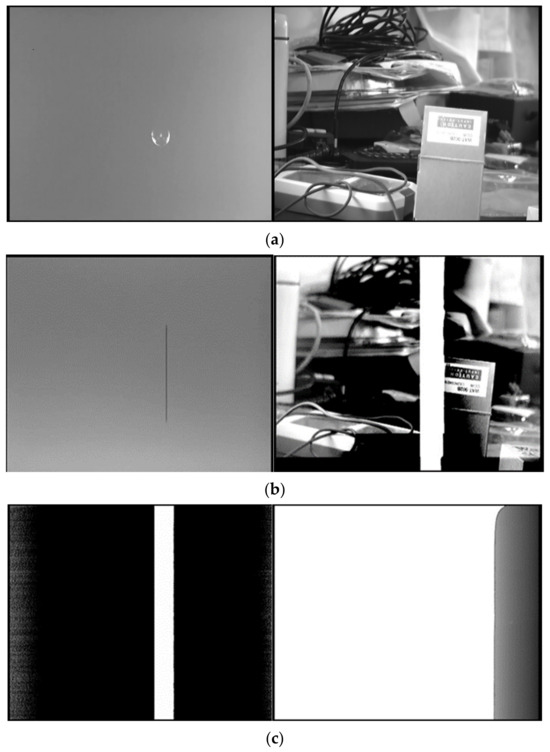

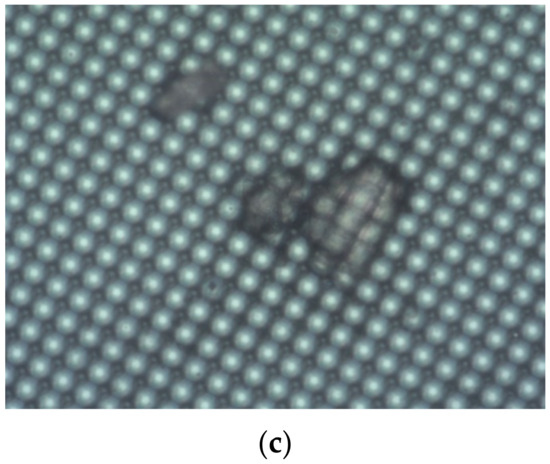

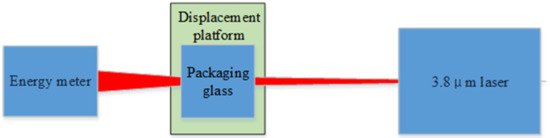

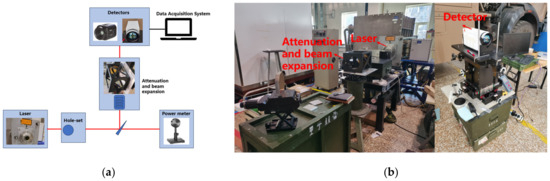

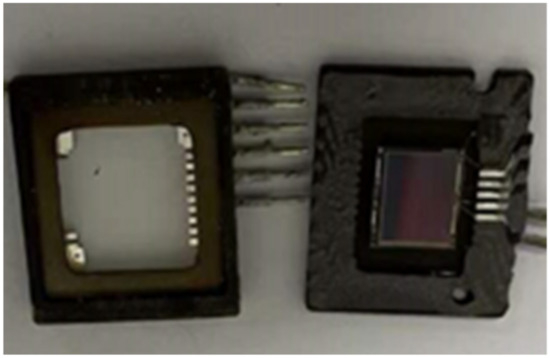

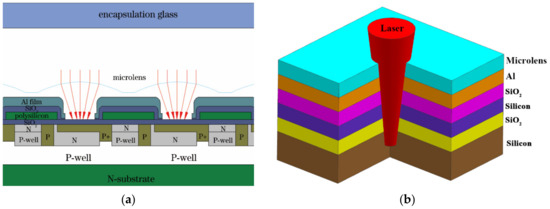

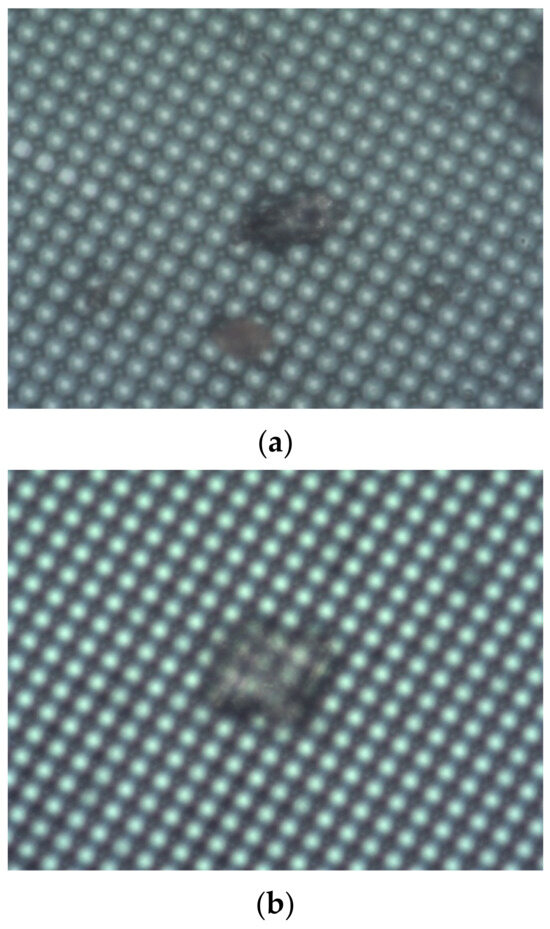

As the weak link in electro-optical imaging systems, photodetectors have always faced the threat of laser damage. In this paper, we experimentally investigated the damage mechanism of the photodetector induced by the out-of-band laser. The damage thresholds of the mid-infrared pulsed laser for Charge Coupled Device (CCD) and HgCdTe detectors were determined through damage experiments. The analysis of the damage phenomena and data for both CCD and HgCdTe detectors clearly demonstrated that out-of-band mid-infrared pulsed lasers could entirely incapacitate CCD and HgCdTe detectors. Our analysis of the damage process and data revealed that the primary mechanism of damage to CCD and HgCdTe detectors by mid-infrared pulsed lasers was primarily thermal. This study serves as a reference for further research on the mid-infrared pulsed laser damage mechanisms of CCD and HgCdTe detectors, as well as for laser protection and performance optimization in imaging systems. Full article

Conventional imaging techniques can only record the intensity of light while polarization imaging can record the polarization of light, thus obtaining a higher dimension of image information. We use the COMSOL software to numerically propose a circular polarization photodetector composed of the dislocated 2-hole Si chiral metasurfaces controlling the circular polarization lights and the HgCdTe (MCT) photodetector chip to detect the intensity of light signals. The chiral metasurfaces can be equated to a significant radiation source of the Z-type current density under the right circularly polarized incidence conditions, which explains the large circular dichroism (CD) of absorption of 95% in chiral photodetectors. In addition, the linear dichroism (LD) of the linear polarization pixel is 0.62, and the extinction ratio (ER) is 21 dB. The full Stokes pixel using the six-image-element technique can almost measure arbitrary polarization information of light at 4 μm operation wavelength. Our results highlight the potential of circular dichroic metasurfaces as photonic manipulation platforms for miniaturized polarization detectors. Full article

Deep defects in the long-wave infrared (LWIR) HgCdTe heterostructure photodiode were measured via deep-level transient spectroscopy (DLTS) and photoluminescence (PL). The n⁺-P⁺-π-N⁺ photodiode structure was grown by following the metal–organic chemical vapor deposition (MOCVD) technique on a GaAs substrate. DLTS has revealed two defects: one electron trap with an activation energy value of 252 meV below the conduction band edge, located in the low n-type-doped transient layer at the π-N⁺ interface, and a second hole trap with an activation energy value of 89 meV above the valence band edge, located in the π absorber. The latter was interpreted as an isolated point defect, most probably associated with mercury vacancies (V_Hg). Numerical calculations applied to the experimental data showed that this V_Hg hole trap is the main cause of increased dark currents in the LWIR photodiode. The determined specific parameters of this trap were the capture cross-section for the holes of σ_p = 10⁻¹⁶–4 × 10⁻¹⁵ cm² and the trap concentration of N_T = 3–4 × 10¹⁴ cm⁻³. PL measurements confirmed that the trap lies approximately 83–89 meV above the valence band edge and its location. Full article

The cooling requirement for long-wave infrared detectors still creates significant limitations to their functionality. The phenomenon of minority-carrier exclusion and extraction in narrow-gap semiconductors has been intensively studied for over three decades and used to increase the operating temperatures of devices. Decreasing free carrier concentrations below equilibrium values by a stationary non-equilibrium depletion of the device absorber leads to a suppression of Auger generation. In this paper, we focus on analyzing exclusion and extraction effects separately, based on experimental and theoretical results for a HgCdTe photodiode. To carry out an experiment, the n⁺-P⁺-π-N⁺ heterostructure was grown by metal organic chemical vapor deposition on CdTe-buffered GaAs substrate. In order to separate the extraction and exclusive junctions, three different devices were evaluated: (1) a detector etched through the entire n⁺-P⁺-π-N⁺ heterostructure, (2) a detector made of the P⁺-π photoconductive junction and (3) a detector made of the π-N⁺ photodiode junction. For each device, the dark current density–voltage characteristics were measured at a high-temperature range, from 195 K to 300 K. Next, the carrier concentration distribution across the entire heterostructure and individual junctions was calculated using the APSYS simulation program. It was shown that when the n⁺-P⁺-π-N⁺ photodiode is reverse biased, the electron concentration in the π absorber drops below its thermal equilibrium value, due to the exclusion effect at the P⁺-π junction and the extraction effect at the π-N⁺ junction. To maintain the charge neutrality, the hole concentration is also reduced below the equilibrium value and reaches the absorber doping level (N_A), leading to the Auger generation rate’s reduction by a factor of 2n_i/N_A, where n_i is the intrinsic carrier concentration. Our experiment conducted for three separate detectors showed that the exclusion P⁺-π photoconductive junction has the most significant effect on the Auger suppression—the majority of the hole concentration drops to the doping level not only at the P⁺-π interface but also deep inside the π absorber. Full article

HgCdTe is a well-known material for state-of-the-art infrared photodetectors. The interd-iffused multilayer process (IMP) is used for Metal–Organic Chemical Vapor Deposition (MOCVD) of HgCdTe heterostructures, enabling precise control of composition. In this method, alternating HgTe and CdTe layers are deposited, and they homogenize during growth due to interdiffusion, resulting in a near-uniform material. However, the relatively low (350 °C) IMP MOCVD growth temperature may result in significant residual compositional inhomogeneities. In this work, we have investigated the residual inhomogeneities in the IMP-grown HgCdTe layers and their influence on material properties. Significant IMP growth-related oscillations of composition have been revealed in as-grown epilayers with the use of a high-resolution Secondary Ion Mass Spectroscopy (SIMS). The oscillations can be minimized with post-growth annealing of the layers at a temperature exceeding that of growth. The electric and photoelectric characterizations showed a significant reduction in the background doping and an increase in the recombination time, which resulted in dramatic improvement of the spectral responsivity of photoconductors. Full article

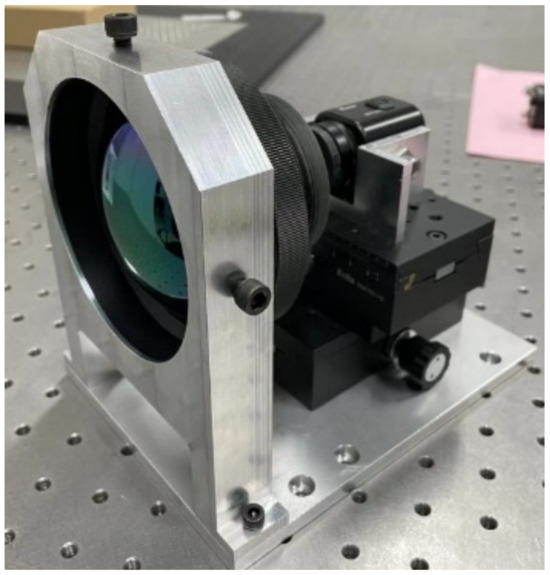

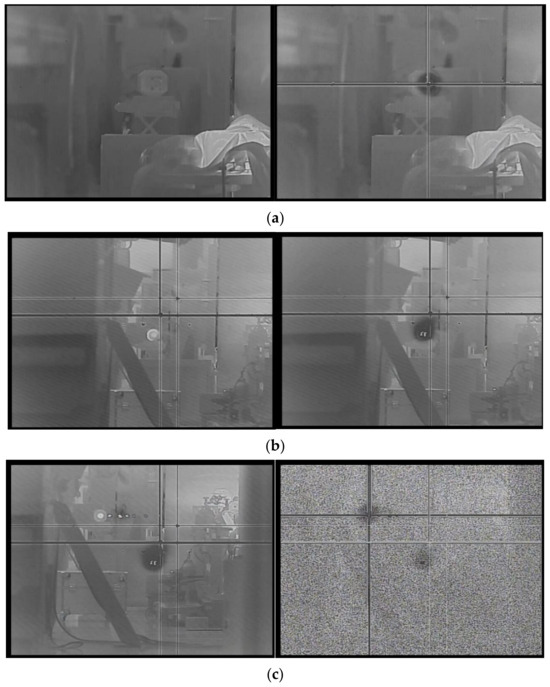

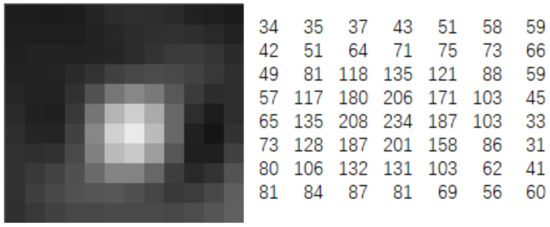

To investigate the damage threshold and mechanism of a mid-infrared HgCdTe focal plane array (FPA) detector, relevant experimental and theoretical studies were conducted. The line damage threshold of a HgCdTe FPA detector may be within the range of 0.59 Jcm⁻² to 0.71 Jcm⁻². The full frame damage threshold of the detector may be in the range of 0.86 Jcm⁻² to 1.17 Jcm⁻². Experimental results showed that when the energy density reaches 1.17 Jcm⁻², the detector exhibits irreversible full frame damage and is completely unable to image. Based on the finite element method, a three-dimensional model of HgCdTe FPAs detector was established to study the heat transfer mechanism, internal stress, and damage sequence. When HgCdTe melts, we think that the detector is damaged. Under these conditions, the theoretical damage threshold calculated using the detector model is 0.55 Jcm⁻². The difference between theoretical and experimental values was analyzed. The relationship between damage threshold and pulse width was also studied. It was found that when the pulse width is less than 1000 ns, the damage threshold characterized by peak power density is inversely proportional to pulse width. This relationship can help us predict the experimental damage threshold of an FPA detector. This model is reasonable and convenient for studying the damage of FPA detectors with a mid-infrared pulse laser. The research content in this article has important reference significance for the damage and protection of HgCdTe FPA detectors. Full article

At the current stage of long-wavelength infrared (LWIR) detector technology development, the only commercially available detectors that operate at room temperature are thermal detectors. However, the efficiency of thermal detectors is modest: they exhibit a slow response time and are not very useful for multispectral detection. On the other hand, in order to reach better performance (higher detectivity, better response speed, and multispectral response), infrared (IR) photon detectors are used, requiring cryogenic cooling. This is a major obstacle to the wider use of IR technology. For this reason, significant efforts have been taken to increase the operating temperature, such as size, weight and power consumption (SWaP) reductions, resulting in lower IR system costs. Currently, efforts are aimed at developing photon-based infrared detectors, with performance being limited by background radiation noise. These requirements are formalized in the Law 19 standard for P-i-N HgCdTe photodiodes. In addition to typical semiconductor materials such as HgCdTe and type-II A^IIIB^V superlattices, new generations of materials (two-dimensional (2D) materials and colloidal quantum dots (CQDs)) distinguished by the physical properties required for infrared detection are being considered for future high-operating-temperature (HOT) IR devices. Based on the dark current density, responsivity and detectivity considerations, an attempt is made to determine the development of a next-gen IR photodetector in the near future. Full article

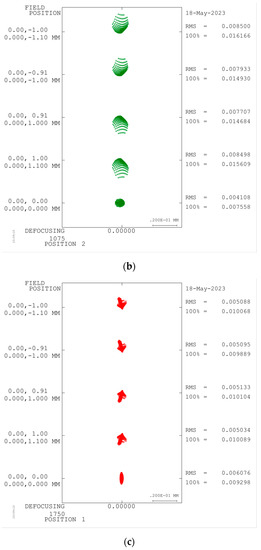

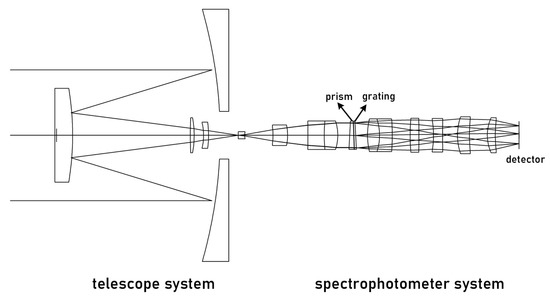

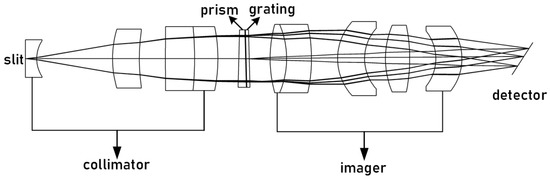

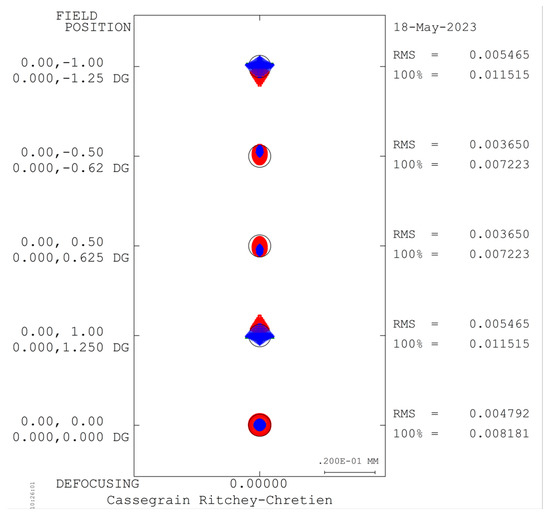

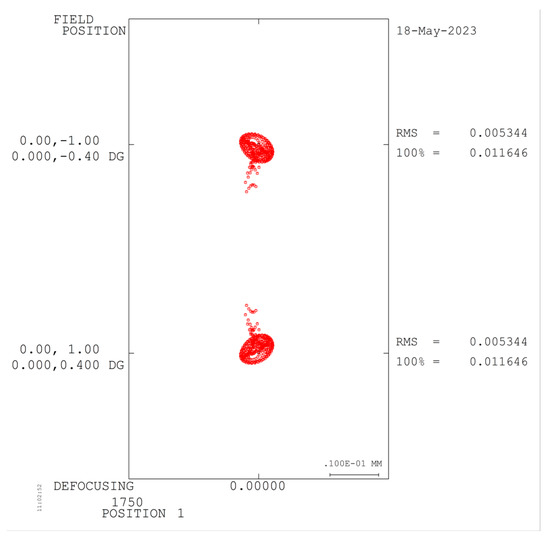

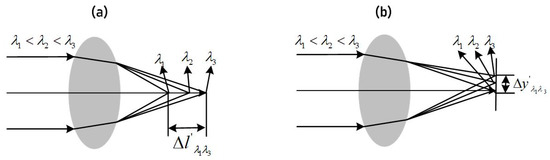

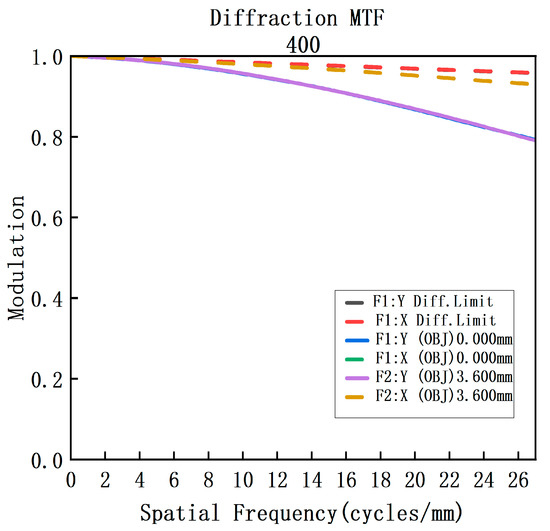

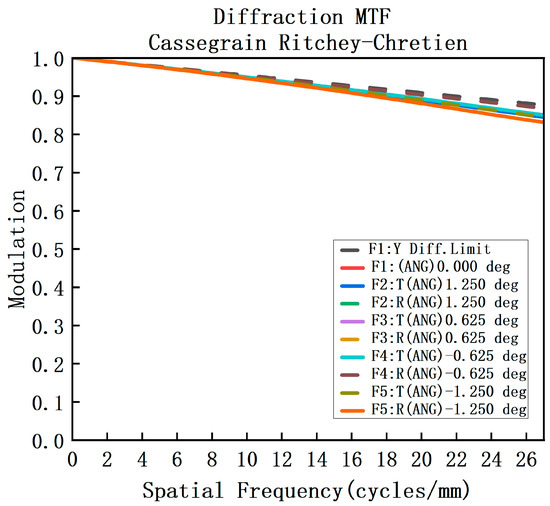

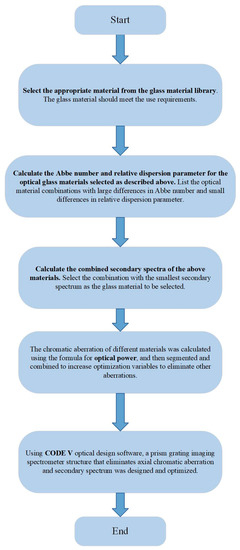

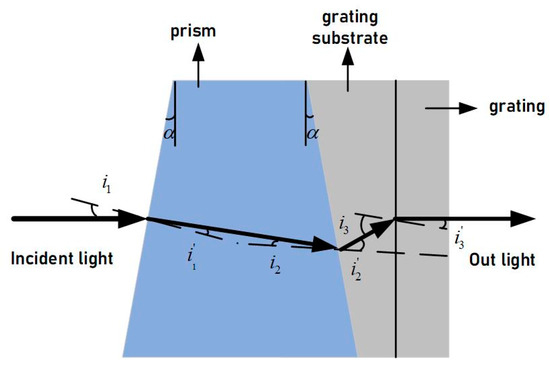

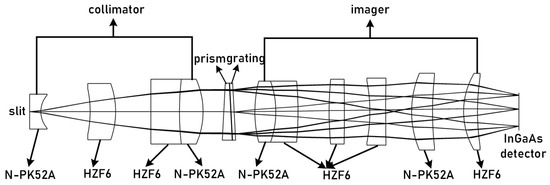

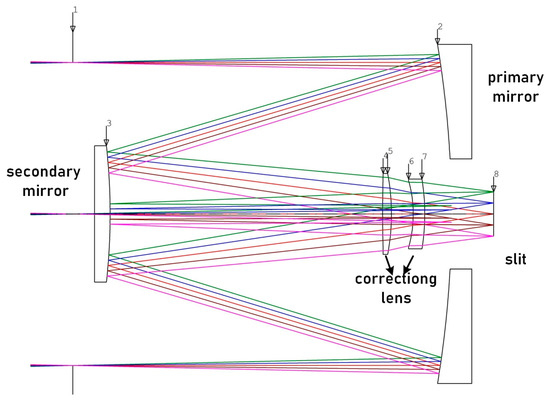

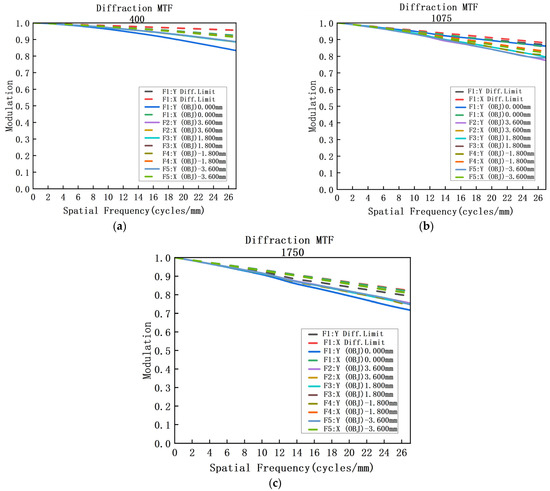

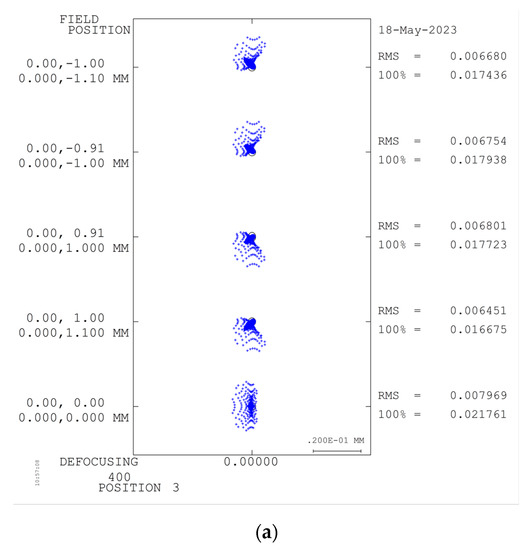

As spectroscopic detection technology rapidly advances, back-illuminated InGaAs detectors with a wider spectral range have emerged. Compared to traditional detectors such as HgCdTe, CCD, and CMOS, InGaAs detectors offer a working range of 400–1800 nm and exhibit a quantum efficiency of over 60% in both the visible and near-infrared bands. This is leading to the demand for innovative designs of imaging spectrometers with wider spectral ranges. However, the widening of the spectral range has led to the presence of significant axial chromatic aberration and secondary spectrum in imaging spectrometers. Additionally, there is difficulty in aligning the system optical axis perpendicular to the detector image plane, resulting in increased challenges during post-installation adjustment. Based on chromatic aberration correction theory, this paper presents the design of a wide spectral range transmission prism-grating imaging spectrometer with a working range of 400–1750 nm using Code V. The spectral range of this spectrometer covers both the visible and near-infrared regions, which is beyond the capability of traditional PG spectrometers. In the past, the working spectral range of transmission-type PG imaging spectrometers has been limited to 400–1000 nm. This study’s proposed chromatic aberration correction process involves selecting optical glass materials that match the design requirements and correcting the axial chromatic aberration and secondary spectrum, ensuring that the system axis is perpendicular to the detector plane and easy to adjust during installation. The results show that the spectrometer has a spectral resolution of 5 nm, a root-mean-square spot diagram less than 8 μm over the full field of view, and an optical transfer function MTF greater than 0.6 at a Nyquist frequency of 30 lp/mm. The system size is less than 90 mm. Spherical lenses are employed in the system design to reduce manufacturing costs and complexity while meeting the requirements of wide spectral range, miniaturization, and easy installation. Full article

We describe in detail the construction and characterization of a Peltier-cooled long-wavelength infrared (LWIR) position-sensitive detector (PSD) based on the lateral effect. The device was recently reported for the first time to the authors’ knowledge. It is a modified PIN HgCdTe photodiode, forming the tetra-lateral PSD, with a photosensitive area of 1 × 1 mm², operating at 205 K in the 3–11 µm spectral range, capable of achieving a position resolution of 0.3–0.6 µm using 10.5 µm 2.6 mW radiation focused on a spot of the 1/e² diameter 240 µm, with a box-car integration time of 1 µs and correlated double sampling. Full article
