Search Results (27)

Removing manganese from zinc electrolytes is necessary to pave the way for replacing lead-based anodes with mixed metal oxide (MMO) anodes. MMO anodes offer significantly lower overpotential towards oxygen evolution reactions, thus are attractive from an energy consumption viewpoint. Previous studies had shown that, thanks to the catalytic effect of cobalt, manganese can be removed successfully from the zinc purification solution through the oxidative precipitation method using a simulated roasting off-gas plant. This study focuses on understanding the primary mechanism behind manganese oxidation precipitation and investigating the influence of various operating parameters such as temperature, dissolved oxygen (DO), and solution potential on the reaction kinetics. The results revealed that the kinetics of the reaction was highly dependent on the temperature and catalyst activity rather than on the reactant concentration. Additives, with radical scavenging effects, were added to identify the radicals responsible for the oxidation of Mn. The manganese oxidation reaction was dramatically suppressed when methanol was added. However, in the presence of tert-butyl alcohol (TBA), a sensible reduction in manganese removal was not observed, suggesting sulfate radical as the predominant species for oxidizing manganese. The physical and chemical characteristics of the sediments were also presented. Full article

Implementing mixed metal oxide (MMO) anodes in zinc electrowinning is highly desired due to the considerable reduction in electrical energy consumption. However, the presence of manganese in the electrolyte is a major obstacle for implementing MMO anodes in the zinc cell houses. In this work, we explore the possibility of using plant off-gas, containing SO₂, to remove manganese. A SO₂/air gas mixture with different SO₂ and O₂ concentrations was therefore used for the oxidative precipitation of manganese. It was shown that the manganese oxidation reaction is highly pH-dependent. Calcium hydroxide was used to control the pH during the process. Different operating parameters, i.e., pH, SO₂/air ratio, reaction time, and effect of cobalt as a reaction catalyst, were investigated. Optimal conditions for manganese removal were reported. Under the optimal conditions, the manganese concentration decreased from 1 g L⁻¹ to less than 1 mg L⁻¹ within 30 min. Precipitates were characterized using EDS, XRF, and XPS techniques and showed coprecipitation of manganese, zinc, gypsum, and cobalt. Full article

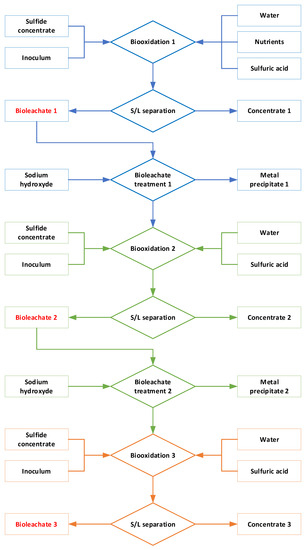

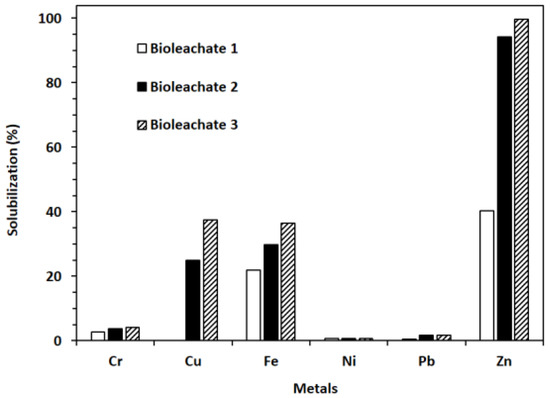

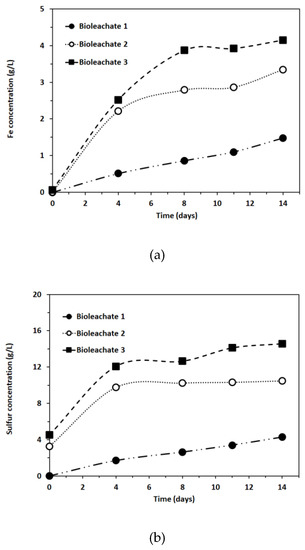

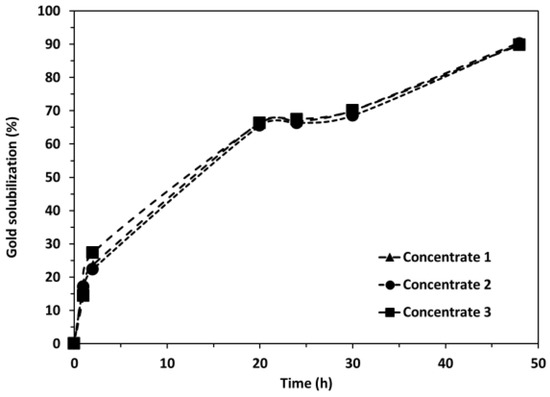

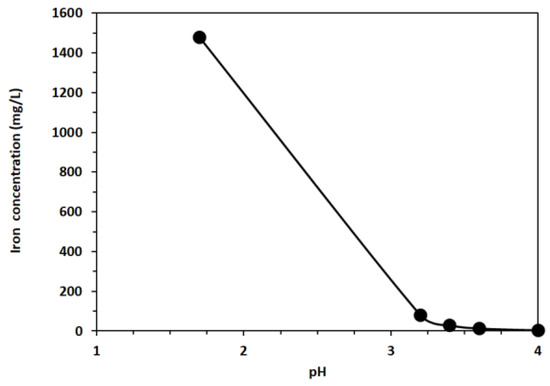

Bacterial pre-oxidation of refractory gold concentrates generates large volumes of leachate and requires a significant supply of nutrients to support bacterial growth. Therefore, bioleachate reuse reduces both water consumption and the nutrients required for the process. However, the efficiency of this method and its benefit need to be further explored. In the present study, two tests on the reuse of bioleachate in new cycles of bacterial oxidation were carried out to evaluate the efficiency and the benefit of bioleachate reuse. Our results showed that the reuse of bioleachates could reduce nitrogen and phosphorus requirements by 40% and 36%, respectively, after a 14-day biooxidation stage in a stirred tank bioreactor. We also showed that the reuse of bioleachate had a positive effect on the recovery of gold in a subsequent 48 h treatment by cyanidation. The gold recovery rate (initial concentration of 44 mg/kg) remained unchanged at 90% after the two bioleachate recirculation loops. The reuse of bioleachate also made it possible to increase the solubilization rates of other metals from the sulfide concentrate. Thus, the solubilization yields of copper (initial concentration of 3587 mg/kg) and zinc (initial concentration of 27,315 mg/kg) increased, respectively, from 14.8% and 40.2% to 37.5% and 99.6% after the two bioleachate recirculation loops. Full article

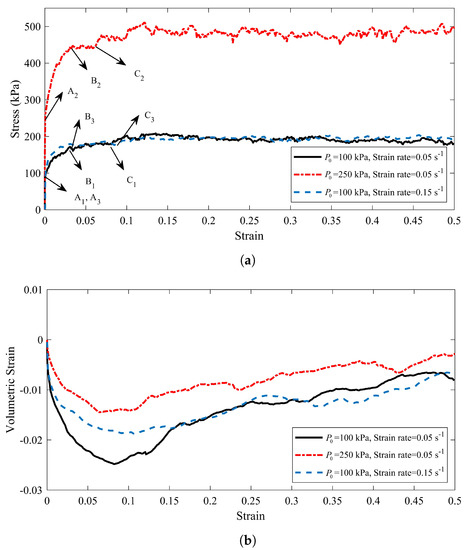

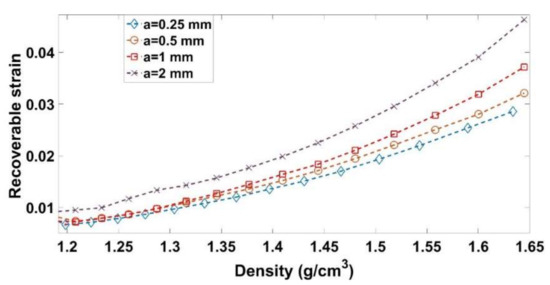

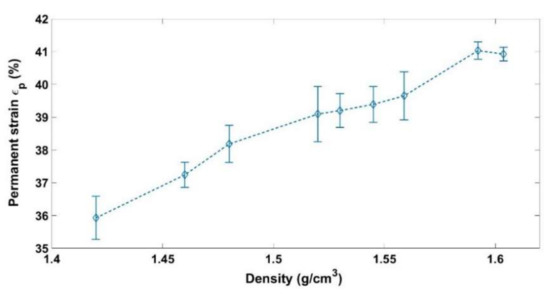

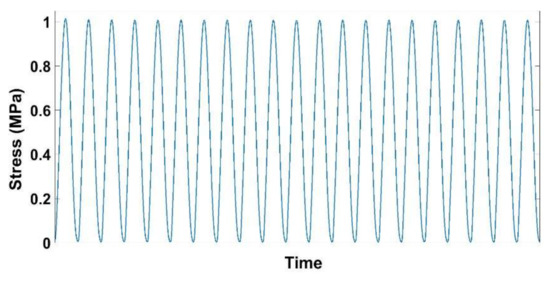

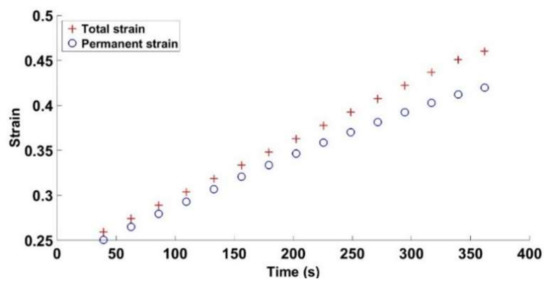

Carbon products such as anodes and ramming paste must have well-defined physical, mechanical, chemical, and electrical properties to perform their functions effectively in the aluminum electrolysis cell. The physical and mechanical properties of these products are assigned during the shaping procedure in which compaction stresses are applied to the green carbon paste. The optimization of the shaping process is crucial to improving the properties of the carbon products and consequently to increasing the energy efficiency and decreasing the greenhouse gas emissions of the Hall–Héroult process. The objective of this study is to experimentally investigate the effect(s) of the strain rate, of the stress maximum amplitude, and of the unloading level on the behavior of a green carbon paste subjected to cyclic loading. To this end, experiments consisting of (1) cyclic compaction tests at different maximum stress amplitudes and strain rates, and (2) cyclic compaction tests with different unloading levels were carried out. The study obtained the following findings about the behavior of carbon paste subjected to cyclic loads. The strain rate in the studied range had no effect either on the evolution of the permanent strain as a function of the cycle number, nor on the shape of the stress–strain hysteresis during the cyclic loading. Moreover, samples of the same density that had been subjected to different maximum stress amplitudes in their loading history did not have the same shape of the stress–strain curve. On the other hand, despite having different densities, samples subjected to the same number of cycles produce the same stress–strain curve during loading even though they were subjected to different maximum stress amplitudes in their loading histories. Finally, the level of unloading during each cycle of a cyclic test proved significant; when the sample was unloaded to a lower level of stress during each cycle, the permanent strain as a function of the cycle number was higher. Full article

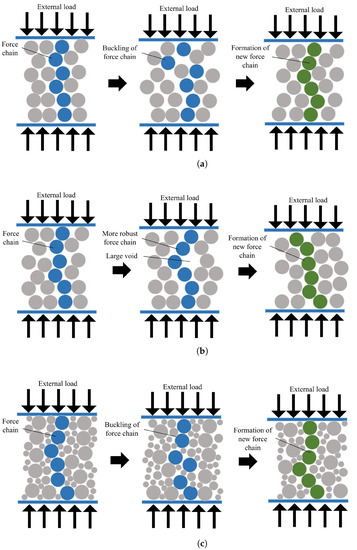

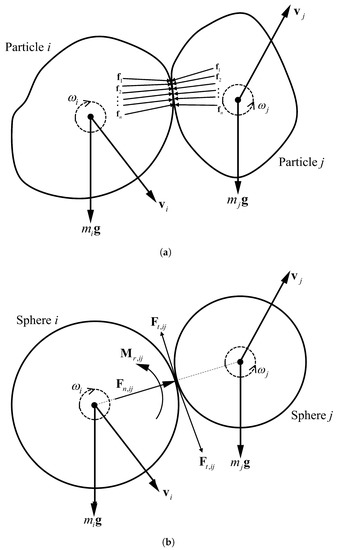

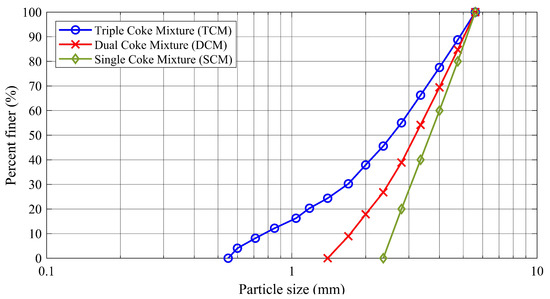

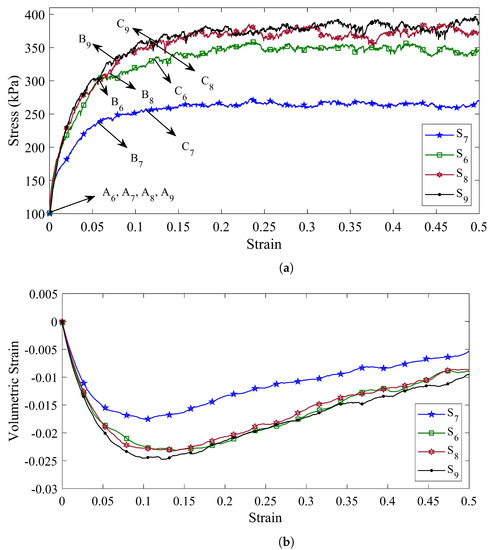

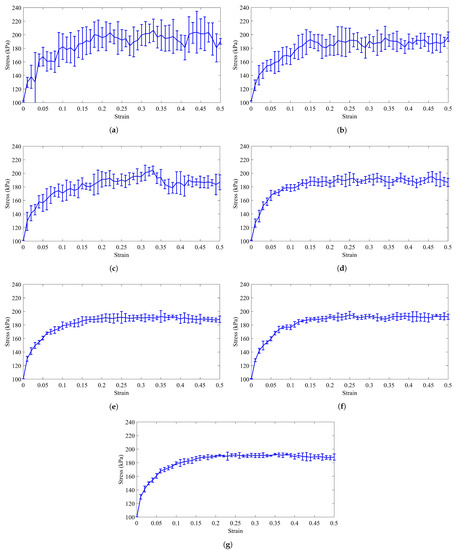

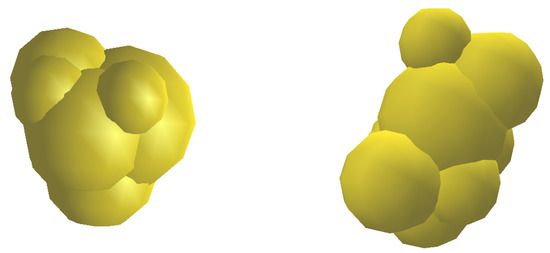

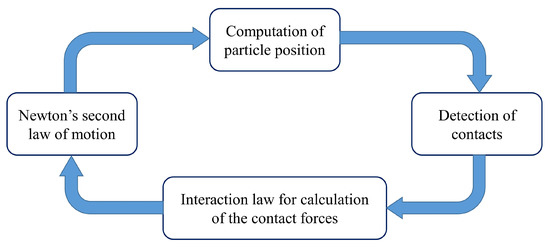

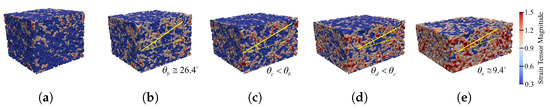

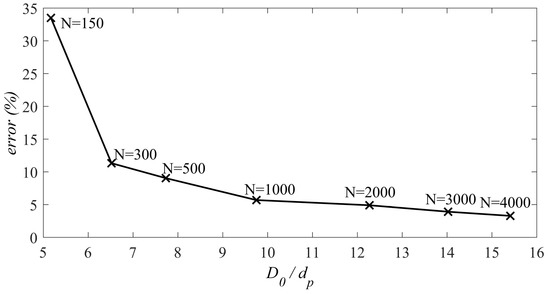

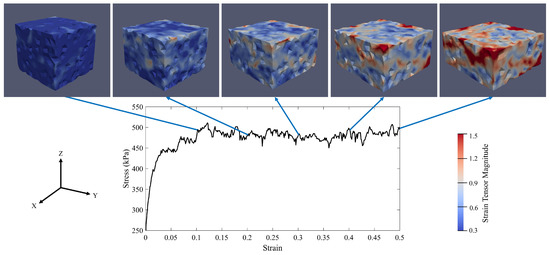

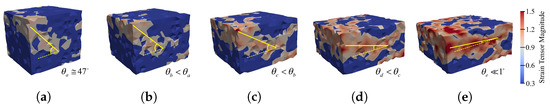

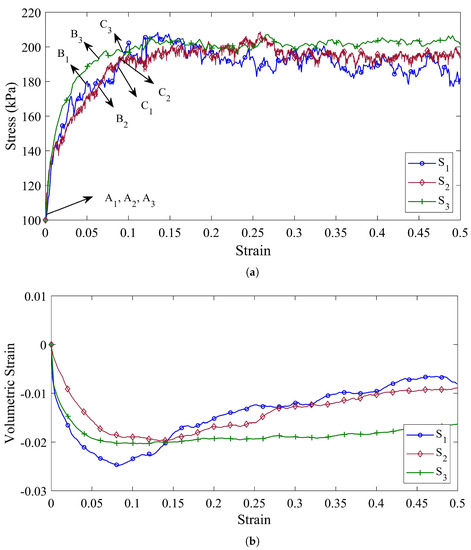

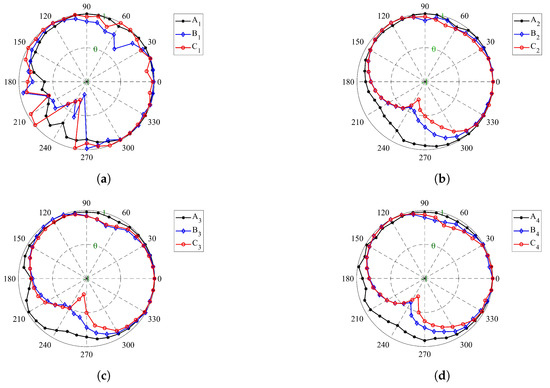

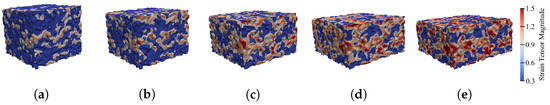

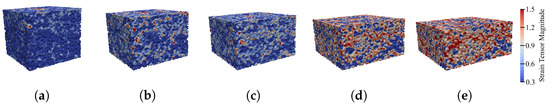

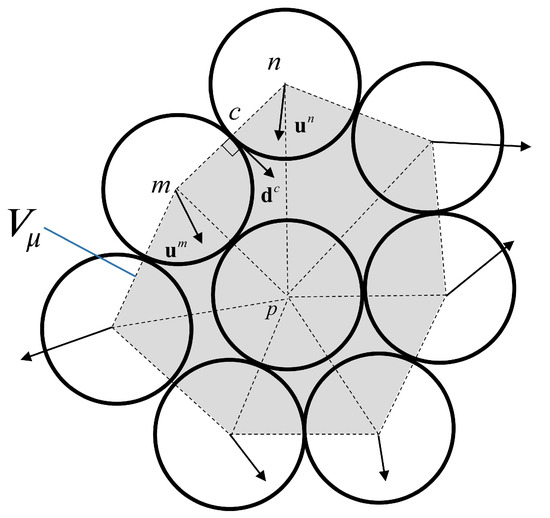

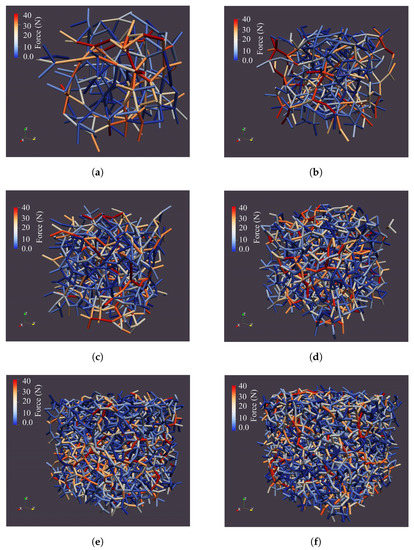

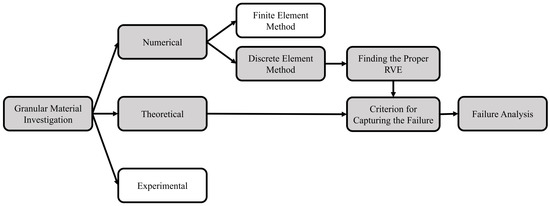

Carbon anodes participate in chemical reactions to reduce alumina in the Hall–Héroult process, of which coke aggregates make up a major part. The failure analysis of coke aggregates not only leads to a better understanding of the deformation mechanisms of anode paste under compressive loading but also can identify potential causes of structural defects in carbon anodes, such as horizontal cracks. The coke aggregates are composed of particles with different size distributions and shapes, which may strongly affect the failure behavior of the anode during compaction. In this paper, the effects of particle size distributions and shapes on the mechanical behavior and the failure of coke aggregates are investigated using the discrete element method modeling technique. The numerical results reveal that, although the mechanical behavior of coke mixtures is generally dependent on larger particles, the presence of fine particles in the coke aggregates reduces fluctuations in the stress–strain diagram. In addition, the rolling resistance model is employed as a parameter representing the effect of particle shape. It is shown that the rolling resistance model can be an alternative to the overlapped spheres model, which has a higher computational cost than the rolling resistance model. The second-order work criterion is used to evaluate the stability of the coke aggregates, the results of which indicate that the addition of fine particles as well as increasing the rolling resistance between the particles increases the stability range of the coke aggregates. Moreover, by using the analysis of micro-strain contour evaluations during the compaction process, it is shown that, both by adding fine particles to the coke mixture and by increasing the rolling resistance between the particles, the possibility of creating a compression band in the coke aggregates is reduced. Since the presence of the compaction bands in the anode paste creates an area prone to horizontal crack generations, the results of this study could lead to the production of carbon anodes with fewer structural defects. Full article

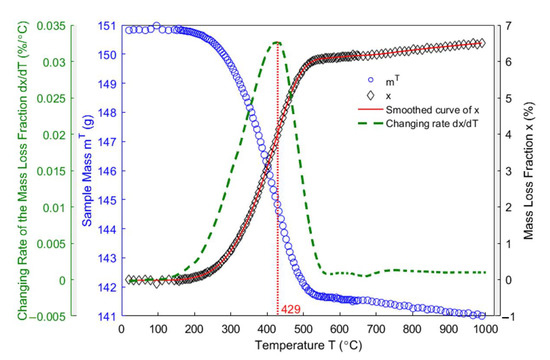

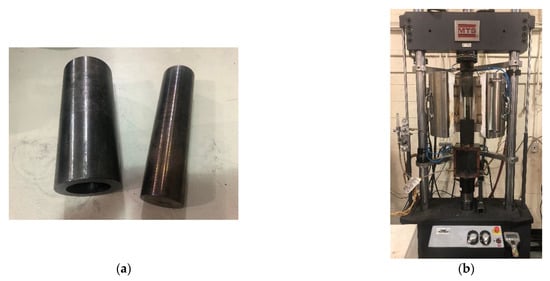

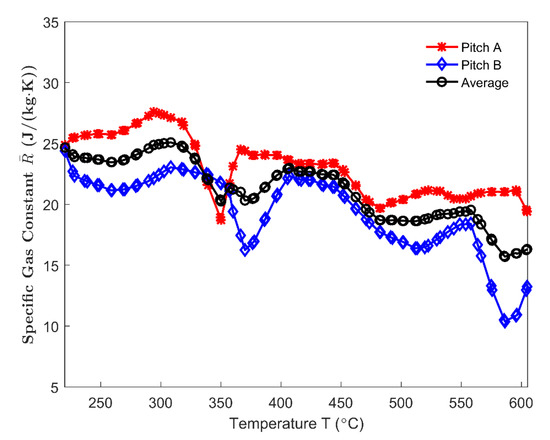

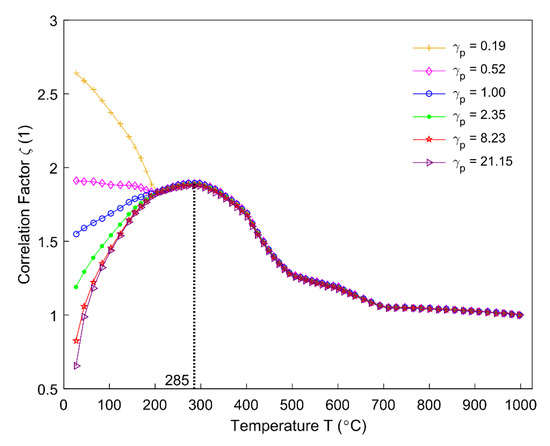

In the Hall–Héroult process, prebaked carbon anodes are utilized to produce primary aluminium. The quality of the anode plays a crucial role in the efficiency of electrowinning primary aluminium. In the production of anodes, the anode baking is considered as the stage most frequently causing anode problems. During the baking process, the anode undergoes complex physicochemical transformations. Moreover, the anode at a lower position, imposed by loading pressures from upper anodes, will creep during this process. Thus, the production of high-quality anodes demands efficient control of their baking process. This paper aims to investigate the thermo-chemo-mechanical properties of the anode paste mixture at high temperatures. These properties include kinetic parameters of pitch pyrolysis such as the activation energy and the pre-exponential factor, the thermal expansion coefficient (TEC) and relevant mechanical parameters related to the elastic, the viscoelastic and the viscoplastic behaviours of the anode. For this purpose, experiments consisting of the thermogravimetric analysis, the dilatometry and the creep test were carried out. Based on the obtained results, the forementioned parameters were identified. Relevant mechanical parameters were expressed as a function of a new variable, called the shrinking index, which is related to the volatile released in open and closed pores of the anode. This variable would be used to highlight the chemo-mechanical coupling effect of the anode mixture. New insights into the phenomena such as the expansion due to the increase of the pore pressure and the chemical shrinkage of the anode during the baking process were also gained in this work. These investigations pave the way for modeling the thermo-chemo-poromechanical behaviour of the anode during the baking process. Full article

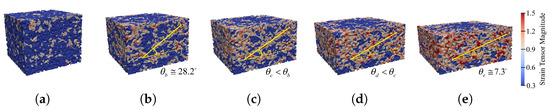

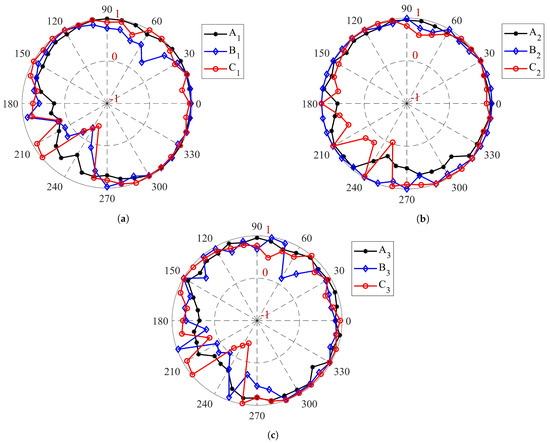

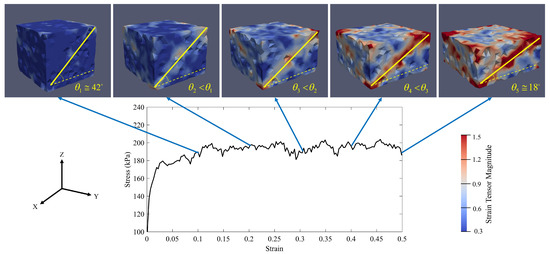

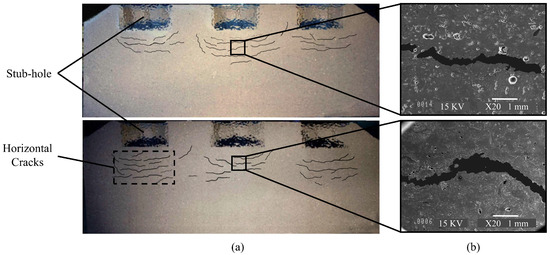

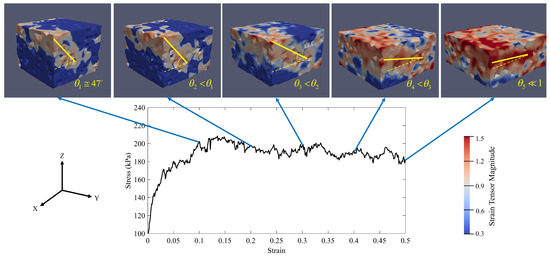

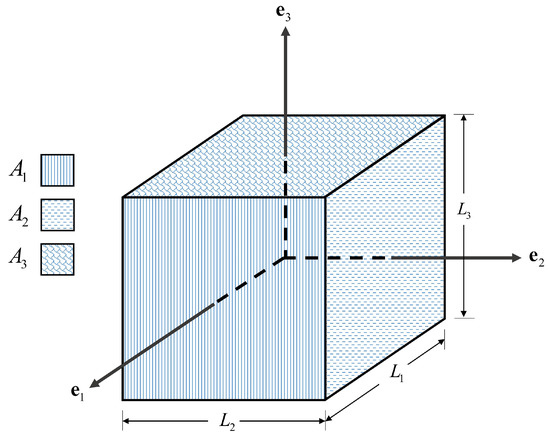

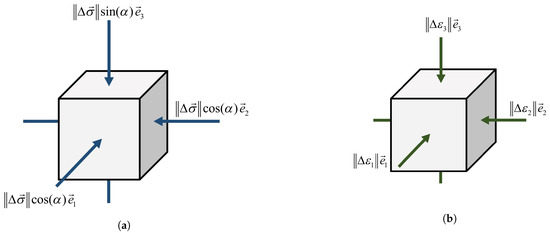

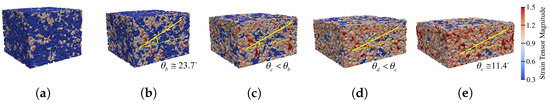

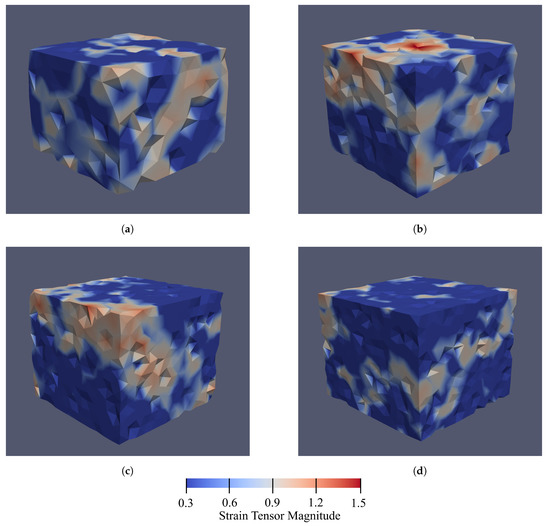

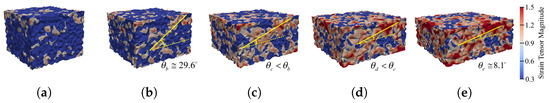

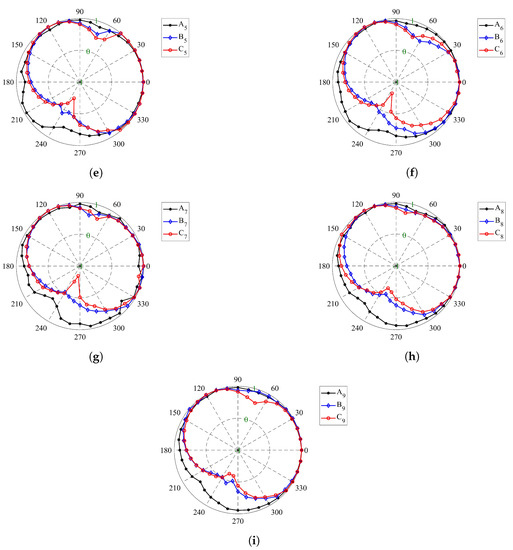

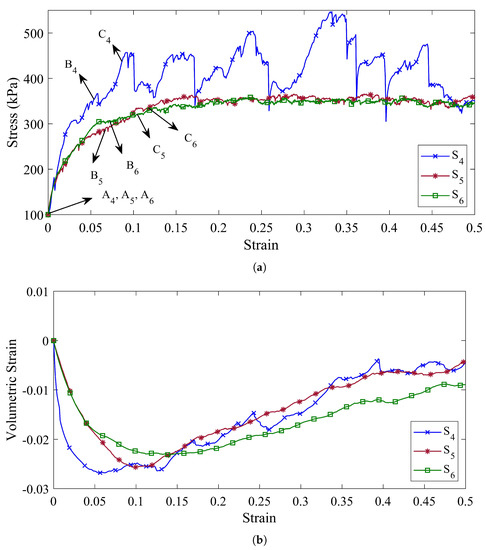

An in-depth study of the failure of granular materials, which is known as a mechanism to generate defects, can reveal the facts regarding the origin of the imperfections, such as cracks in the carbon anodes. The initiation and propagation of the cracks in the carbon anode, especially the horizontal cracks below the stub-holes, reduce the anode efficiency during the electrolysis process. The failure analysis of coke aggregates can be employed to determine the appropriate recipe and operating conditions in order to avoid the formation of cracks in the carbon anodes. In this paper, it will be shown that a particular failure mode can be responsible for the crack generation in the carbon anodes. The second-order work criterion is employed to analyze the failure of the coke aggregate specimens and the relationships between the second-order work, the kinetic energy, and the instability of the granular material are investigated. In addition, the coke aggregates are modeled by exploiting the discrete element method (DEM) to reveal the micro-mechanical behavior of the dry coke aggregates during the compaction process. The optimal number of particles required for the failure analysis in the DEM simulations is determined. The effects of the confining pressure and strain rate as two important compaction process parameters on the failure are studied. The results reveal that increasing the confining pressure enhances the probability of the diffusing mode of the failure in the specimen. On the other hand, the increase of strain rate augments the chance of the strain localization mode of the failure in the specimen. Full article

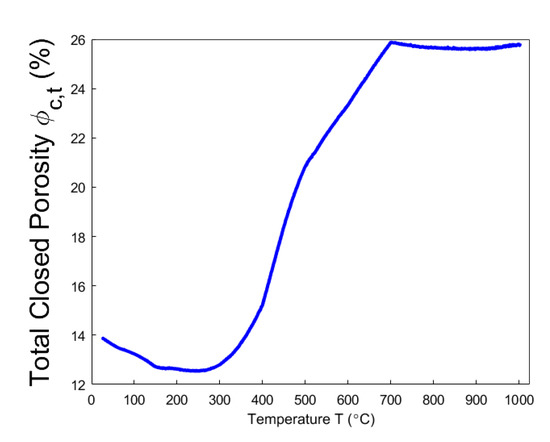

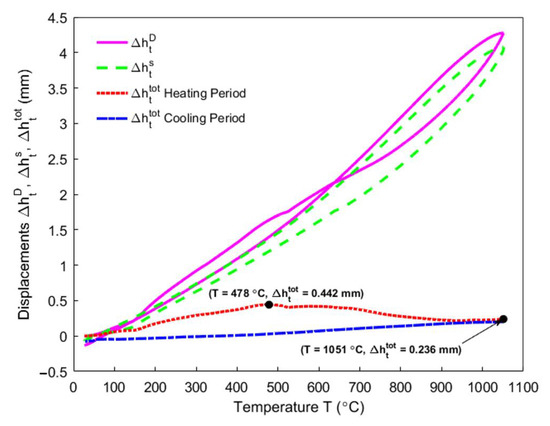

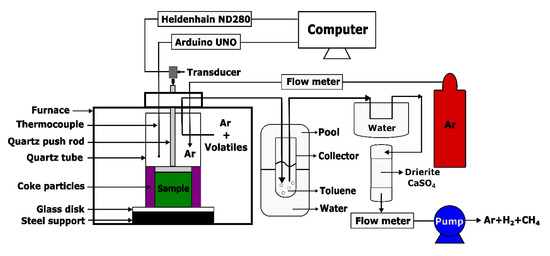

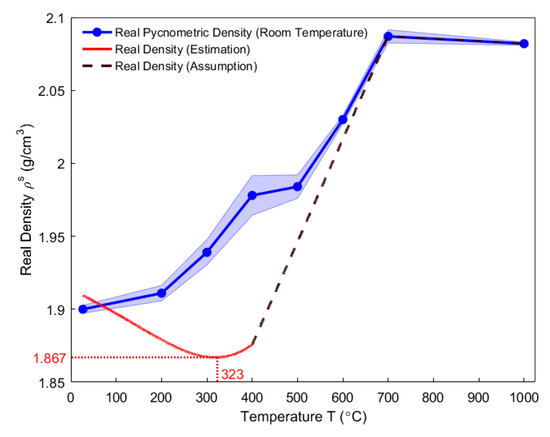

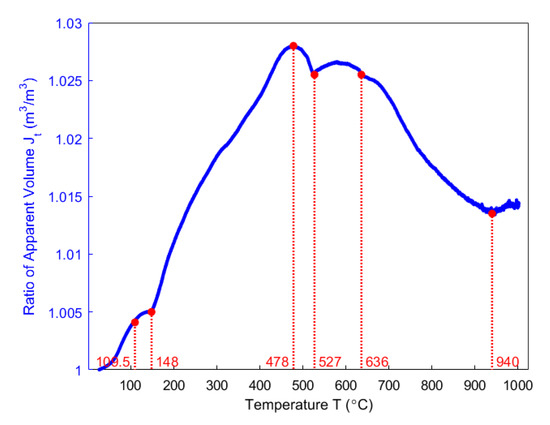

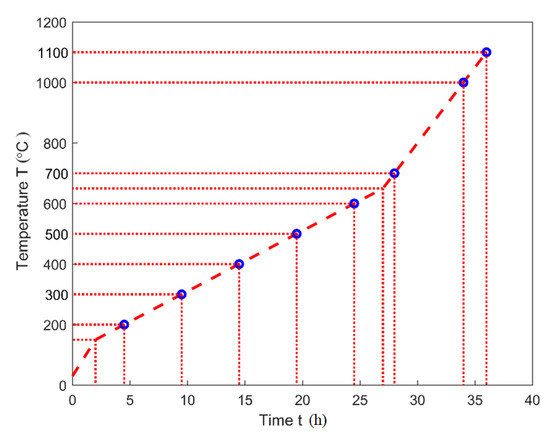

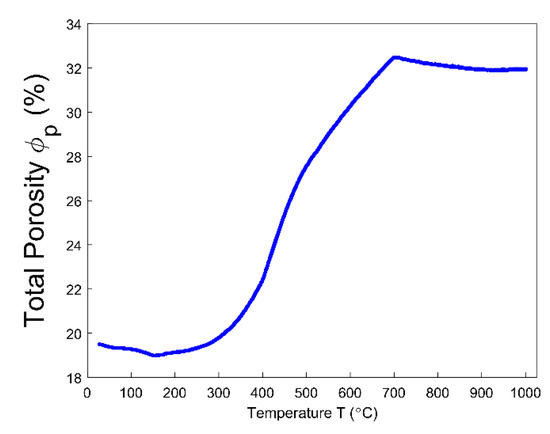

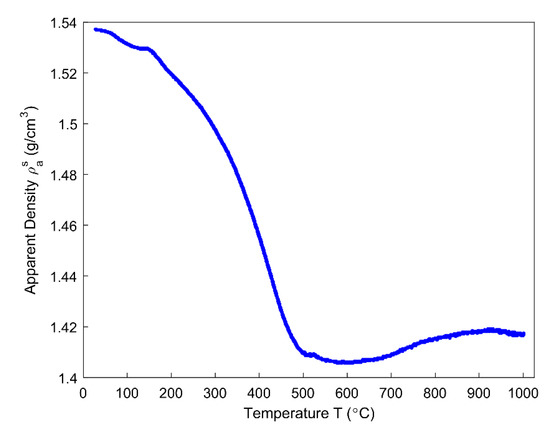

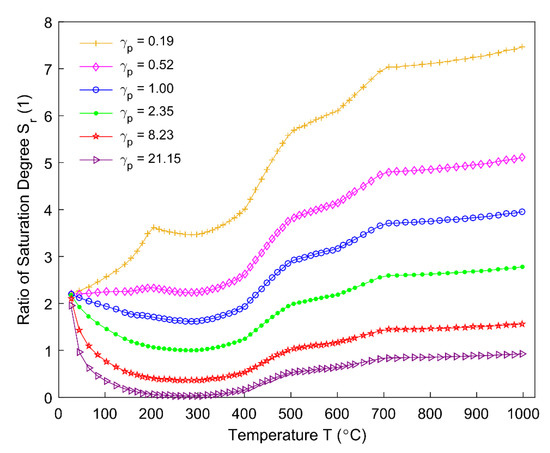

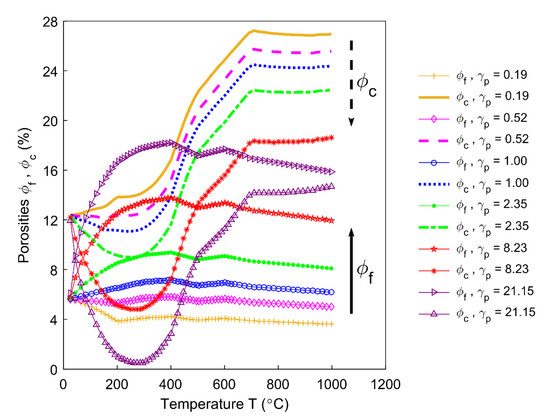

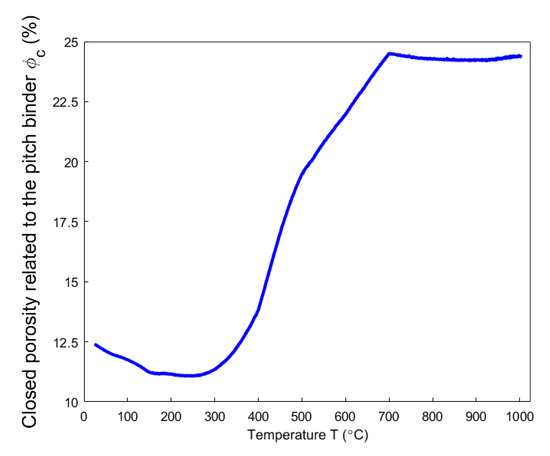

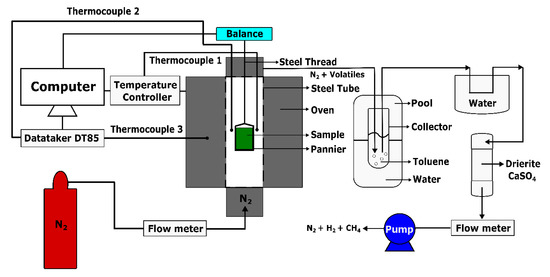

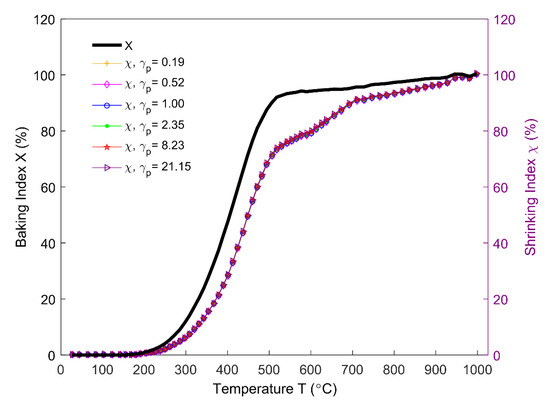

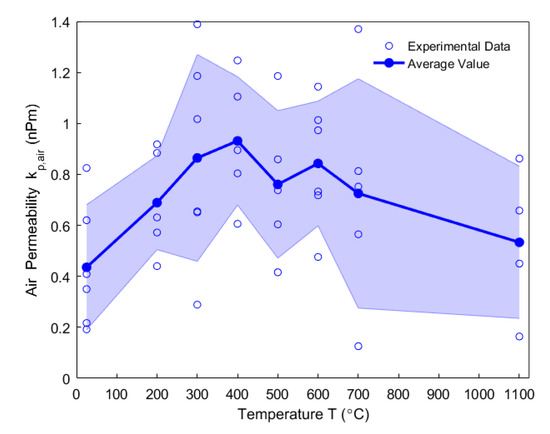

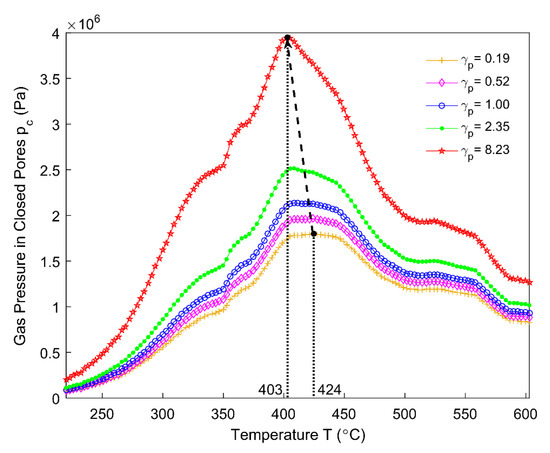

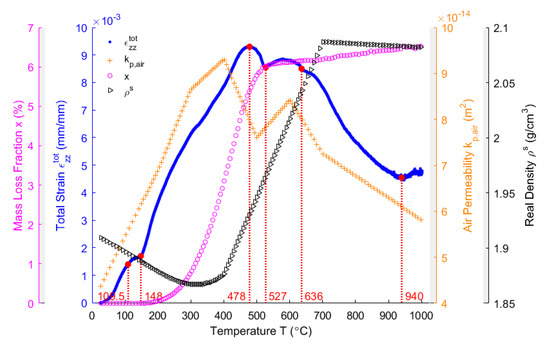

The Hall-Héroult process uses prebaked carbon anodes as electrodes. The anode’s quality plays a crucial role in the efficiency of the aluminium production process. During the baking process, the anode undergoes complex physicochemical transformations. Thus, the production of high-quality anodes depends, among others, on the efficient control of their baking process. This paper aims to investigate the evolution of some physical properties of the anode paste mixture during the baking process. These properties include the mass loss fraction, real and apparent densities, the ratio of apparent volume, the permeability, and porosities. For this purpose, experiments consisting of thermogravimetric analysis, dilatometry, air permeability, and helium-pycnometric measurements were carried out. The anode permeability at high temperatures was linked to the air permeability through a permeability correlator due to experimental limitations. Moreover, the real density at high temperatures was estimated by combining real densities of the coal tar pitch and coke aggregates. Different porosities, such as the open porosity and the closed porosity related to the pitch binder, were estimated by taking the permeability at high temperatures into account. In this context, the effect of the permeability correlator, which was introduced to link the permeability at high temperatures to the air permeability, was investigated through a sensitivity analysis. These results allow an estimation of the shrinking index, a new variable introduced to reflect the baking level of the anode mixture, which is linked to the volatile that is released in both open and closed pores. Afterwards, the pore pressure inside closed pores in the coal tar pitch was estimated. The obtained results highlight some new insights related to the baking process of the anode mixture. Moreover, they pave the way for better modeling of the thermo-chemo-mechanical behavior of anodes at high temperatures. Full article

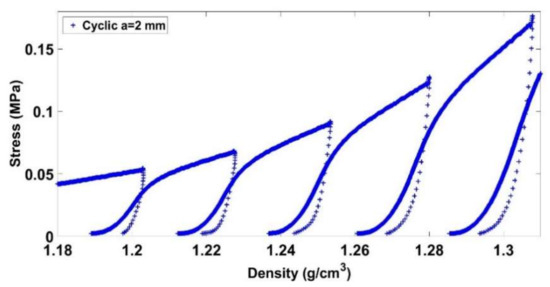

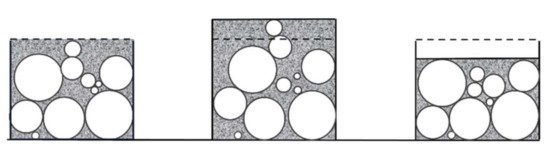

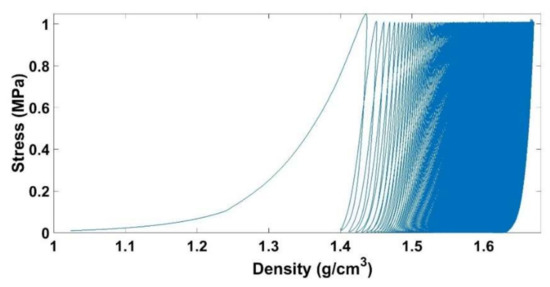

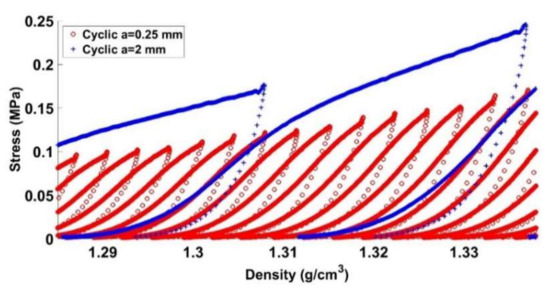

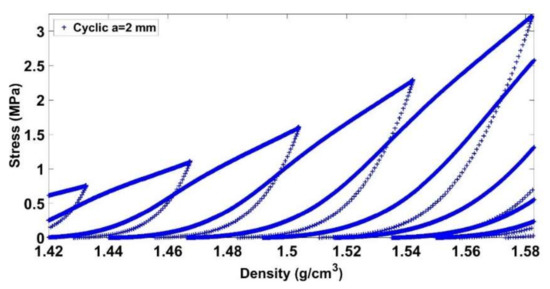

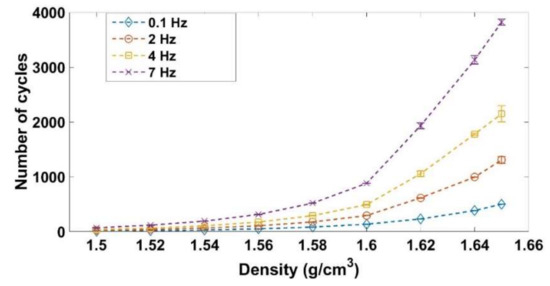

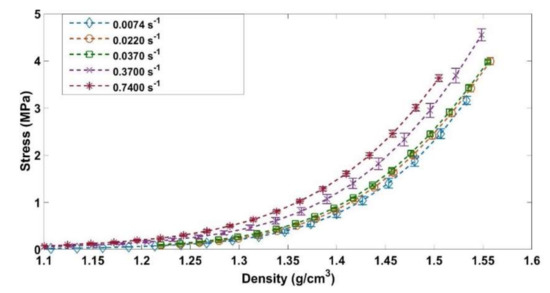

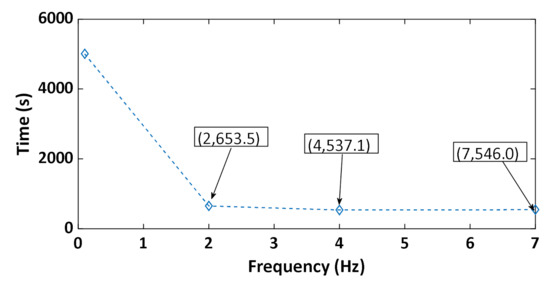

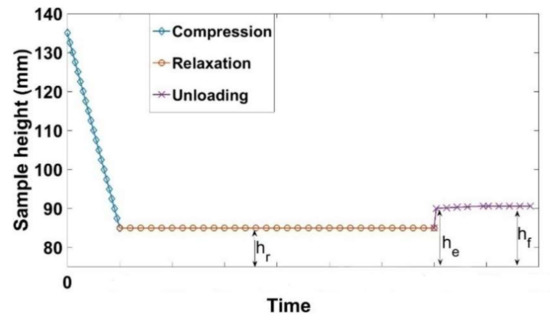

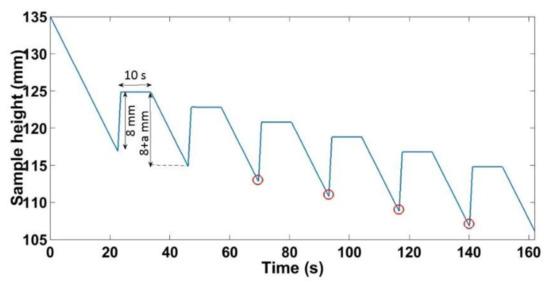

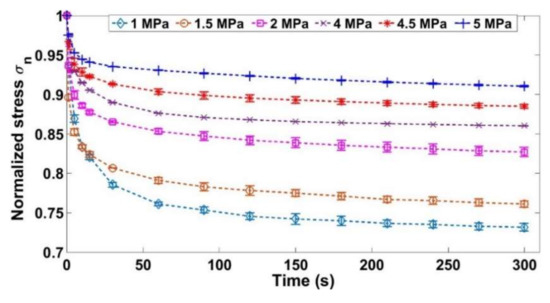

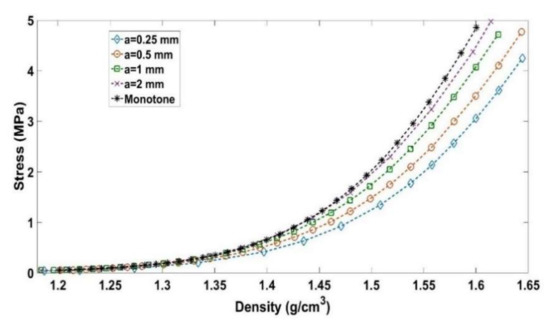

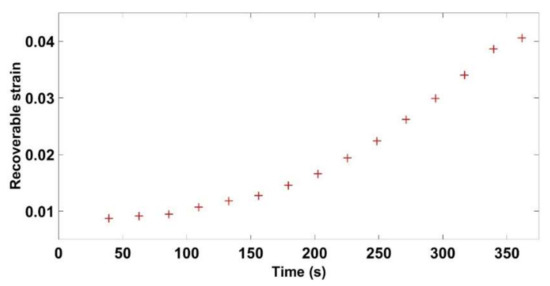

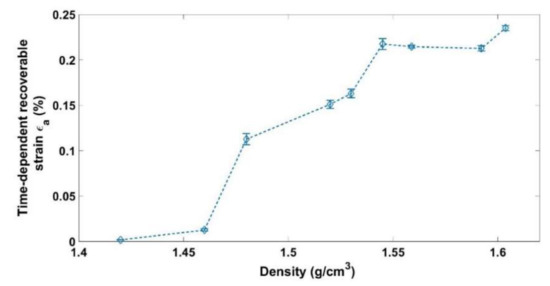

Carbon-like materials such as the anode and the ramming paste play a crucial role in the efficiency of the Hall–Héroult process. The mechanical behavior of these materials during forming processes is complex and still ill-understood. This work aimed to investigate experimentally the mechanical behavior of a carbon paste used in the aluminum industry under different loading conditions. For this purpose, experiments consisting of (1) relaxation tests at different compaction levels, (2) quasi-static cyclic tests at several amplitudes, (3) monotonic compaction tests at varied strain rates, and (4) vibrocompaction tests at different frequencies were carried out. The obtained results highlight some fundamental aspects of the carbon paste behavior such as the strain rate’s effect on the paste compressibility, the hardening-softening behavior under cyclic loadings, the effect of cycling amplitude on the stress state and the paste densification, and the frequency effect on the vibrocompaction process. These results pave the way for the development of reliable rheological models for the modeling and the numerical simulation of carbon pastes forming processes. Full article

LaBO₃ (B: Mn, Fe) perovskites were synthesized using a three-step reactive grinding process followed by a calcination at 400 °C for 3 h. The three successive steps are: (i) solid state synthesis (SSR); (ii) high-energy ball milling (HEBM); (iii) low-energy ball milling (LEBM) in wet conditions. The impact of each step of the synthesis on the material characteristics was deeply investigated using physico-chemical techniques (X-ray diffraction (XRD), N₂-physisorption, scanning electron microscopy (SEM), transmission electron microscopy (TEM), temperature-programmed reduction (H₂-TPR), X-ray photoelectron spectroscopy (XPS)) and the catalytic performances of the synthesized materials were evaluated for the toluene total oxidation reaction. Starting from single oxides, microcrystalline perovskite phase, exhibiting negligible surface areas, is obtained after the SSR step. The HEBM step leads to a drastic reduction of the mean crystal size down to ~20 nm, along with formation of dense aggregates. Due to this strong aggregation, surface area remains low, typically below 4 m²·g⁻¹. In contrast, the second grinding step, namely LEBM, allows particle deagglomeration resulting in increasing the surface area up to 18.8 m²·g⁻¹ for LaFeO₃. Regardless of the perovskite composition, the performance toward toluene oxidation reaction increases at each step of the process: SSR < HEBM < LEBM. Full article

Adding TiC particles into iron aluminide coatings has been found to improve its wear resistance, but its corrosion behavior is less known. In this study, the corrosion behavior of Fe₃Al/TiC and Fe₃Al-Cr/TiC composite coatings, prepared by high velocity oxy fuel (HVOF) spraying, was studied in 3.5 wt. % NaCl solution by means of electrochemical techniques and surface analysis. Results revealed that adding TiC particles into Fe₃Al matrix to improve the wear resistance does not deteriorate the corrosion behavior of Fe₃Al coating. It was also showed that addition of chromium to Fe₃Al/TiC composite provides a more protective layer. Full article

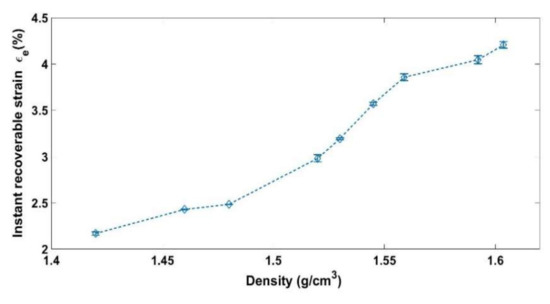

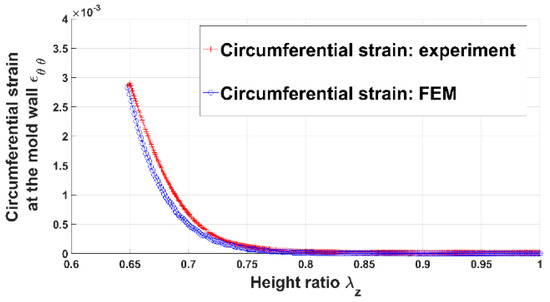

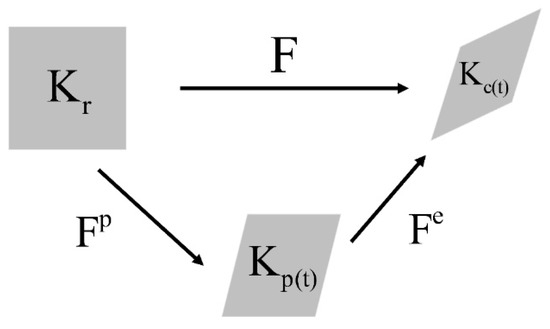

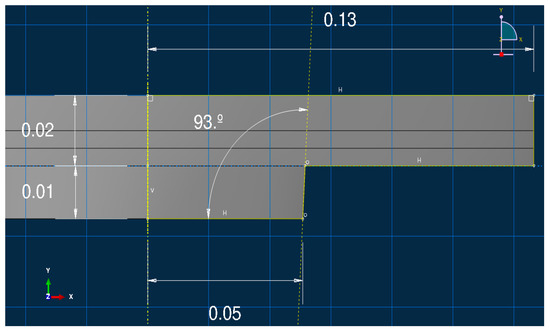

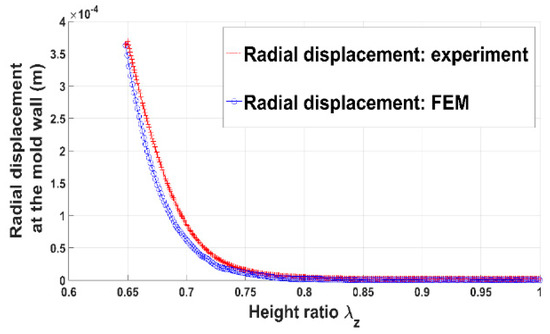

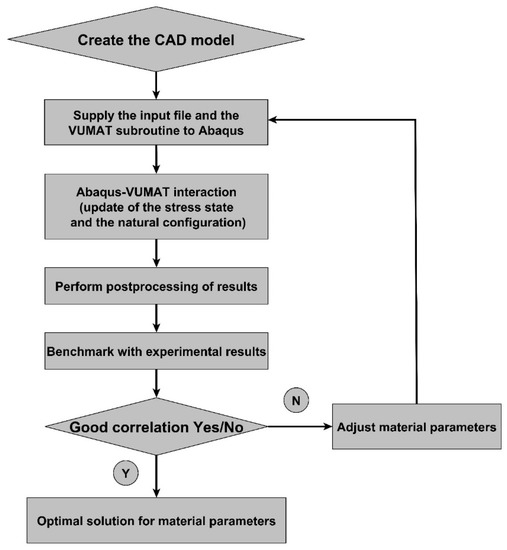

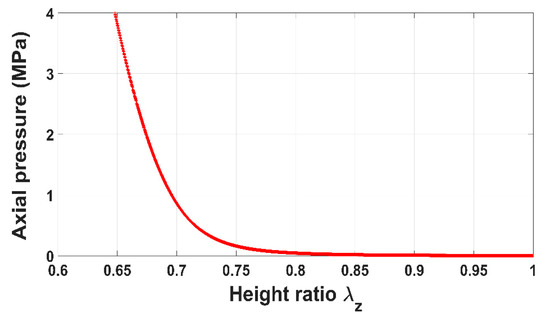

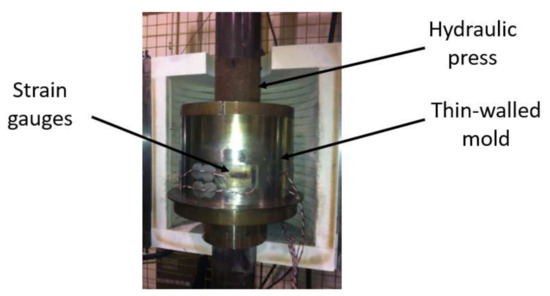

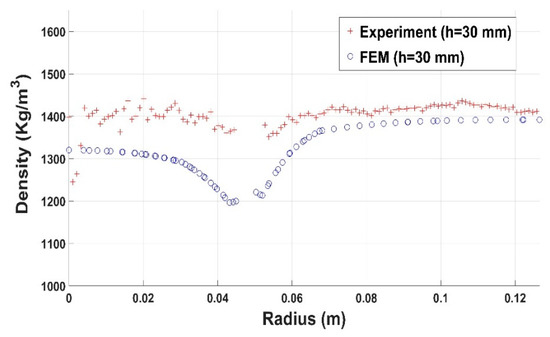

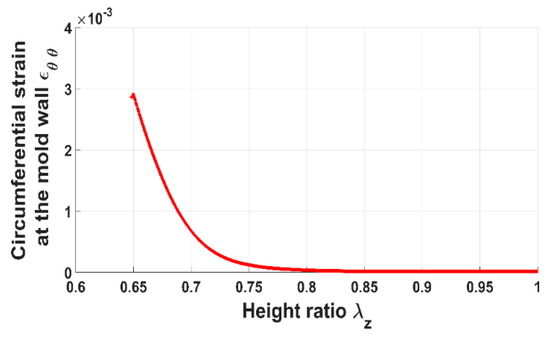

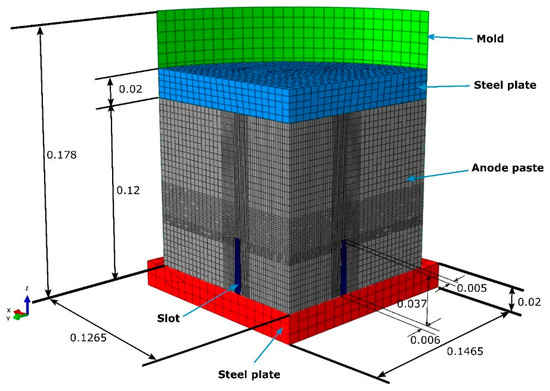

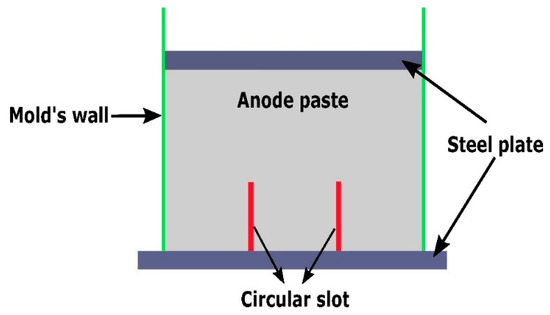

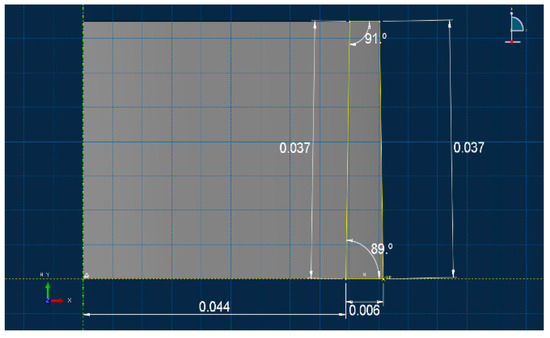

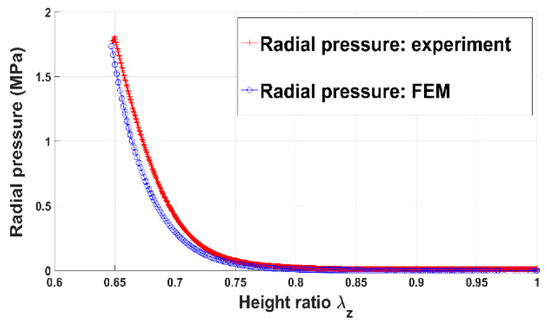

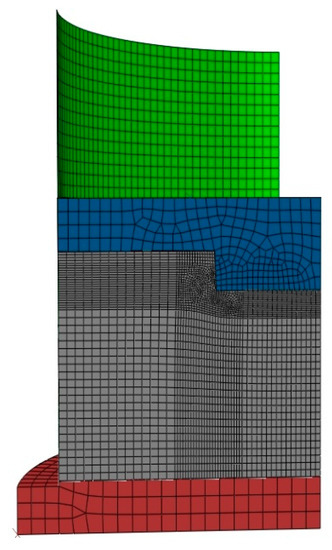

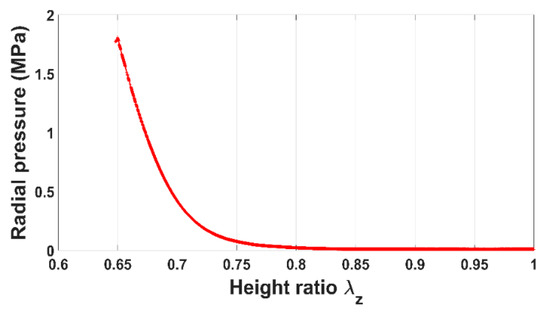

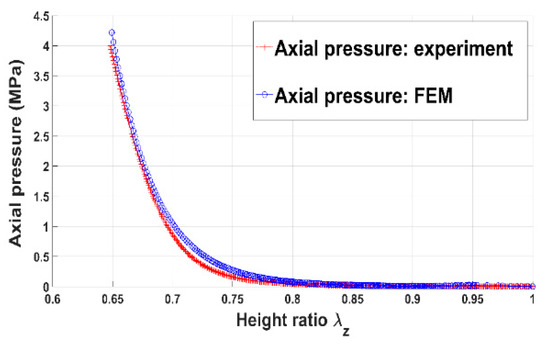

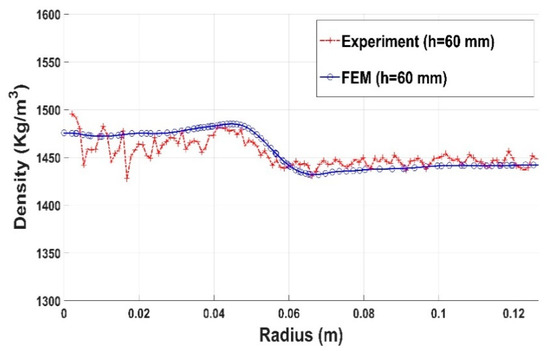

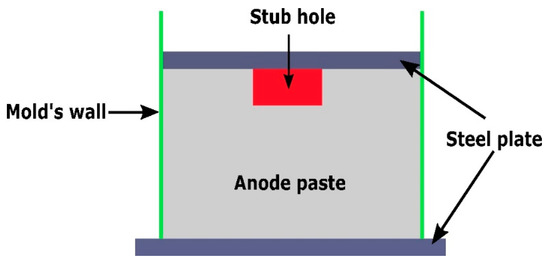

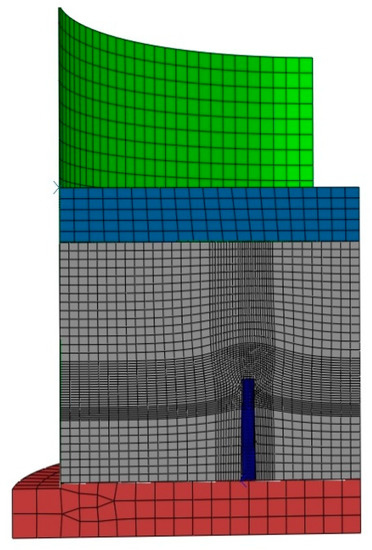

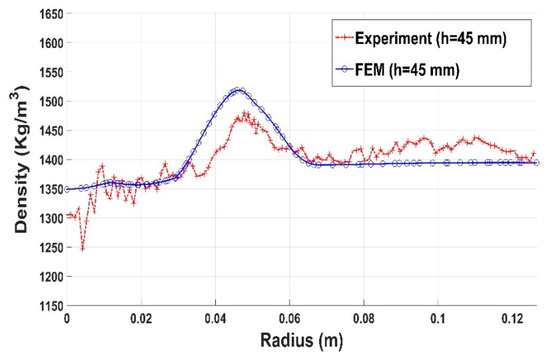

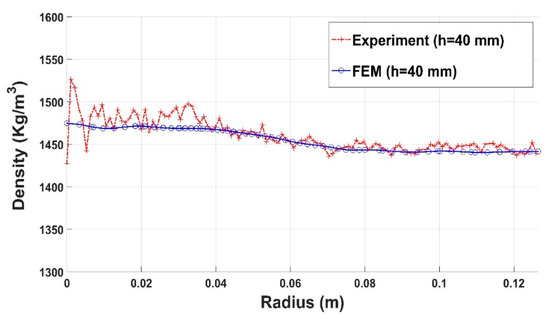

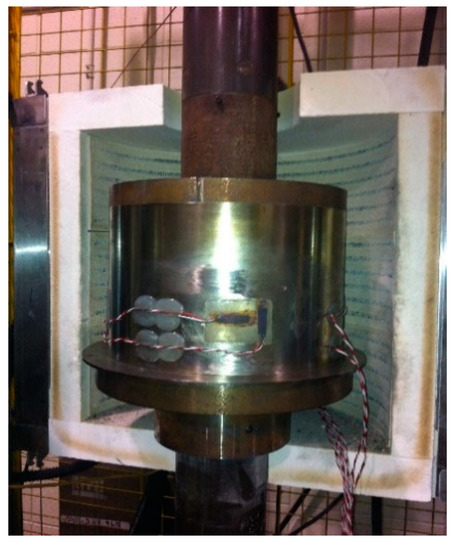

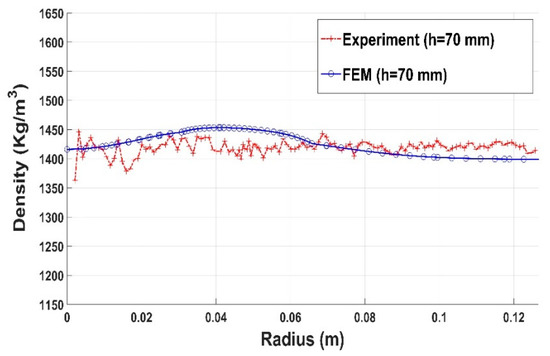

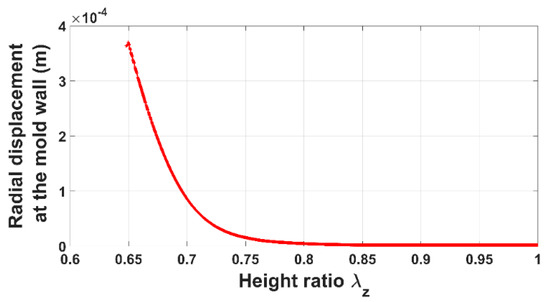

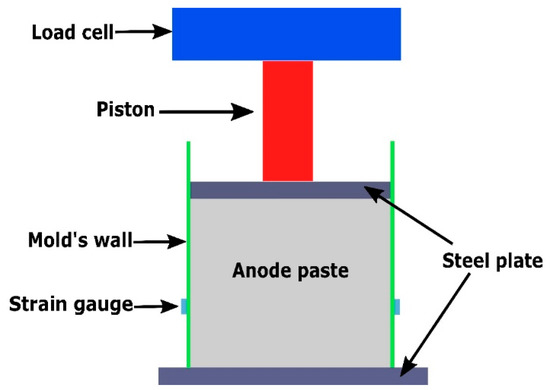

The aim of this work is to model and characterize green anode paste compaction behavior. For this purpose, a nonlinear viscoplastic constitutive law for compressible materials, based on the finite strain theory and the thermodynamic framework, was used. An experimental study was carried out to characterize axial and radial behaviors of the anode paste. To this end, simple compaction tests using a thin steel instrumented mold were performed at a temperature of 150 °C. Results of these experiments brought out the nonlinear mechanical behavior of the anode paste. Furthermore, they showed the importance of its radial behavior. The constitutive law was implemented in Abaqus software through the user’s material subroutine VUMAT for explicit dynamic analysis. An inverse analysis procedure for material parameters identification showed that the model predicts compaction tests results with a good agreement. In order to assess the constitutive law predictive potential in situations involving density gradients, compaction tests using complex geometries such as slots and stub holes were carried out. Finite element simulation results showed the ability of the model to successfully predict density profiles measured by the X-ray tomography. Full article

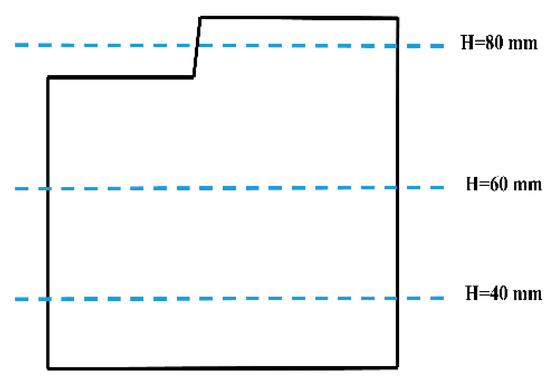

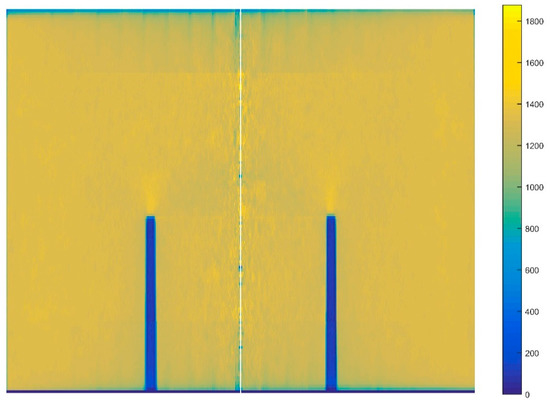

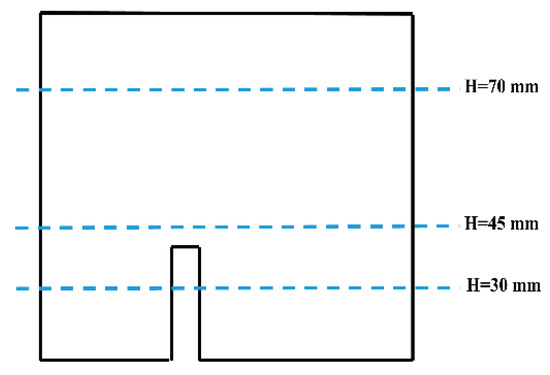

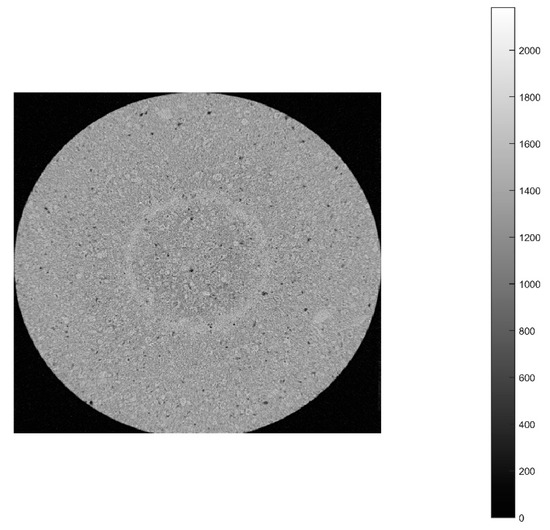

Hall-Héroult cell stability is highly affected by anode changing operations. Upon the insertion of a cold anode in the cell, a layer of molten cryolite freezes under the anode. The thickness, microstructure, and chemical composition of this layer vary as a function of time and its location in the cell. To better understand the evolution of the frozen layer, mandatory for the validation of numerical models, a measurement campaign was conducted on the anodes having a few hours of operation in the cell. The macrostructure of the selected frozen bath samples has been investigated using computed tomography while scanning electron microscope (SEM) has been used to qualify its microstructure. An energy-dispersive X-ray spectroscope (EDS) coupled to the SEM has revealed the chemical content. The results showed not only very different macrostructures between samples, but also significantly heterogeneous structure within the same sample. Nevertheless, for all samples, there is a clear distinction between the frozen cryolite and alumina/dusting phases, with the latter surrounding the cryolite matrix. Full article
