A Wearable PPG Multi-Sensor for Measurement of Skin Humidity, Temperature, and Contact Pressure ^†

Abstract

The aim of our work was to analyze the influence of changes in humidity and temperature on temporal features of sensed photoplethysmography (PPG) waves. This paper describes a special prototype of a wearable PPG multi-sensor with an integrated I2C humidity sensor and a thermometer to carry out measurements at three skin moisture levels. This sensor is supplemented with a force-sensitive resistor for the measurement of the physical contact pressure between the measuring probe and the skin surface, which can be used to sense heart pulsation in the wrist radial artery. The experiments conducted show that the performed skin manipulation (skin drying, moistening) was always detectable; the PPG signal range is mainly affected, while changes in signal ripple and heart rate variance are smaller. The detailed analysis per hand and gender type yielded differences between male and female subjects, and the results for left and right hands differed less.

1. Introduction

For monitoring the cardiovascular system, including changes in arterial stiffness and heart rate (HR), wearable optical sensors based on the photoplethysmography (PPG) principle have been successfully applied [1,2]. The current state of the skin surface, including humidity, temperature, and other factors, can influence the precision of PPG wave parameters determined from the sensed PPG signal [3].

The aim of our work was to analyze the influence of humidity, temperature, and applied contact pressure on temporal features of sensed PPG waves. This paper describes the realization of a special prototype of a wearable PPG multi-sensor with an integrated I2C humidity sensor and a thermometer to carry out the measurement of skin condition at the position of the optical sensor. The developed sensor is supplemented with a force-sensitive resistor (FSR) element, enabling it to measure the contact pressure between the PPG sensor probe and the skin surface. The FSR component can also measure heart pulsation in the wrist radial artery and perform a comparison of HR values determined from the PPG signal [4,5]. Due to its planned use in experiments inside the scanning area of an MRI tomograph [6], the current sensor prototype consists of non-ferromagnetic materials, and all parts are shielded by aluminum boxes.

After verifying the sensor’s functionality under laboratory conditions, the stability and quality of a wireless Bluetooth (BT) connection were tested in the environment of the scanning MRI device, and the received signal strength indicator (RSSI) parameter was measured. The main measuring experiment consisted of PPG signal sensing on a wrist at different levels of skin moisture (after washing the hands, after drying the skin, etc.) before each measuring phase. The database of sensed data records collected in this way was then statistically analyzed with the final aim of giving some practical recommendations from the point of view of humidity and temperature changes during long-term experiments inside the MRI device.

2. Methods

2.1. PPG Signal Description and Feature Determination

Generally, optical PPG sensors are based on either transmittance or reflectance principles. The transmittance type of the sensor probe usually has the form of a finger ring with a light source (one or more LED elements) and a photo detector placed on opposite sides of the sensed human tissue—this realization is mainly applied in pulse oximeter devices. In the reflectance type, the photo detector measures the intensity of the light reflected from the skin, and it is placed on the same side of the skin surface as the light source. Reflectance PPG sensors are typically worn on fingers or wrists as a part of wearable devices—fitness bracelets, smart watches, etc. [7]. In both types, the picked-up PPG signal contains two local maxima, representing systolic and diastolic peaks, which provide valuable information about the pumping action of the heart [8]. The amplitude of the sensed PPG signal is usually not constant but modulated, and it can often be partially disturbed or degraded. For this reason, some de-trending and filtering must be applied to the picked-up PPG signal before its analysis [9].

To describe PPG signal properties, the energetic, temporal, and statistical parameters should be determined. First, the upper and lower envelopes (E_HI, E_LOW) are calculated by low-pass filtering of the squared input signal. The absolute difference between E_HI and E_LOW mean values (μE_HI–μE_LOW) represents the PPG signal range (HP_RANGE). Its mean, together with the maximum and minimum of the upper envelope, determines the heart pulse ripple HP_RIPP = ((max E_HI − min E_HI)/μ HP_RANGE) × 100 (in %). Then, the localized systolic peak positions P_SYS are found to calculate the heart cycle periods T_HP (in samples). For the sampling frequency f_S (in Hz), the formula HR = 60 × f_S/T_HP determines the heart rate (in min⁻¹). Its mean and standard deviation specify the heart rate relative variance (in %) as HR_RVAR = σHR/μHR × 100.

2.2. Sensing and Analysis of Humidity and Temperature Values

Humidity sensors operate on the principle of a change in the electrical impedance (capacitance) at varying moisture levels. The sensor’s active component is typically a hygroscopic substance (a material that absorbs water or water vapor) [10] with a varying dielectric constant, which is detected and expressed as a change in relative humidity, RH (in %). Commercial non-contact air humidity and temperature sensors are usually based on monolithic chips containing an integrated I2C interface [11], so the RH values are provided in parallel with the temperature T1 ones.

To map relative humidity and temperature changes during the measurement with the time duration t_DUR, the linear trend is calculated from the RH and T1 sequences (RH_LT and T1_LT) by the linear least squares fitting technique. Then, the differences ∆ RH and ∆ T1 between the values taken at the start and the end of the measurement phase are determined. Finally, the gradient parameters, defined as RH_GRAD = (∆ RH/t_DUR) [%/s] and T1_GRAD = (∆ T1/t_DUR) [°C/s], are successfully used for evaluation and comparison. The positive linear trends RH_LT and T1_LT, as well as the gradient values, represent the increasing trend; the negative ones signify the decreasing trend.

2.3. Contact Pressure Determination Using an FSR-Based Sensor

The FSR element is based on a flexible, thin-film, pressure-resistive sensor whose output resistance R_FSR decreases depending on the increase in pressure applied to the sensor surface [12]. As these elements typically have a non-linear relationship between the output resistance R_FSR in kΩ and the applied pressure in kg, the conductance, calculated as G_FSR = 1/R_FSR, is mainly used to create the pressure characteristic. In practice, the pressure measurement based on the FSR component is usually carried out by a voltage divider. It consists of a supplementary pull-down resistor R1 connected to the ground. In this case, the output signal from the voltage divider is V_OUT = V_ADC × V_CC/AD_RES, where V_ADC represents the actual value after A/D conversion, AD_RES is the resolution of the A/D converter, and V_CC is the supply voltage. The final resistance of the FSR element can be enumerated as R_FSR = R1 × (1 − V_CC/V_OUT). The depicted FSR’s conversion characteristics must be linearized before the practical use of this sensor.

The FSR-based sensor can also be used for the detection and pickup of a blood pulsation signal in a vessel. Such a signal would be directly comparable with the PPG wave obtained by a PPG sensor that works on the optical principle. A sufficient contact pressure (CP) must be applied to the skin above the vessel to obtain well-detectable pulsation in the rhythm of the PPG wave’s systolic peaks (see an example in Figure 1a). Under these conditions, HR values (HR_FSR) can be successfully calculated from the FSR signal. To evaluate the correlation between heart rates determined from the PPG signal (HR_PPG) and the HR_FSR sequence (see Figure 1b), the Pearson correlation coefficient Rcc and visualization in the form of a scatter plot are often used, as shown in Figure 1c.

3. Objects, Experiments, and Results

3.1. Structure and Realization of a Wearable PPG Multi-Sensor

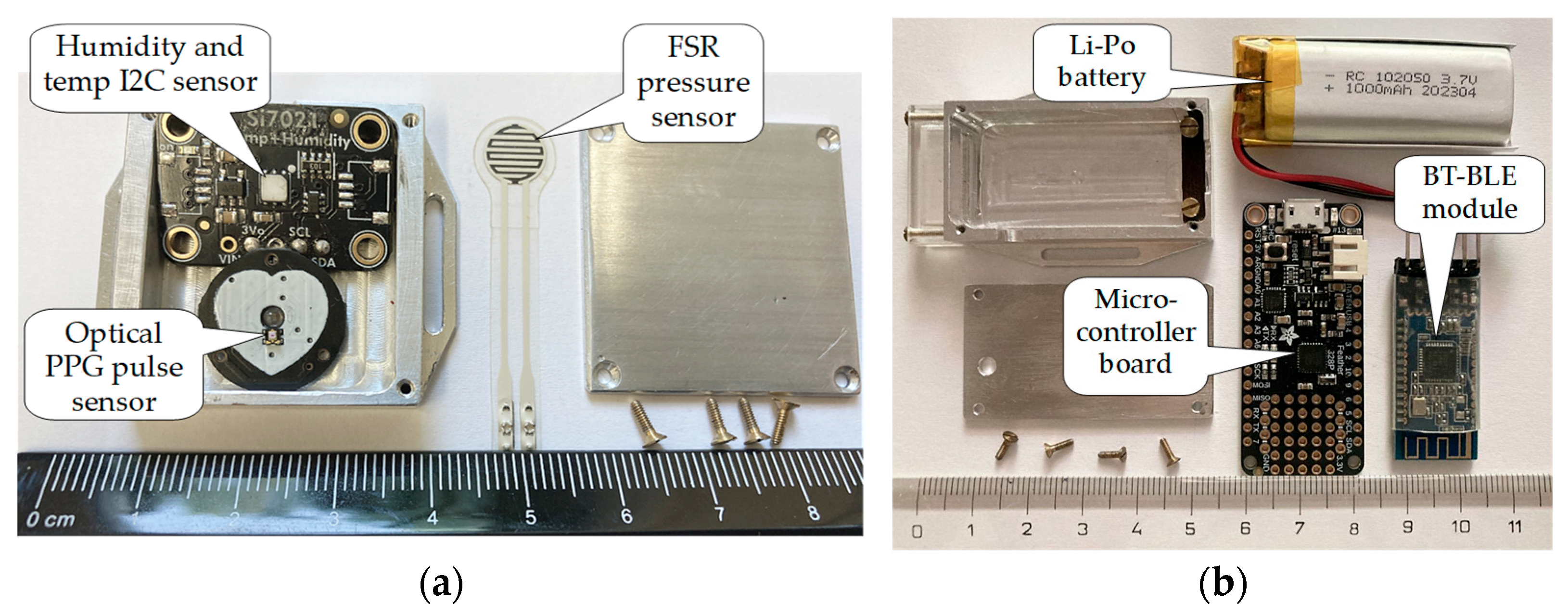

The developed special prototype of a wearable PPG multi-sensor consists of three basic parts: the measuring probe, the sensor’s body, and the battery cell for powering. The measuring probe contains the following three components:

• A reflectance optical PPG sensor with an integrated analog interface—the Pulse Sensor Amped (Adafruit 1093) [13] by Adafruit Industries, New York, NY, USA;
• An Adafruit Si7021 Temperature & Humidity I2C Sensor (Adafruit 3251–STEMA QT) [12] by Adafruit Industries, New York, NY, USA;
• An FSR-based pressure sensor, Whadda WPSE477 [14] product, by Velleman Group NV, Gavere, Belgium.

The WPSE477 component was produced as a single-point sensor with a 7.62 mm diameter sensing area and a 0.2 mm thickness. It was constructed for a pressure range up to 0.5 kg, with a measuring accuracy of ±2.5% [14]. The Si7021 chip measures relative humidity in the range of 0–80% RH (with an accuracy of ±3%) and temperature from −10 °C to +85 °C, with an accuracy of ±0.4 °C [12].

The sensor’s body part consists of an Arduino-compatible micro-controller board, Adafruit Feather 328P, by Adafruit Industries, New York, NY, USA, based on the processor ATmega328P by Atmel Corporation, San Jose, CA, USA. This processor includes eight 10-bit ADCs; it works with an 8 MHz clock frequency and uses 3.3 V logic. The Arduino board also contains integrated chips for I2C and SPI support, a hardware USART to USB converter, and a charger for lithium polymer (Li-Po) batteries [15]. For the multi-sensor wireless connection with the control device, the BT module MLT-BT05 by Techonics Ltd., Shenzhen, China, working in the BT4.0 BLE standard at 2.4 GHz [16] was used. While the whole sensor is normally powered by a 3.7 V Li-Po battery, it can also be powered by 5 V via a USB port—mainly for charging the battery cell, but also for programming the processor. The measuring probe and the sensor’s body are shielded by aluminum boxes to enable measurements in the magnetic field environment with additional radiofrequency (RF) and electromagnetic disturbance—see Figure 2.

3.2. Auxiliary Experiments and Investigations

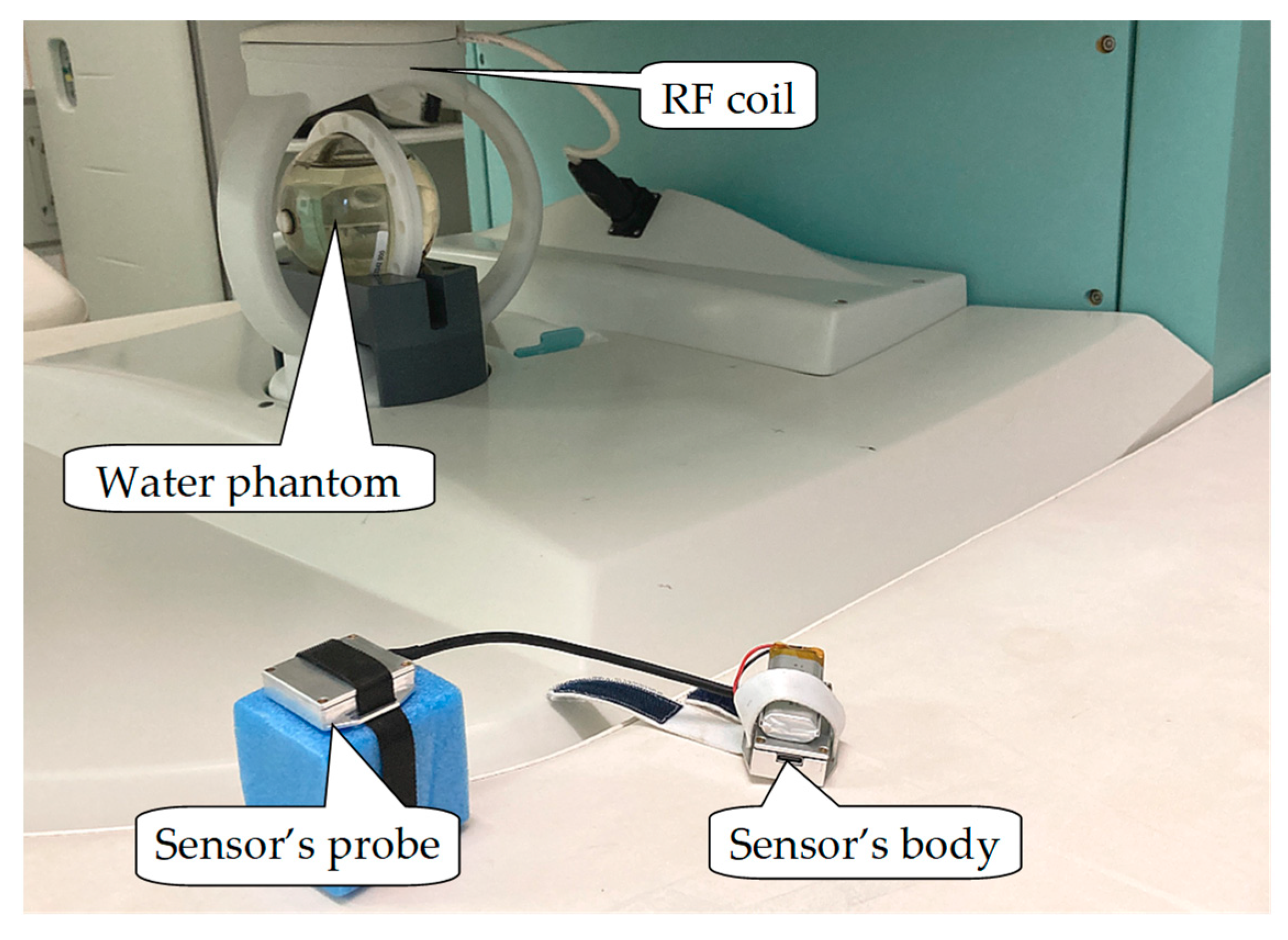

After verifying the sensor’s basic functionality in normal laboratory conditions, the stability of wireless communication and the quality of the BT connection between the sensor and the control laptop were tested under three operating conditions:

• The MRI device was ready to scan, but no MR sequence was running—open shielding cage door (OC1);
• Closed cage door without MR scanning (OC2);
• The MR scan sequence was executed—the door must be closed (OC3).

The quality of wireless communication was evaluated in the open-air MRI device E-scan Opera by Esaote S.p.A., Genoa, Italy, working with a low-static magnetic field of 0.178 T, which is located at our Institute [17]. The tested multi-sensor was present inside the scanning area of the MRI device, while the control laptop was located outside the shielding metal cage. No person was investigated for the purpose of this measurement; only a spherical water phantom (a plastic cube simulating a human wrist with the measuring probe fixed on it by a polyamide ribbon) was inserted in the RF receiving/transmitting coil—see the detail in Figure 3. The distance between the sensor and the control device was about 2.5 m, and the BT communication was operated at a rate of 57,600 bps. Within the third testing condition, the MR scan 3D-CE sequence was executed [17]. The intensity of the BT signal was evaluated by the RSSI parameter as a measure of the power level received by an RF client device from an access point [18]. The RSSI values in dBm were obtained during the BT BLE connection establishment process. The mean and std RSSI values under all three tested operating conditions (shown in

Table 1. Mean and std RSSI values measured under three conditions inside the E-Scan Opera device.

BT Module/Condition	OC1	OC2	OC3
MLT-BT05 (A)	−86.2 ± 0.3 dBm	−92.3 ± 0.5 dBm	−93.7 ± 0.8 dBm

^(A) The BT BLE module worked in the BT 4.0 standard; serial communication operated at 57,600 bps.

) were always determined from five consecutively realized individual measurements.

3.3. The Main Measurement Experiment

The main measurement experiment consisted of real-time sensing of PPG waves, humidity values, and temperature values, together with the information about the current contact pressure applied on the skin surface by a measuring probe. The tested person sat with a hand on a table in a normal office room. The measuring probe was placed on the wrist artery of the left or right hand, while the sensor’s body was fixed on the upper arm (see the arrangement photo in Figure 4). The measurements were realized at three skin moisture levels:

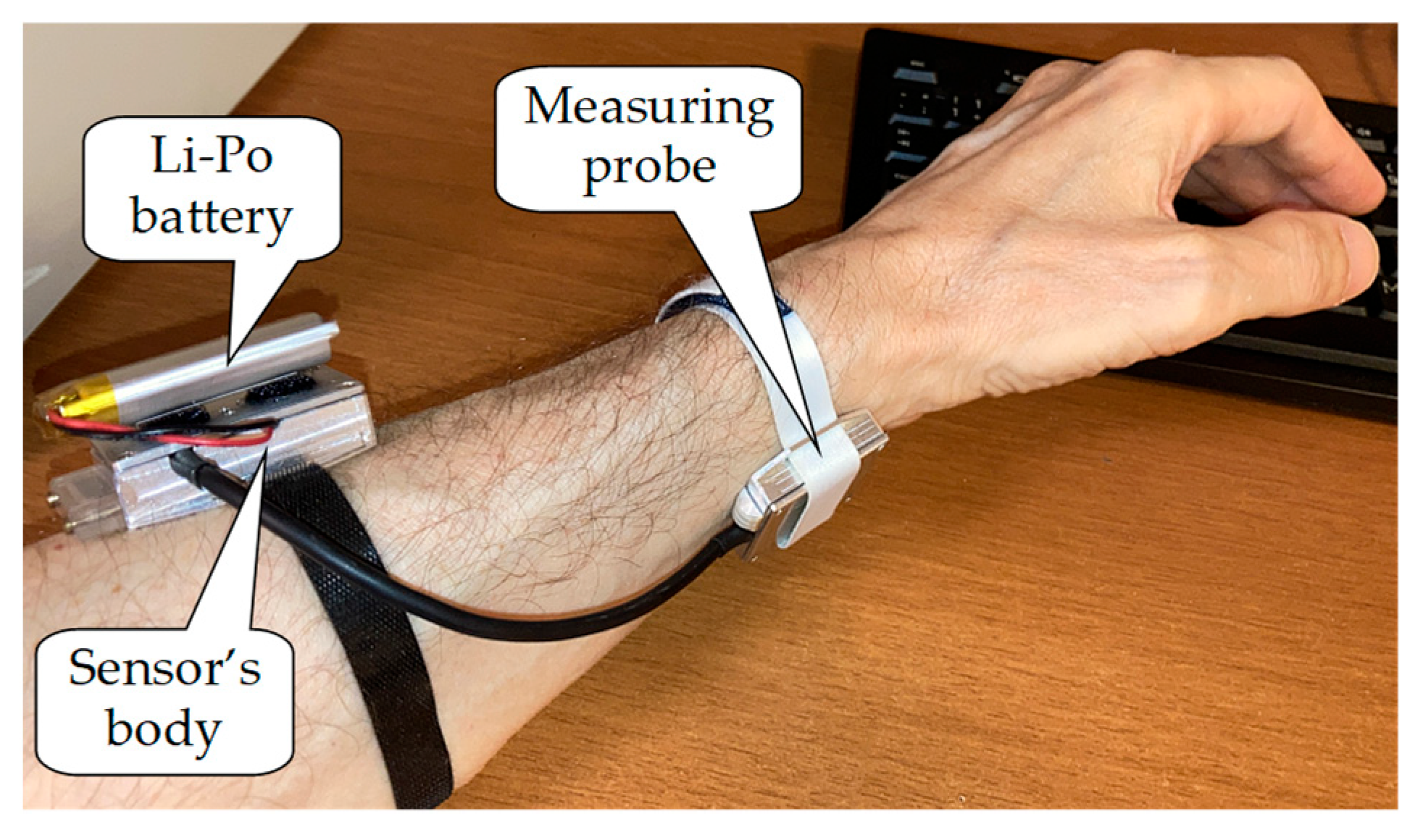

• The sensor’s probe was worn without any adjustment of the skin surface of the bottom wrist area (Normal);
• The skin surface was dried by a handkerchief (Dry);
• The skin was partially moistened by a wet cloth before wearing the probe (Wet).

The real-time measurements were performed in the following phases:

1.

The preparation phase M0, when the body of the PPG multi-sensor was attached to the arm of the tested person, BT connection with the control device was established, and the quality of the sensed PPG and pressure (FSR) signals was verified. Then, the skin surface was adjusted depending on the required skin moisture level.

2.

The first 90 s measurement phase M1, when the RH and T1 values were taken in the intervals of T_INT = 1 s. In the first 30 s of this duration, the measuring probe was freely laid on the desk (current air conditions were measured), and then the probe was put on the wrist of the tested person. At this moment, the offsets of RH and T1 sequences (RH_OFS and T1_OFS) were determined.

3.

The main measuring phase M2, with a time duration of 256 s, when the PPG and FSR analog signals (sensed using the sampling frequency f_S = 125 Hz), together with RH and T1 values (with T_INT = 0.2 s intervals), were recorded in parallel.

4.

The final 90 s measurement phase M3 started when the measuring probe was removed from the wrist. In this phase, RH and T1 values were again recorded using T_INT =1 s.

The total time duration of the whole measurement was about 8 ÷ 10 min—depending on the length of the preparation part. The total number of detected heart periods N_HP, which can be used to calculate HR values (HR_PPG and HR_FSR), depended on the actual state of the tested person during the measurement phase M2. The span change in the RH or T1 sequence during the measuring experiment with the sensor’s probe on the skin was calculated as a difference Y (RH or T1), ΔY_PON = Y_M2E − Y_OFS, where Y_M2E represents the last value received from the Si7021 chip in the phase M2 (RH_M2E or T1_M2E) and Y_OFS is the offset value taken in about the 30th second of the M1 phase.

During our experiments, a small database of real-time signal records was collected. It originated from seven non-smoker right-hand dominated volunteers (four males, P1_M–P4_M, and three females, P1_F–P3_F) with a mean age of 52 ± 18 years. The collected data records consist of six files per person in total—two from the M1 and M3 phases and one from the M2 phase, picked up from the left and right hands. They were subsequently processed off-line to determine PPG and FSR signal properties and changes in RH and T1 sequences within all measuring phases M1–3.

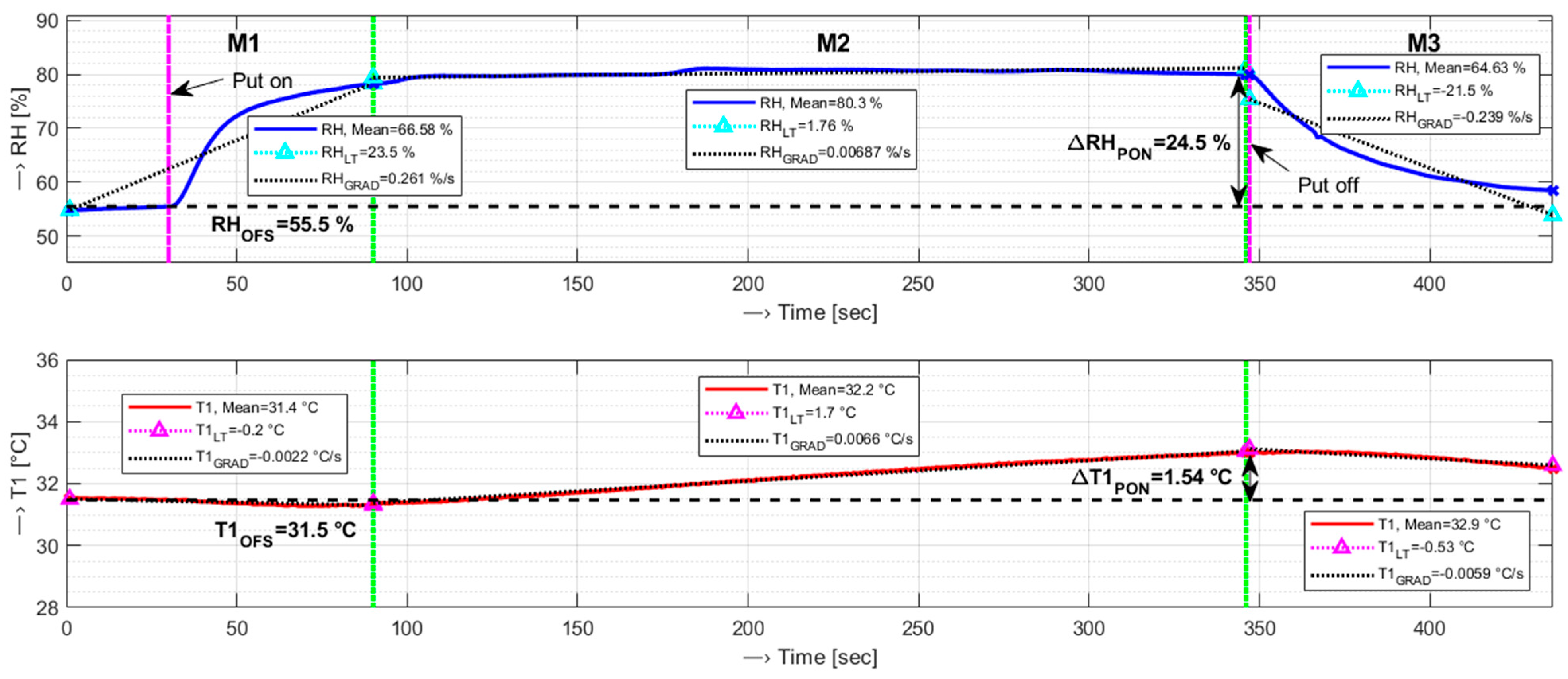

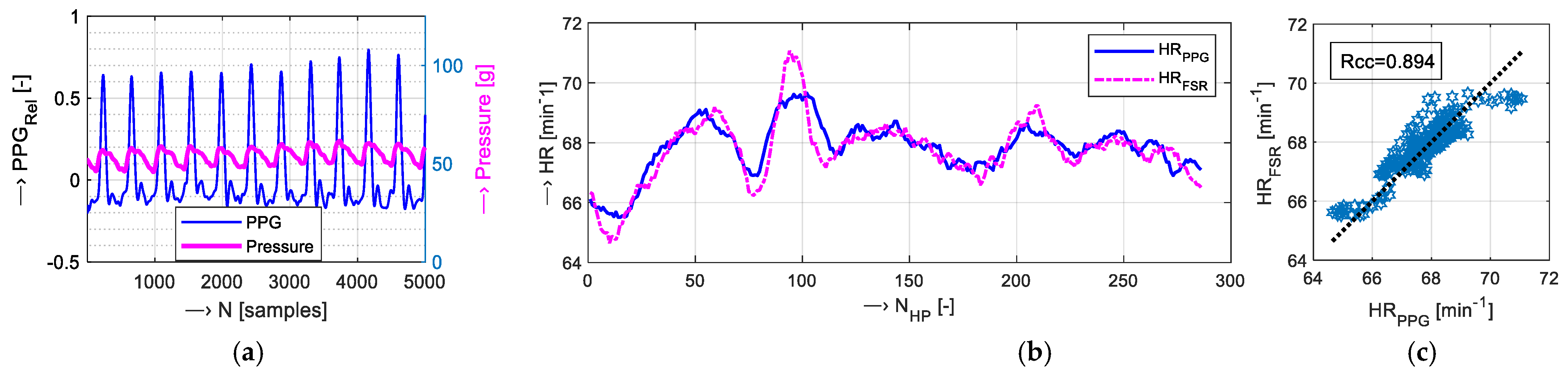

The following example describes the determination of PPG signal properties, together with parameters of RH and T1 sequences, taken from the right hand of the male testing subject P2_M at the wet skin moisture level. Concatenated RH and T1 sequences for the measuring phases M1–3, with denoted time stamps indicating when the measuring probe was put on and taken off, the determined offset levels RH_OFS and T1_OFS, and final span changes ΔRH_PON and ΔT1_PON can be seen in Figure 5.

Table 2. Partial results of PPG signal properties and HR statistical features for three skin moisture levels; right hand of the subject P2_M, applied contact pressure CP ≅ 100 g.

Condition	HPRANGE [-]	HPRIPPLE [%]	HR1RVAR (A) [%]	HR2RVAR (B) [%]	Rcc [-]
Normal	35.2	29.1	2.09	2.21	0.968
Wet	20.4	26.6	1.65	1.79	0.941
Dry	25.7	26.6	1.29	1.58	0.894

^(A) Calculated from HR_PPG. ^(B) Calculated from HR_FSR.

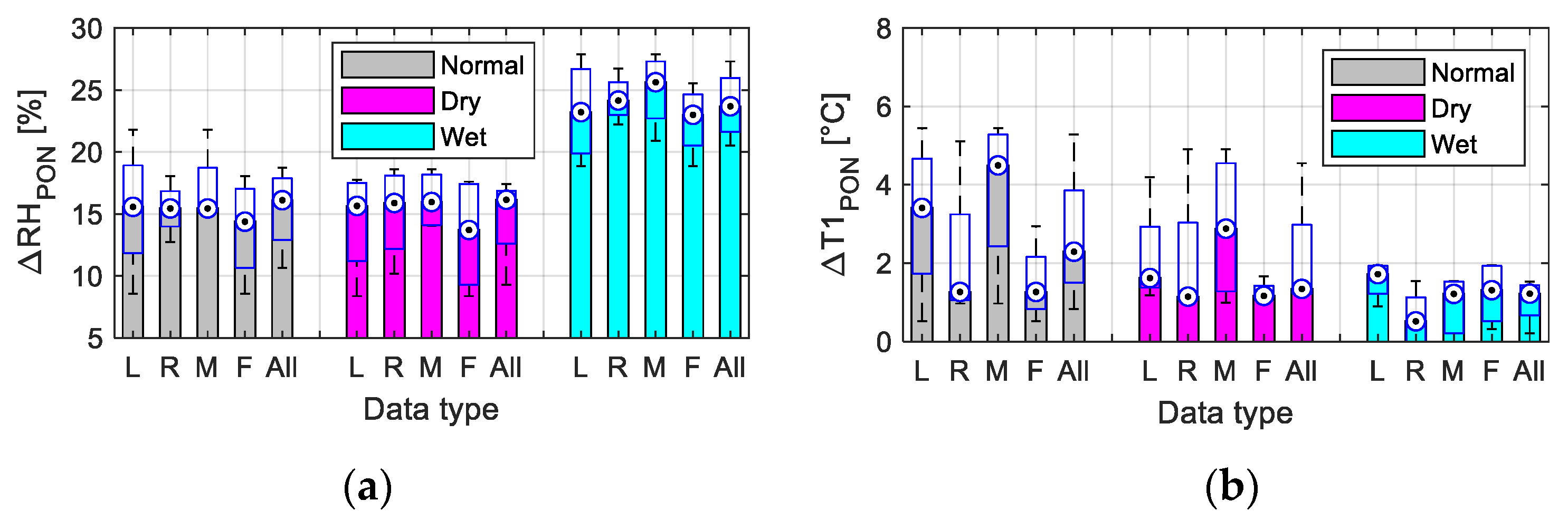

enumerates partial results for all three tested skin moisture levels. Bar graphs with box plots in Figure 6 compare differences in ΔRH_PON and ΔT1_PON parameters for three skin moisture levels, categorized by the used hand and the gender of the tested person separately. Figure 7 presents summary mean results for all tested subjects, visualized as bar graphs that track changes in the five most important PPG signal properties—HP_RANGE, HP_RIPP, HR relative variance (HR1 from HR_PPG, HR2 from HR_FSR values), and Rcc.

4. Discussion and Conclusions

The performed measurement confirms the functionality of the developed special prototype of a wearable multi-sensor that enables the measurement of PPG signals, relative humidity, temperature values, and contact pressure by an FSR element. Auxiliary experiments were used to check the practical possibility of wireless BT connection and data transfer through the shielding cage of the open-air MRI device. The minimum RSSI of −94 dBm was reached when the cage door was closed and the MR scan sequence was running, but the BT connection was stable, the real-time data transfer was still functional, and the data received from analog signals could be used for further processing and analysis.

Principally, differences exist between the skin properties of male and female subjects. Female skin has generally slightly thinner capillaries, so a lower contact pressure must be applied to obtain a proper signal from the FSR sensor—suitable for HR value detection and comparison with values obtained from the PPG signal. Therefore, we finally tried to apply the mean contact pressure of μ CP = 100 g for the male subjects and μ CP = 75 g for the female subjects.

As confirmed by visualization of the concatenated RH and T1 sequences for the measuring phases M1 and M3, the 90 s time duration was chosen properly—during the main measuring phase M2, the changes in RH were minimal (see the upper graph in Figure 5). In the case of temperature skin changes, which are affected for a longer time, a small increase in T1 values could be observed within the M2 phase. The proposed return of T1 values to the offset level during the M3 phase was not practically fulfilled, as shown in the lower graph in Figure 5. For this reason, about a one-minute time delay was finally applied before the next measurement at different skin moisture levels to minimize this undesirable effect.

The obtained results of the realized main measuring experiments show that the performed skin manipulation (skin drying and/or moistening) was well detectable—see the changes in the ΔRH_PON parameter in Figure 6. As can be seen, when moistening was applied, the highest ΔRH_PON values were achieved. From the point of view of ΔT1_PON parameters, the situation was the opposite—moistening produced the smallest values. The detailed analysis performed separately for each hand and gender indicates that differences existed in ΔRH_PON values between the results of the male and female subjects, but the results of measurements from the left and right hands differed less (not significantly). In the case of the ΔT1_PON parameter, the obtained values differed significantly for each gender as well as each hand. These conclusions must be confirmed by further experiments—at present, a small number of measurements on subjects were realized (four males and three females only).

From the point of view of PPG signal properties, different skin moisture levels are mainly expressed by changes in the HP_RANGE and HP_RIPP parameters (see the first two graphs in Figure 7). Skin manipulation does not have a direct influence on the variance in the calculated HR values (obtained mean HR variance values are comparable/similar), but in all cases, the HRs determined from the FSR signal have higher HR2_RVAR. The smallest Rcc values (HR_PPG and HR_FSR differing mostly) were obtained after the skin moistening operation, as documented by the right bar graph in Figure 7. So far, we cannot find any explanation for this effect; more measuring experiments planned in the near future could also cover this phenomenon.
