Design and Implementation of an IoT-Based Respiratory Motion Sensor ^†

Abstract

In the last few decades, several wearable devices have been designed to monitor respiration rate to capture pulmonary signals with a higher accuracy and reduce patients’ discomfort during use. In this article, we present the design and implementation of a device for the real-time monitoring of respiratory system movements. When breathing, the circumference of the abdomen and thorax changes; therefore, we used a Force-Sensing Resistor (FSR) attached to a Printed Circuit Board (PCB) to measure this variation as the patient inhales and exhales. The mechanical strain this causes changes the FSR electrical resistance accordingly. Also, for streaming this variable resistance on an Internet of Things (IoT) platform, Bluetooth Low Energy (BLE) 5 is utilized due to its adequate throughput, high accessibility, and the possibility of power consumption reduction. In addition to the sensing mechanism, the device includes a compact, energy-efficient micro-controller and a three-axis accelerometer that captures body movement. Power is supplied by a rechargeable Lithium-ion Polymer (LiPo) battery, and energy usage is optimized using a buck converter. For comfort and usability, the enclosure was 3D printed using Stereolithography (SLA) technology to ensure a smooth, ergonomic shape. This setup allows the device to operate reliably over long periods without disturbing the user. Altogether, the design supports continuous respiratory tracking in both clinical and home settings, offering a practical, low-power, and portable solution.

1. Introduction

Respiratory rate frequency provides additional levels of information about the physical and mental condition of a person. Therefore, the accurate monitoring of the respiratory system allows for a more precise diagnosis for people with certain medical conditions [1,2]. Abnormalities in the respiratory cycle are closely linked to various respiratory diseases, emphasizing the importance of understanding its dynamics [3]. The respiratory cycle consists of two main phases: inspiration and expiration. During inspiration, the lungs expand to draw in environmental air, while expiration involves the relaxation of the lungs to release a gas mixture, primarily composed of carbon dioxide [4,5]. Regarding the prediction of physical problems, we can mention the application of respiration monitoring sensors in recognizing signs of respiratory depression in patients recovering from surgery and anesthesia, detecting sleep-related breathing disorders, and, most recently, for managing patients with COVID-19 to constantly track pulmonary function [6,7]. More to the point, respiration rate can also be associated with the emotional state of a person, for instance, sadness, depression, happiness, anxiety, etc. [8]. Considering the vital role of the proper functioning of the respiratory system, keeping track of a patient’s breathing rate noninvasively has always been an issue of interest. Also, the design of these sensors must minimize the impact on the patient’s daily life and provide comfort during use [9]. A variety of research has been conducted on developing respiratory monitoring sensors. To name but a few, bed-type sleep monitoring systems have been proposed, which can be used only during sleep. Furthermore, some non-contact wearable sensors have recently been developed, which may also cause discomfort for patients due to the additional belts attached [10]. In this work, we designed a handy, easy-to-use Printed Circuit Board (PCB) containing a Force-Sensitive Resistor (FSR) to measure pressure and an accelerometer that ultimately senses the respiration signal of a patient. We can measure force by measuring the changes in FSR resistance. It is also possible to detect the motion of the body with the help of a three-axis accelerometer [11]. Further benefits of incorporating FSR and accelerometer include accuracy, cost-effectiveness, and thinness [12]. Altogether, we have developed a wearable device for capturing respiratory signals with a convenient and unobstructed design for patient use. In addition, we have offered other features, including a high precision and power consumption of 4.9 mW.

2. Methods

2.1. Hardware Overview

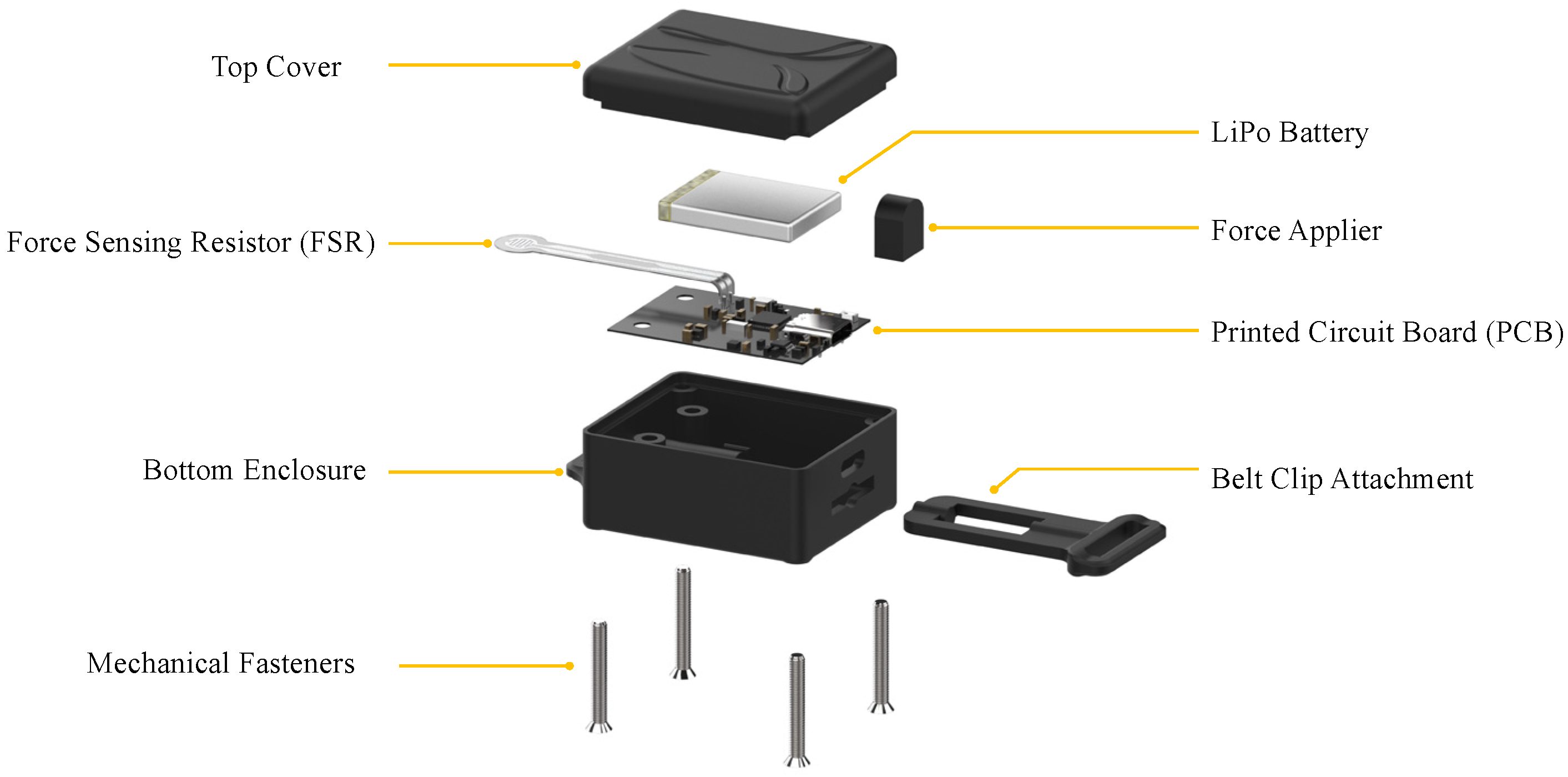

The goal of this research is to design a device that can measure respiration rate through the measurement of chest movements. The components of this device had been selected according to their low power consumption, functionality, and high relative accuracy. An overview of the proposed device’s physical structure and internal components is shown in Figure 1.

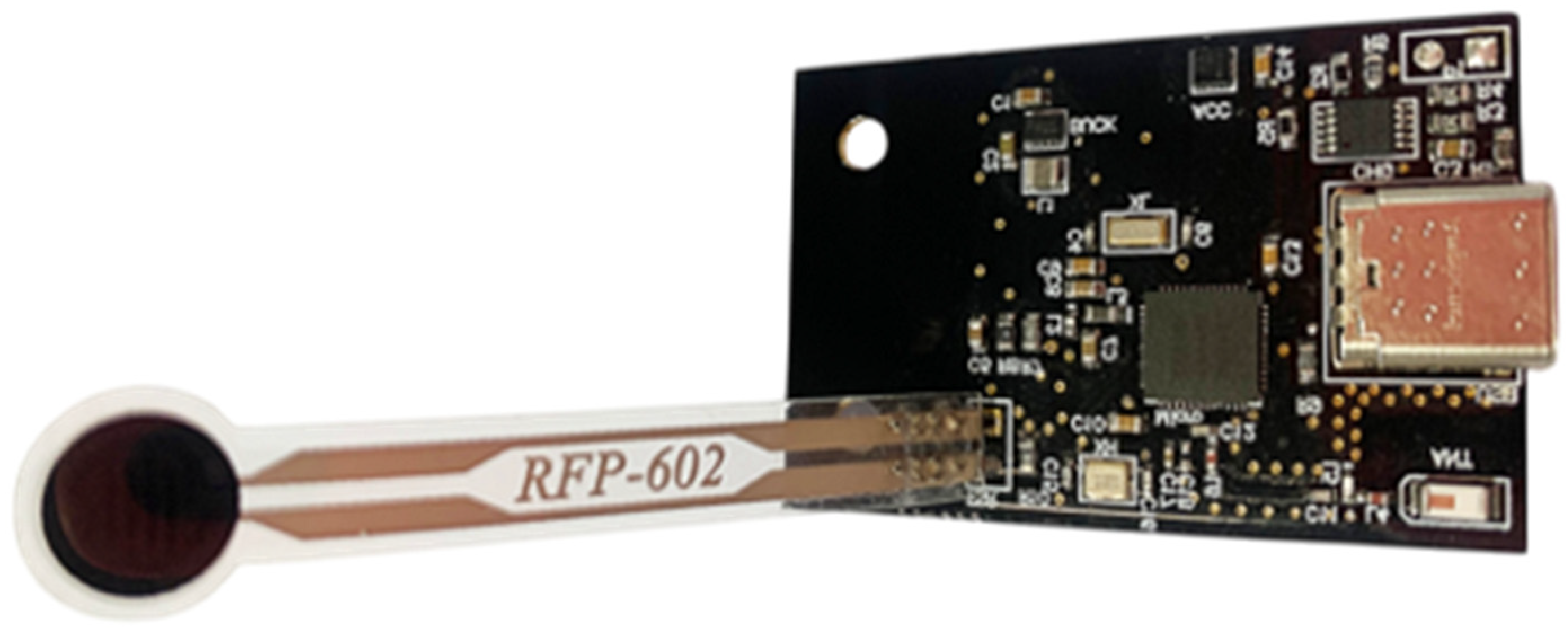

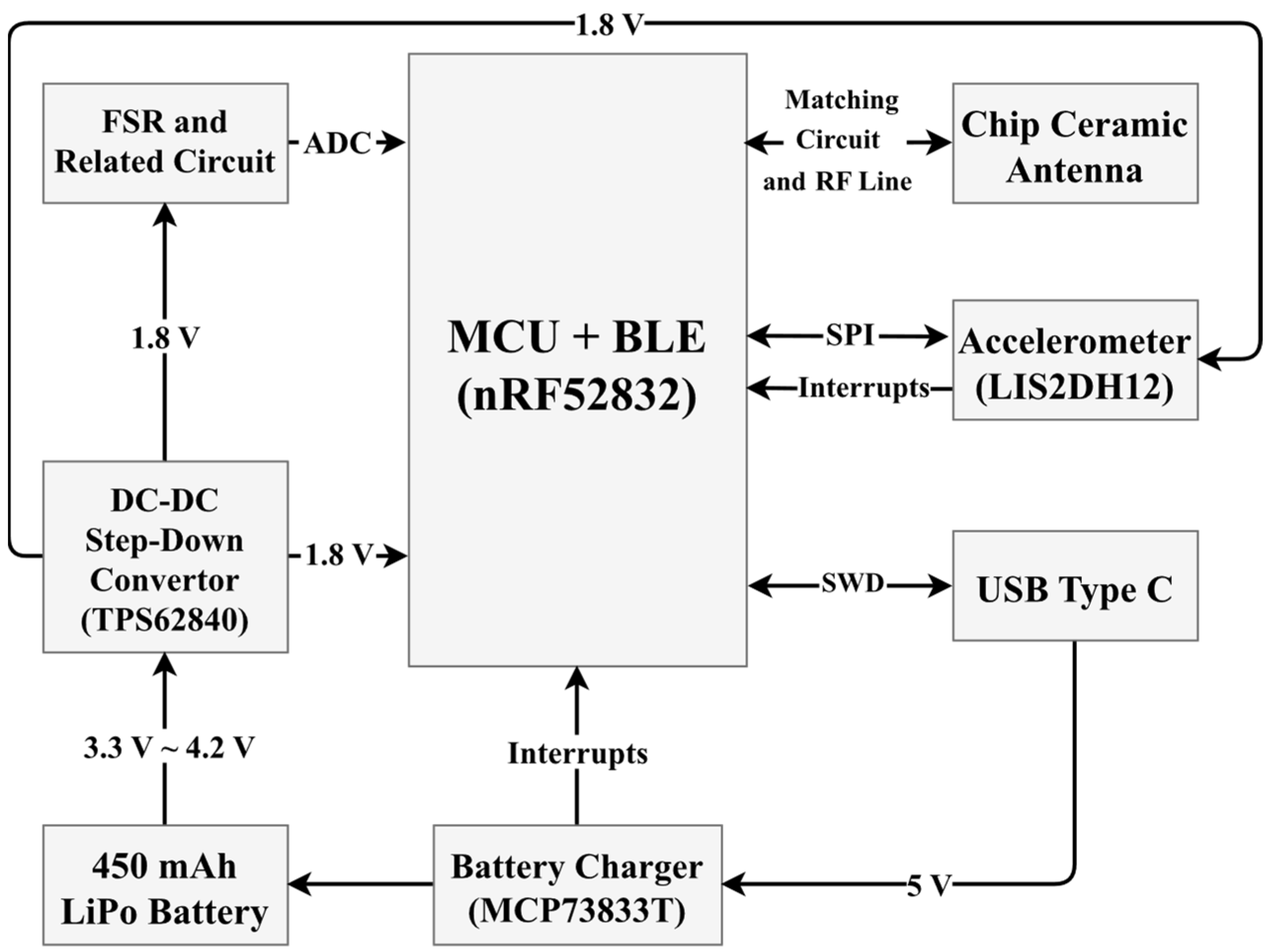

As depicted in the hardware diagram (Figure 2) and the assembled PCB layout (Figure 3), an ARM Cortex M4F processor and various peripherals, such as Bluetooth Low Energy (BLE) 5, are deployed [13]. Additionally, there is a USB type-C jack that is connected to the battery charger (MCP73833T) to charge a 450 mAh Lithium Polymer (LiPo) battery [14]. LiPo batteries can meet the needs of medical device applications due to their remarkable features like good cycle life, rechargeability, light weight, and high energy density [15]. It has an accelerometer (LIS2DH12) for detecting user motion [11]. A high-efficiency miniature DC-DC switching buck converter must be used to supply 1.8 V from the LiPo battery to the FSR, Micro-Controller Unit (MCU), and related circuits. TPS62840 is an excellent choice for this goal. It also has enough load capability [16].

2.2. Micro-Controller Unit (MCU)

We used nRF52832 as the MCU. It has a low-power 32-bit ARM Cortex M4F processor. Also, BLE 5, which has enough throughput and a low power consumption, exists in nRf52832 as a peripheral. The processor has other peripherals, as well as General Purpose Input/Outputs (GPIOs) and an Analog to Digital Converter (ADC). Both battery percentage and FSR are measured using ADC.

2.3. Force-Sensitive Resistor (FSR)

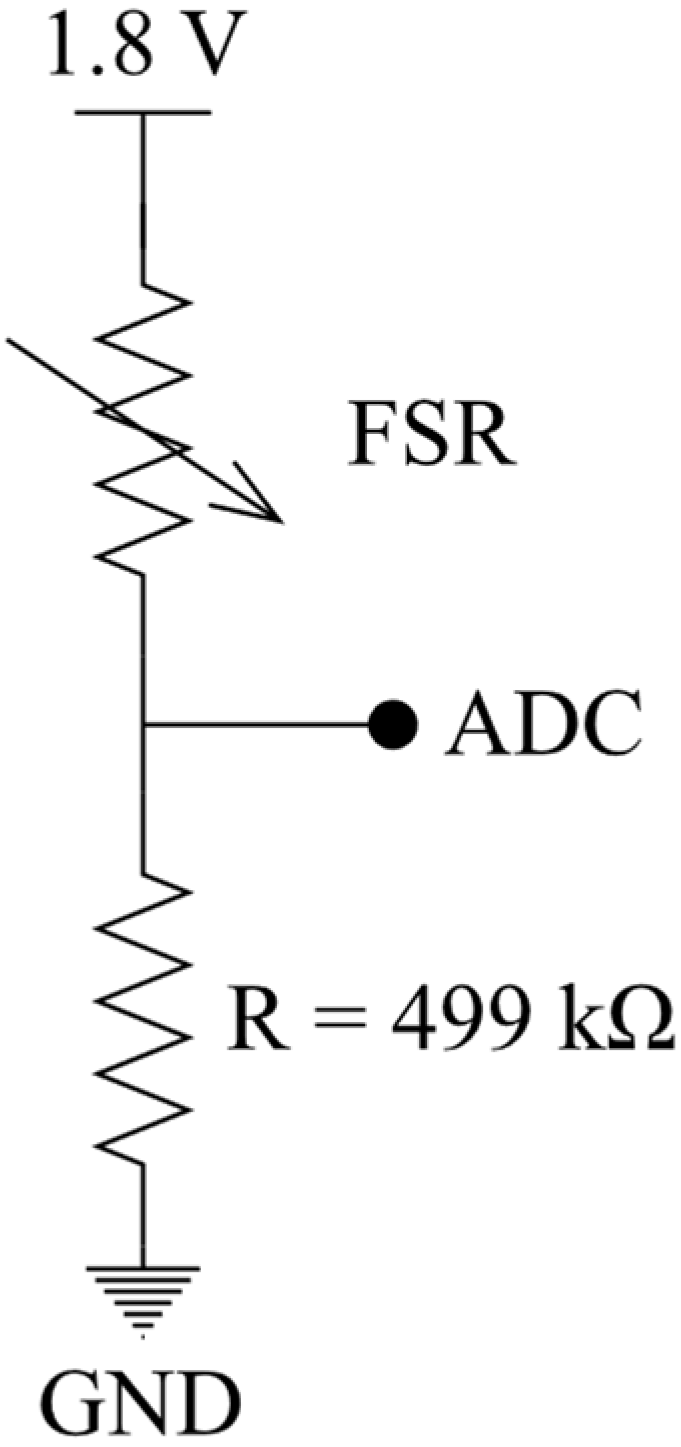

An FSR, whose electrical resistance decreases the more force is applied to its surface, is used in this work. An FSR has some advantages over strain gauges or load cells, like cost efficiency, a low profile, and excellent force mapping application (changes occur significantly when the pressure is applied to the FSR surface), and also ensures patient comfort [17,18,19]. As shown in Figure 4, to measure the force applied, a voltage divider is implemented by placing a fixed resistor (499 kΩ) in a series with the FSR, which acts as a variable resistor. By increasing the pressure on the FSR, the resistance of the FSR decreases.

The output voltage can be obtained using Equation (1). With the addition of the ADC, we are able to sample the electrical resistance, thereby measuring the force.

$$V_{out}=V_{dd}\times {\displaystyle \frac{R}{\left(R+R_{FSR}\right)}}$$

(1)

2.4. Power Management

To supply the device, we use a rechargeable 450 mAh Lithium Polymer (LiPo) battery. A LiPo battery has been chosen for our device due to its high energy density, rechargeability, and decent cycle life. A further advantage of these batteries is their light weight, flexibility, and leak resistance. Also, we incorporate a buck converter (TPS62840) to regulate the battery voltage (3.3~4.2 V) to 1.8 V in order to supply the elements that require this voltage. Using a switching converter enhances the battery life and efficiency. A battery charger (MCP73833T) charges the battery through a USB type-C connector. Moreover, an ADC measures the battery charge every 2 s. Then, through a resistor divider, the battery voltage is scaled to the micro-controller voltage for the purpose of sending a percentage level and ultimately charging status via BLE.

2.5. Accelerometer

LIS2DH12 is a low-power, high-performance 3-axis accelerometer that detects motion, tracks physical activity, and identifies unexpected movements.

2.6. Firmware

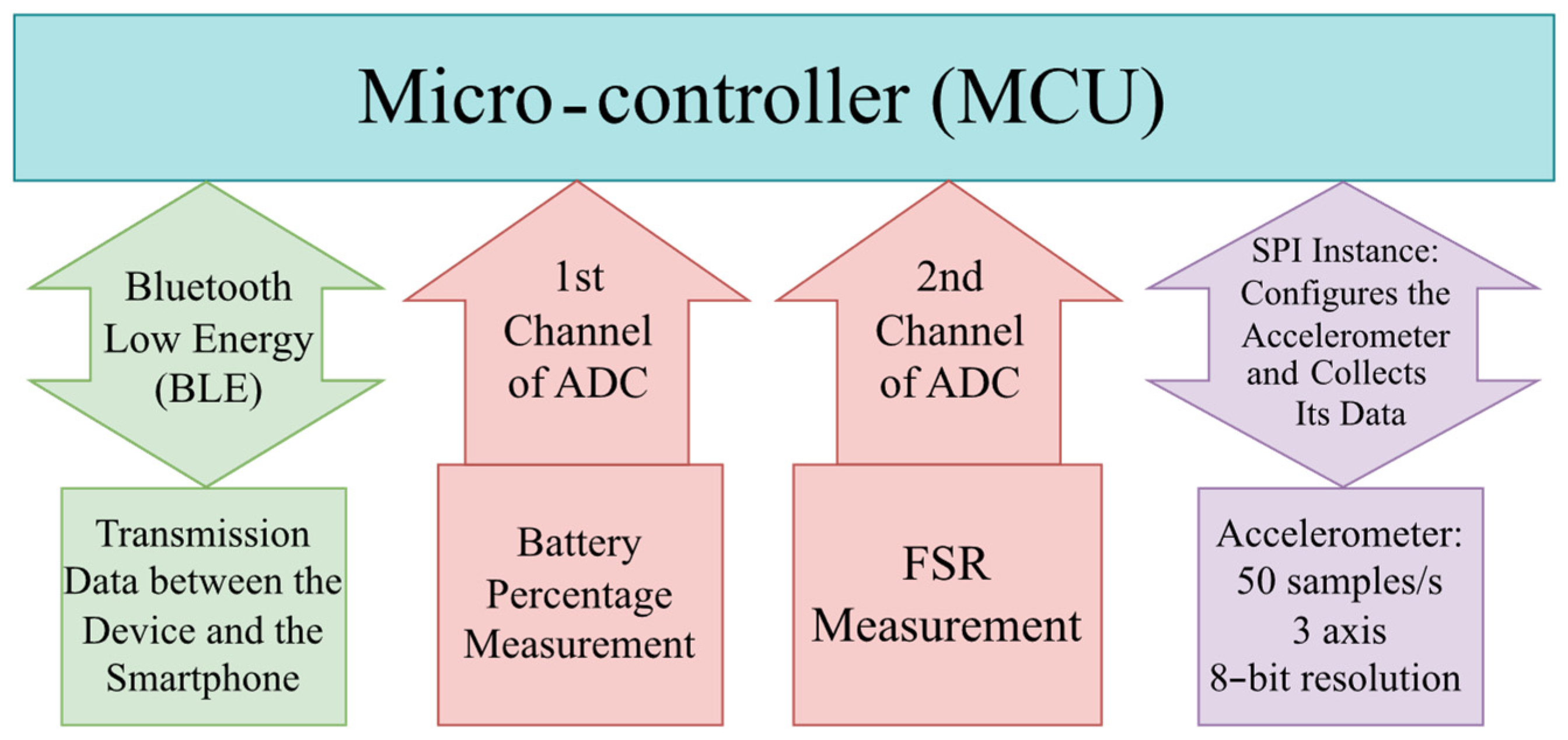

As shown in Figure 5, the data is sent through the device to a smartphone using Bluetooth Low Energy (BLE) 5. It also indicates the battery percentage. The first channel of the ADC measures the battery percentage, and the second channel measures the FSR pressure. The accelerometer streams the data at 50 samples per second.

2.7. Body Design

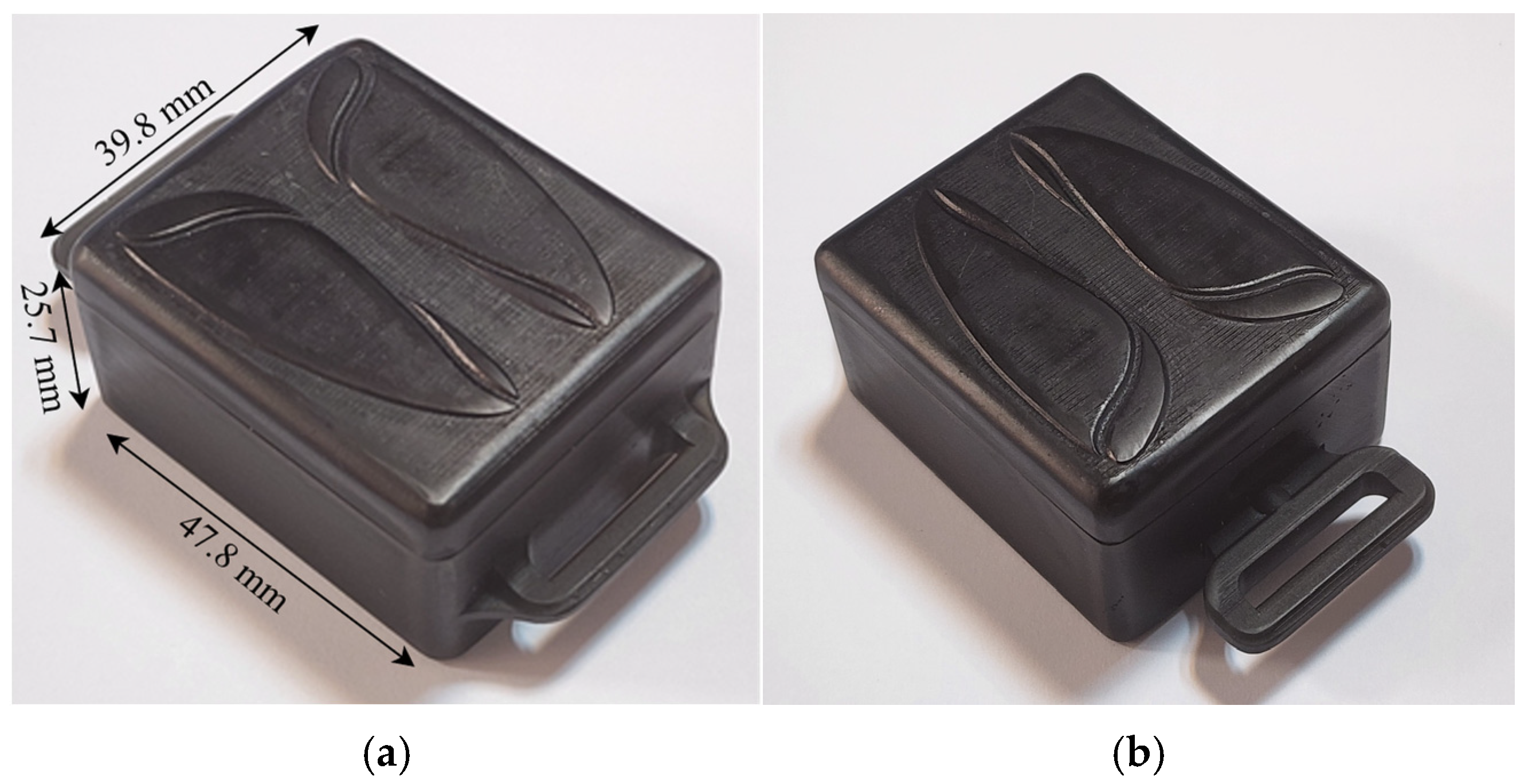

The enclosure of this device (Figure 6) is manufactured by Stereolithography (SLA) resin printing due to its high accuracy, isotropic, high thermal durability, and high finish surface [20]. The material used for printing is ABS-like (Acrylonitrile Butadiene Styrene) resin. Although it might be a little more expensive than standard resin, it has greater impact resistance, tensile strength, and durability [21,22]. The implementation of the respiration monitoring device succeeds in delivering a sturdy, user-friendly, and efficient practical device.

3. Results and Discussion

Several devices have been developed to measure respiration rate using a variety of designs, including skin electrodes, respiration belts, and sleep-related respiratory sensors. However, the advantages of good comfort, a high Signal-to-Noise Ratio (SNR), the possibility of the real-time monitoring and long-term detection of biological signals make sensors placed directly on the skin a suitable choice for respiratory sensors, among other types [23]. There are also several technologies for measuring pressure, including load cells, strain gauges, and FSRs. Each of these approaches has its pros and cons, and one must choose the one that produces the best results in terms of accuracy, efficiency, and cost [24,25].

In our work, we used FSR for pressure sensing. For a further comparison of force-sensing devices and why FSR was explicitly chosen, refer to

Table 1. A comparison between various sensors and their features.

Sensor Type	Advantages	Limitations
Force-Sensing Resistor (FSR)	Small size, low cost, good shock resistance and linear transfer function for small forces, high durability, no battery usage, capable of measuring a wide range of forces because they can be manufactured in different shapes and force ranges [26,27,28]	Non-negligible hysteresis for high force values, non-linearity at high forces, low repeatability, temperature sensitivity, aging drift, need for calibration [28]
Strain Gauge	Small size, multi-axis measurement, resistant to temperature changes, accuracy, linearity [29]	Sensitive to electromagnetic noise and changes in temperature [29]
Load Cell	Accuracy and reliability, wide measurement range, excellent linearity, strong resistance to temperature variation [30]	Bulky in size, rigid in construction, expensive electronic, higher power consumption than FSRs [26]
Capacitive Force Sensor	Low power consumption, large bandwidth high sensitivity, high resolution [31,32,33]	Complex circuit, sensitive to noise, sensitive to temperature [31,32,33]
Optical Force Sensor	High sensitivity to changes, flexible, high sensitivity [29,31]	Energy consumption, high price, bulky in size, light sensitivity [29,31]

.

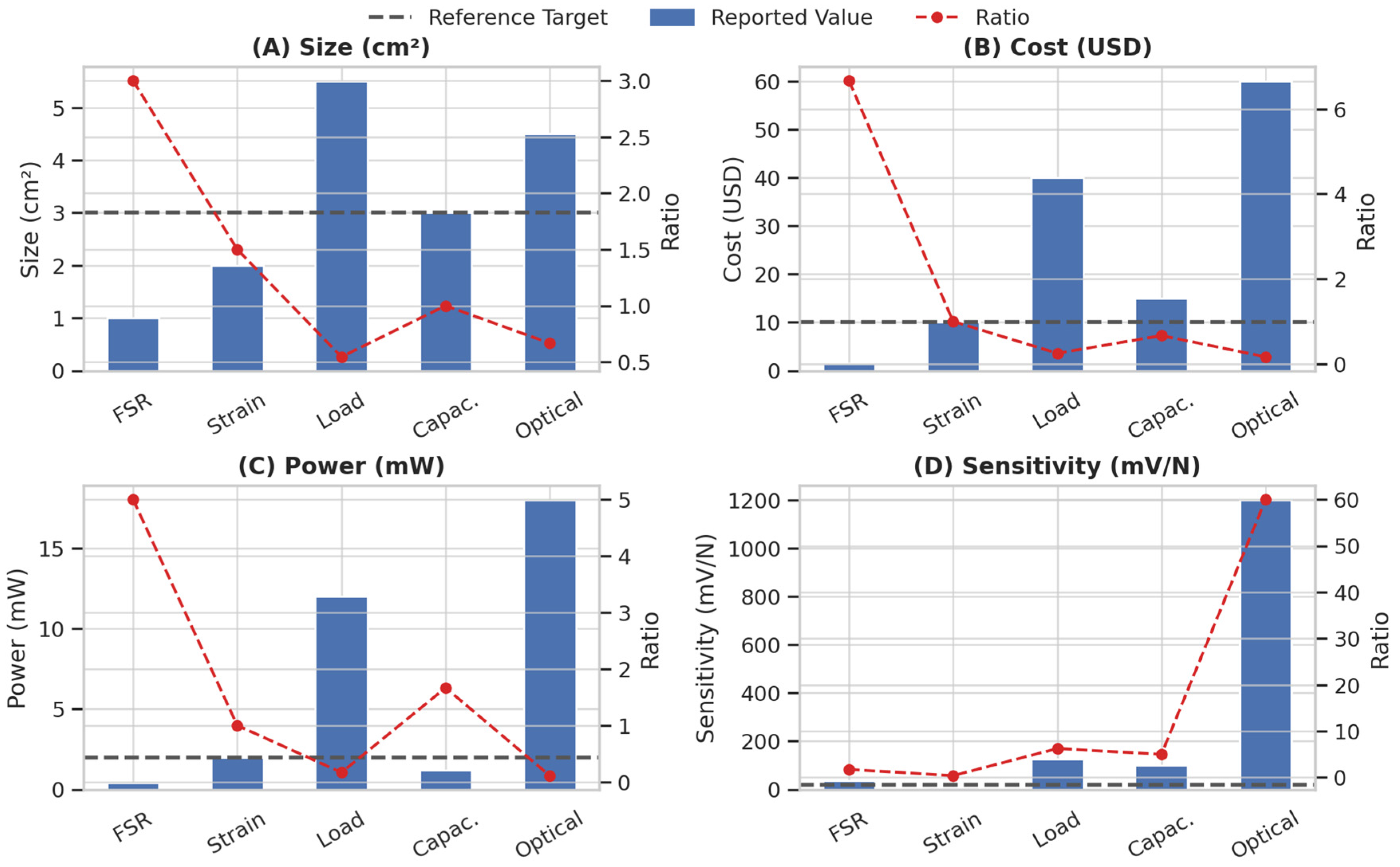

Figure 7 illustrates a comparative analysis of five sensor types across four key metrics: size, cost, power consumption, and sensitivity. FSRs demonstrated the smallest form factor, lowest cost, and minimal power consumption, making them highly suitable for wearable applications. Although optical sensors show the highest raw sensitivity, they perform poorly in terms of size, power, and cost. Comparing devices using FSRs with ones using strain gauges, we find that when the same force is applied to the sensor, there is a broader swing in the FSR’s output than in strain gauges. As an additional advantage, FSR technology has overload cells and strain gauges with its minimally invasive form factor, thin shape, and capability to cover a wider sensing region if needed. As stated above, as a result of the dramatic changes in the FSR resistance of FSRs with pressure, any force applied due to respiration can be easily observed. Based on all these considerations, we decided to implement an FSR into our wearable sensing device. Biosensing technologies and systems on chips play an important role in clinical diagnostics, and environmental monitoring [34,35]. As future work, artificial intelligence can be integrated into wearable FSR sensors to enable automated signal interpretation, adaptive calibration, inverse design, and improved robustness against noise and motion artifacts [36]. Advanced AI methods such as nonlinear dimensionality reduction (NLDR) [37], large language models (LLMs) for multimodal data fusion and clinical-context–aware interpretation [38], graph neural networks (GNNs) for modeling spatial–temporal dependencies across sensor networks and body locations [39], and generative adversarial networks (GANs) for realistic data augmentation, denoising, and missing-signal reconstruction [40], together with Green Learning (GL) frameworks for energy-efficient, and resource-aware on-device learning [41], can further enhance the reliability, scalability, and sustainability of FSR-based sensors. Such AI-enhanced sensors can support real-time decision making, personalized health monitoring, and large-scale deployment in everyday healthcare settings.

4. Conclusions

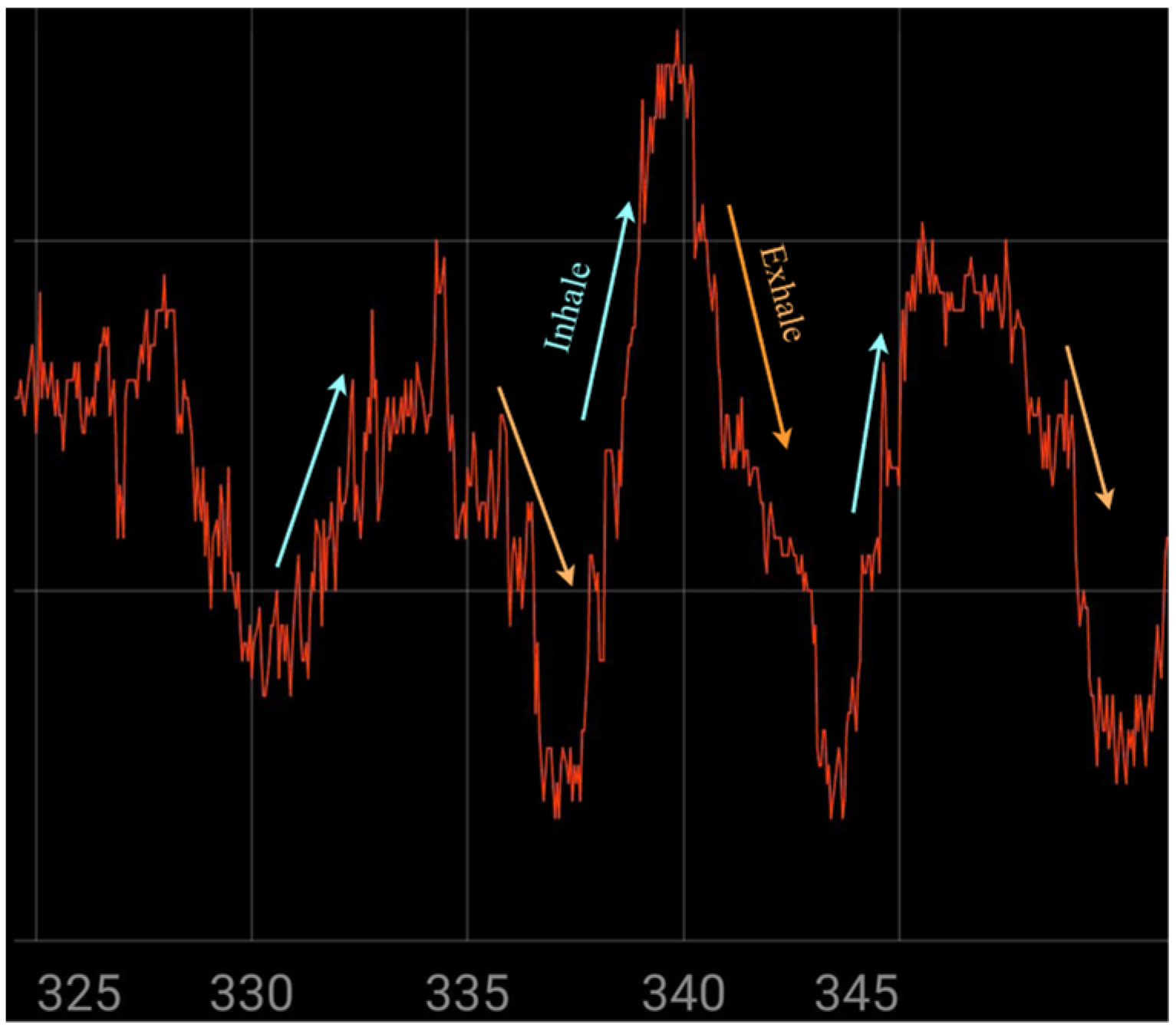

The designed respiratory monitoring system introduces a number of novel design elements and satisfies the desired functional requirements. The selection of proper elements in the structure of the sensor, as well as innovative design approaches, ensure a high resolution of 12 bits for capturing respiratory signals and a long battery life. Also, the size of the device makes it portable and convenient for patient use. Moreover, it provides a system for sending notifications and communicating between the device and its user. Figure 8 demonstrates the system’s ability to capture detailed respiratory waveforms, highlighting clear inhale and exhale phases during real-time usage, which reflects both the precision of signal acquisition and the device’s responsiveness to chest motion.
