Utilisation of Mining Waste ^†

Abstract

This study investigates the potential use of black coal mining waste as a feedstock for plasma gasification. A national database of coal waste heaps was developed based on standardized criteria such as heap volume (>100,000 m³), accessibility, and environmental risk. From six initially sampled sites, two active and unreclaimed heaps—Jan Karel (Karviná) and Paskov D (Ostrava)—were selected for detailed material analysis due to their favorable characteristics. Subsequent plasma gasification experiments were conducted using sorted coal waste fractions at a temperature of 1600 °C in a pilot-scale plasma reactor. Four trials were performed with fuel flow rates of 15 and 20 kg/h and varying steam/fuel ratios (0.6, 1.0, and 1.3). The results revealed a high syngas yield of up to 92% by volume. Increasing the steam/fuel ratio led to higher hydrogen and carbon dioxide content in the syngas, while lower ratios favored carbon monoxide and trace methane formation. Volt-ampere characteristics of the plasma torch showed that higher nitrogen flow rates required higher voltage to maintain a stable arc. The findings confirm the technical feasibility and efficiency of converting selected coal mining waste into valuable syngas, supporting its future use in advanced waste-to-energy technologies.

1. Introduction

Coal remains one of the key energy sources in the global fuel–energy balance. According to data from the International Energy Agency (IEA), it maintains a significant position in global electricity production, complementing other dominant fossil fuels—oil and natural gas [1]. Despite the development of renewable energy sources such as solar, wind, and hydropower, coal remains an important energy source for both developed and developing economies, with its global mining, consumption, and trade reaching record levels in 2023, mainly due to growing electricity demand [2,3,4]. According to the IEA, carbon capture, utilization, and storage (CCUS) technologies, which could contribute to emission reductions, are not yet expanding rapidly enough [2].

Coal mining and its subsequent use in energy production represent a significant environmental burden and can negatively impact human health—especially in cases where effective waste management systems are lacking [5]. In many regions where other energy alternatives are not technically or economically feasible, coal remains the cheapest and most accessible solution [6].

One of the main environmental aspects associated with coal mining is the production and storage of mining waste, known as coal mining waste rock (CMWR) or coal mining waste residues. These materials are generated throughout all stages of coal mining and processing, from shaft sinking to technological treatment, and constitute approximately 10–15% of the volume of extracted raw material, corresponding to millions of tons annually [7,8].

The CMWR waste material primarily includes unsorted associated minerals such as silicon dioxide (SiO₂), alumina (Al₂O₃), and iron oxide (Fe₂O₃), with the residual carbon content varying significantly—from 5% in newer deposits up to 30% in older ones. The ash content may fluctuate between 2% and 90%, depending on the location and geological composition [5].

These wastes have a considerable ecological impact, particularly when disposal is uncontrolled, deposited in heaps [9]. Leachates, chemical weathering, and rainfall can lead to the release of acidic effluents contaminating the surrounding soil and groundwater. The spontaneous combustion of these materials is a source of toxic emissions, including trace metals such as arsenic (As), cadmium (Cd), lead (Pb), zinc (Zn), beryllium (Be), cobalt (Co), chromium (Cr), copper (Cu), manganese (Mn), nickel (Ni), selenium (Se), tin (Sn), and vanadium (V) [10,11,12]. Analyses also show the presence of polycyclic aromatic hydrocarbons (PAHs) [13] bound to PM10 particles, confirming the need for monitoring and revitalization of these sites [14].

Despite the environmental risks, there is a growing interest in the material and energy utilization of these wastes. Mining and coal processing wastes can be used, for example, in co-combustion systems with pulverized coal [15], thereby reducing environmental burden. Furthermore, valuable minerals such as silicon dioxide and alumina can be extracted from these materials via catalytic processes, contributing to economic efficiency and fulfilling circular economy principles [16].

These heaps, particularly from deep black coal mining, pose both environmental challenges and potential opportunities for material and energy recovery. Following mechanical separation, the two principal components—coal-rich fractions and mineral waste (gangue)—can be valorized through distinct technologies aimed at material recovery and circular economy strategies [17,18].

This study focuses on identifying and verifying the potential for the utilization of mining wastes from coal mines in the Czech Republic. Special attention is given to the energy potential of coal concentrates obtained by mechanical separation, particularly in relation to their applicability in gasification technologies.

2. Materials and Methods

2.1. Creation of the Mining Waste

A database system was developed, focusing on black coal mining waste across the Czech Republic. The selection criteria for inclusion in the database were standardized in alignment with similar databases in Poland and Western Europe. These criteria included the following:

• Accessibility and feasibility of sample collection with necessary site agreements;
• Inclusion of waste from deep black coal mining only;
• Heap volume exceeding 100,000 m³;
• Status of the heap (active, inactive, or reclaimed);
• Environmental risk assessment based on chemical composition and potential hazards.

2.2. Sampling Strategy and Site Selection

Six initial locations were sampled (approx. 30 kg per site): Koblov, Eduard Urx, Jeremenko, Paskov D, and Jan Karel. Based on accessibility, volume, and material characteristics, two sites were selected for detailed analysis:

Jan Karel (Karviná);

Paskov D (Ostrava).

These sites were active and unreclaimed, allowing undisturbed material collection. At each location, 2 samples of 120 kg were collected. Figure 1 shows the location of the selected coal heaps.

2.3. Sample Preparation

Samples were initially air-dried to reduce moisture content and ensure proper crushing. Material from Jan Karel (Karviná) was more homogeneous, while Paskov D exhibited a mix of large overburden pieces and fine coal-rich particles. Both samples were sieved using a 35 mm mesh and then crushed using a jaw crusher BB200 (Retsch, Haan, DE). The prepared materials were homogenized and stored for further processing.

As part of the joint international effort, mechanical separation of the samples was carried out by Polish partners using jig technology. This step successfully separated coal from gangue material. Only the coal-enriched concentrate was returned to the Czech team for further analysis.

The proximate and ultimate analyses of the coal-enriched concentrates are presented in

Table 1. Proximate and ultimate analyses of coal-enriched concentrates.

Parameter	Jan Karel (Karviná)	Paskov D	Unit
Proximate analysis (dry basis)
Moisture (as received)	1.06	1.23	wt%
Volatile matter	20.10	19.4	wt%
Fixed carbon	75.4	72.9	wt%
Ash	21.8	24.0	wt%
Ultimate analysis (dry, ash-free basis)
Carbon (C)	66.12	62.74	wt%
Hydrogen (H)	3.47	3.59	wt%
Nitrogen (N)	0.94	0.92	wt%
Sulfur (S)	0.56	0.6	wt%
Oxygen (O)	4.4	4.5	wt%
Calorific value
Higher heating value (HHV)	27.9	25.3	MJ/kg

. Proximate analysis was performed according to ISO 17246:2024 and ISO 1171:2024 standards to determine moisture content, volatile matter, fixed carbon, and ash content. Ultimate analysis was conducted using an elemental analyzer (CHNS/O) according to ISO 29541:2025 to determine the content of carbon (C), hydrogen (H), nitrogen (N), sulfur (S), and oxygen (O). [20,21,22].

2.4. Gasification Testing

Initial gasification experiments were conducted on the coal-enriched fraction. The primary objective was to evaluate the energy potential and suitability of the separated coal material for thermal utilization. The experiments mark the first step in the energy recovery assessment of mining waste.

2.4.1. Reactor Description

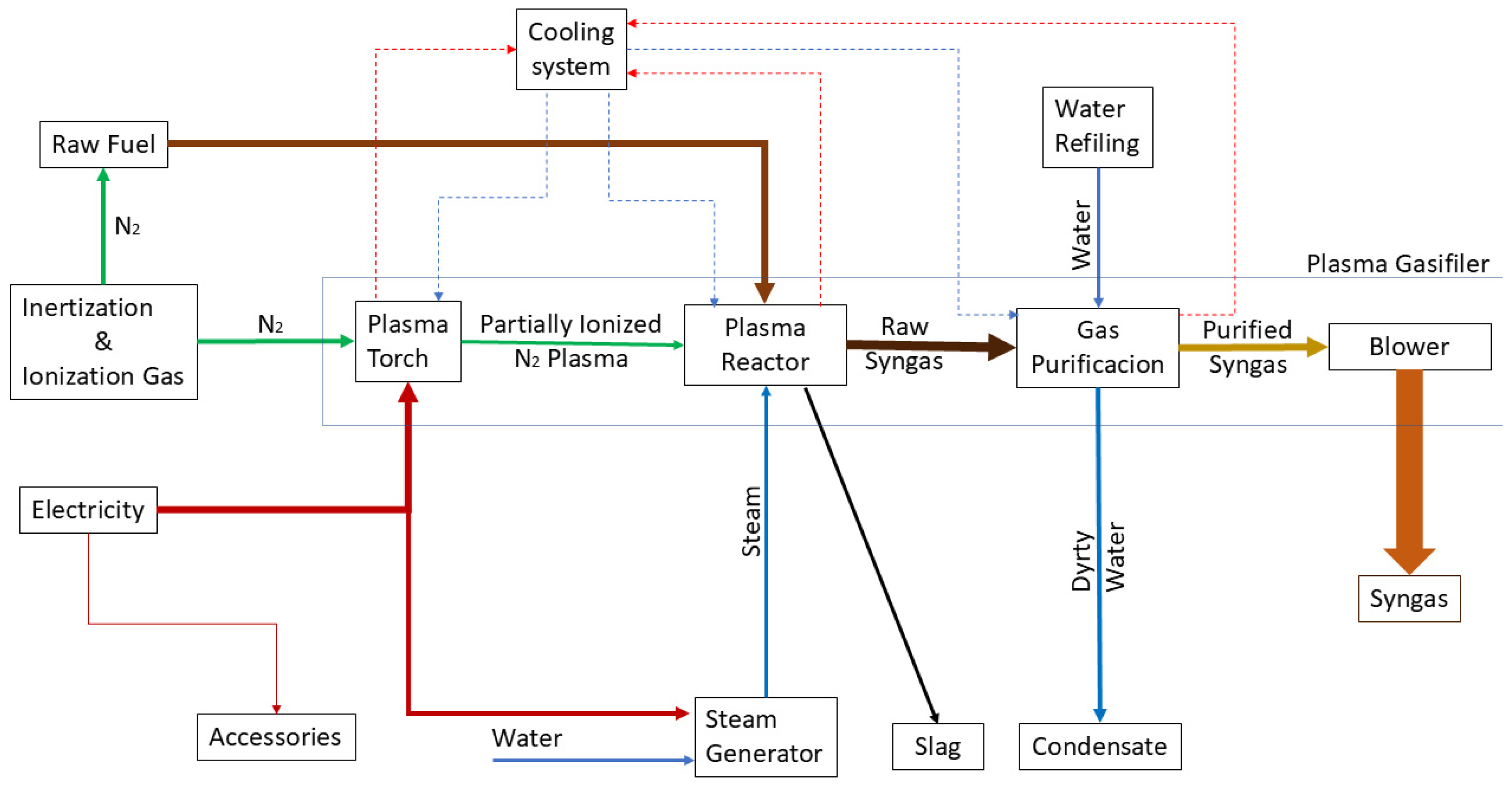

Plasma gasification was carried out in a modular laboratory unit installed at VSB-Technical University of Ostrava at CEET (Centre for Energy and Environmental Technologies); see Figure 2. The device enables the thermochemical conversion of organic materials and alternative fuels into synthesis gas at 1600 °C in a reactor using a DC arc plasma torch. The process takes place in the absence of air, with nitrogen as the ionization gas and water vapour as the gasification medium (250 °C, 4.5 bar, 4.1–8.1 kg/h). The resulting gas, rich in H₂ and CO, also contains CO₂, H₂O, CH₄, and N2. The N2 content is due to the fact that it is used as an ionization gas for plasma torches. Other constituents and contaminants in the gas were not determined.

The gasification reactor is a steel vessel with a multilayer refractory lining and a duplicator jacket to prevent heat loss. It is equipped with three plasma torches (total power input up to 150 kW), a screw feeder for continuous fuel dosing (20–60 kg/h, max. 20%mass moisture), and a slag outlet with a lined collection vessel. Slag formation occurs from the inorganic content of the feedstock.

The syngas exits the reactor and passes through a two-stage gas cooling system. In the first stage, water is sprayed directly into the hot gas (cooling capacity 25–50 kW, water flow 16–25 L/min), lowering its temperature to ~200 °C. The second stage uses ice water in a packed column to cool the gas to ~10 °C. A roots blower maintains system pressure between −2 and +2 kPa and ensures gas transport. A fraction of the syngas was continuously extracted for online analysis using Syngas Analyzer Gasboard 3100P. The individual gas components were determined using the following detectors: CO, CO₂, CH₄—NDIR; H2—TCD; O2—electrochemically. Nitrogen content was calculated.

The amount of synthesis gas was determined by a KIMO 12975 pitot tube with a KIMO MP210. This probe was placed downstream of the blower during the entire measurement. The gas pressure and temperature were further determined at this point.

2.4.2. Test Description

Four experiments of plasma gasification of the sorted coal fraction were carried out in the plasma gasifier. The experiments took place at a temperature of 1600 °C, and each lasted one hour. Due to the limited amount of input fuel, the tests were carried out with a dose of 20 kg in three trials and 15 kg in one. The main goal of the experiments was to evaluate the effect of the steam/fuel ratio on the yield and composition of syngas, while three different values of this ratio were tested: 0.6, 1, and 1.3. The fuel flow was set to 20 and 15 kg/h.

3. Results and Discussion

3.1. Selection Criteria and Data for Database Creation

Waste Dump Coal Volume Over 100,000 m³

The first selection criterion was the volume of the coal waste dump, with a minimum volume of over 100,000 m³. Large volumes of waste dumps represent significant potential for further utilization and can also have a greater environmental impact. Smaller volume dumps were excluded because their significance is comparatively less than that of larger dumps.

Availability and sampling (Agreement with Owners)

It is essential to ensure access to the coal waste dumps and obtain the site owner’s consent for sampling. Without the possibility of sampling, the research team is unable to analyse and evaluate the materials deposited on the heap. The owner’s consent to utilize the dump is crucial for any future plans concerning the processing (utilization) or disposal of the material. For this reason, for the sites selected based on the first criterion (volume), we identified their owners, including the owners of the land beneath the dumps and access roads, and the possibility of obtaining permission for sampling.

Waste from black coal mining

The database focuses exclusively on waste from underground black coal mining, as it has a specific chemical composition and potential for energy utilization. Based on consultations with companies managing mining waste, it was found that, unlike brown coal spoil heaps, which are primarily used for reclamation, black coal waste remains mostly on the surface and may contain both free and dispersed coal matter in the original rocks, which can be a source of energy utilization.

Coal Waste Dump Activity (Active, Inactive, Reclaimed)

The status of the coal waste dump is a key factor in assessing its potential and risks. Active dumps may still be in the process of disposal, but their advantage is that they are easily accessible and not reclaimed. Inactive coal waste dumps are stabilized, and reclaimed dumps may already be reused for other purposes. This information helps determine the status and potential utilization of the coal waste dump.

Environmental risk

Companies managing coal waste dumps must minimize the environmental risk of stored mining waste. Materials in the dump can impact the surrounding environment in terms of the leachability of potentially hazardous substances or the potential ignition of the material.

3.2. Results of Gasification

3.2.1. Analysis of Syngas Composition

Due to the large reactor volume and limited fuel, the gas composition stabilized slowly. Based on our experience, a stable syngas composition was reached after ~40 min. Fuel was dosed over 60 min, with lower screw fill expected from the 50th minute. Therefore, gas composition was averaged over minutes 40–50 (Figure 3).

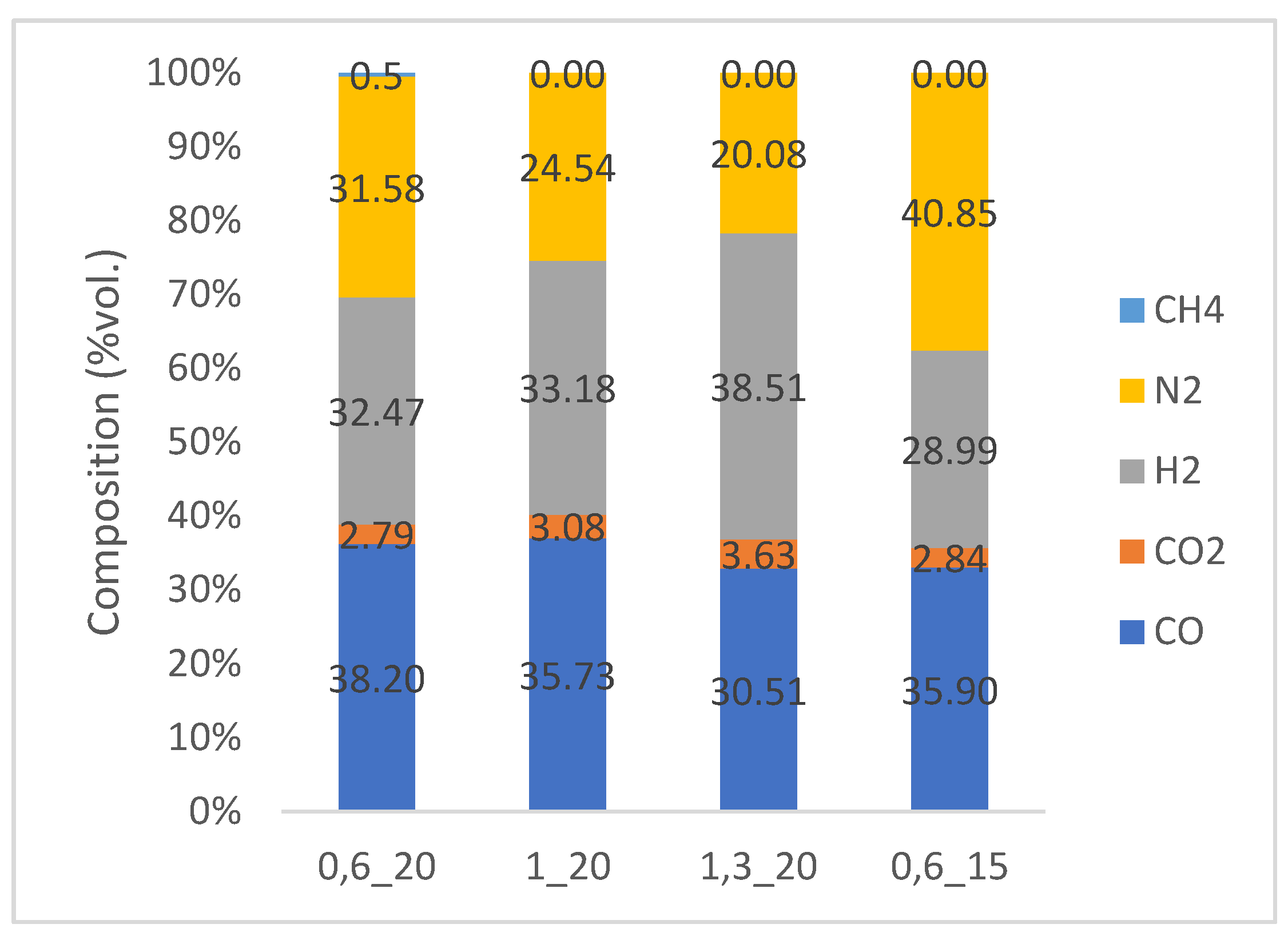

Across all four tests, syngas composition remained relatively constant. N₂ ranged from 20.08–40.85%vol, as it served as the ionization gas. The highest N₂ value (test 0,6_15) corresponded to reduced fuel flow, while N₂ flow remained unchanged.

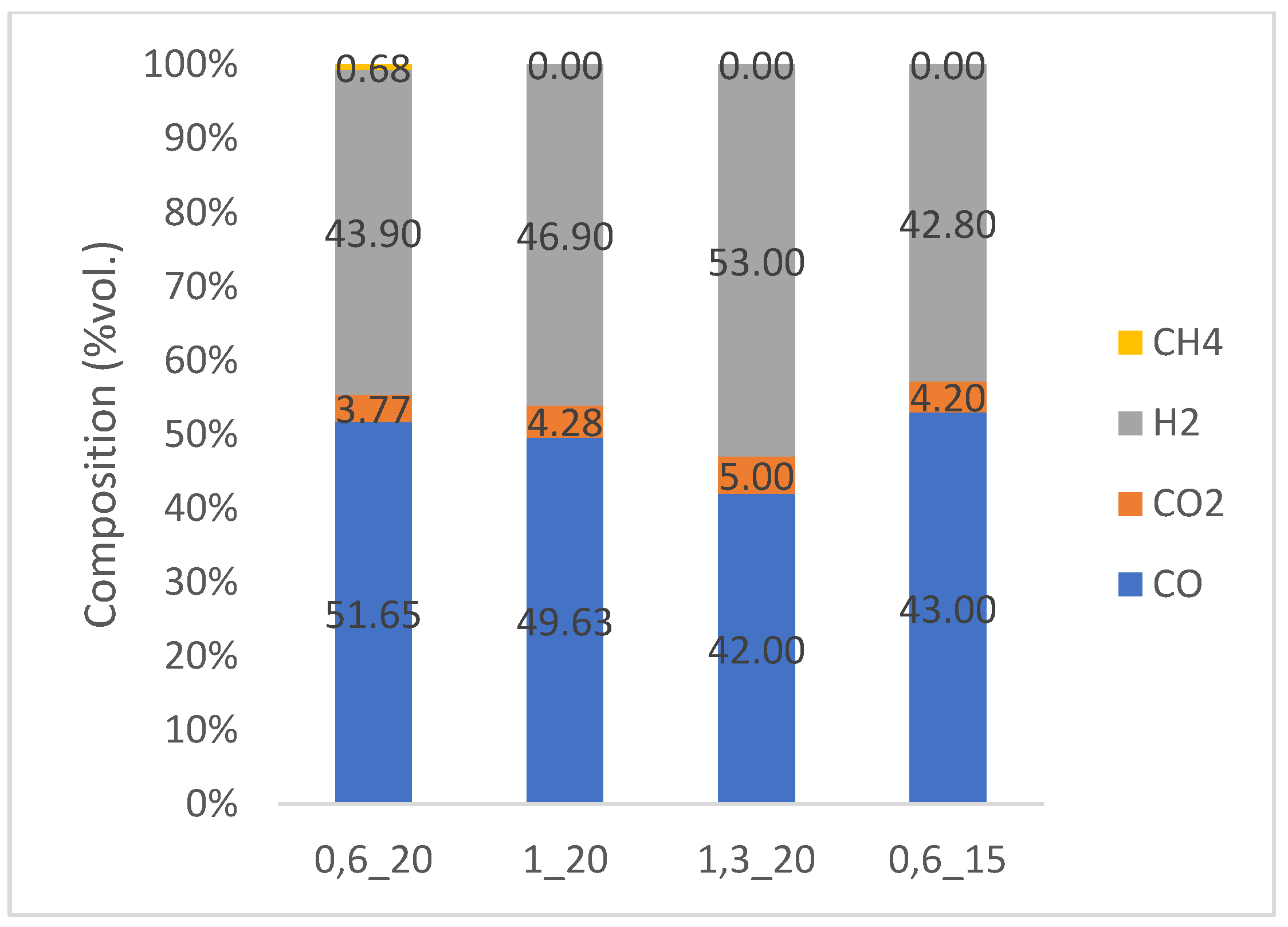

Figure 4 shows syngas without N₂. The steam/fuel ratio significantly influenced H₂ production. At lower ratios (e.g., 0.6), less steam favored CO and CH₄ formation, increasing calorific value. Higher ratios enhanced H₂ and CO₂ via the water–gas shift reaction (CO + H₂O → CO₂ + H₂), suitable for hydrogen-oriented applications.

3.2.2. Mass Balance

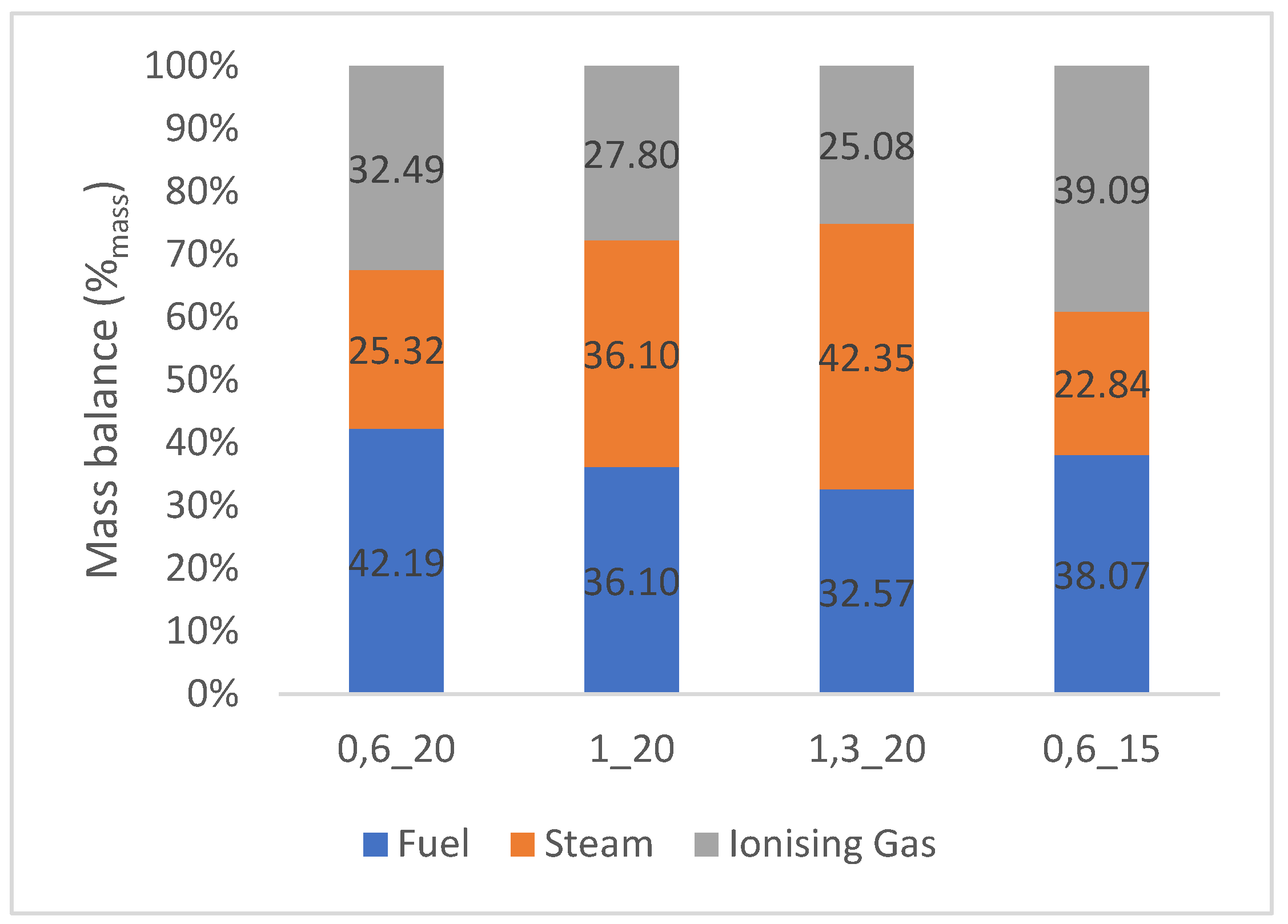

Mass flow measurements enabled the construction of mass balances (Figure 5). Ionization gas input was highest in test 0,6_15 due to reduced fuel/steam flow.

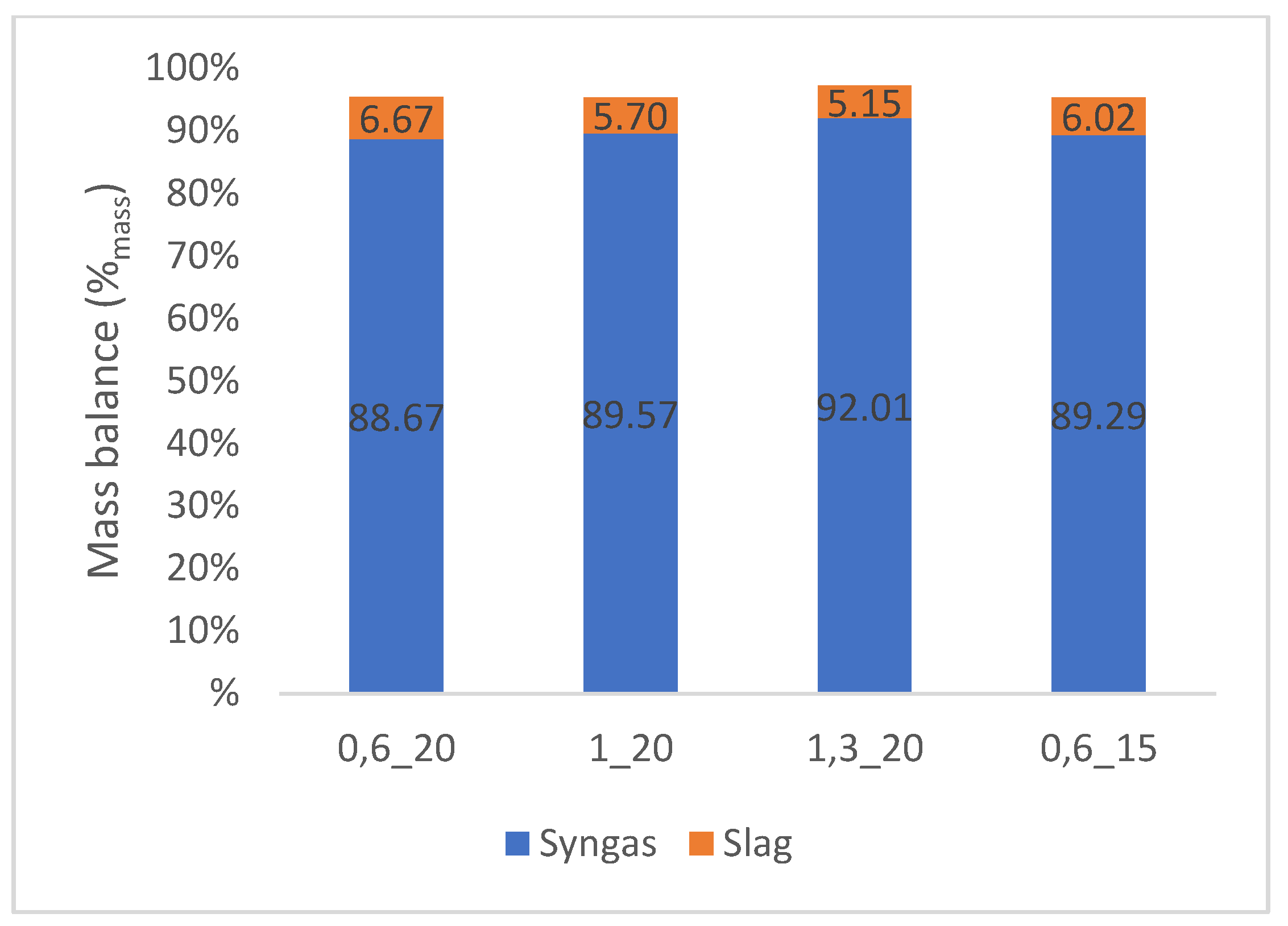

Figure 6 shows product mass yields. The highest gas yield occurred in test 1,3_20 (highest steam input), while the lowest was in test 0,6_20. Lower fuel flow (from 20 to 15 kg/h) kept ionization gas constant, diluting the syngas and aligning with composition results (Figure 3).

The mass balance of input materials and products showed a high yield of syngas, which reached up to 92% by volume.

3.2.3. VA Characteristics of Plasma Torch

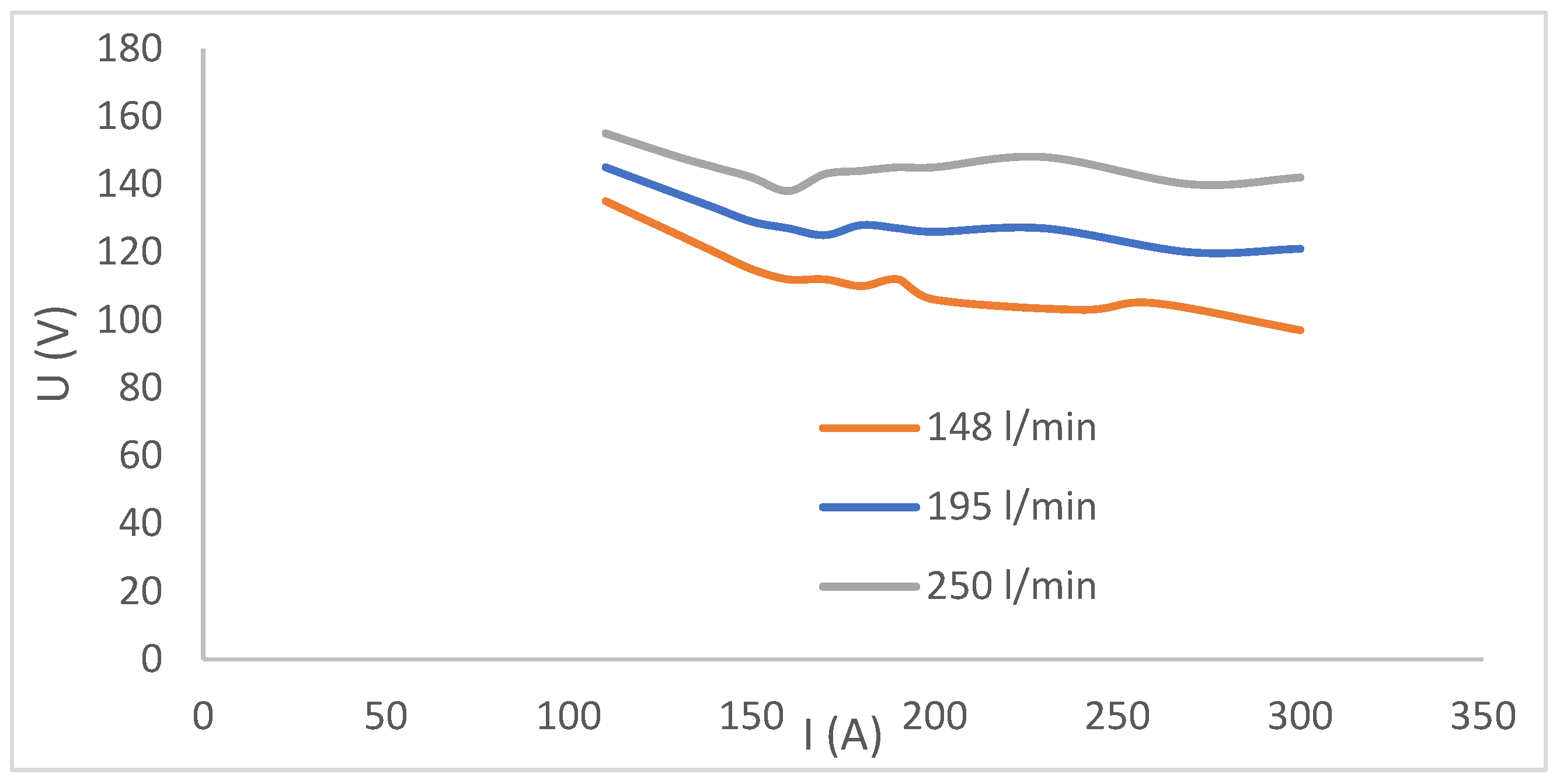

Figure 7 shows voltammograms at nitrogen flow rates of 148, 195, and 250 L/min. Voltage rose with increasing flow at the same current. All curves show voltage drop with increasing current, then stabilization—typical behavior linked to arc temperature and plasma conductivity [23,24,25,26].

Higher N₂ flow increases voltage due to higher ion/atom density in the arc region, requiring more energy to sustain arc stability.

4. Conclusions

A comprehensive approach was applied to assess the potential of black coal mining waste as a feedstock for plasma gasification. A database of coal waste heaps in the Czech Republic was developed based on standardized criteria, including heap volume, accessibility, and environmental risk. From the initial six sites sampled, two active and unreclaimed heaps—Jan Karel and Paskov D—were selected for detailed material analysis.

The outcomes of this study demonstrate the viability of using selected coal mining wastes in plasma gasification, offering a promising pathway for their energy-efficient and environmentally sound utilization. Beyond laboratory-scale demonstration, the technology presents potential applications in active mining operations, where gasification units could be integrated into coal processing systems for combined heat and power generation, thereby improving energy balance and reducing waste transportation costs. The high hydrogen content in syngas (up to 50% vol. without N₂ at a steam/fuel ratio of 1.3) also opens possibilities for hydrogen production to power shunting locomotives on mine industrial railways, contributing to the decarbonization of mining logistics.

Moreover, plasma gasification technology offers potential for environmental remediation, particularly for addressing burning waste heaps such as the one in Heřmanice. The controlled high-temperature processing could eliminate spontaneous combustion sources while recovering energy from the material, serving dual purposes of environmental protection and energy production.

Further research should focus on economic feasibility studies, scale-up considerations, and detailed assessment of specific industrial implementation scenarios to advance this technology toward commercial deployment.
