Study of the Effects of Hardfacing Modes Carried out by FCAW-S with Exothermic Addition of MnO₂-Al on Non-Metallic Inclusions, Grain Size, Microstructure and Mechanical Properties

Abstract

This paper investigates self-shielded flux-cored wires with an exothermic MnO₂-Al addition and the effect of hardfacing modes on the deposited alloy of the Fe-C-Mn system for the first time. Additionally, the paper proposes a new experimental research methodology using an orthogonal experimental design with nine experiments and three levels. At the first stage, it is proposed to use the Taguchi plan (L9) method to find the most significant variables. At the second stage, for the development of a mathematical model and optimization, a factorial design is recommended. The studied parameters of the hardfacing mode were travel speed (TS), set voltage on the power source (U_set), contact tip to work distance (CTWD), and wire feed speed (WFS). The following parameters were studied: welding thermal cycle parameters, microstructure, grain size, non-metallic inclusions, and mechanical properties. The results of the analysis showed that the listed parameters of the hardfacing modes have a different effect on the characteristics of the hardfacing process with self-shielded flux-cored wires with an exothermic addition in the filler. It was determined that for flux-cored wires with an exothermic addition, the size of the deposited metal grain size is most affected by the contact tip to work distance (CTWD). The research results showed that the travel speed (TS) had the main influence on the thermal cycle parameters (heat input, cooling time) and hardness. The analysis of the deposited metal samples showed that an increase in the travel speed had a negative impact on the number of non-metallic inclusions (NMIs) in the deposited metal. While the size of NMIs was influenced by the wire feed speed and the set voltage on the power source.

1. Introduction

Welding and hardfacing technologies can provide competitive advantages such as cost and quality of the final product in agriculture, mechanical engineering [1], the automotive industry [2,3], the transport sector [4,5], and other industries. In addition, the use of surfacing technology can extend the service life of worn surfaces subjected to various types of destruction (abrasive [6,7,8,9,10,11,12,13], corrosive [9], abrasive-impact [10,11], and others). In each of these sectors of the economy, the application of welding technologies and welding materials is essential. Among the variety of welding materials, the following are distinguished: stick electrodes, solid wires, flux-cored wires, and SAW wires and fluxes [12,13]. Recent publications have shown that flux-cored wire hardfacing is a promising technology [14,15], which is explained by its high process performance, high welding stability, excellent quality of deposited metal, and arc visibility. These advantages are especially important for hardfacing processes using hardening alloys. Depending on the tribological conditions, different alloys are used, such as Fe-C-Cr-X (X = Ti, Nb, V) [16,17], Fe-C-B [18,19], Fe-C-Mn [20], and others. High-manganese alloys of the Fe-C-Mn type with a high manganese and carbon content have been most widely used for impact abrasive wear and contact fatigue in high-stress rolling [21,22]. These steels are characterized by high impact strength and the ability to harden [23]. Hadfield steel has good work hardening capacity, high strength and toughness after hardening, and it has been widely used in industrial applications. However, the presence of non-metallic inclusions significantly affects its wear behavior. This study investigates the role of these inclusions in the abrasive wear process of Hadfield steel by examining their formation, distribution, and impact on mechanical properties. The results suggest that non-metallic inclusions act as stress concentrators, promoting crack initiation and propagation, thereby accelerating material removal under abrasive conditions. Thus, it is important to improve the quality of the deposited metal. The appearance of non-metallic inclusions in the deposited metal during the flux-cored wire hardfacing (FCAW-S) is mainly due to the melting nature of the flux-cored wire. Flux-cored wire consists of an inner flux and an outer metal sheath. According to Trembach et al. [24], the formation of the non-metallic inclusions (NMIs) occurs as follows: at the melting of the electrode, a protrusion of filler is formed at its end near the arc column. The formation of the protrusion is explained by the non-uniformity of the melting of the metal sheath and the filler in the flux-cored wire. That is explained by the predominant heating of the metal sheath by Joule heat (welding current flowing through the electrode) due to the significantly higher electrical conductivity of the metal sheath [24]. The second reason is the cathode spot relocations of the arc column around the perimeter of the end of the metal sheath [25]. In this case, the melting of the filler material from the arc heat is realized by radiation of the arc column and, to a lesser extent, by convective heat. These features contribute to the preferential melting of the metal sheath, which is the main reason for the uneven melting of the filler and the metal sheath. The formed protrusion can subsequently collapse and, in the unmelted state, enter the weld pool [24].

It is well known that there are three modes of transferring the metal droplet to the molten pool: spray, globular, and short circuit [26]. For hardfacing processes, when the chemical composition of the deposited metal is important, which is always more alloyed than substrate materials, the last two modes are preferable. In spray and globular modes of the molten droplet transfer, the arc continues burning throughout the molten droplet transfer process, providing high heat input, which increases the fraction of the substrate material. While in the short circuit transfer mode, the molten droplet transfer occurs when the droplet at the wire tip comes into contact with the weld pool under conditions of low current and voltage, causing the arc to be extinguished. This results in relatively low heat input [26], which is beneficial for hardfacing processes. When the welding arc between the wire tip and the weld pool is extinguished, a short circuit occurs, which causes the arc voltage to drop below ~10 V, which can be used to evaluate the occurrence of a short-circuit procedure [27]. However, this reduces the deposition rate because it is achieved at lower values of the welding current.

To improve the uniformity of melting of the flux-cored wire and to increase the productivity of the hardfacing process, the introduction of exothermic addition into the filler for flux-cored wires is accepted [28,29,30]. The positive effect of introducing the exothermic addition into the filler is explained by the generation of additional heat capable of melting the filler components [31]. Various exothermic additive systems are used, which are different combinations of oxidizing agents (such as Fe₂O₃, CuO, Mn₂O, etc.) and reducing agents (Al, Mg, etc.). However, these exothermic mixtures have different characteristics of reaction kinetics; among the important ones for filler materials are ignition temperature, reaction rate, thermal effect of the exothermic reaction, and specific heat of combustion.

The study by Li et al. [32] showed a positive effect of the exothermic mixture on the stability of the process; the droplets became smaller and the transfer time became less with increasing the exothermic addition. The decrease in the droplet diameter of the electrode material is mainly due to a decrease in surface tension [32]. Trembach et al. [33] noted that, depending on the hardfacing modes, the exothermic reaction in the filler can occur at different stages of the welding process: (1) in the electrode extension section, (2) in the arc column, and (3) in the weld pool. Moreover, from the point of view of achieving a greater effect from the introduction of an exothermic addition, the reaction at stage (1) is the most desirable. In accordance with their recommendations, it is necessary to choose such hardfacing parameters at which the exothermic mixture reacts at the electrode melting stage (in the electrode extension section) before the arc. At the same time, high arc stability and low dilution of the deposited metal with the substrate materials are achieved while maintaining high productivity and efficiency of the hardfacing process [33], whereas the exothermic reaction at the weld pool stage will increase the penetration depth and increase the dilution of the deposited metal by the substrate material [34], which is undesirable for the hardfacing process. Furthermore, studies by Trembach et al. have shown a positive effect of adding the exothermic addition to the filler on the welding current [33] and the morphology of the welding bead [35], which changes the parameters of the welding thermal cycle [36,37]. Changes in the welding thermal cycle parameters will affect the microstructure, which will affect the performance indicators such as wear resistance and corrosion resistance through the impact on the microstructure and mechanical properties.

The aim of this work is to determine the influence of hardfacing modes on such parameters as hardfacing thermal cycle parameters, microstructure, grain size, hardness, and content and morphology of non-metallic inclusions of the deposited metal using a self-shielded flux-cored wire with high-energy exothermic addition of MnO₂-Al.

2. Materials and Methods

2.1. Materials

For the hardfacing process, flux-cored wires with filler compositions as shown in

Table 1. Composition of core filler FCAW-SS, wt.%.

The Name of the Component	Content of the Components in Core Filler of FCAW-S [wt.%]
Gas-slag-forming components
Fluorite concentrate GOST 4421-73	10
Rutile concentrate GOST 22938-78	6
Calcium carbonate GOST 8252-79	3
Zirconium dioxide GOST 21907-76	3
Components of exothermic addition
Oxide of manganese powder-like GOST 4470-79	21
Aluminum powder PA1 GOST 6058-73	9
Alloying and deoxidizers
Ferromanganese FMN-88A GOST 4755-91	20
Ferrosilicon FS-92 GOST 1415-78	2
Titanium powder PTM-3 TU 14-22-57-92	5
Metal Chrome X99 GOST 5905-79	6.2
Oxide of yttrium powder-like TU 48-4-524-80	1.6
Graphite	7.6
Iron powder PZhR-1 GOST 9849-86	5.6

were used. A metal strip made of St 24 DIN 1614.1 [38] steel (20 mm in width and 0.5 mm in thickness) was used, which was formed into a metal wire sheath about the core filler. The self-shielded flux-cored wire was made according to the procedure described in [24].

The substrate material comprised plates with dimensions of 200 × 100 × 15 mm (length × width × thickness). The material of the plates was S235 J2G2 EN 10025–2 (St3ps). The hardfacing was carried out with reverse polarity by an ABC automatic welding head. The power source of the machine had a rigid external characteristic.

The hardfacing process was carried out in four layers. The height of the hardfacing layer was 5–7 mm. This depended on the hardfacing modes. The chemical composition of the deposited metal samples was analyzed using a Spectrolab LAVFC01A (Ametek, Inc., Berwyn, IL, USA) optical emission spectrometer. The typical content of the elements in the deposited metal is as follows: 1.36 wt% C; 9.3 wt% Mn; 2.8 wt% Cr; 0.76 wt% Ti; 0.72 wt% Si; 0.046 wt% N; 0.02 wt% S; and 0.058 wt% P.

2.2. Design of the Experiment

When searching for models of mathematical dependencies, the most important task is the choice of variables. Having too many variables (with respect to the number of observations/data sets) in a model will result in a relation between variables and the outcome that only exists in that particular data set [39]. Some variables also may have a negligible effect on the outcome and can therefore be excluded. In this case, a preliminary review of possible variables will be mandatory, which in the future, after screening, will be used to search for a mathematical model. Therefore, we recommend that at the first stage of searching for a prediction model, the most significant parameters from a series of candidate variables are determined. Taguchi is another method suitable to the optimization of welding processes that can be used in the design of high-quality systems without increasing costs, allowing for understanding the effect of individual and combined process parameters from reduced experimental tests. For the Taguchi method, orthogonal arrays were used. An analysis of variance (ANOVA) is used in parallel with the Taguchi method. Analysis of variance (ANOVA) allows us to determine the contribution of each factor to the responses, which allows us to identify the most significant variables [40]. Factorial design is used for conducting experiments as it allows the study of interactions between factors. Reliable mathematical models of the variables of interest can be developed with a minimum number of experiments by combining the Taguchi method with factorial design. [41].

The Taguchi method was then used to obtain the welding combinations that are shown in

Table 2. Input variables selected and their levels.

Code	Input Variable (Factor)	Unit	Notation	Level
				Low (1)	Average (2)	High (3)
A	Travel speed	[m·min−1]	TS	0.27	0.47	0.69
B	Arc welding voltage	[V]	Uset	26.0	29.2	32.5
C	Contact tip to work distance	[mm]	CTWD	30	40	50
D	Wire feed speed	[m·min−1]	WFS	1.50	2.07	2.73

. The variable parameters of the hardfacing modes, i.e., hardfacing speed (x1), set voltage of the power source (x2), contact tip to work distance (x3), and wire feed speed (x4), were optimized using the Box–Behnken experimental design and STATISTICA software Version 6.0 (Statsoft Inc., Hamburg, Germany, 2006). The experimental design contained four process variables, each at three equidistant levels (1, 2, 3).

The matrix of the experimental plan is shown in

Table 3. Design matrix of the experimental full factor analysis using the orthogonal array from the method.

№	Code Mean				Fact Mean
	Factor A	Factor B	Factor C	Factor D	TS [m·min−1]	Uset [V]	CTWD [mm]	WFS [m·min−1]
1	1	1	1	1	0.27	26.0	30	1.50
2	1	2	2	2	0.27	29.2	40	2.07
3	1	3	3	3	0.27	32.5	50	2.73
4	2	1	2	3	0.47	26.0	40	2.73
5	2	2	3	1	0.47	29.2	50	1.50
6	2	3	1	2	0.47	32.5	30	2.07
7	3	1	3	2	0.69	26.0	50	2.07
8	3	2	1	3	0.69	29.2	30	2.73
9	3	3	2	1	0.69	32.5	40	1.50

. The three different processing variables combined with each of the three levels led to an L9 orthogonal matrix.

The full cubic model is represented in Equation (8):

$$y={\displaystyle \sum _{i=1}^K}{\beta }_i·x_i+{\displaystyle \sum _{j>i}^k}{\beta }_{ij}·x_i·x_j+{\displaystyle \sum _{j>i}^k}{\delta }_{ij}·x_i·x_j·{(x_i-x}_j)+{\displaystyle \sum _{k>j>i}^K}{\beta }_{ijk}·x_i·x_j·x_k+\epsilon$$

(1)

where y is the predicted response variable; i and j are the number of ingredients in the mixture; K are components given by the equation; β_i is the expected response at the top; β_ij are coefficients indicating the amount of quadratic curvature along the edge of the simplex region consisting of binary mixtures of x_i and x_j; and Δ_ij accounts for ternary blending among three separate components in the interior of the design. β_ijk is the coefficient of the regression coefficient of the product terms of two or three variables. x_i, x_j, and x_k represent three different design variables.

2.3. Welding Thermal Cycle Parameters

During the hardfacing process, the deposited metal experiences metallurgical effects caused by the thermal cycle of welding. To evaluate this effect, such indicators as heat input (HI), cooling rate (CR_800-500), and cooling time (Δt_8/5).

Heat input (HI) is the quantity of energy introduced from the arc per unit length of weld. The heat input was calculated by means of Equation (2) [36]:

$$HI=\frac{{\eta }_{FCAW}·U_a·I·60}{TS·1000}$$

(2)

where HI is the heat input, [kJ/mm]; U_a is arc voltage, V; I is arc current, A; TS is travel speed, mm/min; η_FCAW is the coefficient of efficiency of the process; and η_FCAW = 0.8.

The cooling rate (CR) has been calculated between 800 °C and 500 °C (CR800-500), as this temperature range is significant for the relevant phase transformations that take place in ferrous alloys and can be calculated using the following equation [36]:

$$C{R}_{800-500}={\displaystyle \frac{\Delta T_{800-500}}{\Delta t_{800-500}}}$$

(3)

where ΔT_800-500 is the temperature variation within the selected range of 800 and 500 °C.

The cooling time Δt_800-500 between two given temperatures, commonly between 800 and 500 °C, for sheets with three-dimensional heat flow, can be calculated by the following Equation (4) [36]:

$$\Delta t_{800-500}=\frac{E·}{2·\pi ·\lambda }·\left[\frac{1}{500-T_0}-\frac{1}{800-T_0}\right]$$

(4)

where E is welding energy [kJ·cm⁻¹], k is material thermal conductivity λ = 42 [J/(s·m·C)] [36], and T₀ is the initial temperature of the plate T₀ = 25 °C.

3. Results

3.1. Prediction of Mathematical Model for Thermal Cycle Parameters

Table 4. Experimental and calculated values of thermal cycle parameters.

№	Average Welding Current Iaw  [A]	Average Arc Voltage Uaw [V]		Heat Input
				HI (e) [kJ·mm−1]	HI (c) [kJ·mm−1]			Diff. [kJ·mm−1]			Dev. [%]
1	240.4	22.30		0.905	0.894708			0.009947			1.14%
2	302.6	21.20		1.083	1.169728			−0.087176			−8.01%
3	358.5	25.30		1.531	1.453342			0.077229			5.07%
4	47.8	16.00		0.675	0.549353			0.126109			18.61%
5	213.6	28.00		0.577	0.697459			−0.120739			−20.88%
6	322.1	27.20		0.845	0.850193			−0.005370			−0.61%
7	325.0	19.60		0.414	0.481392			−0.066958			−16.28%
8	393.8	21.80		0.559	0.486719			0.071813			12.93%
9	259.2	28.90		0.487	0.492213			−0.004855			−1.07%
№	Cooling time				Cooling rate
	Δ t8/5 (e) []	Δt8/5 (e) [s]	Diff. [s]	Dev. [%]	CR (e) [°C·s−1]		CR (c) [°C·s−1]		Diff. [°C·s−1]		Dev.
1	4.207	4.160439	0.046254	1.11%	71.3		71.2216		0.0934		0.11%
2	5.034	5.439294	−0.405374	−8.05%	59.6		56.2343		3.3614		5.65%
3	7.117	6.758112	0.359120	5.04%	42.2		45.2460		−3.0948		−7.22%
4	3.141	2.554521	0.586415	18.67%	95.5		108.9094		−13.3965		−14.04%
5	2.682	3.243220	−0.561442	−20.93%	111.9		92.1757		19.6905		17.63%
6	3.928	3.953440	−0.024973	−0.65%	76.4		83.3396		−6.9739		−9.08%
7	1.927	2.238496	−0.311359	−16.16%	155.7		146.6686		9.0026		5.80%
8	2.597	2.263269	0.333932	12.85%	115.5		130.0900		−14.5811		−12.63%
9	2.266	2.288815	−0.022574	−1.01%	132.4		126.4793		5.8984		4.47%

The indices on the right side of the geometric parameter notation have the following meanings: (e)—experimental values; (c)—calculated values obtained by introducing the corresponding values of variables into the developed mathematical models.

shows the experimental and calculated (obtained from the equations of the mathematical model) values of the thermal cycle of hardfacing HI, cooling time in the temperature range of 800–500 °C (Δt_8/5), cooling rate (CR) of the deposited metal in the temperature range of 800–500 °C, and the calculated value of hardness (HB) obtained by hardfacing with the developed SFCW with exothermic addition (EA) of MnO₂-Al in the filler material.

3.1.1. Analyses of Variance for Thermal Cycle Parameters

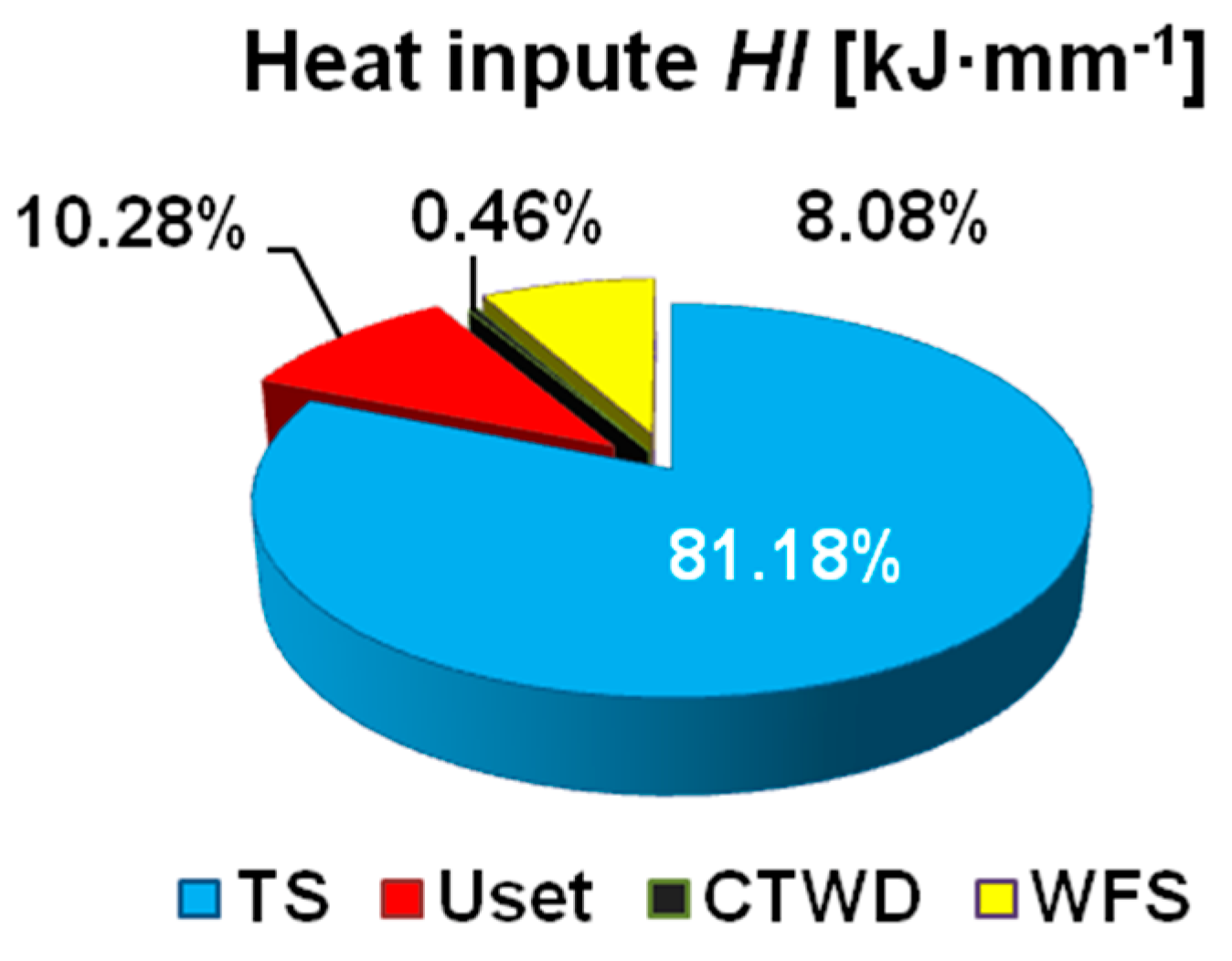

Figure 1 shows the effect of the parameters of the hardfacing modes on the heat input (HI), cooling time in the temperature range of 800–500 °C Δt_8/5, and cooling rate (CR) of the deposited metal in the temperature range of 800–500 °C.

Based on the above pie chart, it could be concluded that the main contribution to the parameters of the welding thermal cycle was made by the travel speed (TS). A minor influence was exerted by the set voltage of the power source. The influence of other parameters of the hardfacing modes on the welding thermal cycle parameters was at the level of noise.

3.1.2. Taguchi Analyses for Thermal Cycle Parameters

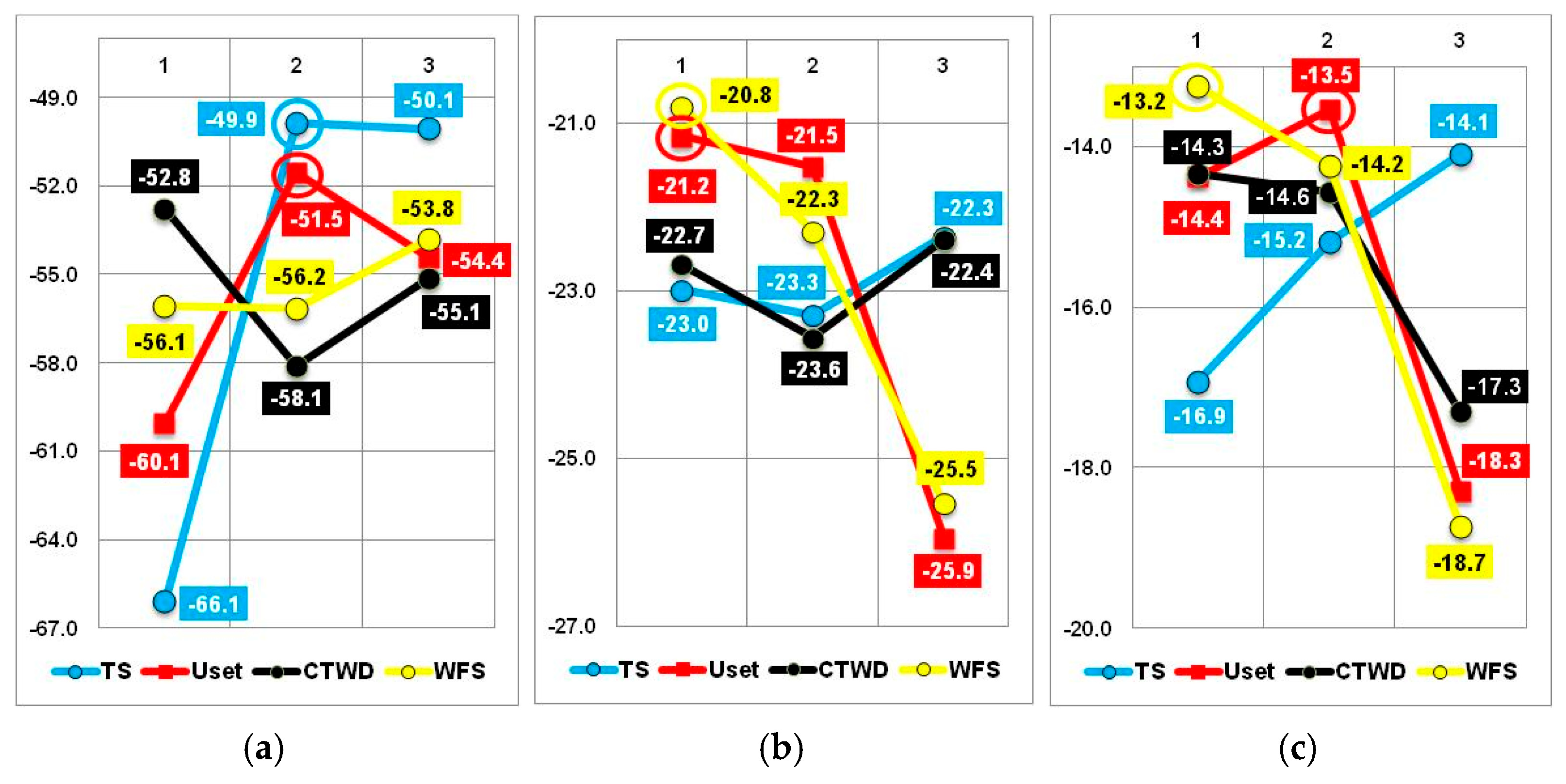

For the preliminary optimization of hardfacing modes, we conducted several studies, and Figure 2 shows the experimental results of the calculated S/N ratios for the heat input using the Taguchi method.

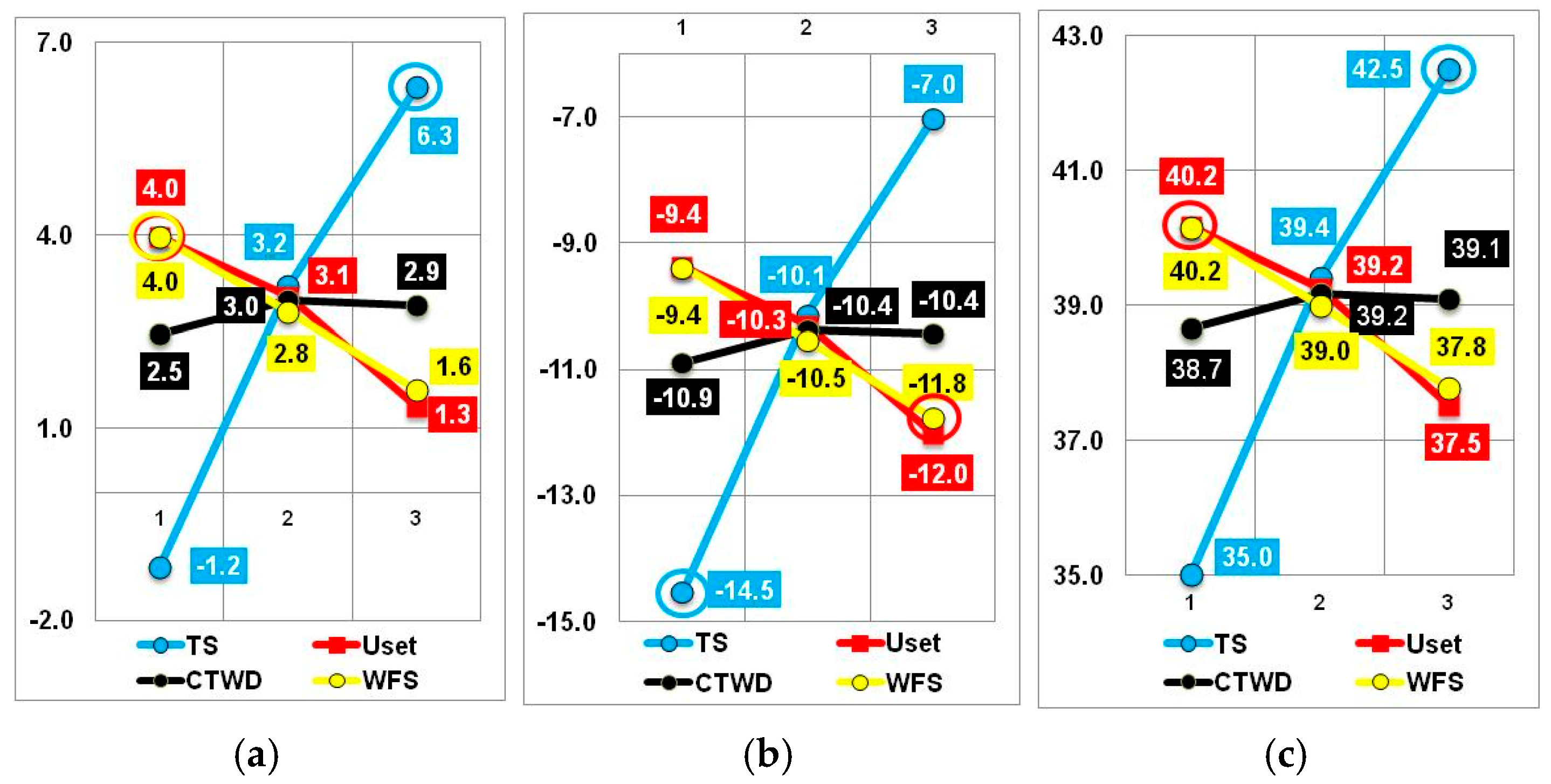

Figure 2a showed that the lowest value of heat input (HI) and cooling time Δt_8/5 in the temperature range of 800–500 °C was achieved at a low level of travel speed, TS = 0.27 m-min⁻¹. The lower the value of heat input (HI) and the cooling time in the temperature range of 800–500 °C Δt_8/5, the lower the level of overheating and, accordingly, the higher the technological properties of the deposited metal. Therefore, when selecting the optimal hardfacing parameters, it is of particular importance to ensure a low heat input and a high cooling rate in the temperature range of 800–500 °C Δt_8/5.

Analyzing the diagrams of S/N ratios for the thermal cycle parameters of hardfacing heat input and the cooling time in the temperature range of 800–500 °C Δt_8/5) (Figure 2a,b), the optimal hardfacing modes could be noted: travel speed, TS = 0.27 m-min−1; set voltage on the power source, U_set = 32.5 V; contact tip to work distance, CTWD = 30 mm; and WFS = 1.527 mm-min⁻¹.

3.1.3. Development of a Mathematical Model (Box–Hunter) for Thermal Cycle Parameters

The equations for the mathematical dependence of the indicators are shown below (Equations (5)–(7)).

$$Y(HI)=0.78-0.687·TS-0.151·T{S}^2+0.285·U_{set}-0.274·TS·U_{set}.$$

(5)

$$Y(\Delta t_{8/5})=3.628-3.196·TS-0.701·T{S}^2+1.324·U_{set}-1.274·TS·U_{set}.$$

(6)

$$\begin{array}{l}Y(CR)=96.288+76.818·TS-23.807·U_{set}+2.935·TS·U_{set}-15.655·TS·U_{set}^2+3.612·T{S}^2·U_{set} +\\ +18.943·T{S}^2·{U_{set}}^2.\end{array}$$

(7)

Table 5. Result of analysis of variance for the applied models on thermal cycle parameters.

Parameter	Coefficient of Determination R-Sqr	Adjusted Sum of Squares (SS)	Model Quality	MS Residual
Heat input (HI)	0.94589	0.89177	Good	0.0134593
Cooling rate (CR)	0.99986	0.99946	Very good	0.7312838
Cooling time (Δt8/5)	0.94589	0.89177	Good	0.2910308

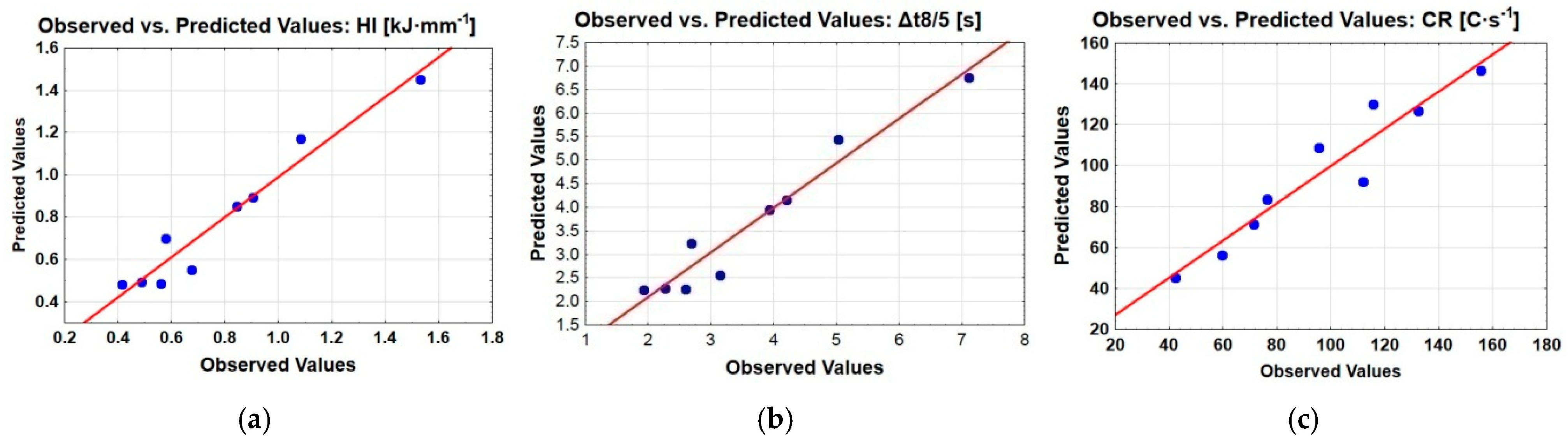

presents the regression coefficients for each response.

The statistical characteristics of the obtained mathematical models indicate their good quality.

The statistical significance and degree of influence of each of the factors on the dependent variables are represented by Pareto charts in Figure 3a–c, and graphs of the observed and predicted values of the influence of each factor on the dependent variables to assess the quality of the constructed mathematical models are shown in Figure 4a–c, respectively.

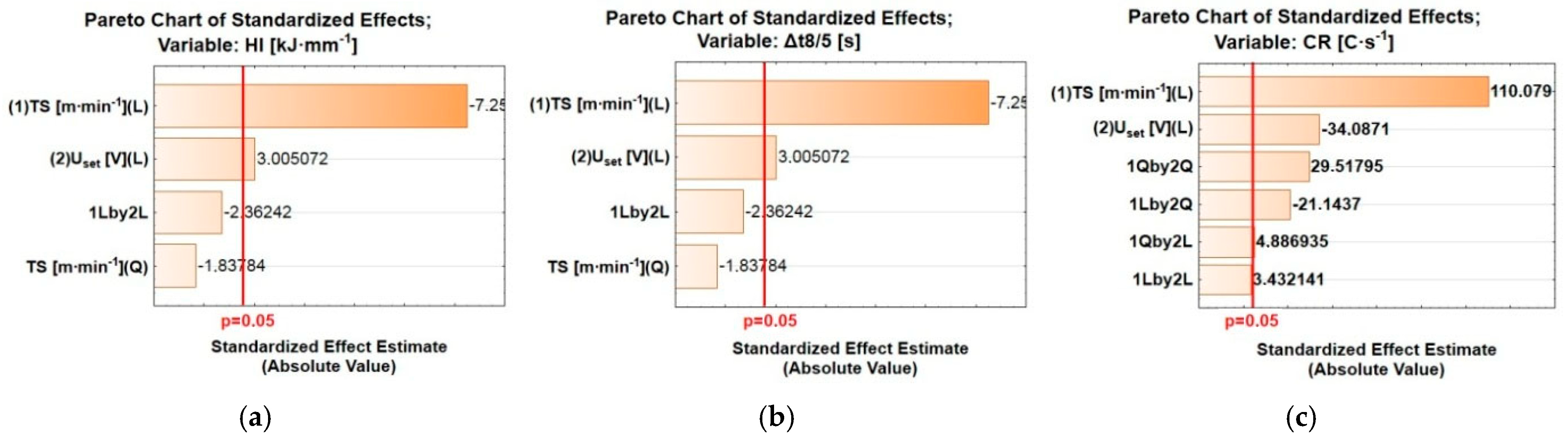

The analysis of the Pareto charts showed that the two terms of the mathematical model equation (TS and U_set) had the greatest impact on all indicators of the hardfacing thermal cycle. At the same time, the main factor was the travel speed. Analysis of Figure 4a–c showed a fairly high accuracy of the predicted values for all the constructed mathematical models.

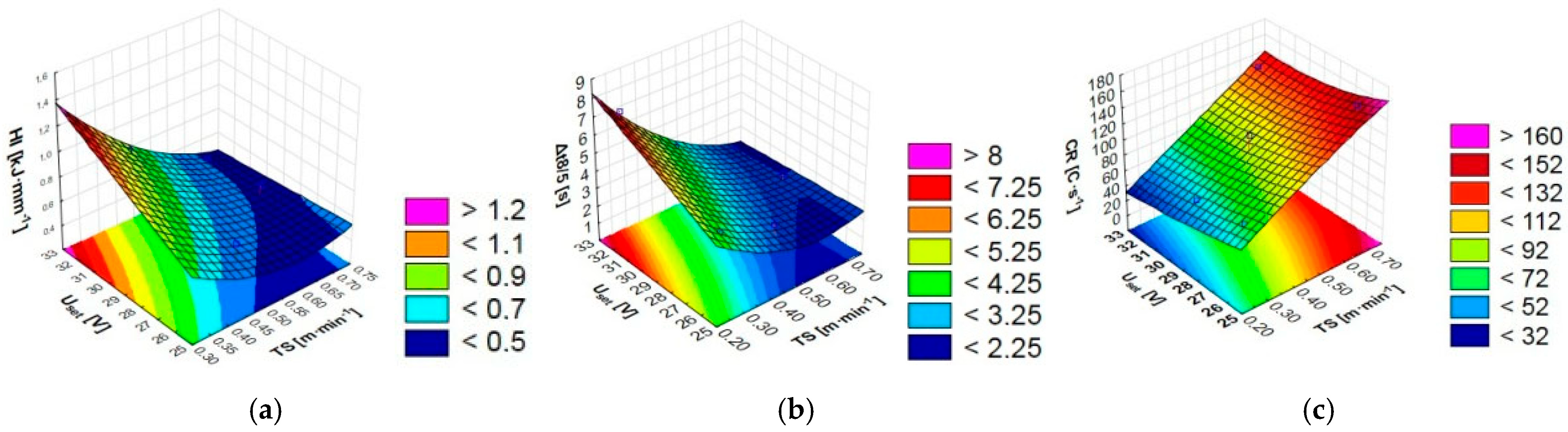

Figure 5 shows the response surfaces of the mathematical model of the dependence of the hardfacing thermal cycle parameters on the parameters of the hardfacing modes.

The analysis of Figure 5 shows the dependence of the hardfacing thermal cycle parameters on the travel speed (TS) and, to a lesser extent, the set voltage on the power source (U_set), which affected the cooling rate of the deposited metal. If the heat input (HI) and the cooling rate in the temperature range of 800–500 °C Δt_8/5 reached their lowest values at a high level of TS = 0.69 m-min⁻¹, and regardless of the U_set level, the cooling rate (CR) increased with the increase in the level of travel speed (TS).

3.2. Microstructure of the Deposited Metal

Figure 6 shows the microstructures of the deposited metal using FCAW-S with EA in the filler, obtained by hardfacing at the conditions specified in Table 3.

Figure 6a shows a microstructure with pronounced traces of primary crystallization, represented by alloy-depleted austenite and highly dispersed precipitates of a secondary phase, first of all, in the form of titanium nitrides (TiN). A similar structure is shown in Figure 6b,c. However, in these cases, a deeper transformation of the dendrites was observed with a corresponding decrease in the boundary development and an increase in equilibrium from the thermodynamic point of view.

A significant change in morphology was observed in the structure of sample Exp. 4 (Figure 6d). The dendritic structure could be traced, but it was highly fragmented. The matrix was an austenite saturated with alloying elements with very dispersed precipitates at the crystallite boundaries (degenerate interdendritic space) where the residual alloying elements and impurities were segregated.

The microstructure of Figure 6e is an acicular troostite and austenite with higher mechanical characteristics than the previous ones. The microstructure of Figure 6f has an even higher set of micromechanical characteristics, as it consisted of fine acicular martensite and soft austenite. The microstructure of Figure 6g has a complex composition and includes pearlite, austenite, and carbide inclusions with a developed interfacial surface. The microstructure of Figure 6h consists of matrix austenite and sparse, coarse martensite needles.

The only microstructure with decomposition products of austenite (eutectoid) is the microstructure in Figure 6i. It also showed a large number of non-metallic inclusions.

3.3. Grain Size of Deposited Metal

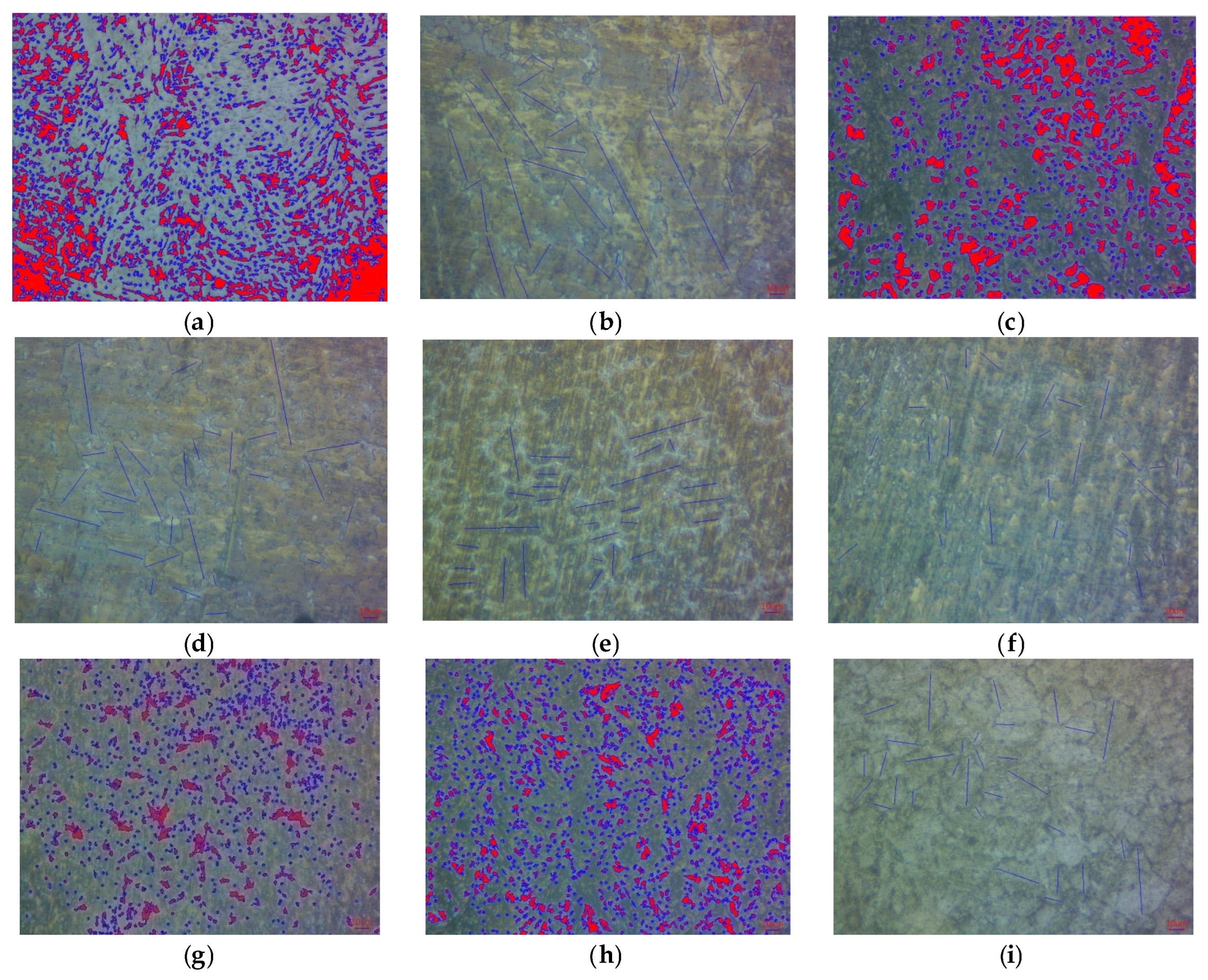

Figure 7 shows photos of the microstructure of the deposited metal made at the modes specified in Table 3 and the grain size indication.

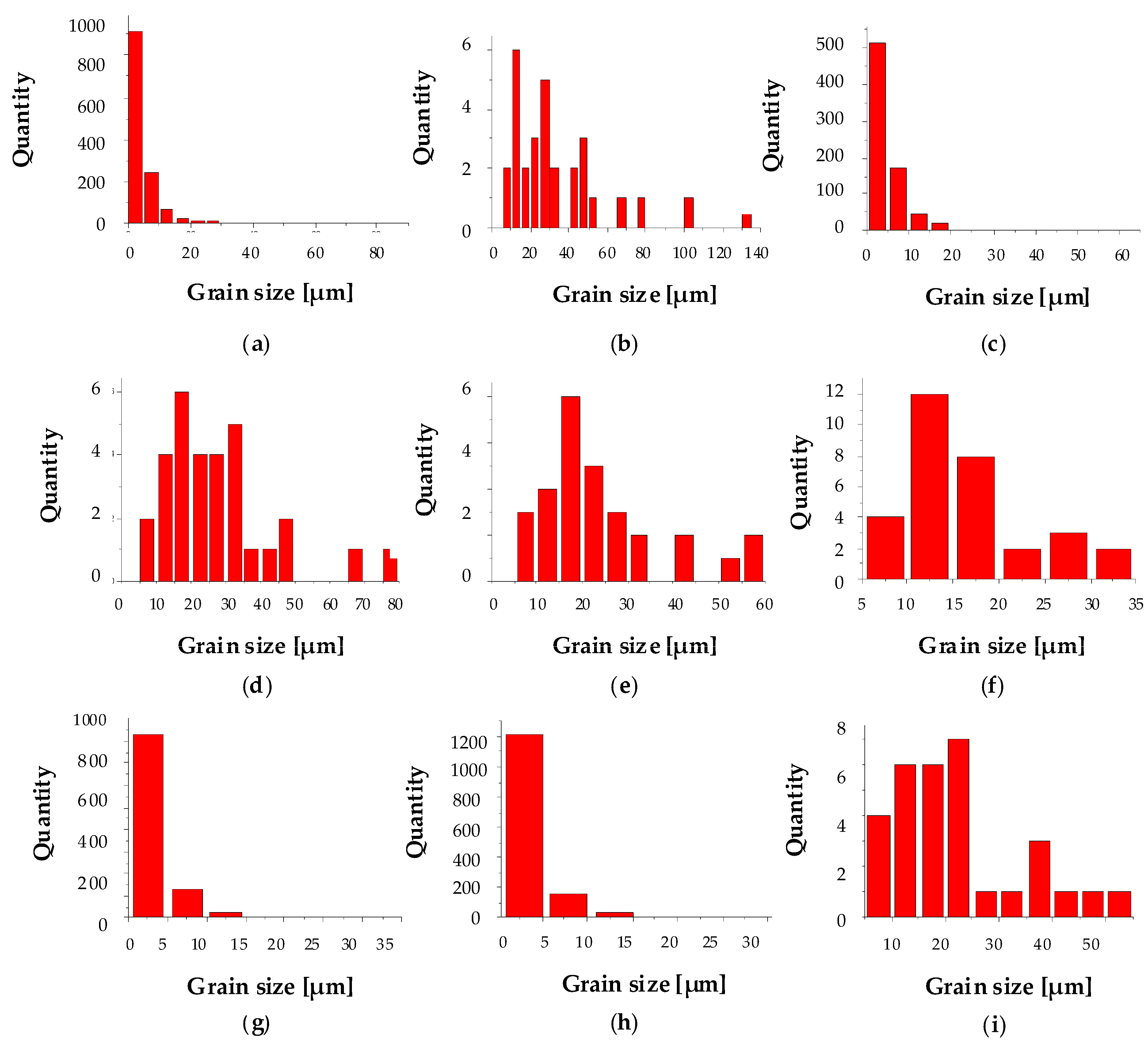

Figure 8 illustrates histograms of the distribution of grain size in the deposited metal by their nominal size.

Table 6. Grain morphology of the studied samples of deposited metal.

No.	Number of Grains	Grain Size [μm]
		Average	Minimum	Maximum
1	1291	5.1	0.9	86.1
2	30	35.3	7.9	133.8
3	765	0.9	63.5	5.2
4	31	27.1	7.1	79.9
5	30	24.4	8.2	57.4
6	31	16.8	7.0	31.9
7	1009	3.5	0.9	31.3
8	1421	3.5	0.9	26.6
9	31	22.5	8.1	51.1

shows the data on grain morphology in the deposited metal.

Table 7. Experimental (e) and calculated (c) values of grain size.

№	Grain Size
	GS (e) [μm]	GS (c) [μm]	Diff. [μm]	Dev. [%]
1	5.10	4.92	0.18	0.04
2	35.30	24.24	11.06	0.31
3	0.90	5.57	−4.67	−5.19
4	27.10	23.01	4.09	0.15
5	24.40	27.71	−3.31	−0.14
6	16.80	27.85	−11.05	−0.66
7	3.50	3.52	−0.02	−0.01
8	3.50	2.92	0.58	0.17
9	22.50	19.37	3.13	0.14

presents the experimental of grain size (GS) resulting from hardfacing with the developed self-shielded flux-cored wire (FCAW-S) containing an exothermic addition (EA) of MnO₂–Al in the filler.

3.3.1. Analyses of Variance for Grain Size

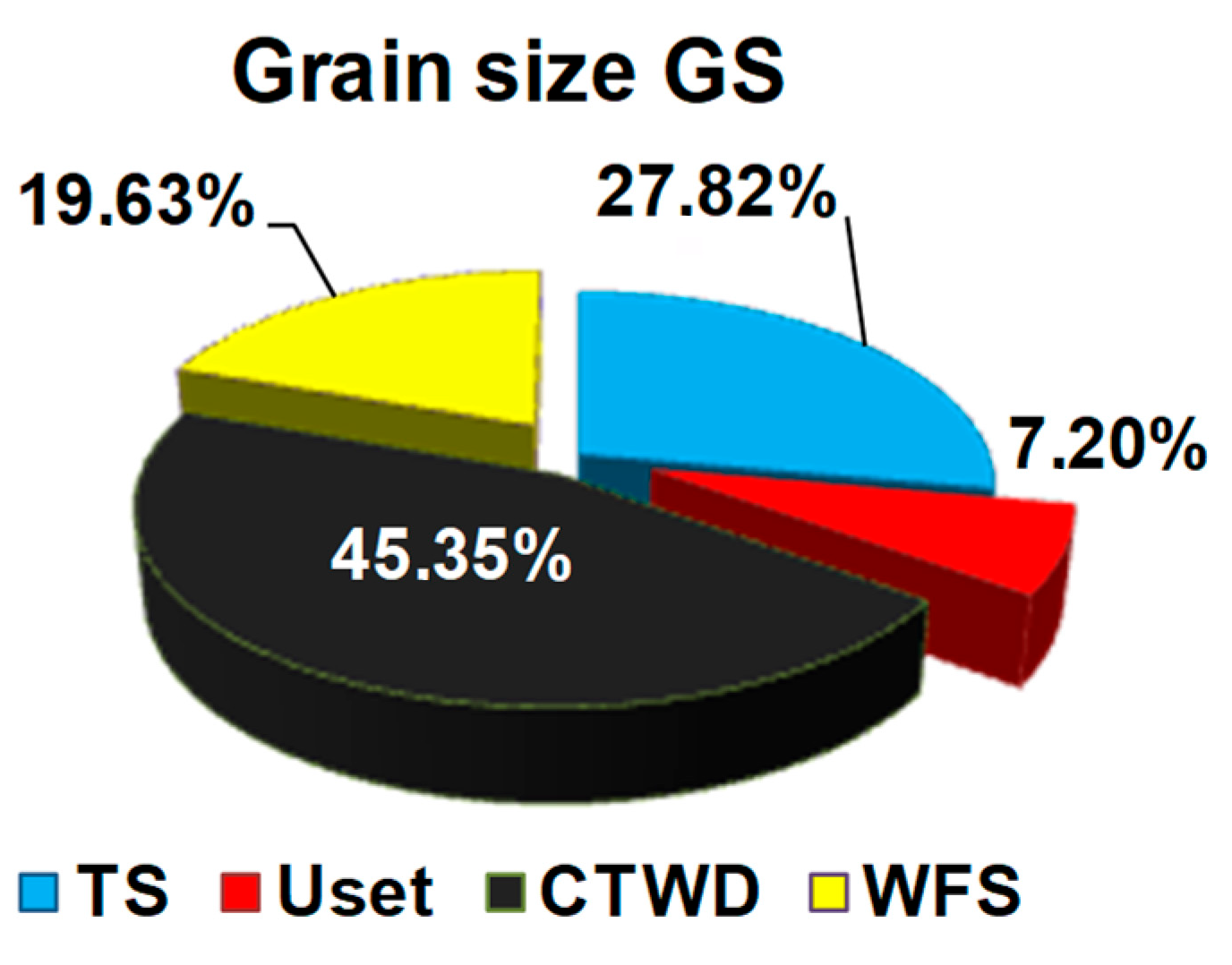

Figure 9 shows the effect of hardfacing parameters on grain size.

The analysis of the pie chart data showed that the grain size (GS) of the deposited metal was significantly influenced by the contact tip to work distance (CTWD) (contribution of 45.35%). The travel speed and wire feed speed had a lesser impact. Their contribution was 27.82% and 19.63%, respectively. The influence of such a parameter as the set voltage on the power source was significantly small, so it was not taken into account when building mathematical models.

3.3.2. Analyses Taguchi for Grain Size

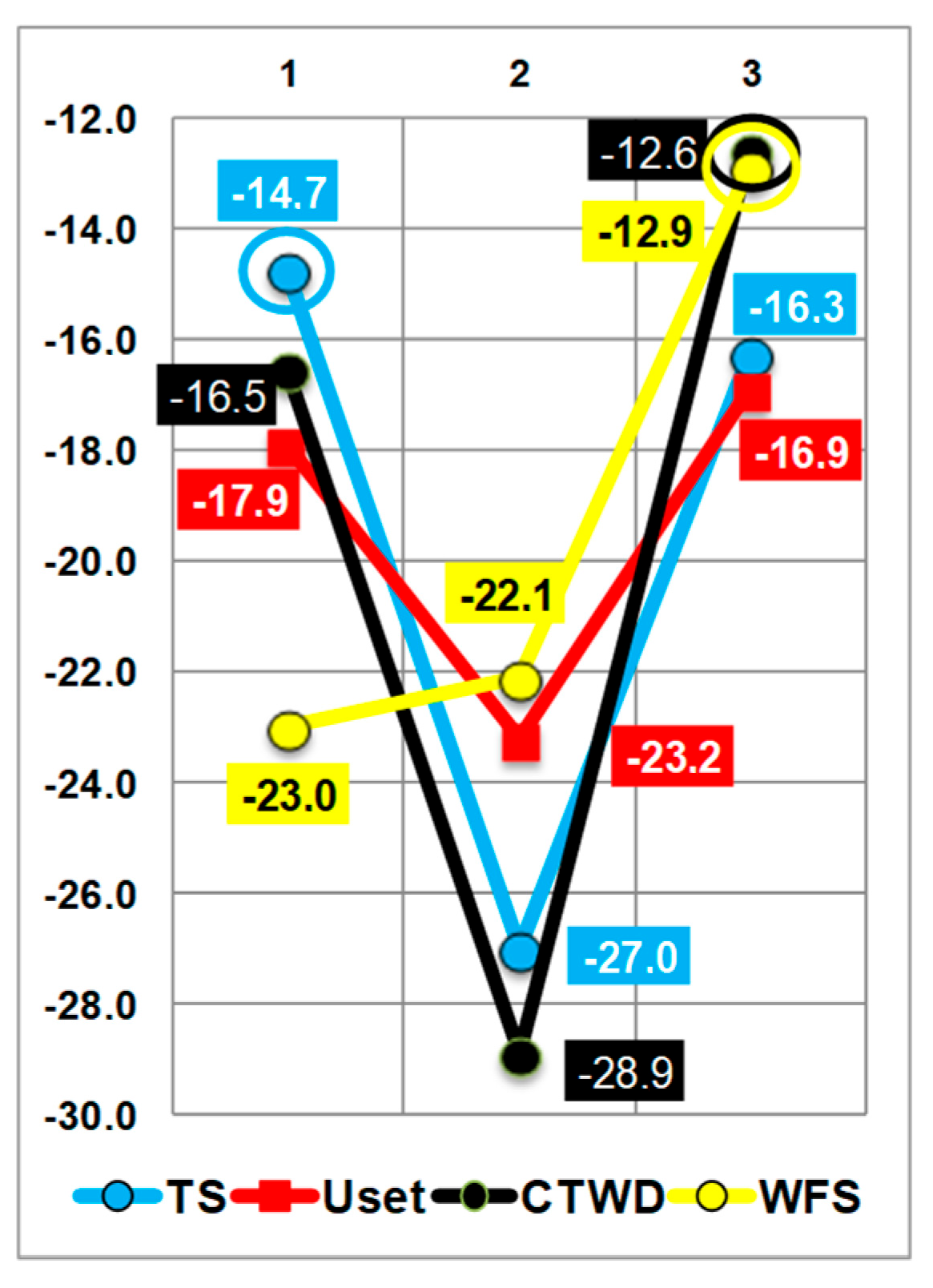

Figure 10 shows the experimental results of the calculated S/N ratios for grain size using the Taguchi method.

Analyzing the diagram of the S/N ratio for the grain size indicator, it could be noted that the optimal hardfacing in terms of obtaining the minimum grain size in the hardfacing should be performed at the maximum contact tip to work distance, CTWD = 50 mm, high travel speed at low or high values (TS = 0.27 m·min⁻¹ or TS = 0.69 m·min⁻¹), and wire feed speed at a high level (WFS = 2.73 m·min⁻¹).

3.3.3. Development of a Mathematical Model (Box–Hunter) for Grain Size

The equation of the obtained regression model for grain size is provided in Equation (8):

$$\begin{array}{l}Y\left(GS\right)=15.273+4.44·T{S}^2+19.889·CTW{D}^2-13.528·WFS-5.19·WF{S}^2 -\\ - 18.968·TS·CTW{D}^2+2.028·TS·WF{S}^2-13.053·CTWD·WF{S}^2;\\ R^2=0.99952.\end{array}$$

(8)

The statistical significance and the degree of influence of each factor on the dependent variables are presented by the Pareto chart in Figure 11a. To evaluate the quality of the constructed mathematical model, a graph of the observed and predicted values of the influence of each factor on the dependent variables was obtained, which is shown in Figure 11b.

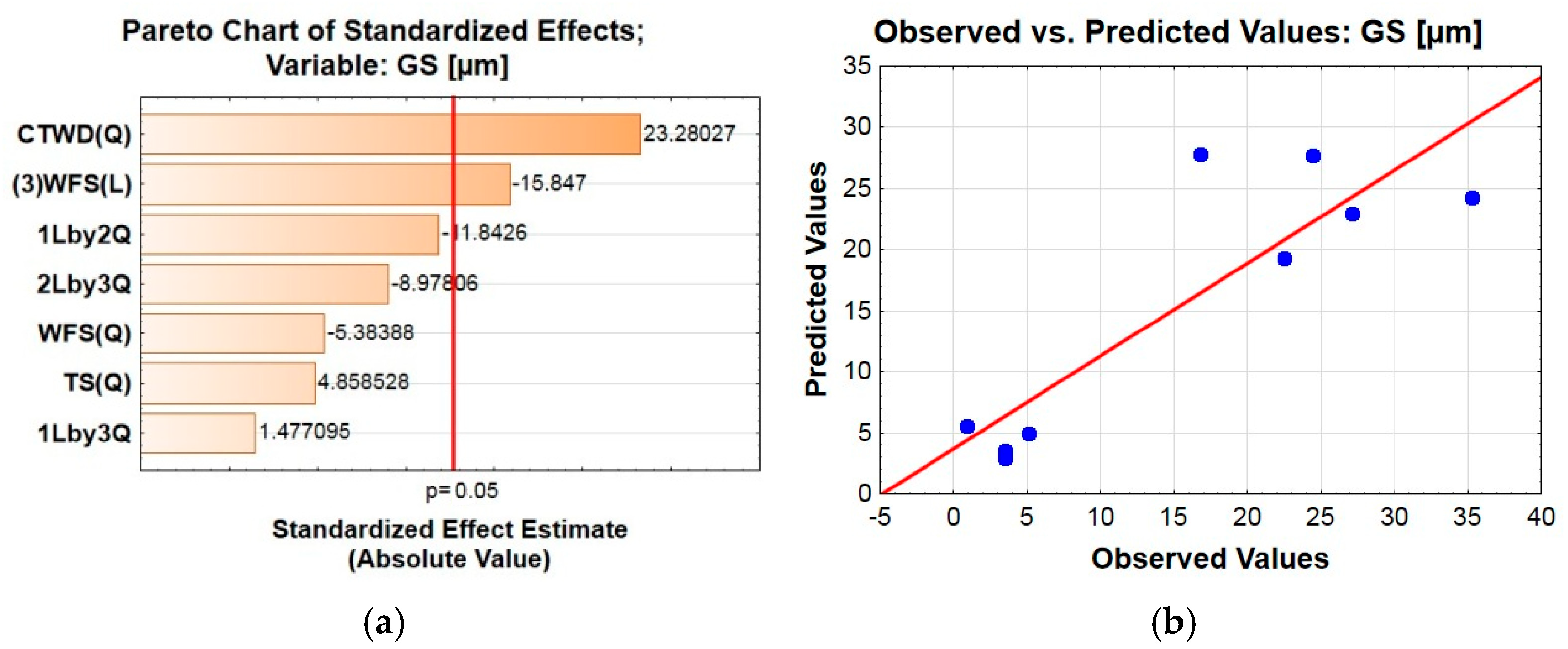

The analysis of the Pareto chart in Figure 11a shows that the significant parameters of the hardfacing mode in terms of their influence on the grain size (GS) are the contact tip to work distance (CTWD) and the wire feed speed (WFS). The analysis of Figure 11b shows the high accuracy of the predicted values for the constructed mathematical model.

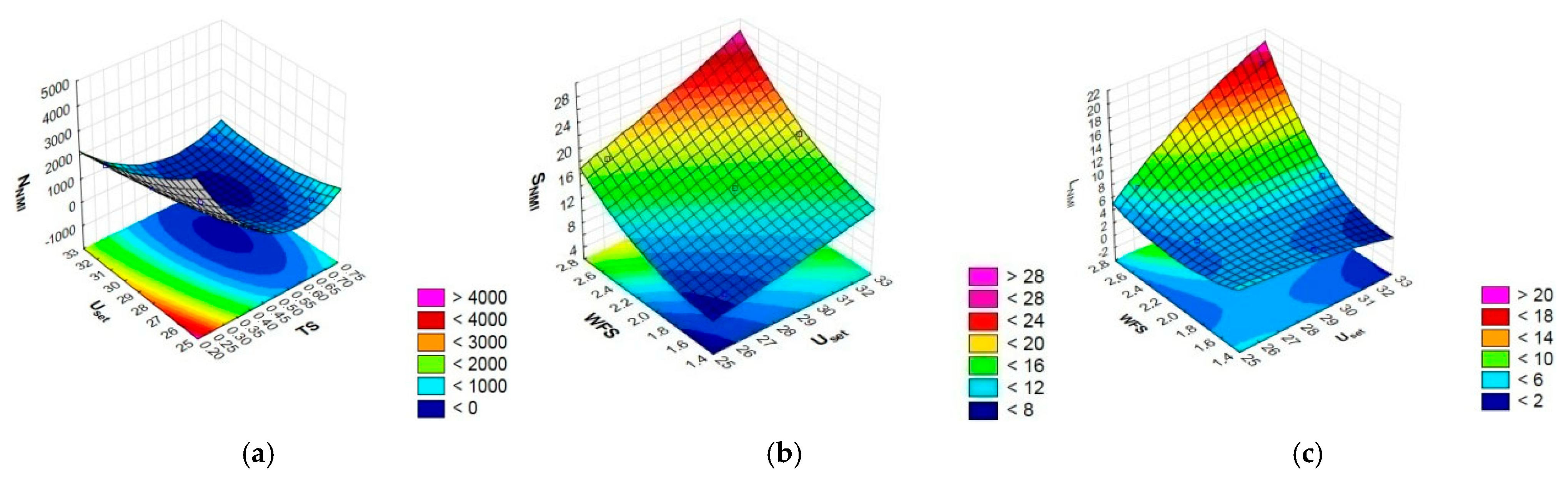

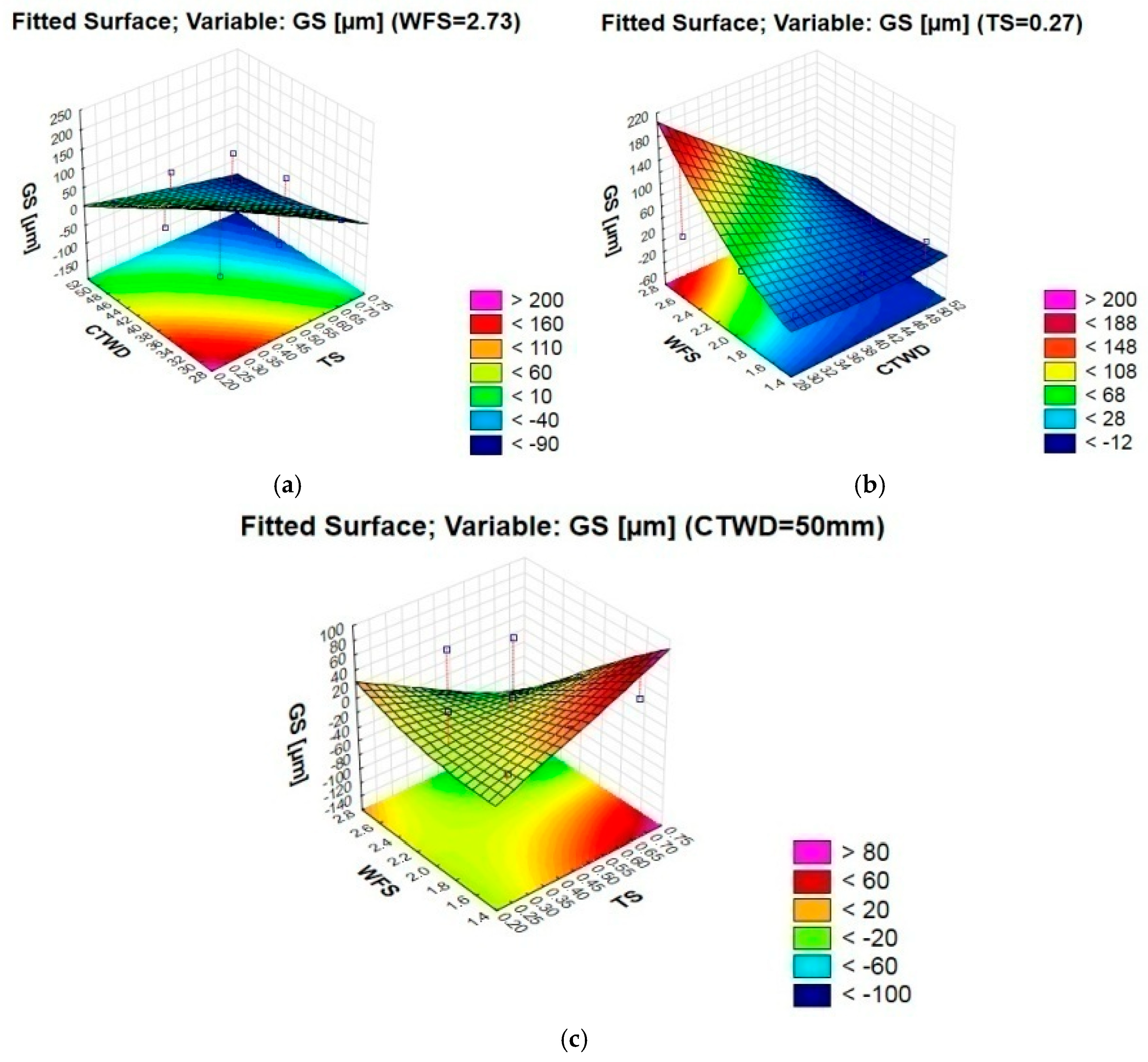

Figure 12 shows the response surfaces of the mathematical models of the dependence of grain size on hardfacing modes.

The effect of hardfacing modes on grain size showed an excellent result depending on the combination of parameters. An increase in both mode parameters, both the travel speed in combination with the contact tip to work distance (Figure 12a) as well as the travel speed and wire feed rate (Figure 12c), led to a decrease in the grain size of the deposited metal. This could be explained by the fact that in the heat input calculation formula, the travel speed appeared in the denominator. A different pattern of influence on grain size was observed for the combination of contact tip to work distance and wire feed speed, as shown in Figure 12b: the grain size tended to decrease with increasing contact tip to work distance and decreasing wire feed speed, which was directly proportional to the welding current and appeared in the numerator of the heat input formula.

3.4. Non-Metallic Inclusions

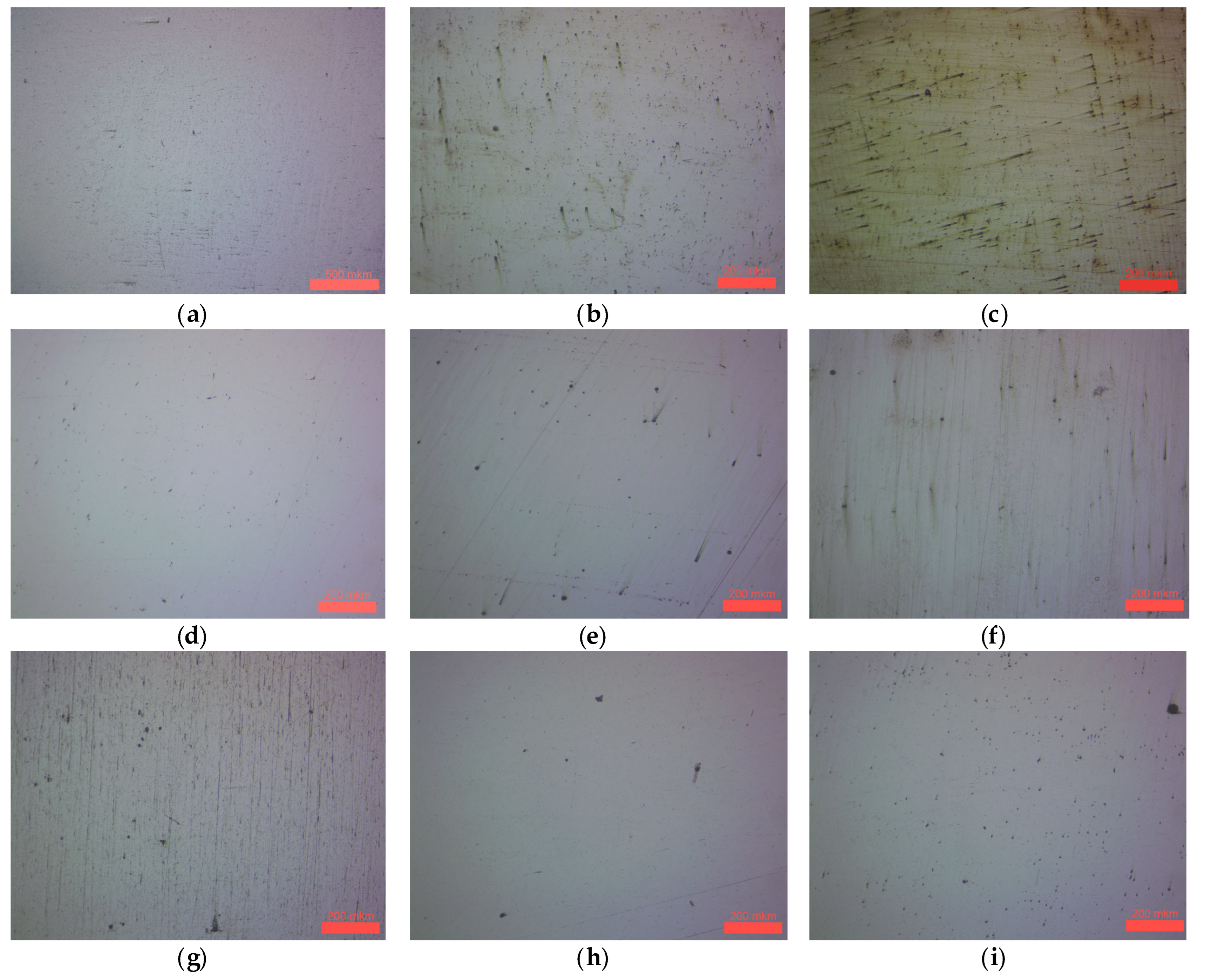

For the metallographic studies, the NMIs were produced in a polished finish (without etching). Digital photographs were taken and uploaded into the Digimizerver 4.6.1 software, where, using a scale bar, pixel values were converted into micrometers. Subsequently, binarization and mask overlaying on the analyzed objects were performed, followed by statistical analysis of the area, perimeter, and linear dimensions of the inclusions. Figure 13 shows the macrostructures of non-metallic inclusions in the deposited metal.

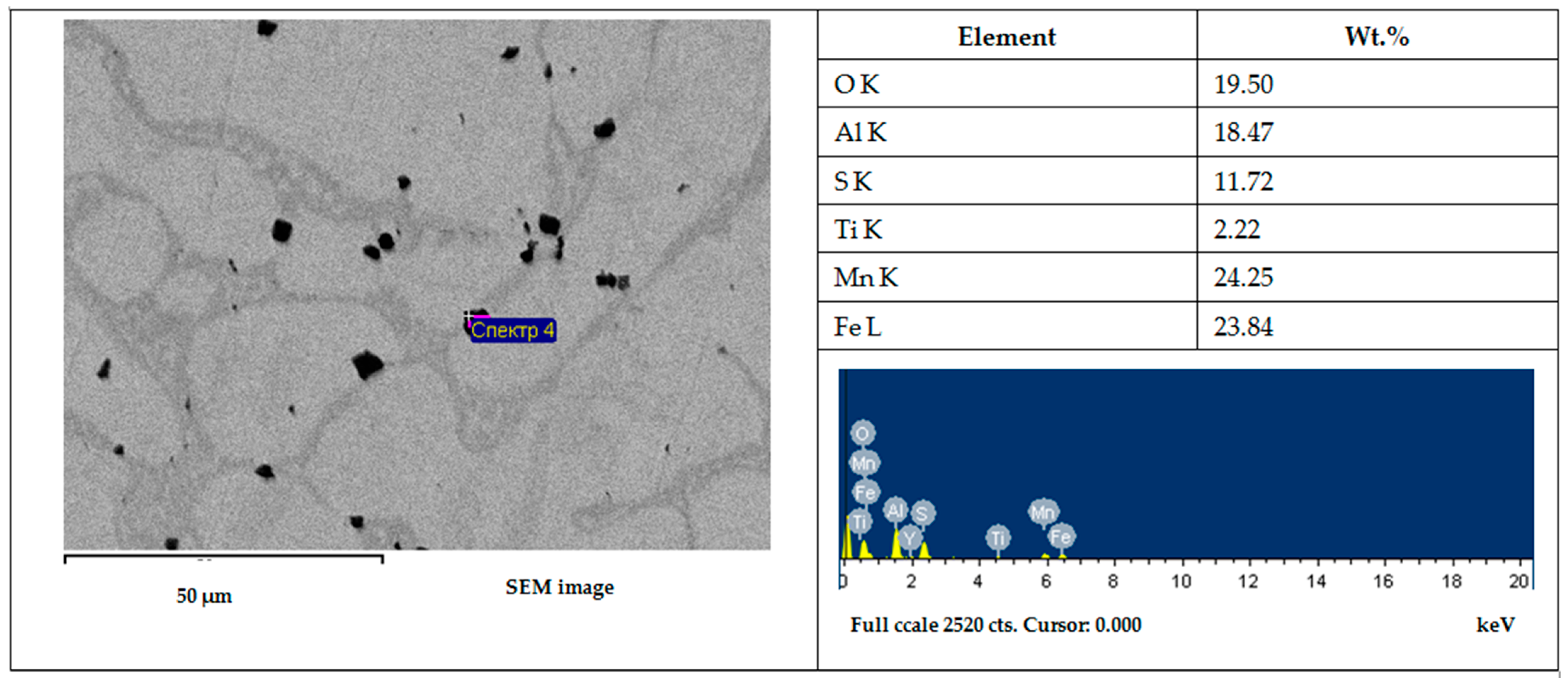

To analyze the chemical composition of non-metallic inclusions, an additional analysis was performed by EDS. Energy dispersive X-ray spectrometer INCA ENERGY 350 with microanalytical INCA X-stream processor, Microscope Image Capture System (MICS), and Inca Energy software. Figure 14 shows the results of the studies.

The analysis of the obtained data showed that non-metallic inclusions in FCAW-S hardfacing with exothermic addition are composite inclusions consisting of oxides (mainly of the corundum type, Al₂O₃) and manganese sulfides (MnS). The presence of the former in the weld metal can be explained by the exothermic reaction MnO₂ + Al = Mn + Al₂O₃. The latter have a metallurgical origin, resulting from the unavoidable presence, primarily in the metal sheath of flux-cored wires. As reported by Matsuoka et al. [42], manganese sulfide possessed better ductility and weak deformation resistance than alumina. However, MnS inclusions possess slightly lower but similar mechanical properties to the matrix [43]. Whereas alumina inclusions will act as hardening particles, thereby enhancing the mechanical properties of the weld metal.

Table 8. Characteristics of non-metallic inclusions in the deposited metal.

No.	Number of NMIs	Average Area, µm2	Average Perimeter, µm	Length, µm
				Average	Min	Max
1	2816	8.9	11.6	4.3	81.2	115.9
2	1971	12.2	13.4	4.5	0.9	110.8
3	1483	25.8	77.9	17.9	1.1	555.0
4	617	17.6	19.9	6.8	1.2	67.2
5	214	9.3	12.3	4.5	1.1	21.1
6	229	19.0	18.5	6.2	1.2	118.7
7	589	9.5	12.9	4.9	1.2	109.4
8	128	14.9	14.1	5.3	1.2	39.4
9	429	15.9	14.1	5.0	1.2	59.0

shows the size parameters of non-metallic inclusions in the deposited metal.

3.4.1. Analyses of Variance for Non-Metallic Inclusions (NMIs)

Table 9. Morphological characteristics of non-metallic inclusions in deposited metal samples that have been deposited under different modes of deposition.

№	Number of Nonmetal Inclusions				Average Area
	NNMI (e) [pcs]	NNMI (c) [pcs]	Diff. [pcs]	Dev.	SNMI (e) [µm2]	SNMI (c) [µm2]	Diff. [µm2]	Dev.
1	2816	2840.45	−24.45	−0.01	12.2	13.48	−1.28	−0.11
2	1971	1922.85	48.15	0.02	25.8	26.21	−0.41	−0.02
3	1483	1506.71	−23.71	−0.02	17.6	17.19	0.41	0.02
4	617	633.59	−16.59	−0.03	9.3	10.17	−0.87	−0.09
5	214	181.33	32.67	0.15	19.0	17.07	1.93	0.10
6	229	245.08	−16.08	−0.07	9.5	10.41	−0.91	−0.10
7	589	547.97	41.03	0.07	14.9	13.48	1.42	0.10
8	128	208.82	−80.82	−0.63	15.9	17.06	−1.17	−0.07
9	429	389.21	39.79	0.09	8.9	8.03	0.87	0.10
№	Maximum length				Average length
	LLNMI (e) [µm]	LLNMI (c) [µm]	Diff. [µm]	Dev.	LNMI (e) [µm]	LNMI (c) [µm]	Diff.	Dev.
1	115.9	112.71	3.19	0.03	4.30	4.81	−0.51	−0.20
2	110.8	111.26	−0.46	−0.00	4.50	5.40	−0.90	0.01
3	555.0	555.19	−0.19	0.00	17.90	17.74	0.16	−0.02
4	67.2	67.01	0.19	0.00	6.80	6.96	−0.16	0.11
5	21.1	24.29	−3.19	−0.15	4.50	3.99	0.51	0.10
6	118.7	119.68	−0.98	−0.01	6.20	5.56	0.64	0.19
7	109.4	95.86	13.54	0.12	4.90	3.98	0.92	−0.02
8	39.4	69.07	−29.67	−0.75	5.30	5.40	−0.10	−0.11
9	59.0	41.44	17.56	0.30	5.00	5.56	−0.56	−0.12

(e) and (c) are necessary to distinguish between data obtained experimentally and those predicted using the developed model.

shows the size of non-metallic inclusions in the deposited metal.

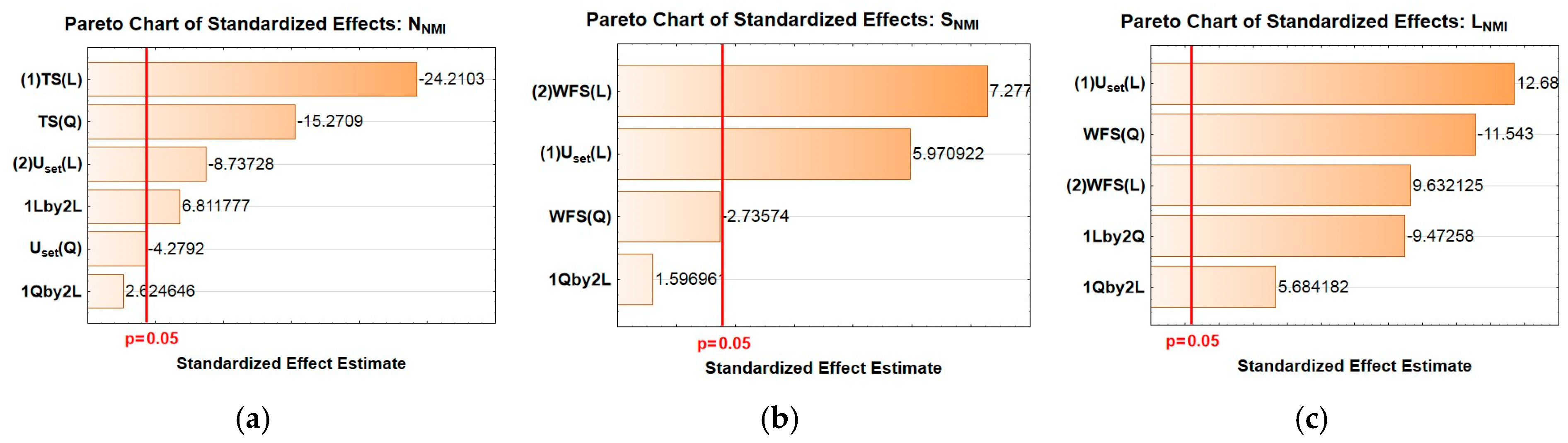

Figure 15 shows the effect of the hardfacing modes parameters (travel speed, set voltage on the power source, contact tip to work distance, and wire feed speed) on the characteristics of non-metallic inclusions: their number (N_NMI), average area (S_NMI), maximum length (LL_NMI), and average length (L_NMI).

Studying the pie charts allowed us to conclude that the dominant parameter influencing the value of the number of non-metallic inclusions (N_NMI) in the deposited metal was the travel speed (TS) (contribution of 75.8%). The set arc voltage had a much smaller effect on the N_NMI (contribution of 16.4%). Other mode parameters did not affect the N_NMI parameter.

The average area (S_NMI) and the average length (L_NMI) of non-metallic inclusions depended on the value of the wire feed speed (contributions of 43.2% for each parameter), as well as the set arc voltage (contributions of 52.4% and 32.6%, respectively). The average length (L_NMI) was slightly influenced by the contact tip to work distance (CTWD) (contribution of 13.8%), while the travel speed had no effect. There was no effect of CTWD and TS on the average area (S_NMI).

3.4.2. Taguchi Analyses for Non-Metallic Inclusions

For preliminary optimization of hardfacing modes, a study was performed, the results of which are presented in Figure 16, which showed the calculation of the S/N ratio for the NMI indicators using the Taguchi method. For preliminary optimization of hardfacing modes, a study was performed, the results of which are shown in Figure 16, showing the calculation of the S/N ratio for the NMI indicators using the Taguchi method.

Figure 16a shows that the lowest number and maximum and average length of non-metallic inclusions could be obtained at a travel speed (TS) at medium and high levels (TS = 2.07 m-min⁻¹ and TS = 2.73 m-min⁻¹), as well as at the set arc voltage at the second level (U_set = 29.2 V). The smallest area of non-metallic inclusions was provided when hardfacing at the minimum levels of the set arc voltage (U_set = 26.0 V) and wire feed speed (WFS = 1.50 m-min⁻¹).

The analysis of the diagrams of the main effects of the S/N ratio (see Figure 16a–c) showed that in terms of obtaining the minimum values of the number (N_NMI), the area (S_NMI), and the length (LL_NMI and L_NMI) of non-metallic inclusions, the optimal hardfacing modes would be the following: travel speed, TS = 0.47 m-min⁻¹; set voltage on the power source, U_set = 29.2 V; contact tip to work distance, CTWD = 30 mm; and WFS = 1.50 mm-min⁻¹.

3.4.3. Development of a Mathematical Model (Box–Hunter) for Non-Metallic Inclusions NMI

The developed mathematical models of non-metallic inclusion characteristics are presented in Equations (9)–(12).

$$\begin{array}{l}Y\left(N_{NMI}\right)=923.45-1704.99·TS-931.9·T{S}^2-615.48·U_{set}-260.99·U_{set}^2 +\\ + 587.49·TS·U_{set}+196.15·T{S}^2·U_{set}\end{array}$$

(9)

$$Y\left(S_{NMI}\right)=16.18+7.97·U_{set}+11.15·WFS-3.27·WF{S}^2+3.44·U_{set}^2·WFS$$

(10)

$$\begin{array}{l}Y\left(L{L}_{NMI}\right)=197.02-185.41·T{S}^2+387.02·U_{set}+287.99·WFS -\\ - 228.18·WF{S}^2-436.354·TS·U_{set}+671.48·TS·WFS\end{array}$$

(11)

$$\begin{array}{l}Y\left(L_{NMI}\right)=9.19+7.62·U_{set}+0.02·U_{set}-5.71·WF{S}^2 -\\ - 5.21·U_{set}·WF{S}^2+5.26·U_{set}·WFS\end{array}$$

(12)

Table 10. Result of dispersion analysis for the applied models of parameters characterizing non-metallic inclusions in deposited metal samples.

Parameter	Coefficient of Determination R-Sqr	Adjusted Sum of Squares (SS)	Model Quality
Number of nonmetal inclusions (NNMI)	0.99789	0.99157	Very good
Average area (SNMI)	0.9649	0.92981	Good
Maximum length (LLNMI)	0.99337	0.9735	Very good
Average length (LNMI)	0.99298	0.98127	Very good

presents the regression coefficients for each response.

The statistical significance and the degree of influence of each factor on the dependent variables are represented by Pareto charts in Figure 17.

Consideration of the obtained Pareto charts made it possible to conclude that the main significant hardfacing modes were the travel speed, the set arc voltage, and the wire feed speed. The analysis of Figure 17 of the graphs of the observed and predicted values of the dependent variable showed high accuracy for all the constructed mathematical models.

Figure 18 shows the 3D response surfaces of the developed mathematical models.

As shown in Figure 15a and Figure 18a, the total number of NMIs would be affected by the travel speed. This could be explained by the lifetime of the weld pool. The higher the travel speed, the lower the heat input and thus the weld pool lifetime. The size of the latter was also determined by the volume of molten electrode metal, which was determined by the wire feed speed. Whereas the size of the NMIs was influenced by such welding parameters as the set voltage on the power source and the wire feed speed.

3.5. Mechanical Properties

Table 11. Experimental (e) and calculated (c) values of HRA hardness.

№	N Specimen	Hardness
		HRA (e)	HRA (c)	Diff.	Dev.
1	P5-E1-1	62.00	60.04	1.96	0.03
2	P5-E1-2	61.00	63.25	−2.25	−0.04
3	P5-E1-3	58.00	57.72	0.28	0.01
4	P5-E1-4	69.00	67.55	1.45	0.02
5	P5-E1-5	69.00	69.56	−0.56	−0.01
6	P5-E1-6	72.00	72.89	−0.89	−0.01
7	P5-E1-7	79.00	75.86	3.14	0.04
8	P5-E1-8	69.00	70.73	−1.73	−0.03
9	P5-E1-9	71.00	72.40	−1.40	−0.02

shows the experimental and calculated (obtained from the equations of the mathematical model) values of HRA hardness measured after hardfacing with the developed FCAW-S with exothermic addition (EA) of MnO₂-Al in the filler. The hardness was determined using the standard Rockwell method according to the A scale (HRA) of ISO 6508-1.

It is known that the austenitic phase in high-manganese steels corresponds to a hardness of 190–220 HB (56–64 HRA) [44]. The analysis showed that the deposited metal of indices P5-E1-7 had the lowest hardness of 79 HRA. This can be explained by the large proportion of the pearlite phase in the matrix. This sample is characterized by the highest cooling rate, CR = 9.34 °C-s⁻¹, which is the main reason for the appearance of pearlite in the structure of the weld metal. The lower hardness of the samples with indices P5-E1-1, P5-E1-2, and P5-E1-3 is explained by the low travel speed. The lowest hardness was observed for the sample for which the thermal welding cycle had the lowest cooling rate, CR = 2.53 °C-s⁻¹.

3.5.1. Analyses of Variance and Taguchi for Hardness

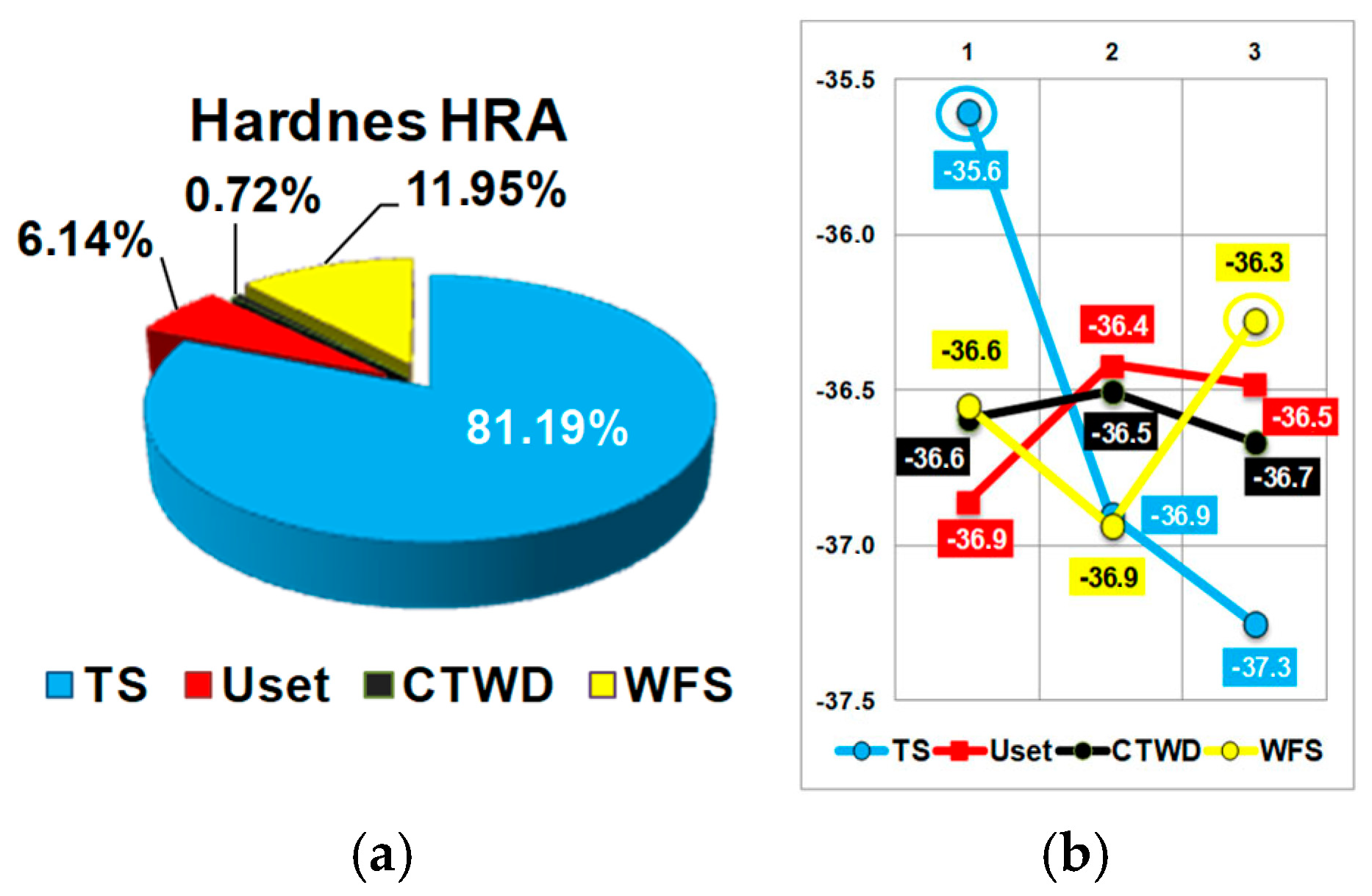

Figure 19 shows the contribution of each of the hardfacing mode parameters to the hardness and S/N ratio at each level.

According to Figure 19a, the main influence on hardness was exerted by the travel speed (contribution was 81.19%). The wire feed speed (WFS) also had an effect. The effect of other mode parameters was not significant, so their influence could be neglected.

Analysis of the graph in Figure 19b showed that the optimum conditions for obtaining the lowest hardness of the high-manganese alloy inherent in the austenitic matrix would be achieved at a low travel speed (TS = 0.27 m-min⁻¹) and at a high wire feed speed (WFS = 2.73 m-min⁻¹).

3.5.2. Development of a Mathematical Model (Box–Hunter) for Hardness

The equation of the obtained regression model for hardness is provided in Equation (13):

$$\begin{array}{l}Y\left(HRA\right)=67.875+12.667\cdot TS+3.706\cdot T{S}^2-2\cdot WFS+4.331\cdot WF{S}^2 +\\ + 4.035\cdot TS\cdot WF{S}^2;\\ R^2=0.98386.\end{array}$$

(13)

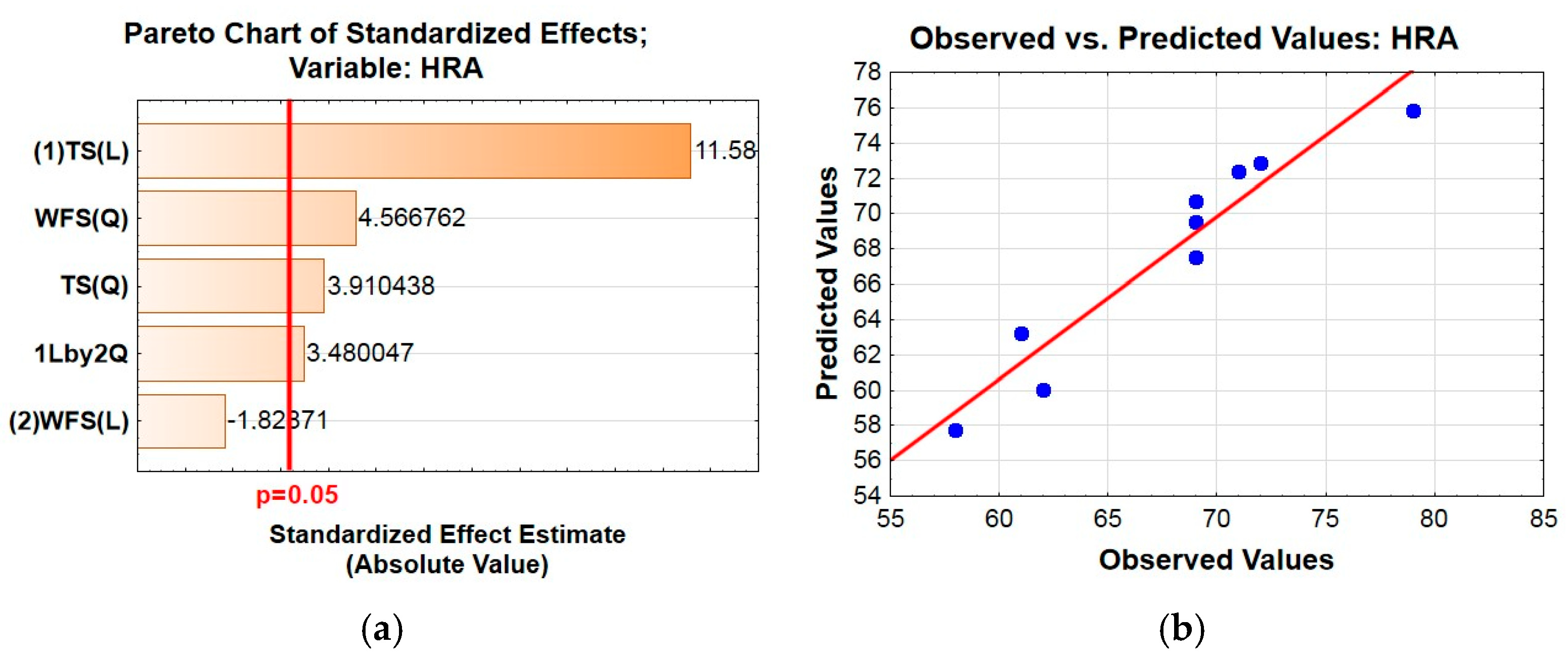

The statistical significance and the degree of influence of each factor on hardness is represented by the Pareto chart in Figure 20a. To evaluate the quality of the constructed mathematical model, a graph of the observed and predicted values of the influence of each factor on hardness is plotted in Figure 20b.

The analysis of the Pareto chart of Figure 20a showed that in terms of the influence of hardfacing modes on the HRA hardness value, the most significant were the travel speed (TS) and the wire feed speed (WFS). This was confirmed by the results of the ANOVA analysis. The developed mathematical model in Figure 20b shows the high accuracy of the predicted values.

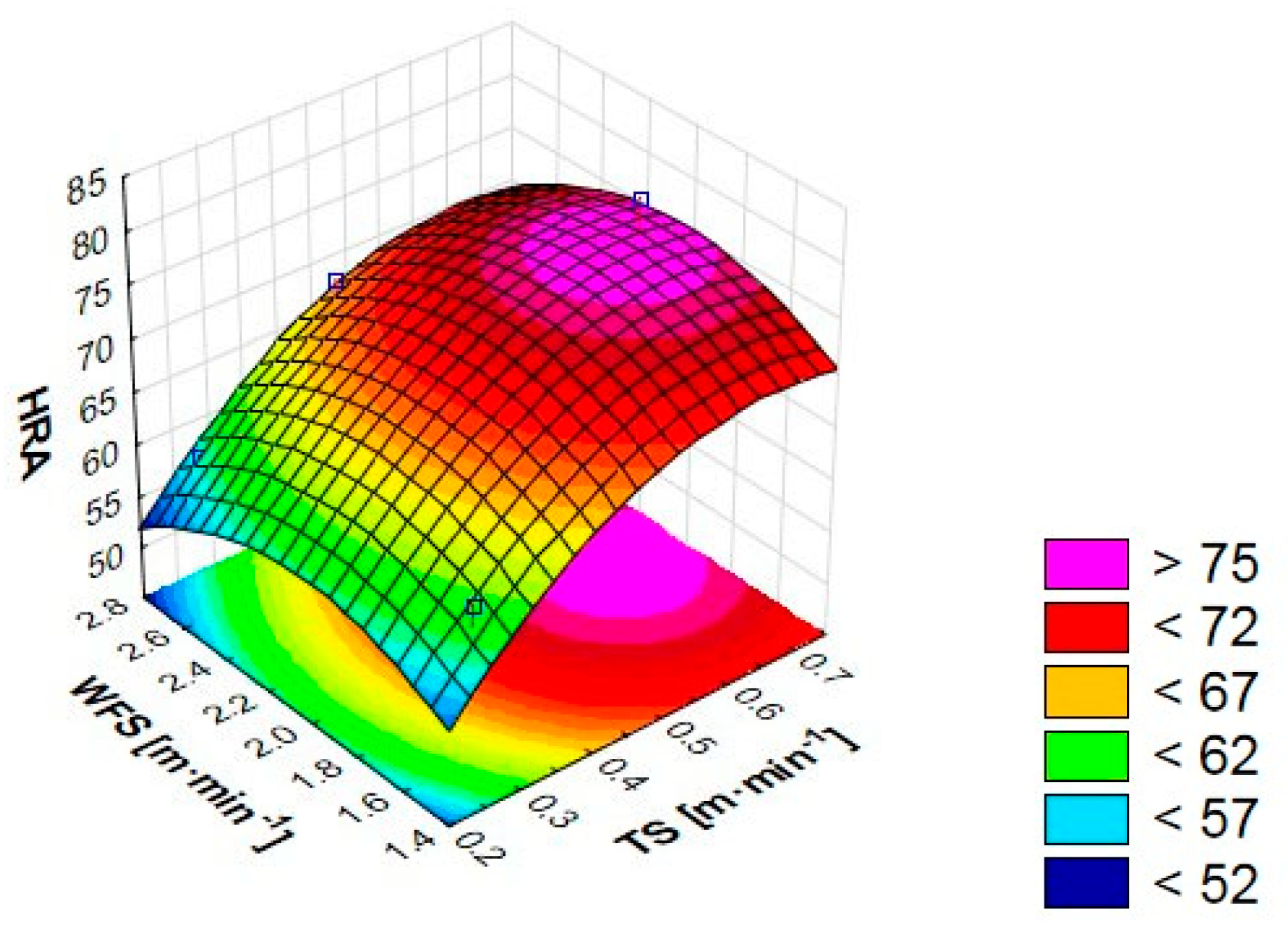

Figure 21 shows the response surface of the mathematical model of the dependence of the hardness of the deposited metal on the hardfacing modes.

The 3D surface of the hardness dependence on the significant parameters of the hardfacing mode for the developed mathematical model showed that the desired level of mechanical properties would correspond to a travel speed at a low level TS ≤ 0.4 m·min⁻¹.

4. Discussion

Our studies have shown a significant effect of welding modes on the microstructure of the deposited metal and its mechanical properties, made by flux-cored wire with a high-energy exothermic MnO₂-Al addition under different hardfacing modes.

It should be noted that for the considered ranges of changes in the parameters of the hardfacing modes, the greatest influence on the microstructure and mechanical properties was exerted by the travel speed (TS) and wire feed speed (WFS). At the same time, the quality of the deposited metal, characterized by the content and morphology of non-metallic inclusions, was most affected by such parameters of the hardfacing modes as wire feed speed and arc voltage. The amount of NMIs was most affected by the travel speed, which could be explained by the rapid solidification of the weld pool. As a result, the NMIs did not have time to float up and transfer into weld slag.

The main reason for the reduction in grain size was the decreased lifetime of the molten weld pool, which was primarily influenced by the travel speed (TS) and wire feed speed (WFS). These parameters of the hardfacing mode affected the cooling rate and the weld pool lifetime. This ultimately affected the degree of removal of small-sized non-metallic inclusions. Small-sized non-metallic inclusions served as centers of crystallization and refined grains. These inclusions lowered the energy barrier for crystal formation and acted as focal points around which metal atoms arranged themselves into a crystalline lattice. Thus, the hardfacing modes directly influenced the size and cooling rate of the weld pool and the amount of small-sized NMIs. The study by Wang et al. [45] showed that the total number of NMIs and their size were affected by the presence of an exothermic mixture. The main effect was an increase in their total number and average size. While the study by Trembach et al. [24] demonstrated that the presence of an exothermic addition in the filler increased the number of non-metallic inclusions in the deposited metal and reduced their size.

In addition, in some hardfacing modes, there were cases when the exothermic reaction took place at the weld pool stage. This resulted in the ingress of the exothermic addition components (namely MnO₂ and Al) in their original form into the molten weld pool.

The results showed that lower travel speeds corresponded to higher hardness values. This was due to the lower cooling rate and, accordingly, the formation of harder structural components than primary austenite. This tendency was typical for high-manganese, high-carbon alloys such as Hadfield steel. This corresponded to a high level of travel speed and wire feed speed.

Further studies will be conducted to investigate the effect of hardfacing modes on the tribological properties of the deposited metal.

The average linear size NMI and hardness were selected as final parameters of the hardfacing process modes. The first parameter is mainly influenced by such investigated parameters as wire feed speed, set voltage on the power source, and, to a small extent, contact tip to work distance. Whereas the hardness parameter is mainly influenced by travel speed. Based on the previously obtained optimal levels of variables for the selected output parameters, there will be the following values: travel speed, TS = 0.27 m-min⁻¹; set voltage on the power source, U_set = 29.2 V; contact tip to work distance, CTWD = 30 mm; and WFS = 1.50 mm-min⁻¹.

5. Conclusions

In this work we have investigated the influence of hardfacing modes on the parameters of the thermal cycle of welding, as well as the effect on the properties of weld metal samples of high-manganese, high-carbon alloys of the FeCMnCrTi system (microstructure, non-metallic inclusions, grain size, and hardness). The hardfacing process was carried out using self-shielded flux-cored wire with high-energy exothermic addition in the filler of the MnO₂Al system. In the above study, a new technique with an orthogonal experimental plan, L9 was used. Based on the obtained results, the following conclusions can be drawn:

1. The thermal cycle parameters and hardness will mainly be influenced by the travel speed variable. The influence of other parameters is low or not significant.

2. It was determined that for flux-cored wires with an exothermic addition, the size of the deposited metal grain size is most affected by the contact tip to work distance (CTWD), to a lesser extent, by the travel speed (TS) and the wire feed speed (WFS).

3. The analysis of the deposited metal samples showed that the size of NMIs was influenced by the wire feed speed and the set voltage on the power source.

4. As a result of the study, the optimum hardfacing modes were determined, which will provide minimum NMI size, fine grain, and high hardness of the austenitic phase with the following: TS = 0.27 m-min⁻¹, U_set = 29.2 V, CTWD = 30 mm, and WFS = 1.50 mm-min⁻¹.
