Artificial Intelligence-Enhanced Droop Control for Renewable Energy-Based Microgrids: A Comprehensive Review

Abstract

The integration of renewable energy sources into modern power systems requires advanced control strategies to maintain stability, reliability, and efficiency. This paper presents a comprehensive review of the application of artificial intelligence techniques, including machine learning, deep learning, and reinforcement learning, in improving droop control for renewable energy integration. These artificial intelligence-based methods address key challenges such as frequency and voltage regulation, power sharing, and grid compliance under conditions of high renewable penetration. Machine learning approaches, such as support vector machines, are used to optimize droop parameters for dynamic grid conditions, while deep learning models, including recurrent neural networks, capture complex system dynamics to enhance the stability of distributed energy systems. Reinforcement learning algorithms enable adaptive, autonomous control, improving multi-objective optimization within microgrids. In addition, emerging directions such as transfer learning and real-time data analytics are explored for their potential to enhance scalability and resilience. Overall, this review synthesizes recent advances to demonstrate the growing impact of artificial intelligence in droop control and outlines future pathways toward more intelligent and sustainable power systems.

1. Introduction

The energy industry is undergoing radical transformation on a global scale, driven by the growing need to implement climate change policies, reduce greenhouse gas emissions, and achieve sustainable development goals. This paradigm shift has enabled the large-scale integration of renewable energy sources (RES) into power systems worldwide, fundamentally altering the operation and control of modern power grids. However, incorporating such variable and intermittent resources presents significant challenges to the stability, quality, and operational efficiency of the power system [1]. Frequency fluctuations caused by variations in solar irradiance, wind speed, and load demand can lead to frequency deviations of up to ±0.5 Hz and voltage variations of ±10%, thus compromising grid reliability [2]. The growing trend toward decentralized grid architectures—featuring microgrids and distributed energy resources (DERs)—further compounds these challenges, as each such system must incorporate robust control mechanisms to ensure seamless operation in both grid-connected and islanded modes.

The grid stability and power quality are ultimately the key to ensuring a reliable and continuous electricity supply, particularly when renewable energy penetration exceeds 30% in advanced power systems [3]. Maintaining stability requires effective frequency regulation, voltage support, and power sharing to prevent blackouts, keep total harmonic distortion (THD) below 5%, and comply with grid codes such as IEEE 1547 [4]. In modern power systems, decentralized control commonly relies on droop control, which regulates active power (P) and reactive power (Q) based on deviations in frequency (f) and voltage (V), respectively, without requiring extensive communication. However, traditional droop control, characterized by fixed static coefficients ($m_p$ for $P-f$ and $n_q$ for $Q-V$), struggles to accommodate nonlinear dynamics and renewable variability, achieving only about 70% stability under real-world operating conditions [5,6]. These limitations underscore the need for advanced control strategies with enhanced adaptability and robustness.

Intelligent control techniques using machine learning (ML), deep learning (DL), and reinforcement learning (RL) have emerged as promising approaches to address the limitations of conventional control methods in renewable energy-integrated power systems. ML enables the predictive optimization of droop coefficients, improving accuracy by approximately 15–20% [7]. DL models can capture complex nonlinear system behaviors, reducing transient response errors by about 30–40% [8]. RL facilitates autonomous decision-making and enhances multi-objective performance [9]. Integrating these AI-based techniques with traditional droop control schemes can yield flexible, real-time solutions that enhance grid stability and support higher renewable energy penetration [10]. The rapid advancement of AI, combined with growing computational power and data availability, highlights the increasing importance of applying these methods to modern power systems.

The purpose of this review paper is to provide a comprehensive and synergistic analysis of AI-enhanced droop control in renewable energy systems by compiling and examining studies published between 2015 and 2025. The review search was conducted using the Scopus database with Boolean operators combining keywords (“droop control” OR “power sharing”) AND (“artificial intelligence” OR “machine learning” OR “deep learning” OR “reinforcement learning”) AND (“renewable energy” OR “microgrid” OR “photovoltaic” OR “wind” OR “energy storage”), yielding 547 initial records. Screening was performed using Covidence software, applying inclusion criteria requiring AI/ML application to droop control in renewable energy contexts and exclusion criteria removing non-English publications, abstracts without full text, and purely theoretical papers without power systems validation, resulting in 231 studies meeting all criteria. Selected papers were categorized according to AI technique taxonomy (classical ML, DL, RL) and application domain (PV, wind, storage, microgrids) to enable systematic comparison and gap identification. The specific objectives of this review are as follows:

• Evaluate the state of the art in ML-, DL-, and RL-based approaches for droop control;
• Assess their applications across photovoltaic (PV), wind, energy storage systems (ESS), and microgrids;
• Analyze performance metrics, challenges, and technological advancements.

In addition to providing an overview of the existing research, this review also provides specific recommendations for researchers, engineers, and policy makers involved in the development of renewable energy and the control of power systems. It offers a clear understanding of the complicated field of AI-based droop control, indicating major gaps and future work opportunities. The review also reveals how the application of AI and ML can be used beyond droop control to manage the broader issues of power systems. The review is organized as follows. Section 2 describes the review of the literature and the theoretical context. Section 3 studies intelligent methods (ML, DL, RL) of droop management. In Section 4, case studies are discussed, focusing on the application areas of renewable systems. Section 5 examines the discussion and critical analysis. Section 6 summarizes key findings and implications.

2. Literature Review and Theoretical Background

2.1. Fundamentals of Droop Control

2.1.1. Traditional Droop Control Principles

The concept of droop control originated from the need to ensure the stable parallel operation of synchronous generators without requiring communication links between units [11]. The fundamental principle is derived from the inherent characteristics of synchronous machines, in which the frequency (f) depends on the active power (P) output, and the voltage (V) magnitude depends on the reactive power (Q) output [12]. The core concept is governed by the P-f and Q-V droop characteristics, where frequency decreases linearly with increasing active power output, and voltage decreases with increasing reactive power output [13]. This relationship forms the basis of the droop control strategy, which has been widely applied in both conventional power systems and modern microgrids. Figure 1 illustrates these linear relationships, showing multiple droop lines with different coefficients that represent DERs operating in parallel.

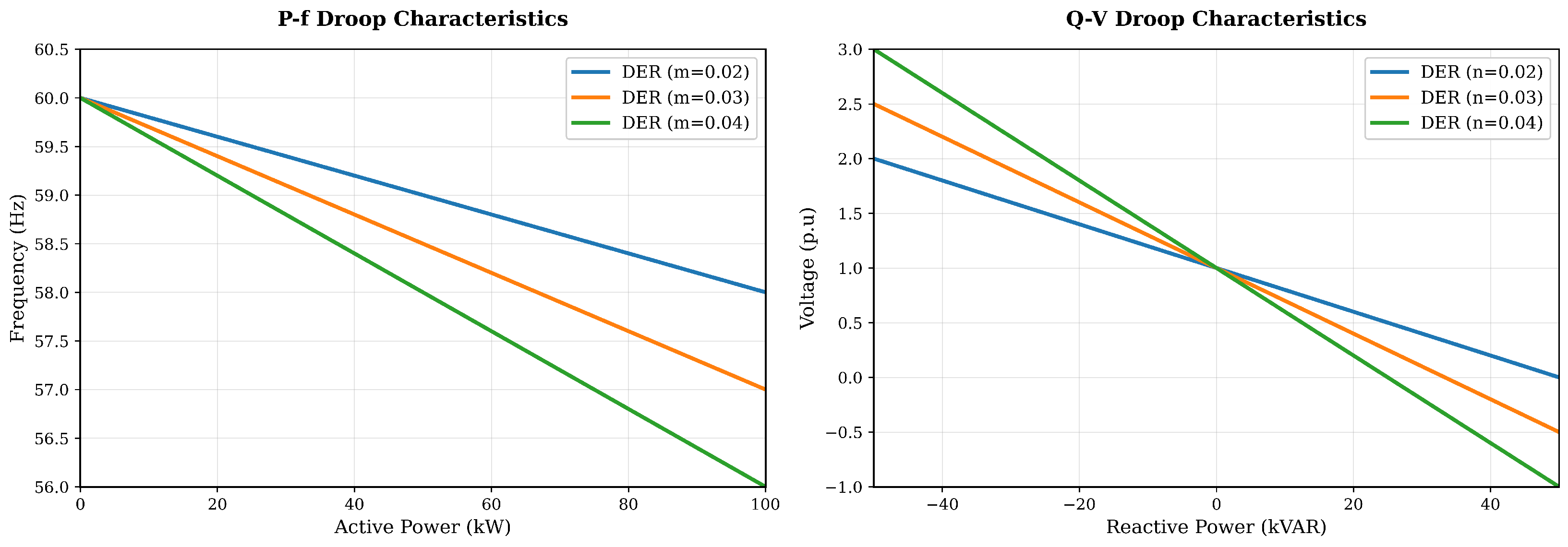

The mathematical formulation of conventional droop control is defined by two primary relationships: the active power–frequency (P-f) droop and the reactive power–voltage (Q-V) droop characteristics [14]. The P-f droop relationship is expressed as follows:

$$f=f_0-m_p(P-P_0),$$

(1)

where f represents the system frequency, $f_0$ is the nominal frequency, $m_p$ is the frequency droop coefficient, P is the active power output, and $P_0$ is the nominal active power.

Similarly, the Q-V droop relationship is given by the following:

$$V=V_0-n_q(Q-Q_0),$$

(2)

where V is the terminal voltage magnitude, $V_0$ is the nominal voltage, $n_q$ is the voltage droop coefficient, Q is the reactive power output, and $Q_0$ is the nominal reactive power.

For n parallel inverters [15], equal power sharing requires proportional droop gains:

$$m_{p,1}{P}_1=m_{p,2}{P}_2=\cdots =m_{p,n}{P}_n.$$

(3)

Small-signal analysis linearizes system dynamics around operating points to assess stability through eigenvalue analysis [16]. The frequency and voltage deviations under small perturbations are as follows:

$$\Delta f\left(s\right)=-m_p\Delta P\left(s\right),$$

(4)

$$\Delta V\left(s\right)=-n_q\Delta Q\left(s\right).$$

(5)

2.1.2. Droop Control in Microgrids

Microgrids operate in two primary modes: islanded, where they function independently, and grid-connected, where they interface with the main utility grid [17]. Droop control plays a critical role in both modes by regulating frequency, voltage, and power sharing among DERs, such as solar PV systems, wind turbines, and battery energy storage systems (BESS) [18]. In islanded mode, the microgrid must autonomously maintain the power balance [19], satisfying

$$\sum P_{\mathrm{DG},i}=P_{\mathrm{load}}+P_{\mathrm{loss}},$$

(6)

$$\sum Q_{\mathrm{DG},i}=Q_{\mathrm{load}}+Q_{\mathrm{loss}},$$

(7)

where $P_{\mathrm{DG},i}$ and $Q_{\mathrm{DG},i}$ are the active and reactive power outputs of the i-th DER, and $P_{\mathrm{load}}$, $Q_{\mathrm{load}}$, $P_{\mathrm{loss}}$, and $Q_{\mathrm{loss}}$ represent load demands and system losses. In grid-connected mode, droop coefficients adapt to regulate power exchange with the main grid [20].

2.2. Renewable Energy Integration Challenges

2.2.1. Intermittency and Variability

Solar and wind resources exhibit stochastic behavior across multiple time scales, challenging traditional control approaches [21]. Solar irradiance follows beta distributions while wind speed follows Weibull distributions [22,23]. Ramp rates quantify output variability:

$$\mathrm{RR}\left(t\right)={\displaystyle \frac{\Delta P}{\Delta t}},$$

(8)

where $\Delta P$ is the power change over time $\Delta t$, which can exceed conventional controller response capabilities [24]. Figure 2 represents reliability versus resilience in microgrid performance during a disruption event.

2.2.2. Power Quality and Stability Issues

High RES penetration introduces power quality and stability issues, including voltage and frequency deviations, harmonic distortion, and transient instability [26]. Voltage stability is assessed using the voltage stability index, where values closer to 0 indicate stronger voltage stability, while values approaching 1 suggest the system is nearing voltage collapse [27]:

$$\mathrm{VSI}={\displaystyle \frac{4X}{V_s^2}}(P_r^2+Q_r^2),$$

(9)

where X is the line reactance, $V_s$ is the sending-end voltage, and $P_r$ and $Q_r$ are the receiving-end active and reactive powers.

Reduced system inertia causes larger frequency deviations:

$$\Delta f={\displaystyle \frac{\Delta P}{2H{f}_0}},$$

(10)

where lower inertia H amplifies frequency excursions during power mismatches. These challenges necessitate advanced control strategies with rapid adaptation capabilities [28].

2.3. Artificial Intelligence in Power Systems

2.3.1. Machine Learning Fundamentals

The application of ML techniques in power systems has gained significant momentum due to their ability to extract patterns from complex data and make intelligent decisions without explicit programming [29]. ML paradigms can be broadly categorized into supervised learning, unsupervised learning, and RL, each offering distinct capabilities for addressing a range of power system challenges [30].

Supervised learning enables prediction-based control by learning input-output mappings from historical data [29]. Regression models are typically optimized using gradient descent on cost functions such as the mean squared error (MSE) [31]. Feature normalization and cross-validation are commonly employed to ensure robust generalization [32].

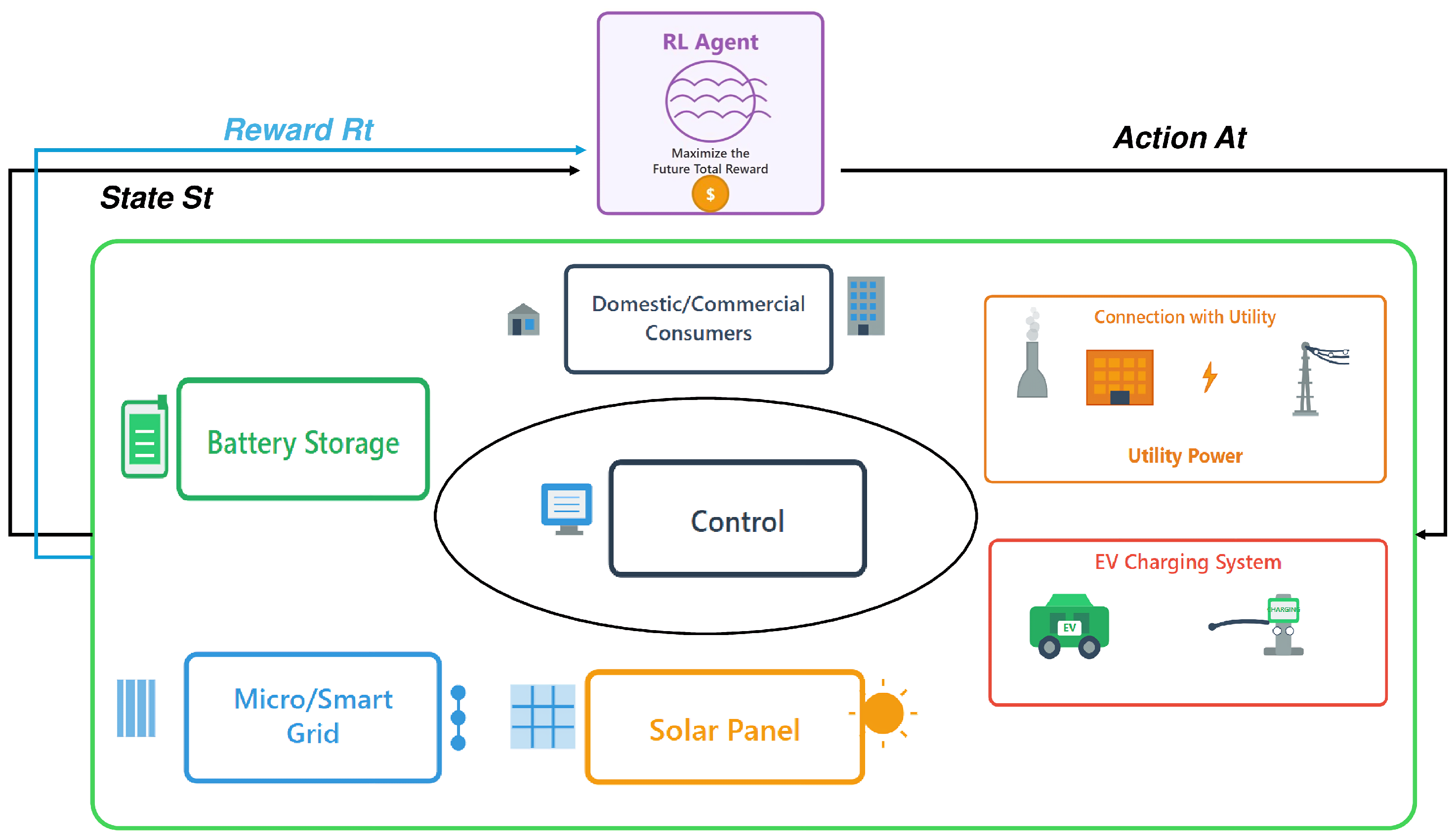

RL formulates control as a Markov Decision Process (MDP), learning optimal policies through interaction with the environment [33]. The Q-learning update rule is as follows:

$$Q(s,a)\leftarrow Q(s,a)+\alpha \left[r+\gamma \underset{a^{\prime }}{max}Q(s^{\prime },a^{\prime })-Q(s,a)\right],$$

(11)

enables adaptive droop coefficient tuning, improving transient response by 15–25% compared to fixed gains [34]. Policy gradient methods optimize continuous control actions directly [35]. Multi-agent reinforcement learning (MARL) coordinates distributed controllers without centralized communication [36]. Figure 3 illustrates an RL agent interacting with a microgrid environment, including state action, and reward signals.

2.3.2. Deep Learning in Power Systems

DL, a subset of ML based on artificial neural networks (ANN) with multiple hidden layers, has shown remarkable success in addressing complex power system problems. Deep neural networks (DNNs) automatically extract hierarchical features from high-dimensional data [38]. Long short-term memory (LSTM) networks model temporal dependencies in renewable generation forecasts [39]. Convolutional neural networks (CNN) process spatial grid topologies [40]. These architectures enable nonlinear droop parameter adaptation based on complex system states [41].

When applied to droop control, DL forecasts system dynamics for predictive control, outperforming classical methods in high-dimensional scenarios [41,42]. Practical trends include integrated DL–RL frameworks achieving 20–30% efficiency gains under variable renewable conditions [43]. A hierarchical diagram classifying ML, DL, and RL approaches in droop control applications is presented in Figure 4.

2.3.3. Classical Machine Learning and Metaheuristic Techniques

Tree-based ensembles such as random forests, gradient boosting machines (GBM), and extreme gradient boosting (XGBoost) provide interpretable predictions with low computational overhead, which is critical for real-time embedded controllers [44,45]. Support vector regression (SVR) handles nonlinear relationships with theoretical generalization guarantees [46].

Metaheuristics optimize non-convex droop parameter spaces. Particle swarm optimization (PSO) has demonstrated significant performance improvements in droop control applications. For instance, in voltage-frequency control for autonomous microgrids, PSO-tuned PI controllers implementing a synchronous reference frame (SRF) reduced voltage deviation to <1% and frequency deviation to <10% during islanding transitions, achieving THD of 1.77% (voltage) and 1.20% (current) with a two-cycle settling time, meeting the IEEE 1547 standard [47]. Additionally, virtual impedance droop control with adaptive PSO-optimized PID parameters achieved reactive power sharing with <2.5% deviation (improved from >3.5%), voltage deviation <0.03%, and reduced circulating current to a maximum of ±1.5 A in parallel inverter systems [48]. Genetic algorithms (GA) combined with DL forecasting have shown similar effectiveness: GA-optimized PV-BESS dispatch coordinated with CNN-BiLSTM forecasting (92.55% accuracy) reduced voltage unbalance by 55% and feeder losses by 63.55% across 40–70% EV penetration levels in IEEE 13-bus distribution systems under seasonal variations [49].

Hybrid approaches combining metaheuristics with ML models consistently outperform standalone methods, yielding measurable improvements in frequency regulation, voltage stability, and transient response across diverse microgrid configurations [50].

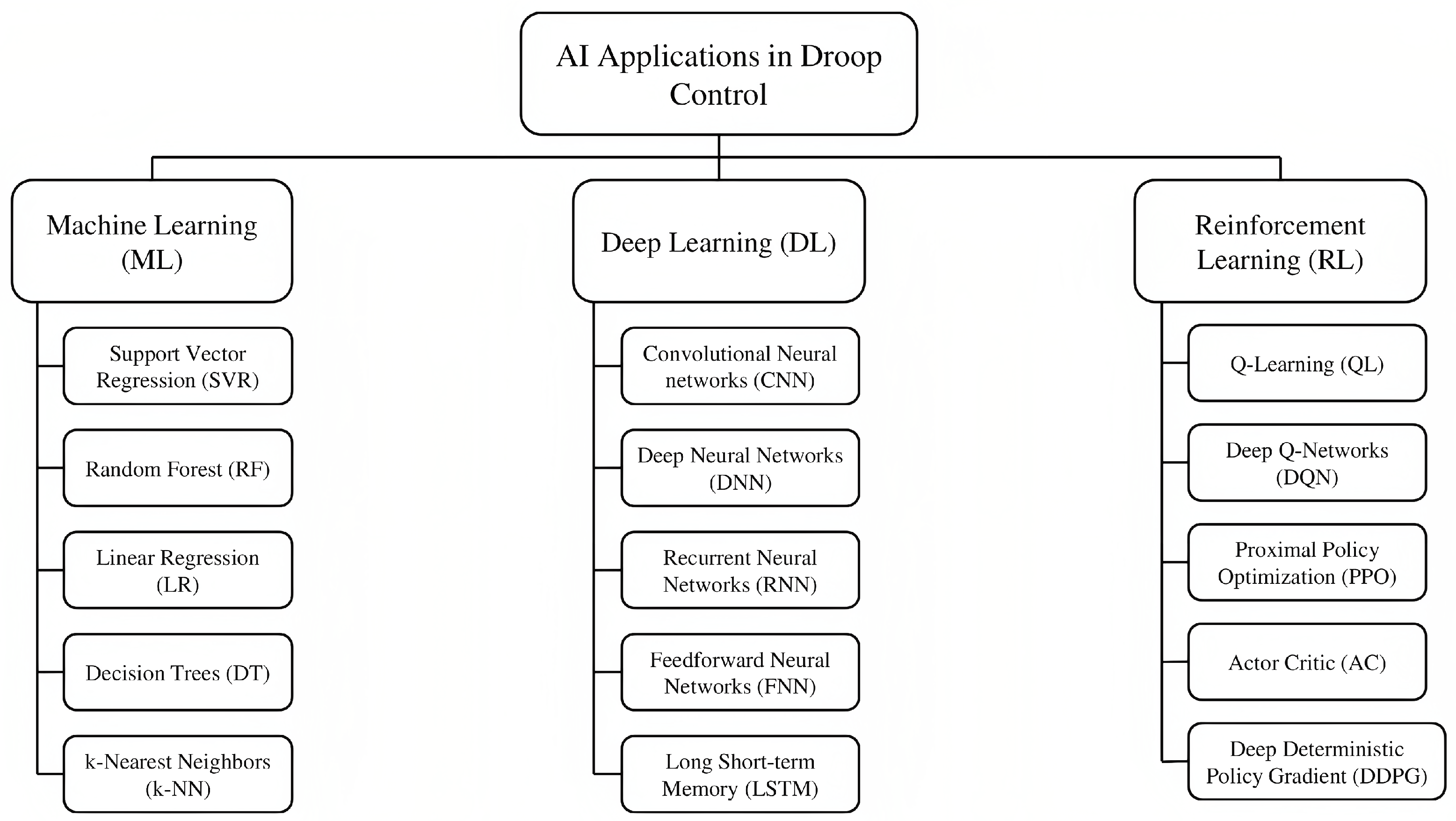

3. Intelligent Techniques in Droop Control

3.1. Machine Learning Applications in Droop Control

ML is increasingly being incorporated into droop control to overcome the limitations of static control parameters and improve microgrid performance under uncertainty. The ML-based methods applied in this domain can be grouped into four main categories: (i) droop coefficient optimization and tuning, which enables the adaptive adjustment of droop gains; (ii) load sharing prediction and balancing, where predictive models support accurate real-time power sharing; (iii) droop characteristic curve adaptation, allowing controllers to reshape droop profiles based on operating conditions; and (iv) frequency and voltage regulation enhancement, where ML improves regulation accuracy during disturbances. These categories reflect the growing role of data-driven learning in advancing the flexibility, robustness, and intelligence of droop-controlled microgrids.

3.1.1. Droop Coefficient Optimization and Tuning

Classical droop relies on offline-tuned coefficients, which fail under dynamic conditions like line impedance mismatches or load changes. Metaheuristics such as GA and PSO are particularly appropriate here due to their global search capabilities in non-convex, multi-dimensional parameter spaces, efficiently handling constraints like stability and power sharing without requiring gradient information. PSO excels in convergence speed and simplicity (fewer parameters than GA), making it suitable for real-time or decentralized tuning in resource-constrained microgrids, while GA provides robust exploration for multimodal problems. SVM supports the regression-based prediction of optimal coefficients from historical data, offering interpretability and robustness to noise. Compared to traditional empirical tuning, these reduce voltage deviations by 20–30% and improve power sharing accuracy, as seen in hybrid PSO-SVM approaches that outperform standalone methods in convergence and error reduction [42,51,52]. Supervised models like DTs and RFs classify scenarios for adaptive selection, prioritizing relevant features to avoid overfitting.

3.1.2. Load Sharing Prediction and Balancing

ML algorithms are highly effective for optimizing load sharing in power systems, as they leverage historical load trends, weather data, and system operating parameters to predict future needs with good accuracy [53]. For instance, RFs achieve MAE of 2–5 kW in load modeling, improving power sharing efficiency by 20–30% compared to static droop control [54]. The k-means clustering algorithm was used to group loads to optimally distribute them efficiently and minimize circulating currents by 15–25% [55]. Ensemble learning, which brings together several prediction models, including SVR, RF, and gradient boosting machines, further improves the accuracy and reliability of load sharing predictions. The ensemble methods manage this uncertainty and variability in renewable energy production and load demand very well, enabling proactive adjustments to droop controls. Additionally, real-time data streams processed through online learning algorithms allow prediction models to adapt dynamically to evolving system conditions, maintaining high accuracy even in unprecedented scenarios [56].

3.1.3. Droop Characteristic Curve Adaptation

Gaussian process regression (GPR) is uniquely suited for adaptive droop curve design because it provides not only point predictions but also probabilistic confidence intervals, which are critical for safe real-time control decisions where uncertainty quantification prevents overly aggressive adjustments that could destabilize the system [57]. GPR has been used to model and adjust droop curves in real time, achieving significant reductions in voltage deviations under variable renewable energy inputs [58]. Clustering techniques like k-means and hierarchical clustering identify separate operating regions and region-specific droop characteristics because they partition the state space based on natural groupings in voltage–frequency–power data, enabling mode-switching control strategies that are optimized for each region [59]. Hierarchical clustering is preferred over k-means when the number of operating modes is unknown a priori, as it reveals a dendrogram structure that operators can cut at different levels to obtain coarse or fine-grained control modes. Furthermore, the real-time adjustment of droop curves using online clustering techniques ensures optimal system performance, maintaining stability and power quality under varying conditions [60].

3.1.4. Frequency and Voltage Regulation Enhancement

Classification models such as SVM and neural networks are employed for fault detection and regulation enhancement because they can learn complex decision boundaries that separate normal operation from various fault classes in high-dimensional feature spaces constructed from voltage, current, and frequency measurements [61,62]. SVM’s kernel trick implicitly maps data into higher-dimensional spaces where linear separation becomes possible, making it effective for distinguishing subtle fault signatures. XGBoost achieved classification accuracies above 90%, minimizing the risk of outages [63]. XGBoost’s gradient boosting framework is particularly effective because it sequentially builds decision trees that focus on previously misclassified faults, rapidly improving performance on rare but critical events. Regression models improved frequency stability by approximately 30%, reducing oscillations [64]. These models succeed because they can approximate the nonlinear mapping from disturbance inputs to required droop parameter adjustments faster than real-time simulations, enabling predictive control actions.

3.2. Deep Learning Applications in Droop Control

DL has emerged as a powerful paradigm in droop control, offering a superior ability to model highly nonlinear dynamics, process large-scale temporal and spatial data, and enable intelligent real-time decision making in microgrids. DL-based approaches in this field can be classified into four primary categories: (i) nonlinear droop control modeling and compensation, which leverages the expressive power of deep networks to accurately capture complex system nonlinearities; (ii) real-time droop parameter adjustment, utilizing sequential and attention-based models for fast and adaptive tuning; (iii) complex droop behavior pattern recognition, employing convolutional and graph-based architectures for disturbance detection and fault diagnosis; and (iv) multi-input droop control decision systems, integrating multi-modal and transformer-based frameworks to fuse heterogeneous data sources for coordinated control. These categories highlight the transformative impact of DL in enhancing the accuracy, adaptability, and resilience of droop-controlled islanded and grid-connected microgrids.

3.2.1. Nonlinear Droop Control Modeling and Compensation

DNNs and CNNs excel at modeling nonlinear droop control dynamics because their depth allows them to compose simple nonlinearities into arbitrarily complex functions, capturing interactions between voltage, frequency, active power, and reactive power that polynomial or piecewise-linear models cannot represent [65,66]. DNNs produced approximation errors of less than 2% in complex control functions that outperformed traditional droop control methods [67]. The key advantage is that DNNs learn these representations directly from data rather than requiring analysts to hypothesize functional forms. When working with spatial–temporal grid data, CNNs reduced modeling errors by almost 45% [68] because their convolutional filters detect localized patterns in grid topology while maintaining parameter efficiency through weight sharing. Autoencoders are specifically effective for nonlinear droop control modeling because their bottleneck architecture forces the network to learn compressed representations of system behavior, effectively performing dimensionality reduction while preserving the most important nonlinear relationships [69]. Variational autoencoders further enhance modeling by capturing probabilistic distributions over system states rather than deterministic mappings, enabling robust control under uncertainty from stochastic renewable generation and loads [70].

3.2.2. Real-Time Droop Parameter Adjustment

RNNs and LSTMs are fundamentally suited for real-time parameter adjustment because their recurrent connections maintain hidden states that encode temporal context, enabling them to distinguish transient disturbances from sustained operating condition shifts (requiring persistent adjustments) [71,72]. LSTMs’ gating mechanisms selectively retain or discard information over long sequences, preventing vanishing gradient and enabling learning of control policies that span multiple time scales. LSTMs adjusted coefficients in less than 15 ms, achieving faster convergence than static methods [73]. This speed advantage arises because inference requires only forward-propagation through a pre-trained network, avoiding iterative optimization. RNNs handled temporal patterns and enhanced transient responses by 30% [65]. Transformer architectures process multiple data streams simultaneously through self-attention mechanisms that weigh the relevance of all time steps when making decisions, enabling synchronized parameter adjustments across various system components [74]. Unlike RNNs that process sequences step-by-step, transformers’ parallel architecture leverages GPU acceleration, reducing inference time by 75%, though associated power consumption (150 W) remains a challenge for embedded deployment [75].

3.2.3. Complex Droop Behavior Pattern Recognition

CNNs achieve above 90% accuracy in detecting system disturbances [76] because their hierarchical feature extraction automatically learns representations at multiple scales: low-level filters detect sudden voltage spikes while deeper layers recognize composite patterns like cascading faults. This eliminates the need for hand-crafted disturbance signatures that may not generalize to novel fault types. GNNs are uniquely suited for modeling grid topologies because they operate directly on graph-structured data, propagating information along power lines according to network connectivity and improving fault localization by 40% [77]. This topological awareness enables GNNs to distinguish faults with similar local signatures but different network-wide effects. However, GNNs’ message-passing operations scale quadratically with graph size, creating high memory requirements that limit scalability [78]. Deep clustering integrates representation learning and unsupervised clustering in a unified framework, allowing the network to simultaneously learn features and group similar droop behaviors without labeled data [79]. This is particularly valuable when fault types are unknown a priori or when systems exhibit novel behaviors not present in training data. DL-based anomaly detection algorithms leverage reconstruction error from autoencoders or density estimation from variational models to identify abnormal droop behaviors that indicate system faults or unusual operating conditions [80].

3.2.4. Multi-Input Droop Control Decision Systems

Multi-modal deep networks and fusion architectures are essential for modern droop control because microgrids generate heterogeneous data that require specialized processing branches before fusion [81]. Transformer architectures with attention mechanisms are particularly effective because they dynamically weigh the importance of each input modality, for example, prioritizing frequency measurements during transients but emphasizing weather forecasts during steady-state economic optimization [82]. Attention mechanisms minimized control errors by automatically learning which inputs are most relevant for each decision context, eliminating the need for manual feature prioritization [83]. This adaptive weighting enables transformers to handle missing or unreliable sensor data gracefully by down-weighting corrupted inputs.

3.3. Reinforcement Learning Applications in Droop Control

RL has revolutionized droop control by enabling fully autonomous, adaptive, and goal-driven decision-making in dynamic microgrid environments. Unlike supervised approaches that rely on pre-labeled data, RL agents learn optimal control policies through direct interaction with the system, progressively improving performance via carefully designed rewards. RL-based methods in droop control can be grouped into four primary categories: (i) autonomous droop coefficient adjustment agents, which continuously tune gains without human supervision; (ii) online droop parameter learning and optimization, allowing for real-time policy improvements from streaming operational experience; (iii) multi-objective droop control optimization, addressing competing goals such as stability, efficiency, cost, and emissions; and (iv) distributed droop control coordination, where MARL enables decentralized units to achieve global system optimality. These categories reflect RL’s unique strength in delivering safe, scalable, and self-optimizing droop control strategies for highly uncertain and evolving microgrids.

3.3.1. Autonomous Droop Coefficient Adjustment Agents

Single-agent RL algorithms such as Q-learning and deep Q-networks (DQNs) are naturally suited to autonomous coefficient tuning because they learn value functions that estimate long-term cumulative rewards for state–action pairs, enabling forward-looking decisions that anticipate future system conditions rather than reacting myopically to instantaneous errors [37,84]. Q-learning recorded a 30% reduction in settling time [85] because its exploration strategy discovers non-intuitive coefficient adjustments that conventional heuristics often miss. DQNs with neural network function approximators converged within 800 episodes and outperformed conventional methods [86] because they generalize across continuous state spaces, eliminating the need to discretize voltage and frequency into coarse bins that would otherwise lose resolution. Multi-objective reward functions that balance system stability, power quality, and economic efficiency ensure that autonomous agents maximize overall performance rather than individual indicators [87]. These rewards typically take the form $r=w_1{r}_{\mathrm{stability}}+w_2{r}_{\mathrm{quality}}+w_3{r}_{\cos \mathrm{t}}$, where the weights encode operator preferences. Constrained RL approaches enforce safety by augmenting rewards with barrier functions or Lagrangian penalties that prevent agents from exploring dangerous regions of the state space [88].

3.3.2. Online Droop Parameter Learning and Optimization

Temporal difference learning methods, particularly Q-learning and SARSA, are well-suited to online optimization because they update value estimates after every transition rather than waiting for complete episode trajectories, enabling continuous learning from streaming operational data [89]. Actor–critic algorithms combine policy optimization (actor) with value function estimation (critic), stabilizing learning by reducing variance in policy gradients [90]. PPO demonstrated a 40% improvement in load change adaptability and converged 60% faster than Q-learning [91] because its clipped objective function prevents destructively large policy updates that can destabilize training. Actor–critic algorithms reduced frequency deviation [92] by enabling continuous control actions rather than discrete action spaces. Upper-confidence-bound algorithms and Thompson sampling manage the exploration–exploitation trade-off by maintaining uncertainty estimates and probabilistically selecting actions that balance learning new information with exploiting current knowledge [93]. Transfer learning techniques enable knowledge reuse across operating conditions, for example, policies learned during summer can be fine-tuned for winter conditions with significantly fewer samples, accelerating adaptation [94].

3.3.3. Multi-Objective Droop Control Optimization

Multi-objective reinforcement learning (MORL) addresses inherent trade-offs in droop control because system operators often face conflicting objectives: maximizing renewable utilization may increase voltage fluctuations, while minimizing losses may reduce responsiveness [95]. MORL algorithms learn Pareto-optimal policy sets rather than single solutions, allowing operators to select preferred trade-offs post-training. Actor–critic MARL achieved significant improvements in Pareto trade-offs, balancing voltage stability and losses [96] by maintaining separate value functions for each objective and using hypervolume metrics to guide policy updates. Preference-based RL allows operators to specify dynamic preferences through interactive feedback or predefined utility functions, enabling the automatic discovery of control policies aligned with operational priorities [97]. Hierarchical RL methods decompose the optimization problem across temporal scales: high-level policies set long-term economic objectives, while low-level policies handle fast frequency regulation, enabling simultaneous optimization from milliseconds to hours [98].

3.3.4. Distributed Droop Control Coordination

MARL approaches are fundamentally suited yo distributed coordination because they model each generation unit as an independent agent with partial observability, directly capturing the decentralized nature of microgrids, where units lack global state information and must rely on local measurements and neighbor communication [99]. Cooperative MARL algorithms with shared rewards ensure that individual agents work toward common system objectives rather than competing [100]. In virtual power plants, over 80% consensus accuracy was achieved with MARL [101] because agents learned coordinated behaviors through repeated interactions, discovering implicit communication protocols encoded in their policies. Distributed RL enables coordination with minimal communication overhead by allowing agents to learn policies that anticipate neighbors’ actions based on historical interaction patterns [28]. Convergence to Nash equilibria in large-scale systems remains challenging; mean-field approximations and graph neural network policies that exploit grid topology show promise for scalability [102].

Despite the strong empirical performance of AI methods, their interpretability can be significantly enhanced by embedding power-system physics directly into the learning process. Physics-informed approaches constrain AI models to respect fundamental equations such as the active/reactive power balance (1)–(2), small-signal dynamics (4)–(5), reduced inertia effects on frequency deviation (10), and voltage stability indices (9). For instance, physics-informed neural networks (PINNs) and physics-guided loss functions ensure that learned droop surfaces remain monotonic and passivity-preserving, preventing physically implausible solutions even under extrapolation. Similarly, RL reward functions that explicitly penalize eigenvalue migration outside the stable region or violations of the swing Equation (11) provide formal links between data-driven decisions and classical stability theory. Such hybrid physics–AI formulations not only improve generalization beyond training scenarios but also allow engineers to analyze how learned coefficients affect damping ratios, participation factors, and critical clearing times, thereby bridging the gap between black-box predictions and traditional power-system analysis.

4. Application Domains and Case Studies

4.1. Solar PV Systems with Droop Control

The integration of artificial intelligence into droop-controlled PV systems has become essential for managing the inherent intermittency of solar generation, ensuring compliance with stringent grid codes, and maximizing both technical performance and economic value in grid-connected and islanded modes. AI-enhanced droop control in PV applications can be categorized into three key areas: (i) PV inverter droop control for grid-connected operation, which enables active participation in frequency and voltage regulation while respecting power electronics constraints; (ii) islanded PV system frequency and voltage droop regulation, providing autonomous stability during unintentional or intentional islanding; and (iii) intelligent droop control for PV power curtailment and grid support, optimizing the trade-off between energy yield and ancillary services. These developments transform conventional PV inverters from passive power sources into intelligent, grid-supportive assets capable of real-time adaptation in highly renewable-penetrated networks.

4.1.1. PV Inverter Droop Control for Grid-Connected Operation

Implementing droop control in grid-connected PV inverters requires seamless integration with existing control architectures while adhering to grid codes and standards. The P-f and Q-V droop characteristics must be tailored to address PV system constraints, such as variable solar irradiance and power electronic interface limitations [103]. Integrating droop control with conventional PV inverter loops poses technical challenges but also offers opportunities for improved performance. Current control loops need adjustments to incorporate droop-based power references while ensuring fast transient response and stability [104]. Voltage control loops must align with Q-V droop characteristics to avoid conflicts between local and grid-level voltage regulation [105]. Power control loops balance maximum power extraction with grid support, requiring advanced optimization algorithms to adapt to dynamic conditions. Grid impedance variations, which increase errors, demand adaptive tuning [106]. Studies show improved transient response with dynamic droop adjustments [104].

Quantitative analysis of AI-enhanced droop control in PV systems shows substantial grid stability improvements across key metrics. Frequency regulation capabilities improved compared to traditional methods, reducing frequency deviations during disturbances in utility-scale setups [107]. Serban et al. [108] discussed an improvement in voltage support effectiveness, complying with grid codes. Case studies from large-scale PV installations highlight practical challenges and benefits of AI-enhanced droop control. A solar facility in California successfully integrated ML-based droop control with existing grid infrastructure, enhancing power quality and grid support services [109]. Power quality, measured by THD < 5%, saw significant improvement. Economic analysis indicates substantial value from enhanced grid services, reduced curtailment, and improved asset utilization [110].

Table 1. Overview of AI applications in droop control for renewable energy integration.

Focus Area	AI Technique Used	Benefit in Droop Control Context	RE Integration Context	Implementation Challenges	Key Limitations & Gaps	Grid Support Services	Ref.
Meta-heuristic optimization for PV placement and sizing	Reptile search algorithm (RSA)	Optimize PV placement for better voltage stability and reduced losses	PV systems in distribution networks	Real-time adaptation complexity, computational load	Offline tuning only; requires re-optimization for condition changes; minutes-to-hours computation time; no real-time capability	Voltage regulation, reactive power support, power loss reduction	[6]
ML for hybrid droop control optimization	Multiple linear regression, gradient descent	Optimize control coefficients to minimize costs and losses	Solar-powered islanded DC microgrids	Training data requirements, real-time processing overhead	Needs 1000+ training samples; poor extrapolation beyond training distribution; periodic retraining required; static model limitations	Power sharing, DC link voltage stability, cost and loss minimization	[7]
GA for parameter optimization	GA	Optimize droop parameters for better transient response	PV and wind in AC microgrids	Computational intensity, limited real-time capability	Population-based search limits real-time use; no gradient information utilized; scalability unclear beyond 10 DGs	Power sharing, voltage and frequency regulation, transient stability	[16]
Adaptive control for droop resistance and voltage regulation	Adaptive PI controller	Adjust droop resistance for better current sharing and voltage control	PV and dispatchable units in DC microgrids	Parameter tuning complexity, communication requirements	Model-based approach requires accurate system parameters; slower adaptation in highly nonlinear scenarios	Power sharing, DC bus voltage regulation, transient response enhancement	[20]
Trajectory sensitivity analysis for droop controller optimization	Trajectory sensitivity analysis (TSA)	Improve transient stability and critical clearing time	Low-inertia renewable DG units	Real-time fault detection and controller switching	Requires accurate system model; limited adaptability to unforeseen conditions; offline sensitivity computation only	Transient stability, frequency regulation	[111]
Real-time energy management with closed-loop control	DL adaptive dynamic programming (ADP)	Optimize power allocation while minimizing operational costs	Intermittent renewables with storage	Neural network training complexity, real-time data needs	Requires 10,000+ samples; black-box nature hinders certification; iterative training computationally intensive	Cost optimization, power quality, load balancing	[41]
Energy demand and supply forecasting	ANN, LR, GR, RF, k-NN, SVM	Provide accurate predictions for optimal droop control settings	PV and wind generation forecasting	Poor performance on erratic data, hyperparameter tuning	Needs 5000+ samples; static models lack online adaptation; no formal guarantees	Power demand forecasting, grid stability, renewable integration	[51]
Fault detection and protection in DC microgrids	K-means clustering	Enhance fault detection to protect droop-controlled systems	PV-integrated DC microgrids	Current transformer saturation, real-time processing	Pattern recognition only, cannot optimize control objectives; domain expertise needed for interpretation	Fault protection, system reliability	[55]
Meta-heuristic optimization for voltage control and power management	Marine predators algorithm (MPA)	Optimize voltage control for enhanced power quality	Isolated renewable microgrids	Computational complexity, multi-microgrid coordination	High computational load; scalability to large systems unclear; limited real-time use capability	Voltage regulation, power quality enhancement, load balancing	[60]
Data-driven voltage and reactive power control	SVR with model predictive control (MPC)	Predict voltages for optimized reactive power control	DERs in distribution systems	Training dataset dependency, AMI data requirements	Dependent on AMI infrastructure availability; kernel operations increase computation; uncertainty quantification lacking	Voltage regulation, reactive power optimization, power loss minimization	[61]
Optimization of PSS and IPFC for frequency stability	Farmland fertility algorithm (FFA), neuro-fuzzy controller (NFC)	Optimize parameters to damp oscillations and improve stability	Multi-machine systems with renewables	Computational complexity, real-time data requirements	Hybrid architecture increases complexity; fuzzy rule tuning requires expert knowledge; limited scalability analysis	Frequency stability, oscillation damping, transient response improvement	[64]
Neural network-based droop control and MPPT for PV systems	Feedforward neural network (FNN) with MLP, RNN) for MPPT	Decouple power control and improve dynamic response	Grid-connected PV systems	Neural network training complexity, real-time data needs	5–10 ms inference time; needs 10,000+ samples; no formal stability guarantees; black-box nature complicates debugging	Voltage regulation, power quality improvement, grid synchronization	[65]
Data-driven predictive modeling for transient dynamics stabilization	Hierarchical multi-layered sparse identification, physics-informed neural network	Enhance transient response with predictive control	Islanded microgrids with DERs	High computational demand, data quality requirements	Very high computational demand; data quality critical; model complexity increases deployment barriers	Frequency stabilization, voltage regulation, load sharing	[66]
ANN-based dynamic droop parameter adjustment	ANN with Levenberg–Marquardt training	Dynamically adjust droop coefficients for better regulation	PV and battery autonomous microgrids	Training complexity, real-time implementation constraints	5–10 ms inference; 10,000+ samples needed; Levenberg–Marquardt training computationally intensive; black-box decision process	Frequency stabilization, power sharing, ROCOF reduction	[67]
Forecast-based predictive ESS control integrated with droop architecture	Distributed LSTM neural networks, distributed extended Kalman filter (DEKF)	Enhance voltage regulation and battery balancing with predictions	DC microgrids with PV and batteries	LSTM training requirements, distributed system complexity	10–50 ms inference; 20,000+ time-series samples required; temporal modeling increases sample needs; distributed coordination overhead	Voltage regulation, SoC balancing, predictive energy scheduling, extended operational endurance	[72]
Intelligent protection and stability support	Hybrid DL (CNN-LSTM)	Detect faults to support droop-based stability	Ring distribution with high PV/wind penetration	Training complexity, real-time implementation	20–100 ms inference exceeds primary control cycles; 50,000+ spatiotemporal samples required; highest training complexity; certification barriers	Fault classification, voltage support, faster system recovery, system stability under faulted conditions	[76]
Load forecasting at distribution transformer level using clustering and DL	K-means clustering, DNN, LSTM	Improve prediction accuracy for better grid operations	Smart grids with renewable integration	Big data handling, computational complexity	Hybrid architecture increases system complexity; big data infrastructure required; 10–50 ms inference for DL component	Demand forecasting, peak shaving, demand response planning	[79]

provides an overview of AI applications in droop control for renewable energy in the existing literature.

4.1.2. Islanded PV System Frequency and Voltage Droop Regulation

Transitioning from grid-connected to islanded operation poses significant challenges for PV system control, requiring the rapid adaptation of strategies to ensure stability without grid support. Maintaining load-generation balance is critical in islanded systems, where PV generation variability demands the coordinated management of energy storage, load control, and generation curtailment [112]. Seamless transitions to islanded mode rely on droop control adjustments within 100 ms [113]. In Egwebe et al. [114], the authors discussed how load dynamics and PV variability increase instability risks. ESS coordination also mitigates fluctuations, enhancing stability [115]. Adaptive ML algorithms optimize droop parameters, reducing frequency oscillations by about 20%, improving power allocation [116]. Chen et al. [117] discussed intelligent load shedding using deep RL to minimize outages for high-renewable-energy penetrated power systems. Neural networks were used to model load dynamics, boosting the voltage stability of solar PV systems [118].

4.1.3. Intelligent Droop Control for PV Power Curtailment and Grid Support

Intelligent power curtailment, enhanced by AI-driven droop control, optimizes the balance between renewable energy utilization and grid stability [119]. Dynamic curtailment strategies account for real-time grid conditions, renewable generation forecasts, and economic factors to optimize decisions [120]. Integrating curtailment with droop control ensures seamless coordination between generation reduction and grid support services. Regulatory frameworks incentivize curtailment with 50 USD/MWh [121] while trade-offs reduce energy yield by about 10%. Multi-objective optimization using GA balances curtailment costs and grid support, improving return on investment (ROI) [122]. In Rehman et al. [90], RL was used to optimize policies for power scheduling in an RE integrated power grid, boosting efficiency by 25%. DL identifies curtailment patterns in Gorka et al. [123], improving decision accuracy.

4.2. Wind Energy Systems with Droop Control

The application of AI to droop-controlled wind energy systems has become indispensable for unlocking the full grid-support potential of both onshore and offshore wind farms while coping with the inherent stochastic nature of wind resources. AI-enhanced droop control in wind systems can be classified into three main categories: (i) wind turbine generator droop control in grid-connected mode, which enables individual turbines to actively participate in frequency and voltage regulation without compromising energy capture or structural integrity; (ii) droop-based frequency regulation using wind farm aggregation, leveraging hierarchical and communication-enabled coordination to deliver reliable farm-level ancillary services; and (iii) islanded wind system droop control for microgrid stability, ensuring autonomous operation and seamless coordination with other DERs during grid disconnection. These categories illustrate how AI transforms wind power converters from passive generators into highly responsive, intelligent assets capable of providing synthetic inertia, primary frequency response, and voltage support at scale.

4.2.1. Wind Turbine Generator Droop Control in Grid-Connected Mode

Integrating droop control with wind turbine systems requires the precise coordination of pitch, torque, and power electronics controls to optimize performance while supporting grid services. Power reference signals, adjusted for droop control, must respect turbine constraints like rotor speed, pitch angle limits, and structural loads [124]. Hierarchical control architectures align turbine-level and farm-level droop strategies for optimal collective performance, with power electronics ensuring fast response (50 ms) [125]. Turbine inertia was discussed in relation to its effect on limiting droop dynamics, reducing the effectiveness of the system [126]. In Gao et al. [127] wind farm-level control increased collective response by close to 20%. Wind turbines provide upward and downward frequency regulation through coordinated pitch and torque adjustments, matching or surpassing conventional generators’ response times [128]. In the work of Arani et al. [129], dynamic droop control was applied, reducing the frequency deviations of the system by 15%. Reactive power management improves voltage support [130]. ML optimizes droop parameters, improving stability by 15% [131]. Predictive control using wind forecasts reduces errors by 10% [132]. RL coordinates turbines, enhancing support by 20% in the work of Soler et al. [133].

4.2.2. Droop-Based Frequency Regulation Using Wind Farm Aggregation

Hierarchical control systems for coordinating droop control across multiple wind turbines demand advanced communication and control architectures to manage the complexity of large wind farm installations. These systems synchronize turbine droop responses, achieving coherence in frequency regulation [134]. Aggregating individual turbine droop responses for consistent wind farm-level frequency regulation poses technical and economic challenges, requiring sophisticated control system designs [135]. Communication protocols like IEC 61850 reduce latency by 30% [136]. Advanced control algorithms optimize turbine coordination, minimizing wake effects while maximizing collective frequency regulation capacity [137]. Advanced forecasting and scheduling systems allow wind farms to commit to frequency regulation services while ensuring reliable performance [138]. In the work of Wang et al. [139], wind farms maintained primary frequency regulation, keeping deviations below 0.1 Hz. Performance metrics including response time (100 ms) and accuracy (95%) were recorded in the work of Leahy et al. [140]. Trade-offs reduced the energy yield by about 5% in the work of Egli et al. [141]. Long-term analyses confirm the reliability and effectiveness of wind farm frequency regulation services, supporting greater reliance on these resources for grid stability [138]. ML was used to optimize aggregation, which improved the regulation of the system [142]. Distributed optimization was employed in the work of Han et al. [143] which reduced communication overhead. Predictive algorithms anticipated regulation needs, enhancing efficiency by 10% [144].

4.2.3. Islanded Wind System Droop Control for Microgrid Stability

Coordinating wind systems with other DERs is vital for ensuring microgrid stability under fluctuating wind conditions [145]. Wind variability induces frequency deviations of up to 0.5 Hz in islanded microgrids [146]. Droop control stabilizes the system by synchronizing with DERs [147]. Load dynamics increase the risk of instability by 15% [114]. Kreishan et al. [28] highlighted some emergency islanding protocols that address extreme conditions. Advanced storm control systems align wind turbine protection with microgrid stability needs, ensuring safe operation during severe weather [148]. The limited reactive power capacity of wind turbines requires coordination with energy storage, synchronous condensers, or other reactive power sources [130]. Sophisticated voltage control strategies optimize the available reactive power while maintaining voltage stability [149]. Advanced analytical tools and simulation platforms enable thorough stability assessment and control system optimization [150]. Small-signal analysis revealed 20% stability margins with tuned droop parameters [151]. In the work of Vargas et al. [152], tools like PSCAD were used to validate system performance. Long-term reliability analysis confirmed the efficacy of AI-enhanced droop control for islanded wind system operation [153].

4.3. Energy Storage Systems with Droop Control

ESS, particularly BESS, have become cornerstone enablers of intelligent droop control, offering sub-second response times, bidirectional power flow, and precise state-aware operation that far exceed the capabilities of conventional synchronous generators. AI-enhanced droop control in ESS can be grouped into four principal categories: (i) battery energy storage droop control for frequency regulation, which exploits the ultra-fast dynamics of power electronics while respecting state-of-charge (SoC) and thermal constraints; (ii) droop-controlled charging/discharging in grid-connected mode, enabling batteries to simultaneously optimize self-charging and deliver high-value grid services; (iii) energy storage systems droop control for islanded microgrid voltage support, providing robust reactive power and voltage regulation without grid reference; and (iv) intelligent droop coordination between multiple storage units, leveraging distributed and hierarchical AI to achieve global optimality in heterogeneous fleets. These categories demonstrate how AI transforms ESS from simple energy buffers into fully autonomous, cooperative, and grid-forming assets critical for high-renewable power systems.

4.3.1. Battery Energy Storage Droop Control for Frequency Regulation

BESS, utilizing lithium-ion or flow technologies, integrate droop control with bidirectional inverters. SoC management is critical in battery droop control design, as available capacity for frequency regulation varies with charge levels and requires continuous monitoring [154]. Temperature impacts battery performance and lifespan, necessitating thermal management strategies that balance droop control optimization with longevity [155]. Different battery types exhibit distinct characteristics affecting droop control. Lithium-ion batteries provide high power density and fast response but demand precise SoC and temperature management [155]. Flow batteries offer long-duration capacity and flexible power-energy ratios but may respond more slowly [156]. Lead-acid batteries are cost-effective but limited by their cycle life and depth-of-discharge constraints [157]. Integrating droop control with battery management systems (BMS) requires sophisticated coordination to ensure safe operation and optimal performance. Bidirectional inverters are key to implementing droop control, using advanced algorithms to switch seamlessly between charging and discharging while supporting grid functions [18]. Battery storage systems’ rapid response delivers high-quality frequency regulation, significantly enhancing grid frequency stability [158]. Batteries maintained frequency deviations below 0.5 Hz [159]. Advanced monitoring and control systems enable the real-time optimization of regulation services [154]. Performance metrics include response accuracy, sustained response, availability, and efficiency. Utility-scale battery systems have shown exceptional performance and reliability, often surpassing conventional generators [160]. In the work of Khosravi et al. [98] ML optimized droop parameters, which improved frequency regulation.

4.3.2. Droop-Controlled Charging/Discharging in Grid-Connected Mode

Intelligent charging strategies that incorporate droop control enable battery storage systems to deliver grid-responsive operation, balancing charging needs with grid support requirements. Droop-controlled intelligent charging responded to grid signals within 50 ms [161]. Roy et al. [162] discussed how renewable forecasting was able to improve charging efficiency. Droop-controlled battery systems with demand response capabilities provide valuable grid services while optimizing charging costs and battery utilization, saving more than 40 USD/MWh [163]. Advanced algorithms allocate grid support tasks among multiple battery systems based on SoC, availability, and system needs [164]. Multi-objective optimization was used to balance grid support and battery health, which improved ROI [165]. Game-theoretic frameworks model competitive interactions among battery systems, achieving cooperative grid support outcomes [166]. Figure 5 shows a multi-level control hierarchy with device-level battery management, local-level droop control, and system-level coordination, including AI integration points, information flow pathways, and feedback mechanisms between BMS and grid interfaces.

4.3.3. Energy Storage Systems Droop Control for Islanded Microgrid Voltage Support

Q-V droop control for voltage regulation in ESS demands careful analysis of microgrid topology, load distribution, and inverter reactive power limits [167]. Q-V droop control was employed in the work of Simpson-Porco et al. [168], which reduced voltage deviations by 20%. Coordinating voltage support with frequency regulation in islanded ESS operation poses complex control challenges, requiring advanced algorithms to avoid conflicts between objectives [169]. Microgrid topology and load characteristics significantly affect ESS voltage support needs, with radial systems requiring distinct strategies compared to meshed networks [153]. Emergency voltage support during severe disturbances must consider ESS capacity limits and prioritize critical loads to ensure stability [170]. Voltage regulation metrics for ESS-based droop control in islanded microgrids include voltage deviation, response time, stability margins, and energy efficiency [171]. Optimizing droop parameters for better voltage stability margins requires detailed analysis of system dynamics. Eskandari et al., in [172], used optimized parameters to improve stability margins. Balancing voltage support effectiveness with ESS utilization efficiency involves trade-offs, reducing utilization [173]. Case studies of ESS voltage support in islanded microgrids highlight the success of intelligent droop control strategies [28].

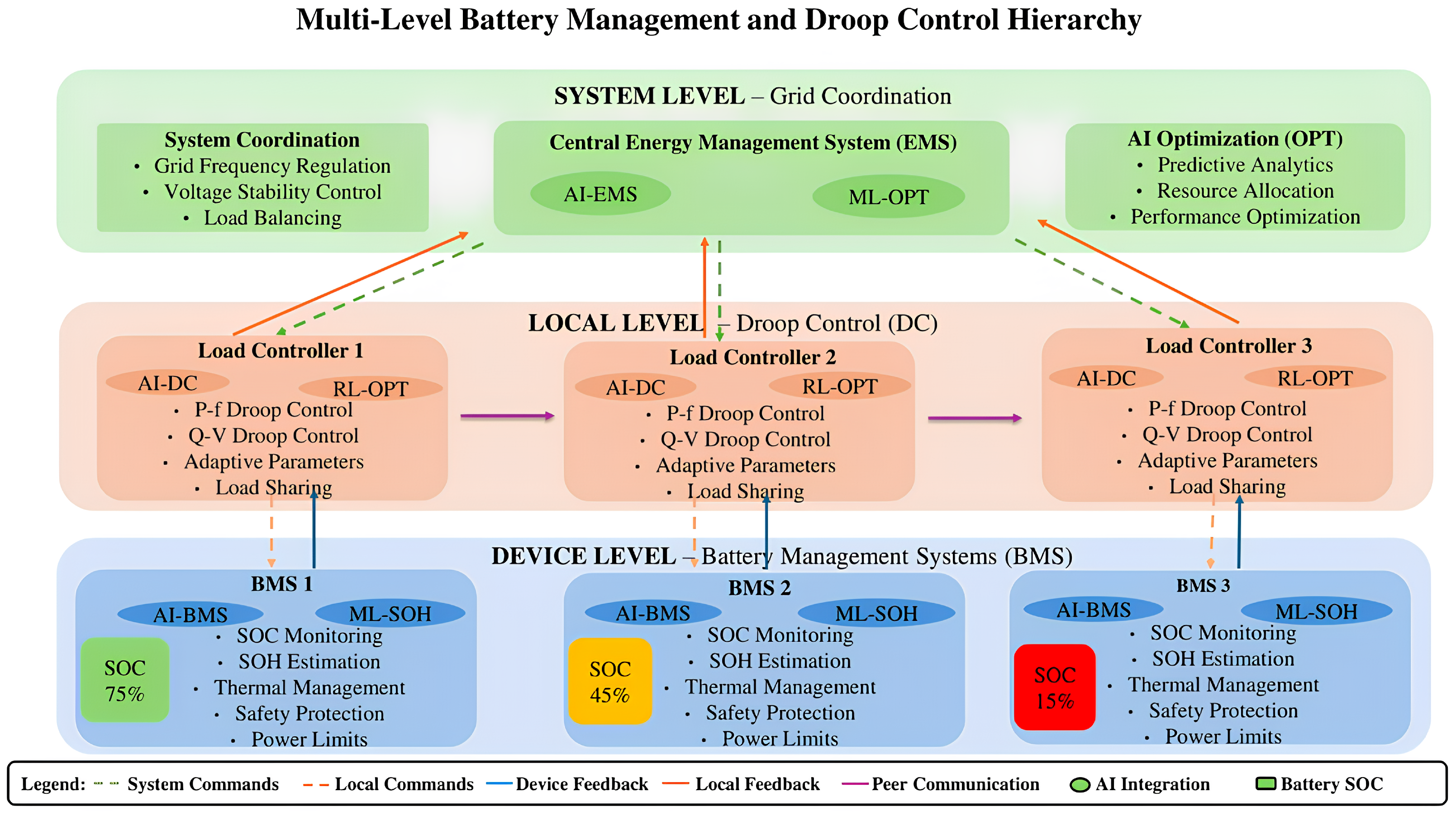

4.3.4. Intelligent Droop Coordination Between Multiple Storage Units

Coordinating multiple ESS with droop control in microgrids requires advanced architectures to manage the distributed storage complexity while optimizing performance. Hierarchical control structures offer scalable solutions for coordinating numerous ESS, maintaining computational efficiency [174]. Consensus-based algorithms enable distributed coordination, which is effective even with limited communication, achieving 95% accuracy, as discussed in the work of Khazaei et al. [175]. Communication protocols for multi-ESS droop coordination must balance performance with constraints such as latency, bandwidth, and reliability [176]. ESS heterogeneity, including varied technologies, capacities, and characteristics, demands flexible, adaptive control strategies [158]. In the work of Wang et al. [177] multi-agent deep RL for ESS coordination with droop control outperformed traditional methods, improving efficiency by 20%. Distributed optimization algorithms efficiently allocated resources among ESS while respecting individual constraints, reducing overhead [178].

4.4. Microgrids and Distributed Energy Resources

Microgrids and heterogeneous DERs represent the most complex yet most promising application domain for AI-enhanced droop control, where diverse generation, storage, and load dynamics must be orchestrated in real time to achieve seamless, resilient, and optimal operation under both grid-connected and islanded conditions. Intelligent droop control strategies in this context can be classified into two core categories: (i) multi-source droop control coordination in islanded microgrids, which harmonizes the conflicting characteristics of PV, wind, energy storage, and conventional units and (ii) seamless transition droop control between grid-connected and islanded modes, ensuring continuity and minimal disturbance during intentional or unintentional mode switching. These categories collectively transform conventional droop-controlled microgrids into autonomous, self-healing, and market-responsive energy systems capable of operating reliably at 100% instantaneous renewable penetration.

4.4.1. Multi-Source Droop Control Coordination in Islanded Microgrids

Coordinating droop control across diverse DERs like PV, wind, ESS, and generators poses significant challenges, increasing complexity compared to single-source systems [179]. Hierarchical control frameworks manage primary droop control, secondary frequency and voltage restoration, and tertiary economic optimization across multiple time scales and objectives [180]. The impact of varying droop characteristics and time constants on system stability requires careful analysis to prevent adverse control interactions [172]. Small-signal and transient stability analyses for multi-source islanded microgrids demand advanced modeling to capture the complex dynamics of diverse DERs and their control systems [181]. Selecting droop control parameters critically affects stability and dynamic performance, ensuring reliable operation across conditions [172]. Traditional droop control’s limitations in accurate power sharing necessitate communication-based secondary control to address droop variations and measurement uncertainties, achieving 95% power sharing accuracy [182]. In the work of Singh et al. [183] ML optimized coordination, improving stability. Figure 6 presents a comprehensive AI-enhanced droop control framework that unifies applications across major energy system domains. The central AI enhancement core comprises ML models, neural networks, predictive analysis, real-time optimization, pattern recognition, and adaptive control blocks that are selectively deployed to address domain-specific challenges in PV systems, wind energy conversion, energy storage systems, and islanded/connected microgrids. The diagram further illustrates bidirectional knowledge and technology transfer among domains, scalability pathways from single-device control to regional grid integration, and future evolutionary directions.

4.4.2. Seamless Transition Droop Control Between Grid-Connected and Islanded Modes

Maintaining system stability during transitions between grid-connected and islanded modes demands advanced control strategies that respond quickly to changing conditions while ensuring power quality and reliability [184]. ESS are vital for smooth transitions, using intelligent droop control to provide rapid response and stability support during mode shifts [185]. Detection algorithms for grid disconnection events must function reliably across diverse fault conditions, minimizing false triggers to avoid unnecessary disturbances [186]. Predictive transition control, leveraging ML to anticipate disconnections, offers proactive solutions, reducing transients by 20% [187]. Adaptive droop control, which adjusts parameters based on operating mode, optimizes performance in both grid-connected and islanded setups, and improves system stability [163]. Case studies from real microgrid projects offer valuable insights into best practices and performance optimization [109].

5. Discussion and Critical Analysis

This section synthesizes the AI-enhanced droop control techniques presented in Section 3 and Section 4, critically evaluating their strengths, limitations, and overall contributions to renewable energy-based microgrids. While ML, DL, and RL have demonstrated significant improvements in adaptability, power sharing accuracy, transient response, and stability under variable renewable conditions, several inherent challenges persist that limit widespread real-world deployment. A balanced assessment reveals that although these methods outperform traditional fixed droop control strategies, they introduce new complexities related to computational demands, data dependencies, robustness, and system integration.

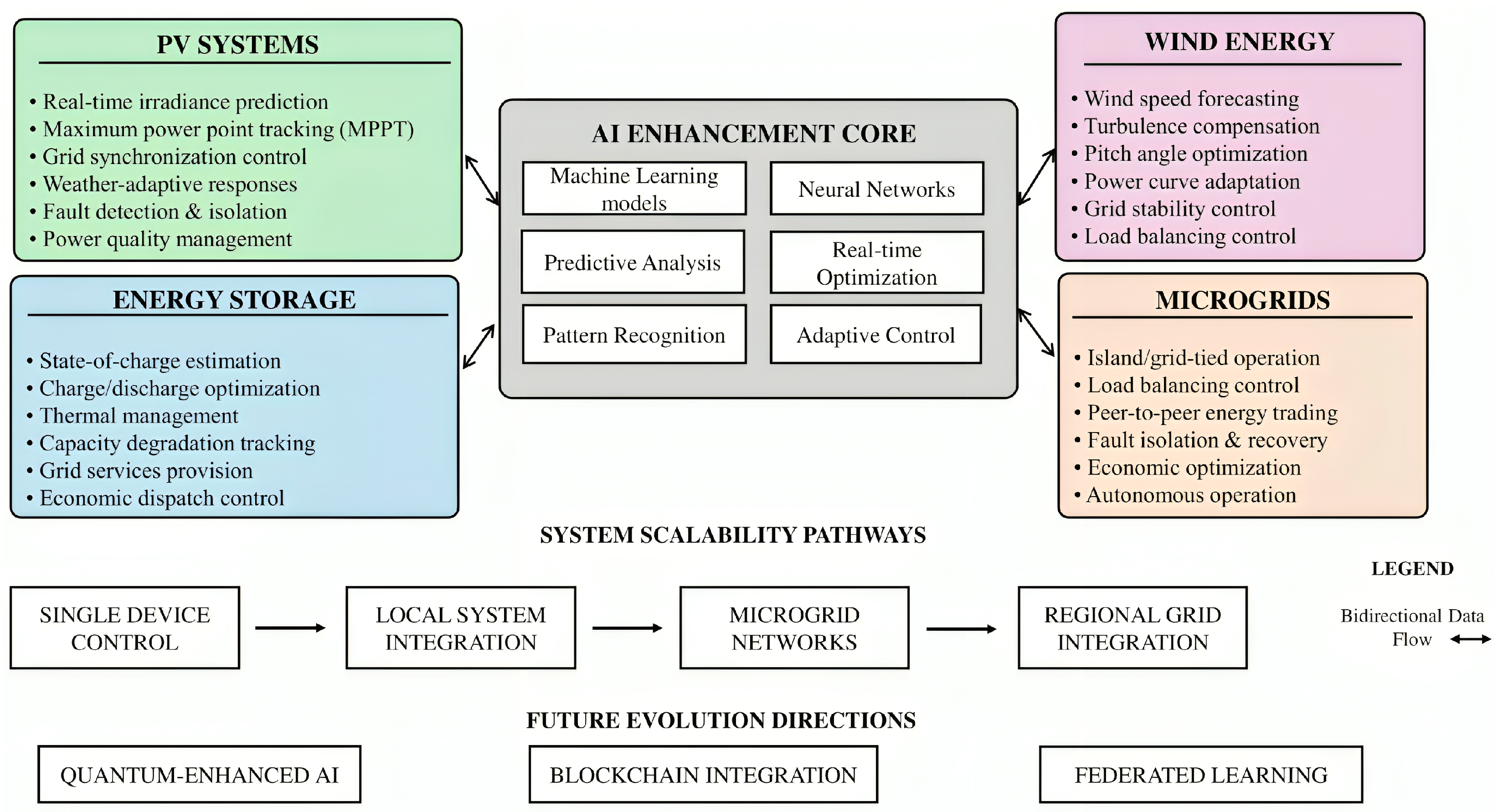

5.1. Synthesis of AI Techniques Across Application Domains

AI techniques transform conventional droop control from static to dynamic and predictive paradigms. Classical ML and metaheuristics (PSO, GA) excel in offline or semi-real-time coefficient optimization, providing interpretable solutions suitable for resource-constrained environments, with reported improvements in frequency deviations and power sharing of 15–30% compared to fixed methods [42,50]. DL approaches effectively capture high-dimensional nonlinearities and temporal patterns, achieving modeling errors below 2% and disturbance detection accuracies above 90%, making them well suited for complex, data-rich scenarios in PV, wind, and multi-DER systems [65,66]. RL stands out for autonomous, goal-oriented adaptation without labeled data, enabling real-time multi-objective optimization (stability vs. efficiency) with reductions in settling time of up to 40% and enhanced resilience in uncertain environments [188]. Comparatively, RL and DL often outperform classical ML in handling stochastic renewable intermittency and dynamic mode transitions, but at the cost of higher computational requirements and training complexity. Hybrid approaches (e.g., RL-tuned DL models) combine these strengths for scalable applications; however, no single method universally dominates, as performance depends on microgrid scale, DER composition, and operational mode (islanded vs. grid-connected) [189]. Overall, these advancements support higher renewable penetration while meeting grid codes and improving key performance metrics such as THD (<5%), voltage and frequency deviations (<2%), and power-sharing errors.

5.2. Comparative Performance Analysis on Standardized Test Systems

A critical limitation across the reviewed literature is the lack of standardized benchmarking, rendering direct performance comparisons problematic. Claims such as LSTM coefficient adjustments, RL transient improvements, and PSO frequency nadir reductions are reported under heterogeneous conditions—different microgrid topologies, diverse baselines (fixed PI vs. manually tuned vs. no secondary control), varying disturbance scenarios (single load step vs. continuous stochastic variations vs. three-phase faults), and incompatible metrics (peak deviation vs. settling time vs. integral error). Studies employing nominally identical systems (e.g., “modified IEEE 33-bus”) often differ fundamentally in renewable penetration (20% vs. 80%), inverter ratings (10 kW vs. 100 kW), communication topologies, and sampling rates (100 Hz vs. 10 kHz) [190,191,192,193]. Temporal evaluation windows range from 10-s transients to 10-min steady-state periods, with virtually no long-duration validation over seasonal cycles or rare fault scenarios required for utility deployment. This “comparison impossibility” prevents researchers from selecting optimal methods for specific applications and obscures whether reported improvements represent genuine algorithmic advances or artifacts of favorable test conditions.

To enable meaningful comparison, the community requires consensus benchmark microgrids analogous to IEEE transmission test systems, specifying: representative topologies across scales (residential 3–5 DG/<100 kW, commercial 10–20 DG/100 kW–1 MW, industrial 50+ DG/>1 MW) with complete electrical parameters; validated component models including inverter dynamics, battery characteristics, real weather-based renewable profiles, and nonlinear loads; standardized disturbance scenarios (normal operation, credible contingencies, worst-case events) with exact timing and magnitudes; unified metric definitions with measurement points, sampling rates, and evaluation windows aligned with grid codes (IEEE 1547: ±0.5 Hz, ±5% voltage); and open-source implementations in common platforms with documented initialization. Until such standards emerge, researchers should minimally document baseline controller specifications, complete system parameters, disturbance profiles, metric definitions with measurement locations, simulation platform and version, and solver settings to enable partial reproducibility and the informed interpretation of performance claims.

To address this standardization gap, the microgrid control community could adopt modified IEEE distribution test systems as consensus benchmarks. Specifically, we recommend the IEEE 33-bus system with 30–40% PV penetration as a baseline for residential microgrids, the IEEE 141-bus system with 50% mixed renewable penetration for commercial applications, and scaled variants with distributed energy storage for industrial scenarios. These benchmark systems should be augmented with: (i) validated inverter models compliant with IEEE 1547 standards; (ii) standardized disturbance protocols, including single and multiple DG disconnections, load steps of 20–50% of rated capacity, and three-phase fault events; and (iii) unified performance metrics that quantify voltage deviations (RMSE and maximum error), frequency regulation (±0.5 Hz compliance), and settling time under a common 100 ms sampling rate. We further advocate for open-source reference implementations in MATLAB/Simulink and Python-based platforms (e.g., OpenDSS and pandapower), with fully documented parameters to ensure reproducibility. The adoption of such benchmarks would shift performance claims from largely incomparable case studies to verifiable and repeatable advances, thereby accelerating the practical deployment of AI-based microgrid control.

5.3. Multi-Objective Performance Evaluation Framework

The reviewed AI-enhanced droop control methods employ multiple performance metrics, including core metrics (frequency deviation, voltage deviation, power-sharing error, and settling time) that directly reflect system stability and regulation quality, and auxiliary metrics (THD, economic efficiency via reduced curtailment or losses, and robustness to parameter variations) that support secondary objectives such as power quality and cost-effectiveness. These metrics often exhibit trade-offs; for example, aggressive droop tuning for faster response (reduced settling time) may increase THD or voltage deviation due to higher gains [104,194], while multi-objective RL optimizes such trade-offs but requires careful reward design to avoid over-prioritizing a single metric [195,196]. To enable comprehensive evaluation, we propose a simple weighted scoring framework: assign normalized scores (0–1) to each metric relative to baselines (conventional droop), then compute a composite score as $S=\sum w_k·s_k$, where $\sum w_k=1$ (e.g., $w=0.4$ for core stability metrics, $w=0.3$ for THD/power quality, and $w=0.3$ for economic efficiency and robustness).

5.4. Practical Deployment Challenges and Real-World Limitations

Computational requirements present critical bottlenecks. Transformer-based controllers requiring ${10}^9$ floating-point operations per second [197] cannot run on existing inverter hardware without costly upgrades. Hardware acceleration introduces power consumption on the order of 150 W [75], which is problematic for distributed inverters in remote locations. While hardware acceleration (GPUs, TPUs) boosts performance, it significantly increases system costs [198]. AI model inference times often exceed allowable control cycle durations. Simple feedforward neural networks achieve 1–5 ms inference on embedded processors, barely meeting real-time requirements [199]. LSTM networks with multiple layers require 10–50 ms for sequence processing [73], forcing either control cycle lengthening (degrading transient response) or asynchronous model execution (introducing state inconsistencies). Transformer architectures with self-attention mechanisms demand 50–200 ms inference [74], rendering them fundamentally incompatible with primary control loops and suitable only for slower secondary or tertiary control layers.

Training data challenges are equally serious. Most studies rely on synthetic data generated from idealized simulations [67], yet real microgrids exhibit harmonics, noise, packet loss, and firmware bugs that are underrepresented in such models. Field validation studies report 20–30% accuracy drops compared to simulation results [188], indicating substantial sim-to-real gaps. Retraining requirements for each unique microgrid configuration conflict with utilities’ preference for standardized solutions. Cybersecurity vulnerabilities also remain underexplored. ML models are susceptible to adversarial attacks, in which imperceptible input perturbations cause policy failures [200]. Countermeasures increase latency by 15–25%, and the lack of systematic threat modeling and penetration testing remains concerning for critical infrastructure deployment.

5.5. Gap Between Research Claims and Operational Requirements

Most studies analyze 10 s to 10 min windows [201,202], providing no evidence of long-term stability or model drift. Utilities require 8760 h annual operation with robustness to rare events (e.g., three-phase faults and islanding). The absence of long-duration field trials leaves operational reliability questions unanswered. MARL scalability claims warrant scrutiny. Convergence demonstrations with 3–5 agents [99] rely on assumptions (identical dynamics, full observability) that are violated in real heterogeneous microgrids. Consensus algorithms scale polynomially [203], creating practical ceilings around 20–50 agents, which is insufficient for the utility-scale coordination of hundreds of DERs. Regulatory barriers are also underappreciated. IEEE 1547 specifies deterministic behavior with hard real-time guarantees, conflicting with AI’s stochastic outputs and difficult-to-bound worst-case response times [10]. Black-box networks violate transparency requirements for auditable control logic. Explainable AI (XAI) techniques provide post hoc interpretability [204] but do not address certification: how can utilities prove that RL agents never violate voltage or frequency limits under unforeseen conditions? Safety-critical AI certification frameworks are largely absent.

A critical gap in the reviewed literature is the lack of systematic comparison between AI-enhanced droop control and advanced classical control methods. Recent model-based approaches demonstrate comparable or superior performance to AI methods in specific scenarios without the associated computational overhead and certification challenges. Unknown input observer designs achieve disturbance- and attack-tolerant state estimation in microgrids with deterministic convergence guarantees [205]. Hierarchical architectures combining model-free predictive control with fixed-time secondary control provide robustness to 80–90% parameter variations and communication delays through Artstein transformation, while handling actuator saturation constraints [206]. Distributed resilient control using adaptive observers and neural networks (a hybrid classical–AI approach) effectively mitigates hybrid cyber-attacks while achieving zero voltage and frequency regulation error in AC microgrids [207], addressing a limitation whereby the pure AI methods reviewed earlier achieve only bounded errors. These classical and hybrid methods provide explicit stability proofs, bounded worst-case performance, and transparent tuning procedures that pure deep learning approaches struggle to match.

5.6. Economic Viability and Cost-Benefit Analysis

The economic case for AI-enhanced droop control remains poorly substantiated despite its critical importance for technology adoption. While multiple studies claim improved return on investment (ROI) [122,165], these analyses typically account only for increased energy revenue and ancillary service payments, neglecting substantial deployment costs, including model development and validation, hardware upgrades to meet computational requirements, ongoing maintenance and retraining as system conditions evolve, and liability insurance for AI-driven decisions in critical infrastructure. A comprehensive techno-economic analysis comparing AI-enhanced and conventional droop control across the full asset lifecycle, including failure modes, repair costs, and obsolescence risk associated with rapidly evolving AI technologies, is conspicuously absent from the literature [74]. The demand for specialized expertise creates additional cost barriers. Deploying and maintaining AI-enhanced droop control systems requires hybrid skill sets that are scarce in utility workforces traditionally organized around electrical and mechanical engineering competencies. The training and retention costs associated with this workforce transformation, along with the opportunity costs of diverting engineering resources from other priorities, are rarely included in business-case evaluations. For smaller utilities and rural cooperatives operating distribution systems with fewer than 10,000 customers, these human-capital requirements may be prohibitive regardless of the technical merits.

5.7. Implications for Grid Modernization and Utility Operations

AI-enhanced droop control enables potentially transformative operational changes. Real-time optimization could allow more aggressive infrastructure utilization, operating circuits closer to thermal and voltage limits and deferring costly upgrades [208]. However, this efficiency–reliability trade-off requires careful management: AI typically optimizes for average-case performance, whereas utilities are accountable for worst-case reliability during extreme events. Integration into hierarchical grid management also necessitates architectural rethinking. Hybrid architectures that decompose control into fast local AI adjustments and slower global optimization remain an open challenge. Coordination protocols, data interfaces, and decision-authority boundaries between layers are poorly defined, creating integration risks with legacy SCADA and distribution management systems (DMS) [209]. Autonomous control proliferation further raises questions of operational responsibility. When AI agents trigger cascading outages or equipment damage, fault allocation among DER owners, model developers, manufacturers, and utilities becomes legally complex [210]. Existing regulations lack clear precedent for autonomous systems. Developing insurance products, liability frameworks, and contractual mechanisms that allocate risk while incentivizing innovation is therefore essential for scaling beyond demonstration projects.

5.8. Future Research Directions and Emerging Trends

The computational overhead analysis in Section 5.2 reveals that pure deep learning violates primary droop control timing constraints (100 µs to 10 ms), necessitating hybrid architectures. Model predictive control (MPC) augmented with neural network system identification can enforce hard limits via convex optimization while leveraging AI for nonlinear modeling [211]. PINNs embedding power flow equations improve data efficiency and physical consistency. Edge AI deploying compressed models on inverter processors addresses latency constraints while maintaining distributed intelligence [163,212]. Quantization-aware training enables 8-bit arithmetic, reducing computational demands by 4–16× to meet real-time requirements on existing digital signal processor hardware. Multi-timescale hierarchical control, which assigns AI to slower secondary and tertiary layers (100 ms to 1 h) while retaining conventional droop at the primary layer, offers another viable architecture.

Addressing the certification gap requires rigorous theoretical foundations. Lyapunov-based verification methods can certify neural network controller stability within specified operating envelopes [213]. Barrier functions enforce hard safety constraints, preventing voltage collapse or circulating currents under learned RL policies. Adversarial robustness certification using randomized smoothing guarantees resilience to input perturbations, although the associated 30–50% computational overhead necessitates the co-design of robust architectures and efficient verification procedures. Federated learning enables privacy-preserving training across distributed microgrids [214], though convergence guarantees under non-IID data remain an open research challenge.

Bridging the research–practice gap demands consensus benchmarks analogous to IEEE test systems. Open-source, validated microgrid models with diverse topologies, protection settings, and realistic fault scenarios would enable reproducible comparison. Standardized metrics (frequency nadir, voltage deviation, settling time, and THD) evaluated under identical disturbance profiles are essential. Digital twins replicating physical microgrids [215] provide safer, comprehensive testing environments, while hardware-in-the-loop protocols adapted for AI controllers should become an industry standard prior to field deployment.

Emerging technologies offer complementary pathways. IoT infrastructure enables real-time data collection, enhancing droop accuracy by over 15% [216]. 5G and 6G networks reduce latency to approximately 10 ms, supporting distributed control [217]. Blockchain technologies secure peer-to-peer energy trading [218]. Quantum machine learning (QML) offers potential exponential speedups for optimization, although accessible platforms require substantial further development [219]. Autonomous grids using RL achieve over 90% stability [220], yet full autonomy faces regulatory barriers that require new policy frameworks for certification and liability [221].

Successful deployment requires interdisciplinary collaboration across power systems, computer science, control theory, cybersecurity, and policy domains. Funding mechanisms should incentivize holistic system-level solutions over isolated algorithmic improvements. Workforce development addressing hybrid skill sets (power systems, machine learning, embedded programming, and cybersecurity) is critical for utility adoption, particularly for smaller operators. Industry–academia partnerships that facilitate knowledge transfer, field data access, and pilot deployments can accelerate technology maturation while managing operational and regulatory risks.

Among these diverse pathways, three research priorities emerge as most critical for near-term impact: (i) hybrid physics–AI architectures that integrate neural networks with model-based control strategies (e.g., MPC and droop control) to satisfy real-time operational constraints while leveraging AI’s adaptability, thereby addressing the fundamental computational barrier identified in Section 5.2; (ii) formal certification frameworks that combine Lyapunov-based stability analysis, barrier-function safety guarantees, and adversarial robustness testing to support regulatory approval and build utility-level confidence in AI-enabled controllers; and (iii) standardized benchmarking protocols—encompassing consensus test systems, unified performance metrics, and open-source reference implementations—that transform performance evaluation from largely incomparable claims into verifiable and reproducible progress. Focused investment in these three areas—closing the real-time performance gap, rigorously proving safety, and enabling fair comparison—will accelerate the transition of AI-enhanced microgrid control from promising laboratory demonstrations to reliable field deployment.

6. Conclusions

This review consolidates a diverse body of literature on AI-enhanced droop control by establishing a structured evaluation framework that assesses ML, DL, RL, and hybrid approaches using consistent criteria—including implementation complexity, training data requirements, certification pathways, and operational constraints. This structure enables meaningful cross-method comparisons, moving beyond isolated performance claims reported under non-comparable conditions. AI-enhanced droop control employing ML, DL, RL, and hybrid techniques has demonstrated substantial benefits for renewable energy systems. ML models, such as SVR, have been used to optimize droop coefficients, reducing frequency deviations in grid-connected PV systems [107]. DL architectures, including LSTM networks, have captured nonlinear droop dynamics, improving voltage stability in wind-integrated systems [139]. RL approaches, notably PPO-based controllers, have enabled autonomous multi-objective optimization, enhancing power sharing and system adaptability in microgrids [90]. These advances have supported high renewable penetration levels, with implementations demonstrating grid-code compliance [103,108]. More recently, transfer learning has emerged as an effective strategy for adapting pre-trained AI models to heterogeneous renewable energy systems, significantly reducing training time and computational overhead [94]. This capability is particularly valuable in islanded microgrids, where rapid adaptation to evolving load profiles and operating conditions is essential. In parallel, the integration of real-time data analytics with AI-driven droop control has improved fault detection and overall system resilience, contributing to reduced downtime in hybrid renewable energy systems [63].

This review makes a distinctive contribution by moving beyond isolated performance demonstrations to provide a systematic, cross-cutting comparison of AI-enhanced droop control techniques with respect to computational overhead, data requirements, and real-world deployability. Rather than emphasizing nominal regulation performance alone, we frame evaluation around safety-critical metrics—specifically voltage and frequency regulation in compliance with IEEE 1547—while explicitly distinguishing these from secondary optimization objectives such as power quality, efficiency, and economic performance. This separation exposes a central limitation of the existing literature: the lack of standardized benchmarking practices, which undermines the validity of quantitative cross-study comparisons and frequently leads to misleading conclusions.

Our analysis further identifies a persistent performance–deployability trade-off. While advanced deep learning and reinforcement learning approaches often demonstrate superior adaptability and disturbance rejection in simulation, these benefits are typically accompanied by substantial computational demands, extensive data requirements, and unresolved certification challenges that exceed the practical constraints of utility deployment. Through systematic comparison with recent advances in classical and hybrid control methods—including unknown-input observers, model-free predictive control, and adaptive observer-based schemes—we show that the core promise of AI, namely improved robustness under uncertainty, remains insufficiently demonstrated in many operationally relevant scenarios. In contrast, model-based approaches frequently achieve comparable or superior robustness while offering deterministic guarantees, lower computational burden, and mature tuning and certification pathways.

Looking forward, the findings of this review suggest that meaningful progress will arise not from further increases in model complexity, but from principled integration. Future research should prioritize hybrid control architectures that combine AI’s capacity for adaptive learning with the stability guarantees, interpretability, and transparency of classical control. Physics-informed neural networks that explicitly embed power-system dynamics and constraints represent a promising direction for reducing data dependence while enhancing explainability. In parallel, safe reinforcement learning frameworks incorporating barrier functions and formal safety constraints are essential to prevent exploration-induced instability during online operation. Collectively, these directions outline a credible pathway toward scalable, certifiable, and intelligent microgrid control solutions capable of delivering robust performance across diverse grid architectures and operating conditions.
