A Terahertz Dual-Band Transmitter in 40 nm CMOS for a Wideband Sparse Synthetic Bandwidth Radar

Abstract

This paper presents a terahertz (THz) dual-band transmitter for a wideband sparse synthetic bandwidth radar. The transmitter employs an innovative single-path-reuse dual-band architecture. This architecture utilizes a proposed quad-transformer-coupled voltage-controlled oscillator (VCO) as an on-chip local oscillator source. It also incorporates an innovative dual-harmonic generator and a dual-band antenna, which work together within the single signal path to generate both the fundamental frequency and its second harmonic, thereby creating the dual bands required for a sparse synthetic bandwidth radar. Fabricated in a TSMC 40 nm CMOS technology, measurement results show that the transmitter achieves a peak equivalent isotropically radiated power (EIRP) of −7.95 dBm in the low-frequency band (121.34∼126.85 GHz) and −7.86 dBm in the high-frequency band (242.68∼253.7 GHz), validating the proposed architecture’s capability to generate dual-band signals simultaneously. The entire chip occupies a compact area of only 0.54 × 0.62 ${\mathrm{m}\mathrm{m}}^2$ and consumes 136 mW of DC power.

1. Introduction

With the advancement of wireless technology, the terahertz (THz) radar has attracted significant research interest in recent years due to its broad application prospects in high-precision detection and high-resolution imaging [1,2,3,4,5,6,7]. In these applications, the high-resolution capability of the system is a key performance metric for realizing high-precision wireless radar sensing systems. The range resolution of a radar is directly determined by its available modulation bandwidth [4]. Consequently, the core challenge in achieving higher-resolution radar systems lies in effectively expanding the system’s operating bandwidth.

The most common approach to extending a radar system’s bandwidth is the adoption of more advanced semiconductor technology to achieve superior bandwidth performance [8,9,10,11]. For instance, using an advanced 130 nm SiGe technology, a 340 GHz terahertz FMCW radar demonstrated a 70 GHz bandwidth [8]. However, compared to CMOS technology, SiGe is more expensive and offers lower integration levels. Another method for bandwidth expansion involves innovative system architectures. A CMOS dual-band FMCW radar based on sparse synthetic bandwidth was introduced to address these issues [12]. It utilized a dual-band architecture to synthesize an equivalent bandwidth of 169 GHz from its two bands. However, this dual-band radar employed a frequency multiplier chain fed by an external signal source to generate the transmit signal. Furthermore, its dual-band transmitter channels were independent and non-reused, leading to considerable area and power consumption overhead.

To address the area and power consumption issues of independent dual-channel designs, this paper presents a single-path-reuse dual-band terahertz CMOS radar transmitter based on a sparse synthetic bandwidth radar. The proposed architecture employs a quad-transformer-coupled VCO as the local oscillator source, eliminating the need for frequency multiplier chains that rely on external signal sources, thereby effectively reducing area and power consumption. Furthermore, through the proposed dual-harmonic generator and dual-band antenna, it enables simultaneous dual-band signal transmission within a single channel, achieving further reductions in area and power. Section 2 describes the design of the proposed transmitter. Section 3 presents the chip implementation and measurement results. Finally, Section 4 provides the conclusion.

2. Circuit Implementation

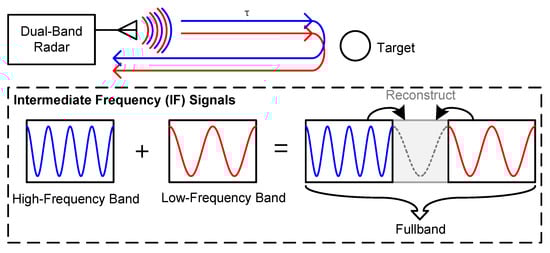

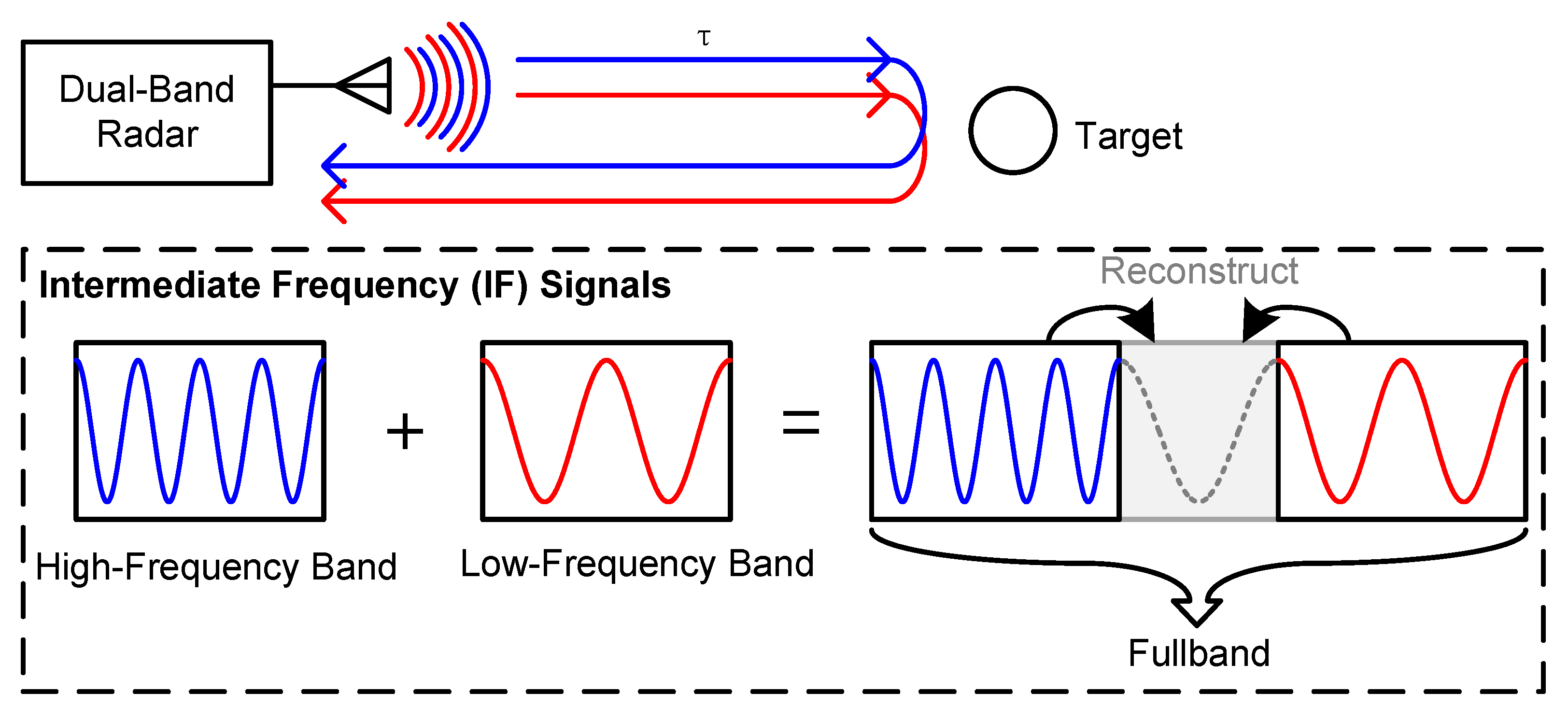

This design adopts a dual-band architecture based on sparse synthetic bandwidth radar [12] to overcome the bandwidth limitations of CMOS technology. The operating principle is illustrated in Figure 1. The dual-band radar simultaneously transmits two discontinuous bands, specifically the low-frequency band (LB) and high-frequency band (HB). Since the phase difference between the intermediate frequency (IF) signals of the two bands depends solely on the round-trip time delay ($\tau$) of the electromagnetic wave, the missing IF signals between the two bands can be theoretically reconstructed from the known IF signals of the individual bands [12]. This means the discontinuous dual-band bandwidths can be synthesized into an equivalent continuous larger bandwidth, thereby achieving high range resolution in radar systems.

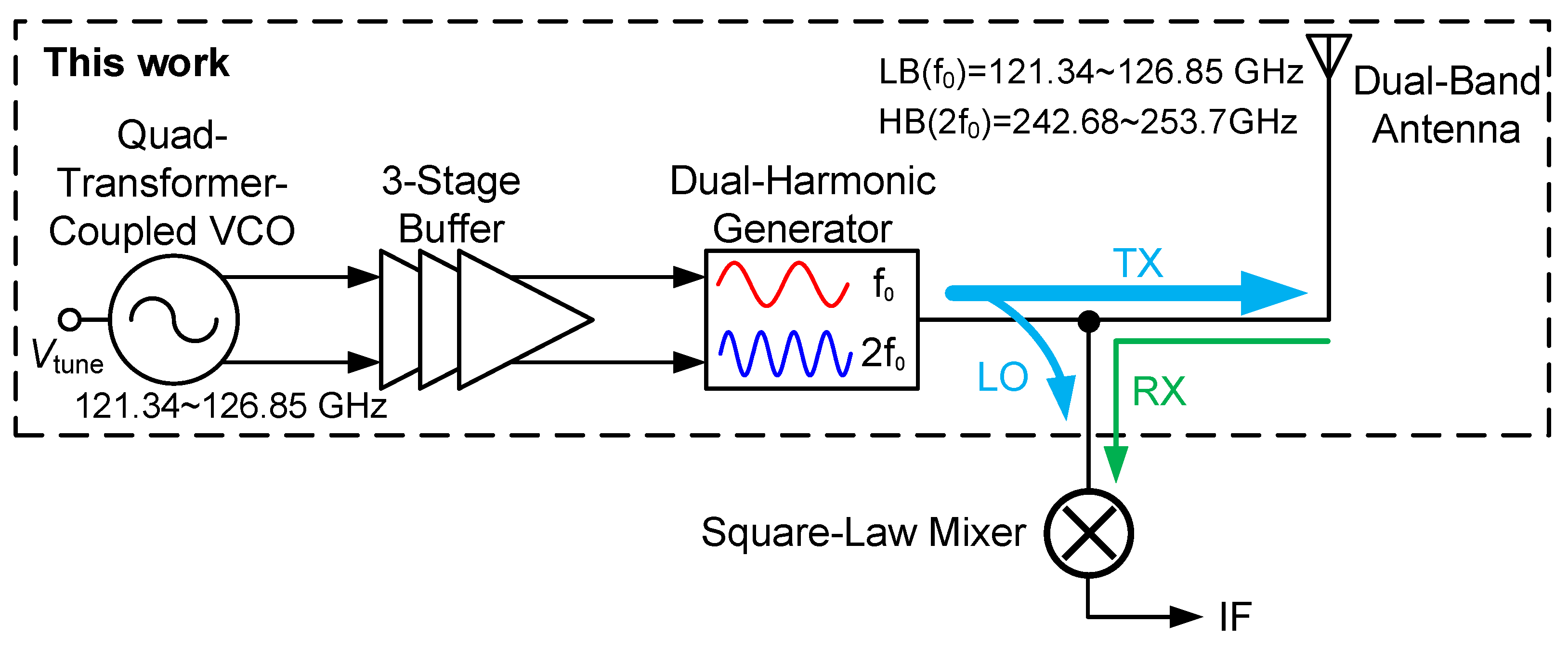

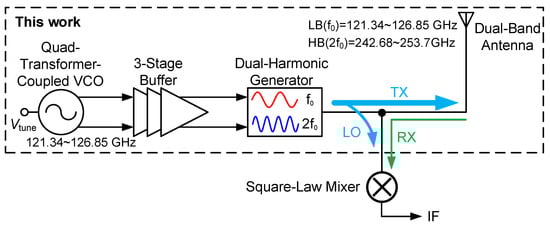

Based on the aforementioned operating principle of the dual-band sparse synthetic bandwidth radar, the architecture of the proposed terahertz dual-band radar transmitter is shown in Figure 2. The terahertz signal generated by the quad-transformer-coupled VCO is amplified through a three-stage buffer and then fed into a dual-harmonic generator to produce LB and HB signals with a frequency-doubling relationship. These signals are subsequently radiated through a dual-band antenna, thereby forming the two sub-bands required for sparse bandwidth synthesis. Furthermore, by down-converting the received echo signal using a mixer to output the IF signal, dual-band bandwidth synthesis can be implemented in the baseband.

2.1. Proposed Quad-Transformer-Coupled VCO

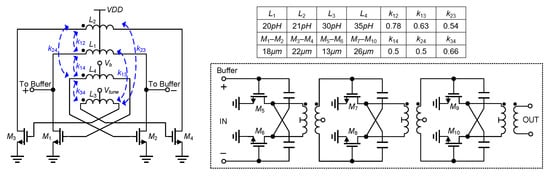

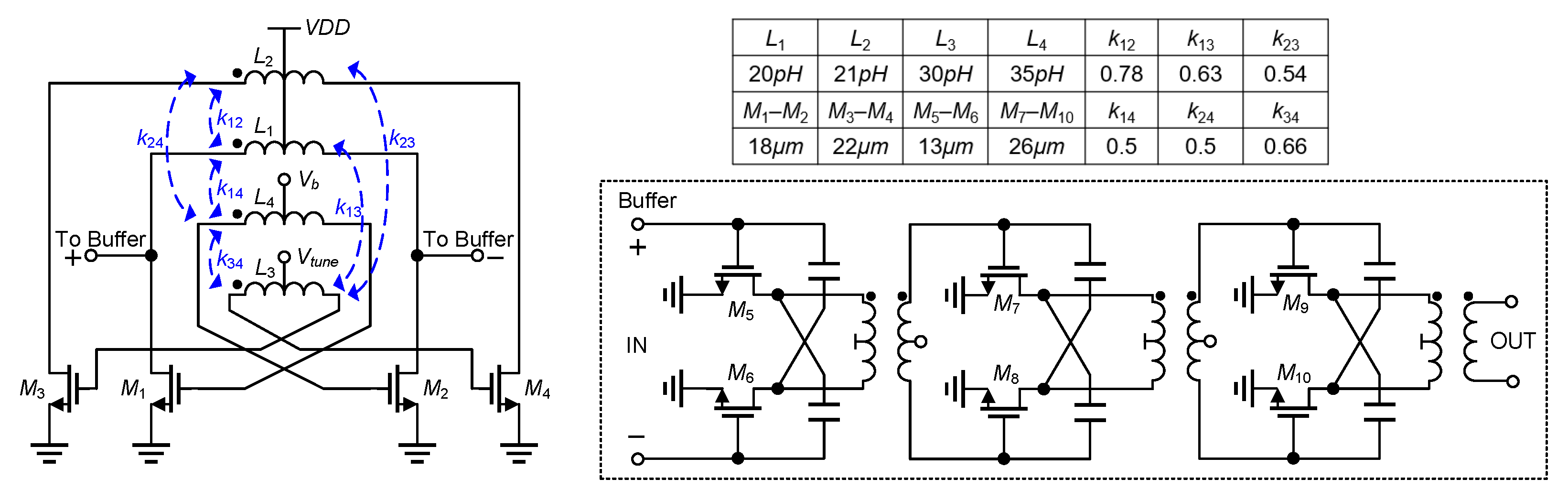

Figure 3 illustrates the schematic of the proposed quad-transformer-coupled VCO. The core components of this oscillator comprise a quadruple-coupled transformer, a pair of cross-coupled transistors $M_1$ and $M_2$ connected via inductors, and a pair of magnetically coupled transistors $M_3$ and $M_4$. These elements collectively form the main structure of the VCO. Inductors $L_1$ and $L_2$ share a common center tap and supply the DC power $V_{\mathrm{DD}}$ to transistors $M_1$–$M_4$; similarly, a DC bias voltage $V_b$ is provided to the gates of $M_1$ and $M_2$ through the center tap of $L_4$, while frequency tuning is achieved via voltage $V_{\mathrm{tune}}$ applied to the gates of $M_3$ and $M_4$ through $L_3$. This voltage alters the equivalent capacitive reactance and transconductance of the magnetically coupled transistors, thereby modulating the equivalent inductance of the resonant cavity through magnetic coupling and enabling continuous frequency control. The design ingeniously utilizes the intrinsic parasitic capacitances of the transistors to form the resonant cavity without employing any external varactors or discrete capacitors, which not only simplifies the circuit topology but also enhances stability and reliability. We adopt the simulation methodology with S-parameters as discussed in reference [13] for parasitic parameter extraction using Ansoft HFSS. The layouts of the transistors (including all metal layers, but excluding gate poly and source/drain layers), and metal interconnects between devices are imported into Ansoft HFSS for electromagnetic (EM) extraction. Corresponding S-parameter models are generated and subsequently imported into ADS for co-simulation with the schematic. During the design phase, we evaluated the impact of additional parasitic capacitance from interconnects through pre-layout simulations. The increase in this interconnect parasitic capacitance reduces the tuning range. The simulation results indicated that the parasitic capacitance $C_{gd}$ has the most significant influence. With a capacitance increase of 2 fF, the $C_{gd}$ of transistors $M_{1,2}$ and $M_{3,4}$ reduced the tuning range by 1.2 GHz and 0.6 GHz, respectively, whereas the $C_{gs}$ and $C_{ds}$ of transistors $M_{1,2}$ and $M_{3,4}$ resulted in a reduction in less than 0.2 GHz. Consequently, our layout design was optimized to minimize the additional interconnect parasitic capacitance $C_{gd}$.

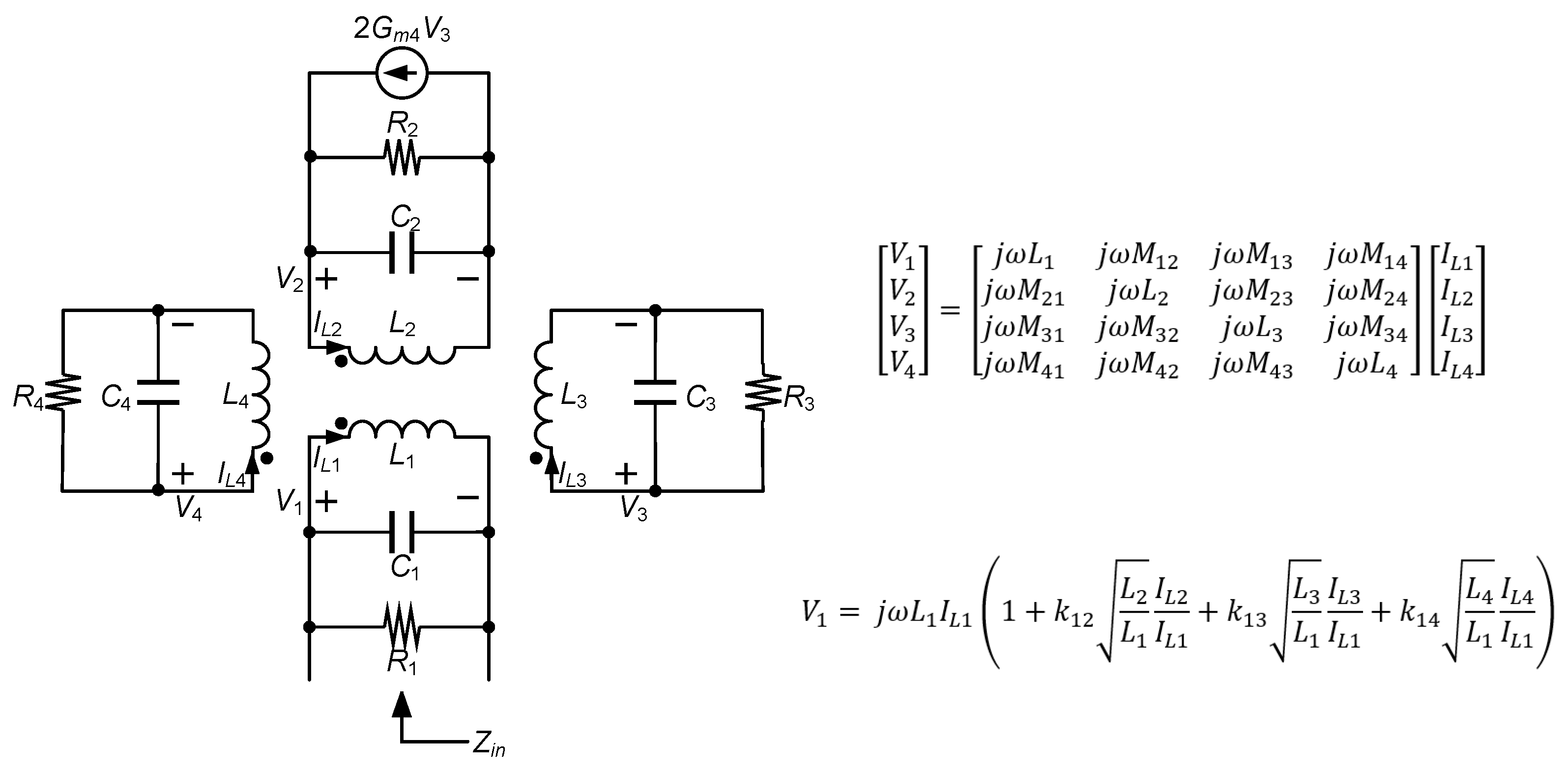

In this design, frequency variation is primarily governed by two concurrent mechanisms: firstly, the variation of $V_{\mathrm{tune}}$ alters the transconductance ($G_m$) of the magnetically coupled transistors, thereby modifying the amplitude and phase relationships of the branch currents; secondly, $V_{\mathrm{tune}}$ directly modulates the intrinsic gate parasitic capacitances of transistors $M_3$ and $M_4$. Figure 4 shows the simplified equivalent circuit of the proposed VCO. In this equivalent circuit, $C_i$ represents the parasitic capacitance in each resonant loop, while $R_i$ models the losses within each resonant loop. $G_{m4}$ denotes the equivalent input transconductance of the magnetically coupled transistor $M_4$. Based on the analysis in [14], the effective inductance seen from $L_1$ can be derived as

$$L_{\mathrm{eff}}=Im\left\{j{L}_1\left(1+k_{12}\sqrt{{\displaystyle \frac{L_2}{L_1}}}{\displaystyle \frac{I_{L2}}{I_{L1}}}+k_{13}\sqrt{{\displaystyle \frac{L_3}{L_1}}}{\displaystyle \frac{I_{L3}}{I_{L1}}}+k_{14}\sqrt{{\displaystyle \frac{L_4}{L_1}}}{\displaystyle \frac{I_{L4}}{I_{L1}}}\right)\right\}.$$

(1)

It can be observed that achieving a wide tuning range requires optimizing the coupling coefficient, inductance ratio, and current ratio to relatively high levels. However, these parameters are interdependent and constrained, and cannot be increased indefinitely.

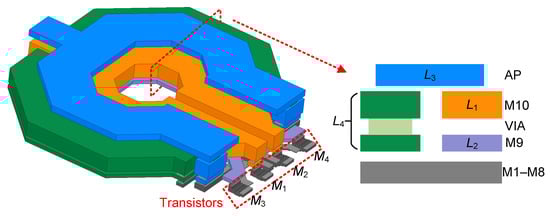

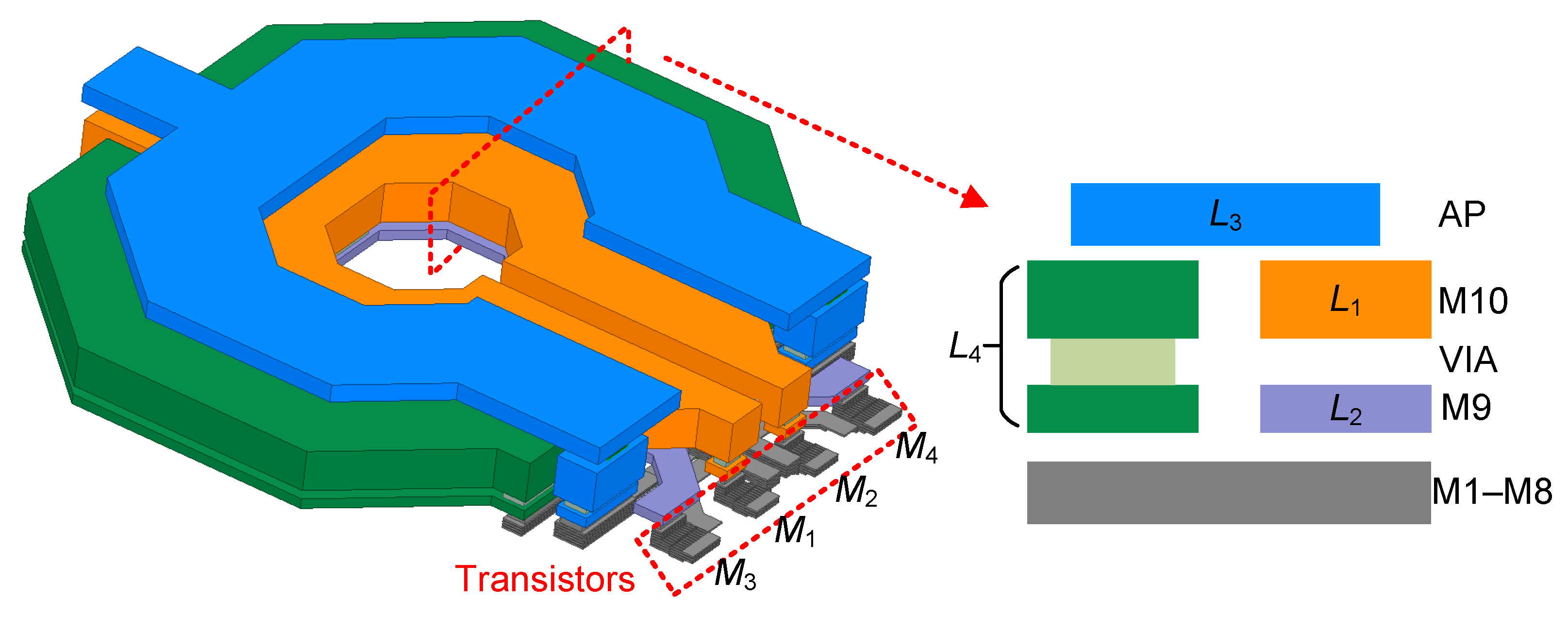

Figure 5 illustrates the layout and cross-sectional view of the adopted octagonally symmetric quadruple-coupled transformer. Implemented using the three thick top metal layers (M9, M10, AP) provided by the technology, the transformer features inductors $L_1$ and $L_2$ constructed in a stacked and coupled configuration using M10 and M9, respectively. $L_4$ is formed by the parallel combination of M9 and M10, and is concentrically coupled with both $L_1$ and $L_2$. $L_3$ is implemented using the aluminum cap layer (AP). The output of the VCO directly drives a common-source buffer amplifier employing neutralization capacitor technology. This buffer effectively isolates the oscillator from performance degradation due to subsequent loading stages while providing sufficient drive power for the following dual-harmonic generator.

2.2. Proposed Dual-Harmonic Generator

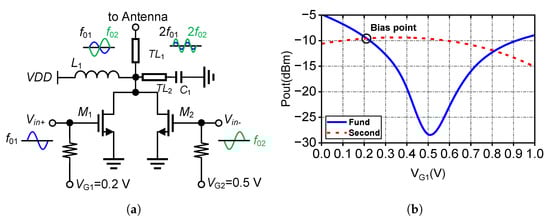

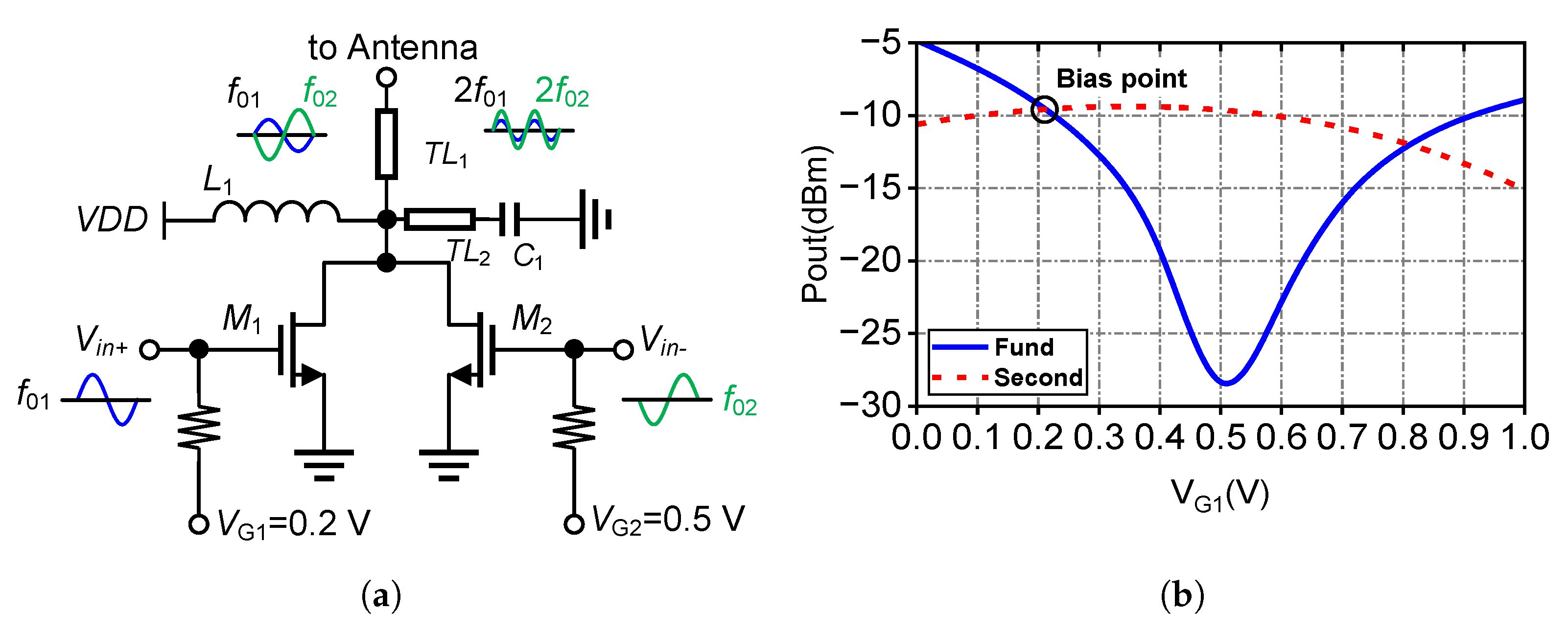

To simultaneously generate the fundamental and second harmonic signals, the schematic of the proposed dual-harmonic generator is shown in Figure 6a. The circuit adopts a push–push frequency doubler structure, where transistors $M_1$ and $M_2$ form a differential input common-source configuration with their drain outputs shorted together. This structure provides a broadband effect, and the conversion loss can be compensated by the active transistors. Since the input fundamental signals are differential, the fundamental signals at the two transistor drains exhibit opposite phases, while the second harmonic signals are in phase. This means the fundamental output signal generated by the dual-harmonic generator equals the difference between the fundamental output signals of the two transistors, whereas the output second harmonic equals the sum of their second harmonic output signals. Unlike conventional push–push frequency doublers that apply equal gate bias voltages to eliminate the fundamental output signal, this work applies different gate bias voltages to the two transistors to enhance the difference in fundamental signals, making them comparable to the sum of the output second harmonics, thereby enabling simultaneous output of both fundamental and second harmonic signals. This is achieved by setting independent $V_{G1}$ and $V_{G2}$ potentials for each transistor. Although the dual-harmonic generator unbalance causes some phase mismatch in second harmonic components, the deterioration in their sum is limiting. At the fundamental frequency of 130 GHz, when the two transistors are biased differently ($V_{G1}$ = 0.2 V, $V_{G2}$ = 0.5 V), the simulated phase mismatch of the second harmonic is 19°, resulting in only a 0.12 dB loss in the second harmonic output. The dual-band matching network consists of inductor $L_1$, transmission lines $T{L}_1$ and $T{L}_2$, and capacitor $C_1$. Inductor $L_1$ is used to apply the DC supply voltage $VDD$ while also contributing to the impedance matching. Capacitor $C_1$ is designed with a proper capacitance value so that it contributes to the impedance matching and provides DC blocking of $T{L}_2$. Combining inductor $L_1$, transmission lines $T{L}_1$ and $T{L}_2$, and capacitor $C_1$, as well as the output impedance of $M_{1,2}$ and the input impedance of the antenna, the dual-band matching is realized. The design utilizes the frequency-dependent input impedance characteristic of transmission lines, and benefits from the stable and accurately modelable characteristic impedance of transmission lines at high frequencies, which facilitates the design and optimization of the dual-band matching.

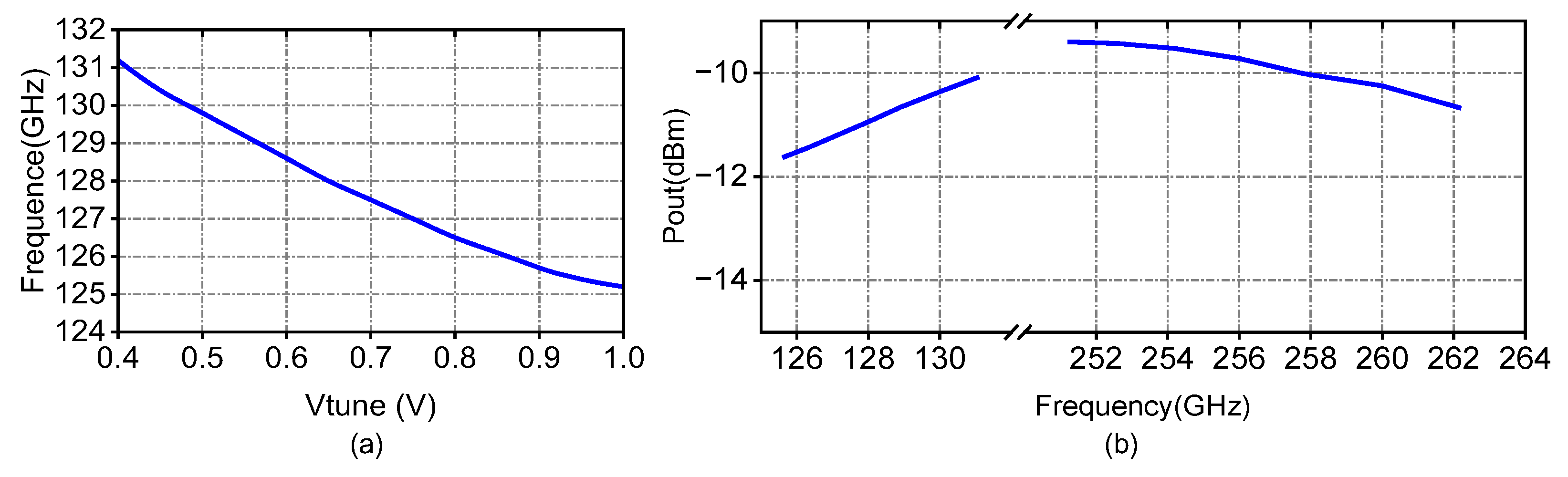

Figure 6b shows the simulated output power of the fundamental and second harmonic versus $V_{G1}$ at 130 GHz with 7.5 dBm input power ($V_{G2}$ = 0.5 V). When $V_{G1}$ = 0.2 V and $V_{G1}$ = 0.8 V, the output powers of the fundamental and second harmonic are equal, with corresponding DC power consumptions of 1.73 mW and 8.42 mW, respectively. $V_{G1}$ = 0.2 V is selected as the bias point to minimize DC power consumption. Finally, in co-simulation with the preceding VCO, the output power of the dual-harmonic generator versus frequency is shown in Figure 7b. It can be observed that with $V_{\mathrm{tune}}$ = 0.4∼1 V, corresponding to the VCO tuning range of 125.6∼131.1 GHz (Figure 7a), the maximum output power of the dual-harmonic generator is −9.4 dBm, with the power difference between the fundamental and second harmonic within 2.3 dB. Considering the greater path loss at the higher frequency of the second harmonic, the power of the second harmonic is appropriately set higher than that of the fundamental frequency in the simulation design. Furthermore, in real applications, the output power of the fundamental and second harmonic can be balanced by readily adjusting the tunable gate voltages $V_{G1}$ and $V_{G2}$. Notably, the tuning characteristic is linear, making it suitable for FMCW radar applications.

2.3. Dual-Band Antenna

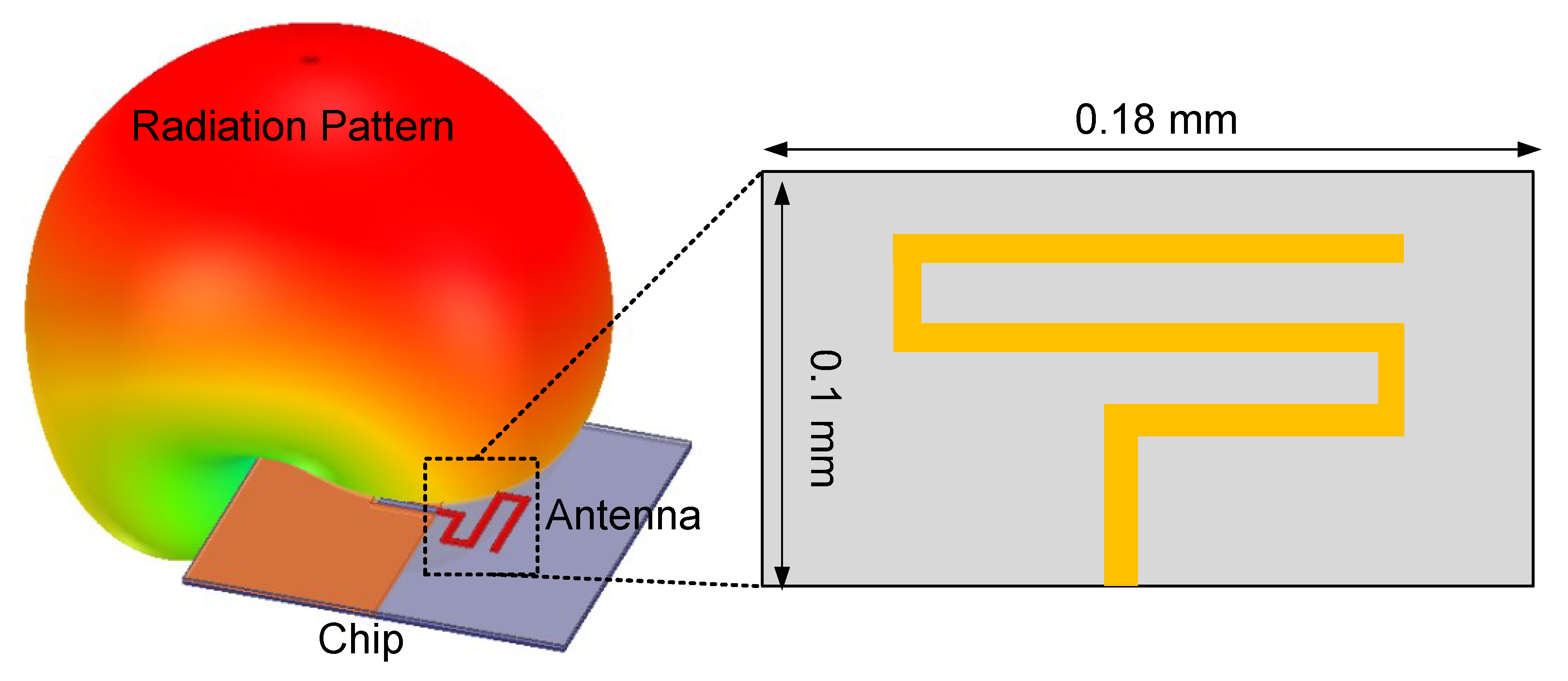

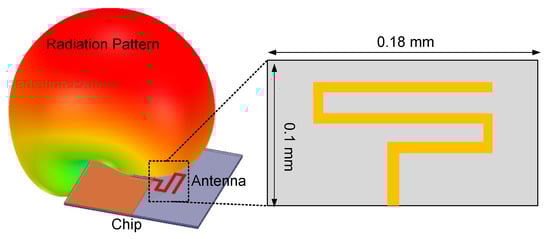

To achieve monolithic integration of the transmitter system, this design employs a compact on-chip dual-band antenna, as shown in Figure 8. Its operating principle leverages the harmonic characteristics of a dipole antenna to achieve dual-band radiation. By applying image theory, the dipole antenna is simplified to a monopole antenna, enabling effective radiation in both the D-band (110∼170 GHz) and J-band (220∼325 GHz) [15], thereby covering the required fundamental and second-harmonic bands of the transmitter. A meandering structure is adopted to minimize the chip area. After co-optimization with the RF front-end circuits, the antenna achieves simulated peak gains of 2 dBi in the LB and 2.2 dBi in the HB, respectively, within a compact chip area of only 0.1 × 0.18 ${\mathrm{m}\mathrm{m}}^2$.

3. Measurement

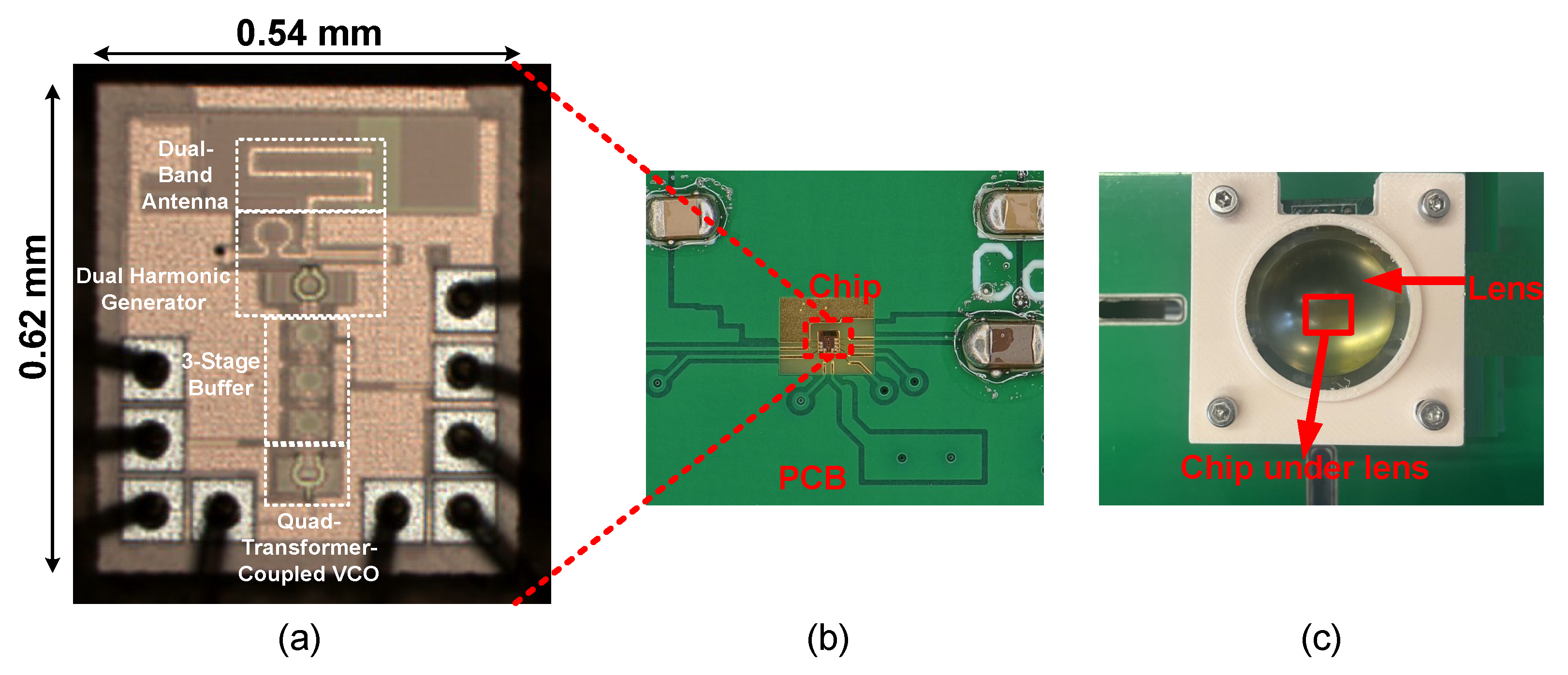

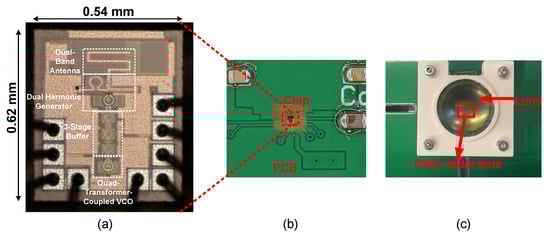

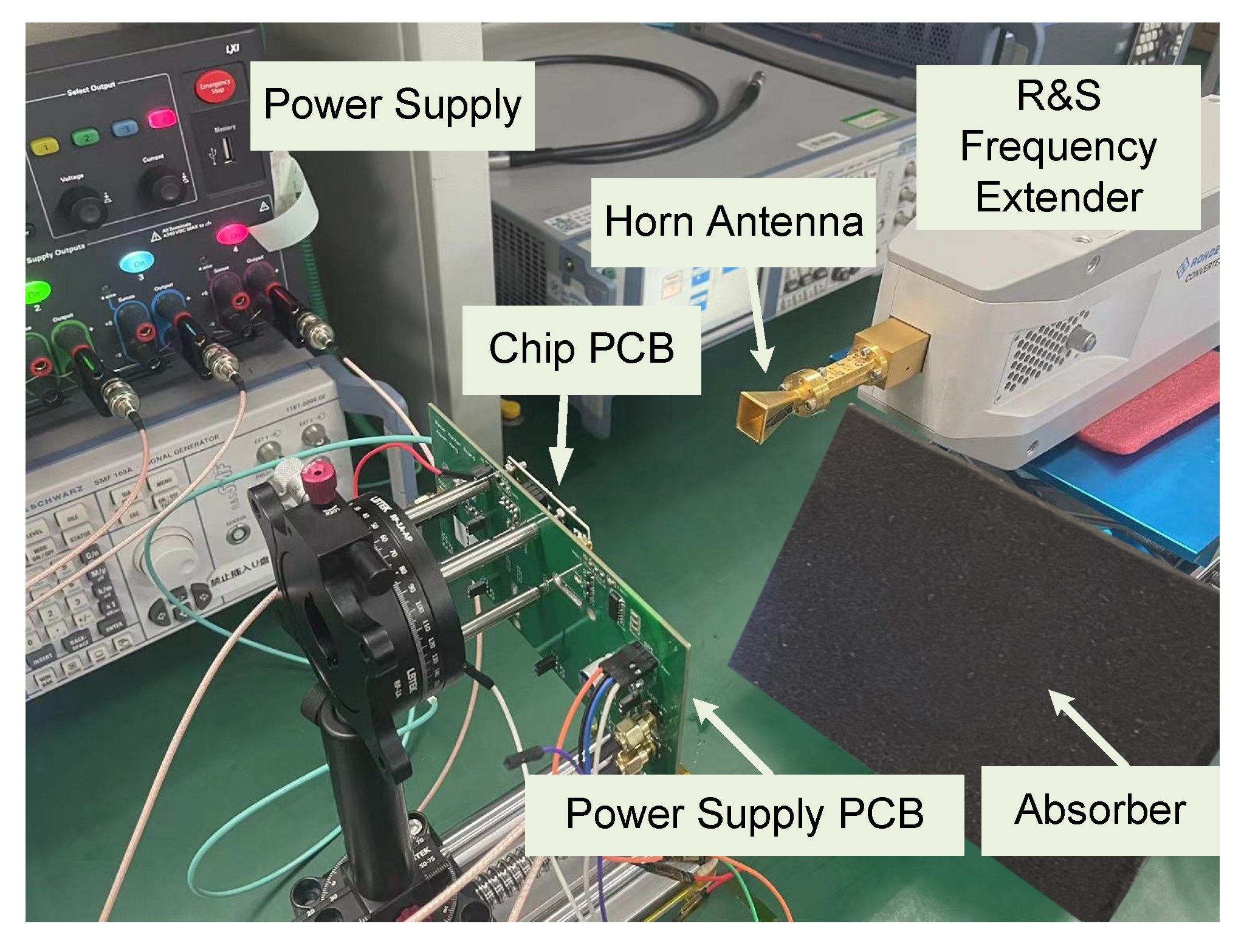

The proposed dual-band transmitter chip is implemented in TSMC 40 nm CMOS technology, with its chip micrograph shown in Figure 9. The chip size is 0.54 × 0.62 ${\mathrm{m}\mathrm{m}}^2$. For testing, the chip is mounted on a PCB using standard wire bonding. The bonding pads are placed away from the on-chip antenna to minimize radiation interference caused by the wire bonds. To enhance the antenna directivity, a detachable low-cost TPX polymethylpentene lens is placed at the front side of the chip (Figure 9c). The total DC power consumption of the chip is 136 mW. The chip measurement setup is illustrated in Figure 10. A horn antenna (with a gain of 24 dBi in the low-frequency band and 23 dBi in the high-frequency band), a R&S ZC170 and a R&S ZC330 frequency extender, and a spectrum analyzer are used to measure the radiated wave from the chip. The operating frequency ranges of the ZC170 and ZC330 extenders are 110∼170 GHz and 220∼330 GHz, respectively, covering the LB and HB of the proposed system. The frequency extenders are configured in receiver mode.

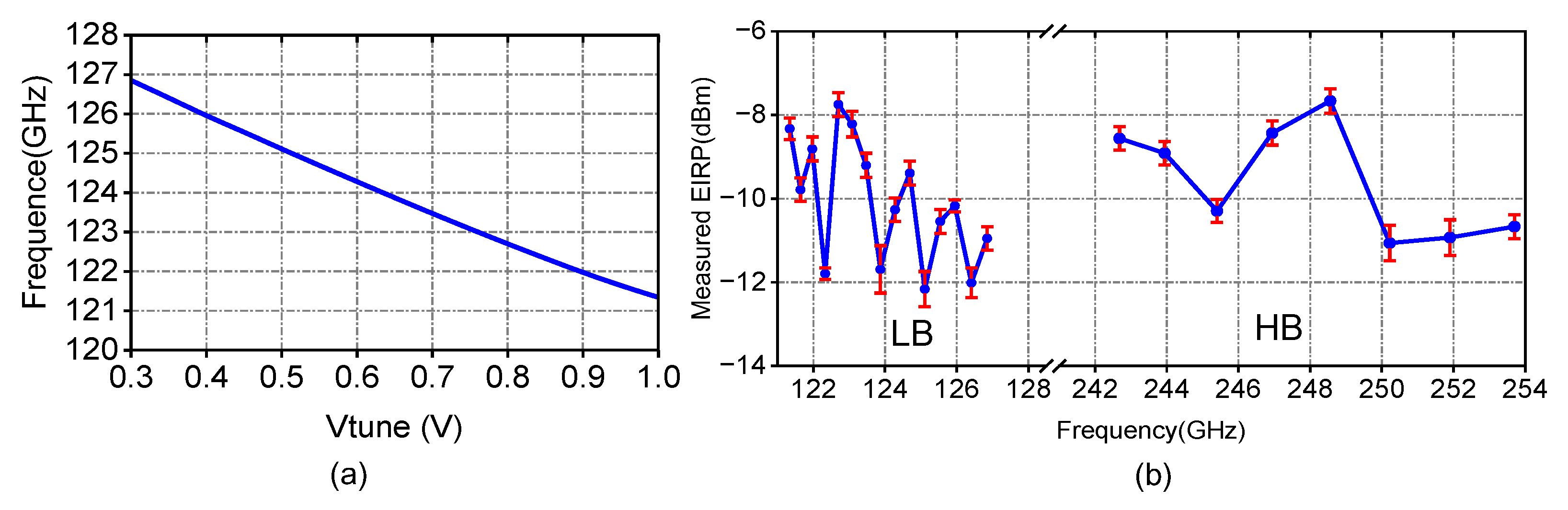

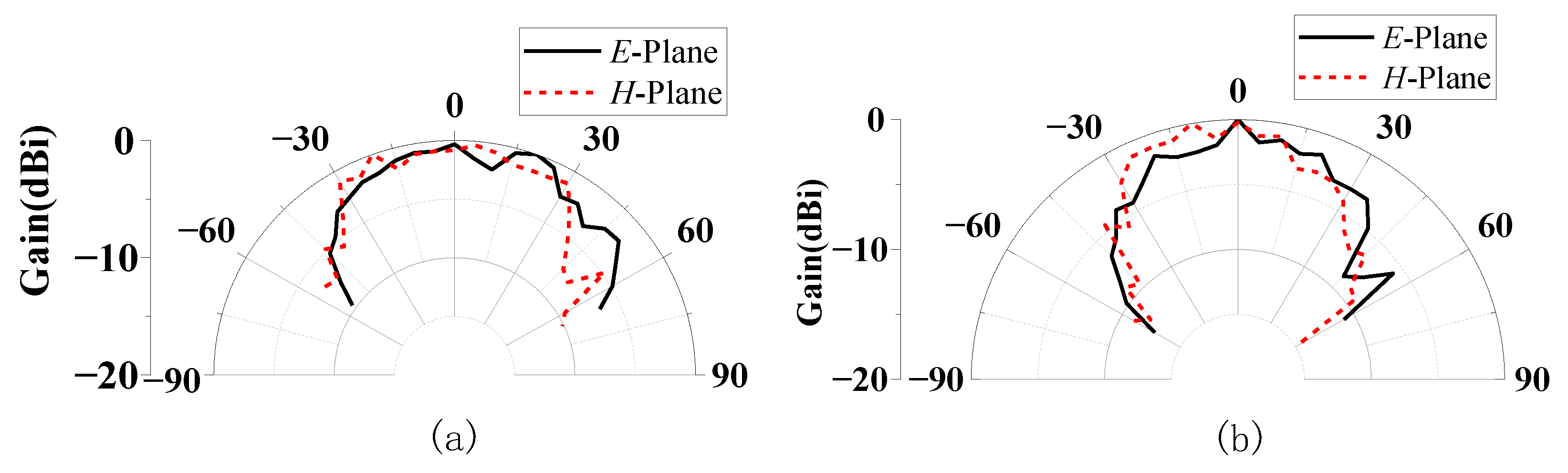

Figure 11a shows the measured tuning frequency of the VCO versus the tuning voltage ($V_{tune}$). The measured fundamental frequency tunes from 121.34 GHz to 126.85 GHz as $V_{tune}$ varies from 0.3 V to 1 V. The measured frequency range is lower than the simulation results due to the underestimation of circuit parasitic parameters during the design, with a deviation of less than 3.3%. This deviation is close to the 3.2% deviation reported in reference [13], which was obtained using a simulation with S-parameters. The measured EIRP across the tuning range is presented in Figure 11b. The results demonstrate the transmitter’s capability to simultaneously transmit signals in both the LB (121.34∼126.85 GHz) and HB (242.68∼253.7 GHz) bands, achieving a maximum EIRP of −7.95 dBm in the LB and −7.86 dBm in the HB. With the lens, the peak EIRP in both the LB and HB can be further increased to 10.05 dBm and 11.04 dBm, respectively. The measured radiation patterns of the dual-band are shown in Figure 12. From the test results, it can be obtained that the half-power beamwidths at 124 GHz and 248 GHz are 60° and 40°, respectively.

4. Conclusions

This paper has presented and implemented a monolithic terahertz radar transmitter front-end based on a single-path-reuse dual-band architecture. The chip was fabricated in a 40 nm CMOS technology, integrating a quad-transformer-coupled VCO, a novel dual-harmonic generator with asymmetric bias, and a dual-band antenna.

Table 1. Comparison of the CMOS state-of-the-art THz transmitter.

Ref.	Technology	Freq. (GHz)	BW (GHz)	EIRP (dBm)	DC Power (mW)	Area (mm2)
This work	40 nm CMOS	124/248	132.36 a	−7.95, 10.05 b /−7.86, 11.04 b	136	0.33
[16]	45 nm SOI	280	9	9.4	810	7.3 c
[17]	130 nm SiGe	169	18	8	860	5.4 d
[18]	130 nm SiGe	240	60	5	N/A	3.19 d
[19]	55 nm SiGe	221	62.4	14	87	0.5 d
[20]	90 nm SiGe	140	20	N/A	40	0.32
[21]	130 nm SiGe	122	10	5	627	3.72 d

^a Synthetic bandwidth. ^b With lens. ^c 4 × 4 transmitter. ^d Complete TRX. N/A, not available.

summarizes its performance and comparisons with the other state-of-the-art transmitter in silicon. By simultaneously generating two frequency bands within a single compact signal path, the design theoretically enables a synthesized bandwidth of 132.36 GHz. This transmitter is suitable for low-cost, highly integrated terahertz wideband sparse synthetic bandwidth radar applications.
