Impacts of Work Function Variation and Line-Edge Roughness on TFET and FinFET Devices and 32-Bit CLA Circuits ^†

Abstract

In this paper, we analyze the variability of III-V homojunction tunnel FET (TFET) and FinFET devices and 32-bit carry-lookahead adder (CLA) circuit operating in near-threshold region. The impacts of the most severe intrinsic device variations including work function variation (WFV) and fin line-edge roughness (fin LER) on TFET and FinFET device I_on, I_off, C_g, 32-bit CLA delay and power-delay product (PDP) are investigated and compared using 3D atomistic TCAD mixed-mode Monte-Carlo simulations and HSPICE simulations with look-up table based Verilog-A models calibrated with TCAD simulation results. The results indicate that WFV and fin LER have different impacts on device I_on and I_off. Besides, at low operating voltage (<0.3 V), the CLA circuit delay and power-delay product (PDP) of TFET are significantly better than FinFET due to its better I_on and C_g,ave and their smaller variability. However, the leakage power of TFET CLA is larger than FinFET CLA due to the worse I_off variability of TFET devices.

1. Introduction

Steep subthreshold slope TFET, which utilizes the band-to-band tunneling as the conduction mechanism, is one of the most promising candidates for ultra-low voltage/power applications [1]. Recent research works on TFET-based circuits have shown significant performance improvement and power reduction at low operating voltage [2,3,4]. With device scaling, the impacts of random variations become more severe. Several studies on the TFET device level variability have been reported [5,6,7,8], while other works on TFET circuits employed simple parameter sensitivity methods that neglect physical non-uniformities [2,9,10], and a physics-based TFET performance and variability assessment for large logic circuits is lacking. Among all variation sources, the work function variation (WFV) caused by the granularity of different grain orientations and sizes of the metal gate material and fin Line-Edge-Roughness (LER) due to the resolution limit of the lithography and etching processes have the most significant impacts on TFET and FinFET devices. In this work, we provide an in-depth physics-based assessment on the impacts of WFV and fin LER on TFET and FinFET devices including the detailed comparative analyses on I_on, I_off, and C_g using three-dimensional atomistic TCAD simulations. To assess the variability on large logic circuits, we build look-up table based Verilog-A models, and examine the variability of TFET- and FinFET-based 32-bit CLA circuits using HSPICE simulations with Verilog-A model calibrated with TCAD simulation results. Our work provides in-depth physics-based understanding on the variability of 32-bit CLA circuits and fundamental guidelines on the implementation of TFET-based large logic circuits considering variability.

2. Device Structures, Characteristics and Simulation Methodology

2.1. Device Structures and Characteristics

The basic TFET structure under study comprises a gated p-i-n tunnel diode under reverse bias with asymmetrical source/drain doping. For N-TFET, the source is p+ region with dominant electron conduction, the channel is gated intrinsic region, and the drain is n+ region. When N-TFET is “OFF” (V_GS = 0), the valence band edge of the source is below the conduction band edge of the channel, and the band-to-band tunneling probability is low due to lack of available states in the channel region and wide barrier at source-channel junction. When N-TFET is “ON” (V_GS > 0), the conduction band edge of the channel is pulled down below the valence band edge of the source, and carriers can tunnel into available empty states of the channel region. For P-TFET, the source is n+ region with dominant hole conduction, applying V_GS < 0 turns P-TFET “ON”. The band diagrams of TFET in ON/OFF states are shown in Figure 1.

In this work, we consider the In_0.53Ga_0.47As homojunction N-TFET and Ge_0.925Sn_0.075 homojunction P-TFET due to their high I_on and compatible I_DS-V_GS characteristic [12,13]. In_0.53Ga_0.47As N-FinFET and Ge P-FinFET with high mobility are considered for comparison. Figure 2 shows the 3D TFET and FinFET device structures constructed for atomistic TCAD simulations. The device parameters and doping are shown in Table 1. We use the non-local band-to-band tunneling model which is applicable to arbitrary tunneling barrier with non-uniform electric field for TFET simulations [11], and the parameters used in the model are calibrated with [12,13]. Figure 3a shows the I_DS-V_GS characteristics of TFETs and FinFETs at V_DS = 0.3 V and V_DS = 0.03 V. The DIBL (drain-induced barrier lowering) and DIBT (drain-induced barrier thinning) values versus drain current for N-TFET and N-FinFET are shown in Figure 3b. DIBL for the conventional MOSFET device is estimated using the following formula in weak inversion region (subthreshold region):

$$\text{DIBL}= \frac{\mathrm{\Delta }{V}_{TH}}{\mathrm{\Delta }{V}_{DS}} (\text{mV}/\text{V})$$

(1)

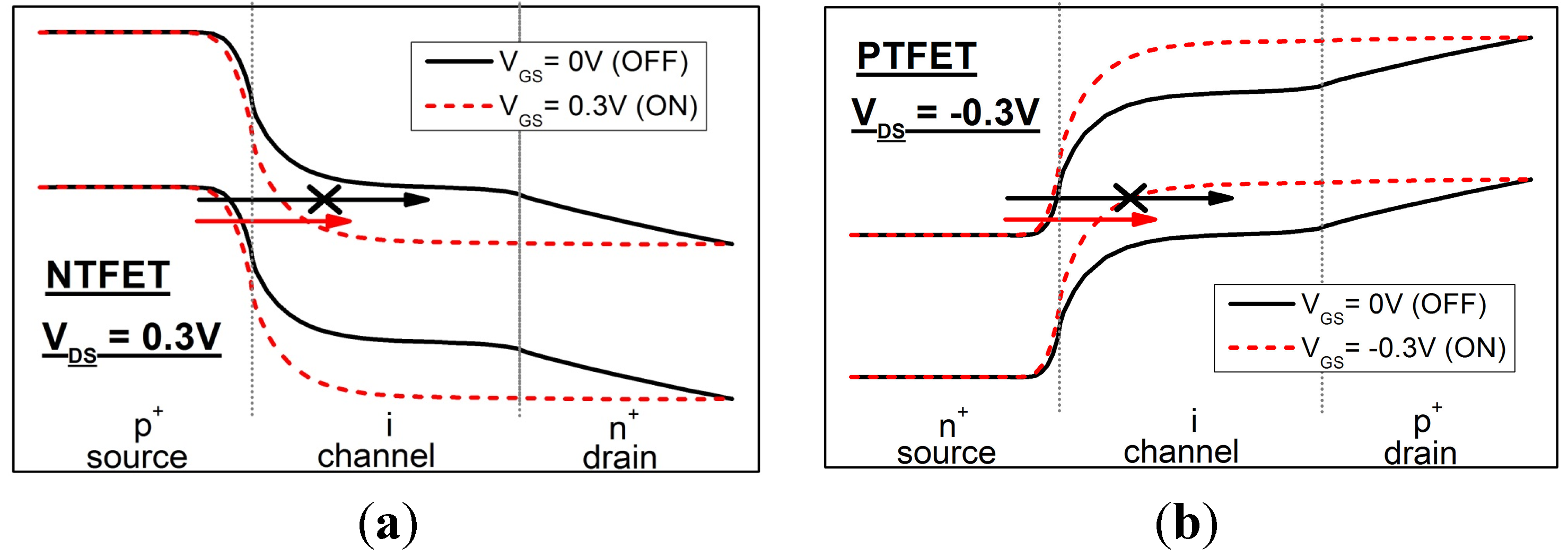

Figure 1. Energy band diagrams of (a) n-type and (b) p-type TFET in ON/OFF state.

Figure 1. Energy band diagrams of (a) n-type and (b) p-type TFET in ON/OFF state.

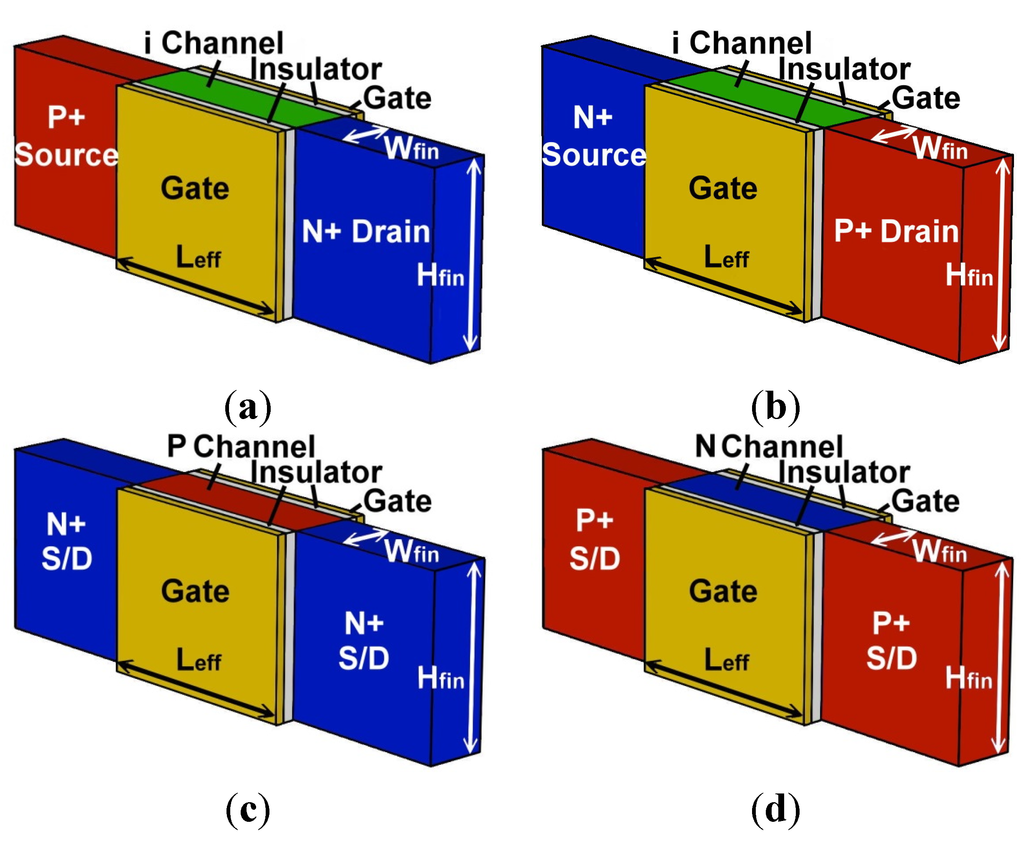

Figure 2. Physical structures of (a) In_0.53Ga_0.47As homojunction N-TFET; (b) Ge_0.925Sn_0.075 homojunction P-TFET; (c) In_0.53Ga_0.47As N-FinFET and (d) Ge P-FinFET.

Figure 2. Physical structures of (a) In_0.53Ga_0.47As homojunction N-TFET; (b) Ge_0.925Sn_0.075 homojunction P-TFET; (c) In_0.53Ga_0.47As N-FinFET and (d) Ge P-FinFET.

Table 1. Parameters of TFET and FinFET devices.

Devices	TFET		FinFET
Leff = 25 nm	Wfin = 7 nm	Hfin = 20 nm	EOT = 0.65 nm
	nTFET	pTFET	FinFET
Material	In0.53Ga0.47As	Ge0.925Sn0.075	In0.53Ga0.47As
Nch (cm−3)	undoped	undoped	1 × 1017
Ns (cm−3)	4.5 × 1019 (p-type)	2 × 1019 (n-type)	1 × 1020
Nd (cm−3)	2 × 1017 (n-type)	2 × 1017 (p-type)	1 × 1020

Table 1. Parameters of TFET and FinFET devices.

Devices	TFET		FinFET
Leff = 25 nm	Wfin = 7 nm	Hfin = 20 nm	EOT = 0.65 nm
	nTFET	pTFET	FinFET
Material	In0.53Ga0.47As	Ge0.925Sn0.075	In0.53Ga0.47As
Nch (cm−3)	undoped	undoped	1 × 1017
Ns (cm−3)	4.5 × 1019 (p-type)	2 × 1019 (n-type)	1 × 1020
Nd (cm−3)	2 × 1017 (n-type)	2 × 1017 (p-type)	1 × 1020

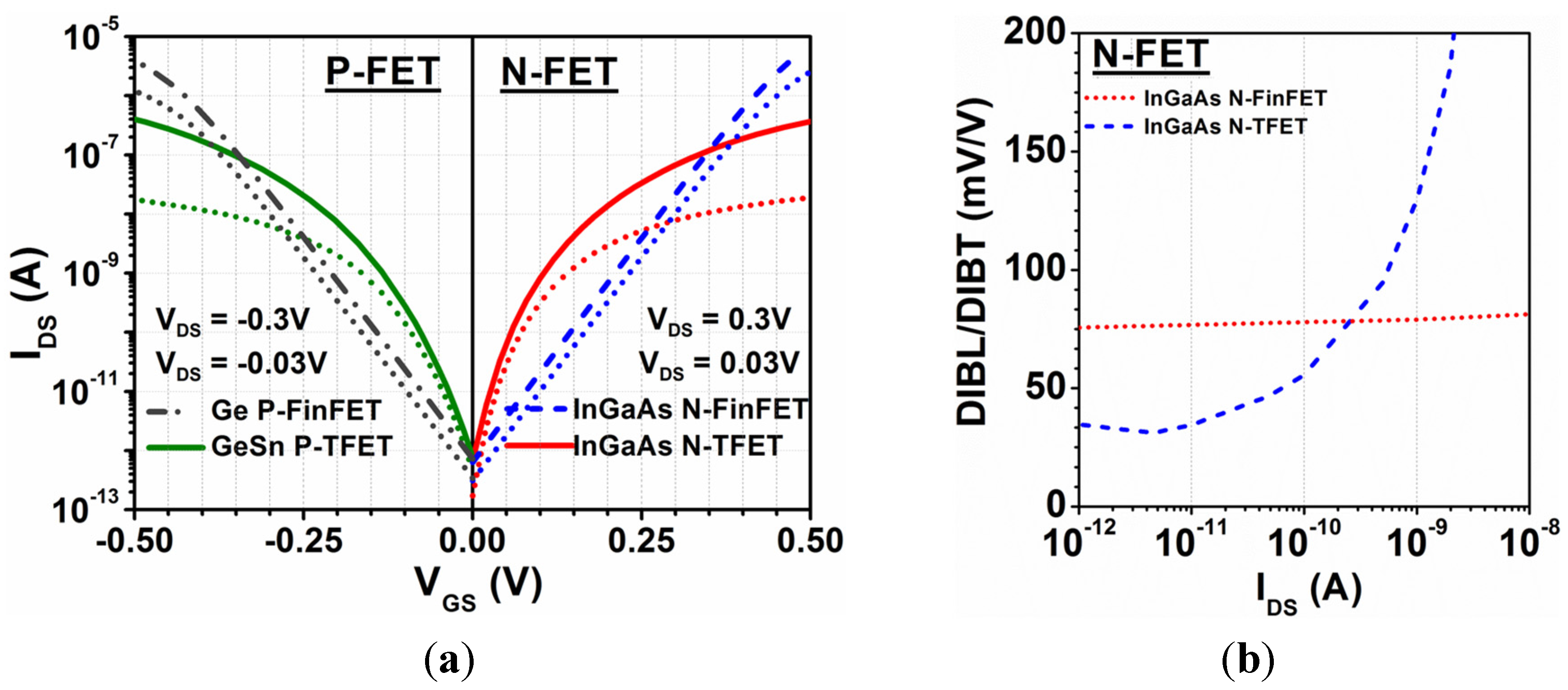

Figure 3. (a) I_DS-V_GS characteristics at V_DS = 0.3 V and V_DS = 0.03 V of In_0.53Ga_0.47As N-TFET, Ge_0.925Sn_0.075 P-TFET, In_0.53Ga_0.47As N-FinFET and Ge P-FinFET; (b) DIBL and DIBT value versus drain current for In_0.53Ga_0.47As N-TFET and N-FinFET.

Figure 3. (a) I_DS-V_GS characteristics at V_DS = 0.3 V and V_DS = 0.03 V of In_0.53Ga_0.47As N-TFET, Ge_0.925Sn_0.075 P-TFET, In_0.53Ga_0.47As N-FinFET and Ge P-FinFET; (b) DIBL and DIBT value versus drain current for In_0.53Ga_0.47As N-TFET and N-FinFET.

In TFET, the drain bias also plays a role in enhancing the drain current due to the drain bias induced source-channel tunneling barrier thinning effect. However, as the physics-based method for extracting the threshold voltage of TFET is still under investigation, there is no clear definition for DIBT extraction analogous to DIBL in FiFET device. Hence, for first-order approximation for estimating DIBT in TFET device, we draw the DIBT as a function of drain to source current shown in Figure 3b. As can be seen, the DIBT for TFET shows non-monotonic behavior compared with the FinFET counterpart and increases rapidly as the drain to source current increases beyond 0.2 nA. This is because TFET has smaller threshold voltage (using the constant current defined V_th) and enters the saturation region earlier than the FinFET which is in the weak inversion region with DIBL roughly around 80 mV/V.

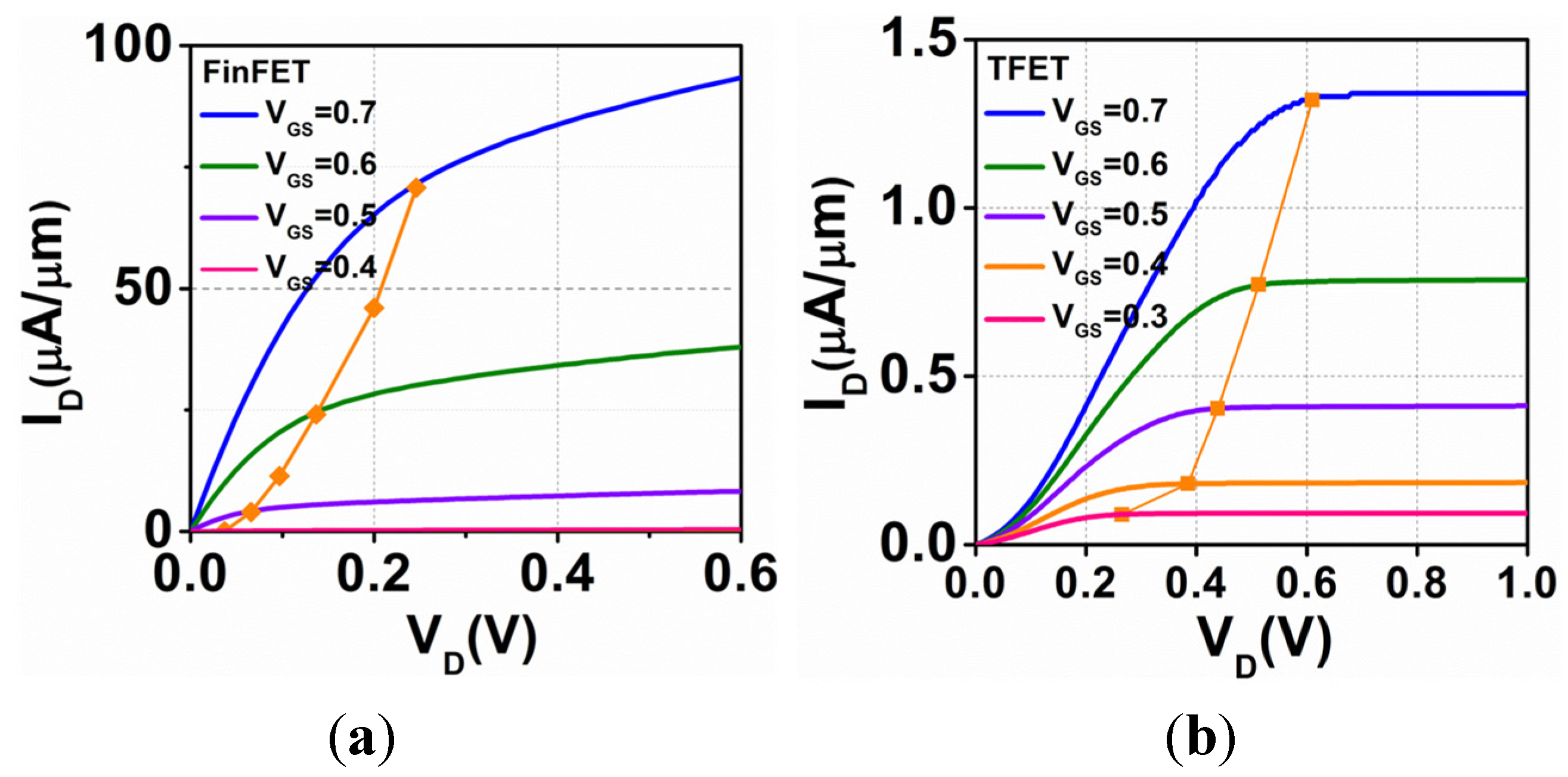

Figure 4 shows the output characteristics for TFET and FinFET devices. As shown, TFET device shows larger V_DSAT [14] as indicated in rhombus symbol due to the fact that TFET can be regarded as a source-channel tunneling junction in series with a resistor (i.e., channel resistance), hence exhibiting an upward-concaved shape in the triode-like region (analogous to FinFET). At moderate and high V_DS, TFET provides a better (flatter) saturation characteristic due to reduced carriers in the channel region, and the electric field from the drain side cannot penetrate into the source-channel tunnel junction, so the current increases slowly. For FinFET device, no obvious saturation is observed due to more severe short-channel effect.

Figure 4. I_DS-V_DS characteristics at various V_GS bias for (a) FinFET and (b) TFET device with the rhombus symbol showing the extrated V_DSAT.

Figure 4. I_DS-V_DS characteristics at various V_GS bias for (a) FinFET and (b) TFET device with the rhombus symbol showing the extrated V_DSAT.

2.2. Simulation Methodology

To assess WFV, we use the Vonoroi grain pattern [15] for TiN gate material, which has two different grain orientations <200> and <111> with the probability of 60% and 40%, respectively, as shown in Figure 5a by the yellow and orange regions, and the relevant parameters are shown in Table 2. To assess fin LER, the rough line edge patterns are generated by Fourier synthesis approach [16] with correlation length (Λ) = 20 nm and root-mean-square amplitude (Δ) = 1.5 nm as shown in Figure 5b. We analyze the impacts of WFV and fin LER on devices using 3D atomistic TCAD mixed-mode Monte-Carlo simulations with 100 samples, respectively.

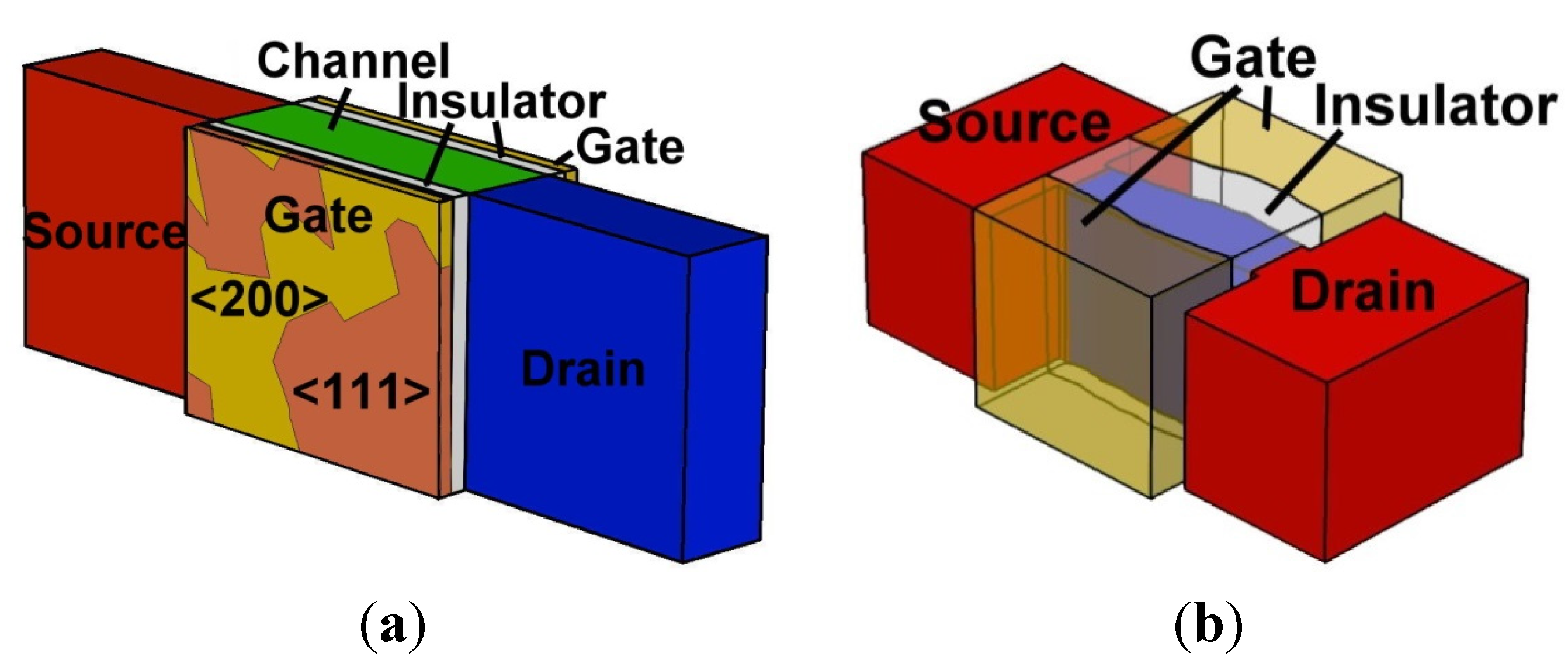

Figure 5. Examples of structures with (a) WFV and (b) fin LER.

Figure 5. Examples of structures with (a) WFV and (b) fin LER.

Table 2. Parameters for WFV simulations.

Gate Material = TiN		Grain Size = 5 nm
Work function (eV)	Nominal	<200> (60%)	<111> (40%)
InGaAs N-TFET	4.53	4.61	4.41
GeSn P-TFET	4.82	4.9	4.7
InGaAs N-FinFET	4.88	4.96	4.76
Ge P-FinFET	4.27	4.35	4.15

Table 2. Parameters for WFV simulations.

Gate Material = TiN		Grain Size = 5 nm
Work function (eV)	Nominal	<200> (60%)	<111> (40%)
InGaAs N-TFET	4.53	4.61	4.41
GeSn P-TFET	4.82	4.9	4.7
InGaAs N-FinFET	4.88	4.96	4.76
Ge P-FinFET	4.27	4.35	4.15

TCAD mixed-mode simulations for complex circuits with large transistor counts face the challenges of computation resources, prohibitively long simulation times and convergence problems. To overcome these obstacles, look-up table based Verilog-A model has been employed for TFET circuit simulations in some studies [2,4]. However, these works on TFET circuits employed simple parameter sensitivity methods [2,9], and these sensitivity-based Verilog-A models cannot accurately describe the physical non-uniformities and variability. In this work, we adopt physics-based assessment to account for variability at device and circuit level. The flow chart for physics-based small signal Verilog-A model generation is shown in Figure 6. The transfer characteristics of TFET and FinFET devices and their variability with WFV and fin LER are extracted from atomistic 3D TCAD device simulations with I_DS (V_GS, V_DS), C_gs (V_GS, V_DS) and C_gd (V_GS, V_DS) characteristics across voltage range of interest to build two-dimensional Verilog-A look-up tables. The Verilog-A models of devices with random variations are then employed in HSPICE circuit simulations. The calibrations of Verilog-A models with TCAD results on I-V, C-V characteristics of the nominal cases for TFET and FinFET devices are shown in Figure 7. The almost exact agreements can be clearly seen.

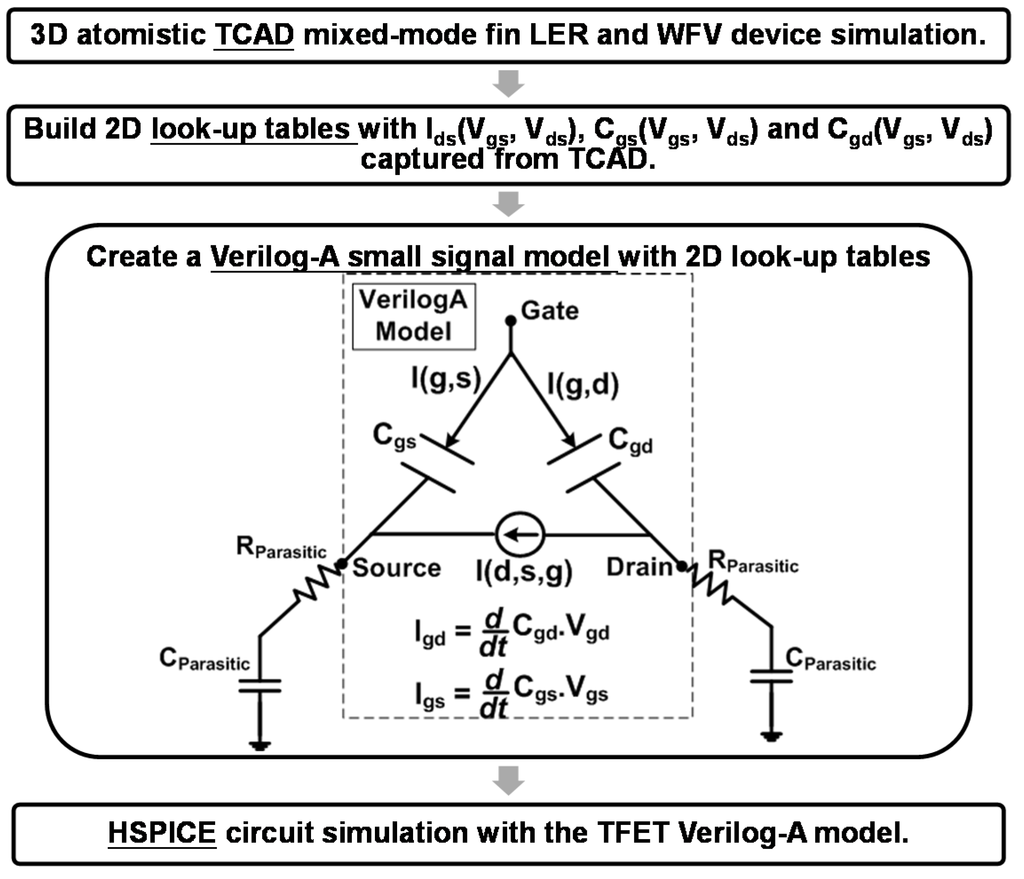

Figure 6. Flowchart for HSPICE look-up table based Verilog-A model generation from atomistic 3D TCAD simulations [2,4].

Figure 6. Flowchart for HSPICE look-up table based Verilog-A model generation from atomistic 3D TCAD simulations [2,4].

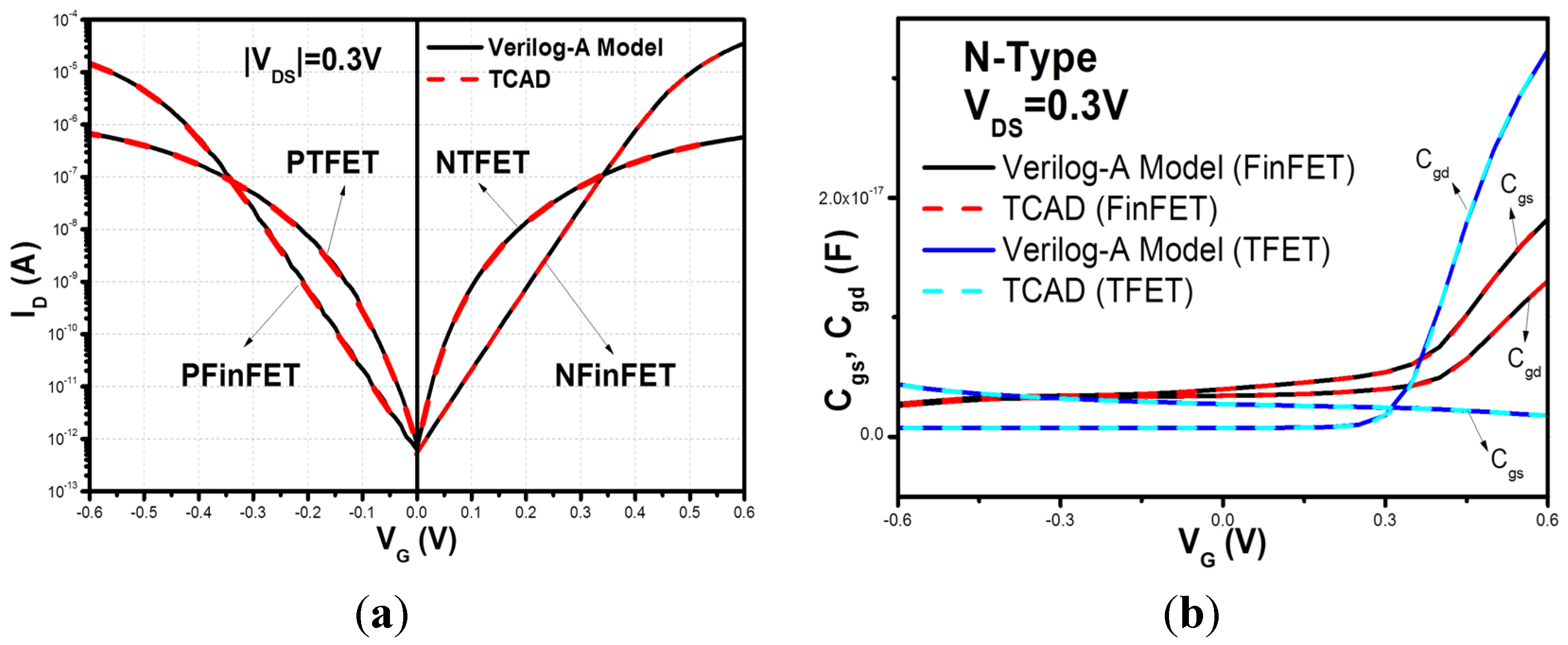

Figure 7. Calibrations of Verilog-A models with TCAD results on (a) I-V and (b) C-V charcteristics of the nominal cases for TFET and FinFET deivces at V_DS = 0.3 V.

Figure 7. Calibrations of Verilog-A models with TCAD results on (a) I-V and (b) C-V charcteristics of the nominal cases for TFET and FinFET deivces at V_DS = 0.3 V.

3. Device Variability Due to WFV and Fin LER

3.1. I_off and I_on Variability

Figure 8 shows the impacts of WFV and fin LER on I_DS-V_GS dispersions of TFET and FinFET devices at V_DS = 0.3 V. Figure 9 illustrates the probability distributions of I_on (I_DS at V_DS = V_GS = 0.3 V) and I_off (I_DS at V_DS = 0.3 V and V_GS = 0 V). Note that, for TFET variability, the different structure constructs used for WFV and fin LER lead to slightly different nominal I_DS-V_GS curves. Therefore, the corresponding probability distributions show two nominal values. The mean values (μ), standard deviations (σ) and the ratio of the mean-to-standard deviation (μ/σ) are listed in the table with the figures.

For FinFETs, the V_t is a linear function of gate WF, WFV causes a V_t shift of I_DS-V_GS curves in subthreshold region with almost equal subthreshold swing (S.S.), therefore the I_on and I_off probability distributions are similar. On the other hand, fin LER influences the effective fin width and electrostatic integrity, thus impacting both V_t and S.S., so the I_on and I_off probability distributions are quite different. As can be seen, both the μ/σ of I_on and I_off are worse with fin LER than WFV, especially for I_off.

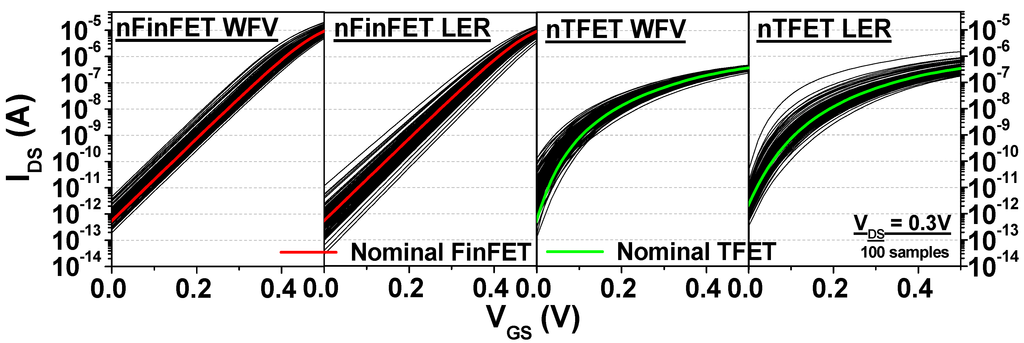

Figure 8. Simulated I_DS-V_GS characteristics at V_DS = 0.3 V for TFET and FinFET with WFV and fin LER.

Figure 8. Simulated I_DS-V_GS characteristics at V_DS = 0.3 V for TFET and FinFET with WFV and fin LER.

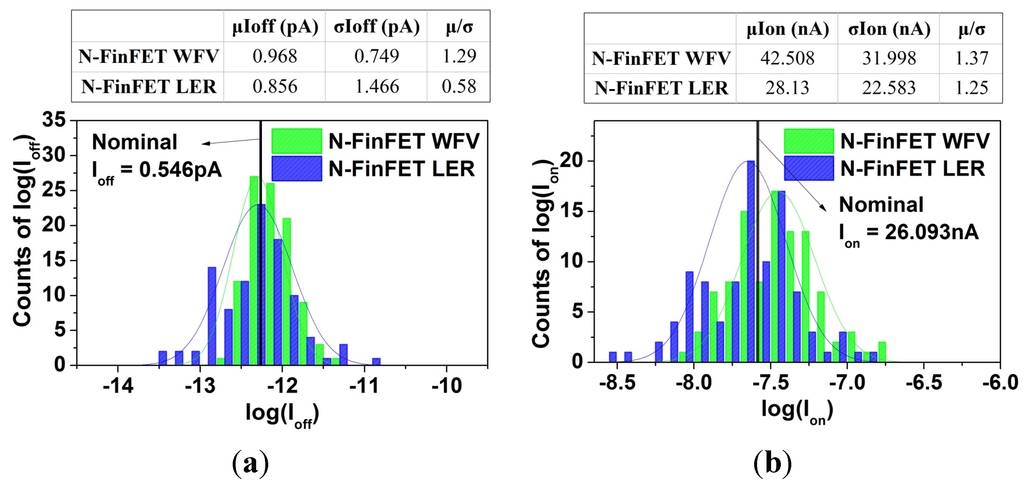

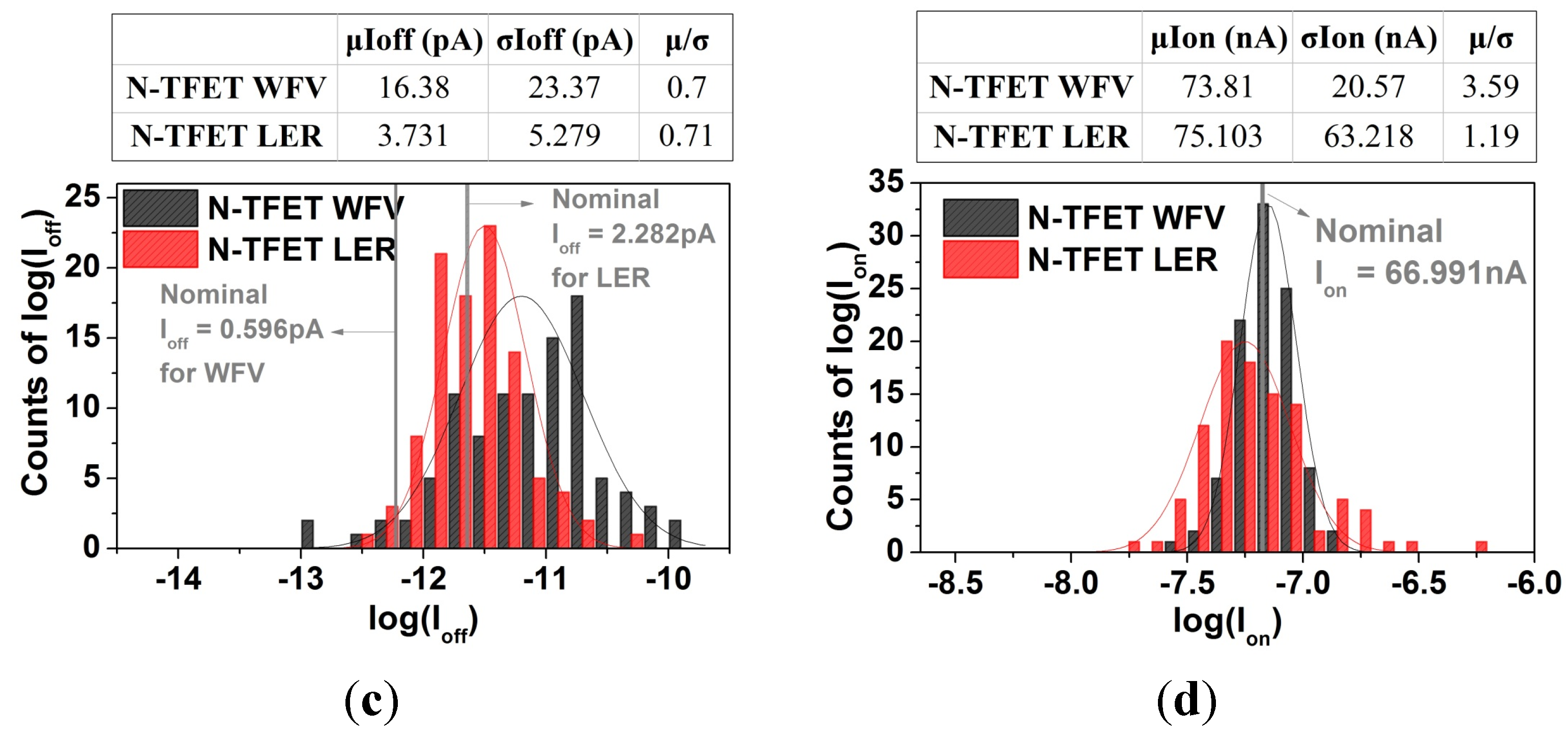

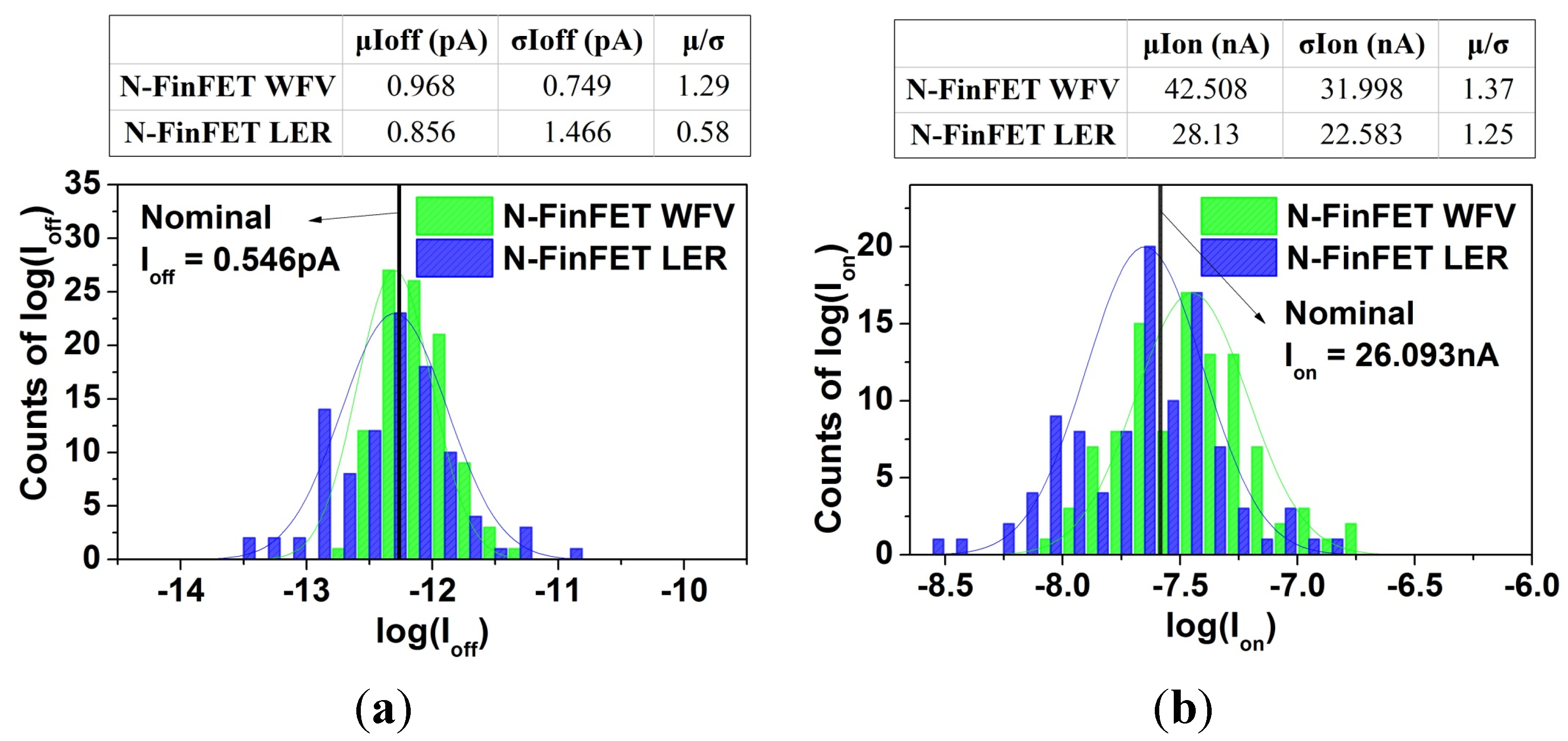

Figure 9. Probability distribution of (a) log(I_off); (b) log(I_on) for FinFET and (c) log(I_off); (d) log(I_on) for TFET at V_DS = 0.3 V considering WFV and fin LER.

Figure 9. Probability distribution of (a) log(I_off); (b) log(I_on) for FinFET and (c) log(I_off); (d) log(I_on) for TFET at V_DS = 0.3 V considering WFV and fin LER.

For TFETs, the I_off distribution with WFV is boarder (worse) than that with fin LER since WFV leads to fluctuation in the energy bands and alters the critical tunneling path, and the effect decreases with increasing V_GS. The metal grains with various WF form the up and down energy bands that boost the band-to-band generation, resulting in large I_off distribution. Therefore, the variability of I_off is larger than I_on, and the correlation between I_on and I_off is weak. On the other hand, for fin LER, both I_on and I_off are degraded as fin width (W_Fin) increases due to the weaker electrostatic control of the channel from both gates, and the degradations of I_on and I_off track W_Fin with exponential-like behavior, especially for I_off which dramatically increases with decreasing W_Fin. Comparing with fin LER, the μ/σ (I_on) of WFV is better, and the μ/σ (I_off) of WFV is comparable to LER. In addition, WFV causes larger σ (I_off) than LER. Overall, comparing FinFET and TFET, the impacts due to WFV on I_on and I_off are quite different. The μ/σ (I_off) of TFET is worse while μ/σ (I_on) of TFET is better. In addition, the I_off distribution of TFET skews to high values, and not as symmetrical as the I_off distribution for FinFET, resulting in larger μ (I_off). On the other hand, the variation of TFET considering fin LER is slight better than FinFET.

3.2. C_g Variability

Figure 10 shows the impacts of WFV and fin LER on C_g-V_GS dispersions of TFET and FinFET devices at V_DS = 0.3 V. Figure 11 illustrates the probability distributions of C_g,ave (the average capacitance across the gate-bias range from 0 to V_DD = 0.3 V) at V_DS = V_DD. For both TFET and FinFET, the C_g variation by WFV becomes more significant at larger V_GS. In contrast, the variation due to fin LER is more severe when V_GS is small. Note that C_g,ave is extracted only for the range from V_GS = 0 V to 0.3 V. The μ/σ (WFV) are much better compared with μ/σ (LER). For TFET with WFV and FinFET with fin LER, the C_g,ave skews to high values, resulting in larger μ than the nominal cases.

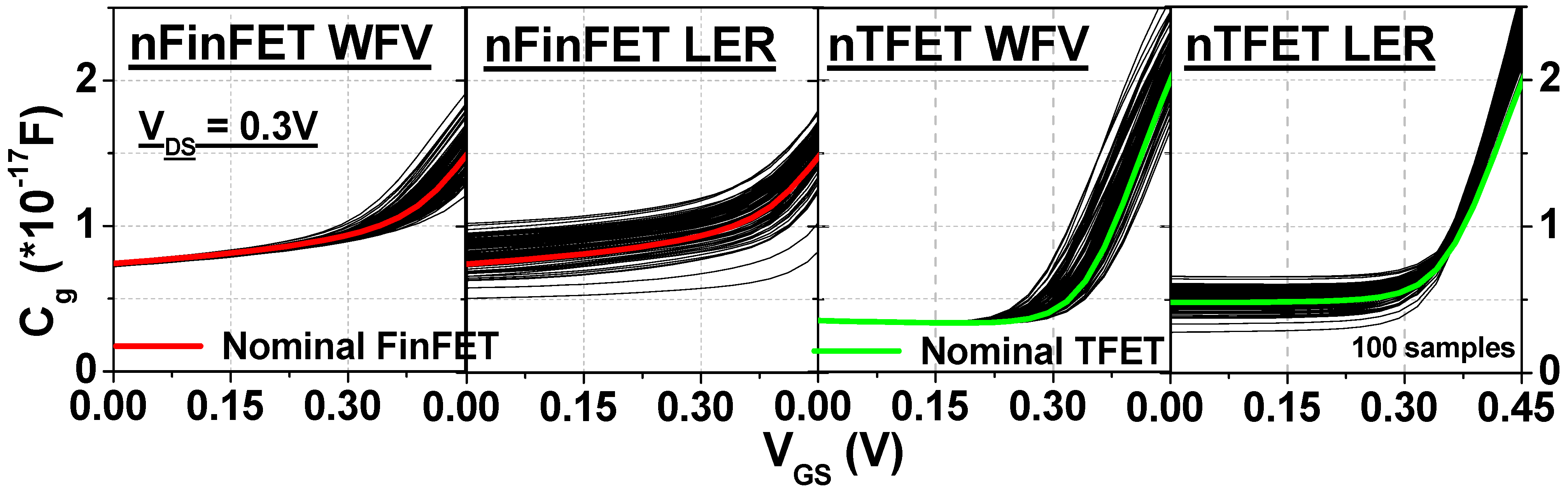

Figure 10. Simulated C_g-V_GS characteristics at V_DS = 0.3 V for TFET and FinFET with WFV and fin LER.

Figure 10. Simulated C_g-V_GS characteristics at V_DS = 0.3 V for TFET and FinFET with WFV and fin LER.

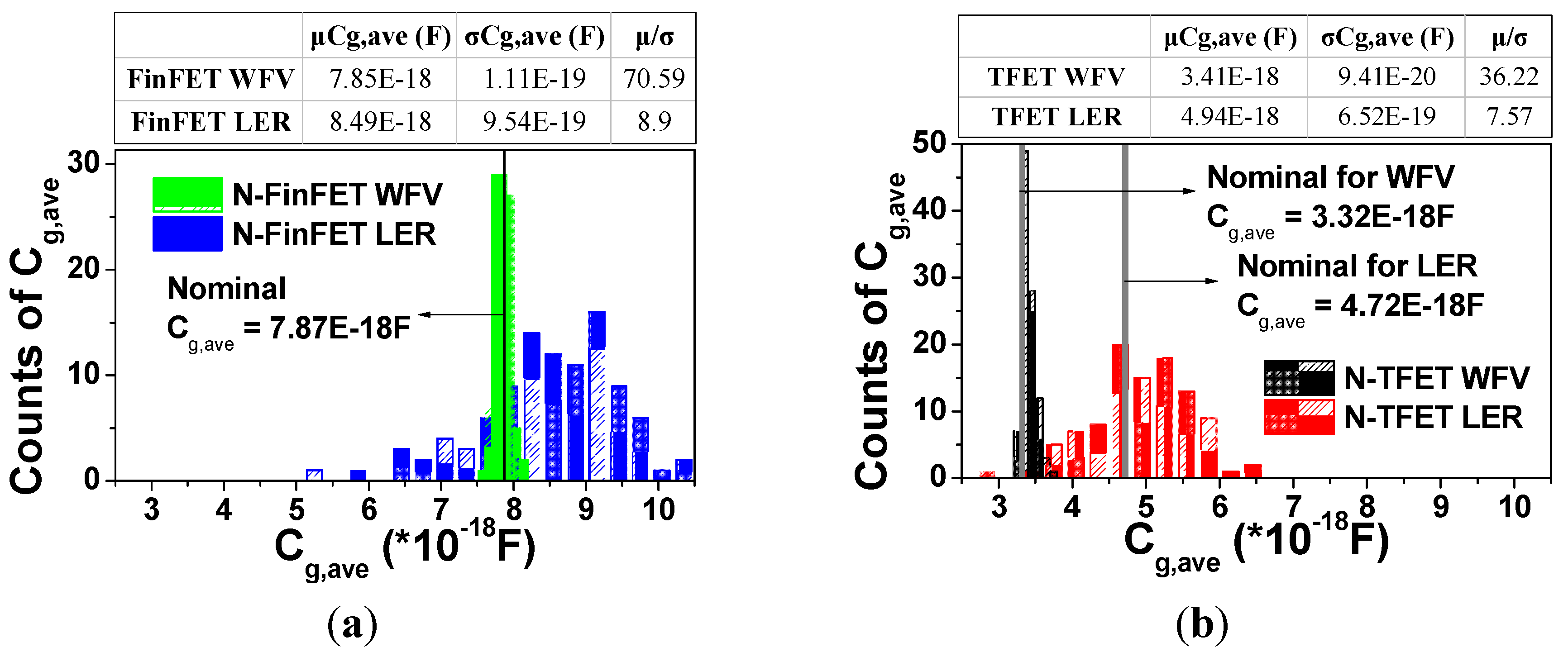

Figure 11. Probability distribution of C_g,ave for (a) FinFET and (b) TFET at V_DS = 0.3 V considering WFV and fin LER.

Figure 11. Probability distribution of C_g,ave for (a) FinFET and (b) TFET at V_DS = 0.3 V considering WFV and fin LER.

4. Impacts of WFV and Fin LER on CLA Circuits

4.1. Delay Variability

The switching delay is commonly calculated as τ = (C_g V_DD)/I_on. Due to the strong bias dependence of gate capacitance (C_g), the average capacitance (C_g,ave) across the gate-bias range from 0 to V_DD (0.3 V in this case) at V_DS = V_DD is determined for approximation: τ = (C_g,ave V_DD)/I_on.

The transient waveforms and the probability distributions of delays for 32-bit CLA of TFET and FinFET with WFV and fin LER are shown in Figure 12 and Figure 13. As can be seen, the μ/σ (Delay) of TFET is better than FinFET in both cases (with WFV and fin LER). For both TFET and FinFET, the μ/σ (WFV) is better than μ/σ (LER). The variability of delay correlates with aforementioned I_on and C_g,ave variations in Section 3. The smaller I_on of FinFET significantly degrades its μ/σ (Delay).

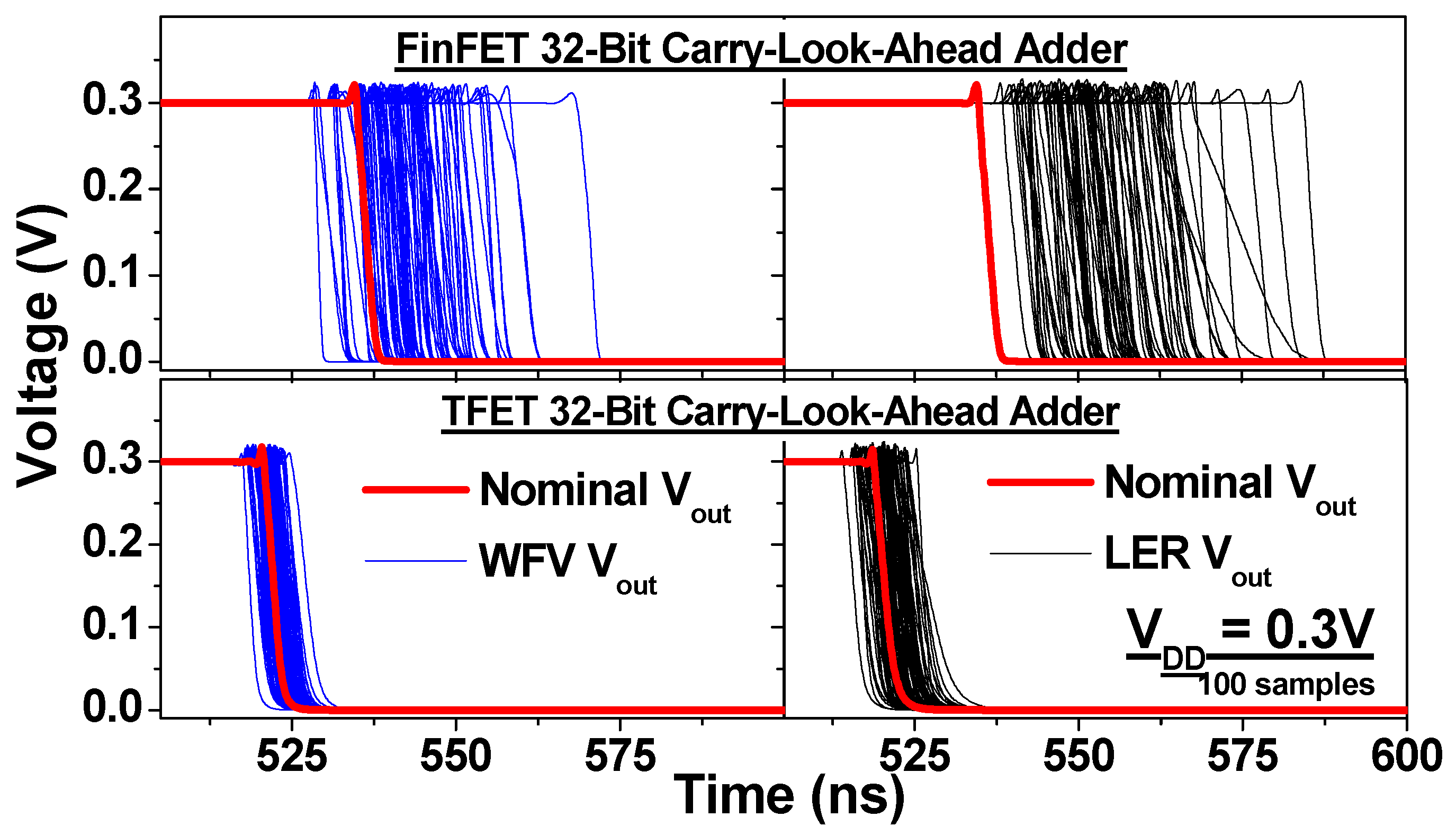

Figure 12. Transient waveforms of 32-bit CLA for TFET and FinFET at V_DD = 0.3 V considering WFV and fin LER.

Figure 12. Transient waveforms of 32-bit CLA for TFET and FinFET at V_DD = 0.3 V considering WFV and fin LER.

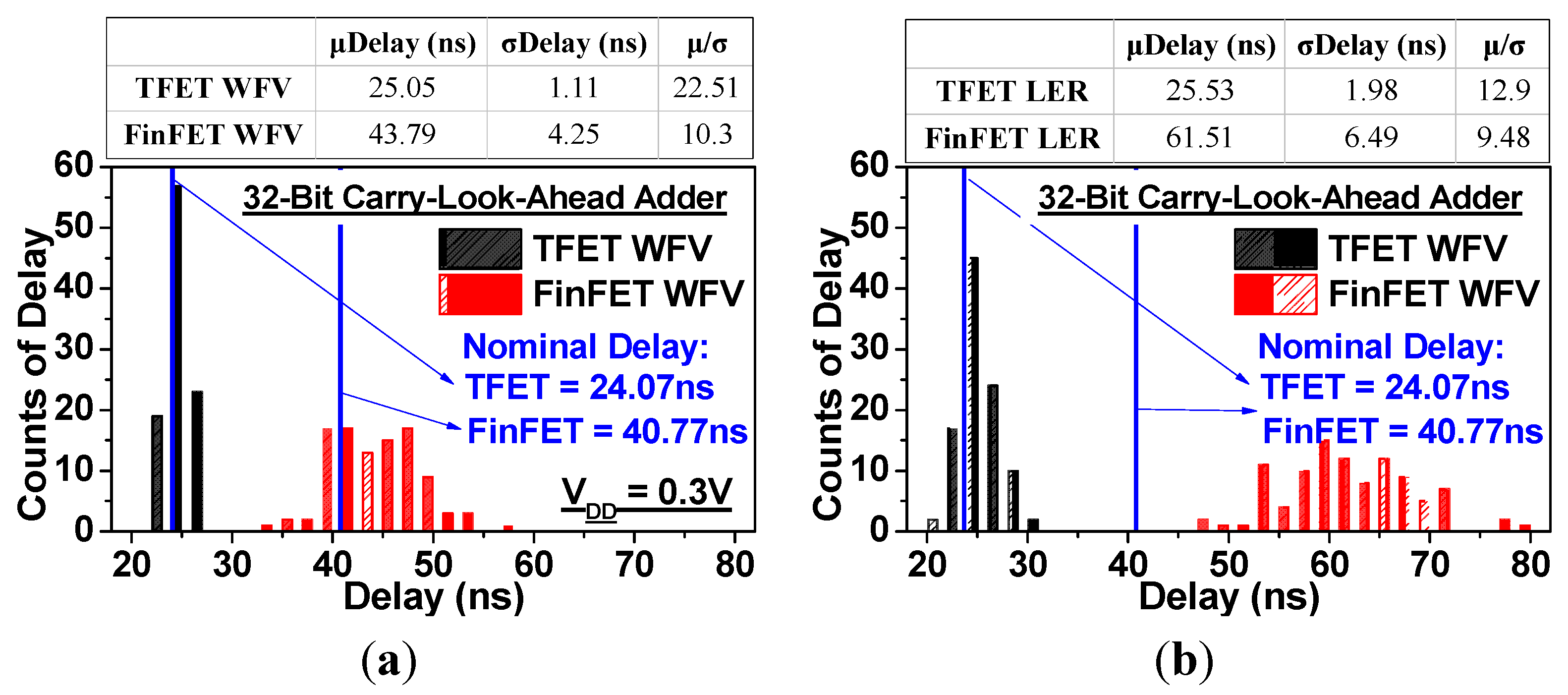

Figure 13. Probability distribution of delay for 32-bit CLA with (a) WFV; (b) fin LER for TFET and FinFET at V_DD = 0.3 V.

Figure 13. Probability distribution of delay for 32-bit CLA with (a) WFV; (b) fin LER for TFET and FinFET at V_DD = 0.3 V.

Figure 14 presents the delay for 32-bit CLA of TFET and Fin FET versus V_DD from 0.15 V to 0.35 V for the nominal cases and the cases considering WFV and fin LER (at 0.2 V and 0.3 V). The delay variability of all cases becomes worse with decreasing V_DD due to decreasing I_DS. The delay and its variability of TFET are significantly better than FinFET at low V_DD due to its larger I_DS and smaller C_g,ave variation compared with FinFET.

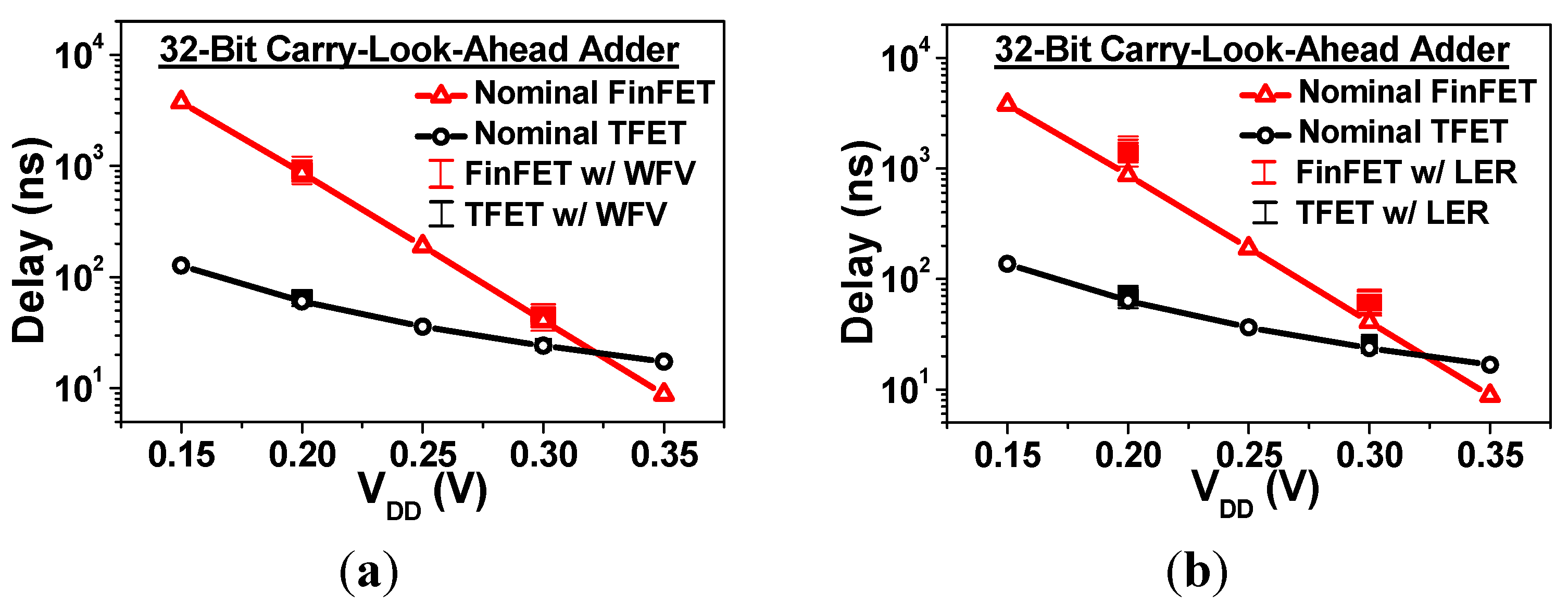

Figure 14. Delay for 32-bit CLA of TFET and FinFET versus V_DD from 0.15 V to 0.35 V for the nominal cases and the cases considering (a) WFV and (b) fin LER (0.2 V and 0.3 V).

Figure 14. Delay for 32-bit CLA of TFET and FinFET versus V_DD from 0.15 V to 0.35 V for the nominal cases and the cases considering (a) WFV and (b) fin LER (0.2 V and 0.3 V).

4.2. PDP Variability

PDP is a figure of merit representing the power-performance trade-off. At a given operation frequency, PDP is calculated as PDP = (C_g V²_DD f) × t_delay ≈ C_g,ave V²_DD f t_delay. If the frequency is scaled up to the maximum operation frequency (i.e., f = 1/t_delay), then PDP = (C_g V²_DD) would represent the energy dissipated in a switching event.

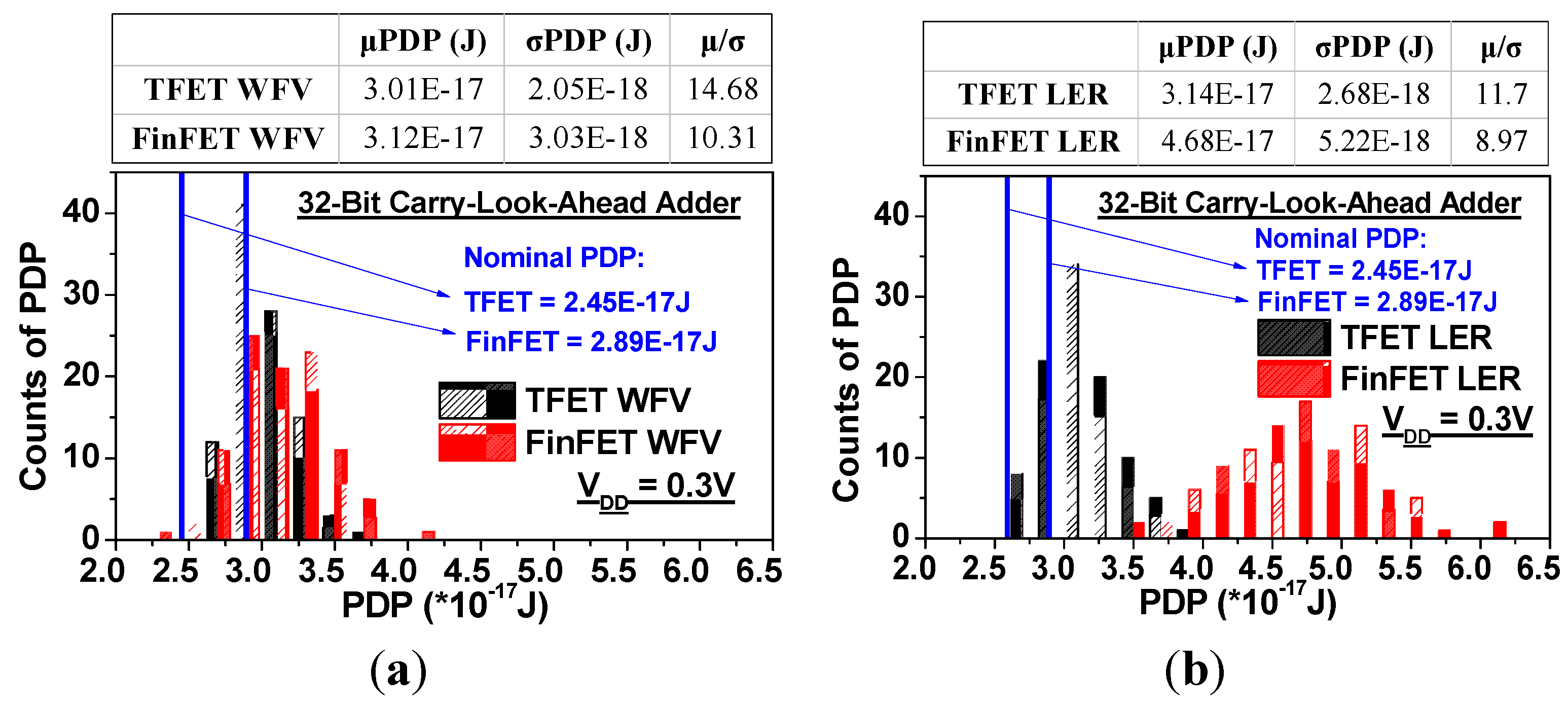

The probability distributions of PDP 32-bit CLA of TFET and FinFET for the nominal cases and the cases with WFV and fin LER are shown in Figure 15. The μ/σ (WFV) is better than μ/σ (LER) for both TFET and FinFET, and the distributions of TFET with WFV and that of FinFET with fin LER skew to larger values.

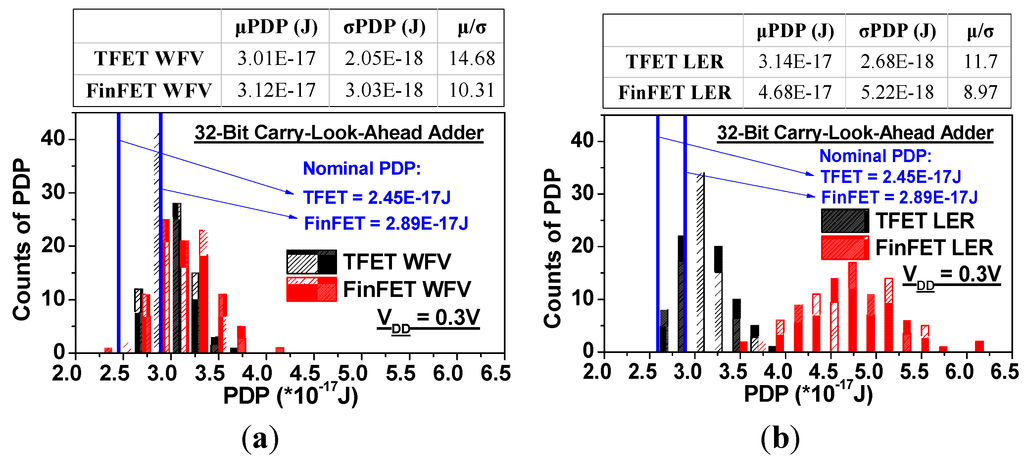

Figure 15. Probability distribution of PDP for 32-bit CLA with (a) WFV; (b) fin LER for TFET and FinFET at V_DD = 0.3 V.

Figure 15. Probability distribution of PDP for 32-bit CLA with (a) WFV; (b) fin LER for TFET and FinFET at V_DD = 0.3 V.

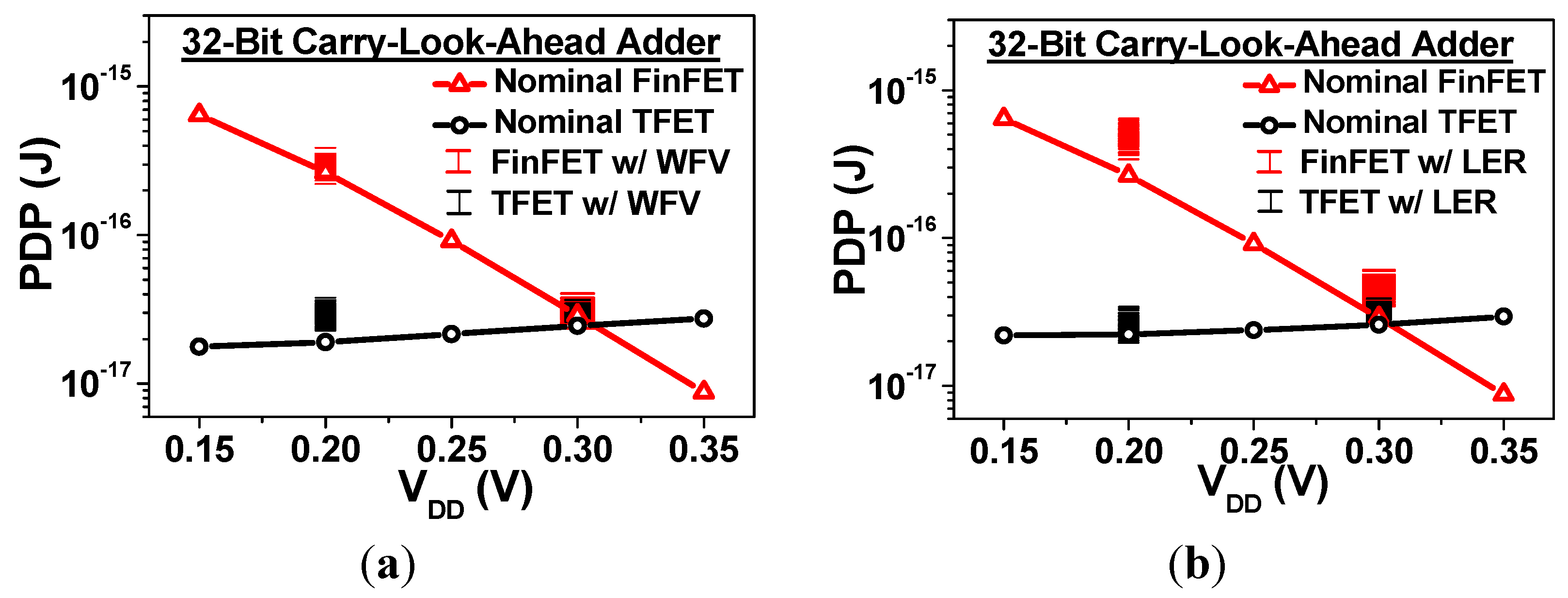

Figure 16 shows the PDP for 32-bit CLA of TFET and FinFET versus V_DD from 0.15 V to 0.35 V for the nominal cases and the cases considering WFV and fin LER (at 0.2 V and 0.3 V). As can be seen, TFET PDP is much better than FinFET at low V_DD due to the fact that C_g,ave variation of FinFET is larger and skewed to high values compared with TFET. Notice that the PDP of TFET is still better than FinFET considering random variations.

Figure 16. PDP for 32-bit CLA of TFET and FinFET versus V_DD from 0.15 V to 0.35 V for the nominal cases and the cases considering (a) WFV and (b) fin LER (0.2 V and 0.3 V).

Figure 16. PDP for 32-bit CLA of TFET and FinFET versus V_DD from 0.15 V to 0.35 V for the nominal cases and the cases considering (a) WFV and (b) fin LER (0.2 V and 0.3 V).

4.3. Leakage Power Variability

The probability distributions of leakage power for 32-bit CLA of TFET and FinFET for the nominal cases and the cases with WFV and fin LER at V_DD = 0.3 V are shown in Figure 17. The leakage power variation of TFET with both variation sources are much worse than FinFET, and the distributions skew to larger values, especially under WFV. This correlates to aforementioned I_off variations in Section 3.

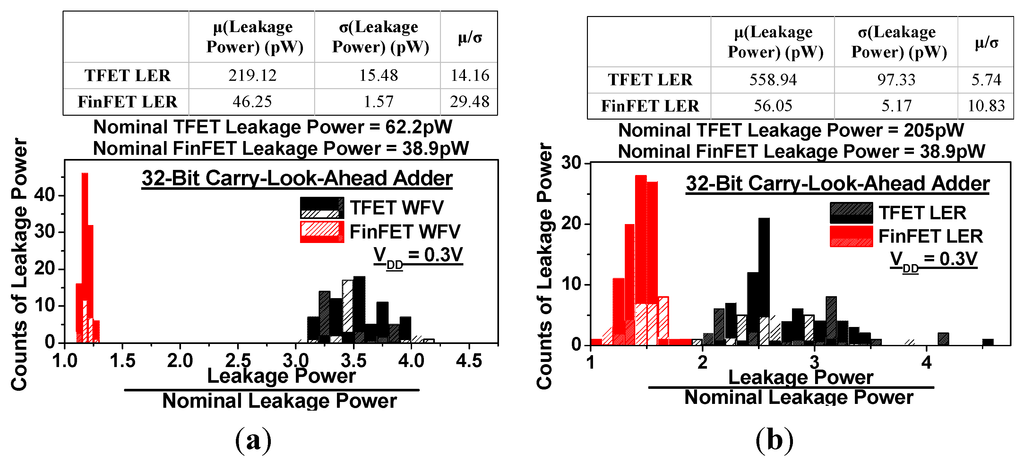

Figure 17. Probability distribution of leakage power for 32-bit CLA with (a) WFV; (b) fin LER for TFET and FinFET at V_DD = 0.3 V.

Figure 17. Probability distribution of leakage power for 32-bit CLA with (a) WFV; (b) fin LER for TFET and FinFET at V_DD = 0.3 V.

Figure 18 shows the leakage power for 32-bit CLA of TFET and FinFET versus V_DD from 0.15 V to 0.35 V for the nominal cases and the cases considering WFV and fin LER (at 0.2 V and 0.3 V). As the operating voltage is reduced, the leakage power decreases. Notice that the increase of leakage power by random variations is more significant than the influence by operating voltage for TFET.

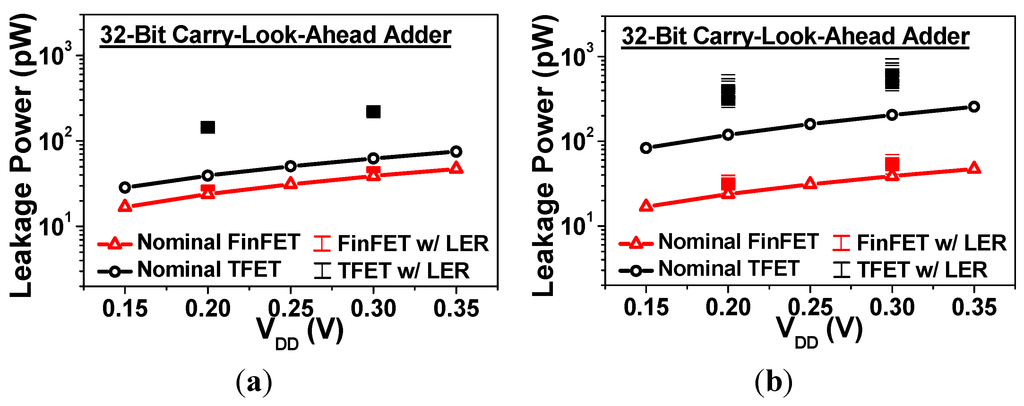

Figure 18. Leakage power for 32-bit CLA of TFET and FinFET versus V_DD from 0.15 V to 0.35 V for the nominal cases and the cases considering (a) work function variation (WFV) and (b) fin Line-Edge-Roughness (fin LER) (0.2 V and 0.3 V).

Figure 18. Leakage power for 32-bit CLA of TFET and FinFET versus V_DD from 0.15 V to 0.35 V for the nominal cases and the cases considering (a) work function variation (WFV) and (b) fin Line-Edge-Roughness (fin LER) (0.2 V and 0.3 V).

5. Conclusions

We investigate and compare the impacts of WFV and fin LER on TFET and FinFET I_on, I_off and C_g,ave using atomistic 3D TCAD simulations with calibrated model and device parameters. Our studies indicate that considering WFV, FinFET has comparable I_on and I_off variability while TFET has smaller I_on variability and larger I_off variability. In addition, the band diagram dispersion caused by WFV increases the band-to-band generation for TFET in “OFF” state, leading to skewed I_off distribution to larger values. On the other hand, the impact of fin LER is similar for TFET and FinFET, resulting in comparable I_on and I_off variability. The C_g,ave variability is worse with fin LER compared with WFV for both TFET and FinFET.

Using Verilog-A device models extracted from atomistic 3D TCAD simulations to capture the physical non-uniformities and variability, HSPICE circuit simulations are performed to assess the impacts of WFV and fin LER on TFET and FinFET 32-bit CLA. The results show that at low operating voltage (<0.3 V), the delay and PDP of TFET CLA are significantly better than the FinFET counterparts, even under the impacts of WFV and LER. However, the variability of leakage power for TFET CLA is worse than FinFET CLA, especially with WFV. The leakage power distribution of TFET CLA skews to larger values due to its worse I_off variability.
