Semiconducting Metal Oxides: SrTiO₃, BaTiO₃ and BaSrTiO₃ in Gas-Sensing Applications: A Review

Abstract

In this work, a broad overview in the field of strontium titanate (ST, SrTiO₃)-, barium titanate (BT, BaTiO₃)- and barium strontium titanate (BST, BaSrTiO₃)-based gas sensors is presented and discussed. The above-mentioned materials are characterized by a perovskite structure with long-term stability and therefore are very promising materials for commercial gas-sensing applications. Within the last 20 years, the number of papers where ST, BT and BST materials were tested as gas-sensitive materials has ten times increased and therefore an actual review about them in this field has been expected by readers, who are researchers involved in gas-sensing applications and novel materials investigations, as well as industry research and development center members, who are constantly searching for gas-sensing materials exhibiting high 3S parameters (sensitivity, selectivity and stability) that can be adapted for commercial realizations. Finally, the NO₂-sensing characteristics of the BST-based gas sensors deposited by the authors with the utilization of magnetron sputtering technology are presented.

1. Introduction

The first gas-sensing properties of semiconductor materials were reported in the 1920s, and in 2020, we celebrated the 100th anniversary of the first gas-sensing investigations of the gas atmosphere [1]. Since that time, semiconductor-based gas sensors reached a number of pivot moments including in 1955, when oxygen detection in gas changes in the conductivity of a semiconductor (ZnO) was reported [2]; in 1968, when the first commercially available gas sensor, TGS (Taguchi Gas Sensor from Figaro Engineering Inc., Arlington Heights, IL, USA), was launched on the market for methane detection TGS109 [3]; in the 1990s, when nanostructure gas sensors were presented, with zero-dimensional (0D) nanoparticles, one-dimensional (1D) nanorods and nanowires, two-dimensional (2D) nanosheets and films and three-dimensional (3D) polycrystals and ultraporous nanostructures as recently reviewed in [4]; and in 2007, when graphene-based gas sensors were introduced [5].

The common gases detected and analyzed by the commercially available gas sensors are oxygen, carbon monoxide, carbon dioxide, nitrogen oxides, ammonia, methane, acetone, methyl mercaptan, hydrogen sulfide, chlorine, volatile organic compounds (VOC) and hydrocarbon [6,7,8]. Nowadays, gas sensors are used in many applications [9,10,11], including mining [11,12], broadly understood industry [10,11], public safety [9,10,11], military [10], healthcare [10,11], consumer electronics [9,11,13], petrochemical [10,14], agriculture [10,11], water [11,14], medical [11,15,16,17], oil and gas [11,14], automotive [9,18,19], food and beverages [20], environmental protection [9,11,19], metals and chemicals [21,22], power stations [11], smart cities and building automation [10,11].

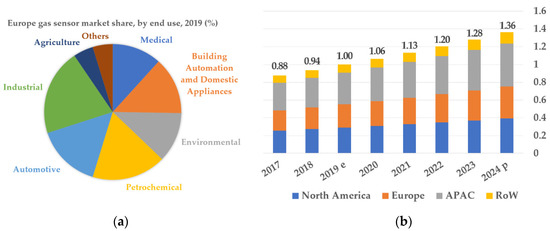

In the coming years, factors such as the growing demand for sensors in almost every field, technological progress, expansion of advanced functions of existing installations and devices, government requirements limiting emissions of various gases by industry and transport will accelerate the demand for this type of equipment (Figure 1). The value of the global gas sensor market was estimated at USD 2.19 billion in 2019. According to some sources [6,7], this market is forecast to grow by a compound annual growth rate (CAGR) of 6.3% to 8.3% from 2020 to 2027. One of the rapidly growing industries with an increasing demand for gas sensors is environmental monitoring, especially the level of pollution and volatile organic compounds.

Various materials have been validated for gas-sensing applications; however, the main commonality is gas sensors based on metal oxides, for example, n-type including tin dioxide (SnO₂), tungsten trioxide (WO₃), indium oxide (In₂O₃), gallium oxide (Ga₂O₃), vanadium oxide (V₂O₅) and iron oxide (Fe₂O₃) and p-type metal oxides such as nickel oxide (NiO), copper oxide (CuO), cobalt oxide (Co₃O₄), manganese oxide (Mn₃O₄) and chromium oxide (Cr₂O₃) [23]. The progress of nanotechnology development allows researchers to increase the surface-to-volume ratio by utilization of various techniques which results in increased sensitivity and a reduced operating temperature, and various doping methods and materials have been proposed to increase the selectivity and stability of gas sensors. Long-term stability is a crucial feature of gas sensors dedicated to industrial applications such as automotive, biotechnology, safety and military.

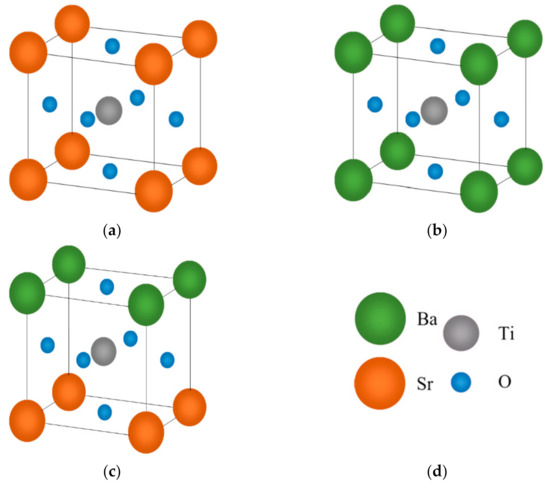

One of the promising materials is strontium titanate (SrTiO₃). SrTiO₃ is a semiconducting ceramic material and it has a simple cubic perovskite structure (space group Pm3m) with a lattice parameter of 0.3905 nm and a density of r = 5.12 g/cm³ (Figure 2a) [24]. The crystallographic structure is presented in Figure 2. SrTiO₃ is attractive due to its properties such as a large dielectric constant (ɛ₀ = 300), low dielectric loss (mostly < 0.02) [25] and strong thermal and chemical stability [26]. These advantages enable a wide application of the material in the area of sensors, actuators, electro-optical devices, memory devices with random access and multilayer capacitors [27]. It is commonly used for oxygen sensors [28]; however, other sensing applications are also common such as temperature sensors [29] and the cantilever base for various sensors [30]. Thanks to the deposition technology developments, strontium titanate can be realized in the nanoform instead of the bulky form, where a high-temperature solid-state reaction method is used (700–1000 °C). Reducing the size allows researchers to reduce the operating temperature to 40 °C [31]. Among various possibilities to deposit SrTiO₃ such as magnetron sputtering [32,33], atomic layer deposition (ALD) [34,35], pulsed laser deposition (PLD) [36,37], metal-organic chemical vapor deposition (MOCVD) [38,39], laser chemical vapor deposition (LCVD) [40,41] and the sol–gel method [42,43], the sol-gel method seems to be the most suitable since it enables depositing a small grain size with high uniformity and high purity. Nanoforms can be also obtained thanks to the glancing angle deposition technique, for example, with magnetron sputtering technology [44,45].

Another promising material is barium titanate (BaTiO₃). BaTiO₃ is a cubic perovskite-type structure semiconductor material (Figure 2b), commonly used as a ferroelectric [46] since it exhibits a high dielectric constant (dielectric constant depends on the type of synthesis, temperature, frequency and dopants) [47,48], large electro-optic coefficients and a positive coefficient of resistivity (PTCR) [49]. There are various methods of obtaining BaTiO₃, for example, by a solid-state reaction [50], the sol–gel method [51], a hydrothermal method [52], a coprecipitation method [53], a polymeric precursor method [54] and mechanochemical synthesis [55]. Thanks to the above-mentioned features, BST is widely used in ferroelectric memories [56], electro-optical devices [57], dielectric capacitors [58], multilayer capacitors (MLCs) [59] and electromechanical transducers [60,61], as well as in gas sensor applications [62].

A novel material that brings all features of SrTiO₃ and BaTiO₃ is BaSrTiO₃ (barium strontium titanate, BST). BST is a kind of electronic ceramic material with a typical perovskite structure (Figure 2c) and properties such as a high dielectric constant, low dielectric loss, good tenability and high insulation resistance and can be widely used in various electronic components such as ferroelectric memories, capacitors and phase shifters [63,64,65,66]. Apart from the typical applications where the above-mentioned properties are used, BST has also been investigated as a gas-sensitive material.

In 2014, Romh MA E., et al. presented investigation results on the process of preparing and testing solid-state samples by mixing BT and BST powders with an organic carrier in the ratio of 50:50 and 60:40 and then depositing by spin coating on alumina substrates as a gas-sensitive material. BaTiO₃ was doped with strontium and iron to increase the conductivity by double substitution in the perovskite structure. The films were then sintered at the temperature of 1100 °C for 2 h and characterized by means of X-ray diffraction (XRD) and a scanning electron microscope (SEM). The dielectric measurements performed by the authors revealed a significant increase in conductivity at a low a.c. current frequency, even 10,000 times at a temperature from 25 to 500 °C, and the phenomenon of dielectric relaxation related to the displacement of oxygen voids appeared [67].

In another work, Simion, C.E., et al. presented gas sensors based on thick-film BST doped with copper in various concentrations (0.1, 1 and 5 mol% Cu). The gas-sensing behavior was tested under exposure to NH₃ and H₂S. The prepared samples worked optimally at a temperature of 200 °C. The sample made of BST doped with 0.1% mol of Cu had the best sensitivity to NH₃ gas. On the other hand, selective detection of H₂S was achieved for BST doped with 5 mol% Cu. The tested materials did not show the cross-sensitivity effect to CO, NO₂, CH₄ and SO₂ (200 °C, 50% RH). Higher relative humidity noticeably increased the sensitivity of the sensors to NH₃ and H₂S [68]. Simion, Cristian E., et al. in the following year published another paper where they described the reactions of thick layers of Ba_0.75Sr_0.25TiO₃ to the presence of NH₃ at room temperature, at different levels of relative air humidity. The samples were synthesized by a hydrothermal method. The change in electrical resistance and capacitance was tested and photoacoustic measurements were conducted as well. The measurement results were presented in the context of the Grotthuss mechanism in relation to the ion/electronic conductivity in BST. The detection of ammonia was tested in the presence of water vapor at room temperature. As a result of the performed measurements, it was determined that the optimal detection of ammonia occurs at room temperature in the presence of water vapor in the tested gas. The interaction between NH₃ and H₂O takes place mainly through the proton exchange mechanism [69].

In 2020, Shastri, Nipa M., et al. presented BST-based gas sensors obtained with the pulsed laser deposition (PLD) technique. The paper presents two stoichiometries of Ba_xSr_1-xTiO₃ with x = 0.5 and x = 0.7. The material properties were checked using the following methods: XRD, X-ray energy dispersion (EDX) and UV–VIS spectroscopy. The gas-sensing measurements showed that the BST_0.5 sample exhibited a higher sensitivity to H₂S with a concentration of 800 ppm than the BST_0.7 sample [70]. Recently, Ba_0.5Sr_0.5TiO₃ doped with various concentrations of RuO₂ (from 0% to 6%) was used as a gas-sensing material with the utilization of chemical solution deposition (CSD) on p-type silicon substrates. The sample with the highest RuO₂ content (6%) exhibited the highest response to H₂S, which is considered as a biomarker of halitosis disease, and therefore the developed sensors (Ba_0.5Sr_0.5TiO₃ doped with RuO₂) were proposed for exhaled breath analysis [71].

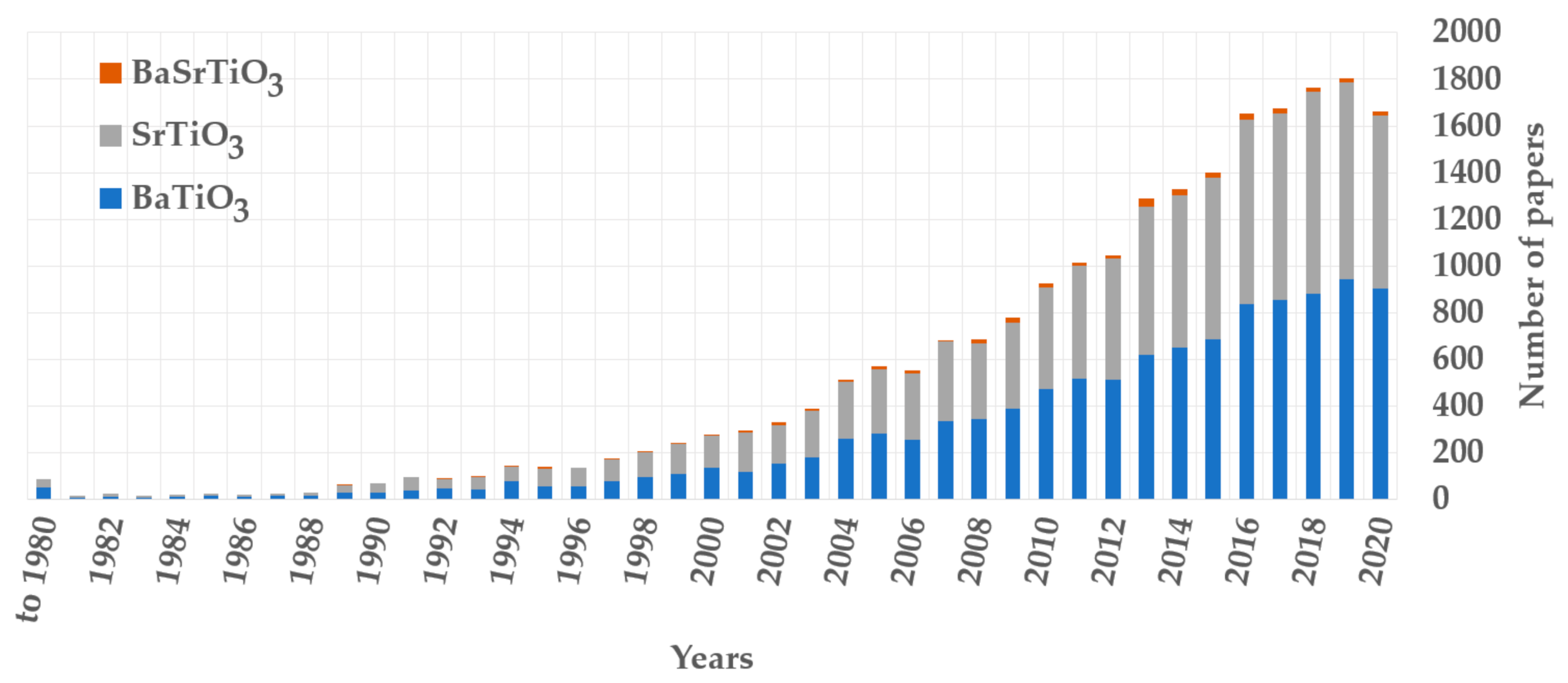

In this paper, the gas-sensing achievements of SrTiO₃- (Section 2.1), BaTiO₃- (Section 2.2) and BaSrTiO₃-based gas sensors (Section 2.3) are summarized, giving the readers a frank overview.

Table A4. Comparison between three nanocomposites.

Material Properties	SrTiO3	BaTiO3	BaSrTiO3
Type of structure	simple cubic perovskite structure [24]	cubic perovskite-type structure [46]	perovskite structure [65,66]
Dielectric constant ɛ0	ɛ0 = 300 [25,42]	dielectric constant depends on the type of synthesis, temperature, frequency and dopants [47,48] At RT ɛ0 = 2570 [134]	ɛ0 = 420 [135]
Dielectric loss	mostly < 0.02 [25]	0.003 [134]	0.017 [135]
Application of the material	- sensors - actuators - electro-optical devices - memory devices with random access - multilayer capacitors [27] - oxygen sensors [28] - temperature sensors [29] - cantilever base for various sensors [30]	- ferroelectric memories [56] - electro-optical devices [57] - dielectric capacitors [58] - multilayer capacitors (MLCs) [59] - electromechanical transducers [60,61] - gas sensor applications [62]	- electronic components - ferroelectric memories - capacitors - phase shifters [65,66] - gas-sensitive material [67] - multilayer and voltage-tunable capacitors - dynamic random access memories (DRAM) [136]
Deposition method	- magnetron sputtering [32,33] - atomic layer deposition (ALD) [34,35] - pulsed laser deposition (PLD) [36,37] - metal-organic chemical vapor deposition (MOCVD) [38,39] - laser chemical vapor deposition (LCVD) [40,41], - sol–gel method [42,43]	- solid-state reaction [50] - sol–gel method [51] - hydrothermal method [52] - coprecipitation method [53] - polymeric precursor method [54] - mechanochemical synthesis [55]	- spin coating [67] - pulsed laser deposition (PLD) [70] - chemical solution deposition (CSD) [71] - RF magnetron co-sputtering process [99] - RF sputtering technique [94] - hydrothermal method [106] - screen printing technique [104] - mechanochemical process [132]
Sensitivity effect to	propane [76] propen [76] NO [76] O2 [77] O3 [78] CO [79] H2S [80] CO2 [81] volatile organic compounds (VOC), such as ethanol [82]	CO [90] CO2 [94] NO2 [95] NH3 [95] LPG [96] H2 [96] H2S [96,97] Humidity [98] NOx [123]	NH3 [68,69,101,102] H2S [68,70,100] H2 [99] Humidity [104,105,106] NO2 [100,107] LPG [107]
Other advantages	low cost and strong stability in thermal and chemical atmospheres [26,42] fiber optic evanescent-wave hydrogen sensors [83] operating solid oxide fuel cell (SOFC) [83] microwave-based gas sensors [84]	large electro-optic coefficients, positive coefficient of resistivity (PTCR) [49]	high thermal and chemical stability [100], good tenability tunable filters, oscillators microwave phase shifters uncooled infrared sensors, etc. [136]

in Appendix A presents a collective comparison of the properties of the above-mentioned three nanocomposites, it is a short and concise comparative characteristic. There is a literature reference next to each piece of information. As can be noticed in Figure 3, the number of papers where the above-mentioned materials were used for gas-sensing materials constantly increases from 2000.

2. Materials, Results and Discussion

2.1. SrTiO₃ for Gas-Sensing Applications

In 2004, Meyer and Waser presented a model for a fast sensor response of resistive donor-doped SrTiO₃ at temperatures from 850 to 950 °C. The authors speculated that cation vacancies may play a key role in the formation of grain resistance boundaries not only at high but also at moderate temperatures. As a result of mobility, the change in cationic vacancy concentration may be limited to only a few monolayers on each side of the interface. Strontium vacancies are considered to be virtually stationary at great distances for these temperature ranges; thus, the change in strontium void concentration was limited to one unit cell on each side of the boundary. Therefore, a limited point defect approach was used in this paper, only for electrons and strontium vacancies [72]. This, combined with the high density of the defect state interface, explains the huge change in sensor resistivity observed. The authors proposed a point defect model involving the formation of a space charge area near the phase boundary, which has a significant impact on the balance of local defects. The consequence of this is the decisive influence of the overall value on the concentration of each type of defect. The reason for the rapid response of the sensor could then be an increase in the concentration of the cationic void near the interface, induced by the space charge. Cationic voids are the cause of high electron depletion [70]. In the same year, Hu et al. presented a low-temperature nano-structured SrTiO₃ thick-film oxygen sensor obtained by utilization of the high-energy ball milling technique in conjunction with the screen printing technique. At that time, the novelty of the proposed SrTiO₃-based gas sensor was the ability to work at an operating temperature as low as 40 °C, and, in fact, this is a good result nowadays. The sensors were tested under exposure to 2–20% oxygen. Moreover, the experimental results showed that the sensing property of the synthesized SrTiO₃ sensors with an annealing temperature of 400 °C is much better than the commercial SrTiO₃ sensors (both milled and not milled materials) [73]. The effects of the annealing temperature on the sensing properties of nano-sized SrTiO₃ oxygen gas sensors were analyzed by the same group and presented in 2005 [31]. The authors used various methods and techniques to validate the annealing temperature influence, for example, by using differential thermal analysis (DTA)/thermogravimetric analysis (TGA), XRD and transmission electron microscopy (TEM) methods. The films were annealed in the range 400–800 °C with 100 °C steps, and no annealed sample was tested. However, surprisingly, the results showed that samples annealed at 400 °C, as previously shown [73], exhibited the highest sensor response to oxygen at the same operating temperature, 40 °C [31]. The authors concluded that the different annealing temperatures only affect the grain size of the synthesized SrTiO₃-based oxygen sensors, but they do not provide evidence as to why 400 °C showed the highest responses. More interesting is that the results showed that the lower annealing temperature offers higher responses, but the authors did not test, or at least did not present, the results for samples annealed at 300 °C [31]. The same group in 2004 presented the investigation results on the same gas-sensing material for near-human body temperature oxygen sensing application [74]; however, the presented results did not bring anything new [74]. An effect of oxygen cross-sensitivity was evaluated by Sahner et al. [75]. In 2006, the authors fabricated a hydrocarbons sensor for exhaust gases based on semiconducting doped SrTiO₃ for on-board diagnosis [75]. A multilayer resistive sensor based on catalytically activated and non-activated SrTiO₃ was tested under various scenarios that may occur during the on-line analysis of exhausting gases in the automotive industry, such as the presence of ethane and propane (as hydrocarbon species) and of hydrogen, carbon dioxide and nitric oxide (interfering gases). The results showed that the non-activated sensor part strongly responds to any reducing gas, whereas the catalytically activated part only detects a slight variation in the oxygen equilibrium concentration. On this occasion, the authors concluded that the actual influence of the platinum content on oxygen sensitivity, temperature dependency and long-term stability needs to be investigated, as well as the cross-sensitivity to different types of hydrocarbons with respect to chain length, presence of unsaturated bindings and aliphatic or aromatic chains [75]. Hydrocarbon sensing results were presented by the same group in 2007 [76] with utilization of a nanoscaled SrTi_1−xFe_xO_3−δ-based sensor, where two novel synthesis methods, at that time, were validated, i.e., electrospinning and electrospraying. Moreover, the authors proposed a mechanistic model to explain the impact of the enhanced surface-to-volume ratio of the p-type SrTi_1−xFe_xO_3−δ gas-sensing films. The sensors were investigated in the temperature range from 350 to 450 °C under exposure to propane, propene, hydrogen, NO and CO. The sensors showed a fast, reversible and reproducible response towards propane and propen, with cross-sensitivity towards NO. Neither CO or H₂ exposure led to the response changes measured as the resistance ratio [75]. In 2009, Menesklou et al. [77] discussed the effect of impurities on the gas-sensing properties of thin layers of strontium titanate. The admixture of lanthanum (La) in a small concentration significantly influenced the dependence of the electrical conductivity of the material on the oxygen partial pressure. Pure SrTiO₃ was characterized by an ambiguous dependence of the electrical conductivity on the aforementioned partial pressure of oxygen, but after adding a small amount of La, this relationship became unambiguous. Samples obtained in this way have response times in the millisecond range, regardless of the thickness of the layers. The reason for this lies in the surface conductivity mechanism. The authors showed that the dependence of SrTiO_3′s work can be largely leveled in a small range of oxygen partial pressures by doping an acceptor at a high concentration, in this case, iron. The conductivity of doped strontium titanate with a donor is based on the boundary conductivity of the grains, even at temperatures reaching 1000 °C. The doping concentration affects the much slower kinetics of the bulk equilibrium through long-term drift. The grain size has no effect on the bulk equilibrium kinetics. The authors concluded that the fine-grained strontium titanate polycrystals doped with a small amount of donors should increase the surface-to-weight ratio of the sensor and thus improve its properties. At the same time, there is no acceleration of the drift kinetics, as in the case of donor-doped barium titanate, for example. One of the results of the work was a proposal of a thick-film oxygen sensor (lean combustion) for the control of internal combustion engines, characterized by a fast reaction, low-temperature dependence and sensitivity to oxygen [77].

SrTiO₃-based gas sensors have been used not only to detect oxygen but also to detect ozone gas (O₃). In 2013, Mastelaro et al. [78] reported the nanocrystalline SrT_1−xFe_xO₃ (STF) gas-sensing material for ozone detection. An electron-beam physical vapor deposition (PVD) system was utilized for the deposition with the post-processing annealing process (550 °C). The authors analyzed the effect of iron doping (0.0075, 0.10 and 0.15 mol% of iron) on the gas-sensing characteristics. The sensors exhibited a very high sensor response (R₀/R), i.e., 580 under exposure to 0.6 ppm of ozone at 190 °C. The limit of detection was as low as 0.075 ppm [78]. Kajale et al. [79] also showed interesting results of SrTiO₃-based gas sensors; the fabricated SrTiO₃-based sensors exhibited high sensitivity to CO with no response to H₂S and vice versa for Cu-doped SrTiO₃, which can be explained due to conversion of Cu into CuS. However, this conference paper provides only preliminary results without an extensive elaboration [79]. On the contrary, high responses to H₂S by utilization of pure ST films have been reported by the same group [80]; in this paper, the SrTiO₃ nanomaterial was synthesized using a sol–gel hydrothermal method and exhibited an outstanding gas sensor response (S > 500) at a lower temperature, 150 °C, to 80 ppm of H₂S [80]. The possibility to detect another carbon oxide, CO₂, was verified by Zaza et al. [81], in 2015. The authors presented the results of a room-operated SrTiO₃-based sensor. However, because of the low recovery rate, the regeneration of the sensor has to be made at high temperature for promoting the decomposition of the carbonates formed on the perovskite surface, which significantly reduce the advantage of operation at room temperature [81]. ST-based gas sensors have also been tested under exposure to volatile organic compounds (VOC), such as ethanol. Recently, Trabelsi et al. [82] presented the ethanol-sensing response of a SrTiO_3−g-based gas sensor fabricated by a solid-state reaction enhanced in a thermally activated process. The electrical properties of the sensors were examined using impedance spectroscopy in a wide range of potential operating temperatures from −33 to 40 °C. The obtained SrTiO_3-δ was characterized by low resistivity and low dielectric losses. The gas-sensing material revealed low-frequency relaxation processes and electrical conductivity resulting from the first ionization of oxygen vacancies. The sensors exhibited a decrease in conductivity after introducing ethanol gas (p-type semiconductor effect). Interesting is the fact that the optimal working temperatures for the tested samples are lower, about 350–370 °C, which suggests the dominant role of oxygen vacancies in detecting the presence of ethanol [82].

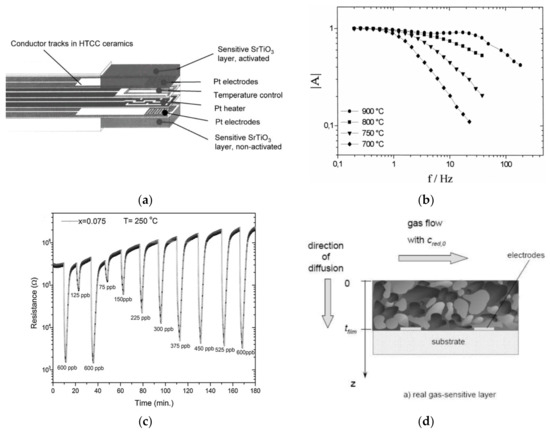

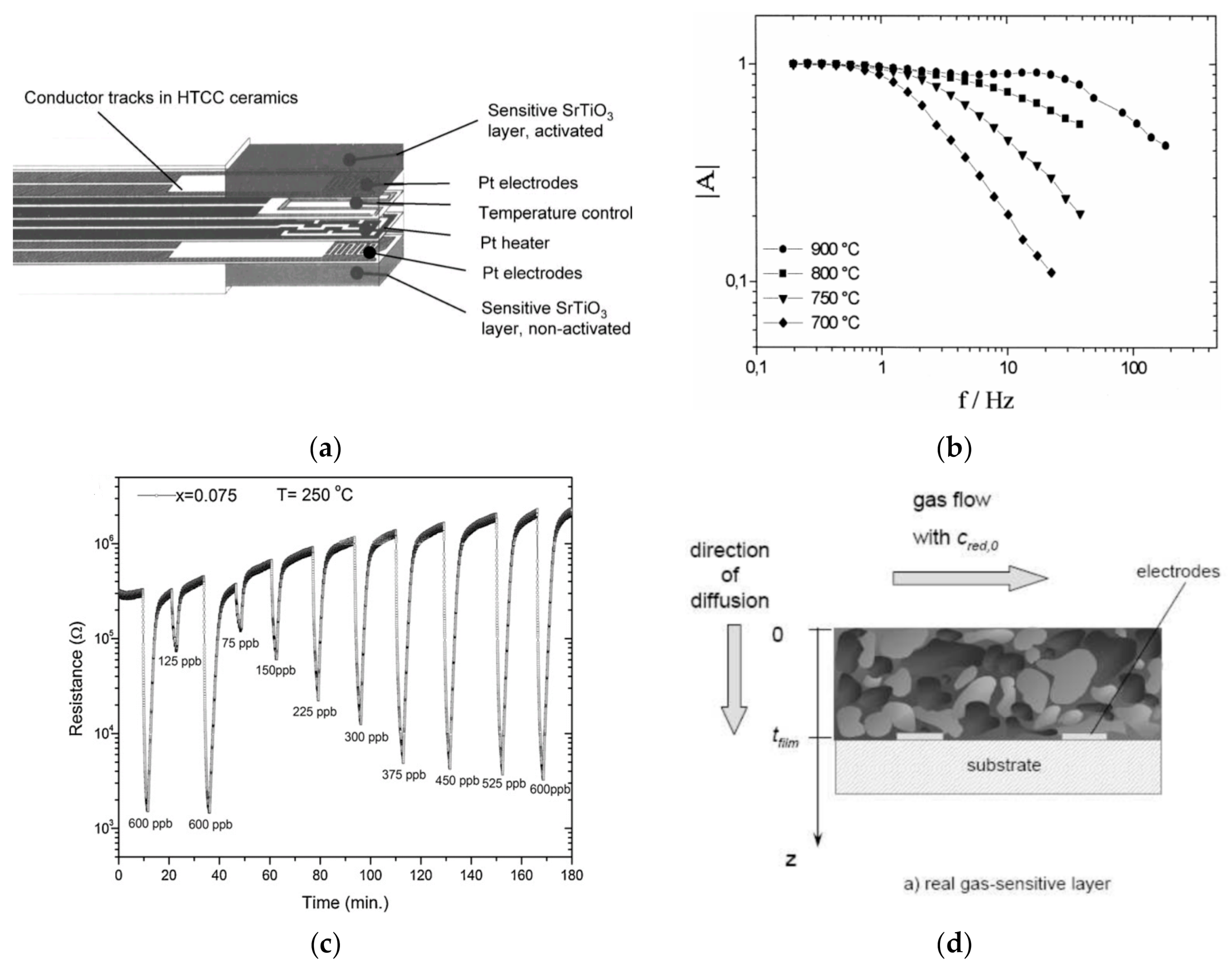

Apart from the conventional resistive-type SrTiO₃-based gas sensors, ST was used as a gas-sensitive layer for fiber optic evanescent-wave hydrogen sensors, where SrTiO₃ films were doped with lanthanum (La) [83]. These sensors show a rapid, reproducible sensing response to hydrogen fuel gas streams at elevated temperatures (600–800 °C). The presence of hydrogen results in a reversible and reproducible decrease in near-infrared transmission through the sensor. Sensors were also tested directly in the anode assembly of an operating solid oxide fuel cell (SOFC) with the sensor response correlating with both H₂ concentration and SOFC cell potential. Sensors based on optical fiber platforms are well suited for harsh environment sensing applications and are safer than traditional resistive sensing technologies for combustible environments, showing the absence of an electrical current and therefore removing the risk of electrical interference to or from the operating fuel cell [83]. ST has been used as a gas-sensing material for microwave-based gas sensors since 2007, when Jouhannaud et al. [84] presented a coaxial structure operated in the 0.3 MHz–3 GHz frequency range under exposure to various species such as ethanol, the saturated vapor of water and toluene. The response of the sensor is quantitative and typical for each gas. This method of measurement leads to the development of an alternative to the current gas sensor. It has to be underlined that these results opened new research in gas-sensing measurements, i.e., operating at the microwave frequency range [85,86,87,88]. The examples of the SrTiO₃-based gas sensors are presented in Figure 4.

Table A1. The summaries of SrTiO₃-based gas sensors.

Material	Operating Temp.	Max. Response	Target Gas	Thickness	Deposition Method	Reference
SrTiO3	250–350 °C	0–34 1	C2H5OH	400 nm	sol–gel	[111]
SrTiO3	40 °C	6 2	O2	45 µm	high-energy ball milling technique and thick-film screen printing technique	[31,73]
SrTi0.925Fe0.075O3	250 °C	170–580 2	O3	70 nm	polymeric precursor method	[78]
SrTi0.9Fe0.1O3	250 °C	10 2	O3	70 nm	polymeric precursor method	[78]
SrTi0.85Fe0.15O3	250 °C	53 2	O3	70 nm	polymeric precursor method	[78]
SrTi0.85Fe0.15O3	220 °C	267 2	O3	70 nm	polymeric precursor method	[78]
SrTi0.85Fe0.15O3	190 °C	580 2	O3	70 nm	polymeric precursor method	[78]
SrTiO3	350 °C	27 2	CO	thick film	screen-printed on glass substrate in the desired pattern	[79]
SrTiO3	350 °C	3 2	H2S	thick film	screen-printed on glass substrate in the desired pattern	[79]
SrTiO3	350 °C	18 2	NH3	thick film	screen-printed on glass substrate in the desired pattern	[79]
SrTiO3 with modified surface	300 °C	7 2	NH3	thick film	screen-printed on glass substrate in the desired pattern	[79]
SrTiO3 with modified surface	300 °C	22 2	H2S	thick film	screen-printed on glass substrate in the desired pattern	[79]
SrTiO3	RT	2% 3	CO2	thick film	citrate–nitrate combustion synthesis method	[81]
LaAlO3/SrTiO3	RT, 80 °C	650, 4000 4	H2	thin film	laser molecular beam epitaxy	[112]
Sr0.995La0.005TiO3	850 °C	4–8 5	O2	780 µm	screen printing technique	[77]
SrTi0.65Fe0.35O3	750–850 °C	2 5	O2	11 µm	screen printing technique	[77]
Ta-doped SrTiO3	700 °C	0.6 6	Hydrocarbon ethan	20 µm	high-temperature co-fired ceramic (HTCC) technology	[89]
SrTiO3	40 °C	6.35 2	O2	thick film	physical high-energy ball milling technique	[74]
SrTiO3	150 °C	550 7	H2S	65–75 µm	sol–gel hydrothermal method	[80]
SrTiO3	350 °C	100 7	C2H5OH	65–75 µm	sol–gel hydrothermal method	[80]
SrTiO3-δ (δ = 0.075 and 0.125)	350 °C	16 1	C2H5OH	2 mm	the conventional solid-state reaction method	[82]
SrTiO3	RT	41 6	O2	50 nm	pulsed laser deposition (PLD)	[28]
0.14 at.% Nb:SrTiO3	RT	1.5 6	O2	50 nm	pulsed laser deposition (PLD)	[28]
SrTiO3	RT	1000 6	O2	20 nm	atomic layer deposition (ALD)	[113]
SrTiO3	RT	500 6	O2	20 nm	superposition and patterning	[114]
SrTi0.8Fe0.2O3-δ	400 °C	12 6	C3H8	10–20 µm	screen printing technique	[75]
SrTi0.8Fe0.2O3-δ	400 °C	4.2 6	NH3	10–20 µm	screen printing technique	[75]
SrTi0.8Fe0.2O3-δ	400 °C	2.4 6	NO	10–20 µm	screen printing technique	[75]
SrTi0.8Fe0.2O3-δ	400 °C	2.4 6	CO	10–20 µm	screen printing technique	[75]
SrTi0.8Fe0.2O3-δ	400 °C	1.6 6	H2	10–20 µm	screen printing technique	[75]

¹ (R_g−R₀)/R₀—in the paper, the authors used sensitivity calculated from the change in resistance, not a response, unit: a.u. ² R₀/R_g—Max. Response—the ratio of the sensor resistance without gas and in the presence of gas, unit: a.u. ³ ((C₀−C)/C₀)·100 %—in the paper, the authors used sensitivity calculated from the change in capacity, unit: %. ⁴ ((I₀−I)/I₀)·100 %—in the paper, the authors used sensitivity calculated from the change in current, unit: %. ⁵ G₀/G_g—Max. Response—the ratio of the sensor conductivity without gas and in the presence of gas, unit: a.u. ⁶ R_g/R₀—Max. Response—the ratio of the sensor resistance in the presence of gas and without gas, unit: a.u. ⁷ (G_g−G₀)/G₀—in the paper, the authors used sensitivity calculated from the change in conductance, not a response, unit: a.u.

in Appendix A summarizes the information on the SrTiO₃ sensor properties tests performed so far. The first column contains the material (chemical formula), the second one contains information about the operating temperature, the next one with the maximum response and in the following target gas, the sample thickness (if the authors provided such information), the deposition method and the literature reference in the last column. Table A1 summarizes the information contained in this section.

2.2. BaTiO₃ for Gas-Sensing Applications

In 2004, K. Park and D.J. Seo [90] published a paper on the CO detection characteristics of BaTiO₃-based gas sensors with graphite doping. It was found that the difference in resistivities measured at high temperatures (400 °C) in the air and CO gas atmosphere (5–100%) change with increasing graphite content. The porosity of the material also increases, which leads to an improvement in CO gas detection sensitivity. Greater porosity provides more sites on the sample surface for oxygen adsorption and the reaction between CO and O^- gas, and between CO gas and O. The gas-sensing behavior for CO₂ with the utilization of BST-based gas sensors has been studied as well, for example, by the utilization of BST and CuO [91], PbO [92] and LaCl₃ [93]. In 2006, Mandayo, Gemma García et al. [94] developed a thin sensor film to detect CO₂. The authors focused on response rates for various temperatures, target gases and relative humidity concentrations for indoor air quality (IAQ) monitoring.

Various attempts have been made to improve the selectivity and sensitivity of BaTiO₃-based sensors using dopants and additives. For example, La has been proposed [95] to increase the response for NO₂ and NH₃ at room temperature. G.N. Chaudhary et al. [96] proposed thin-film BaTiO₃ doped with CuO and CdO for liquefied petroleum gas (LPG) detection. The study showed that doping with various concentrations of CuO/CdO influenced the sensitivity. In addition, incorporation of a 0.3 wt.% Pd-doped CuO:CdO:BaTiO₃ element showed high sensitivity with selectivity to the other gases including CO, H₂ and H₂S. In [62], the authors investigated the influence of the band gap, size and shape of a BT thin-film on the gas-sensing mechanism of H₂S. The obtained sensors exhibited the highest response at 300 °C to 200 ppm of the target gas. Gas-sensing characteristics under exposure to H₂S were measured by Huang, He-Ming, et al. [97]. In 2007, the authors reported that Ba_0.99Ce_0.01TiO₃ sensors doped with Fe₂O₃ achieved response of 2.91 towards 0.4 ppm H₂S at 150 °C (the sensor response is defined as R_N2/R_H2S, where R_N2 and R_H2S are the electrical resistances of the sensor in N₂ and H₂S, respectively). Additionally, fast response–recovery dynamics were obtained with 40 and 55 s for response and recovery times, respectively. The advantages of the above-mentioned BT composition can be summarized as a high response, lower operating temperature and fast response–recovery times, which make this material very attractive for industrial application. However, a long-term stability test has not been conducted to confirm these assumptions. BaTiO₃-based gas sensors have also been applied as humidity detectors. In [98], the authors presented results on BaTiO₃ nanoframes and TiO₂-BaTiO₃ nanotubes tested under various humidity concentrations (the samples were tested at RH from 15% to 95% at room temperature). The obtained results showed a high and reversible response towards different water concentrations. As a result, these sensors possess high stability, fast response times and reproducibility and could be used as humidity sensors.

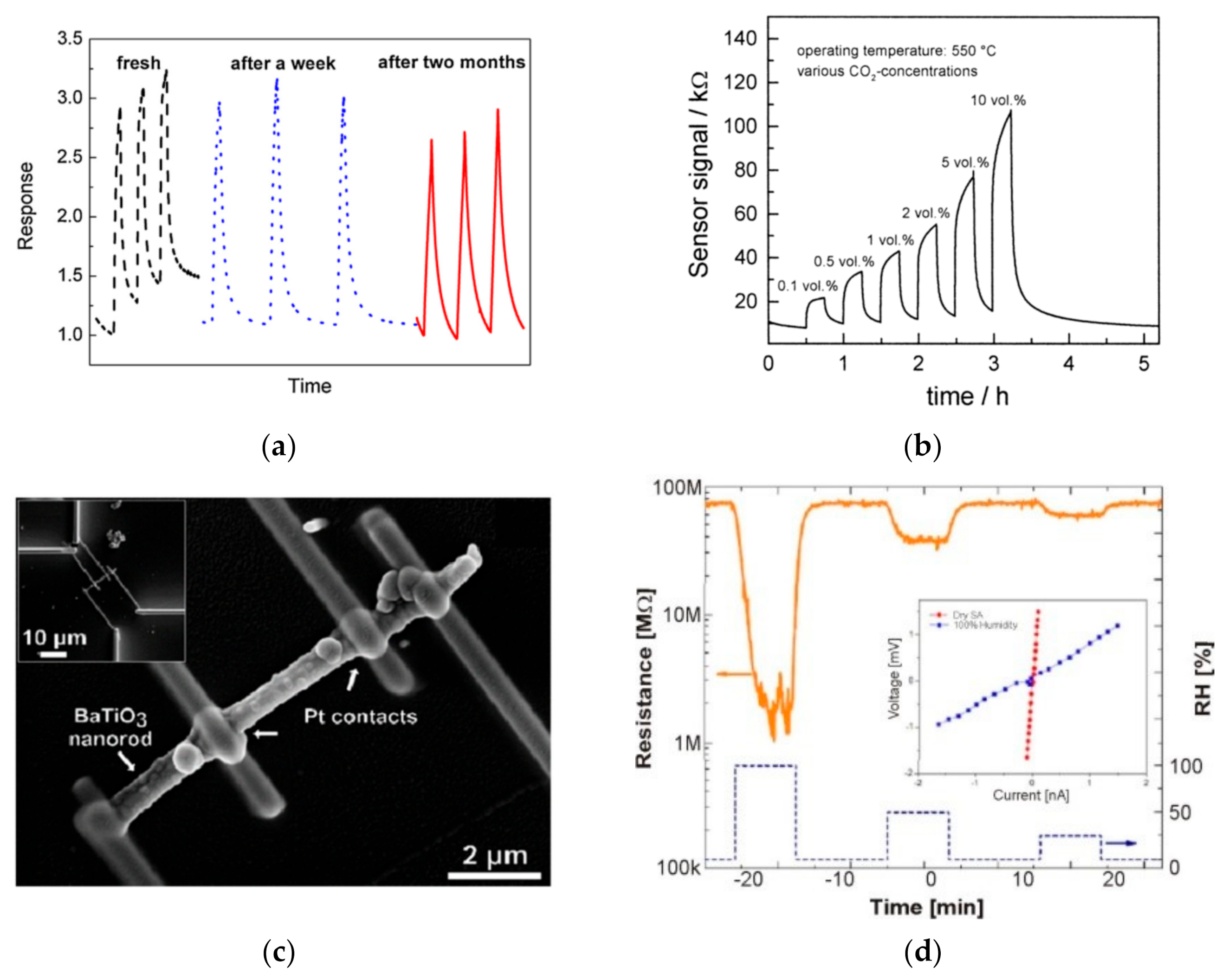

The examples of BaTiO₃-based gas sensors are presented in Figure 5.

Table A2. The summaries of BaTiO₃-based gas sensors.

Material	Operating Temp.	Max. Response	Target Gas	Thickness	Deposition Method	Reference
BaTiO3	25 °C	50 1	humidity	750 nm	sol–gel processing	[115]
BaTiO3	300 °C	300 2	H2S	thick film	low-temperature hydrothermal route	[62]
BaTiO3	RT	116 3	H2O2	1 µm	electroless deposition method	[116]
PVDF-BaTiO3 composite	RT	0.2416 4	humidity	150 nm	mixing nanoparticles	[117]
Modified BaTiO3	350 °C	1119 2	H2S	65–70 µm	screen printing technique	[118]
Modified BaTiO3	350 °C	31 2	NH3	65–70 µm	screen printing technique	[118]
BaTiO3	350 °C	303 2	LPG	thin film	spray pyrolysis techniques	[119]
Ce-doped BaTiO3	200 °C	2.99 5	H2S	500 nm	coprecipitation method	[97]
Fe2O3-Ba0.99Ce0.01TiO3	150 °C	4.36 5	H2S	500 nm	coprecipitation method	[97]
Fe2O3-Ba0.99Ce0.01TiO3	150 °C	2.91 5	H2S	500 nm	coprecipitation method	[97]
BT-NH2 NPs	RT	5 6	cysteine	50 µm	solid-state reaction method	[120]
BaTiO3	280 °C	2.9 7	CO2	thick film	screen printing technology	[121]
BaTiO3	200 °C	10 8	CO2	55 nm	RF sputtering	[122]
BaTiO3	RT	17.6 9	NOx	350 nm	sol–gel spin coating method	[123]
TiO2-BaTiO3 nanotubes	RT	22.8 10	humidity	nanorods	sol–gel electrophoretic deposition technique, electrochemical anodization technique	[98]
BaTiO3-CuO	300 °C	1.8 7	CO2	1 µm	RF sputtering technique	[94]
BaTiO3-CuO	300 °C	0.1 11	CO2	1 µm	RF sputtering technique	[94]
BaTiO3-CuO	400 °C	1.12 7	CO2	1 µm	RF sputtering technique	[94]
BaTiO3-CuO	400 °C	0.7 11	CO2	1 µm	RF sputtering technique	[94]
CuO-BaTiO3 Ag doped	430 °C	1.59 7	CO2	thick film	conventional sintering method	[124]
BaTiO3 La doped	950 °C	0.75 7	O2	1 µm	magnetron sputtering	[125]
BaTiO3	RT	22.8 10	humidity	nanorods	sol–gel electrophoretic deposition	[126]
BaTiO3	25 °C	70 12	humidity	nanofiber	electrospinning	[127]
CaO-BaTiO3	160 °C	0.68 13	CO2	thick film	typical synthesis procedure	[128]
BaTiO3-CuO-La2O3	400 °C	1.05 7	CO2	thick film	screen printing technique and firing	[93]
BaTiO3-CuO-LaCl3	400 °C	1.25 7	CO2	thick film	screen printing technique and firing	[93]
BaTiO3-LaCl3	400 °C	1.55 7	CO2	thick film	screen printing and firing	[93]
Ba0.999Sb0.001TiO3	400 °C	15 7	CO	1 mm	adding graphite powders	[90]
BaTiO3	25 °C	3.5 7	LPG	thin film	sol–gel method	[129]

¹Z_90%/Z_40%—Max. Response—sensor impedance ratio at 90% and 40% air humidity, unit: a.u. ² (G_g−G₀)/G₀—in the paper, the authors used sensitivity calculated from the change in conductance, not a response, unit: a.u. ³ the response current density unit: µA·cm^{−2. 4} unit: pF/%RH. ⁵ R₀/R_g—Max. Response—the ratio of the sensor resistance without gas and in the presence of gas, unit: a.u. ⁶ I/I₀—Max. Response—the ratio of the sensor current without cysteine and in the presence of cysteine, unit: a.u. ⁷ R_g/R₀—Max. Response—the ratio of the sensor resistance in the presence of gas and without gas, unit: a.u. ⁸ ((I₀−I)/I₀)·100 %—in the paper, the authors used sensitivity calculated from the change in current, unit: %. ⁹ (R₀−R_g)/R₀—in the paper, the authors used sensitivity calculated from the change in resistance, not a response, unit: a.u. ¹⁰ R_0%/R_100%—Max. Response—sensor resistance ratio at 0% and 100% air humidity, unit: a.u. ¹¹ C_g/C₀—Max. Response—the ratio of the sensor capacitance without gas and in the presence of gas, unit: a.u. ¹² Z_11%/Z_95%—Max. Response—sensor impedance ratio at 11% and 95% air humidity, unit: a.u. ¹³ (R_g−R₀)/R₀—in the paper, the authors used sensitivity calculated from the change in resistance, not a response, unit: a.u.

in Appendix A is a summary of the information contained in the chapter on BaTiO₃ sensor properties. It contains information on the test substance, operating temperature, maximum response, target gas, sample thickness, deposition method and references to papers by other authors.

2.3. BaSrTiO₃ for Gas-Sensing Applications

In 2000, X.F. Chen et al. [99] studied the hydrogen gas sensitivity of sputtered amorphous Ba_0.67Sr_0.33TiO₃ thin films. The BST material was prepared by using the RF magnetron co-sputtering process (200 nm, 300 °C, 1.8 Pa, 50% O₂). The testing was carried out at one atmosphere in a measurement chamber with 500 sccm of target gas flow (1042 ppm of H₂) in the operating temperature range from 80 to 250 °C. The authors concluded that higher sensitivity (defined as the ratio of the dc current, I_gas/I_air ≈ 7.3) to H₂ can be obtained in the temperature range of 170–190 °C. In another work [100], the authors proposed thin films of Cu-doped Ba_0.75Sr_0.25TiO₃ for H₂S detection. The gas-sensing layers were synthesized under hydrothermal conditions and further deposited via the RF sputtering technique onto Al₂O₃ substrates provided with Au electrodes and a Pt heater. The relative humidity influence (5%, 30%, 50%, 70%) on changes in the electrical resistance of BST with 5% Cu exposed to different concentrations of H₂S (5, 10, 30, 50, 70, 90 ppm) at operating temperatures in the range from 100 to 400 °C was investigated. The authors reported that at 250 °C, 50% RH and 10 ppm of H₂S concentration, Cu 5% BST showed good stability in electrical resistance: R_air = 4.25·10¹⁰ ± 20% Ω, R_H2S = 5.61·10⁸ ± 13.7% Ω (response S = R_air/R_H2S, S = 75.76). Recently, results on the gas-sensing properties of BST: Ba_0.5Sr_0.5TiO₃ (BST0.5) and Ba_0.7Sr_0.3TiO₃ (BST0.7) thin films under H₂S exposure (800 ppm) in the temperature range of 50–380 °C were presented in [70]. The gas sensors based on both BSTs, i.e., 0.5/0.5 and 0.7/0.3, reached the maximum response (57.57% and 41.61% for BST_0.5 and BST_0.7, respectively) at 330 °C. BST-based nanomaterials have also found application in the detection of NH₃ gas [101,102,103]. In 2005, Somnath C. Roy et al. [101] proposed novel ammonia-sensing phenomena of Ba_0.5Sr_0.5TiO₃ thin films obtained by the sol–gel spin coating technique. The deposited sensors were tested under exposure to different ammonia concentrations (160, 320, 640 and 1280 ppm). The sensitivity (S) was defined as S = ((R_g−R_air)/R_air), where R_air and R_g are the electrical resistances in air and the target gas, respectively. The obtained results showed that sensitivity S was found to be around 20% when thin films were exposed to NH₃ at a concentration of 160 ppm and increased to 60% when the concentration was raised to 1280 ppm. The researchers tested BST thin films for cross-sensitivity to other gases such as CO, NO₂ and ethanol. The obtained results showed no detectable resistance change when operated under conditions similar to those of ammonia sensing. NH₃-sensing characteristics were measured at room temperature as well [69]. Ba_0.75Sr_0.25TiO₃-based gas sensors were tested in the range of 30–110 ppm of ammonia with various relative humidity concentrations (10%–70%) at room temperature (23 °C). The authors defined the sensor signal S, calculated as the ratio of S = (R_air/R_gas), where R_air is the resistance in the humid background and R_gas is the resistance in the presence of NH₃ dosed in the humid background. During these measurements, the humid background was set as 10%, 30%, 50% and 70%. The highest sensor response (S ≈ 2.5) was obtained for the 110 ppm concentration of NH₃ and 50% RH. Therefore, the effect of the humidity influence opened the possibility to use BST gas sensors as humidity sensors [104,105,106]. For example, in [106], the temperature dependence of conductance and susceptance versus relative humidity (20–80%) for MgO-doped BST in the temperature range 10–60 °C was measured. The authors proposed the reaction mechanism model based on the impedance measurements, where a parallel combination of a resistor and a capacitor was used. Further work [104] focused on the influence of MgO doping (3% mol) on the structural and perceptible properties of BST0.5 in the humidity range of 20–95% in comparison to non-doped BST materials. The authors reported that the sensor including BST0.5 added with 3 mol% MgO exhibited improved humidity sensitivity and showed a faster response than pure BST0.5.

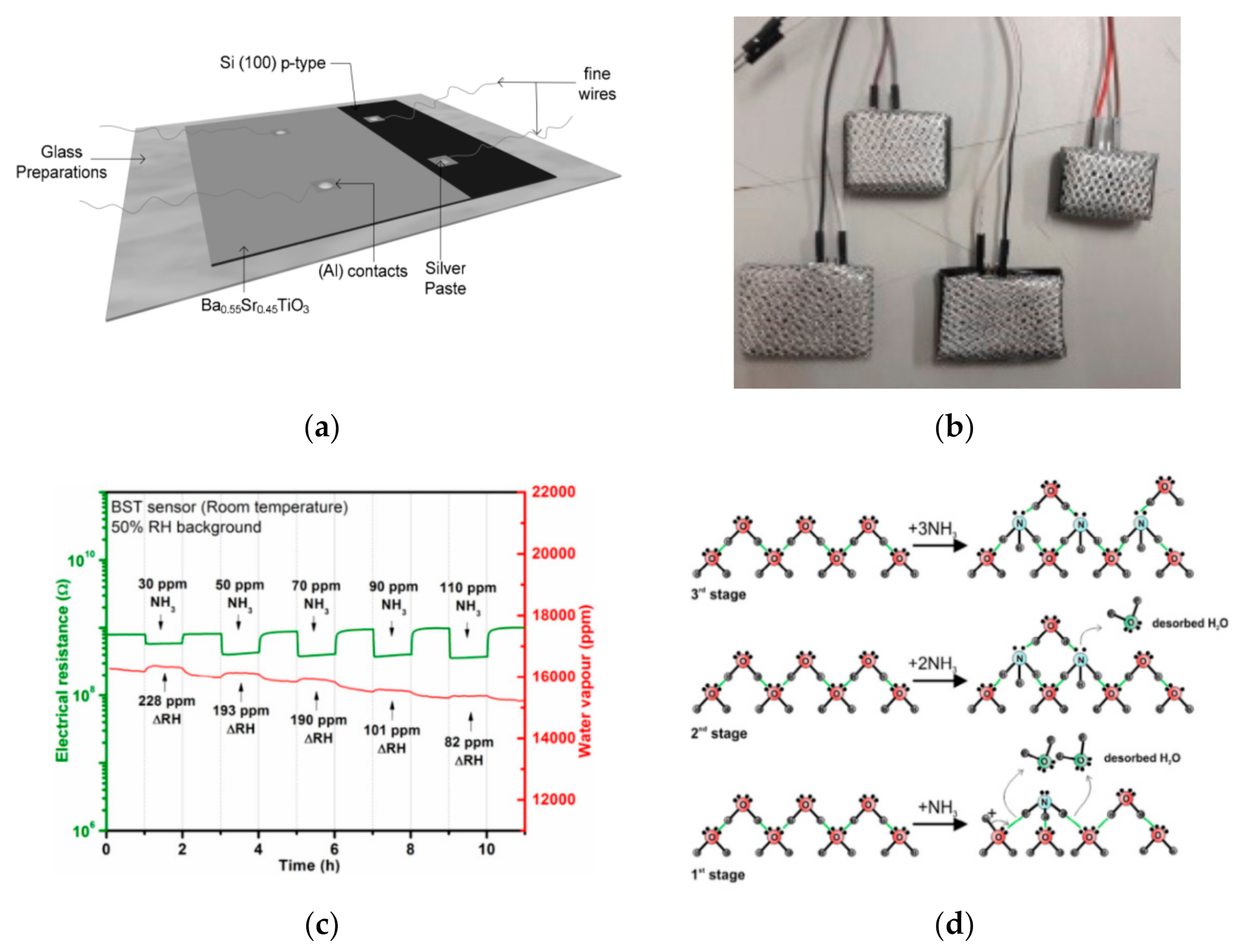

The examples of BaSrTiO₃-based gas sensors are presented in Figure 6. A collective summary of the information contained in this chapter, on the sensor properties of BaSrTiO₃, can be found in

Table A3. The summaries of BaSrTiO₃-based gas sensors.

Material	Operating Temp.	Max. Response	Target Gas	Thickness	Deposition Method	Reference
BaTiO3/ SrTiO3	250–350 °C	10–100 1	C2H5OH	400 nm	sol–gel method	[111]
Cu mol. 5%-doped perovskite material Ba0.75Sr0.25TiO3	250 °C	400 2	H2S	386.4 nm	RF sputtering technique	[100]
Co-doped BaSrTiO3	RT	35 3	CO2	thin film	RF sputtering technique	[130]
Ba0.5Sr0.5TiO3	270 °C	60 1 40 1 30 1	NH3	150 nm 320 nm 480 nm	sol–gel method	[103]
Cu mol. 5%-doped BaSrTiO3	200 °C	15 2	H2S	thick film	hydrothermal method	[68]
Cu mol. 0.1%-doped BaSrTiO3	150 °C	5 2	NH3	thick film	hydrothermal method	[68]
Sr 0.2-doped BaTiO3	RT	100 4	NO2	thick film	low-temperature hydrothermal route	[107]
Sr 0.2-doped BaTiO3	RT	55 4	NH3	thick film	low-temperature hydrothermal route	[107]
Sr 0.2-doped BaTiO3	400 °C	28 4	H2S	thick film	low-temperature hydrothermal route	[107]
Sr 0.4-doped BaTiO3	400 °C	2 4	LPG	thick film	low-temperature hydrothermal route	[107]
Ba0.67Sr0.33TiO3	205 °C	34 5	H2	200 nm	RF magnetron co-sputtering	[99]
(Ba0.87Sr0.13)TiO3	300 °C	29 2 85 2 62 2 56 2	NH3	17 µm 33 µm 48 µm 63 µm	screen printing technique	[101]
(Ba0.87Sr0.13)TiO3	300 °C	26 2	H2S	33 µm	screen printing technique	[101]
Cr2O3-modified (Ba0.87Sr0.13)TiO3	350 °C	16.6 2	NH3	33 µm	screen printing technique	[131]
Cr2O3-modified (Ba0.87Sr0.13)TiO3	350 °C	73 2	H2S	33 µm	screen printing technique	[131]
Ba0.67Sr0.33TiO3	350 °C	10 4	H2S	65–70 µm	screen printing technique	[132]
Cu-doped Ba0.67Sr0.33TiO3	350 °C	26.5 4	H2S	65–70 µm	screen printing technique	[132]
Cr-doped Ba0.67Sr0.33TiO3	350 °C	46.4 4	H2S	65–70 µm	screen printing technique	[132]
Ba0.998Sr0.002 TiO3	400 °C	25 4	H2S	thick film	hydrothermal method	[133]
Ba0.998Sr0.002 TiO3 in 2% Sn dipping for 20min	200 °C	2274 4	H2S	thick film	hydrothermal method	[133]
Ba0.5Sr0.5TiO3	330 °C	57.57 5	H2S	thin film	pulse laser deposition (PLD) technique	[70]
Ba0.7Sr0.3TiO3	330 °C	41.61 5	H2S	thin film	pulse laser deposition (PLD) technique	[70]
Ba0.75Sr0.25TiO3	RT	2.5 2	NH3	50 µm	hydrothermal method	[69]

¹ (R_g−R₀)/R₀—where R_g and R₀ are the electrical resistances measured in the presence of gas and synthetic air, respectively. ² R₀/R_g. ³ R_g/R₀. ⁴ (G_g-G₀)/G₀—where G_g and G₀ are the electrical conductances measured in the presence of gas and synthetic air, respectively. ⁵ I_g/I₀—where I_g and I₀ are the electrical currents measured in the presence of gas and synthetic air, respectively. ⁶ (R_g−R₀)/R₀·100%.

in Appendix A, it contains basic information, such as: chemical formula of the tested compound, operating temperature, maximum response, target gas, information on sample thickness, deposition method and references to literature sources.

2.4. BaSrTiO₃ for NO₂ Detection

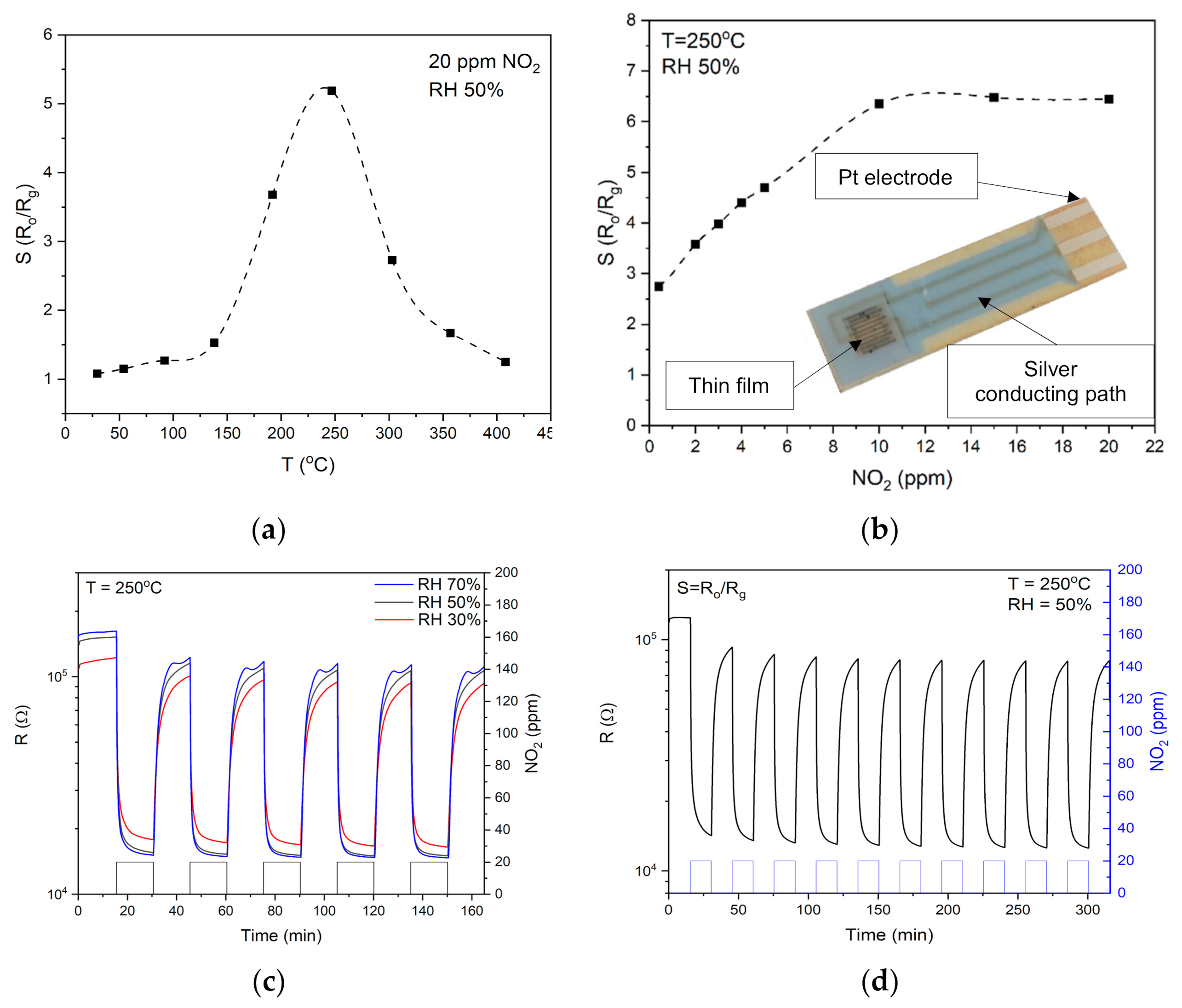

The utilization of BST-based gas sensors for nitrogen dioxide detection was previously studied by [107], as mentioned in Section 2.3. For example, in [100], the authors showed that the electrical resistance of BaSrTiO₃ doped with 5% Cu increases during the exposition to NO₂ at 3 ppm. Therefore, it could be suggested that BST Cu 5% behaves as an n-type semiconductor. However, in Figure 6, we present the results obtained for BST doped with Cu, where the electrical resistances decrease when NO₂ was introduced to the measurement chamber. The BST-Cu gas-sensitive layer was deposited by the utilization of magnetron sputtering deposition technology. Firstly, the BST as a base material was deposited from the Ba_0.6Sr_0.4TiO₃ homemade target, recently presented in [108], and then copper dopants were deposited. The deposition system for co-sputtering was previously presented in [109]. The pure BST-based gas sensor had base resistance around 5–6 GOhm, while after the Cu modification, the electrical resistance reduced to 8–9 MOhm at RT and the gas-sensing effect was achieved. Figure 7a shows the sensor response defined as R₀/R_g, where R₀ and R_g are electrical resistances measured in the synthetic air and target gas, respectively. The gas-sensing measurement setup was previously presented in [110]. As can be noticed, the highest responses were obtained around 250 °C, and therefore this temperature was set as the operating temperature. The NO₂-sensing effect was measured in the 0.4–20 ppm range at a constant operating temperature (Figure 7b) and various RH concentrations (Figure 7c). As can be observed, the sensor reached the maximum response at 10 ppm, and further increasing the NO₂ concentration did not change the response. However, due to the measurement setup limitations, the lowest NO₂ concentration was 0.4 ppm, but it seems that the obtained sensors could detect lower concentrations, and the theoretical limit of detection was around 0.01 ppm. Finally, a multitest was conducted, where constant NO₂ (20 ppm) and RH concentrations (30%, 50%, 70%) were kept to verify the stability. As is shown in Figure 7d, slight changes can be observed (~5%); however, what is interesting is that the electrical resistances decrease, suggesting p-type behavior, contrary to the results presented by Stanoiu et al. [100]. Therefore, additional measurements are needed.

3. Conclusions

The gas sensor industry is constantly expecting novel materials that allow researchers to develop gas sensors with higher 3S parameters, known as sensitivity, selectivity and stability, while stability plays a crucial role in most industrial applications. Therefore, the materials that are characterized by longer stability are chosen as a first choice for gas-sensing layers, such as strontium titanate, barium titanate and barium strontium titanate.

In this paper, the recently published results on the above-mentioned materials for gas-sensing applications are presented and discussed, including the recently obtained results by the authors of NO₂ detection in the automotive application. The BST-Cu sensors exhibited the highest responses around 250 °C and worked well in the 0.4–20 ppm range; however, above 10 ppm, the sensor response achieved a constant value. The gas sensor response increased when relative humidity increased. At the same time, the sensor exhibited good repeatability, proven by the multitest, which confirms the possibility to utilize BST-Cu gas sensors in industrial applications.
