Formation of Aligned α-Si3N4 Microfibers by Plasma Nitridation of Si (110) Substrate Coated with SiO2

by
Chang-Hua Yu
1,*,
Kun-An Chiu
1,
Thi-Hien Do
1,
Li Chang
1,* and
Wei-Chun Chen
2
1
Department of Materials Science and Engineering, National Yang Ming Chiao Tung University, Hsinchu 30010, Taiwan
2
National Applied Research Laboratories, Taiwan Instrument Research Institute, Hsinchu 30010, Taiwan
*
Authors to whom correspondence should be addressed.
Coatings 2021, 11(10), 1251; https://doi.org/10.3390/coatings11101251
Submission received: 18 August 2021 / Revised: 6 October 2021 / Accepted: 7 October 2021 / Published: 14 October 2021
(This article belongs to the Section Ceramic Coatings and Engineering Technology)
Browse Figures
Review Reports Versions Notes

Abstract

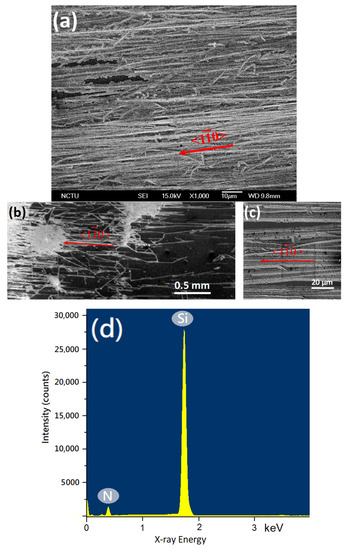

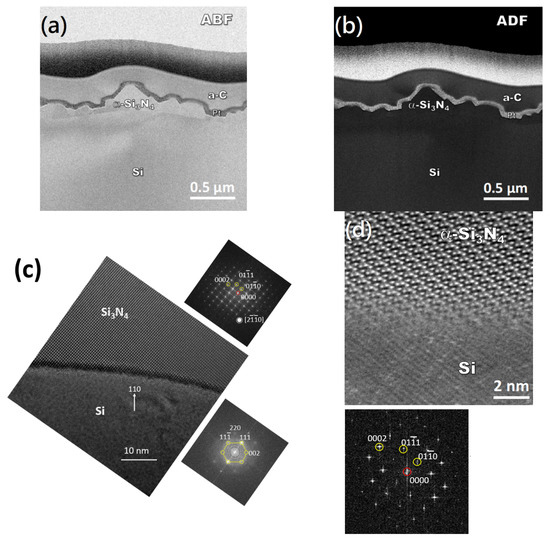

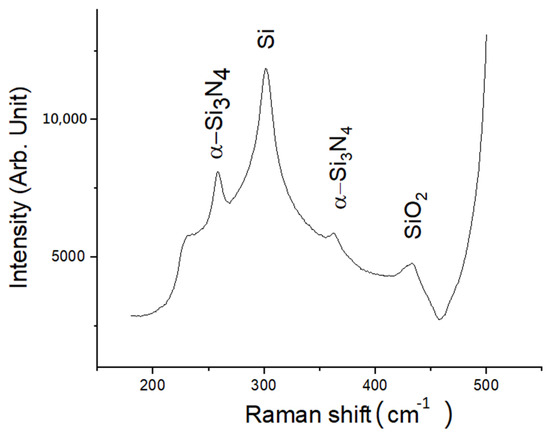

Plasma nitridation of an amorphous SiO2 layer on Si (110) substrate can form well-aligned α-Si3N4 crystallites in fibrous morphology. Nitriding is performed at a temperature in the range of 800–1000 °C by using microwave plasma with a gas mixture of N2 and H2. Raman spectroscopy shows the characteristics of an α-Si3N4 phase without other crystalline nitrides. As shown by scanning electron microscopy, the formed α-Si3N4 microfibers on the Si substrate can be in a dense and straight array nearly along with Si <11¯0>, and can have a length over 2 mm with a diameter in the range of 5–10 μm. Structural characterization of scanning transmission electron microscopy in cross section view reveals that the elongated α-Si3N4 crystallites are formed on the surface of the nitrided SiO2/Si (110) substrate without any interlayers between Si3N4 and Si, and the longitudinal direction of α-Si3N4 appears mainly along <112¯0>, which is approximately parallel to Si <11¯0>.
Keywords: Si3N4; plasma; nitridation; fiber; electron microscopy Si3N4; plasma; nitridation; fiber; electron microscopy
