Open AccessArticle
Nanomaterials 2019, 9(3), 361; https://doi.org/10.3390/nano9030361

Graphene Nanoplatelet-Reinforced Poly(vinylidene fluoride)/High Density Polyethylene Blend-Based Nanocomposites with Enhanced Thermal and Electrical Properties

1
Department of Chemical and Materials Engineering, Chang Gung University, Taoyuan 333, Taiwan
2
Department of General Dentistry, Chang Gung Memorial Hospital, Taoyuan 333, Taiwan
3
Department of Mechanical Engineering, College of Engineering, Kyung Hee University, Yongin 446-701, Korea
*
Authors to whom correspondence should be addressed.
Received: 29 January 2019 / Revised: 21 February 2019 / Accepted: 25 February 2019 / Published: 4 March 2019
(This article belongs to the Special Issue Electronic and Thermal Properties of Graphene)
Full-Text   |   PDF [6290 KB, uploaded 4 March 2019]   |
  |   Review Reports

Abstract

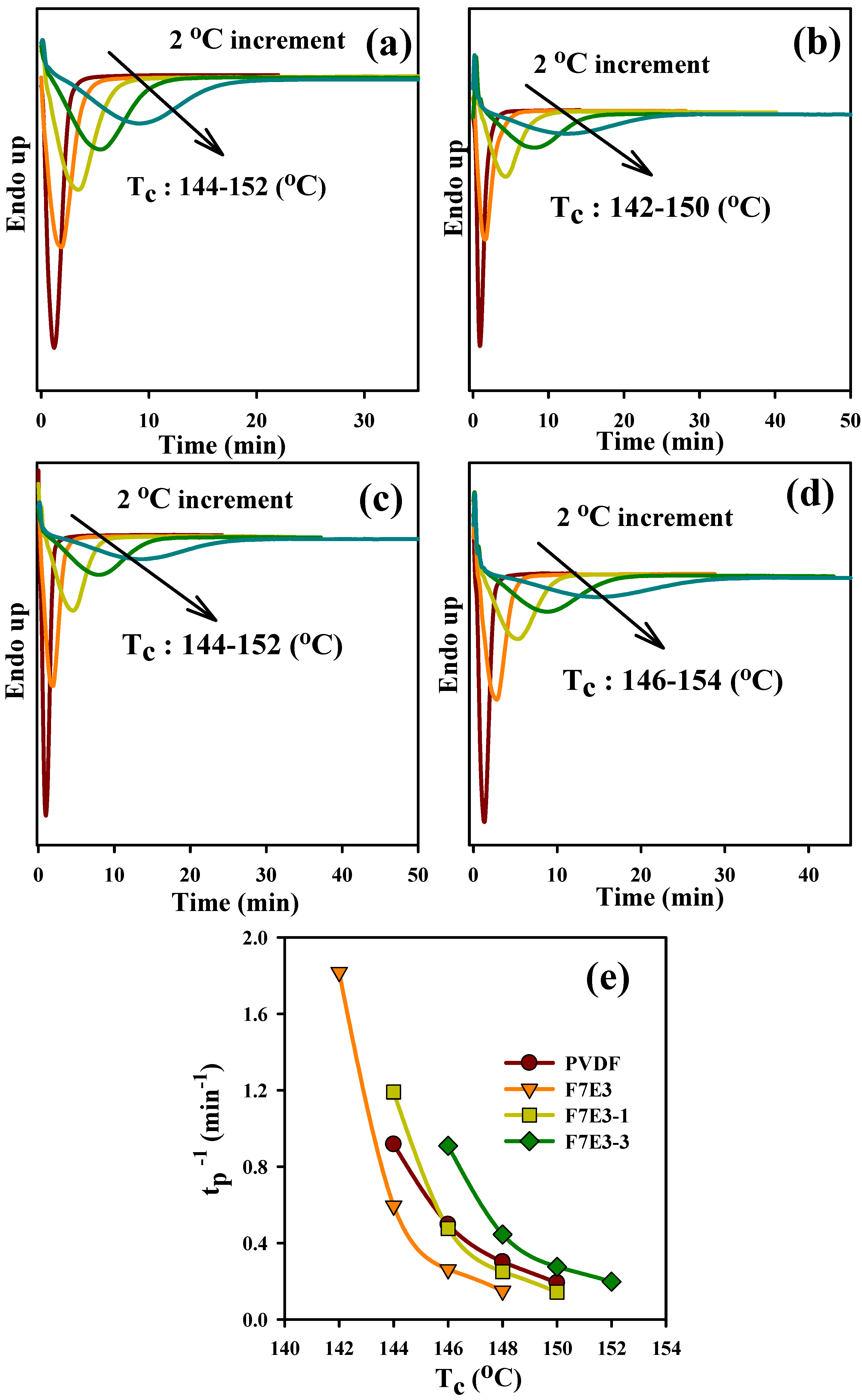

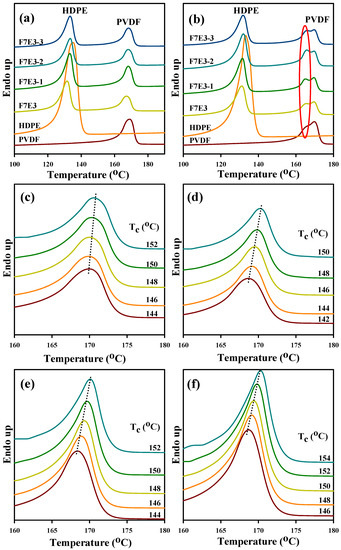

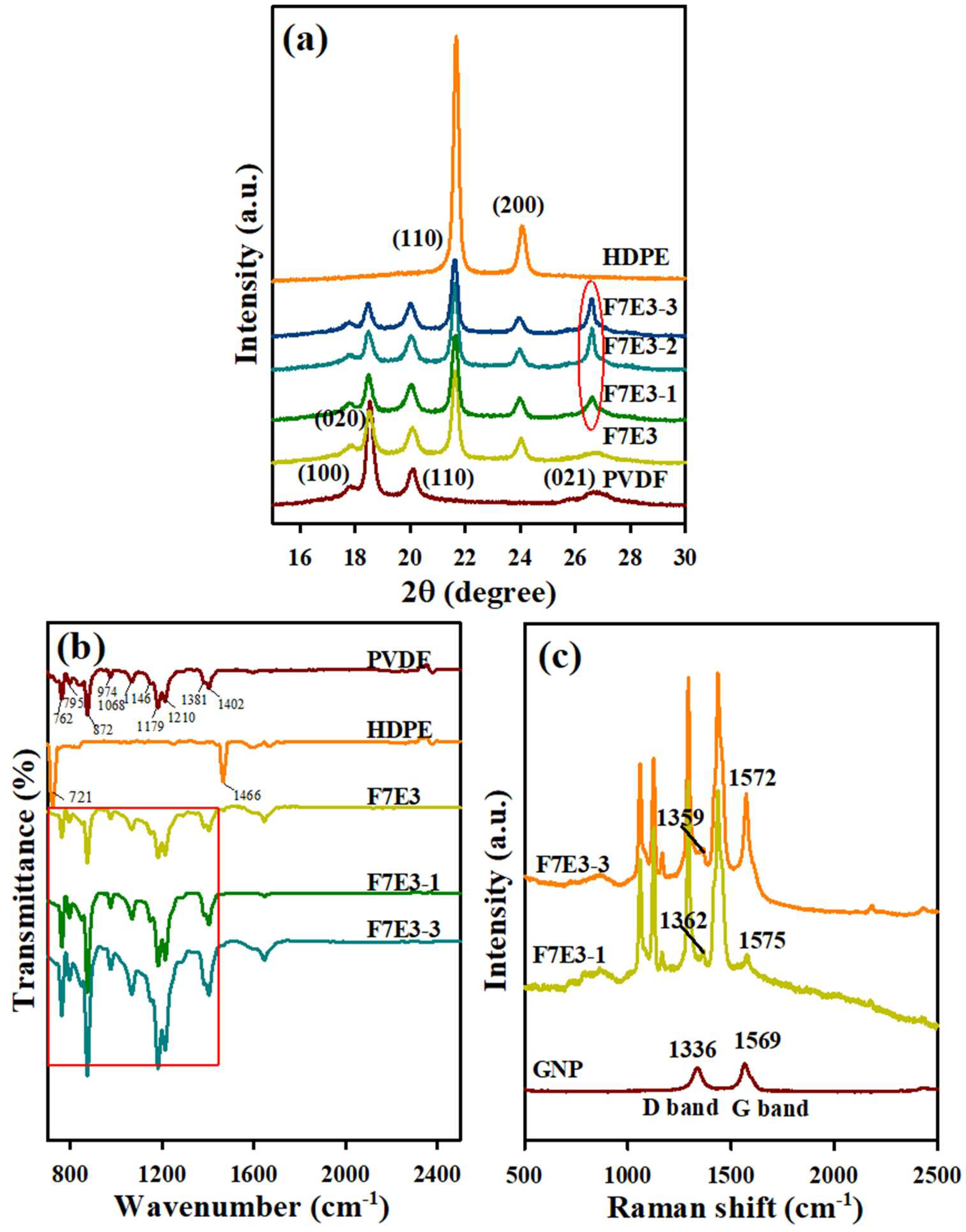

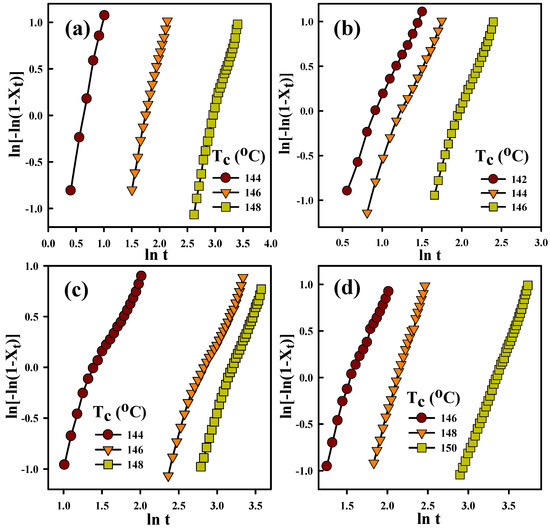

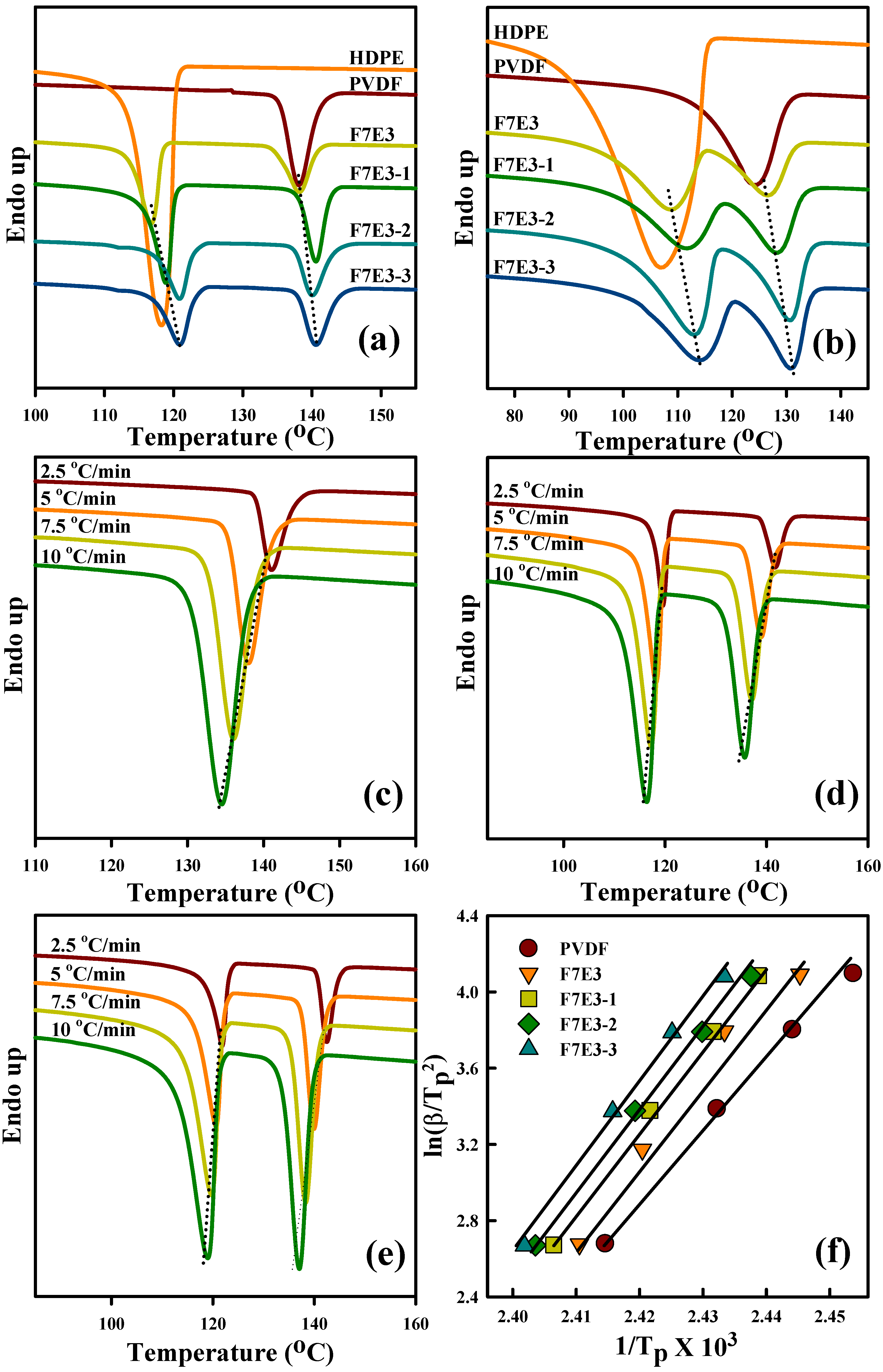

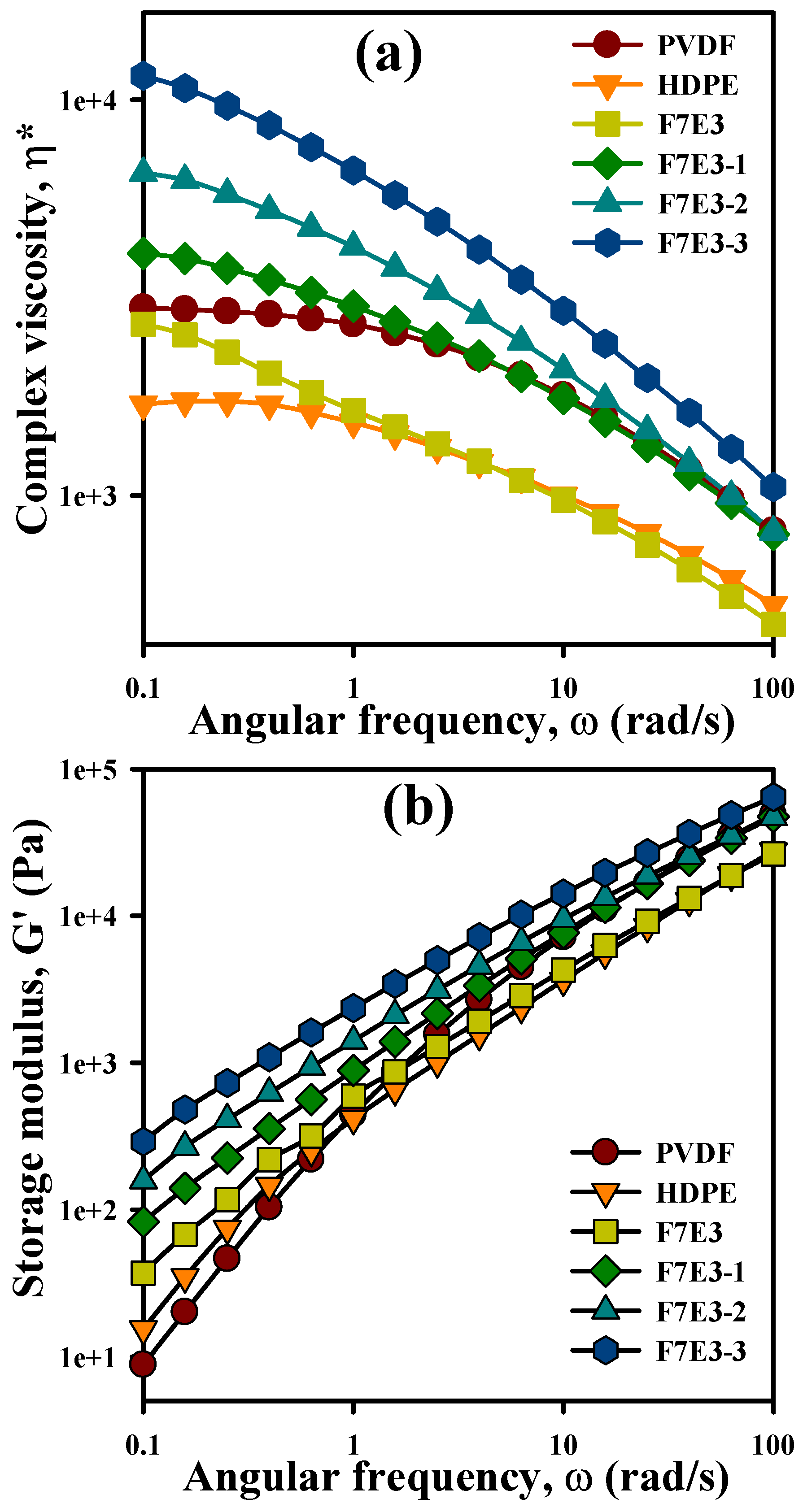

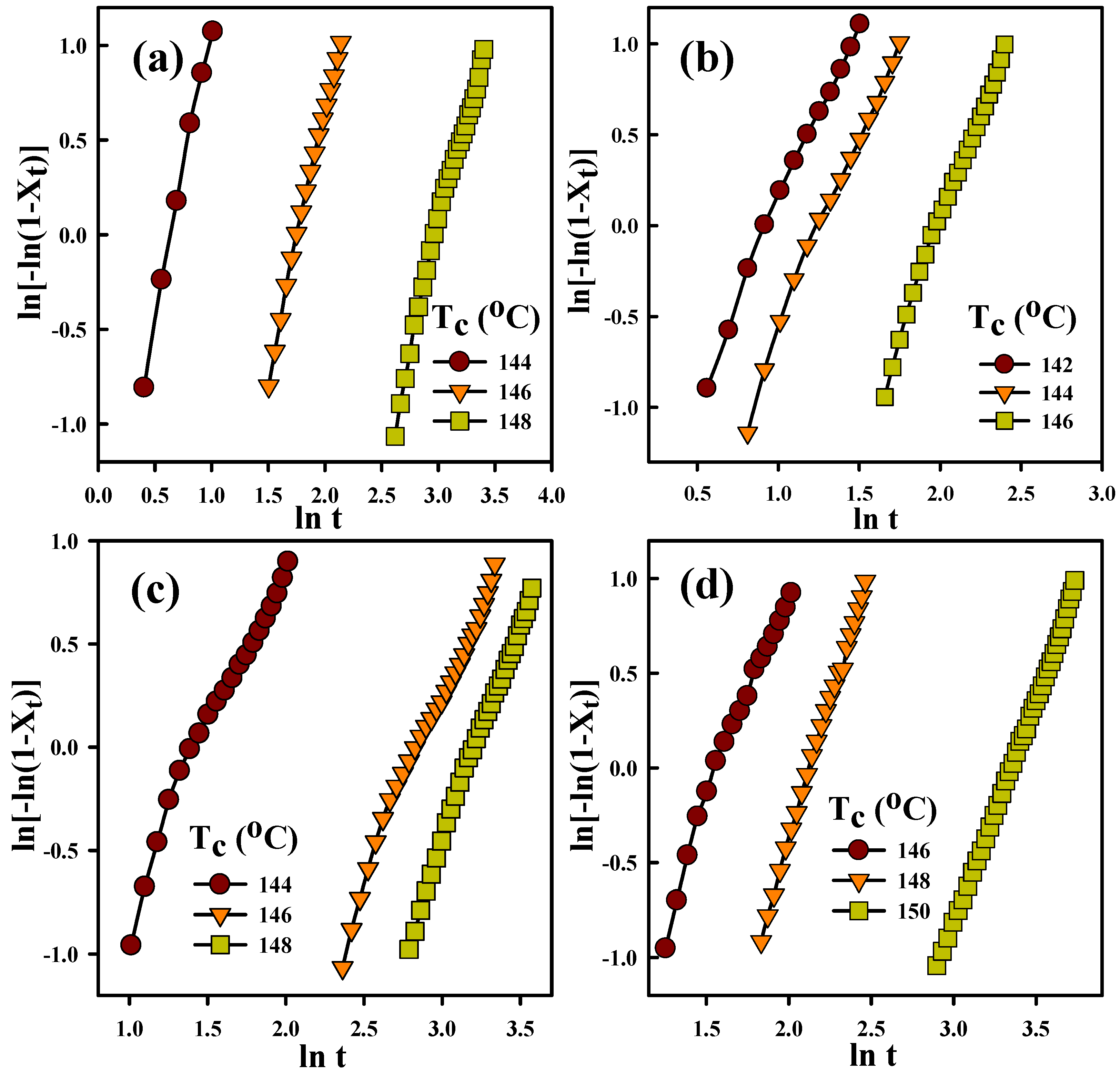

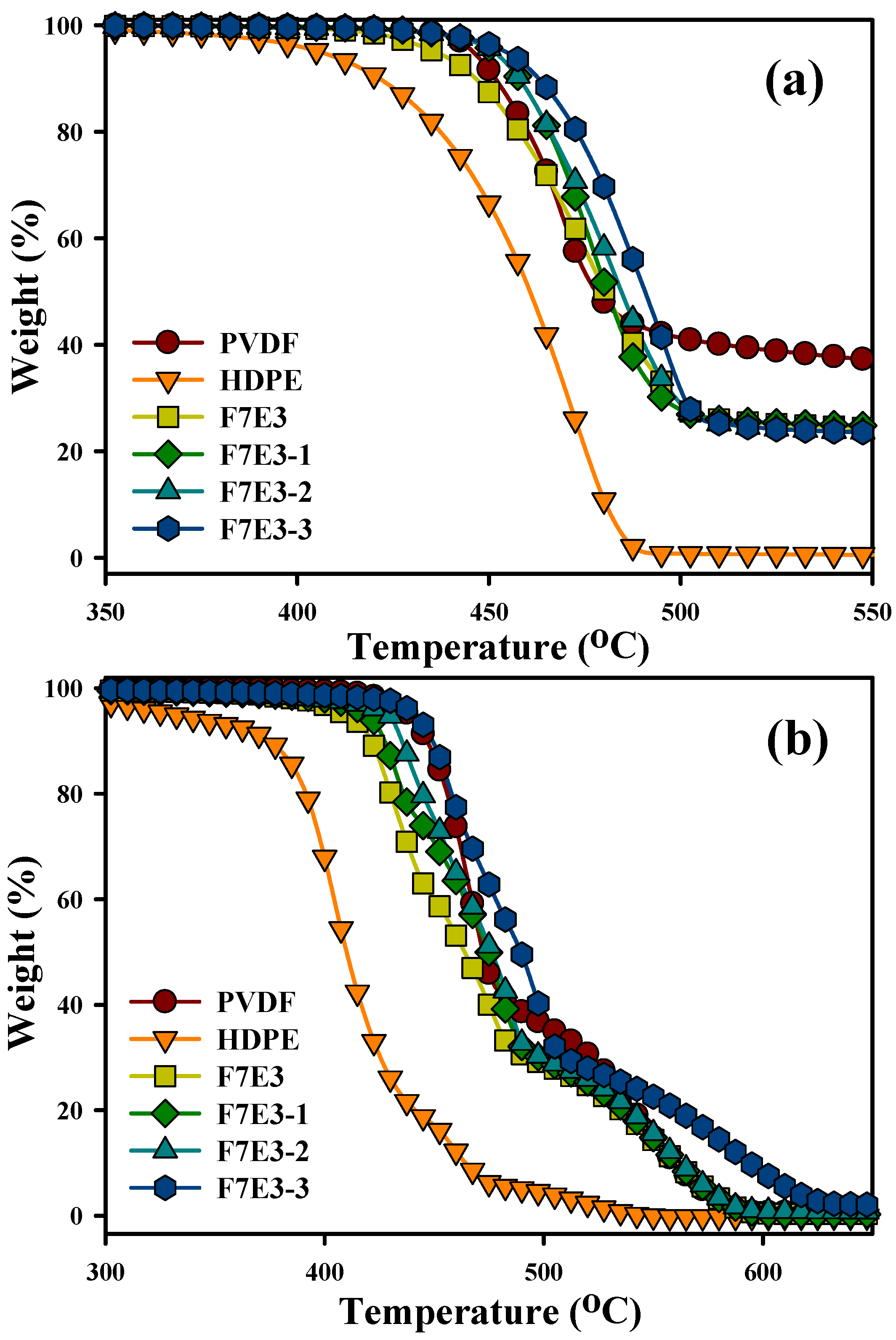

In this study, a graphene nanoplatelet (GNP) was used as a reinforcing filler to prepare poly(vinylidene fluoride) (PVDF)/high density polyethylene (HDPE) blend-based nanocomposites through a melt mixing method. Scanning electron microscopy confirmed that the GNP was mainly distributed within the PVDF matrix phase. X-ray diffraction analysis showed that PVDF and HDPE retained their crystal structure in the blend and composites. Thermogravimetric analysis showed that the addition of GNP enhanced the thermal stability of the blend, which was more evident in a nitrogen environment than in an air environment. Differential scanning calorimetry results showed that GNP facilitated the nucleation of PVDF and HDPE in the composites upon crystallization. The activation energy for non-isothermal crystallization of PVDF increased with increasing GNP loading in the composites. The Avrami n values ranged from 1.9–3.8 for isothermal crystallization of PVDF in different samples. The Young’s and flexural moduli of the blend improved by more than 20% at 2 phr GNP loading in the composites. The measured rheological properties confirmed the formation of a pseudo-network structure of GNP-PVDF in the composites. The electrical resistivity of the blend reduced by three orders at a 3-phr GNP loading. The PVDF/HDPE blend and composites showed interesting application prospects for electromechanical devices and capacitors. View Full-Text
Keywords: PVDF; HDPE; graphene nanoplatelet; nanocomposites; electrical properties; thermal properties PVDF; HDPE; graphene nanoplatelet; nanocomposites; electrical properties; thermal properties
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
