Systematic Review

The Influence of Printing Orientation on the Properties of 3D-Printed Polymeric Provisional Dental Restorations: A Systematic Review and Meta-Analysis

by
Firas K. Alqarawi
Department of Substitutive Dental Sciences, College of Dentistry, Imam Abdulrahman Bin Faisal University, Dammam 31441, Saudi Arabia
J. Funct. Biomater. 2025, 16(8), 278; https://doi.org/10.3390/jfb16080278 (registering DOI)
Submission received: 2 July 2025 / Revised: 19 July 2025 / Accepted: 21 July 2025 / Published: 31 July 2025
(This article belongs to the Special Issue Advances in Restorative Dentistry Materials)

Abstract

Three-dimensional printing is commonly used to fabricate provisional dental restorations. Studies have reported that changes in printing orientation affect the physical and mechanical properties of 3D-printed polymeric provisional restorations; however the findings have been inconsistent. Therefore, this systematic review and meta-analysis aims to analyze the articles evaluating the influence of printing orientation on the physical and mechanical properties of 3D-printed polymeric provisional dental restorations. Recommendations provided by the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines were followed to structure and compose the review. The PICO (Participant, Intervention, Comparison, Outcome) question ordered was: ‘Do 3D-printed provisional dental restorations (P) printed at various orientations (except 0°) (I) exhibit similar physical and mechanical properties (O) when compared to those printed at a 0° orientation (C)?’. An electronic search was conducted on 28 and 29 April 2025, by two independent researchers across four databases (MEDLINE/PubMed, Scopus, Cochrane Library, and Web of Science) to systematically collect relevant articles published up to March 2025. After removing duplicate articles and applying predefined inclusion and exclusion criteria, twenty-one articles were incorporated into this review. Self-designed Performa’s were used to tabulate all relevant information. For the quality analysis, the modified CONSORT scale was utilized. The quantitative analysis was performed on only fifteen out of twenty-one articles. It can be concluded that the printing orientation affects some of the tested properties, which include fracture strength (significantly higher for specimens printed at 0° when compared to 90°), wear resistance (significantly higher for specimens printed at 90° when compared to 0°), microhardness (significantly higher for specimens printed at 90°and 45° when compared to 0°), color stability (high at 0°), and surface roughness (significantly higher for specimens printed at 45° and 90° when compared to 0°). There were varied outcomes in terms of flexural strength and elastic modulus.

1. Introduction

Provisional restorations play a crucial role in fixed dental prosthesis treatment by protecting pulp, maintaining periodontal tissue, and providing function and esthetics [1,2]. The materials used should possess the necessary physical and mechanical properties to prevent failures [3,4]. Technological advancements in the dental field have helped dentists in various stages of treatment, including treatment planning, tooth preparation, and the fabrication of provisional and definitive prostheses. These advancements have improved overall efficiency and enabled the delivery of high-quality treatment to patients [5,6,7,8].
Computer-aided design and computer-aided manufacturing (CAD/CAM) are commonly used in the fabrication of indirect provisional and definitive restorations [9]. Compared to milling, the 3D printing technique involves less material wastage, no wear of milling tools, and facilitates the faster fabrication of the prosthesis. Additionally, 3D printing machines that are lower in cost help reduce the overall cost of the prosthesis [10,11,12].
In 3D printing the photo polymerization of the printed materials in dentistry can be conducted by various methods, which involve stereolithography (SLA) technology-based printers (using a UV laser to photo polymerize), digital light processing (DLP) technology-based printers (using a digital projector screen), and printers using a liquid-crystal display (LCD) as the light source [13,14]. Three-dimensional printing is frequently used to manufacture provisional fixed dental prostheses, maxillofacial prostheses, removable dental prostheses, and definitive fixed dental prostheses [11,15,16,17,18,19]. Studies have reported that 3D-printed provisional dental prostheses have good physical properties, mechanical properties, internal fit, and marginal fit when compared to conventionally fabricated and milled prostheses [20,21].
Three-dimensional printers come with a set of printing parameters that can be altered. Generally, the manufacturer recommends setting these parameters based on the type of 3D-printed resin used. Some of the parameters that the operator can adjust in a 3D printer include printing layer thickness, printing angulation, and the position of an object on the printing platform [22,23,24].
The previously published literature has reported that changing printing factors, such as layer thickness and orientation, can alter the properties of the prosthesis, reduce orienting time, and allow for better positioning, thereby increasing the number of objects on the platform [25,26,27,28].
Anisotropy is the phenomenon where the physical properties of materials differ according to the printing orientation [28]. Various studies have been conducted to assess the influence of printing orientation on the physical and mechanical properties of various dental prosthetic devices, including dental aligners, occlusal devices, removable dental prostheses, fixed dental prostheses, dental ceramics, surgical guides, and denture teeth [25,26,27,28,29,30,31,32]. Some studies have reported a significant effect on the physical and mechanical properties of 3D-printed provisional resins [33,34,35,36,37,38,39], whereas others have reported minimal or no effect [40,41]. Alharabi et al. [34] and Farkas et al. [35] reported that the compressive strength of provisional resins is influenced by printing orientation, with compressive strength higher for specimens printed at 90° compared to those printed at 0°. Contrasting results were reported when fracture resistance was evaluated. Alkhateeb et al. [42] reported the highest fracture resistance for specimens printed at 45°, whereas Aljehani et al. [36] reported the highest fracture resistance for specimens printed at 90°. A study by Queiroz et al. [43] reported the highest microhardness for specimens printed at 45°, followed by those printed at 90° and 0°. Similar results were reported by de Castro et al. [25] for Nanolab 3D resin and Mudhaffer et al. [39] for Nextdent CB MFH resin. For the Cosmos Temp-DLP [25], Dima CB temp [39], and GC temp print [39] resins, the specimens printed at 90° displayed higher microhardnesses, followed by specimens printed at 45 ° and 0°. Lee et al. [33] and Espinar et al. [44] reported that a color change is influenced by print orientation. Lee et al. reported the highest color change with specimens printed at 90°, followed by those printed at 45° and 0°. Contrastingly, the study by de Castro et al. [40] reported that printing orientation has no influence on the color change. Studies by Queiroz et al. [43], de Castro et al. [25], and Mudhaffer et al. [39] reported the effects of printing orientation on microhardness, which also varies according to the type of printing material. Lee et al. [45] and Wan et al. [46] reported contrasting results when they compared the wear volume loss (wear resistance) of the tested 3D-printed specimens. Various studies [25,38,43,47,48,49,50] have reported that flexural strength is also affected by printing orientation, which varies according to the tested materials. However, a study by Espinar et al. [41] reported no influence of printing orientation on the flexural strength of 3D-printed provisional resins. Studies by Nasiry Khanlar et al. [37], de Castro et al. [40], Ortega et al. [51], and de Gois Moreira et al. [49] reported a higher surface roughness for tested materials when printed at 45° compared to those printed at 90° and 0°. However, Queiroz et al. [43] reported the highest surface roughness for specimens printed at 0°. Similarly, contrasting results were reported for microhardness [25,39,43], elastic modulus [41], and tensile strength [35]. The results of these studies are conflicting. Therefore, it is crucial to assess this parameter. There is no known meta-analysis that evaluates the influence of printing orientation on the physical and mechanical properties of 3D-printed provisional dental restorations. The results of this systematic review can guide the selection of the best printing orientation when fabricating 3D-printed provisional dental restorations. The tested null hypothesis is that there is no effect of changing printing orientation on the physical and mechanical properties of 3D-printed provisional polymeric dental restorations.

2. Materials and Methods

The review protocol was registered with the International Prospective Register of Systematic Reviews (Prospero registration no: CRD420251041876). The review was configured and organized as per the recommendations provided by the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) [52].

2.1. Article Selection

The article selection criteria are itemized in Table 1.

2.2. Exposure and Outcome

The exposure in this study was the 3D-printed provisional dental restorations printed at various printing orientations. The outcome was the assessment of their physical and mechanical properties. The focused PICO (Participant, Intervention, Comparison, Outcome) question was: ‘Do 3D-printed provisional dental restorations (P) printed at various orientations (except 0°) (I) exhibit similar physical and mechanical properties (O) when compared to those printed at a 0° orientation (C)?’

2.3. Information Sources, Search Strategy, and Data Extraction

An electronic search was conducted by two independent researchers (F.A. and M.A.A.) across four databases (MEDLINE/PubMed, Scopus, Cochrane Library, and Web of Science) to collect the relevant articles systematically. The search strings used based on the PICO questions were: ‘3D-printed provisional restorations’ AND ‘printing orientations’ AND ‘physical and mechanical properties.’ The article search was conducted on April 28 and 29, 2025, using truncation and Boolean operators. Minor adjustments were applied to the search strings to comply with the requirements of each database (Supplementary Table S1). The search was limited to articles published in the English language up to March 2025. The two researchers removed the duplicate articles and went through the titles and abstracts of the remaining articles to select the appropriate studies. Later, these researchers searched the gray literature and manually reviewed bibliographies and other relevant articles to ensure that no pertinent articles were overlooked. The full texts of the shortlisted studies were reviewed by each researcher individually to select the relevant articles (Figure 1). Any differences between the two researchers related to article selection were discussed and resolved after consultation with a third researcher (H.A.A.). F.A. created data extraction charts to collect all the relevant information (Table 2). Individual tables were used to compile detailed data for each physical and mechanical property tested (Table 3, Table 4, Table 5, Table 6, Table 7, Table 8, Table 9, Table 10, Table 11, Table 12 and Table 13). The information includes the details of the outcomes for the tested property under different printing orientations, the testing machines, the conclusions, and the authors’ suggestions. (Table 3, Table 4, Table 5, Table 6, Table 7, Table 8, Table 9, Table 10, Table 11, Table 12 and Table 13). The extracted data were reviewed and validated by the two researchers (M.A.A. and H.A.A.) to ensure that no relevant information was missed.

2.4. Quality Assessment of Included Studies

A modified CONSORT scale for in vitro studies [54,55] was used to assess the quality of the selected studies. The scale includes fourteen items under different sections of the manuscript (Abstract, Introduction, Methods, Results, Discussion, and Other Information) [54,55] (Supplementary Table S2).

2.5. Quantitative Assessment

Review Manager 5.4.1 was used to perform the quantitative analysis in Non-Cochrane Review mode [56]. The different physical and mechanical properties of provisional restorations printed at different angulations were compared. An inverse variance was used to calculate the mean difference using a random effects model. The mean difference was used because all measurements were in the metric system and uniform. Since the studies were performed in different settings, the random effects model was used. A 95% confidence interval was used to express the results of individual studies and the pooled result. The heterogeneity was measured using the Chi-squared test, with a p-value < 0.05 being considered significant. I2 was also calculated and reported in the results. Separate forest plots were used to compare 0° with 45° and 90°, respectively.

3. Results

3.1. Identification and Screening

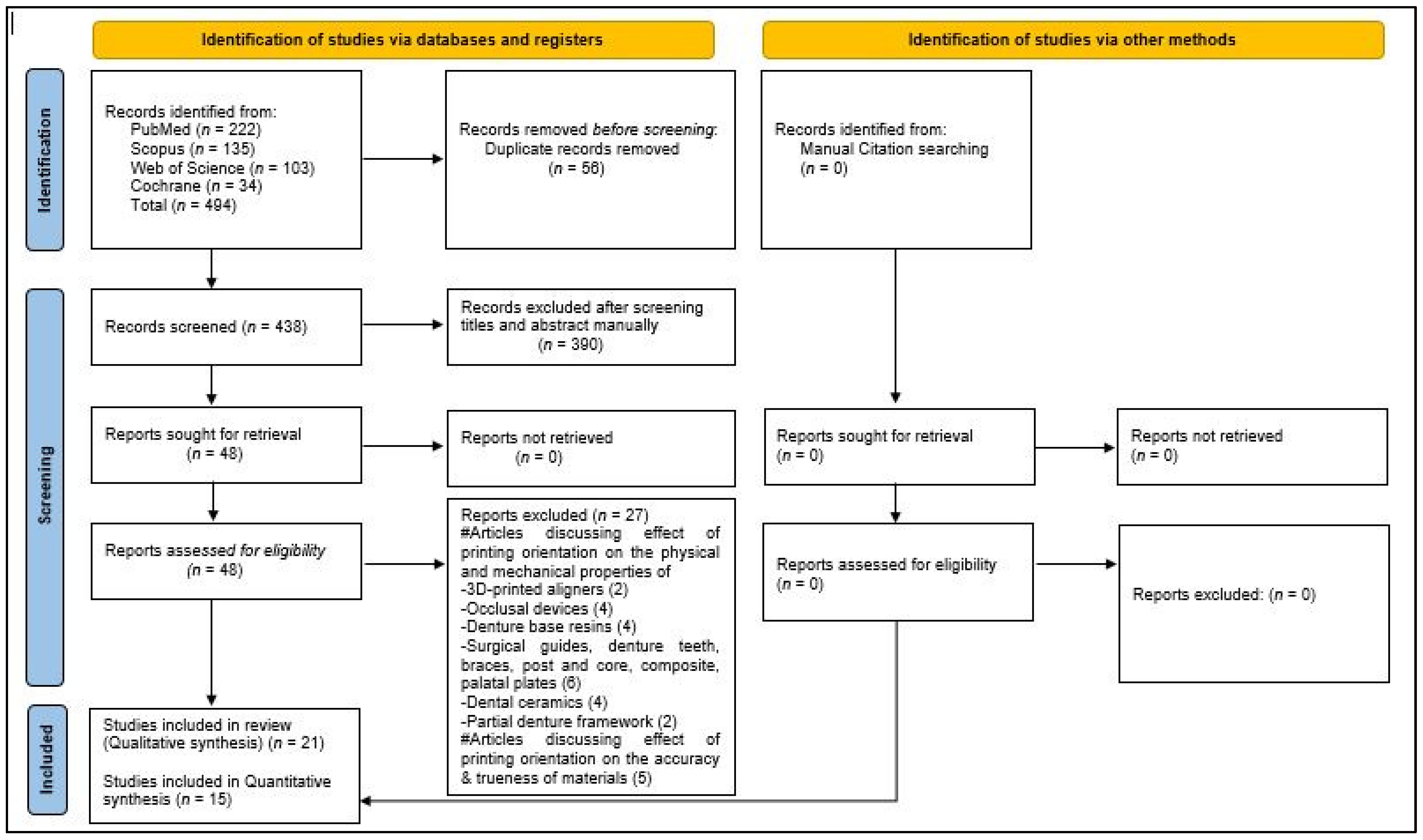

Four hundred ninety-four hits were found after a preliminary electronic search of the four databases (PubMed: 222; Scopus: 135; Web of Science: 103; Cochrane: 34). Of these, 56 titles were duplicates and were subsequently removed. The remaining articles were reviewed, and it was determined that 390 articles did not meet the selection criteria and were thus rejected. The full texts of the remaining 48 articles were reviewed. A manual search of the references of these articles was conducted to identify any additional articles, but none were found. In total, 27 articles were excluded, and of these 22 articles discussed the effect of printing orientation on the physical and mechanical properties of various other materials and devices (3D-printed aligners [29,57], occlusal devices [30,58,59,60], denture base resins [31,61,62,63], surgical guides [64], denture teeth [65], braces [66], post and core [67], composite [68], palatal plates [32], dental ceramics [28,69,70,71], and partial denture frameworks [62,72]. Five articles discussed the influence of printing orientation on the accuracy of the materials [73,74,75,76,77]. Finally, 21 articles were selected for qualitative analysis [25,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,53], of which 15 were considered for a meta-analysis [25,36,37,38,39,40,42,43,44,45,46,47,48,49,50,51] (Figure 1). The PRISMA recommendations were followed to report the results of the review and meta-analysis.

3.2. Quality Assessment of Selected Articles

Twenty-one studies satisfied the selection criteria and were included. Sixty-nine-point two percent of the entries were positively reported. All twenty-one studies reported items 1–5, 10, and 11 (abstract, introduction, intervention, outcome, and statistical method). Twenty studies discussed the limitations (item 12) of the study. Nineteen studies stated the source of funding (Item 13), whereas only eleven studies included information regarding the accessibility of the complete trial protocol (Item 14). None of the studies provided any information related to randomization and blinding (Items 6–9).

3.3. The Characteristics of the Selected Studies

Twenty out of twenty-one studies were published in the last five years (2021–2025) [25,33,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,53], whereas one study was conducted in 2016 [34]. Five studies were conducted in Brazil [25,40,43,49,50], with three each in Saudi Arabia [36,42,53], Spain [41,43,49], and the Republic of Korea [33,45,46]. Additionally, there were two studies each in the United Kingdom [38,39] and Romania [35,47], and one study each in the United States [37], Italy [48], and the Netherlands [34]. Eighteen articles evaluated and discussed only the mechanical properties [25,34,35,36,37,38,39,41,42,43,45,46,47,48,49,50,51,53], one discussed only the physical properties [44], whereas two articles discussed both the physical and mechanical properties [33,40]. In most articles, the tested printing orientations were limited to 0°, 45°, and 90°. Most of the articles tested these properties on specimens of rectangular, cylindrical, or bar-shaped objects. Anatomical crowns were used in five studies [36,42,45,51,53] to test specific properties. For better understanding, separate tables were used to tabulate the results of each tested physical and mechanical property (Table 3, Table 4, Table 5, Table 6, Table 7, Table 8, Table 9, Table 10, Table 11, Table 12 and Table 13).

3.4. Assessment of Strength of Evidence

To evaluate the certainty of the evidence from the included studies, the Grading of Recommendations Assessment Development and Evaluation (GRADE) approach was employed [78]. The five domains were: Inconsistency, Indirectness, Imprecision, Risk of Bias, and Publication Bias. The certainty levels vary between very low, low, moderate, and high. In the present review, the selected studies reported a moderate level of certainty of evidence (Table 14).

3.5. The Results of Studies Investigating the Mechanical and Physical Properties

3.5.1. Microhardness

Three studies analyzed and compared the microhardness of various provisional resins printed at different orientations [25,39,43]. A total of eight provisional resin materials were evaluated. A study by Queiroz et al. [43] reported the highest microhardness for specimens printed at 45°, followed by those printed at 90° and 0°. Similar results were reported by de Castro et al. [25] for Nanolab 3D resin and Mudhaffer et al. [39] for Nextdent CB MFH resin. For the Cosmos Temp-DLP [25], Dima CB temp [39], and GC temp print [39] resins, the specimens printed at 90° displayed higher microhardness, followed by specimens printed at 45 ° and 0°. All the tested 3D-printed resins (irrespective of the printing angulation) displayed lower microhardness than milled provisional resins. The data for the meta-analysis comparing microhardness was made available by three Queiroz et al. [43] Microhardness was compared among provisional restorations with different printing orientations (90° and 0 °). Three studies provided eight datasets for meta-analysis. The pooled results of 86 samples showed a mean difference of 0.68 MPa with a confidence interval of 0.39 to 1.75. There was a significant difference in the microhardness of samples at different printing orientations (p = 0.01). There was a high heterogeneity, denoted by the I-square, which was 61%. However, the heterogeneity was not statistically significant, with a p-value of 0.21 (Figure 2).
Microhardness was compared among provisional restorations with different printing orientations, 45° and 0°. Three studies provided eight datasets for meta-analysis. The pooled results of 86 samples showed a mean difference of 0.28 MPa with a confidence interval of 1.19 to 1.75. There was a significant difference in the microhardness of samples at different printing orientations (p < 0.00001). There was a high heterogeneity, denoted by the I-square, which was 83%. However, the heterogeneity was not statistically significant, with a p-value of 0.71 (Figure 3).

3.5.2. Fracture Resistance

Two articles compared the fracture resistance of various provisional resins printed at different orientations [36,42]. A total of three provisional resin materials were evaluated. A study by Alkhateeb et al. [46] reported the highest fracture resistance for specimens printed at 45°, followed by those printed at 0° and 90°. Meanwhile, a study by Aljehani et al. [36] reported the highest fracture resistance for specimens printed at 90°, followed by those printed at 0° and 45°.
Fracture strength was compared among provisional restorations with different printing orientations, 0° and 45°. Two studies provided three datasets for meta-analysis. The pooled results of 30 samples showed a mean difference of 69.66 Newtons with a confidence interval of 162.16 to 22.85. There was no significant difference in the fracture strength of samples at different printing orientations (p = 0.14). There was a high heterogeneity, denoted by the I-square, which was 48%. However, the heterogeneity was not statistically significant, with a p-value of 0.14 (Figure 4).
Fracture strength was compared among provisional restorations with different printing orientations, 0° and 90°. Two studies provided three datasets for meta-analysis. The pooled results of 30 samples showed a mean difference of 176.02 Newtons with a confidence interval of 440.16 to 88.11. There was a significant difference in the fracture strength of samples at different printing orientations (p < 0.00001). There was a high heterogeneity, denoted by the I-square, which was 93%. However, the heterogeneity was not statistically significant, with a p-value of 0.19 (Figure 5).

3.5.3. Surface Roughness

Six studies analyzed and compared the surface roughness of various provisional resins printed at different orientations [37,40,43,49,51,53]. A study by Queiroz et al. [43] reported the highest surface roughness for specimens printed at 0°, followed by those printed at 90° and 45°. Four materials reported higher surface roughnesses when printed at 45° followed by 90° and 0° [37,40,49,51]. For the two materials, Cosmos Temp SLA and Cosmos Temp DLP [40], surface roughness was higher for specimens printed at 90°, followed by 45° and 0°.
Five studies provided data for the meta-analysis to compare the microhardness of specimens printed at different orientations. Surface roughness was compared among provisional restorations with different printing orientations, 0° and 45°. Five studies provided eight datasets for meta-analysis. The pooled results of 110 samples showed a mean difference of 0.37 µm with a confidence interval of 0.27 to 0.46. There was a significant difference in the surface roughness of samples at different printing orientations (p < 0.00001). There was a high heterogeneity, denoted by the I-square, which was 98%. However, the heterogeneity was statistically significant, with a p-value of <0.00001. (Figure 6).
Five studies provided data for the meta-analysis to compare the microhardness of specimens printed at different orientations. Surface roughness was compared among provisional restorations with different printing orientations, 0° and 90°. Five studies provided eight datasets for meta-analysis. The pooled results of 110 samples showed a mean difference of 0.12 µm with a confidence interval of 0.04 to 0.20. There was a significant difference in the surface roughness of samples at different printing orientations (p < 0.00001). There was a high heterogeneity, denoted by the I-square, which was 98%. However, the heterogeneity was statistically significant, with a p-value of <0.004 (Figure 7).

3.5.4. Wear Resistance/Wear Volume Loss

Two studies analyzed and compared the wear volume loss of various provisional resins printed at different orientations [45,46]. Lee et al. [45] reported the highest wear volume loss for samples printed at 90°, followed by those printed at 45° and 0°. Whereas Wan et al. [46] reported the highest wear volume loss for samples printed at 0°, followed by those printed at 90° and 45°.
Two studies provided data for the meta-analysis to compare the wear volume loss of specimens printed at different orientations. Wear volume loss was compared among provisional restorations with different printing orientations, 0° and 45°. Two studies provided two datasets for meta-analysis. The pooled results of 20 samples showed a mean difference of 0.17 mm3 with a confidence interval of 0.57 to 0.22 mm3. There was no significant difference in wear volume loss between samples at different printing orientations (p = 0.12). There was a high heterogeneity, denoted by the I-square, which was 60%; however, the heterogeneity was statistically non-significant (p = 0.39) (Figure 8).
Two studies contributed to the data for the meta-analysis comparing the wear volume loss of specimens printed at various orientations. Wear volume loss was compared among provisional restorations with different printing orientations, 0° and 90°. Two studies provided two datasets for meta-analysis. The pooled results of 20 samples showed a mean difference of 0.15 mm3 with a confidence interval of 0.49 to 0.80. There was a significant difference in the wear volume loss of samples at different printing orientations (p = 0.01). There was a high heterogeneity, denoted by the I-square, which was 85%. However, the heterogeneity was statistically non-significant (p = 0.12) (Figure 9).

3.5.5. Flexural Strength

Seven studies analyzed and compared the flexural strength of various provisional resins printed at different orientations [25,38,43,47,48,49,50]. Different materials reported varied results related to the effect of printing orientation on flexural strength.
Five studies contributed to the data for the meta-analysis comparing the flexural strength of specimens printed at different orientations.
Flexural strength was compared among provisional restorations with different printing orientations, 0° and 45°. Five studies provided 14 datasets for meta-analysis. The pooled results of 135 samples showed a mean difference of 1.67 Newtons with a confidence interval of 2.67 to 6. There was a significant difference in the flexural strength of samples at different printing orientations (p < 0.00001). There was a high heterogeneity, denoted by the I-square, which was 87%. However, the heterogeneity was not statistically significant, with a p-value of 0.45 (Figure 10).
Flexural strength was compared among provisional restorations with different printing orientations, 0° and 90°. Five studies provided 14 datasets for meta-analysis. The pooled results of 135 samples showed a mean difference of 3.79 Newtons with a confidence interval of 1.68 to 9.26. There was a significant difference in the flexural strength of samples at different printing orientations (p < 0.00001). There was a high heterogeneity, denoted by the I-square, which was 93%. However, the heterogeneity was not statistically significant, with a p-value of 0.17 (Figure 11).

3.5.6. Color Change

Three studies analyzed and compared the change in color of provisional resins printed at different orientations [33,40,44]. Two studies reported that color change is influenced by print orientation [33,44], whereas one study [40] reported that printing orientation has no influence on color change. Lee et al. [33] reported that the highest color change was observed in specimens printed at 90°, followed by those printed at 45° and 0°.

3.5.7. Tensile Strength, Compressive Strength, and Elastic Modulus Results

One study analyzed and compared the tensile strength of provisional resins printed at different orientations [35]. The study reported that tensile strength is influenced by print orientation. When printed at a 50 μm layer thickness, the highest tensile strength was reported for specimens printed at 0°, followed by those printed at 90° and 45°. Whereas, when printed at a 100 μm layer thickness, the highest tensile strength was reported for specimens printed at 0°, followed by those printed at 45° and 90°.
One study analyzed and compared the elastic modulus of four provisional resins printed at different orientations [41]. The study reported that the elastic modulus is not significantly influenced by print orientation. For Detax Freeprint temp and Formlabs Temporary CB, the elastic modulus was higher when printed at 90°, followed by 0°. Whereas, for GCT-GC, the elastic modulus was higher when printed at 0°, followed by 90°.
Two studies analyzed and compared the compressive strength of provisional resins printed at different orientations [34,35]. The studies reported that compressive strength is influenced by print orientation. For both studies, the compressive strength was reported to be higher for specimens printed at 90° compared to those printed at 0°.

4. Discussion

The present systematic review and meta-analysis included all available studies that evaluated and compared the physical and mechanical properties of 3D-printed provisional restorative materials printed at different orientations. The PRISMA recommendations were followed to configure and organize this section of the review and meta-analysis. A total of twenty-one research articles were included in this study [25,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,53]. The overall findings of the present review suggest that printing orientations influence the physical and mechanical properties of 3D-printed provisional restorative materials. The extent of the variation varies according to the type of material and the tested property. Therefore, the tested null hypothesis was rejected.
Any provisional fixed dental prosthesis present in the oral cavity must withstand a variety of forces that may lead to its failure [79,80]. Thus, it is vital to fabricate these prostheses in a manner that meets the minimum required standards to resist distortion and subsequent failure under multiple oral forces. A review and meta-analysis by Jain et al. [20] reported that 3D-printed provisional crowns and fixed dental prosthesis are acceptable alternatives to milled and conventional provisional materials and exhibit superior mechanical but inferior physical properties when compared to milled and conventional provisional materials. The mechanical and physical properties discussed in the present review and meta-analysis are fracture strength, tensile strength, compressive strength, microhardness, surface roughness, wear resistance, flexural strength, elastic modulus, and color stability.
Alkhateeb et al. [42] reported higher fracture strengths for specimens printed at 0° and 45°. In contrast, Aljehani et al. [36] reported contrasting results. Similar findings were reported by Turksayar et al. [81]. The higher fracture strength observed in the specimens printed at 0° could be related to the load direction with respect to the printing layer. When the load was applied to specimens printed at 90°, the splitting of a few specimens along the printing layer direction was observed due to poor interlayer bonding compared to bonding within the layer [42,81,82].
When microhardness was evaluated, Queiroz et al. [48], Mudhaffer et al. [39], and de Castro et al. [25] reported no significant effect of printing orientation on microhardness. This lack of an effect was attributed to the homogeneity of 3D-printed specimens [25] or the same polymerization process of the groups, as the light application that occurs during printing layers is not influenced by printing orientation [43]. Alaqeel et al. [83] reported a lower hardness of occlusal splints printed at an orientation of 0° compared to a 90° orientation. They attributed this to the presence of micropores in the 0° print orientation specimens as observed in SEM images.
Studies reporting the effect of printing orientation on flexural strength have varied outcomes. Durban et al. [47] and Queiroz et al. [43] reported a higher flexural strength for specimens printed at 0°. Contrary to this, Mudhaffer et al. [38], Espinar et al. [41], and Kaiahara et al. [50] reported higher flexural strengths for specimens printed at 90°. Studies by Casucci et al. [48] and de Castro et al. [25], which involved different resin materials, reported varied results depending on the material used. Lower flexural strengths for 90° printed specimens were attributed to the direction of the load being parallel to the printing layer, which may lead to the splitting of the layers due to weaker strength between successive layers compared to that within individual layers [9,34,38,84]. Whereas, higher flexural strengths for 90° printed specimens were attributed to strong adhesion between layers, making strength differences negligible [15,23]; different degrees of conversion during polymerization [15,38]; different light exposures influencing the degree of conversion [15,38]; differences in the filler content of different tested materials, as higher filler contents improve mechanical properties [85]; and to differences in curing devices and curing times for each tested material [38,86,87].
Lee et al. [45] and Wan et al. [46] stated that specimens printed at a 45° angle have the highest wear resistance. However, Lee et al. [45] reported higher wear resistances for 0° printed specimens, whereas Wan et al. [46] reported higher wear resistances for 90° printed specimens. The higher wear resistances of specimens printed at 0° and 45° were correlated with weak interlayer bonds [45,88]. They suggested that a reduction in printing angle causes a reduction in the wear. Wan et al. [46] related the higher wear resistance of 45° printed specimens to their stepwise surface pattern and their microstructure. They also reported that there is no significant difference in the wear resistance between resins printed with layer thicknesses of 50 and 100 µm.
Khanlar et al. [37], de Gois Moreira et al. [49], Ortega et al. [51], and de Castro et al. [40] described the higher surface roughness of resins printed at 45° compared to those printed at 90° or 0°. De Castro et al. [40] tested four different 3D printing resins and reported various results. Most studies have reported that surface roughness is affected by changes in printing orientation. The high surface roughness of specimens printed at a 45° printing orientation may be due to stepwise linking between layers, where these step edges between layers induce a high surface roughness. [9,37]. Khanlar et al. [37] reported the lowest surface roughness for specimens printed at 0°. Revilla-Leon et al. [89] reported the least surface roughness for silicone aligners printed at 0°, followed by 90° and 45°. Ortega NM et al. [51] reported the lowest surface roughness for specimens printed at a 90° angle. Other factors that can affect surface roughness values include the type of resin, the filler content, the type of printer, the printing technology, the printing layer thickness, and the post-processing process [12,51,90].
Three studies evaluated the effect of printing orientation on the color stability of provisional resins. One study reported that printing orientation does not influence color change [40], whereas two studies [33,44] reported that printing orientation affects color stability. Lee et al. [33] reported the maximum color change in specimens printed at 90°, followed by 45° and 0°. They also reported that color stability is affected by layer thickness, with specimens printed at 100 µm exhibiting less color change than those printed at 25 µm. These findings could be attributed to differences in wettability, the contact angle of a liquid, the dissolution of components of the resins, or differences in the degree of conversion across the thickness of the specimens [40,44,91].

Strengths and Limitations

In this review, all articles discussing the effect of printing orientation on 3D-printed provisional resin materials were reviewed and subsequently selected based on predefined criteria. The detailed and comprehensive search strategy, along with unbiased assessments of the articles by the reviewers, are the main strengths of this review. The author proposes that further in vivo studies should be performed with larger specimen numbers to facilitate better evaluation under clinical scenarios, along with the use of standardized techniques for specimen fabrication and testing to reduce variability, and the presentation of results in both graphical and tabular forms for easy data extraction by readers [92]. Limitations include the high risk of bias and high data variability in the studies included. The use of different types of resins, printing machines, technologies, and specimen fabrication techniques increased the variability. Another limitation is the heterogeneity of the testing parameters across the included in vitro studies. Authors should follow standardized protocols established by the American Dental Association (ADA) or the International Organization for Standardization (ISO) for the fabrication and testing of specimens, as this will enhance the generalizability of the results. Additionally, whenever feasible, authors should report the results in both tabular and graphical form for the ease of use for further research. High heterogeneity was observed in most meta-analyses, and the majority of the pooled estimates yielded inconclusive results. In the present review, the included studies are predominantly in vitro in nature, which may not simulate the actual oral conditions and thus may not accurately predict clinical performance, and may limit the applicability of the results to clinical settings. More in vivo studies should be conducted to guide dentists and dental technicians in developing protocols and setting parameters for the printing of provisional resin materials to achieve the best clinical outcomes. The present review focused only on physical and mechanical properties. Other parameters, such as internal adaptation, marginal fit, accuracy, and trueness, which are important in material selection, should also be studied in further systematic reviews.

5. Conclusions

Within the limitations of this review and meta-analysis, the following conclusions can be drawn: Printing orientation affects some of the tested properties, which include fracture strength (significantly higher for specimens printed at 0° when compared to 90°), wear resistance (significantly higher for specimens printed at 90° when compared to 0°), microhardness (significantly higher for specimens printed at 90° and 45° when compared to 0°), color stability (high at 0°), and surface roughness (significantly higher for specimens printed at 45° and 90° when compared to 0°). There were varied outcomes in terms of flexural strength and elastic modulus. Further in vivo studies should be conducted to explore the relationship between printing orientation and the properties of provisional resins, which can help in the development of protocols and the setting of parameters for the best clinical outcomes. Researchers should adhere to strict blinding protocols in their studies to minimize bias and enhance quality.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jfb16080278/s1, Table S1: Search terms and strategy for the electronic databases; Table S2: Quality analyses results of the included studies.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

The author would like to thank Maryam Moamen A. Abdalla (M.A.A.) and Hai-dar Ali Alalawi (H.A.A.) for their help in the screening and selection of the reviewed articles.

Conflicts of Interest

The author declares no conflicts of interest.

References

  1. Gratton, D.G.; Aquilino, S.A. Interim restorations. Dent. Clin. N. Am. 2004, 48, 487–497. [Google Scholar] [CrossRef]
  2. Wassell, R.W.; St George, G.; Ingledew, R.P.; Steele, J.G. Crowns and other extra-coronal restorations: Provisional restorations. Br. Dent. J. 2002, 192, 619–630. [Google Scholar] [CrossRef] [PubMed]
  3. Lodding, D.W. Long-term esthetic provisional restorations in dentistry. Curr. Opin. Cosmet. Dent. 1997, 4, 16–21. [Google Scholar]
  4. Trushkowsky, R.D. Fabrication of a fixed provisional restoration utilizing a light-curing acrylic resin. Quintessence Int. 1992, 23, 415–419. [Google Scholar]
  5. Bidra, A.S.; Taylor, T.D.; Agar, J.R. Computer-aided technology for fabricating complete dentures: Systematic review of historical background, current status, and future perspectives. J. Prosthet. Dent. 2013, 109, 361–366. [Google Scholar] [CrossRef]
  6. Watanabe, H.; Fellows, C.; An, H. Digital Technologies for Restorative Dentistry. Dent. Clin. N. Am. 2022, 66, 567–590. [Google Scholar] [CrossRef]
  7. Eggmann, F.; Blatz, M.B. Recent Advances in Intraoral Scanners. J. Dent. Res. 2024, 103, 1349–1357. [Google Scholar] [CrossRef]
  8. Jain, S.; Sayed, M.E.; Ibraheem, W.I.; Ageeli, A.A.; Gandhi, S.; Jokhadar, H.F.; AlResayes, S.S.; Alqarni, H.; Alshehri, A.H.; Huthan, H.M.; et al. Accuracy Comparison between Robot-Assisted Dental Implant Placement and Static/Dynamic Computer-Assisted Implant Surgery: A Systematic Review and Meta-Analysis of In Vitro Studies. Medicina 2024, 60, 11. [Google Scholar] [CrossRef] [PubMed]
  9. Shim, J.S.; Kim, J.; Jeong, S.H.; Choi, Y.J.; Ryu, J.J. Printing accuracy, mechanical properties, surface characteristics, and microbial adhesion of 3D-printed resins with various printing orientations. J. Prosthet. Dent. 2020, 124, 468–475. [Google Scholar] [CrossRef] [PubMed]
  10. Beuer, F.; Schweiger, J.; Edelhoff, D. Digital dentistry: An overview of recent developments for CAD/CAM generated restorations. Br. Dent. J. 2008, 204, 505–511. [Google Scholar] [CrossRef]
  11. Kessler, A.; Hickel, R.; Reymus, M. 3D Printing in dentistry-state of the art. Oper. Dent. 2020, 45, 30–40. [Google Scholar] [CrossRef]
  12. Piedra-Cascón, W.; Krishnamurthy, V.R.; Att, W.; Revilla-León, M. 3D printing parameters, supporting structures, slicing, and post-processing procedures of vat-polymerization additive manufacturing technologies: A narrative review. J. Dent. 2021, 109, 103630. [Google Scholar] [CrossRef]
  13. Methani, M.M.; Cesar, P.F.; de Paula Miranda, R.B.; Susana, M.; Mutlu, O.; Marta, R.-L. Additive Manufacturing in Dentistry: Current Technologies, Clinical Applications, and Limitations. Curr. Oral Health Rep. 2020, 7, 327–334. [Google Scholar] [CrossRef]
  14. Siripongpreda, T.; Hoven, V.P.; Narupai, B.; Rodthongku, N. Emerging 3D printing based on polymers and nanomaterial additives: Enhancement of properties and potential applications. Eur. Polym. J. 2023, 184, 111806. [Google Scholar] [CrossRef]
  15. Altarazi, A.; Haider, J.; Alhotan, A.; Silikas, N.; Devlin, H. Assessing the physical and mechanical properties of 3D printed acrylic material for denture base application. Dent. Mater. 2022, 38, 1841–1854. [Google Scholar] [CrossRef]
  16. Goodacre, B.J.; Goodacre, C.J. Additive manufacturing for complete denture fabrication: A narrative review. J. Prosthodont. 2022, 31, 47–51. [Google Scholar] [CrossRef]
  17. Prpic, V.; Spehar, F.; Stajdohar, D.; Bjelica, R.; Cimic, S.; Par, M. Mechanical Properties of 3D-Printed Occlusal Splint Materials. Dent. J. 2023, 11, 199. [Google Scholar] [CrossRef] [PubMed]
  18. Atria, P.J.; Bordin, D.; Marti, F.; Nayak, V.V.; Conejo, J.; Benalcázar Jalkh, E.; Witek, L.; Sampaio, C.S. 3D-printed resins for provisional dental restorations: Comparison of mechanical and biological properties. J. Esthet. Restor. Dent. 2022, 34, 804–815. [Google Scholar] [CrossRef]
  19. Revilla-León, M.; Supaphakorn, A.; Barmak, A.B.; Rutkunas, V.; Kois, J.C. Influence of print orientation on the intaglio surface accuracy (trueness and precision) of tilting stereolithography definitive resin-ceramic crowns. J. Prosthet Dent. 2025, 133, 246–251. [Google Scholar] [CrossRef] [PubMed]
  20. Jain, S.; Sayed, M.E.; Shetty, M.; Alqahtani, S.M.; Al Wadei, M.H.D.; Gupta, S.G.; Othman, A.A.A.; Alshehri, A.H.; Alqarni, H.; Mobarki, A.H.; et al. Physical and Mechanical Properties of 3D-Printed Provisional Crowns and Fixed Dental Prosthesis Resins Compared to CAD/CAM Milled and Conventional Provisional Resins: A Systematic Review and Meta-Analysis. Polymers 2022, 14, 2691. [Google Scholar] [CrossRef]
  21. Al Wadei, M.H.D.; Sayed, M.E.; Jain, S.; Aggarwal, A.; Alqarni, H.; Gupta, S.G.; Alqahtani, S.M.; Alahmari, N.M.; Alshehri, A.H.; Jain, M.; et al. Marginal Adaptation and Internal Fit of 3D-Printed Provisional Crowns and Fixed Dental Prosthesis Resins Compared to CAD/CAM-Milled and Conventional Provisional Resins: A Systematic Review and Meta-Analysis. Coatings 2022, 12, 1777. [Google Scholar] [CrossRef]
  22. Revilla-León, M.; Meyers, M.J.; Zandinejad, A.; Özcan, M. A review on chemical composition, mechanical properties, and manufacturing work flow of additively manufactured current polymers for interim dental restorations. J. Esthet. Restor. Dent. 2019, 31, 51–57. [Google Scholar] [CrossRef] [PubMed]
  23. Unkovskiy, A.; Bui, P.H.; Schille, C.; Geis-Gerstorfer, J.; Huettig, F.; Spintzyk, S. Objects build orientation, positioning, and curing influence dimensional accuracy and flexural properties of stereolithographically printed resin. Dent. Mater. 2018, 34, e324–e333. [Google Scholar] [CrossRef]
  24. Kessler, A.; Hickel, R.; Ilie, N. In vitro investigation of the influence of printing direction on the flexural strength, flexural modulus and fractographic analysis of 3D-printed temporary materials. Dent. Mater. J. 2021, 40, 641–649. [Google Scholar] [CrossRef]
  25. de Castro, E.F.; Nima, G.; Rueggeberg, F.A.; Giannini, M. Effect of build orientation in accuracy, flexural modulus, flexural strength, and microhardness of 3D-Printed resins for provisional restorations. J. Mech. Behav. Biomed. Mater. 2022, 136, 105479. [Google Scholar] [CrossRef]
  26. Väyrynen, V.O.; Tanner, J.; Vallittu, P.K. The anisotropicity of the flexural properties of an occlusal device material processed by stereolithography. J. Prosthet. Dent. 2016, 116, 811–817. [Google Scholar] [CrossRef]
  27. Grzebieluch, W.; Kowalewski, P.; Grygier, D.; Rutkowska-Gorczyca, M.; Kozakiewicz, M.; Jurczyszyn, K. Printable and Machinable Dental Restorative Composites for CAD/CAM Application—Comparison of Mechanical Properties, Fractographic, Texture and Fractal Dimension Analysis. Materials 2021, 14, 4919. [Google Scholar] [CrossRef] [PubMed]
  28. Lu, Y.; Wang, L.; Dal Piva, A.M.O.; Tribst, J.P.M.; Nedeljkovic, I.; Kleverlaan, C.J.; Feilzer, A.J. Influence of surface finishing and printing layer orientation on surface roughness and flexural strength of stereolithography-manufactured dental zirconia. J. Mech. Behav. Biomed. Mater. 2023, 143, 105944. [Google Scholar] [CrossRef] [PubMed]
  29. Khalil, A.S.; Zaher, A.R. Effect of printing orientation and resin thickness on flexural strength of direct 3D-printed aligners. BMC Oral Health 2025, 25, 238. [Google Scholar] [CrossRef]
  30. Kaushik, A.; Garg, R.K.; Saini, R.S.; Bennardo, F.; Heboyan, A. Evaluating the effect of printing parameters on the performance of resin occlusal splints for a sustainable dentistry. J. Appl. Biomater. Funct. Mater. 2025, 23, 22808000251333700. [Google Scholar] [CrossRef]
  31. Gad, M.M.; Fouda, S.M.; Alshammary, H.; Altayyar, R.; Elakel, A.; Nassar, E.A.; Khan, S.Q.; Rahoma, A.M.; Elhagali, A.F.; Özcan, M.; et al. Influence of different printing orientations and post-polymerization time on the translucency of three-dimensional (3D) printed denture base resins. J. Prosthodont. 2024, 33, 81–92. [Google Scholar] [CrossRef]
  32. Dai, J.; Li, P.; Spintzyk, S.; Liu, C.; Xu, S. Influence of additive manufacturing method and build angle on the accuracy of 3D-printed palatal plates. J. Dent. 2023, 132, 104449. [Google Scholar] [CrossRef]
  33. Lee, E.-H.; Ahn, J.-S.; Lim, Y.-J.; Kwon, H.-B.; Kim, M.-J. Effect of layer thickness and printing orientation on the color stability and stainability of a 3D-printed resin material. J. Prosthet. Dent. 2022, 127, 784.e1–784.e7. [Google Scholar] [CrossRef]
  34. Alharbi, N.; Osman, R.; Wismeijer, D. Effects of build direction on the mechanical properties of 3D-printed complete coverage interim dental restorations. J. Prosthet. Dent. 2016, 115, 760–767. [Google Scholar] [CrossRef]
  35. Farkas, A.Z.; Galatanu, S.V.; Nagib, R. The influence of printing layer thickness and orientation on the mechanical properties of DLP 3D-printed dental resin. Polymers 2023, 15, 1113. [Google Scholar] [CrossRef] [PubMed]
  36. Aljehani, A.; Nabalawi, A.; Hefni, A.; Alsefri, Z.; Fakhry, O.; Al Zaibak, W.; Raffa, O. Effect of build orientation on the fracture resistance and marginal quality of 3D-printed anatomic provisional crowns: An in-vitro study. Saudi Dent. J. 2024, 36, 584–590. [Google Scholar] [CrossRef] [PubMed]
  37. Nasiry Khanlar, L.; Revilla-León, M.; Barmak, A.B.; Ikeda, M.; Alsandi, Q.; Tagami, J.; Zandinejad, A. Surface roughness and shear bond strength to composite resin of additively manufactured interim restorative material with different printing orientations. J. Prosthet. Dent. 2023, 129, 788–795. [Google Scholar] [CrossRef] [PubMed]
  38. Mudhaffer, S.; Haider, J.; Satterthwaite, J.; Silikas, N. Effects of print orientation and artificial aging on the flexural strength and flexural modulus of 3D printed restorative resin materials. J. Prosthet. Dent. 2025, 133, 1345–1357. [Google Scholar] [CrossRef]
  39. Mudhaffer, S.; Althagafi, R.; Haider, J.; Satterthwaite, J.; Silikas, N. Effects of printing orientation and artificial ageing on martens hardness and indentation modulus of 3D printed restorative resin materials. Dent. Mater. 2024, 40, 1003–1014. [Google Scholar] [CrossRef]
  40. de Castro, E.F.; Nima, G.; Rueggeberg, F.A.; Araújo-Neto, V.G.; Faraoni, J.J.; Palma-Dibb, R.G.; Giannini, M. Effect of build orientation in gloss, roughness and color of 3D-printed resins for provisional indirect restorations. Dent. Mater. 2023, 39, e1–e11. [Google Scholar] [CrossRef]
  41. Espinar, C.; Pérez, M.M.; Pulgar, R.; Leon-Cecilla, A.; López-López, M.T.; Della Bona, A. Influence of printing orientation on mechanical properties of aged 3D-printed restorative resins. Dent. Mater. 2024, 40, 756–763. [Google Scholar] [CrossRef]
  42. Alkhateeb, R.I.; Algaoud, H.S.; Aldamanhori, R.B.; Alshubaili, R.R.; Alalawi, H.; Gad, M.M. Fracture Load of 3D-Printed Interim Three-Unit Fixed Dental Prostheses: Impact of Printing Orientation and Post-Curing Time. Polymers 2023, 15, 1737. [Google Scholar] [CrossRef]
  43. Queiroz, N.V.; Martins, A.S.; Antunes, A.N.G.; Barros, V.M. Effect of the Printing Angle on Flexural Strength, Microhardness, and Surface Roughness of Three-Dimensionally Printed Resin for Provisional Restorations. Pesqui. Bras. Em Odontopediatria E Clin. Integr. 2024, 25, e230050. [Google Scholar]
  44. Espinar, C.; Bona, A.D.; Pérez, M.M.; Tejada-Casado, M.; Pulgar, R. The influence of printing angle on color and translucency of 3D printed resins for dental restorations. Dent. Mater. 2023, 39, 410–417. [Google Scholar] [CrossRef] [PubMed]
  45. Lee, H.; Son, K.; Lee, D.-H.; Kim, S.-Y.; Lee, K.-B. Comparison of Wear of Interim Crowns in Accordance with the Build Angle of Digital Light Processing 3D Printing: A Preliminary In Vivo Study. Bioengineering 2022, 9, 417. [Google Scholar] [CrossRef]
  46. Wan, Q.; Lee, J.H.; Daher, R.; Karasan, D.; Myagmar, G.; Sailer, I. Wear Resistance of Additively Manufactured Resin with Different Printing Parameters and Postpolymerization Conditions. Int. J. Prosthodont. 2024, 37, 55–62. [Google Scholar] [CrossRef] [PubMed]
  47. Derban, P.; Negrea, R.; Rominu, M.; Marsavina, L. Influence of the Printing Angle and Load Direction on Flexure Strength in 3D Printed Materials for Provisional Dental Restorations. Materials 2021, 14, 3376. [Google Scholar] [CrossRef]
  48. Casucci, A.; Verniani, G.; Sami Haichal, W.; Manfredini, D.; Ferrari, M.; Ferrari Cagidiaco, E. Influence of Printing Angulation on the Flexural Strength of 3D Printed Resins: An In Vitro Study. Appl. Sci. 2024, 14, 10067. [Google Scholar] [CrossRef]
  49. de Gois Moreira, F.G.; Bezerra, M.G.P.G.; de Miranda, L.M.; da Silva, S.E.G.; de Andrade Dantas, E.L.; de Sousa, F.B.; Özcan, M.; Souza, R.O.A.E. Influence of build angle, printing layer thickness and aging on the flexural strength, precision, roughness and porosity analysis of a printed resin for provisional restorations. Odontology 2025, 113, 1165–1179. [Google Scholar] [CrossRef] [PubMed]
  50. Kaiahara, F.H.; Pizi, E.C.G.; Straioto, F.G.; Galvani, L.D.; Kuga, M.C.; Arrué, T.A.; Junior, A.R.; Só, M.V.R.; Pereira, J.R.; Vidotti, H. Influence of Printing Orientation on the Mechanical Properties of Provisional Polymeric Materials Produced by 3D Printing. Polymers 2025, 17, 265. [Google Scholar] [CrossRef]
  51. Ortega, N.M.; Revilla-León, M.; Ortega, R.; Gómez-Polo, C.; Barmak, A.B.; Gómez-Polo, M. Comparison of surface roughness of additively manufactured implant-supported interim crowns fabricated with different print orientations. J. Prosthodont. 2024, 33, 141–148. [Google Scholar] [CrossRef]
  52. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. The PRISMA 2020 statement: An updated guideline for reporting systematic reviews. BMJ 2021, 372, n71. [Google Scholar] [CrossRef]
  53. Alharbi, N.; Osman, R. Does Build Angle Have an Influence on the Surface Roughness of Anterior 3D-Printed Restorations? An In Vitro Study Int. J. Prosthodont. 2021, 34, 505–510. [Google Scholar] [CrossRef]
  54. Faggion, C.M. Guidelines for reporting pre-clinical in vitro studies on dental materials. J. Evid. Based Dent. Pract. 2012, 12, 182–189. [Google Scholar] [CrossRef] [PubMed]
  55. Krithikadatta, J.; Datta, M.; Gopikrishna, V. CRIS guidelines (checklist for reporting in-vitro studies): A concept note on the need for standardized guidelines for improving quality and transparency in reporting in-vitro studies in experimental dental research. J. Conserv. Dent. 2014, 17, 301–304. [Google Scholar] [CrossRef]
  56. RevMan. (RevMan) The Cochrane Collaboration, Version 541; Cochrane: London, UK, 2020.
  57. McCarty, M.C.; Chen, S.J.; English, J.D.; Kasper, F. Effect of print orientation and duration of ultraviolet curing on the dimensional accuracy of a 3-dimensionally printed orthodontic clear aligner design. Am. J. Orthod. Dentofacial. Orthop. 2020, 158, 889–897. [Google Scholar] [CrossRef] [PubMed]
  58. Revilla-León, M.; Cascos-Sánchez, R.; Zeitler, J.M.; Barmak, A.B.; Kois, J.C.; Gómez-Polo, M. Influence of print orientation and wet-dry storage time on the intaglio accuracy of additively manufactured occlusal devices. J. Prosthet. Dent. 2024, 131, 1226–1234. [Google Scholar] [CrossRef]
  59. Janjić, K.; Valentova, A.; Arellano, S.; Unterhuber, A.; Krause, A.; Oberoi, G.; Unger, E.; Tabrizi, H.A.S.; Schedle, A. The impact of print orientation and graphene nanoplatelets on biaxial flexural strength and cytotoxicity of a 3D printable resin for occlusal splints. Dent. Mater. 2024, 40, 1742–1752. [Google Scholar] [CrossRef] [PubMed]
  60. Cruz-Araújo, S.R.; Sampaio-Fernandes, M.A.; de Freitas, B.N.; Simionato, A.A.; Figueiral, M.H.; Macedo, A.P. Accuracy of occlusal splints printed in different orientations by liquid crystal display technology: An in vitro study. J. Dent. 2025, 152, 105461. [Google Scholar] [CrossRef]
  61. Aarts, J.M.; Choi, J.J.E.; Metcalfe, S.; Bennani, V. Influence of build angulation on the mechanical properties of a direct-metal laser-sintered cobalt-chromium used for removable partial denture frameworks. J. Prosthet. Dent. 2021, 126, 224–230. [Google Scholar] [CrossRef]
  62. Li, P.; Fernandez, P.K.; Spintzyk, S.; Schmidt, F.; Yassine, J.; Beuer, F.; Unkovskiy, A. Effects of layer thickness and build angle on the microbial adhesion of denture base polymers manufactured by digital light processing. J. Prosthodont. Res. 2023, 67, 562–567. [Google Scholar] [CrossRef]
  63. Alharethi, N.A. Evaluation of the Influence of Build Orientation on the Surface Roughness and Flexural Strength of 3D-Printed Denture Base Resin and Its Comparison with CAD-CAM Milled Denture Base Resin. Eur. J. Dent. 2024, 18, 321–328. [Google Scholar] [CrossRef]
  64. Turanoglu, O.F.; Cevlik, E.T.; Vural, C. Investigation of adhesion status of Candida species to the surface of resin materials produced at different angles with additive manufacturing. BMC Oral Health 2024, 24, 738. [Google Scholar] [CrossRef]
  65. Sone, K.P.; Takahashi, H.; Iwaki, M.; Namano, S.; Komagamine, Y.; Minakuchi, S.; Kanazawa, M. Effect of build orientation on the wear resistance and hardness of denture teeth fabricated using digital light processing: An in vitro study. J Prosthodont. Res. 2025, 69, 267–274. [Google Scholar] [CrossRef]
  66. Çokakoğlu, S.; Karaokutan, I.; Buyuk, S.K. Effects of orientation and post processing on the bonding of 3-dimensional printed brackets to printable permanent crown resin. Am. J. Orthod. Dentofac. Orthop. 2025, 167, 362–370. [Google Scholar] [CrossRef] [PubMed]
  67. Kalyoncuoğlu, Ü.T.; Ayyıldız, S.; Odabasi Tezer, E. The impact of print orientation on the fracture resistance and failure patterns of additively manufactured cobalt-chromium post and cores. J. Prosthodont. 2023, 32, 714–720. [Google Scholar] [CrossRef] [PubMed]
  68. Sukindar, N.A.; Azhar, M.A.M.; Shaharuddin, S.I.S.; Kamaruddin, S.; Azhar, A.Z.A.; Choong, Y.C.; Adesta, E.Y.T. A review study on the effect of printing parameters of fused deposition modelling (fdm) metal polymer composite parts on mechanical properties and surface roughness. Malays. J. Microsc. 2022, 18, 281–297. [Google Scholar]
  69. Alghauli, M.A.; Almuzaini, S.; Aljohani, R.; Alqutaibi, A.Y. Influence of 3D printing orientations on physico-mechanical properties and accuracy of additively manufactured dental ceramics. J. Prosthodont. Res. 2025, 69, 181–202. [Google Scholar] [CrossRef]
  70. Cameron, A.B.; Choi, J.J.E.; Ip, A.; Lyons, N.; Yaparathna, N.; Dehaghani, A.E.; Feih, S. Assessment of the trueness of additively manufactured mol3% zirconia crowns at different printing orientations with an industrial and desktop 3D printer compared to subtractive manufacturing. J. Dent. 2024, 144, 104942. [Google Scholar] [CrossRef]
  71. Mou, Z.; Zhong, J.; Wang, F.; Alhotan, A.; Zhu, P.; Li, P.; Huang, J. Zirconia crowns manufactured using digital light processing: Effects of build angle and layer thickness on the accuracy. J. Dent. 2024, 151, 105359. [Google Scholar] [CrossRef]
  72. Hussein, M.O.; Hussein, L.A. Trueness of 3D printed partial denture frameworks: Build orientations and support structure density parameters. J. Adv. Prosthodont. 2022, 14, 150–161. [Google Scholar] [CrossRef] [PubMed]
  73. Hai, P.N.; Son, T.M.; Anh, N.V.; Ngoc, T.N.; Tra, N.T. Effect of Horizontal Resolution of Printer on Trueness of 3D-Printed Provisional Crown: An In Vitro Study. Eur. J. Gen. Dent. 2023, 12, 34–41. [Google Scholar] [CrossRef]
  74. Cameron, A.B.; Evans, J.L.; Abuzar, M.A.; Tadakamadla, S.K.; Love, R.M. Trueness assessment of additively manufactured maxillary complete denture bases produced at different orientations. J. Prosthet. Dent. 2024, 131, 129–135. [Google Scholar] [CrossRef]
  75. Alharbi, N.; Osman, R.B.; Wismeijer, D. Factors influencing the dimensional accuracy of 3D-printed full-coverage dental restorations using stereolithography technology. Int. J. Prosthodont. 2016, 29, 503–510. [Google Scholar] [CrossRef] [PubMed]
  76. Chaiamornsup, P.; Katheng, A.; Ha, R.; Tsuchida, Y.; Kanazawa, M.; Uo, M.; Minakuchi, S.; Suzuki, T.; Takahashi, H. Effects of build orientation and bar addition on accuracy of complete denture base fabricated with digital light projection: An in vitro study. J. Prosthodont. Res. 2023, 67, 641–646. [Google Scholar] [CrossRef] [PubMed]
  77. Osman, R.B.; Alharbi, N.; Wismeijer, D. Build Angle: Does It Influence the Accuracy of 3D-Printed Dental Restorations Using Digital Light-Processing Technology? Int. J. Prosthodont. 2017, 30, 182–188. [Google Scholar] [CrossRef]
  78. Granholm, A.; Alhazzani, W.; Møller, M.H. Use of the GRADE approach in systematic reviews and guidelines. Br. J. Anaesth. 2019, 123, 554–559. [Google Scholar] [CrossRef]
  79. Ferracane, J.L. Hygroscopic and hydrolytic effects in dental polymer networks. Dent. Mater. 2006, 22, 211–222. [Google Scholar] [CrossRef]
  80. Yap, A.; Chandra, S.; Chungo, S.; Lim, C. Changes in flexural properties of composite restoratives after aging in water. Oper. Dent. 2002, 27, 468–474. [Google Scholar]
  81. Turksayar, A.A.D.; Donmez, M.B.; Olcay, E.O.; Demirel, M.; Demir, E. Effect of printing orientation on the fracture strength of additively manufactured 3-unit interim fixed dental prostheses after aging. J. Dent. 2022, 124, 104155. [Google Scholar] [CrossRef]
  82. Reymus, M.; Fabritius, R.; Keßler, A.; Hickel, R.; Edelhoff, D.; Stawarczyk, B. Fracture load of 3D-printed fixed dental prostheses compared with milled and conventionally fabricated ones: The impact of resin material, build direction, post-curing, and artificial aging—An in vitro study. Clin. Oral Investig. 2019, 24, 701–710. [Google Scholar] [CrossRef]
  83. Alaqeel, S.M.; Ramakrishnaiah, R.; Basavaraju, R.M.; Kotha, S.B.; Durgesh, B.H.; Vallittu, P.K. Effect of 3D printing direction and water storage on nano-mechanical properties of 3D printed and auto-polymerized polymer with special emphasis on printing layer interface. Mater. Express. 2019, 9, 351–357. [Google Scholar] [CrossRef]
  84. Štaffová, M.; Ondreáš, F.; Svatík, J.; Zbončák, M.; Jančář, J.; Lepcio, P. 3D printing and post-curing optimization of photopolymerized structures: Basic concepts and effective tools for improved thermomechanical properties. Polym. Test. 2022, 108, 107499. [Google Scholar] [CrossRef]
  85. Ikejima, I.; Nomoto, R.; McCabe, J.F. Shear punch strength and flexural strength of model composites with varying filler volume fraction, particle size and silanation. Dent. Mater. 2003, 19, 206–211. [Google Scholar] [CrossRef]
  86. Gajewski, V.E.; Pfeifer, C.S.; Fróes-Salgado, N.R.; Boaro, L.C.; Braga, R.R. Monomers used in resin composites: Degree of conversion, mechanical properties and water sorption/solubility. Braz. Dent. J. 2012, 23, 508–514. [Google Scholar] [CrossRef]
  87. Kowalska, A.; Sokolowski, J.; Bociong, K. The photoinitiators used in resin based dental composite—A review and future perspectives. Polymers 2021, 13, 470. [Google Scholar] [CrossRef]
  88. Park, S.M.; Park, J.M.; Kim, S.K.; Heo, S.J.; Koak, J.Y. Comparison of Flexural Strength of Three-Dimensional Printed Three-Unit Provisional Fixed Dental Prostheses according to Build Directions. J. Korean Dent. Sci. 2019, 12, 13–19. [Google Scholar]
  89. Revilla-León, M.; Jordan, D.; Methani, M.M.; Piedra-Cascón, W.; Özcan, M.; Zandinejad, A. Influence of printing angulation on the surface roughness of additive manufactured clear silicone indices: An in vitro study. J. Prosthet. Dent. 2021, 125, 462–468. [Google Scholar] [CrossRef] [PubMed]
  90. Loflin, W.A.; English, J.D.; Borders, C.; Harris, L.M.; Moon, A.; Holland, J.N.; Kasper, F.K. Effect of print layer height on the assessment of 3D-printed models. Am. J. Orthod. Dentofac. Orthop. 2019, 156, 283–289. [Google Scholar] [CrossRef] [PubMed]
  91. Tahayeri, A.; Morgan, M.; Fugolin, A.P.; Bompolaki, D.; Athirasala, A.; Pfeifer, C.S.; Ferracane, J.L.; Bertassoni, L.E. 3D printed versus conventionally cured provisional crown and bridge dental materials. Dent. Mater. 2018, 34, 192–200. [Google Scholar] [CrossRef]
  92. Deville, S.; Meille, S.; Seuba, J. A meta-analysis of the mechanical properties of ice-templated ceramics and metals. Sci. Technol. Adv. Mater. 2015, 16, 043501. [Google Scholar] [CrossRef] [PubMed]
Figure 1. PRISMA flow-chart representing the article selection strategy.
Figure 1. PRISMA flow-chart representing the article selection strategy.
Jfb 16 00278 g001

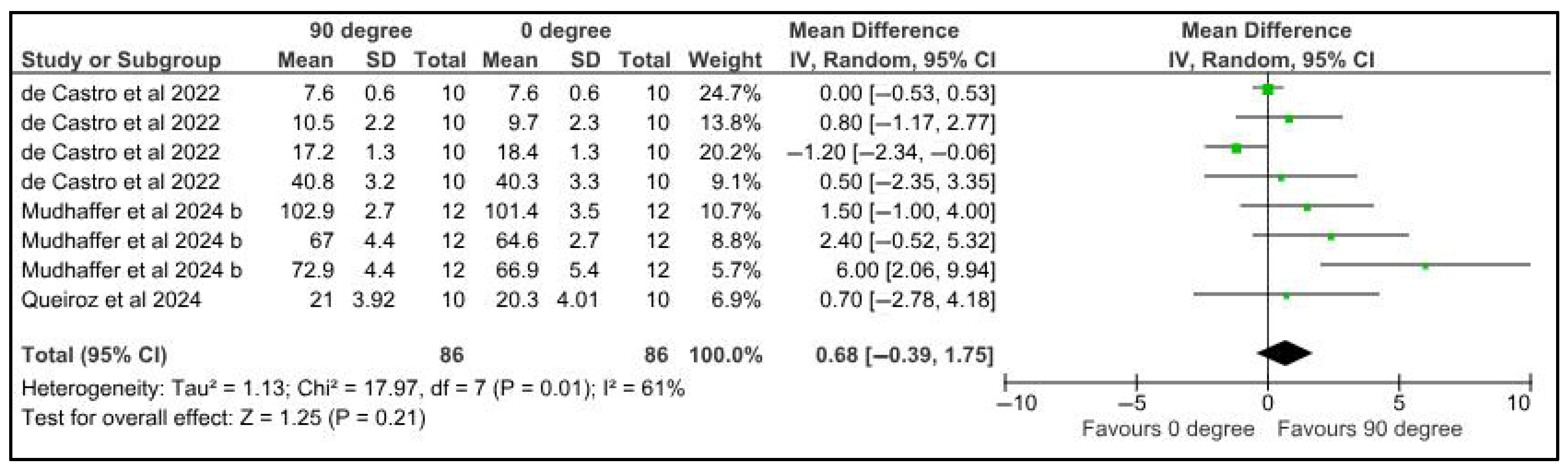

Figure 2. Forest plot: Comparison of microhardness between polymeric specimens printed at 90° and 0° (de Castro et al., 2022 [25], Mudhaffer et al., 2024 b [39]; Queiroz et al., 2024 [43]).
Figure 2. Forest plot: Comparison of microhardness between polymeric specimens printed at 90° and 0° (de Castro et al., 2022 [25], Mudhaffer et al., 2024 b [39]; Queiroz et al., 2024 [43]).
Jfb 16 00278 g002

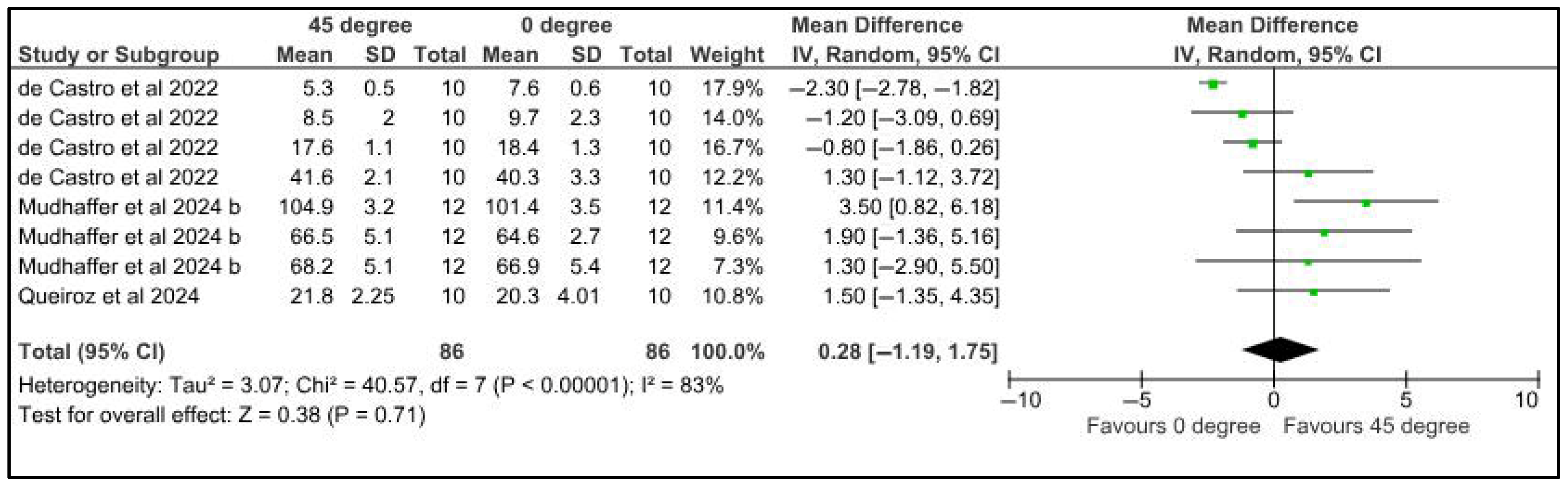

Figure 3. Forest plot: Comparison of microhardness between polymeric specimens printed at 45° and 0° (de Castro et al., 2022 [25], Mudhaffer et al., 2024 b [39]; Queiroz et al., 2024 [43]).
Figure 3. Forest plot: Comparison of microhardness between polymeric specimens printed at 45° and 0° (de Castro et al., 2022 [25], Mudhaffer et al., 2024 b [39]; Queiroz et al., 2024 [43]).
Jfb 16 00278 g003

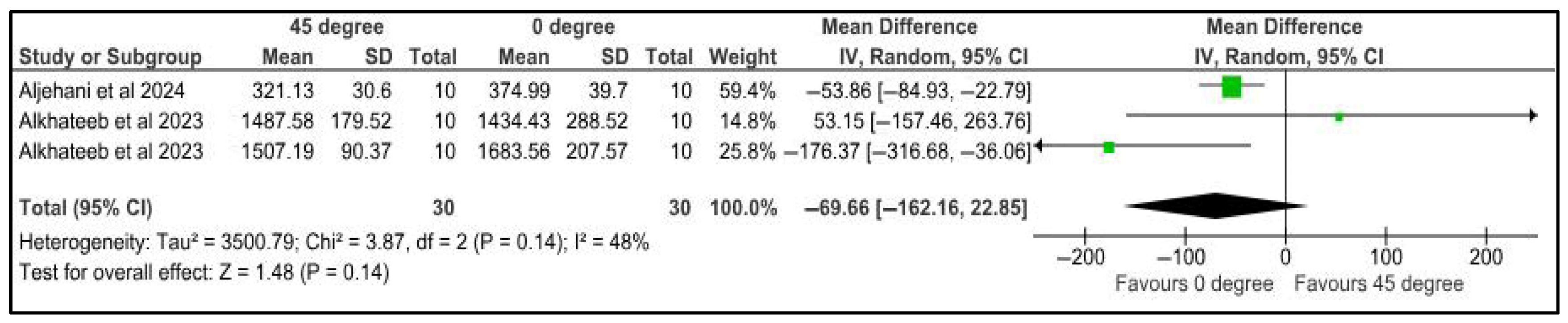

Figure 4. Forest plot: Comparison of fracture strength between polymeric specimens printed at 45° and 0° (Aljehani et al., 2024 [36]; Alkhateeb et al., 2023 [42]).
Figure 4. Forest plot: Comparison of fracture strength between polymeric specimens printed at 45° and 0° (Aljehani et al., 2024 [36]; Alkhateeb et al., 2023 [42]).
Jfb 16 00278 g004

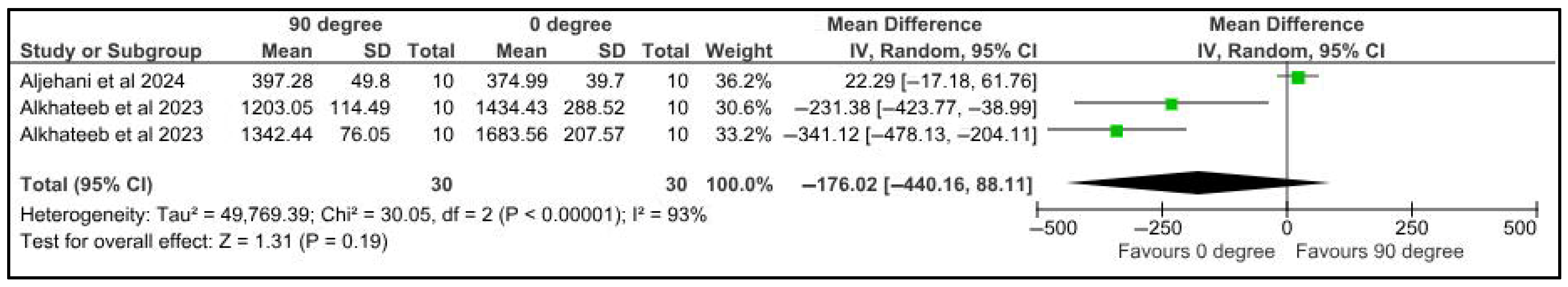

Figure 5. Forest plot: Comparison of fracture strength between polymeric specimens printed at 90° and 0°v (Aljehani et al., 2024 [36]; Alkhateeb et al., 2023 [42]).
Figure 5. Forest plot: Comparison of fracture strength between polymeric specimens printed at 90° and 0°v (Aljehani et al., 2024 [36]; Alkhateeb et al., 2023 [42]).
Jfb 16 00278 g005

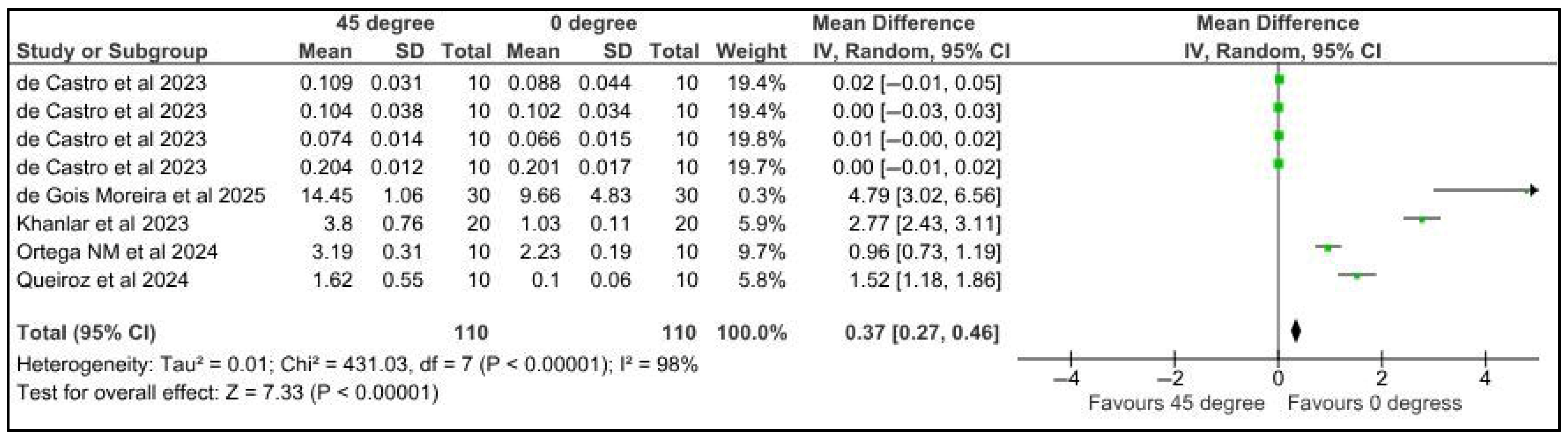

Figure 6. Forest plot: Comparison of surface roughness between polymeric specimens printed at 45° and 0° (de castro et al., 2023 [25]; de Gois Moreira et al., 2025 [49]; Khanlar et al., 2023 [37]; Ortega et al., 2024 [51]; Queiroz et al. [43]).
Figure 6. Forest plot: Comparison of surface roughness between polymeric specimens printed at 45° and 0° (de castro et al., 2023 [25]; de Gois Moreira et al., 2025 [49]; Khanlar et al., 2023 [37]; Ortega et al., 2024 [51]; Queiroz et al. [43]).
Jfb 16 00278 g006

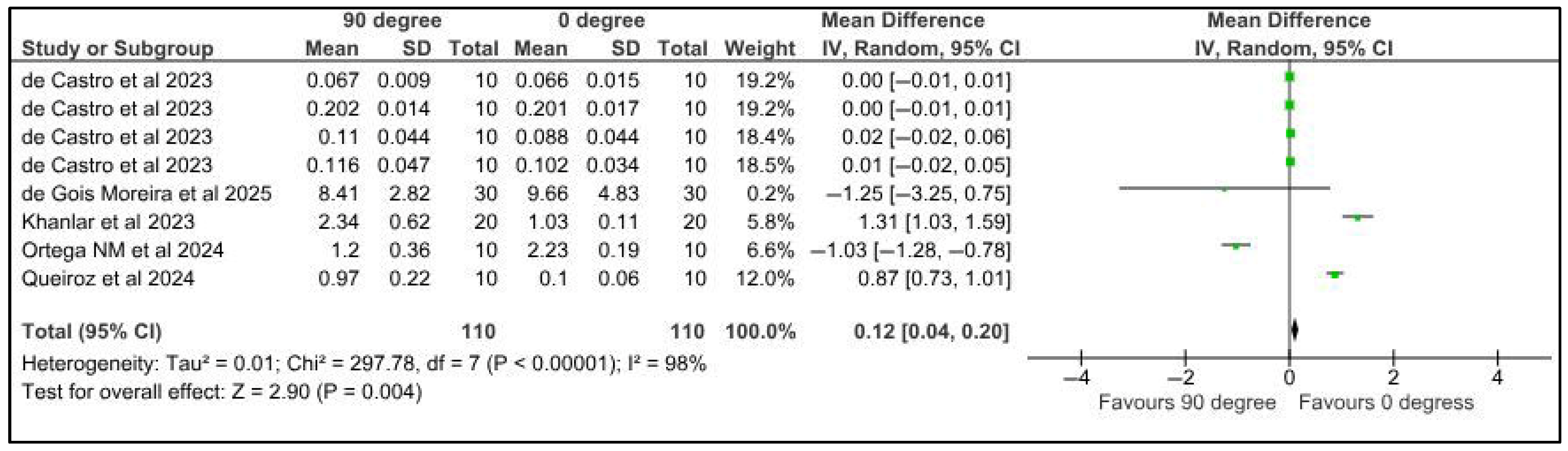

Figure 7. Forest plot: Comparison of surface roughness between polymeric specimens printed at 90° and 0° (de castro et al., 2023 [25]; de Gois Moreira et al., 2025 [49]; Khanlar et al., 2023 [37]; Ortega et al., 2024 [51]; Queiroz et al. [43]).
Figure 7. Forest plot: Comparison of surface roughness between polymeric specimens printed at 90° and 0° (de castro et al., 2023 [25]; de Gois Moreira et al., 2025 [49]; Khanlar et al., 2023 [37]; Ortega et al., 2024 [51]; Queiroz et al. [43]).
Jfb 16 00278 g007

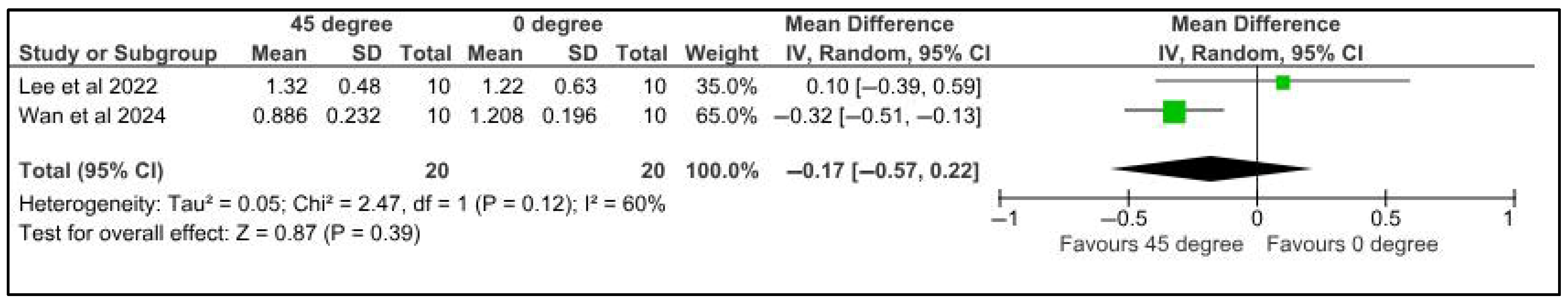

Figure 8. Forest plot: Comparison of wear volume loss between polymeric specimens printed at 45° and 0° (Lee et al., 2022 [33]; Wan et al., 2024 [46]).
Figure 8. Forest plot: Comparison of wear volume loss between polymeric specimens printed at 45° and 0° (Lee et al., 2022 [33]; Wan et al., 2024 [46]).
Jfb 16 00278 g008

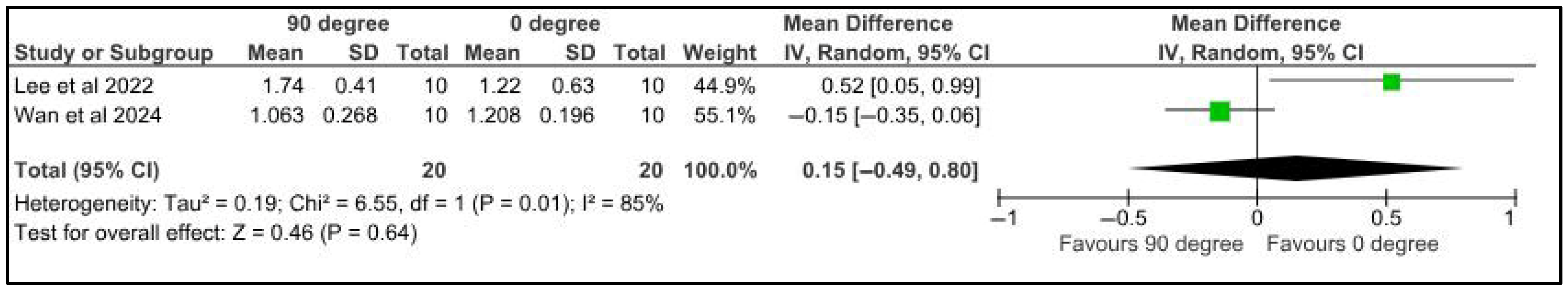

Figure 9. Forest plot: Comparison of wear volume loss between polymeric specimens printed at 90° and 0° (Lee et al., 2022 [33]; Wan et al., 2024 [46]).
Figure 9. Forest plot: Comparison of wear volume loss between polymeric specimens printed at 90° and 0° (Lee et al., 2022 [33]; Wan et al., 2024 [46]).
Jfb 16 00278 g009

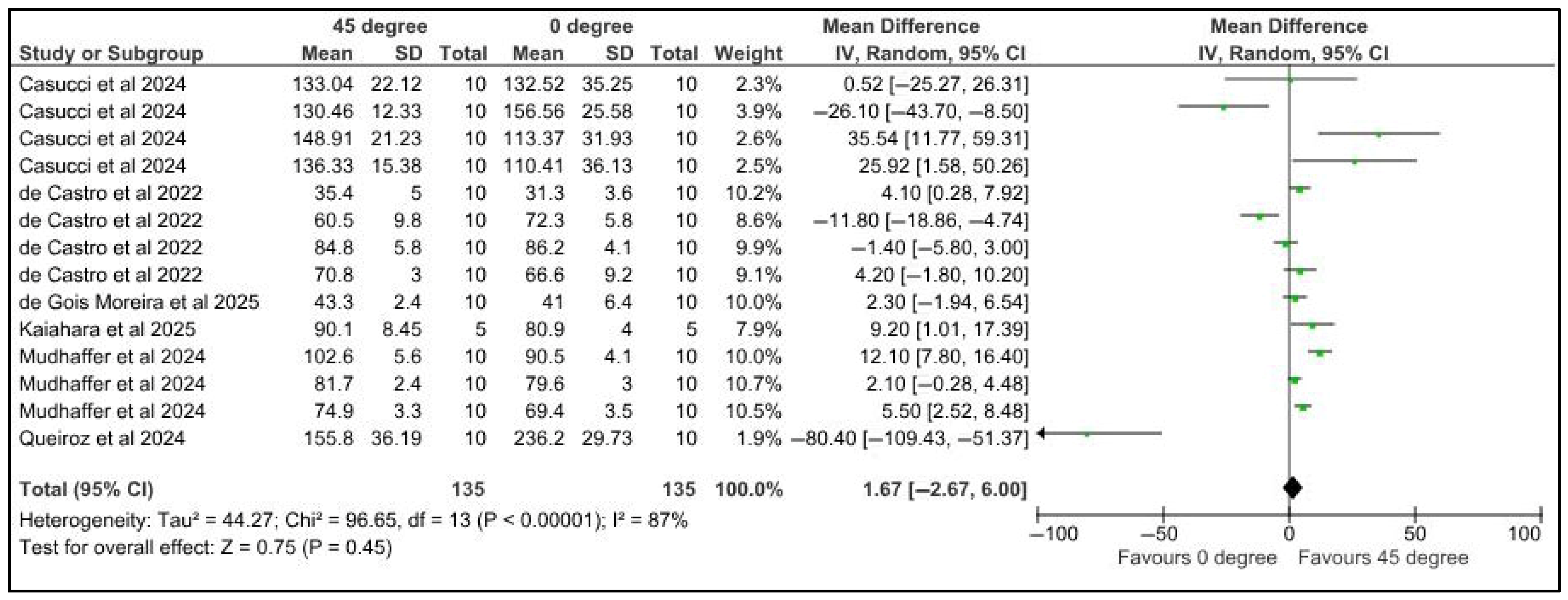

Figure 10. Forest plot: Comparison of flexural strength between polymeric specimens printed at 45° and 0° (Casucci et al., 2024 [48]; de Castro et al., 2022 [25]; de Gois Moreira et al., 2025 [49]; Kaiahara et al., 2025 [50]; Mudhaffer et al., 2024 [38]; Queiroz et al., 2024 [43]).
Figure 10. Forest plot: Comparison of flexural strength between polymeric specimens printed at 45° and 0° (Casucci et al., 2024 [48]; de Castro et al., 2022 [25]; de Gois Moreira et al., 2025 [49]; Kaiahara et al., 2025 [50]; Mudhaffer et al., 2024 [38]; Queiroz et al., 2024 [43]).
Jfb 16 00278 g010

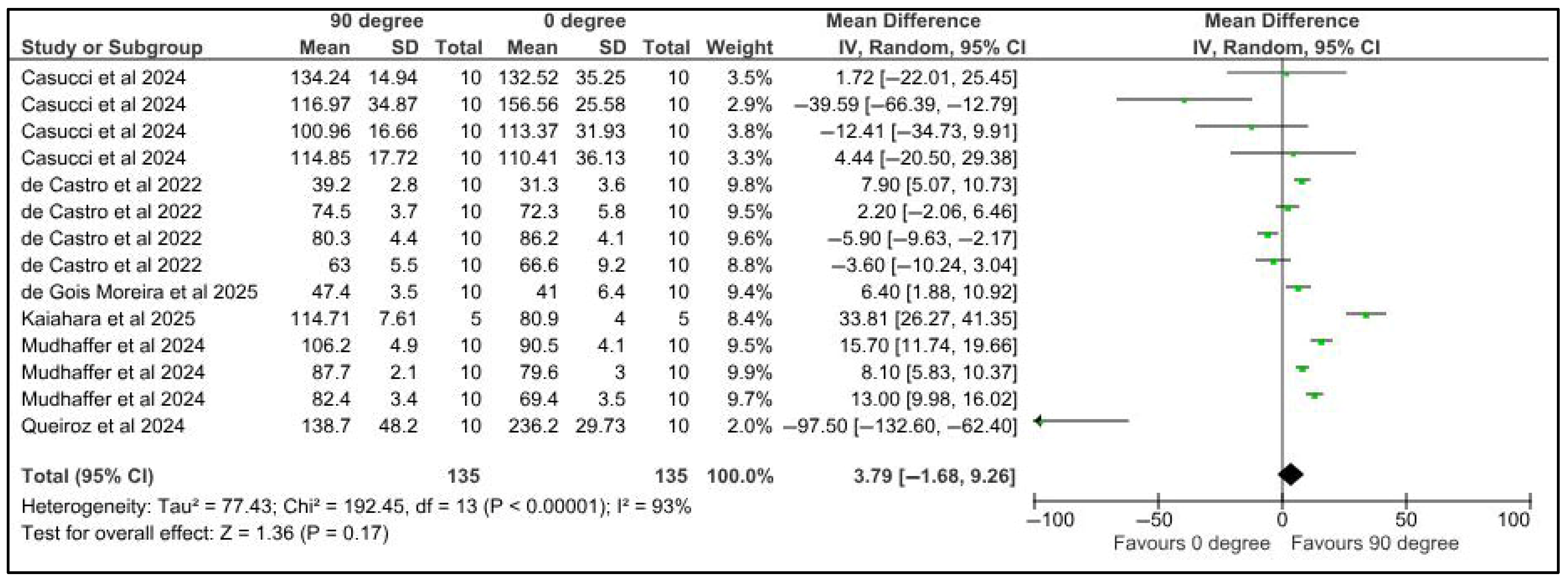

Figure 11. Forest plot: Comparison of flexural strength between polymeric specimens printed at 90° and 0° (Casucci et al., 2024 [48]; de Castro et al., 2022 [25]; de Gois Moreira et al., 2025 [49]; Kaiahara et al., 2025 [50]; Mudhaffer et al., 2024 [38]; Queiroz et al., 2024 [43]).
Figure 11. Forest plot: Comparison of flexural strength between polymeric specimens printed at 90° and 0° (Casucci et al., 2024 [48]; de Castro et al., 2022 [25]; de Gois Moreira et al., 2025 [49]; Kaiahara et al., 2025 [50]; Mudhaffer et al., 2024 [38]; Queiroz et al., 2024 [43]).
Jfb 16 00278 g011
Table 1. Selection criteria.
Table 1. Selection criteria.
Inclusion CriteriaExclusion Criteria
Research articles in the English languageResearch articles in a language other than English.
Human clinical studies; in vitro studiesAnimal studies.
Studies comparing the influence of printing orientation on the physical and mechanical properties of 3D-printed polymeric provisional dental restorationsEditorials, case reports, theses, incomplete trials, reports, commentaries, review papers, conference papers, unpublished abstracts.
Studies comparing the influence of printing orientation on the marginal or internal fit of 3D-printed provisional dental restorations.
Studies comparing the influence of printing orientation on the other properties of 3D-printed provisional dental restorations.
Studies comparing the effect of printing orientation on materials other than provisional dental resins (for example, ceramics or metallic alloys).
Studies comparing the effect of printing orientation on various properties of 3D-printed resins used for the fabrication of denture bases, dies, models, or orthodontic aligners.
Studies comparing properties of materials under trial.
Table 2. Characteristics and summary of the articles.
Table 2. Characteristics and summary of the articles.
Author and YearStudied
Characteristics
Reviewed PropertySample Size (n)Details of the Assessed
Materials
Primary
Composition
Printing
Orientation
Form and Size of Tested SpecimensLayer Thickness Printer Type/Brand/
Tradename
Alharbi et al., 2016 [34], NetherlandsCompressive strengthMPn = 40
(20/orientation)
Temporis (DWS)Hybrid composite
resin
(a) 0°
(b) 90°
Cylinder
(height: 5.04–4.97 mm,
diameter: 3.07 mm)
50 μmDW028D three-dimensional printer
Derban et al., 2021 [47], RomaniaFlexure
Strength
MPn = 60
(30 material)
(10 orientation)
(A) DETAX Freeprint Temp (Detax Gmbh & Co., Ettlingen, Germany);
(B) NEXTDENT C & B MFH (Vertex Dental B.V., Soesterberg, The Netherlands)
(A) Methylmethacrylates;
(B) Micro filled hybrid methacrylic oligomers
(a) 0°
(b) 45°
(c) 90°
Parallelepiped shaped (25 mm × 2 mm × 2 mm)50 μmSheraPrint D30 printer (Shera Material Technology Gmbh, Lemforde, Germany)
Alharbi et al., 2021 [53], Saudi ArabiaSurface roughnessMPn = 45
(9/orientation)
Temporis A2 (DWS systems)Hybrid composite resin(a) 90
(b) 120
(c) 135
(d) 150
(e) 180
Anatomical crown maxillary central incisor50 µm028DWS SLA printer (DWS systems)
Lee at al., 2022 [45], KoreaWear volumeMPn = 20
(5 patients) (1 orientation and 1 conventional resin)
(A) Conventional self-cure resin: Unifast III (GC Corporation, Seoul, Republic of Korea));
(B) 3D-printed resin: RAYDENT C&B (Ray Co., Ltd., Hwaseong-si, Republic of Korea)
(A) Methylmethacrylate resin;
(B) hybrid composite
resin
(a) 0°
(b) 45°
(c) 90°
Crown (Molar)50 μmMEG-PRINTER 3D II (Megagen, Daegu, Republic of Korea)
de Castro et al., 2022 [25], BrazilFlexural strength;
flexural modulus;
microhardness
MPFor FS and FM
n = 1430
(30 materials, 10 orientation, and 10 milled)
(A) Cosmos Temp SLA (Yller, Pelotas, RS, Brazil)
(B) Cosmos Temp DLP (Yller, Pelotas, RS, Brazil)
(C) PriZma Bioprov (Makertech, Tatuí, SP, Brazil)
(D) NAnolab 3D (Wilcos do Brasil, Petr´ opolis, RJ, Brazil)
(A) and (B): Oligomers, monomers
(C) acrylic monomers and oligomers;
(D) nanohybrid resin
(a) 0°
(b) 45°
(c) 90°
FS: Bar
(25 × 2 × 2 mm)
microhardness analyses: disk (15 mm in diameter and 2.5 mm thick)
50 μm(A) FormLabs 2
(FormLabs, Somerville, MA, USA)
(B) P30 (Straumann Basel, Switzerland)
(C) Flash Forge
Hunter (Zhejiang
Flashforge 3D
technology Co., Jinhua City, ZJ, China)
(D) W3D (Wilcos do Brasil, Petr´opolis, RJ, Brazil)
Lee et al., 2022 [33], South KoreaColor stability;
roughness
PP
MP
n = 180
(90 layer thickness) (30 orientation)
C&B 5.0 Hybrid; ARUMUrethane Dimethacrylate(a) 0°
(b) 45°
(c) 90°
Disk-shaped (15 × 3 mm) 25 μm
100 μm
ASIGA MAX
UV (ASIGA NSW, Australia)
de Castro et al., 2023 [40], BrazilRoughness;
color
MP
PP
For FS and FM
n = 130
(30 materials, 10 orientation, and 10 milled)
(A) Cosmos Temp SLA (Yller, Pelotas, RS, Brazil);
(B) Cosmos Temp DLP (Yller, Pelotas, RS, Brazil);
(C) PriZma Bioprov (Makertech, Tatuí, SP, Brazil);
(D) NAnolab 3D (Wilcos do Brasil, Petr´ opolis, RJ, Brazil);
(E) Vita CAD-Temp (Vita Zahnfabrik, Bad Säckingen, Germany) (Control)
(A) and (B): Formlabs Temporary CB;
(C) acrylic monomers and oligomers;
(D) nanohybrid resin;
(E) PMMA
(a) 0°
(b) 45°
(c) 90°
Disks (15 mm in diameter, 2.5 mm in thickness)50 μm(A) FormLabs 2
(FormLabs, Somerville, MA, USA)
(B) P30 (Straumann Basel, Switzerland)
(C) Flash Forge
Hunter (Zhejiang
Flashforge 3D
technology Co., Jinhua City, ZJ, China))
(D) W3D (Wilcos do Brasil, Petr´opolis, RJ, Brazil)
Farkas et al., 2023 [35], RomaniaTensile strength;
compression strength
MPFor tensile strength:
n = 24
Layer thickness
100 μm: n = 12
50 μm: n = 12
(4 orientation)
For compression test
n = 12 (layer thickness 100 μm)
(4 orientation)
NextDent C&B MFH (3D Systems, Rock Hill, SC, USA) (ND)Micro filled hybrid methacrylic oligomers(a) 0°
(b) 45°
(c) 90°
For tensile strength:
Bar (NM)
For compression test: Cylinder (NM)
For tensile strength:
100 μm and
50 μm;
For compression test: 50 μm
ANYCUBIC Photon Mono X
Alkhateeb et al. [42], 2023, Saudi ArabiaFracture loadMPn = 300 (150 resin, n = 10 orientation, 10 post-curing time) (A) NextDent, C&B (NextDent, Soesterberg, The Netherlands) (CB);
(B) ASIGA
Asiga
DentaTOOTH (ASIGA, Erfurt, Germany)
(A) Micro filled hybrid methacrylic oligomers;
(B) Methacrylate-based microhybrid
composite resin
(a) 0°
(b) 45°
(c) 90°
Three-unit interim FDP50 μmNextDent 5100 DLP (3D Systems, Rock Hill, SC, USA)
ASIGA MAX LED-based DLP (Asiga, Alexandria, Australia)
Espinar et al., 2023 [44], SpainColor stabilityPPn = 24
(3 orientation)
(A) Detax Freeprint Temp (DETAX GmbH, Ettlingen, Germany);
(B) Formlabs Temporary CB (Formlabs Inc., Somerville, MA, USA);
(C) Formlabs Permanent Crown (Formlabs Inc., Somerville, MA, USA);
(D) GCT- GC TempPrint, (GC Corporation, Tokyo, Japan)
(A) Methylmethacrylates;
(B) Formlabs Temporary CB;
(C) Ceramic-filled resin;
(D) UDMA
(a) 0°
(b) 90°
Square-shaped specimens (10 mm × 10 mm × 1.2 mm)50 µmAsiga Max UV1
(Asiga, Alexandria, Australia)
Espinar et al., 2024 [41], SpainFlexural strength;
elastic modulus
MP
MP
n = 160
(40 material, 20 orientation)
(A) Detax Freeprint Temp (DETAX GmbH, Ettlingen, Germany);
(B) Formlabs Temporary CB (Formlabs Inc., Somerville, MA, USA);
(C) Formlabs Permanent Crown (Formlabs Inc., Somerville, MA, USA);
(D) GCT- GC (TempPrint, (GC Corporation, Tokyo, Japan)
(A) Methylmethacrylates;
(B) Formlabs Temporary CB;
(C) Ceramic-filled resin;
(D) UDMA
(a) 0°
(b) 90°
Bar-shaped specimens (25 mm × 2 mm × 2 mm)50 µmAsiga Max UV1
(Asiga, Alexandria, Australia)
Queiroz et al., 2024 [43], BrazilFlexural strength;
microhardness;
surface
roughness
MPn = 30
(10 orientation)
AA Temp, PrintaX, (Odonto Mega import, Odonto Mega import, Ribeirão Preto, SP, Brazil)N/M(a) 0°
(b) 45°
(c) 90°
Bar (4 × 2 × 10 mm)50 μmMikra Resin 3D Printer (Zhangzhou Echo Technology Co., Ltd., Zhangzhou, China)
Mudhaffer et al., 2025 [38], United KingdomFlexural strength;
flexural modulus
MPn = 540
(180 material) (60 orientation)
(A) Nextdent CB MFH (3D systems, Netherlands) (ND)
(B) Dima CB temp (Kulzer GmbH, Germany) (DT)
(C) GC temp print (GC dental, Japan) (GC)
(A) Microfilled Hybrid Methacrylic oligomers;
(B) Esterification products of isopropylidiphenol;
(C) UDMA
(a) 0°
(b) 45°
(c) 90°
Bar (2 × 2 × 25 mm)50 μmASIGA MAX UV;
(ASIGA, NSW, Australia)
Casucci et al., 2024 [48], ItalyFlexural strength MPn = 120
(30 material) (10 orientation)
(A) Varseo smile teeth (VS) (Bego GmbH
& Co., Bremen, Germany)
(B) V-print C&B temp (VP) (Voco GmbH, Cuxhaven, Germany)
(C) Bego
Triniq (BT) (Bego GmbH & Co., Bremen, Germany)
(D) Sprintray Crown (SC) (SprintRay, CA, USA)
(A) Isopropylidenediphenol;
(B)UDMA Bis-EMA TEGDMA;
(C) methylprop-2enoic acid, alpha-oxo-methyl ester;
(D) methylbenzoateformate
(a) 0°
(b) 45°
(c) 90°
Bar (25 × 2 × 2 mm)50 μmASIGA MAX UV;
(ASIGA, NSW, Australia)
Wan et al., 2024 [46], South KoreaWear resistanceMPn = 60
(10 orientation; 10 layer thickness)
C&B MFH (NextDent (3D systems, The Netherlands)Methacrylic oligomers(a) 0°
(b) 45°
(c) 90
Rectangular specimens
(15 × 10 × 10 mm)
50 µm
100 µm
MAX UV, (Asiga, NSW, Australia)
Ortega NM et al., 2024 [51], SpainSurface roughnessMPn = 30
(10/orientation)
GC Temp PRINT (GC Corporation, Tokyo, Japan)UDMA(a) 0°
(b) 45°
(c) 90
Anatomical crown maxillary right premolar 50 µmAsiga MAX UV (Asiga, NSW, Australia)
Aljehani et al., 2024 [36], Saudi ArabiaFracture resistanceMPn = 40 (10 orientation and 10 milled)(A) Freeprint temp (Detax, Ettlingen, Germany);
(B) Milled (control group): Coratemp, (White Peaks, Germany)
(A) Methylmethacrylates;
(B) polymethyl
methacrylate
(a) 0°
(b) 45°
(c) 90°
Fully
contoured anatomical crown (central incisor)
50 μmAsiga Max, (Asiga, NSW, Australia)
Khanlar et al., 2023 [37], United StatesSurface roughnessMPn = 80
(20 orientation and 20 conventional)
(A) E-Dent C&B MHF (EnvisionTEC Inc, GmbH, Gladbeck, Germany);
(B) Protemp 4 (3M ESPE)
(A) Microfilled hybrid material;
(B) Bis-acryl resin
(a) 0°
(b) 45°
(c) 90°
Disk-shaped specimens (20 × 10 mm)NMEnvisiontec VIDA HD; (EnvisionTEC GmbH, Gladbeck, Germany)
Mudhaffer et al., 2024 [39], United KingdomMartens hardness MP3D-rinted
n = 108
(36 material) (12 orientation);
Milled (n = 24)
(12 material)
3D-Printed:
(A) Nextdent CB MFH, 3D systems, The Netherlands (ND);
(B) Dima CB temp, Kulzer, Germany (DT);
(C) GC temp print, GC dental, Japan (GC)
Milled;
(D) LAVA ultimate, 3 M ESPE, USA;
(E) Telio CAD, Ivoclar vivadent AG
(A) Microfilled Hybrid Methacrylic oligomers;
(B) Esterification products of isopropylidiphenol;
(C) UDMA;
(D) BisGMA, UDMA;
(E) PMMA
(a) 0°
(b) 45°
(c) 90°
Disks
20 mm (diameter) × 2.3 mm (height)
50 μmASIGA MAX UV;
(ASIGA, NSW, Australia)
de Gois Moreira et al., 2025 [49], BrazilFlexural strength
Roughness
MPFor Flexural strength:
n = 450
(150 layer thickness) (30 orientation);
For roughness
n = 2 groups
Cosmos Tempo (Yller
Biometeriais SA, Pelotas, Brazil)
Oligomers; monomers(a) 0°
(b) 30°
(c) 45°
(d) 60°
(e) 90°
Bars (26 mm × 2.2 mm × 2.2 mm)25 μm
50 μm
100 μm
Forms 2, Formslab
Kaiahara et al., 2025 [50], BrazilFlexural strengthMPn = 15
(5/orientation)
(n = 5; control group)
COSMOS TEMP, A1, (Yller Biomaterials, Pelotas, Brazil);
Milled resin:
Duralay color 81(Reliance Dental MFG Co, IL, USA)
Methacrylates
PMMA
(a) 0°
(b) 45°
(c) 90
Bar-shaped specimen50 µmBASIC PRINTER X (3DBasic, Marília, Sao Paulo, Brazil)
MP: Mechanical Property; PP: Physical Property.
Table 3. Fracture strength outcomes.
Table 3. Fracture strength outcomes.
Author and YearAlkhateeb et al., 2023 [42]Aljehani et al., 2024 [36]
Maximum Fracture Force (N) (Printing angle: 0°)Fracture Load:
(A) NextDent, C&B:
Post-curing time: 0 min: 610.06 ± 208.95; 30 min: 980.72 ± 298.70; 60 min: 1259.64 ± 205.80;
90 min: 1476.99 ± 71.47; 120 min: 1683.56 ± 207.57
(B) ASIGA resin:
Post-curing time: 0 min: 794.83 ± 68.52; 30 min: 1013.31 ± 140.13; 60 min: 1067.35 ± 75.42;
90 min: 1267.00 ± 240.58; 120 min: 1434.43 ± 288.52
Fracture resistance: 374.99 ± 39.7
Maximum Fracture Force (N) (Printing angle: 45°)Fracture Load:
(A) NextDent, C&B:
Post-curing time: 0 min: 532.83 ± 109.21; 30 min: 1307.32 ± 88.89; 60 min: 1438.88 ± 209.60;
90 min: 1437.02 ± 230.00; 120 min: 1507.19 ± 90.37
(B) ASIGA resin:
Post-curing time: 0 min: 626.32 ± 96.41; 30 min: 1113.47 ± 61.84; 60 min: 1102.81 ± 148.05;
90 min: 1327.30 ± 161.96; 120 min: 1487.58 ± 179.52
Fracture resistance: 321.13 ± 30.6
Maximum Fracture Force (N) (Printing angle: 90°)Fracture Load:
(A) NextDent, C&B:
Post-curing time: 0 min: 503.29 ± 196.37; 30 min: 1168.46 ± 172.91; 60 min: 1207.51 ± 151.98; 90 min: 1237.17 ± 98.03; 120 min: 1342.44 ± 76.05
(B) ASIGA resin:
Post-curing time: 0 min: 602.03 ± 82.76; 30 min: 1041.01 ± 145.87; 60 min: 1076.02 ± 89.74;
90 min: 1124.87 ± 121.59; 120 min: 1203.05 ± 114.49
Fracture resistance: 397.28 ± 49.8
Maximum Fracture Force (N) for Milled/conventional specimens (N)N/AFracture resistance: Milled: 1157.16 ± 75.0
Exposure Agent/Aging ProcedureThermal cycling for 5000 cyclesNo
Testing MachineUniversal testing machineUniversal testing machine
Conclusions &/or RecommendationsFor all respective curing times, Fracture Load: 45° > 0° > 90°
Post-curing time has a positive effect on fracture load.
Fracture load according to curing time: 120 min > 90 min > 60 min > 30 min > 0 min
Fracture resistance: Milled > 3D printed
3D printed: 90° > 0° > 45°
N/A: not applicable; N: Newtons.
Table 4. Color Change (ΔE/ΔE00) Outcomes.
Table 4. Color Change (ΔE/ΔE00) Outcomes.
Author and Yearde Castro et al., 2023 [40]Lee et al., 2022 [33]Espinar et al., 2023 [44]
Immersion media/surface treatmentToothbrushing wearDistilled water, coffee solution, and red wine-
Immersion/exposure duration/aging10,000 cycles30 days-
Mean alteration in color of conventional/milled specimens2.063--
Mean alteration in color of specimens printed at 0°(A) Cosmos Temp SLA: 3.14 ##; (B) Cosmos Temp DLP: 10.01 ##
(C) PriZma Bioprov:3.61 ##; (D) NAnolab 3D:8.41 ##
ΔE00
25 μm: DW: 3.954 ± 0.107; CS: 4.434 ± 0.057; RW: 8.050 ± 0.557
100 μm: DW: 4.259 ± 0.126: CS: 2.243 ± 0.158: RW: 7.078 ± 0.324
ΔE00
DFT showed the greatest color differences between 0° and 90° printing orientation
Mean alteration in color of specimens printed at 45°(A) Cosmos Temp SLA: 3.58 ##; (B) Cosmos Temp DLP:9.46 ##
(C) PriZma Bioprov:3.74 ##; (D) NAnolab 3D:8.63 ##
ΔE00
25 μm: DW: 4.058 ± 0.136; CS: 5.384 ± 0.412
RW: 8.732 ± 0.369
100 μm: DW: 3.781 ± 0.132; CS: 4.669 ± 0.093
RW: 9.038 ± 0.152
-
Mean alteration in color of specimens printed at 90°(A) Cosmos Temp SLA: 3.07 ##; (B) Cosmos Temp DLP:9.68 ##
(C) PriZma Bioprov:3.55 ##; (D) NAnolab 3D:7.58 ##
ΔE00
25 μm: DW: 3.297 ± 0.041; CS: 5.697 ± 0.156
RW: 9.431 ± 0.238
100 μm: DW: 3.457 ± 0.060; CS: 5.428 ± 0.189
RW: 9.197 ± 0.247
ΔE00
DFT showed the greatest color differences between 0° and 90° printing orientation
Device usedSpectrophotometer (VITA Easyshade® V, Vita Zahnfabrik)Spectrophotometer (CM 700d; Konica Minolta)Spectroradiometer (PR 670—Photo Research)
Authors’ suggestions/conclusionsNo influence of printing orientation on the change in colorPrinting orientation affects the color stability
ΔE00: 90° > 45° > 0°
Building orientation influences the visual color and translucency.
ΔE00 varies with the type of 3D-printed resin.
##: Data retrieved from plot digitizer app. DW: Distilled water; CS: Coffee solution; RW: Red Wine.
Table 5. Tensile Strength (TS) Outcomes.
Table 5. Tensile Strength (TS) Outcomes.
Author and YearFarkas et al., 2023 [35]
Mean tensile strength for specimens printed at 0° (MPa)Layer thickness: 100 μm: 56.81; 50 μm: 58.53
Mean tensile strength for specimens printed at 45° (MPa)Layer thickness: 100 μm: 51.52: 50 μm: 53.69
Mean tensile strength for specimens printed at 90° (MPa)Layer thickness: 100 μm: 49.59; 50 μm: 58.01
Exposure agent/aging procedureNo
Testing machineUniversal testing machine
Conclusions and/or suggestionsTS is influenced by print orientation and print layer thickness.
TS at 50 μm: 0° > 90° > 45°;
TS at 100 μm: 0° > 45° > 90°;
TS: 50 μm > 100 μm
Table 6. Compressive Strength (CS) Outcomes.
Table 6. Compressive Strength (CS) Outcomes.
Author and YearFarkas et al., 2023 [35]Alharbi et al., 2016 [34]
Mean compressive strength for specimens printed at 0° (Mpa)Yield stress: 85.90; Max. stress: 146.64257.7 ± 41.1
Mean compressive strength for specimens printed at 45° (Mpa)Yield stress: 98.45; Max. stress: 228.28-
Mean compressive strength for specimens printed at 90° (Mpa)Yield stress: 110.06; Max. stress: 238.26297.7 ± 34.4
Exposure agent/aging procedureNo-
Testing machineUniversal testing machineUniversal testing machine
Conclusions and/or recommendationsCS influenced by print orientation: CS: 90° > 45° > 0°CS influenced by print orientation: CS: 90° > 0°
Table 7. Microhardness Test Outcomes.
Table 7. Microhardness Test Outcomes.
Author and YearQueiroz et al., 2024 [43]de Castro et al., 2022 [25]Mudhaffer et al., 2024 [39]
Mean microhardness for specimens printed at 0° (Kgf/mm2/KHN/HV/MPa)VH (HV): 20.30 ± 4.01Knoop Hardness:
Cosmos Temp—SLA: 7.6 ± 0.6
Cosmos Temp—DLP: 9.7 ± 2.3
PriZma BioProv: 18.4 ± 1.3
Nanolab 3D: 40.3 ± 3.3
Martens hardness
(A) ND: DW:101.4 ± 3.5; AS: 101.9 ± 4.3
(B) DT: DW: 64.6 ± 2.7; AS: 60.8 ± 5.8
(C) GC: DW: 66.9 ± 5.4; AS: 66.6 ± 5.4
Mean microhardness for specimens printed at 45° (Kgf/mm2/KHN/HV/MPa)VH (HV): 21.80 ± 2.25Knoop Hardness:
Cosmos Temp—SLA: 5.3 ± 0.5
Cosmos Temp—DLP: 8.5 ± 2.0
PriZma BioProv: 18.4 17.6 ± 1.1
Nanolab 3D: 41.6 ± 2.1
Martens hardness
(A) ND: DW: 104.9 ± 3.2; AS: 102.4 ± 3.7
(B) DT: DW: 66.5 ± 5.1; AS: 64.4 ± 3.3
(C) GC: DW: 68.2 ± 3.5; AS: 65.3 ± 6.5
Mean microhardness for specimens printed at 90° (Kgf/mm2/KHN/HV/MPa)VH (HV): 21.00 ± 3.92Knoop Hardness:
Cosmos Temp—SLA: 7.6 ± 0.6
Cosmos Temp—DLP: 10.5 ± 2.2
PriZma BioProv: 17.2 ± 1.3
Nanolab 3D: 40.8 ± 3.2
Martens hardness
(A) ND:DW: 102.9 ± 2.7; AS: 101.2 ± 4.8
(B) DT: DW: 67.0 ± 4.4; AS: 66.7 ± 3.0
(C) GC: DW: 72.9 ± 4.4; AS: 72.5 ± 2.9
Mean microhardness for specimens fabricated by milling/conventional technique (in MPa)-Knoop Hardness:
Vita Temp CAD (Control): 28.4 ± 1.8
(D) LAVA ultimate: DW:584.4 ± 14.8; AS: 579.7 ± 9.4
(E) Telio CAD: DW: 119 ± 13.3; AS: 104 ± 12.0
Surface treatment/exposure agent/aging procedureNoImmersion for 1 year in distilled waterImmersion in distilled water and artificial saliva for 90 days
Surface treatment/exposure agent/aging procedureHMV-G series (Shimadzu Corp.)Future-Tech FM Corp.Zwick Martens Hardness Instrument (Z2.5, ZwickRoell Ltd.)
Authors’ recommendations/conclusionsMH: 45° > 90° > 0°KH:
Cosmos Temp-SLA: 0° = 90° > 45°
Cosmos Temp-DLP: 90° > 0° > 45°
PriZma BioProv: 0° > 45° > 90°
Nanolab 3D: 45° > 90° > 0°
Milled > 3D Printed
MH:
ND: 45° > 90° > 0°
DT: 90° > 45° > 0°
GC: 90° > 45° > 0°
Milled > 3D Printed
VH: Vickers hardness; HV: Vickers pyramid number; MH: microhardness; KH: Knoop hardness; ND: Nextdent CB MFH; DT: Dima CB temp; GC: GC temp print; DW: Distilled Water.
Table 8. Surface Roughness (SR) Test Outcomes.
Table 8. Surface Roughness (SR) Test Outcomes.
Author and YearSR Without Aging/WearSR After Aging/Wear
Specimens Printed at 0° (Ra/Sa in μm)Specimens Printed at 30° (Ra/Sa in μm)Specimens Printed at 45° (Ra/Sa in μm)Specimens Printed at 60° (Ra/Sa in μm)Specimens Printed at 90° (Ra/Sa in μm)Milled/
Conventional Specimens (Ra/Sa in μm)
Specimens Printed at 0° (Ra in μm)Specimens Printed at 45° (Ra in μm)Specimens Printed at 90° (Ra in μm)Milled/
Conventional Specimens (Ra/Sa in μm)
Queiroz et al., 2024 [43]Ra: 0.10 ± 0.06-Ra: 1.62 ± 0.55-Ra: 0.97 ± 0.22NANANANA
Khanlar et al., 2023 [37]Sa: 1.03 ± 0.11-Sa: 3.80 ± 0.76-Sa: 2.34 ± 0.62Sa: 2.93 ± 0.90NANANA
de Gois Moreira et al., 2025 [49]Sa:
25 μm: 9.58 ± 3.50
50 μm: 9.66 ± 4.83
100 μm: 16.85 ± 0.64
Sa:
25 μm: 28.25 ± 2.62
50 μm: 10.0 ± 4.67
100 μm: 13.65 ± 3.61
Sa:
25 μm: 13.73 ± 1.75
50 μm: 14.45 ± 1.06
100 μm: 9.17 ± 0.48
Sa:
25 μm: 9.5 ± 3.50
50 μm: 11.47 ± 2.81
100 μm: 15.69 ± 4.89
Sa:
25 μm: 8.97 ± 3.39
50 μm: 8.41 ± 2.82
100 μm: 8.81 ± 3.51
NANANANA
de Castro et al., 2023 [40]Sa:
(A) Cosmos Temp SLA: 0.088 ± 0.044
(B) Cosmos Temp DLP: 0.102 ± 0.034
(C) PriZma Bioprov: 0.066 ± 0.015
(D) Nanolab 3D: 0.201 ± 0.017
-Sa:
(A) Cosmos Temp SLA: 0.109 ± 0.031
(B) Cosmos Temp DLP: 0.104 ± 0.038
(C) PriZma Bioprov: 0.074 ± 0.014
(D) Nanolab 3D: 0.204 ± 0.012
-Sa:
(A) Cosmos Temp SLA: 0.110 ± 0.044
(B) Cosmos Temp DLP: 0.116 ± 0.047
(C) PriZma Bioprov: 0.067 ± 0.009
(D) Nanolab 3D: 0.202 ± 0.014
Sa: 0.050 ± 0.005Toothbrushing wear:
Sa:
(A) Cosmos Temp SLA: 0.310 ± 0.041
(B) Cosmos Temp DLP: 0.284 ± 0.052
(C) PriZma Bioprov:
0.252.4 ± 0.064
(D) Nanolab 3D:
0.288 ± 0.015
Toothbrushing wear:
Sa:
(A) Cosmos Temp SLA: 0.329 ± 0.076
(B) Cosmos Temp DLP: 0.288 ± 0.043
(C) PriZma Bioprov:
0.268 ± 0.088
(D) Nanolab 3D: 0.281.9 ± 0.014
Toothbrushing wear:
Sa:
(A) Cosmos Temp SLA: 0.306 ± 0.039
(B) Cosmos Temp DLP: 0.308.9 ± 0.029
(C) PriZma Bioprov:
0.229.0 ± 0.049
(D) Nanolab 3D:
0.278.2 ± 0.013
Toothbrushing wear:
Sa: 0.541.5 ± 0.656
Ortega NM et al., 2024 [51]Ra:
2.23 ± 0.19
-Ra:
3.19 ± 0.31
-Ra:
1.20 ± 0.36
-----
Alharbi et al., 2021 [53]Surface roughness prepolishing (Ra)
(a) 90: 9.423 ± 0.954; (b) 120: 2.474 ± 0.994; (c) 135: 1.926 ± 0.531;
(d) 150: 2.523 ± 0.447; (e) 180: 0.787 ± 0.166
-Surface roughness after polishing (Ra)
(a) 90: 0.083 ± 0.032; (b) 120: 0.190 ± 0.108
(c) 135: 0.201 ± 0.056; (d) 150: 0.187 ± 0.132
(e) 180: 0.191 ± 0.099
-
NA: not applicable; Ra: arithmetic mean roughness; Sa: areal mean roughness
Table 9. Continuation of Surface Roughness (SR) Test Outcomes.
Table 9. Continuation of Surface Roughness (SR) Test Outcomes.
Author and YearExternal Condition Inducing Change in SRTesting DeviceAuthors’ Suggestions/Conclusions
Queiroz et al., 2024 [43]NAContact profilometer (Rugosimeter model
TR210, Time Group Inc.)
SR: 0° > 90° > 45°
Khanlar et al., 2023 [37]NA3D laser scanning confocal microscope (CLSM)
(KEYENCE VK-X 150/160; KEYENCE
Surface roughness: significantly influenced by printing orientation
SR: 45° > 90° > 0°
de Gois Moreira et al., 2025 [49]NA3D optical
profilometer (Taylor Hobson-AMETEK)
Maximum SR displayed by e 30°/25 μm group
At 50 μm printing layer thickness: SR: 45° > 60° > 30° > 0° > 90 °
de Castro et al., 2023 [40]ToothbrushingLaser confocal microscope (OLS5000, Olympus)No influence of printing orientation on SR.
SR:
(A) Cosmos Temp SLA: 90° > 45° > 0°
(B) Cosmos Temp DLP: 90° > 45° > 0°
(C) PriZma Bioprov: 45° > 90° > 0°
(D) Nanolab 3D: 45° > 90° > 0°
Ortega NM et al., 2024 [51]-Optical 3D measurement system (InfiniteFocusG5 plus)Print orientation parameter significantly impacted the surface roughness.
Ra: 45° > 0° > 90°
Alharbi et al., 2021 [53]-Contact stylus profilometer (Talysurf i60, Metek)Surface roughness (Ra):
Pre polishing: 90° > 150° > 120° > 135° > 180°
After polishing: 135° > 180° > 120° > 150° > 90°
NA: not applicable; SR: Surface Roughness.
Table 10. Wear Resistance/Wear Volume Outcomes.
Table 10. Wear Resistance/Wear Volume Outcomes.
Author and YearLee et al., 2022 [45]Wan et al., 2024 [46]
Mean volume loss (mm3)/RMS (µm) for conventional self-cure resinMean wear volume loss: 0.70 ± 0.15
RMS values: 11.88 ± 2.69
-
Mean volume loss (mm3)/RMS (µm) for specimens printed at 0°Mean wear volume loss: 1.22 ± 0.63
RMS values: 12.14 ± 2.38
Mean wear volume loss (mm3):
50 μm: 1.208 ± 0.196; 100 μm: 1.010 ± 0.159
Mean volume loss (mm3)/RMS (µm) for specimens printed at 45°Mean wear volume loss: 1.32 ± 0.48
RMS values: 13.78 ± 1.29
Mean wear volume loss (mm3):
50 μm: 0.886 ± 0.232; 100 μm: 0.854 ± 0.164
Mean volume loss (mm3)/RMS (µm) for specimens printed at 90°Mean wear volume loss: 1.74 ± 0.41
RMS values: 16.46 ± 2.39
Mean wear volume loss (mm3):
50 μm: 1.063 ± 0.268; 100 μm: 1.136 ± 0.265
Duration of use/test1 Week60,000 cycles (equivalent to 3 months of clinical use)
Parameters of the chewing simulatorNAChewing simulator
(vertical movement: 5 mm; horizontal movement: 2 mm)
Vertical load: 5 KG; 0.8 Hz repetitive motion
Measuring deviceSuperimposition of scanned crownsSuperimposition of scanned specimens using a 3D metrology software (version 2018.1.2, 3D Systems).
Authors’ suggestions/conclusionsWear volume loss and RMS: 90° > 45° > 0° > Conventional
WR of 3D printed: 0° > 45° > 90°
WR: Conv. Self-cure > 3D printed
Mean wear volume loss (mm3):
50 μm: 0° > 90° > 45°:
100 μm: 90° > 0° > 45°
NA: Not Applicable; RMS: root mean square; WR: wear resistance.
Table 11. Continuation of Flexural Strength (FS) Outcomes.
Table 11. Continuation of Flexural Strength (FS) Outcomes.
Author and YearMean Maximum Force at Fracture for Specimens Printed at 0°
(in MPa)
Mean Maximum Force at Fracture for Specimens Printed at 30° (in MPa)Mean Maximum Force at Fracture for Specimens Printed at 45°
(in MPa)
Mean Maximum Force at Fracture for Specimens Printed at 60°
(in MPa)
Mean Maximum Force at Fracture for Specimens Printed at 90°
(in MPa)
Derban et al., 2021 [47]Loading direction: Perpendicular
NextDent: 117.24; Detax: 100.76
-Loading direction: Perpendicular
NextDent: 106.35; Detax: 85.05
-Loading direction: Perpendicular
NextDent: 117.84; Detax: 113.98
Queiroz et al., 2024 [43]236.20 ± 29.73-155.80 ± 36.19-138.70 ± 48.20
Mudhaffer et al., 2025 [38](A) ND:
(1) DW: (i) 24 h: 90.5 ± 4.1;
(ii) 1 m: 81.8 ± 3.6; (iii) 3 m: 87.6 ± 4.8
(2) AS: (i) 24 h: 87.7 ± 2.7
(ii) 1 m: 72.9 ± 1.4; (iii) 3 m: 81.2 ± 3.5
(B) DT:
(1) DW: (i) 24 h: 79.6 ± 3.0
(ii) 1 m: 78.3 ± 8.6; (iii) 3 m: 79.4 ± 5.7
(2) AS: (i) 24 h: 80.4 ± 2.2
(ii) 1 m: 79.5 ± 2.2; (iii) 3 m: 78.1 ± 7.0
(C) GC:
(1) DW: (i) 24 h: 69.4 ± 3.5
(ii) 1 m: 82.6 ± 3.3; (iii) 3 m: 88.8 ± 7.2
(2) AS: (i) 24 h: 74.4 ± 4.0
(ii) 1 m: 78.7 ± 8.3; (iii) 3 m: 87.4 ± 8.6
-(A) ND:
(1) DW: (i) 24 h: 102.6 ± 5.6
(ii) 1 m: 83.6 ± 1.5; (iii) 3 m: 89.6 ± 1.7
(2) AS: (i) 24 h: 94.3 ± 2.1
(ii) 1 m: 77.5 ± 1.2; (iii) 3 m: 86.6 ± 3.81
(B) DT:
(1) DW: (i) 24 h: 81.7 ± 2.4
(ii) 1 m: 87.5 ± 10.0; (iii) 3 m: 92.1 ± 3.8
(2) AS: (i) 24 h: 80.0 ± 4.2
(ii) 1 m: 79.2 ± 3.2; (iii) 3 m: 87.7 ± 3.2
(C) GC:
(1) DW: (i) 24 h: 74.9 ± 3.3
(ii) 1 m: 76.8 ± 4.9: (iii) 3 m: 79.7 ± 5.6
(2) AS: (i) 24 h: 85.4 ± 5.5
(ii) 1 m: 75.4 ± 3.3: (iii) 3 m: 76.9 ± 9.5
-(A) ND:
(1) DW: (i) 24 h: 106.2 ± 4.9
(ii) 1 m: 83.2 ± 1.5; (iii) 3 m: 89.9 ± 1.9
(2) AS: (i) 24 h: 95.5 ± 3.2
(ii) 1 m: 79.9 ± 1.4; (iii) 3 m: 91.3 ± 2.1
(B) DT:
(1) DW: (i) 24 h: 87.7 ± 2.1
(ii) 1 m: 102.0 ± 1.2; (iii) 3 m: 93.4 ± 6.9
(2) AS: (i) 24 h: 86.8 ± 1.1
(ii) 1 m: 86.6 ± 3.4; (iii) 3 m: 93.3 ± 1.7
(C) GC:
(1) DW: (i) 24 h: 82.4 ± 3.4
(ii) 1 m: 90.3 ± 3.8; (iii) 3 m: 89.7 ± 5.8
(2) AS: (i) 24 h: 85.2 ± 3.8
(ii) 1 m: 82.9 ± 4.3; (iii) 3 m: 89.2 ± 6.9
Casucci et al., 2024 [48](A) VS: 132.52 ± 35.25
(B) VP: 156.56 ± 25.58
(C) BT: 113.37 ± 31.93
(D) SC: 110.41 ± 36.13
-(A) VS: 133.04 ± 22.12
(B) VP: 130.46 ± 12.33
(C) BT: 148.91 ± 21.23
(D) SC: 136.33 ± 15.38
-(A) VS: 134.24 ± 14.94
(B) VP: 116.97 ± 34.87
(C) BT: 100.96 ± 16.66
(D) SC: 114.85 ± 17.72
de Gois Moreira et al., 2025 [49]Without thermocycling
25 μm: 48.6 ± 6.6; 50 μm: 41.0 ± 6.4
100 μm: 39.4 ± 5.4
With thermocycling
25 μm: 45.8 ± 3.1; 50 μm: 34.3 ± 5.8
100 μm: 39.0 ± 4.4
Without thermocycling
25 μm: 51.0 ± 4.5; 50 μm: 44.0 ± 2.3
100 μm: 34.8 ± 4.5
With thermocycling
25 μm: 54.5 ± 6.4; 50 μm: 40.5 ± 38
100 μm: 36.0 ± 5.0
Without thermocycling
25 μm: 41.0 ± 3.9; 50 μm: 43.3 ± 2.4
100 μm: 43.4 ± 4.0
With thermocycling
25 μm: 57.7 ± 3.1; 50 μm: 41.3 ± 4.7
100 μm: 33.6 ± 4.6 N
Without thermocycling
25 μm: 50.3 ± 3.0; 50 μm: 42.8 ± 4.6
100 μm: 38.7 ± 3.1
With thermocycling
25 μm: 47.6 ± 4.8; 50 μm: 37.9 ± 3.0
100 μm: 37.1 ± 3.4
Without thermocycling
25 μm: 46.2 ± 4.9; 50 μm: 47.4 ± 3.5
100 μm: 37.7 ± 3.4
With thermocycling
25 μm: 63.0 ± 4.5; 50 μm: 53.6 ± 5.1
100 μm: 47.7 ± 3.7
de Castro et al., 2022 [25]Without aging
Cosmos Temp-SLA: 31.3 ± 3.6
Cosmos Temp-DLP: 72.3 ± 5.8
PriZma BioProv: 86.2 ± 4.1
Nanolab 3D: 66.6 ± 9.2
After 1-year aging
Cosmos Temp-SLA: 71.0 ± 10.1
Cosmos Temp-DLP: 41.3 ± 4.9
PriZma BioProv: 89.3 ± 3.4
Nanolab 3D: 41.2 ± 1.6
-Without aging
Cosmos Temp-SLA: 35.4 ± 5
Cosmos Temp-DLP: 60.5 ± 9.8
PriZma BioProv: 84.8 ± 5.8
Nanolab 3D: 70.8 ± 3.0
After 1-year aging
Cosmos Temp-SLA: 90.7 ± 12.2
Cosmos Temp-DLP: 40.9 ± 6.1
PriZma BioProv: 91.8 ± 6.6
Nanolab 3D: 39.7 ± 10.3
-Without aging
Cosmos Temp-SLA: 39.2 ± 2.8
Cosmos Temp-DLP: 74.5 ± 3.7
PriZma BioProv: 80.3 ± 4.4
Nanolab 3D: 63.0 ± 5.5
After 1-year aging
Cosmos Temp-SLA: 109.3 ± 13.9
Cosmos Temp-DLP: 35.6 ± 3.7
PriZma BioProv: 86.1 ± 8.1
Nanolab 3D: 39.4 ± 4.1
Espinar et al., 2024 [41](A) Detax Freeprint Temp:
98.81 ± 13.54
(B) Formlabs Temporary CB:
127.83 ± 20.35
(C) Formlabs Permanent Crown: 142.62 ± 12.98
(D) GCT-GC: 94.28 ± 11.03
---(A) Detax Freeprint Temp:
111.36 ± 14.80
(B) Formlabs Temporary CB:
129.29 ± 23.02
(C) Formlabs Permanent Crown: 120.73 ± 18.07
(D) GCT-GC: 91.68 ± 11.78
Kaiahara et al., 2025 [50]80.90 ± 4.0-90.10 ± 8.45-114.71 ± 7.61
ND: Nextdent CB MFH; DT: Dima CB temp; GC: GC temp print; DW: Distilled water; AS: artificial saliva; h: hours; m = month; VS: Varseo smile teeth; VP: V-print C&B temp; BT: Bego Triniq; SC: Sprintray Crown.
Table 12. Flexural Strength (FS) Outcomes.
Table 12. Flexural Strength (FS) Outcomes.
Author and YearMean/Median of Maximum Force at Fracture for
Specimens Fabricated by Milling/Conventional
Technique (in MPa)
Exposure Agent/Aging MethodTesting Machine Authors’ Recommendations/
Conclusions
Derban et al., 2021 [47]-NMUniversal testing machineFS: For both NextDent and Detax: 90° > 0° > 45°
NextDent > Detax
Queiroz et al., 2024 [43]-NoUniversal testing machineFS: 0° > 45° > 90°
Mudhaffer et al., 2025 [38]-DW and AS
(24 h, 1 m, 3 m)
Universal testing machineFS is significantly influenced by printing orientation.
FS: 90° > 45° > 0°
Effect of aging is minimal and varies with each material.
All materials met the minimum FS requirement of 80 MPa when printed at 90°.
Casucci et al., 2024 [48]-DW (24 h)Universal testing machineFS is significantly influenced by printing orientation, with different materials displaying varied results.
FS:
(A) VS: 90° > 45° > 0°
(B) VP: 0° > 45° > 90°
(C) BT: 45° > 0° > 90°
(D) SC: 45° > 90° > 0°
de Gois Moreira et al., 2025 [49]-Thermocycling (10,000 cycles)Universal testing machineFS is best for specimens printed at a print layer thickness of 25 μm combined with build angles of 90° and 45°.
de Castro et al., 2022 [25]Vita Temp (Control) (Milled): 94.8 ± 3.3
After 1-year aging: 83.7 ± 8.2
1 year water storageUniversal testing machineAfter 1-year water storage, Cosmos-SLA printed at 90° showed the highest FS.
FS varied with material and printing orientation.
FS After 1-year aging
Cosmos Temp-SLA: 90° > 45° > 0°
Cosmos Temp-DLP: 0° > 45° > 90°
PriZma BioProv: 45° > 0° > 90°
Nanolab 3D: 0° > 45° > 90°
Espinar et al., 2024 [41]--Universal testing machinePrinting orientation did not influence flexural strength.
(A) Detax Freeprint Temp: 90° > 0°
(B) Formlabs Temporary CB: 90° > 0°
(C) GCT-GC: 0° > 90°
Kaiahara et al., 2025 [50]78.13 ± 7.94-Universal testing machinePrinting orientation significantly influences flexural strength.
FS: 90° > 45° > 0°
FS: 3D printed > Milled
DW: distilled water; AS: artificial saliva; h: hours; m = month; NM: Not Mentioned.
Table 13. Elastic Modulus Outcomes.
Table 13. Elastic Modulus Outcomes.
Author and YearEspinar et al., 2024 [41]
Mean Elastic Modulus of specimens printed at 0° (MPa)(A) Detax Freeprint Temp: 2552.55 ± 155.84
(B) Formlabs Temporary CB: 4426.70 ± 512.76
(C) Formlabs Permanent Crown: 4262 ± 442.49
(D) GCT-GC: 2898.73 ± 267.65F
Mean Elastic Modulus of specimens printed at 90° (MPa)(A) Detax Freeprint Temp: 2750.00 ± 140.31
(B) Formlabs Temporary CB: 6639.50 ± 231.74
(C) Formlabs Permanent Crown: 4349.20 ± 230.93
(D) GCT-GC: 2887.67 ± 176.63
Testing MachineUniversal testing machine
Authors’ Recommendations/ConclusionsPrinting orientation did not influence elastic modulus.
(A) Detax Freeprint Temp: 90° > 0°
(B) Formlabs Temporary CB: 90° > 0°
(C) GCT-GC: 0° > 90°
Table 14. Assessment of strength of evidence using GRADE approach.
Table 14. Assessment of strength of evidence using GRADE approach.
OutcomeEffect of Different Printing
Orientations on the Mechanical Properties of 3D-Printed
Provisional Fixed Dental
Prosthesis [25,34,39,41,42,43,45,46,47,48,49,50,51,53]
Effect of Different Printing
Orientations on the Physical
Properties of 3D-Printed
Provisional Fixed Dental
Prosthesis [33,40,44]
InconsistencyNPNP
IndirectnessNPNP
ImprecisionNPNP
Risk of BiasPP
Publication BiasNPNP
Strength of EvidenceJfb 16 00278 i001Jfb 16 00278 i002
NP: not present; P: present.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Alqarawi, F.K. The Influence of Printing Orientation on the Properties of 3D-Printed Polymeric Provisional Dental Restorations: A Systematic Review and Meta-Analysis. J. Funct. Biomater. 2025, 16, 278. https://doi.org/10.3390/jfb16080278

AMA Style

Alqarawi FK. The Influence of Printing Orientation on the Properties of 3D-Printed Polymeric Provisional Dental Restorations: A Systematic Review and Meta-Analysis. Journal of Functional Biomaterials. 2025; 16(8):278. https://doi.org/10.3390/jfb16080278

Chicago/Turabian Style

Alqarawi, Firas K. 2025. "The Influence of Printing Orientation on the Properties of 3D-Printed Polymeric Provisional Dental Restorations: A Systematic Review and Meta-Analysis" Journal of Functional Biomaterials 16, no. 8: 278. https://doi.org/10.3390/jfb16080278

APA Style

Alqarawi, F. K. (2025). The Influence of Printing Orientation on the Properties of 3D-Printed Polymeric Provisional Dental Restorations: A Systematic Review and Meta-Analysis. Journal of Functional Biomaterials, 16(8), 278. https://doi.org/10.3390/jfb16080278

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
