A New Method to Verify the Measurement Speed and Accuracy of Frequency Modulated Interferometers

Abstract

The measurement speed and measurement accuracy of a displacement measuring interferometer are key parameters. To verify these parameters, a fast and high-accuracy motion is required. However, the displacement induced by a mechanical actuator generates disadvantageous features, such as slow motion, hysteresis, distortion, and vibration. This paper proposes a new method for a nonmechanical high-speed motion using an electro-optic modulator (EOM). The method is based on the principle that all displacement measuring interferometers measure the phase change to calculate the displacement. This means that the EOM can be used to accurately generate phase change rather than a mechanical actuator. The proposed method is then validated by placing the EOM into an arm of a frequency modulation interferometer. By using two lock-in amplifiers, the phase change in an EOM and, hence, the corresponding virtual displacement could be measured by the interferometer. The measurement showed that the system could achieve a displacement at 20 kHz, a speed of 6.08 mm/s, and a displacement noise level < 100 pm//√Hz above 2 kHz. The proposed virtual displacement can be applied to determine both the measurement speed and accuracy of displacement measuring interferometers, such as homodyne interferometers, heterodyne interferometers, and frequency modulated interferometers.

1. Introduction

High-precision technology is increasingly critical for industrial applications. The demand for high-speed and precise processing has been on the rise in various fields. To meet these requirements, different types of displacement measuring sensors are available, including capacitive sensors, linear encoders, and laser interferometers. In a short measurement range, capacitive sensors can obtain sub-nanometer resolution [1,2]. There are some disadvantages of capacitive sensors, such as sensitivity to temperature and humidity, short stand-off distance, and relatively low bandwidth [3,4]. Linear encoders, which can measure both distance and displacement at nanometer resolution over a long measurement range, are widely used as machine tools [5,6]. However, the complex structure and large volume limits their application in ultra-precision measurements. Among these sensors, displacement measuring interferometers have increasingly been adopted because of their high level of accuracy and traceability to the definition of the meter. Numerous displacement measuring interferometers have been developed, such as homodynes [7,8,9], heterodynes [10,11,12], and frequency/phase modulation interferometers [13,14,15,16]. In open-air environments, the measurement range and accuracy of the homodyne interferometer are reduced due to the refractive index fluctuation [17]. The heterodyne frequency is less than 20 MHz, and, hence, the measurement speed is approximately 5 m/s [18,19]. For a frequency modulation interferometer, the measurement speed is limited by the modulation frequency of the laser source. Laser diodes (LDs) are widely used as the laser source in interferometers due to their advantageous features, such as high power, compactness, and long lifespan,. In particular, the high modulation frequency of LDs can be obtained by applying a current modulation at the GHz level [20,21]. Hence, the measurement speed of the frequency modulation interferometer can theoretically reach a level of 10 m/s. Therefore, a considerable challenge for the interferometer is the measurement speed verification at nanoscale uncertainty. Normally, a piezo-electric (PZT) actuator uses the motion of the mirrors for interferometry because of its high motion resolution. However, the travelling speed of the PZT stage is limited to several kHz. In addition, a mechanical displacement PZT system typically shows hysteresis, which is a type of cyclic error [22,23,24]. Hysteresis introduces uncertainties into measurements, which should be suppressed or removed. Voice coil actuators are also used for many high-precision motion applications [25,26]. The actuator can achieve a resolution of 2 nm over a range of 1 mm [27]. Two major disadvantages of voice coil actuators are heat output and disturbance from moving wires [28]. Hence, voice coil actuators are not suitable for wide-range nano-positioning at high speed.

The measurement speed and measurement precision of displacement measuring interferometers are key parameters. For interferometers, the measurement speed or rate implies the time required to take one displacement measurement in the unit of seconds or Hz. In our previous works, a high modulation frequency of 3 MHz was successfully applied to the LD to improve the measurement speed of the frequency modulated interferometer [13,14,29]. Moreover, a high-precision phase meter was developed to measure the phase change in the interferometer [12]. To verify the measurement accuracy of our proposed interferometers, the displacement of the target mirror was measured using a capacitive sensor (D100, Physik Instrumente) integrated into the PZT stage. However, the bandwidth of the capacitive sensor was less than 3kHz, and the resolution was 1 nm over a displacement range of 2 µm [13,14]. Therefore, it remains a significant challenge to verify both parameters using a nanometer resolution and high-speed displacement actuator. In this paper, a high-speed virtual displacement without hysteresis is proposed and validated. It is noteworthy that all types of displacement interferometers determine target displacement by measuring the phase shift. A pure phase modulation at high frequency can be generated using an electro-optic modulator (EOM). This means that the EOM can be used to induce the phase shift rather than mechanical motions, such as PZT or voice coil actuators, to confirm the measurement speed and accuracy of displacement measuring interferometers. By using an EOM, the phase shift can be generated ranging from several kHz to some tens of MHz without distortion, hysteretic, or vibration. Hence, both the measurement accuracy and speed of the interferometer under assessment can be accurately verified. In the primary experiment, an EOM was placed into an arm of a frequency modulated interferometer. The virtual displacement was implemented using the EOM, in which the phase was changed using a modulation voltage at 20 kHz. Using two lock-in amplifiers (LIAs) and a Lissajous diagram, the phase change in the EOM and the corresponding virtual displacement could be measured using the frequency modulated interferometer.

In summary, the main contributions of this paper are listed as follows: (1) the calculation and design of a virtual displacement generated using an EOM; (2) the validation and measurement of the virtual displacement using a frequency modulated interferometer; (3) the comparison of the resulting measurement using the interferometer and theoretical result of the motion. Both the measurement speed and accuracy of the frequency modulated interferometer can be verified using the proposed method. This is significant in high-speed measuring applications, such as spindle error measurement, vibration measurement, and machine tool calibration.

2. Methodology

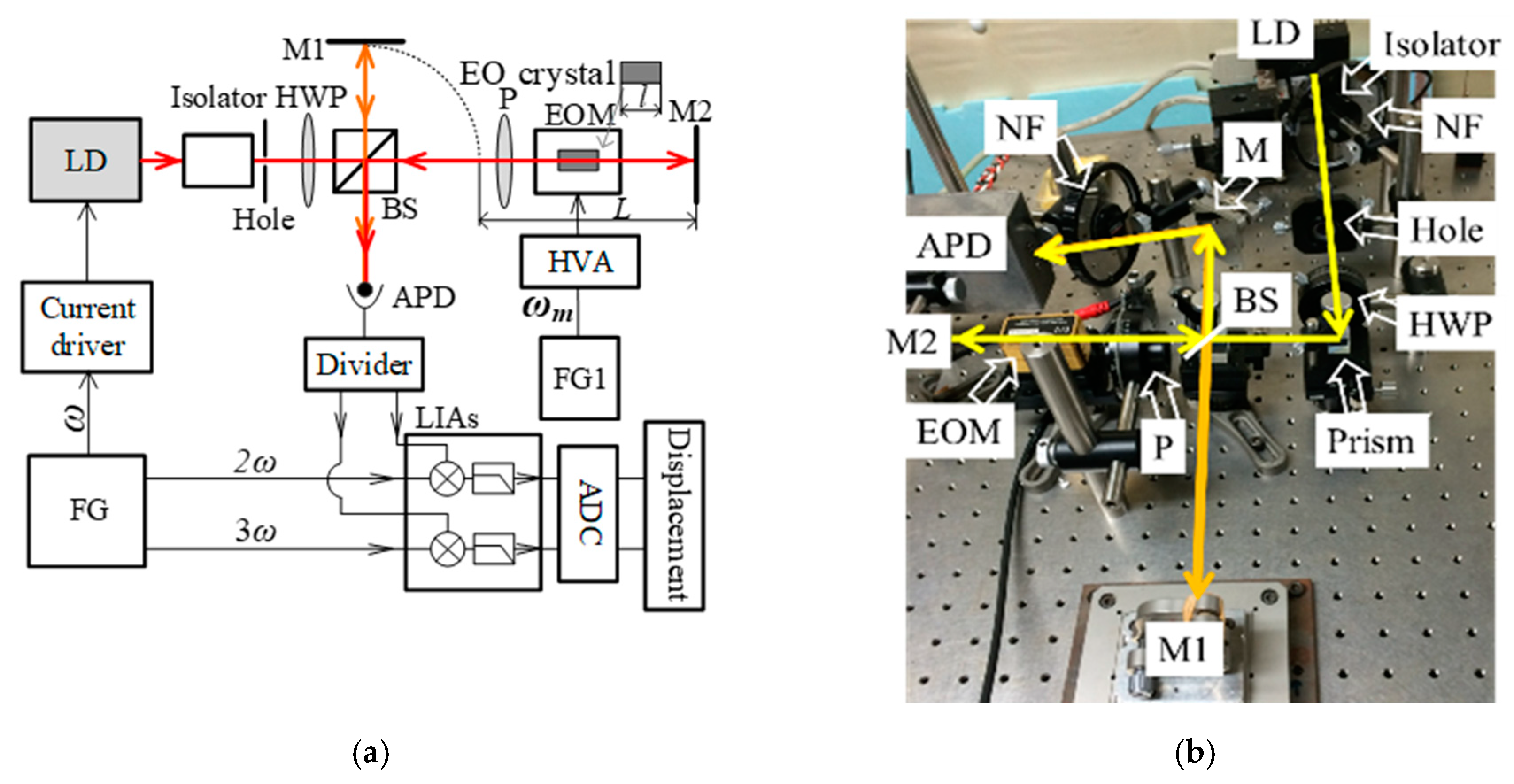

Figure 1a shows the schematic of the frequency modulated interferometer. The laser source was a laser diode (LD), in which the frequency was modulated with a sinusoidal signal by a modulation current injection. The angle frequency ω(t) of the LD is expressed as

$$\omega (t)={\omega }_0+\Delta \omega \sin (\omega t)$$

(1)

where ω₀ (=2πf₀), ω, and Δω are the initial angle frequency of the LD, acting as the carrier angle frequency, the angle modulation frequency, and the angle modulation frequency excursion of ω, respectively. An isolator was used to prevent unwanted lights returning to the LD. A half-wave plate (HWP) was employed to rotate the polarization plane of the incident light at 45º. A beam splitter (BS) divided the incident light from the isolator into two beams: a reflected beam and a transmitted beam. The reflected beam was sent to a mirror (M1) in the reference arm. In the measurement arm, the second beam was sent to another mirror (M2) along a polarizer (P) and an EOM. The polarizer was placed in front of the EOM to ensure the correct polarization of the input light. After reflection from the mirrors, the reflected lights of the two arms recombined with each other at the BS to generate interference.

The intensity I(τ, t) of the interference signal [13,14] is written as

$$\begin{array}{l}I(\tau ,t)=E^2{}_{01}+E^2{}_{02}+2E_{01}{E}_{02}\cos ({\omega }_0\tau )J_0(m)+4E_{01}{E}_{02}\cos ({\omega }_0\tau ){\displaystyle \sum _{n=1}^{\infty }{J}_{2n}}(m)\cos (2n\omega t)\\ -4E_{01}{E}_{02}\sin ({\omega }_0\tau ){\displaystyle \sum _{n=1}^{\infty }{J}_{2n-1}}(m)\cos [(2n-1)\omega t],\end{array}$$

(2)

where τ, m, E₀₁ and E₀₂, n, J₀(m), J_2n(m), and J_2n−1(m) are the changes in time between the two arms of the interferometer, the modulation index, the amplitudes of the electric fields in the reference and measurement arms, an integer, and the Bessel functions, respectively. Here,

$$m=\frac{\Delta \omega }{\omega }\sin \left(\frac{\omega \tau }{2}\right)\approx \frac{2\pi \Delta f{n}_{air}L}{c}$$

(3)

where Δf (Δω = 2πΔf), n_air, L, and c are the frequency modulation excursion, the refractive index of air, the unbalance length of the interferometer, and the speed of light in a vacuum. A divider split I(τ, t) into two parts, which are coupled with the two purely sinusoidal signals of 2ω and 3ω from the function generator. By using the two LIAs [13,14], the intensities I_2ω and I_3ω of the 2ω and 3ω harmonics of I(τ, t), respectively, are produced as follows:

$$\begin{array}{l}{I}_{2\omega }=2E_{01}{E}_{02}\cos ({\omega }_0\tau )J_2(m),\\ I_{3\omega }=-2E_{01}{E}_{02}\sin ({\omega }_0\tau )J_3(m).\end{array}$$

(4)

Here, J₂(m) and J₃(m) are the second- and third-order Bessel functions, respectively. By using the Lissajous diagram, ω₀τ is determined. The total phase difference Φ between the arms is

$$\Phi ={\omega }_0\tau =\arctan \left(-\frac{I_{3\omega }}{I_{2\omega }}.\frac{J_2(m)}{J_3(m)}\right).$$

(5)

To generate the virtual displacement, the EOM was applied using a sinusoidal voltage V(t)

$$V(t)=V_{EOM}\sin ({\omega }_{EOM}t),$$

(6)

where V_EOM is the amplitude of V(t). For the EOM (4002, Newport) [30], the optical phase difference ΔΦ₁ induced by applying V(t) is

$$\Delta {\Phi }_1=\frac{\mathsf{\pi }}{V_{\mathsf{\pi }}}V,$$

(7)

where V_π is a half-wave voltage. Because the laser beam in the measurement arm was double-phase modulated (Figure 1), by substituting Equation (6) into Equation (7), the phase ΔΦ _EOM = 2ΔΦ₁ is

$$\Delta {\Phi }_{EOM}=2\Delta {\Phi }_1=\frac{2\mathsf{\pi }}{V_{\mathsf{\pi }}}V=\frac{2\mathsf{\pi }}{V_{\mathsf{\pi }}}{V}_{EOM}\sin ({\omega }_{EOM}t).$$

(8)

However, the total phase difference Φ between the arms of the interferometer is

$$\Phi ={\omega }_0\tau =\frac{4\mathsf{\pi }{n}_{air}\left(L-l\right)}{\lambda }+\frac{4\mathsf{\pi }}{\lambda }\left(n_e+\Delta n_e\right)l=\frac{4\mathsf{\pi }{n}_{air}\left(L-l\right)}{\lambda }+\frac{4\mathsf{\pi }}{\lambda }{n}_{e}l+\Delta {\Phi }_{EOM},$$

(9)

where L, n_air, l, n_e, Δn_e, and λ are the unbalance length of the interferometer, the refractive index of air, the length and unperturbed refractive index of the electro-optic (EO) crystal, the change in n_e induced by applying V(t), and the laser wavelength, respectively. Here,

$$\Delta {\Phi }_{EOM}=\frac{4\mathsf{\pi }}{\lambda }\Delta n_{e}l=\frac{4\mathsf{\pi }}{\lambda }\Delta l,$$

(10)

Δl is the change in the optical path in the EO crystal, which is defined as the virtual displacement of M2 due to applying V(t). Substituting Equation (8) into Equation (10), Δl becomes

$$\Delta l=\frac{\lambda }{2}\frac{V_0}{V_{\pi }}\sin ({\omega }_{EOM}t).$$

(11)

Substituting Equations (5) and (10) into Equation (9), Δl measured by the interferometer is

$$\Delta l=\frac{\lambda }{4\pi }\left\{\arctan \left(-\frac{I_{3\omega }}{I_{2\omega }}.\frac{J_2(m)}{J_3(m)}\right)\right\}-\left[\left(L-l\right)n_{air}+n_{e}l\right].$$

(12)

In this experiment, we compared the measurement in Equation (12) with the calculated displacement in Equation (11) at the high phase-modulation frequency ω_m.

For the frequency modulated interferometer, the maximum measurable speed V_max can be given by [13]

$$V_{\max }\le k\frac{\lambda }{4}f,$$

(13)

where k and f are an integer and the modulation frequency of LD, respectively. Here, k represents the ratio of the cutoff frequency of the LIAs and the modulation frequency of LD; normally k = 0.1–0.8. In this paper, a virtual displacement was developed at a speed of tens of kHz and without hysteresis generated using an EOM.

3. Experiments and Results

A photograph of the experimental setup is shown in Figure 1b. The laser source was an LD (HL6312G, Thorlabs Inc., Newton, NJ, USA), and it was frequency modulated with a sine-wave signal (a frequency modulation of 20 MHz and modulation excursion of 570 MHz) by modulating the injection current. To produce a high-speed virtual motion, the 4002 EOM with V_π = ~125 V at λ = 635 nm was used. The EOM was phase changed using a 20 kHz sine-wave signal V(t), which had V₀ = 2 V, by utilizing a digital function generator (Moku:labs, Liquid Instruments), and it was then amplified 30 times by a high-voltage amplifier. ΔΦ_EOM was produced, and the 20 kHz sine-wave virtual displacement Δl could thus be attained with a peak-to-peak (p-p) amplitude of ~152 nm (=635 nm × 2 V × 30/2/125 V). The I(τ, t) was detected using an avalanche photodetector (DET08CFC/M, Thorlabs). To extract I_2ω (2ω = 40 MHz) and I_3ω (2ω = 60 MHz), we used two digital LIAs (Moku:labs, Liquid Instruments), which were synchronized with each other and had a cutoff frequency of 200 kHz. The I_2ω and I_3ω were then recorded using an analog-to-digital converter (AD16-16U(PCI)EV, Contec Co., Osaka, JP) at a sampling frequency of 715 kHz to eliminate MHz-order noises in the harmonics. In this experiment, the modulation index was m ≈ 2.4. This led to J(2ω) = 2.15 × J(3ω). In addition, because (L–l)n_air + n_el ≈ n_airL ≈ 0.2 m. Equation (13) is rewritten as

$$\Delta l=\frac{\lambda }{4\pi }\left\{\arctan \left(-\frac{1}{2.15}\frac{I_{3\omega }}{I_{2\omega }}\right)\right\}-L{n}_{air}.$$

(14)

The experiments were performed under the conditions in

Table 1. The experimental conditions for the virtual displacement measurement.

Modulation frequency ω for LD	2π × 20 MHz
Frequency modulation excursion Δω	2π × 570 MHz
Cutoff frequency of LIAs	200 kHz
Vπ at 536 nm	125 V
Applied angle frequency for ωEOM	2π × 20 kHz
Unbalanced length L	0.2 m
Working sampling frequency	715 kHz

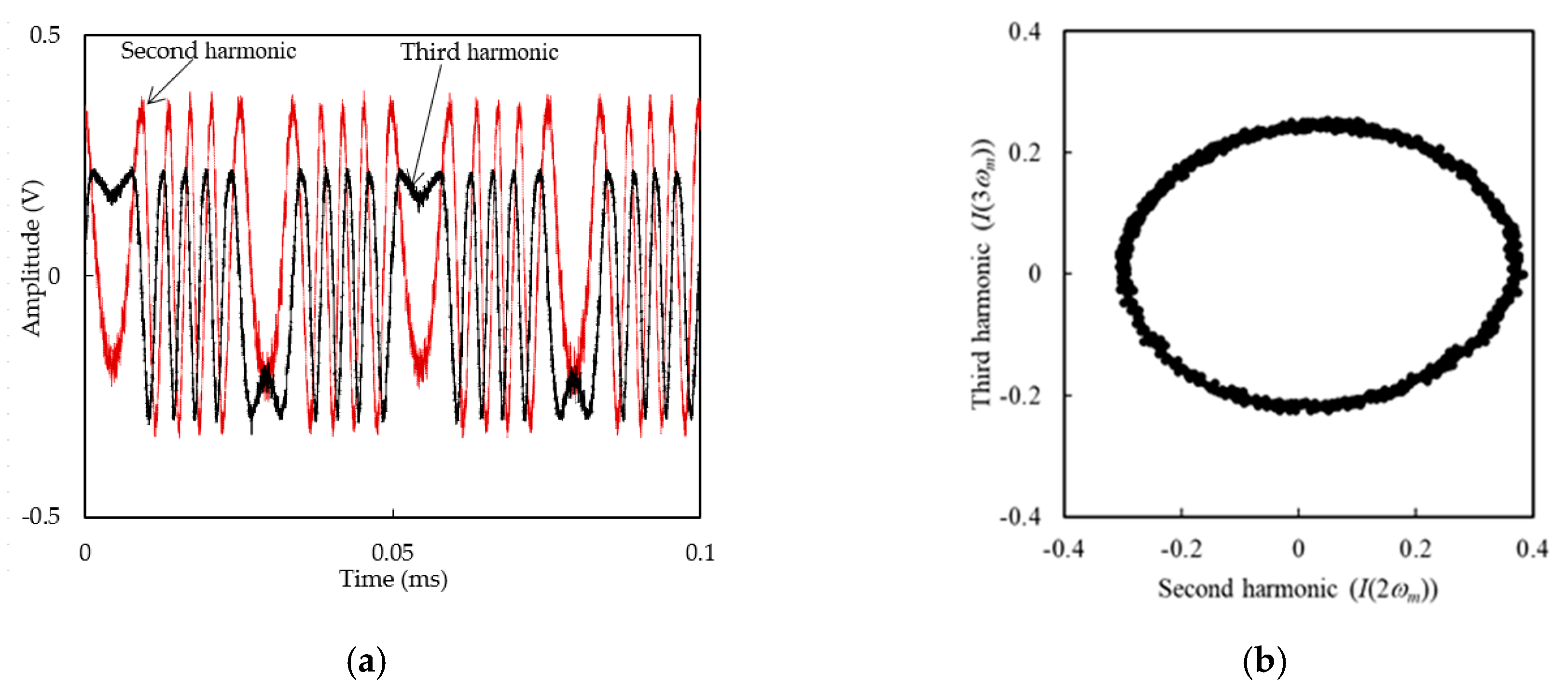

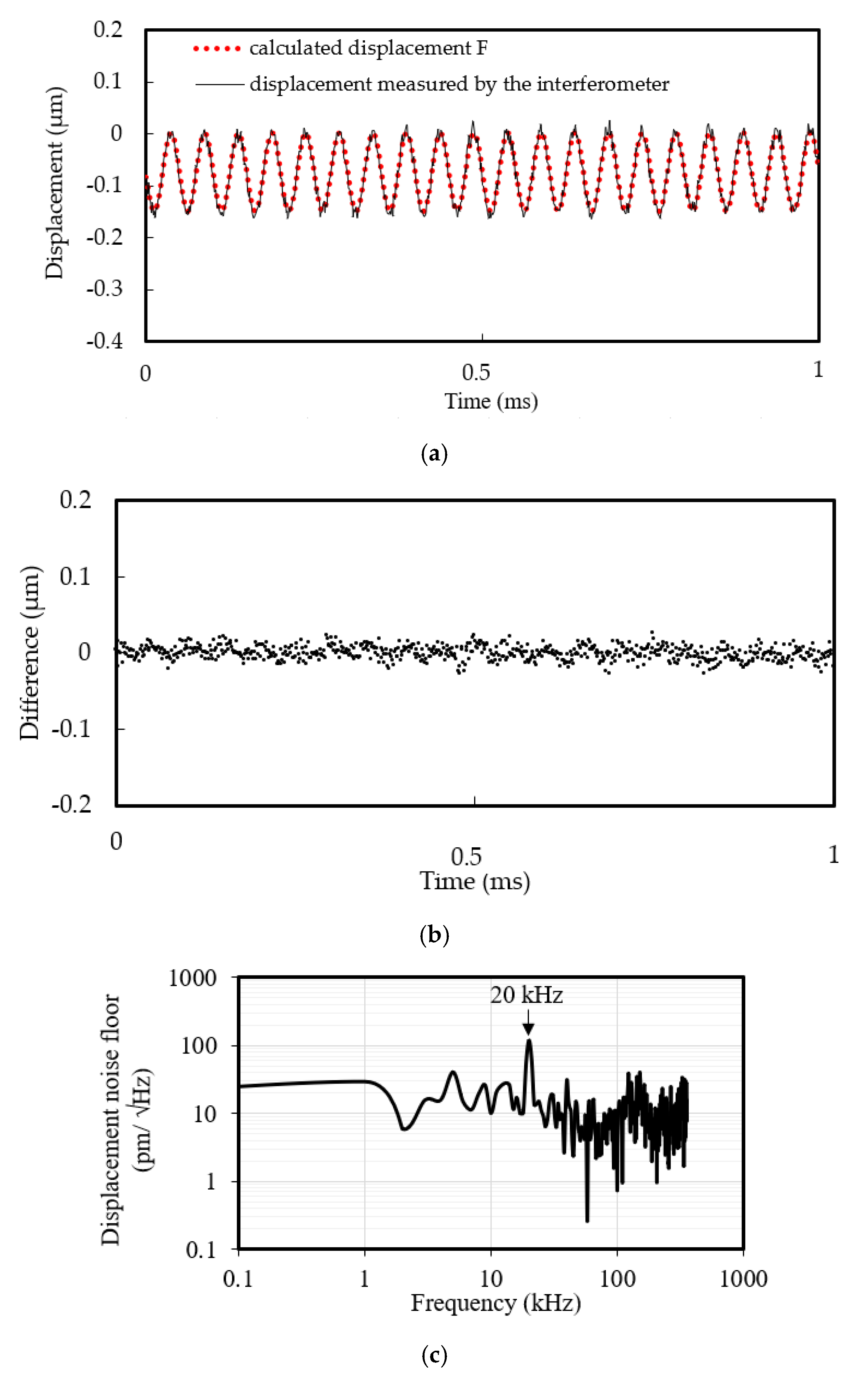

. The second and third harmonics that were clearly detected by LIAs are shown in Figure 2a. A Lissajous diagram using the two harmonics is shown in Figure 2b. A sine-wave displacement at 20 kHz and a p-p amplitude of ~152 nm was obtained over 1 ms, as shown in Figure 3a. This led to a measured speed of 6.08 mm/s (=2Δl × f_EOM = 2 × 152 nm × 20 kHz).

The result obtained by the interferometer was compared with a calculated displacement function F using Equation (11), F = A + B × sin(2π × 20 kHz × t), where A = −0.152 µm and B = −0.076 µm. The difference between the measured result and F is shown in Figure 3b. A displacement difference of ~30 nm and a standard deviation of ~6 nm were attained. The displacement noise floor analyzed in Figure 3b is depicted in Figure 3c. Above 2 kHz, a displacement noise floor of less than 100 pm/√Hz was achieved. A dominated noise peak at 20 kHz can be seen. This led to the cycle error of the sine-wave displacement in Figure 3a, and this noise level was ~100 pm/√Hz. The result showed that our method could generate a stable and high-precision displacement that could be used as a reference. Even though unwanted noises caused by vibration and air disturbance still existed in the measurement, the method was promising for high-speed measurements.

From Equation (5), when k = 0.8, λ = 635 nm, and f = 20 MHz, the maximum measurable speed of 2.54 m/s can be achieved. However, due to the limitation of the hardware caused by the low bandwidth of the high-voltage amplifier (HVA) and LIAs, we could not perform a virtual displacement of several m/s. We plan to use a higher bandwidth HVA and LIAs to improve the measurement speed. Another disadvantage of the proposed method is that the use of the EOM in one arm of the interferometer can cause the polarization mixing effect, and, hence, it may induce some noise of the interference signal. To improve the interference signal, some polarization optics can be used in the next experiment.

4. Conclusions

In this study, high-speed displacement generation using an electro-optic modulator (EOM) was proposed and validated. A frequency modulated interferometer was established to measure the virtual displacement produced by the EOM. To produce a high-speed displacement, an EOM was phase changed using a high-speed sinusoidal modulation voltage. A 20 kHz sine-wave signal with an amplified amplitude of 60 V was applied to the EOM. A corresponding sinusoidal virtual displacement of ~152 nm at 20 kHz was then generated. The interferometer extracted an interference signal that contained the phase change in the EOM. Two LIAs and a Lissajous diagram were adopted for detecting the phase change and calculating the virtual displacement. The measurement showed that the virtual displacement, with an amplitude of 152 nm at 20 kHz and a measurement speed of 6.08 mm/s, was successfully measured by the interferometer. A displacement noise floor < 100 pm/√Hz above 2 kHz was achieved. This experiment was successful at developing a displacement reference at high speed. For future study, the possibility of using a higher modulation for the LDs and the residual amplitude modulation effect will be investigated, as well as high-speed mechanical displacements when the relevant hardware is available.
