A Review: Preparation, Performance, and Applications of Silicon Oxynitride Film

Abstract

Silicon oxynitride (SiN_xO_y) is a highly promising functional material for its luminescence performance and tunable refractive index, which has wide applications in optical devices, non-volatile memory, barrier layer, and scratch-resistant coatings. This review presents recent developments, and discusses the preparation methods, performance, and applications of SiN_xO_y film. In particular, the preparation of SiN_xO_y film by chemical vapor deposition, physical vapor deposition, and oxynitridation is elaborated in details.

1. Introduction

Silicon oxynitride (SiN_xO_y) is an important inorganic material widely studied for its outstanding electronic and mechanical performance. SiN_xO_y is the intermediate phase between silicon dioxide (SiO₂) and silicon nitride (Si₃N₄) [1,2], which possesses high durability at high temperature, high resistance to thermal-shock and oxidation, high density, excellent mechanical performance, and a low dielectric constant [3,4,5,6,7,8]. Due to these unique performance, SiN_xO_y has great potential for high-temperature related applications, for example, it is typically used in non-linear optics [9] and as mechanical component owing to its high strength, thermal insulation, and electronic and chemical resistance [10,11]. When Si₃N₄ thin film is utilized as the core material of waveguide devices, Si₃N₄ waveguides have better tolerance to sidewall roughness and geometric variations than silicon waveguides, and its relative refractive index difference can increase to 0.62, allowing for much tighter bending radius. Tighter bending radius will not only reduce the bending radius and improve the device integration, but also narrow the waveguide and reduce the input loss [12,13,14,15,16]. However, Si₃N₄ has low fracture toughness and poor electrical insulation, limiting its wide applications. SiO₂ film has a wide range of applications, from microelectronics [17,18] to optical waveguides [19], due to its low dielectric constant, low defect density, and low residual stress. However, SiO₂ does not perform as an encapsulation layer since oxygen, sodium, and boron can diffuse within it [20,21], which is different from Si₃N₄. For these mentioned applications, SiN_xO_y is a more promising candidate, in addition, it has tunable optical and electrical performance. By varying the chemical composition of SiN_xO_y, during the fabrication process, its refractive index and dielectric constant will be tuned [22,23,24]. Except the tunable refractive index, SiN_xO_y also has adjustable thin film stress [25] and exhibits photoluminescence (PL) in the visible light range at room temperature [26]. Thus, SiN_xO_y is highly attractive in integrated circuits (IC) [27], barrier layers [28,29], non-volatile memory [30], optical waveguides [31], organic light emitting diode (OLED) [32], and anti-scratch coatings [33,34]. This review presents a discussion and summary of the preparation methods, performance, and applications of SiN_xO_y film.

2. Performance of SiN_xO_y Film

2.1. Luminescent Performance

With the development of semiconductor technology, silicon-based micro/nano devices with applications in optoelectronics and IC are in the rapid development. Optoelectronic integration technology urgently requires high-efficiency and high-intensity luminous materials, and the currently-existing silicon integration technology is utilized to develop high-performance optoelectronic devices/systems. Previously, the research on PL of porous silicon and nano-scale silicon at room temperature has aroused widespread attention in this field [34,35,36]. However, porous silicon exhibits several disadvantages such as degradation and poor stability, and it is the most important that it isvery difficult to use it on standard CMOS circuits, thin film sensors, or flexible substrates [37,38]. In addition, nano-scale silicon has problems such as insufficient density, difficulty in controlling size and distribution, unbalanced carrier injection efficiency, complicated luminescence mechanism, and non-radiative recombination [39,40,41,42,43]. As known to all, SiN_xO_y film is an important protective and barrier film with its luminescence characteristics, high mechanical performance, and high reliability [44,45]. Therefore, it is of great significance to study the luminescence characteristics of SiN_xO_y film. Some reported results showed that the luminescence mechanism of SiN_xO_y film is generally divided into three types: defect-state radiation composite luminescence [46], band-tail (BT) radiation composite luminescence [47] and quantum dot radiation composite luminescence [48].

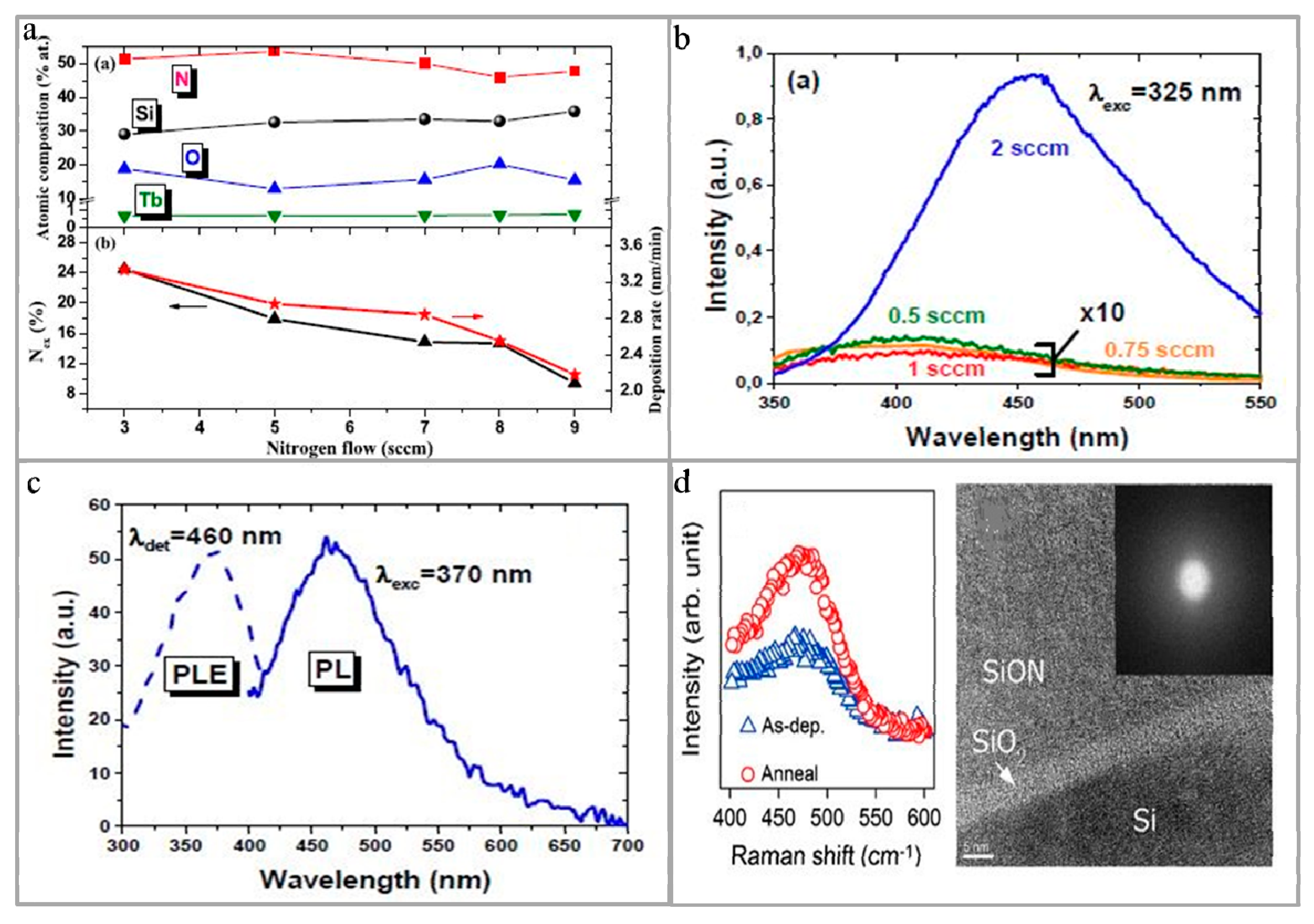

The light-emitting performance of SiN_xO_y film is effected by its composition, because its composition has significant influences on the formation of Si-O, Si-N, Si-H, and N-H bonds, resulting in the changes of absorption peak position of SiN_xO_y film [49,50]. As a result, many researchers studied the atom ratio of N and O in SiN_xO_y film [51,52]. During the preparation of SiN_xO_y film, it is found that the luminescence performance of the SiN_xO_y film can be adjusted by changing the flow rate of nitrogen (N₂) and concentration of oxygen. In order to investigate the effect of flow rate of N₂ on the evaporated SiN_xO_y film, Lee et al. [53] prepared a SiN_xO_y film on a poly(ethylene naphthalate) (PEN) substrate by ion-beam assisted electron beam evaporation at room temperature. It is found that when the flow rate of N₂ is 40 sccm, the refractive index of SiN_xO_y film increased to 1.535, and the SiN_xO_y film density increased to ~2.5 g cm⁻³, whereas the surface roughness and optical transmittance of SiN_xO_y film decreased. In preparation of the SiN_xO_y film, adjusting the flow rate of N₂ has a significant improvement on the luminescent performance of the doped SiN_xO_y film. Among them, Labbé et al. [54] prepared a nitrogen-rich SiN_xO_y film doped with Tb³⁺ by reactive magnetron co-sputtering under N₂ with different flow rates and annealing conditions. The influences of flow rate of N₂ on the atomic composition of SiN_xO_y film, the N excess (N_ex) in the sedimentary layer and the deposition rate are shown in Figure 1a. For the synthesis, the reverse flow of N₂ during deposition is studied. Through the characterization results, the researchers carefully identified different vibration modes of Si-N and Si-O bonds, especially the ‘non-phase’ tensile vibration mode of Si-O bonds. The highest PL intensity of Tb³⁺ is obtained by optimizing the nitrogen incorporation and annealing condition. The aggregation effect in Si₃N₄ matrix is significantly reduced, thus allowing the higher concentration of optically active Tb³⁺, which promoted its luminescence applications. In related researches, Ehré and co-workers [55] prepared a cerium (Ce)-doped SiN_xO_y film by magnetron sputtering under N₂ atmosphere. Their results showed that a broad and strong PL peak is red-shifted at the N₂ flow rate of 2 sccm. The peak of PL band shifts to 450 nm, and the results showed that the PL strength is 90 times higher than the BT strength of the sample deposited at a low flow rate of N₂. The effects of flow rate of N₂ on PL of Ce-doped SiN_xO_y film, PL spectrum (solid line), and PL excitation spectrum (dotted line) at flow rate of N₂ (2 sccm) are shown in Figure 1b,c. As described above, it is possible to adjust not only the luminescence characteristics of the SiN_xO_y film by changing the flow rate of N₂ but also the oxygen content, such as Huang et al. [56] demonstrated the strong PL of SiN_xO_y film by adjusting the oxygen content. With the oxygen content in the SiN_xO_y film increasing from 8% to 61%, the PL changed from red light to orange light and white light, and they indicated that the change in PL performance of SiN_xO_y film is due to the change in the center of the defect luminescence and the change in the main phase structure from Si₃N₄ to SiN_xO_y and SiO₂. Similarly, the researchers studied the effect of oxygen concentration on PL of SiN_xO_y film doped with other components. Steveler et al. [57] prepared an Er³⁺-doped amorphous SiN_xO_y film by reactive evaporation. They found that the PL of Er³⁺ is observed only in the samples with oxygen concentration equal to or less than 25%, and they indicated that oxygen will make Er³⁺ ions optically active and can be indirectly excited in the presence of excess Si. It is further confirmed that, when both the amounts of oxygen and nitrogen are equal to or about 25%, Er³⁺ related PL increases with the increase of annealing temperature.

Processing conditions of the preparation of SiN_xO_y film also have influences on the PL performance of SiN_xO_y film, such as the annealing process. For instance, the SiN_xO_y film prepared by reactive sputtering on a silicon substrate, and then vacuum-annealed at 900 °C for 1 hour, is amorphous, composed of mixed Si-N and Si-O bonds, and blue and green emission are observed in the PL spectra of this prepared SiN_xO_y film, as shown in Figure 1d [46], so the SiN_xO_y film integrated with a top electrode is used for a electroluminescent device.

2.2. Adjustable Refractive Index

Adjustable refractive index means that the refractive index can be continuously tuned along the normal direction of the surface of the SiN_xO_y film by changing the proportion of the reaction gas [58]. In order to prepare graded-index SiN_xO_y film for applications in optical waveguide materials, gradient-index films, and anti-reflection films, researchers conducted extensive research on the refractive index-adjustable performance of SiN_xO_y film, such as the research on controlling the flow rate and ratio of reactive gas, reaction process, etc. [59,60,61]. Hänninen et al. [62] found that the refractive index and extinction coefficient of the SiN_xO_y film decrease with the increase of oxygen and nitrogen contents in the SiN_xO_y film, which could be adjusted by controlling the ratio of reactive gas. Therefore, in order to control the ratio, they applied reactive high-power pulsed magnetron sputtering to synthesize a SiN_xO_y film using N₂O as a single source, providing oxygen and nitrogen for SiN_xO_y film’s growth. The characterization results showed that the synthesized SiN_xO_y film has the characteristics of silicon-rich, amorphous, and randomly-chemical-bonding structure. Furthermore, Himmler et al. [32] used reactive magnetron sputtering to deposit SiN_xO_y film and found that the refractive index of SiN_xO_y film depends on its oxygen and nitrogen contents, so they adjusted the refractive index by controlling the content ratio of oxygen/nitrogen. It is found that the reaction gases are differently incorporated into the layer due to different plasma conditions in the coating region, so there is a higher nitrogen incorporation and a higher refractive index in plasma regions with a high plasma density, while plasma regions with lower plasma density will result in a higher oxygen bonding and a lower refractive index. In addition to controlling the proportion of gas, the preparation method also has a certain influence on the refractive index of the SiN_xO_y film. Farhaoui et al. [63] used the reactive gas pulse in sputtering process (RGPP) to adjust the composition of SiN_xO_y film from oxide to nitride by controlling the average flow rate of O₂. Compared with the conventional reaction process (CP), not only did the deposition rate increase, but also a wide range of SiN_xO_y films’ refractive indexes varying within the same range could be obtained through this pulse process. Moreover, extinction coefficient of the SiN_xO_y film is low, and this SiN_xO_y film can be used for multi-layer anti-reflection coating (ARC). Nakanishi et al. [64] also introduced argon (Ar) in the preparation of SiN_xO_y film by pulsed direct current (DC) reactive magnetron sputtering. They found that the higher the Ar concentration is, the more stable the SiN_xO_y film’s formation and the higher the deposition rate is. The researchers claimed that a large amount of sputtered silicon atoms reach the substrate at high Ar concentration, causing the oxidation probability of the SiN_xO_y film to decrease and the refractive index of the SiN_xO_y film to gradually change with the percentage of oxygen in the reactive gas. The tunable refractive index of SiN_xO_y film makes it superior to Si₃N₄ and SiO₂ in optical device applications. Furthermore, it also provides a new strategy for development of optical devices.

3. Preparation of SiN_xO_y Film

At present, the preparation methods of SiN_xO_y film are mainly classified into chemical vapor deposition (CVD), physical vapor deposition (PVD), high-temperature nitridation, and ion implantation [65]. The descriptions and comparisons of these preparation processes are as follows.

3.1. CVD Method

CVD is a vapor phase growth method for preparing materials by introducing one or more compounds containing a constituent film element. During this growth process, the reactive gas is purged into a reaction chamber in which a substrate is placed, and a depositing process on the gas–phase or gas–solid interface is executed to generate solid sediments [66]. CVD based methods are mainly divided into plasma enhanced CVD (PECVD), low-pressure CVD (LPCVD), photochemical vapor deposition [67], thermal CVD [68], etc. Among them, PECVD and LPCVD are the most commonly employed methods. Additionally, PECVD can be extended to radio frequency PECVD (RF-PECVD) [69], electron cyclotron resonance PECVD (ECR-PECVD) [70,71], and inductively coupled PECVD (IC-PECVD) [72].

3.1.1. PECVD

PECVD is a method for preparing a semiconductor thin film which is subjected to chemical reaction deposition on a substrate using a glow discharge in a deposition chamber [73]. The preparation process of SiN_xO_y film via PECVD is generally described as follows: at low temperature (<400 °C), ammonia (NH₃), pure silane (usually SiH₄), N₂, and nitrous oxide (N₂O) are generally employed in a PECVD chamber with a certain power. There are generally some differences in the composition of the precursor gases reported in studies. In general, the flow rates of NH₃, pure silane, and N₂ remain the same, and the total flow rate is controlled by adjusting the flow rate of N₂O [74]. Generally, SiN_xO_y film is deposited on silicon substrate or quartz substrate, wherein the substrate’s temperature is kept at room temperature, but some composite films are deposited on other composite layers by PECVD, such as the preparation of SiN_xO_y and Si₃N₄ by Park et al. [75]. For composite film, they deposited a SiN_xO_y film directly on the deposited Si₃N₄ layer.

For SiN_xO_y film by PECVD, NH₃ is often used as the reaction gas of the nitrogen source, and SiH₄ is used as the reaction gas of the silicon source. Although NH₃ reacts with SiH₄ easily, the SiN_xO_y film produced by NH₃ at a lower temperature has a higher hydrogen content, which causes the decreased electrical performance of SiN_xO_y film, so some studies used RF-PECVD, with N₂ and SiH₄ as precursor gases to prepare SiN_xO_y film with lower hydrogen content, and some studies used RF-PECVD, with N₂, SiH₄ and NH₃ as the front gases [76]. For example, Kijaszek et al. [77] used RF-PECVD and maintained the RF of 13.56 MHz, pressure, power, and substrate temperature (350 °C), and controlled the composition of SiN_xO_y film by the flow ratio of different gaseous precursors: NH₃, 2% SiH₄/98% N₂ and N₂O, wherein the flow rate of 2% SiH₄/98% N₂ and N₂O remained the same, and the flow rate of NH₃ is adjusted to control the SiN_xO_y film’s performance. When the flow rate of NH₃ is low, the SiN_xO_y film’s hydrogen content is also lowered, and the electrical performance of the SiN_xO_y film is improved.

ECR-PECVD is also included in the PECVD method. Okazaki et al. [78] deposited a SiN_xO_y film under hydrogen-free conditions by ECR-PECVD at a low temperature of ~200 °C with O₂ and N₂ as reaction gases, and the obtained deposition rate is ~0.1 μm min⁻¹. The deposited SiN_xO_y film has good optical performance. Furthermore, Wood [79] used an ECR-PECVD system to deposit SiN_xO_y dielectric film at low substrate temperature. The electrical performance of these films is found to be comparable with those deposited in systems using ion-assisted PVD and sputtering systems. Furthermore, thin film electroluminescence devices containing ECR SiN_xO_y dielectrics exhibit high brightness and excellent breakdown characteristics.

3.1.2. LPCVD

For LPCVD, a gas source under low pressure is decomposed to deposit SiN_xO_y film directly on a substrate. Since the mean free path of the reactive gas molecules increases at a low pressure, the diffusion coefficient increases. Thereby, the transmission speeds of gaseous reactants and by-products are increased, the aggregation of impurities on the substrate is reduced to some extent, and the film is more uniform. It has the advantages of structural integrity, few pinhole defects, and high deposition rate, therefore it is suitable for large-area production [80]. Kaghouche et al. [81] deposited a SiN_xO_y film on a single crystal silicon wafer using LPCVD at a high temperature of 850 °C with N₂O, NH₃ and dichlorosilane (SiH₂Cl₂) as precursor gases. In the synthesis, the control variable experiment is carried out by adjusting the flow ratio of NH₃/N₂O via keeping the flow rate of SiH₂Cl₂ as constant. Additionally, the deposition duration remains constant to maintain similar annealing conditions during the deposition process. Finally, the thickness of the obtained SiN_xO_y film is generally in the range of 300–400 nm.

However, the LPCVD has its disadvantages of low heating rate, long reaction time, and high deposition temperature (generally >550 °C), which limit its applications to some extent. A comparison of different CVD methods is summarized in

Table 1. Comparison of materials, ratios, and deposition conditions in different chemical vapor deposition (CVD) methods.

Deposition Method	Precursor Gases	Ratio of Precursor Gases	Deposition Condition	Reference
PECVD	SiH4, N2O	SiH4/N2O = 0.05–0.125	200 °C, 97.09 Pa	[82]
RF-PECVD	SiH4, N2O, NH3	(NH3 + SiH4)/N2O = 0.64–3.22	120 Pa	[76]
ECR-PECVD	N2, O2, SiH4	O2/N2 = 0.03–0.1	-	[83]
IC-PECVD	N2, Ar, SiH4	N2/Ar = 0.0625–0.5	90–250 °C, 1–6 Pa	[84]
LPCVD	N2O, NH3 SiH2Cl2	N2O/NH3 = 4.8-	860 °C, 53.2 Pa	[85]

[76,82,83,84,85].

3.1.3. High Temperature Thermochemical Vapor Deposition (HTCVD)

The HTCVD method uses a direct heating method to decompose or chemically react to obtain a solid film on the surface of a substrate [86]. Since the HTCVD method uses direct heating to provide activation energy for the gas, it does not require complicated equipment, and the operation is relatively facile. In addition, the reaction rate is high, and the formed film has less impurity of hydrogen and a dense structure [80]. However, the heating temperature of the HTCVD method is generally high (≥700 °C), which easily causes deformation and internal structural change of the substrate, reducing the mechanical performance of the substrate and the bonding force between film and substrate.

For optimization of this method, a rapid thermal CVD (RTCVD) is investigated [68]. RTCVD refers to the formation of a single-layer SiN_xO_y film by a rapid annealing method to seal the substrate, thereby avoiding the substrate being affected by high temperature [76]. The RTCVD method can deposit advanced dielectric films on III-V substrates under high temperature. This method not only has the advantages of HTCVD, but also prevents the V group elements from sublimating due to high temperature. Lebland et al. [87] deposited SiN_xO_y film on III-V substrates by RFCVD. They controlled the deposition rate and stoichiometry of the SiN_xO_y film by adjusting the partial pressure of N₂O and temperature. It is found that a deposition rate of up to 10 nm s⁻¹ is obtained at 750 °C, and the InP substrate does not degrade, solving the contradiction between the high deposition temperature using the direct CVD method and the degradation of the V group element.

3.1.4. Photochemical Vapor Deposition (Photo-CVD)

Photo-CVD is a novel low-temperature deposition method using ultraviolet (UV) light or laser to photodecompose a reaction gas to obtain a solid film [88]. It has the following advantages: greatly reducing the substrate temperature (≤250 °C), avoiding the damage caused by high-energy particle radiation on the surface of the film, making the surface of the film smooth, and reducing the by-product [89]. However, the main disadvantages of the photo-CVD are its high cost, and that the formed film is not stable.

The CVD method has certain advantages and many extension methods,

Table 2. Advantages and disadvantages of SiN_xO_y film prepared by PECVD, LPCVD, HTCVD and Photo-CVD methods.

Method	Advantages	Disadvantages
PECVD	Flexible operation method, High process repeatability, High step coverage, Low deposition temperature (<400 °C) [92]	High cost, High H content in film
LPCVD	Uniform film, Complete structure, Less pinhole defects, High deposition speed, Large-area preparation [80]	Low heating rate, Long reaction time, High deposition temperature (generally >550 °C)
HTCVD	Simple operation and operation, High reaction rate, Low H content in film and dense structure [80]	High deformation, Impaired interface performance
Photo-CVD	Low reaction temperature (≤250 °C), Smooth film surface, Less by-products [89]	High cost, Low film stability

shows the pros and cons of four different CVD approaches [80,89,90,91,92], among them PECVD and LPCVD are the most commonly used deposition methods. Even so, it is difficult to avoid the existence of hydrogen in preparing SiN_xO_y film by PECVD or LPCVD, and the hydrogen deposited in the raw material is difficult to remove due to the low deposition temperature of the CVD method, further affecting the performance of SiN_xO_y film [90]. To this end, researchers have proposed various methods to reduce the hydrogen content of SiN_xO_y film. Among them, the thermal oxidation treatment by Hallam et al. [91] is highly promising, they deposited a SiN_xO_y film by PECVD and demonstrated that the SiN_xO_y film with Si-H peak wave number of >2200 cm⁻¹ has an open circuit voltage of up to 80 mV during thermal annealing. They pointed out that the result is due to an increase in oxygen content. In addition, increasing the flow of raw materials and the annealing temperature will also reduce the hydrogen content to various degrees.

3.2. PVD

PVD is a physical method of vaporizing a material source into gaseous atoms, molecules, or ionized ions under vacuum conditions, and depositing a film on the substrate by sputtering or plasma technology [93]. The main processes of PVD are vacuum evaporation, sputter coating, ion plating, arc plasma coating, etc. [94,95,96]. Among them, sputter coating is a widely used and mature method, which means that under vacuum conditions, the surface of the target material is bombarded with the particles having the function, then the surface atoms of the target are obtained with sufficient energy to escape, and the sputtered target is deposited on the substrate to form a film [97]. The large-scale magnetron sputtered coating developed on the basis of sputter coating has high deposition rate, good process repeatability, easy automation, etc. [90].

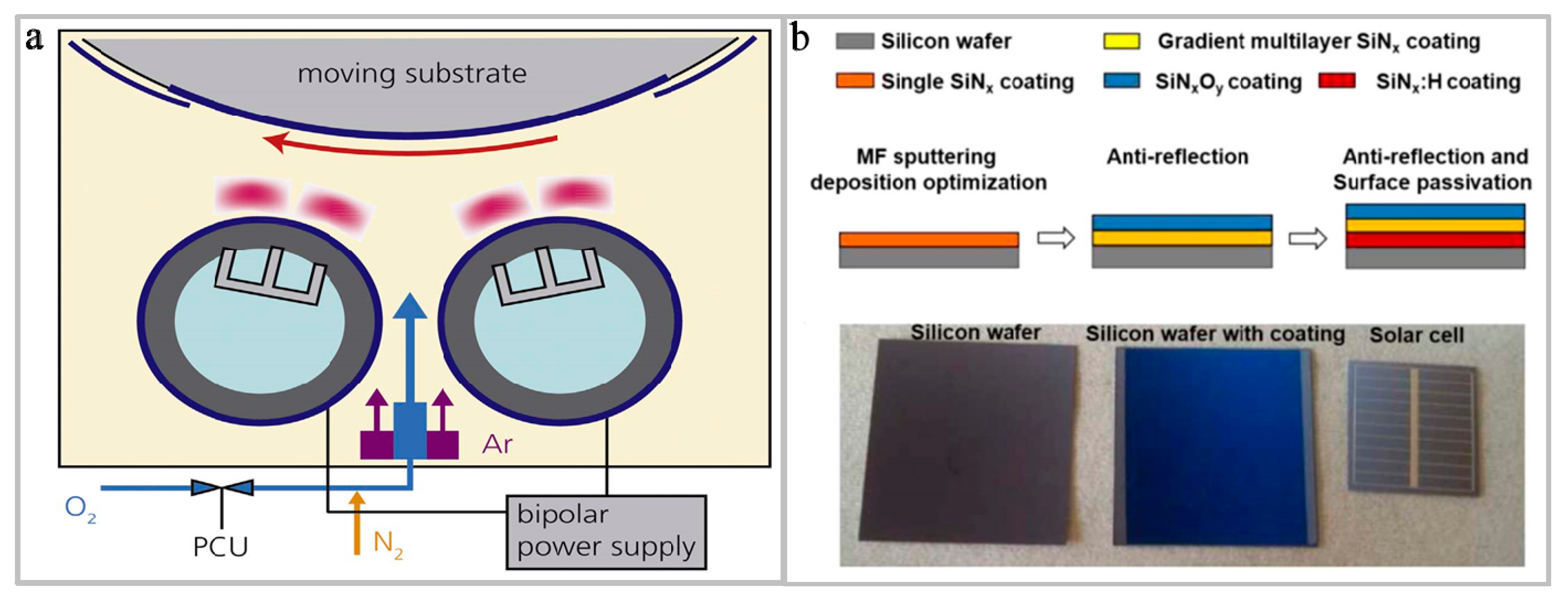

Magnetron sputtering coating method is also divided into several categories such as reactive pulsed magnetron sputtering, pulsed DC magnetron sputtering, rotatable dual magnetron pulsed DC reactive magnetron sputtering, intermediate frequency (MF) magnetron sputtering, etc. [98]. Tang et al. [99] deposited SiN_xO_y film by reactive pulsed magnetron sputtering, and the effects of nitrogen ratio on the optical, structural, and mechanical performance of SiN_xO_y film are investigated. They found that with the increase of nitrogen ratio, the refractive index of the SiN_xO_y film increased from 1.487 to 1.956, its surface roughness decreased from 1.33 to 0.97 nm, its hardness increased from 13.51 to 19.74 GPa, and its Young’s modulus increased from 110.41 to 140.49 GPa. When the SiN_xO_y film is applied to the anti-reflection coating, the hardness of the coating is greatly improved. Additionally, Simurka et al. [100] deposited a SiN_xO_y film on a glass substrate by pulsed DC magnetron sputtering with a constant flow of Ar (38–94 sccm) as the working gas and a constant gas flow ratio of oxygen (2–5 sccm) and nitrogen (20 sccm) is employed. Through experimental characterizations, it is found that as the sputtering power increases, the density, refractive index, hardness, and Young’s modulus of the film increase slightly. Therefore, in the preparation process, it is very important to select the appropriate sputtering power according to the requirements. Furthermore, in the preparing process of SiN_xO_y film, not only a reasonable sputtering power should be set, but also the voltage is important. Himmler et al. [32] deposited a single layer of SiO_x, SiN_y, and SiN_xO_y using a rotatable dual magnetron pulsed DC reactive magnetron sputtering, as shown in Figure 2a, showing a layout of deposition zone within the roll-to-roll coating tool. Experimental results demonstrated that the ratio of oxygen/nitrogen in the layer is determined not only by the reactive gas, but also by the voltage. Furthermore, Li et al. [101] deposited a multilayer film of hydrogenated silicon nitride (SiN_x:H)/silicon nitride (SiN_x)/SiN_xO_y for silicon crystal solar cells using intermediate frequency (MF) magnetron sputtering, and the process design and application of passivation film on anti-reflection surface of silicon solar cell in laboratory are shown in Figure 2b. The multilayer film prepared by this process has excellent cell efficiency when applied to solar cells.

Although the SiN_xO_y film prepared by the PVD method has a lower hydrogen content than that of the SiN_xO_y film by CVD, the PVD is superior to the CVD for preparing SiN_xO_y film. Moreover, the sputtering method has a low deposition temperature and is easy to control. However, it is difficult to perform rapid film deposition on a large-scale substrate by sputtering method [102] and the sputtering method is prone to “target poisoning” [103], that is the added reaction gas generates a composite material on the target, thereby changing the sputtering yield and the deposition rate. Finally, the film stoichiometry is changed.

3.3. Oxynitridation

Oxynitridation is generally a method of reacting gas such as N₂O, NO, NH₃, N₂, and O₂ with Si, SiO₂, or Si₃N₄ under suitable conditions to obtain a SiN_xO_y film.

The high-temperature nitridation is a more commonly used method, which refers to the preparation of SiN_xO_y film by introducing N into SiO₂ film by means of thermal nitriding [104], rapid annealing [105], and plasma nitriding [106] under certain conditions with reactive gas containing nitrogen (e.g., N₂O, NO, NH₃, N₂) [107]. Among them, a SiO₂ film which can be obtained by a thermal oxidation method [108] and a sol–gel method [109]. Different performance of membranes prepared under different oxidation/nitridation conditions in the nitrogen oxidation process are obtained. When the temperature is 800–1200 °C, NH₃ is introduced as a nitrogen source for high-temperature nitridation of SiO₂ by thermal nitridation, although a simple and smooth SiN_xO_y film can be obtained, H is inevitably introduced. H doping in the SiN_xO_y film affects its electrical performance, such as the formation of a large number of electron traps in the SiN_xO_y film. In order to reduce the effect of H on membrane performance, reoxidation is an effective method [110]. Furthermore, a nitrogen-containing gas without H can be used as a nitrogen source, such as N₂O, to form a Si-O-N film in situ generation without introducing a H atom. However, the high temperature conditions of the high temperature nitridation process have a serious influence on the substrate and are prone to defects. In addition, the SiN_xO_y film obtained by this method has poor uniformity and poor compactness.

Three methods for preparing SiN_xO_y film are introduced above, and the advantages and disadvantages of different preparation methods are summarized in

Table 3. Preparation methods of SiN_xO_y film.

Method	Advantages	Disadvantages
CVD	High deposition rate Low deposition temperature Uniform film	Hydrogen content has an effect on electrical conductivity [111]
PVD	Low hydrogen content	Low deposition rate [112] Target poisoning is common
Oxynitridation	Relatively simple operation, large-scale preparation	Film thickness is difficult to control Toxicity of raw gas [110] Low N2 nitriding degree [113]

[110,111,112,113].

The deposition process of the SiN_xO_y film is reviewed. The properties of the film microstructure for different growth conditions and post-growth thermal annealing will be illustrated by Figure 3. As shown in Figure 3a–c, when the ratio of Ar/SiH₄ and O₂/(O₂ + N₂) is 4.5 and 0.1, respectively, the porosity of the SiN_xO_y film gradually decreases. However, at this state, the SiN_xO_y film is still porous and pore-oriented. The effect of the rate reduction is small. As shown in Figure 3d, by changing Ar/SiH₄ from 4.5 to 41 and RF to 0.9 KW, a very significant decrease in porosity is observed, showing a very dense SiN_xO_y film, and it is shown by Figure 3e when Ar/SiH₄ changes from 4.5 to 41, and when the RF is 0.9 KW, its water vapor transmission rate (WVTR) is the lowest, and it has good protection function [72]. Figure 3f,g shows HRTEM images of different types of Ce³⁺ and Tb³⁺ co-doped SiN_xO_y film and structure (III) multilayer designs. It is worth noting that no ripples and layer mixing are observed. Furthermore, the fact that the morphological structure remained unchanged even after annealing at 1180 °C for 1 h confirmed the manufacturing process and showed the robustness of the sample (Figure 3g) [114]. As shown in Figure 3h, (I) and (II) are infrared transmission photographs of the bond pairs and the annealed pairs, respectively. The results show that the crack length of the composite is obviously shortened after annealing at 120 °C, and the bond strength is obviously improved. After the sample is annealed at 300 °C for 2 h, the bond strength is sufficient to withstand peeling, and the infrared transmission photograph is shown in Figure 3 h(III). As shown in the AFM chart (Figure 3i), the SiN_xO_y film has a smooth and uniform surface with a root mean square (RMS) roughness of 0.162 nm, which is sufficient for direct soldering without complicated grinding and polishing processes. Figure 3j shows the corresponding depth profiles of N, O, and Si. Obviously, you can find two layers. From the surface to a depth of about 40 nm, the amounts of O and N are about 40% and 20%, respectively. Starting from 40 nm, the O concentration gradually decreases compared with the first layer, but the concentration of N increases. After annealing at 1100 °C, the higher structural disorder confirmed by XRD analysis in the SiN_xO_yy film can be attributed to the presence of O. This helps to inhibit polycrystallization of the buried insulator during post-annealing in conventional CMOS processes [115]. By analyzing the effects of different growth conditions and the properties of the thermally annealed film microstructure by post-growth on the performance of SiN_xO_y film, it is helpful to effectively control the parameters as needed in later applications.

4. Applications of SiN_xO_y Film

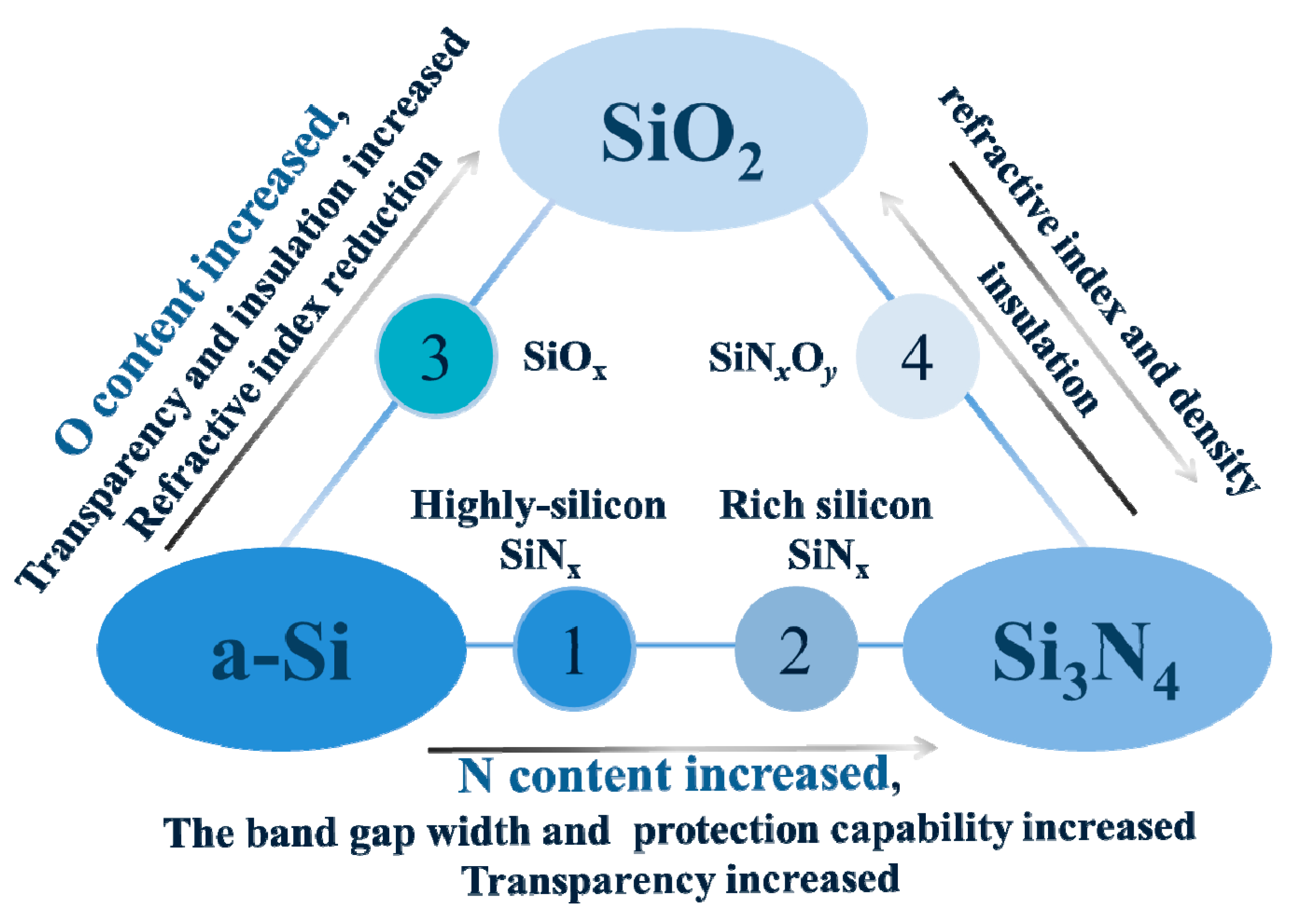

As an intermediate of SiN_x and SiO₂, SiN_xO_y film has an adjustable dielectric constant, refractive index, and extinction coefficient by controlling the ratio of nitrogen/oxygen in the chemical composition [116]. The gas ratio and process parameters of the various reactants involved in the preparation of SiN_xO_y are different, so that the stoichiometry of each element in SiN_xO_y is different, and the limit forms may be a-Si, SiO₂, and Si₃N₄.As shown in the Figure 4, a series of possible forms of the SiN_xO_y film is given, as well as changes in the properties of different film forms as the O content and H content increase, are mainly reflected in changes in transparency, band gap width, refractive index, and insulation [117]. SiN_xO_y film has performance between SiO₂ and Si₃N₄. Due to its excellent photoelectric performance, it has been widely used in optical devices, dielectric gate dielectric materials, and optical waveguide materials [118]. The SiN_xO_y film also has high chemical stability, high resistance to impurity diffusion, and water vapor permeability, which is highly promising for applications in barrier devices such as gas barriers [119]. In addition, the SiN_xO_y film has a small defect density and is advantageous in applications as a storage medium. The applications of SiN_xO_y film in microelectronic devices, optical devices, barrier materials, and non-volatile memory will be introduced in this section.

4.1. Application of Barrier Material

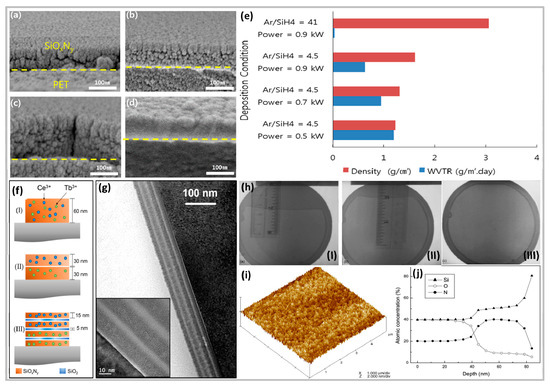

Most organic conductive polymers and chemically reactive electrodes degrade when exposed to water or oxygen, causing failure of electronic devices [120]. Therefore, in order to enhance the service life of device, it is necessary to use a barrier material for encapsulation layer of the device with a low water vapor transmission rate and oxygen permeability. Currently, glass or metal is often used for device packaging, however, these rigid materials with high spring constant will greatly limit the widespread applications of devices, especially in flexible devices. On this basis, researchers studied thin-film encapsulation (TFE) technology [121]. In recent years, the SiN_xO_y film has also been widely used as encapsulating layers. However, SiN_xO_y film has some problems served as an encapsulation layer. The basic degradation mechanism of water vapor or oxygen on a single layer of SiN_xO_y film is studied, and it is found that water vapor diffuses into the SiN_xO_y film through the percolation channel and nano-defects to react with SiON:H, making Si-N gradually changes to Si-O bond under repeated erosion of water vapor, eventually becoming a fully oxidized film. Therefore, the degradation of SiO₂:H becomes a way for water vapor to diffuse, and because of the lower density of SiO₂:H, the diffusion rate of water vapor in the SiN_xO_y film is further enhanced [116]. In addition, the difference in moisture resistance of the SiN_xO_y film is explained by film oxidation and surface defect density. Oku and co-workers [122] indicated that the surface of SiN_xO_y film easily changes to a low-quality film containing an excessive amount of H₂O molecule and O-H bond, which reduces the waterproofness, after pressure cooker test (PCT) test. Therefore, it is generally formed by depositing a multilayer film to reduce film defects and the probability of film pores communicating with the atmosphere, thereby forming a perfect barrier layer. On the other hand, SiN_xO_y film deposited at a higher temperature has higher performance, and its defects are less, however, the high-temperature treatment should be avoided in some devices, and the deposited SiN_xO_y film has poor barrier performance under low temperature, which is not conducive to the protection of the device. Therefore, Satoh et al. [123] developed a AlO_x/SiON composite bilayer structure deposited at a relatively low temperature (<160 °C), in which the AlO_x layer is used as a barrier layer, and the SiN_xO_y layer ensured the chemical and thermal stability of the film to protect the device from damage during processing. The test results indicated that the device did not show any degradation at 85 °C, and 85% relative humidity (RH) is obtained.

Additionally, some researchers have developed other methods, such as changing the preparation process and controlling the preparation parameters, to optimize the barrier performance of SiN_xO_y film to air and water vapor. Shim et al. [124] deposited a thin SiN_xO_y layer on the surface of poly(ether sulfone) (PES) membrane by PECVD using a mixture of hexamethyldisiloxane (HMDSO) and ammonia. SiN_xO_y is used as gas barrier layer, and a silicon-based coating layer of an organic/inorganic hybrid structure is added between the surface of PES and SiN_xO_y film as a buffer layer for both. The results showed that the undercoat layer is indispensable in the composite film. Under the action of the undercoat layer, the dense inorganic SiN_xO_y layer has an excellent oxygen barrier performance of 0.2 cm³ m⁻² day⁻¹ at a critical coating thickness of ~20 nm. Moreover, the presence of the undercoat layer not only prevents the film from being cracked when the composite film is highly curved, but also maintains the initial gas barrier performance of the curved film. Iwamori et al. [125] prepared a SiN_xO_y-based transparent gas barrier material by depositing a SiN_xO_y film on a polyethylene terephthalate (PET) substrate by reactive sputtering in a nitrogen plasma. The results showed that the SiN_xO_y film has a lower oxygen transmission rate than that of the SiO₂ film, because the use of nitrogen plasma instead of oxygen suppresses the formation of defects induced by peroxide, and the increase in nitrogen content greatly enhances the density of SiN_xO_y film, forming a composite film with excellent gas barrier performance. Liu et al. [126] deposited a SiN_xO_y film on PES by RF magnetron sputtering in Ar/N₂ atmosphere as a barrier to prevent water vapor permeation. The experimental results showed that the RF power is 250 W. At the fixed film pressure of 1.6 Pa, with the deposition time of 30 min, the 100% N₂ content, and the absence of substrate bias, the water vapor transmission rate of the composite film is two orders of magnitude smaller than that of the uncoated PES.

These studies provided some new research ideas for the development of high-quality SiN_xO_y barrier material, and have important research significance for the applications of SiN_xO_y film in packaging materials, protective layer materials, and gas barriers.

4.2. Application of Non-Volatile Semiconducting Memory

Non-volatile semiconducting memory (NVSM) means that when the current is turned off, the stored data does not disappear, which can be applied to many fields [127,128,129]. Wrazien et al. [130] conducted a lot of work on non-volatile memory. They studied NVSM with silicon-oxide-nitride-oxide-silicon (SONOS) structure, which theoretically proves its storage capacity under low pressure and 150 °C can be as long as 10 years and the erase/write cycle is 10⁵ times. Moreover, the SONOS based device has an oxynitride charge storage layer. In recent years, resistive memory is considered as a non-volatile memory with broad application prospects because of its excellent durability, high data transmission speed, and low power consumption [131]. Resistive random access memory (RRAM) is also known as a memristor-an electronic component with memory function [132]. Currently, excellent resistance switching characteristics of silicon-based dielectrics are often applied in RRAM devices. Recently, with the development of SiN_xO_y film, it has been found that the defect density of SiN_xO_y film is low, and the high operating voltage is more advantageous when used as a storage medium. Chen et al. [133] proposed that the SiN_xO_y film has non-uniformities such as operating voltage and current, and improved uniformity of the RRAM by doping. They prepared SiN_xO_y film with different oxygen concentrations by reactive magnetron sputtering. The resistance conversion performance and conduction mechanisms of Cu/SiN_xO_y/ITO device are investigated. The SiN_xO_y is deposited under O₂ with a flow rate of 0.8 sccm in their investigation. The fabricated Cu/SiN_xO_y/ITO device showed reliable resistance conversion behavior, including high durability and retention. Zhang et al. [134] prepared a SiN_xO_y film with ultra-low power a-SiN_0.69O_0.53:H by PECVD and pass N₂O into a vacuum chamber. An a-SiN_0.69O_0.53:H film is prepared under high resistance state and low power conversion. The RRAM cells based on the a-SiN_0.69O_0.53:H film shows an ultra-low current compared with the pure a-SiN_0.62:H-based RRAM, effectively reducing the operating current.

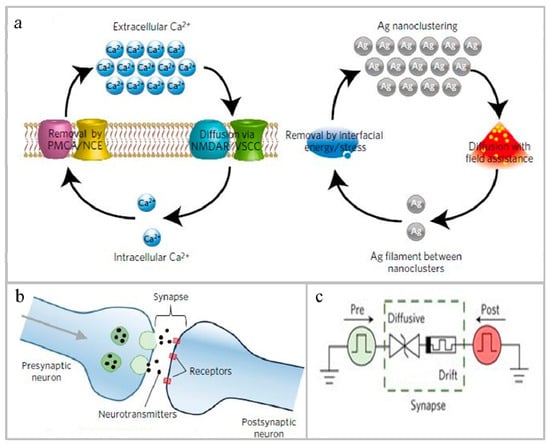

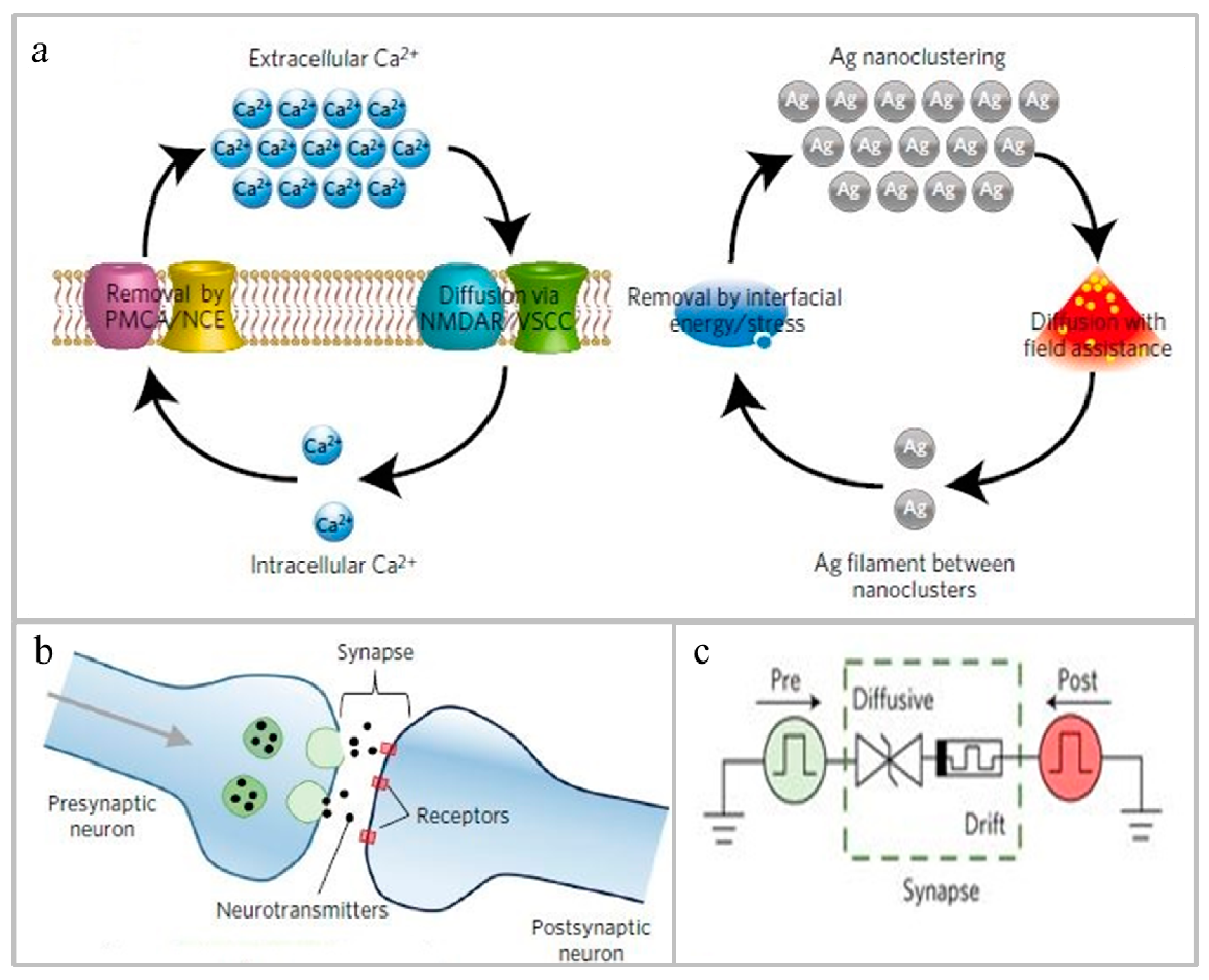

Recently, Wang et al. [135] developed a diffusion type memristor composed of two electrodes and a SiN_xO_y film embedded with nano silver particles, wherein the film is placed between the two electrodes. The SiN_xO_y film is an insulator, but after electrification, under the action of heat and electric power, the positions of the silver particles arranged neatly on the film begin to scatter, gradually diffuse, and penetrate the film to finally form a cluster of conductive filaments. Current is passed from one electrode to the other. After turning off the power, the temperature drops and the nano silver particles are rearranged. The work of the memristor developed by the researchers is very similar to that of calcium ions in biological synapses, so the device can simulate the short-term plasticity of neurons, and the schematic diagram and circuit diagram of RRAM simulating synaptic memory are shown in Figure 5. In addition, the diffusion memristor can also be used as a selector with large transient nonlinearity, which has great research significance and application prospects.

4.3. Application of Optical Devices

By controlling the ratio of oxygen and nitrogen in the SiN_xO_y film, the refractive index and extinction coefficient of the SiN_xO_y film can be controlled, and it can be used as an optical waveguide material and an anti-reflection film.

Optical waveguide materials are generally required to have low transmission loss, single mode transmission, and the ability to fabricate a variety of active and passive devices on the same platform. The outstanding feature of planar optical waveguides based on SiN_xO_y and SiN is their ultra-low loss. Planar waveguides with attenuations less than 0.1 dB m⁻¹ have been implemented, such as Baudzus et al. [136] studied phase shifters based on electro-optic (EO) polymers and SiN and SiN_xO_y waveguide materials systems, and found that SiN_xO_y and SiN can be combined with EO polymers and a fast adaptive phase shifter with very low attenuation can be made. The phase shifter has an attenuation of 0.8 dB cm⁻¹ at 1550 nm and an EO efficiency factor of 27%, which can achieve lower loss and has important research significance.

Optical waveguide materials, such as SiN_xO_y and SiN, also have applications in resonators. Compared with the straight waveguide structure, the ring resonator (RR) has the advantages of small footprint, high wavelength selectivity, and accumulated light intensity in the cavity, so that a large absorption is obtained in the case of a short absorption medium. Therefore, the microring resonator structure can achieve high responsiveness in the photodetector, achieving large extinction in the modulator. In recent years, the excellent performance of silicon waveguide photodetectors with integrated graphene has been experimentally verified. In a recent study of SiN microring resonators, Wang et al. [137] used a graphene-photonic integrated circuits (PICs) structure to fabricate microring resonators on the Si₃N₄ platform. Compared with the graphene-Si₃N₄ straight waveguide, the absorption of the ring resonator is increased, and the length of the required graphene is greatly shortened, and the quality factor of the prepared resonator is 0.282 × 10⁵–0.038 × 10⁵. In 2018, Jia et al. [138] developed a SiN_xO_y-based optical waveguide ring resonator (OWRR), which employed a liquid source CVD (LSCVD) method to deposit a SiN_xO_y film with a good refractive index. It is found that the SiN_xO_y-based resonator achieves a measured waveguide loss of 4.07 dB cm⁻¹ and a quality factor of 0.93 × 10⁵ in the transverse electric (TE) mode, which provides a new idea for the preparation of other SiN_xO_y-based optical devices. The use of SiN and SiN_xO_y described above in ring resonators exhibits different ranges of quality factors, and in specific applications, is effectively selected based on the required bandwidth. In order to improve the controllability of the deposition process and the precise control of the SiN_xO_y film performance, PECVD and LPCVD methods are both used in the preparation process. When the refractive index is less than 1.7, it is suitable for deposition by PECVD. When the refractive index is greater than 1.7, the dependence of the refractive index of the SiN_xO_y film on the gas flow rate in PECVD deposition is large, which is not conducive to precise control. It must be deposited by LPCVD. The product rate is 1–10 nm/min, suitable for growing thin films with a thickness of 10–500 nm. The two deposition methods described above have thickness and refractive index uniformity and process repeatability of the resulting SiN_xO_y film deposited in the respective refractive index ranges, which can meet the requirements of high performance waveguides [139]. In addition to these, Trenti et al. [140] not only confirmed the low loss of SiN_xO_y, but also assumed that SiN_xO_y has thermal and nonlinear optical properties, and that SiN_xO_y is an excellent platform for nonlinear and quantum optical integrated photonic circuit design.

As an anti-reflective film, SiN_xO_y film can greatly reduce light reflection and loss, and increase efficiency when applied to photovoltaic devices such as solar cells and OLEDs. The excellent optical properties of SiN_xO_y film can increase the transmittance of light and reduce the reflectivity. Sapphire substrate is widely used in various photoelectric applications on glass substrate. However, sapphire has a low transmittance. In order to increase the transmittance of sapphire substrate and reduce the refractive index, Loka et al. [141] used RF magnetron sputtering to deposit a layer of SiN_xO_y film on the surface of sapphire, followed by annealing at a high temperature of 1099.85°C.The visible light transmittance is comparable with that of sodium-calcium glass. In this study, it is worth noting that after high temperature annealing, the nitrogen in the SiN_xO_y film disappears and the film is converted into SiO_n. It is believed that the formation of SiO_n and the high temperature annealing by increasing the oxygen content help to lower the refractive index and reflectivity. Moreover, SiN_xO_y film is used as an anti-reflection film on solar cells and OLEDs, which not only improves efficiency, but also protects the device due to its high resistance to corrosion and oxidation. However, in most preparation processes, composite films of SiN_xO_y and other components are usually double or even multilayered in order to obtain higher performance. In these studies, Nguyen et al. [142] developed a dual stack of SiN_xO_y/Al₂O₃ for n-type c-Si solar cells. They deposited a SiN_xO_y layer on the surface of Al₂O₃ as a coating by PECVD. It is found that the Al₂O₃/a-SiN_x:H phase is excellent due to its excellent anti-reflection and front surface passivation of the Al₂O₃/SiON stack. The refractive index and high positive fixed charge of the SiN_xO_y cap layer in the Al₂O₃/SiN_xO_y stack are reduced, but the lifetime is significantly improved, and the optical properties are excellent, such as the average transmission in the entire wavelength range of 300–1100 nm. The rate is 93.8%, the average absorption rate is 0.33%, the energy conversion efficiency is increased from 17.55% to 18.34%, the short-circuit current density and open circuit voltage are also improved. Sahouane et al. [143] further investigated the application of multilayer anti-reflective coatings to reduce optical losses in solar cells. They deposited multilayer silicon nitride film and SiN_xO_y film by PECVD and found that the best reflectivity of six layers of film is 1.05%, and that of four layers is 3.26%. It is proved that multilayer deposition can greatly reduce reflectivity, reduce loss, and improve efficiency. Parashar et al. [144] found that the hybrid plasma structure formed by adding self-assembled silver-aluminum alloy nanoparticles to the SiN_xO_y film can also significantly reduce the reflectivity of silicon. The results showed that SiN_xO_y/Ag₂Al nanoparticles reduce the average reflectance of silicon from 22.7% to 9.2%, and the SiN_xO_y cover layer reduces the reflectivity of silicon from 9.2% to 3.6% in the wavelength range of 300–1150 nm. By further enhancing photon management, the reflectivity decreased from 22.7% to ~3.6% in a 35 nm SiN_xO_y/Ag₂Al nanoparticles /25 nm SiN_xO_y hybrid plasma structure, and when used as a battery, photocurrent and cell efficiency are improved to some extent.

4.4. Application of Anti-Scratch Coating

With the development of flexible optoelectronic devices, more and more transparent polymers are developed as flexible substrate in devices, and the polymer is widely used because of its advantages of light weight, low cost, high transparency, and easy to process and design [145,146]. However, for long-term use, the polymer is limited in many applications due to its poor scratch resistance, fragility, or influence on device. Researchers have further protected the device by depositing a coating on the surface of the transparent polymer to enhance its scratch resistance. In recent years, silica-based coatings (SiN_xO_y film) have been considered as promising transparent coatings for protection of transparent polymers. Lin et al. [147,148] deposited organo-silicon oxynitride (SiO_xC_yN_z) film on a flexible polycarbonate (PC) substrate by low-temperature tetramethylsilane (TMS)-O₂-N₂ plasma polymerization at room temperature. They also studied the effect of N₂ flow rate on scratch resistance of PC substrates, and found that the optimal flow rate of N₂ is 3 sccm, and the scraping rate is 0% after scraping 200 times with steel wool under the pressure of 300 g. The SiO_xC_yN_z film covered PC substrate has very good scratch resistance and provides a hard and smooth surface for flexible PC substrates. In addition, they also deposited SiO_xC_yN_z film on reinforced carbon fiber reinforced polymer composites (FCFRPCs) by atmospheric pressure plasma low temperature polymerization to enhance the scratch resistance of the composites. There is a large amount of scratching (100%) on the original FCFRPC. By depositing SiO_xC_yN_z film, the scratch resistance of FCFRPCs is significantly improved. After scratch testing, there are no scratches (0%), which is of great significance for the development of FCFRPCs. Furthermore, Zhang et al. [149] prepared a SiN_xO_y coating on glass and PET films by thermally annealing the inorganic polymer perhydropolysilazane (PHPS) between 60 and 200 °C. The results showed that the glass and PET film covered by SiN_xO_y film have higher hardness, stronger hydrophobicity and excellent adhesion. Additionally, the coated PET film exhibited high transparency and excellent scratch resistance in the visible wavelength range, and is advantageous as a hydrophobic scratch-resistant coating in optical devices, as shown in Figure 6.

The high hardness and high scratch resistance of the SiN_xO_y film make it widely used as a coating on transparent polymer and glass, which enhances the reliability of devices and has important research significance.

5. Conclusions

The SiN_xO_y film has important applications in optical devices, non-volatile memory, barrier materials, and scratch-resistant materials due to its good optoelectronic performance, mechanical strength, chemical stability, and barrier performance. The review focuses on the optical performance of SiN_xO_y, including luminescent performance and adjustable refractive index. This is a characteristic of SiN_xO_y film that is superior to conventional silicon-containing films such as Si₃N₄ and SiO₂. Moreover, several methods for preparing SiN_xO_y film, including chemical deposition methods, sputtering methods, and nitrogen oxidation methods, which are mainly used at present, are reviewed and compared, and the advantages and disadvantages of different methods will help us design and select the preparation methods correctly.

As a new type of thin film, SiN_xO_y film has a wide range of research space in many aspects. We believe that with the maturity and development of various preparation methods, the application prospect of SiN_xO_y film will be brighter.
