Simultaneous Remote Sensing of HD¹⁶O/H₂¹⁶O Profile Using Differential Absorption Lidar: A Feasibility Analysis

Highlights

What are the main findings?

• The lower temperature sensitivity of the 1.5 μm band makes it suitable for H₂¹⁶O detection, minimizing measurement errors.
• Differential absorption lidar has been proven to be capable of simultaneous remote sensing of H₂¹⁶O, HD¹⁶O, and obtaining vertical profiles of the isotope ratio δD.

What is the implication of the main finding?

• The study contributes to improved temporal and spatial resolution in HD¹⁶O/H₂¹⁶O remote sensing, aiding in better observations of the lower troposphere.
• The realization of this research plays a key role in improving our understanding of the global water cycle.

Abstract

A novel multi-wavelength differential absorption lidar operating at 1.5 μm band is proposed and theoretically analyzed for simultaneous remote sensing of vertical profiles of H₂¹⁶O, HD¹⁶O, and the isotopic ratio δD. The spectral band is compatible with mature, commercially available fiber-optic components, ensuring practical implementability. By employing the 1976 U.S. Standard atmosphere and considering the temperature dependence of H₂¹⁶O, the systematic error induced by a +1 K temperature uncertainty within the 2 km altitude is limited to 0.81% through appropriate absorption line selection. Simulations of atmospheric backscattered signals with a time resolution of 30 min and a range resolution of 120 m show that random error remains below 0.16% up to 2 km. The simultaneous retrieval errors of H₂¹⁶O and HD¹⁶O mixing ratio profiles at 2 km are 0.13 g/kg (3.19%) and 1.69 × 10⁻⁴ g/kg (18.02%), respectively, from which the δD is successfully and reliably retrieved. The results provide essential technical guidance for implementing high-resolution, isotopologue-resolved lidar observations in atmospheric science.

1. Introduction

Atmospheric water vapor, the most abundant greenhouse gas, is crucial to Earth’s energy balance and hydrological cycle through latent heat transport, cloud formation, convection, and large-scale circulation [1,2]. Accurate vertical profiling of water vapor is essential for improving our understanding of key atmospheric processes such as cloud microphysics and turbulent mixing, and for reducing uncertainties in weather forecasting isotopic ratio and climate models [3,4]. Moreover, the isotopic composition of atmospheric moisture provides valuable insights into the history and origin of water in the atmosphere. Stable water isotopes, such as HD¹⁶O and H₂¹⁸O, undergo fractionation during phase changes, allowing them to serve as natural tracers for investigating evaporation, condensation, transport, and mixing processes [5]. The isotopic ratio of HD¹⁶O to H₂¹⁶O, typically expressed in δD notation relative to the Vienna Standard Mean Ocean Water (VSMOW) [6]. Precise δD measurements can offer independent constraints on numerical models and improve the representation of water cycling. To fully exploit this potential, high spatiotemporal resolution observational data of water vapor and its isotopologues are essential. On the one hand, high temporal resolution allows the tracking of rapid changes, which is crucial for understanding short-term processes such as evaporation, condensation, and air mass mixing. On the other hand, high vertical resolution is needed to resolve fine-scale structures and thus facilitates the study of local and regional dynamics.

Traditionally, in situ instruments provide high-precision measurements of atmospheric water vapor isotopologues, capturing high-frequency temporal variability [7]. The HD¹⁶O/H₂¹⁶O ratio is routinely monitored through in situ measurements from ground stations and aircraft sampling [8,9]. Meanwhile, passive remote sensing techniques, such as satellite-based Fourier Transform Infrared spectrometers, are deployed on satellite platforms to achieve global HD¹⁶O and H₂¹⁶O retrievals with broad spatial coverage [10], or on ground-based platforms to provide column-averaged measurements at specific locations [11,12,13]. However, these approaches are constrained by coarse vertical resolution and reduced sensitivity in the lower troposphere. Consequently, a significant gap remains in the capability to achieve continuous, high-resolution, range-resolved retrievals of vertical profiles for both water vapor and its isotopologues.

Compared to in situ and passive remote sensing techniques, lidar provides a promising approach for range-resolved measurements with high spatiotemporal resolution [14,15,16,17,18]. While Raman lidar has proven effective for estimating atmospheric HD¹⁶O/H₂¹⁶O profiles [19], the application remains constrained by the inherently low Raman cross-sections. Differential absorption lidar (DIAL) is a powerful tool for gas remote sensing. However, traditional dual-wavelength systems are fundamentally capable of measuring only a single gas, such as either HD¹⁶O or H₂¹⁶O. Recent research has employed wavelength-tuned DIAL to separately measure vertical profiles of HD¹⁶O and H₂¹⁶O [20]. Nevertheless, the measurements are typically performed sequentially, limiting the ability to capture simultaneous isotopic variations. Advances in multi-wavelength DIAL have enabled the simultaneous profiling of multiple gases. This capability has been successfully proved to measure gas pairs such as CO₂ and H₂¹⁶O, CH₄ and H₂¹⁶O, and CO₂ and HD¹⁶O [21,22,23,24]. Despite these developments, a lidar system capable of simultaneously detecting both H₂¹⁶O and HD¹⁶O profiles with sufficient sensitivity and vertical resolution for accurate δD estimation remains scarcely reported in existing studies. This limits the capacity to observe key processes such as isotope fractionation during boundary layer convection at appropriate spatial and temporal scales.

In this study, we propose a novel multi-wavelength DIAL system near 1.5 μm. Theoretical analysis demonstrates that the system is capable of simultaneously measuring the vertical profiles of H₂¹⁶O, HD¹⁶O, and δD with high spatial resolution. The current analysis relies on the lidar retrieval method, without the incorporation of experimental data. Therefore, future research will require additional experimental observations to further validate these results and expand the potential applications in atmospheric sciences. By complementing sparse observation networks and overcoming the limitations of insufficient spatial resolution and the difficulty of simultaneous measurements of water vapor and its isotopologues, this method may contribute to ongoing efforts to enhance our understanding of the water cycle and improve climate prediction capabilities.

2. Methodology

2.1. System Description

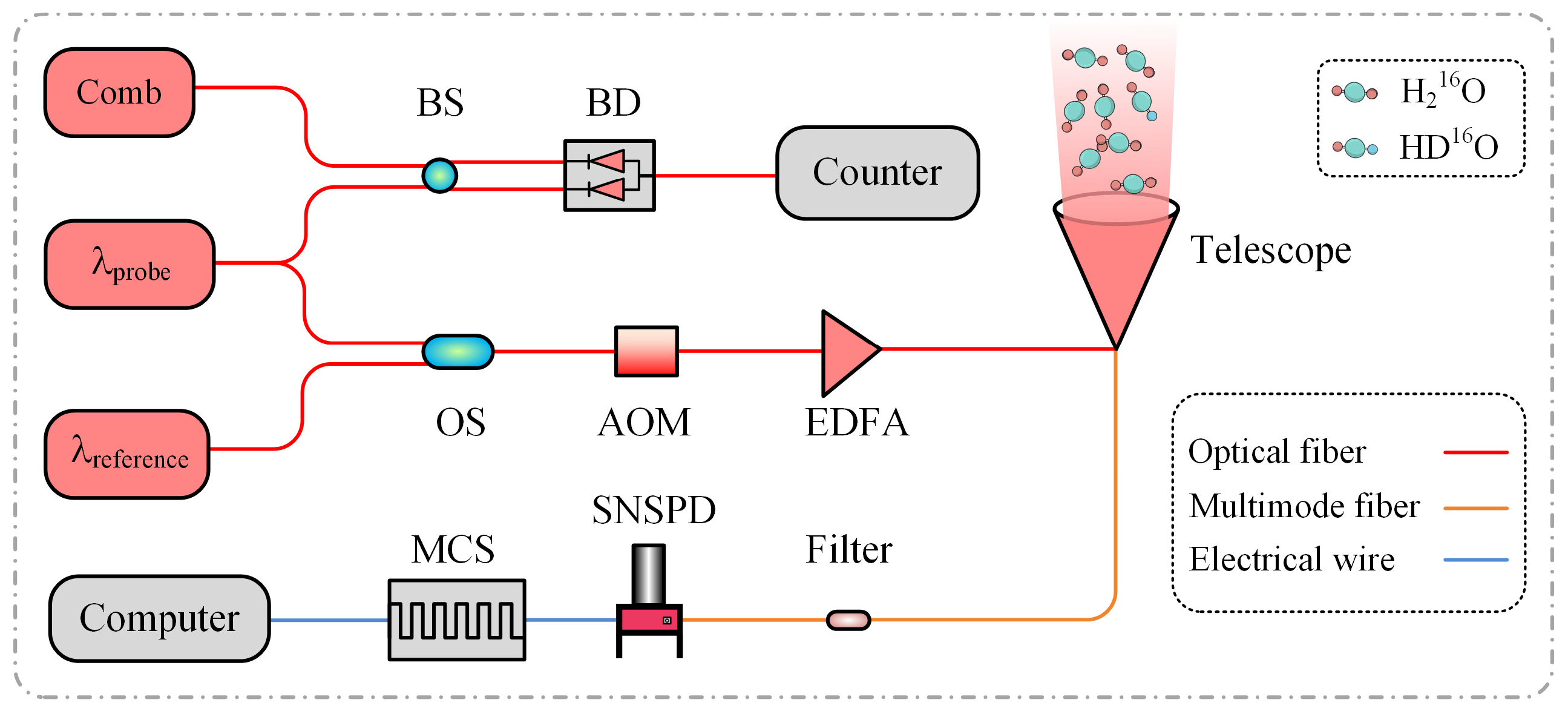

The proposed system extends the concept of the previously developed multi-wavelength DIAL for CO₂ and HD¹⁶O measurement [25], incorporating optimizations that enable the simultaneous retrieval of H₂¹⁶O and HD¹⁶O vertical profiles. As shown in Figure 1, the system employs a broadband tunable laser as the probe source and a single-frequency, narrow-linewidth laser as the reference source. The probe laser is tuned to a wavelength range that covers the absorption features of both H₂¹⁶O and HD¹⁶O for multi-wavelength scanning. The reference wavelength operates at a fixed wavelength where absorptions by other atmospheric interference gases are negligible. To ensure frequency stability during the scanning process, the wavelength of the probe laser needs to be locked. Previous studies have shown that a tunable laser can be stabilized to an optical frequency comb with an absolute frequency reference through phase-locking or injection-locking techniques [26,27]. In this study, the probe laser was heterodyned with an optical frequency comb via a beam splitter (BS), and the resulting beat signal is monitored by a balanced detector (BD) for frequency locking. Although such frequency-comb-based locking methods are rarely applied in lidar systems, in our previous work we successfully achieved a frequency stability better than 0.5 MHz using this technique, which satisfies the accuracy requirements for gas absorption measurements [25].

Meanwhile, the probe laser is sequentially scanned across discrete wavelengths, with each wavelength time-division multiplexed with the reference beam through an optical switch (OS). These alternating emissions of probe and reference beams enable real-time correction for atmospheric fluctuations and system instability. Both beams are modulated into pulses by an acousto-optic modulator (AOM, Smart Science & Technology, Chongqing, China) and subsequently amplified using an erbium-doped fiber amplifier (EDFA, GuangZai, Hangzhou, China) within the operating wavelength range. Then, the pulsed beams are vertically transmitted into the atmosphere through a telescope. Since the probe wavelengths cover the absorption lines of H₂¹⁶O and HD¹⁶O, the corresponding backscattered signals experience varying degrees of attenuation. In contrast, the reference beam located in a non-absorbing spectral region remains largely unaffected. The backscattered signals from both beams are collected by the receiving telescope and combined using wavelength-division multiplexing into a multimode fiber. A superconducting single-photon detector (SNSPD, Photon Technology, Jiaxing, China) is used for high-sensitivity detection, with signals recorded by a multi-channel scaler (MCS, GuangZai, Hangzhou, China) and analyzed to retrieve H₂¹⁶O and HD¹⁶O concentrations from the spectral differences between the probe and reference signals.

2.2. Spectral Selection

It is essential to carefully select the scanning wavelength range of the probe laser to avoid overlapping with absorption lines of other atmospheric gases, reduce sensitivity to temperature sensitivity, and ensure optimal optical depth. Figure 2a shows the absorption spectra of H₂¹⁶O, HD¹⁶O, and other greenhouse gases with strong infrared absorption within the wavelength range of 1550 to 3000 nm. The assumed gas mixing ratios are 7.75 g/kg for H₂¹⁶O, 2.11 × 10⁻³ g/kg for HD¹⁶O, 0.42 g/kg for CO₂, 2.00 × 10⁻³ g/kg for CH₄, 0.33 × 10⁻³ g/kg for N₂O, respectively. Notably, within the two shaded regions marked as Option 1 and Option 2, both H₂¹⁶O and HD¹⁶O exhibit prominent and closely absorption features, while interference from other gases remains relatively minimal in these spectral ranges.

To facilitate a more detailed analysis of these two regions, Figure 2b,c present magnified views. In Option 2 (Figure 2c), H₂¹⁶O exhibits a pronounced absorption near 1.9 μm, whereas the substantially weaker absorption of HD¹⁶O limits the feasibility of simultaneous isotopologue detection. In contrast, in Option 1 (Figure 2b) centered around 1.5 μm, both gases display weaker but comparable absorption strengths, which indicates a greater potential for simultaneous detection. In addition, this region further benefits from mature fiber-optic technology, ensuring the ready availability of optical components and seamless system integration.

Figure 2d illustrates a representative spectral window centered at 1.5 μm band (6433–6435 cm⁻¹), containing a strong peak of H₂¹⁶O (1), a weaker secondary peak of H₂¹⁶O (2), and a distinct peak of HD¹⁶O (1). These features form a composite absorption pattern with the potential to simultaneously retrieve two species and their isotopic ratios. In this study, 30 non-uniformly spaced sampling wavelengths are selected to balance detection efficiency with spectral information retention. The corresponding system parameters are summarized in

Table 1. System parameters.

Parameters
probe wavelength range	1554.0–1554.5 nm
Reference wavelength	1554.5 nm
Pulse energy	300 μJ
Pulse repetition frequency	10 kHz
Pulse width	800 ns
Receiver diameter	256 mm
Field of view	90 μrad
Transmitter transmittance	79.5%
Receiver transmittance	57.4%
Quantum efficiency	51%
Dark counts	100 counts per second
Noise equivalent power	5.7 × 10−18 W/Hz1/2
Sampling rate of the multi-channel scaler	2 × 108 samples per second

, with detailed explanations of the parameter selection provided in the Supplementary Materials.

2.3. Algorithms

The backscattered signals corresponding to 30 pairs probe and reference wavelengths are simulated and expressed using the lidar equation as

$$N\left(\nu ,Z\right)={\displaystyle \frac{E}{h\nu }}{\eta }_{\mathrm{o}}{\eta }_{\mathrm{q}}{\displaystyle \frac{A_{\mathrm{r}}}{Z^2}}O\left(Z\right){\displaystyle \frac{c\tau }{2}}\beta \left(\nu ,Z\right)T_{\mathrm{atm}}^2\left(\nu ,Z\right),$$

(1)

where E is the pulse energy, η_o is the total optical transmittance given by the product of the transmitter and receiver transmittances, with the receiver transmittance including a 75% telescope-to-fiber coupling efficiency, a 0.7 dB filter insertion loss and 90% transmission of other fiber components and connectors used in the simulation. η_q is the quantum efficiency, A_r is the area of the telescope, Z is the height, O is the geometrical overlap factor, τ is the pulse width, β is the volume backscattered coefficient including atmospheric aerosol particles (β_a) and molecules (β_m), T_atm is the transmission, which is given by

$$T_{\mathrm{atm}}=\exp \left\{-{\displaystyle {\int }_0^Z\left[{\alpha }_{\mathrm{a}}\left(\nu ,z\right)+{\alpha }_{\mathrm{m}}\left(\nu ,z\right)+\alpha \left(\nu ,z\right)\right]}\mathrm{d}z\right\},$$

(2)

with α_a and α_m representing the extinction coefficient of aerosol and the extinction coefficient of molecules except H₂¹⁶O and HD¹⁶O. β_a, β_m, α_a and α_m are simulated based on Equations (S1)–(S6) in the Supplementary Materials. The absorption coefficient α of H₂¹⁶O and HD¹⁶O is calculated based on the spectral parameters using the Voigt line shape g(ν) as [23]

$$\alpha \left(\nu \right)=N_d\cdot S\cdot g\left(\nu -{\nu }_0\right),$$

(3)

where N_d is the number density, ν₀ represents the wavenumber at the center of the line, g(ν) is the convolution of a Lorentzian and a Gaussian line shape, which depends on both atmospheric temperature and pressure. S is the spectral line intensity which can be written as

$$S=S_0{\left({\displaystyle \frac{T_0}{T}}\right)}^{{\displaystyle \frac{3}{2}}}\left[{\displaystyle \frac{1-\exp \left(hc{\nu }_0/kT\right)}{1-\exp \left(hc{\nu }_0/k{T}_0\right)}}\right]\exp \left[{\displaystyle \frac{E^{″}hc}{k}}\left({\displaystyle \frac{1}{T_0}}-{\displaystyle \frac{1}{T}}\right)\right],$$

(4)

where S₀ is the line strength at P₀ = 1 atm and T₀ = 273 K, h is the Planck constant, c is the speed of light, k is the Boltzmann constant, E″ is the lower-state energy related to temperature sensitivity. Accordingly, the absorption coefficient spectra are calculated using Equations (2)–(4) and then substituted into Equation (1) for the simulation of lidar backscattered signals. The key system and spectral parameters used are summarized in Table 1 and Table 2, respectively. The temperature, pressure, and vertical H₂¹⁶O mixing ratio profiles are obtained from the 1976 U.S. Standard atmosphere model, as depicted in Figure S1 in the Supplementary Materials. This atmosphere model is particularly suitable for mid-latitude regions, as it represents an intermediate state between winter and summer conditions. The corresponding HD¹⁶O mixing ratio profile is derived based on a specified isotopic ratio δD reported [11], with δD expressed as [20]

$$\mathsf{\delta }\mathrm{D}=1000\cdot \left({\displaystyle \frac{\mathrm{HD}{}^{16}\mathrm{O}{/\mathrm{H}}_2{}^{16}\mathrm{O}}{R_{\mathrm{SMOW}}}}-1\right)$$

(5)

where R_SMOW is defined as 3.1152 × 10⁻⁴ according to Standard Mean Ocean Water.

To better reflect real measurement conditions, Poisson noise is added to the simulated signals in Equation (1). The signals corresponding to each wavelength are accumulated at intervals of 30 s to improve the signal-to-noise ratio (SNR) given by SNR = 〈N〉/〈∆N〉, with 〈N〉 and 〈∆N〉 representing the mean signal and mean noise in a range gate after shots averaging. The retrieved relative systematic error of the absorption coefficient by introducing the uncertainties of systematic error sources and the random error are given by Equations (6) and (7), respectively [28]:

$$\delta \left(\alpha \right)/\alpha =1/\alpha \cdot \left(\partial \alpha \cdot \delta x\right)/\partial x,$$

(6)

$${\displaystyle \frac{\mathsf{\delta }\left(\alpha \right)}{\alpha }}={\displaystyle \frac{1}{2\alpha \Delta Z}}{\left[{\displaystyle \frac{1}{{\mathrm{SNR}}_{\mathrm{on}}^2}}+{\displaystyle \frac{1}{{\mathrm{SNR}}_{\mathrm{off}}^2}}-2\rho \left(N_{\mathrm{on}},N_{\mathrm{off}}\right){\displaystyle \frac{1}{{\mathrm{SNR}}_{\mathrm{on}}}}{\displaystyle \frac{1}{{\mathrm{SNR}}_{\mathrm{off}}}}\right]}^{{\displaystyle \frac{1}{2}}},$$

(7)

where δx is the assumed uncertainty of the specific input systematic error sources, ∆Z = Z₂ − Z₁ is the range resolution. ρ(N_on, N_off) is the cross-correlation between N_on and N_off.

Table 2. Spectral parameters [29]. γ_air and γ_self: Air-broadened and self-broadened Lorentzian half-width at half-maximum P₀ = 1atm and T₀ = 296 K.

Formula	ν0 (cm−1)	λ0 (nm)	γair (cm−1·atm−1)	γself (cm−1·atm−1)	S0 (cm−1/(molec·cm−2))	E″ (cm−1)
H216O (1)	6433.8877	1554.270	0.0950	0.352	3.00 × 10−25	782.41
H216O (2)	6434.1873	1554.198	0.0607	0.315	4.89 × 10−26	1631.25
HD16O (1)	6434.3160	1554.167	0.1002	0.469	1.05 × 10−25	46.17

Table 2. Spectral parameters [29]. γ_air and γ_self: Air-broadened and self-broadened Lorentzian half-width at half-maximum P₀ = 1atm and T₀ = 296 K.

Formula	ν0 (cm−1)	λ0 (nm)	γair (cm−1·atm−1)	γself (cm−1·atm−1)	S0 (cm−1/(molec·cm−2))	E″ (cm−1)
H216O (1)	6433.8877	1554.270	0.0950	0.352	3.00 × 10−25	782.41
H216O (2)	6434.1873	1554.198	0.0607	0.315	4.89 × 10−26	1631.25
HD16O (1)	6434.3160	1554.167	0.1002	0.469	1.05 × 10−25	46.17

During the retrieval process, the absorption coefficient spectra of H₂¹⁶O and HD¹⁶O, derived from 30 simulated backscattered signals, are multiplied by the range resolution ∆Z to obtain the optical depth, which is then fitted using the least-squares method. A three-peak fitting method is applied to decompose the mixed absorption optical depth spectra, separating the spectral features of H₂¹⁶O (1), H₂¹⁶O (2) and HD¹⁶O (1), and obtaining the integrated areas, respectively. The integrated area of each fitted gas absorption spectrum is determined as

$$A_i=\Delta Z{\displaystyle {\int }_{\mathrm{line}}{\alpha }_i\left(\nu \right)\mathrm{d}\nu }$$

(8)

where the subscript i denotes the three absorption lines, namely H₂¹⁶O (1), H₂¹⁶O (2) and HD¹⁶O (1). Then, the corresponding gas mixing ratios of H₂¹⁶O and HD¹⁶O are determined from the fitted areas of the main absorption lines H₂¹⁶O (1) and HD¹⁶O (1) by combining Equations (3) and (8).

3. Results

The retrieval systematic errors of gas mixing ratio profiles are influenced by uncertainties in atmospheric conditions and the DIAL system. Critical system uncertainties primarily arise from calibration errors associated with the relative laser pulse energy e_on,off at different wavelengths and the relative sensitivity d_on,off of the receiver channels. These errors propagate linearly into the retrieved gas absorption coefficient, with the relationship given by 2δα/α = δe/e = δd/d, where δe and δd represent the pulse energy difference and the receiver sensitivity difference between probe and reference wavelengths, respectively. To maintain a low overall error budget, it is preferable for the relative accuracy of each parameter to be better than 0.02%, as suggested in [30]. Although achieving this value is currently challenging, it is essential during the experimental process to monitor the transmitted energy per pulse and the receiver optical efficiency as accurately as possible. In this study, the theoretical simulation primarily focuses on the uncertainties that are difficult to calibrate in experiments, specifically the effects of temperature, pressure, and laser frequency uncertainties. The absorption coefficient spectra are first calculated for each range bin using the 1976 U.S. Standard atmosphere and spectral parameters from HITRAN, and assuming uncertainties of +1 K in temperature, +1 hPa in pressure, and +0.5 MHz in frequency at each altitude. The resulting absorption coefficient spectra are then substituted into Equation (6) to evaluate the corresponding systematic errors.

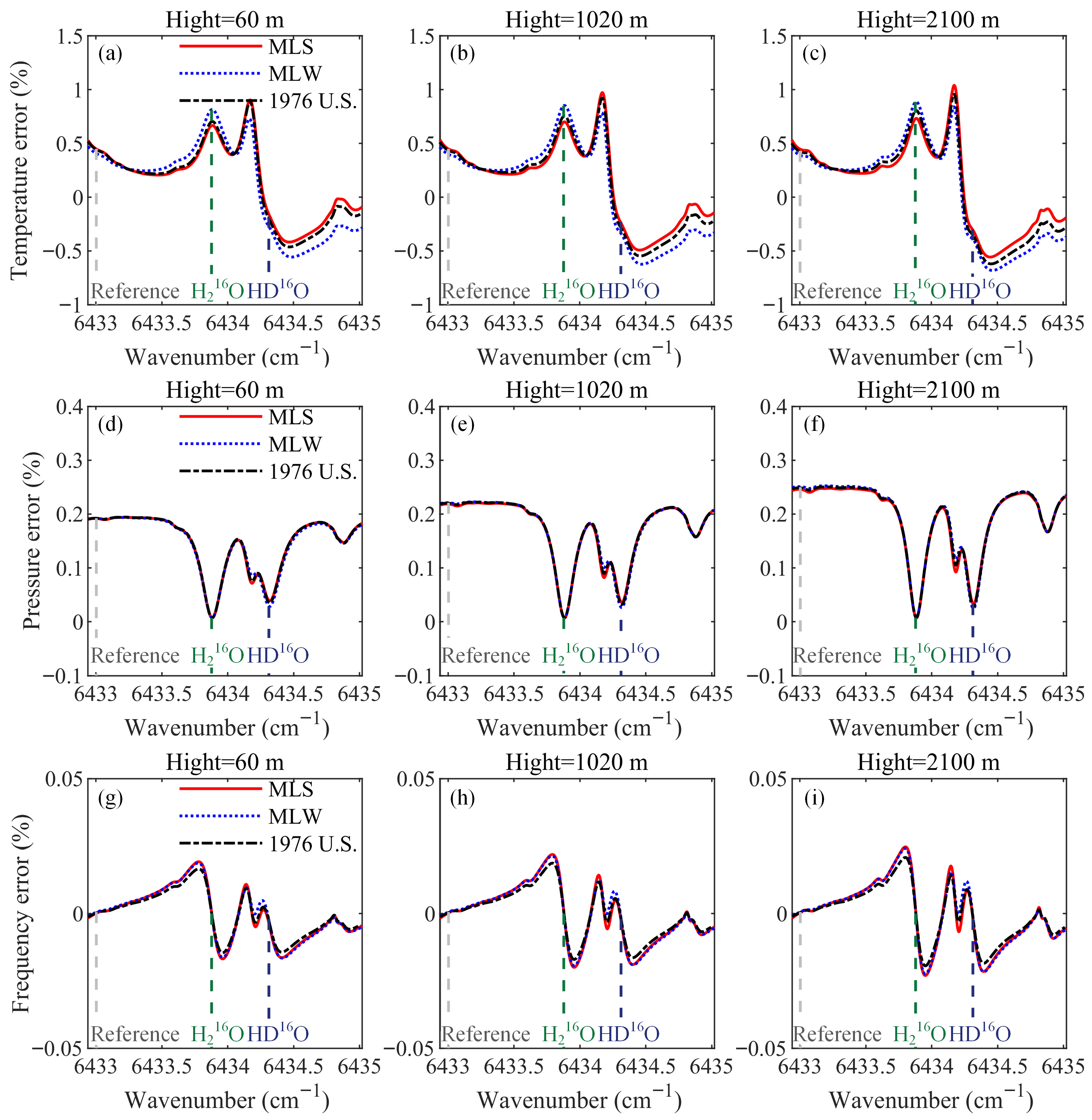

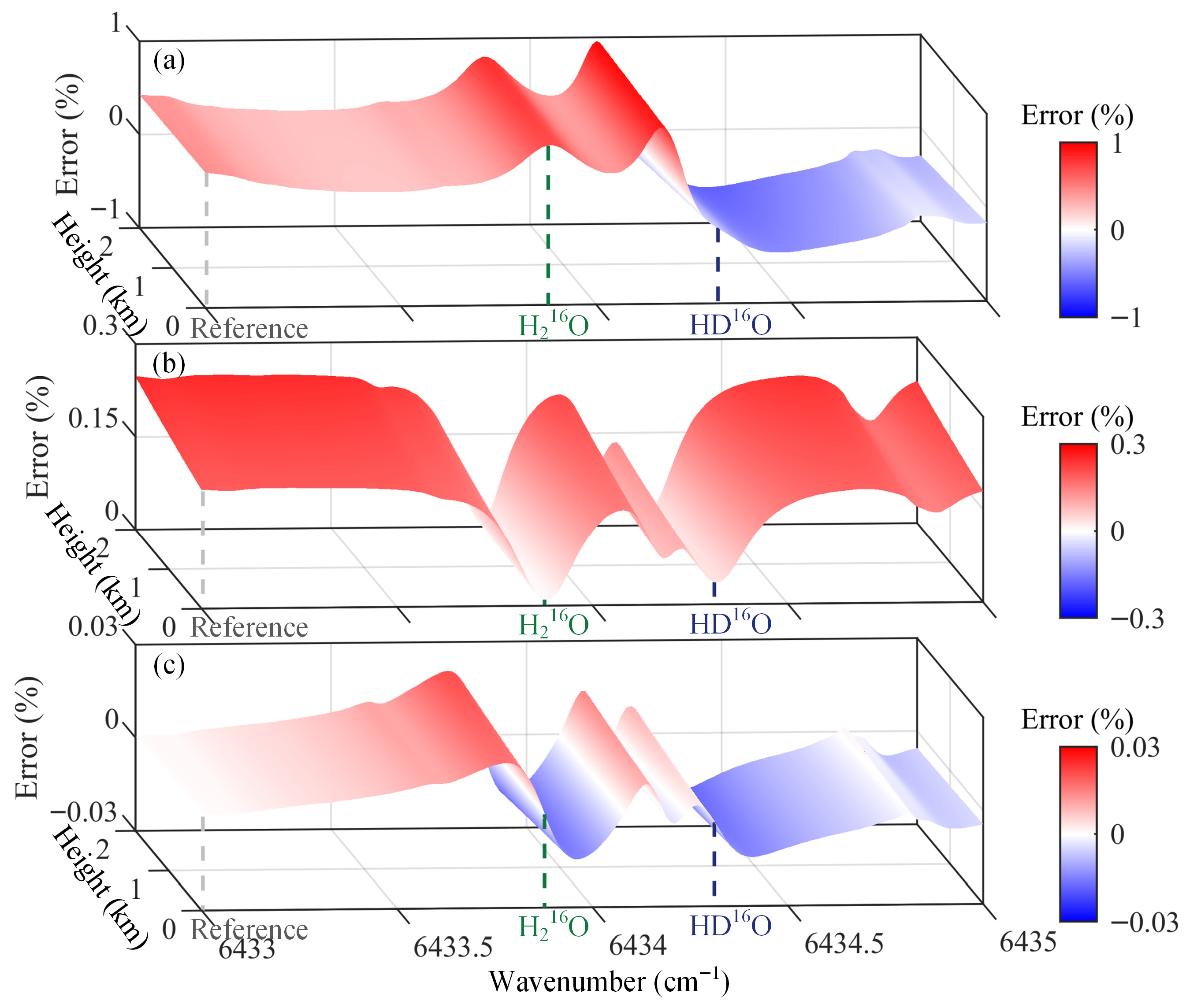

In general, the absorption cross-section of H₂O exhibits a strong temperature dependence, as reflected by a high E″ value. The absorption lines selected here feature E″ values of 782.41 cm⁻¹ for H₂¹⁶O and 46.17 cm⁻¹ for HD¹⁶O, respectively, exhibiting lower temperature sensitivity compared with those used in current studies. Figure 3a shows the calculated relative systematic errors with an input temperature uncertainty of +1 K within 2 km altitude. The result indicates that the main H₂¹⁶O peak reaches a maximum temperature error of 0.81% and maintains larger errors than HD¹⁶O, which is consistent with the respective E″ values. Systematic error associated with a pressure uncertainty of +1 hPa with 2 km altitude is illustrated in Figure 3b, with all error values being positive. The reference wavelength exhibits a relatively large error of 0.25% and the H₂¹⁶O and HD¹⁶O peaks show minimal errors, highlighting the greater sensitivity of the HD¹⁶O to pressure variations in the lower atmosphere. In the frequency sensitivity analysis shown in Figure 3c, retrieval errors at the centers of both absorption peaks are close to zero and exhibit symmetric positive and negative distributions around each peak. As altitude increases, the errors at the peak centers and off-wavelength remain relatively stable, whereas more pronounced variations occur at the wings of the absorption lines, with the maximum error reaching 0.02%. Overall, the analyses of systematic errors demonstrate that temperature uncertainties exert the most significant influence on retrieval accuracy, whereas pressure and frequency uncertainties introduce comparatively smaller errors. The choice of absorption lines with relatively low E′′ values effectively mitigates temperature sensitivity, ensuring that systematic errors remain within acceptable limits within 2 km height.

In addition, commonly used atmospheric models for mid-latitude regions also include the Mid-Latitude Summer (MLS) and Mid-Latitude Winter (MLW) models. Although different atmospheric models exhibit distinct temperature, pressure, and H₂¹⁶O profiles (Figure S1), Figure 4 illustrates that the errors arising from temperature and frequency uncertainties vary slightly across the models but remain generally consistent. And the errors resulting from pressure uncertainty exhibit even smaller variations. Moreover, for different atmospheric models, the MLW characterized by lower temperature and H₂¹⁶O content, exhibits a slightly larger error response to temperature uncertainties compared with the other two models. Additionally, negative uncertainties produce systematic errors equal in magnitude but opposite in sign (Figure S2).

To evaluate the performance of the selected absorption lines for H₂¹⁶O and HD¹⁶O measurements in DIAL applications, atmospheric backscattered signals are simulated at the chosen sampling wavelengths, and the corresponding SNR and random errors are analyzed using the 1976 U.S. Standard atmosphere. The temporal resolution of each scan is 30 min, achieved through an alternating accumulation of 30 s for each on-line and off-line wavelength pair. With a pulse width τ of 800 ns, the range resolution ΔR = cτ/2 is 120 m, where c is the speed of light. Using a longer pulse width increases the number of photons received per pulse, which helps to improve the SNR.

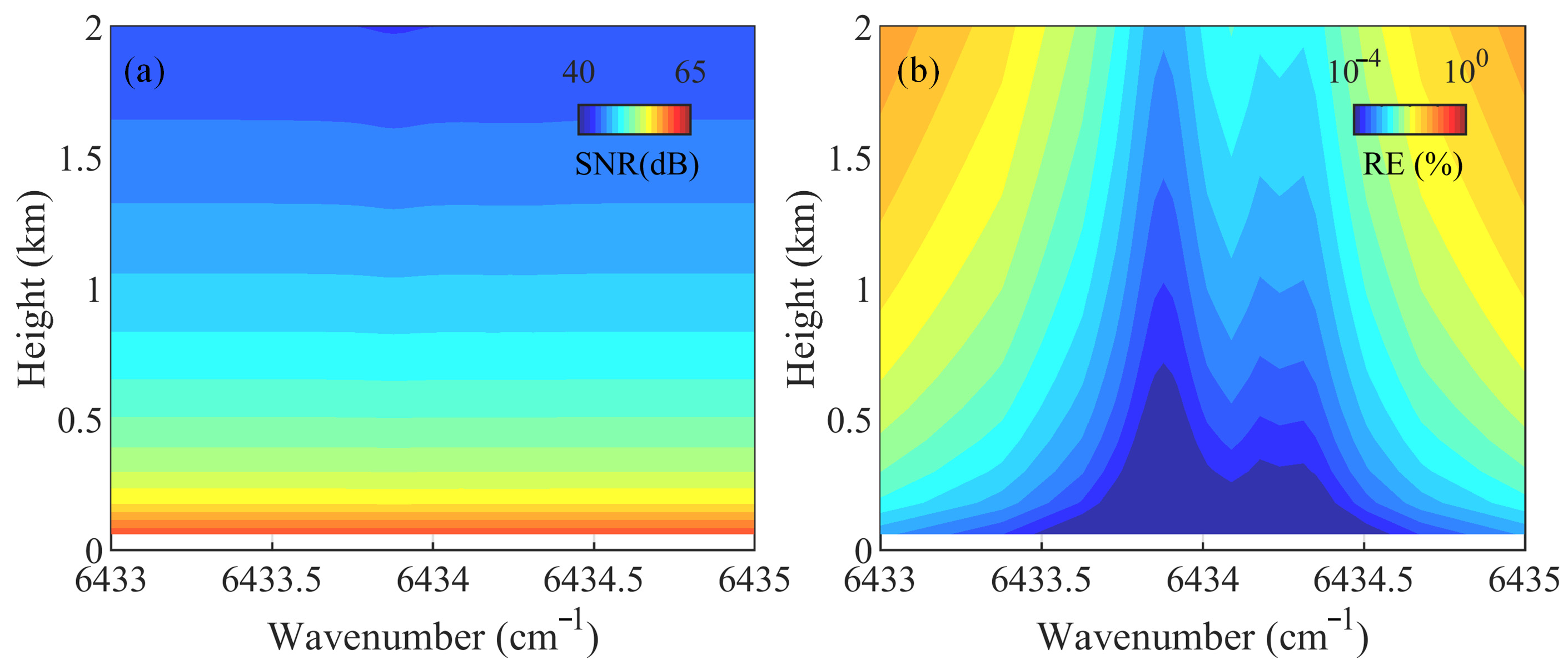

The result in Figure 5a shows that the SNR decreases with altitude, with more pronounced attenuation at the absorption peaks of H₂¹⁶O and HD¹⁶O compared to other wavelengths. Consequently, Figure 5b shows that the relative random error increases with height, reaching a maximum of about 0.16% at the off-line wavelength near 2 km, while the minimum error occurs at the line center.

It is worth noting that under polluted conditions, the high aerosol concentration near the surface enhances backscattering while also introducing stronger extinction. The results show that, at a detection height of 2 km, the enhanced signal is sufficient to compensate for the attenuation, allowing high-quality signal acquisition within the target observation range. As a result, the corresponding random error is smaller than that under clean atmospheric conditions (Figure S3). However, in extreme cases of severe pollution, the random error rapidly increases with altitude, and the lidar detection range becomes limited (Figure S4). Therefore, future experimental studies under various atmospheric conditions are crucial.

In addition, the H₂¹⁶O profile is a key factor influencing random errors, primarily by affecting the absorbed optical depth. Under the simulation conditions defined by the parameters listed in Table 1 and Table 2, higher H₂¹⁶O concentrations correspond to smaller random errors (Figure S5). In order to more intuitively compare the influence of H₂¹⁶O content on the inversion process, Figure 6 shows the mixed absorption optical depth spectra of H₂¹⁶O and HD¹⁶O at different height of 60 m, 1020 m and 2100 m under different atmospheric models including MLW, 1976 U.S. Standard, and MLS, retrieved from the simulated DIAL backscattered signals.

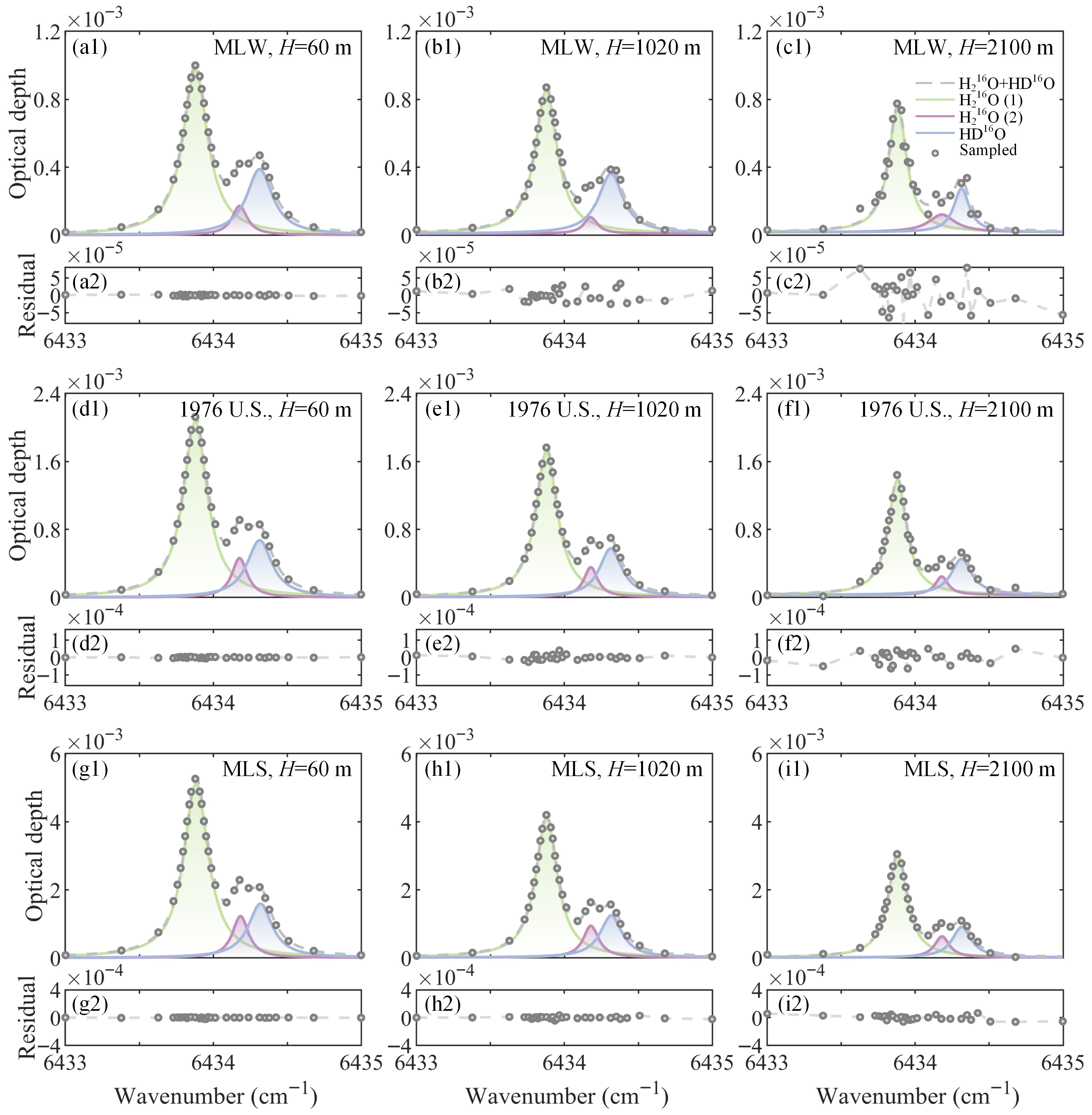

The spectra are decomposed using a three-peak Voigt fitting function. The fitting residual is defined as the difference between the derived and the Voigt-fitted spectra at each sampling wavelength, which serves as an indicator of the fitting performance. As height increases, both contents of H₂¹⁶O and HD¹⁶O gradually decrease, and the corresponding fitted areas also exhibit a declining trend. The fitting residuals increase with height, and the residuals at the absorption line center are significantly larger than those in the wings. At the same altitude, smaller Voigt fitting residuals are obtained for the MLS due to the higher H₂¹⁶O content, whereas larger residuals are obtained for the MLW due to the lower H₂¹⁶O levels. Additionally, the fitting residuals for the MLW increase significantly at 2 km.

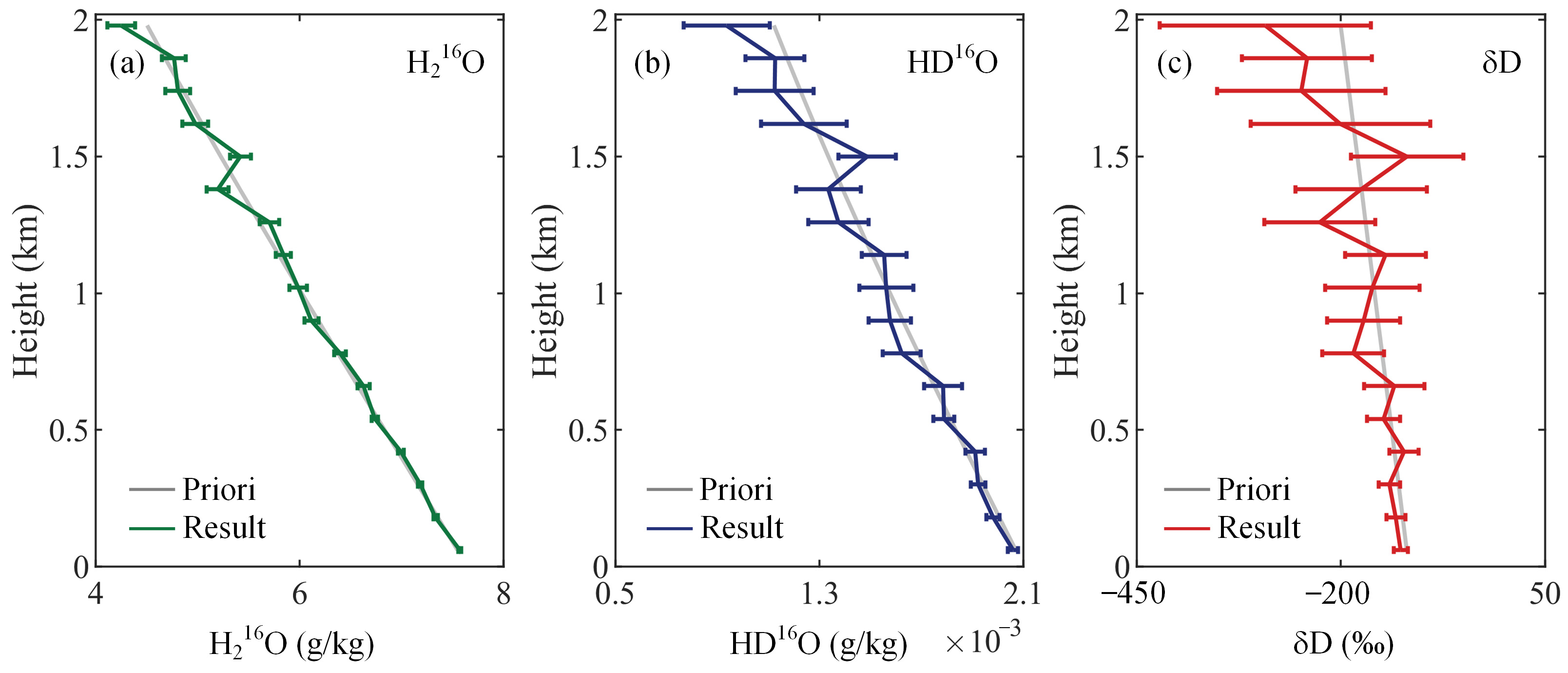

Then, the fitted integrated areas of the separated spectral lines, obtained under the 1976 U.S. Standard atmosphere representing an intermediate state between MLW and MLS, are used to derive the vertical profiles of H₂¹⁶O and HD¹⁶O mixing ratios, as well as the δD profile. The standard deviations of the retrieved mixing ratios are determined by the fitting error of the integrated absorption area, which inherently incorporates the effects of both systematic and random errors at all sampling wavelengths through the spectral fitting process. In general, larger fitting residuals result in greater errors in the fitted areas, leading to increased standard deviation in the retrieved mixing ratios. The standard deviation of δD is then determined based on Equation (S7) in the Supplementary Materials, which accounts for the uncertainties in both H₂¹⁶O and HD¹⁶O. The results shown in Figure 7 indicate that the retrieved values generally follow the expected profile defined by the input a priori values, with deviations increasing with altitude. Owing to a stronger absorption of H₂¹⁶O, the standard deviation in mixing ratio is smaller than that of HD¹⁶O, yielding errors at 2 km of about 0.13 g/kg (3.19%) and 1.69 × 10⁻⁴ g/kg (18.02%), respectively. Furthermore, the retrieved mixing ratio profiles of H₂¹⁶O and HD¹⁶O enable a reliable derivation of δD, particularly evident at an altitude of 2 km.

4. Conclusions

In this study, a multi-wavelength DIAL system operating at 1.5 μm is proposed, and its feasibility for simultaneous range-resolved profiling of water vapor isotopologue is analyzed theoretically. The proposed system employs a broadband tunable laser to scan absorption lines of H₂¹⁶O and HD¹⁶O, with frequency stabilization ensured by heterodyning with an optical frequency comb and real-time correction using a reference laser. The selected spectral lines effectively minimize interference from other atmospheric species, thereby ensuring reliable retrievals. Systematic error analysis shows that uncertainties in temperature and pressure dependent absorption cross-sections, together with laser frequency instabilities, introduce acceptable biases. Simulations of DIAL backscattered signals under the given system parameters further reveal that random errors are dominated by SNR limitations. The retrieved profiles of H₂¹⁶O and HD¹⁶O generally show good agreement with the input a priori distributions. Importantly, the retrieved number densities of H₂¹⁶O and HD¹⁶O enable the effective derivation of δD within 2 km altitude, demonstrating the capability of DIAL for isotopic composition measurements. It is worth noting that, in addition to the errors from the theoretical simulations, calibration errors during the experimental process further affect the inversion results, particularly the pulse energy and the optical efficiency, both of which contribute linearly to the overall error budget. To minimize calibration errors, refining monitoring techniques and implementing precise calibration methods in future experiments is crucial for improving accuracy in subsequent studies. While the theoretical results presented in this study require further validation through future experiments, the proposed system opens new opportunities for applications in atmospheric dynamics, hydrological cycle investigations, and climate research.
