A Sentinel-2 Based Multi-Temporal Monitoring Framework for Wind and Bark Beetle Detection and Damage Mapping
Abstract
1. Introduction
2. Materials and Methods

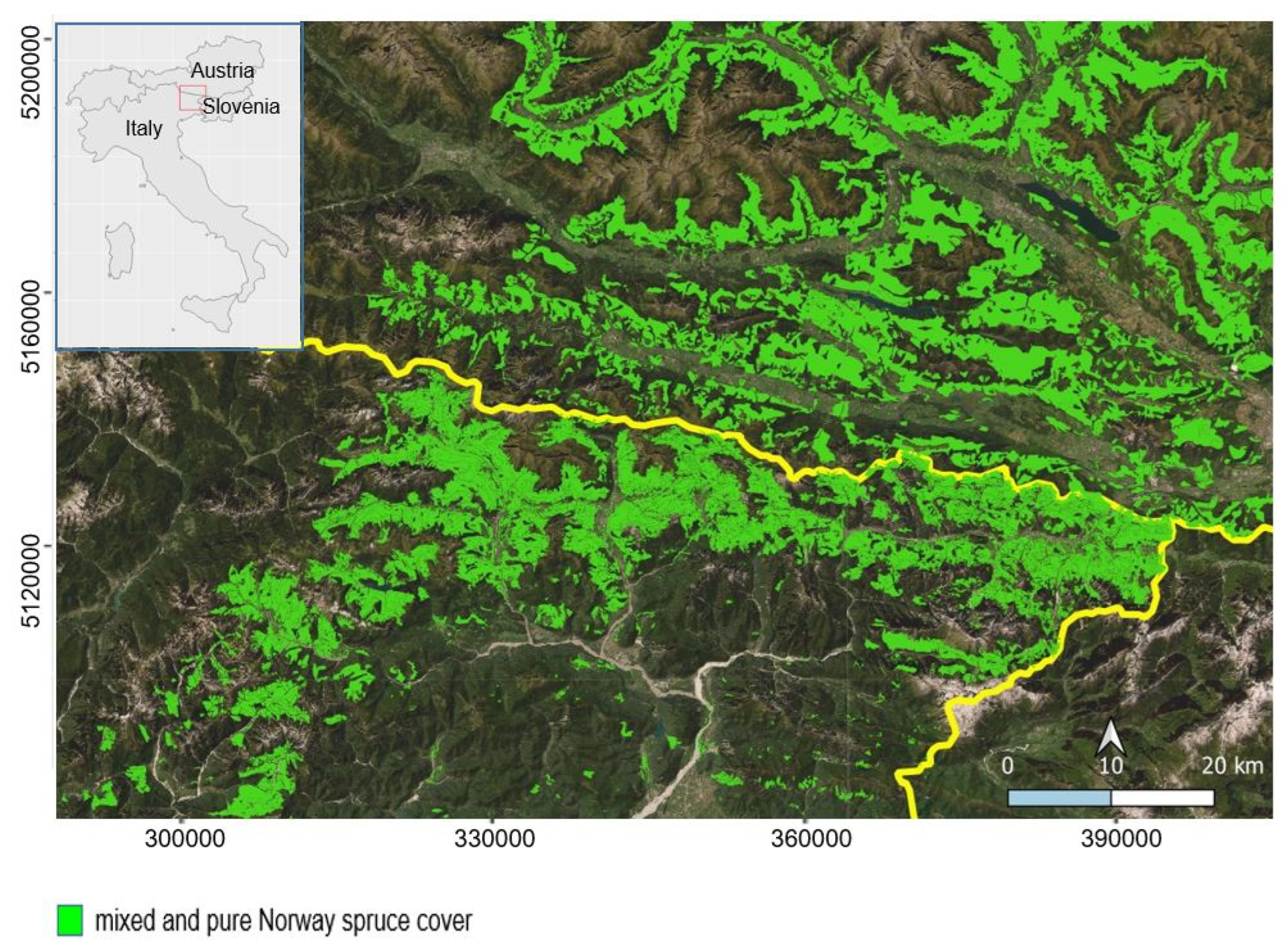

2.1. Study Area
The Vaia Storm
2.2. Data

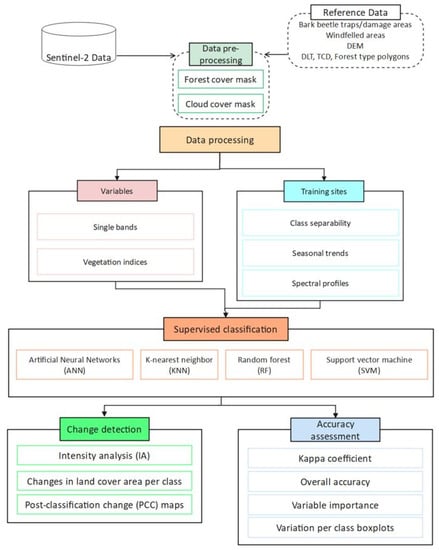

2.3. Methods
2.3.1. Single Bands and Vegetation Indices
2.3.2. Supervised Classification of Multi-Temporal Imagery
2.3.3. Post-Classification Forest-Cover Change Detection
3. Results

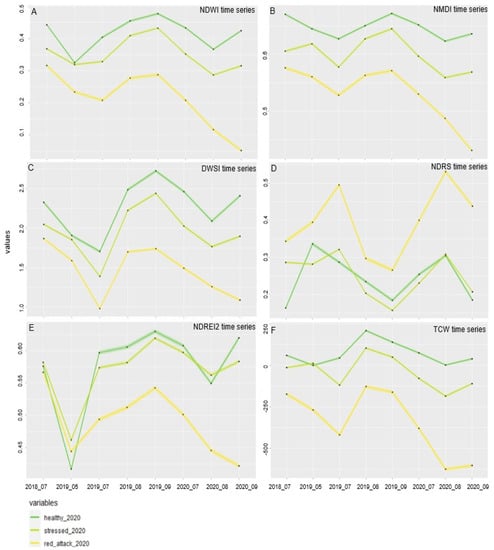

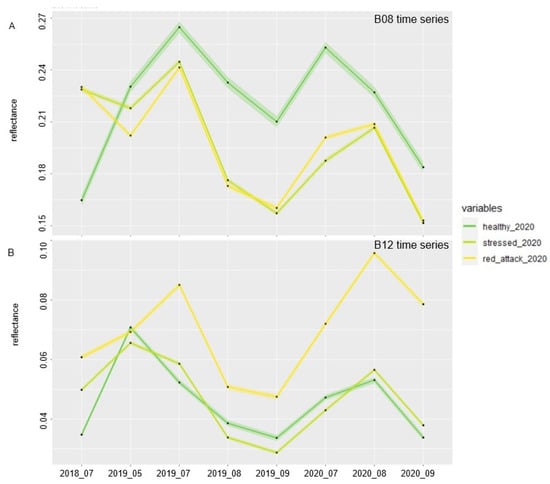

3.1. Single Bands and Vegetation Indices Reflectance Values
3.2. Supervised Classification

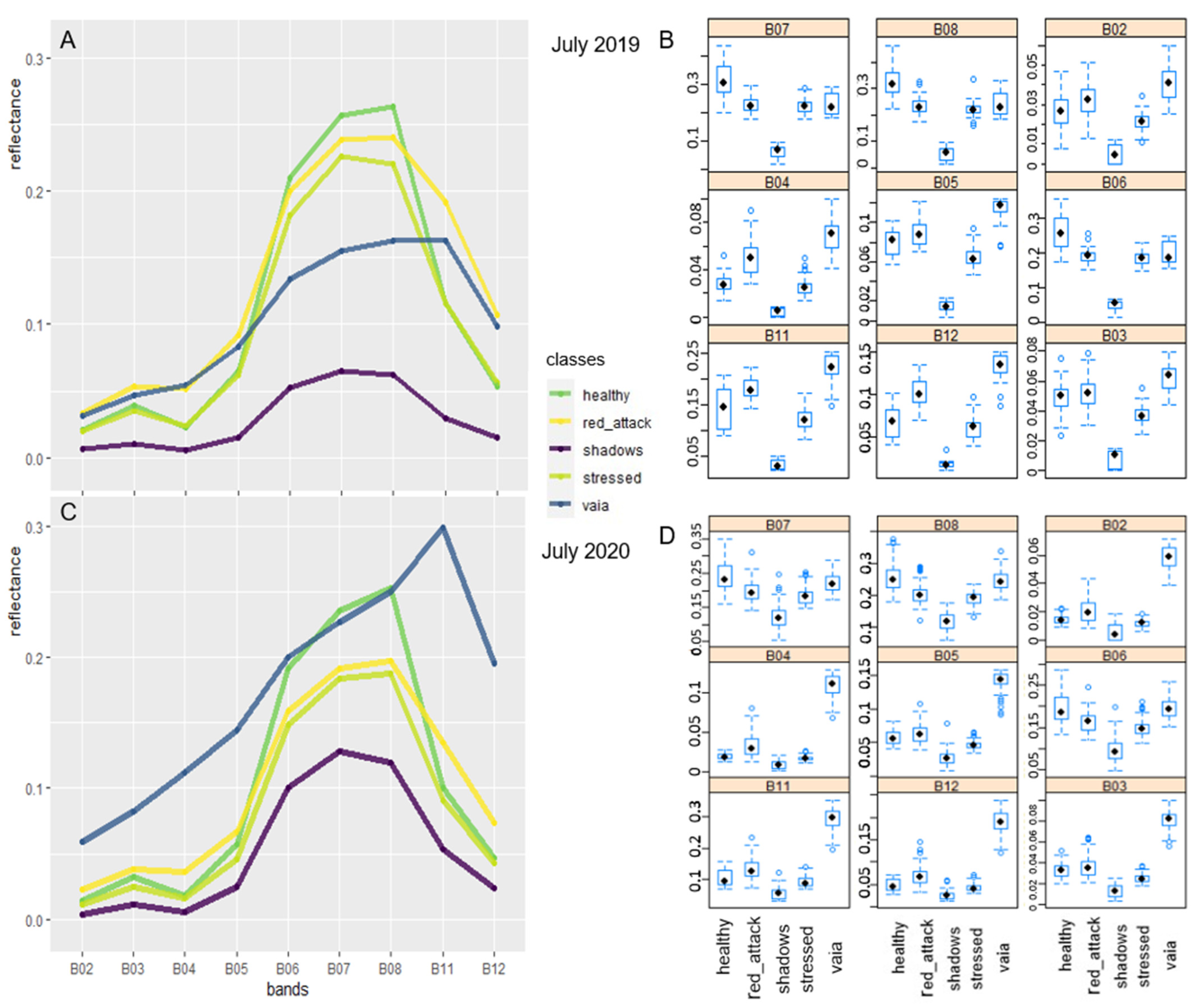

3.2.1. Spectral Signatures

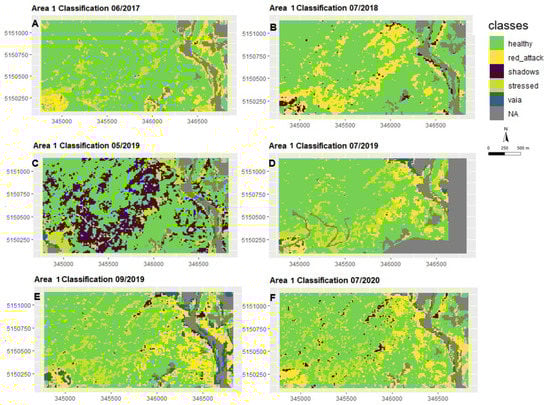

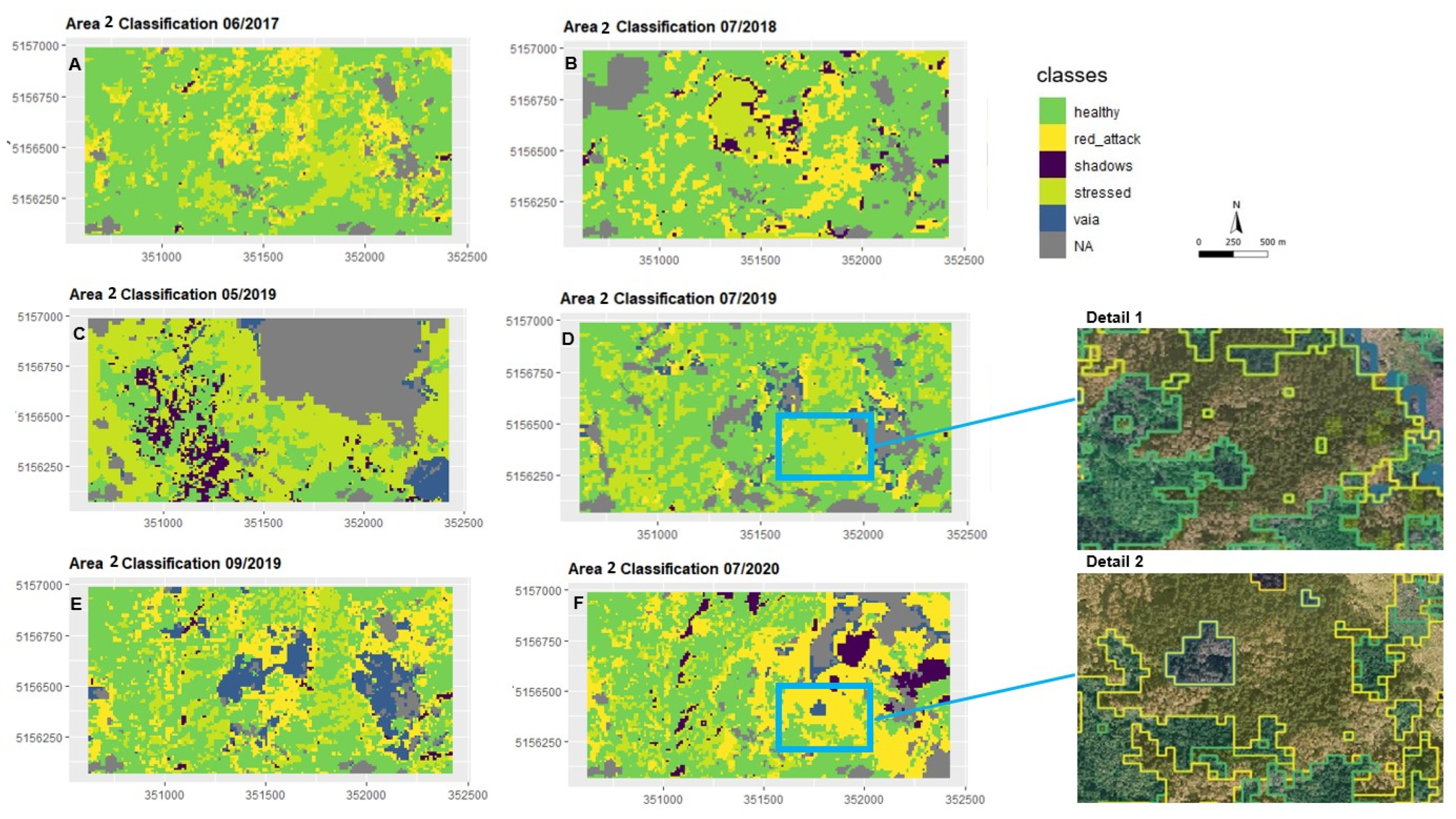

3.2.2. Maps of Damage

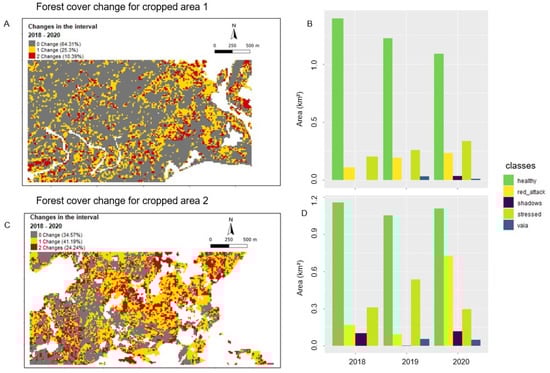

3.3. Post-Classification Change Detection
4. Discussion
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
Appendix A
06/2017 RF | ||||||
Confusion Matrix and Statistics | ||||||
Reference | ||||||
Prediction | healthy | red_attack | shadows | stressed | ||
healthy | 24 | 1 | 0 | 0 | ||
red_attack | 0 | 31 | 0 | 3 | ||
shadows | 0 | 0 | 26 | 0 | ||
stressed | 1 | 1 | 0 | 32 | ||
Overall Statistics | ||||||
Accuracy | 0.9535 | |||||
95% CI | (0.9015, 0.9827) | |||||
No-Information Rate | 0.2713 | |||||
p-Value (Acc > NIR) | <2.2 × 10−16 | |||||
Kappa | 0.9377 | |||||
06/2017 ANN | ||||||
Confusion Matrix and Statistics | ||||||
Reference | ||||||
Prediction | healthy | red_attack | shadows | stressed | ||
healthy | 33 | 1 | 0 | 1 | ||
red_attack | 0 | 31 | 0 | 6 | ||
shadows | 0 | 0 | 26 | 0 | ||
stressed | 2 | 1 | 0 | 28 | ||
Overall Statistics | ||||||
Accuracy | 0.9147 | |||||
95% CI | (0.8525, 0.9567) | |||||
No-Information Rate | 0.2713 | |||||
p-Value (Acc > NIR) | <2.2 × 10−16 | |||||
Kappa | 0.8859 | |||||
07/2018 RF | ||||||
Confusion Matrix and Statistics | ||||||
Reference | ||||||
Prediction | healthy | red_attack | shadows | stressed | ||
healthy | 23 | 1 | 0 | 0 | ||
red_attack | 0 | 24 | 0 | 1 | ||
shadows | 0 | 0 | 23 | 0 | ||
stressed | 4 | 2 | 0 | 26 | ||
Overall Statistics | ||||||
Accuracy | 0.9231 | |||||
95% CI | (0.854, 0.9662) | |||||
No-Information Rate | 0.2596 | |||||
p-Value (Acc > NIR) | <2.2 × 10−16 | |||||
Kappa | 0.8973 | |||||
07/2018 ANN | ||||||
Confusion Matrix and Statistics | ||||||
Reference | ||||||
Prediction | healthy | red_attack | shadows | stressed | ||
healthy | 26 | 0 | 0 | 3 | ||
red_attack | 0 | 26 | 1 | 0 | ||
shadows | 0 | 0 | 22 | 0 | ||
stressed | 1 | 1 | 0 | 24 | ||
Overall Statistics | ||||||
Accuracy | 0.9423 | |||||
95% CI | (0.8787, 0.9785) | |||||
No-Information Rate | 0.2596 | |||||
p-Value (Acc > NIR) | <2.2 × 10−16 | |||||
Kappa | 0.9229 | |||||
05/2019 RF | ||||||
Confusion Matrix and Statistics | ||||||
Reference | ||||||
Prediction | healthy | shadows | stressed | vaia | ||
healthy | 23 | 0 | 1 | 0 | ||
shadows | 0 | 19 | 0 | 0 | ||
stressed | 0 | 0 | 23 | 0 | ||
vaia | 0 | 0 | 0 | 19 | ||
Overall Statistics | ||||||
Accuracy | 0.9882 | |||||
95% CI | (0.9362, 0.9997) | |||||
No-Information Rate | 0.2824 | |||||
p-Value (Acc > NIR) | <2.2 × 10−16 | |||||
Kappa | 0.9843 | |||||
05/2019 ANN | ||||||
Confusion Matrix and Statistics | ||||||
Reference | ||||||
Prediction | healthy | shadows | stressed | vaia | ||
healthy | 23 | 0 | 0 | 0 | ||
shadows | 0 | 19 | 0 | 0 | ||
stressed | 0 | 0 | 24 | 0 | ||
vaia | 0 | 0 | 0 | 19 | ||
Overall Statistics | ||||||
Accuracy | 1 | |||||
95% CI | (0.9575, 1) | |||||
No-Information Rate | 0.2824 | |||||
p-Value (Acc > NIR) | <2.2 × 10−16 | |||||
Kappa | 1 | |||||
07/2019 RF | ||||||
Confusion Matrix and Statistics | ||||||
Reference | ||||||
Prediction | healthy | red_attack | shadows | stressed | vaia | |
healthy | 45 | 0 | 0 | 0 | 0 | |
red_attack | 0 | 23 | 0 | 2 | 5 | |
shadows | 0 | 0 | 10 | 0 | 0 | |
stressed | 0 | 3 | 0 | 59 | 0 | |
vaia | 0 | 2 | 0 | 0 | 8 | |
Overall Statistics | ||||||
Accuracy | 0.9236 | |||||
95% CI | (0.8703, 0.9588) | |||||
No-Information Rate | 0.3885 | |||||
p-Value (Acc > NIR) | <2.2 × 10−16 | |||||
Kappa | 0.894 | |||||
07/2019 ANN | ||||||
Confusion Matrix and Statistics | ||||||
Reference | ||||||
Prediction | healthy | red_attack | shadows | stressed | vaia | |
healthy | 27 | 1 | 0 | 1 | 0 | |
red_attack | 0 | 21 | 0 | 1 | 2 | |
shadows | 0 | 0 | 11 | 0 | 0 | |
stressed | 2 | 3 | 0 | 32 | 1 | |
vaia | 0 | 3 | 0 | 0 | 13 | |
Overall Statistics | ||||||
Accuracy | 0.8814 | |||||
95% CI | (0.809, 0.9366) | |||||
No-Information Rate | 0.2881 | |||||
p-Value (Acc > NIR) | <2.2 × 10−16 | |||||
Kappa | 0.8462 | |||||
09/2019 RF | ||||||
Confusion Matrix and Statistics | ||||||
Reference | ||||||
Prediction | healthy | red_attack | shadows | stressed | vaia | |
healthy | 25 | 0 | 0 | 1 | 0 | |
red_attack | 1 | 17 | 0 | 2 | 1 | |
shadows | 0 | 0 | 3 | 0 | 0 | |
stressed | 1 | 0 | 0 | 24 | 0 | |
vaia | 0 | 1 | 0 | 0 | 20 | |
Overall Statistics | ||||||
Accuracy | 0.9271 | |||||
95% CI | (0.8555, 0.9702) | |||||
No-Information Rate | 0.2812 | |||||
p-Value (Acc > NIR) | <2.2 × 10−16 | |||||
Kappa | 0.9042 | |||||
09/2019 ANN | ||||||
Confusion Matrix and Statistics | ||||||
Reference | ||||||
Prediction | healthy | red_attack | shadows | stressed | vaia | |
healthy | 24 | 4 | 0 | 2 | 0 | |
red_attack | 2 | 12 | 0 | 3 | 0 | |
shadows | 0 | 0 | 3 | 0 | 0 | |
stressed | 1 | 1 | 0 | 21 | 0 | |
vaia | 0 | 1 | 0 | 1 | 21 | |
Overall Statistics | ||||||
Accuracy | 0.8438 | |||||
95% CI | (0.7554, 0.9098) | |||||
No-Information Rate | 0.2812 | |||||
p-Value (Acc > NIR) | <2.2 × 10−16 | |||||
Kappa | 0.7939 | |||||
07/2020 RF | ||||||
Confusion Matrix and Statistics | ||||||
Reference | ||||||
Prediction | healthy | red_attack | shadows | stressed | vaia | |
healthy | 31 | 0 | 0 | 3 | 0 | |
red_attack | 0 | 28 | 0 | 2 | 0 | |
shadows | 0 | 0 | 43 | 2 | 0 | |
stressed | 4 | 7 | 0 | 28 | 0 | |
vaia | 0 | 0 | 0 | 0 | 7 | |
Overall Statistics | ||||||
Accuracy | 0.8839 | |||||
95% CI | (0.8227, 0.9297) | |||||
No-Information Rate | 0.2774 | |||||
p-Value (Acc > NIR) | <2.2 × 10−16 | |||||
Kappa | 0.8487 | |||||
07/2020 ANN | ||||||
Confusion Matrix and Statistics | ||||||
Reference | ||||||
Prediction | healthy | red_attack | shadows | stressed | vaia | |
healthy | 27 | 0 | 0 | 4 | 0 | |
red_attack | 1 | 28 | 0 | 6 | 0 | |
shadows | 0 | 0 | 43 | 6 | 0 | |
stressed | 7 | 7 | 0 | 19 | 0 | |
vaia | 0 | 0 | 0 | 0 | 7 | |
Overall Statistics | ||||||
Accuracy | 0.8 | |||||
95% CI | (0.7283, 0.8599) | |||||
No-Information Rate | 0.2774 | |||||
p-Value (Acc > NIR) | <2.2 × 10−16 | |||||
Kappa | 0.7389 |
