Restorative Design of Underground Structures Damaged by Kahramanmaras (Turkey) Earthquakes on 6 February 2023: A Case Study on Erkenek Highway Tunnel

Abstract

On 6 February 2023, two consecutive earthquakes, with magnitudes of 7.8 and 7.7 (Mw), struck Kahramanmaras Province in the Mediterranean region of Turkey. A thorough evaluation of post-seismic damage to underground structures is critically important for ensuring both structural safety and operational serviceability. Focusing on the Erkenek Tunnel, this study provides a systematic investigation to assess the impact of the devastating Kahramanmaras earthquakes on highway tunnels. The tunnel sustained significant damage, primarily concentrated in its inner lining structures, and as a result, its left tube was shut down for service. Based on the in situ observations, geological conditions, initial design documents and construction techniques, a numerical analysis was conducted to model critical tunnel sections and evaluate their structural stability. Considering both static loads and seismic forces, restoration design works, techniques and construction sequences are recommended for the damaged sections of the Erkenek Tunnel. As the earthquake damage sustained by underground structures is a rare case, the methodology and findings of this study regarding post-seismic tunnel inspections and rehabilitation designs shed light on the maintenance works of in-service tunnels in earthquake-prone zones.

1. Introduction

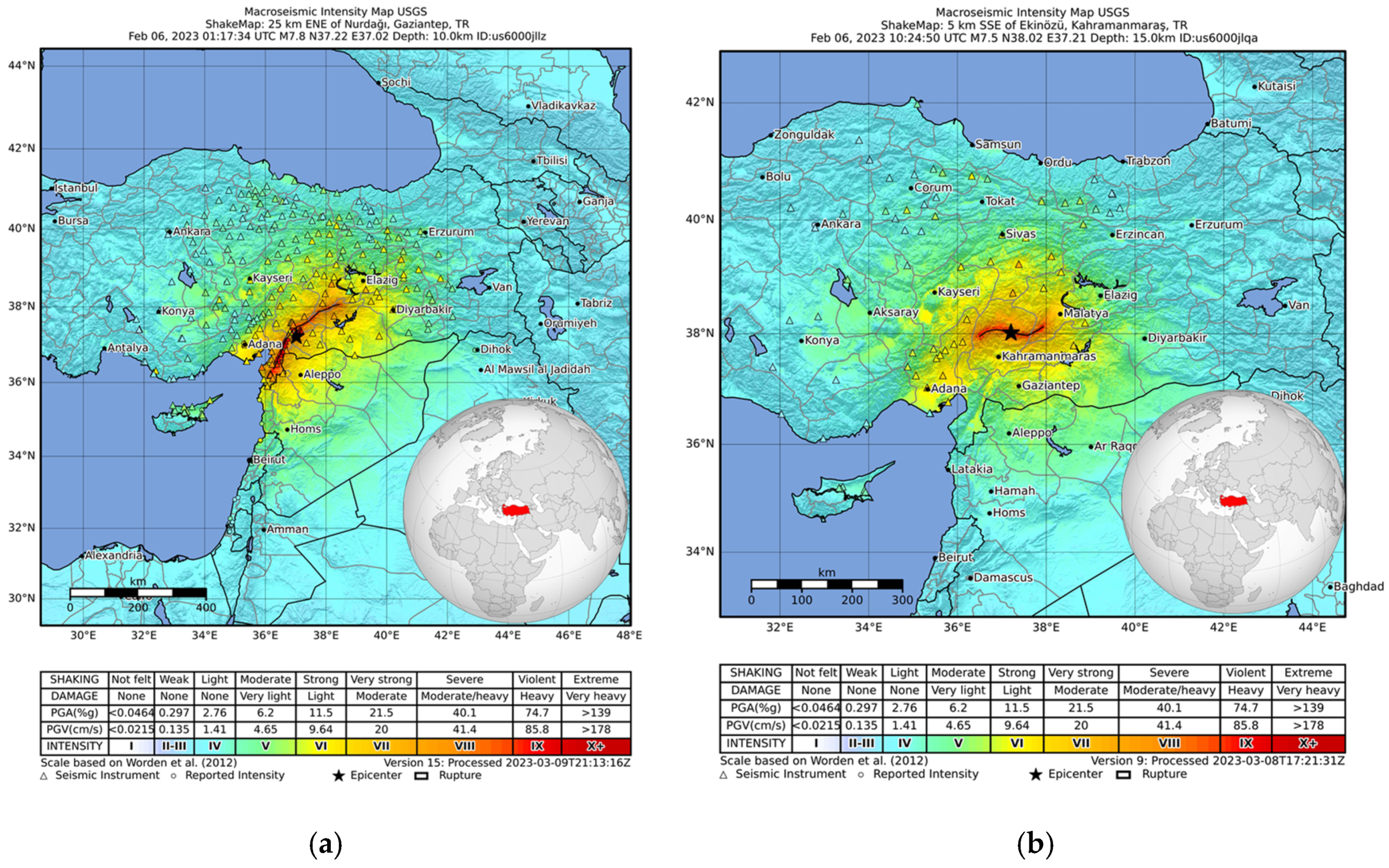

Straddling the continents of Asia and Europe, Turkey is predominantly located on the Anatolian Peninsula. Its diverse landscapes have been formed by a wide range of tectonic processes throughout geological history. This tectonic activity continues today, driven by the convergence of the African Plate with the Eurasian Plate, which propels the Anatolian Plate westward and southwestward along strike-slip faults [1]. The principal fault systems in Turkey are the North Anatolian Fault Zone (NAFZ) and the East Anatolian Fault Zone (EAFZ). The former shapes the current plate boundary of Eurasia near the Black Sea coast, while the latter forms part of the boundary of the North Arabian Plate in the southeast [2]. Turkey’s seismically active geology—characterized by recent faulting and folding, with ongoing orogenic processes—makes the country susceptible to frequent earthquakes of varying magnitudes [3]. More recently, two consecutive and powerful earthquakes occurred in Kahramanmaras Province, located in southern Turkey. On 6 February 2023, at 04:17 local time, the first intense earthquake (in the Pazarcik district, Kahramanmaras) with a magnitude of Mw 7.8 hit southern and central Turkey and northern and western Syria. It was followed by a second earthquake with a magnitude of Mw 7.7 (in Elbistan district, Kahramanmaras) at 13:24 local time the same day. The Pazarcik earthquake had an epicenter at 37.166° N; 37.032° E, approximately 34 km west of Gaziantep Province, near the Syrian border. The following Elbistan earthquake had an epicenter at 38.089° N; 37.239° E, situated about 95 km northeast of the former earthquake. The Pazarcik and Elbistan earthquakes had shallow focal depths of 8.6 and 7.0 km, respectively, and both shocks were caused by strike-slip faulting within the EAFZ. In the earthquake-stricken areas, a total of 45,756 aftershocks were recorded within the first year following the earthquakes [4]. The corresponding shakemaps of these earthquakes are given in Figure 1 [5,6].

The deadliest earthquakes resulted in a total of 62,013 fatalities (53,537 in Turkey and 8476 in Syria) and injured more than 110,000 individuals according to the latest reports. Moreover, these destructive natural disasters wreaked havoc on both residential and non-residential buildings, as well as the main transportation infrastructure, including airports, roads, railways, bridges, and tunnels. Officials at Turkey’s Presidency of Strategy and Budget have estimated the total economic loss from the earthquakes to be at least $104 billion, equivalent to approximately 9% of the country’s 2023 GDP, thereby making this one of the most costly earthquakes in modern Turkish history [7].

Resilient transportation systems are essential for the prompt deployment of search and rescue teams and the uninterrupted delivery of medical supplies and logistical support to disaster-affected areas following earthquakes and other major natural disasters. Similarly to many countries worldwide, highway transportation is the most preferred mode in Turkey due to its door-to-door service, flexible travel schedules, accessibility to remote areas, and ease of integration with other transportation systems. Turkey currently has a highway network exceeding 70,000 km. To maintain the continuity of this network, 495 highway tunnels with a total length of 753 km have been constructed, primarily in response to the challenging geological and topographic conditions along certain routes. Within the framework of the emergency action plans, it is vital that the highway tunnels—whose initial construction costs are considerably high—provide safe, uninterrupted, and sustainable service during and after earthquakes or other major disasters. Yet, it should be noted that underground structures—particularly those passing through large active fault zones or crossing active faults—are highly vulnerable to seismic loads. An accurate and realistic post-seismic evaluation is necessary to ensure the safety of these underground structures; however, a research gap remains in this area within the literature. The historic Kahramanmaras-centered earthquakes resulted in serious damage to highway tunnels serving the earthquake-affected regions, leading to disruptions in road transportation. The Erkenek Tunnel is one of the seismically damaged highway tunnels affected by these destructive earthquakes. A field survey revealed extensive seismic damage exhibiting various patterns across its structural components. Within the scope of this study, earthquake-induced damage in the Erkenek Tunnel will first be determined along with damage patterns. Then, the tunnel will be modeled using computer-aided design software, and its structural safety will be evaluated under both static and seismic loading conditions. Based on the analysis of the damaged sections, a restorative design for a new tunnel lining is proposed with the aim of preventing future deterioration and providing safe and sustainable tunnel operation. Given its proximity to an active fault zone and the seismic challenges it has endured, the Erkenek Tunnel presents a compelling case study for evaluating the design considerations for both existing and future tunnels. Accordingly, this paper presents a pilot study that contributes to the improvement of seismic resilience and the extension of service life of highway tunnels.

2. Literature Review

To date, a wide range of research has focused on understanding the effects of earthquakes and seismic faulting on road tunnels. A preliminary analysis by Yao et al. (2024) revealed that the mechanisms of earthquake-induced tunnel damage were closely associated with old landslide masses, fractured zones, invert setup, and the direction of tunnel alignment [8]. Zhang et al. (2020) identified additional influencing factors, including earthquake parameters, structural forms, and geological conditions under earthquake forces [9]. Then, they further proposed restoration design criteria and methods, taking a case study of a tunnel subjected to an earthquake with a magnitude Mw 7.0 in 2016. Using a deep learning approach, Ansari et al. (2023) developed a seismic tunnel damage prediction model capable of determining damage indices, damage patterns, and mitigation measures for post-seismic scenarios [10]. The use of dynamic analysis tools has been shown to be highly effective in revealing the interaction between the dynamic response of the tunnel lining and the frequency content of ground motion, which sparks an amplification of the internal forces within the lining [11]. A computer-aided modeling also proved that the introduction of pseudo-static horizontal earthquake body forces into a single circular tunnel increased the peak horizontal displacements within the media and increased the degree of asymmetry in the stresses and distribution patterns [12].

Xin et al. (2024) reported that there is a clear distinction between fault-crossing and non-fault-crossing tunnels in terms of seismic damage classification [13]. The former experiences combined effects of intense fault displacement and seismic motion, leading to considerable transverse squeezing, shearing, and extensive spalling of the tunnel lining. In contrast, the latter is primarily affected by seismic motion, and unless subjected to strong high-energy pulses, secondary fault displacements are typically not triggered. Zhang et al. (2017) investigated the impact of fault location and thickness on the stability of surrounding rock masses [14]. They concluded that faults would not always lead to an increase in the compressive and tensile strength and deformation in rock masses. However, they could reduce displacement, plastic zone extent, and stresses in the surrounding rock and shotcrete lining. An increased fault thickness significantly raised the areas of the tensile stress and the plastic zone in a nonlinear way. Similarly, Zhao et al. (2025) stated that as fault width increases, the internal forces within the tunnel structure decrease [15]. Other parameters—including fault type, epicentral distance, earthquake magnitude, source depth, and rise time—also merit detailed investigation. Accordingly, Chen et al. (2024) addressed that oblique strike-slip and thrust faults exhibit higher stress intensities, which makes tunnels more susceptible to earthquake forces [16]. For strike-slip earthquakes in particular, shear and normal strains induced by fault displacement are primary causes of tunnel damage in both axial and lateral directions [17]. Earthquakes with a magnitude greater than Mw 6.5 have a significant impact on the stress response of tunnels, whereas source depth and rise time have relatively minor effects. Chen et al. (2023) examined the failure mechanism of a tunnel near fault zones from the viewpoints of dislocation failure and impact failure [18]. The former was found to be dominated by non-uniform dislocation displacement along the tunnel’s longitudinal axis, primarily controlled by the amount of dislocation. The latter, by contrast, was the result of crushing and inverse uplift within the tunnel cross-section, which is mainly related to pulse duration. In line with these findings, Du et al. (2025) suggested that initial damage caused by fault dislocation worsens subsequent tunnel damage under seismic action, and an increase in initial fault displacement and peak ground acceleration significantly aggravates lining damage [19].

Xia et al. (2022) evaluated the critical role of anti-dislocation deformation joints in tunnels passing through active faults [20]. They underlined that these joints substantially reduced both longitudinal and transverse lining strains within fault fracture zones. Anti-dislocation deformation joints were observed to effectively decrease internal forces and bending moments in the lining, thereby mitigating seismic damage in the lining. In another study, the incorporation of a 10–20 cm-thick seismic buffer layer was found to significantly reduce lining failures by limiting multi-directional lining displacements [21]. Considering the vulnerability of the vault bottom and vault areas near faults during strong earthquakes, Wang et al. (2024) recommended the utilization of steel-basalt hybrid fiber reinforced concrete for lining [22]. As an alternative to plain concrete, it exhibited an 11.2-fold increase in the minimum safety factor and demonstrated a markedly lower degree of structural damage.

3. Technical Background of the Erkenek Tunnel

The Erkenek tunnel is situated along the D-850 Malatya—Adiyaman State Highway, between the districts of Dogansehir (Malatya) and Golbasi (Adiyaman). It comprises two unidirectional twin tubes: the right tube is 1816 m long (from mileage K76 + 008 to K77 + 824), while the left tube measures 1846 m (from mileage K75 + 978 to K77 + 824).

Connecting the eastern part of Turkey with the Mediterranean region, this tunnel provides a crucial transportation link through the mountainous terrain of the Erkenek area. It ensures time and fuel savings, safety, sustainability, and efficient vehicular passage, particularly under harsh winter conditions. The tunnel structure consists of a primary (initial) lining, a secondary (final) lining, and a waterproofing system. The tunnel was constructed between the year 2011 and 2017, following the principles of the New Austrian Tunnelling Method (NATM). Each tunnel tube has a cross-sectional width of 10.60 m and a maximum height of 10.17 m. The road pavement is composed of a bituminous mixture with an overall thickness of 0.55 m.

The Erkenek Tunnel is located in close proximity to an active fault zone, with a straight-line distance of approximately 3000 m from its central alignment to the East Anatolian Fault Zone (EAFZ). In addition to its location within a major strike-slip fault zone, unanticipated soil conditions—resulting from insufficient preliminary geotechnical investigations and limited boring works—caused significant challenges during construction. These included mass wasting and ground subsidence in several tunnel sections and portals. After opening to service, the tunnel has been influenced by multiple faults exhibiting varying strikes and dip angles relative to its longitudinal axis. During the 6 February 2023 Pazarcik earthquake (Mw 7.8), whose epicenter was located approximately 70 km away, both tunnel tubes sustained severe structural damage. The subsequent Elbistan earthquake (Mw 7.7) further exacerbated the damage, amplifying pre-existing cracks and spalling within the tunnel linings and sidewalls. As a result, the left tube was permanently closed to traffic, while the right tube experienced temporary service disruptions.

4. Seismic Damage to the Erkenek Tunnel

Following the Kahramanmaras earthquakes, a comprehensive investigation was conducted to assess the extent of the damage in the Erkenek Tunnel. This process involved the collection of geotechnical investigation reports, geological condition assessments, approved design documents, and construction records. Subsequently, a field survey—similar in approach to that of the Structural Extreme Events Reconnaissance (StEER) Network—was carried out to identify and classify the various types of structural damage [23]. Previous studies have reported that the most common forms of earthquake-induced damage in tunnels include cracking of the lining, concrete spalling and collapse, shear failure of the lining, portal cracking, damage at construction joints, slope-induced collapses near portals, groundwater leakage, sidewall and invert deformation, tunnel floor heaving, and pavement damage [24,25]. Among these, lining cracks are the most frequently observed seismic damage type, typically categorized into four distinct patterns: longitudinal cracks, transverse cracks, inclined cracks, and enclosed (ring) cracks [9]. Based on this generally accepted classification, the earthquake-driven damages detected in the Erkenek Tunnel are categorized and summarized in

Table 1. Damage descriptions.

Tunnel Section	Damage	Engineering-Geological Unit	Initial Construction
Left tube (K76 + 040~K76 + 190)	Enclosed crack in reinforced secondary lining and left sidewall (Figure 2a)	Kocali diorite 1	C2/180 steel rib, reinforced 65 cm final lining, and unreinforced invert (K76 + 040~76 + 067) C2/180 steel rib, C2 (without umbrella arch method)/200 steel rib, reinforced 40 cm final lining, and reinforced invert (K76 + 067~76 + 140)
Left tube (K76 + 235~K76 + 415)	Enclosed crack, longitudinal crack, and breaking away of lining in reinforced secondary lining and left sidewall (Figure 2b)	Malatya metamorphic limestone 2 and Malatya metamorphic alteration of schist-limestone 3	C3/200 steel rib, C2/200 steel rib, C2 (without umbrella arch method)/200 steel rib, reinforced 40 cm final lining, and reinforced invert (K76 + 235~76 + 346) C3/200 steel rib, C2/200 steel rib, C2 (without umbrella arch method)/200 steel rib, reinforced 65 cm final lining, and reinforced invert (K76 + 346~76 + 415)
Left tube (K76 + 490~K76 + 525)	Longitudinal crack in reinforced secondary lining (Figure 2c)	Malatya metamorphic alteration of schist-limestone	C3/200 steel rib, reinforced 65 cm final lining, and reinforced invert
Left tube (K76 + 565~K76 + 640)	Enclosed crack and longitudinal crack in reinforced secondary lining (Figure 2d)	Malatya metamorphic limestone	C3/200 steel rib, reinforced 65 cm final lining, and reinforced invert
Left tube (K76 + 890~K76 + 950)	Enclosed crack in unreinforced secondary lining (Figure 2e)	Malatya metamorphic limestone	C2/180 steel rib, reinforced 40 cm final lining, and unreinforced invert (K76 + 890~76 + 898) C2/180 steel rib, and B3/160 steel rib, unreinforced final lining (K76 + 898~K76 + 950)
Left tube (K76 + 965~K76 + 992)	Longitudinal crack in tunnel floor and road pavement (Figure 2f)	Malatya metamorphic limestone	B3/160 steel rib
Left tube (K77 + 015~K77 + 028)	Enclosed crack and breaking away of lining in unreinforced secondary lining and left sidewall (Figure 2g)	Malatya metamorphic alteration of schist-limestone	B3/160 steel rib and C2/180 steel rib and unreinforced final lining
Left tube (K77 + 404~K77 + 444)	20 cm heaving in tunnel floor, enclosed crack in unreinforced secondary lining, and deformation in shotcrete and steel mesh (Figure 2h)	Malatya metamorphic limestone	C2/180 steel rib and B3/160 steel rib and unreinforced final lining
Left tube (K77 + 652~K77 + 664)	Enclosed crack in unreinforced secondary lining and left sidewall and breaking away of lining in unreinforced secondary lining (Figure 2i)	Malatya metamorphic limestone	B3/160 steel rib
Right tube (K76 + 118~K76 + 175)	Different forms of heavy deformation in secondary lining (Figure 2j,k)	Malatya metamorphic limestone	C2 (without umbrella arch method)/200 steel rib, reinforced 40 cm final lining, and unreinforced invert
Right tube (K76 + 318~K76 + 393)	30 cm heaving in tunnel floor and enclosed crack in secondary lining and left sidewall (Figure 2l)	Malatya metamorphic limestone	C3/200 steel rib, reinforced 65 cm final lining, and unreinforced invert
Right tube (K76 + 909~K77 + 093)	35 cm heaving in tunnel floor and enclosed crack in unreinforced secondary lining and right sidewall (Figure 2m)	Malatya metamorphic limestone	B2, B3/160 steel rib and B1, B3/160 steel rib (K76 + 909~K77 + 050) B3/160 steel rib and unreinforced tunnel floor (without invert) (K77 + 050~K77 + 088)
Right tube (K77 + 318~K77 + 792)	Inclined crack in right sidewall, 35 cm heaving in tunnel floor, transverse crack in road pavement, multiple-formed deformation in reinforced secondary lining (Figure 2n)	Malatya metamorphic alteration of schist-limestone and Kocali diorite	B2, B3/160 steel rib, B3/160 steel rib, and C2/180 steel rib (K77 + 318~K77 + 479) B3/160 steel rib, C2/180 steel rib, and unreinforced tunnel floor (without invert) (K77 + 479~K77 + 568)

¹ Greenish-gray colored, crumbly, medium hardness, very poor-fair strength, moderately highly weathered and completely weathered in patches, very frequently fragmented (filled with clay) and rough-planar. ² Yellowish-light gray colored, fine-grained, medium hardness, fair strength, slightly weathered, melting cavities in patches, cavities filled with clay, very frequently fragmented, and rough-planar-undulated. ³ Light-dark gray colored, fine-grained, medium hardness, poor-fair strength, moderately highly weathered.

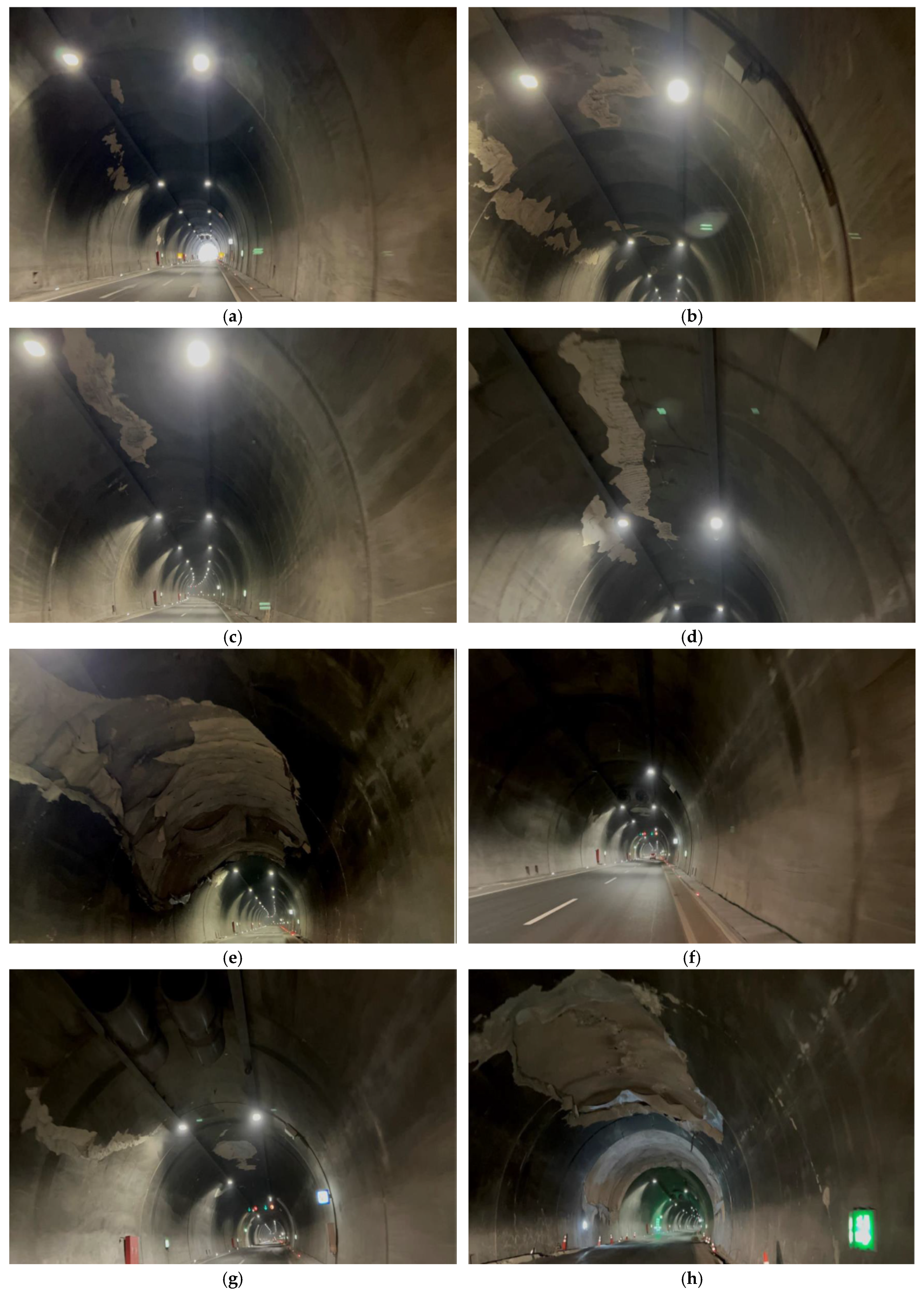

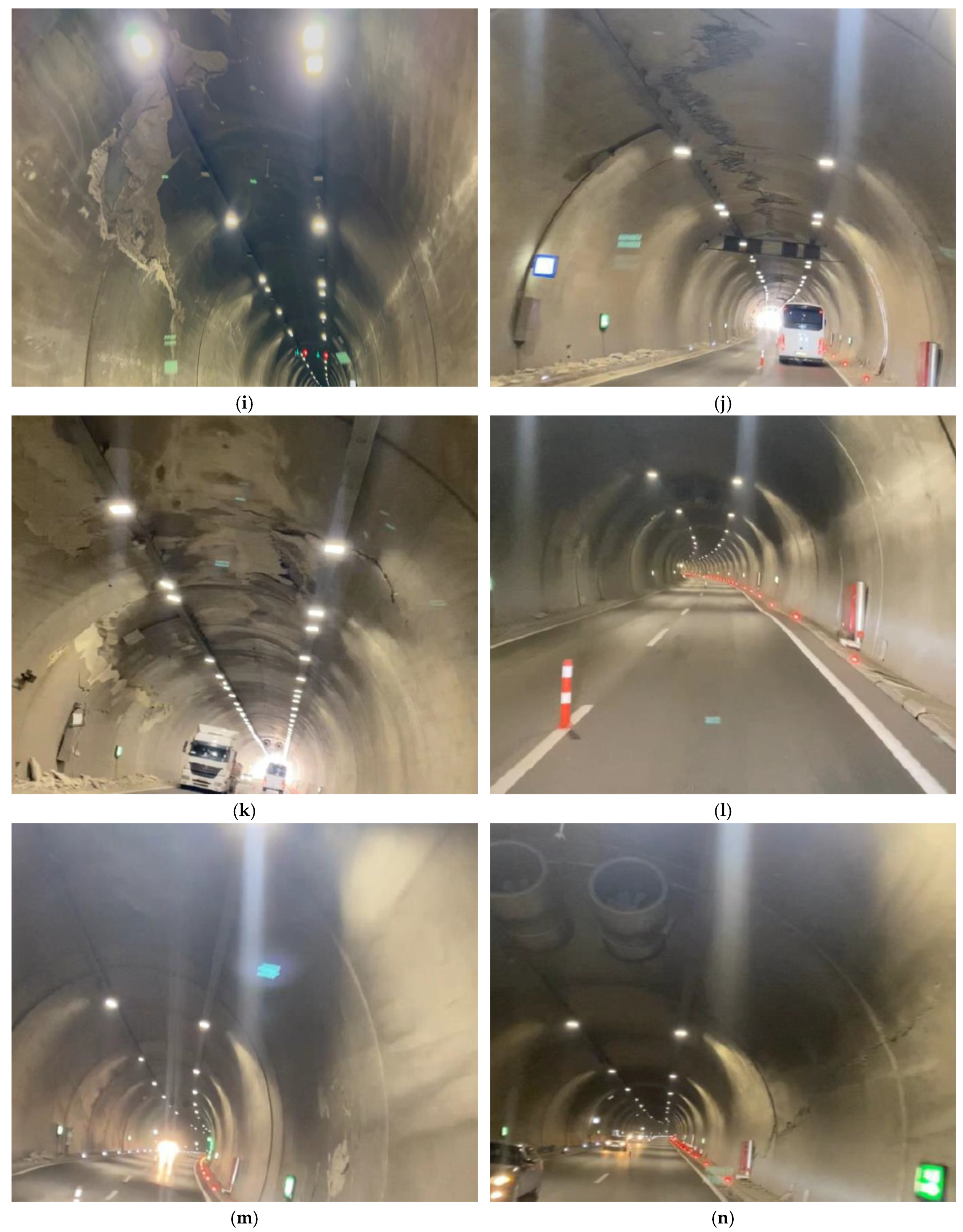

, and their field pictures are given in Figure 2.

It is well known that groundwater conditions can significantly affect degradation and lining stress in tunnels; however, no groundwater inflows or seasonal variations were documented prior to the earthquakes, nor were any detected afterward.

5. Back Analysis

Modeling post-seismic damage in tunnels through numerical simulations is a complex yet crucial task in tunneling and geotechnical engineering. It involves replicating how both the tunnel and surrounding ground behave after an earthquake, accounting for both immediate and residual damage. In this study, the current condition of each critical section of the Erkenek Tunnel was modeled using the Finite Element Method (FEM). It is one of the most common numerical analysis methods used in tunnel engineering due to its ability to incorporate stress anisotropy, material heterogeneity, complex boundary conditions, and various structural interactions. The analysis was conducted using PLAXIS 2D (CONNECT Edition V21). The soil/rock mass was discretized using 15-node triangular elements. The tunnel lining was modeled with plate elements, while interface elements were used to simulate the interaction between the tunnel lining and the surrounding ground. A plane strain model was employed, and local mesh refinement was carried out to ensure mesh convergence and accurately capture sharp stress variations in critical sections. The related deformation parameters representing displacements that emerged during tunnel construction were determined by back analysis. Within the scope of this study, the restoration of the inner (primary) lining structure was studied in detail.

The deformation parameters forming the basis of the restoration works are based on a set of assumptions and calculations. In the analytical models, the rock units were accepted as elasto-plastic materials according to the Hoek-Brown failure criterion, and the relevant strength and deformation parameters were determined from geological and geotechnical studies. According to the NATM classification, the tunnel sections currently fall under support classes B2–B3, C2, and C3, depending on the local ground conditions. The initial stresses around the excavation boundary are functions of the overburden depth and the elastic properties of the materials. The vertical stress along the tunnel boundary is generally proportional to the overburden depth [26]. In this respect, the geometry of the existing tunnel section was used to estimate the overburden pressure in this study. The coefficient of lateral earth pressure at rest, “K₀”—defined as the ratio of the average horizontal stress to the vertical stress—was calculated using Equation (1) [27]. The calculated K₀ values are given in

Table 2. Determination of K₀ values.

Mileage	h	E	Rock Class	K0
76 + 200	130	0.600	C2	0.38
76 + 950	200	0.550	C3	0.36
77 + 200	115	1.200	B2-B3	0.44

.

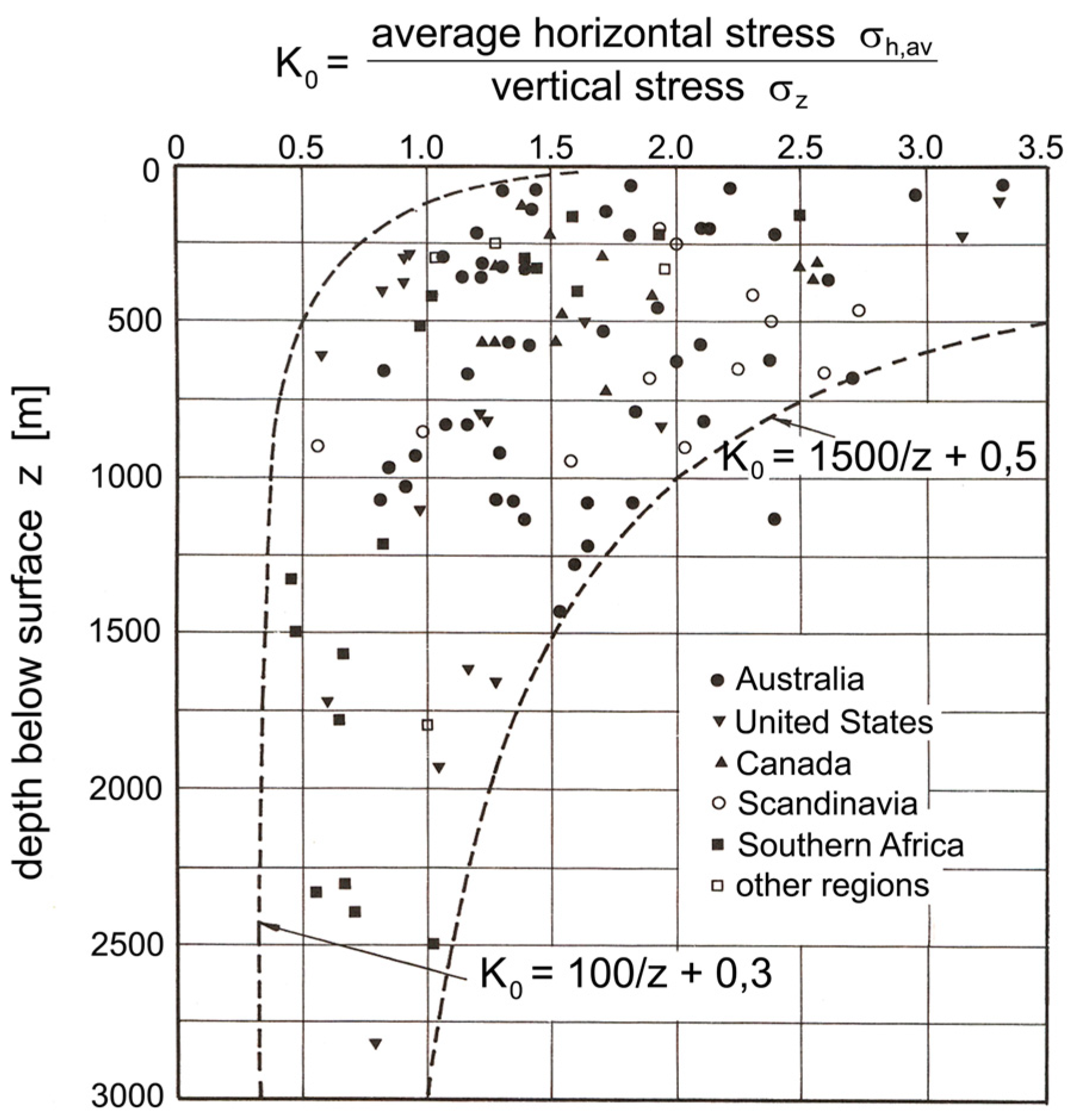

K₀ = σ_h,av/σ_z = 0.33 + 9.50 × E × (0.001 + (1/h))

(1)

where h is the overburden depth (m) and E is the elasticity modulus (GPa).

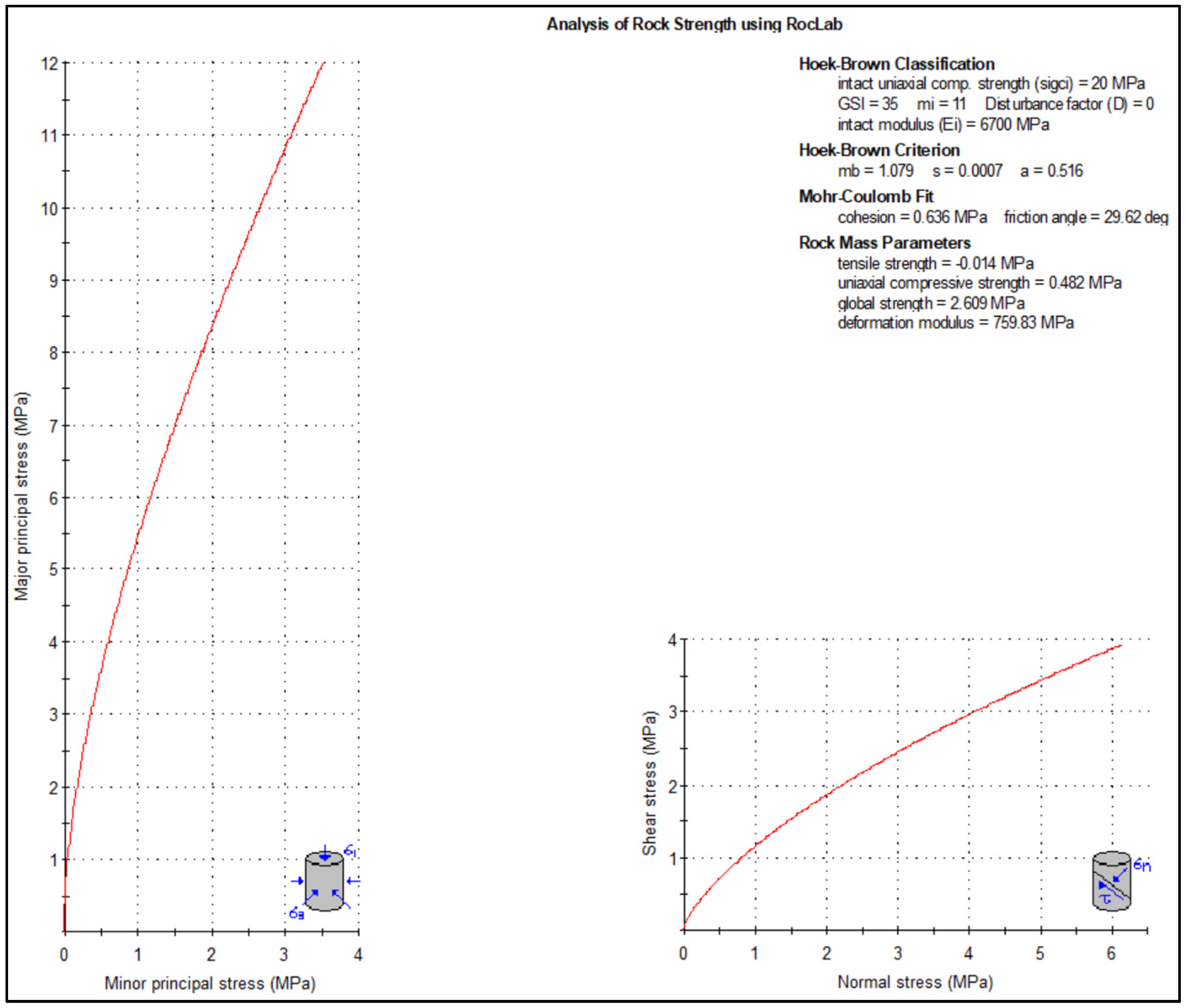

In sections with relatively poor ground conditions, the analyses were performed based on Equation (1), whereas in rock sections with greater overburden thickness, the scale developed by Hoek and Brown (Figure 3) was employed. Based on the overall calculations and approaches, the K₀ value was taken as 0.5 throughout the tunnel.

To estimate the long-term in situ stress conditions that have affected the primary lining structure, the displacement values observed after the installation of the primary anchorage system were analyzed. Information compiled from previous engineering studies, calculation sections, and displacement values was gathered for this purpose. In order to model the long-term loading on the primary lining accurately, it is necessary to estimate the pressure exerted by the primary support system corresponding to the observed displacements. The simplest way to do this is to gradually reduce the modulus of elasticity of a fictitious material placed inside the tunnel. The displacements in the critical tunnel sections, along with the ratio of the reduced elastic modulus to the initial elastic modulus corresponding to these displacements, are given below in

Table 3. Critical tunnel sections.

Mileage	Displacement (cm)	Rock Class	Esoft/E0
76 + 200	40	C2	0.4
76 + 400	40	C3	0.4
77 + 140	<5	B2-B3	0.4

.

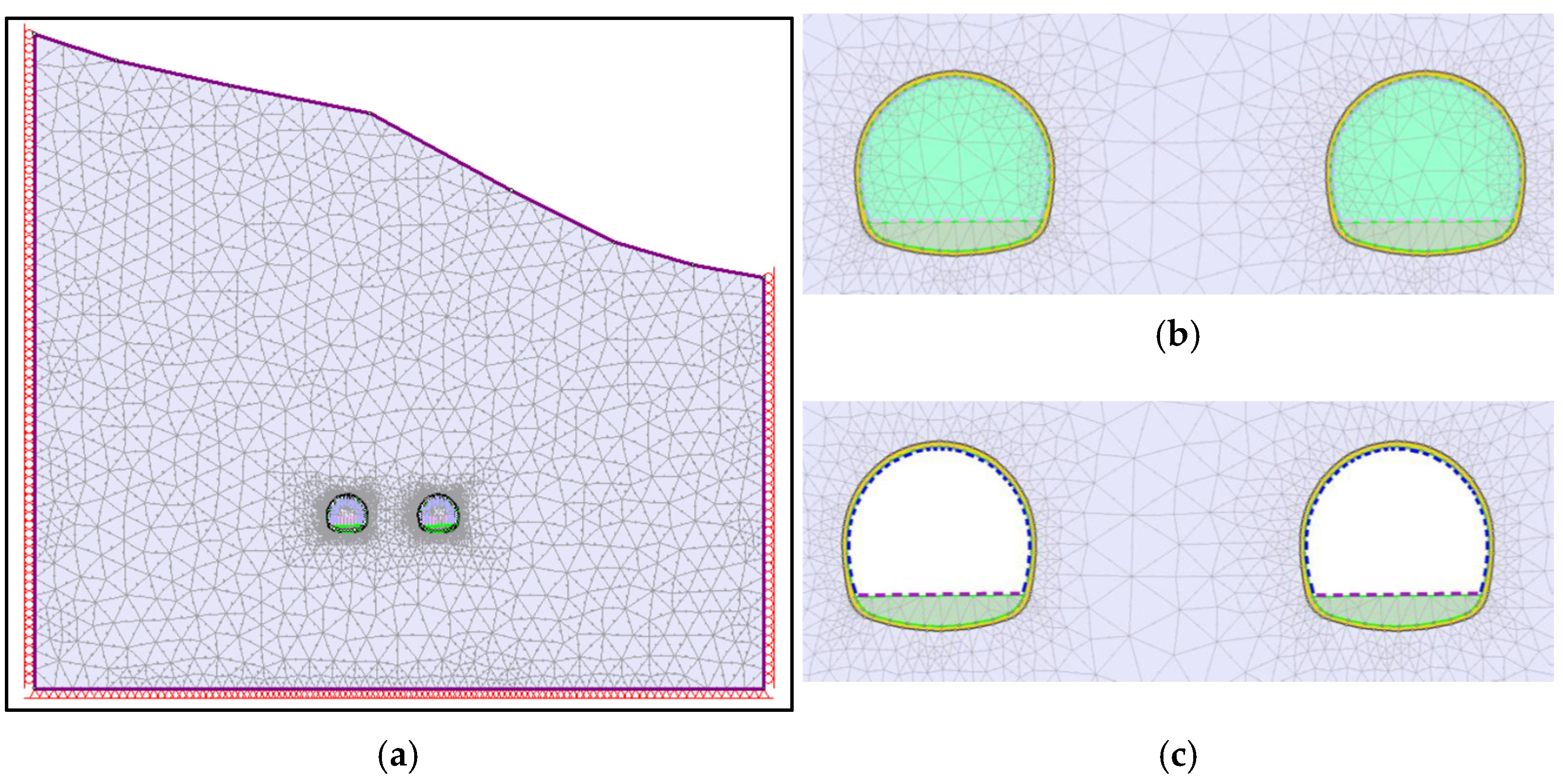

The modeling stages of each tunnel section under static loading conditions are given in Figure 4. The initial stress state is given in Figure 4a, whereas the closest approximation of the primary support system pressure to actual field conditions is illustrated in Figure 4b. The final modeling scenario (Figure 4c) represents the case in which the primary lining is reconstructed under the assumption that the existing primary support elements have completely lost their functionality over the long term.

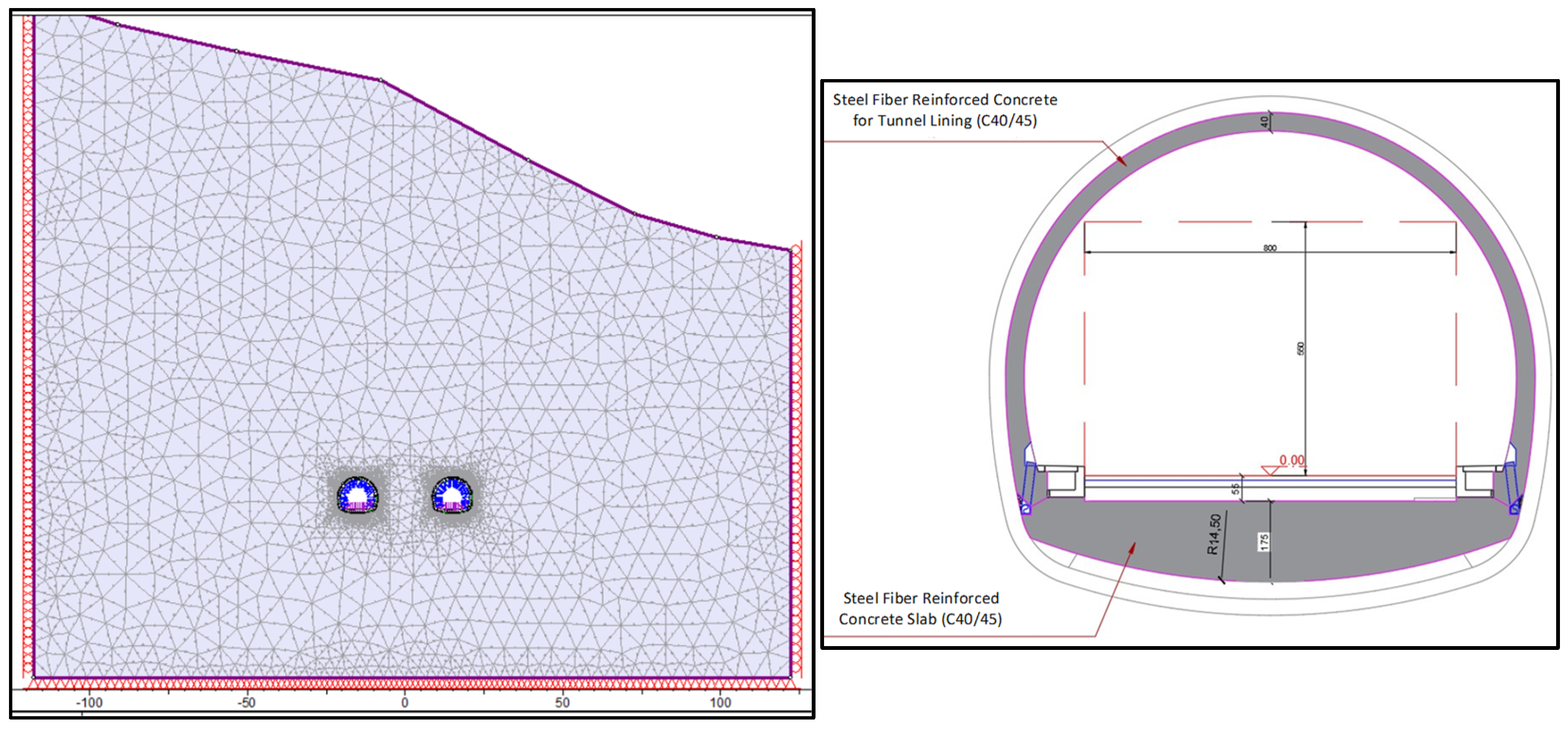

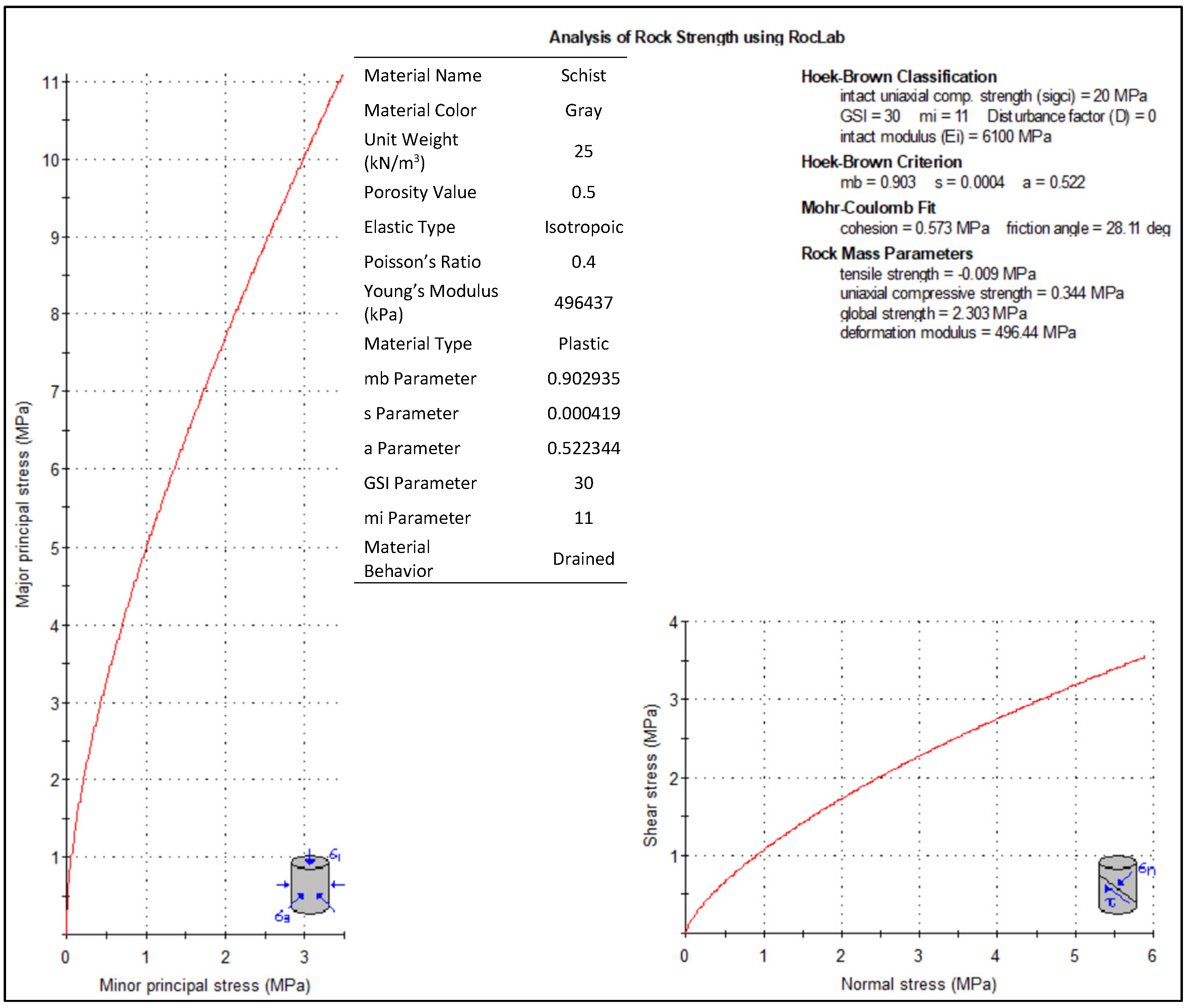

Based on the existing tunnel support system and tunnel geometry, it was aimed to determine the deformation parameters representing the actual field conditions (Figure 5).

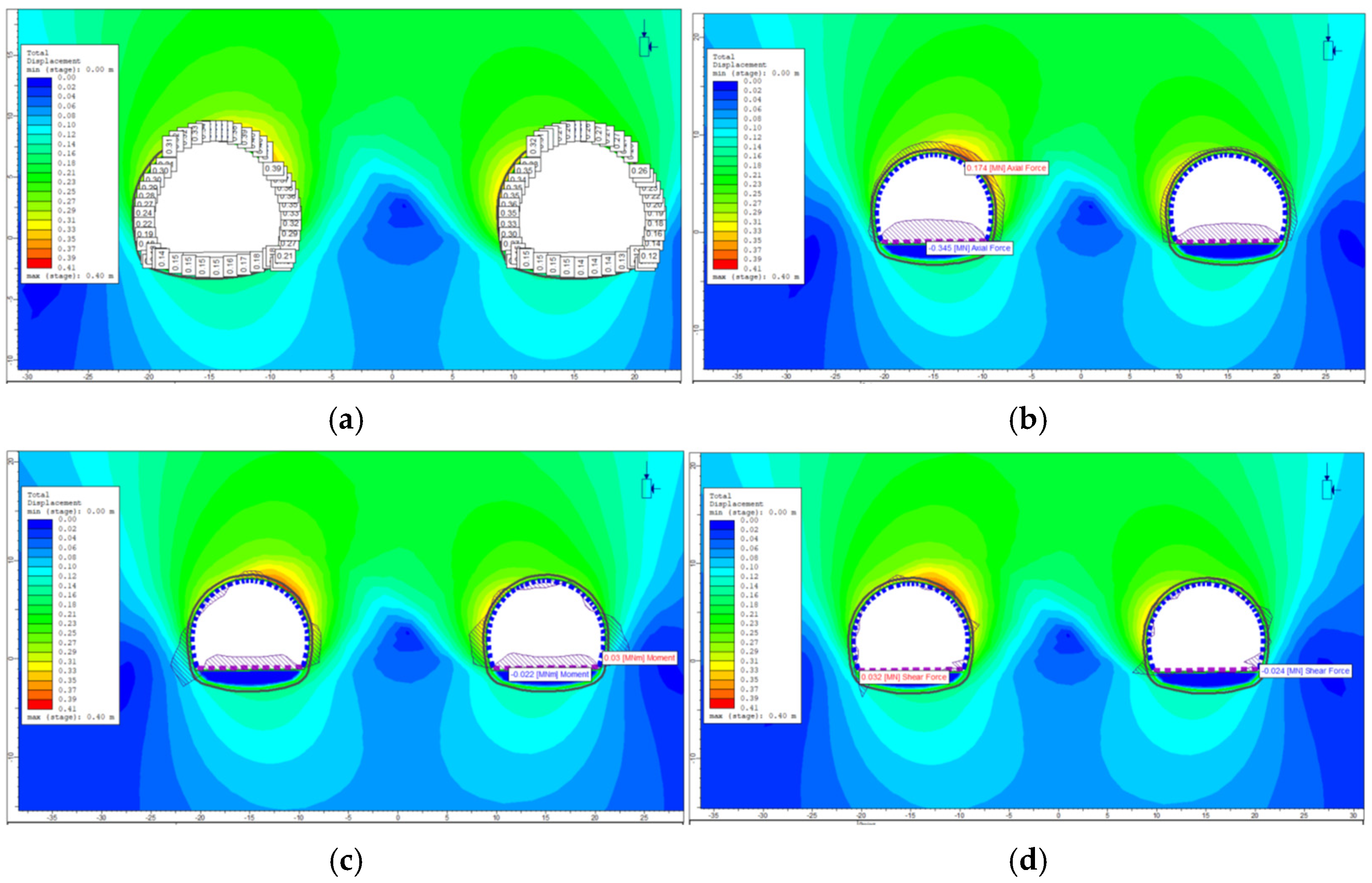

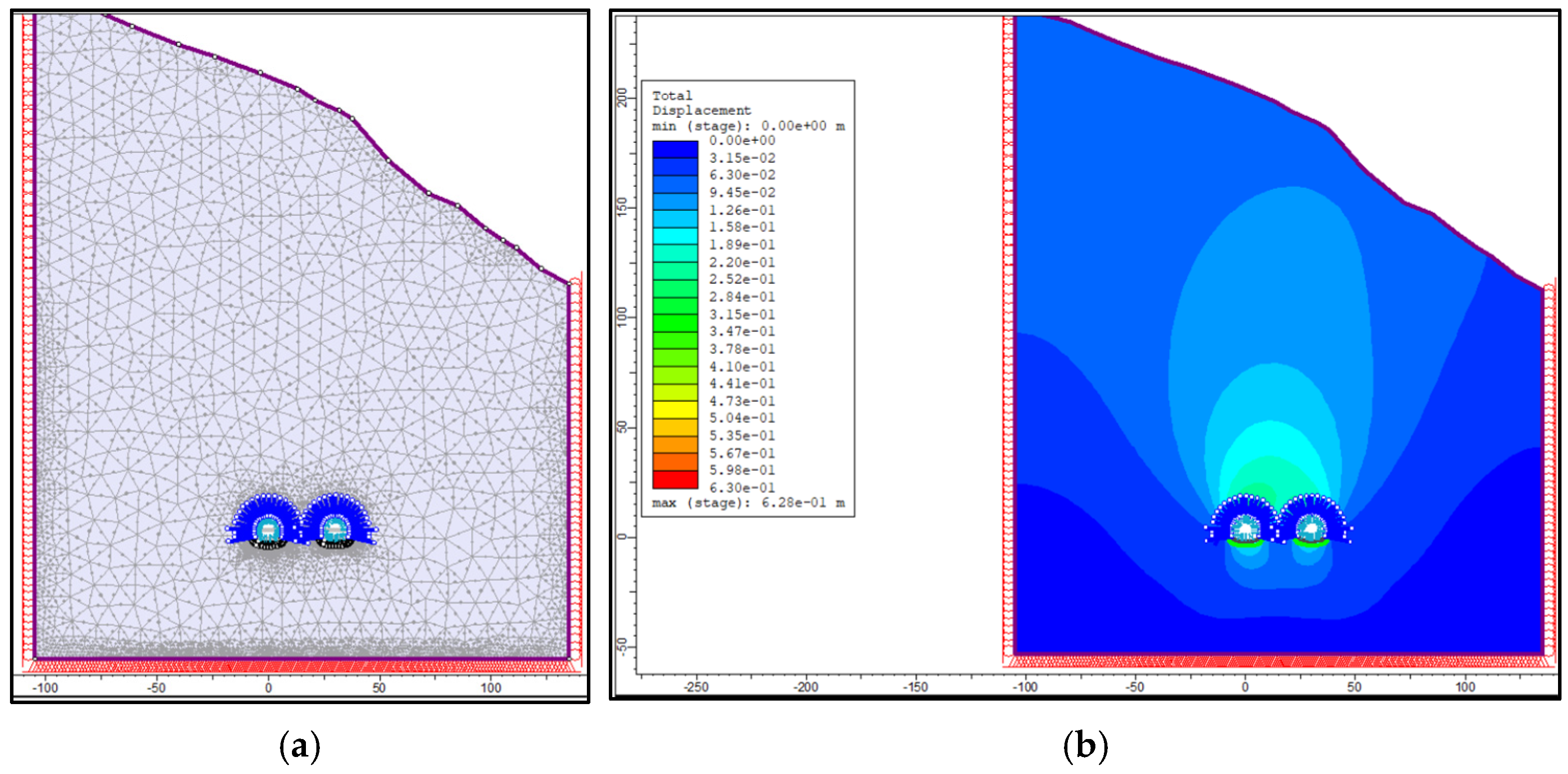

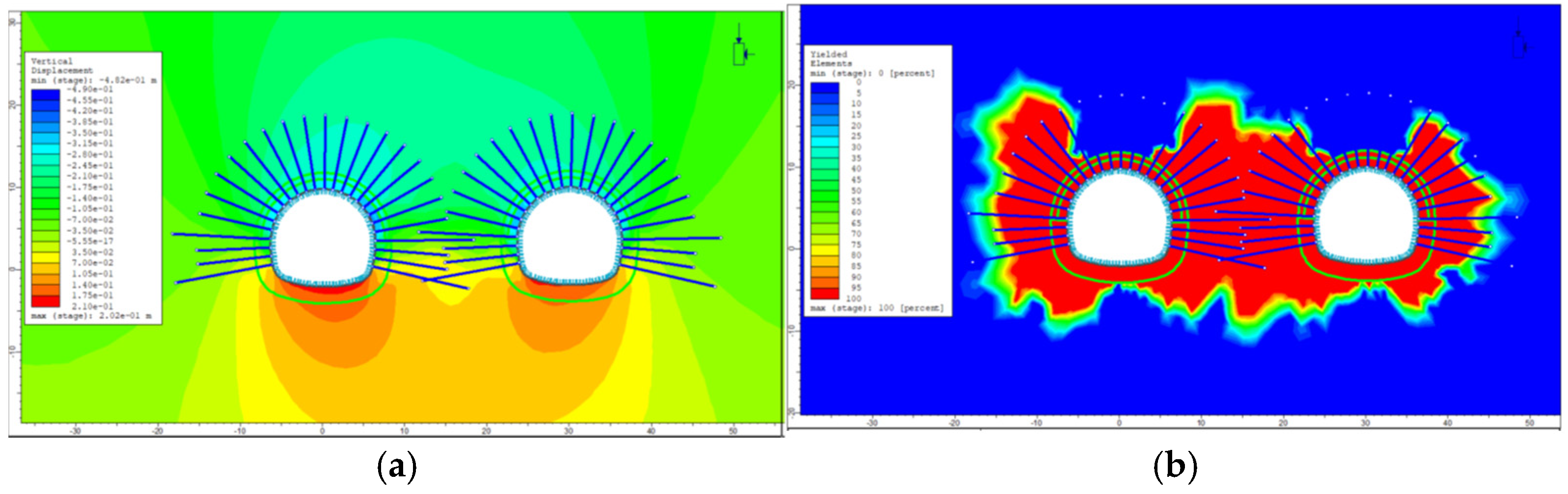

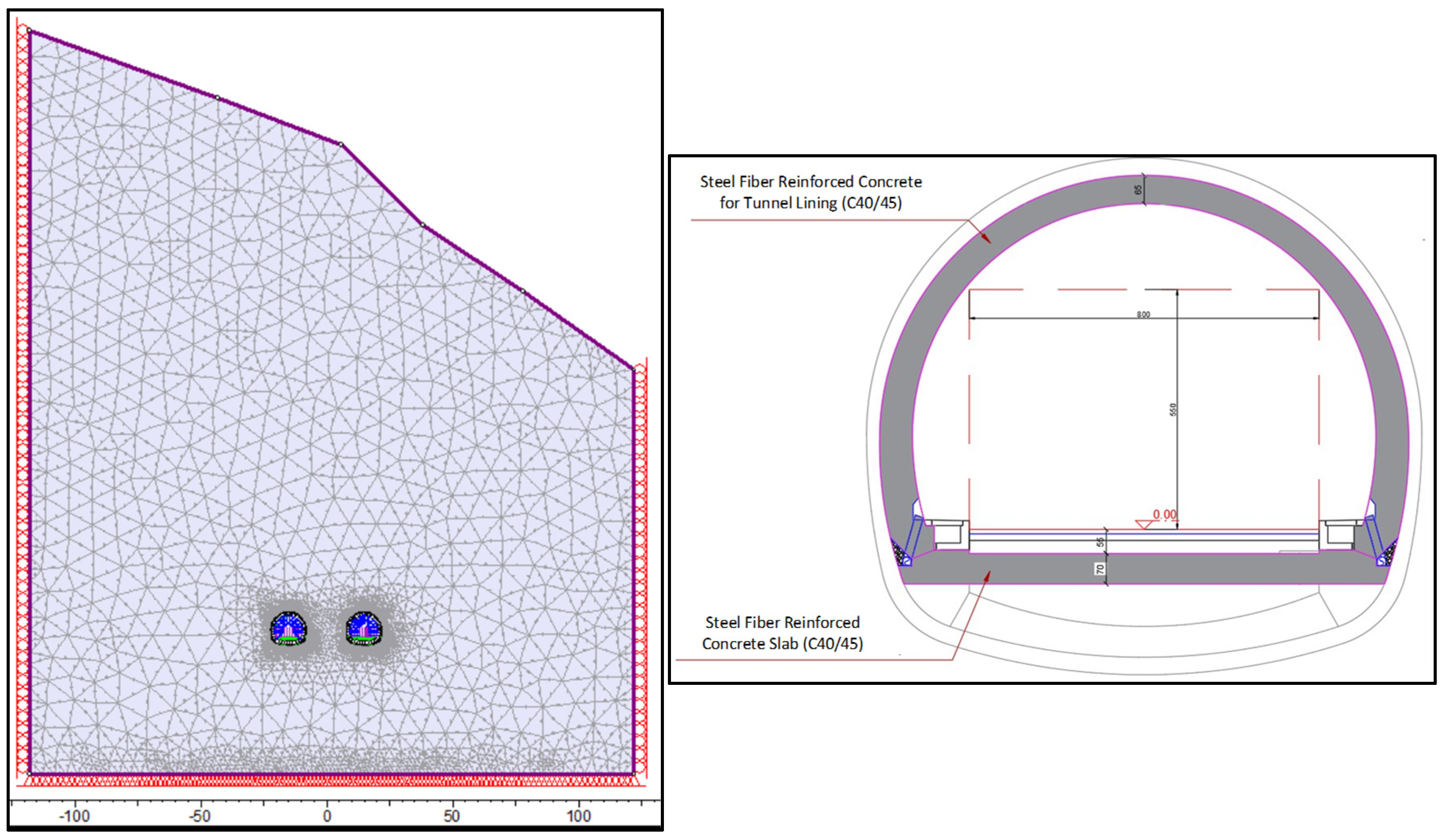

As a result of the back analysis (Figure 6 and Figure 7), the elasticity modulus at K76 + 950 was determined to be 537 MPa, corresponding to a deformation of approximately 40 cm. The cross-section of the inner lining structure of the tunnel in the C3 section at K76 + 950 is given without scale in Figure 8. The thickness of the reinforced primary lining is at least 65 cm, and the invert thickness is a minimum of 70 cm throughout the C3 NATM classification.

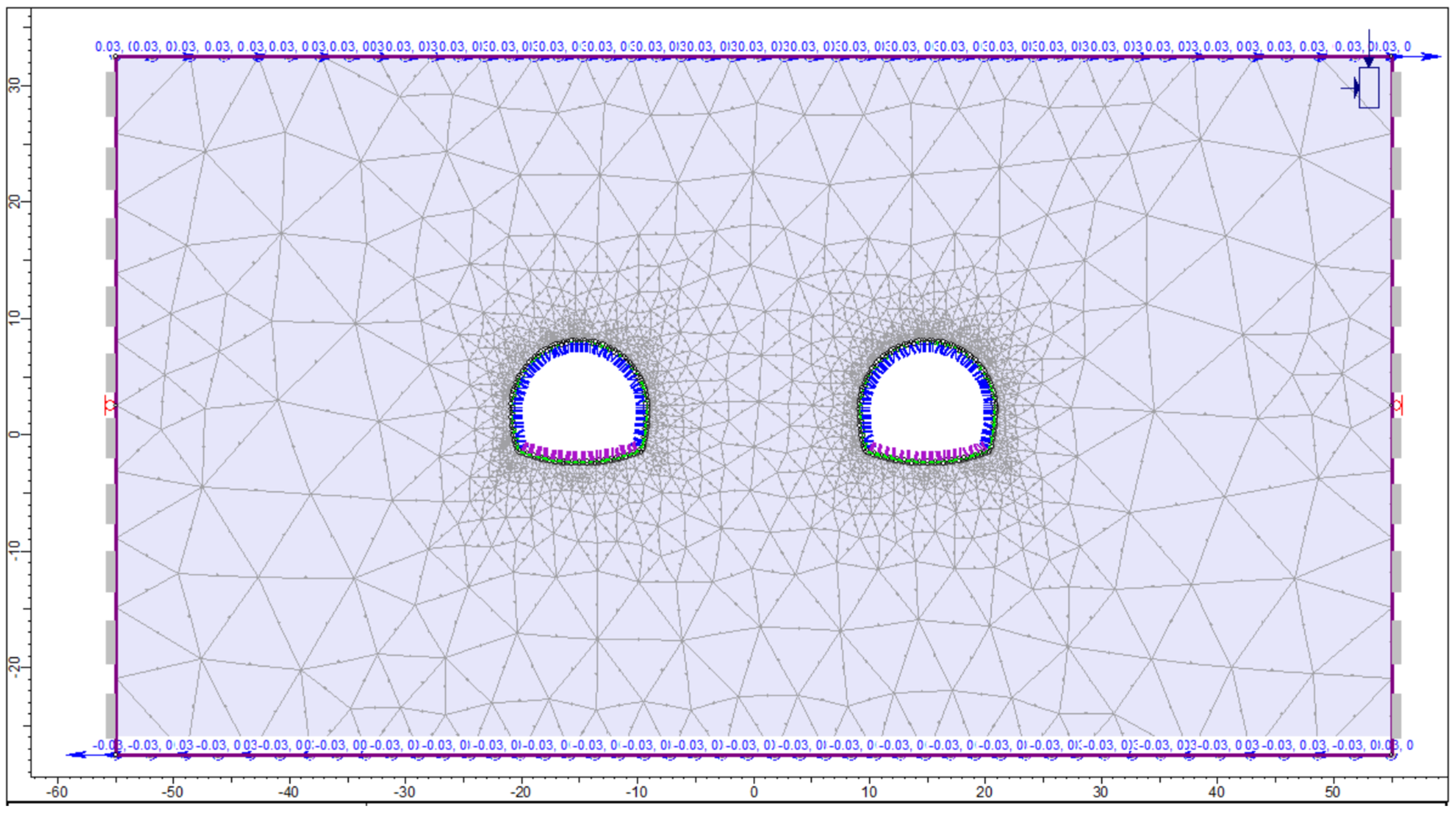

The tunnel and surrounding ground were modeled with the FEM, and the displacements of the inner lining under static loading conditions were analyzed; the results are given in Figure 9a. The internal forces (axial force, bending moment, and shear force) acting on the tunnel primary lining and invert slab are presented in Figure 9b–d.

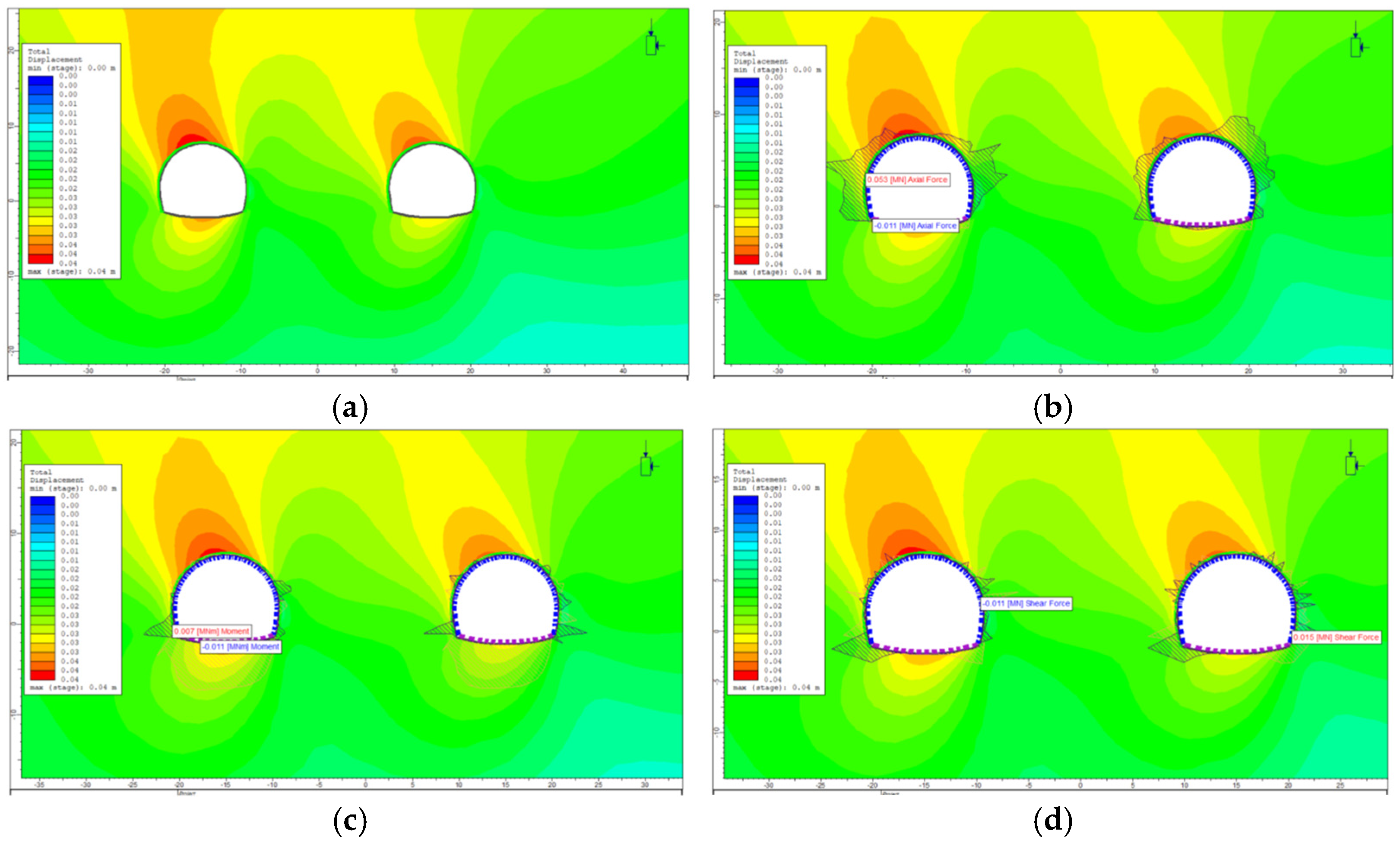

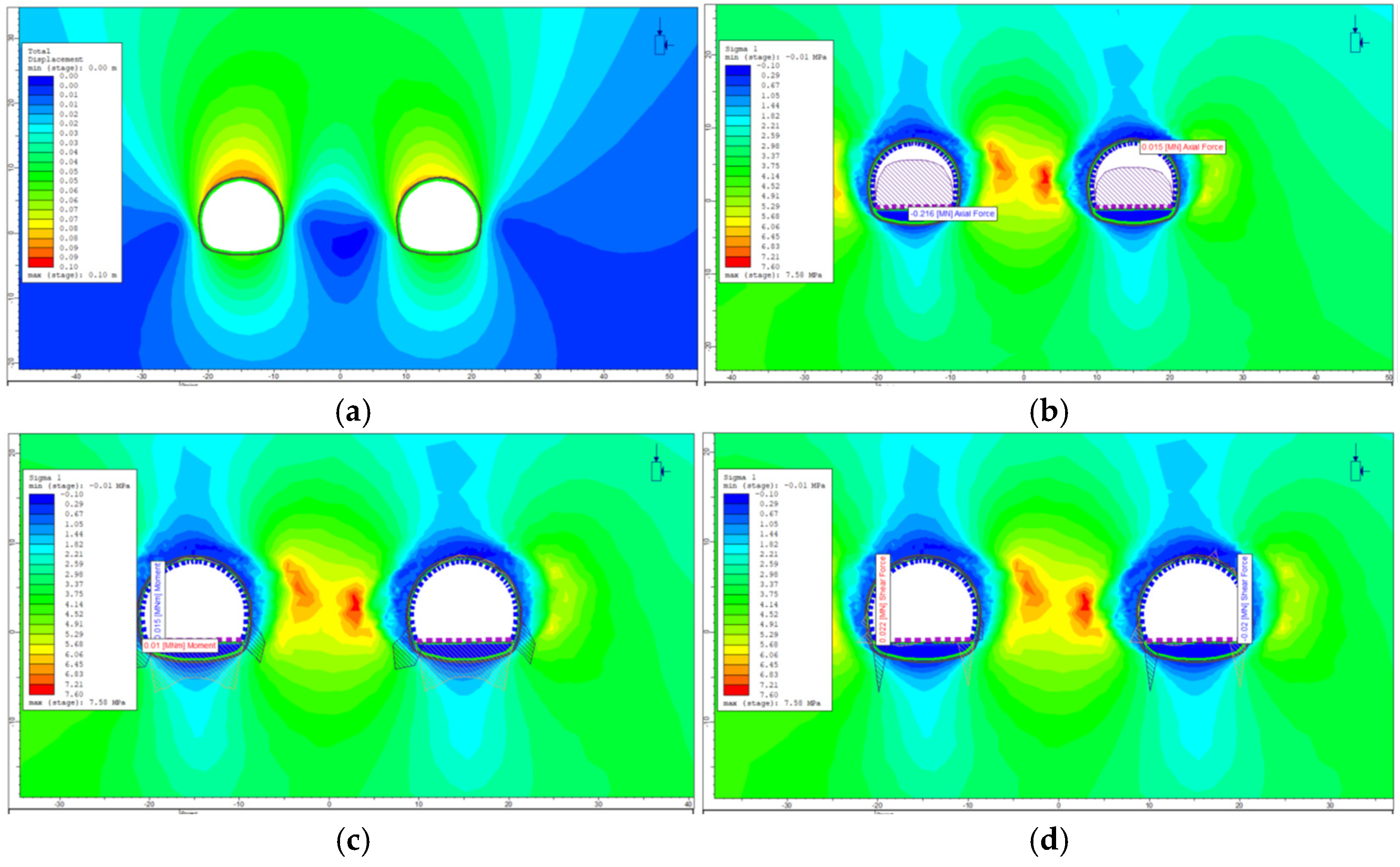

According to the analysis given in Figure 10 and

Table 4. Analysis of the lining and invert slab in the C3 section under static loading conditions.

Tunnel Element	Dimensions (mm)		Internal Forces (kN)		Ɣ	Shear Strength (kN)				Section Control
	bw	h	N	Vd		Vcr	Vc	Vw	Vr
Lining	1000	650	0	4	0.07	576	460	0	460.4	OK
Slab	1000	700	0	4	0.07	623	499	0	498.8	OK

Please note that b_w: section width, h: section depth, N: axial force, V_d: design shear force, Ɣ: axial load ratio or interaction coefficient (dimensionless), V_cr: shear strength from concrete (cracking load), V_c: concrete shear resistance, V_w: Shear strength from shear reinforcement, V_r: total shear capacity.

, the excavation and support systems indicate that the C3 rock class of the Erkenek Tunnel at K76 + 950 has sufficient capacity to satisfy the shear strength requirements under static loading conditions. However, it is planned to preserve the existing invert and construct a new reinforced concrete layer above it.

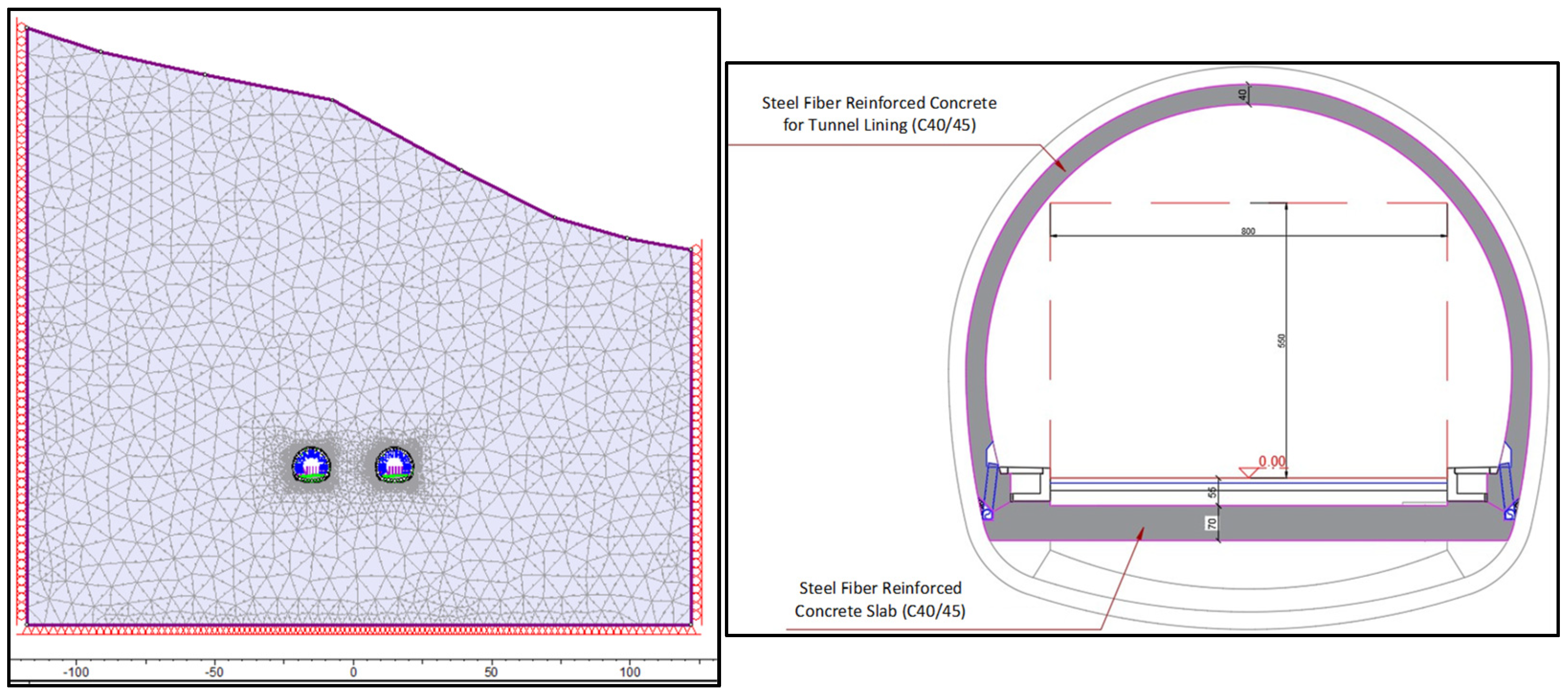

The strength analysis of the C2 rock class excavation at K76 + 200 is given in Figure 11. The scale-free section of the primary lining structure in the C2 tunnel section is drawn in Figure 12, where the lining thickness is 40 cm and the concrete slab thickness is 70 cm. Similarly to the previous section, the tunnel and surrounding ground were modeled with the FEM (Figure 12). Taking the static loading state into consideration, the tunnel displacements were calculated, and they are given in Figure 13a. The internal forces acting on this section are presented in Figure 13b–d.

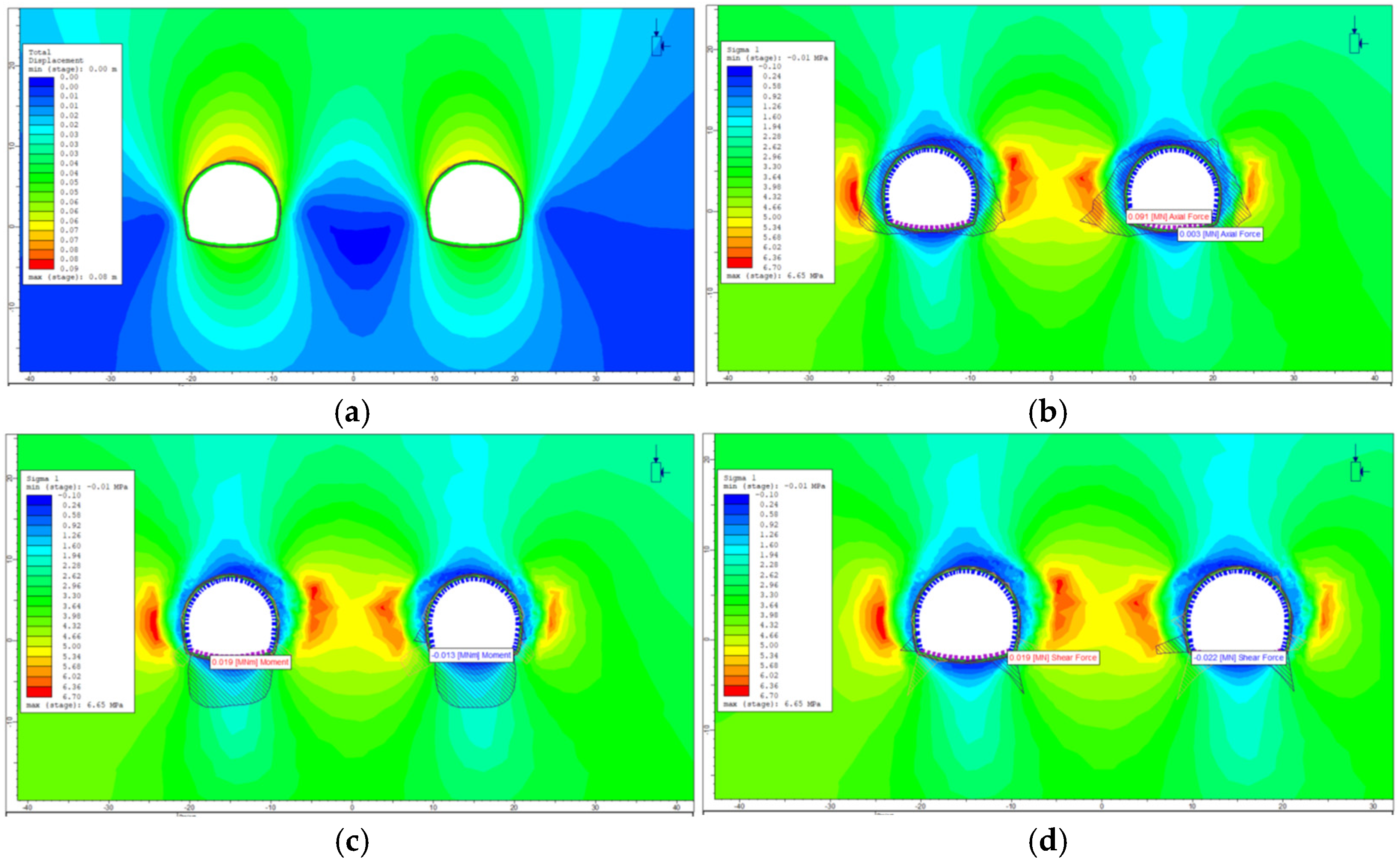

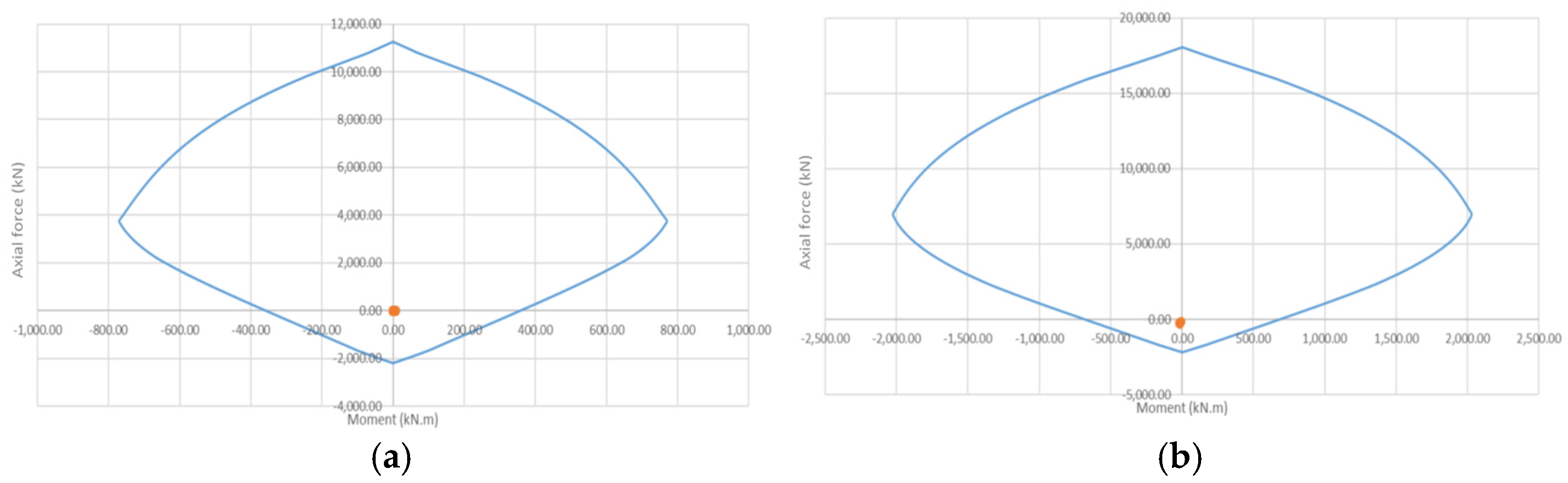

As shown in Figure 14 and

Table 5. Analysis of the lining and invert slab in the C2 section under static loading conditions.

Tunnel Element	Dimensions (mm)		Internal Forces (kN)		Ɣ	Shear Strength (kN)				Section Control
	bw	h	N	Vd		Vcr	Vc	Vw	Vr
Lining	1000	400	0	2.5	0.07	336	269	0	268.6	OK
Slab	1000	700	0	2.5	0.07	623	499	0	498.8	OK

, the existing excavation (without the invert) and support systems recommend that the C2 rock class of the Erkenek Tunnel at K76 + 200 has adequate capacity to satisfy the shear strength requirements. While preserving the existing invert, it is planned to construct a new reinforced concrete layer above it. Furthermore, a joint structure should be constructed in a way that the base arch section will work together with the existing undamaged invert. In this way, the arched invert helps ensure that the internal forces remain within safe limits.

The same tunnel section (C2 rock class at K76 + 200) was also analyzed, considering the invert. The tunnel and surrounding ground were modeled by the FEM (Figure 15), and the resulting tunnel displacements are shown in Figure 16a. The internal forces on the primary lining are presented in Figure 16b–d.

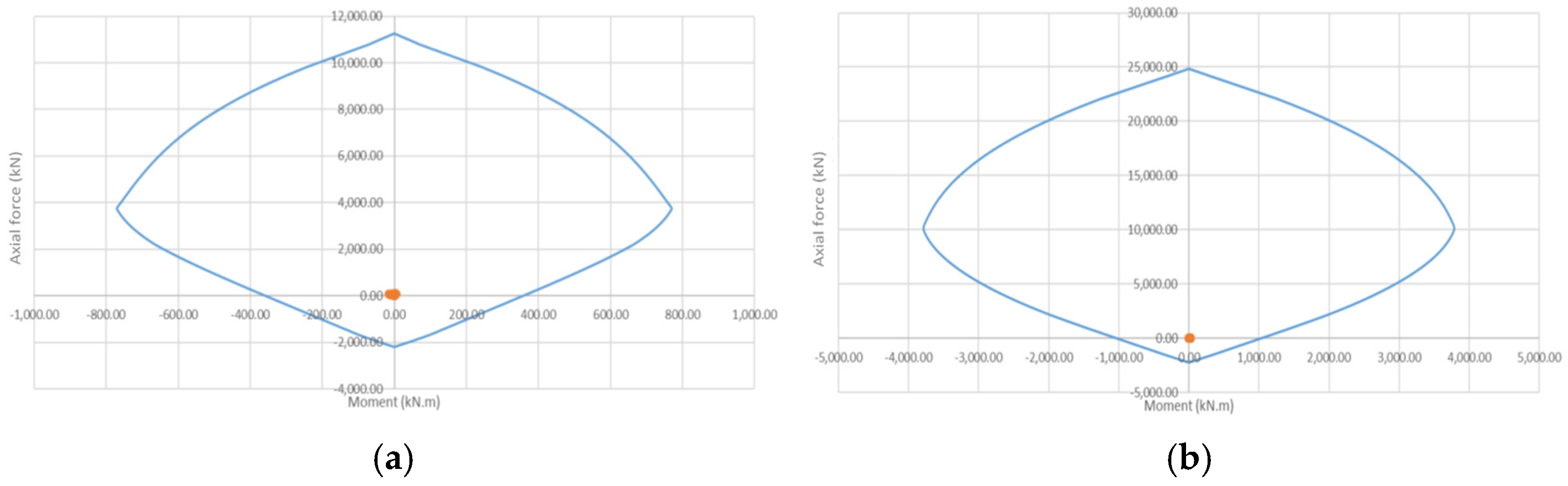

As evidenced by Figure 17 and

Table 6. Analysis of the lining and invert slab in the C2 section (with invert) under static loading conditions.

Tunnel Element	Dimensions (mm)		Internal Forces (kN)		Ɣ	Shear Strength (kN)				Section Control
	bw	h	N	Vd		Vcr	Vc	Vw	Vr
Lining	1000	400	0	2.5	0.07	336	269	0	268.6	OK
Slab	1000	1000	0	2.5	0.07	911	729	0	729	OK

, the excavation and support system of the inverted arch demonstrates that the C2 rock class at K76 + 200 of the Erkenek Tunnel has sufficient capacity to satisfy the shear strength requirements under static loading conditions.

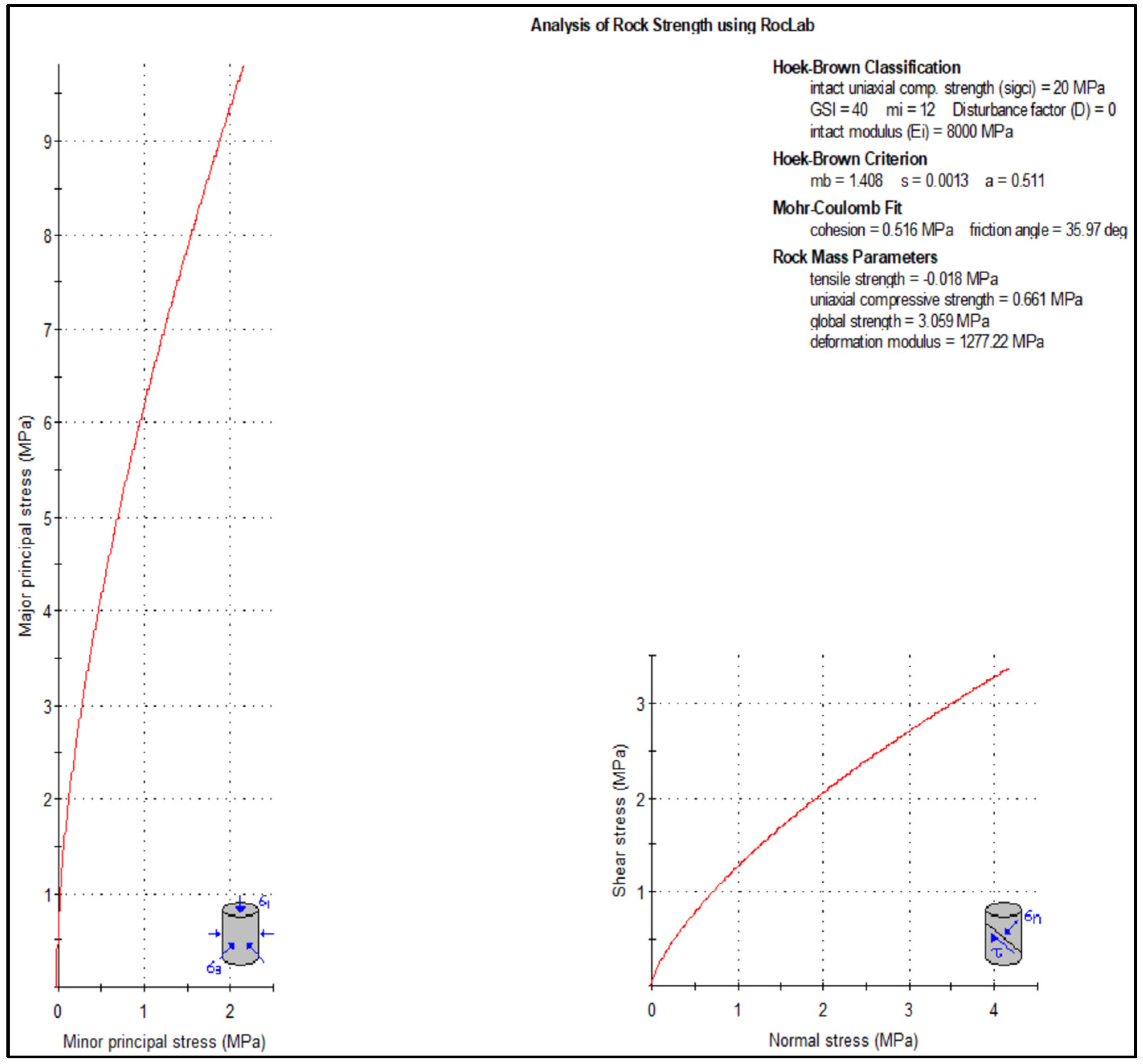

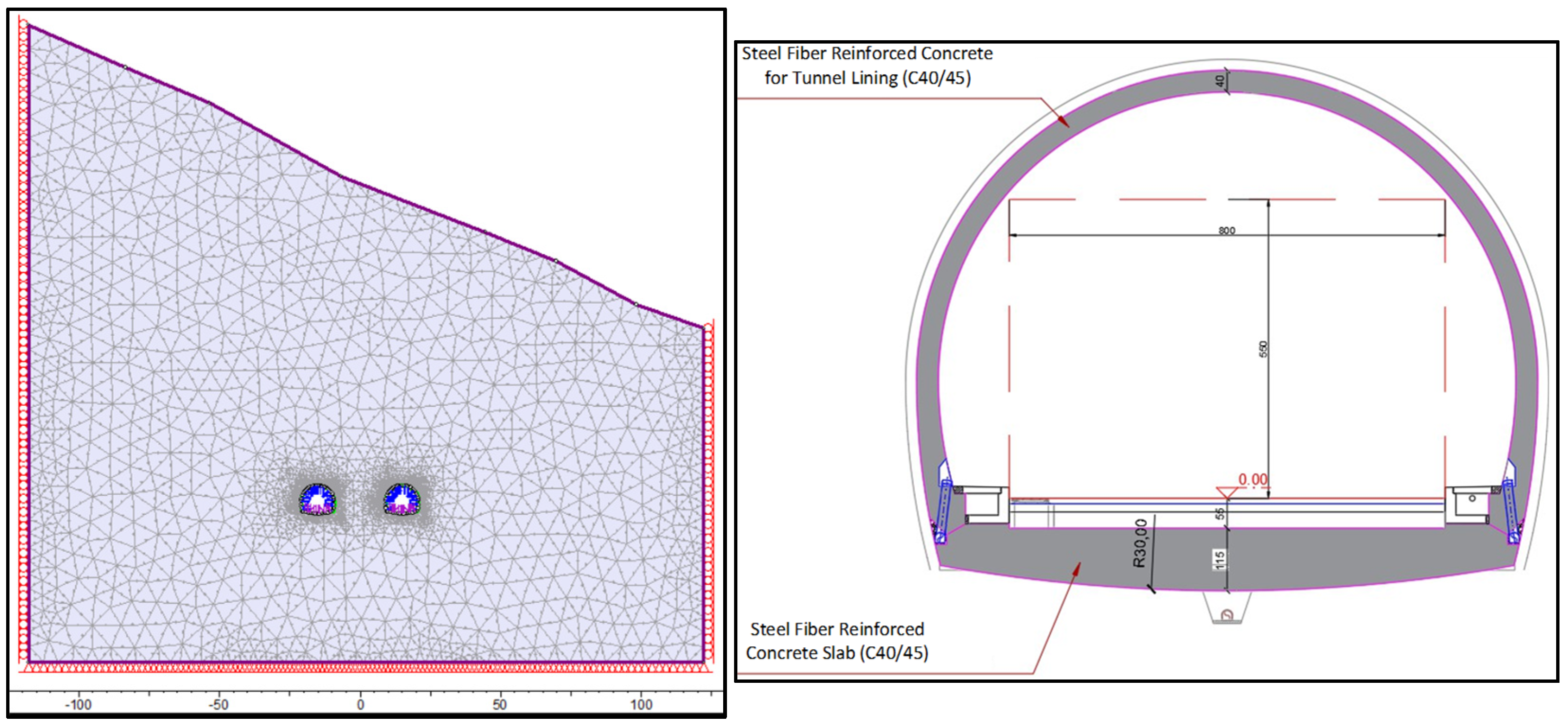

Similarly to previous critical sections, the tunnel and surrounding ground were modeled for the B3 tunnel lining at K77 + 200 according to rock strength analysis (Figure 18). An unscaled cross-section of the tunnel (Figure 19) shows that the reinforced lining has a uniform thickness of 40 cm, whereas the in situ invert lining reaches a maximum thickness of 115 cm. At the junction with the invert, the lining thickness is approximately 40 cm. The calculated tunnel displacements are illustrated in Figure 20a, and the internal forces on the tunnel primary lining are presented in Figure 20b–d.

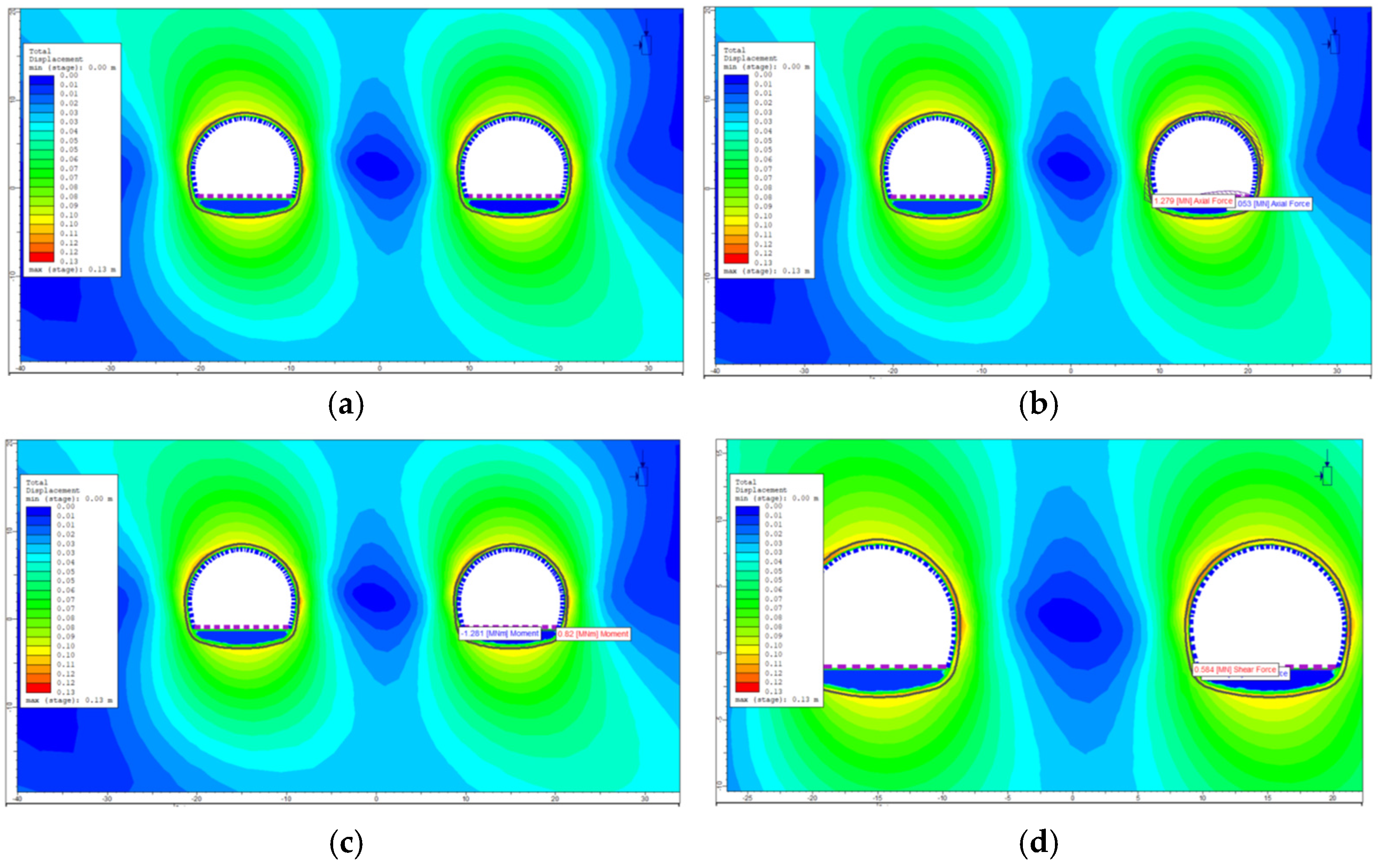

The overall results shown in Figure 21 and

Table 7. Analysis of the lining and invert slab in the B3 section (with invert) under static loading conditions.

Tunnel Element	Dimensions (mm)		Internal Forces (kN)		Ɣ	Shear Strength (kN)				Section Control
	bw	h	N	Vd		Vcr	Vc	Vw	Vr
Lining	1000	400	0	2.5	0.07	336	269	0	268.6	OK
Slab	1000	1000	0	2.5	0.07	911	729	0	729	OK

indicate that the inverted arch excavation and support system designed for the B3 rock class at K77 + 200 of the Erkenek Tunnel is capable of satisfying the shear strength requirements. Overall, the numerical model results show high tensile stresses and curvature in areas where cracks were observed in the field. Although explicit cracking was not modeled, these stress concentrations align with the damage patterns observed during post-earthquake inspections, supporting the model’s predictive capability.

It is important to note that the current back analysis primarily addressed the immediate and residual deformation state of the tunnel lining following the earthquakes through elastic modulus adjustments and static FEM modeling. Long-term effects, such as progressive lining damage, performance degradation due to fatigue, corrosion, or environmental factors, were not explicitly modeled within the scope of this study. These phenomena require advanced constitutive models and long-term monitoring data, which are planned for inclusion in future research to provide a more comprehensive evaluation of a highway tunnel’s post-seismic structural safety and durability.

6. Evaluation of Seismic Loads

The tunnel design under seismic loading was carried out in full compliance with the provisions of the “Specifications for the Design of Highway and Railway Tunnels and Other Underground Structures under Seismic Effects”. The Erkenek Tunnel has been classified as an “RS-1” structure (Normal-Risk Tunnels/Underground Structures). The performance objectives and the corresponding analysis and design methods are summarized below in

Table 8. Performance targets and the corresponding analytical and design methodologies.

Earthquake Ground Motion Level	Corresponding Return Period (Year)	Normal Risk		High Risk
		Target Performance	Calculation/Design Method	Target Performance
DD-1	2475	Controlled damage	Type-B	Limited damage
DD-2	475	–	–	Uninterrupted use
DD-2a	144	Uninterrupted use	Type-A	–

.

The earthquake ground motion levels are defined as follows: DD-1 corresponds to spectral magnitudes with a 2% probability of being exceeded in 50 years, with a return period of 2475 years; DD-2 corresponds to spectral magnitudes with a 10% probability of being exceeded in 50 years, with a return period of 475 years; DD-2a corresponds to spectral magnitudes with a 30% probability of being exceeded in 50 years, with a return period of 144 years; and DD-3 corresponds to spectral magnitudes with a 50% probability of being exceeded in 50 years, with a return period of 72 years. Map spectral acceleration coefficients for short periods and for a period of 1.0 s are given for the DD-1, DD-2, and DD-3 ground motions in

Table 9. Map spectral acceleration coefficients.

Earthquake Ground Motion Level	Map Spectral Acceleration Coefficient for a Short Period (Ss)	Map Spectral Acceleration Coefficient for a Period of 1.0 s (S1)
DD-1	2.696	0.732
DD-2	1.434	0.369
DD-3	0.439	0.104

.

The coefficients provided above are multiplied by the direction-dependent transformation factor and the near-fault coefficient to obtain site-specific design spectral acceleration values. Since the Erkenek Tunnel is located in close proximity to the fault segment to its south, it is considered to lie within the fault zone. Additionally, considering strong ground motion, complex soil-structure interaction, critical tunnel sections, and other specific effects, nonlinear time-history analysis was regarded as the most accurate and advanced method for tunnel seismic damage assessment in this study. This explains the relatively high design earthquake acceleration values. Rather than the controlled-damage performance level of DD-1, this study adopted the limited damage performance level of DD-2 for the rehabilitation of the damaged sections of the Erkenek Tunnel, and accordingly, calculations for the reinforced concrete sections were carried out. In order to enhance structural performance to the controlled-damage level, a closed stirrup system was designed along all critical tunnel sections in full compliance with the provisions of the Turkish Seismic Code. Concrete with a compressive strength class of C45 was proposed. All parameters used in the seismic analyses are presented below in

Table 10. Design parameters for the C2-C3 and B3-C2 tunnel sections.

Parameter	Unit	Tunnel Section		Reference
		C2-C3	B3-C2
Map spectral acceleration coefficient for short period (SS-475)	g	1.434	1.434	AFAD TDH 1
Map spectral acceleration coefficient for 1.0 s period (S1–475)	g	0.369	0.369	AFAD TDH
Direction transformation factor (δS)	-	1.2	1.2	Equation 2.4
Direction transformation factor for 1.0 s period spectral accelerations (δ1)	-	1.3	1.3	Equation 2.4
Approximate closest distance to the fault	km	3	3
Fault distance correction coefficient (δF)	-	1.2	1.2	Equation 2.5
Topographic amplification coefficient (δT)	-	1.0	1.0	Equation 2.6
Local ground effect coefficient for short-period (FS)	-	0.9	0.9	AFAD TBDY 2 Table 2.1
Local ground effect coefficient for 1.0 s period spectral response (F1)	-	0.8	0.8	AFAD TBDY Table 2.1
Soil-independent spectral acceleration coefficient for short-period (S′S)	g	2.065	2.065
Short-period design spectral acceleration coefficient (SDS)	g	1.858	1.858
Soil-independent 1.0 s spectral acceleration (S′1)	g	0.576	0.576
1.0 s design spectral acceleration coefficient (SD1)	g	0.461	0.461
Peak ground acceleration (as)	g	7.293	7.293	Equation 2.9
Peak ground velocity (vs)	m/s	0.688	0.688	Equation 2.11
Design ground acceleration for Damage Level DD-2 (as-DD2)	g	0.743	0.743	(0.4 × SDS)
Average shear wave velocity in the top 30 m (Vs30, cs)	m/s	800	1500	Geophysical experiment
Effective vertical shear wave propagation velocity (c′s)	m/s	696	1425	Section 6.1.2
Ratio of effective to average shear wave velocity (c′s/cs)	-	0.87	0.95	Table 6.1
Long-period ground amplification coefficient (fd)	-	6.8	6.8	Section 2.5.1
Peak particle displacement (ds)	m	1.007	0.756	Equation 2.13
Period	s	9.19	6.90	Equation 2.14

¹ Disaster and Emergency Management Presidency (AFAD), Seismic Hazard Map of Turkey. ² Disaster and Emergency Management Presidency (AFAD), Turkey Building Earthquake Regulation (TBDY).

.

7. Displacement-Based Earthquake Analysis for Tunnel Ovalization

Considering the ovalization of the tunnel cross-section induced by earthquake loading, the corresponding cross-sectional forces for an ideal circular geometry were calculated using closed-form analytical expressions. The results are provided below in

Table 11. Transverse forces and deformation parameters for the C2-C3 and B3 tunnel cross-sections.

Parameter	Unit	Tunnel Section		Explanation
		C2-C3	B3
Poisson’s ratio of concrete (μL)	-	0.2	0.2
Moment of inertia of the cracked section (per unit length)	m3	0.0027	0.0027	Moment of inertia is reduced by 50%
Circular section flexibility ratio (FC)	-	671	2640
Tunnel lining ovalization coefficient (K1)	-	0.007	0.002
Max. free-field shear strain (γmax)	%	0.099	0.048
Max. circumferential moment per unit length (Mmax)	kNm	83	42
Max. shear force per unit length (Vmax)	kN	29	15
Max. axial load per unit length (Tmax)	kN	5727	6651
Strain due to bending moment (εM)	%	0.02	0.01	<% 0.3, OK
Strain due to axial load (εT)	%	0.04	0.05	<% 0.3, OK
Total unit deformation in transverse cross-section (εsum)	%	0.06	0.05	<% 0.3, OK

.

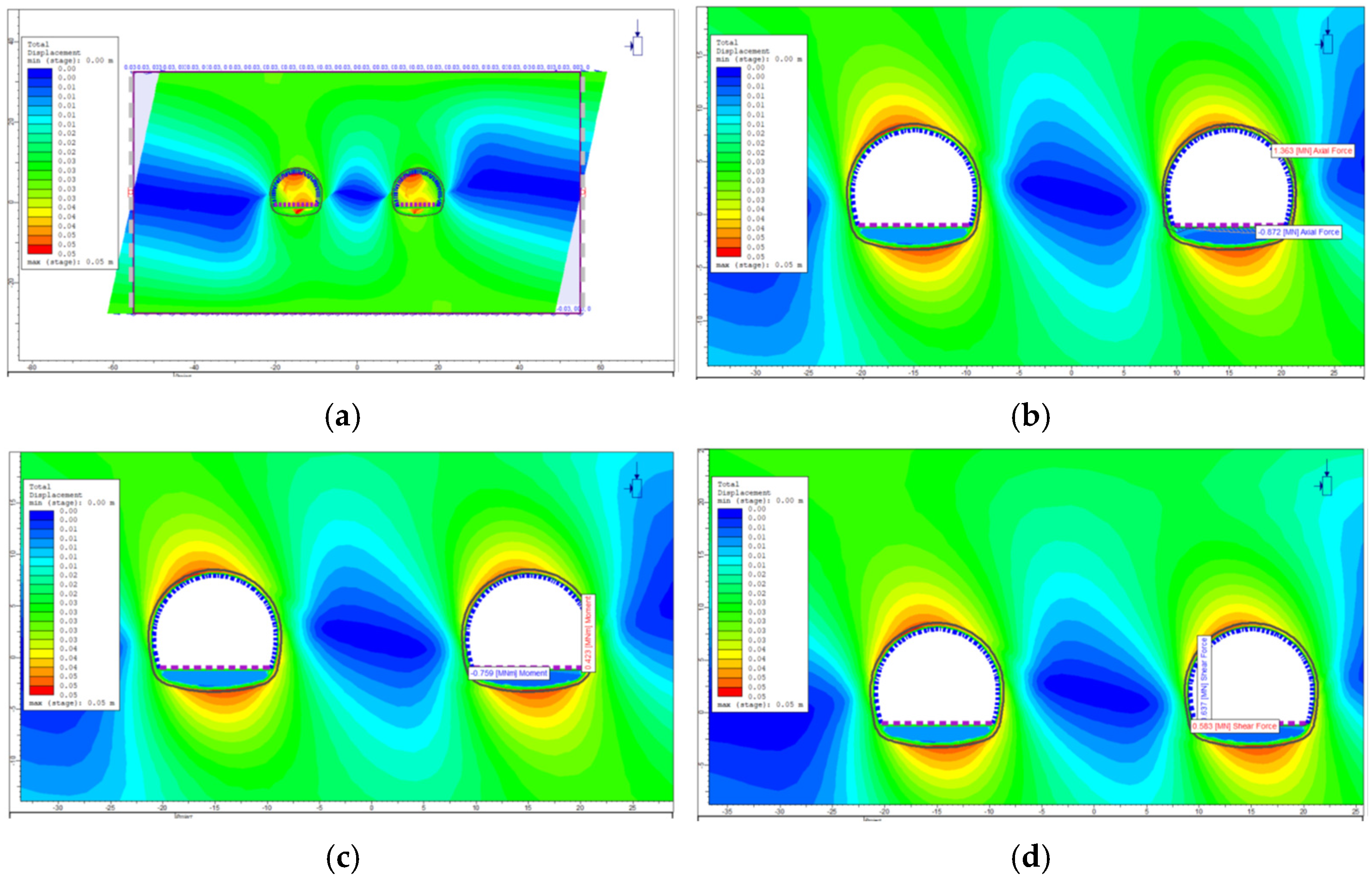

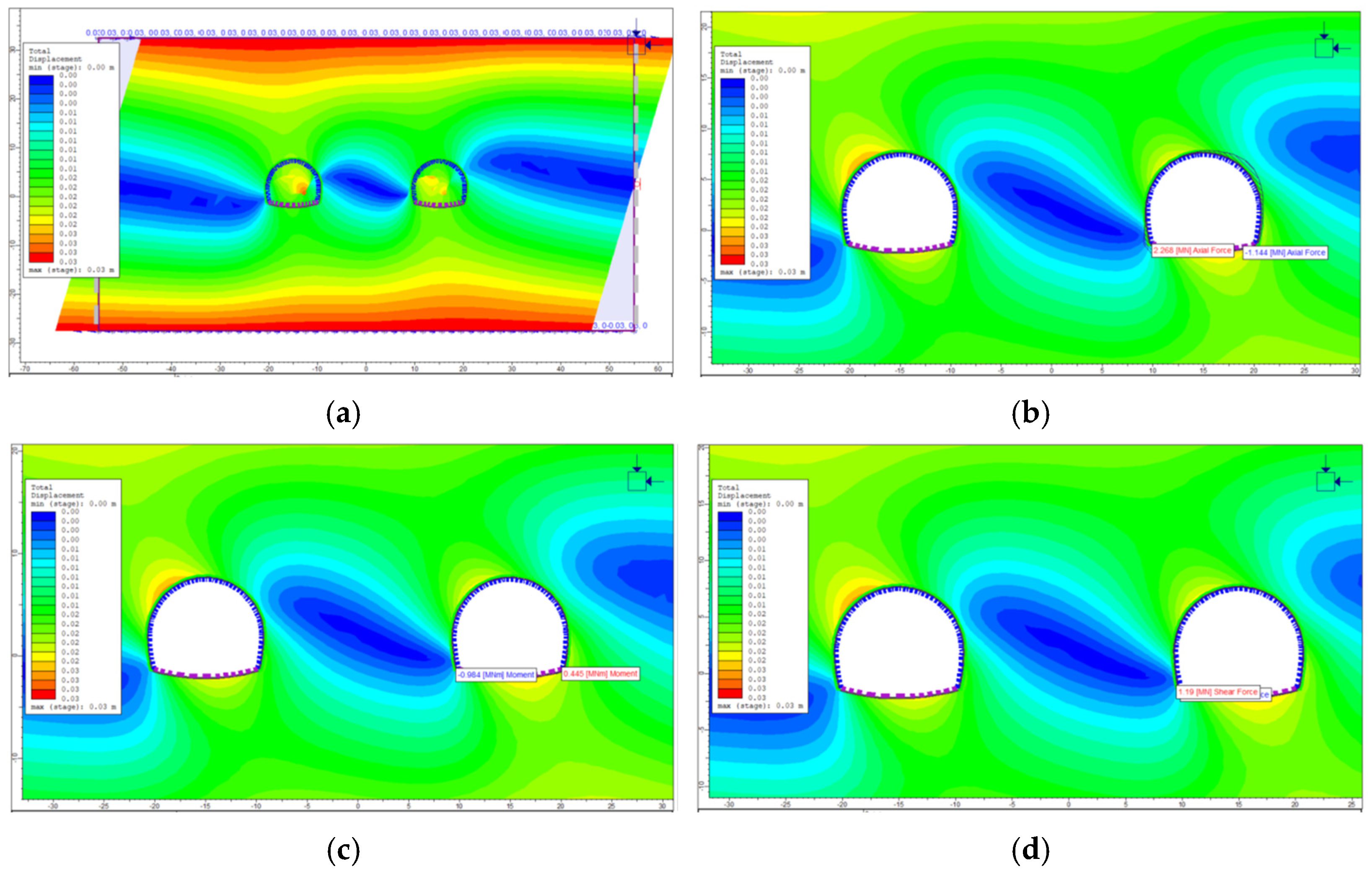

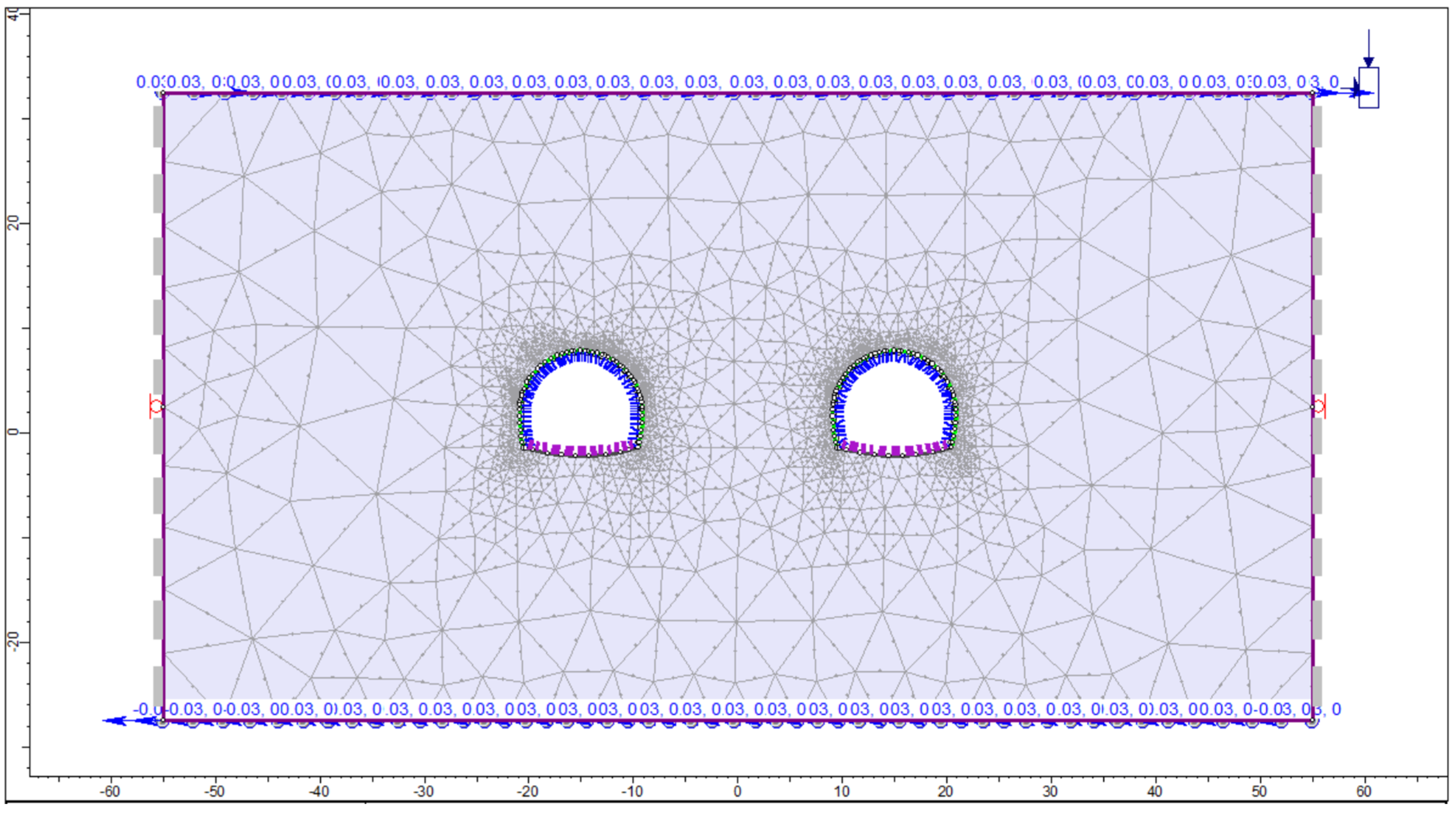

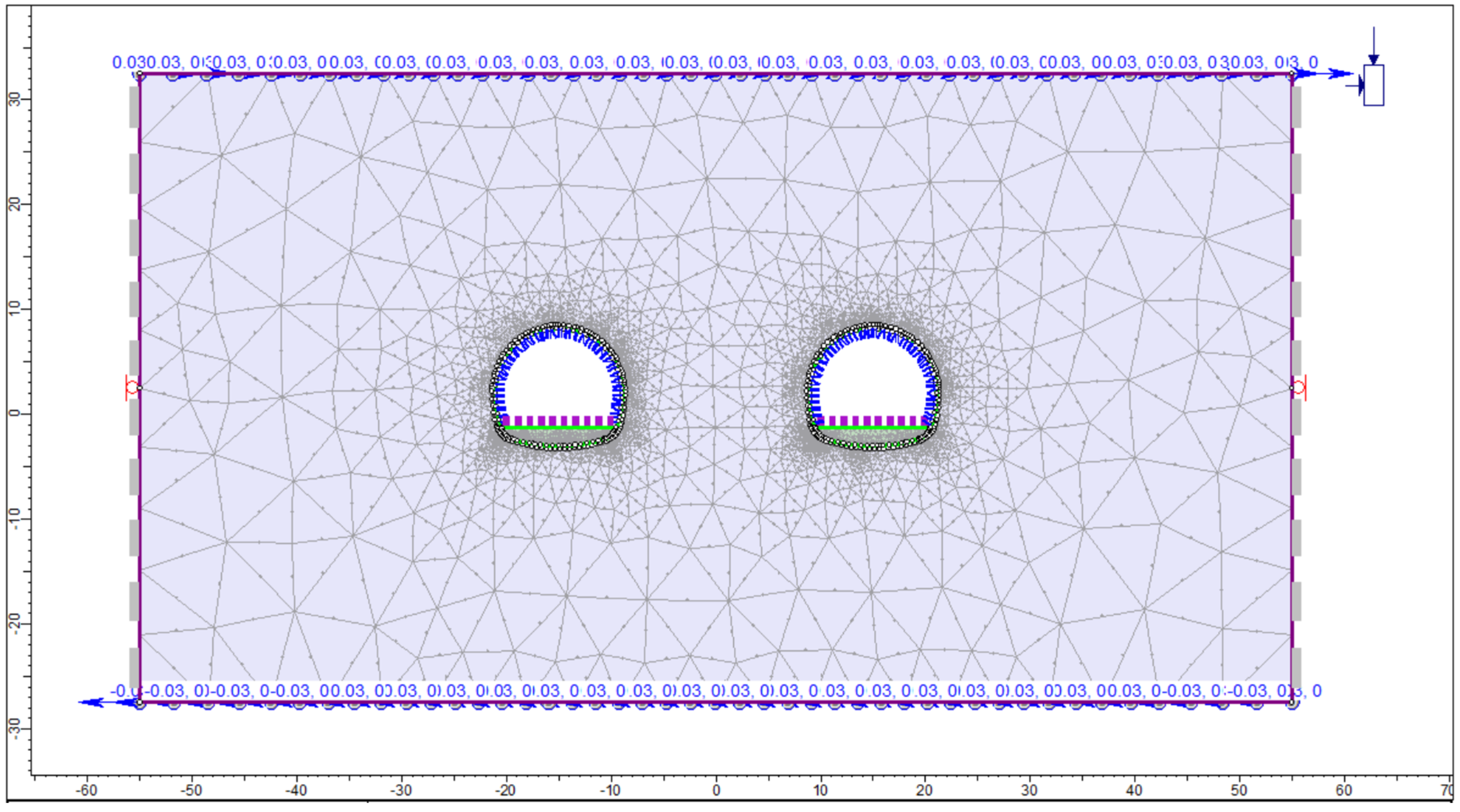

The seismic response of the tunnel–soil system was simulated using a dynamic time-history analysis in PLAXIS 2D. The design earthquake was represented by a horizontal acceleration–time record, scaled to the site-specific peak ground acceleration (PGA) and applied as a prescribed motion at the model base. Free-field boundaries were assigned at the model sides to reproduce realistic wave propagation and minimize reflections.

The dynamic phase computed the inertial response of the soil and lining according to the equation of motion [M]{ü} + [C]{û} + [K]{u} = {0}, where [M], [C], and [K] are the global mass, damping, and stiffness matrices, respectively. Thus, seismic forces were not directly applied to the tunnel lining but were generated automatically through the soil–structure interaction induced by the input ground motion. The soil-lining interaction was modeled using a full continuum approach, enhanced by specialized interface elements. The resulting internal forces, bending moments, and ovalization were obtained from the final deformation state at the end of the dynamic phase for each tunnel cross-section. The FEM of the C3 tunnel section at K76 + 950 is depicted in Figure 22, and its ovalization analysis results are given in Figure 23 and Figure 24.

As seen in

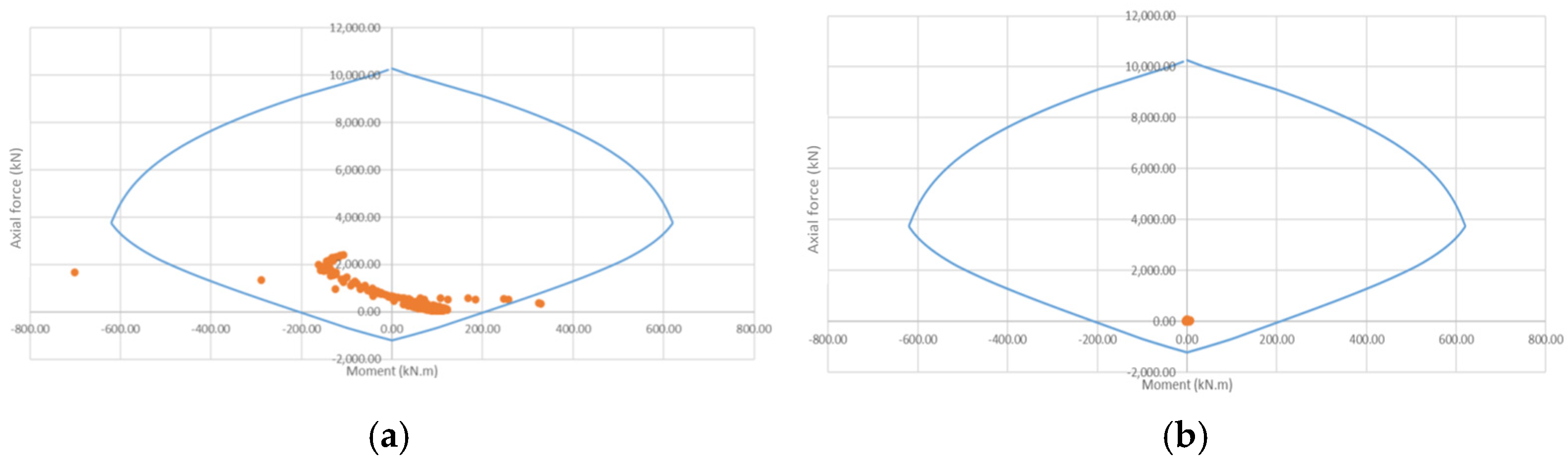

Table 12. Analysis of the lining and slab for the C3 section under earthquake loading.

Tunnel Element	Dimensions (mm)		Internal Forces (kN)		Ɣ	Shear Strength (kN)				Section Control
	bw	h	N	Vd		Vcr	Vc	Vw	Vr
Lining	1000	650	0	439	0.07	576	460	0	460.4	OK
Slab	1000	700	0	267	0.07	623	499	0	498.8	OK

and

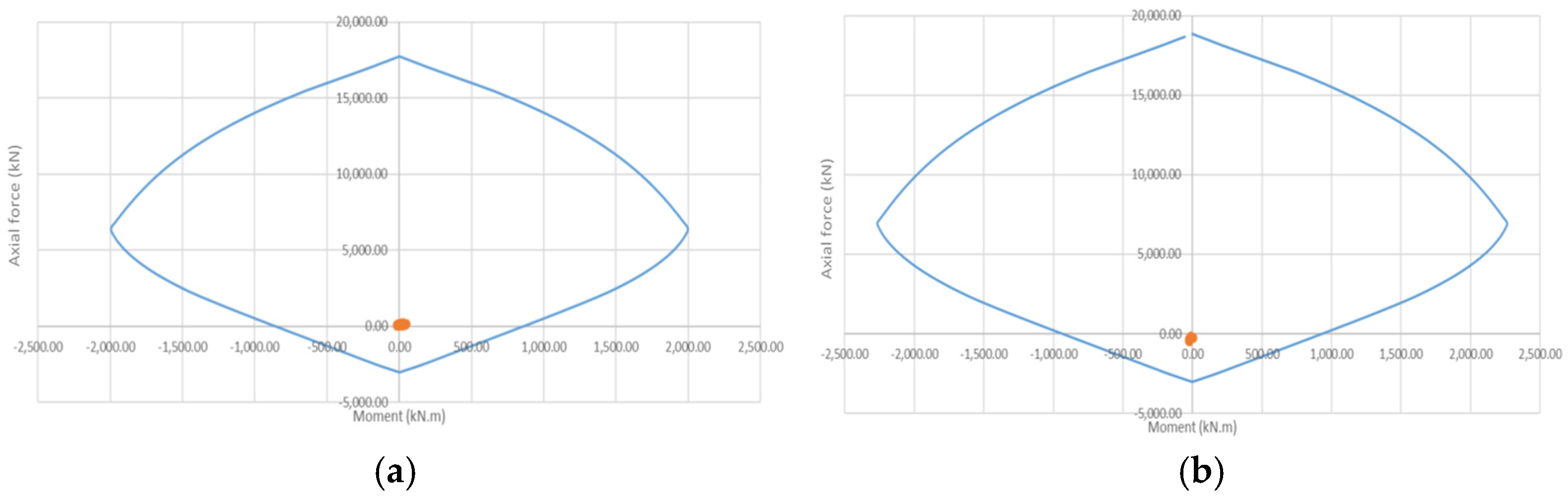

Table 13. Base shear force check of the C3 inner lining structure under seismic support conditions.

Material Properties			Dimensions				Reinforcement Bars
fck (MPa)	Ɣmc	fyk (MPa)	gms	Es (MPa)	bw (mm)	h (mm)	Area of Bars (mm2)	Conc. Cover (mm)	Bar Spacing (mm)
40	1.50	420	1.15	200,000	1000	700	760	50	150
Internal Forces (kN)					Ɣ	Shear Strength (kN)
N		Vd				Vcr	Vc	Vw	Vr
0		584			0.07	623	499	1203	1702

f_ck: characteristic compressive strength of concrete, Ɣ_mc: partial safety factor for concrete, f_yk: characteristic yield strength of reinforcement steel, g_ms: partial safety factor for steel, and E_s: Modulus of Elasticity of steel.

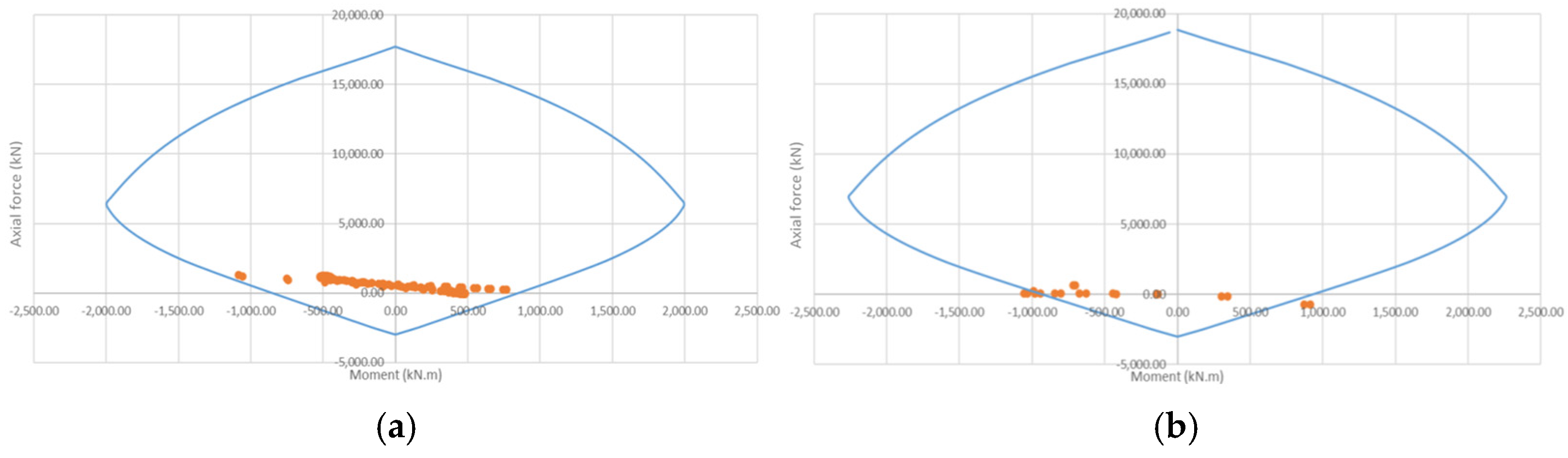

, the analysis of the inverted arch excavation and support systems suggested that the C3 rock class of the Erkenek Tunnel at K76 + 950 had sufficient capacity to satisfy the shear strength requirements.

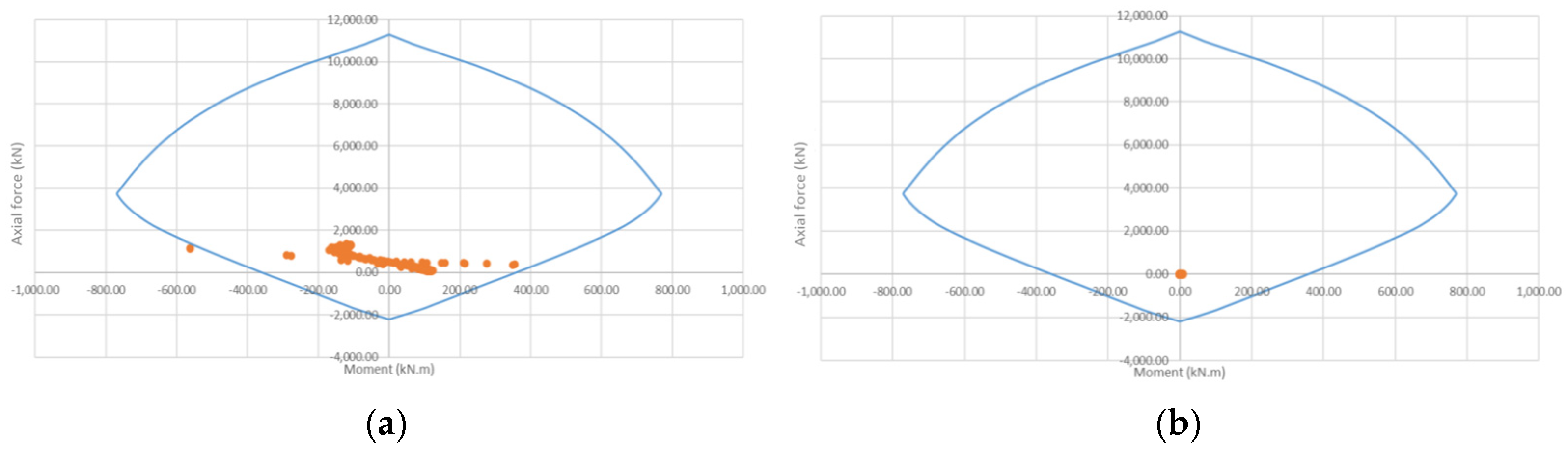

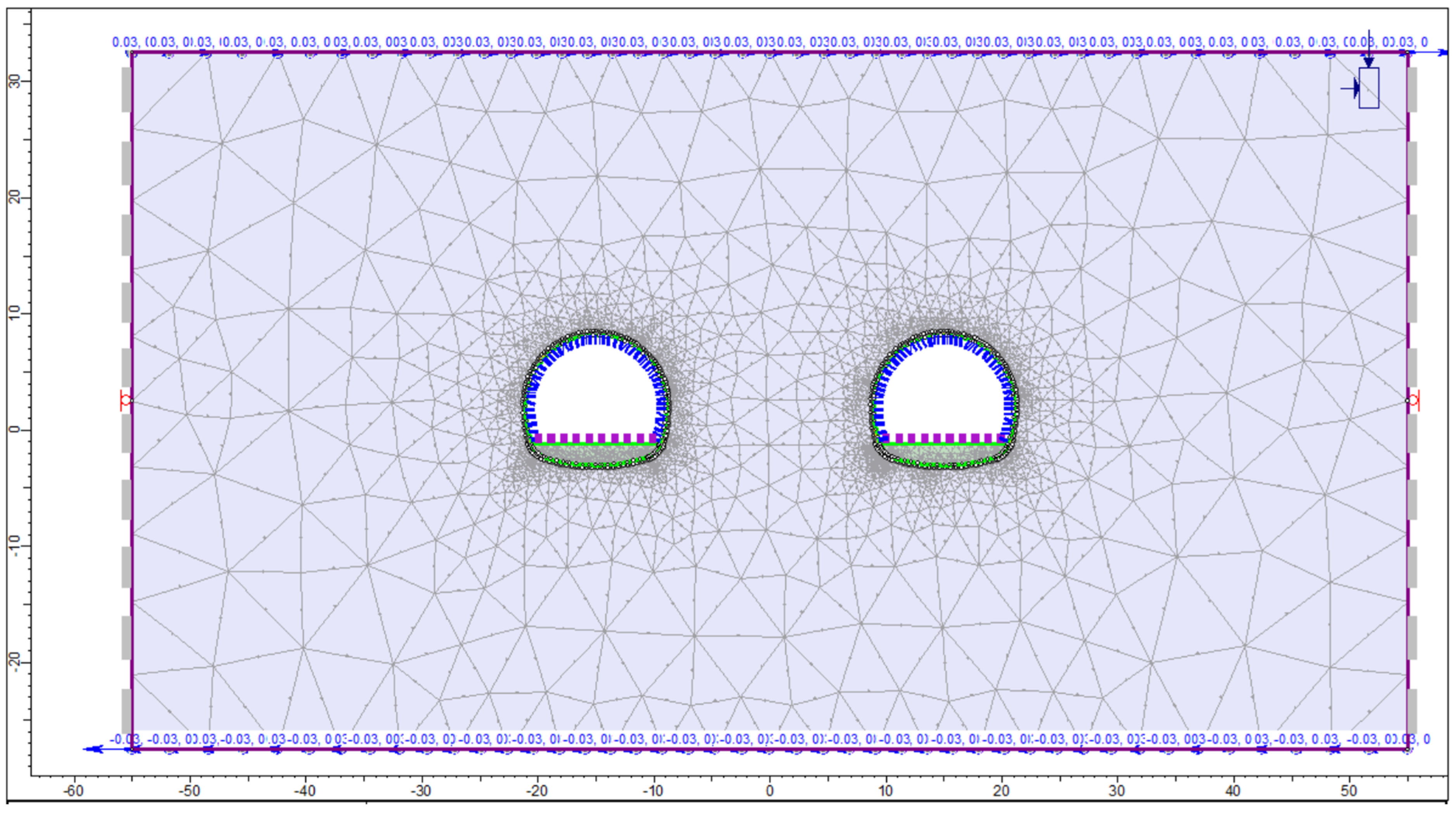

The ovalization behavior of the C2 tunnel section at K76 + 200, modeled using the FEM, is illustrated in Figure 25, and the corresponding analysis results are presented in Figure 26 and Figure 27.

Table 14. Analysis of the lining and slab for the C2 section under earthquake loading.

Tunnel Element	Dimensions (mm)		Internal Forces (kN)		Ɣ	Shear Strength (kN)				Section Control
	bw	h	N	Vd		Vcr	Vc	Vw	Vr
Lining	1000	400	840	291	0.07	385	308	0	308.1	OK
Slab	1000	700	0	123	0.07	623	499	0	498.8	OK

and

Table 15. Base shear force check of the C2 inner lining structure under seismic support conditions.

Material Properties			Dimensions				Reinforcement Bars
fck (MPa)	Ɣmc	fyk (MPa)	gms	Es (MPa)	bw (mm)	h (mm)	Area of Bars (mm2)	Conc. Cover (mm)
40	1.50	420	1.15	200,000	1000	700	760	50
Internal Forces (kN)				Ɣ	Shear Strength (kN)
N		Vd			Vcr	Vc	Vw	Vr
0		637		0.07	623	499	0	1702

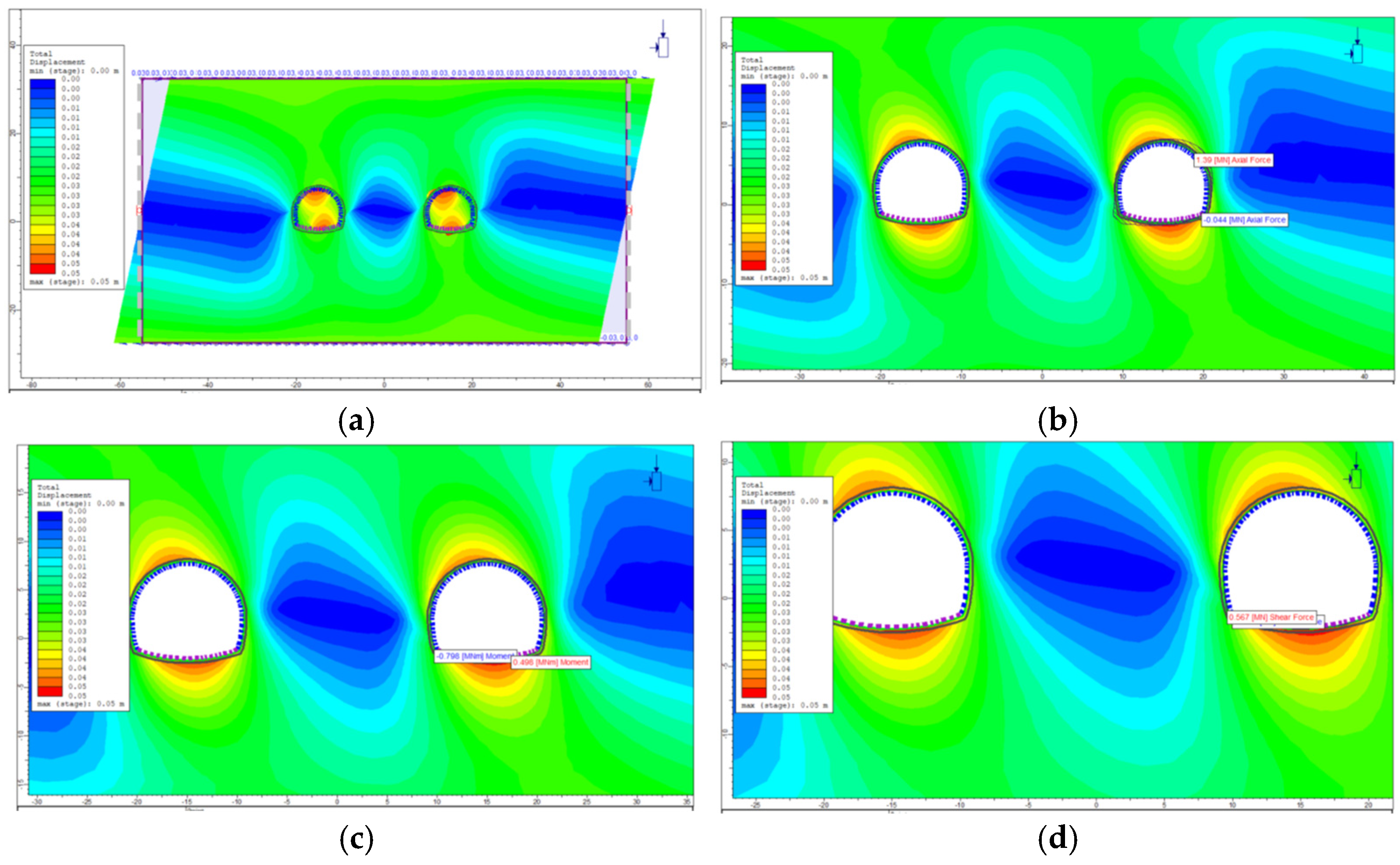

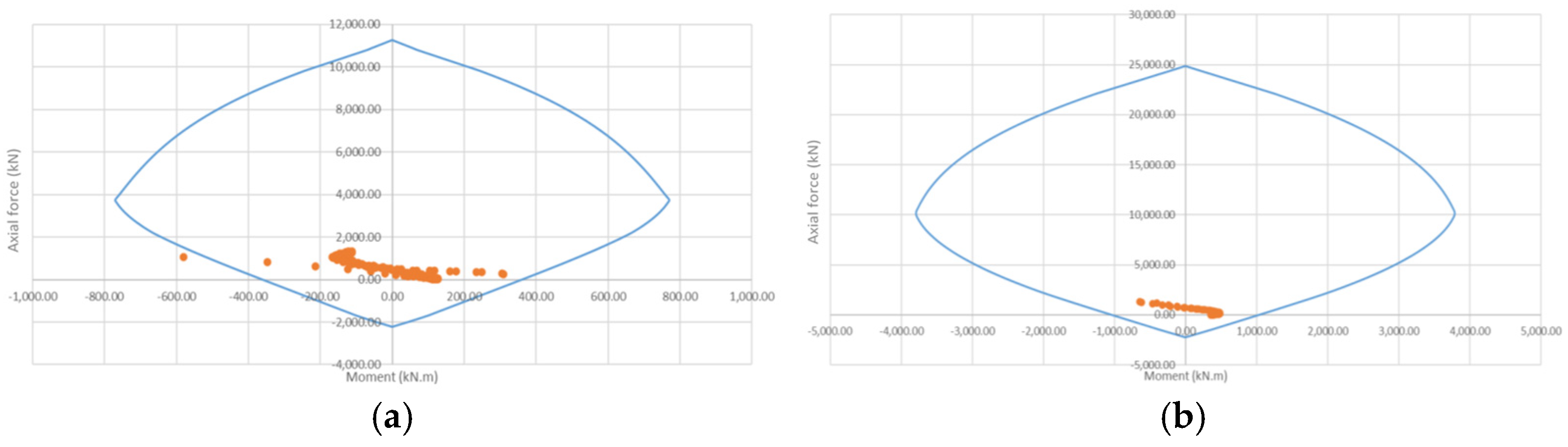

demonstrate that the C2 rock class at K76 + 200 of the Erkenek Tunnel possesses sufficient capacity to satisfy the shear strength requirements. The ovalization of the C2 tunnel section at K76 + 200 was also investigated for the invert. Its ovalization model by FEM is given in Figure 28, and the analysis results are given in Figure 29 and Figure 30.

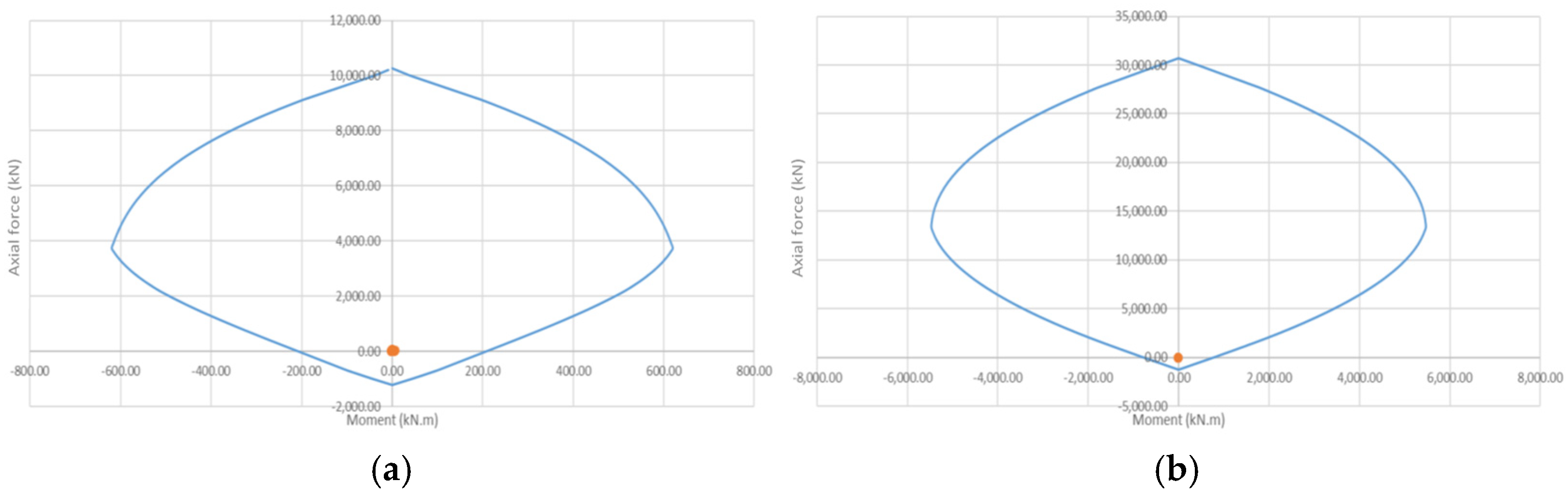

The results given in

Table 16. Analysis of the lining and slab for the C2 section (with invert) under earthquake loading.

Tunnel Element	Dimensions (mm)		Internal Forces (kN)		Ɣ	Shear Strength (kN)				Section Control
	bw	h	N	Vd		Vcr	Vc	Vw	Vr
Lining	1000	400	700	300	0.07	377	301	0	301.5	OK
Slab	1000	1000	0	310	0.07	911	729	0	729	OK

recommend that the C2 section (with invert) could safely fulfill the shear strength requirements. Finally, the ovalization model of the B3 tunnel section (with invert) at K77 + 200 by FEM is shown in Figure 31, and the corresponding diagrams are given in Figure 32 and Figure 33.

The results in

Table 17. Analysis of the lining and slab for the B3 section (with invert) under earthquake loading.

Tunnel Element	Dimensions (mm)		Internal Forces (kN)		Ɣ	Shear Strength (kN)				Section Control
	bw	h	N	Vd		Vcr	Vc	Vw	Vr
Lining	1000	400	1200	350	0.07	464	371	0	371.4	OK
Slab	1000	1000	0	460	0.07	911	729	0	729	OK

suggest that the B3 tunnel section (with invert) could safely serve under shear forces.

In conclusion, the numerical results of tunnel ovalization—including bending moments, shear forces, and deformed shapes at critical cross-sections—corroborate the post-earthquake field observations, particularly the observed crack patterns (location and direction).

8. Recommendations for the Secondary (Final) Tunnel Lining

The summary of the proposed final lining for the Erkenek Tunnel is given in

Table 18. Recommendations for the secondary (final) tunnel lining.

Rock Class	Concrete Class	Section Thickness (cm)		Reinforcement Bars (Inner and Outer)	Steel Wire Mesh
		Lining	Slab
C3	C40/50	65	70	Ø 28/15	5D 65/60 BG 35 kg/m3
C2	C40/50	40	70	Ø 24/15	5D 65/60 BG 35 kg/m3
C2 (with invert)	C40/50	40	175	Ø 24/15	5D 65/60 BG 35 kg/m3
B2-B3	C40/50	40	115	2xQ589/589 Fiber Reinforcement and Ø 26/50 (template)	5D 65/60 BG 35 kg/m3

. As shown, reinforcement of the final lining with steel bars and fibers is recommended. The inclusion of these reinforcements will enhance the tensile strength and toughness of the tunnel lining concrete throughout all regions. Moreover, this reinforcement will increase the energy absorption capacity of the final lining concrete and inhibit the propagation of micro-cracks.

Steel bars to be used will comply with the EN 14889-1 standard. They will have a CE certificate for System 1 (for structural use). The minimum dosage criteria specified in this certificate have to be met. The steel bars should have a slenderness ratio (L/D) greater than 65 and a nominal tensile fracture strength (R_m,nominal) of 2300 MPa. The utilization of glued hooked-end steel fibers is recommended to minimize the risk of fiber balling and to promote homogeneous mixing within the concrete. The performance of the steel fiber-reinforced concrete will be determined according to EN 14651, “Test method for metallic fibered concrete—Measuring the flexural tensile strength (limit of proportionality (LOP), residual)”. In these tests, a mean residual flexural strength of f_R,3m= 6.4 MPa will be targeted. In addition to this reinforcement, it is recommended to use a steel wire mesh at a rate of 35 kg/m³ (5D 65/60 BG) for the NATM C3-C2 with invert and B3-B2 classes of the tunnel.

9. Conclusions

Two huge Kahramanmaras earthquakes on 6 February 2023 and a series of aftershocks hit Turkey, Syria, and the surrounding region. Thousands of buildings collapsed, and critical transportation infrastructure in the earthquake-affected region suffered from heavy damage. The Erkenek Tunnel was one of the extensively damaged highway tunnels and the destructive earthquakes severely ruptured and collapsed its reinforced concrete lining at some sections. This study addressed the assessment and redesign of the tunnel’s internal lining structures, focusing on the most critical sections at K76 + 950, K76 + 200, and K77 + 200. For static conditions, the proposed strength and deformation parameters were used. For seismic conditions, the DD-2 earthquake ground motion level—with a 10% probability of exceedance in 50 years (return period of 475 years) as specified in the Turkish Earthquake Code—was considered. This approach is also expected to satisfy controlled damage requirements under the DD-1 earthquake ground motion level (2% probability of exceedance in 50 years, return period of 2475 years), ensuring life safety while limiting repairable damage.

Back-analysis conducted in this study revealed that the primary tunnel support system is operating under significant stress even under static loads, particularly at critical tunnel sections, performing near its limit. Observed displacements in severely damaged inner lining sections indicate that failures may have occurred in the primary support system due to the seismic forces. As a result, the primary support system in its current state does not substantially contribute to the overall stability of the tunnel lining. Strengthening the hinged steel elements embedded within the steel mesh-reinforced shotcrete was regarded impractical due to structural complexity and the critical locations of the damaged tunnel segments. Therefore, the newly designed inner lining is intended to act as the final support system along the entire tunnel length.

Based on the findings of this study, the following conclusions can be drawn;

Removal of damaged sections:

• Internal lining structures will be dismantled at intervals not exceeding 12 m.
• During removal, the condition of each lining element (primary support system, steel sets, shotcrete with wire mesh) will be documented with photographs and recorded in reports.
• Displacement measurements will be conducted to monitor tunnel safety. Temporary support will be installed immediately in sections showing significant movement.

Temporary support system:

• Reinforced with 8 m long stainless IBO anchor bolts, with tensile tests performed to ensure sufficiency.

Repair and replacement:

• Damaged reinforced shotcrete and wire mesh will be renewed where necessary.
• Tunnel support will be upgraded using one size larger than the dimensions specified in the original design. Steel sets of size 120 will be installed in B1 and B2 support classes where none were previously used.
• After inspecting and, if necessary, replacing steel support elements and rock bolts, a primary support system of steel mesh (Q221 × 221) and shotcrete will be applied to level the surface up to the boundary of the inner lining concrete.

Construction sequence:

• The existing service road will be reopened to one-way traffic, with the opposite direction served by the single tunnel tube.
• Construction will proceed simultaneously at the entrance and exit of the tube.
• Damaged primary lining will be removed in 12 m segments while preserving existing inverts.
• Demolition will use pyrotechnic methods, with manual/mechanical removal for sections that cannot be dismantled otherwise.
• Primary lining in damaged sections will be reconstructed using reinforced concrete techniques.
• Voids between the ground and lining concrete will be grouted, followed by injection where required.

Soil and rock stabilization:

• Consolidation injection will be applied in zones with cracks or weak soil/rock to increase load-bearing capacity.

Dismantling details:

• Unreinforced concrete lining: 40 cm thickness; 9 mm diameter, 9 g cartridges; 60 cartridges per section at 40–70 cm intervals.
• Reinforced concrete lining: 65 cm thickness; same cartridge specification and spacing.

Final lining reinforcement:

• Reinforced with steel bars and fibers, supplemented by a steel wire mesh at 35 kg/m³ (5D 65/60 BG).

Monitoring and verification:

• All measurements will be verified on-site before construction.
• In situ conditions will be continuously monitored, any deviations from assumptions will be addressed immediately.
