Spatial Upscaling of Soil Respiration under a Complex Canopy Structure in an Old‐Growth Deciduous Forest, Central Japan

Abstract

The structural complexity, especially canopy and gap structure, of old-growth forests affects the spatial variation of soil respiration (R_s). Without considering this variation, the upscaling of R_s from field measurements to the forest site will be biased. The present study examined responses of R_s to soil temperature (T_s) and water content (W) in canopy and gap areas, developed the best fit model of R_s and used the unique spatial patterns of R_s and crown closure to upscale chamber measurements to the site scale in an old-growth beech-oak forest. R_s increased with an increase in T_s in both gap and canopy areas, but the effect of W on R_s was different between the two areas. The generalized linear model (GLM) analysis identified that an empirical model of R_s with the coupling of T_s and W was better than an exponential model of R_s with only T_s. Moreover, because of different responses of R_s to W between canopy and gap areas, it was necessary to estimate R_s in these areas separately. Consequently, combining the spatial patterns of R_s and the crown closure could allow upscaling of R_s from chamber-based measurements to the whole site in the present study.

1. Introduction

Studies of soil respiration (R_s) have been conducted in many temperate forests and show the temporal variation at both diurnal [1] and seasonal [2,3,4] time scales. The diurnal variation in R_s is explained by plant physiology, especially photosynthesis [1], and soil temperature (T_s) [5]. The seasonal variation in R_s is primarily controlled by T_s when the soil water content (W) is not limited, and the response of R_s to T_s is usually explained by an exponential (Q₁₀) relationship [6,7,8]. Under drought conditions, W and T_s are considered to be coupled factors in relation to their effect on R_s [9,10]. Continuous measurement of the effects of T_s and W on R_s is required for the scaling up of R_s from chamber-based measurements to a forest ecosystem. Some studies on the effects of T_s and W on R_s have been conducted using an automatic opening and closing chamber (AOCC) system. Although this approach is based on the closed dynamic method, the AOCC system allows continuous measurement of R_s on both short- and long-term scales and provides the detail needed to develop our understanding of the relationships between R_s and environmental variables [3,11,12,13,14]. Moreover, this system minimizes disturbance of the soil surface during R_s measurements.

Many old-growth forests show canopy structural complexity, particularly canopies and gaps [15,16,17,18,19,20]. The complex structure of canopies related to forest age facilitates a greater harvesting of light than a simple structure, and thus it increases net primary production [21,22]. This structural complexity also reflects the spatial variation in R_s, which is greater in canopy areas than in gap areas [23,24]. Despite the fact that these R_s patterns impact the upscaling of R_s to the forest ecosystem level, only a few publications focusing on the upscaling method based on spatial variation in R_s are available. For example, Tang and Baldocchi [25] used crown closure and different rates of R_s between areas under trees and open areas to spatially upscale R_s to a whole site in an oak-grass savanna ecosystem in California.

In a recent study of R_s in an old-growth beech-oak forest in central Japan, the effect of the complexity of the vertical structure, especially the canopy/gap structure, on the spatial variation of R_s was investigated [24]. The R_s was greater in canopy areas than in gap areas during the growing season, and there was no significant difference in T_s or W between canopy and gap areas. However, diurnal and seasonal changes in R_s and these environmental factors have not been studied, and the responses of R_s to changes in T_s and W in canopy and gap areas are unclear. Consequently, the present study aims to (1) quantify the temporal variation of R_s in canopy and gap areas; (2) characterize the response of R_s to T_s and W in canopy and gap areas; (3) develop models for R_s determined as a function of T_s and W; and (4) upscale chamber measurements of R_s to the site scale based on the spatial patterns of R_s between canopy and gap areas and crown closure. We used the AOCC system to measure R_s continuously in order to understand the relationships between R_s and environmental variables and to develop suitable models of R_s for estimation of annual R_s.

2. Materials and Methods

2.1. Study Site

The study site (36°9′ N, 136°49′ E, 1330 m above sea level) is located in primary deciduous broad-leaved forests around the Ohshirakawa river basin (840–1600 m above sea level) on the mid slope of Mt. Hakusan. The forests became established since the last eruption of Mt. Hakusan in 1659 [26] and are protected by the Hakusan National Park under the management of the Forest Agency of Japan and the Ministry of Environment, Japan. No evidence of human disturbance in this area was found before the 1960s. After the construction of the Ohshirakawa dam (approximately 800 m from the study site) in the 1960s, this area has been accessed by local people for the collection of mushrooms, bamboo shoots and chestnuts [20].

A permanent 1-ha (100 m × 100 m) plot of primary forest was reconstructed to examine carbon cycling of the forest ecosystem during July 2011 after a first construction of the plot in 1993 [27]. This plot is on an east-facing gentle slope with an average slope of 3 degrees. In the study plot, the canopy layer is dominated by Fagus crenata (beech, 47.6% of basal area) and Quercus mongolica var. crispula (oak, 37.4% of basal area) trees with diameters at breast height (DBH) of ≥25 cm and heights of approximately 25–30 m. The sub-tree layer comprises beech, Acer tenuifolium, and Vibrunum furcatum, with high stem densities and heights of 10–15 m. Evergreen dwarf bamboo (Sasa kurilensis) of 1.5–2.0 m in height sparsely covers the forest floor. The DBHs of all trees were measured in 2014, and tree biomasses were estimated following Suchewaboripont et al. [20]. The aboveground biomass (except for leaves) of canopy trees was large, i.e., 475.9 Mg ha⁻¹. Most of this biomass consisted of canopy trees of beech (45.9%) and oak (46.7%), and the DBH of these trees ranged from 25.75 to 101.28 cm and 44.31 to 195.04 cm, respectively. The forest age is >250 years, and the age of a dead oak tree (DBH = 74.5 cm) near the study plot was determined as being over 258 years. The soil in the study plot is volcagogenous regosol with thin A (0–18 cm) and B (19–24 cm) horizons [20].

Air temperature during 2013–2014 in the study plot was monitored using a data logger (HOBO weather station, Onset Computer, Bourne, MA, USA). Air temperature was measured every 30 min, and the data were processed to provide an average every 24 h. The annual mean air-temperature was 5.8 °C, with a maximum daily temperature of 22.7 °C during August and a minimum daily temperature of −13.2 °C during February. The average annual precipitation during 2013–2014 was 3289 mm, measured at Miboro weather station (36°9′ N, 136°54′ E, 640 m above sea level). Heavy snowfall from November to April resulted in accumulated snow depths of >4 m in 2013.

2.2. Measurement of the Soil CO₂ Efflux

To define the gap and canopy areas for measurement of R_s in the study plot, we followed the definitions used in our previous study [24]. Ground areas under canopy openings (≥5 m² in area) caused by canopy tree deaths were defined as gap areas [28], and the areas under canopy trees were defined as canopy areas. In the study plot, it was difficult to choose the most suitable areas for placing an AOCC system, in particular, and measuring R_s and environmental factors due to varying density of sub-trees (shown as their basal areas in Figure 1b) and Sasa (Figure 1c). However, we selected three canopy (C1, C2, and C3) and two gap (G1 and G2) areas for measurement of their R_s and environmental factors.

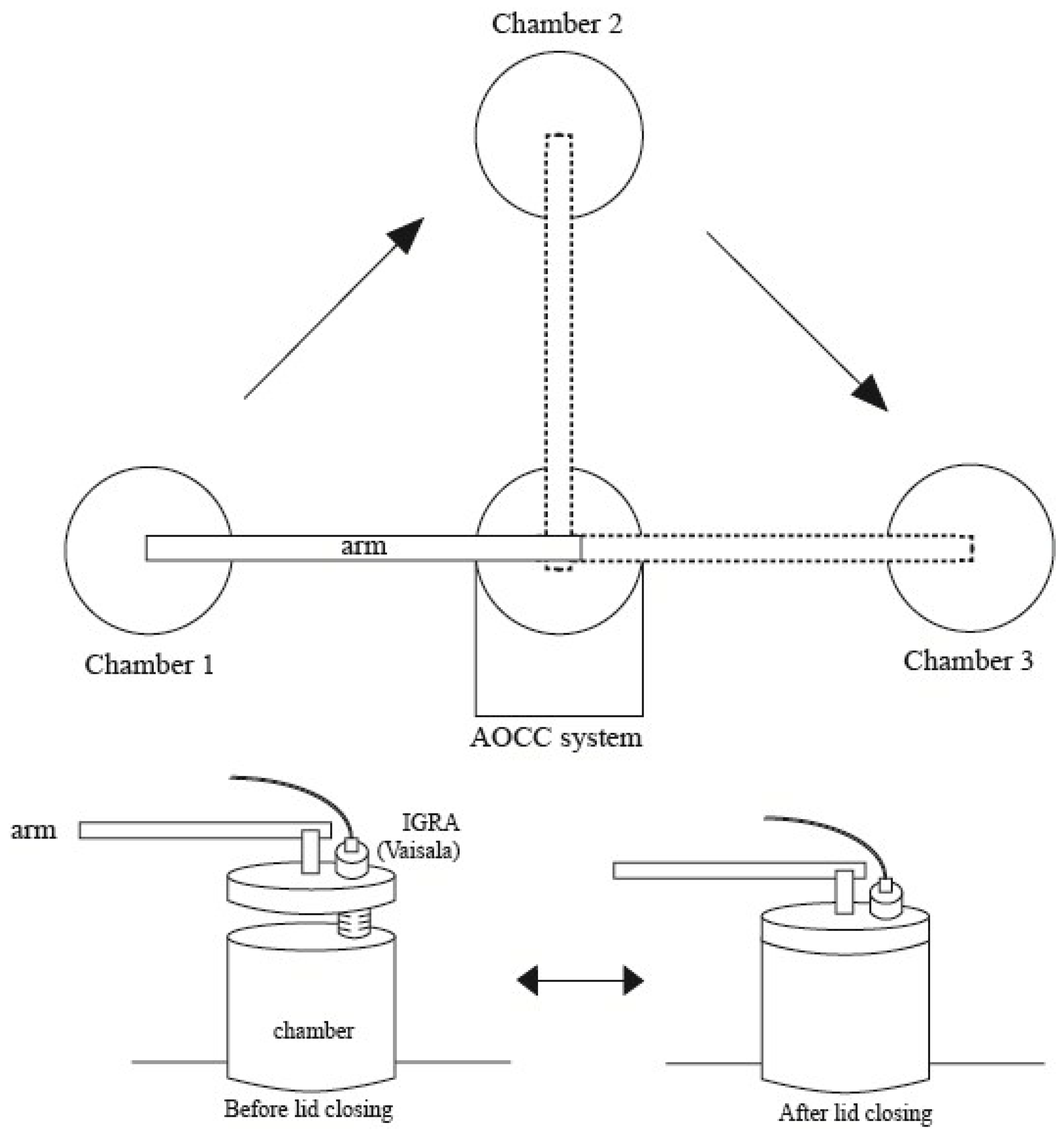

Changes in CO₂ efflux from soil (R_s) were measured continuously for 24–48 h once a month by the closed-chamber method with an infrared gas analyzer (IRGA) (GMP343, Vaisala Ltd., Vantaa, Finland). Three chambers (25 cm internal diameter and 25 cm height) were installed in each area. R_s in all chambers in each area was measured using an AOCC system. The AOCC system had a similar concept to that used by Hirota et al. [29]. Without electricity at the study site, this system was connected to two 12-volt DC car batteries as its electric power for continuous measurement around 2–3 days. The system comprised an automated lid arm subsystem (Figure 2) and a control system for timing the opening and closing of the lid arm. The lid was attached to an IRGA for the measurement of R_s in the closed chambers. Rotation of the automated lid arm progressed from chamber 1 to chamber 2 to chamber 3 (Figure 2), with one such cycle taking approximately 16 min. After the closure of chamber 3, the lid arm returned to chamber 1 and started a new rotation cycle. During chamber closure for 5 min, R_s was measured, and all data were recorded by a data logger (Thermic 2300, Etodenki, Tokyo, Japan) at intervals of 10 s.

In 2013, we measured R_s in C1 and G1 areas during 25–28 June and in all areas from July to October (16–19 July, 19–23 August, 24–28 September, and 22–26 October). In 2014, we measured R_s in C1 and G1 areas from June to October (16–18 June, 15–17 July, 2–4 September, 8–10 October, and 29–31 October). In August 2014, R_s was not measured because of an extended period of rainy days.

2.3. Measurement of Soil Temperature and Water Content

Soil temperature (T_s) in all canopy and gap areas was measured at a depth of 5 cm in close proximity to the AOCC system using a copper–constantan thermocouple during the same experimental period as the measurement of R_s. From 23 June 2013 to 30 October 2014, T_s was monitored every 10 min by temperature sensors and data loggers (TidbiT v1 Temp logger, Onset Computer Co., Ltd., Massachusetts, USA). The T_s data were processed to provide an average every 1 h.

Soil water content (W) was measured continuously at a depth of 5 cm near the AOCC system in C1, C3, G1, and G2 from 27 June to 27 October 2013 using a thetaprobe ML2x-L5 (Delta-T Devices, Camblidge, UK) connected to a data logger (THLOG-2, Dynamax Inc., Texas, USA). In C2, W near the AOCC system was measured from 25 September to 27 October 2013 using a SM200 soil moisture sensor (Delta-T Devices, England) connected to a data logger (3635-25 voltage logger, Hioki E.E. Corporation, Nagano, Japan). During the growing season (3 June–29 October) of 2014, W in G1 and C1 was continuously measured using an SM200 soil moisture sensor. Because of the use of different sensors for measuring W, each sensor was calibrated using the field calibration equation reported by Abbas et al. [30]. The measurements of W in all areas were taken every 15 min, and the data were processed to provide an average every 1 h.

2.4. Data Analysis

R_s was calculated on the basis of the linear increase in CO₂ concentration in the closed chamber using equation [14]:

$$R_{s\_\mathrm{hourly}} (\mathrm{g} \mathrm{C} {\mathrm{m}}^{-2} {\mathrm{h}}^{-1})=\Delta C{O}_2 \times {10}^{-6}\times \rho \times V \times A^{-1}\times 60 \times 60\times 12/44,$$

(1)

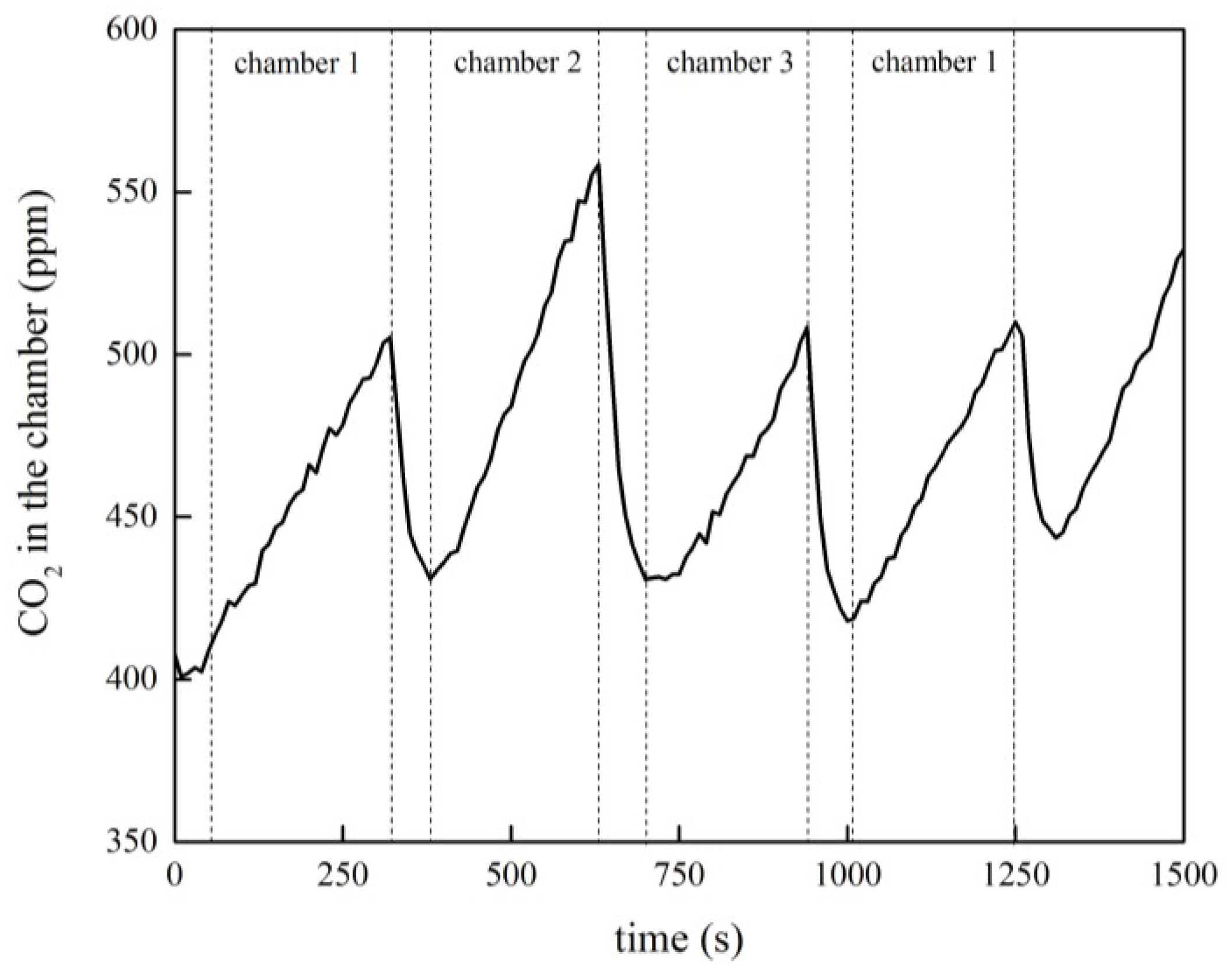

where ∆CO₂ is the increase in CO₂ concentration in the chamber (ppm·s⁻¹; Figure 3), ρ is the density of CO₂ in the air, V is the volume of the chamber (m³), and A is the soil surface area (m²). The average R_s in each area was calculated as the mean of all three chambers during 1 cycle of the AOCC system.

To examine the response of R_s to T_s and W, these parameters were fitted using an exponential equation [31] as follows

$$R_s=a{e}^{b{T}_{\mathrm{s}}}{W}^c,$$

(2)

where R_s is soil respiration (g·C·m⁻²·h⁻¹), T_s is soil temperature at a 5 cm depth (°C), W is soil water content at a 5 cm depth (%) and a, b and c are fitted coefficients. To estimate the coefficients a, b and c and fit the model using generalized linear models (GLM) analysis, Equation (2) was transformed as

$$\log R_s= \log a+b{T}_{\mathrm{s}}+c\log W,$$

(3)

Thus, the full model for GLM analysis with a Gamma distribution and a log link function was expressed as

$$R_s ~ a^{\prime }+ b{T}_{\mathrm{s}}+c\log W,$$

(4)

Moreover, the temperature sensitivity parameter (Q₁₀) was calculated as follows:

$${\mathrm{Q}}_{10}= e^{10b},$$

(5)

Akaike’s information criterion (AIC) was used to verify the accuracy of the R_s models. The best fitting model with the minimum AIC represented the accuracy of the best-fit R_s model. The analysis of models was performed using R version 3.0.3 [32] and library lme4 version 1.1-6 [33].

Annual R_s was estimated by summation of hourly R_s using W and T_s of areas C1 and G1 because both W and T_s in these areas were continuously recorded during the experimental period. However, the continuous measurement of W in the growing season could not be completed in both 2013 and 2014. Thus, annual R_s was estimated from 27 September 2013 to 26 September 2014. The data from 27 September to 27 October 2013 and from 4 June to 26 September 2014 were used to estimate R_s for the growing season, and R_s during the snow period was summed from 28 October 2013 to 3 June 2014. Because of no effect of W on R_s during the snow period, R_s during this period was estimated using the exponential relationship with T_s.

Upscaling R_s from the chamber measurements to the site scale was conducted on the basis of the spatial pattern of R_s between gap and canopy areas and the area of crown closure at the study site [25]. Model-estimated R_s in gap and canopy areas was used to represent R_s in canopy and gap areas in the study plot. Then, crown closure was used as a weighting factor to spatially transfer R_s over the whole study plot. This simple equation is defined as

$$F=F_c\times c+F_g\times \left(1-c\right),$$

where F is R_s over the whole study site, F_g and F_c are the R_s values for the gap and canopy areas, respectively, and c is the crown closure measured by the vertically projected crown area divided by the whole study area. The crown closure of the study site was estimated on the basis of the crown projection diagram using Adobe Photoshop (Adobe Systems Incorporated, San Jose, California, USA) [24]. The areas of gap and canopy were estimated to be 25.6% and 74.4%, respectively, of the entire area.

3. Results

3.1. Temporal Changes in Soil Temperature and Soil Water Content

Clear temporal changes of T_s in gap and canopy areas were observed in the study plot (Figure 4). T_s rapidly increased after snow melt in May, and it trended to be higher in canopy areas than in gap areas. T_s in all areas peaked in August. After September, T_s in all areas dropped to nearly 0 °C during snowfall. There were no clear differences in T_s between canopy and gap areas along the time course, although T_s in canopy areas trended to be lower than in gap areas under snow cover.

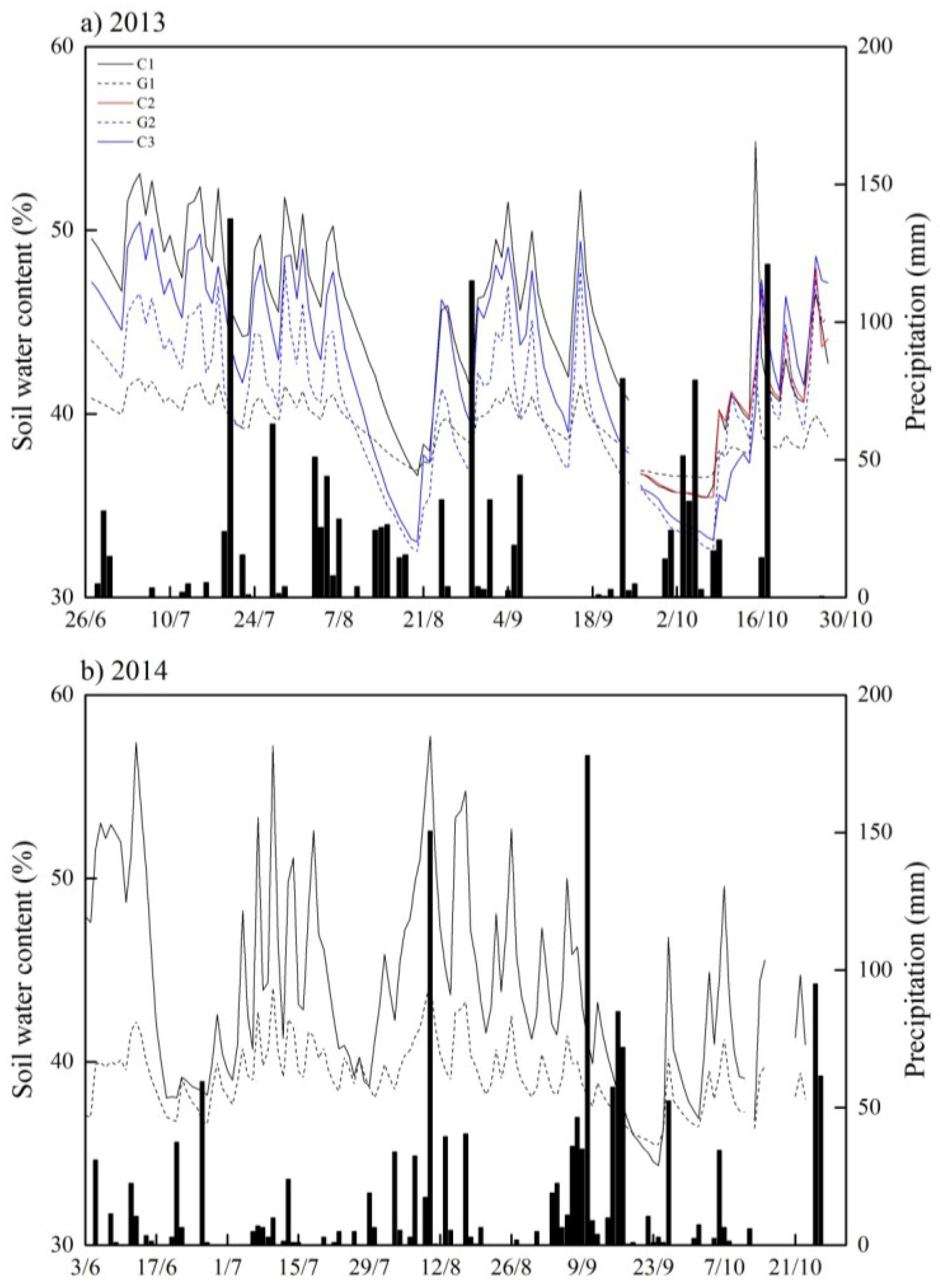

In 2013 (Figure 5a) and 2014 (Figure 5b), W did not show clear temporal changes in either the canopy or gap areas. In 2013, W was low in August, late September, and early October, although precipitation was recorded during these periods. In 2014, W was low in late June, late July, and September, but it was high in August because of a long period of rainy days.

3.2. Diurnal Changes in Soil Temperature, Soil Water Content, and Soil Respiration

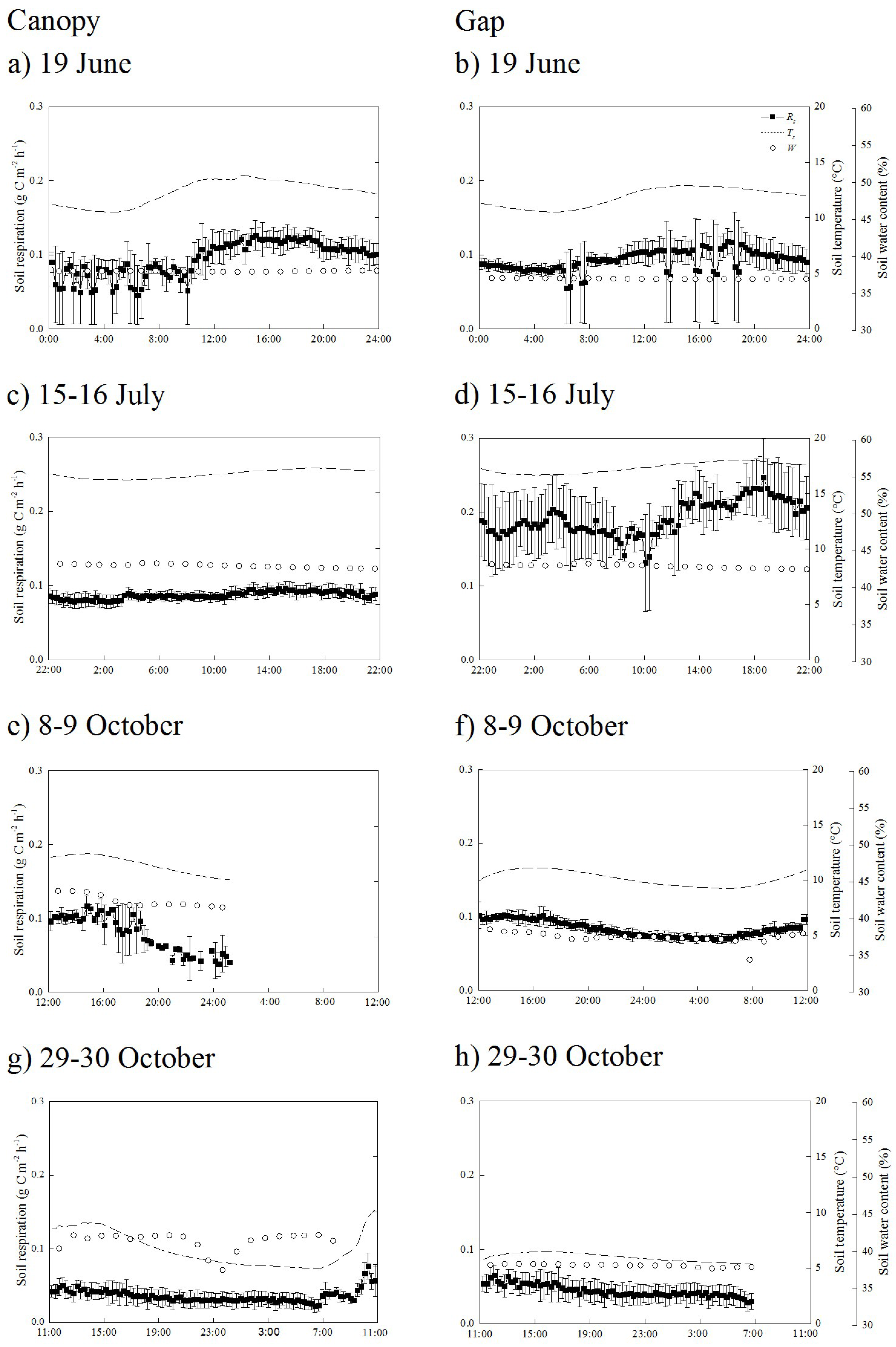

Diurnal R_s, T_s, and W at C1 and G1 were continuously monitored on measurement days during the 2014 growing season (Figure 6). T_s in both canopy and gap areas showed a diurnal pattern that was highest in the afternoon (around 1–3 p.m.) and lowest in the early morning (around 6 a.m.). R_s also showed a similar diurnal pattern to T_s, i.e., high in the afternoon and low in the early morning. However, except in late October, W did not show a clear diurnal pattern, although this was not investigated thoroughly in October. Diurnal W was likely similar between canopy and gap areas in the middle of June and July because of typical soil drying during these months. In October, diurnal W was higher in canopy areas than in gap areas because of the effect of rain a few days before the measurement day.

3.3. Effect of Soil Temperature and Soil Water Content on Soil Respiration

Canopy and gap areas showed temporal changes in R_s, which were related to the temporal pattern of T_s (Figure 7). R_s increased with an increase in T_s during June and July, and it peaked with the highest T_s in August. Then, R_s declined with decreasing T_s during August to October. The relationship between R_s and T_s was fitted as an exponential equation using GLM analysis: R_s = 0.0207e^0.1258Ts for canopy areas, R_s = 0.0177e^0.1296Ts for gap areas, and R_s = 0.0198e^0.1260Ts for all areas. The Q₁₀ values for canopy, gap, and all areas were calculated to be 3.52, 3.65, and 3.52, respectively.

Although the effect of T_s on R_s was similar in the two areas (Figure 7), the effect of W on R_s showed different patterns for canopy and gap areas. In canopy areas, R_s increased with W when W ranged from 32% to 56%. Meanwhile, R_s in gap areas decreased when W increased during the same range.

The analysis of the full model using GLM and AIC is summarized in

Table 1. Summary of the results of the GLMs sorted in the analysis in gap and canopy areas.

Model	Formula	AIC	∆AIC	Deviance	df	Dispersion parameter
Canopy
1	$R_s ~ a^{\prime }$	−5167.4	3152.4	609.3	2025	0.301
2	$R_s ~ a^{\prime }+T_{\mathrm{s}}$	−7236.2	1083.5	226.2	2024	0.112
3	$R_s ~ a^{\prime }+ c\log W$	−5270.1	3049.6	580.0	2024	0.287
4	$R_s ~ a^{\prime }+ b{T}_{\mathrm{s}}+c\log W$	−8319.7	0.0	133.4	2023	0.066
Gap
1	$R_s ~ a^{\prime }$	−3714.9	1551.9	473.5	1457	0.325
2	$R_s ~ a^{\prime }+T_{\mathrm{s}}$	−4865.5	401.3	221.0	1456	0.125
3	$R_s ~ a^{\prime }+ c\log W$	−3964.1	1302.7	401.8	1456	0.276
4	$R_s ~ a^{\prime }+ b{T}_{\mathrm{s}}+c\log W$	−5266.8	0.0	168.6	1455	0.116

. The best fit for both canopy and gap areas was found with the coupling of T_s and W and the minimum AIC. All parameters related to the factors of this model were estimated (

Table 2. Summary of the estimated coefficients in model 4, which was selected as the best model based on Akaike’s information criteria (AIC) in Table 1.

Factor	Estimate	Standard Error	t Value	p Value
Canopy
(Intercept)	−10.2589	0.1646	−62.33	<0.001
Ts	0.1349	0.0015	88.11	<0.001
log W	1.6838	0.0430	39.20	<0.001
Gap
(Intercept)	4.6302	0.3816	12.14	<0.001
Ts	0.1284	0.0023	55.09	<0.001
log W	−2.3719	0.1038	−22.86	<0.001

) and transformed to the equations displayed in

Table 3. Soil respiration (R_s) estimated from the model using soil temperature (T_s) and soil water content (W). R_s during the growing season was estimated from 27 September to 27 October 2013 and from 4 June to 26 September 2014, and R_s during the snow season was estimated from 28 October 2013 to 3 June 2014. Total R_s was calculated from the R_s values of the canopy and gap areas based on their relative sizes (canopy: 74.4%, gap: 25.6%).

Model		Estimated Rs (g·C·m−2)
		Growing Season	Snow Season
Ts
All	Rs = 0.0198e0.1260Ts	437.4	153.7
Canopy	Rs = 0.0207e0.1258Ts	507.7	111.8
Gap	Rs = 0.0177e0.1296Ts	451.8	97.0
Total		493.4	108.0
Ts & W
Canopy	Rs = 3.5044 × 10−5e0.1349TsW1.684	541.4	No data
Gap	Rs = 102.5405e0.1284TsW−2.372	384.6	No data
Total		501.3

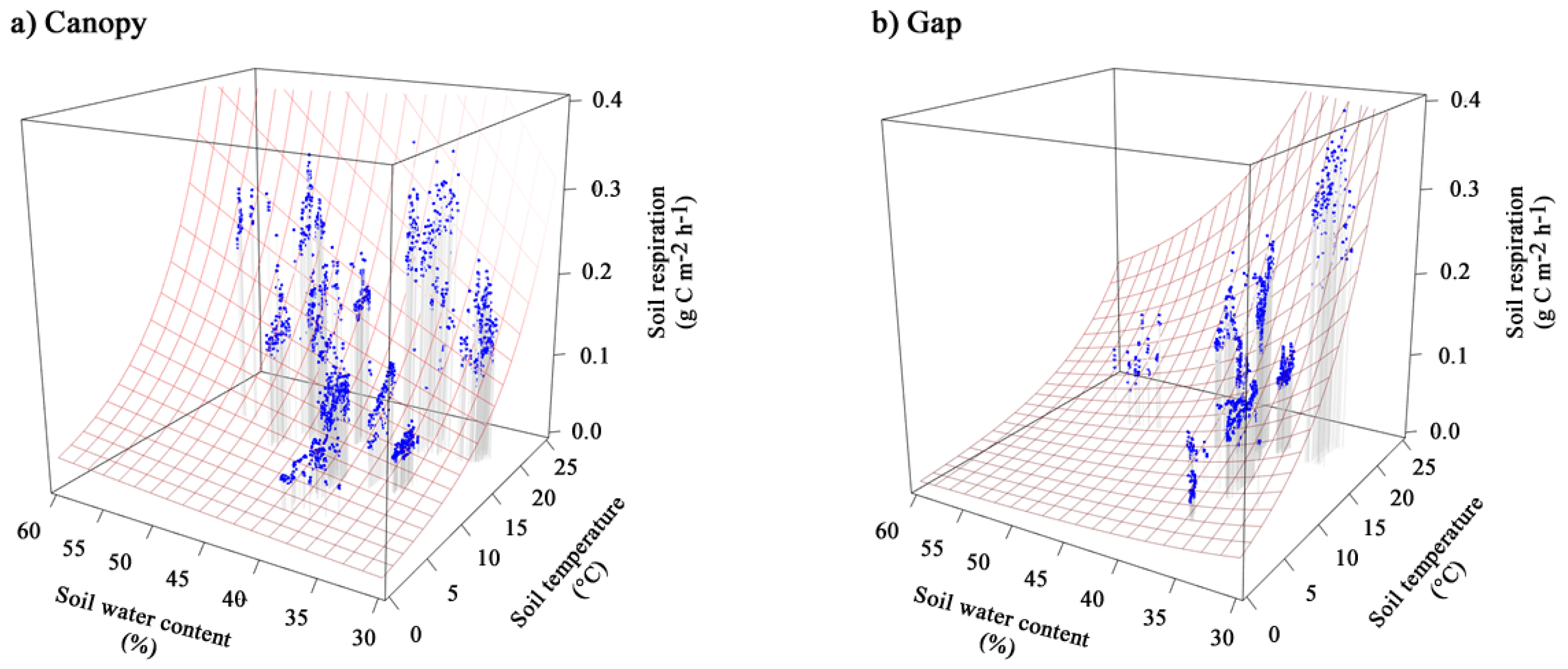

. Figure 7 shows the relationship among R_s, T_s and W based on the best equations in Table 3; R_s in canopy areas tended to increase with T_s and W, and R_s in gap areas tended to increase with T_s and decreasing W.

3.4. Estimation and Upscaling of R_s to the Whole Site

The estimated R_s values from the T_s dependence model and the model incorporating both T_s and W are shown in Table 3. For the growing season, estimated R_s from the exponential relationship was lower than that from the coupled model in canopy areas, but this comparison was reversed in gap areas. During the snow season, R_s was not affected by W. Thus, R_s during this season was estimated from the specific exponential model with T_s.

On the basis of the crown closure of the study plot (canopy: 74.4% of the whole area; gap: 25.6% of the whole area), the R_s values estimated using the model with T_s dependence and the model with the coupling of T_s and W were 493.4 and 501.3 g·C·m⁻², respectively, for the growing season. The R_s value for the snow season estimated using the T_s dependence model was 108.0 g·C·m⁻². Therefore, the annual R_s, in which the estimated R_s for the snow season was included, ranged between 601.4 and 609.3 g·C·m⁻²·year⁻¹. This range based on the crown closure was greater than the annual R_s estimated using the T_s dependence model across all areas (591.1 g·C·m⁻²·year⁻¹).

4. Discussion

4.1. Effect of Soil Temperature and Soil Water Content on Soil Respiration

Temporal change in R_s is primarily controlled by T_s in many temperate deciduous forests [6,7,8]; R_s generally increases with an exponential increase in T_s within the range 0–25 °C. In concurrence with these previous investigations, the present study showed a pattern of increasing R_s with increasing T_s (Figure 7).

In some temperate forests, R_s is influenced not only by T_s but also by W (e.g., [3,32,34,35,36,37,38]). During the dry season, W decreases and the diffusion of soluble substrates slows down, resulting in low R_s [34]. This change in R_s caused by low W might support the result of the effect of low W on low R_s in canopy areas in the present study. When the soil pore space is filled with water and approaches saturation, the movement of oxygen is limited. As a result, the metabolic activity of aerobic organisms in soil decreases; thus, R_s also decreases [38]. This probably explained why high W affected low R_s in gap areas. Without the effect of T_s, the relationship between R_s and W is generally described by a curve, which has minima at the extreme low and high values of W and its maximum at the value of W where the balance of water and oxygen is optimal [9,25]. However, in the present study, there is a possibility that W values producing maximum R_s would be quite different between canopy and gap areas. In addition, the appearance of tree coarse roots partly contributed to the increasing R_s with W in canopy areas. There is evidence that coarse root (diameter > 5 mm) respiration of Pinus taeda declines at low soil water availability [39]. Therefore, because of high root biomass of large trees in canopy areas, high W might induce more metabolic activity and a higher root respiration rate in canopy areas than in gap areas.

The sensitivity of the respiratory process, described by Q₁₀, is known to be related to changes in temperature. Moreover, Q₁₀ largely results from the confounding effect of temperature on multiple processes with covarying variables such as W [9,40]. The factors controlling R_s and Q₁₀ across sites with varying drainage classes were investigated in mixed hardwood forests of the USA by Davidson et al. [9]. This study showed that R_s at well-drained sites was greater than that at wetter sites, whereas Q₁₀ at the wetter sites was greater than that at the well-drained sites. R_s would be less responsive to T_s at the wetter sites than the well-drained sites because, as previously mentioned, high W limits air diffusion and decreases R_s. In the present study, however, the Q₁₀ of R_s in canopy (3.52) and gap (3.65) areas was not different, whereas W in canopy areas tended to be greater than that in gap areas (Figure 5). In addition to W, several studies reported that the Q₁₀ of R_s varied among different components in soil, for example, litter and roots [41,42]. It is possible that both Q₁₀ and R_s between canopy and gap areas were contributed to by the different sensitivity of soil components. For example, the gap areas had the high density of dwarf bamboo (Figure 1) but this litter is not decomposed easily because of the silica content, partly contributing to the low R_s in gap areas. Thus, further study on the contribution of respiration from various soil components to R_s in canopy and gap areas is needed to explain the Q₁₀ results in the present old-growth forest.

4.2. Estimation of Soil Respiration in the Old-Growth Forest

The continuous measurement of temporal R_s is necessarily required to develop models for estimation of annual R_s. Although the previous study of soil respiration in the present old-growth forest was conducted using the soda-lime method [24], this technique could not provide enough detail of diurnal and seasonal changes in R_s. The AOCC system based on closed dynamic methods allows continuous measurement of R_s, creating enough data to understand the relationship between diurnal and seasonal R_s and environmental factors. This method has been used in some forests [3,11,12,13,14] but is rarely used in old-growth forests. Using this system in the present study site sometimes resulted in some problems, in addition to no electricity, for example, the chambers could not fully close due to heavy rain. However, the AOCC system provided sufficient and detailed R_s measurements in the present study.

For evaluation of annual R_s using equations, seasonal R_s has often been estimated using only T_s dependence as an exponential relationship in forests where W is not limiting (e.g., [6,7,8,43,44,45]). However, in forests where there is a drying period, R_s has been estimated by the coupling of T_s and W, although an empirical model using these variables has been unclear [3,31,35,36,37,38,39]. In the present study, the GLM analysis identified the model with the coupling of T_s and W as the best model (Table 1). This model also had more accuracy than the model with only T_s because the model with the coupling of T_s and W included responses of R_s to W, which differed between gap and canopy areas (Figure 7). Therefore, the empirical model with the coupling of T_s and W was suitable for the estimation of R_s for the growing season at the present study site.

At the stand level, the high spatial variability in R_s resulted from large variations in, for example, W [46], soil physical properties [24,47,48,49], fine root biomass [23,24,36,37,50,51], and stand structure [25,46]. A few studies have addressed this spatial variation for upscaling R_s from different measurement points to the site scale [25,46]. In the present old-growth forest, there was a clear gap and canopy structure, and the high R_s in the canopy areas could represent the high root respiration because of high root biomass [24]. Additionally, different responses of R_s to W between canopy and gap areas were found in the present study. Thus, the estimation of R_s should be conducted separately for canopy and gap areas. The estimation of annual R_s with the crown closure could reflect a respective range of R_s values across all gaps to all canopies as 481.6 to 653.2 g·C·m⁻²·year⁻¹. Therefore, the combination of the spatial patterns of R_s, particularly canopy and gap areas, and the crown closure could be used for upscaling R_s from chamber measurements to the stand level in old-growth forests.

5. Conclusions

In the present old-growth forest, the structural complexity created by canopy and gap spaces induced different responses of R_s to T_s and W. R_s increased with increasing T_s in both canopy and gap areas, and Q₁₀ values in these areas were not different. In terms of the effect of W on R_s, this relationship differed between canopy and gap areas; R_s increased with W in canopy areas, but R_s tended to decrease with W in gap areas. Consequently, to understand the influence of T_s and W on R_s estimation, the GLM analysis identified that an empirical model that couples these factors (T_s and W) was better than a simple exponential model with only T_s. Because of these results, it was necessary to estimate R_s in canopy and gap areas separately. Additionally, combining the unique spatial patterns of R_s and the area of the crown closure could allow for upscaling of R_s from field measurements to the whole site in old-growth forests.
