Article

Corrosion Behavior of Ultrafine-Grained CoCrFeMnNi High-Entropy Alloys Fabricated by High-Pressure Torsion

by
Haruka Shimizu
1,†,
Motohiro Yuasa
2,
Hiroyuki Miyamoto
2,* and
Kaveh Edalati
3
1
Graduate School of Mechanical Engineering, Doshisha University, Kyotanabe 610-0394, Japan
2
Department of Mechanical Engineering, Doshisha University, Kyotanabe 610-0394, Japan
3
WPI, International Institute for Carbon-Neutral Research (WPI-I2CNER), Kyushu University, Fukuoka 819-0395, Japan
*
Author to whom correspondence should be addressed.
†
Currently, Daikin Industries Limited, Osaka 566-8585, Japan.
Materials 2022, 15(3), 1007; https://doi.org/10.3390/ma15031007
Submission received: 29 December 2021 / Revised: 18 January 2022 / Accepted: 23 January 2022 / Published: 27 January 2022
(This article belongs to the Special Issue Corrosion and Corrosion Inhibition of Metals and Their Alloys)
Browse Figures
Review Reports Versions Notes

Abstract

The influence of the nanocrystalline structure produced by severe plastic deformation (SPD) on the corrosion behavior of CoCrFeMnNi alloys with Cr contents ranging from 0 to 20 at.% was investigated in aqueous 0.5 M H2SO4 and 3.5% NaCl solutions. The resistance to general corrosion and pitting became higher in both the solutions, with higher passivation capability observed with increasing Cr content, and it is believed that the high corrosion resistance of CoCrFeMnNi alloys can be attributed to the incorporation of the Cr element. However, the impact of the nanocrystalline structure produced by SPD on the corrosion behavior was negligibly small. This is inconsistent with reports on nanocrystalline binary Fe–Cr alloys and stainless steels processed by SPD, where grain refinement by SPD results in higher corrosion resistance. The small change in the corrosion behavior with respect to grain refinement is discussed, based on the passivation process of Fe–Cr alloys and on the influence of the core effects of HEAs on the passivation process.

1. Introduction

As a well-known high-entropy alloys (HEA), equiatomic CoCrFeMnNi alloy, also known as Cantor alloy, has been increasingly investigated in recent years, with a focus on enhanced fracture toughness and ductility at cryogenic temperatures [1]. HEAs could become future materials for structural applications due to these superior properties. However, compared with the mechanical properties, the corrosion properties, which are also important for structural applications, have not been investigated to the same extent. The majority of HEAs, as represented by Cantor alloy, have a higher amount of Cr and Ni compared to commercial stainless steels (SS) such as AISI304, so that they are expected to exhibit high corrosion resistance, and they have been demonstrated to possess high passivating capability in neutral solutions [2,3,4,5,6,7]. However, it seems that the corrosion resistance of HEAs is not necessarily as high as expected given the large Cr and Ni content [2,3,8], and in particular the pitting corrosion resistance in chloride-containing environments is inferior to AISI304 [2,4,8].
Grain refinement to a nanocrystalline structure has a significant influence on the mechanical properties and corrosion behavior of metallic materials. This strong effect is associated with a very small grain size and a large number of structural defects, i.e., grain boundaries and triple points. Such a high fraction of structural defects in nanocrystalline materials can lead to a significant increase in stored energy, which may increase reactivity. This phenomenon is expected to have a dual effect on corrosion behavior, which is dependent upon the material/environment system, as reviewed in [9,10]. As a general rule, a nanocrystalline structure in passivating electrolytes exhibits an improvement in corrosion resistance, whereas in depassivating electrolytes it exhibits a decrease in corrosion resistance [9,10]. The effect of grain size on the corrosion behavior of HEAs has been little studied to date [11,12]. Wang et al. examined the effect of grain size on the corrosion behavior of CoCrFeMnNi alloys and found that both fine-grained (<1.24 μm) and coarse-grained samples (145 μm) exhibited lower corrosion resistance than medium-grain-size specimens [11]. Han et al. examined the corrosion behavior of ultrafine-grained CoCrFeMnNi alloys produced via cryo-rolling and subsequent annealing for a short time, and they found that ultrafine-grained alloys exhibited less corrosion resistance than their coarse-grained counterparts [12]. In these studies, grain size was controlled by plastic deformation and subsequent annealing, and post-deformation annealing may induce elemental segregation or precipitation of phases such as the σ-phase, which degrade corrosion resistance.
Severe plastic deformation (SPD) techniques enable the fabrication of ultrafine-grained (UFG) or nanocrystalline (NC) materials in bulk forms suitable for load-carrying structural applications [13]. With the advent of SPD, there has been an increasing demand to clarify the effect of UFG/NC formation on corrosion from a practical viewpoint, especially with regard to the classic topic of the effect of grain size on corrosion [14,15]. Among the various materials investigated to date, stainless steels exhibited mostly improved corrosion resistance by forming UFG structures by SPD [10,14,15,16,17,18,19,20]. The enhanced corrosion resistance of UFG/NC SSs compared with coarse-grained (CG) materials has been mostly attributed to greater Cr enrichment in the passivation film [19,20,21,22,23,24,25,26,27], which has been validated experimentally by X-ray photoelectron spectroscopy (XPS) [24] and recently by Cs-corrected scanning-transmission electron microscopy (STEM) [28,29]. Two possibilities for the enhanced Cr enrichment in the passivation film of UFG/NC materials have been proposed. One is the selective dissolution of Fe and oxidation of Cr due to the high chemical reactivity of the UFG structure [21,22], and the second is fast diffusion of Cr from the metal matrix to the passivation film through high-density grain boundaries in the UFG alloys [24,25,26,27]. In this context, Cr-containing HEAs, represented by equiatomic CoCrFeNiMn alloys, could be expected to exhibit higher corrosion resistance due to the UFG/NC structure.
Among the various SPD techniques, processing by high-pressure torsion (HPT), where a specimen disk is subjected to a high applied pressure and concurrent torsional strain, is especially effective for producing a microstructure with exceptionally small grain sizes and a large fraction of high-angle grain boundaries [30,31]. Nanocrystalline CoCrFeMnNi HEAs have been fabricated by HPT, and their mechanical properties [32,33,34], microstructures [32,35], thermal stability [32] and superplasticity [36,37] have been studied. However, there have been no reports that describe the influence of HPT processing on the corrosion behavior of HEAs.
The purpose of the present research was to clarify the effect of UFG formation by SPD on the corrosion behavior of high-entropy Cantor alloys with various Cr contents in H2SO4 and NaCl solutions.

2. Materials and Methods

CoCrFeMnNi HEAs with a systematically varied Cr content ranging from 0 to 20 at.% were prepared by arc melting. The chemical compositions of the samples are shown in Table 1. The other elements, i.e., Co, Fe, Mn and Ni, were adjusted to be equiatomic, ranging from 20 to 25 at.%. The as-cast alloys were annealed at 1273 K for 16 h for homogenization in an Ar atmosphere, and this was repeated four times. The alloys were then cut by electrical discharge machining into 10 mm diameter and 1.0 mm thick disks. The disks were subjected to HPT at room temperature with a pressure of 6.0 GPa at 1 rpm for a total of 10 turns. After the homogenization treatment (referred to as CG1-5) and HPT processing (HPT1-5), the samples were evaluated in terms of Vickers microhardness, microstructure, X-ray diffraction (XRD) characteristics and corrosion behavior. The XRD structural analysis was performed using Co Kα radiation (λ = 1.7902 A) with a scanning step of 0.01 deg and a scanning speed of 2 deg/min. Field-emission transmission electron microscopy (FE-TEM, JEM-2100F, JEOL), equipped with energy-dispersive X-ray spectroscopy (EDS) was used to observe the microstructure and elemental distribution after HPT.
Potentiodynamic polarization tests were conducted in 1 M H2SO4 and 3.5 wt.% NaCl solutions at room temperature, using a potentiostat (HZ-5000, Hokuto-Denko Co Ltd., Tokyo, Japan) at a scan rate of 20 mV/min with an Ag/AgCl reference electrode in a saturated KCl solution. Each sample was immersed in the solution for one hour prior to the polarization tests. Dissolved oxygen was removed from the solution with argon gas before corrosion testing.
To investigate the chemical composition of passivation films on the equiatomic CG5 and HPT5 samples (20 at.% Cr), the samples were charged under potentiostatic conditions for 2 h at a potential of +400 mVAg/AgCl in 1 M H2SO4 solution, to produce stable passivation films. The potential was chosen with reference to the characteristic features of the potentiodynamic polarization curve. Cross-sectional TEM samples of the passivation film formed on the alloys after corrosion tests were prepared using focused ion beam milling (FIB, NB5000, Hitachi Hi-technology, Tokyo, Japan) at an acceleration voltage of 10–40 kV, following the deposition of a Pt layer to protect the surface of the alloys. Cross-sectional images of the passivation films formed on the alloys were characterized using high-resolution transmission electron microscopy (HRTEM), and the chemical composition of the passivation films was investigated using Cs-corrected high-angle annular dark-field STEM (Cs-corrected HAADF-STEM) (JEM NEOARM, JEOL, Akishima, Tokyo, Japan) equipped with EDS (JED-2300T, JEOL, Akishima, Tokyo, Japan)) at an acceleration voltage of 200 kV.

3. Results

Figure 1 shows the XRD patterns for the initial homogenized samples (designated CG1 to 5) and HPT samples (20 at.% Cr designated as HPT5). They all exhibit a typical single face-centered cubic (fcc) phase, and peak broadening is recognized for the HPT5 samples. There is no evidence of the formation of a new phase or the occurrence of phase transformation during the HPT processing. This stable single fcc phase of the Cantor alloy after HPT processing was also reported by other researchers using XRD [33], and the alloy remained a true single-phase solid solution down to the atomic scale, as demonstrated using three-dimensional atom probe tomography (3D-APT) [32].
Figure 2 shows the distribution of microhardness for the CG5 and HPT1-5 samples along the diameter. The lower dashed line at Hv = 120 corresponds to the initial hardness for the homogenized condition of CG5. The hardness was almost completely uniform across the entire diameter after HPT for 10 turns, and compared to the homogenized condition, the hardness was increased significantly by a factor of 4 to Hv = 510 in all samples.
Shahmir et al. processed equiatomic CoCrFeNiMn alloys using HPT, and the materials reached a saturation hardness of Hv = 450, which is slightly smaller than the value obtained in the present study. They also reported that fully uniform hardness was not achieved even after 10 turns; a small center area was softer than the edge part [33]. The reason for this inconsistency with the present results is unknown; however, the initial grain size or the level of slippage between the anvil and the disc may be responsible.
Bright-field TEM images at the center and edge parts of HPT5 samples are shown in Figure 3. The microstructure consists of small grains with an average grain size of about 40 nm, many of which are surrounded by curved or ill-defined grain boundaries. Selected area electron diffraction (SAED) analysis revealed well-defined ring patterns, which indicates that the grain boundaries mostly had high angles of misorientation. Both the bright-field images and the SAED analysis indicate that there was essentially no distinct difference in the microstructure between the center and edges, as also indicated by the Vickers microhardness test. Elemental distributions of the HPT5 sample observed using STEM-EDS are shown in Figure 4. The distribution of all elements was fairly uniform, and there was no visible segregation or agglomeration after HPT.
Figure 5 shows the potentiodynamic polarization curves for all samples in 0.5 M H2SO4 solution. All the CG and HPT specimens passed through the active, active–passive transition and passive regions, followed by second active, passive and transpassive regions, with increasing anodic polarization potential. Both the peak current ip at the active–passive transition and the steady-state passive current ipass decreased with increasing Cr content in both the CG and HPT alloys, which indicates that Cr increases the passivation ability, as documented in binary Fe–Cr alloys [22]. Therefore, Cr has a predominantly strong influence on the corrosion behavior among the constituent elements of these HEAs. The secondary passivation is associated with the oxidation of MnO2, while the final breakdown is dominated by the dissolution of MnO4 [7]. Therefore, the secondary peak position was almost the same for all the alloys despite the different amounts of Cr. Figure 6 compares the polarization curves for the CG and HPT specimens with the same amount of Cr. For all Cr contents, the polarization curves almost completely overlapped for the HPT and CG samples, which indicates that nanocrystalline formation did not alter the electrochemical behavior, irrespective of the amount of Cr. The peak current density ip of the active region and the passive current ipass are shown as a function of the Cr content in Figure 7. Data for high-purity Fe–Cr alloys and AISI304SS are also shown for reference [20,22,38]. Note that the fitting lines for ip and ipass for both the present alloys and the binary Fe–Cr alloys are almost matched, except for ipass for the Fe–Cr alloys reported by Gupta et al. [22]. This indicates that Cr exclusively influences the passivation behavior. According to the results of Gupta et al. [22], both ip and ipass in nanocrystalline structures are smaller than in their coarse-grained counterparts. Figure 8 shows the potentiodynamic polarization curves in 3.5%NaCl solutions. Both the HPT and CG alloys showed spontaneous passivity with increasing overpotential, and the passivation films prevented continuous dissolution of the surface. Current fluctuations were conspicuous in the entire passive region and are attributed to the formation and repassivation of metastable pits. While passive currents gradually increased with the anodic overpotential in the CG samples, those for the HPT samples stayed constant until the breakdown potential, which indicates higher protective properties of the passivation films of the HPT samples. The passivation breakdown potential due to pit formation, Epit, increases with Cr content in both the CG and HPT specimens. It was confirmed that the pits were not localized in the center part, which has an immature microstructure compared with the edge part. Figure 9 shows the critical pitting potential Epit as a function of the pitting resistance equivalent number (PRE). PRE (= Cr + 3.3 Mo) provides an empirical relative estimation of the pitting corrosion resistance for Fe–Cr and Fe–Cr–Ni alloys based on experimental fitting of the pitting potentials when exposed to NaCl solution. It is apparent that the pitting potentials for the HEAs are on the same fitting line as for high-purity Fe–Cr alloys (Figure 9). These results indicate that the resistance to pitting of the HEAs is determined exclusively by Cr, and the effect of other elements such as Ni and Co on the passivity is limited. If one compares the pitting potential with those of 304 SS [39,40], the pitting potential of 304 SS is higher than that in the present results despite having the same PRE, and it increased with the formation of the UFG structure. However, little difference in Epit was observed between the HPT and CG samples, which suggests that UFG formation by HPT has little impact on the protective properties of the passivation film and the corrosion resistance.
Figure 10 shows the EDS line profiles for the CG5 and HPT5 specimens after polarization in the passive region (400 mVAg/AgCl) for 2 h in 0.5 M H2SO4 solution. Figure 11 shows the corresponding STEM images and elemental maps. The layer with a high O signal is considered to be the passivation film. A Cr-rich oxide layer was observed on both CG and HPT specimens, which indicates that a stable passivation film can form on both specimens and that Cr is the main passivation former. In binary Fe–Cr alloys, Cr enrichment of the passivation films, which has mainly been observed using XPS, is due to the selective dissolution of Fe and the higher oxidation tendency of Cr [41,42,43], and a higher Cr/(Fe + Cr) ratio in the passivation film results in higher corrosion resistance. In HEAs, higher dissolution of Fe, Ni, Co and Mn compared to Cr is considered to occur during anodic dissolution, and this could result in Cr enrichment. The levels of Cr enrichment, expressed as the Cr/(Fe + Cr + Co + Ni + Mn) ratio, are comparable in both CG and UFG specimens and are smaller than 0.5, and this is consistent with the similar corrosion behavior of the two samples. According to Gupta et al. [22], the level of Cr enrichment Cr/(Fe + Cr) of the passivation film in Fe–20%-Cr alloys passivated in H2SO4 solutions increases with NC formation and reaches 0.8 [22], which is higher than the present result. Therefore, it is considered that the selective dissolution of other elements during the anodic reaction is not facilitated in HEAs compared with that of Fe in Fe–Cr alloys. The Ni-rich phenomenon underneath the surface oxide film was also observed in CoCrFeMnNi alloy [5], and this is commonly seen in studies of austenitic stainless steels [29].

4. Discussion

In the studied CoCrFeMnNi alloys, the amount of Cr had a strong effect on the electrochemical behavior, and the passivity became more stable with increasing amounts of Cr. This higher pitting potential in NaCl solution and greater protective properties of passivation films in H2SO4 with a higher amount of Cr has been established in binary Fe–Cr alloys and stainless steels. However, in spite of extensive reports of enhanced corrosion resistance in UFG Fe–Cr alloys, in the present study, the effect of UFG formation on the corrosion resistance was less than expected; UFG formation via HPT of CoCrFeMnNi had little or no impact on the corrosion behavior.
Cr enrichment of passivation films in binary Fe–Cr alloys has often been attributed to the selective dissolution of Fe and the oxidation of Cr [41,42,43,44]. Higher corrosion resistance of UFG Fe–Cr alloys fabricated by SPD than that of CG alloys, which has been reported by many researchers [10,14,15,16,17,18,19,20], is mostly attributed to greater Cr enrichment of the passivation film [19,20,21,22,23,24,25,26,27]. This local enrichment of Cr in the passivation film was mostly validated experimentally using XPS and established to date. This greater Cr enrichment in UFG Fe–Cr alloys has been explained by the following two processes. The first explanation is accelerated selective dissolution of Fe and oxidation of Cr [21,22]. UFG materials have a high density of grain boundaries, and atoms at grain boundaries have higher chemical activity, which results in greater dissolution into the solution and oxidation. The second explanation is the faster diffusion of Cr from the base metal to the passivation film through high-density grain boundaries which act as fast diffusion channels in UFG alloys [24,25,26,27]. Significant diffusion of Cr in nanostructured Fe–Cr alloys was reported by Wang et al., where Cr diffusion in nanostructured Fe–Cr alloys was 7 to 9 times faster than in the Fe lattice, and 4 to 5 times faster than at the grain boundaries of Fe [45]. This fast diffusion in nanostructured Fe is attributed to a high density of non-equilibrium grain boundaries [45].
The present results for CoCrFeMnNi alloys on the stable passivation composition against UFG formation (or less sensitive composition to grain size than Fe–Cr alloys) can be explained by considering some high-entropy effects, which are among the four core effects of HEAs. The high-entropy effect of HEAs decreases the possibility of elemental segregation or local enrichment of specific elements and favors the formation of a uniform distribution of component elements. Therefore, the selective dissolution of specific elements, which leads to local enrichment of the other remaining elements, increases the mixing enthalpy and may destabilize the fcc phase. Thus, selective dissolution could be suppressed during anodic dissolution. Luo et al. conducted an in situ element-resolved corrosion analysis using online ICP-MS analysis and concluded that no obvious selective dissolution of Mn, Co, Ni and Fe occurred during surface passivation of the equiatomic HEA in 0.1 M H2SO4 [3]. The second reason for the small influence of grain size on the corrosion behavior of CrCoFeMnNi alloys compared with Fe–Cr alloys is related to diffusion. The kinetics of diffusion are considered to be low in HEAs [46], and the so-called sluggish diffusion suppresses Cr diffusion from the base metal to the passivation film and thus suppresses Cr enrichment, in spite of UFG formation with high-density grain boundaries. In addition, grain boundaries in HEAs may not provide a fast diffusion channel due to grain boundary segregation [47] and a low average grain boundary energy [48,49]. Since the grain boundary is regarded as surplus energy when a grain boundary is embedded in a single crystal, the grain boundary energy in HEAs is significantly reduced due to the severe lattice distortion inside the grains [48,49]. This is because the energy difference between the grain boundaries and grain interior becomes small. Therefore, grain refinement or a high density of grain boundaries may not facilitate Cr diffusion and local enrichment in the passivation film during anodic dissolution in CrCoFeMnNi alloys.

5. Conclusions

The corrosion behavior of UFG CoCrFeMnNi alloys processed by HPT with Cr contents ranging from 0 to 20 at.% was investigated in 3.5% NaCl and 0.5 M H2SO4 solutions and compared to homogenized coarse-grained (CG) counterpart materials. Several conclusions were obtained, as follows.
The polarization curves in 1 M H2SO4 solution showed the active–passive, passive and transpassive behavior typical of binary Fe–Cr alloys. An increase in Cr content decreased the potential of the active–passive transition, and thus increased the ability to passivate. Cr was the dominant element providing the passivation ability.
The polarization curves in 1 M H2SO4 solution showed little difference between the coarse-grained state after homogenization and the nanocrystalline structure after HPT. The impact of nanocrystalline structure on corrosion was negligibly small. Similarly, corrosion resistance to pitting in 3.5% NaCl solution was also little affected by the formation of the nanocrystalline structure, and this is in striking contrast to the high corrosion resistance of nanocrystalline or ultrafine-grained stainless steels processed by SPD reported elsewhere.
Moderate Cr enrichment in the passivation films was observed equally for coarse-grained and nanocrystalline structures. This stable, less-sensitive composition in the passivation film with respect to grain refinement may originate from the core effects, i.e., severe lattice distortion and sluggish diffusion of high-entropy alloys.

Author Contributions

Investigation, methodology and original draft, H.S.; validation and review and editing, M.Y.; conceptualization, funding acquisition, project administration and review and editing, H.M.; investigation, funding acquisition and review and editing, K.E. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Grants-in-Aid for Scientific Research on Innovative Areas on High Entropy Alloys (grant numbers 19H05178,19H05176, 21H00150 and 21H00155) from the Ministry of Education, Culture, Sports, Science and Technology (MEXT), Japan and by a grant from the IKETANI Foundation (2020 0321097-A). The authors would like to thank Abe and Ohnuma of the National Institute for Materials Science (NIMS) for the calculation of phase diagrams to design the alloy compositions using CALPHAD.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw processed data required to reproduce these findings cannot be shared at this time as the data also form part of an ongoing study.

Acknowledgments

The authors would like to thank Haruyuki Inui and Kodai Niitsu of Kyoto University for providing us with the arc melting apparatus, and Takumi Haruna of Kansai University for valuable comments and discussions on the corrosion behavior of our samples.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this manuscript.

References

  1. Gludovatz, B.; Hohenwarter, A.; Catoor, D.; Chang, E.H.; George, E.P.; Ritchie, R.O. A fracture-resistant high-entropy alloy for cryogenic applications. Science 2014, 345, 1153–1158. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  2. Ye, Q.; Feng, K.; Li, Z.; Lu, F.; Li, R.; Huang, J.; Wu, Y. Microstructure and corrosion properties of CrMnFeCoNi high entropy alloy coating. Appl. Surf. Sci. 2017, 396, 1420–1426. [Google Scholar] [CrossRef] [Scilit]
  3. Luo, H.; Li, Z.; Mingers, A.M.; Raabe, D. Corrosion behavior of an equiatomic CoCrFeMnNi high-entropy alloy compared with 304 stainless steel in sulfuric acid solution. Corr. Sci. 2018, 134, 131–139. [Google Scholar] [CrossRef] [Scilit]
  4. Torbati-Sarraf, H.; Shabani, M.; Jablonski, P.D.; Pataky, G.J.; Poursaee, A. The influence of incorporation of Mn on the pitting corrosion performance of CrFeCoNi High Entropy Alloy at different temperatures. Mater. Des. 2019, 184, 108170. [Google Scholar] [CrossRef] [Scilit]
  5. Wang, L.; Mercier, D.; Zanna, S.; Seyeux, A.; Laurent-Brocq, M.; Perrière, L.; Guillot, I.; Marcus, P. Study of the surface oxides and corrosion behaviour of an equiatomic CoCrFeMnNi high entropy alloy by XPS and ToF-SIMS. Corr. Sci. 2020, 167, 108507. [Google Scholar] [CrossRef] [Scilit]
  6. Yang, J.; Wu, J.; Zhang, C.Y.; Zhang, S.D.; Yang, B.J.; Emori, W.; Wang, J.Q. Effects of Mn on the electrochemical corrosion and passivation behavior of CoFeNiMnCr high-entropy alloy system in H2SO4 solution. J. Alloys Compd. 2020, 819, 152943. [Google Scholar] [CrossRef] [Scilit]
  7. Hsu, K.-M.; Lin, C.-S. Microstructural and electrochemical characterization of the passive film on a 50-kg hot rolled FeCrNiCoMn high entropy alloy. Mater. Today Commun. 2021, 26, 101979. [Google Scholar] [CrossRef] [Scilit]
  8. Qiu, Y.; Gibson, M.A.; Fraser, H.L.; Birbilis, N. Corrosion characteristics of high entropy alloys. Mater. Sci. Techol. 2015, 31, 1235–1243. [Google Scholar] [CrossRef] [Scilit]
  9. Koch, C.C.; Ovid’ko, I.A.; Seal, S.; Veprek, S. Corrosion of structural nanomaterials. In Structural Nanocrystalline Materials; Cambridge University Press: Cambridge, UK, 2007; pp. 317–340. [Google Scholar]
  10. Ralston, K.D.; Birbilis, N. Effect of grain size on corrosion: A review. Corrosion 2010, 66, 075005. [Google Scholar] [CrossRef] [Scilit]
  11. Wang, Y.; Jin, J.; Zhang, M.; Wang, X.; Gong, P.; Zhang, J.; Liu, J. Effect of the grain size on the corrosion behavior of CoCrFeMnNi HEAs in a 0.5 M H2SO4 solution. J. Alloys Compd. 2021, 858, 157712. [Google Scholar] [CrossRef] [Scilit]
  12. Han, Z.; Ren, W.; Yang, J.; Tian, A.; Du, Y.; Liu, G.; Wei, R.; Zhang, G.; Chen, Y. The corrosion behavior of ultra-fine grained CoNiFeCrMn high-entropy alloys. J. Alloys Compd. 2020, 816, 152583. [Google Scholar] [CrossRef] [Scilit]
  13. Valiev, R.Z.; Islamgaliev, R.K.; Alexandrov, I.V. Bulk nanostructured materials from severe plastic deformation. Prog. Mater. Sci. 2000, 45, 103–189. [Google Scholar] [CrossRef] [Scilit]
  14. Miyamoto, H. Corrosion of ultrafine grained materials by severe plastic deformation, an overview. Mater. Trans. 2016, 57, 559–572. [Google Scholar] [CrossRef] [Scilit]
  15. Miyamoto, H.; Yuasa, M.; Rifai, M.; Fujiwara, H. Corrosion behavior of severely deformed pure and single-phase materials. Mater. Trans. 2019, 60, 1243–1255. [Google Scholar] [CrossRef] [Scilit]
  16. Gupta, R.K.; Birbilis, N. The influence of nanocrystalline structure and processing route on corrosion of stainless steel: A review. Corr. Sci. 2015, 92, 1–15. [Google Scholar] [CrossRef] [Scilit]
  17. Raman, R.K.S.; Gupta, R.K. Oxidation resistance of nanocrystalline vis-à-vis microcrystalline Fe–Cr alloys. Corr. Sci. 2009, 51, 316–321. [Google Scholar] [CrossRef] [Scilit]
  18. Raman, R.K.S.; Gupta, R.K.; Koch, C.C. Resistance of nanocrystalline vis-a-vis microcrytalline Fe-Cr alloys to environmental degradation and challenge to their synthesis. Philos. Mag. 2010, 90, 3233–3260. [Google Scholar] [CrossRef] [Scilit]
  19. Pisarek, M.; Kȩdzierzawski, P.; Janik-Czachor, M.; Kurzydłowski, K.J. Effect of hydrostatic extrusion on passivity breakdown on 303 austenitic stainless steel in chloride solution. J. Solid State Electrochem. 2009, 13, 283–291. [Google Scholar] [CrossRef] [Scilit]
  20. Zheng, Z.J.; Gao, Y.; Gui, Y.; Zhu, M. Corrosion behaviour of nanocrystalline 304 stainless steel prepared by equal channel angular pressing. Corr. Sci. 2012, 54, 60–67. [Google Scholar] [CrossRef] [Scilit]
  21. Gupta, R.K.; Singh Raman, R.K.; Koch, C.C.; Murty, B.S. Effect of nanocrystalline structure on the corrosion of a Fe20Cr alloy. Int. J. Electrochem. Sci. 2013, 8, 6791–6806. [Google Scholar]
  22. Gupta, R.K.; Singh Raman, R.K.; Koch, C.C. Electrochemical characteristics of nano and microcrystalline Fe–Cr alloys. J. Mater. Sci. 2012, 47, 6118–6124. [Google Scholar] [CrossRef] [Scilit]
  23. Meng, G.; Li, Y.; Wang, F. The corrosion behavior of Fe–10Cr nanocrystalline coating. Electrochim. Acta 2006, 51, 4277–4284. [Google Scholar] [CrossRef] [Scilit]
  24. Pan, C.; Liu, L.; Bin, Z.; Wang, F. The electrochemical corrosion behaviour of nanocrystalline 304 stainless steel prepared by magnetron sputtering. J. Electrochem. Soc. 2012, 159, C453–C460. [Google Scholar] [CrossRef] [Scilit]
  25. Li, S.; Ren, Z.; Dong, Y.; Ye, C.; Cheng, G.; Cong, H. Enhanced Pitting Corrosion Resistance of 304 SS in 3.5 wt% NaCl by Ultrasonic Nanocrystal Surface Modification. J. Electrochem. Soc. 2017, 164, C682–C689. [Google Scholar] [CrossRef] [Scilit]
  26. Koch, C.C. Structural nanocrystalline materials: An overview. J. Mater. Sci. 2007, 42, 1403–1414. [Google Scholar] [CrossRef] [Scilit]
  27. Hajizadeh, K.; Maleki-Ghaleh, H.; Arabi, A.; Behnamian, Y.; Aghaie, E.; Farrokhi, A.; Hosseini, M.G.; Fathi, M.H. Corrosion and biological behavior of nanostructured 316L stainless steel processed by severe plastic deformation. Surf. Interface Anal. 2015, 47, 978–985. [Google Scholar] [CrossRef] [Scilit]
  28. Oh, K.; Ahn, S.; Eom, K.; Jung, K.; Kwon, H. Observation of passive films on Fe–20Cr–xNi (x = 0, 10, 20wt.%) alloys using TEM and Cs-corrected STEM–EELS. Corr. Sci. 2014, 79, 34–40. [Google Scholar] [CrossRef] [Scilit]
  29. Hamada, E.; Yamada, K.; Nagoshi, M.; Makiishi, N.; Sato, K.; Ishii, T.; Fukuda, K.; Ishikawa, S.; Ujiro, T. Direct imaging of native passive film on stainless steel by aberration corrected STEM. Corr. Sci. 2010, 52, 3851–3854. [Google Scholar] [CrossRef] [Scilit]
  30. Edalati, K. Metallurgical Alchemy by Ultra-Severe Plastic Deformation via High-Pressure Torsion Process. Mater. Trans 2019, 60, 1221–1229. [Google Scholar] [CrossRef] [Scilit]
  31. Zhilyaev, A.P.; Langdon, T.G. Using high-pressure torsion for metal processing: Fundamentals and applications. Prog. Mater. Sci. 2008, 53, 893–979. [Google Scholar] [CrossRef] [Scilit]
  32. Schuh, B.; Mendez-Martin, F.; Völker, B.; George, E.P.; Clemens, H.; Pippan, R.; Hohenwarter, A. Mechanical properties, microstructure and thermal stability of a nanocrystalline CoCrFeMnNi high-entropy alloy after severe plastic deformation. Acta Mater. 2015, 96, 258–268. [Google Scholar] [CrossRef] [Scilit]
  33. Shahmir, H.; He, J.; Lu, Z.; Kawasaki, M.; Langdon, T.G. Effect of annealing on mechanical properties of a nanocrystalline CoCrFeNiMn high-entropy alloy processed by high-pressure torsion. Mater. Sci. Eng. A 2016, 676, 294–303. [Google Scholar] [CrossRef] [Scilit]
  34. Lee, D.-H.; Lee, J.-A.; Zhao, Y.; Lu, Z.; Suh, J.-Y.; Kim, J.-Y.; Ramamurty, U.; Kawasaki, M.; Langdon, T.G.; Jang, J.-I. Annealing effect on plastic flow in nanocrystalline CoCrFeMnNi high-entropy alloy. A nanomechanical analysis. Acta Mater. 2017, 140, 443–451. [Google Scholar] [CrossRef] [Scilit]
  35. Skrotzki, W.; Pukenas, A.; Joni, B.; Odor, E.; Ungar, T.; Hohenwarter, A.; Pippan, R.; George, E.P. Microstructure and texture evolution during severe plastic deformation of CrMnFeCoNi high-entropy alloy. IOP Conf. Ser. Mater. Sci. Eng. 2017, 194, 012028. [Google Scholar] [CrossRef] [Scilit]
  36. Shahmir, H.; Nili-Ahmadabadi, M.; Shafiee, A.; Langdon, T.G. Effect of a minor titanium addition on the superplastic properties of a CoCrFeNiMn high-entropy alloy processed by high-pressure torsion. Mater. Sci. Eng. A 2018, 718, 468–476. [Google Scholar] [CrossRef] [Scilit]
  37. Shahmir, H.; He, J.; Lu, Z.; Kawasaki, M.; Langdon, T.G. Evidence for superplasticity in a CoCrFeNiMn high-entropy alloy processed by high-pressure torsion. Mater. Sci. Eng. A 2017, 685, 342–348. [Google Scholar] [CrossRef] [Scilit]
  38. Hosoi, Y. Localized Corrosion of High Purity Ferritic Stainless Steels and Effects of Alloying Elements. Zairyo-to-Kankyo 2007, 56, 439–446. [Google Scholar] [CrossRef]
  39. Di Schino, A.; Kenny, J.M. Effects of the grain size on the corrosion behavior of refined AISI 304 austenitic stainless steels. J. Mater. Sci. Lett. 2002, 21, 1631–1634. [Google Scholar] [CrossRef] [Scilit]
  40. Kamachi Mudali, U.; Dayal, R.K. Influence of nitrogen addition on the crevice corrosion resistance of nitrogen-bearing austenitic steels. J. Mater. Sci. 2000, 35, 1799–1803. [Google Scholar] [CrossRef] [Scilit]
  41. Asami, K.; Hashimoto, K.; Shimodaira, S. An XPS study of the passivity of a series of iron-chromium alloys in sulphuric acid. Corr. Sci. 1978, 18, 151–160. [Google Scholar] [CrossRef]
  42. Kirchheim, R.; Heine, B.; Fischmeister, H.; Hofmann, S.; Knote, H.; Stolz, U. The passivity of iron-chromium alloys. Corr. Sci. 1989, 29, 899–917. [Google Scholar] [CrossRef] [Scilit]
  43. Olsson, C.O.A.; Landolt, D. Passive films on stainless steels—chemistry, structure and growth. Electrochim. Acta 2003, 48, 1093–1104. [Google Scholar] [CrossRef] [Scilit]
  44. Hamm, D.; Ogle, K.; Olsson, C.O.A.; Weber, S.; Landolt, D. Passivation of Fe–Cr alloys studied with ICP-AES and EQCM. Corr. Sci. 2002, 44, 1443–1456. [Google Scholar] [CrossRef] [Scilit]
  45. Wang, Z.B.; Tao, N.R.; Tong, W.P.; Lu, J.; Lu, K. Diffusion of chromium in nanocrystalline iron produced by means of surface mechanical attrition treatment. Acta Mater. 2003, 51, 4319–4329. [Google Scholar] [CrossRef] [Scilit]
  46. Tsai, K.Y.; Tsai, M.H.; Yeh, J.W. Sluggish diffusion in Co–Cr–Fe–Mn–Ni high-entropy alloys. Acta Mater. 2013, 61, 4887–4897. [Google Scholar] [CrossRef] [Scilit]
  47. Utt, D.; Stukowski, A.; Albe, K. Grain boundary structure and mobility in high-entropy alloys: A comparative molecular dynamics study on a Σ11 symmetrical tilt grain boundary in face-centered cubic CuNiCoFe. Acta Mater. 2020, 186, 11–19. [Google Scholar] [CrossRef] [Scilit]
  48. Chen, B.-R.; Yeh, A.-C.; Yeh, J.-W. Effect of one-step recrystallization on the grain boundary evolution of CoCrFeMnNi high entropy alloy and its subsystems. Sci. Rep. 2016, 6, 22306. [Google Scholar] [CrossRef] [Scilit]
  49. Zhou, N.; Hu, T.; Huang, J.; Luo, J. Stabilization of nanocrystalline alloys at high temperatures via utilizing high-entropy grain boundary complexions. Scr. Mater. 2016, 124, 160–163. [Google Scholar] [CrossRef] [Scilit]
Materials 15 01007 g001

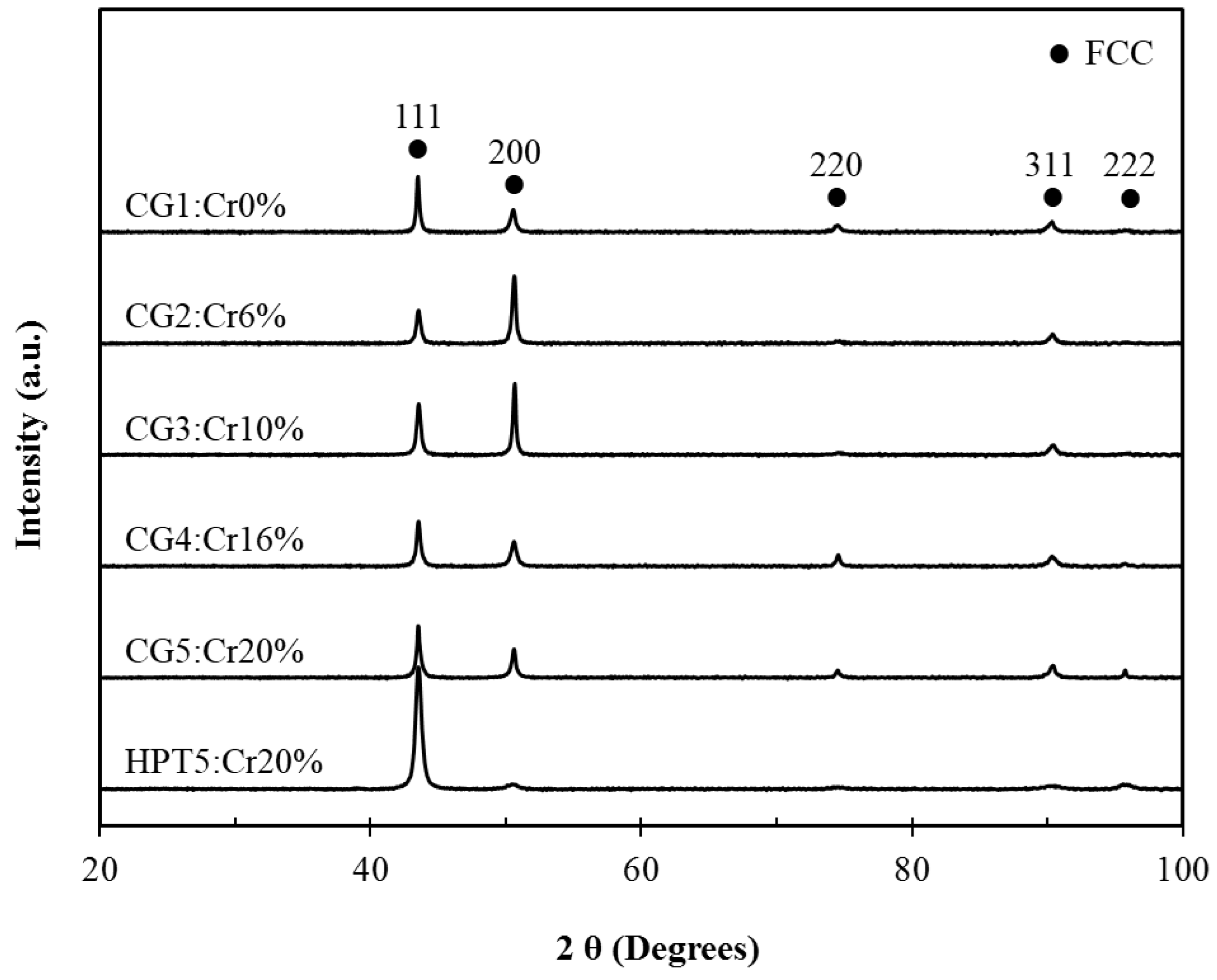

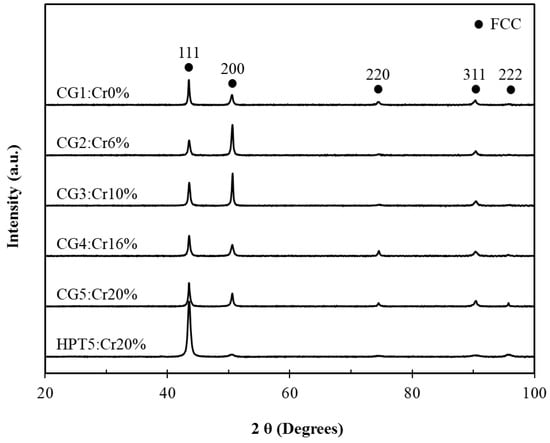

Figure 1. X-ray diffraction spectra after homogenization and HPT processing.
Figure 1. X-ray diffraction spectra after homogenization and HPT processing.
Materials 15 01007 g001
Materials 15 01007 g002

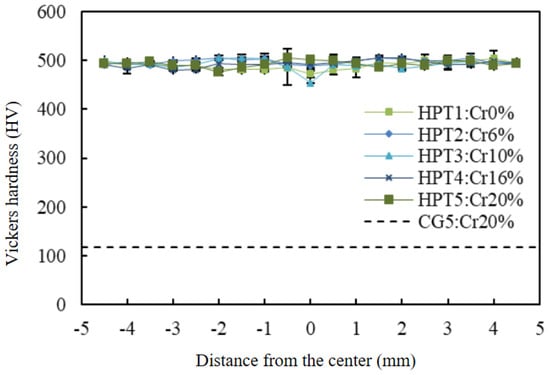

Figure 2. Vickers microhardness profiles after 10 turns of HPT for all samples.
Figure 2. Vickers microhardness profiles after 10 turns of HPT for all samples.
Materials 15 01007 g002
Materials 15 01007 g003

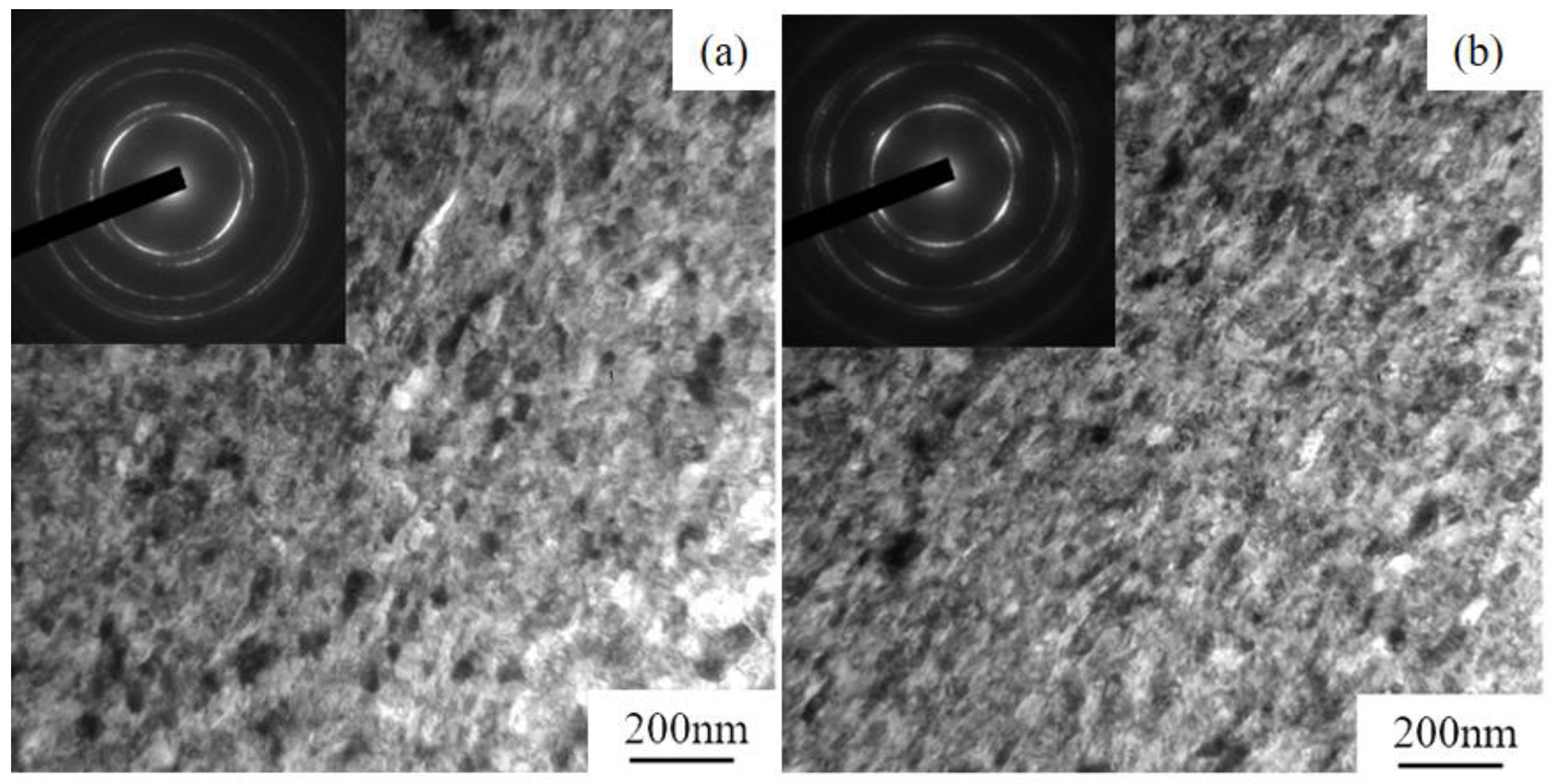

Figure 3. TEM images and corresponding SAED patterns of 20 at.% Cr after 10 turns of HPT (HPT5): (a) center; (b) edge part of the disc.
Figure 3. TEM images and corresponding SAED patterns of 20 at.% Cr after 10 turns of HPT (HPT5): (a) center; (b) edge part of the disc.
Materials 15 01007 g003
Materials 15 01007 g004

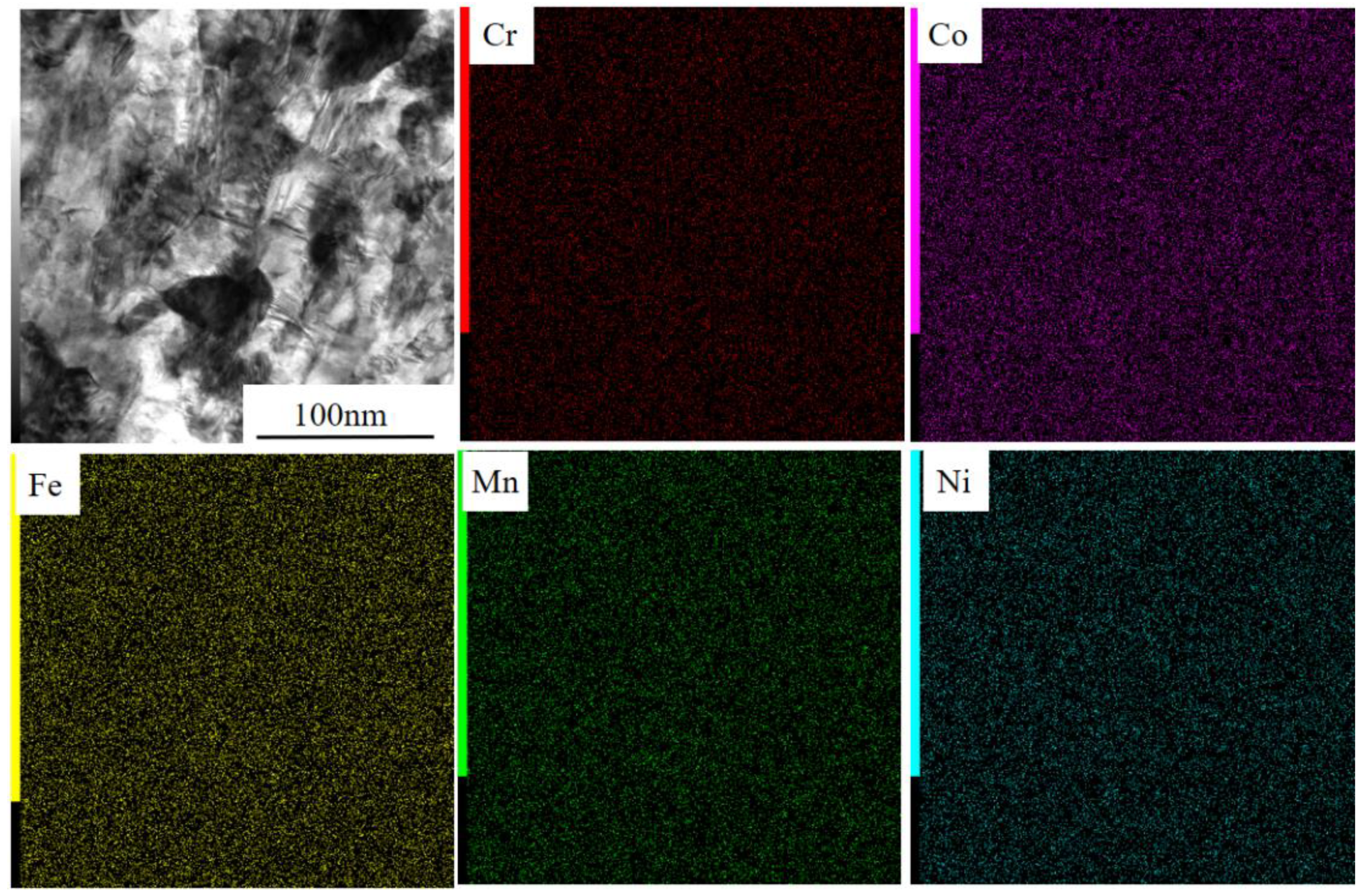

Figure 4. Elemental maps obtained by STEM-EDS for 20 at.% Cr after 10 turns of HPT (HPT5).
Figure 4. Elemental maps obtained by STEM-EDS for 20 at.% Cr after 10 turns of HPT (HPT5).
Materials 15 01007 g004
Materials 15 01007 g005

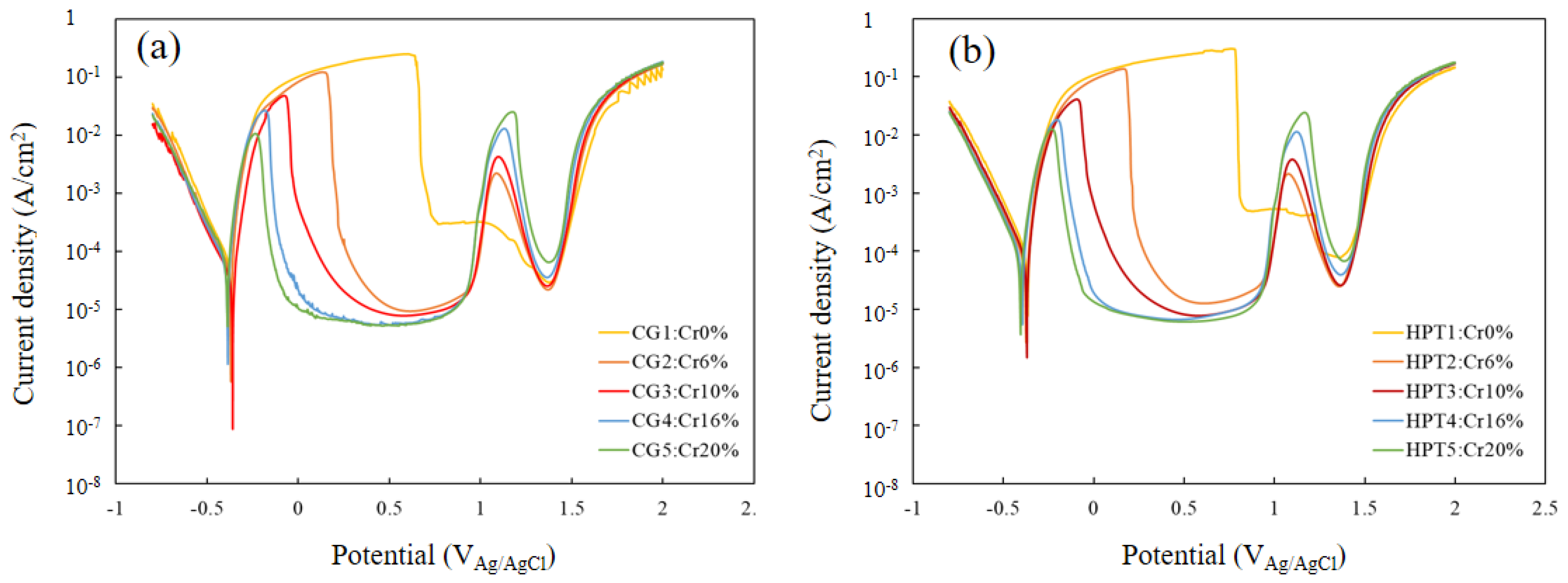

Figure 5. Dynamic polarization curves in 1 M H2SO4 solution after (a) homogenization (CG) and (b) HPT processing (HPT).
Figure 5. Dynamic polarization curves in 1 M H2SO4 solution after (a) homogenization (CG) and (b) HPT processing (HPT).
Materials 15 01007 g005
Materials 15 01007 g006

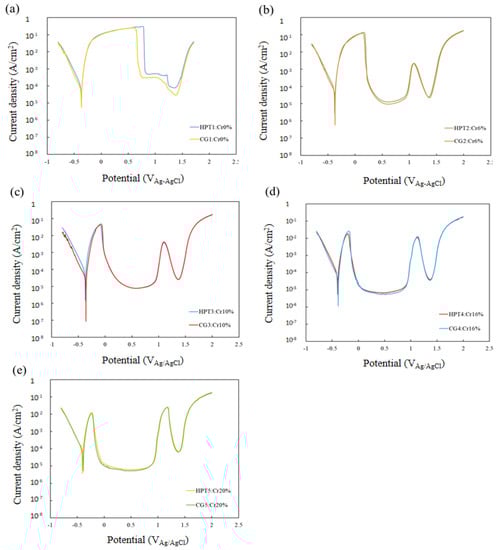

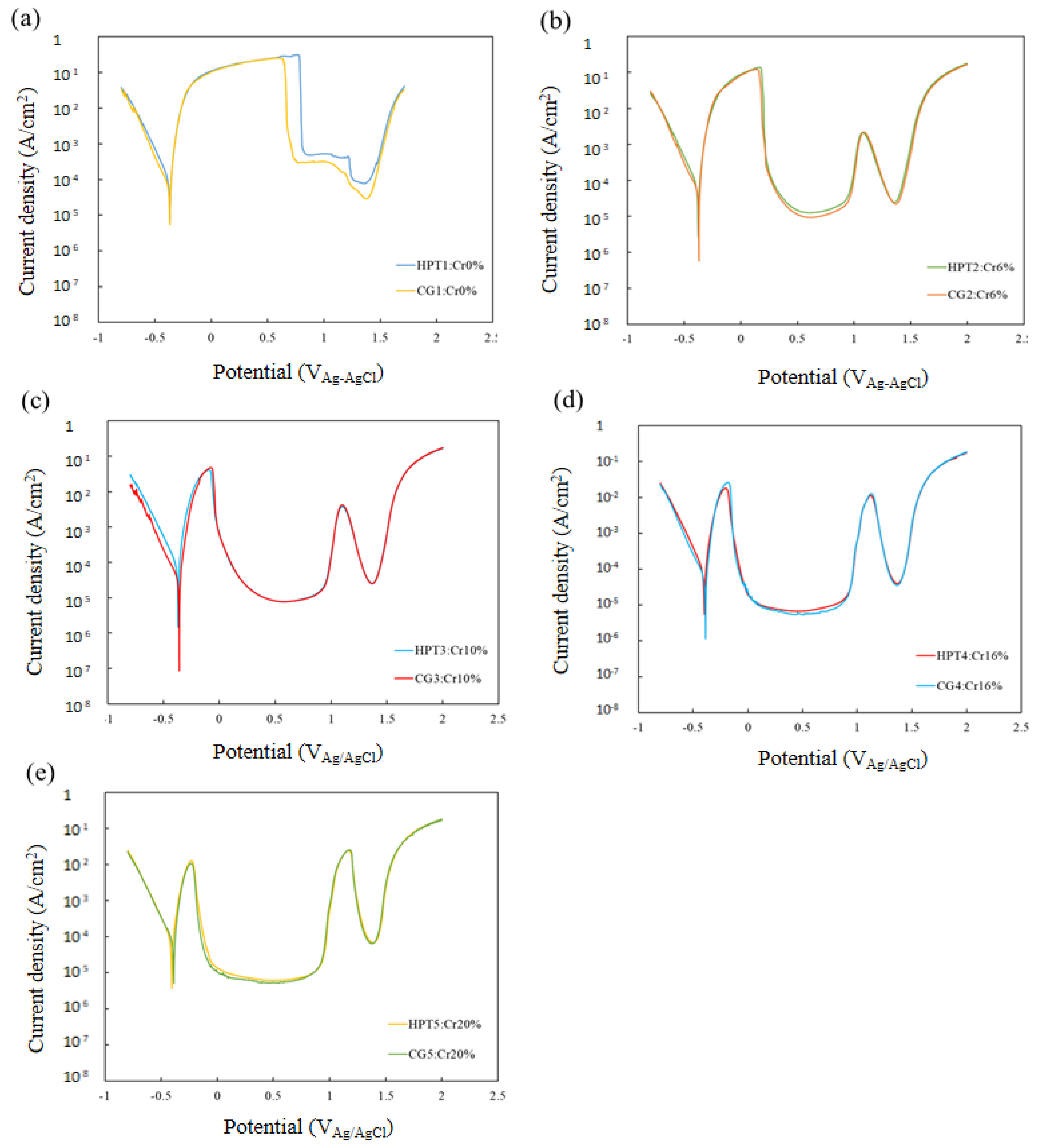

Figure 6. Comparison of dynamic polarization curves after homogenization (CG) and HPT processing (HPT) of (a) 0 at.% Cr, (b) 6 at.% Cr, (c) 10 at.% Cr, (d) 16 at.% Cr and (e) 20 at.% Cr.
Figure 6. Comparison of dynamic polarization curves after homogenization (CG) and HPT processing (HPT) of (a) 0 at.% Cr, (b) 6 at.% Cr, (c) 10 at.% Cr, (d) 16 at.% Cr and (e) 20 at.% Cr.
Materials 15 01007 g006
Materials 15 01007 g007

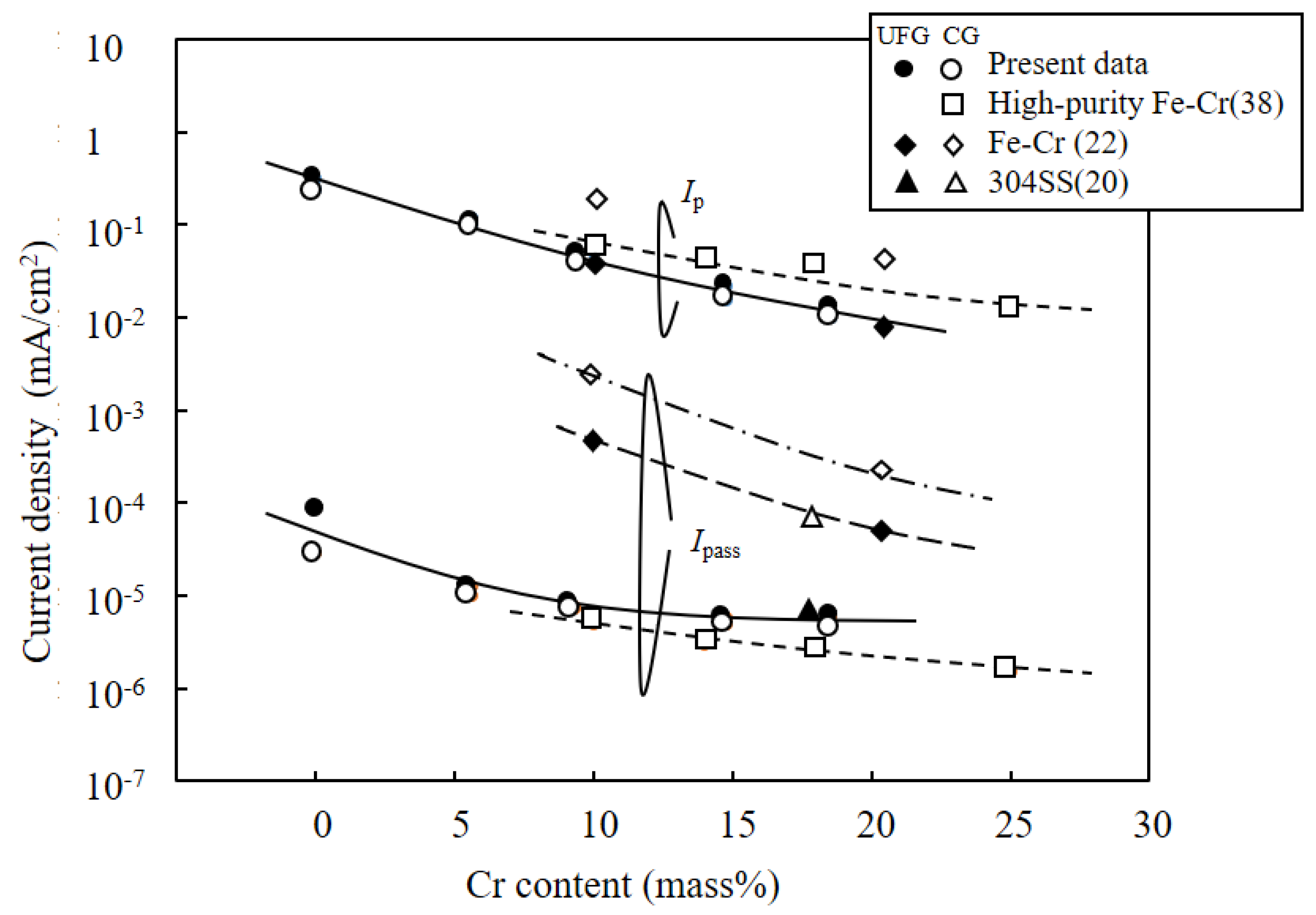

Figure 7. Peak current density Ic and passive current density Ipass of the dynamic polarization curves in 1.0 M H2SO4 solution (Figure 6) as a function of Cr content.
Figure 7. Peak current density Ic and passive current density Ipass of the dynamic polarization curves in 1.0 M H2SO4 solution (Figure 6) as a function of Cr content.
Materials 15 01007 g007
Materials 15 01007 g008

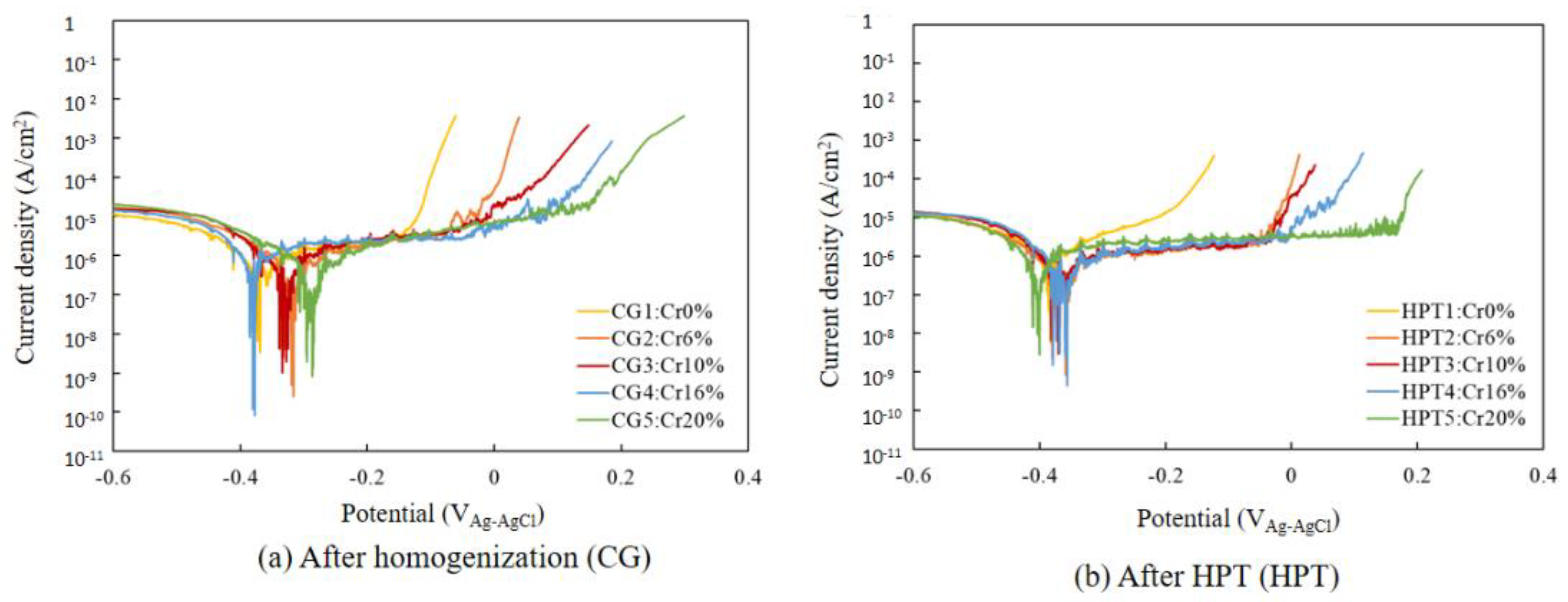

Figure 8. Dynamic polarization curves in 3.5 mass % NaCl solution, after (a) homogenization and (b) HPT processing.
Figure 8. Dynamic polarization curves in 3.5 mass % NaCl solution, after (a) homogenization and (b) HPT processing.
Materials 15 01007 g008
Materials 15 01007 g009

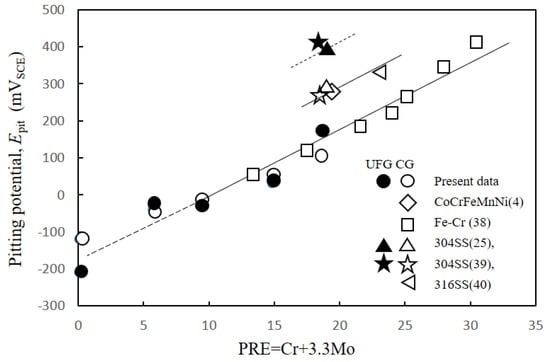

Figure 9. Critical pitting potential in 3.5 wt.% NaCl solution as a function of pitting resistance equivalence number (PRE = Cr + 3.3 Mo). Open and solid marks indicate CG and UFG specimens, respectively. Unit of the potential is converted to mVSCE according to references.
Figure 9. Critical pitting potential in 3.5 wt.% NaCl solution as a function of pitting resistance equivalence number (PRE = Cr + 3.3 Mo). Open and solid marks indicate CG and UFG specimens, respectively. Unit of the potential is converted to mVSCE according to references.
Materials 15 01007 g009
Materials 15 01007 g010

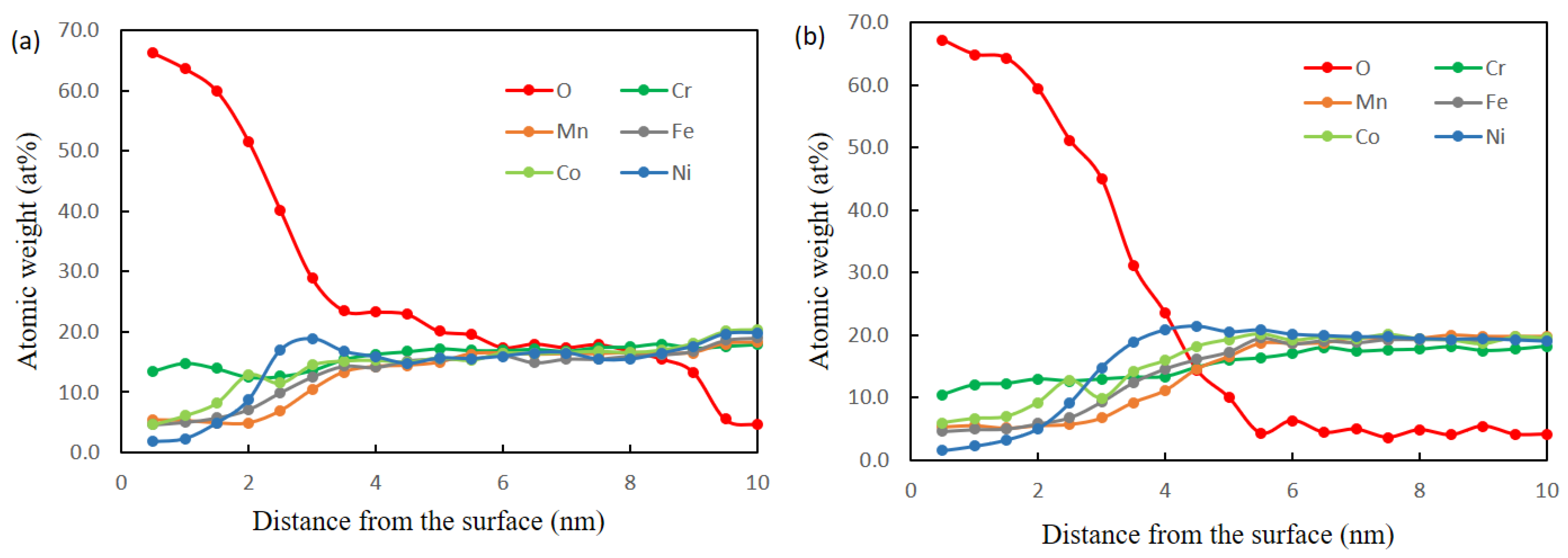

Figure 10. EDS depth profiles of the alloy elements in the passive films of 20 at% Cr specimen after passivation for 2 h at +700 mVAg/AgCl: (a) homogenized (CG5) and (b) HPT process (HPT5).
Figure 10. EDS depth profiles of the alloy elements in the passive films of 20 at% Cr specimen after passivation for 2 h at +700 mVAg/AgCl: (a) homogenized (CG5) and (b) HPT process (HPT5).
Materials 15 01007 g010
Materials 15 01007 g011

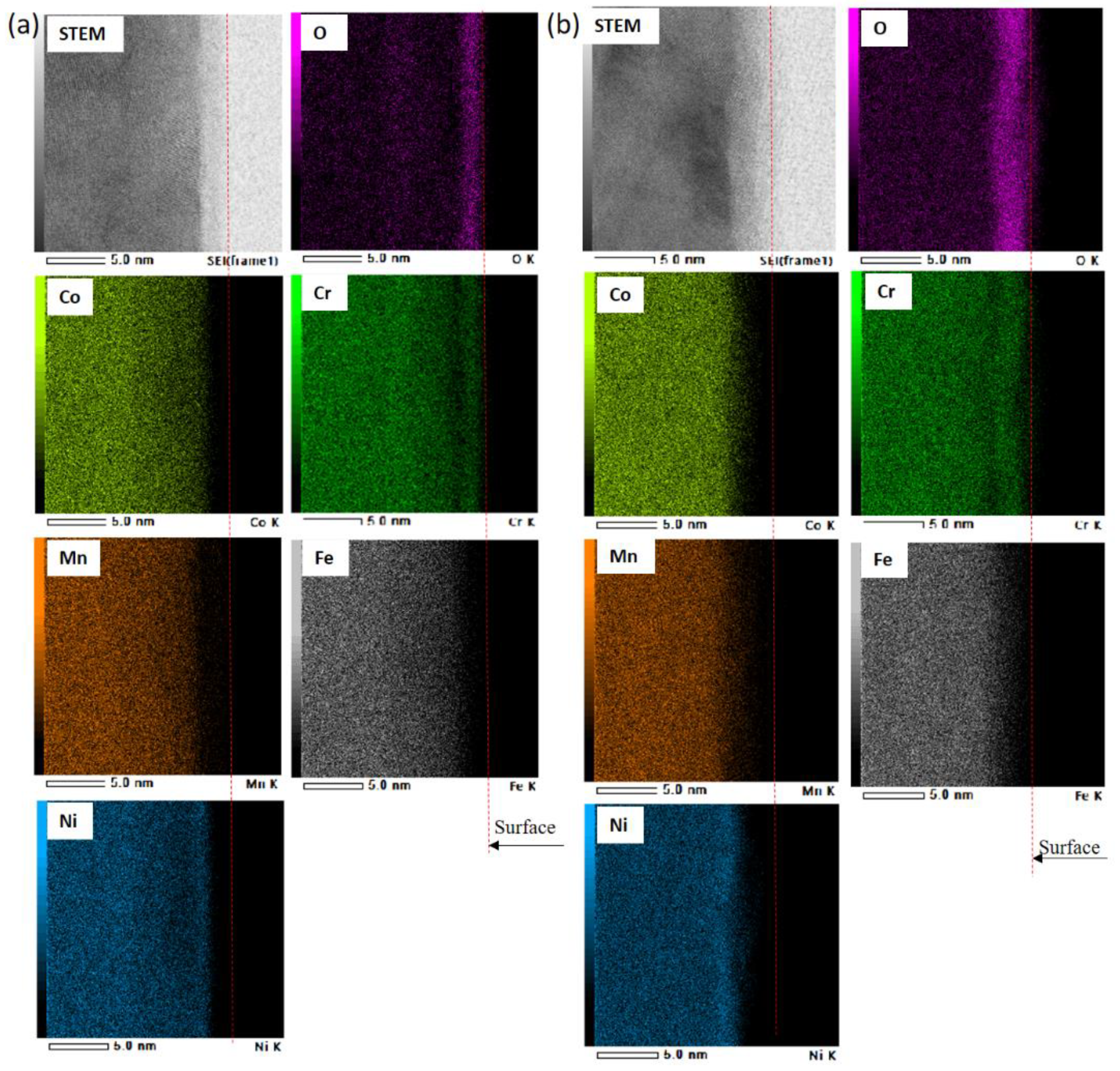

Figure 11. Cs-corrected STEM image and elemental maps of in the passive films of 20 at.% Cr specimen after passivation for 2 h at +700 mVAg/AgCl: (a) homogenized (CG5) and (b) HPT process (HPT5).
Figure 11. Cs-corrected STEM image and elemental maps of in the passive films of 20 at.% Cr specimen after passivation for 2 h at +700 mVAg/AgCl: (a) homogenized (CG5) and (b) HPT process (HPT5).
Materials 15 01007 g011
Table 1. Chemical composition of materials (at.%).
Table 1. Chemical composition of materials (at.%).
No.CrCoFeNiMn
1025252525
2623.523.523.523.5
31022.522.522.521
41621212121
52020202020
