The Effect of Fluorides (BaF2, MgF2, AlF3) on Structural and Luminescent Properties of Er3+-Doped Gallo-Germanate Glass
Abstract
:1. Introduction
2. Materials and Methods
3. Results

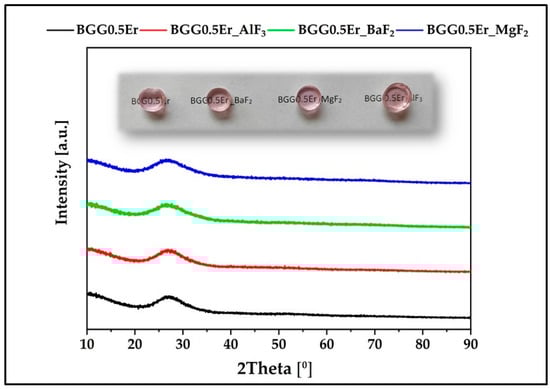

3.1. X-ray Diffraction
3.2. DSC
3.3. Structural Analysis

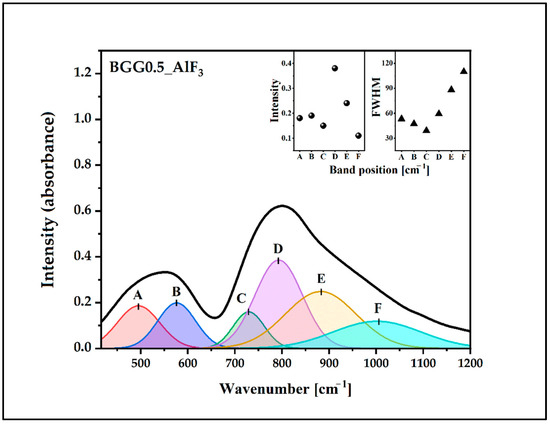

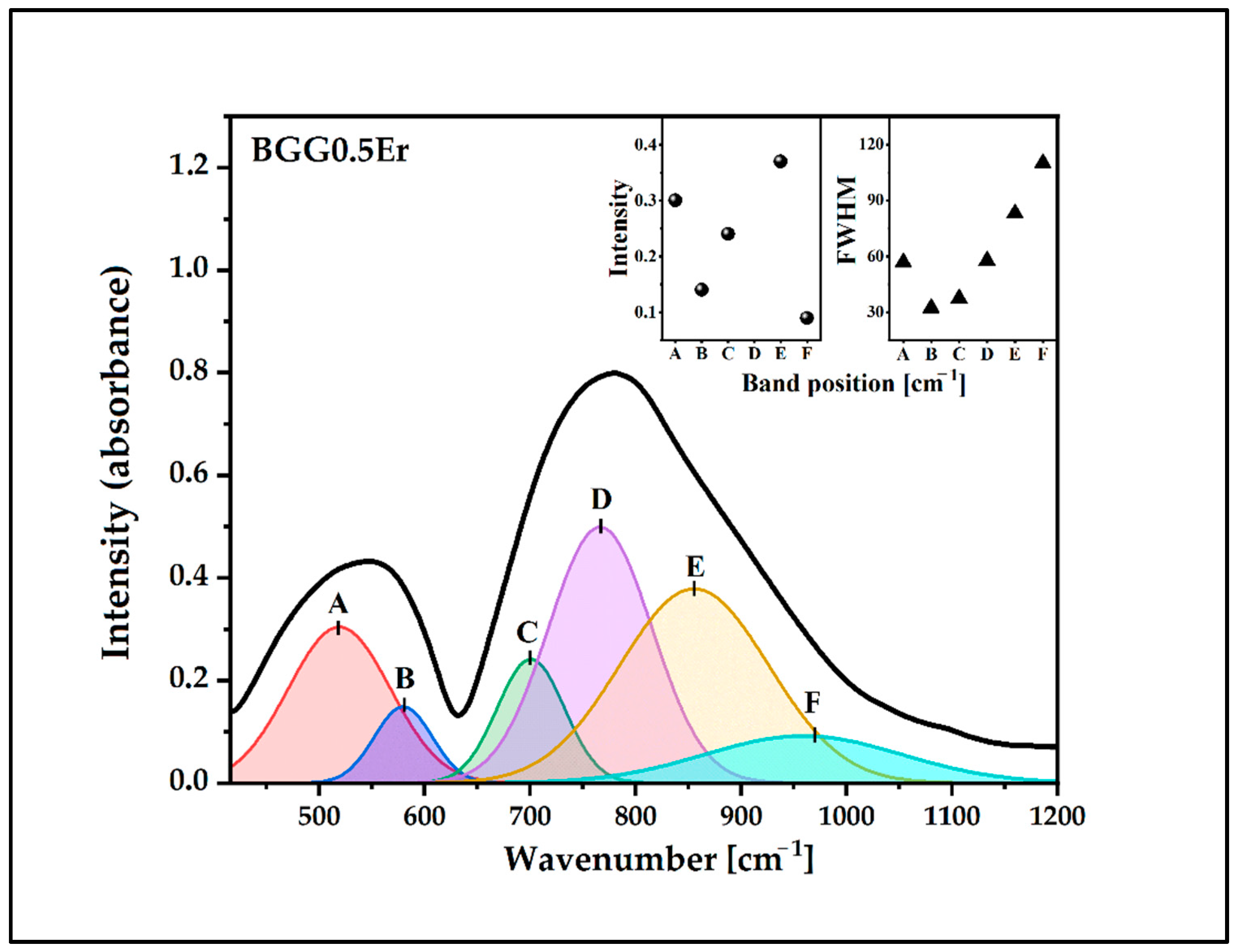

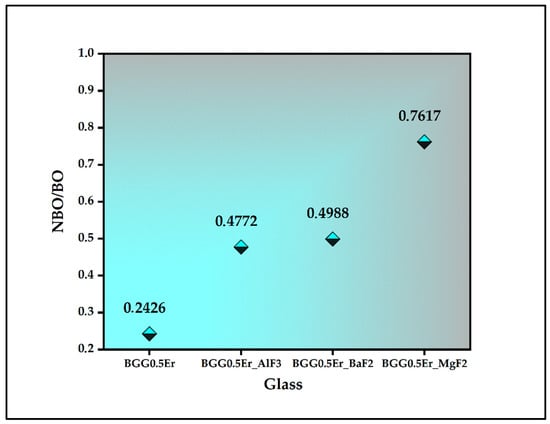

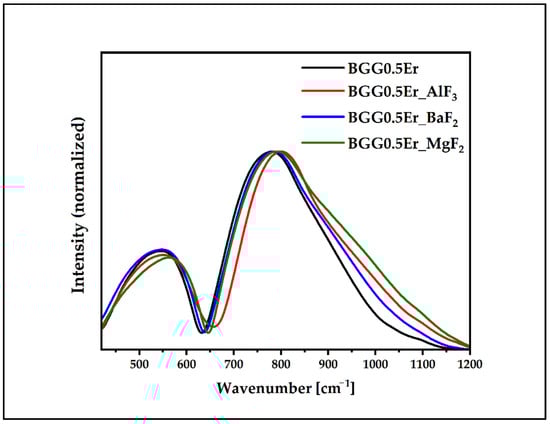

3.3.1. IR Spectra

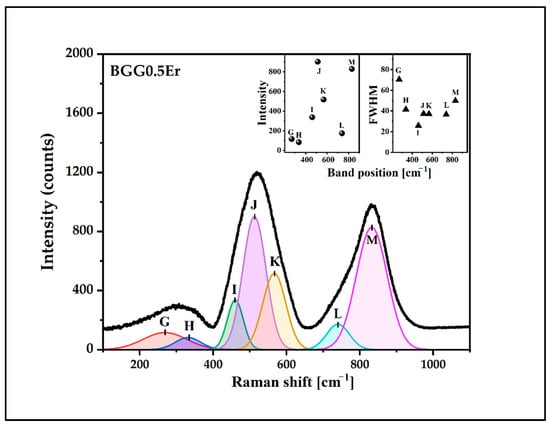

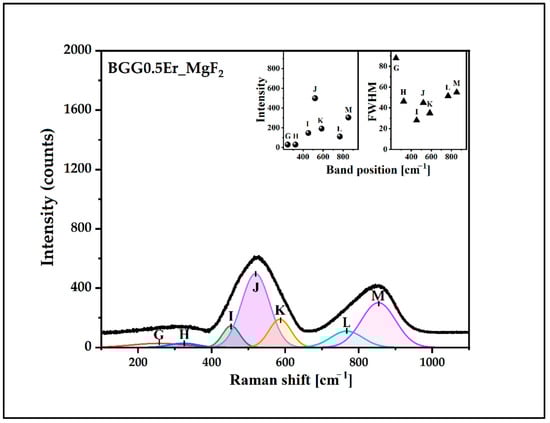

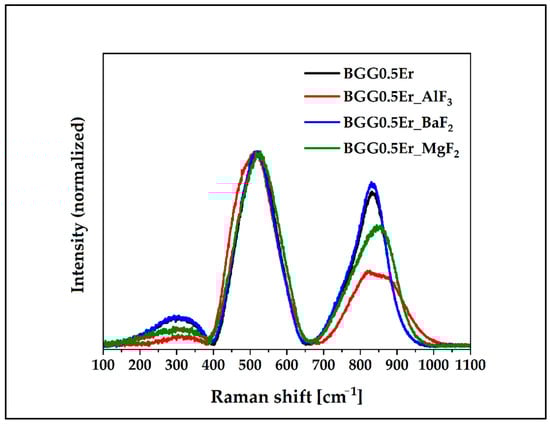

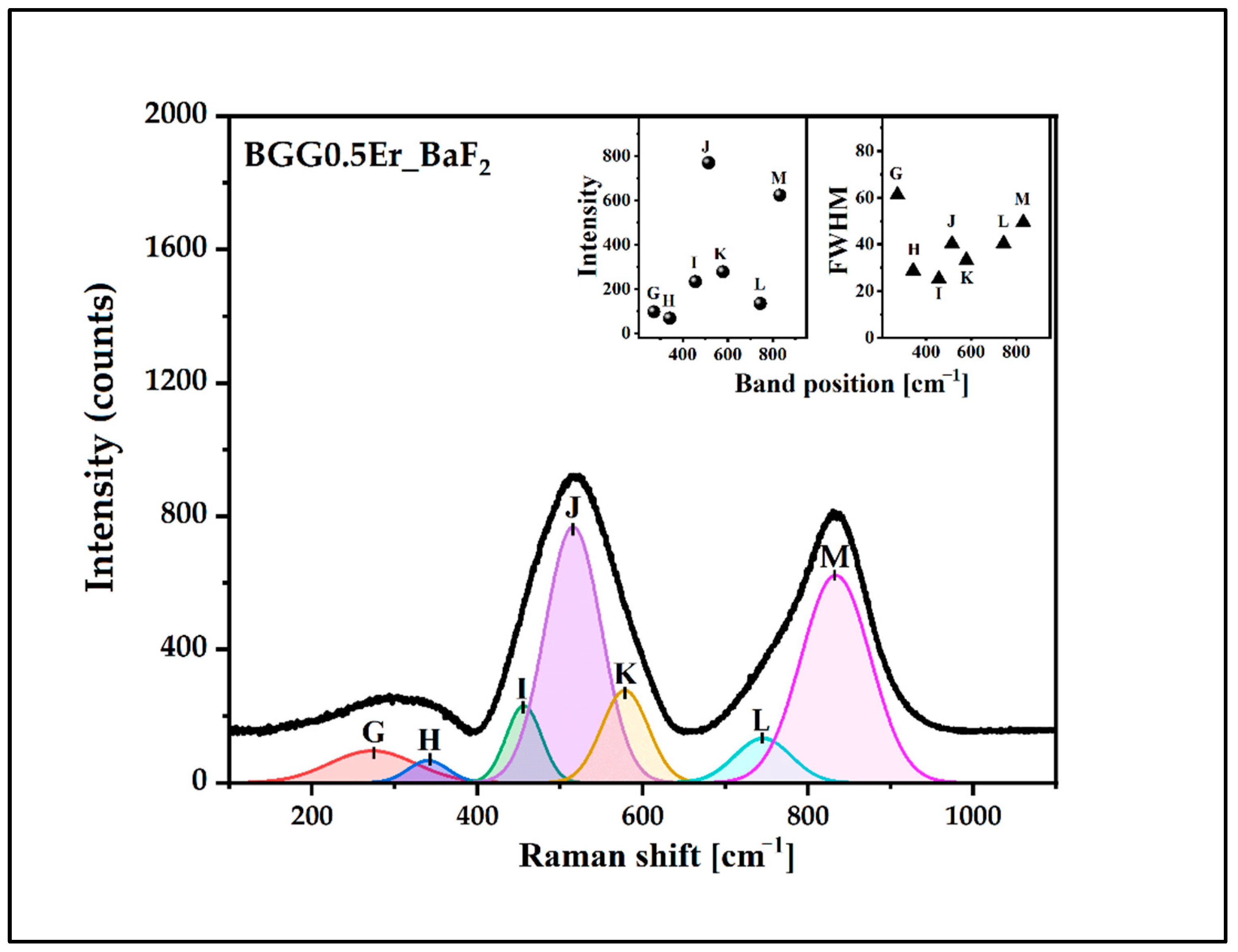

3.3.2. Raman Spectra

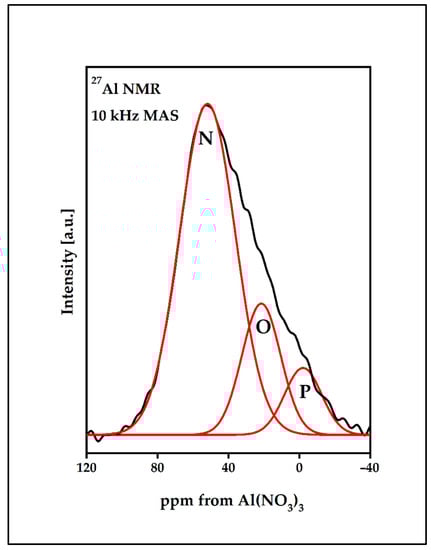

3.3.3. 27Al MAS NMR Spectrum Analysis

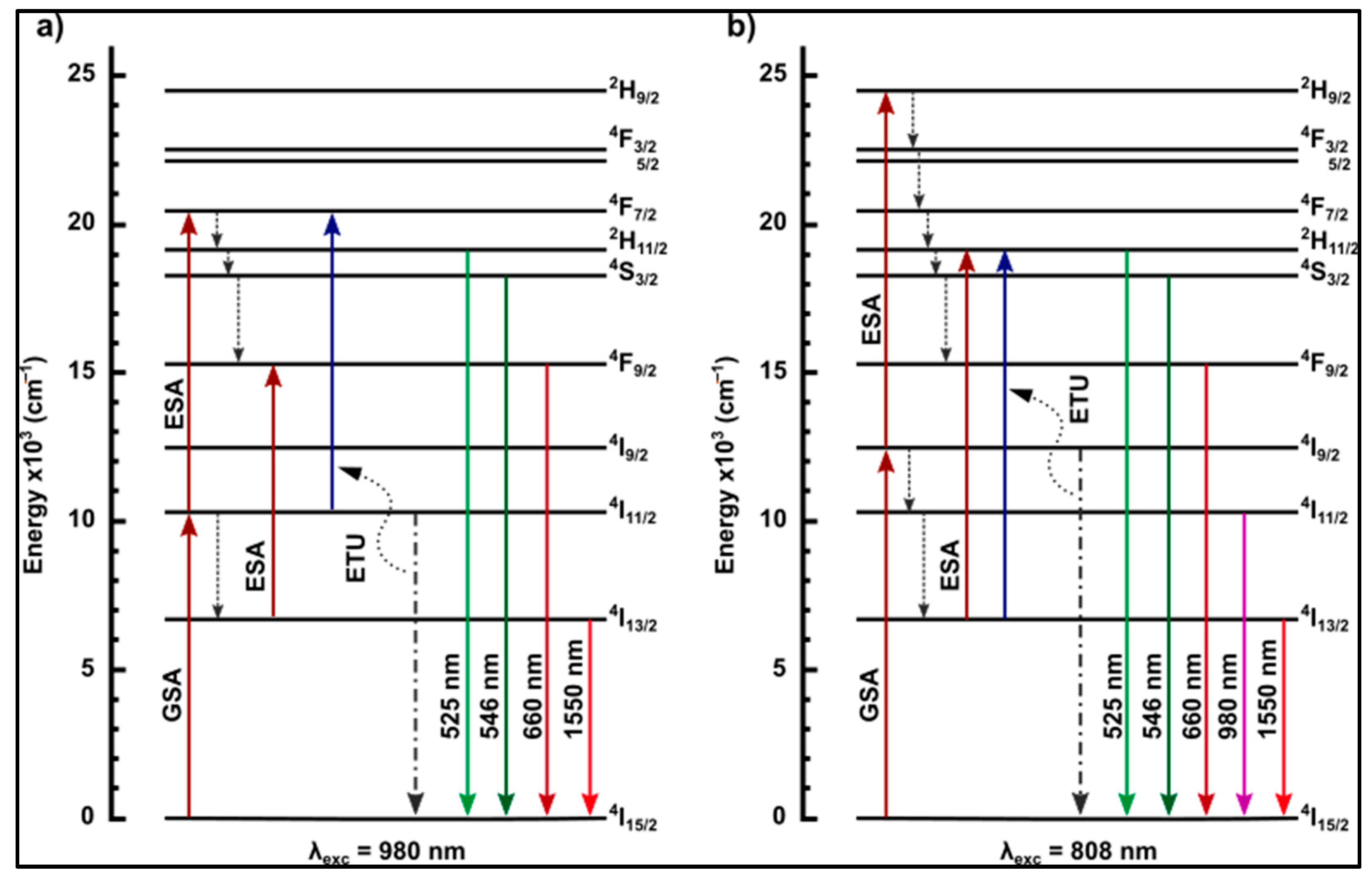

3.4. Luminescence Properties

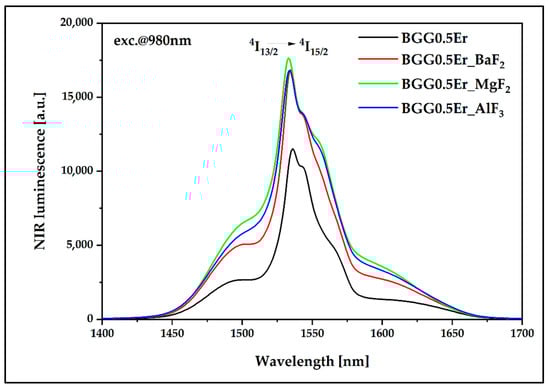

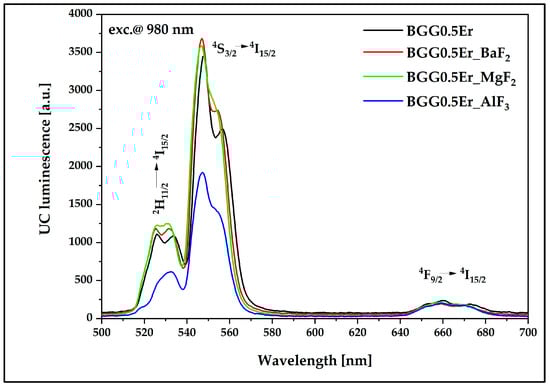

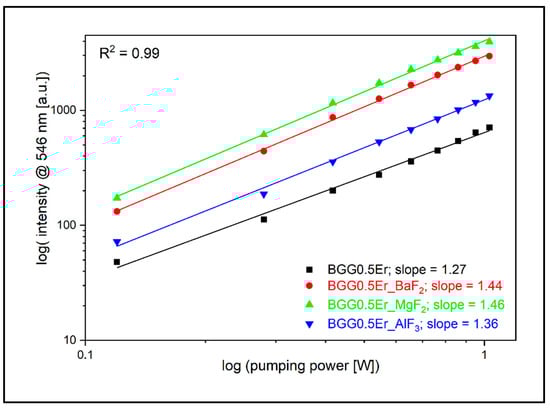

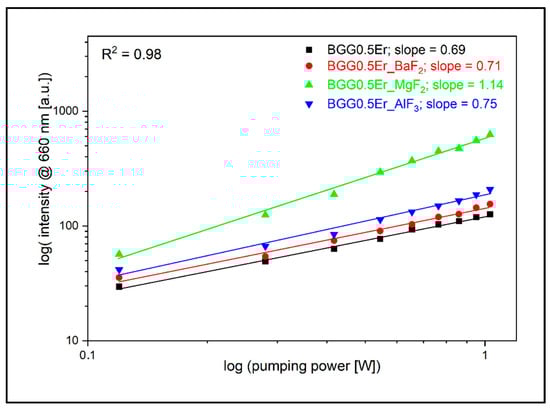

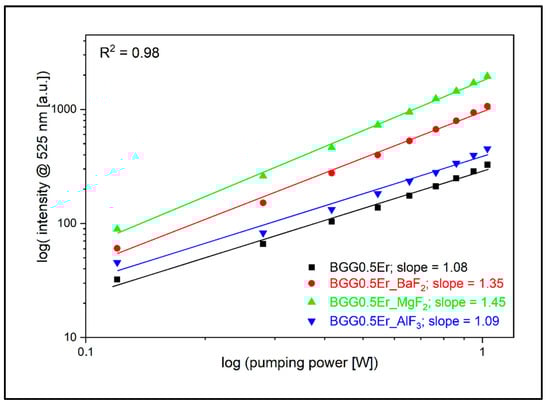

3.4.1. Luminescence Results under the 980 nm Excitation Pump

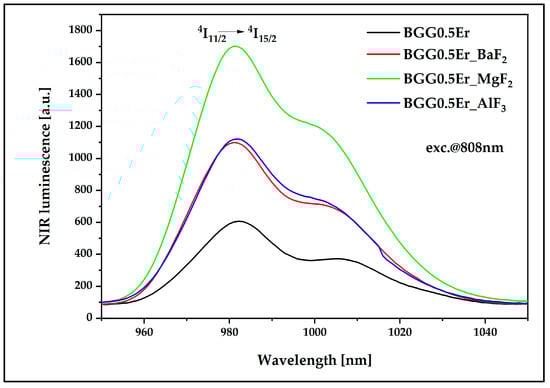

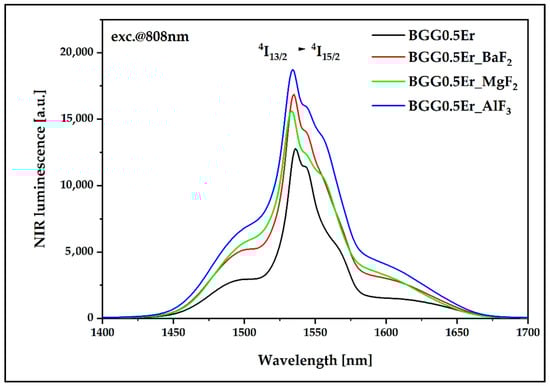

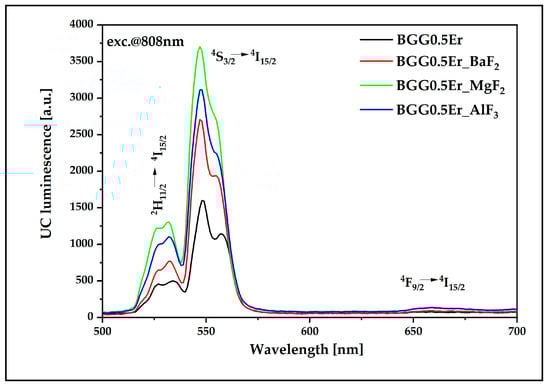

3.4.2. Luminescence Results under the 808 nm Excitation Pump

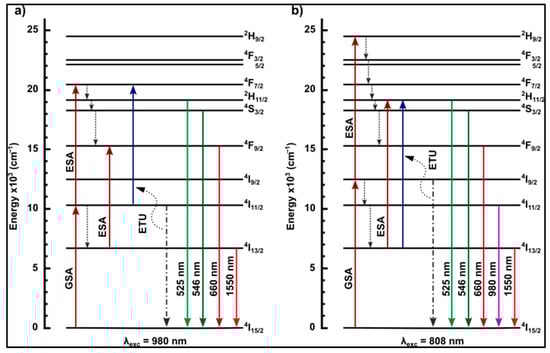

4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- McKeown, D.M.; Merzbacher, C.I. Raman Spectroscopic Studies of BaO–Ga2O3–GeO2 Glasses. J. Non-Cryst. Solids 1995, 183, 61–72. [Google Scholar] [CrossRef]
- Skopak, T.; Calzavara, F.; Ledemi, Y.; Célarié, F.; Allix, M.; Véron, E.; Dussauze, M.; Cardinal, T.; Fargin, E.; Messaddeq, Y. Properties, Structure and Crystallization Study of Germano-Gallate Glasses in the Ga2O3–GeO2-BaO–K2O System. J. Non-Cryst. Solids 2019, 514, 98–107. [Google Scholar] [CrossRef]
- Calzavara, F.; Allix, M.; Dussauze, M.; Jubera, V.; Nalin, M.; Cardinal, T.; Fargin, E. Glass Forming Regions, Structure and Properties of Lanthanum Barium Germanate and Gallate Glasses. J. Non-Cryst. Solids 2021, 571, 121064. [Google Scholar] [CrossRef]
- Jewell, J.M.; Higby, P.L.; Aggarwal, I.D. Properties of BaO-R2O3- Ga2O3-GeO2 (R = Y, Al, La, and Gd) Glasses. J Am. Ceram. Soc. 1994, 77, 697–700. [Google Scholar] [CrossRef]
- Guérineau, T.; Strutynski, C.; Skopak, T.; Morency, S.; Hanafi, A.; Calzavara, F.; Ledemi, Y.; Danto, S.; Cardinal, T.; Messaddeq, Y.; et al. Extended Germano-Gallate Fiber Drawing Domain: From Germanates to Gallates Optical Fibers. Opt. Mater. Express 2019, 9, 2437. [Google Scholar] [CrossRef] [Green Version]
- Hongisto, M.; Veber, A.; Petit, Y.; Cardinal, T.; Danto, S.; Jubera, V.; Petit, L. Radiation-Induced Defects and Effects in Germanate and Tellurite Glasses. Materials 2020, 13, 3846. [Google Scholar] [CrossRef]
- Bérubé, J.-P.; Le Camus, A.; Messaddeq, S.H.; Petit, Y.; Messaddeq, Y.; Canioni, L.; Vallée, R. Femtosecond Laser Direct Inscription of Mid-IR Transmitting Waveguides in BGG Glasses. Opt. Mater. Express 2017, 7, 3124. [Google Scholar] [CrossRef]
- Le Camus, A.; Petit, Y.; Bérubé, J.-P.; Bellec, M.; Canioni, L.; Vallée, R. Direct-Laser-Written Integrated Mid-IR Directional Couplers in a BGG Glass. Opt. Express 2021, 29, 8531. [Google Scholar] [CrossRef]
- Kochanowicz, M.; Zmojda, J.; Miluski, P.; Baranowska, A.; Leich, M.; Schwuchow, A.; Jäger, M.; Kuwik, M.; Pisarska, J.; Pisarski, W.A.; et al. Tm3+/Ho3+ Co-Doped Germanate Glass and Double-Clad Optical Fiber for Broadband Emission and Lasing above 2 Μm. Opt. Mater. Express 2019, 9, 1450. [Google Scholar] [CrossRef]
- Pisarska, J.; Kuwik, M.; Pisarski, W.A. Spectroscopic Properties of Inorganic Glasses Doped with Pr3+: A Comparative Study. Materials 2022, 15, 767. [Google Scholar] [CrossRef]
- Żur, L.; Janek, J.; Sołtys, M.; Goryczka, T.; Pisarska, J.; Pisarski, W.A. Structural and Optical Investigations of Rare Earth Doped Lead-Free Germanate Glasses Modified by MO and MF2 (M = Ca, Sr, Ba). J. Non-Cryst. Solids 2016, 431, 145–149. [Google Scholar] [CrossRef]
- Fan, J.; Tang, B.; Wu, D.; Fan, Y.; Li, R.; Li, J.; Chen, D.; Calveza, L.; Zhang, X.; Zhang, L. Dependence of Fluorescence Properties on Substitution of BaF2 for BaO in Barium Gallo-Germanate Glass. J. Non-Cryst. Solids 2011, 357, 1106–1109. [Google Scholar] [CrossRef]
- Strutynski, C.; Calzavara, F.; Guerineau, T.; Loi, L.; Laberdesque, R.; Rampnoux, J.-M.; Morency, S.; Ledemi, Y.; Petit, Y.; Dussauze, M.; et al. Heavy-Oxide Glasses with Superior Mechanical Assets for Nonlinear Fiber Applications in the Mid-Infrared. Opt. Mater. Express 2021, 11, 1420. [Google Scholar] [CrossRef]
- Marcondes, L.M.; Evangelista, R.O.; Gonçalves, R.R.; de Camargo, A.S.S.; Manzani, D.; Nalin, M.; Cassanjes, F.C.; Poirier, G.Y. Er3+-Doped Niobium Alkali Germanate Glasses and Glass-Ceramics: NIR and Visible Luminescence Properties. J. Non-Cryst. Solids 2019, 521, 119492. [Google Scholar] [CrossRef]
- Rybaltovsky, A.A.; Sverchkov, S.E.; Vel’miskin, V.V.; Przhiialkovskii, D.V.; Bazakutsa, A.P.; Galagan, B.I.; Denker, B.I.; Butov, O.V. Single-Frequency Continuous-Wave Laser Based on the Novel Er/Yb-Doped Composite Phosphosilicate Fiber. Opt. Laser Technol. 2022, 151, 108049. [Google Scholar] [CrossRef]
- Wu, T.; Tong, R.; Liao, L.; Huang, L.; Zhao, S.; Xu, S. A Point Temperature Sensor Based on Upconversion Emission in Er3+/Yb3+ Codoped Tellurite-Zinc-Niobium Glass. Sensors 2017, 17, 1253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Nanda, K.; Kundu, R.S.; Punia, R.; Mohan, D.; Kishore, N. Resonant and Non-Resonant Nonlinear Optical Properties of Er3+ Modified BaO-ZnO-B2O3 Glasses at 532 and 1550 Nm. J. Non-Cryst. Solids 2020, 541, 1201555. [Google Scholar] [CrossRef]
- Marcondes, L.M.; Ramos da Cunha, C.; de Pietro, G.M.; Manzani, D.; Gonçalves, R.R.; Batista, G.; Cassanjes, F.C.; Poirier, G. Multicolor Tunable and NIR Broadband Emission from Rare-Earth-Codoped Tantalum Germanate Glasses and Nanostructured Glass-Ceramics. J. Lumin. 2021, 239, 118357. [Google Scholar] [CrossRef]
- Quimby, R.S.; Miniscalco, W.J.; Thompson, B. Clustering in Erbium-doped Silica Glass Fibers Analyzed Using 980 Nm Excited-state Absorption. J. Appl. Phys. 1994, 76, 4472–4478. [Google Scholar] [CrossRef]
- Yang, G.F.; Zhang, Q.Y.; Li, T.; Shi, D.M.; Jiang, Z.H. Laser-Diode-Excited Intense Luminescence and Green-Upconversion in Erbium-Doped Bismuth–Germanate–Lead Glasses. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2008, 69, 41–48. [Google Scholar] [CrossRef] [PubMed]
- Tanabe, S. Optical Properties and Local Structure of Rare-Earth-Doped Amplifier for Broadband Telecommunication. J. Alloys Compd. 2006, 408–412, 675–679. [Google Scholar] [CrossRef]
- Pisarski, W.A.; Pisarska, J.; Dorosz, D.; Dorosz, J. Towards Lead-Free Oxyfluoride Germanate Glasses Singly Doped with Er3+ for Long-Lived near-Infrared Luminescence. Mater. Chem. Phys. 2014, 148, 485–489. [Google Scholar] [CrossRef]
- Taherunnisa, S.; Reddy, D.V.K.; SambasivaRao, T.; Rudramamba, K.S.; Zhydachevskyy, Y.A.; Suchocki, A.; Piasecki, M.; Reddy, M.R. Effect of Up-Conversion Luminescence in Er3+ Doped Phosphate Glasses for Developing Erbium-Doped Fibre Amplifiers (EDFA) and G-LED’s. Opt. Mater. X 2019, 3, 100034. [Google Scholar] [CrossRef]
- Jimenez, G.L.; Shrestha, B.; Porter, T.; Starzyk, B.; Lesniak, M.; Kuwik, M.; Kochanowicz, M.; Szumera, M.; Lisiecki, R.; Dorosz, D. Highly efficient up-conversion green emission functionalized with a biocompatible polymer. RSC Adv. 2022, 12, 20074. [Google Scholar] [CrossRef]
- Xu, S.; Yang, Z.; Dai, S.; Wang, G.; Hu, L.; Jiang, Z. Upconversion Fluorescence Spectroscopy of Er3+-Doped Lead Oxyfluoride Germanate Glass. Mater. Lett. 2004, 58, 1026–1029. [Google Scholar] [CrossRef]
- Aktas, B.; Albaskara, M.; Dogru, K.; Yalcin, S. Mechanical Properties of Soda-Lime-Silica Glasses Doped with Eggshell Powder. Acta Phys. Pol. A 2017, 132, 436–438. [Google Scholar] [CrossRef]
- Cai, M.; Wei, T.; Zhou, B.; Tian, Y.; Zhou, J.; Xu, S.; Zhang, J. Analysis of Energy Transfer Process Based Emission Spectra of Erbium Doped Germanate Glasses for Mid-Infrared Laser Materials. J. Alloys Compd. 2015, 626, 165–172. [Google Scholar] [CrossRef]
- Zhou, L.; Huang, F.; Ren, G.; Hua, Y.; Lei, R.; Xu, S. Efficient Er3+: 4I11/2 → 4I13/2 Radiative Transition Regulated by Optimizing the Sensitization Mechanism. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2020, 228, 117853. [Google Scholar] [CrossRef]
- Shi-Qing, X.; Da-Wei, F.; Zai-Xuan, Z.; Shi-Long, Z.; Li-Yan, Z.; Bao-Ling, W.; Zhong-Hong, J. Host Dependent Thermal Stability and Frequency Upconversion of Er3+-Doped Heavy Metal Oxyfluoride Germanate Glasses. Chin. Phys. 2005, 14, 2246–2250. [Google Scholar] [CrossRef]
- Bradtmüller, H.; Rodrigues, A.C.M.; Eckert, H. Network Former Mixing (NFM) Effects in Alkali Germanotellurite Glasses. J. Alloys Compd. 2021, 873, 159835. [Google Scholar] [CrossRef]
- Skopak, T.; Hee, P.; Ledemi, Y.; Dussauze, M.; Kroeker, S.; Cardinal, T.; Fargin, E.; Messaddeq, Y. Mixture Experimental Design Applied to Gallium-Rich GaO3/2-GeO2-NaO1/2 Glasses. J. Non-Cryst. Solids 2017, 455, 83–89. [Google Scholar] [CrossRef] [Green Version]
- Zhang, L.Y.; Li, H.; Hu, L.L. Statistical Structure Analysis of GeO2 Modified Y3+: Phosphate Glasses Based on Raman and FTIR Study. J. Alloys Compd. 2017, 698, 103–113. [Google Scholar] [CrossRef]
- Skopak, T.; Kroeker, S.; Levin, K.; Dussauze, M.; Méreau, R.; Ledemi, Y.; Cardinal, T.; Fargin, E.; Messaddeq, Y. Structure and Properties of Gallium-Rich Sodium Germano-Gallate Glasses. J. Phys. Chem. C 2019, 123, 1370–1378. [Google Scholar] [CrossRef] [Green Version]
- Alvarado-Rivera, J.; Rodríguez-Carvajal, D.A.; Acosta-Enríquez, M.D.; Manzanares-Martínez, M.B.; Álvarez, E.; Lozada-Morales, R.; Díaz, G.C.; de Leon, A.; Zayas, M.E. Effect of CeO2 on the Glass Structure of Sodium Germanate Glasses. J. Am. Ceram. Soc. 2014, 97, 3494–3500. [Google Scholar] [CrossRef]
- Rachkovskaya, G.E.; Zakharevich, G.B. IR Spectra of Tellurium Germanate Glasses and Their Structure. J. Appl. Spectrosc. 2007, 74, 86–89. [Google Scholar] [CrossRef]
- Lesniak, M.; Zeid, J.; Starzyk, B.; Kochanowicz, M.; Kuwik, M.; Zmojda, J.; Miluski, P.; Baranowska, A.; Dorosz, J.; Pisarski, W.; et al. Investigation of the TeO2/GeO2 Ratio on the Spectroscopic Properties of Eu3+-Doped Oxide Glasses for Optical Fiber Application. Materials 2021, 15, 117. [Google Scholar] [CrossRef] [PubMed]
- Yoshimoto, K.; Masuno, A.; Ueda, M.; Inoue, H.; Yamamoto, H.; Kawashima, T. Low Phonon Energies and Wideband Optical Windows of La2O3-Ga2O3 Glasses Prepared Using an Aerodynamic Levitation Technique. Sci. Rep. 2017, 7, 45600. [Google Scholar] [CrossRef]
- Szal, R.; Zmojda, J.; Kochanowicz, M.; Miluski, P.; Dorosz, J.; Lesniak, M.; Jeleń, P.; Starzyk, B.; Sitarz, M.; Kuwik, M.; et al. Spectroscopic Properties of Antimony Modified Germanate Glass Doped with Eu3+ Ions. Ceram. Int. 2019, 45, 24811–24817. [Google Scholar] [CrossRef]
- Chen, F.; Xu, S.; Wei, T.; Wang, F.; Cai, M.; Tian, Y.; Xu, S. Mid-Infrared Emission and Raman Spectra Analysis of Er3+-Doped Oxyfluorotellurite Glasses. Appl. Opt. 2015, 54, 3345. [Google Scholar] [CrossRef] [PubMed]
- Koroleva, O.N.; Shtenberg, M.V.; Ivanova, T.N. The Structure of Potassium Germanate Glasses as Revealed by Raman and IR Spectroscopy. J. Non-Cryst. Solids 2019, 510, 143–150. [Google Scholar] [CrossRef]
- Lotarev, S.V.; Lipatiev, A.S.; Lipateva, T.O.; Lopatina, E.V.; Sigaev, V.N. Ultrafast Laser-Induced Crystallization of Lead Germanate Glass. Crystals 2021, 11, 193. [Google Scholar] [CrossRef]
- Carvalho, E.A.; Freitas, A.M.; Silva, G.H.; Bell, M.J.V.; Kassab, L.R.P.; Anjos, V. Thermal and Structural Analysis of Germanate Glass and Thin Films Co-Doped with Silver Nanoparticles and Rare Earth Ions with Insights from Visible and Raman Spectroscopy. Vib. Spectrosc. 2016, 87, 143–148. [Google Scholar] [CrossRef] [Green Version]
- Wu, J.; Stebbins, J.F. Temperature and Modifier Cation Field Strength Effects on Aluminoborosilicate Glass Network Structure. J. Non-Cryst. Solids 2013, 362, 73–81. [Google Scholar] [CrossRef]
- Lin, H.; Liu, K.; Pun, E.Y.B.; Ma, T.C.; Peng, X.; An, Q.D.; Yu, J.Y.; Jiang, S.B. Infrared and Visible Fluorescence in Er3+-Doped Gallium Tellurite Glasses. Chem. Phys. Lett. 2004, 398, 146–150. [Google Scholar] [CrossRef]
- Żur, L.; Janek, J.; Sołtys, M.; Pisarska, J.; Pisarski, W.A. Effect of BaF2 Content on Luminescence of Rare-Earth Ions in Borate and Germanate Glasses. J. Am. Ceram. Soc. 2016, 99, 2009–2016. [Google Scholar] [CrossRef]
- Janek, J.; Lisiecki, R.; Ryba-Romanowski, W.; Pisarska, J.; Pisarski, W.A. Up-Conversion Luminescence of Er3+ Ions in Lead-Free Germanate Glasses under 800 Nm and 980 Nm Cw Diode Laser Excitation. Opt. Mater. 2017, 74, 105–108. [Google Scholar] [CrossRef]
- Cao, G.; Lin, F.; Hu, H.; Gan, F. A New Fluorogermanate Glass. J. Non-Cryst. Solids 2003, 326–327, 170–176. [Google Scholar] [CrossRef]
- Zhao, Z.; Ai, B.; Liu, C.; Yin, Q.; Xia, M.; Zhao, X.; Jiang, Y. Er3+ Ions-Doped Germano-Gallate Oxyfluoride Glass-Ceramics Containing BaF2 Nanocrystals. J. Am. Ceram. Soc. 2015, 98, 2117–2121. [Google Scholar] [CrossRef]
- Sreenivasan, H.; Kinnunen, P.; Adesanya, E.; Patanen, M.; Kantola, A.M.; Telkki, V.-V.; Huttula, M.; Cao, W.; Provis, J.L.; Illikainen, M. Field Strength of Network-Modifying Cation Dictates the Structure of (Na-Mg) Aluminosilicate Glasses. Front. Mater. 2020, 7, 267. [Google Scholar] [CrossRef]

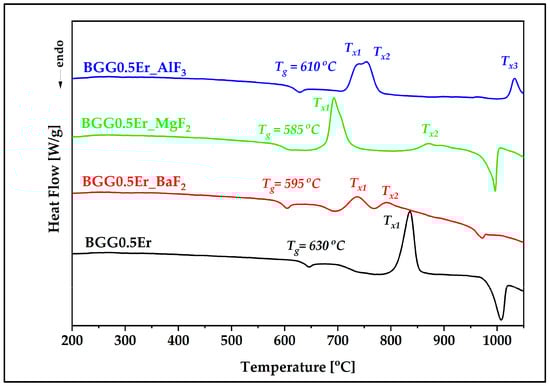

Glass | Tg [°C] | Tx1 [°C] | Tx2 [°C] | Tx3 [°C] | ΔT [°C] |
---|---|---|---|---|---|
BGG0.5Er | 630 | 836 | - | - | 206 |
BGG0.5Er_BaF2 | 595 | 735 | 792 | - | 140 |
BGG0.5Er_MgF2 | 585 | 642 | 871 | - | 57 |
BGG0.5Er_AlF3 | 610 | 735 | 754 | 1030 | 125 |
Bands | Assignment |
---|---|

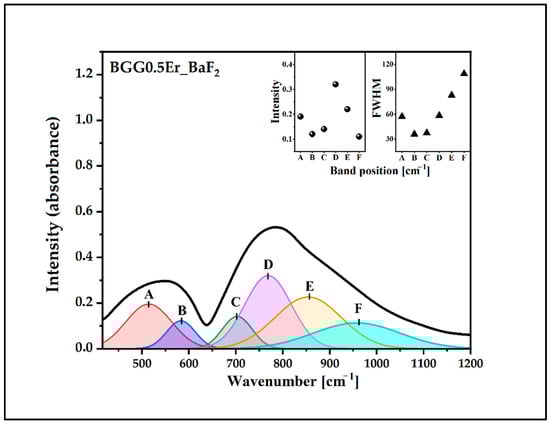

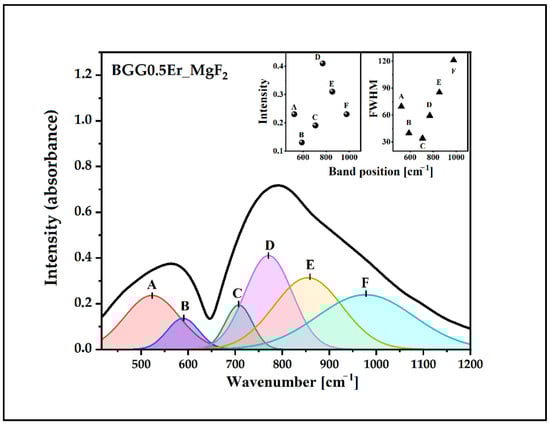

A | bending vibrations of X−O−X bridges (X used for Ge/Ga in tetrahedral coordination) |
B | |
C | symmetrical stretching vibration of the [6]Ge-O-[6]Ge bonds from GeO6 units |
D | asymmetrical stretching vibration of the [4]Ge-O-[4]Ge bonds connecting GeO4 units |
E | asymmetrical stretching vibration of the bridging oxygens (BO) from GeO4 tetrahedra |
F | stretching vibration of the non-bridging oxygens (NBO) of GeO4 tetrahedra |
Bands | Assignment |
---|---|

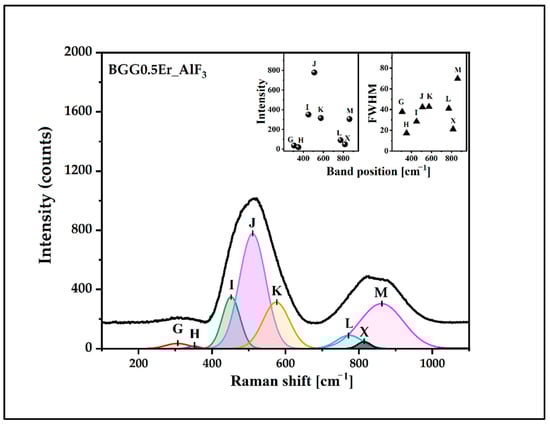

G | bending vibration of the Ge-O-Ge bonds of Ge(2) units |
