Intrinsic Photoconductivity Spectral Dependence as a Tool for Prediction of Open-Circuit Voltage in Organic Solar Cells

Abstract

Organic materials are known for their variety of molecules. Methods to predict the parameters of organic photovoltaic (OPV) cells are required to avoid the time- and resource-consuming processes of manufacturing and testing OPVs. Usually, the open-circuit voltage (U_oc) is estimated as the difference between the ionization energy level of the electron donor molecule (I_d) and the electron affinity level of the electron acceptor molecule (EA_a). Various measurement methods are used to determine the energy level values of pure materials, which, when combined with energy level shifts due to the donor:acceptor interactions, make these estimations less precise. In this work, photoconductivity measurements were applied to the donor:acceptor films. Near threshold energy, the electron can be directly transferred from the donor to the acceptor molecule. The obtained charge transfer energy (E_CT) shows the difference between I_d and EA_a in the film. This difference was compared to the U_oc value of an OPV made of the same donor:acceptor combination. We show that this approach provides less scattered results and a higher correlation coefficient compared to the U_oc estimation using energy level values.

1. Introduction

Environmental concerns and the rapidly increasing demand for green energy are the main driving forces advancing the development of solar cells. One of the areas being actively developed is organic photovoltaic (OPV) cells, which recently reached an efficiency of 19% [1,2]. Organic materials offer such advantages as low material costs, the possibility to create large area cells by printing or using roll-to-roll technologies [3,4,5], and applications such as building-integrated photovoltaics (BIPV), due to their semi-transparency [6]. Organic materials are known for their immense variety, because the molecules can be easily modified by varying the functional groups that affect their properties. As the creation of solar cells is a time- and resource-consuming process, methods to easily and reliably predict the parameters of OPVs are required.

The most important parameters that describe OPVs are the short-circuit current (I_sc), open-circuit voltage (U_oc), fill factor (FF), and power conversion efficiency (PCE). I_sc shows the maximum current obtainable from OPV cells. It is mostly determined by two factors: charge-carrier generation in the active layer, and charge-carrier extraction from the solar cell. Parameters such as absorption coefficient and spectrum, charge-carrier mobility, and compatibility between various layers influence I_sc. U_oc is mainly determined by the materials in the active layer and their energy level values (ionization energy (I) and electron affinity (EA)) [7,8,9,10]. External conditions such as light intensity [11] and temperature [10,12] can also have a limited influence on the open-circuit voltage of OPV cells. PCE shows the portion of light energy that has been converted into electrical power, while FF is the “ideality factor” of OPV.

Currently, to predict the U_oc, an empirical equation is used:

$$U_{oc}=\frac{1}{e}\left(I_d-{EA}_a-∆\right).$$

(1)

where e is the elementary charge, I_d is the ionization energy level value of the electron donor material, EA_a is the electron affinity energy level of the electron acceptor material, and ∆ is an empirical coefficient between 0.3 and 0.5 [13,14]. While Equation (1) is simple and could potentially allow the most promising donor:acceptor material pairs to be predicted, there are some disadvantages to this method. First, ∆ is an empirical coefficient whose value can vary depending on the material class or the amount of “tail states” introduced in the active layer due to the energetic disorder [14]. Second, the correct determination of the energy level values of the materials becomes crucial. Ultraviolet photoemission spectroscopy (UPS) is the most popular method for ionization energy level value determination [15,16]. Alternatively, one simple method is photoelectron emission spectroscopy (PES) which does not require ultra-high vacuum and allows measurements to also be performed in air [17,18,19]. Although the methods are similar, for some (even well-known) materials the energy level values can greatly differ from source to source. For example, the ionization energy for a well-known polymer PBDB-T is reported to be between 5.20 and 5.30 eV [20,21,22,23], while values as high as 5.39 eV [24] and as low as 4.9 eV [25] can also be found. In most cases, these values introduce 0.1 V uncertainties in the prediction of U_oc, with a 0.5 eV difference between the lowest and the highest reported values. The electron affinity level value determination produces an additional challenge. While inverse photoemission spectroscopy (IPES) can be used to determine the EA directly [26,27], the poor energy resolution and complexity of the method limit its usage. Most often, the EA value is obtained indirectly from the ionization energy level value and energy gap measurements. The energy gap between the ionization energy and EA can be estimated either from the absorption edge or the intrinsic photoconductivity measurements.

A popular method for the energy level value determination of organic materials is cyclic voltammetry. As the measurements are performed in solutions instead of thin films, there is still debate regarding whether the results can be used to describe energy levels in solids [28,29].

Additionally, energy level shifts at the electron donor–acceptor interface can take place [19,28,30]. This means that the energy level values obtained from bulky layers of pure material films can give incorrect information about the real energy gap at the donor–acceptor interface. Because of this, a simple and reliable method for the prediction of U_oc is necessary.

In the intrinsic photoconductivity near the threshold energy, the excited electron can be directly transferred to the adjacent molecule. In the case of pure film, this threshold is the difference between the ionization energy level and electron affinity level. If the active layer is made of two materials (for example, at a bulk heterojunction), the obtained threshold describes the real difference between the ionization energy level of the electron donor molecule and the electron affinity level of the electron acceptor molecule [31]. Theoretically this direct charge transfer (CT) transition can be observed optically; however, the probability of such transfer is low, often close to the sensitivity limits of the equipment. Electrical measurements are an easier way to observe this effect.

In this work, we aim to use intrinsic photoconductivity to obtain a charge transfer energy (E_CT) that describes the difference between I_d and EA_a and can be used to predict the U_oc of organic photovoltaic cells. In this way, the time- and resource-consuming creation of OPVs can be replaced by photoconductivity measurements of simple “sandwich” type (ITO/donor:acceptor/Al) samples. The obtained E_CT values are compared to the U_oc values of the same donor:acceptor combination OPV cells.

2. Materials and Methods

2.1. Studied Materials and Sample Preparation

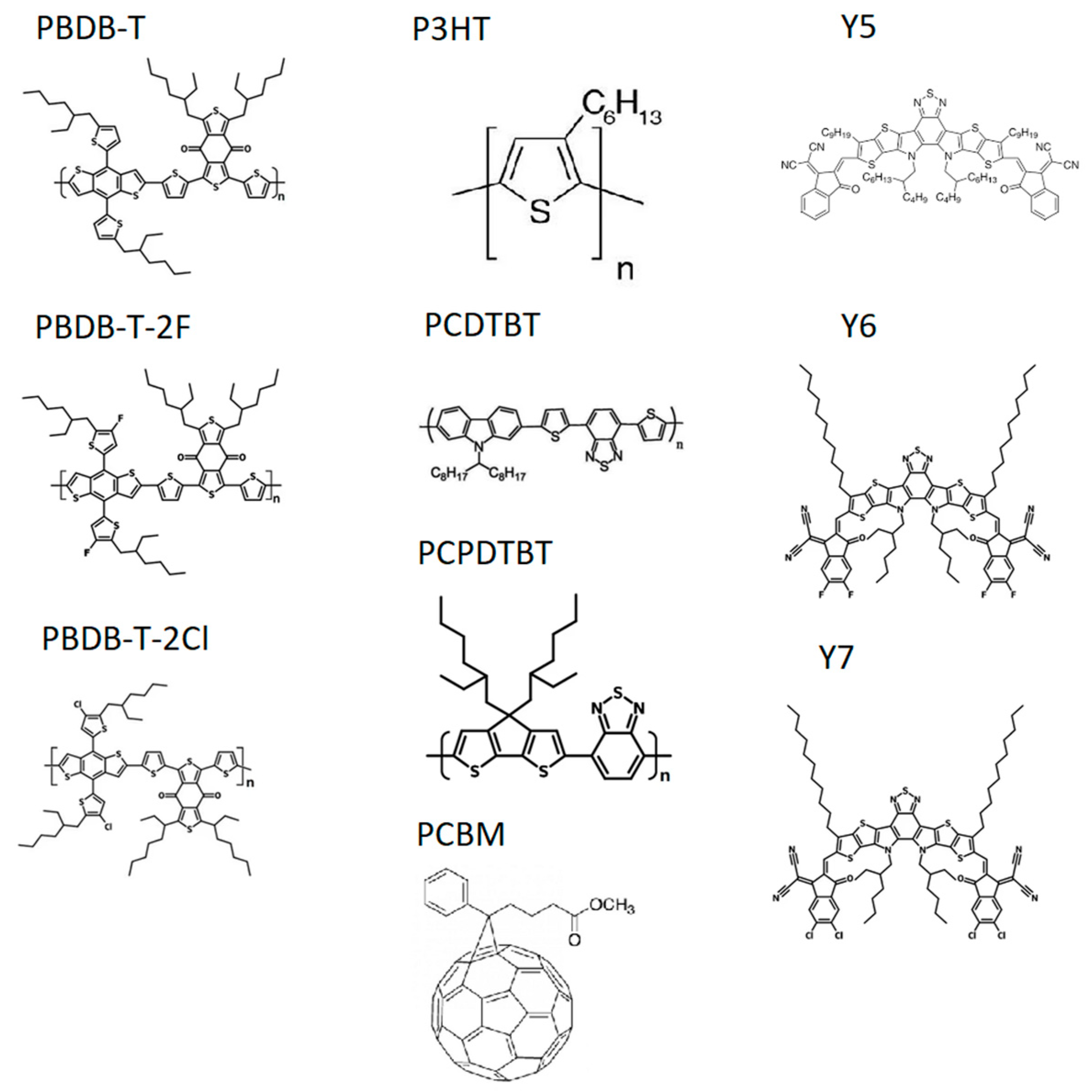

Several well-known commercially available organic electron donor and acceptor materials were chosen for this study. The materials were electron donor polymers such as P3HT (bought from Sigma-Aldrich, https://www.sigmaaldrich.com/, (accessed on 17 September 2023)) and PCDTBT, PCPDTBT, PBDB-T, PBDB-T-2F, and PBDB-T-2Cl (bought from Ossila, https://www.ossila.com/ (accessed on 17 September 2023)), as well as low molecular weight electron acceptors such as PCBM and Y5 (bought from Sigma-Aldrich) and Y6 and Y7 (bought from Ossila). The structures of the molecules studied in this work are shown in Figure 1. The materials were chosen to cover various groups of organic compounds. Additionally, the energy level value differences between materials covered the possible U_oc values across a relatively wide range between 0.45 and 1.20 V.

For this study, four series of samples were made: (1) samples for energy level determination; (2) samples for bulk heterojunction photoconductivity measurements; (3) OPV cells with various donor:acceptor combinations in the active layer; (4) OPV cells with the same donor:acceptor pair in the active layer. Meanwhile, we varied the sample preparation conditions.

The samples for energy level determination were made on ITO-covered glass substrates (Präzisions Glas and Optik GmbH, 15 Ω/sq.). The materials were dissolved in chlorobenzene with a concentration of 15–20 mg/mL and spin-coated in an argon atmosphere with a speed of 700 rpm, acceleration of 700 rpm/s, and spinning time of 60 s. The samples were dried on a hotplate for 15 min at 140 °C. After ionization energy level measurements using the PES method, the 30 nm thick semi-transparent Al electrodes were deposited on top of the organic material film to obtain sandwich-type (ITO/organic material/Al) samples. The Al electrodes were deposited via thermal evaporation in a vacuum (at 1 × 10⁻⁵ mbar pressure) with a deposition rate of 0.2 nm/s. These samples were used in photoconductivity measurements to obtain the electron affinity energy level value of the studied compounds.

Bulk heterojunction samples for photoconductivity measurements were made by mixing two materials dissolved in chlorobenzene with a concentration of 15 mg/mL. The solution mass ratio in each mixture was 1:1 (donor:acceptor). Spin-coating and Al electrode deposition parameters were the same as in pure material thin films. In this way, samples with a structure of ITO/donor:acceptor/Al were obtained.

The solar cells were made on ITO-covered glass substrates (Präzisions Glas and Optik GmbH, https://www.pgo-online.com/intl/ito.html (Accessed on 26 September 2023) 5 Ω/sq.). PEDOT:PSS (AL4083) was spin-coated with a speed of 2000 rpm, acceleration of 2000 rpm/s, and spinning time of 60. The substrates were dried on a hotplate for 15 min at 120 °C temperature. The studied materials were dissolved in chlorobenzene with a concentration of 8–10 mg/mL. Various electron donor:acceptor material combinations were prepared by mixing two solutions with a mass ratio of 1:1 to ensure that the film morphology was the same as in the photoconductivity measurement samples. The solutions were spin-coated in an argon atmosphere with a spinning speed of 1200 rpm, acceleration of 1200 rpm/s, and spinning time of 60 s. The obtained samples were dried on a hotplate for 15 min at 140 °C. A 1 nm thick LiF electron transport layer and 100 nm thick Al electrodes were deposited using a Moorfield Nanotechnology MiniLab LT090A-MX thermal evaporator in a Jacomex glovebox. The Al deposition rate was ~0.2 nm/s. The final structure of the OPV cells was ITO/PEDOT:PSS/donor:acceptor/LiF/Al.

A series of samples containing an PBDB-T-2Cl:Y5 active layer was made to observe the effect of sample preparation conditions on the results. Three samples were made by varying the donor:acceptor mass ratio (1.2:1, 1:1, 1:1.2). One further sample was made by adding chloroform to the solution. In this case, the chloroform:chlorobenzene mass ratio in the solution was 0.5:1. The rest of the preparation parameters (solution concentration, spin-coating parameters, and time of thermal treatment) remained the same as in the previous series.

2.2. Measurement Systems

The ionization energy level value of the studied materials was obtained using the photoemission yield spectroscopy (PYS) method. The measurements were carried out in a vacuum (1-2∙10-5 mbar) using a self-built system consisting of an ENERGETIQ Laser-Driven Light Source (LDLS EQ-99) https://www.energetiq.com/ (Accessed on 26 September 2023), white light source, Spectral Products DK240 1/4 m monochromator, and Keithley 617 electrometer (which was used as a voltage source as well as the equipment for electric current measurements). The spectral range of the measurements was between 4.00 and 6.50 eV with a 0.05 eV step. A voltage of 50 V was applied between the sample and copper electrode to improve the electrical signal. The distance between the sample and the electrode was around 2 cm.

The equipment for photoconductivity measurements was the same as in photoelectron emission spectroscopy. In this case, there was no copper electrode 2 cm from the sample surface. Instead, one electrical contact was connected to the ITO while the other was connected to the Al electrode. The light was focused on a 3 × 3 mm² area where ITO and Al overlapped. For the pure films, photoconductivity was used to determine the energy gap (E_g) between the material ionization energy level and electron affinity level. Knowing the energy gap and the ionization energy (I) level value, it was possible to calculate the electron affinity level value:

$$EA=I-E_g.$$

(2)

By measuring the photoconductivity of the bulk heterojunction (donor:acceptor) samples, the real gap between the donor molecule’s ionization energy level and the acceptor molecule’s electron affinity level was obtained.

A solar simulator ScienceTech SS150 https://www.sciencetech-inc.com/ (accessed on 17 September 2023) with a light intensity of 100 mW/cm² and a standard AM 1.5 filter was used as a light source in the photovoltaic effect measurements. The current–voltage characteristics (I–V curves) were measured using a Keithley 6517B electrometer. From these measurements, the U_oc value for all of the studied donor–acceptor pairs was obtained.

3. Results

As there are a variety of measurement methods and systems, the energy level values for the studied materials vary considerably in the literature. To ensure that the energy level values were obtained in the same way, the ionization energy level and electron affinity level values were determined for the organic materials used in this work.

The ionization energy was determined from the photoelectron emission yield spectral dependence as the threshold energy at which the yield rapidly increases. Photoemission yield Y(hν) can be calculated as

$$Y\left(h\nu \right)=\frac{N\left(h\nu \right)}{P\left(h\nu \right)},$$

(3)

where N(hν) is the number of emitted electrons and P(hν) is the number of incident photons with energy hν. Near the threshold energy, the photoemission yield is proportional to the difference between the photon energy and the ionization energy level value:

$$Y\left(h\nu \right)\propto {\left(h\nu -I\right)}^x.$$

(4)

where x is a number between 1 and 3, depending on the studied system [32]. x = 2 is usually used for metals and conductive materials [18,33] while x = 2.5 or x = 3 is used for semiconductors [17,34,35]. In this work, we used x = 2.5 as it yielded a better approximation than x = 3. To obtain the ionization energy level value of the studied material, the Y(hν)^2/5 dependence on photon energy was plotted. An example of the photoelectron emission for PBDB-T-2Cl is shown in Figure 2a. It can be seen that after 5.20 eV, the photoemission yield linearly increases. This value is then considered the ionization energy level value of PBDB-T-2Cl.

The gap energy E_g value was obtained as the threshold energy from the photoconductivity spectral dependence. Photoconductivity efficiency β(hν) can be calculated as

$$\beta \left(h\nu \right)\frac{I_{ph}\left(h\nu \right)}{e·k\left(h\nu \right)·N\left(h\nu \right)·G\left(h\nu \right)},$$

(5)

where I_ph(hν) is the photocurrent when a sample is irradiated with photons of certain energy of hν, e is the elementary charge, k(hν) is the light transmission coefficient of the semitransparent electrode, N(hν) is the number of incident photons, and G(hν) is the portion of light absorbed in the thin film, calculated as:

$$G\left(h\nu \right)=\frac{{\int }_0^{d}exp\left(-\alpha \left(h\nu \right)x\right)dx}{{\int }_0^{\infty }exp\left(-\alpha \left(h\nu \right)x\right)dx}=1-exp\left(-\alpha \left(h\nu \right)d\right),$$

(6)

where α(hν) is the light absorption coefficient of the material, and d is the sample thickness. [36,37] Similarly to the photoelectron emission, photoconductivity efficiency is non-linearly proportional to the difference between the photon energy and gap energy:

$$\beta \left(h\nu \right)\propto {\left(h\nu -E_g\right)}^y$$

(7)

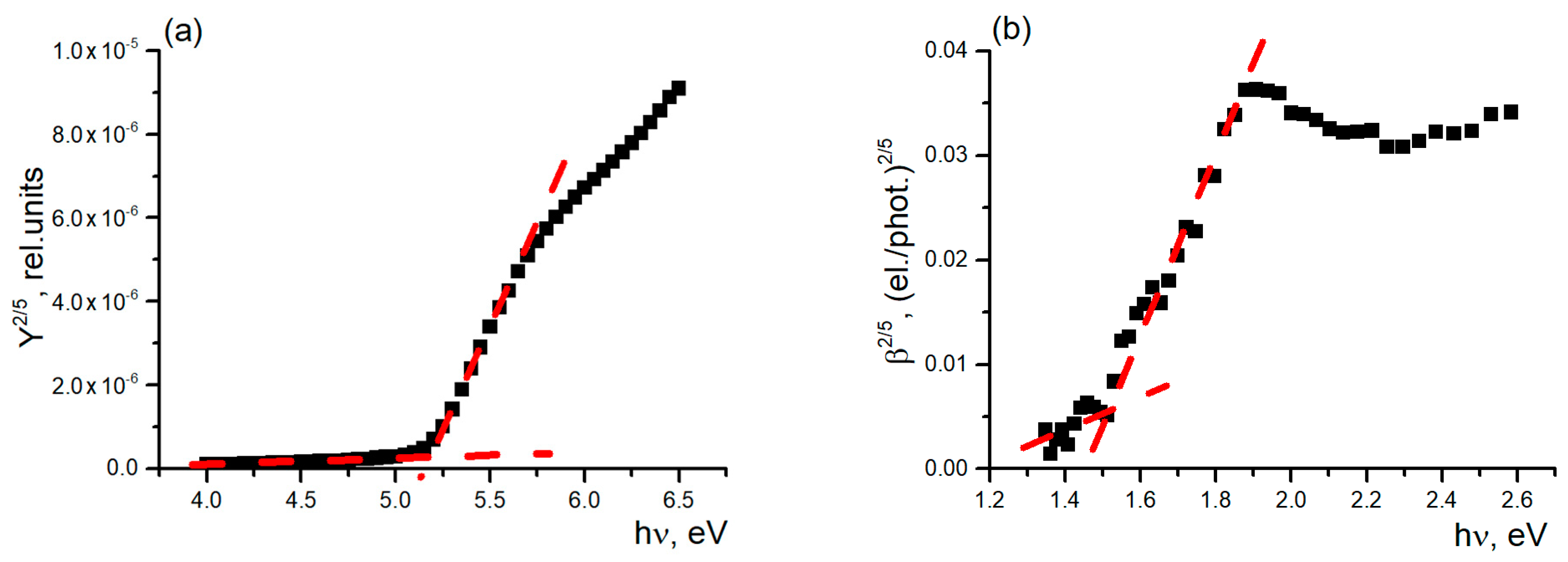

It has been empirically observed that in organic semiconductors, y = 2.5. Again, to obtain the E_g value of the studied material, the β(hν)^2/5 spectral dependence was plotted as shown in the example for PBDT-T-2Cl (see Figure 2b). In this case, the gap value was determined to be 1.51 eV, placing the electron affinity at 3.69 eV. The small photoconductivity signal between 1.3 and 1.5 eV was most likely caused by the impurities in the thin film, as no purification was performed and the materials were used as received.

The obtained values for all studied materials are collected in

Table 1. Studied materials and their energy level values.

Material	I, eV (±0.03 eV)	EA, eV (±0.05 eV)
P3HT	4.54	2.79
PCDTBT	5.10	3.40
PCPDTBT	4.90	3.60
PBDB-T	4.87	3.15
PBDB-T-2F	5.10	3.40
PBDB-T-2Cl	5.20	3.69
PCBM	6.08	3.63
Y5	5.55	3.87
Y6	5.75	4.03
Y7	5.69	4.12

. These values were used to estimate the open-circuit voltage of various donor:acceptor material pairs.

Usually, the photocurrent rapidly increases by several orders of magnitude when the photon energy is above the gap energy (E_g). Below E_g, there can sometimes be observed a small photoconductivity signal which is most likely generated by impurities in the film. As can be seen in the example of PBDB-T-2Cl in Figure 2b, E_g = 1.51 eV, yet a small photocurrent can be observed even at 1.35 eV. In the case of Y5, E_g = 1.68, yet a small photocurrent can be measured from ~1.50 eV (see Figure 3a). In the bulk heterojunction samples, photocurrents can be observed in the infrared part of the spectrum, far below the threshold energy of any separate material (see Figure 3a). In this case, the photocurrent could be measured starting from E_CT = 0.92 eV. The photon energy is too low there to directly excite either PBDB-T-2Cl or Y5. This means that the electrons are directly transferred from the electron donor material to the electron acceptor molecules.

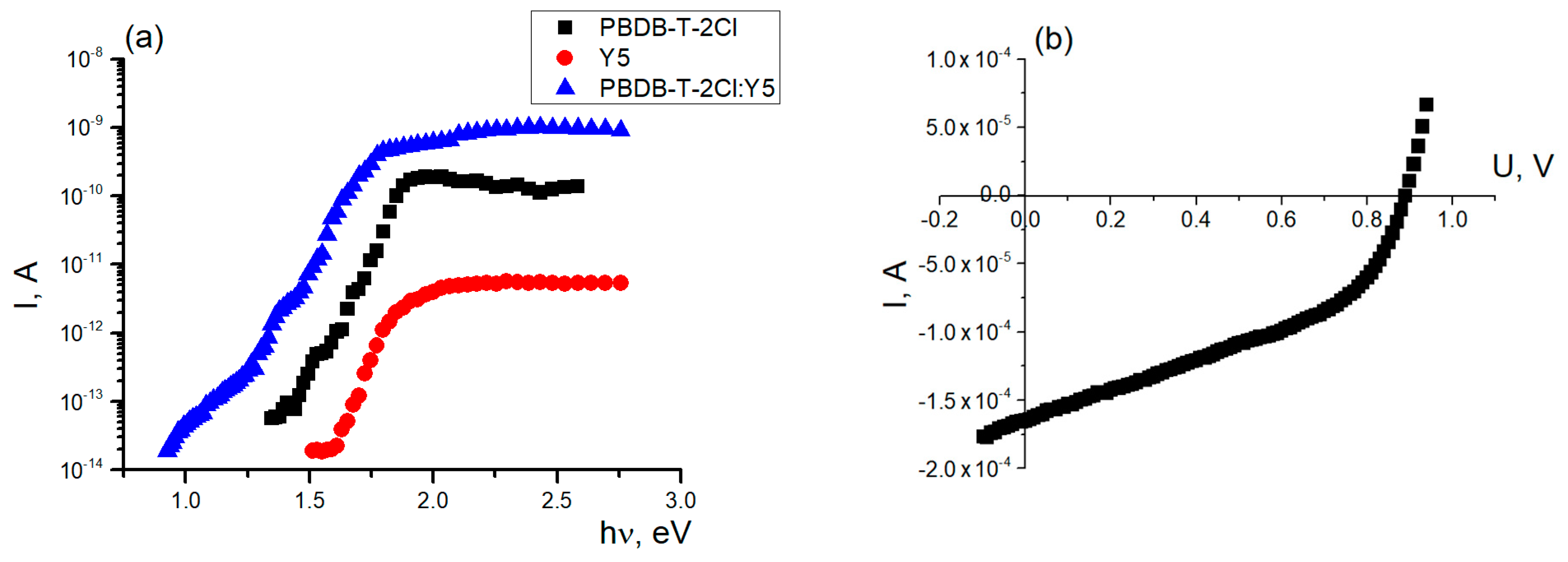

Using the studied materials, the OPV cells were fabricated and their current–voltage characteristics (I–V curves) were measured. From these measurements, the real U_oc values were obtained as the point closest to the I = 0 A value. In the example of the PBDB-T-2Cl: Y5 solar cell, the obtained U_oc value was 0.89 ± 0.01 V, only 0.03 V lower than the E_CT value obtained in the photoconductivity measurements.

The values in Table 1 were used to estimate the open-circuit voltage (U_oc,est) for various donor:acceptor material combinations, according to Equation 1. In this work, we assumed the value ∆ to be 0.30. For I_PBDB-T-2Cl = 5.20 eV and EA_Y5 = 3.87 eV, we obtained the estimated open-circuit voltage value U_oc,est = 1.03 ± 0.06 V, which is a 0.14 V overestimation compared to the real measured value. For most of the ionization energy level values reported in the literature around I_PBDB-T-2Cl = 5.50 eV [38,39,40], the expected U_oc,est value would have been even 0.3 V higher, reaching 1.33 V and overestimating U_oc by more than 0.40 V.

In total, 20 different electron donor:acceptor pairs were studied. Photocurrent spectra were obtained for simple ITO/donor:acceptor/Al samples; OPV cells were fabricated and their current-voltage characteristics were measured.

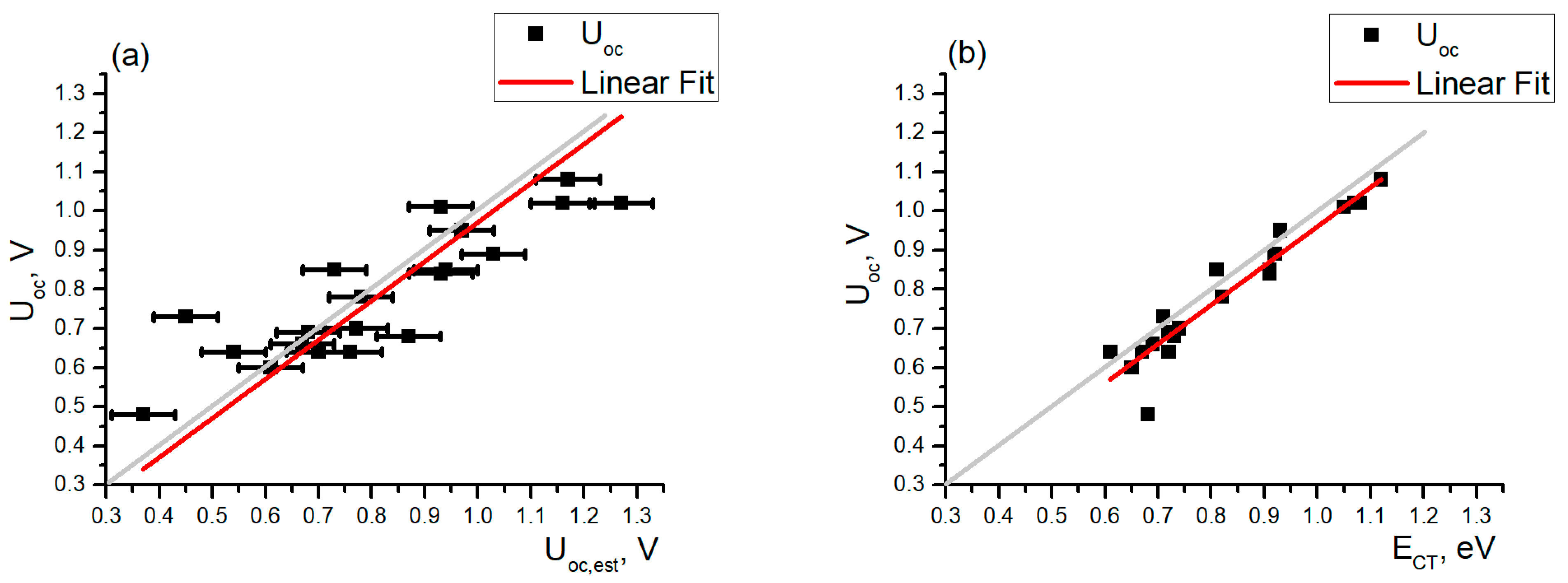

The summarized results are shown in Figure 4. When energy level values and Equation 1 are used to determine U_oc, the results are more scattered (Figure 4a) than when measured E_CT values are used (Figure 4b). Using linear fitting of the data, and fixing the slope coefficient to 1, an intercept value was −0.03 ± 0.06 V was obtained with a Pearson’s correlation coefficient of 0.87. While on average the estimated voltage U_oc,est was close to the measured U_oc, the points were dispersed around the “perfect fit” values. Mostly, U_oc,est tends to overestimate the expected voltage.

When linear fitting was applied to the U_oc dependence on E_CT, the obtained intercept value was −0.04 ± 0.02 with a Pearson’s correlation coefficient of 0.95, showing a very strong correlation between both variables. This shows that the points are less scattered and the obtained U_oc values are closer to the values estimated from photoconductivity measurements. Furthermore, in this case, the measured E_CT is slightly larger than the U_oc values for similar active layers. The low intensity of the white-light source in the infrared part of the spectrum and the electrical noises may explain why E_CT exceeded the measured U_oc values. A light source with higher radiation intensity could be a solution to this problem.

When using both methods, the estimated open-circuit voltage values are close to the real ones, and the E_CT results are less dispersed. U_oc estimation using Equation (1) does not take into account possible interactions between donor and acceptor molecules, which may differ from material class to material class. Two groups of similar materials were used in this work: PBDB-T and its derivatives (as electron donor materials) and Y- series (as electron acceptor materials). As the energy levels decrease owing to the addition of chlorine and fluorine atoms to the molecule [41,42], the estimated and obtained U_oc values follow the expected trend. For a lower ionization energy of electron donor material, the obtained U_oc values were higher than those when the original PBDB-T was used. When samples were made from a Y5 electron acceptor molecule, the U_oc values were generally higher than those where Y6 and Y7 were used in the active layer. However, no material group produced systematic errors (always overestimated or always underestimated) in either the U_oc estimation from energy level values or when intrinsic photoconductivity measurements were used.

The energy level values can be obtained with various methods; this can introduce additional uncertainties in the U_oc estimations. Often, these values are obtained from solutions instead of films, which can create even larger errors in U_oc estimations. Direct measurements using photoconductivity spectral dependence should provide more reliable and, in most cases, more precise results.

It has been shown that solar cell preparation conditions (solvent choice, morphology control, etc.) can influence the open-circuit voltage [43]. However, this influence is relatively limited and in most cases is within the range of 0.05 V. To test the sensitivity of the intrinsic photoconductivity measurements, an additional series of samples with a PBDB-T-2Cl:Y5 active layer was fabricated. This helped to evaluate the influence of sample preparation conditions on the obtained results.

As can be seen in Figure 5a, adding chloroform to the solution reduced the obtained U_oc. In this case, it was 0.84 V, a 0.05 V reduction compared to the case of pure chlorobenzene solution. As the chloroform rapidly evaporates, it hinders the formation of the desired film morphology and thus the performance of the solar cell is lowered. Changing the donor:acceptor mass ratio does not have a significant influence on the obtained U_oc values. Under an excessive amount of donor (1.2:1) the U_oc value decreased insignificantly (by 0.02 V) to 0.87 V (see Figure 5b). Under extra electron acceptor material in the active layer, the U_oc decreased by another 0.01 V to 0.86 V. This shows that the U_oc is mainly determined by the materials themselves, and there is a limited influence of the morphology of the film.

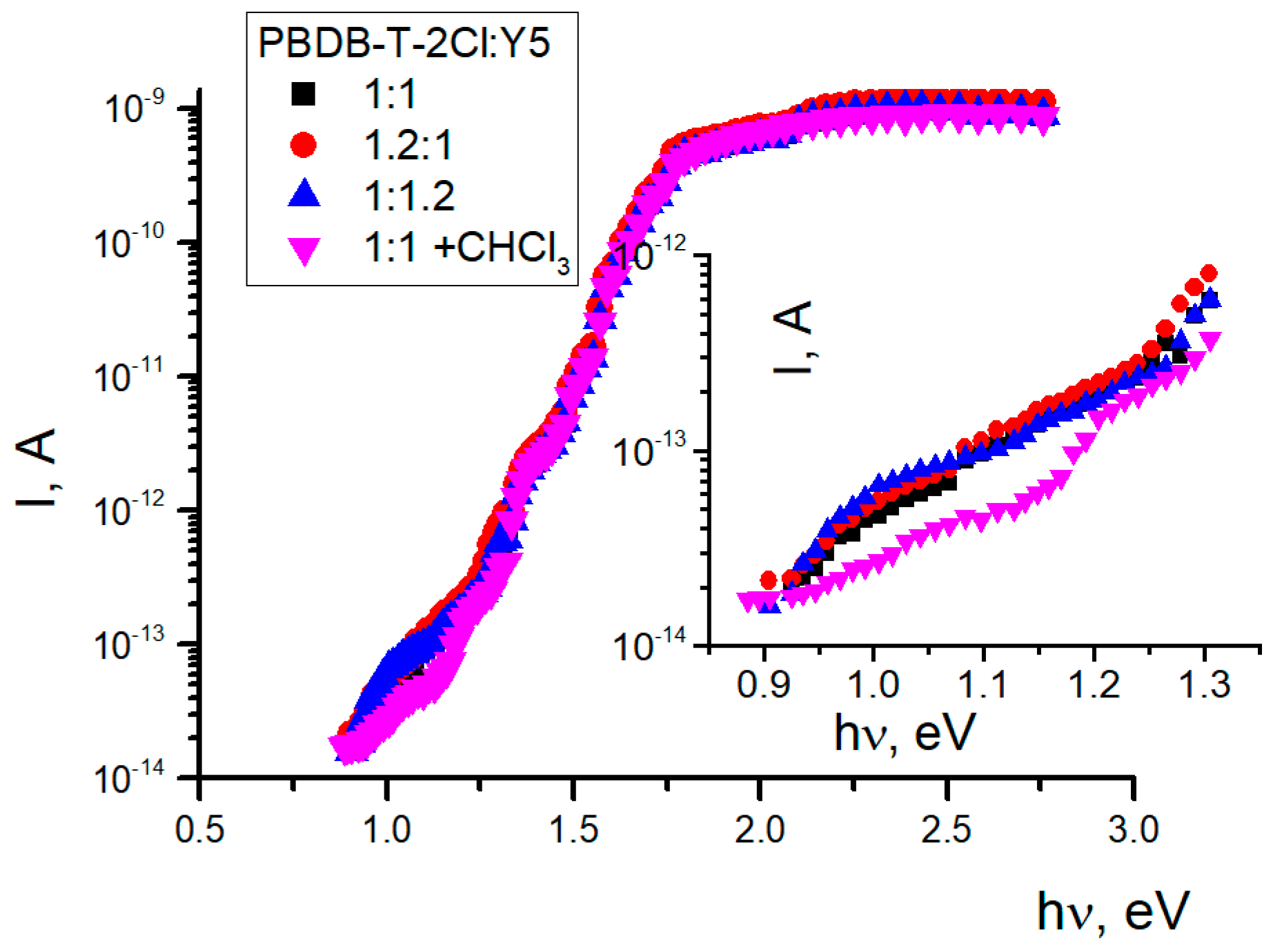

The intrinsic photoconductivity measurements showed a limited influence of the donor:acceptor mass ratio on the results (see Figure 6). Insignificant changes in the threshold value were observed: an additional amount of either donor or acceptor in the active layer lowered the threshold value by 0.01 eV, which is within the margin of error. Here, E_CT = 0.91 eV, compared to the 0.92 eV obtained for the sample with a donor:acceptor mass ratio of 1:1. Larger changes were observed for the sample with added chloroform in the solution. First, the photocurrent was lower in the infrared part of the spectrum (see inset of Figure 6), showing decreased charge carrier transfer between the electron donor and acceptor molecules. Second, the E_CT value in this case was 0.89 eV. Here, it can be seen that the trend remains the same as for other series of samples: the lower the U_oc, the lower the photoconductivity threshold value.

4. Conclusions

In this work, we showed that the open-circuit voltage estimation from energy level values in OPVs gives dispersed results and, in most cases, the expected U_oc is slightly overestimated. Photoconductivity measurements of simple ITO/donor:acceptor/Al samples facilitate the more precise prediction of U_oc, as shown by linear fitting of the results. The results are less dispersed, and the correlation coefficient is higher: 0.95 compared to 0.87 in the case of U_oc estimation from energy level values alone. The slight overestimation of U_oc using E_CT values could be related to the sensitivity of the photocurrent measurements. More precise measurements could be performed using a more intense infrared radiation source.

Samples fabricated using the same materials in the active layer showed that sample preparation can influence the U_oc and intrinsic photoconductivity threshold (E_CT). For the most correct comparison, the samples for photoconductivity measurements should be made the same way (for example, the mass ratio of donor:acceptor material, and the used solvents) as for solar cells.
