Chemical Composition, Antioxidant, and Antimicrobial Activities of Vetiveria zizanioides (L.) Nash Essential Oil Extracted by Carbon Dioxide Expanded Ethanol

Department of Biotechnology, College of Chemistry and Life Sciences, Zhejiang Normal University, Jinhua 321004, China
Department of Biotechnology, Xingzhi College, Zhejiang Normal University, Jinhua 321004, China
Author to whom correspondence should be addressed.
Molecules 2019, 24(10), 1897;
Submission received: 28 April 2019 / Revised: 13 May 2019 / Accepted: 16 May 2019 / Published: 17 May 2019
(This article belongs to the Special Issue Biological Activities of Essential Oils)


In the present study, the composition of essential oil isolated from the roots of Vetiveria zizanioides (L.) Nash, harvested in China, was studied, along with the bioactivities. A green novel method using an eco-friendly solvent, CO2-pressurized ethanol, or carbon dioxide expanded ethanol (CXE) was employed to isolate the essential oil from the root of Vetiveria zizanioides (L.) Nash with the purpose of replacing the traditional method and supercritical fluid extraction (SFE). After investigating the major operating factors of CXE, the optimal conditions were obtained as follows: 8.4 MPa, 50 °C, 5 mL/min ethanol, and 0.22 mole fraction of CO2, presenting an extraction oil that ranged from 5.12% to 7.42%, higher than that of hydrodistillation (HD) or indirect vapor distillation (IVD). The Gas Chromatography-Mass Spectrometry (GC-MS) analysis showed that three major components, including valerenol (18.48%), valerenal (10.21%), and β-Cadinene (6.23%), are found in CXE oil, while a total of 23 components were identified, 48 components less than using conventional hydrodistillation. Furthermore, the antimicrobial activities of root oils were evaluated by the microdilution method, which showed that CXE oil exhibited an ability against Gram-positive bacteria, especially Staphylococcus aureus, approximately equivalent to traditional samples. Additionally, the DPPH free radical scavenging assay demonstrated that the antioxidant abilities of root oils were sorted in the descending order: IVD > HD > CXE > SFE. In conclusion, after a comprehensive comparison with the conventional methods, the CXE-related technique might be a promising green manufacturing pattern for the production of quality vetiver oil, due to the modification of ethanol by the variable addition of non-polar compressible CO2, ultimately resulting in a prominent dissolving capability for the extraction of vetiver solutes.

Graphical Abstract

1. Introduction

Vetiveria zizanioides (L.) Nash, syn. Chrysopogon zizanioides (L.) Roberty, is a perennial plant of the Poaceae family (subfamily Panicoideae), native from India, and widely found in Asia, Africa, Oceania, Central, and South America [1]. The volatile oil from the vetiver root is a viscous liquid, with diverse colors from pale-yellow to dark brown, as well as a deep, smoky, earthy, and woody odor [2]. Vetiver oil is commonly used as a main odor contributor in the perfumery industry and as a flavor agent in the food industry [1,3]. Despite its special aroma, vetiver oil also possesses various biological activities, such as antioxidant [4], antibacterial [5], and anti-inflammatory properties [6], making it beneficial in aromatherapy [7]. In fact, the annual market demand of vetiver oil was estimated at up to 250 tons, worth approximately $200 million per year [8], while the worldwide herbal cultivating area has reached nearly 10,000 hectares [9]. Because of these introductory facts, many researchers have focused on the innovation of extraction techniques to reduces production costs as well as environmental pollution.
Hydrodistillation is the most widely used conventional method for the isolation of volatile compounds from plant materials [10]. In general, the traditional extraction of vetiver oil using hydrodistillation usually lasts over 10 h [11,12] at relatively high temperatures (steam or boiling water) [13], resulting in the break-down of some oxidizable and thermolabile components as well as a severe decline of the oil yield [14]. However, in recent years, many articles reported a novel extraction method for an oil-fat mixture [15,16] based on CO2 expanded ethanol (CXE) or CO2-pressurized ethanol, which has been successfully used for the isolation of carotenoid pigment accumulated in Haematococcus pluvialis [17], α-pinene, and cis-verbenol from tree resin (Boswellia sacra) [16] and phenolic compounds from garlic husk (Allium sativum L.) [18,19].
Apparently, although the major component of CXE is a typical polar solvent, ethanol, the addition of CO2 may effectively promote the inherent properties, including the specific dissolving ability as well as the mass-transfer efficiency [20,21,22], being able to extract relatively complex oil from the matrix [14]. Different from supercritical fluid (SCF) [11], CXE has an enhanced solubility for various solutes, which can be used for the extraction of both non-polar and moderately polar components [17,23]. From the above analysis, as an environmentally friendly solvent, CXE fluid may have potential in improving the fundamental and functional properties of vetiver root oil extraction.
The present study will focus on the chemical composition, antimicrobial, and antioxidant activities of the vetiver oil obtained from the novel method, CXE, in comparison with traditional methods, including hydrodistillation (HD) and supercritical fluid extraction (SFE). The current investigation aims to ascertain whether the application of a green method might improve the quality or enhance the yield of vetiver oil.

2. Results

2.1. Chemical Components of Essential Oil Extracted from Vetiveria Zizanioides Root

The chemical compositions of vetiver oils obtained from the extraction methods (CXE, SFE, HD, and IVD) are presented in Table 1. Based on the GC-MS analysis of oil samples from the four above methods, a total of 48 components were identified and then grouped into four classes, including hydrocarbons, alcohols, carbonyl compounds, and carboxylic acids. Traditional and CXE oil showed a larger variety of components, such as alcohols and carboxylic acids, with the relevant amounts of 2.77% and 2.66% detected, respectively. Also, it was found that carbonyl compounds exist in CXE oil (5.42%) and IVD oil (1.54%). Furthermore, SFE oil is mainly composed of hydrocarbons (81.91%), which can be used as a potential food additive, while HD oil has an applicable usage in the perfumery and cosmetic industry [11]. Firstly, for the root oil from traditional hydrodistillation, 21 volatiles were observed with three main chemical compounds, cedr-8-en-13-ol (26.54%), β-guaiene (15.31%), and cycloisolongifolene (11.09%), which were also identified in previous reports [24]. Meanwhile, 25 components were detected in the IVD oil, which represents an industrial sample produced by direct steam distillation. Besides the one compound, cedr-8-en-13-ol (9.74%), being the same as HD oil, cycloisolongifolene (6.56%) and khusimene (5.86%) were merely present in the IVD oil, possibly exhibiting a strong ability to inhibit lipid peroxidation according to early findings. In contrast to the HD oil, the new method of CXE extraction obtained a total of 22 components, but the main components of CXE oil, including valerenol (18.48%), valerenal (10.21%), and β-cadinene (6.23%), were distinctly different from the HD oil. Furthermore, the oil produced by another green technique, SFE, exhibited a relatively simple chemical composition, solely containing 10 components and being predominated by hydrocarbons. In addition, it should be noted that although some minor components, such as khusimene, δ-selinene, and β-vetivenene, probably accounted for a low percent rate, they might be contribute to specific odor of vetiver oil. Notably, it was certain that the variation of the chemical composition due to the use of the new method instead of conventional ones would result in a possible promotion of the profiles of vetiver oil, such as reducing the unpleasant smoky fragrance, enhancing the bioactivity, and so on.
The results presented in Table 2 show that in addition to the color, the extracting yield of vetiver oil obtained from CXE extraction is significantly different from the other three methods. The color of CXE oil was pale yellow, mostly approaching the light yellow of traditional HD oil. However, the oil yield of CXE extraction reached almost 7.42%, much larger than the 0.6% for HD, 0.3% to 0.5% for IVD, and around 0.5% for SFE, respectively. Interestingly, the industrially-produced IVD oil exhibited a dark brown color while SFE oil was represented by an unspecific color, which was brown mixed with shades of green, close to an olive color.

2.2. Antimicrobial Activity

The minimum inhibitory concentrations (MICs) of five different samples of vetiver essential oils against Gram-positive and Gram-negative bacteria are illustrated in Table 3. CXE oil exhibited a relatively strong antimicrobial ability against Staphylococcus aureus (MIC = 78 μg/mL) and a weak activity against Bacillus subtilis (MIC = 312.5 μg/mL), Escherichia coli (MIC = 312.5 μg/mL), and Pseudomonas aeruginosa (MIC = 2500 μg/mL). SFE oil presented a moderate activity against the same Gram positive bacteria, Staphylococcus aureus, similar to CXE oil, it had a poor ability against Bacillus subtilis (MIC = 156 μg/mL), Pseudomonas aeruginosa (MIC = 312.5 μg/mL), and Escherichia coli (MIC = 625 μg/mL). The essential oil extracted from vetiver root using HD showed a powerful antimicrobial activity against Staphylococcus aureus (MIC = 39 μg/mL), but also a moderate activity against Bacillus subtilis (MIC = 312.5 μg/mL), Pseudomonas aeruginosa (MIC = 312.5 μg/mL), and Escherichia coli (MIC = 312.5 μg/mL). The essential oil obtained from IVD, especially LFO (light fraction oil), displayed an evident antimicrobial ability against Gram-positive bacteria, Staphylococcus aureus (MIC = 78 μg/mL), but HFO (MIC = 156 μg/mL) displayed opposite result regarding the same bacteria. In accordance with the results, conventional and traditional methods have significant antimicrobial activity against Gram-positive bacteria, especially Staphylococcus aureus.

2.3. DPPH Free Radical Scavenging Activity of Vetiver Oils

In this study, the antioxidant activity of essential oils from Vetiveria zizanioides roots were evaluated by a DPPH· (1,1-diphenyl-2-picrylhydrazyl free radical) scavenging assay in contrast with a well-known hydrophilic antioxidant, ascorbic acid (Vc). The median inhibitory concentration 50 (IC50) values of the vetiver essential oils and the standard antioxidant, ascorbic acid, are shown in Table 4. The IC50 values of the five different essential oil samples ranged from 1.39 to 4.54 mg/mL. Since low values of IC50 represent high antioxidant activity, the ability of oil samples can be observed in the following order: IVD oil (2.19 mg/mL) > HD oil (3.57 mg/mL) > CXE oil (3.71 mg/mL) > SFE oil (4.54 mg/mL). Also shown in Figure 1, the CXE vetiver oil was anticipated to have approximately similar results with the traditional techniques.

3. Discussion

Since the most commonly applied method of hydrodistillation is usually performed at the laboratory scale using a Clevenger apparatus, thus representing a complete and effective extraction method for volatile compounds, HD oil might be regarded as the traditional product for vetiver root, as acknowledged by the current market. The experimental results indicated that although the number of total components of CXE oil was close to HD oil, the chemical composition exhibited a slight difference, most possibly due to the fact that CXE extraction depends on the solubility of the extracts in the specific solvent, whereas hydrodistillation obtains extracts based on the reduction of the co-boiling point while mixing and then heating the root matrix with the water. Literally, IVD, namely, indirect vapor distillation, implies that the water does not need to be in direct contact with the root matrix before distillation, and instead live steam is employed directly to penetrate the matrix for the extraction of volatile compounds, which is generally more intensive than the direct distillation (HD) performed in an ordinary laboratory [1]. Therefore, the result showed the similar chemical composition of IVD and HD, merely representing the distillation of different magnitudes. Both CXE and SFE belong to the green solvents recently recommended by many researchers, but remarkable differences between the two pressurized fluids were displayed when they were used in the extraction of natural products. Notably, for the extraction of vetiver oil from the root material, less components could be obtained by SFE, because supercritical CO2 might preferentially extract solutes of relatively low polarity. In other words, the polarity range of SFE might not fit that of the polarity of vetiver oil. However, different from pure supercritical CO2, the ethanol pressurized by compressed CO2 was a perfect solvent, exhibiting a more extensive polarity range, which was achieved by mixing the common polar solvent, ethanol, and the nonpolar solvent, supercritical CO2. [32]. As far as the polarity was concerned, CXE was more suitable to extract the vetiver root oil, whose chemical composition was more complex than that of other general plant essential oils.
Since CXE was firstly used as a solvent to produce vetiver root oil, it was necessary to find the proper extraction conditions and to optimize the operating conditions. All experiments of CXE extraction were performed at a constant temperature of 323 K, because both the previous experimental results and the analysis of literature [27] show that the temperature of CXE fluid is not significant for extraction, but should be maintained over the critical value (Tc = 313K). At the temperature of 323 K, the effect of three major operating parameters of CXE, including pressure, mole fraction of CO2, and flow rate of ethanol, on the vetiver oil yield was investigated, as shown in Figure 2. The result in Figure 2a shows that the oil yield increased significantly with the rise of pressure from 5 MPa to 9.3 MPa at a constant mole fraction of CO2 of 0.22 and ethanol flow rate of 5 mL/min. The pressure was a key factor that could alter the existence form of CO2 in the CXE from the subcritical to supercritical state, further resulting in a change of the solubility as well as other fluid properties, especially the density and viscosity, which mainly depended on the expansion extent of the systemic volume. In Figure 2b, at a constant pressure of 8.4 MPa and an ethanol flow rate of 5 mL/min, the yield of vetiver oil increased from 4.5% to 5.4% with the CO2 mole fraction rising from 0.16 to 0.22. The amount of CO2 that is added should be controlled within a relatively narrow range to ensure the intact CXE fluid exhibits a phase that is as homogenous as possible, because phasic separation is usually adverse to solute extraction. The experimental result showed that even a slight change of the mole fraction of CO2 might influence the polarity of the fluid, causing fluctuations of the oil yield. As illustrated in Figure 2c, the vetiver yield increased from 3.5% to 7.4% with the flow rate of ethanol changing from 3 to 8 mL/min at a constant pressure and CO2 mole fraction. If the extraction time was fixed for 3 h, the flow rate of ethanol mainly determined the final consumption of the CXE fluid. In particular, the slower flow rate of 5 mL/min had a higher yield of 7.42%, probably because the extracting process could be performed in adequate surroundings of the material matrix into the CXE fluid. Especially, a higher flow rate of ethanol of 8 mL/min had a lower oil yield of 5.12%, which is a result of a partial extraction of vetiver solutes due to the non-uniform excess of the solvent in the matrix. CXE exhibited a higher yield than that obtained with conventional methods (0.3%–0.6%) and SFE (0.5%).
The CXE oil exhibited a pale yellow color with a specific vetiver odor, which may be explained by the prominent dissolving capability of the extraction process. HD oil showed a similar color, light yellow, and was distinguished by a pleasant woody odor caused by the presence of khusimene (2.16%) and β-vetivenene (3.89%) [12]. On the other side, the high temperature and long time of the distillation caused IVD oil to present a dark brown color and smoky odor. Curiously, SFE exhibited a non-specific vetiver color, olive, which might be caused by the carotenoid pigments extracted from the root matrix.
The antimicrobial activity of the vetiver oil samples demonstrated a significant ability against Gram-positive bacteria, especially Staphylococcus aureus, as well as Bacillus subtilis and a relatively poor activity against the Gram negative bacilli, Pseudomonas aeruginosa and Escherichia coli [33]. Similar to the results from the literature, Gram-positive bacteria are usually more vulnerable to natural plant extracts compared to Gram-negative bacteria [2]. According to the literature [34], the strong antimicrobial activity of HD oil can be attributed to the presence of alcohols (2.77%). In addition, the moderate activity of CXE can be justified by ketones (1.54%), as it is reported that they can exhibit a potential ability.
The CXE vetiver oil presented an approximately similar antioxidant activity as traditional oil. Based on the other references [35], the presence of β-vetivenene can justify the slight ability of IVD oil (0.73%) and the strong antioxidant activity of HD oil (3.89%). The essential oil obtained by the SFE method has weak antioxidant activity because of its poor chemical composition, which was predominantly composed of hydrocarbons [34].

4. Materials and Methods

4.1. Plant Material

Fresh roots of Vetiveria zizanioides, over 2 years old, were harvested in December 2017 from Lanxi (29.208°N, 119.485°E, 38 m above sea level), Zhejiang, China. The commercial samples of vetiver oil, including light fraction oil (LFO) and heavy fraction oil (HFO), were supplied by a local producer, Natural Perfume Factory, Lanxi, Zhejiang province. The vetiver roots were cleaned to remove the soil, and then were air-dried at room temperature for 48 h. The dried materials were cut into small pieces (the length was less than 1 cm). Then, they were ground into a root powder in liquid nitrogen. The experimental root materials were stored at −20 °C in an ultra-low refrigerator (New Brunswick, Model Innova U725-86, UK).

4.2. Extraction Techniques of Essential Oil

4.2.1. Carbon Dioxide Expanded Ethanol Extraction

The CXE extraction experiments were performed using a Supercritical Fluid Extraction device (HELIX Applied Separations, Model 7307, Allentown, PA, USA). In total, 25 g of weighed root powder was mixed with 6 g of glass beads (aimed at increasing the contact of the fluid with the root matrix to facilitate the isolation of the oil) and then loaded into a stainless-steel extraction vessel. The experimental design ensured a constant temperature of 323 K, and CO2 was pressurized by the syringe pump to the desired mole fraction of 0.22% measured at an operating pressure of 8.4 MPa. Meanwhile, the ethanol was pumped by the HPLC pump (K-501, Knauer, Berlin, Germany) at a flow rate of 5 mL/min to form the CO2 expanded ethanol (CXE). CXE fluid flowed into the extraction vessel at the operating temperature, followed by the separation vessel at ambient pressure, and collected by the peristaltic pump every 10 min for a total extraction time of 150 min. Solvent was removed by rotary evaporation at 50 °C and the oil samples were stored in a refrigerator for further analysis.

4.2.2. Supercritical Fluid Extraction

The supercritical fluid extraction (SFE) was carried out using the same device mentioned above. About 40 g of root powder mixed with 70 g of glass beads were loaded into the extraction vessel. The process of extraction was performed under the following conditions: Constant temperature of 323 K, pressure of 20 MPa, flow rate of CO2 operated at 60 mL/min, and a total extraction time of 90 min.

4.2.3. Hydrodistillation

Approximately 30 g of vetiver root powder was mixed with 0.2 L of pure water and distilled using a Clevenger apparatus. After 12 h of distillation, pale-yellow essential oil was dehydrated by anhydrous sodium sulphate, then weighed for calculation of the extraction yield. The oil samples were stored in amber-colored glass bottles at a low temperature.

4.2.4. Indirect Vapor Distillation (Live Steam Distillation)

A factory situated in Lanxi city uses this conventional technique for the isolation of vetiver essential oil. Briefly, steam was used directly to pass through the vetiver root matrix (small pieces of around 5 cm). The oil-water mixture was obtained after condensation using a specific separator. The commercial oil products, including LFO (density of less than 1 g/mL) and HFO (density larger than 1 g/mL) were collected, respectively. The aspect of LFO is similar to the experimental oil obtained from HD. The middle phase between LFO and HFO is represented by the aromatic water (hydrolat), which can be recycled for production or extraction. The HFO was identified as a sticky, brown oil, possibly containing an abundance of plant lipids. The total yield of commercial vetiver oil was approximately 0. 6% (w/w). Based on the physical properties, the LFO oil sample was investigated for further analysis.

4.2.5. Estimation of Vetiver Oil Yield

The vetiver oil was periodically collected during the traditional hydrodistillation and non-conventional extractions, CXE and SFE, for determination of the oil yield as follows:
Yield   ( % )   =   weight   of   oil   extracted ( g ) dry   weight   of   root   matrix ( g )   ×   100

4.3. Gas Chromatographic/Mass Spectrum Analysis of the Composition of the Vetiver Oils

The vetiver essential oils from different extraction techniques were analyzed by GC-MS. The gas chromatography-mass spectrometry (GC-MS) analyses were performed using an Agilent GC 7820A (Agilent Technologies, Model 7820A G4350A, Santa Clara, CA, USA) coupled with an Agilent 5975C mass selective detector (Agilent Technologies, Model 5975C VL, USA). The MS detector was operated in the electron ionization (EI) mode (electron energy = 70 eV), scan range = 4–400 mAU, and scan rate = 3.99 scans/s). GC was equipped with a flame ionization detector (FID) and an HP-5ms capillary column (30 m × 0.25 mm, i.d × 0.10 μm, film thickness). Helium was used as a carrier gas with a column head pressure of 48.7 kPa and a flux of 1 mL/min [36]. Samples of 1 μL were injected using the split mode (split ratio 1:50). The injector and detector temperatures were 250 and 220 °C, respectively. The oven temperature was set as follows: Initial temperature of 50 °C, held for 5 min; increased at 3 °C/min to 240 °C, and maintained at 240 °C for 10 min. The chemical compounds of vetiver essential oil were identified based on the retention indices of the homologous series of n-alkanes, and by comparing their mass spectral with those reported in literature [1,11,12,24,27,28,29,30], as well as the NIST11 library, Wiley10 library and FFNSC1.2 library.

4.4. Antimicrobial Activity

Four bacterial strains were used for antimicrobial ability screening: Gram-positive bacteria, including Staphylococcus aureus (ATCC No. 6538) and Bacillus subtilis (ATCC No. 14579); Gram-negative bacteria, including Pseudomonas aeruginosa (ATCC No. 27853) and Escherichia coli (ATCC No. 8739). The antimicrobial activity against the above bacteria was evaluated by determining the minimum inhibitory concentration (MIC) using the microbroth dilution method. Each well of 96 microplates was aliquoted with 50 μL of cation-adjusted Mueller Hinton broth (CAMHB) (Qingdao Hope Bio-Technology Co., Ltd.); the wells of the first row contained 50 μL of pure dimethyl sulfoxide (DMSO) (Shanghai Aladdin Bio-Chem Technology Co., Ltd., Shanghai, China) (1st lane, negative control), 1% Gentamicin (Shanghai Aladdin Bio-Chem Technology Co., Ltd.) (2nd lane, positive antibiotic control), and 2.5 mg/mL oil samples were serially diluted (from 3rd lane to the 12th lane) and dissolved in DMSO, respectively. The following dilution was performed by transferring 50 μL in each well from the first row to the further one, until the eighth row. The final 50 μL of the solution in the last row was discarded. The tested strains at a concentration of approximately 1.5 × 108 colony forming units (CFU)/mL were inoculated into each well, after 24 h of incubation at 37 °C [36]. Determination of the absorbance at 610 nm was used to detect the absence of turbidity in growth broth, which indicates the effectiveness of the microbial inhibition caused by the tested samples. The final MIC values were determined by the lowest concentrations, and all antimicrobial tests were performed in duplicate.

4.5. DPPH Free Radical Scavenging Activity of Vetiver Oils

The antioxidant activity of the vetiver essential oil was measured by the DPPH (1,1-diphenyl-2-picrylhydrazyl) free radical scavenging assay. The gradual concentrations of the essential oil samples, i.e., 10, 20, 40, 60, 80, and 120 mg/mL, were prepared accurately in ethanol. For each well of the 96 microplates, 0.15 mL of a 0.05 mmol/L ethanolic DPPH was mixed with the tested 0.15 mL oil sample [36]. The reaction liquid was incubated in the dark at room temperature for 30 min and the absorbance was read at 517 nm using a Multimode Microplate Reader (Tecan, Infinite M200 PRO, AU). The standard antioxidant, ascorbic acid, was used as a negative control. The free radical scavenging activity of each solution was calculated according to the following formula:
I DPPH · %   =   ( 1     A black A s a m p l e )   ×   100
Ablank was the absorbance of the negative control, along with the absorbance of the vetiver essential oil represented by Asample. The median inhibitory concentration (IC50) was calculated based on a linear regression equation.

5. Conclusions

In this paper, a novel green solvent, CXE, was first applied to extract quality root oil from Vetiveria zizanioides (L.) Nash. CXE fluid possessed a strong ability to maintain the more characteristic components, resulting from the varying range of dissolution caused by the regulated fraction of CO2 and the high proportion of ethanol. In the CXE oil, the composition 22 components were identified, including valerenol (18.48%), valerenal (10.21%), and β-cadinene (6.23%), showing an extension of the polarity range from polar to non-polar. Moreover, from the antimicrobial activity assay, CXE oil exhibited a moderate ability against Gram-positive bacteria, especially Staphylococcus aureus, which was approximately equivalent to traditional samples. Preliminary results of the antioxidant activity from the DPPH scavenging assay were also investigated, presented in the following descending order: IVD > HD > CXE > SFE. In summary, CXE–related extraction, an environmentally friendly technology, is an alternative for the production of vetiver root oil, which basically satisfies and, in some respects, exceeds traditional product criteria. Since the chemical composition of extracts from the root material are always more complex than typical essential oils from other vegetative parts of plants, further development of this novel technique as well as the following refining process is necessary.

Author Contributions

The list of authors contributed to this work as follows: X.S. was in charge of the harvest and selection of the experimental material. A.D. was responsible for the preparation of the material, extraction, chemical analysis, and bioactivities screening assay of the essential oils. H.L. and J.L. were responsible for antioxidant activity assay of vetiver oil. P.L. performed antimicrobial activity assay. G.D. and F.W. were responsible for the interpretation of the results and editing of manuscript. All authors read and approved the final manuscript.


This work was financially supported by Public Technical Project of Zhejiang province (No. LGN19B060001) and Natural Science Foundation of Zhejiang province (No. LY19C200014).


We would like to thank Natural Perfume Factory, Lanxi, Zhejiang province for providing the commercial oil samples.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Martinez, J.; Rosa, T.V.; Menut, C.; Leydet, A.; Brat, P.; Pallet, D.; Meireles, M.A. Valorization of Brazilian vetiver (Vetiveria zizanioides (L.) Nash ex Small) oil. J. Agric. Food Chem. 2004, 52, 6578–6584. [Google Scholar] [CrossRef]
  2. Krishnaveni, V.; Amphrita, S. Analysis of phytochemical and anti-microbial activity on Vetiveria zizanioides ethanolic extract for healthcare applications. Int. J. Pharma Bio Sci. 2016, 7, 758–765. [Google Scholar]
  3. Chomchalow, N. The Utilization of Vetiver as Medicinal and Aromatic Plants with Special Reference to Thailand; Pacific Rim Vetiver Network: Bangkok, Thailand, 2001. [Google Scholar]
  4. Luqman, S.; Kumar, R.; Kaushik, S.; Srivastava, S.; Darokar, M.P.; Khanuja, S.P.S. Antioxidant potential of the root of Vetiveria zizanioides (L.) Nash. Indian J. Biochem. Biophys. 2009, 46, 122–125. [Google Scholar]
  5. Luqman, S.; Srivastava, S.; Darokar, M.P.; Khanuja, P.S. Detection of antibacterial activity in spent roots of two genotypes of aromatic grass Vetiveria zizanioides. Pharm. Biol. 2005, 43, 732–736. [Google Scholar] [CrossRef]
  6. Balasankar, D.; Vanilarasu, K.; Preetha, P.S.; Umadevi, R.M.; Bhowmik, D. Traditional and Medicinal Uses of Vetiver. J. Med. Plants Stud. 2013, 1, 191–200. [Google Scholar]
  7. Devprakash, D.; Singh, P.; Srinivasan, K.K.; Subburaju, T.; Singh, S.K. Antifungal activity of alcoholic and aqueous extracts of Vetiveria zizanioides. J. Pharm. Res. Opin. 2011, 1, 85–88. [Google Scholar]
  8. Burger, P.; Landreau, A.; Watson, M.; Janci, L.; Cassisa, V.; Kempf, M.; Azoulay, S.; Fernandez, X. Vetiver essential oil in cosmetics: What Is New? Medicines 2017, 4, 41. [Google Scholar] [CrossRef]
  9. Feng, Z. Vetiver Sistem Technology: Application and Development in China from 1998 to 2015; Guangzhou City Vetiver Grass Industry Science and Technology: Guangzhou China, 2014. [Google Scholar]
  10. Chemat, F.; Boutekedjiret, C. Extraction. Steam Distillation. Modul. Chem. Mol. Sci. Chem. Eng. 2015, 155, 1–12. [Google Scholar]
  11. Danh, L.T.; Mammucari, R.; Truong, P.; Foster, N. Response surface method applied to supercritical carbon dioxide extraction of Vetiveria zizanioides essential oil. Chem. Eng. J. 2009, 155, 617–626. [Google Scholar] [CrossRef]
  12. Mallavarapua, G.R.; Syamasundar, K.V.; Ramesh, S.; Rao, B.R. Constituents of South Indian Vetiver Oils. Nat. Prod. Commun. 2012, 7, 223–225. [Google Scholar] [CrossRef]
  13. Leite, B. Extraction of Essential Oils from Vetiver (Vetiveria zizanioides) Grass; University of KwaZulu- Natal: KwaZulu-Natal, South Africa, 2012. [Google Scholar]
  14. Mustafa, A.; Turner, C. Pressurized liquid extraction as a green approach in food and herbal plants extraction: A review. Anal. Chim. Acta 2011, 703, 8–18. [Google Scholar] [CrossRef]
  15. Wang, H.C.; Klinthong, W.; Yang, Y.H.; Tan, C.S. Continuous extraction of lipids from Schizochytrium sp. by CO2-expanded ethanol. Bioresour. Technol. 2015, 189, 162–168. [Google Scholar] [CrossRef]
  16. Al-Hamimi, S.; Mayoral, A.A.; Cunico, L.P.; Turner, C. Carbon dioxide expanded ethanol extraction: Solubility and extraction kinetics of α-pinene and cis-verbenol. Anal. Chem. 2016, 88, 4336–4345. [Google Scholar] [CrossRef]
  17. Reyes, F.A.; Mendiola, J.A.; Ibañez, E.; Del Vale, J.M. Astaxanthin extraction from Haematococcus pluvialis using CO2-expanded ethanol. J. Supercrit. Fluids 2014, 92, 75–83. [Google Scholar] [CrossRef]
  18. Chhouk, K.; Uemori, C.; Wahyudiono; Kanda, H.; Goto, M. Extraction of phenolic compounds and antioxidant activity from garlic husk using carbon dioxide expanded ethanol. Chem. Eng. Process. Process Intensif. 2017, 117, 113–119. [Google Scholar] [CrossRef]
  19. Cunico, L.P.; Acosta, M.C.; Turner, C. Experimental measurements and modeling of curcumin solubility in CO2-expanded ethanol. J. Supercrit. Fluids 2017, 130, 381–388. [Google Scholar] [CrossRef]
  20. Mirarab, M.; Sharifi, M.; Ghayyem, M.A.; Mirarab, F. Prediction of solubility of CO2 in ethanol–[EMIM][Tf2N] ionic liquid mixtures using artificial neural networks based on genetic algorithm. Fluid Phase Equilibria 2014, 371, 6–14. [Google Scholar] [CrossRef]
  21. Seifried, B.; Temelli, F. Density of Carbon Dioxide Expanded Ethanol at (313.2, 328.2, and 343.2) K. J. Chem. Eng. Data 2010, 2410–2415. [Google Scholar] [CrossRef]
  22. Jessop, P.G.; Subramaniam, B. Gas-Expanded Liquids. Chem. Rev. 2007, 107, 2666–2694. [Google Scholar] [CrossRef] [PubMed]
  23. Cunico, L.P.; Turner, C. Supercritical Fluids and Gas-Expanded Liquid. In The Application of Green Solvents in Separation Processes; Elsevier Science: Amsterdam, The Netherlands, 2017; pp. 155–214. [Google Scholar]
  24. Peng, H.Y.; Lai, C.C.; Lin, C.C.; Chou, S.T. Effect of Vetiveria zizanioides essential oil on melanogenesis in melanoma cells: Downregulation of tyrosinase expression and suppression of oxidative stress. Sci. World J. 2014, 2014, 9. [Google Scholar] [CrossRef]
  25. NIST Chemistry WebBook. Available online: (accessed on 25 July 2018).
  26. PubChem Database. Available online: (accessed on 25 July 2018).
  27. Danh, L.T.; Truong, P.; Mammucari, R.; Foster, N. Extraction of vetiver essential oil by ethanol-modified supercritical carbon dioxide. Chem. Eng. J. 2010, 165, 26–34. [Google Scholar] [CrossRef]
  28. Massardo, D.R.; Senatore, F.; Alifano, P.; Del Giudice, L.; Pontieri, P. Vetiver oil production correlates with early root growth. Biochem. Syst. Ecol. 2006, 34, 376–382. [Google Scholar] [CrossRef]
  29. Adams, R.P.; Habte, M.; Park, S.; Dafforn, M.R. Preliminary comparison of vetiver root essential oils from cleansed (bacteria- and fungus-free) versus non-cleansed (normal) vetiver plants. Biochem. Syst. Ecol. 2004, 32, 1137–1144. [Google Scholar] [CrossRef]
  30. Pripdeevech, P.; Wongpornchai, S.; Promsiri, A. Highly volatile constituents of Vetiveria zizanioides roots grown under different cultivation conditions. Molecules 2006, 11, 817–826. [Google Scholar] [CrossRef]
  31. Adams, R.P. Identification of Essential Oil Components by Gas Chromatography/Mass Spectrometry; Allured Publishing Corporation: Carol Stream, IL, USA, 2007; ISBN 978-1-932633-21-4. [Google Scholar]
  32. Hoang, H.N.; Nagashima, Y.; Mori, S.; Kagechika, H.; Matsuda, T. CO2 -expanded bio-based liquids as novel solvents for enantioselective biocatalysis. Tetrahedron 2017, 73, 2984–2989. [Google Scholar] [CrossRef]
  33. Soni, A.; Dahiya, P. Screening of phytochemicals and antimicrobial potential of extracts of Vetiveria zizanioides and Phragmites karka against clinical isolates. Int. J. Appl. Pharm. 2015, 7, 22–24. [Google Scholar]
  34. Semde, Z.; Koudou, J.; Zongo, C.; Figueredo, G.; Somda, M.K.; Ganou, L.; Traore, A.S. Chemical composition, antioxidant and antimicrobial activities of the essential oil of Vetiveria nigritana (Benth.) Stapf roots from Burkina Faso. J. Appl. Biol. Biotechnol. 2017, 5, 29–36. [Google Scholar]
  35. Chahal, K.K.; Bhardwaj, U.; Kaushal, S.; Sandhu, A.K. Chemical composition and biological properties of Chrysopogon zizanioides (L.) Roberty syn. Vetiveria zizanioides (L.) Nash- A Review. Indian J. Nat. Prod. Resour. 2015, 6, 251–260. [Google Scholar]
  36. Deng, G.; Craft, J.D.; Steinberg, K.M.; Li, P.L.; Pokharel, S.K.; Setzer, W.N. Influence of different isolation methods on chemical composition and bioactivities of the fruit peel oil of Citrus medica L. var. sarcodactylis (Noot.) Swingle. Medicines 2017, 4, 1. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds in this article are not available from the authors.

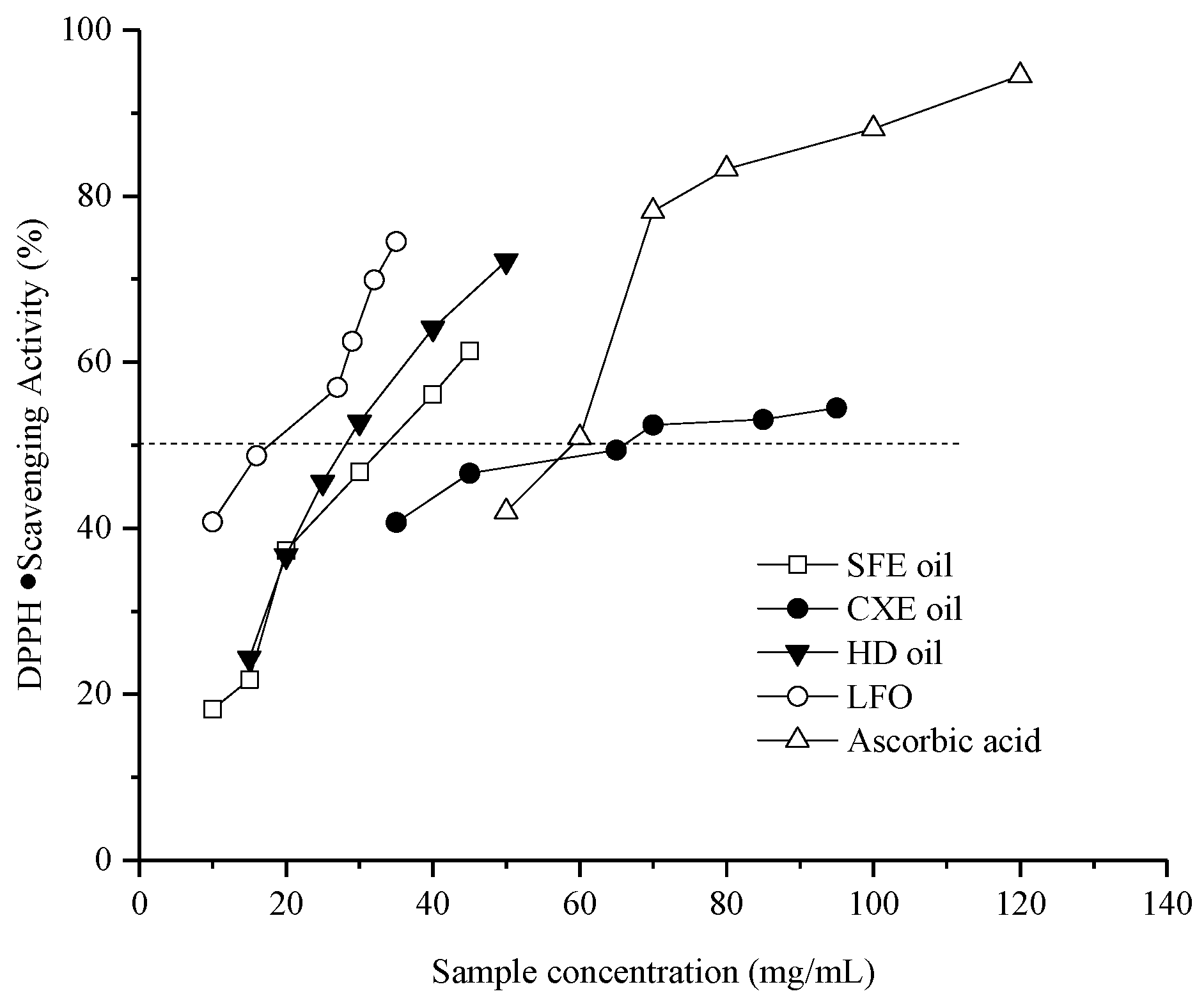

Figure 1. DPPH free radical scavenging ability of different samples of oil extracted from Vetiveria zizanioides root.
Figure 1. DPPH free radical scavenging ability of different samples of oil extracted from Vetiveria zizanioides root.
Molecules 24 01897 g001

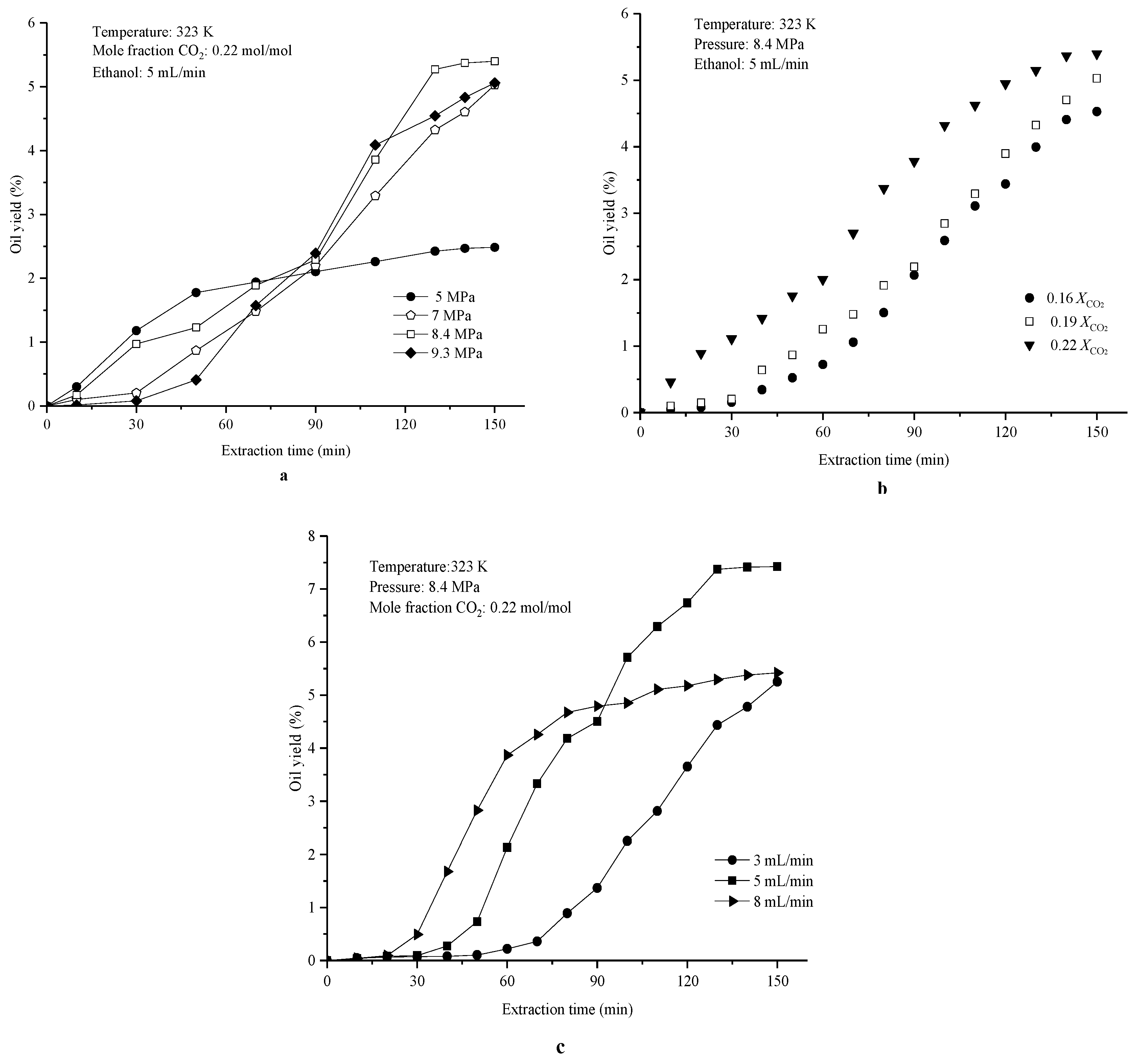

Figure 2. Effect of pressure, ethanol flow rate, and mole fraction of CO2 on vetiver oil yield at a fixed temperature of 323 K. (a) Effect of pressure on vetiver oil yield at a constant CO2 mole fraction of 0.22 and an ethanol flow rate of 5 mL/min. (b) Effect of CO2 mole fraction on vetiver oil yield at a constant pressure of 8.4 MPa and an ethanol flow rate of 5 mL/min. (c) Effect of the ethanol flow rate on vetiver oil yield at a constant pressure of 8.4 MPa and a CO2 mole fraction of 0.22.
Figure 2. Effect of pressure, ethanol flow rate, and mole fraction of CO2 on vetiver oil yield at a fixed temperature of 323 K. (a) Effect of pressure on vetiver oil yield at a constant CO2 mole fraction of 0.22 and an ethanol flow rate of 5 mL/min. (b) Effect of CO2 mole fraction on vetiver oil yield at a constant pressure of 8.4 MPa and an ethanol flow rate of 5 mL/min. (c) Effect of the ethanol flow rate on vetiver oil yield at a constant pressure of 8.4 MPa and a CO2 mole fraction of 0.22.
Molecules 24 01897 g002
Table 1. Identification of chemical components in vetiver essential oils.
Table 1. Identification of chemical components in vetiver essential oils.
NoCompoundsKI aRI b,cHD Oil d Area, %IVD Oil e Area, %CXE Oil f Area, %SFE Oil g Area, %
1cycloisolongifolene h13191311 [25]11.096.564.89
2α-ylangene h13751363 [11],1371 [12],1373 [25],1465 [1] 0.64
3α-copaene h13761377 [26]
4isoledene i13771377 [25] 4.79
5β-patchoulene h, j13811395 [25] 0.923.151.98
6isolongifolene h13901387 [25] 0.15
7sativene h13911339 [24],1394 [25]1.7 1.11
8longifolene h14081415 [26] 3.69
9α-gurjunene h14091419 [25]
10thujopsene h14311429 [25] 1.1
11β-humulene h14381454 [25] 0.11
12prezizaene h14461375 [1],1438 [27],1441 [11], 1449 [28],1450 [29],1459 [30] 2.25
13khusimene h14551443 [27],1452 [28],1455 [25], 1462 [30],1468 [1]2.165.861.484.44
14dehydroaromadendrene i14621541 [25],1545 [24] 3.11
15β-cadinene i 1472 [25]
16γ-muurolene i14791477 [26],1480 [25] 0.19
17α –curcumene h14801468 [30],1473 [12],1482 [25], 1486 [26] 11.92
18γ-himachalene i14821470 [25],1476 [26] 1.87 32.65
19α-amorphene i14841474 [30],1452 [25],1478 [27], 1481 [11],1491 [1] 3.54
20cis-eudesma-6,11-diene h14891478 [12],1487 [25],1490 [27] 3.732.46
21β-selinene h 1485 [26],1488 [25]0.30
22β-guaiene i 1485 [25], 1490 [26],1523 [24]15.311.02
23eudesma-4,6-diene (δ-selinene) + h14921484 [12],1490 [27],1493 [11,25] 4.93
24β-vetispirene i14931506 [1],1484 [12],1488 [25,27], 1491 [11]2.23
25zinigiberene h14931523 [26] 0.22
26cadina-1,4-diene (cubenene) h1495 0.16
27valencene h14961491 [25],1522 [11],1495 [28]0.46 0.18
28eudesma-3,11-diene (α-selinene) h14981480 [25],1492 [12]2.18 1.36
29α-muurolene h,i15001499 [25],1503 [28] 3.4 2.46
30δ-guaiene h 1508 [25] 0.38
31γ-cadinene i,j15131508 [28],1512 [12],1514 [25], 1519 [11] 0.12 18.08
32δ –cadinene h15231502 [28],1508 [30],1517 [12], 1524 [26],1526 [25],1529 [11]1.150.854.06
33β-vatirenene i15441527 [25],1554 [26] 0.64
34α-calacorene h15451533 [12],1544 [27],1546 [25], 1547 [11],1552 [1]0.591.310.45
35β-vetivenene h15551546 [12],1552 [25,27],1556 [11], 1574 [1]3.890.73
36zierone h15751754 [25] 0.873.48
3710-epi-γ-eudesmol h16231624 [25]2.77
38longifolenaldehyde h 1668 [25] 0.48
39alloaromadendrene epoxide i16411646 [25]6.36
40cubenol i16461580 [24],1642 [25]1.47
41valerenol h 1655 [25] 18.48
42valerenal h 1688 [25]5.185.0910.21
43cadina-4,9-diene h 1670 [26]4.86
44β-nootkatol i 1712 [25],1722 [26] 0.67
45cedr-8-en-13-ol i16891688 [25],1769 [24]26.549.74
46nootkatone h18091809 [27],1812 [11] 1.98
47zizanoic acid i18111817 [27],1818 [11],1837 [1], 1860 [25,28]2.66
Carbonyl compounds 1.545.42
Carboxylic acids2.66
Total identified96.14%52.13%69.88%81.91%
Note: a Kovats index (KI) on DB-5 in reference to n-alkanes [31]; ᵇ Retention Index on DB-5 in reference [25,31]; c References Retention Index: [11,27] Adams Library and Wiley5 library on HP-5 columns; [29] Individual library on DB-5 column; [24,12] NIST library on ID-BPX5 and BP-1columns; [28,30] NIST98, Wiley5 and Wiley275 libraries on HP-1 and HP-5 columns; [1] Data bank NBS75K on HP-1 column; d Vetiver oil obtained from conventional hydrodistillation (HD); e IVD oil supplied by Natural Perfume Factory, Lanxi, Zhejiang province; f Oil extracted from vetiver grass by carbon dioxide expanded ethanol extraction (CXE); g Vetiver oil extracted by supercritical fluid extraction (SFE); h Chemical component identified by WR10 Library; i Chemical component identified with NIST11 Library; j Chemical component identified using FFNSC1.2 Library.
Table 2. General comparison of vetiver essential oils obtained from four different methods.
Table 2. General comparison of vetiver essential oils obtained from four different methods.
Vetiver Essential OilColorYield (%)Extraction Time (h)
HD oilpale yellow0.612
IVD oildark brown0.3–0.518
CXE oillight yellow5.123
SFE oilgreenish brown or olive0.52
Table 3. Minimal inhibitory concentration of essential oil extracted from Vetiveria zizanioides root.
Table 3. Minimal inhibitory concentration of essential oil extracted from Vetiveria zizanioides root.
SampleAntimicrobial Activity (MIC, μg/mL)
S. aureus (G+) aB. subtilis (G+)P. aeruginosa (G−) bE. coli (G−)
HD oil39312.5312.5312.5
IVD oil7825002500312.5
CXE oil78312.52500312.5
SFE oil78156312.5625
Table 4. Median inhibitory concentration (IC50) of the vetiver oils derived from linear regression.
Table 4. Median inhibitory concentration (IC50) of the vetiver oils derived from linear regression.
SamplesRegression Equation R 2 IC50 (mg/mL)
SFE oily = 9.38x + 7.430.974.54
CXE oily = 2.61x + 40.310.903.71
HD oily = 9.39x + 16.4260.993.57
IVD oil (LFO)y = 6.80x + 35.090.992.19
Ascorbic acidy = 10.84x + 34.900.901.39
