Search Results (9)

Red mud from bauxite processing is among the large-tonnage technogenic waste that poses a significant ecological threat. At the same time, red mud serves as a raw material source for expanding the resource base for obtaining iron, rare metals, and rare earth elements. Numerous studies on their utilization have shown that only through comprehensive processing, combining pyrometallurgical and hydrometallurgical methods, is it possible to maximize the extraction of all the useful components. This work addresses the first stage of a comprehensive technology for processing red mud through reduction smelting, separating iron in the form of pig iron, and producing slag. Studies were conducted on the reductive smelting of red mud using waste slurry from alumina production as the calcium-containing material, taken in proportions calculated to obtain a fluid slag with a hydraulic modulus of 0.55–0.8. The permissible mixing range of red mud with waste slurry was determined to be in the ratio of 0.56–1.2. In cases where the charge was prepared in violation of the required hydraulic modulus value, pig iron was not obtained during smelting. When the hydraulic modulus requirement was met, the temperature of the reductive smelting process was 1350–1400 °C. The total amount of recovered iron obtained as pig iron and fine fractions amounted to 99.5% of the original content. The low iron content (0.23–0.31%) in the non-magnetic slag fraction allows for the production of high-quality titanium oxide and rare earth element concentrates in the subsequent stages of the comprehensive hydrometallurgical processing of red mud, involving acid leaching. Based on the results of a phase analysis of the slag, pig iron, and melt, the reactions of the reductive smelting process were established, and their thermodynamic likelihood was determined. In fluid slags, the content of the sodium aluminosilicate phase is twice as high as that in slag with a higher hydraulic modulus. The reductive smelting of 100% red mud with the addition of calcium oxide, calculated to achieve a hydraulic module of 0.55 at a temperature of 1350–1400 °C, produced pig iron and slag with high alkali and iron contents. Full article

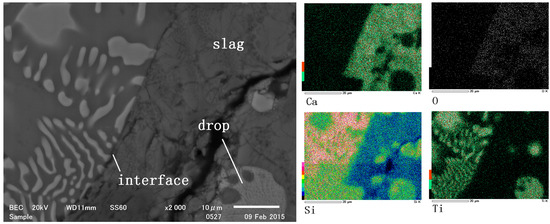

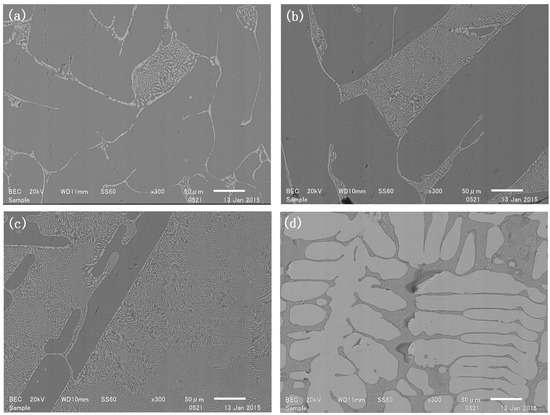

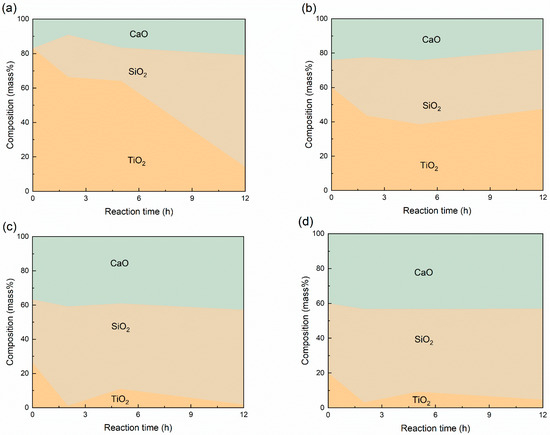

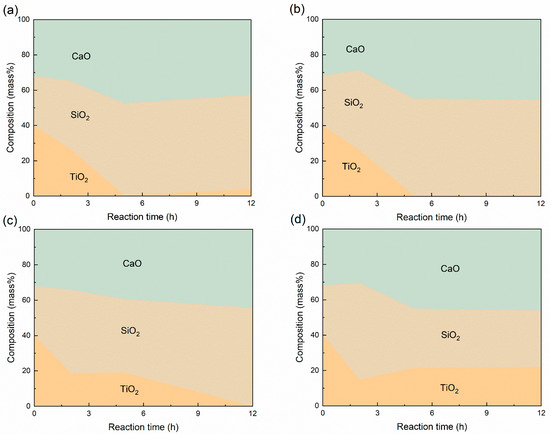

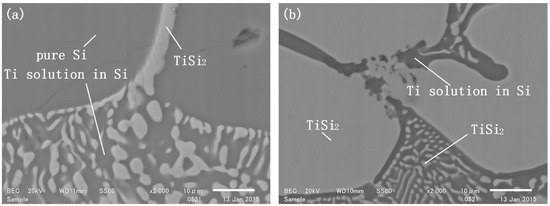

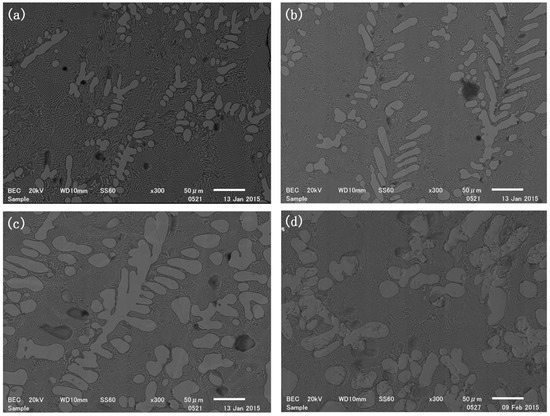

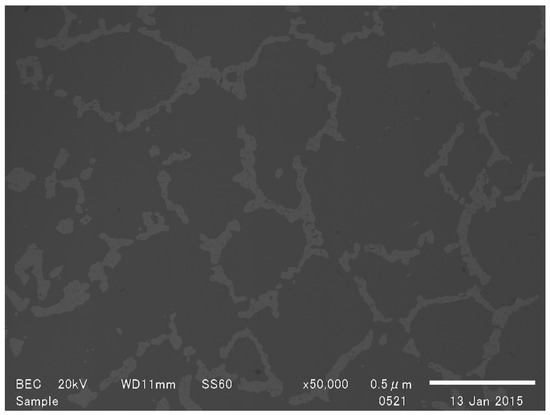

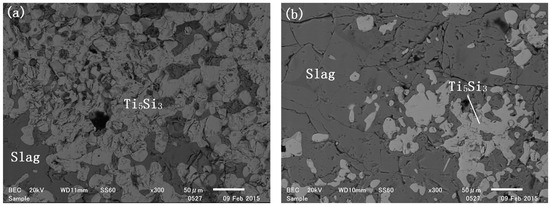

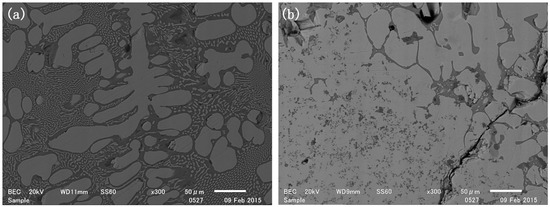

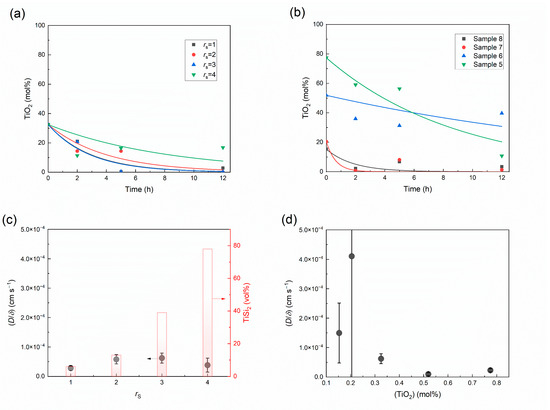

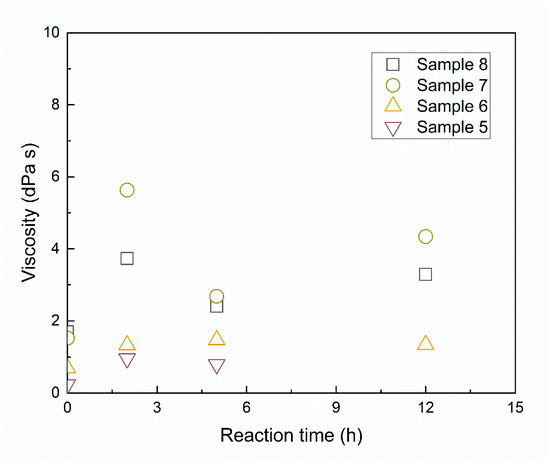

TiSi₂ and Ti₅Si₃ were synthesized through a simple and cost-effective process, providing a sustainable way to recycle titanium oxide and silicon wastes from industry. The reaction process was investigated at 1500 °C under various slag/silicon ratios and slag compositions. TiSi₂ was synthesized successfully under all experimental conditions, with nearly complete extraction of titanium oxide from the slag within 5 h under optimized conditions. TiSi₂ initially formed at the slag/silicon interface, followed by the formation of Ti₅Si₃ as TiSi₂ droplets fell through the slag. The production rate of TiSi₂ was higher than that of Ti₅Si₃. Kinetic analysis showed that the reaction rate constant ranged from 1.2 × 10⁻⁵ to 4.3 × 10⁻⁴ s⁻¹. Viscosity and basicity were not the limiting factors of the kinetics in this work. The amount of TiO₂ in the slag significantly influenced the reaction process, with slag containing less than 30 mol% TiO₂ identified as optimal for efficient titanium extraction and a high synthesis rate. Full article

Slags from the Silesia–Cracow Upland (Poland), including ten historical slags (deposited in waste dumps) and four contemporary slags (from current production), were examined to compare their chemical and mineralogical properties as well as to assess their potential for the recovery of selected metals and critical raw materials. The historical slags associated with the smelting of polymetallic ores originating from Mississippi Valley-type (MVT) deposits consisted primarily of gypsum. The contemporary slags, obtained from industrial waste rich in zinc and lead, were predominantly spinels (magnesium-aluminate and ferric) that exhibited higher iron content (up to 46.6 wt% of Fe₂O₃) compared to the historical slags (up to 26.1 wt% of Fe₂O₃). The zinc content was similar for both the slag types (3.5 wt% Zn). The average titanium and arsenic contents in the old and contemporary slags were at the same level as well, with 0.21 wt% (Ti) and 0.13 wt% (As), respectively. The contemporary slags contained higher levels of critical raw materials, such as cobalt, nickel, copper, and manganese, compared to the historical slags. Rare earth elements (REEs) were also more abundant in the contemporary slags, with an average content of 212 ppm, while the historical slags averaged 124 ppm. These findings underscore the potential for recovering valuable metals and critical raw materials from such slags, presenting opportunities for resource optimisation and environmental management. Full article

Industrial byproduct gypsum (BPG) is a secondary product that is mainly composed of calcium sulfate discharged during industrial production. BPG primarily consists of desulfurized gypsum, phosphogypsum, and titanium gypsum, which account for 88% of the total BPG in China. The large-scale utilization of these three types of solid waste is crucial for the safe disposal of BPG. BPG contains various impurities and harmful elements, limiting its applications. The continuous accumulation of BPG poses a serious threat to the safety of the environment. Based on a literature review (2021–2023), it was found that 52% of BPG is used in the preparation of cementitious materials, and the addition of BPG results in an average improvement of 7–30% in the mechanical properties of cementitious materials. Moreover, BPG has a positive impact on the immobilization of hazardous elements in raw materials. Therefore, the utilization of BPG in cementitious materials is beneficial for its large-scale disposal. This study primarily reviews the effects and mechanisms of BPG on the mechanical properties of cementitious materials and the solidification of hazardous elements. Most importantly, the review reveals that BPG positively influences the hydration activity of silica–alumina-based solid waste (such as steel slag and blast furnace slag) and alkaline solid waste (such as carbide slag and red mud). This improves the proportion of solid waste in cement and reduces production costs and carbon emissions. Finally, this article summarizes and proposes the application of BPG in cementitious materials. The application of BPG + silica–alumina solid waste + alkaline solid-waste-based cementitious materials is expected to realize a new type of green ecological chain for the joint utilization of multiple industrial solid wastes and to promote the low-carbon sustainable development of industrial clusters. Full article

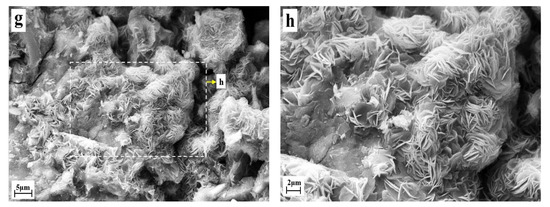

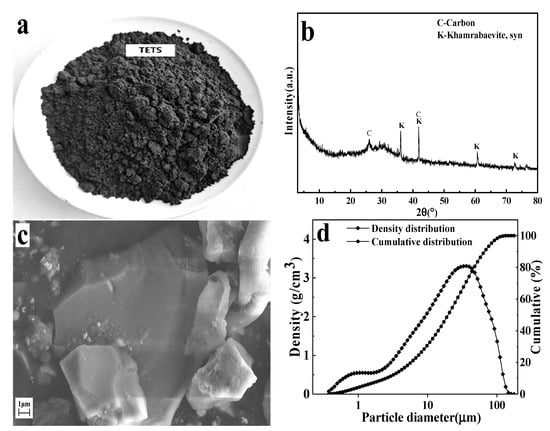

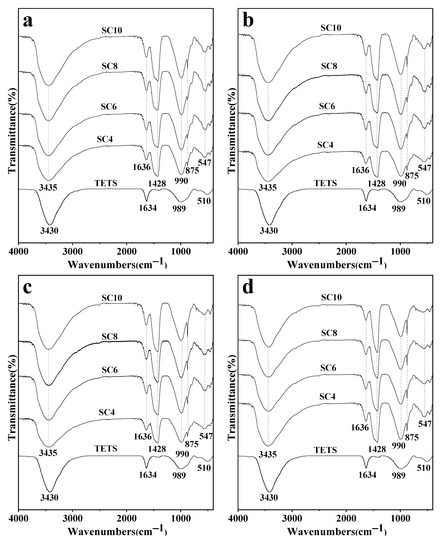

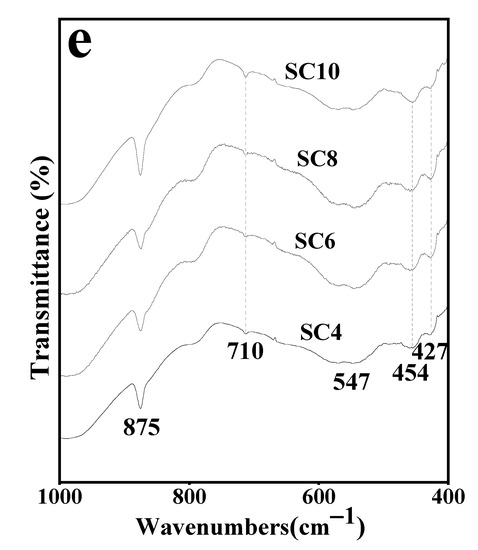

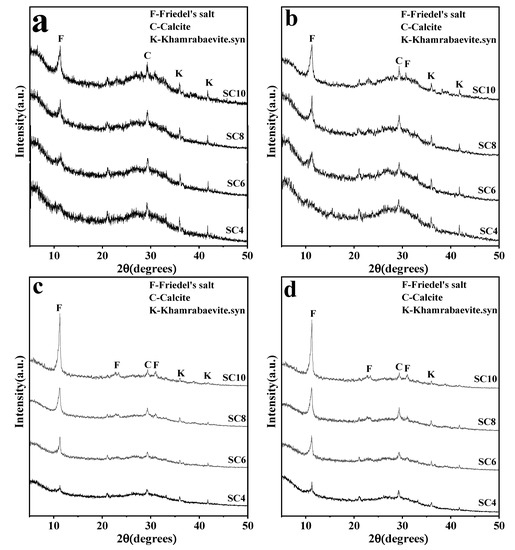

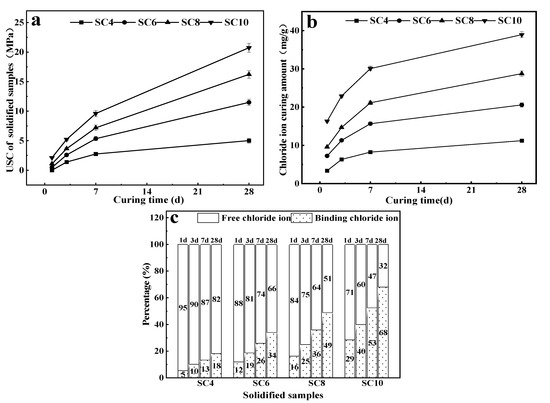

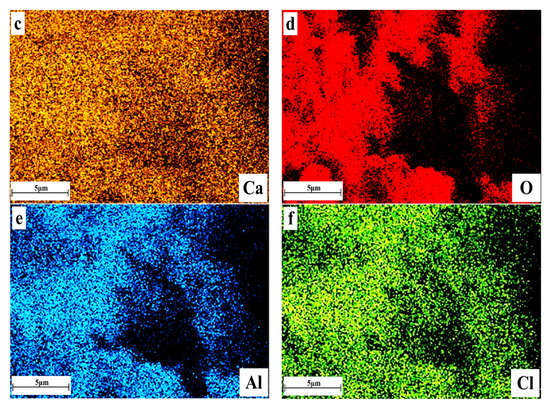

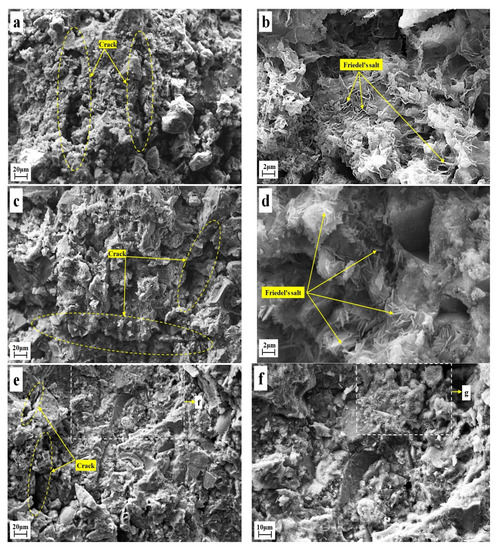

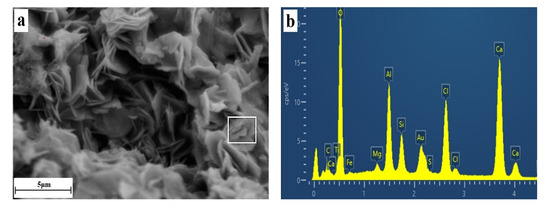

Titanium-extracted tailing slag (TETS) has high activity, but the content of chloride ions is high. To effectively bind the chloride ions, CaO was used to activate the TETS, and the solidified cementitious material of CaO-activated TETS was prepared. The effects of CaO content and curing age on the strength of solidified samples, chloride binding capacity, and chloride binding mechanism were studied. By means of XRD, FTIR, SEM, and EDS, the hydration reaction products, microstructure, morphology, and micro-components of the solidified sample were characterized. The results show that the chloride ions can be effectively bound by using CaO to activate TETS with higher mechanical strength. When the CaO content is 10 wt%, the strength of the 28-day-cured body can reach more than 20 MPa, the chloride ion binding amount is 38.93 mg/g, and the chloride binding rate is as high as 68%. The new product phases of the solidified sample are mainly Friedel’s salt (FS) and calcite, in which the amount of FS production and the degree of crystal development are affected by the CaO content and curing age. The chloride binding ions in the solidified sample are mainly the chemical binding by FS. The FS diffraction peak strength increases with the increase of CaO content and curing age, but the calcite diffraction peak strength is less affected by them. FS mainly accumulates and grows in the pores of the solidified sample. It can optimize the pore structure of the solidified sample and improve the strength of the solidified sample while binding chloride ions. The results can provide useful information for the resource utilization of chlorine-containing TETS, the improvement of durability of Marine concrete, and the application of sea sand in concrete. Full article

The titanium resources in Panxi reign, China, have a high-impurities content of Ca and Mg, which is usually processed by the molten salt chlorination process. This process allows higher Ca and Mg content in its furnace burdens. However, there is a huge amount of molten salt chlorinated slag produced by this process, consisting of complex compounds and waste NaCl/KCl salts. These slags are always stockpiled without efficient utilization, causing serious environmental pollutions. To recycle the NaCl in the slag back to the molten salt chlorination process, a novel process to deal with those molten salt chlorinated slags with phase conversion at high temperature is presented in this paper. The calcium-containing solid phase was generated when Na₂SiO₃ was added to the molten salt chlorinated slags at high temperature, while NaCl was kept as a liquid. Thus, liquid NaCl was easily separated from the calcium-containing solid phase, and it could be reused in the molten salt chlorination process. The conversion of calcium-containing phases and their separation of NaCl are the key parts of this work, and they have been systematically studied in this paper; thermodynamic analysis, phase transformation behavior, and calcium removal behavior have all been investigated. The calcium removal rate is 78.69% when the molar ratio of CaCl₂:Na₂SiO₃ is 1:1.5 at 1173 K and N₂ atmosphere. Full article

Vanadium as a rare element has a wide range of applications in iron and steel production, vanadium flow batteries, catalysts, etc. In 2018, the world’s total vanadium output calculated in the form of metal vanadium was 91,844 t. The raw materials for the production of vanadium products mainly include vanadium-titanium magnetite, vanadium slag, stone coal, petroleum coke, fly ash, and spent catalysts, etc. Chlorinated metallurgy has a wide range of applications in the treatment of ore, slag, solid wastes, etc. Chlorinating agent plays an important role in chlorination metallurgy, which is divided into solid (NaCl, KCl, CaCl₂, AlCl₃, FeCl₂, FeCl₃, MgCl₂, NH₄Cl, NaClO, and NaClO₃) and gas (Cl₂, HCl, and CCl₄). The chlorination of vanadium oxides (V₂O₃ and V₂O₅) by different chlorinating agents was investigated from the thermodynamics. Meanwhile, this paper summarizes the research progress of chlorination in the treatment of vanadium-containing materials. This paper has important reference significance for further adopting the chlorination method to treat vanadium-containing raw materials. Full article

The utilization of titanium-containing blast furnace slag has been an unsolved problem for a long time. Failure to make effective use of the slag, which is caused by a high TiO₂ content within it, not only results in a waste of resources, especially titanium, but also increases environmental risk. The key to address the problem is the enrichment and extraction of TiO₂ from the slag first. Therefore, in order to study the enrichment of titanium, the crystallization behavior of TiO₂-CaO-SiO₂-Al₂O₃-MgO pentabasic slag, the main compositions of titanium-containing blast furnace slag, within the basicity range of 1.1–1.4 was investigated theoretically and experimentally. Thermodynamic calculation shows that perovskite is the main titanium-containing phase and titanium can be enriched in perovskite. By decreasing the temperature, perovskite precipitates at first. Additionally, with the increase of basicity, perovskite precipitation temperature increases continuously, and its amount of precipitation almost does not change, while the amounts of other phases change obviously. The experimental results demonstrate similar results except for the amount of perovskite (with the increase of basicity, perovskite precipitation amount increases slightly), caused by kinetic reason. In addition, the morphology of the slag at different scales was observed. The surface of the cooled slag is granular, vein-like, and irregular, multilaterally shaped from outside to inside. The crystal is dendritic with a spine-like trunk, and the edge is blade-like. In terms of the structure of the crystal, the inner part of it is perovskite, and the outer part is covered with a layer of other phases with spinel inlaying it. Finally, the precipitated mechanism is proposed as well. Full article

High-purity intermetallic β-Ti (FeTi₄) and FeTi alloys were prepared via molten salt electrolysis from a titanium-containing waste slag and Fe₂O₃ mixture using molten CaCl₂ salt as the electrolyte. The mixed slag powders were pressed into a pellet that served as a cathode, while a graphite rod served as an anode. The electrochemical process was conducted at 900 °C with a cell voltage of 3.1 V under an inert atmosphere. The formation process of the alloys and the influence of the Ti:Fe atomic ratio on the product were investigated. With an increased proportion of Ti, the phase of the product changed from FeTi/Fe₂Ti to FeTi/FeTi₄, and different structures were observed. At a Ti:Fe ratio of 1.2:1 in the raw slag, an alloy with a sponge-like morphology and a small amount of FeTi₄ were obtained. During the initial stages of electrolysis, a large amount of intermediate product (CaTiO₃) was formed, accompanied by an abrupt decrease in current and increase in particle size. The current then increased and Fe₂Ti alloy was gradually formed. Finally, as the reaction process extended inside the pellet, the current remained stable and the product mainly contained FeTi and FeTi₄ phases. The observed stages, i.e., CaTiO₃(TiO₂) → Fe₂Ti(Ti) → FeTi(FeTi₄), were consistent with the thermodynamic analysis. Full article
