Search Results (56)

This study systematically investigates the mechanism by which total ionizing dose (TID) affects the lifetime degradation of NMOS devices induced by hot-carrier injection (HCI). Experiments involved Cobalt-60 (Co-60) gamma-ray irradiation to a cumulative dose of 500 krad (Si), followed by 168 h annealing at 100 °C to simulate long-term stability. However, under HCI stress conditions (V_D = 2.7 V, V_G = 1.8 V), irradiated devices show a 6.93% increase in threshold voltage shift (ΔV_th) compared to non-irradiated counterparts. According to the IEC 62416 standard, the lifetime degradation of irradiated devices induced by HCI stress is only 65% of that of non-irradiated devices. Conversely, when the saturation drain current (I_Dsat) degrades by 10%, the lifetime doubles compared to non-irradiated counterparts. Mechanistic analysis demonstrates that partial neutralization of E’ center positive charges at the gate oxide interface by hot electrons weakens the electric field shielding effect, accelerating ΔV_th drift, while interface trap charges contribute minimally to degradation due to annealing-induced self-healing. The saturation drain current shift degradation primarily correlates with electron mobility variations. This work elucidates the multi-physics mechanisms through which TID impacts device reliability and provides critical insights for radiation-hardened design optimization. Full article

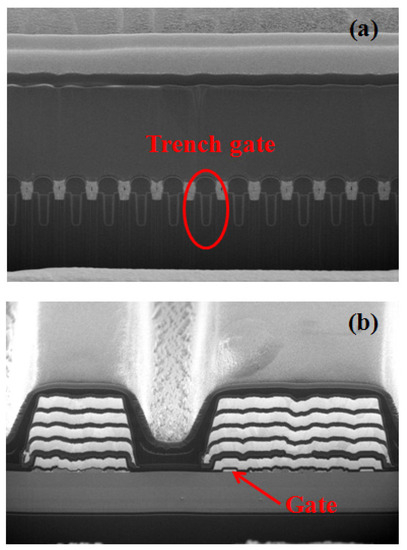

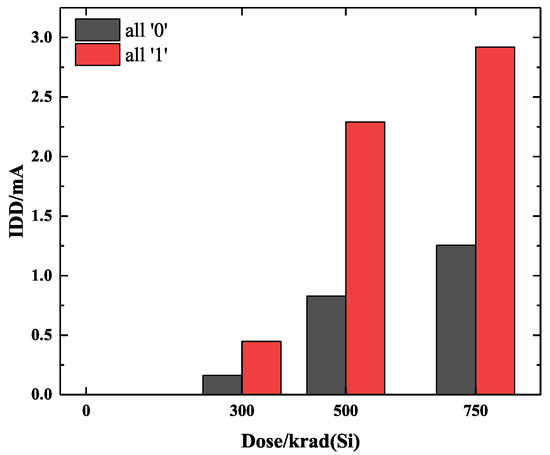

The impacts of total ionizing dose (TID) were investigated in 28 nm 3D charge trapping (CT) NAND Flash memories. This study focused on the variations in the raw bit error rate (RBER) of irradiated flash across different operational modes and bias states. It was observed that the data pattern stored in Flash influences the bit error count after irradiation. The experimental findings demonstrated a dose-dependent relationship with standby current, read operation current, and threshold voltage shifts. Additionally, TID was found to affect the time required for erasure and programming operations. These results were then bench-marked against similar NAND Flash devices, revealing superior resistance to TID effects. Full article

This manuscript focuses on studying the radiation response of the Commercial-off-the-shelf (COTS) AD524CDZ operational amplifier. Total Ionizing Dose (TID) effects were tested using low-dose ⁶⁰Co irradiation. Single-Event Effect (SEE) sensitivity was studied on this operational amplifier using a 105 MeV proton beam. Additionally, further study of the SEE response was carried out using a Two-photon absorption laser to scan some sensitive sectors of the die. For this laser experiment, different gain setups and laser energies were employed to determine how the Single Event Transient (SET) response of the device was affected based on the test configuration. The results from the TID experiments revealed that the studied device remained functional after 100 krads (Si). Proton experiments revealed the studied device exhibited a high SET response with a maximum DC offset SET of about 1.5 V. Laser experiments demonstrated that there was a clear SET reduction when using 10× and 1000× gain setups. Full article

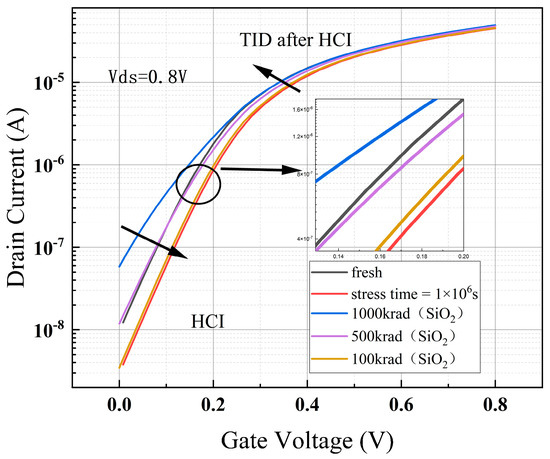

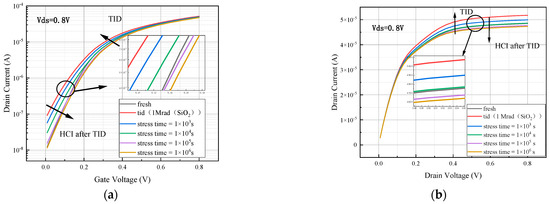

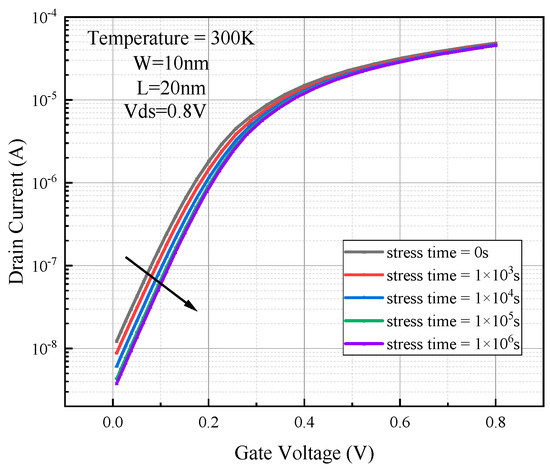

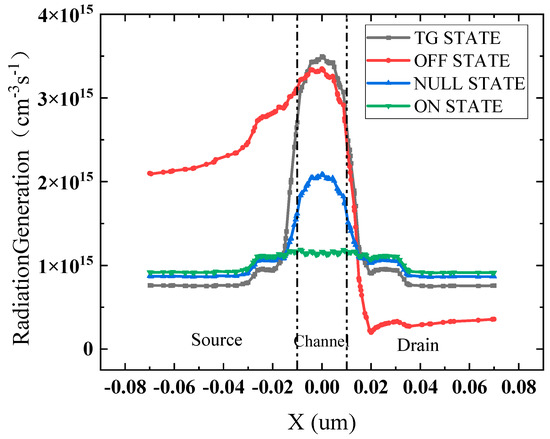

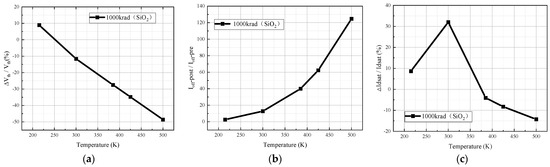

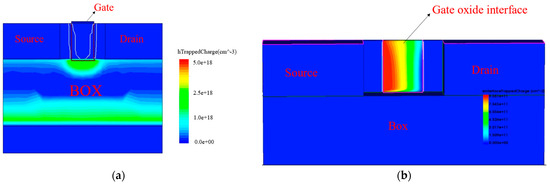

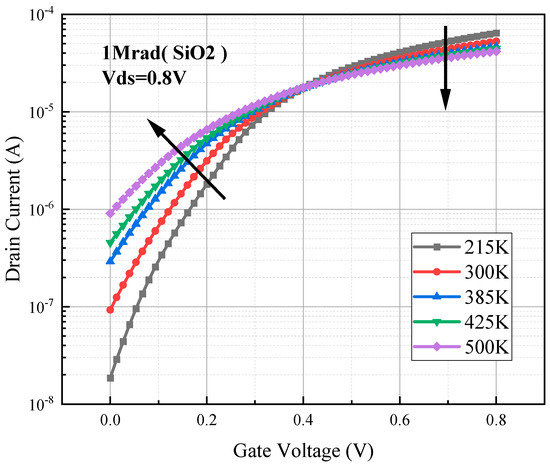

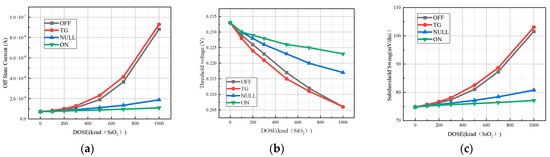

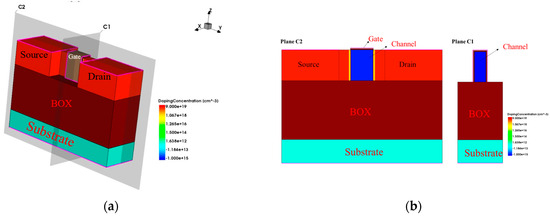

The working environment of electronic devices in the aerospace field is harsh. In order to ensure the reliable application of the SOI FinFET, the total ionizing dose (TID) and hot carrier injecting (HCI) reliability of an SOI FinFET were investigated in this study. First, the influence of TID on the device was simulated. The results show that TID causes the threshold voltage to decrease and the off-state current and subthreshold swing to increase. TID causes more damage to the device at high temperature and also reduces the saturation drain current of the device. HCI causes the device threshold voltage to increase and the saturation drain current to decrease. The HCI is more severe at high temperatures. Finally, the coupling effects of the two were simulated, and the results show that the two effects cancel each other out, and the degradation of various electrical characteristic parameters is different under different coupling modes. Full article

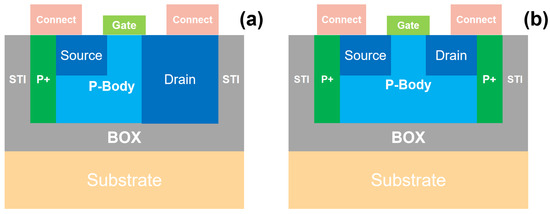

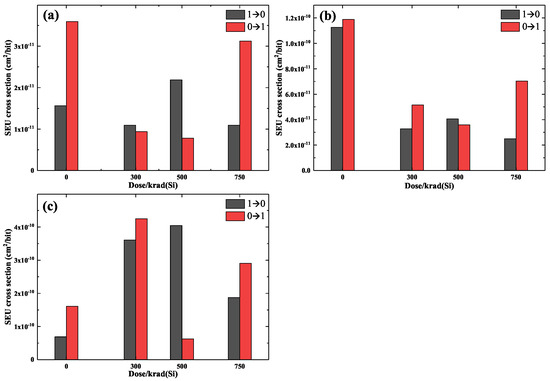

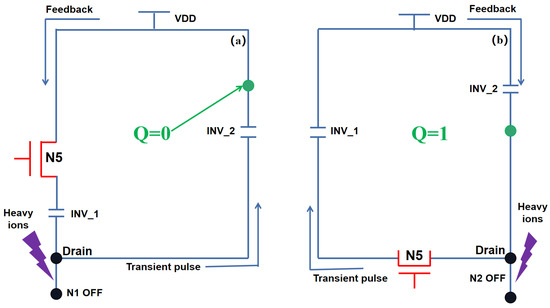

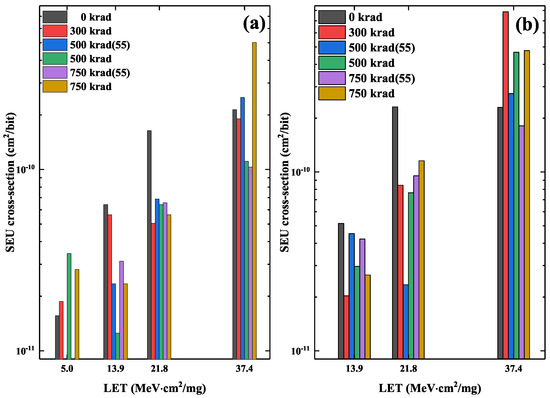

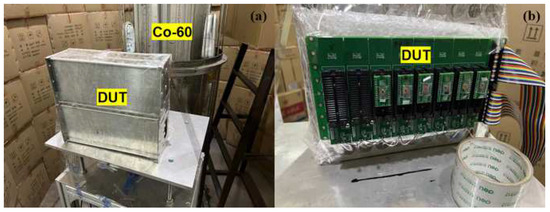

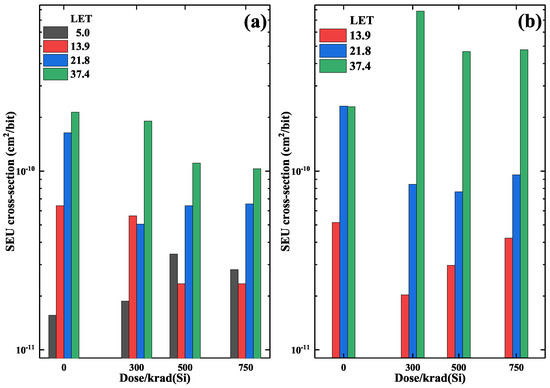

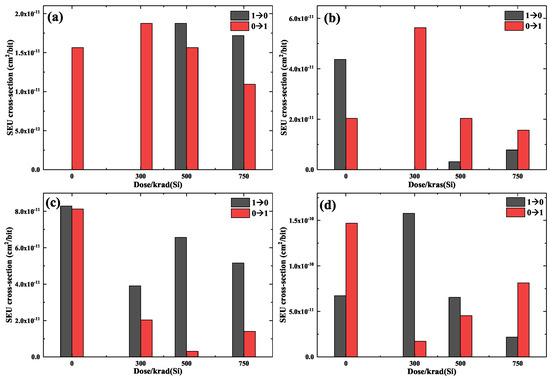

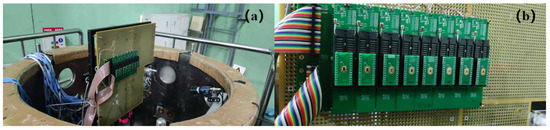

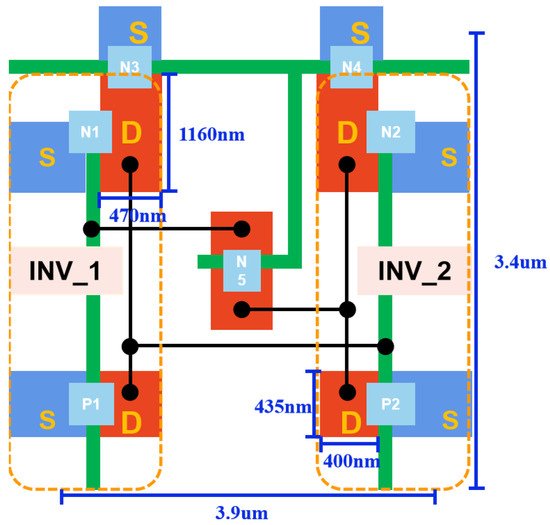

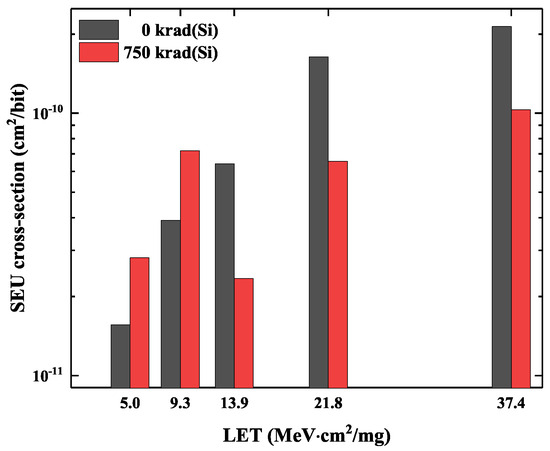

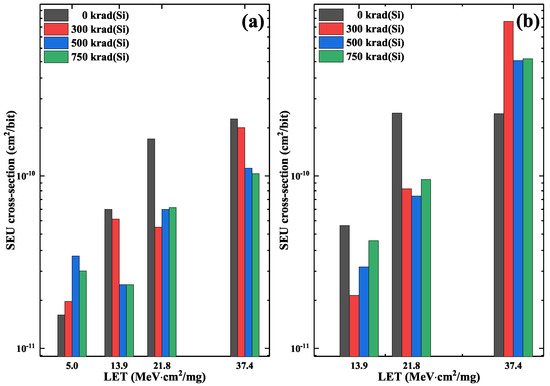

The exposure of spaceborne devices to high-energy charged particles in space results in the occurrence of both a total ionizing dose (TID) and the single-event effect (SEE). These phenomena present significant challenges for the reliable operation of spacecraft and satellites. The rapid advancement of semiconductor fabrication processes and the continuous reduction in device feature size have led to an increase in the significance of the synergistic effects of TID and SEE in static random access memory (SRAM). In order to elucidate the involved physical mechanisms, the synergistic effects of TID and single-event upset (SEU) in a new kind of 130 nm 7T silicon-on-insulator (SOI) SRAM were investigated by means of cobalt-60 gamma-ray and heavy ion irradiation experiments. The findings demonstrate that 7T SOI SRAM is capable of maintaining normal reading and writing functionality when subjected to TID irradiation at a total dose of up to 750 krad(Si). In general, the TID was observed to reduce the SEU cross-section of the 7T SOI SRAM. However, the extent of this reduction was influenced by the heavy ion LET value and the specific writing data pattern employed. Based on the available evidence, it can be proposed that TID preirradiation represents a promising avenue for enhancing the resilience of 7T SOI SRAMs to SEU. Full article

This paper investigates the temperature-dependent effects of gamma-ray irradiation on β-Ga₂O₃ vertical Schottky barrier diodes (SBDs) under a 100 V reverse bias condition at a total dose of 1 Mrad(Si). As the irradiation dose increased, the radiation damage became more severe. The total ionizing dose (TID) degradation behavior and mechanisms were evaluated through DC, capacitance–voltage (C-V), and low-frequency noise (LFN) measurements by varying irradiation, and the test results indicated that TID effects introduced interface defects and altered the carrier concentration within the material. The impact of TID effects was more pronounced at lower temperatures compared to higher temperatures. Additionally, the annealing effect in the high-temperature experimental conditions ameliorated the growth of interface trap defects caused by irradiation. These results suggest that compared to low-temperature testing, the device exhibits higher TID tolerance after high-temperature exposure, providing valuable insights for in-depth radiation reliability studies on subsequent related devices. Full article

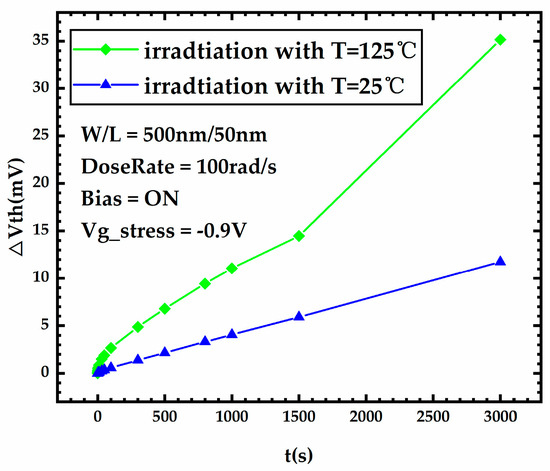

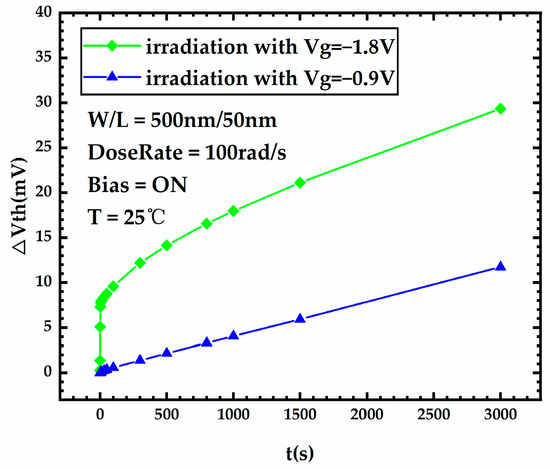

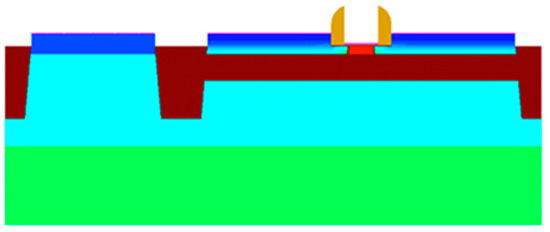

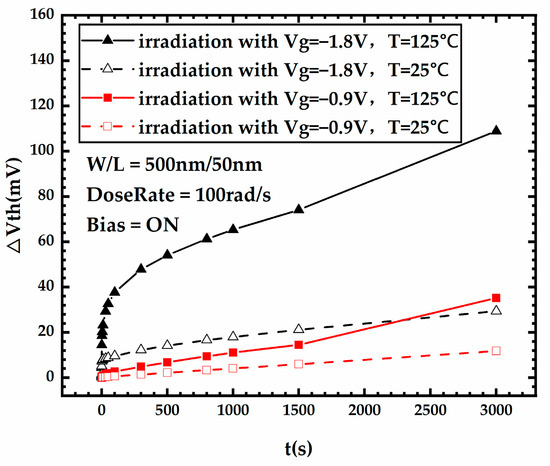

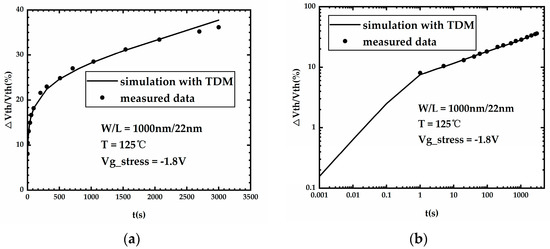

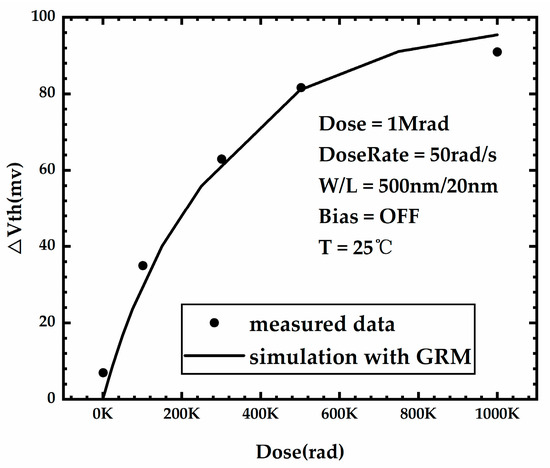

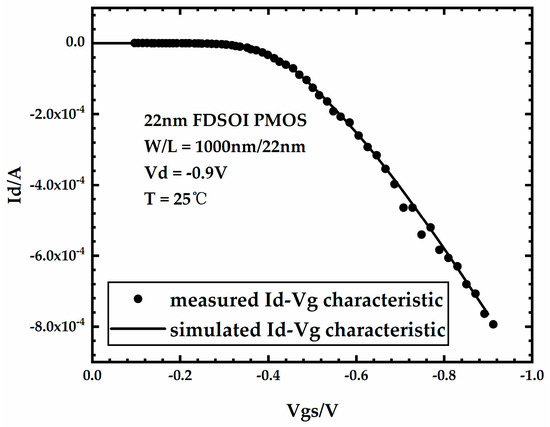

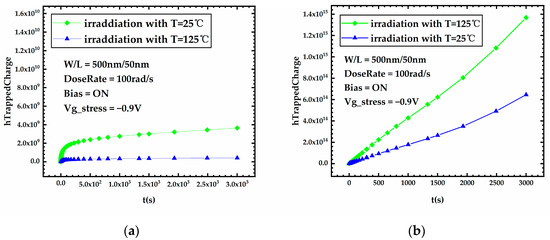

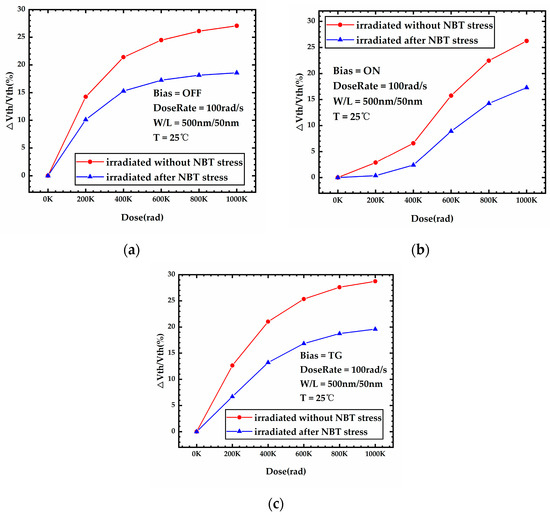

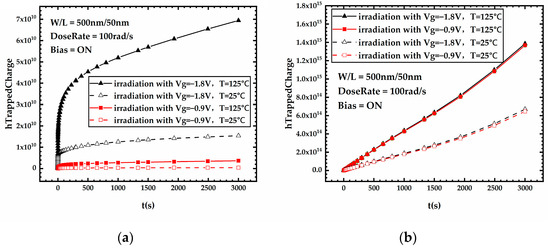

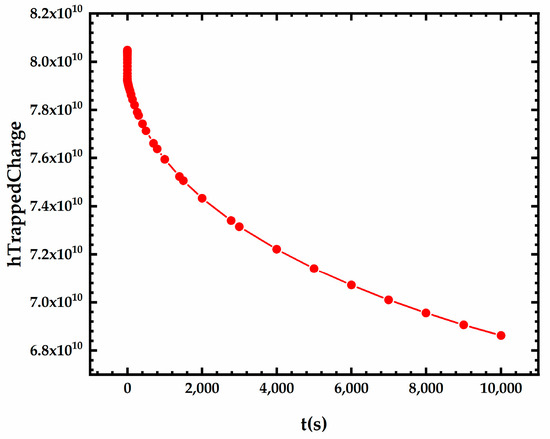

The coupling effect of negative bias temperature instability (NBTI) and total ionizing dose (TID) was investigated by simulation based on the fully depleted silicon on insulator (FDSOI) PMOS. After simulating the situation of irradiation after NBT stress, it was found that the NBTI effect weakens the threshold degradation of FDSOI PMOS under irradiation. Afterward, NBT stress was decomposed into high gate voltage stress and high-temperature stress, which was applied to the device simultaneously with irradiation. The devices under high gate voltage exhibited more severe threshold voltage degradation after irradiation compared to those under low gate voltage. Devices at high temperatures also exhibit more severe threshold degradation after irradiation compared to devices under low temperatures. Finally, the simultaneous effect of high gate voltage, high temperature, and irradiation on the device was investigated, which fully demonstrated the impact of the NBT stress on the TID effect, resulting in far more severe threshold voltage degradation. Full article

In this study, the degradation characteristics of radio frequency (RF)-low-noise amplifiers (LNA) due to a total ionizing dose (TID) is investigated. As a device-under-test (DUT), sample LNAs were prepared using silicon–germanium (SiGe) heterojunction bipolar transistors (HBTs) as core elements. The LNA was based on a cascode stage with emitter degeneration for narrowband applications. By using a simplified small-signal model of a SiGe HBT, design equations such as gain, impedance matching, and noise figure (NF) were derived for analyzing TID-induced degradations in the circuit-level performance. To study radiation effects in circuits, the SiGe-RF-LNAs fabricated in a commercial 350 nm SiGe technology were exposed to 10-keV X-rays to a total ionizing dose of up to 3 Mrad(SiO₂). The TID-induced performance changes of the LNA were modeled by applying degradation to device parameters. In the modeling process, new parameter values after irradiation were estimated based on information in the literature, without direct measurements of SiGe HBTs used in the LNA chip. As a result, the relative contributions of parameters on the circuit metrics were compared, identifying dominant parameters for degradation modeling. For the TID effects on input matching (S₁₁) and NF, the base resistance (R_B) and the base-to-emitter capacitance (C_π) of the input transistor were mostly responsible, whereas the transconductances (g_m) played a key role in the output matching (S₂₂) and gain (S₂₁). To validate the proposed approach, it has been applied to a different LNA in the literature and the modeling results predicted the TID-induced degradations within reasonable ranges. Full article

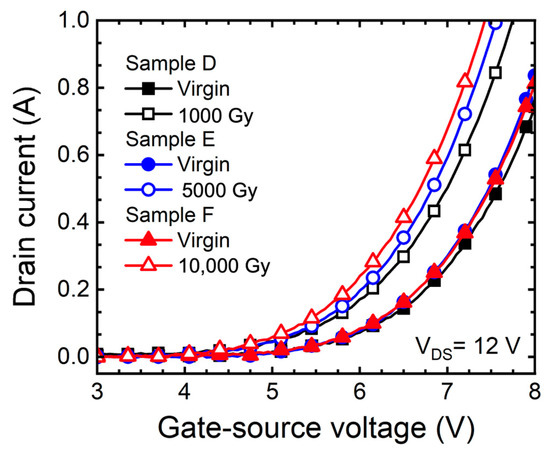

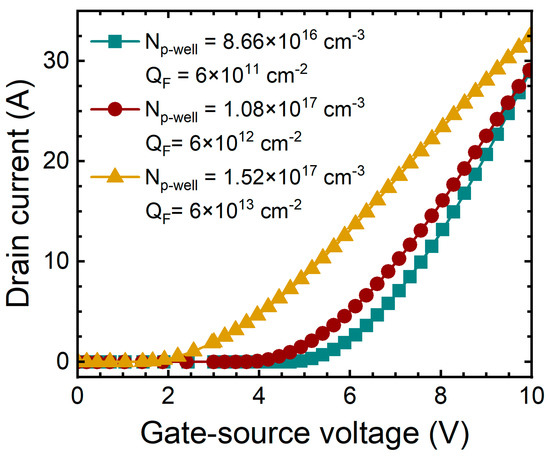

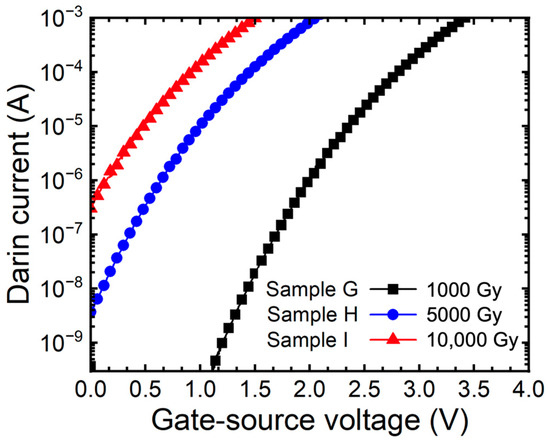

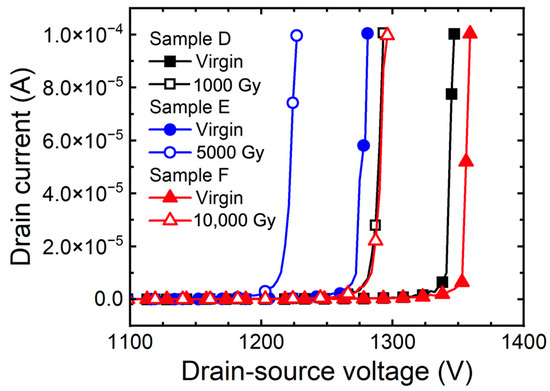

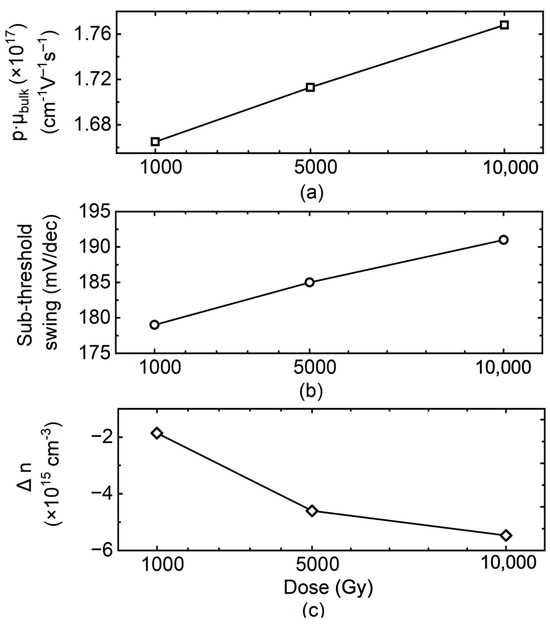

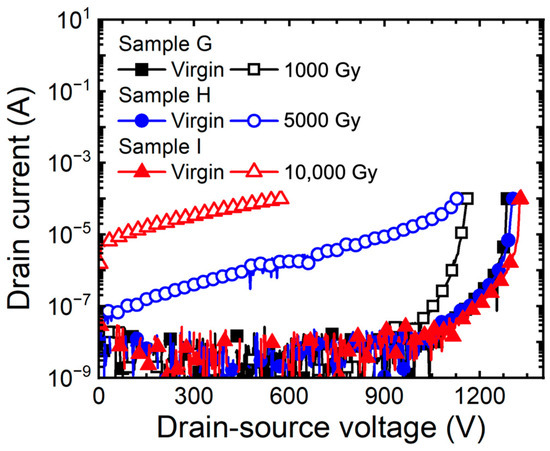

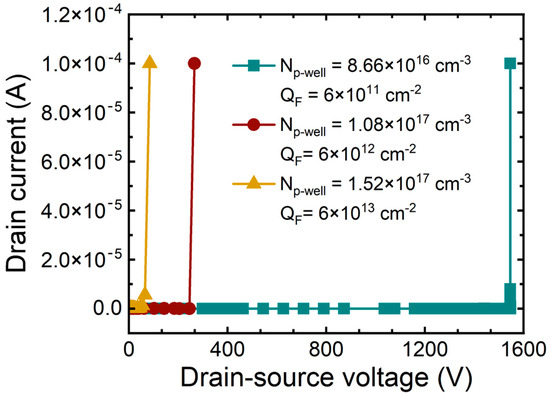

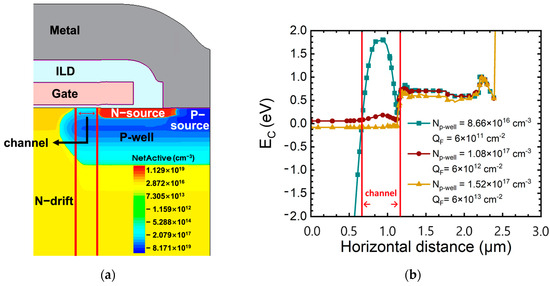

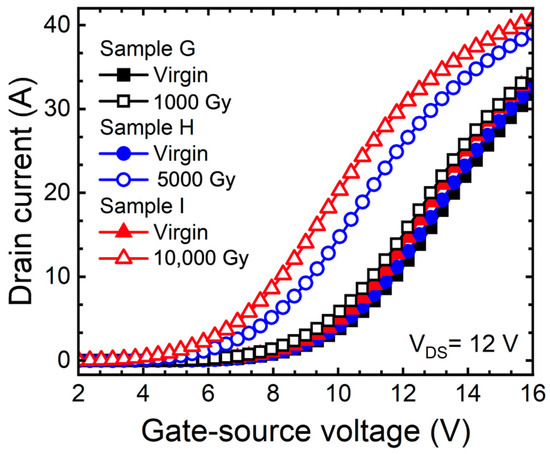

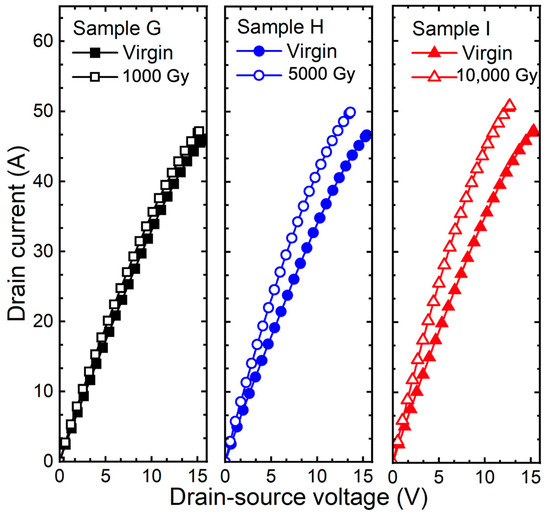

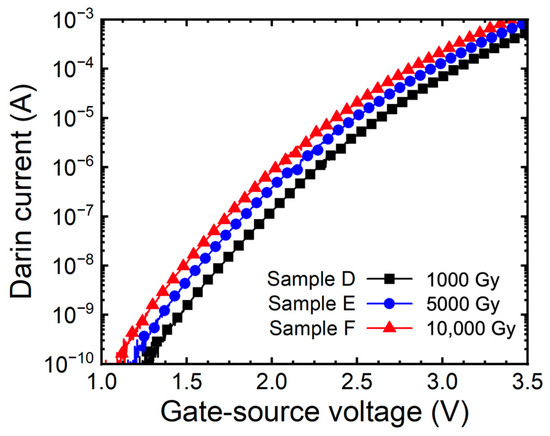

We investigated the effects of gate bias regarding the degradation of electrical characteristics during gamma irradiation. Moreover, we observed the punch through failure of 1.2 kV rated commercial Silicon Carbide (SiC) Metal Oxide Semiconductor Field Effect Transistors (MOSFETs) due to the influence of gate bias. In addition, the threshold voltage (V_T) and on-resistance (R_on) of the SiC MOSFETs decreased significantly by the influence of gate bias during gamma irradiation. We extracted the concentration of carriers and fixed charge (Q_F) in oxide using N-type SiC MOS capacitors and Transmission Line Measurement (TLM) patterns to analyze the effects of gamma irradiation. The Total Ionizing Dose (TID) effect caused by high-energy gamma-ray irradiation resulted in an increase in the concentration of holes and Q_F in both SiC and oxide. To analyze the phenomenon for increment of hole concentration in the device under gate bias, we extracted the subthreshold swing of SiC MOSFETs and verified the origin of TID effects accelerated by the gate bias. The Q_F and doping concentration of p-well values extracted from the experiments were used in TCAD simulations (version 2022.03) of the planar SiC MOSFET. As a result of analyzing the energy band diagram at the channel region of 1.2 kV SiC MOSFETs, it was verified that punch-through can occur in 1.2 kV SiC MOSFETs when the gate bias is applied, as the TID effect is accelerated by the gate bias. Full article

In this paper, the effects of proton and gamma irradiation on reach-through single-photon avalanche diodes (SPADs) are investigated. The I–V characteristics, gain and spectral response of SPAD devices under proton and gamma irradiation were measured at different proton energies and irradiation bias conditions. Comparison experiments of proton and gamma irradiation were performed in the radiation environment of geosynchronous transfer orbit (GTO) with two different radiation shielding designs at the same total ionizing dose (TID). The results show that after 30 MeV and 60 MeV proton irradiation, the leakage current and gain increase, while the spectral response decreases slightly. The leakage current degradation is more severe under the “ON”-bias condition compared to the “OFF”-bias condition, and it is more sensitive to the displacement radiation damage caused by protons compared to gamma rays under the same TID. Further analysis reveals that the non-elastic and elastic cross-section of protons in silicon is 1.05 × 10⁵ times greater than that of gamma rays. This results in SPAD devices being more sensitive to displacement radiation damage than ionizing radiation damage. Under the designed shielding conditions, the leakage current, gain and spectral response parameters of SPADs do not show significant performance degradation in the orbit. Full article

The synergistic effects on the 0.18 µm PPD CISs induced by neutron displacement damage and gamma ionization damage are investigated. The typical characterizations of the CISs induced by the neutron displacement damage and gamma ionization damage are presented separately. The CISs are irradiated by reactor neutron beams up to 1 × 10¹¹ n/cm² (1 MeV neutron equivalent fluence) and ⁶⁰Co γ-rays up to the total ionizing dose level of 200 krad(Si) with different sequential order. The experimental results show that the mean dark signal increase in the CISs induced by reactor neutron radiation has not been influenced by previous ⁶⁰Co γ-ray radiation. However, the mean dark signal increase in the CISs induced by ⁶⁰Co γ-ray radiation has been remarkably influenced by previous reactor neutron radiation. The synergistic effects on the PPD CISs are discussed by combining the experimental results and the TCAD simulation results of radiation damage. Full article

Low Earth orbit missions have become crucial for a variety of applications, from scientific research to commercial purposes. Exposure to ionizing radiation in Low Earth Orbit (LEO) poses a significant risk to both spacecraft and astronauts. In this article, we analyze radiation data obtained from different LEO missions to evaluate the potential of using electronic commercial off-the-shelf (COTS) devices in space missions. This study is focused on the total ionizing dose (TID). Our results demonstrate that COTS technology can effectively provide cost-effective and reliable solutions for space applications. Furthermore, we compare the data obtained from actual missions with computational models and tools, such as SPENVIS, to evaluate the accuracy of these models and enhance radiation exposure prediction. This comparison provides valuable insights into the true radiation environment in space and helps us to better understand the potential of COTS technology in reducing costs and development times by utilizing technology previously used in other areas. In light of the results, we can see that the radiation values observed experimentally in space missions versus the computer simulations used present variations up to a factor of 30 depending on the model used in the analysis. Full article

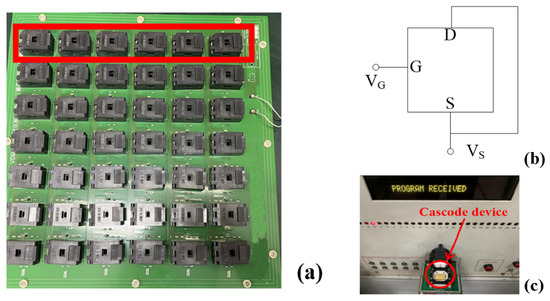

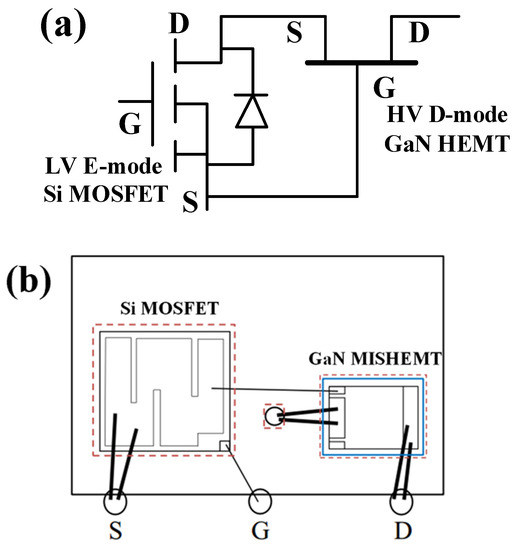

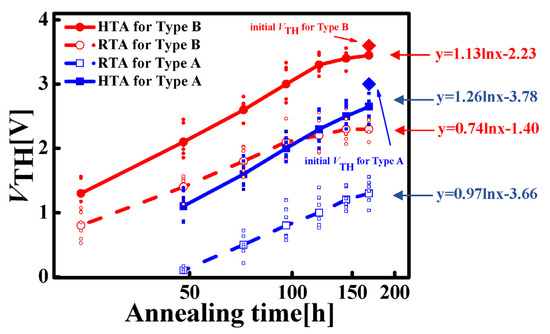

GaN devices are nowadays attracting global attention due to their outstanding performance in high voltage, high frequency, and anti-radiation ability. Research on total ionizing dose and annealing effects on E-mode GaN Cascode devices has been carried out. The Cascode device consists of a low-voltage MOSFET and a high-voltage depletion-mode GaN MISHEMT. Cascode devices of both conventional processed MOSFET and radiation-hardened MOSFET devices are fabricated to observe the TID effects. Experiment results indicate that, for the Cascode device with conventional processed MOSFET, the V_TH shifts to negative values at 100 krad(Si). For the Cascode device with radiation-hardened MOSFET, the V_TH shifts by −0.5 V at 100 krad(Si), while shifts to negative values are 500 krad(Si). The annealing process, after the TID experiment, shows that it can release trapped charges and help V_TH recover. On one hand, the V_TH shift and recover trends are similar to those of a single MOSFET device, suggesting that the MOSFET is the vulnerable part in the Cascode which determines the anti-TID ability of the device. On the other hand, the V_TH shift amount of the Cascode device is much larger than that of a previously reported p-GaN HEMT device, indicating that GaN material shows a better anti-TID ability than Si. Full article

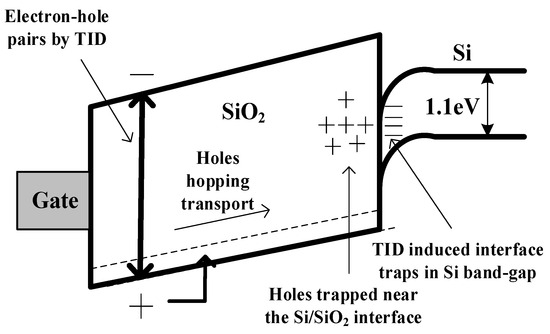

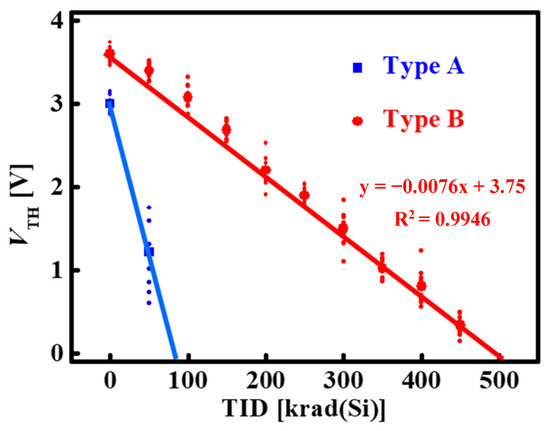

This study designed a radiation-hardened (RH) complementary metal oxide semiconductor (CMOS) logic circuit based on an RH variable-gate (V-gate) n-MOSFET that was resistant to the total ionizing dose (TID) effect and evaluated its tolerance to radiation. Among the different CMOS logic circuits, NOT, NAND, and NOR gates were designed using V-gate n-MOSFETs by employing layout transformation techniques and standard p-MOSFETs. Before the process design, we predicted the radiation damage using modeling and simulation techniques and validated the tolerance by conducting actual radiation tests after the process design. Furthermore, we implemented the CMOS logic circuit process design in a 0.18 µm CMOS bulk process. The actual radiation test applied a total cumulative radiation dose of 25 kGy at 5 kGy per hour in a high-level gamma-ray irradiation facility. Consequently, the resistance of the RH CMOS logic circuit based on the RH V-gate n-MOSFET to the TID effect was validated through experiments. Full article

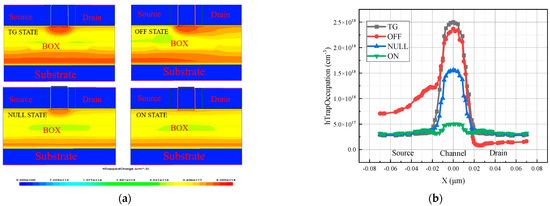

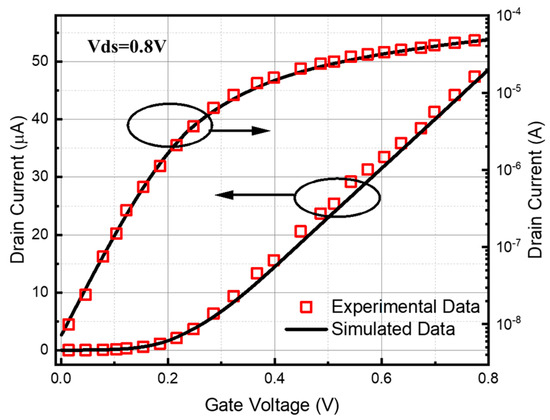

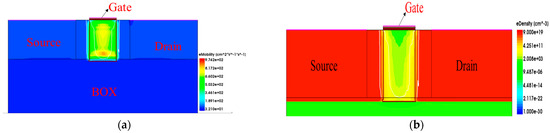

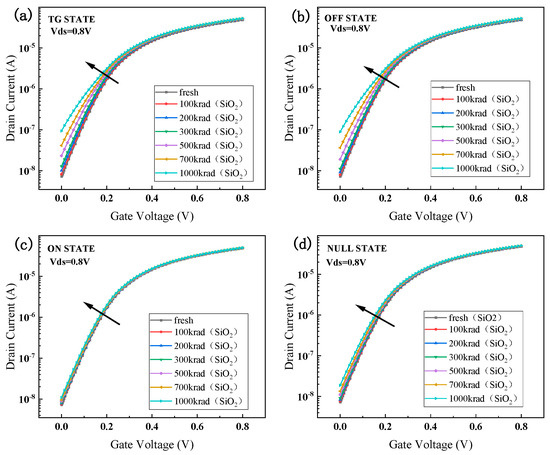

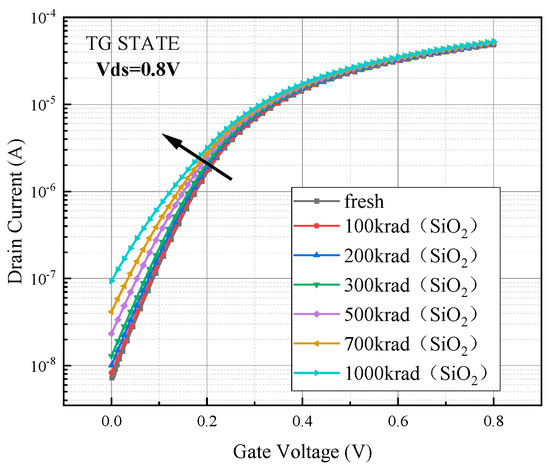

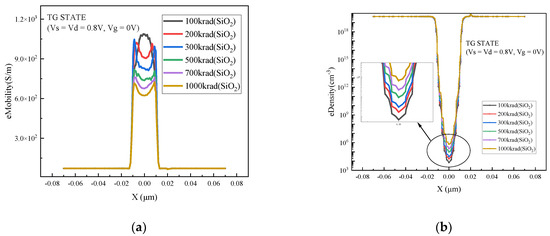

The total ionizing dose (TID) effect significantly impacts the electrical parameters of fully depleted silicon on insulator (FDSOI) devices and even invalidates the on–off function of devices. At present, most of the irradiation research on the circuit level is focused on the single event effect, and there is very little research on the total ionizing dose effect. Therefore, this study mainly analyzes the influence of TID effects on a CMOS inverter circuit based on 22 nm FDSOI transistors. First, we constructed and calibrated an N-type FDSOI metal-oxide semiconductor (NMOS) structure and P-type FDSOI metal-oxide semiconductor (PMOS) structure. The transfer characteristics and trapped charge distribution of these devices were studied under different irradiation doses. Next, we studied the TID effect on an inverter circuit composed of these two MOS transistors. The simulation results show that when the radiation dose was 400 krad (Si), the logic threshold drift of the inverter was approximately 0.052 V. These results help further investigate the impact on integrated circuits in an irradiation environment. Full article
