In plasma-enhanced chemical vapor deposition (PECVD) processes, thin films can accumulate on the inner chamber walls, resulting in particle contamination and process drift. In this study, we investigate the physical and chemical properties of these wall-deposited films to understand their spatial variation and impact on chamber maintenance. A 6-inch capacitively coupled plasma (CCP)-type PECVD system was used to deposit SiO₂ films, whilst long silicon coupons were attached vertically to the chamber side walls to collect contamination samples. The collected contamination samples were comparatively analyzed in terms of their chemical properties and surface morphology. The results reveal significant differences in hydrogen content and Si–O bonding configurations compared to reference films deposited on wafers. The top chamber wall, located near the plasma region, exhibited higher hydrogen incorporation and larger Si–O–Si bonding angles, while the bottom wall exhibited rougher surfaces with larger particulate agglomerates. These variations were closely linked to differences in gas flow dynamics, precursor distribution, and the energy state of the plasma species at different chamber heights. The findings indicate that top-wall contaminants are more readily cleaned due to their high hydrogen content, while bottom-wall residues may be more persistent and pose higher risks for particle generation. This study provides insights into wall contamination behavior in PECVD systems and suggests strategies for spatially optimized chamber cleaning and conditioning in high-throughput semiconductor processes. Full article

Polyamines have become important chemical components used in several integrated circuit manufacturing processes, such as etching, chemical mechanical polishing (CMP), and cleaning. Recently, researchers pointed out that polyamines can be excellent enhancers in promoting the material removal rate (MRR) of Si CMP, but the interaction mechanism between the polyamines and the silicon surface has not been clarified. Here, the micro-interaction mechanisms of polyamines, including ethylenediamine (EDA), diethylenetriamine (DETA), triethylenetetramine (TETA), tetraethylenepentamine (TEPA), and pentaethylenehexamine (PEHA), with the Si(1, 0, 0) surface were investigated through molecular dynamics (MD) simulations using the ReaxFF reactive force field. Polyamines can adsorb onto the Si(1, 0, 0) surface, and the adsorption rate first accelerates and then tends to stabilize with the increase in the quantity of -CH₂CH₂NH-. The close connection between the adsorption properties of polyamines and the polishing rate has been confirmed by CMP experiments on silicon wafers. A comprehensive bond analysis indicates that the adsorption of polyamines can stretch surface Si–Si bonds, which facilitates subsequent material removal by abrasive mechanical wear. This work reveals the adsorption mechanism of polyamines onto the silicon substrate and the understanding of the MRR enhancement in silicon CMP, which provides guidance for the design of CMP slurry. Full article

This study experimentally investigated the use of the chemical vapor etching method for silicon surface grooving for regular front deep metallic contact solar cell applications. The thickness of silicon wafers is a crucial parameter in the production of solar cells with front and back buried contacts, because silicon surface grooves result in a larger contact area, which in turn improves carrier collection and increases the collection probability for minority carriers. A simple, low-cost HNO₃/HF chemical vapor etching technique was used to create grooves on silicon wafers with the help of a highly effective anti-acid mask. The thick porous layer of powder that was produced was easily dissolved in water, leaving patterned grooved areas on the silicon substrate. A linear dependence was observed between the etched thickness and time, suggesting that the etching process followed a constant etch rate, something that is crucial for ensuring precise and reproducible etching results for the semiconductor and microfabrication industries. Moreover, by creating shorter pathways for charge carriers to travel to their respective contacts, front deep contacts minimize the overall distance they need to traverse and therefore reduce the chance of carrier recombination within the silicon material. As a result, the internal quantum efficiency of solar cells with front deep metallic contacts improved by 35% compared to mc-Si solar cells having planar contacts. The use of front deep contacts therefore represents a forward-looking strategy for improving the performance of silicon solar cells. Indeed, this innovative electrode configuration improves charge carrier collection, mitigates recombination losses, and ultimately leads to more efficient and effective solar energy conversion, which contributes to sustainable energy development in the areas of clean energy resources. Further work needs to be undertaken to develop energy sustainably and consider other clean energy resources. Full article

In this study, trench sidewall modification processes were designed to improve profile uniformity and thereby enhance the electrical performance of silicon power devices in large-scale production. The effects of trench sidewall modification on the morphology, structure and electrical properties were studied. Plasma-induced damage in etching processes was also observed and briefly explained. Straight and smooth sidewall profiles were achieved through adjusting the SF₆/CHF₃ proportion in a combined etchant gas flow in the main etching procedure. By comparing HRSEM images from different etching protocols, it was evident that an enhanced CHF₃ flow formed a proper passivation of the sidewall, eliminating the ion damages that are common in current main etch steps. To address the impurities introduced from the etchant gas and improve the gate oxide uniformity, further steps of depolymerization were applied in a plasma asher chamber, followed by wet clean steps. In the meantime, the plasma-induced charge accumulation effect was reduced by UV curing. Improved trench sidewall profiles and the gate oxide uniformity contributed to a lower leakage current between the gate and source terminals, leading to an overall yield enhancement of device properties in large-scale silicon wafer fabrication. Full article

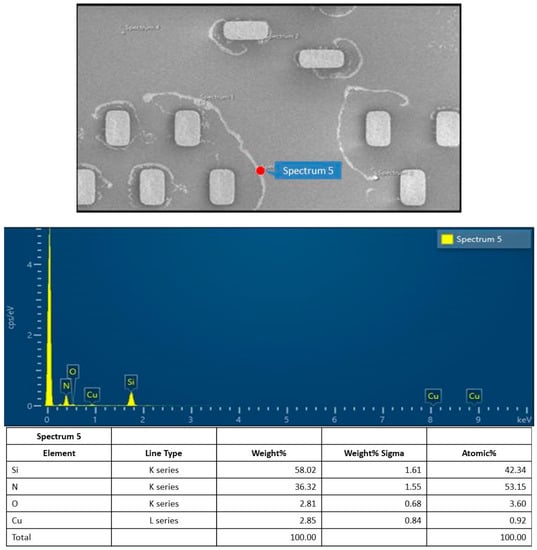

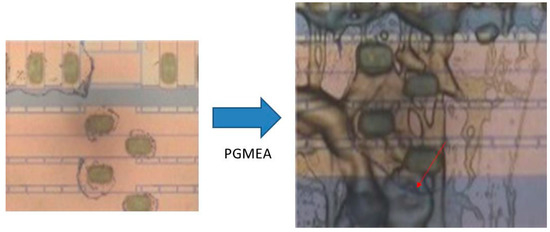

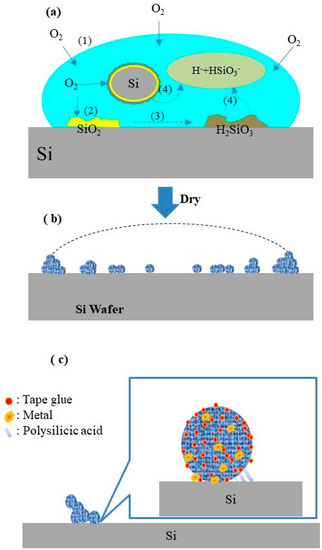

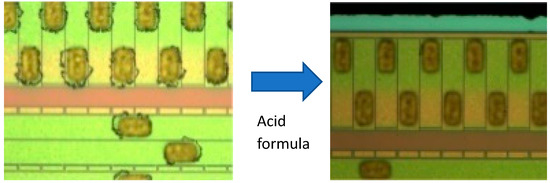

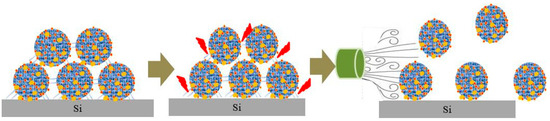

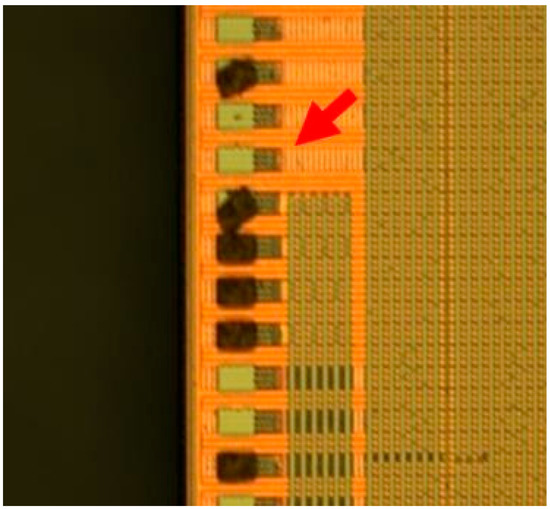

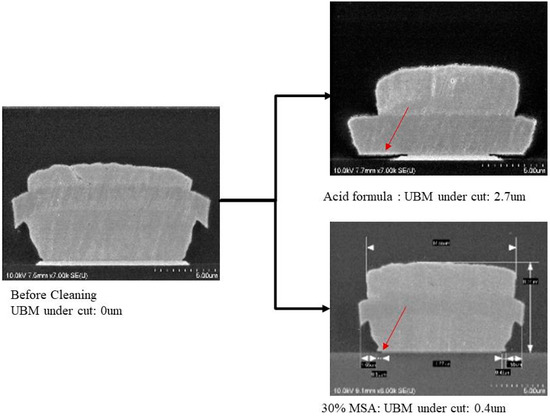

A new cleaning agent for silicon contamination in the wafer dicing process was formulated in this research. Ammonium bifluoride was introduced as the main ingredient in the formula, and MSA and sulfuric acid were added as the solvent and buffer solution against metal corrosion. It was confirmed that the new formula cleaning agent could be used in the cleaning of silicon contamination from dicing. Silicon contamination is common in the wafer dicing process and consists of silicon powder and relevant metal particles during cutting, all of which are mixed with some adhesive residues. These contaminating particles on the IC surface are exposed to cleaning agents. However, while it is imperative to clean the wafer, the exposed surface is also vulnerable to damage from the solution. This further complicates the procedure because there is currently no ideal cleaning agent for the process. Our proposed formula hopefully provides an ideal chemical for use in wafer cleaning (SC-1, SC-2, BOE), since it uses a less toxic compound, ammonium bifluoride, which yielded good results during our experiments. Full article

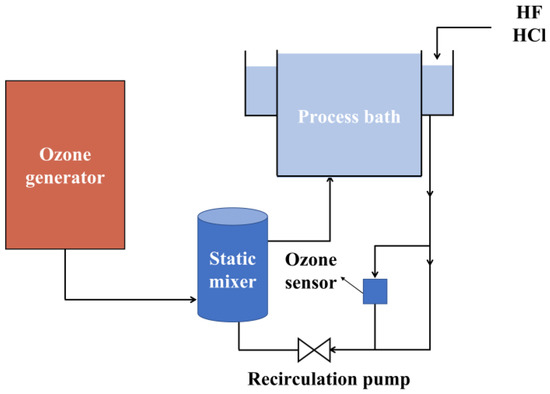

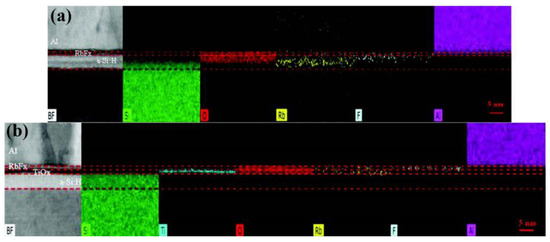

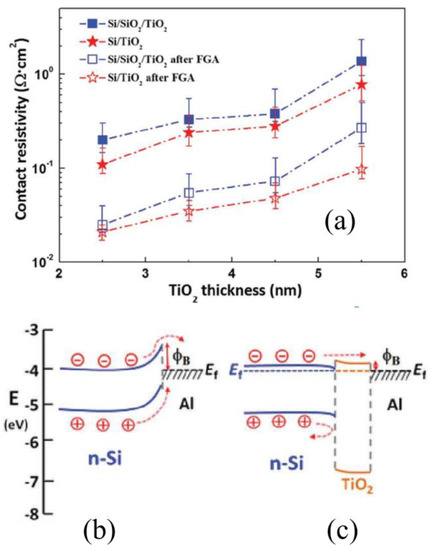

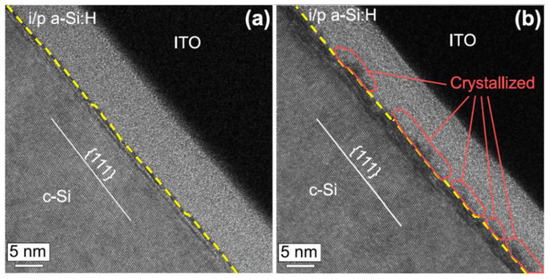

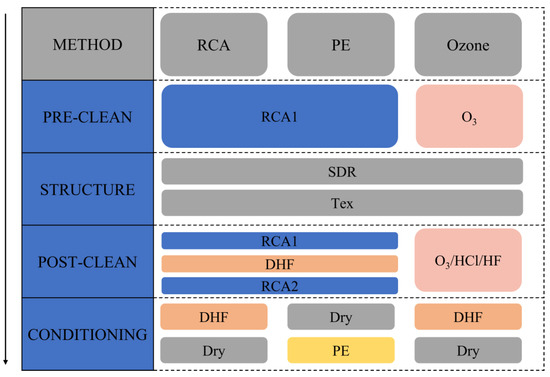

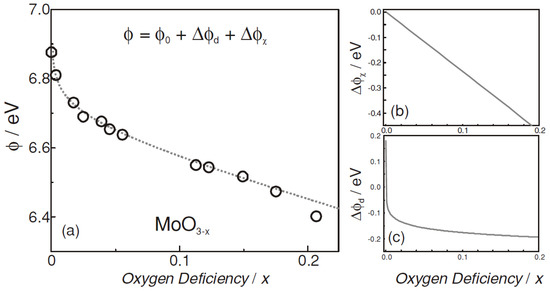

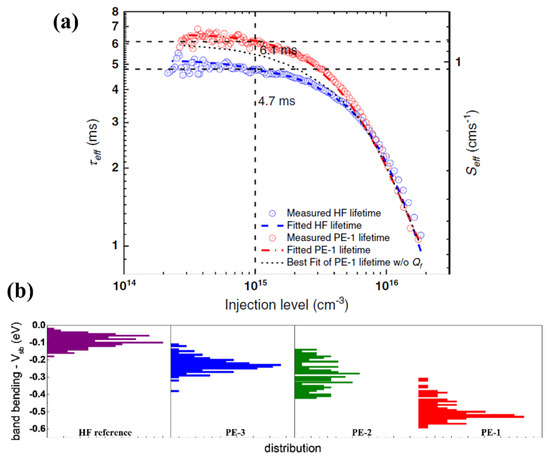

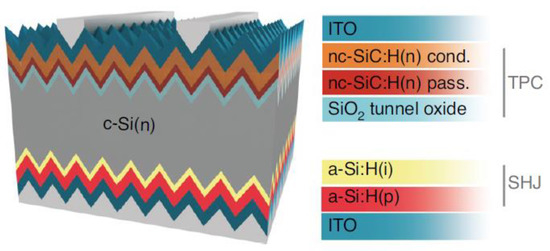

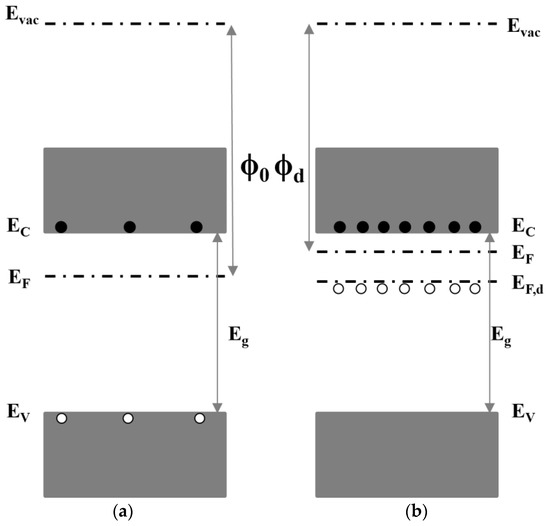

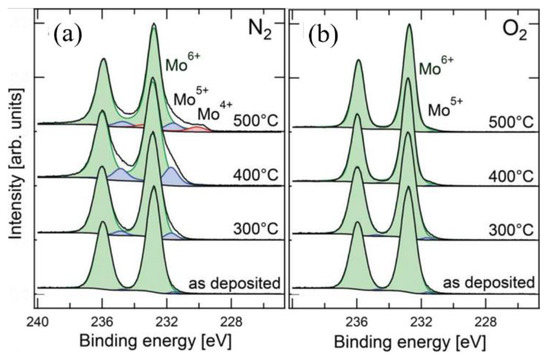

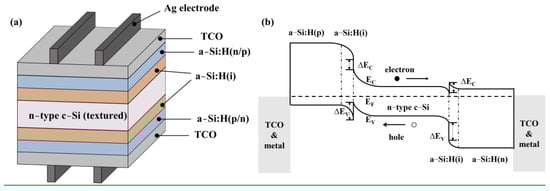

Silicon heterojunction (SHJ) solar cells are increasingly attracting attention due to their low-temperature processing, lean steps, significant temperature coefficient, and their high bifacial capability. The high efficiency and thin wafer nature of SHJ solar cells make them ideal for use as high-efficiency solar cells. However, the complicated nature of the passivation layer and prior cleaning render a well-passivated surface difficult to achieve. In this study, developments and the classification of surface defect removal and passivation technologies are explored. Further, surface cleaning and passivation technologies of high-efficiency SHJ solar cells within the last five years are reviewed and summarized. Full article

Silicon wafer slicing is a crucial process during solar cell fabrication, but it often stains the silicon wafer surface. Thus, this work systematically investigated the composition, source, and cleaning method of typical white spot stains on silicon wafer surfaces. The EDS and XPS results showed that the white spot stains contained CaCO₃ and SiO₂ that were consistent with the filler components in sticky silicon ingot glue. The effects of stains on copper deposition and copper-assisted chemical etching were studied. White spot stains remained attached to the silicon surface after deposition and etching. These stains affected the uniform deposition of copper particles on the surface of the silicon wafer and also impeded the catalytic etching of copper particles. Finally, KOH solution was combined with an ultrasonic field to remove surface stains from the silicon wafer. This study provides important guidance for the removal of silicon wafer contaminants to fabricate high-efficiency solar cells. Full article

Silver–tantalum (Ag–Ta) thin films were fabricated by magnetron co-sputtering on silicon (Si) wafer (100) and glass slide substrates at room temperature. The Ag–Ta thin films were prepared at various deposition times of 5, 10, 20 and 30 s and the physical, structural and optical properties of the Ag–Ta thin films were investigated. It was determined that the thicknesses of the films were 7, 9, 17 and 33 nm, respectively. The results revealed that an increase in the film thickness leads to a monotonic increase in FCC and BCC phase of Ag and Ta, respectively. The work function and stoichiometric of the Ag–Ta thin films were investigated by ultraviolet and X-ray photoemission spectroscopies (UPS and XPS), respectively. The potential of Ag–Ta thin films to be used as low-emission coating was investigated using a spectrophotometer. A UV–VIS–NIR spectrophotometer was used to measure the spectral reflectance in the wavelength range from 300 to 2000 nm. The results showed that the Ag–Ta thin film deposited for 30 s exhibited higher reflectance in NIR region than those of 5, 10, 20 and 30 s. It demonstrated an average reflectance of about 80% and slightly decreased to 75% after being kept in the air atmosphere for 28 days. It can be likewise proposed as an alternative thin film with high reflectance of NIR radiation single layer to develop industrial low-emission coating for cost-effective, clean, and easy adaptation to a large area coating. Full article

Chemical mechanical polishing (CMP) is a well-known technology that can produce surfaces with outstanding global planarization without subsurface damage. A good CMP process for Silicon Carbide (SiC) requires a balanced interaction between SiC surface oxidation and the oxide layer removal. The oxidants in the CMP slurry control the surface oxidation efficiency, while the polishing mechanical force comes from the abrasive particles in the CMP slurry and the pad asperity, which is attributed to the unique pad structure and diamond conditioning. To date, to obtain a high-quality as-CMP SiC wafer, the material removal rate (MRR) of SiC is only a few micrometers per hour, which leads to significantly high operation costs. In comparison, conventional Si CMP has the MRR of a few micrometers per minute. To increase the MRR, improving the oxidation efficiency of SiC is essential. The higher oxidation efficiency enables the higher mechanical forces, leading to a higher MRR with better surface quality. However, the disparity on the Si-face and C-face surfaces of 4H- or 6H-SiC wafers greatly increases the CMP design complexity. On the other hand, integrating hybrid energies into the CMP system has proven to be an effective approach to enhance oxidation efficiency. In this review paper, the SiC wafering steps and their purposes are discussed. A comparison among the three configurations of SiC CMP currently used in the industry is made. Moreover, recent advances in CMP and hybrid CMP technologies, such as Tribo-CMP, electro-CMP (ECMP), Fenton-ECMP, ultrasonic-ECMP, photocatalytic CMP (PCMP), sulfate-PCMP, gas-PCMP and Fenton-PCMP are reviewed, with emphasis on their oxidation behaviors and polishing performance. Finally, we raise the importance of post-CMP cleaning and make a summary of the various SiC CMP technologies discussed in this work. Full article

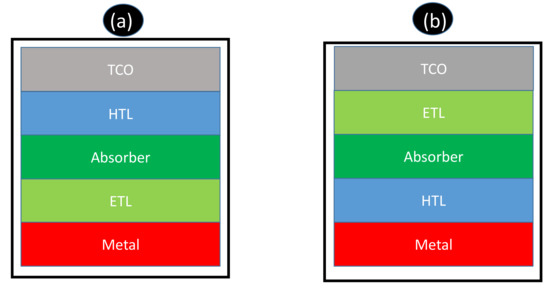

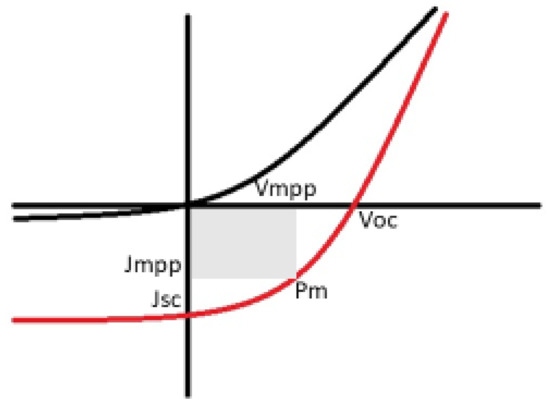

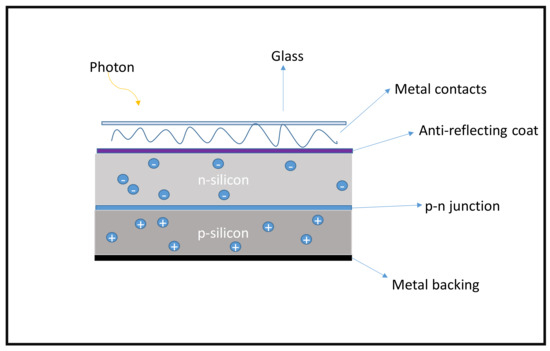

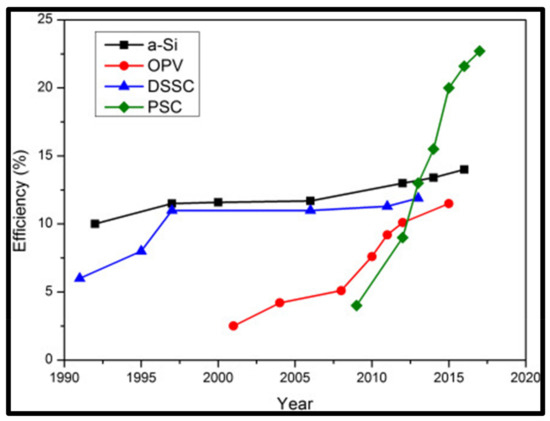

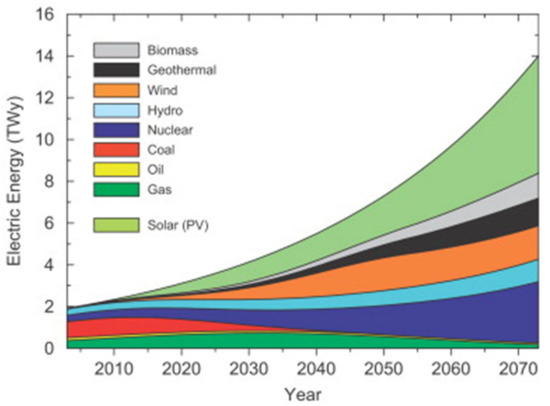

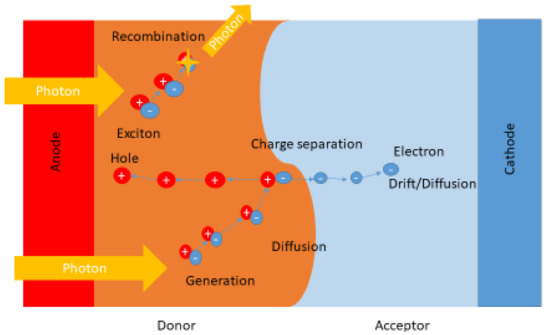

The demand for energy has been a global concern over the years due to the ever increasing population which still generate electricity from non-renewable energy sources. Presently, energy produced worldwide is mostly from fossil fuels, which are non-renewable sources and release harmful by-products that are greenhouses gases. The sun is considered a source of clean, renewable energy, and the most abundant. With silicon being the element most used for the direct conversion of solar energy into electrical energy, solar cells are the technology corresponding to the solution of the problem of energy on our planet. Solar cell fabrication has undergone extensive study over the past several decades and improvement from one generation to another. The first solar cells were studied and grown on silicon wafers, in particular single crystals that formed silicon-based solar cells. With the further development in thin films, dye-sensitized solar cells and organic solar cells have significantly enhanced the efficiency of the cell. The manufacturing cost and efficiency hindered further development of the cell, although consumers still have confidence in the crystalline silicon material, which enjoys a fair share in the market for photovoltaics. This present review work provides niche and prominent features including the benefits and prospects of the first (mono-poly-crystalline silicon), second (amorphous silicon and thin films), and third generation (quantum dots, dye synthesized, polymer, and perovskite) of materials evolution in photovoltaics. Full article

In recent years, rising environmental concerns have led to the focus on some of the innovative alternative technologies to produce clean burning fuels. Fischer–Tropsch (FT) synthesis is one of the alternative chemical processes to produce synthetic fuels, which has a current research focus on reactor and catalyst improvements. In this work, a cobalt nanofilm (~4.5 nm), deposited by the atomic layer deposition (ALD) technique in a silicon microchannel microreactor (2.4 cm long × 50 µm wide × 100 µm deep), was used as a catalyst for atmospheric Fischer–Tropsch (FT) synthesis. The catalyst film was characterized by XPS, TEM-EDX, and AFM studies. The data from AFM and TEM clearly showed the presence of polygranular cobalt species on the silicon wafer. The XPS studies of as-deposited and reduced cobalt nanofilm in silicon microchannels showed a shift on the binding energies of Co 2p spin splits and confirmed the presence of cobalt in the Co⁰ chemical state for FT synthesis. The FT studies using the microchannel microreactor were carried out at two different temperatures, 240 °C and 220 °C, with a syngas (H₂:CO) molar ratio of 2:1. The highest CO conversion of 74% was observed at 220 °C with the distribution of C₁–C₄ hydrocarbons. The results showed no significant selectivity towards butane at the higher temperature, 240 °C. The deactivation studies were performed at 220 °C for 60 h. The catalyst exhibited long-term stability, with only ~13% drop in the CO conversion at the end of 60 h. The deactivated cobalt film in the microchannels was investigated by XPS, showing a weak carbon peak in the XPS spectra. Full article

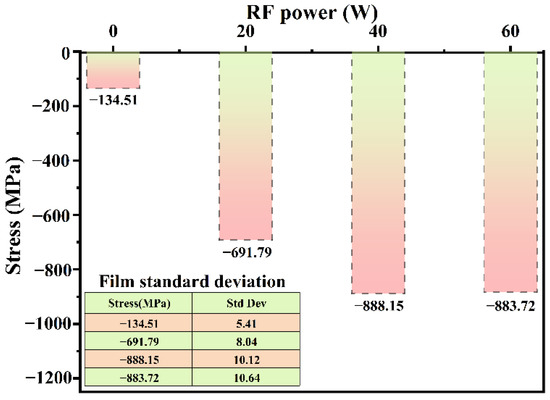

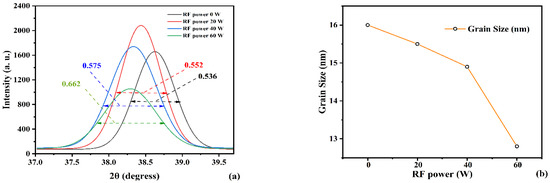

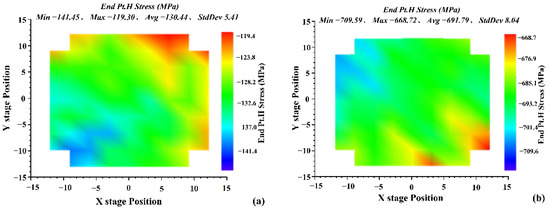

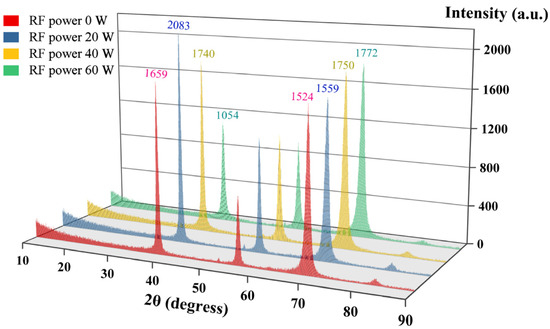

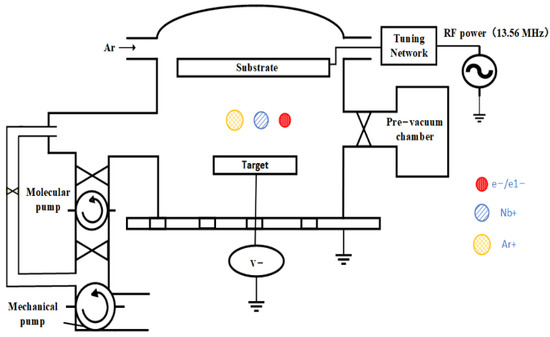

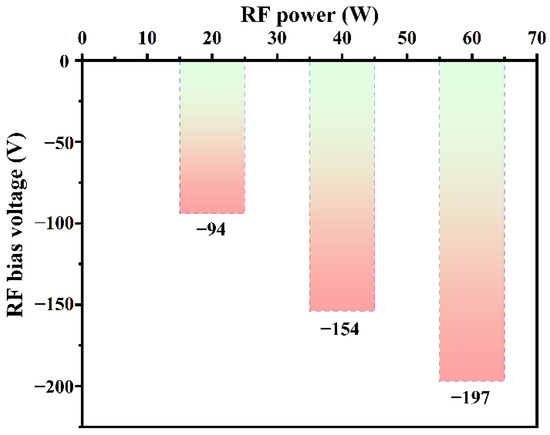

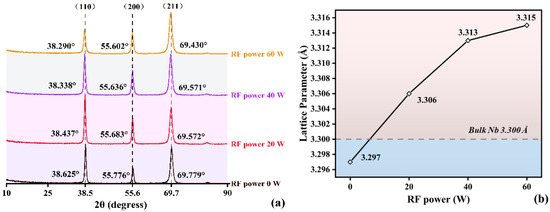

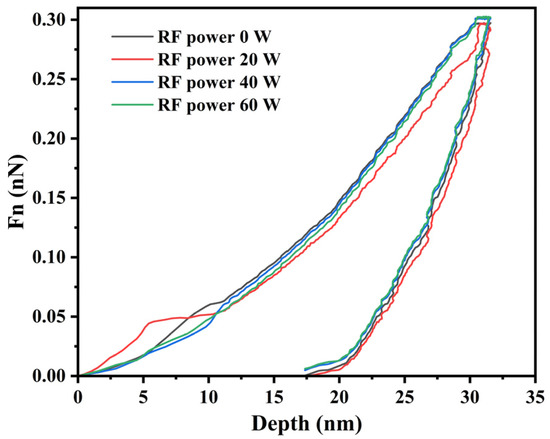

Due to its highly unreactive nature and advanced biocompatibility, niobium (Nb) coating films are increasingly being used to improve the corrosion resistance and biocompatibility of base implant materials. However, Nb films have relatively low yield strengths and surface hardness; therefore, it is necessary to explore a simple and low-cost method to improve their mechanical properties. Magnetron sputtering is a commonly used tool for Nb film deposition. Applying substrate bias can introduce Ar⁺ bombard to the film surface, which is effective to improve the film’s mechanical properties. As the direct current (DC) bias-sputtering tool requires an extra DC power supply, applying the negative bias by a radio frequency (RF) power source (usually installed in the sputtering system to conduct substrate pre-cleaning) will be more economical and convenient. Moreover, the RF bias was accompanied with higher ion density and energy compared to the DC bias. In this study, Nb films were deposited on silicon wafers by magnetron sputtering under different RF bias powers. The effects of the RF bias on the structural parameters and mechanical properties of the films were studied via stress measurements, X-ray diffraction, and indentation tests. The results show that the RF bias can change the crystal distribution, grain size, and lattice parameter of the film, as well as the mechanical properties. The stress of the Nb film was compressive; it increased markedly when an RF power was applied and saturated when the RF power was over 40 W. The hardness of the film increased from 4.17 GPa to 5.34 GPa with an elevating RF power from 0 W to 60 W. This study aimed to enhance the mechanical properties of the Nb films deposited by RF-biased sputtering, which provides wider potentials for Nb film as protective coatings for medical–biological implant bodies. Although the research was carried out on Si substrates to facilitate the study of film stress, we believe that the evolution trends of our results will also apply to other metal substrates, because the measured film mechanical properties are intrinsic. Full article

In this study, a four-inch zinc oxide (ZnO) nanostructure was synthesized using radio frequency (RF) magnetron sputtering to maximize the electrochemical performance of the anode material of a lithium-ion battery. All materials were grown on cleaned p-type silicon (100) wafers with a deposited copper layer inserted at the stage. The chamber of the RF magnetron sputtering system was injected with argon and oxygen gas for the growth of the ZnO films. A hydrogen (H₂) reduction process was performed in a plasma enhanced chemical vapor deposition (PECVD) chamber to synthesize the ZnO nanostructure (ZnO NS) through modification of the surface structure of a ZnO film. Field emission scanning electron microscopy and atomic force microscopy were performed to confirm the surface and structural properties of the synthesized ZnO NS, and cyclic voltammetry was used to examine the electrochemical characteristics of the ZnO NS. Based on the Hall measurement, the ZnO NS subjected to H₂ reduction had a higher electron mobility and lower resistivity than the ZnO film. The ZnO NS that was subjected to H₂ reduction for 5 min and 10 min had average roughness of 3.117 nm and 3.418 nm, respectively. Full article

A procedure based on energy-dispersive X-ray spectroscopy in a scanning electron microscope (SEM-EDXS) is proposed to measure ultra-thin oxide layer thicknesses to atomic scale precision in top-down instead of cross-sectional geometry. The approach is based on modelling the variation of the electron beam penetration depth and hence the depth of X-ray generation in the sample as a function of the acceleration voltage. This has been tested for the simple case of silica on silicon (SiO₂/Si) which can serve as a model system to study gate oxides in metal-on-semiconductor field-effect transistors (MOS-FETs). Two possible implementations exist both of which rely on pairs of measurements to be made: in method A, the wafer piece of interest and a reference sample (here: ultra-clean fused quartz glass for calibration of the effective k-factors of X-ray lines from elements O and Si) are analysed at the same acceleration voltage. In method B, two measurements of the apparent O/Si ratio of the same wafer sample need to be made at different acceleration voltages and from their comparison to simulations the SiO₂ layer thickness of the sample can be inferred. The precision attainable is ultimately shown to be limited by surface contamination during the experiments, as very thin carbonaceous surface layers can alter the results at very low acceleration voltages, while the sensitivity to ultra-thin surface oxides is much reduced at higher acceleration voltages. The optimal operation voltage is estimated to lie in the range of 3–15 kV. Method A has been experimentally verified to work well for test structures of thin oxides on Si-Ge/Si. Full article

Despite the lifesaving medical discoveries of the last century, there is still an urgent need to improve the curative rate and reduce mortality in many fatal diseases such as cancer. One of the main requirements is to find new ways to deliver therapeutics/drugs more efficiently and only to affected tissues/organs. An exciting new technology is nanomaterials which are being widely investigated as potential nanocarriers to achieve localized drug delivery that would improve therapy and reduce adverse drug side effects. Among all the nanocarriers, iron oxide nanoparticles (IONPs) are one of the most promising as, thanks to their paramagnetic/superparamagnetic properties, they can be easily modified with chemical and biological functions and can be visualized inside the body by magnetic resonance imaging (MRI), while delivering the targeted therapy. Therefore, iron oxide nanoparticles were produced here with a novel method and their properties for potential applications in both diagnostics and therapeutics were investigated. The novel method involves production of free standing IONPs by inert gas condensation via the Mantis NanoGen Trio physical vapor deposition system. The IONPs were first sputtered and deposited on plasma cleaned, polyethylene glycol (PEG) coated silicon wafers. Surface modification of the cleaned wafer with PEG enabled deposition of free-standing IONPs, as once produced, the soft-landed IONPs were suspended by dissolution of the PEG layer in water. Transmission electron microscopic (TEM) characterization revealed free standing, iron oxide nanoparticles with size < 20 nm within a polymer matrix. The nanoparticles were analyzed also by Atomic Force Microscope (AFM), Dynamic Light Scattering (DLS) and NanoSight Nanoparticle Tacking Analysis (NTA). Therefore, our work confirms that inert gas condensation by the Mantis NanoGen Trio physical vapor deposition sputtering at room temperature can be successfully used as a scalable, reproducible process to prepare free-standing IONPs. The PEG- IONPs produced in this work do not require further purification and thanks to their tunable narrow size distribution have potential to be a powerful tool for biomedical applications. Full article
