Search Results (16)

A recent composite technique, namely Resin Pre-Coating (RPC), has demonstrated remarkably high effectiveness in the repair of Carbon Fiber-Reinforced Polymer (CFRP) composites. Compared to widely used scarf repair and injection repair, this non-destructive method offers advantages in addressing subsurface damages from the millimeter to micron scale, such as edge delaminations that frequently occur due to machining or low-energy impacts. The acetone-rich RPC solution can spontaneously transport sticky resin and other toughening agents into defects through capillary action. In this study, we further improved the solution by adopting a self-curing resin (i.e., SC-RPC), reducing the repair duration from the initial 2–3 months to merely a few hours. Using this modified solution, the CFRP specimens prepared containing delamination cracks were largely restored, reaching up to 94.9% of the original compressive strength. With the additional incorporation of carbon nanotubes (CNTs), full restoration was achieved, as is evidenced by load-bearing capacities and overload failure modes comparable to those of pristine specimens. The findings of this study may help alleviate concerns regarding substandard post-repair performance and prolonged repair durations, which are frequently criticized in real-world CFRP maintenance projects. The preparation of two new formulations, SC-RPC and SC-RPC+CNT, along with the optimization of key parameters, was carefully detailed in the manuscript to ensure experimental reproducibility. Full article

The structural damage repair of composite material is an important issue that needs to be addressed during the service life of composite materials. To investigate the effects of a scarf structure and scarf angle on the repair quality of composite material, this paper proposes a mixed-scarf (MS) repair structure that combines ramped-scarf (RS) and stepped-scarf (SS) repair structures. The effect of the repair structure on the mechanical properties was analyzed, as well as the quality of the adhesive interface. The results show that at a scarf angle of 10°, the repair efficiency and the quality of adhesive interface are better than that of scarf angles of 20° and 30°. At a scarf angle of 10°, the recovery degree of the flexural strength of the MS repair structure is 79.72%, which is 6.77% and 38.24% higher than that of the RS and SS repair structures, respectively. However, in terms of flexural modulus, regardless of repair structure, the flexural modulus is highest at a scarf angle of 20°. Furthermore, the impact strength of the MS repair structure is approximately 87.60% that of the RS repair structure; additionally, it exhibits an increase of 45.83% compared to the SS repair structure. Overall, the quality of the adhesive interface for the RS and MS repair structures is similar and better than that of the SS repair structure. In conclusion, the MS repair structure is well suited for small-angle scarf repairs, whereas the RS repair structure is more appropriate for large-angle repairs; in contrast, the SS repair structure demonstrates the least effective performance in terms of repair outcomes. Full article

Scarf repairs are the most common method of repairing composite structures. With the development of repair technology, the problems of strength evaluation and damage detection of repaired structures need to be solved urgently. Taking the repaired laminate structure as an example, the possible types of defects and the ultrasonic characteristic signals are summarized and analyzed, which are then compared and verified with repair process characteristics to provide data accumulation for the establishment of the complete ultrasonic detection criteria for such structural defects. Full article

This study aimed to optimize the geometry of composite stepped repair patches, using a parametric algorithm to automate the process due to the complexity of the optimization problem and various factors affecting efficiency. More specifically, the algorithm initially calculates the equivalent strengths of the repaired laminate plate according to a max stress criterion, then calculates the dimensions of several elliptical repair patches, taking into account several design methods extracted from the literature. Next, it creates their finite element models and finally, the code conducts an assessment of the examined patch geometries, given specific user-defined criteria. In the end, the algorithm reaches a conclusion about the optimum patch among the designed ones. The algorithm has the potential to run for many different patch geometries. In the current research, five patch geometries were designed and modeled under uniaxial compressive loading at 0°, 45° and 90°. Overall, the code greatly facilitated the design and optimization process and constitutes a useful tool for future research. The results revealed that elliptical stepped patches can offer a near-optimum solution much more efficient than that of the conservative option of the circular patch, in terms of both strength and volume of healthy removed material. Full article

Increasing global concerns regarding environmental issues have driven significant advancements in the development of bio-based fiber reinforced polymer composites. Despite extensive research on bio-composites, there remains a noticeable gap in studies specifically addressing the challenges of repairing bio-composites for circular economy adoption. Traditional repair techniques for impacted composites, such as patching or scarf methods, are not only time-consuming but also require highly skilled personnel. This paper aims to highlight cost-effective repair strategies for the restoration of damaged composites, featuring flax fiber as the primary reinforcement material and distinct matrix systems, namely bio-based epoxy and bio-based vitrimer matrix. Glass fiber was used as a secondary material to validate the bio-based vitrimer matrix. The damage caused specifically by low impact is detrimental to the structural integrity of the composites. Therefore, the impact resistance of the two composite materials is evaluated using instrumented drop tower tests at various energy levels, while thermography observations are employed to assess damage evolution. Two distinct repair approaches were studied: the resin infiltration repair method, employing bio-based epoxy, and the reconsolidation (self-healing) repair method, utilizing the bio-based vitrimer matrix. The efficiency of these repair methods was assessed through active thermography and compression after impact tests. The repair outcomes demonstrate successful restoration and the maintenance of ultimate strength at an efficiency of 90% for the re-infiltration repair method and 92% for the reconsolidation repair method. Full article

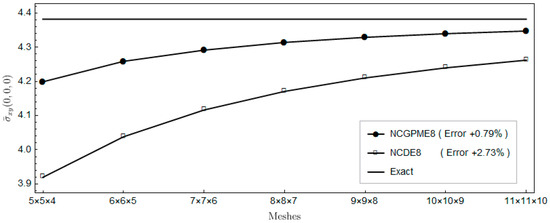

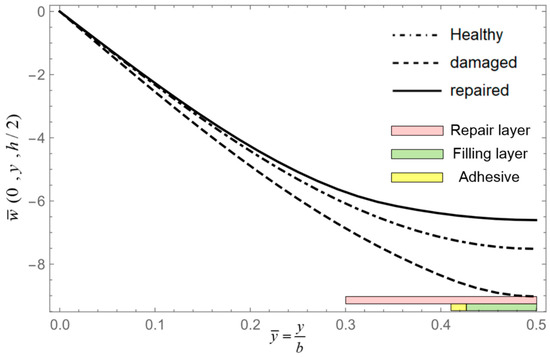

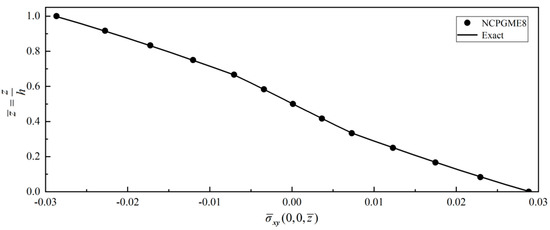

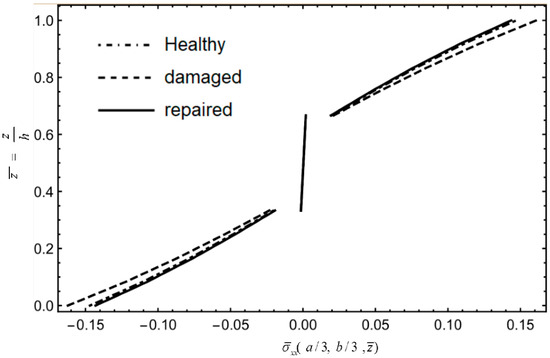

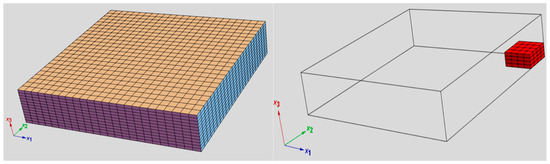

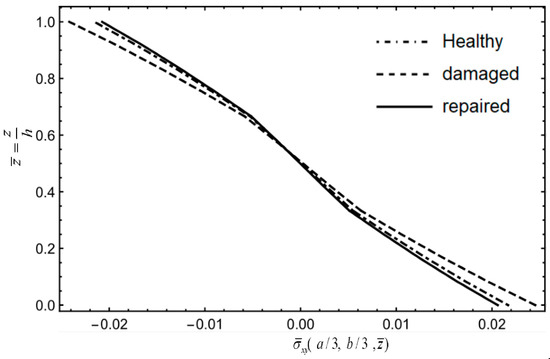

To ensure the overall continuity of displacement and out-of-plane stress in composite laminate structures and to quantitatively analyze the mechanical properties of composite materials after damage or repair, a finite element solution method is applied based on the modified generalized H–R variational principle. This method utilizes an eight-node non-conforming generalized partial hybrid element (NCGPME8). The partial hybrid model established with this hybrid element can accurately satisfy the out-of-plane stress boundary conditions of the structure, ensuring the continuity of out-of-plane stress. Numerical examples are used to validate that this hybrid model can effectively compute thick and thin laminate structures with high accuracy and rapid convergence of out-of-plane stress. Finally, considering the insensitivity to irregular meshes and the accuracy in calculating in-plane stress, this method is propagated by element coefficient deduction or element material replacement, then employed to analyze the in-plane and out-of-plane stress distributions of laminates with damage from stepwise grinding perforations, and laminates repaired in a stepwise fashion. Stress and displacement at different locations on the laminates are compared and analyzed, leading to a quantitative assessment of the impact of damage and repair on the stress distribution of the laminates. Full article

In this work, the fracture behaviour of repaired honeycomb/carbon–epoxy sandwich panels under edgewise compression and three-point bending loading was analysed. Assuming the occurrence of damage resulting from a complete perforation leading to an open hole, the followed repair strategy consists of plug filling the core hole and considering two scarf patches with an angle of 10° in order to repair the damaged skins. Experimental tests were performed on undamaged and repaired situations in order to address the alteration in the failure modes and assess the repair efficiency. It was observed that repair recovers a large part of the mechanical properties of the corresponding undamaged case. Additionally, a three-dimensional finite element analysis incorporating a mixed-mode I + II + III cohesive zone model was performed for the repaired cases. Cohesive elements were considered in the several critical regions prone to damage development. The failure modes and the resultant load–displacement curves obtained numerically were compared with the experimental ones. It was concluded that the numerical model is suitable for estimating the fracture behaviour of sandwich panel repairs. Full article

This experimental study investigates the effect of scarf geometry in restoring the impact response of scarf-patched 3 mm thick glass-fiber reinforced polymer (GFRP) matrix composite laminates. Traditional circular along with rounded rectangular scarf patch configurations are considered repair patches. Experimental measurements revealed that the temporal variations of force and energy response of the pristine specimen are close to that of circular repaired specimens. The predominant failure modes were witnessed only in the repair patch which includes matrix cracking, fiber fracture, and delamination, and no discontinuity in the adhesive interface was witnessed. When compared with the pristine samples, the top ply damage size of the circular repaired specimens are larger by 9.91%, while that of the rounded rectangular repaired specimens is larger by 434.23%. The results show that circular scarf repair is a more suitable choice of repair approach under the condition of a 37 J low-velocity impact event even though the global force-time response is similar. Full article

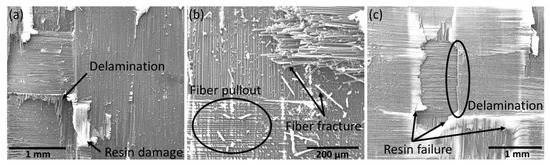

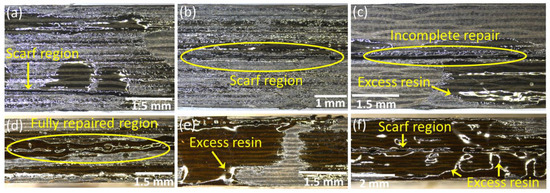

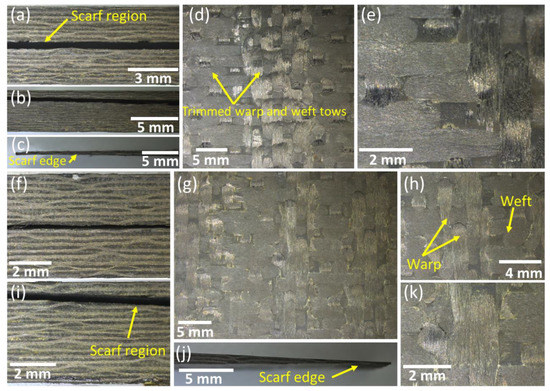

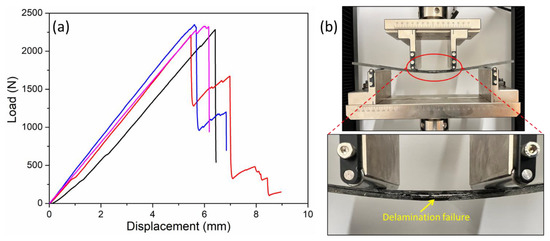

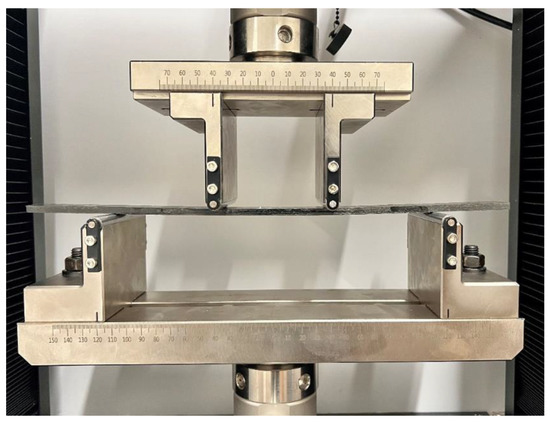

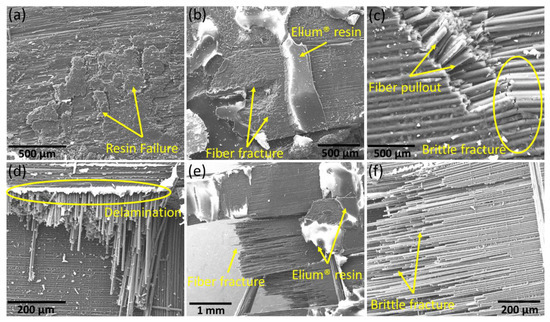

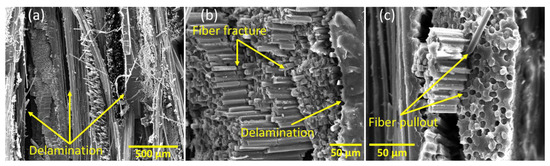

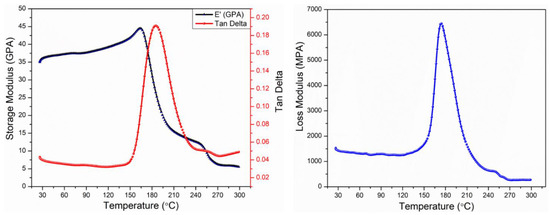

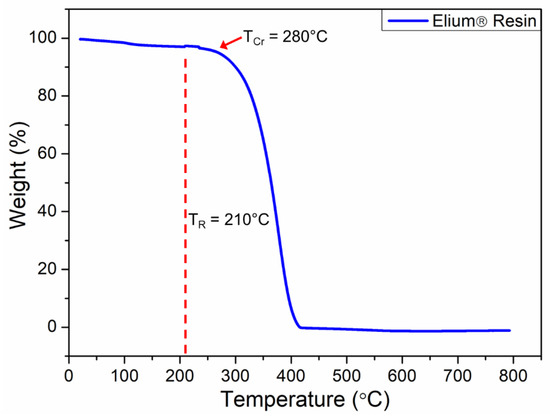

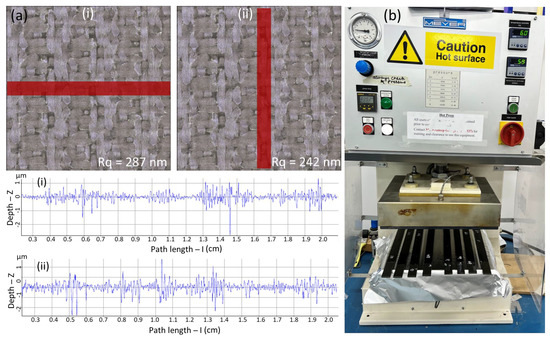

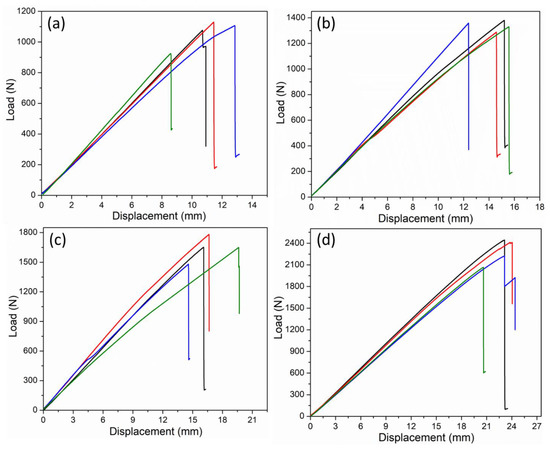

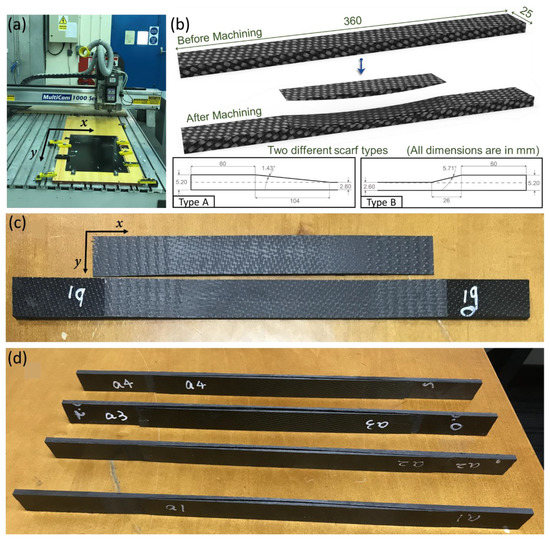

In this study, two types of carbon-fiber-reinforced plastic (CFRP) composite scarf geometries were created using two scarf angles, i.e., 1.43° and 5.71°. The scarf joints were adhesively bonded using a novel liquid thermoplastic resin at two different temperatures. The performance of the repaired laminates was compared with pristine samples in terms of residual flexural strength using four-point bending tests. The repair quality of the laminates was examined by optical micrographs, and the failure modes after flexural tests were analyzed using a scanning electron microscope. The thermal stability of the resin was evaluated by thermogravimetric analysis (TGA), whereas the stiffness of the pristine samples was determined using dynamic mechanical analysis (DMA). The results showed that the laminates were not fully repaired under ambient conditions, and the highest recovery strength at room temperature was only 57% of the total strength exhibited by pristine laminates. Increasing the bonding temperature to an optimal repair temperature of 210 °C resulted in a significant improvement in the recovery strength. The best results were achieved for laminates with a higher scarf angle (5.71°). The highest residual flexural strength was recorded as 97% that of the pristine sample repaired at 210 °C with a scarf angle of 5.71°. The SEM micrographs showed that all the repaired samples exhibited delamination as the dominant failure mode, whereas the pristine samples exhibited dominant fiber fracture and fiber pullout failure modes. The residual strength recovered using liquid thermoplastic resin was found to be much higher than that reported for conventional epoxy adhesives. Full article

Repairing delamination damage is critical to guarantee the structural safety of carbon fiber-reinforced thermosetting composites. The popular repair approaches, scarf repair and injection repair, can significantly restore the in-plane mechanical performance. However, the out-of-plane properties become worse due to the sacrifice of fiber continuity in these repairing processes, leading to the materials being susceptible under service loads. Here, we propose a novel in situ delamination repair approach of controllable thermal ablation in damage removal, achieving a high repair efficiency without impairing the fiber continuity in carbon fiber/epoxy panels. The epoxy resin in the delaminated region was eliminated under the carbonization temperature in a few minutes, allowing the carbon fiber frame to retain its structural integrity. The healing agent, refilled in the damaged region, was cured by the Joule heating of designed electrodes for 30 min at 80 °C, yielding the whole repair process to be accomplished within one hour. For the delaminated carbon fiber/epoxy panels with thicknesses from 2.5 to 6.8 mm, the in-plane compression-after-impact strength after repair could recover to 90.5% of the pristine one, and still retain 74.9% after three successive repair cycles of the 6.8 mm-thick sample. The simplicity and cost-saving advantages of this repair method offer great potential for practical applications of prolonging the service life of carbon fiber-reinforced thermosetting composites. Full article

Maintenance and repair of wind turbines contribute to the higher costs of wind energy. In this paper, various technologies of structural repair of damaged and broken wind turbine blades are compared. The composite plates, mimicking damaged blade parts, were damaged and repaired, using various available curing and bonding technologies. Technologies of repair with hand layup lamination, vacuum repair with hand layup and infusion, ultraviolet repair and high temperature thermal curing were compared. The repaired samples were tested under tensile static and fatigue tests, and subject to microscopic X-ray investigations. It was observed that both the strength of the repaired structures and the porosity depend on the repair technology used. Vacuum-based technologies lead to relatively stiff and lower-strength repaired plates, while ultraviolet-curing technologies lead to average stiffness and high strength. High-temperature vacuum curing leads to the highest maximum stress. Hand layup (both vacuum and without vacuum) leads to high post-repair porosity in the adhesive and scarf, while vacuum infusion leads to low porosity. Fatigue lifetime generally follows the trend of porosity. There exist risks of micro-damaging the parent laminate and the formation of residual stresses in the repaired structure. Full article

The synergistic effect of pre-bond contamination by thermal degradation and de-icing fluid on the tensile behavior of scarf composite bonded joints has been investigated experimentally. The contamination types considered are related to the repair process of composite aircraft structures. Three contamination scenarios have been considered: namely, thermal degradation (TD) and a combination of thermal degradation with two different levels of de-icing fluid (TD+DI1 and TD+DI2). DI2 is more severe than DI1. Contamination has been applied to one of the adherents while the other one has been intentionally left intact. Tension tests have been conducted on single-lap shear specimens. The experimental results were compared with the reference samples (REF) showing an increase in tensile strength for the TD specimens and a decrease in tensile strength for the TD+DI1 and TD+DI2 specimens. After the tension tests, the failure surfaces were evaluated to get a better insight of the failure mechanisms of the bondline and to assess the effect of contamination. The TD specimens presented an increased cohesive failure which is consistent with the increase of the failure load, while the combined contamination caused the failure of the composite adherents which again is consistent with the decrease of tensile strength of the scarf specimens. Full article

A potential repair alternative to restoring the mechanical properties of lightweight fiber-reinforced polymer (FRP) structures is to locally patch these areas with scarf joints. The effects of such repair methods on the structural integrity, however, are still largely unknown. In this paper, the mechanical property restoration, failure mechanism, and influence of fiber orientation mismatch between parent and repair materials of 1:50 scarf joints are studied on monolithic glass fiber-reinforced polymer (GFRP) specimens under tensile load. Two different parent orientations of [−45/+45]_2S and [0/90]_2S are exemplarily examined, and control specimens are taken as a baseline for the tensile strength and stiffness property recovery assessment. Using a layer-wise stress analysis with finite element simulations conducted with ANSYS Composite PrepPost to support the experimental investigation, the fiber orientation with respect to load direction is shown to affect the critical regions and thereby failure mechanism of the scarf joint specimens. Full article

In this work the effectiveness of stepped repairs to damaged fiber reinforced composite materials is investigated by using previously validated numerical models which were compared with tested repaired composite plates. Parametric studies were carried out in order to assess the scarf ratio (i.e., step length to ply thickness ratio) influence on ultimate forces, displacements, stresses and stiffnesses. FE models with repair scarf ratios varying from the value of 20 to the value 60 with a step increase of 10 were developed. The numerical models allowed a direct comparison of the influence that the scarf ratio had to the strength and stiffness restoration of the repaired composite structure. The study verifies that the restoration of the strength of a damaged laminate depends largely on the size of the repair patch. Generally, the bigger the size of a patch, the stronger the repaired structure is, up to a critical threshold size. To maximize the strength restoration, it is advised that the number of steps in each patch are no less than the number of plies on the base laminate. Full article

The objective of this paper was to design configuration parameters for a stepped-lap scarf joint repair, which can be used for spar cap damage of a wind turbine blade in service and to realize the post-repair monitoring. Two experimental studies were included. First, tensile test for the unidirectional tape specimens with a large aspect ratio repaired using a multiple stepped-lap scarf joint method was carried out. The results showed that the reinforcement layer could effectively improve the load-carrying capacity of the repaired zone. The stepped-lap joint surface was identified as the weak part of the spar cap repair, which should be monitored. Second, by embedding carbon nanotube buckypaper sensors on the stepped-lap joint surface of the repaired specimens, quasi-static tensile tests and fatigue tests were carried out. According to the resistance response of the sensors, the quasi-static tensile test confirmed the failure processes, namely the stiffness turning point, damage evolution, crack propagation, and fracture. The fatigue test could accurately identify the progressive failure, namely the initial damage, damage accumulation, initial cracking, and crack propagation to structural failure. The above tests provided an important configuration parameter basis for evaluating the spar cap repair scheme and presented a promising method for the health monitoring of a spar cap after repair. Full article
