Search Results (12)

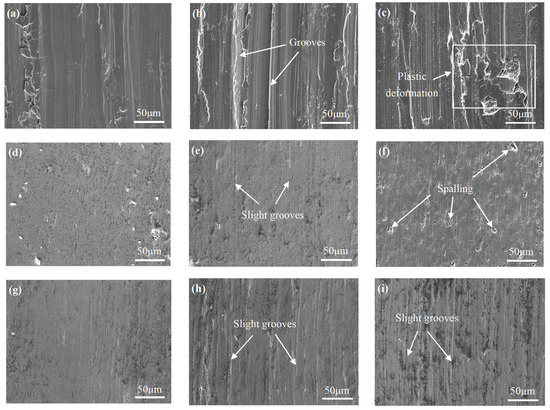

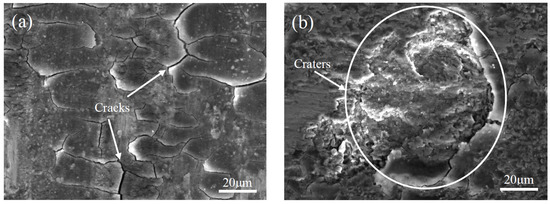

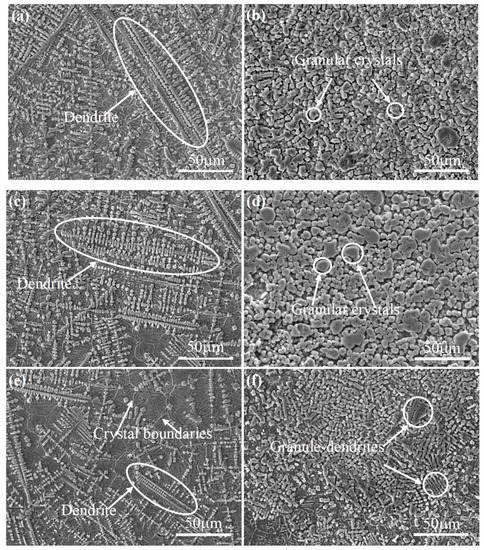

In this study, laser cladding of CoCrFeNiMnTi_x (x is the proportion of the mass of a material, x = 0.0, 0.2, 0.4, 0.6, 0.8) high-entropy alloy (HEA) composite powder coating on 45 steel substrate was studied by using the method of preplaced powder. The phase composition, morphology, microhardness, corrosion resistance and wear properties of CoCrFeNiMnTi_x high entropy alloy were analyzed by XRD, SEM, microhardness tester, electrochemical workstation and reciprocating friction wear tester, respectively. The influences of Ti concentration on structure and properties of CoCrFeNiMn HEA laser cladding coating were discussed. The macromorphology of CoCrFeNiMnTi_x HEA coating layer becomes worse with the increase in Ti quantity. The coating layer is a face-centered cubic solid solution phase. The microstructure of the coating layer is dominated by dendrites and equiaxed crystals. The average microhardness of the coating layer grows with the increases in Ti content, and CoCrFeNiMnTi_0.8 can reach 823 HV. The friction coefficient of the cladding coating gradually reduces and the wear resistance adds as Ti content rises; the friction coefficients of CoCrFeNiMnTi_0.6 and CoCrFeNiMnTi_0.8 cladding coating are similar, at 0.835 and 0.828, respectively. Adhesive and abrasive wear are the two basic types of cladding coating wear. In 3.5 wt.% NaCl solution, the corrosion potential of cladding coating increases with increases in Ti content, the corrosion potential of CoCrFeNiMnTi_0.8 is about 244 mV higher than that of CoCrFeNiMnTi₀, and the density of corrosion current drops to 3.41 × 10⁻⁶ A/cm² from 7.17 × 10⁻⁵ A/cm². Full article

Laser materials processing includes rapid heating to possibly high temperatures and rapid cooling of the illuminated materials. The material reactions can show significant deviations from equilibrium processing. During processing of complex materials and material combinations, it is mainly unknown how the materials react and mix. However, it is important to know which chemical elements or compounds are present in the material to define the alloy. In addition, their distribution after rapid cooling needs to be better understood. Therefore, such alloy changes at rapid heating induced by laser illumination were created as pre-placed and pre-mixed powder nuggets. The energy input and the material ratio between the powder components were varied to identify characteristic responses. For the detection of reaction durations and mixing characteristics, the vapor plume content was assumed to contain the necessary information. Spectral measurements of the plume were used to identify indicators about process behaviors. It was seen that the spectral data give indications about the chemical reactions in the melt pool. The reactions of iron ore components with aluminum seem to require laser illumination to finish completely, although the thermite reaction should maintain the chemical reaction, likely due to the required melt mixing that enables the interaction of the reacting partners at all. Full article

Friction stir processing (FSP) offers a unique opportunity to tailor the microstructure and improve the mechanical properties due to the combination of extensive strains, high temperatures, and high-strain rates inherent to the process. Reactive friction stir processing was carried out in order to produce in situ Al/(Al₁₃Fe₄ + Al₂O₃) hybrid nanocomposites on wrought/as-annealed (673 K) AA1050 substrate. The active mixture of pre-ball milled Fe₂O₃ + Al powder was introduced into the stir zone by pre-placing it on the substrate. Microstructural characterisation showed that the Al₁₃Fe₄ and Al₂O₃ formed as the reaction products in a matrix of the dynamically restored aluminium matrix. The aluminium matrix means grain size was found to decrease markedly to 3.4 and 2 μm from ~55 μm and 40–50 μm after FSP using wrought and as-annealed substrates employing electron backscattered diffraction detectors, respectively. In addition, tensile testing results were indicative that the fabricated surface nanocomposite on the as-annealed substrate offered a greater ultimate tensile strength (~160 MPa) and hardness (73 HV) than those (146 MPa, and 60 HV) of the nanocomposite formed on the wrought substrate. Full article

The process parameters of laser cladding have a significant influence on the forming quality of the coating. This research investigates the relationship between input process parameters (laser power, scanning speed, pre-placed thickness) and output responses (height, width, dilution rate) of Mo₂FeB₂ coating through sensitivity analysis. The microstructure and properties of selected coatings were analyzed to discuss the corresponding relations. The results showed that the laser power positively affected the coating width and dilution rate, while negatively affecting the coating height. The scanning speed had a negligible effect on the height and dilution rate. The pre-placed thickness had a positive influence on the height and width; it negatively affected the dilution rate. Based on the sensitivity analysis, the thickness of the pre-placed coating determined the most sensitivity to the height. The sensitivity of the width to laser power was the highest among all parameters. The sensitivity of dilution rate to laser power and pre-placed powder thickness showed a noticeable impact. When the scanning speed was 3 mm/s, the forming quality of coating had a significant sensitivity for a higher or lower laser power (1.5, 2.1 kW) and higher or lower powder thickness (0.8, 1.2 mm). The analysis of microstructure and microhardness of Mo₂FeB₂ coating indicates that the Mo₂FeB₂ coating improves substrate properties. The microhardness of the Mo₂FeB₂ coating was 4–6 times that of the substrate, and the highest microhardness could be obtained by 1.5 kW laser power, 3 mm/s scanning speed, and 1.2 mm powder thickness from the sensitivity analysis results. Full article

Polycrystalline cubic boron nitride (PcBN) are super-hard materials with high hardness and excellent abrasive resistance, widely used in cutting tools for precision machining of automotive and aerospace parts; however, their brittle properties make them prone to premature failure. Coatings are often applied to PcBN to extend their range of applicability and durability. Conventional coating methods are limited to the thickness range of a few hundred nanometres, poor adhesion to the substrate, and limited stability under ambient conditions. To further the properties of PcBN composites, in this paper, we explore the use of ultrasonic bonding to apply thick coatings (30–80 μm) on PcBN cutting tools. For the first time, a multi-walled carbon nanotube (MWCNT) powder is preplaced on a PcBN substrate to allow an unconventional coating technique to take place. The effects of ultrasonic bonding parameters on the change of mechanical properties of the coated tools are investigated through scanning electron microscopy (SEM), energy dispersive X-ray spectroscopy (EDX), micro-hardness analyses, and white light interferometry. The structure of the carbon nanotubes is investigated through transmission electron microscopy (pre coating) and cross-section of the bonded MWCNTs is studied via focused ion beam milling and SEM to evaluate the bonding between the multi-walled nanotubes. Optimum processing windows (i.e., bonding speed, energy, and pressure) are discovered for coating MWCNTs on PcBN. Focus ion beam milling analyses revealed a relationship between consolidation parameters and porosity of MW(pCNT) bonds. The proposed method paves the way for the novel design of functional coatings with attunable properties (i.e., thickness and hardness) and therefore improved productivity in the machining of aerospace and automotive parts. Full article

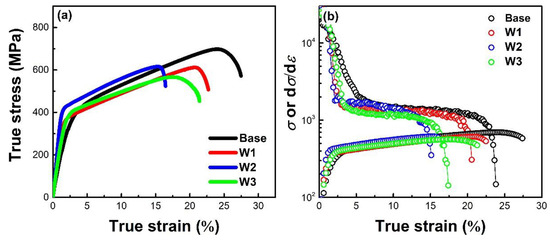

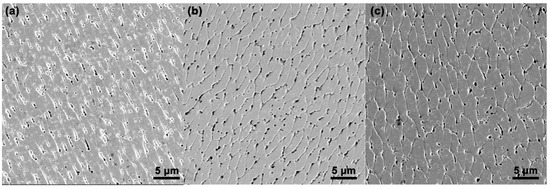

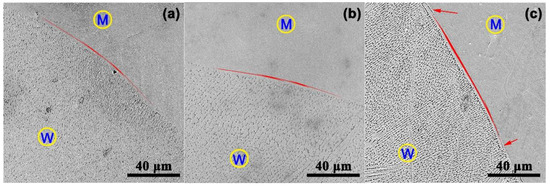

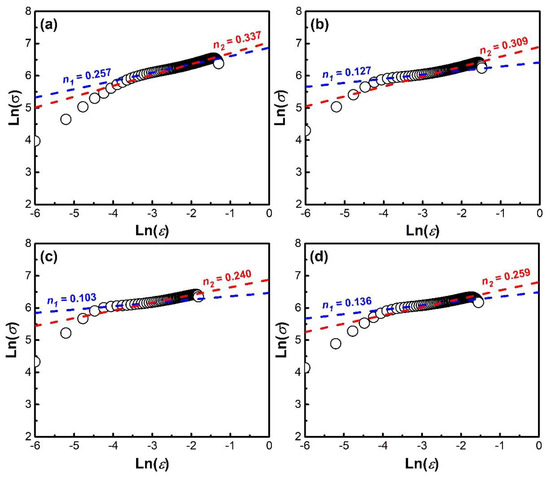

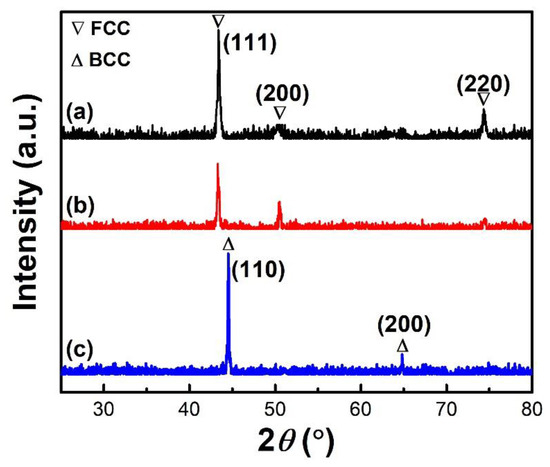

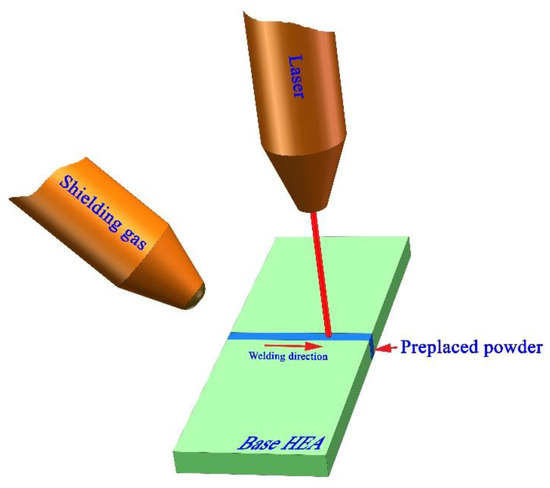

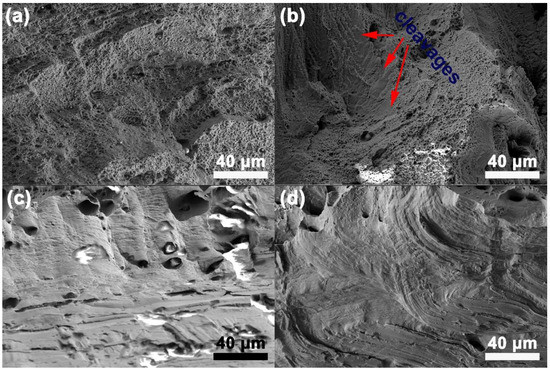

In this paper, as-annealed FeCoNiCrMn plates were laser-welded with preplaced FeCoNiCrMn and FeCoNiCrAl powders, respectively. The grains in the fusion zone of the weld with FeCoNiCrMn powder have a reduced aspect ratio compared to those without preplaced powders and the weld with FeCoNiCrAl powder presents relative equiaxed grains. The yield strength of each weld has been remarkably enhanced when referring to the base alloy, and the ultimate tensile strength of each weld with preplaced powder exceeds 80% of that of the base and the maximum reaches 88.5% when referring to the weld with preplaced FeCoNiCrMn powder. Cleavage fractography was observed in the welds. The finding of this work will service the engineering practices of high-entropy alloys. Full article

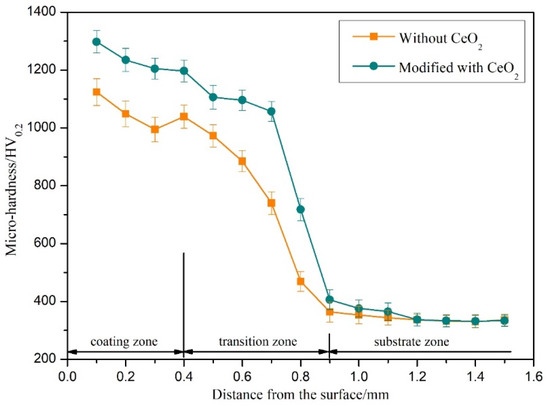

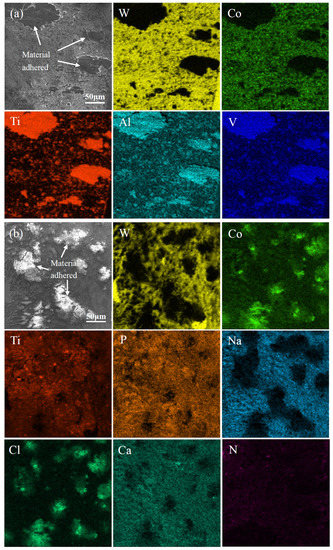

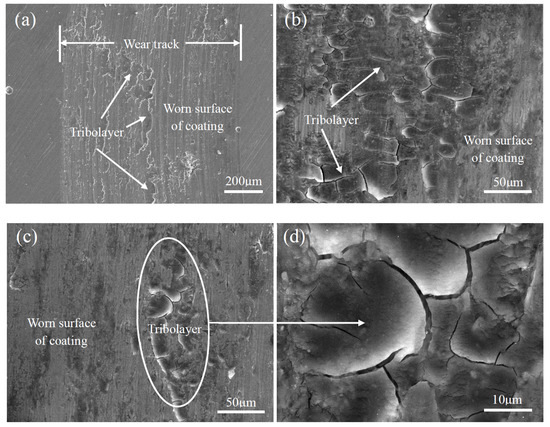

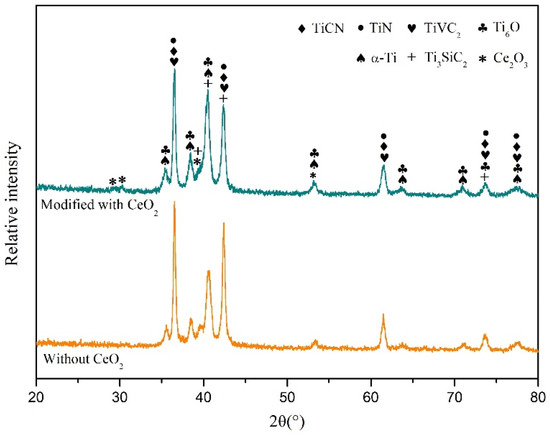

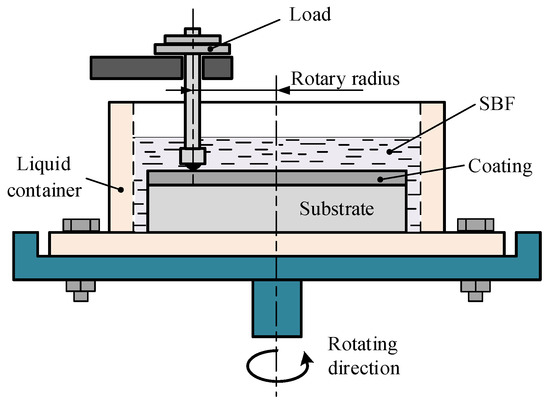

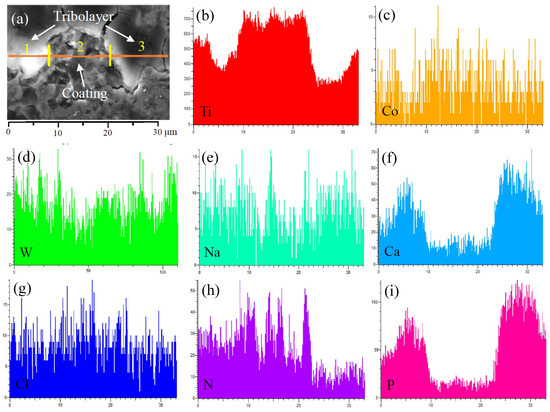

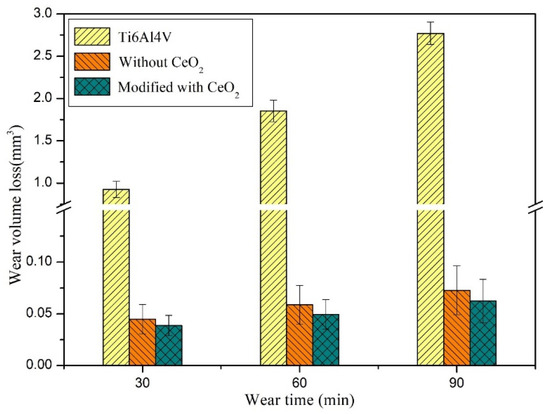

Ti-based ceramic coatings on Ti6Al4V substrates were successfully prepared through a laser cladding process using pre-placed starting materials of TiCN + SiO₂ mixed powder without or with adding a 3 wt % CeO₂ nanoparticles additive, aiming at improving the wear resistance of the Ti6Al4V alloy for biological applications. The effects of the CeO₂ nanoparticles additive on the microstructure, microhardness, and wear performance of the coatings were analyzed in detail. The observations showed that the main compositions of the cladding coating were TiCN and TiN phase. Compared to the coatings without CeO₂, the coatings modified with CeO₂ nanoparticles led to more excellent mechanical properties. The average microhardness of the coatings modified with CeO₂ nanoparticles was approximately 1230 HV_0.2, and the wear volume loss of the coatings modified with CeO₂ nanoparticles was approximately 14% less than that of the coatings without CeO₂ under a simulated body fluid (SBF) lubrication environment. The major reasons included that the microstructure of the coatings modified with CeO₂ nanoparticles was refined and compact granular crystalline. The wear mechanisms of the coatings were investigated from the worn surface of the coatings, wear debris, and the worn surface of the counter-body balls. The wear mechanisms of the coatings without CeO₂ included abrasive wear, adhesive wear, and fatigue wear, while the wear mechanisms of the coatings modified with CeO₂ nanoparticles included only abrasive wear and adhesive wear, because the fine microstructure of the coatings had an excellent resistance to fatigue wear. Full article

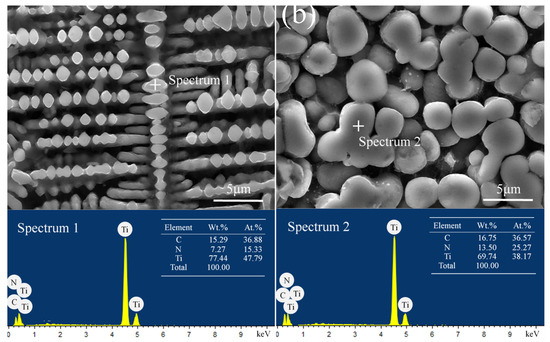

To improve the wear resistance of titanium alloy parts used in the engineering applications, in-situ formed Ti(C,N) particles reinforcing Ni-based composite coatings are fabricated on Ti6Al4V alloys by the laser cladding technique using Ni60, C, TiN, and small amounts of CeO₂ nanoparticles mixed powders as the pre-placed materials. Firstly, the formation mechanism of Ti(C,N) particles as a reinforced phase in the coating is investigated. Then, the influences of CeO₂ nanoparticles on microstructures and wear resistance of the coatings are analyzed. It is indicated that the large Ti(C,N) particles form around TiN particles, and the small Ti(C,N) particles form through independent nucleation. CeO₂ nanoparticles play important roles in increasing the nucleation rate and improving the precipitation of Ti(C,N), hence the microstructures and wear resistance of the coatings are apparently improved after adding CeO₂ nanoparticles. It is observed that the 1 wt % content of CeO₂ additive in the pre-placed powders is the best choice for the wear resistance of the coatings. Full article

To solve the lack of wear resistance of titanium alloys for use in biological applications, various prepared coatings on titanium alloys are often used as wear-resistant materials. In this paper, TiC bioinert coatings were fabricated on Ti6Al4V by laser cladding using mixed TiC and ZrO₂ powders as the basic pre-placed materials. A certain amount of CeO₂ powder was also added to the pre-placed powders to further improve the properties of the TiC coatings. The effects of CeO₂ additive on the phase constituents, microstructures and wear resistance of the TiC coatings were researched in detail. Although the effect of CeO₂ on the phase constituents of the coatings was slight, it had a significant effect on the microstructure and wear resistance of the coatings. The crystalline grains in the TiC coatings, observed by a scanning electron microscope (SEM), were refined due to the effect of the CeO₂. With the increase of CeO₂ additive content in the pre-placed powders, finer and more compact dendrites led to improvement of the micro-hardness and wear resistance of the TiC coatings. Also, 5 wt % content of CeO₂ additive in the pre-placed powders was the best choice for improving the wear properties of the TiC coatings. Full article

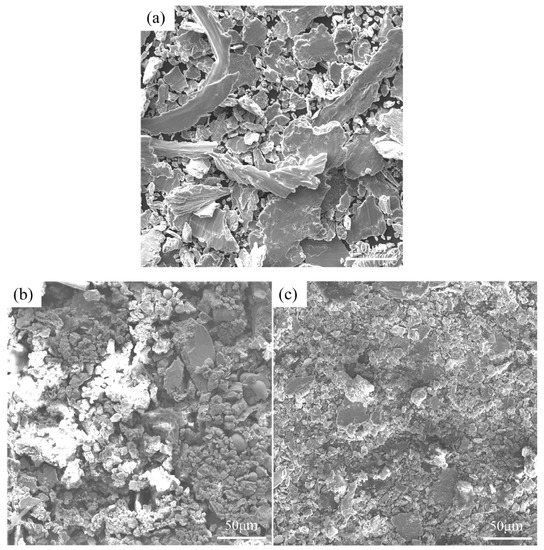

Laser composite surfacing of aluminum alloys with ceramic particles has been extensively investigated for improving tribological properties. However, the process often results in incomplete penetration of ceramic particles in the melt pool and undesirable interfacial reactions. In this paper, laser composite surfacing of 2024 aluminum alloy with SiC particles is investigated using two distinct approaches: laser remelting and laser melting under the influence of ultrasonic vibrations of preplaced powder mixture. Detailed analysis of variation of clad layer thickness, microstructure in the composite clad layer, phase/texture development, surface roughness, and sliding wear performance with laser processing conditions is presented. The analysis showed that remelting and ultrasonic vibration assist results in significant improvement in clad layer thickness and microstructure (reduction in needle-like α-Si phase). While the laser remelting resulted in significant reduction in wear rate, the specimens processed with ultrasonic vibration-assisted laser melting showed variable wear rate, likely due to complex effects of microstructural modification and enhanced surface roughness. Full article

In this paper, a TiC reinforcement metal matrix composite coating is produced using nickel and graphite mixing powder on the surface ofTi-6Al-4V alloy by laser radiation. The microstructure of the coatings is investigated by XRD, SEM and EDS. Results show that most of the TiC phase is granular, with a size of several micrometers, and a few of the TiC phases are petals or flakes. At the cross-section of the coatings, a few special TiC patterns are found and these TiC patterns do not always occur at the observed cross-section. The even distribution of the TiC phase in the coatings confirms that the convection of the laser-melted pool leads to the homogenization of titanium atoms from the molten substrate, and carbon atoms from the preplace powder layer, by the mass transfer. The characteristics of the TiC pattern confirm that the morphology and distribution of the primary TiC phase could be influenced by convection. Two main reasons for this are that the density of the TiC phase is lower than the liquid melt, and that the primary TiC phase precipitates from the pool with a high convection speed at high temperature. Full article

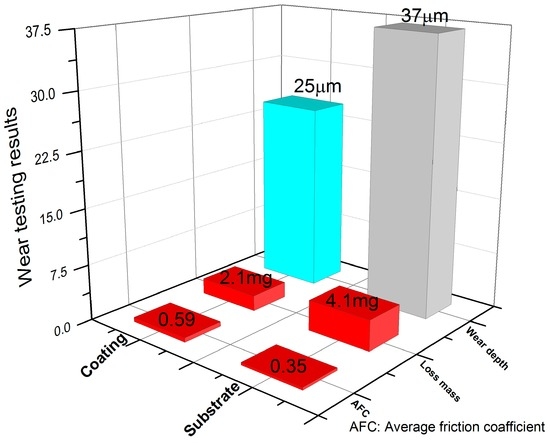

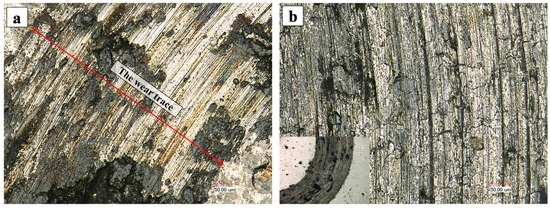

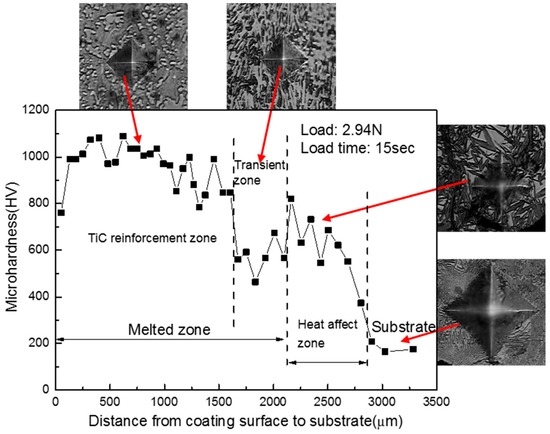

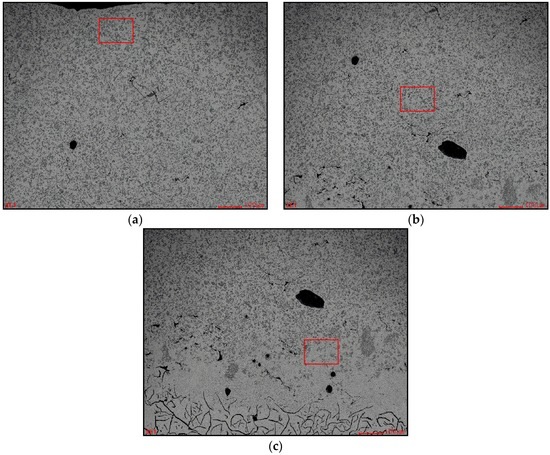

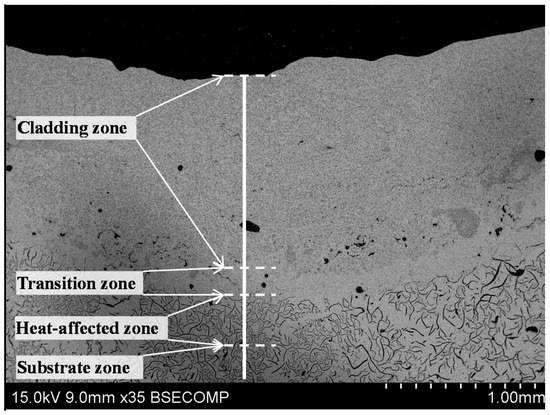

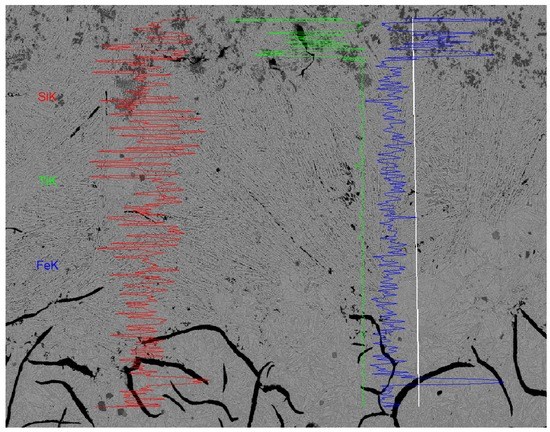

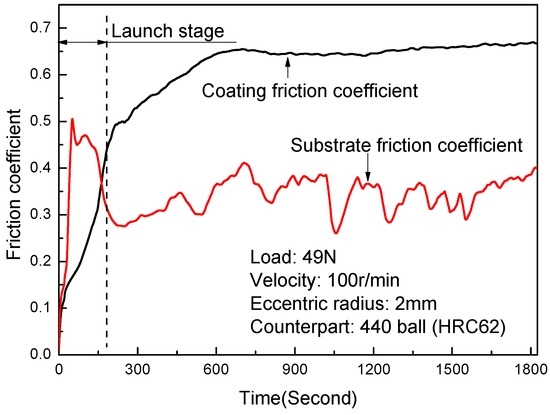

In this study, a TiC-reinforced composite coating was produced to improve the wear resistance of a pearlite matrix grey iron using a pre-placed Ti powder by laser cladding. Results of scanning electron microscopy (SEM), X-ray diffractometer (XRD), and energy dispersive X-ray spectroscopy (EDS) confirmed that the coating was composed of TiC particles and two kinds of α-Fe phase. The fine TiC particles were only a few microns in size and uniformly distributed on the matrix phase in the composite coating. The microstructure characteristic of the composite coating resulted in the microhardness rising to about 1000 HV0.3 (China GB/T 4342-1991) and the wear resistance significantly increased relative to the substrate. In addition, the fine and homogeneous solidification microstructure without graphite phase in the transition zone led to a good metallurgical bonding and transition between the coating and the substrate. It was of great significance for the cast iron to modify the surface and repair surface defects or surface damage. Full article
