Spectral Visualization of Alloy Reactions during Laser Melting

Abstract

Laser materials processing includes rapid heating to possibly high temperatures and rapid cooling of the illuminated materials. The material reactions can show significant deviations from equilibrium processing. During processing of complex materials and material combinations, it is mainly unknown how the materials react and mix. However, it is important to know which chemical elements or compounds are present in the material to define the alloy. In addition, their distribution after rapid cooling needs to be better understood. Therefore, such alloy changes at rapid heating induced by laser illumination were created as pre-placed and pre-mixed powder nuggets. The energy input and the material ratio between the powder components were varied to identify characteristic responses. For the detection of reaction durations and mixing characteristics, the vapor plume content was assumed to contain the necessary information. Spectral measurements of the plume were used to identify indicators about process behaviors. It was seen that the spectral data give indications about the chemical reactions in the melt pool. The reactions of iron ore components with aluminum seem to require laser illumination to finish completely, although the thermite reaction should maintain the chemical reaction, likely due to the required melt mixing that enables the interaction of the reacting partners at all.

1. Introduction

Laser materials processing became an industrial manufacturing technology that gained importance and has for many tasks no competitive solution. Laser processing is nowadays a regular production method enabling many unique effects. Highly precise local surface treatments to alter surface topologies [1] or properties [2] are possible, including inducing microstructural changes [3]. Furthermore, the possible high intensity of laser beams enables laser cutting (e.g., [4]) and welding (e.g., [5]) where even a vapor channel is created that enables high processing depth at low total energy input into the material [6]. This helps to limit the distortion of parts [7]. In recent years, the laser beam has been used in many additive manufacturing technologies. Powder bed fusion was shown to be efficiently possible using laser beams to produce a very local melting and create 3D structures (e.g., [8]). Furthermore, directed energy deposition processes using comparably large laser beams in combination with blown powder were seen to be highly efficient to produce larger additively manufactured parts at high build-up rates (e.g., [9]). Since the laser treatment shows different characteristics compared to conventional heating methods, e.g., rapid heating, rapid cooling and very short process times, those aspects need to be analyzed and considered during material processing. In particular, the alloy changes that can be induced during the short laser treatments are barely understood.

Laser processes show extreme conditions. Heating and cooling rates of the material can exceed >1000 K/s [10], which is comparably high (e.g., arc welding 8–20 K/s [11]). Often, microstructural developments are well explained for slow heating and cooling, but there is a lack of understanding during such rapid processes, e.g., Dewi et al. [12] showed that rapid cooling after laser hardening can interrupt the formation of martensite and ‘freeze’ the microstructure to form martensitic ferrite instead.

Chemical reactions of alloy components are also well described in the literature. The thermite reaction steps follow the route Fe₂O₃ to Fe₃O₄ to FeO and finally to Fe [13], while the presence of FeO can lead to the formation of FeAl₂O₄ [14]. Multiple effects were explained, such as the melt reaction with surrounding gases, e.g., oxygen [15] or nitrogen [16]. However, in addition, alloy components can react in the melt pool when certain conditions are met. Reactions to reduce iron ore were shown to be feasible using laser melting [17,18]. Aluminum shows a high reactivity with oxygen and is able to reduce iron ore initiating the thermite reaction, which offers the possibility to use this system for analyzing such reactions. Chmielewska et al. [19] describe in situ alloying during a laser powder bed fusion process of NiTi alloys. They found that the Ni content affects the martensite and austenite temperatures, whereby both phases can occur simultaneously. They described that the partial evaporation of Ni leads to the transition temperature change. In addition, they found that solidification and liquidation cracks occur due to the different melting temperatures of Ti and Ni and the different phases present. Mosallanejad et al. [20] discuss in situ alloying, including criteria on the powder and the process, and describe the influence of enthalpy of mixing and the Marangoni effect.

An additional factor to consider during laser treatment is the dynamic character of the process. Reacting components will move within the melt pool, and phase separation will occur. The main driving force is the temperature-dependent surface tension-based Marangoni flow (e.g., [21]). On the one hand, melt flow is necessary to enable the contact between the reacting partners. On the other hand, it is possible that phases accumulate and separate, which can reduce the interaction area between the reacting partners and limit the reaction time. However, the relation between chemical reactions and melt behavior is barely understood.

Therefore, the aim of this work was to better understand aspects of the alloy changes during reactions at laser illumination. It is still unclear how the element vaporization at laser illumination affects the vapor content and what information about the melt can be found in the vapor characteristics. On the one hand, it is suspected that the reaction products of a chemical reaction happening in the melt can be seen in the vapor, which might give the possibility to control chemical processes. On the other hand, the resulting element composition and thereby the microstructural development can be predicted when knowing about the element losses. The main focus was on the detection of reaction characteristics in the vapor from the process in spectral data.

2. Materials and Methods

2.1. Experimental Setup

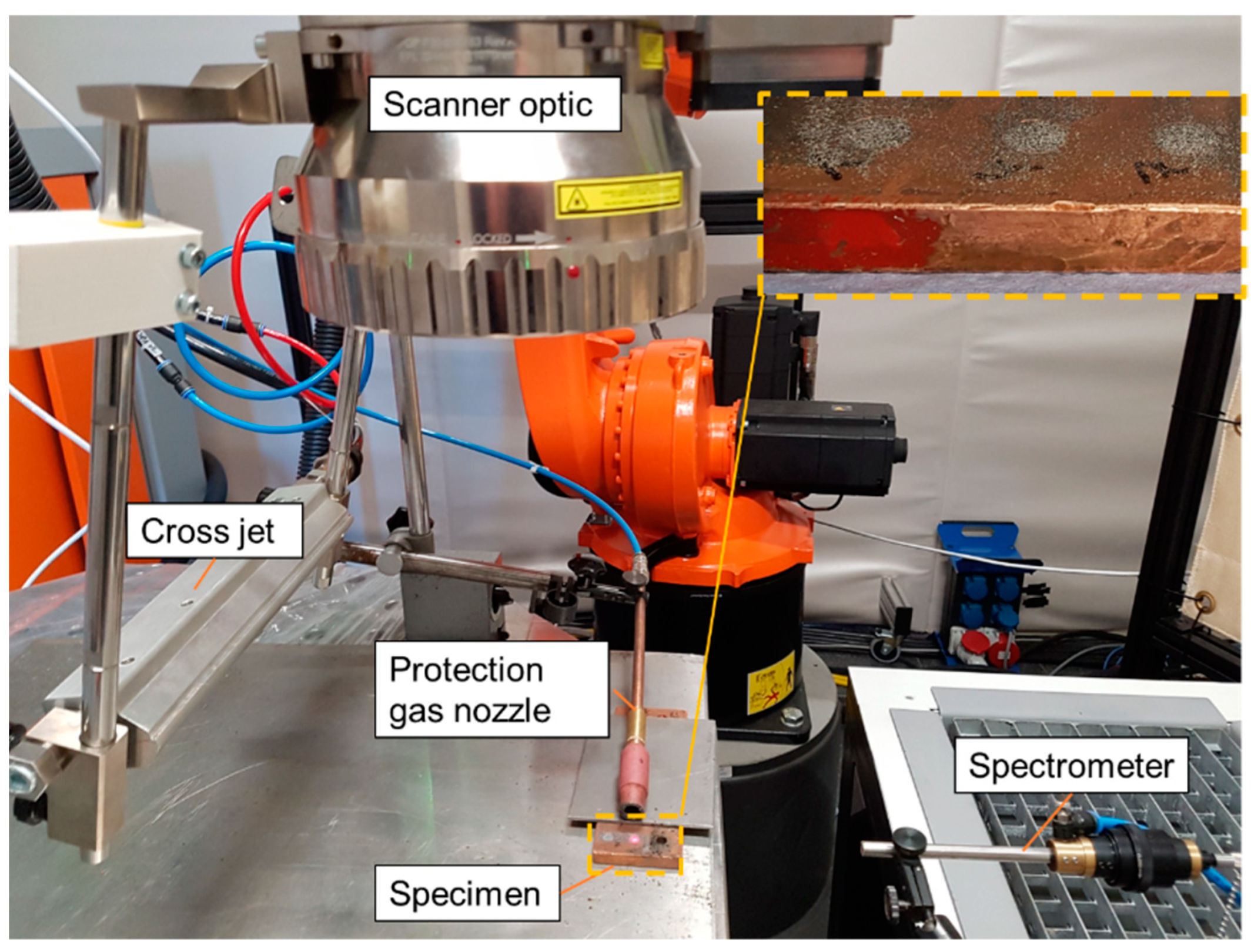

In order to investigate the chemical reactions during laser illumination, an experimental setup was designed at Jade University to observe the spectral response from vapor produced on melt pools illuminated by a laser beam. The material used was iron ore, which was collected at different processing steps of mining at the company LKAB. Two different ore types were used, namely hematite and magnetite.

As a reaction agent, pure aluminum was used. Powders were sufficiently mixed using a tubular mixer (3D shaker mixer—TURBULA Typ T 2 F, Willy A. Bachofen GmbH, Nidderau, Germany) to form a homogeneous distribution for each tested ratio.

For testing small amounts of material volumes, the so-called ‘snapshot’ method [22] was used. Small and defined amount/volume fractions of material in form of powder, chopped material flakes or similar can be pre-mixed or applied in multiple layers to evaluate the material mixing behavior of new alloys very rapidly. In addition, complex thermal cycles can be applied by controlling the laser energy input [22]. Therefore, holes were milled into a copper base plate with 6 mm diameter and 5 mm depth. The holes were filled with the pre-mixed powder (Figure 1). A laser beam, provided by a fiber laser (YLS-8000, IPG Laser GmbH), was used to heat and melt the powder material in the hole. The laser source had a wavelength of 1070 nm and was coupled to a 2D high power scanner with a 400 µm diameter optical fiber. The scanner optic was equipped with a 140 mm collimating and a 254 mm focusing lens. The interaction zone around the filled holes were covered with argon 4.6 as a shielding gas. Due to the dynamic nature of the process and reactions, some material was lost in the form of blown away powder or spattering. The resulting material nugget was visually analyzed.

During the laser illumination, the vapor escaping from the hole was analyzed using a spectrometer positioned to record the volume approx. 1 mm above the material surface. Optical emissions were captured with a collimating lens coupled to a 115 µm optical fiber. The fiber was connected to a high-bandwidth spectrometer (OCEAN HDX-UV-VIS, Ocean Insight, Orlando, FL, USA) with a wavelength range of 200–800 nm and a spectral resolution at FWHM of 0.73 nm. In order to investigate the temporal behavior of the ejected vapor content, spectral signals were recorded with a 6 ms integration time back-to-back, resulting in a rate of 166.7 Hz. The signal to noise ratio of the used spectrometer is specified with 400:1. Thus, measured intensity values have a relative error of 0.25%.

Variations of the laser illumination time were performed using hematite at a fixed ratio with aluminum in order to identify correlations between the reaction and the ejected vapor composition. Both the iron ore material and reaction agent concentration were varied. The amounts of aluminum in the material mixture were varied in three steps.

2.2. Spectral Analysis

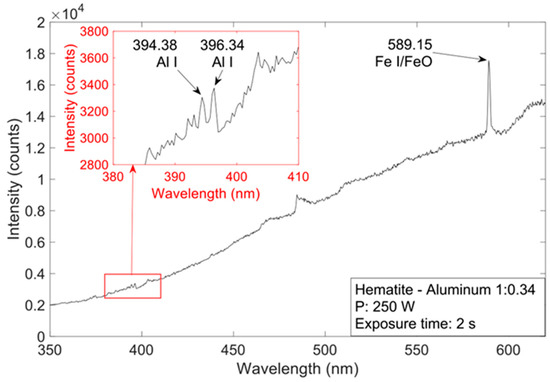

Single spectra were recorded and stored consecutively for each experiment. Within each single spectrum, peak signals were detected that probably originated from element emissions lines. Based on the wavelength of the peak, it was assigned to a single or multiple specific element emission lines by the aid of the NIST Atomic Spectra Database [23]. Thus, the chemical composition as well as the vaporization behavior can be estimated. Figure 2 shows an exemplary spectrum recorded using hematite–aluminum mixtures. Three major peaks could be found and assigned to element emission lines. At 394.38 nm and 396.34 nm, emission lines of non-ionized aluminum (Al I) can be found. At 589.12 nm, several non-ionized iron (Fe I) emission lines as well as iron oxide molecule (FeO) emissions can be found [24,25,26].

Concerning the temporal behavior of the process, the amount of emitted light throughout the process was analyzed. Therefore, the intensity curve of each spectrum was numerically integrated using the trapezoidal method. Errors caused by the numerical integration method were assumed to be negligible, since the resolution of the spectrometers allows sufficient sampling of the curve. This integrated intensity value of each spectrum in an experiment was plotted over the process time. Since each experiment is repeated at least twice (most experiments were done three times, some even five times) the repeatability of the process was ensured.

3. Results and Discussion

3.1. Variation of Laser Illumination Duration

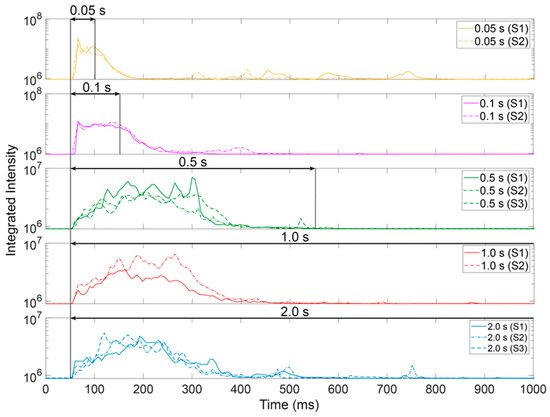

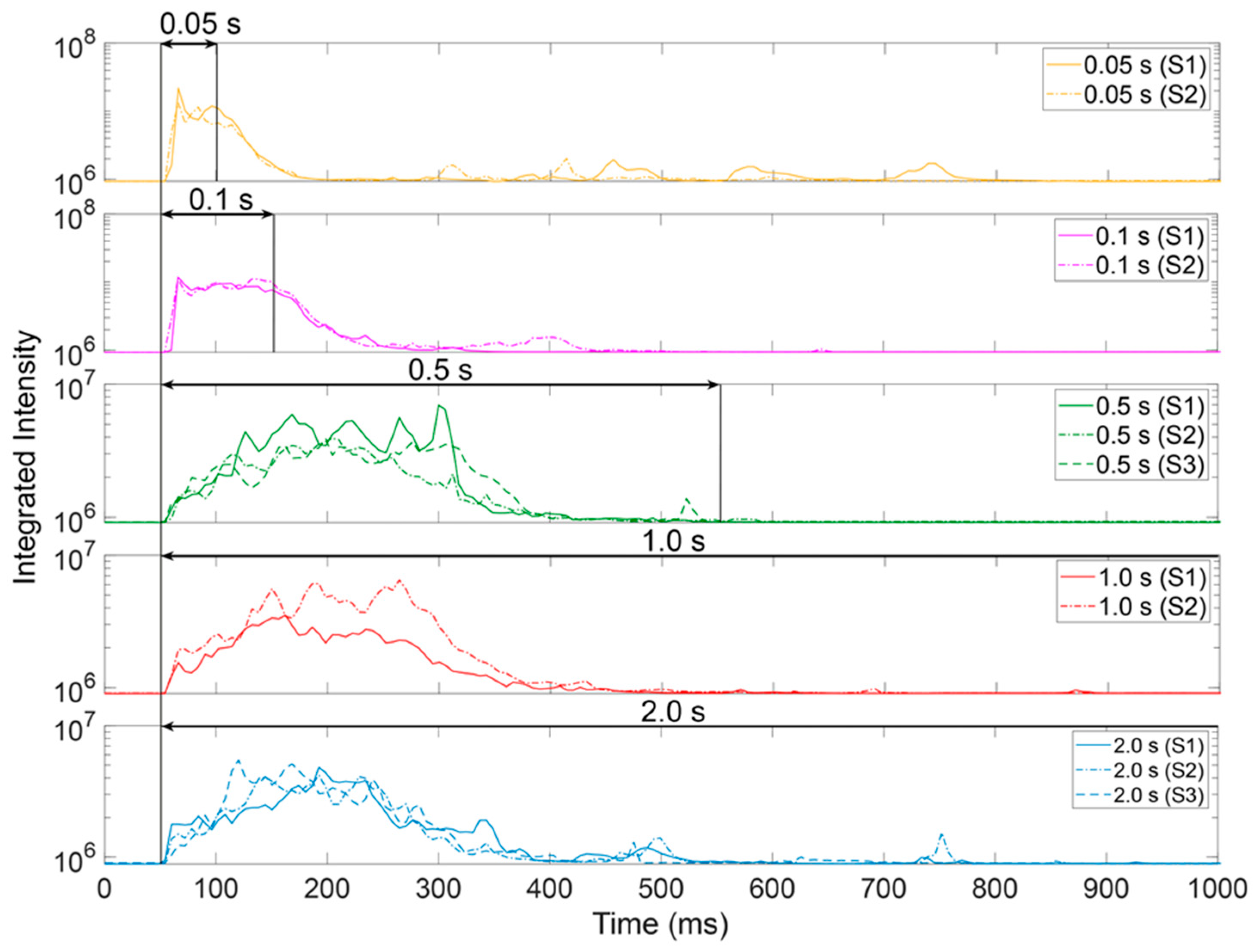

The temporal characteristics of the spectral response were visualized in Figure 3 using the fixed ratio of 1:0.34 (hematite–aluminum) at 250 W laser illumination. Illumination durations were varied. At 0.05 s and 0.1 s illumination time, it was visible that the integrated intensity shows high values during the illumination but reduces to low values. However, there were a few intensity peaks even long after the laser was turned off. This indicates that the chemical reaction is mainly ongoing during laser illumination, where the melt mixing happens, but during cooling the exothermal thermite reaction might still occur and lead to optical emissions in the ejected vapor.

At illumination times longer than 0.5 s, the high intensity curves show similar temporal trends. After ~400 ms, the intensities drop to low values and only a few peaks occur in later stages, although the laser beam was still illuminating. This indicates that the chemical reaction in the nugget is completed to the possible extent and even further heating and mixing of the melt pool does not enable further reactions.

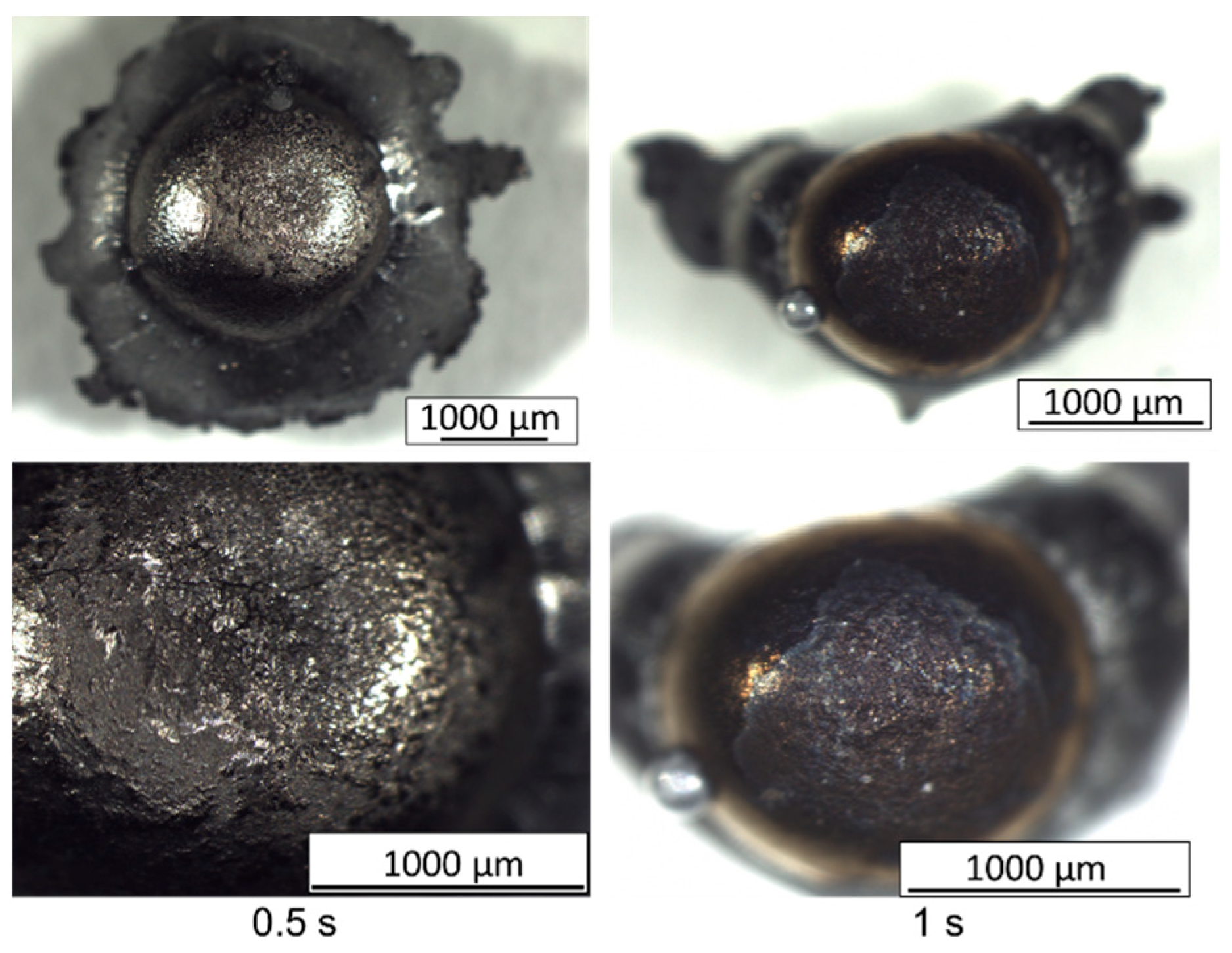

The resulting nuggets removed from the copper hole (Figure 4) show that phase separation occurred during the process. A bright phase was attached on top of a darker phase for most specimens. This indicates that after the reaction, the phases separated. Due to the phase separations, it is possible that melt components cannot be well mixed anymore and cannot sufficiently reach the reacting partner to further react. The small peaks at increased time indicate that there might be phases meeting and initiating further reaction occasionally.

Since the thermite reaction is exothermal, it was assumed that once initiated, the reaction should finalize (in case the melt mixing is sufficient to provide the contact between the reacting partners). However, it seems that the reaction cannot maintain completely. E.g., at 0.05 s illumination time, the intensity decreased after the laser was turned off. Apparently, there is some further reaction, but not to a high extent. This indicates that the laser heating is necessary to maintain the reaction.

Based on the shape after solidification, the bright drop shows a smaller radius compared to the darker material below. Therefore, the surface tension of the bright drop must have been comparably higher to be formed in the liquid state.

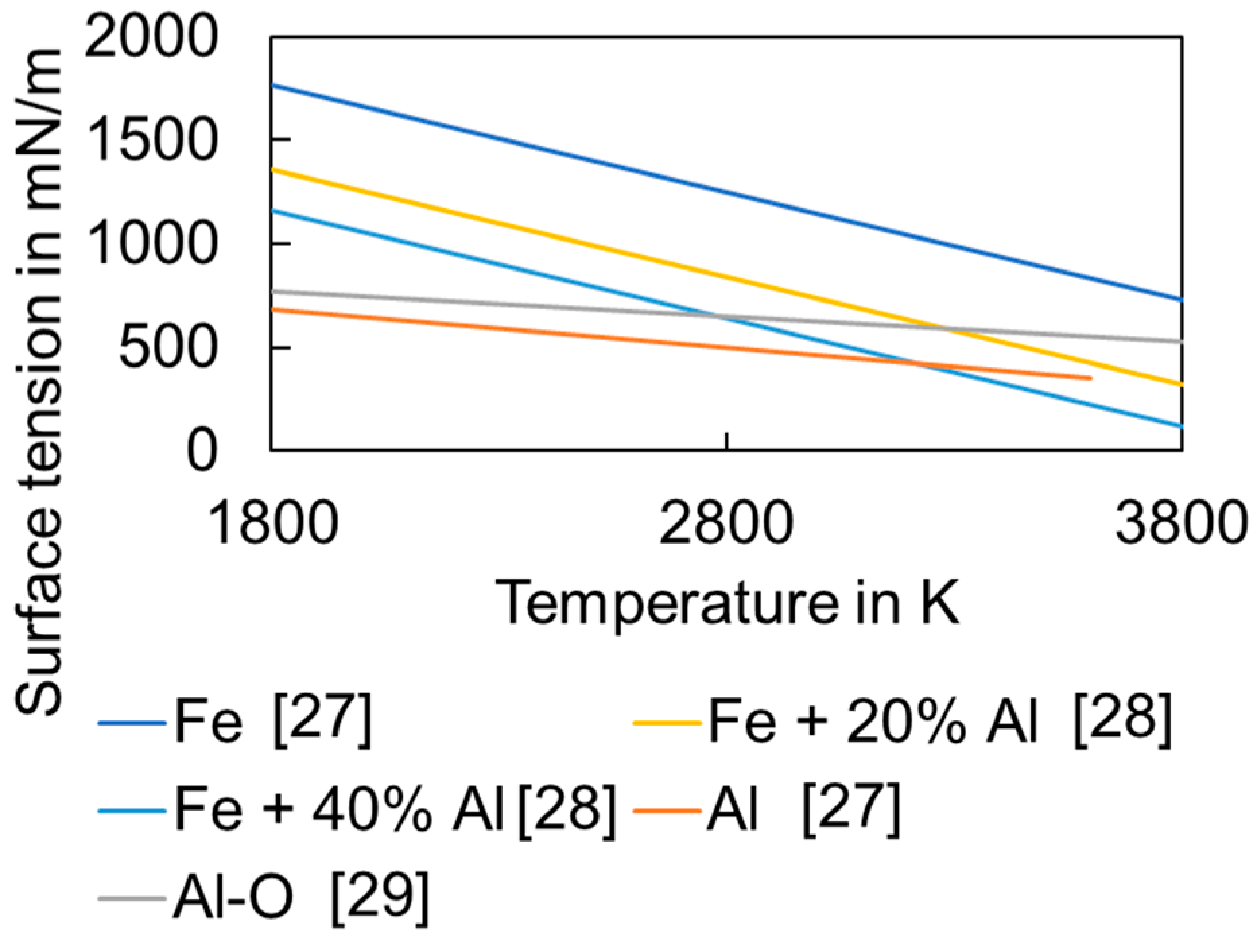

Figure 5 shows the main tendencies of surface tension values known from the literature.

During cooling, the surface tensions of the aluminum-containing phases show lower values compared to the iron and iron mixtures at the same temperature, which is a known tendency [30,31]. Therefore, it is likely that the bright drop contains higher amounts of iron than the darker material.

3.2. Material Impact

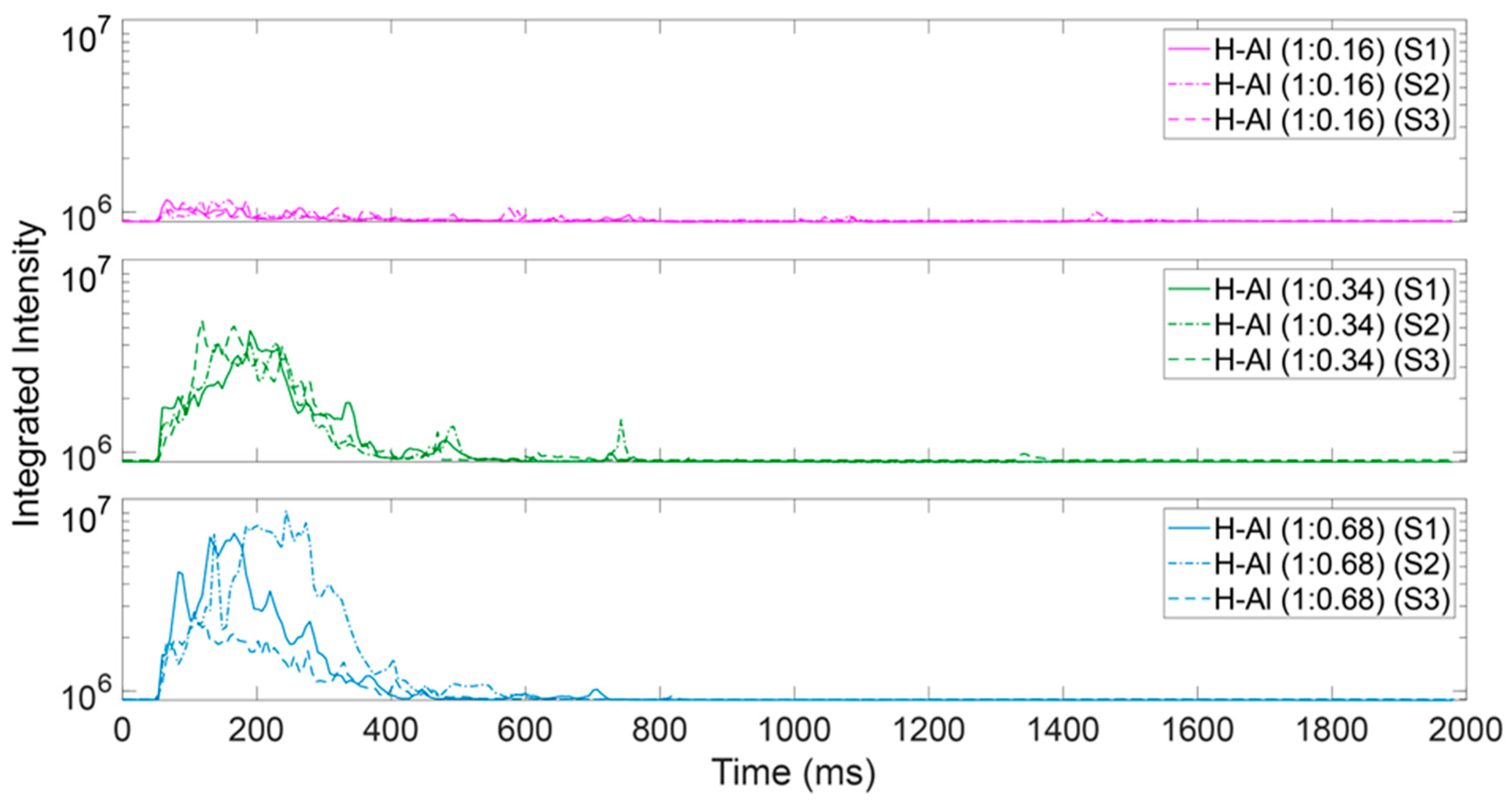

Different material ratios were tested (Figure 6). At very low aluminum content (1:0.15 ratio), little spectral response was observed. As soon as the ratio provides sufficient reacting aluminum, the reaction is visible in the integrated intensity curve. Higher aluminum contents than the stochiometric preferred amount to theoretically fully react (1:0.34) do not lead to visible increased reactions.

4. Conclusions

This work provides suggestions on how to initiate the desired chemical reactions for in-process alloy design and what conditions need to be provided to maintain and finalize those reactions.

• The spectral data of metal vapor melt ejections are an indicator of chemical reactions in the melt. The emitted vapor during laser processing of reacting alloy components contains information about the reaction time and intensity.
• The chemical reaction between hematite and aluminum seems to require the illumination of the laser to maintain, which is likely to provide the mixing for enabling the reaction partner connection.
