Search Results (17)

With the growing demand for eco-friendly food packaging, poly(butylene adipate-co-terephthalate) (PBAT)/polylactic acid (PLA) composite films have emerged as promising biodegradable alternatives, but their inherent limitations (e.g., poor antioxidant capacity, weak UV stability, and insufficient antimicrobial activity) hinder practical applications. This study aimed to address these drawbacks by incorporating Rosmarinus officinalis L. extract (RM) as a natural multifunctional additive. PBAT/PLA/RM blend films with RM concentrations of 0.1%, 0.3%, 0.5%, and 1% were fabricated via melt extrusion and blown film processing. Key characterizations were conducted to evaluate thermal stability, mechanical properties, morphology, antioxidant activity, UV-shielding performance, antimicrobial efficacy, and biodegradability. The results showed that RM significantly enhanced the antioxidant capacity of the films, with the highest DPPH radical scavenging activity achieved at 0.3% RM. UV-blocking performance improved incrementally with increasing RM concentration, and films containing ≥0.5% RM filtered over 90% of UVA and UVB radiation. All composite films met biodegradability standards, with over 90% degradation observed after 240 days of composting, though RM prolonged the initial degradation stage by inhibiting early microbial activity. However, the antimicrobial effect of RM was limited, and concentrations exceeding 1% caused film stickiness, impeding processing. This work demonstrates that RM is a viable natural additive for functionalizing PBAT/PLA films, offering enhanced antioxidant and UV-shielding properties while maintaining biodegradability, thus providing a promising solution for sustainable food packaging. Full article

Indoor air pollution poses a significant public health risk, particularly in urban areas, where PM2.5 and airborne contaminants contribute to respiratory diseases. In Thailand, including Chonburi Province, PM2.5 levels frequently exceed safety thresholds, underscoring the urgent need for effective mitigation strategies. To address this challenge, we developed a hybrid air purification system incorporating a bioplastic-based photocatalytic film of polylactic acid (PLA) embedded with titanium dioxide (TiO₂) nanoparticles. For optimization, PLA films were functionalized with varying TiO₂ concentrations and characterized using SEM, FTIR, TGDTA, and UV–Vis. spectroscopy. A 5 wt% TiO₂ loading was identified as optimal and further enhanced with silver (Ag) nanoparticles to boost photocatalytic efficiency. The Ag/TiO₂/PLA biofilm was fabricated via a compound pellet formulation process followed by blown film extrusion. Various compositions, with and without Ag, were systematically evaluated for photocatalytic performance. The novel customized hybrid air purifier developed in this study is designed to enhance indoor air purification efficiency by integrating Ag/TiO₂/PLA biofilms into a controlled oxidation system. The air purification efficacy of the developed biofilm was evaluated through a controlled study on Staphylococcus aureus (S. aureus) removal under different treatment conditions: control, adsorption, photolysis, and photocatalytic oxidation. The impact of light intensity on photocatalytic efficiency was also examined. The photocatalytic oxidation of S. aureus was subjected to the first-order kinetic evaluation through mathematical modeling. Results demonstrated that the Ag/TiO₂/PLA biofilm significantly enhances indoor air purification, providing a sustainable, scalable, and energy-efficient solution for microbial decontamination and pollutant removal. This innovative approach outperforms conventional adsorption, adsorption and photocatalytic oxidation systems, offering a promising pathway for improved indoor air quality. Full article

This study investigates the crystallization, microstructure, and performance of poly(lactic acid)/poly(butylene succinate) (PLA/PBS) thin films processed through blown film extrusion and biaxial orientation (BO) at various blend ratios. Succinic anhydride (SA) was used to enhance interfacial adhesion in PLA-rich blends, while blends near 50/50 formed co-continuous phases without SA. Biaxial stretching and annealing, adjusted according to the crystallization behavior of PLA and PBS, significantly influenced crystallinity, crystallite size, and molecular orientation. Biaxial stretching induced crystallization and ordered chain alignment, particularly at the cold crystallization temperature (T_cc), leading to a 70–80-fold increase in impact resistance compared to blown films. Annealing further enhanced crystallinity, especially at the T_cc of PLA, resulting in larger crystallite sizes. BO films demonstrated reduced thermal shrinkage due to improved PLA crystalline structure, whereas PLA-rich blown films showed higher shrinkage due to PLA’s lower thermal resistance. The SA-miscibilized phase reduced oxygen transmission in blown films, while BO films exhibited higher permeability due to anisotropic crystal orientation. However, the annealing of BO films, especially at high temperature (T_cc of PLA), further lowered oxygen permeability by promoting the crystallization of both PLA and PBS phases. Overall, the combination of SA compatibilization, biaxial stretching, and annealing resulted in substantial improvements in mechanical strength, dimensional stability, and oxygen barrier properties, highlighting the potential of these films for packaging applications. Full article

Biodegradable polymers and their blends have been advised as an eco-sustainable solution; however, the generation of microplastics (MPs) from their degradation in aquatic environments is still not fully grasped. In this study, we investigated the formation of bio-microplastics (BMPs) and the changes in the physicochemical properties of blown packaging films based on polylactic acid (PLA), polybutylene succinate (PBS) and a PBS/PLA 70/30 wt% blend after degradation in different aquatic media. The tests were carried out in two temperature/light conditions to simulate degradation in either warm water, under sunlight exposure (named Warm and Light—W&L), and cold deep water (named Cold and Dark—C&D). The pH changes in the aqueous environments were evaluated, while the formed BMPs were analyzed for their size and shape alongside with variations in polymer crystallinity, surface and mechanical properties. In W&L conditions, for all the films, the hydrolytic degradation led to the reorganization of the polymer crystalline phases, strong embrittlement and an increase in hydrophilicity. The PBS/PLA 70/30 blend exhibited increased resistance to degradation with respect to the neat PLA and PBS films. In C&D conditions, no microparticles were observed up to 12 weeks of degradation. Full article

A biodegradable blend of PBAT—poly(butylene adipate-co-terephthalate)—and PLA—poly(lactic acid)—for blown film extrusion was modified with four multi-functional chain extending cross-linkers (CECL). The anisotropic morphology introduced during film blowing affects the degradation processes. Given that two CECL increased the melt flow rate (MFR) of tris(2,4-di-tert-butylphenyl)phosphite (V1) and 1,3-phenylenebisoxazoline (V2) and the other two reduced it (aromatic polycarbodiimide (V3) and poly(4,4-dicyclohexylmethanecarbodiimide) (V4)), their compost (bio-)disintegration behavior was investigated. It was significantly altered with respect to the unmodified reference blend (REF). The disintegration behavior at 30 and 60 °C was investigated by determining changes in mass, Young’s moduli, tensile strengths, elongations at break and thermal properties. In order to quantify the disintegration behavior, the hole areas of blown films were evaluated after compost storage at 60 °C to calculate the kinetics of the time dependent degrees of disintegration. The kinetic model of disintegration provides two parameters: initiation time and disintegration time. They quantify the effects of the CECL on the disintegration behavior of the PBAT/PLA compound. Differential scanning calorimetry (DSC) revealed a pronounced annealing effect during storage in compost at 30 °C, as well as the occurrence of an additional step-like increase in the heat flow at 75 °C after storage at 60 °C. The disintegration consists of processes which affect amorphous and crystalline phase of PBAT in different manner that cannot be understood by a hydrolytic chain degradation only. Furthermore, gel permeation chromatography (GPC) revealed molecular degradation only at 60 °C for the REF and V1 after 7 days of compost storage. The observed losses of mass and cross-sectional area seem to be attributed more to mechanical decay than to molecular degradation for the given compost storage times. Full article

Poly(lactic acid)-poly(hydroxybutyrate) (PLA-PHB)-based nanocomposite films were prepared with bio-based additives (CNCs and ChNCs) and oligomer lactic acid (OLA) compatibilizer using extrusion and then blown to films at pilot scale. The aim was to identify suitable material formulations and nanocomposite production processes for film production at a larger scale targeting food packaging applications. The film-blowing process for both the PLA-PHB blend and CNC-nanocomposite was unstable and led to non-homogeneous films with wrinkles and creases, while the blowing of the ChNC-nanocomposite was stable and resulted in a smooth and homogeneous film. The optical microscopy of the blown nanocomposite films indicated well-dispersed chitin nanocrystals while the cellulose crystals were agglomerated to micrometer-size particles. The addition of the ChNCs also resulted in the improved mechanical performance of the PLA-PHB blend due to well-dispersed crystals in the nanoscale as well as the interaction between biopolymers and the chitin nanocrystals. The strength increased from 27 MPa to 37 MPa compared to the PLA-PHB blend and showed almost 36 times higher elongation at break resulting in 10 times tougher material. Finally, the nanocomposite film with ChNCs showed improved oxygen barrier performance as well as faster degradation, indicating its potential exploitation for packaging applications. Full article

Process-induced changes in the morphology of biodegradable polybutylene adipate terephthalate (PBAT) and polylactic acid (PLA) blends modified with various multifunctional chain-extending cross-linkers (CECLs) are presented. The morphology of unmodified and modified films produced with blown film extrusion is examined in an extrusion direction (ED) and a transverse direction (TD). While FTIR analysis showed only small peak shifts indicating that the CECLs modify the molecular weight of the PBAT/PLA blend, SEM investigations of the fracture surfaces of blown extrusion films revealed their significant effect on the morphology formed during the processing. Due to the combined shear and elongation deformation during blown film extrusion, rather spherical PLA islands were partly transformed into long fibrils, which tended to decay to chains of elliptical islands if cooled slowly. The CECL introduction into the blend changed the thickness of the PLA fibrils, modified the interface adhesion, and altered the deformation behavior of the PBAT matrix from brittle to ductile. The results proved that CECLs react selectively with PBAT, PLA, and their interface. Furthermore, the reactions of CECLs with PBAT/PLA induced by the processing depended on the deformation directions (ED and TD), thus resulting in further non-uniformities of blown extrusion films. Full article

The polylactic acid (PLA) resin Ingeo 4032D was selected as the research object, with a focus on PLA modification by using polymers such as linear low-density polyethylene (LLDPE), high-density polyethylene (HDPE) and ethylene–propylene-diene monomer grafted with glycidyl methacrylate (EPDM-g-GMA), by using fillers such as nano calcium carbonate and zeolite. In order to characterize the deposition effect of Al₂O₃ on the film surface by plasma-assisted atomic layer deposition, Bio-oriented PLA (BOPLA) with more uniform thickness than blown film was purchased for study. The mechanical properties, friction coefficient, surface contact angle and water vapour transmission rate of the modified PLA film were compared and discussed. The aim was to find out the most influencing factors of film’s water vapour resistance. Full article

The polylactic acid (PLA) resin Ingeo 4032D was selected as the research object. Epoxy soybean oil (ESO) and zeolite (3A molecular sieve) were used as plasticizer and reinforcing filler, respectively, for PLA blend modification. The mixture was granulated in an extruder and then blown to obtain films under different conditions to determine the optimum processing temperatures and screw rotation. Then, the thermal behaviour, crystallinity, optical transparency, micro phase structure and physical properties of the film were investigated. The results showed that with increasing zeolite content, the crystallization behaviour of PLA changed, and the haze of the film increased from 5% to 40% compared to the pure PLA film. Zeolite and ESO dispersed in the PLA matrix played a role in toughening and strengthening. The PLA/8 wt% zeolite/3 wt% ESO film had the highest longitudinal tensile strength at 77 MPa. The PLA/2 wt% zeolite/3 wt% ESO film had the highest longitudinal elongation at 13%. The physical properties depended heavily on the dispersion of zeolite and ESO in the matrix. Full article

Innovative active packaging has the potential to maintain the food quality and preserve the food safety for extended period. The aim of this study was to discover the effect of active films based on commercially available polylactic acid blend (PLA_b) and natural active components on the shelf life and organoleptic properties of chicken fillets and to find out; to what extent they can be used as replacement to the traditional packaging materials. In this study, commercially available PLA_b was compounded with citral and cinnamon oil. Active films with 300 µm thickness were then produced on a blown film extruder. The PLA_b-based films were thermoformed into trays. Fresh chicken breast fillets were packed under two different gas compositions, modified atmosphere packaging of 60% CO₂/40% N₂, and 75% O₂/25% CO₂ and stored at 4 °C. The effect of active packaging materials and gas compositions on the drip loss, dry matter content, organoleptic properties, and microbial quality of the chicken fillets were studied over a storage time of 24 days. The presence of active components in the compounded films was confirmed with FTIR, in addition the release of active components in the headspace of the packaging was established with GC/MS. Additionally, gas barrier properties of the packages were studied. No negative impact on the drip loss and dry matter content was observed. The results show that PLA_b-based active packaging can maintain the quality of the chicken fillets and have the potential to replace the traditional packaging materials, such as APET/PE trays. Full article

Four different plastics were tested: potato starch based plastic (TPS-P)–BIOPLAST GF 106/02; corn starch based plastic (TPS-C)–BioComp BF 01HP; polylactic acid (polylactide) plastic (PLA)—BioComp BF 7210 and low density polyethylene, trade name Malen E FABS 23-D022; as a petrochemical reference sample. Using the blown film extrusion method and various screw rotational speeds, films were obtained and tested, as a result of which the following were determined: breaking stress, strain at break, static and dynamic friction coefficient of film in longitudinal and transverse direction, puncture resistance and strain at break, color, brightness and gloss of film, surface roughness, barrier properties and microstructure. The biodegradable plastics tested are characterized by comparable or even better mechanical strength than petrochemical polyethylene for the range of film blowing processing parameters used here. The effect of the screw rotational speed on the mechanical characteristics of the films obtained was also demonstrated. With the increase in the screw rotational speed, the decrease of barrier properties was also observed. No correlation between roughness and permeability of gases and water vapor was shown. It was indicated that biodegradable plastics might be competitive for conventional petrochemical materials used in film blowing niche applications where cost, recyclability, optical and water vapor barrier properties are not critical. Full article

In this work, eco-sustainable blown films with improved performance, suitable for flexible packaging applications requiring high ductility, were developed and characterized. Films were made by blending two bioplastics with complementary properties—the ductile and flexible poly(butylene-adipate-co-terephthalate) (PBAT) and the rigid and brittle poly(lactic acid) (PLA)—at a 60/40 mass ratio. With the aim of improving the blends’ performance, the effects of two types of PLA, differing for viscosity and stereoregularity, and the addition of a commercial polymer chain extender (Joncryl^®), were analyzed. The use of the PLA with a viscosity ratio closer to PBAT and lower stereoregularity led to a finer morphology and better interfacial adhesion between the phases, and the addition of the chain extender further reduced the size of the dispersed phase domains, with beneficial effects on the mechanical response of the produced films. The best system composition, made by the blend of PBAT, amorphous PLA, and the compatibilizer, proved to have improved mechanical properties, with a good balance between stiffness and ductility and also good transparency and sealability, which are desirable features for flexible packaging applications. Full article

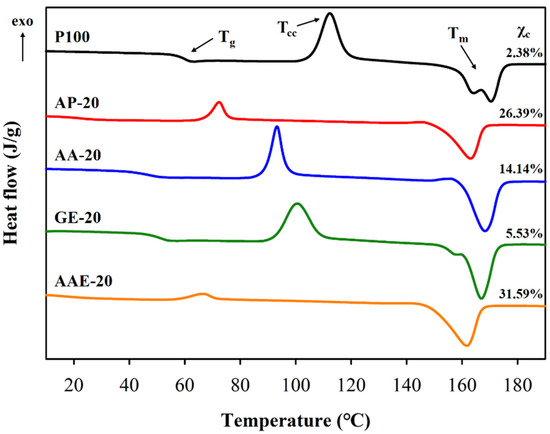

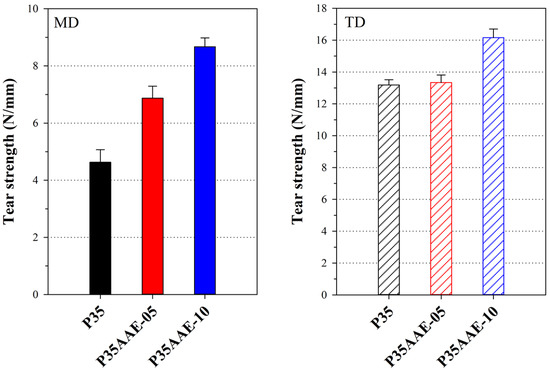

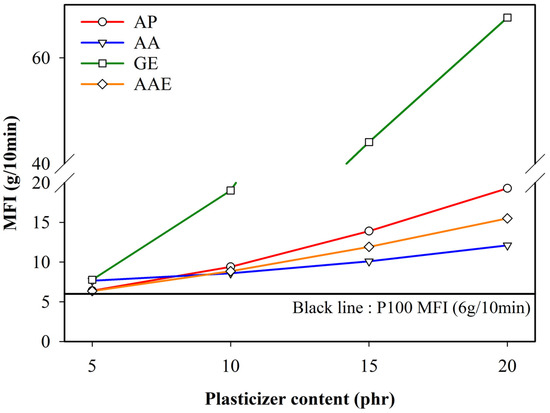

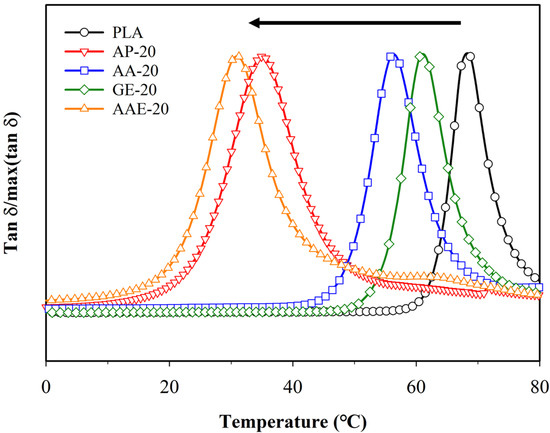

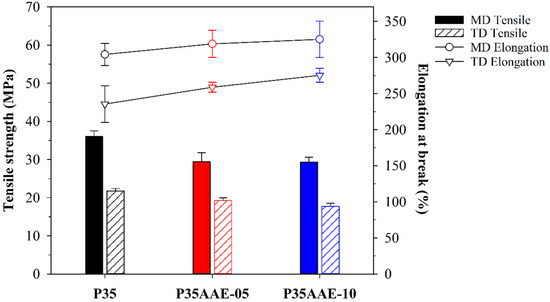

The mechanical properties and tear resistance of an ecofriendly flexible packaging film, i.e., poly(lactic acid) (PLA)/poly (butylene adipate–co–terephthalate) (PBAT) film, were investigated via a blown film extrusion process. The application of PLA and PBAT in product packaging is limited due to the high brittleness, low stiffness, and incompatibility of the materials. In this study, the effects of various plasticizers, such as adipate, adipic acid, glycerol ester, and adipic acid ester, on the plasticization of PLA and fabrication of the PLA/PBAT blown film were comprehensively evaluated. It was determined that the plasticizer containing ether and ester functionalities (i.e., adipic acid ester) improved the flexibility of PLA as well as its compatibility with PBAT. It was found that the addition of the plasticizer effectively promoted chain mobility of the PLA matrix. Moreover, the interfacial adhesion between the plasticized PLA domain and PBAT matrix was enhanced. The results of the present study demonstrated that the plasticized PLA/PBAT blown film prepared utilizing a blown film extrusion process exhibited improved tear resistance, which increased from 4.63 to 8.67 N/mm in machine direction and from 13.19 to 16.16 N/mm in the transverse direction. Full article

This paper presents a characterization of a plastic extrusion process and the selected properties of three biodegradable plastic types, in comparison with LDPE (low-density polyethylene). The four plastics include: LDPE, commercial name Malen E FABS 23-D022; potato starch based plastic (TPS-P), BIOPLAST GF 106/02; corn starch based plastic (TPS-C), BioComp^®BF 01HP; and a polylactic acid (polylactide) plastic (PLA), BioComp^®BF 7210. Plastic films with determined geometric parameters (thickness of the foil layer and width of the flattened foil sleeve) were produced from these materials (at individually defined processing temperatures), using blown film extrusion, by applying different extrusion screw speeds. The produced plastic films were tested to determine the geometrical features, MFR (melt flow rate), blow-up ratio, draw down ratio, mass flow rate, and exit velocity. The tests were complemented by thermogravimetry, differential scanning calorimetry, and chemical structure analysis. It was found that the biodegradable films were extruded at higher rate and mass flow rate than LDPE; the lowest thermal stability was ascertained for the film samples extruded from TPS-C and TPS-P, and that all tested biodegradable plastics contained polyethylene. Full article

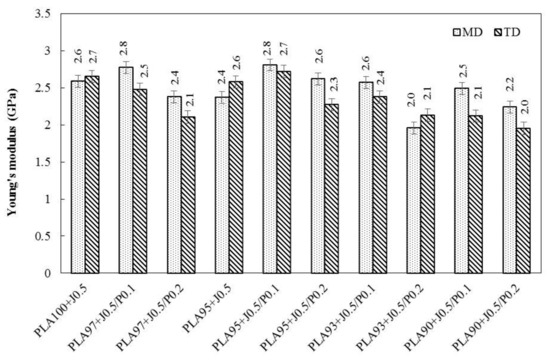

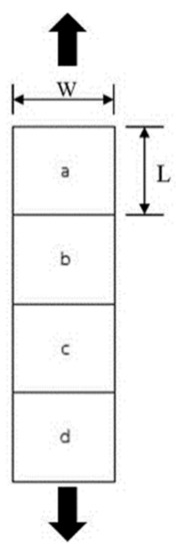

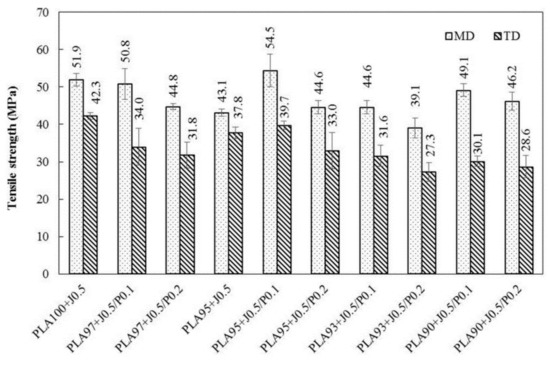

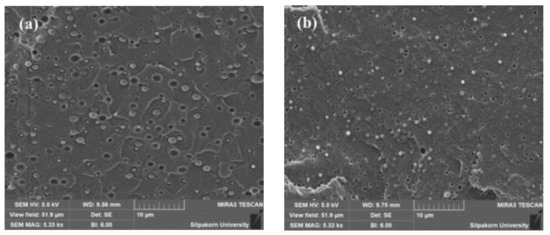

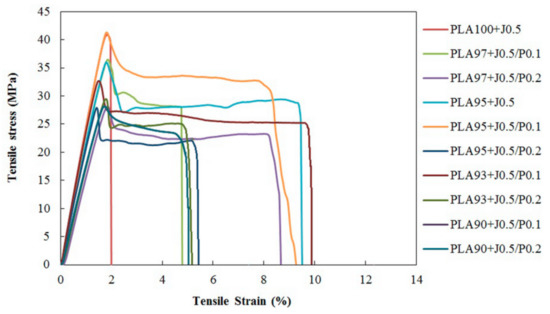

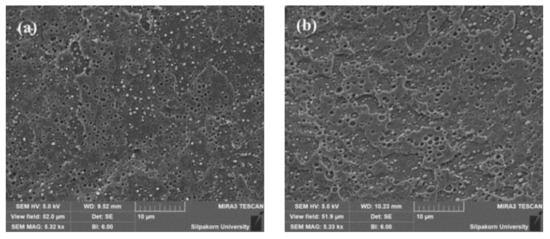

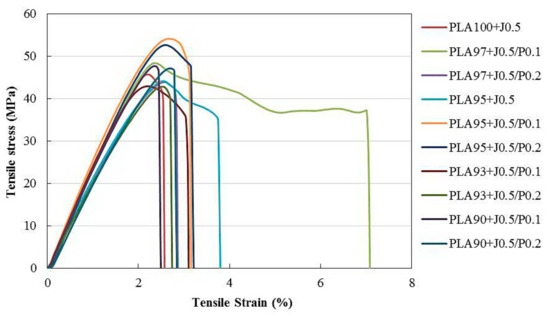

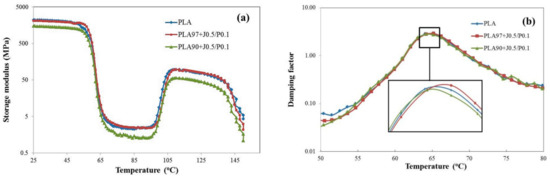

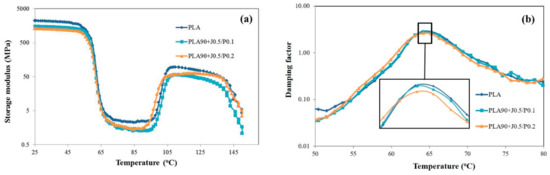

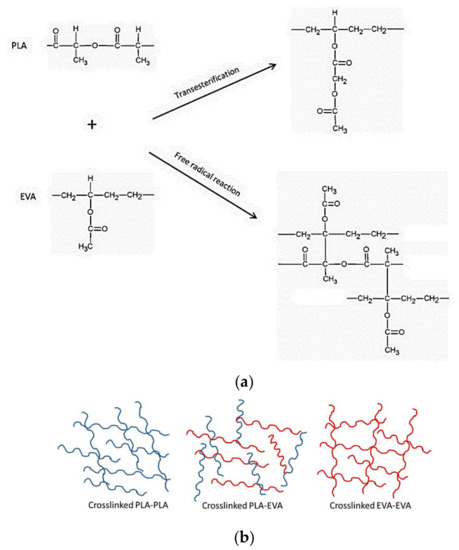

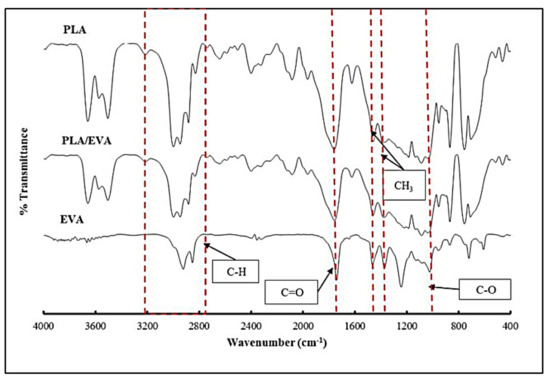

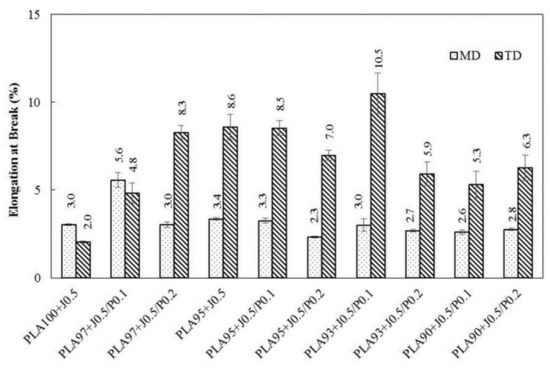

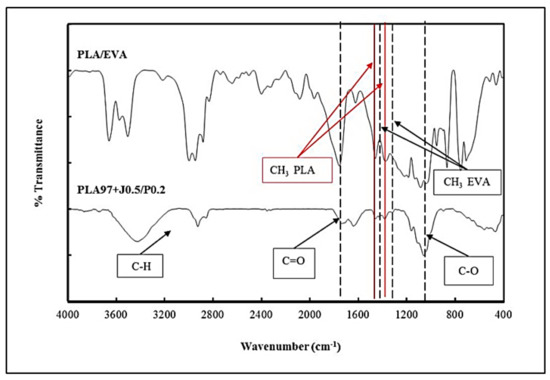

Heat-shrinkable films have widely been used for various applications such as shrinkable labels and cap seals. These plastics have generally a short life. The biodegradable polymers can thus be an ideal candidate for such applications. This work aimed to study the stretching and shrinking ratio of poly(lactic acid)/ethylene vinyl acetate through reactive blends system for heat-shrinkable films application. The reactive agents, Joncryl^® and Perkadox were used as in situ compatibilizers. PLA/EVA with 100/0, 97/3, 95/5, 93/7, and 90/10 ratios were prepared in the twin screw extruder. Neat PLA and PLA/EVA films were fabricated by blown film extrusion. The results revealed that the elongation at break of PLA in the TD direction was improved when adding EVA. PLA and EVA film with 0.1 phr of Perkadox was found to be sufficient as evident by FESEM micrograph and DMTA results. The films were stretched and shrunk at a temperature of 70 °C. The percentage of shrinkage of the stretched PLA/EVA reactive blend films, two and three times were, 100%, approximately. On the other hand, the four-times stretched films shrunk less than 100% because of the excessive stretching, which resulted in film breakage and defect. Full article
