Search Results (30)

The forming methodology influences the physicochemical, mechanical, and microstructural properties. In this study, which aims to develop a geopolymeric material for potential insulation applications in buildings such as vertical walls, geopolymers were developed using industrial wastes from different industries: slate stone cutting sludge (SSCS) and chamotte (CH) were used as precursors, and olive stone bottom ash (OSBA) and sodium silicate (Na₂SiO₃) were used as alkaline activators. Two forming methods were evaluated: uniaxial pressing and casting of the material, varying the forming method and the liquid/solid ratio. The results showed that the pressed geopolymers achieved higher bulk densities (up to 2.13 g/cm³) and significantly higher compressive strength (28.04 MPa at 28 days), attributable to a higher compactness and degree of geopolymer reaction. In contrast, the casting geopolymers exhibited surface efflorescence, related to slower curing and higher porosity, which reduced their compressive strength (17.88 MPa). In addition, the pressed geopolymers showed better thermal stability and fire performance. These results demonstrate that the variation of the forming method has a direct influence on the material properties of geopolymers, and that the pressing process allows for a reduction of the alkaline activator content, thus reducing its environmental footprint. Full article

The cement industry is a major contributor to global CO₂ emissions, driving the research for sustainable alternatives. Olive biomass ash (OBA), a byproduct from burning all types of biomass from the olive tree, has emerged as a potential supplementary cementitious material (SCM). This study investigates the effects of incorporating olive pomace ash (OPA) as a partial cement substitute (0% to 50% by weight) on mortar properties over extended curing periods. Workability, compressive and flexural strengths, water absorption, and freeze–thaw resistance were evaluated. Up to 20% OPA replacement improved workability while maintaining acceptable strength and durability. Beyond this level, mechanical properties and frost resistance decreased significantly. Correlation analyses revealed strong relationships between flow time and wet bulk density (R² = 0.93), an exponential relationship between 28-day compressive strength and water absorption (R² = 0.87), and linear correlations between pre- and post-freeze–thaw mechanical properties (R² ≥ 0.99 for both compressive and flexural strengths). The results demonstrate that optimal OPA incorporation enhances mortar performance without compromising structural integrity and provides a viable strategy for valorizing agricultural waste. Full article

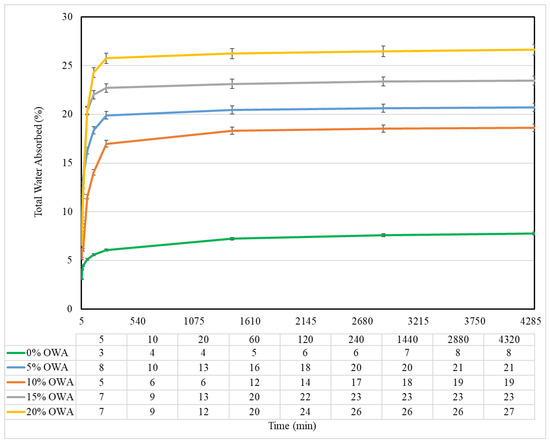

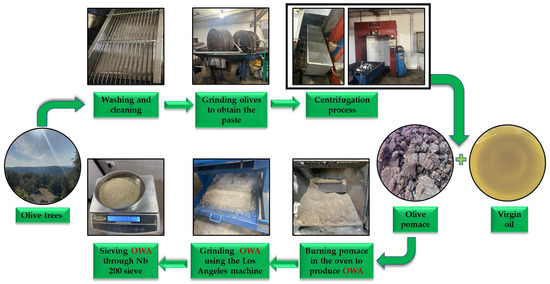

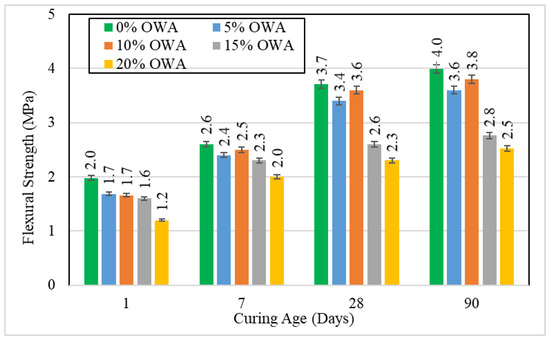

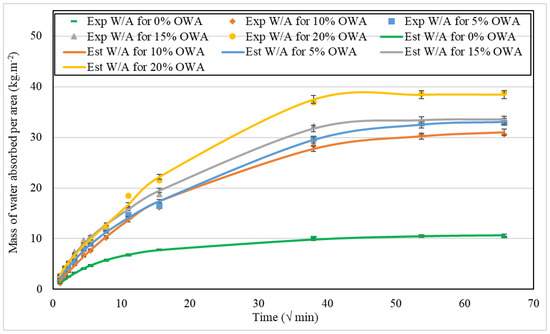

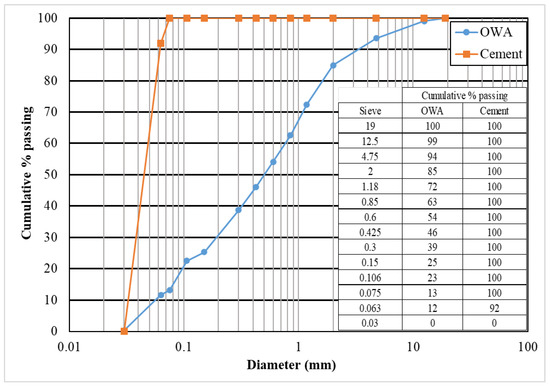

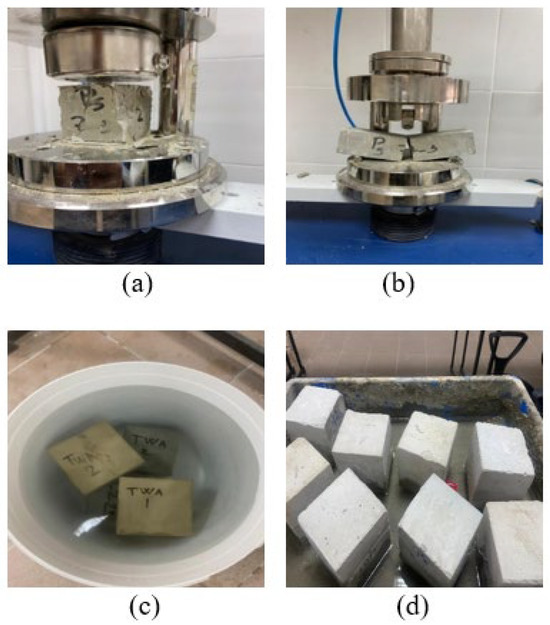

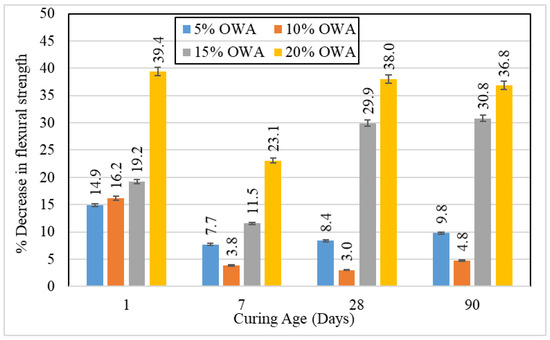

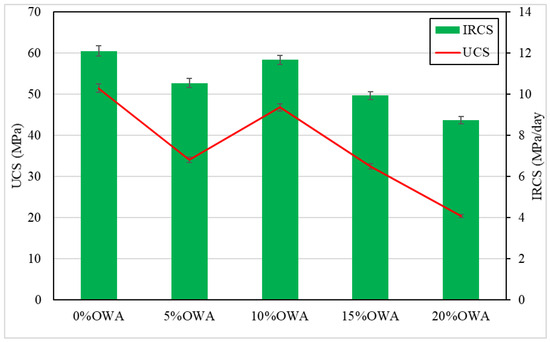

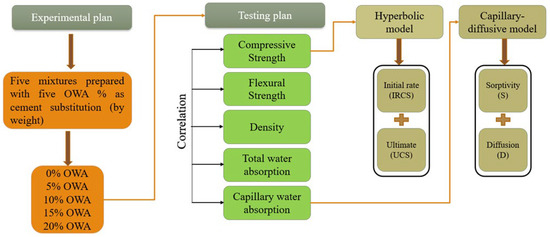

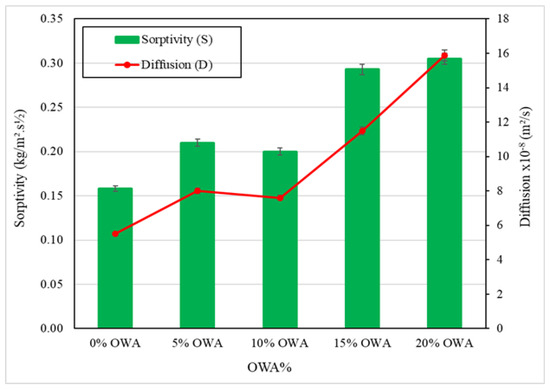

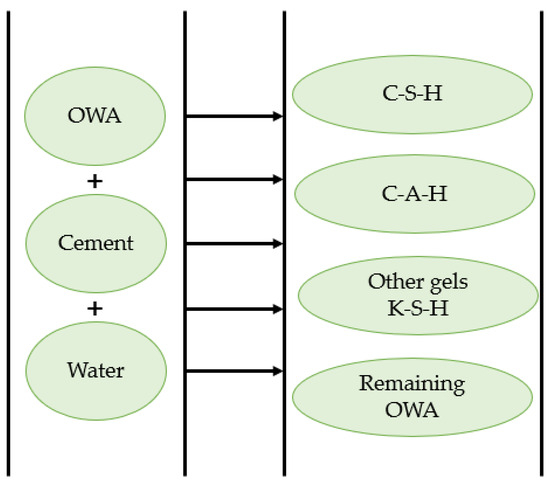

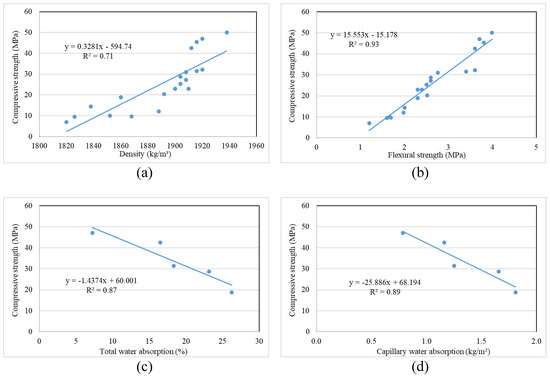

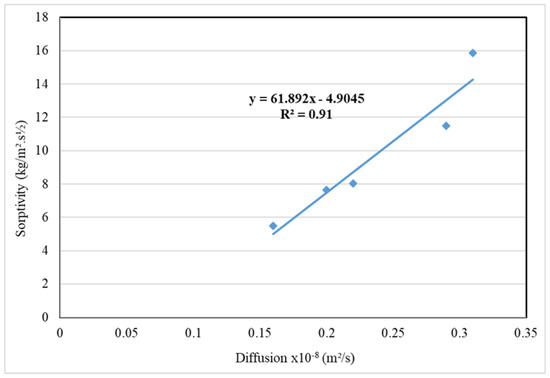

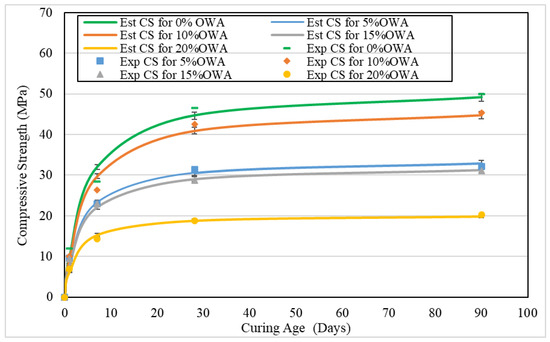

In recent decades, adopting alternative resources in infrastructure applications has garnered global attention to address environmental concerns. Olive waste ash (OWA), a locally available byproduct obtained from the olive oil production process, is a promising green material that plays a vital role as a partial cement substitute. This paper evaluates the mechanical and durability properties of cement paste—a key component of paving blocks—incorporating OWA at replacement levels of 0, 5, 10, 15, and 20%, with a constant water-to-cementitious ratio of 0.45. Density, compressive strength, and flexural strength are assessed at 1, 7, 28, and 90 days, while total water absorption (TWA) and capillary water absorption (CWA) are measured at 28 days. The results reveal that OWA slightly reduces density, compressive strength, and flexural strength, with the optimal results observed at a substitution level of 10%. At 90 days, the compressive strength of the control cement paste is 50 MPa, whereas the 10% OWA mixture exhibits a value of 46 MPa, corresponding to only an 8% reduction. Additionally, two predictive models are proposed: the hyperbolic model for compressive strength variation with curing time and the capillary-diffusive model for capillary water absorption as a function of time. Both models demonstrate a strong fit with experimental data. Correlations between different properties indicate a strong correlation between compressive strength, density, and flexural strength, while a negative linear relationship exists between compressive strength and water absorption. This study underscores OWA’s potential to improve sustainable paving blocks by providing suitable mechanical and durability characteristics, offering both environmental and economic benefits. Full article

The valorization of agricultural and industrial solid by-products as secondary resources in the development of value-added materials can contribute to environmental health protection, particularly in the climate change era. Current advances in environmental legislation also encourage manufacturers to optimize waste management, upgrading and utilization towards resource conservation, energy efficiency and cost reduction in the context of a circular economy. In the present research, the elaboration of novel sustainable ceramics is investigated by sintering (at 800 °C for 2 or 6 h) of compacted mixtures composed of lignite fly ashes along with biomass ash (olive kernel ash) at different proportions. It appears that the chemical, mineralogical and morphological characteristics of these by-products promote their use as starting materials in ceramic engineering. Characterization and evaluation of the ceramics obtained via XRD and SEM-EDX analysis, as well as Vickers microhardness measurements, confirm the effectiveness of the consolidation process. In fact, the material derived from an 85% Class-C fly ash and 15% biomass ash compact, after 6 h sintering, exhibited greater results in terms of ceramic microstructure and microhardness (380 Hv), while a sintering time of 2 h was barely acceptable. The materials developed can be considered for use in various applications. Full article

The reuse of by-products as alternative raw materials to traditional construction materials is required in order to ensure sustainable development in the construction sector and is a significant and important focus in the fields of materials science. This study developed geopolymers using by-products from mining, ceramics, and olive industries, including slate stone cutting sludge (SSCS) and chamotte (CH) as aluminosilicate sources, and olive biomass bottom ash (OSBA) as an alkaline activator with sodium silicate. A key novelty of the research lies in the use of SSCS, an underexplored by-product in geopolymerization studies, as a viable aluminosilicate source. The geopolymers were prepared with varying weight ratios of SSCS, CH, and OSBA/Na₂SiO₃ (1.7, 1.9, 2.2, and 2.4). Physical and mechanical tests determined the optimal formulation, while FTIR and SEM analyses revealed the material’s chemical and structural evolution. The FTIR analysis detected the quartz and carbonate phases, indicating incomplete quartz dissolution and carbonate formation during calcination. The SEM analysis revealed a dense microstructure with reduced porosity and enhanced geopolymerization in samples with higher OSBA content. The optimal geopolymer (60% OSBA, 30% CH, OSBA/Na₂SiO₃ ratio of 2.2) achieved a compressive strength of 33.1 MPa after 28 days. These findings demonstrate the feasibility of producing geopolymers using SSCS, CH, and OSBA, promoting the reuse of industrial by-products as sustainable alternatives to conventional binders. Full article

Utilizing agricultural waste to produce mushrooms may be a cost-effective and environmentally friendly proposition to address the nutritional and health demands of the growing global population. Mushrooms can grow on a range of substrates and their selection is based on their availability and cost. In this study, five types of local waste were mixed: olive crop residues (OC), coffee residue (CR) or rice husk (RH) with wheat straw (WS) and beech wood shavings (BW), respectively. Then, the mixtures were sprayed with 20% w/w lipid fermentation wastewater (LFW) from Rodosporidium toruloides that was used as an alternative substrate-moistening method. Afterwards, these mixtures were tested for cultivating Pleurotus spp., Ganoderma spp. and Lentinula edodes. The results showed that the substrate significantly affected the incubation period and the biological efficiency (BE), with OC mixed substrates proving to be the most favorable across the different species. Pleurotus spp. had the shortest cultivation times and the highest BE, while G. lucidum required the longest incubation periods and had the lowest BE, particularly on CR substrates. The study also found that substrates affected mushroom morphology. Nutritional analysis revealed significant differences in protein, polysaccharides, lipids, ash and energy content, depending on the species and substrate. High protein levels were found in P. eryngii (28.05–29.58% d.w.) and G. resinaceum (28.71–29.90% d.w.). The elevated total phenolic compounds (28.47–40.17 mgGAE/g) values in carposomes from CR and OC substrates for Ganoderma spp., L. edodes, P. pulmonarius and P. ostreatus, along with antioxidant activity (DPPH, ABTS, FRAP) assays, highlighted the crucial role of substrate composition in enhancing the medicinal properties of mushrooms. The mixed substrates also influenced the fatty acid (FA) and polysaccharide composition, with WS increasing unsaturated FAs and glucose (<69.8%) being the primary monosaccharide. The study suggests that using the spraying method of 20% w/w LFW as a moisture agent in these substrates is effective for mushroom production. Full article

Over the last decades, concrete has been excessively prone to cracks resulting from shrinkage. These dimensional changes can be affected by the incorporation of supplementary cementitious materials. This work used olive waste ash (OWA), which could substantially tackle this problem and achieve sustainability goals. For this issue, five cement paste mixes were prepared by replacing cement with OWA at different percentages varying from 0 to 20% by weight with a constant increment of 5%. The water-to-cement ratio was 0.45 for all mixes. Compressive strength and flexural strength were investigated at 7, 28, and 90 days. In addition, three shrinkage tests (drying, autogenous, and chemical) and expansion tests were also conducted for each mix and measured during 90 days of curing. The experimental findings indicated that there was a loss in compressive and flexural strength in the existence of OWA. Among all mixes containing OWA, the samples incorporating 10% OWA exhibited maximum strength values. Furthermore, the chemical and autogenous shrinkage decreased with the incorporation of OWA. However, the drying shrinkage decreased at lower levels of substitutions and increased at higher replacement levels. In addition, there was a growth in expansion rates for up to 10% of OWA content, followed by a decrease at higher levels (beyond 10%). Additionally, correlations between these volumetric stability tests were performed. It was shown that a positive linear correlation existed between chemical shrinkage and autogenous and drying shrinkage; however, there was a negative relationship between chemical shrinkage and expansion. Full article

The development of new building elements, such as concrete and mortar with sustainable materials, which produce a lower carbon footprint, is an achievable milestone in the short term. The need to reduce the environmental impact of the production of cement-based materials is of vital importance. This work focuses on the evaluation of the life-cycle assessment, production costs, mechanical performance, and durability of three mortars and three concrete mixtures in which mixed recycled aggregates (MRAs) and biomass bottom ash from olive waste (oBBA) were included to replace cement and aggregates. Powdered MRA and oBBA were also applied as complementary cementitious materials with a reduced environmental footprint. Chemical and physical tests were performed on the materials, and mechanical performance properties, life-cycle assessment, and life-cycle cost analysis were applied to demonstrate the technical and environmental benefits of using these materials in mortar and concrete mixtures. This research showed that the application of MRA and oBBA produced a small reduction in mechanical strength but a significant benefit in terms of life-cycle population and environmental costs. The results demonstrated that finding long-term mechanical strength decreases between 2.7% and 14% for mortar mixes and between 1.7% and 10.4% for concrete mixes. Although there were small reductions in mechanical performance, the savings in environmental and monetary terms make the feasibility of manufacturing these cement-based materials feasible and interesting for both society and the business world. CO₂ emissions are reduced by 25% for mortar mixes and 12% for concrete mixes with recycled materials, and it is possible to reduce the cost per cubic meter of mortar production by 20%, and the savings in the cost of production of a cubic meter of concrete is 13.8%. Full article

Rammed earth blocks have recently gained substantial popularity in construction materials due to their environmental benefits, energy saving, and financial effectiveness. These benefits are even more pronounced if waste materials such as olive waste ash (OWA) are incorporated in rammed earth blocks. There is limited information on the use of OWA in rammed earth blocks. This paper investigates the use of OWA and cement in improving rammed earth block characteristics. OWA was incorporated to partially replace the soil by 10, 20, 30 and 40% of its weight and cement was added in percentages of 2, 4, 6 and 8% by the dry weight of the composite soil. Proctor, unconfined compressive strength (UCS), and California Bearing Ratio (CBR) tests were performed at 7, 28, and 56 days. Results indicated that OWA inclusion decreased the maximum dry density while it increased the optimum moisture content. However, cement addition improved the maximum dry density of soil. The UCS results revealed that OWA possessed cementitious and pozzolanic behavior, and soil mechanical properties improved by up to 30% due to OWA inclusion, after which there was a significant drop of 40%. The trend in the CBR results was similar to those of UCS. To further clarify the experimental results, a mathematical model was proposed to determine the variation in strength as a function of time. Furthermore, correlations between soil mechanical properties were conducted. Predicted equations were developed to determine the properties of rammed earth block. All in all, the inclusion of OWA in cement stabilized earth block suggests the potential to improve the properties of rammed earth blocks. Full article

In the context of climate change and the circular economy, biochar agricultural and environmental applications have attracted a good deal of attention. Biochar has unique characteristics like surface area, porosity, water-holding capacity, pH, surface charge, and nutrients. This study reviews the biochar production from olive pomace (OP) and olive stone (OS) byproducts, its chemical and physical characterization, and its environmental application. The current review highlights the conditions for biochar production, the effects of pyrolysis temperature, and feedstock type on the physicochemical properties of biochar. High pyrolysis temperature (>500 °C) promotes a high specific surface area, high porosity (especially for OS biochars), and pH as well as the content of ash and fixed carbon, but generates low cation exchange capacity (CEC) and electrical conductivity (EC) and high values of O/C and H/C ratio. OP biochar also presents a high C amount, and ash content, i.e., rich in nutrients and high alkalizing capacity. OP biochar serves as an important source of plant nutrients, especially potassium. After adding both types of biochar, aggregate stability and the amount of water held in soil increase, and bulk density and bioavailability of trace elements decrease. Thus, biochar from olive mill wastes can be a potential plant nutrient reservoir, a good amendment to improve soil properties and long-term carbon sequestration. Results presented in this review can be used to build designer biochars from olive mill wastes to help solve environmental issues (water purification and pollutant remediation) and are suitable for improving soil physical chemistry characteristics and crop growth. Full article

Due to a continuously developing population, our consumption of one of the most widely used building materials, concrete, has increased. The production of concrete involves the use of cement whose production is one of the main sources of CO₂ emissions; therefore, a challenge for today’s society is to move towards a circular economy and develop building materials with a reduced environmental footprint. This study evaluates the possibility of using new sustainable supplementary cementitious materials (SCMs) from waste such as recycled concrete aggregates (RCAs) and mixed recycled aggregates (MRAs) from construction and demolition waste, as well as bottom ash from olive biomass (BBA-OL) and eucalyptus biomass ash (BBA-EU) derived from the production of electricity. A micronisation pre-treatment was carried out by mechanical methods to achieve a suitable fineness and increase the SCMs’ specific surface area. Subsequently, an advanced characterisation of the new SCMs was carried out, and the acquired properties of the new cements manufactured with 25% cement substitution in the new SCMs were analysed in terms of pozzolanicity, mechanical behaviour, expansion and setting time tests. The results obtained demonstrate the feasibility of using these materials, which present a composition with potentially reactive hydraulic or pozzolanic elements, as well as the physical properties (fineness and grain size) that are ideal for SCMs. This implies the development of new eco-cements with suitable properties for possible use in the construction industry while reducing CO₂ emissions and the industry’s carbon footprint. Full article

The construction industry is one of the sectors with the greatest environmental impact resulting from the high consumption of resources and the huge amount of waste generated. In addition, different wastes and by-products originate from various sectors of activity, namely the ones related to the agricultural sector, requiring the urgent actions of recycling and reuse. In this context, this investigation focused on the valorization of wastes and by-products resulting from the olive oil production as building material components. Wet bagasse was added to cementitious mixtures at percentages of 5% and 20% to produce solid blocks. Lime mortars, incorporating 2% and 8% of ash, were developed, and particleboards composed of 83% olive stone were also produced. The results showed that blocks with 5% waste complied with the standard requirements for flexural strength. The incorporation of 2% ash increased the mechanical properties of lime mortars when compared to a reference mortar with no ash. The developed particleboards revealed the possibility for being part of a multilayer solution or as a covering material, presenting a thermal conductivity of 0.08 W/mK. Thus, wastes generated during olive oil production presented potential for valorization as building material components for non-structural purposes. Full article

The ever-increasing volumes of food waste generated and the associated environmental issues require the development of new processing methods for these difficult waste streams. One of the technologies that can treat these waste streams directly is hydrothermal carbonization. In this work, olive pomace and orange peels were treated via a mild hydrothermal carbonization process (TORWASH^®) in a continuous-flow pilot plant. For olive pomace, a solid yield of 46 wt% and a dry matter content of 58% for the solid press cakes were obtained during continuous operation for 18 days. For orange peels, the values were lower with 31 wt% solid yield and a 42% dry matter content during 28 days of continuous operation. These values corresponded fully with initial laboratory-scale batch experiments, showing the successful transformation from batch to continuous processing. The obtained hydrochar from both feedstocks showed an increase in higher heating value (HHV) and a significant reduction in ash content. Pellets produced from the solids met the requirements for industrial use, demonstrating a large increase in the deformation temperature and a significant reduction in the potassium and chlorine content compared to the original feedstock. These results indicate the excellent potential of these pellets for combustion applications. Full article

Agro-industrial activities generate a great amount of bioproducts as biomass residues containing energy and with potentially useful applications in the thermochemical conversion process. The management of this feedstock as uncontrolled combustion (“open burning”) can often be a problem within the supply chain for disposal practices, both in environmental and economic aspects. The residual matrices from agroforestry biomass processing can be treated to increase their energy levels and economic value. A widespread practice for sustainable disposal is the production of pellets from residual biomass, such as pruning. The aim of this study is to explore the combustion of pellets obtained from olive and citrus pruning, and their emissions into the atmosphere. This study confirms the possibility of using waste biomass to obtain a high-energy biofuel that is usable in a controlled combustion system and to monitor the process and its related emissions (CO, CO₂, NO_x, SO₂, PM). Three different pellets (olive pellet, citrus pellet and a pellet obtained from a mix of olive and citrus) were characterized to determine their physicochemical properties and burned in an 80 kW_th boiler equipped with multicyclone filter bags as an abatement system to evaluate relative emission. The characterization results show that citrus pellet has a higher ash content, moisture content and lower energy value than mixtures of olive pellet. The emission results suggest that, during combustion, higher emissions of CO and SO₂ were monitored from mixtures of citrus pellet compared to burning only olive pellet. Full article

Cosmetic interest in agro-industrial byproducts is growing. In fact, many studies have shown that these residues present bioactive compounds with several skincare applications. One example is olive byproducts, such as olive pomace, which has a composition rich in phenolic compounds. As the production of olive oil is increasing, the amount of byproducts being generated is escalating, with significant constraints in their safe disposal due to their phytotoxic nature. The present study aimed to, from a zero-waste perspective, characterize and add value to a sub-byproduct, a semi-solid paste (SSP) derived from a patent process of olive pomace extraction. The chemical analysis of this residue revealed high moisture and significant protein, fat, and ash contents. Furthermore, vitamin E total phenolics and flavonoid content were assessed, as well as antioxidant activity, using DPPH^• (2,2-diphenyl-1-picrylhydrazyl radical) and FRAP (ferric reducing antioxidant power) methods. Based on this primary assessment, a facial mask with antioxidant properties was developed. Rheological analysis showed that the developed mask presented shear thinning behavior, thixotropy, and texture characteristics desirable for skincare use. The results of this study showed the successful incorporation of SSP into facial masks and provides a preliminary assessment of this byproduct’s impact on the appearance and performance of these formulations. Full article
