Search Results (10)

Pore sizes on the micrometre scale are a critical factor influencing the fluid transport properties of textiles. Consequently, the pore size distribution function is a desirable parameter in the design of textiles for technical applications. However, the experimental determination of pore size and its distribution can be challenging, costly, or impractical. Knitted fabrics offer a wide range of porosity and pore size distribution properties. While statistical models have shown reasonable accuracy in predicting pore size distributions in nonwovens and filter media, no equivalent model exists for twist-texturized yarns and single-jersey knitted fabrics. This study presents a hierarchical pore model for single-jersey fabrics. The model uses a log-normal distribution for the intra-yarn pores in the yarn and cylindrical pores for inter-yarn pores between the yarns in the fabric. With these two pore sizes, the model quantitatively characterises the porous structure of the fabric. Initial validation of the model for intra-yarn pores on four yarns of different fibre finenesses shows that the model can cover the influence of different fibre counts. For the validation on the fabric scale, two tomography datasets of single-jersey knitted fabrics show that the presented model can capture the effect of different fabric structures. A parameter study visualises the effects of both yarn and knitting parameters on the pore size distribution function of single-jersey knitted fabrics. The mean pore sizes of the fabrics are given. The results deepen the understanding of the porous properties of knitted fabrics and provide a valuable direction for structural fabric development on knitting machines. Full article

Textiles and nonwovens (including those used in ventilation systems as filters) are currently one of the main sources of patient cross-infection. Healthcare-associated infections (HAIs) affect 5–10% of patients and stand as the tenth leading cause of death. Therefore, the development of new methods for creating functional nanostructured coatings with antibacterial and antiviral properties on the surfaces of textiles and nonwoven materials is crucial for modern medicine. Antimicrobial filter technology must be high-speed, low-energy and safe if its commercialization and mass adoption are to be successful. Cerium oxide nanoparticles can act as active components in these coatings due to their high antibacterial activity and low toxicity. This paper focuses on the elaboration of a high-throughput and resource-saving method for the deposition of cerium oxide nanoparticles onto nonwoven fibrous material for use in air-conditioning filters. The proposed spraying technique is based on the use of an aerodynamic emitter and simultaneous suction. Cerium oxide nanoparticles have successfully been deposited onto the filter materials used in air conditioning systems; the antibacterial activity of the ceria-modified filters exceeded 4.0. Full article

Literature reviews have described the applications of silver, copper, and zinc ions and metallic particles of Cu, Ti, and Zn oxides, which have been found to be useful antimicrobial reagents for the biofunctionalization of various materials and their surfaces. For this purpose, compositions of water dispersions containing emulsions of synthetic copolymers based on acrylic and vinyl monomers, polysaccharides (hydroxyethyl cellulose and starch), and various additives with wetting and stabilizing properties were used. Many stable water dispersions of different chemical compositions containing bioactive chemical compounds (copper silicate hydrate, titanium dioxide, and zinc oxide (and other auxiliary substances)) were developed. They were used for the preparation of thin hybrid coatings having good antimicrobial properties against Gram-negative bacteria (Escherichia coli), Gram-positive bacteria (Staphylococcus aureus), and yeast fungus (Candida albicans). Polyester (PES) and polylactide (PLA) nonwovens were modified using the dip-coating method, while PES and cotton fabrics were biofunctionalized by means of dip-coating and coating methods. The antimicrobial (antibacterial and antifungal) properties of the textile materials (nonwovens and fabrics) biofunctionalized with the above-mentioned bioactive agents exhibiting antimicrobial properties (CuSiO₃, TiO₂, ZnO, or ZnO∙SiO₂) were strongly dependent on the agents’ content in the water dispersions. The PES and PLA nonwovens, modified on the surface with water compositions containing copper silicate hydrate, showed good antibacterial properties against the Gram-negative bacteria Escherichia coli, even at a content of 1 wt.% CuSiO₃∙xH₂O, and against the Gram-positive bacteria Staphylococcus aureus, at the content of at least 5 wt.% CuSiO₃∙xH₂O. The bacterial growth reduction factor (R) was greater than 99% for most of the samples tested. Good antifungal properties against the fungus Candida albicans were found for the PES and PLA nonwoven fabrics modified with dispersions containing 5–7 wt.% CuSiO₃∙xH₂O and 4.2–5.0 wt.% TiO₂. The addition of TiO₂ led to a significant improvement in the antifungal properties of the PES and PLA nonwovens modified in this way. For the samples of PES WIFP-270 and FS F-5 nonwovens, modified with water dispersions containing 5.0 wt.% CuSiO₃∙xH₂O and 4.2–5.0 wt.% TiO₂, the growth reduction factor for the fungus Candida albicans (R) reached values in the range of 80.9–98.0%. These new biofunctionalized polymeric nonwoven textile materials can find practical applications in the manufacture of filters for hospital air-conditioning systems and for the automotive industry, as well as in air purification devices. Moreover, similar antimicrobial modification of fabrics with the dip-coating or coating methods can be applied, for example, in the fabrication of fungi- and mold-resistant garden furniture. Full article

While nonwoven fabrics have existed for several decades, their usage in personal protective equipment (PPE) has been met with a rapid surge of demands, in part due to the recent COVID-19 pandemic. This review aims to critically examine the current state of nonwoven PPE fabrics by exploring (i) the material constituents and processing steps to produce fibers and bond them, and (ii) how each fabric layer is integrated into a textile, and how the assembled textiles are used as PPE. Firstly, filament fibers are manufactured via dry, wet, and polymer-laid fiber spinning methods. Then the fibers are bonded via chemical, thermal, and mechanical means. Emergent nonwoven processes such as electrospinning and centrifugal spinning to produce unique ultrafine nanofibers are discussed. Nonwoven PPE applications are categorized as filters, medical usage, and protective garments. The role of each nonwoven layer, its role, and textile integration are discussed. Finally, the challenges stemming from the single-use nature of nonwoven PPEs are discussed, especially in the context of growing concerns over sustainability. Then, emerging solutions to address sustainability issues with material and processing innovations are explored. Full article

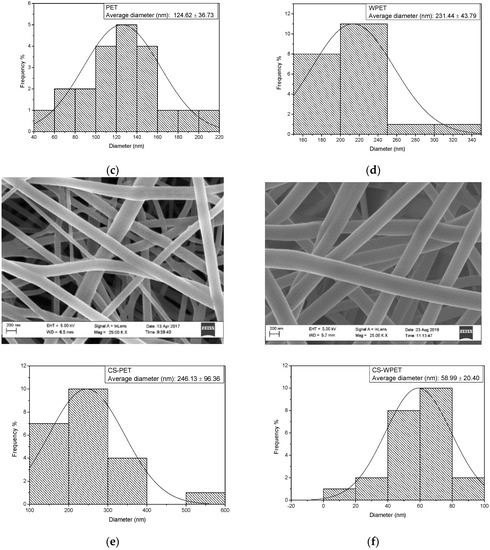

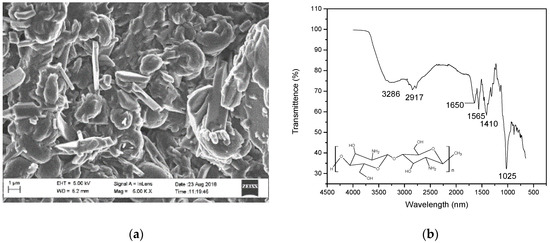

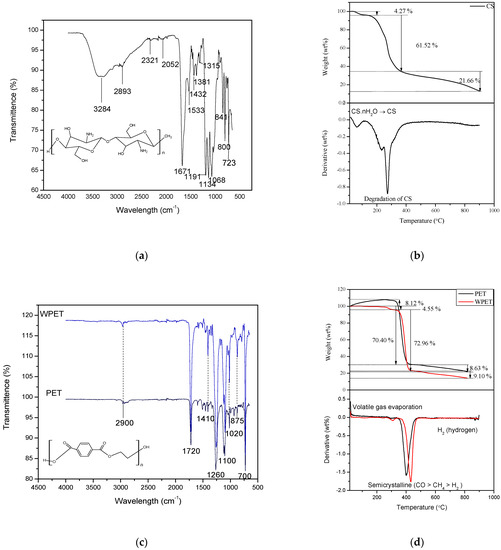

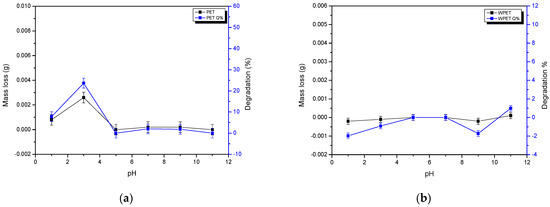

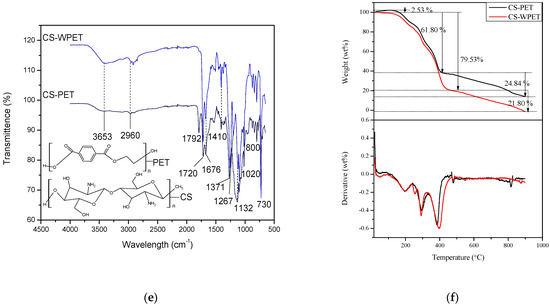

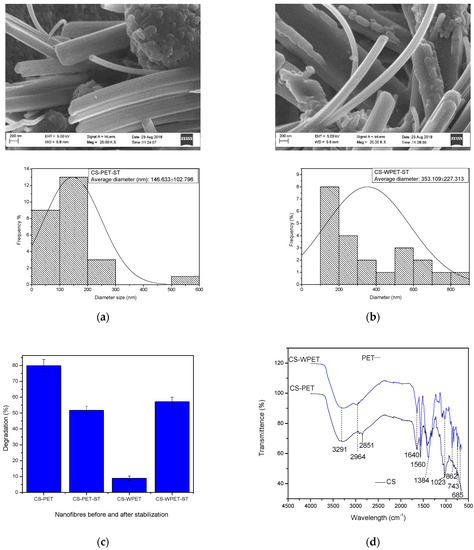

Textile single-use products are dominantly used for hygiene and personal care, many of which are non-biodegradable and are frequently discarded into sewerage systems, thus causing blockages. Thus, there is a need to move towards water-soluble textiles. This research study focuses on transforming or repurposing biomass material and synthetic reusable waste plastic materials to improve waste. Chitosan (CS) nanofibers could be used in single-use nonwoven fabric or biodegradable tissues, as the water-soluble properties of chitosan nanofibers make them the perfect material for single-use applications. Furthermore, CS was blended with polyethylene terephthalate (PET) polymer and PET-based waste plastic (CS-WPET) to slow the CS nanofibers’ water degradability and strengthen the durability of the nanofiber which could be used as air filters. The CS-TFA and CS-TFA/DCM nanofiber diameters were 95.58 ± 39.28 nm or 907.94 ± 290.18 nm, respectively, as measured from the HRSEM images. The CS-PET and CS-WPET hybrid nanofibers had fiber diameters of 246.13 ± 96.36 or 58.99 ± 20.40 nm, respectively. The thermal durability of the nanofibers was tested by TGA, which showed that CS-TFA/DCM nanofibers had sufficient thermal stability up to 150 °C, making them suitable for filter or fabric use at moderate temperatures. The blended nanofibers (CS-PET and CS-WPET) were thermally stable up to 160 °C. In the aqueous medium stability test, CS-PET and CS-WPET hybrid nanofibers had a slower degradation rate and were easily dissolved, while the CS nanofibers were rapidly and completely dissolved in an aqueous medium. Blending waste PET with CS allows it to be recycled into a useful single-use, non-woven textile, with greater water solubility than unmodified PET nanofibers but more durability than CS nanofibers on their own. Full article

The 2019 coronavirus outbreak and worsening air pollution have triggered the search for manufacturing effective protective masks preventing both particulate matter and biohazard absorption through the respiratory tract. Therefore, the design of advanced filtering textiles combining efficient physical barrier properties with antimicrobial properties is more newsworthy than ever. The objective of this work was to produce a filtering electrospun membrane incorporating a biocidal agent that would offer both optimal filtration efficiency and fast deactivation of entrapped viruses and bacteria. After the eco-friendly electrospinning process, polyvinyl alcohol (PVA) nanofibers were stabilized by crosslinking with 1,2,3,4-butanetetracarboxylic acid (BTCA). To compensate their low mechanical properties, nanofiber membranes with variable grammages were directly electrospun on a meltblown polypropylene (PP) support of 30 g/m². The results demonstrated that nanofibers supported on PP with a grammage of around only 2 g/m² presented the best compromise between filtration efficiencies of PM_0.3, PM_0.5, and PM_3.0 and the pressure drop. The filtering electrospun membranes loaded with benzalkonium chloride (ADBAC) as a biocidal agent were successfully tested against E. coli and S. aureus and against human coronavirus strain HCoV-229E. This new biocidal filter based on electrospun nanofibers supported on PP nonwoven fabric could be a promising solution for personal and collective protection in a pandemic context. Full article

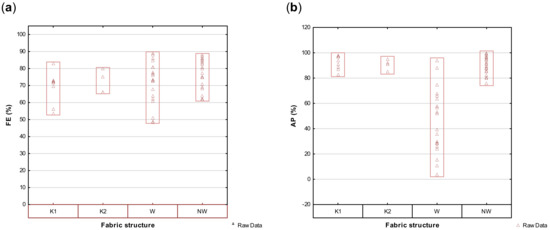

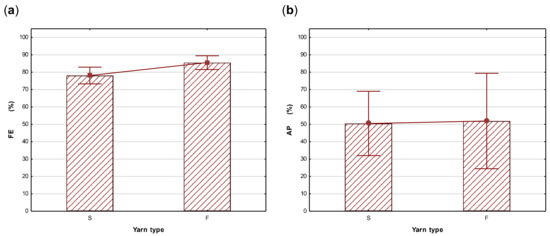

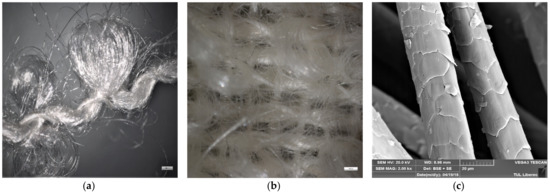

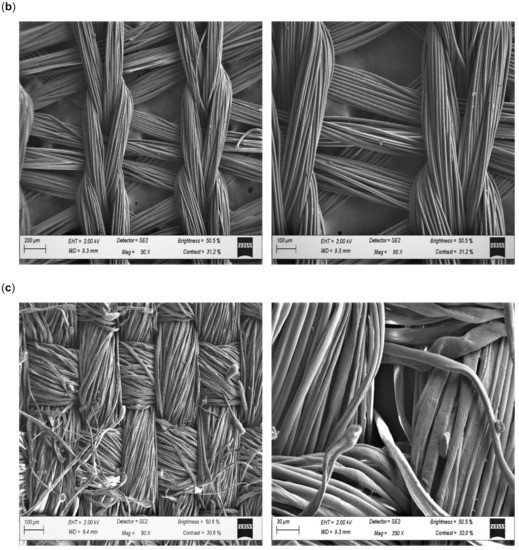

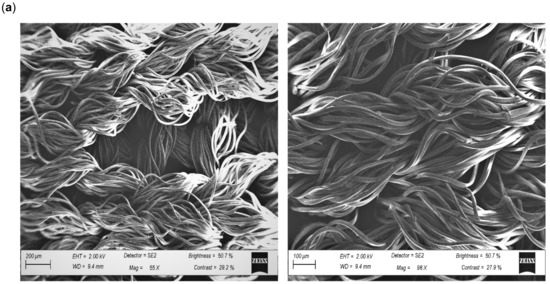

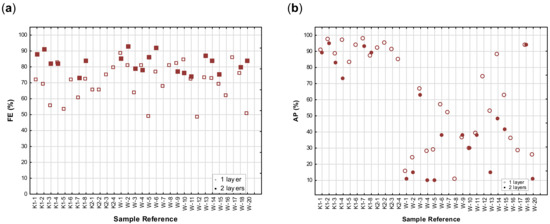

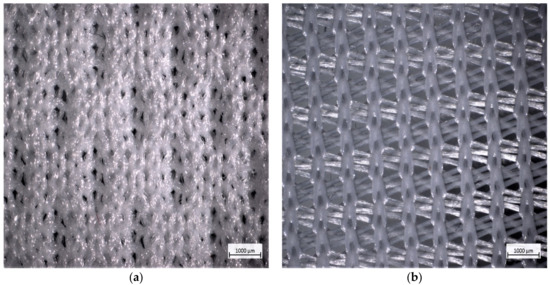

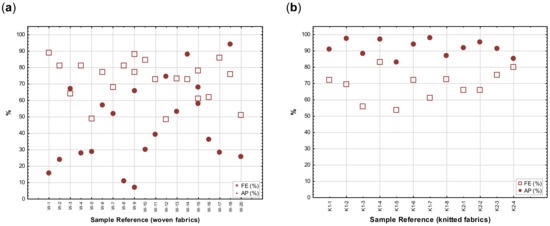

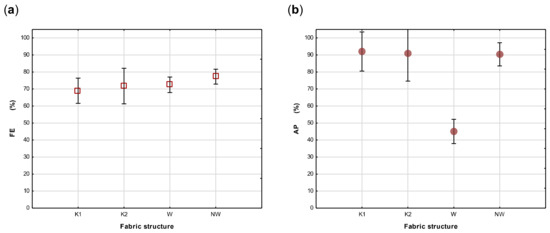

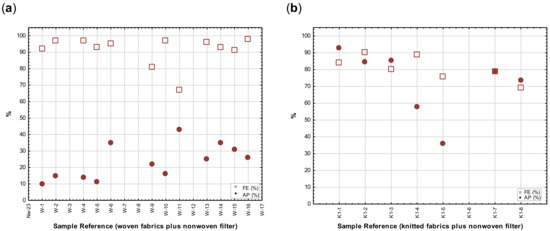

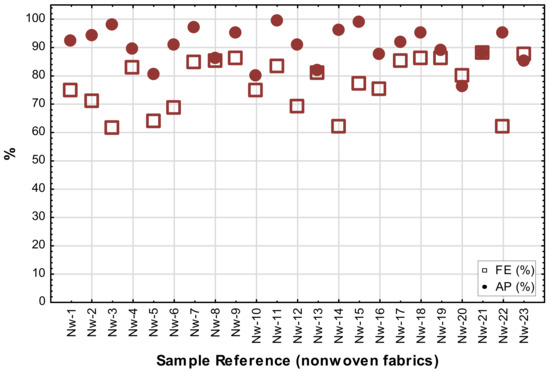

To function as source control, a fabric mask must be able to filter micro-droplets (≥5 µm) in expiratory secretions and still allow the wearer to breathe normally. This study investigated the effects of fabric structural properties on the filtration efficiency (FE) and air permeability (AP) of a range of textile fabrics, using a new method to measure the filtration of particles in the described conditions. The FE improved significantly when the number of layers increased. The FE of the woven fabrics was generally higher, but double-layer weft knitted fabrics, especially when combined with a third (filter) layer, provided a comparable FE without compromising on breathability. This also confirmed the potential of nonwoven fabrics as filter layers in masks. None of the physical fabric properties studied affected FE significantly more than the others. The variance in results achieved within the sample groups show that the overall performance properties of each textile fabric are a product of its combined physical or structural properties, and assumptions that fabrics which appear to be similar will exhibit the same performance properties cannot be made. The combination of layers of fabric in the design of a mask further contributes to the product performance. Full article

The objective of the study was to evaluate the usefulness of novel nonwoven textile filter technology for greywater treatment. This technology had already been used on a lab scale for septic tank effluent treatment; however, this study is the first time it has been used for greywater treatment. The set-up period with septic tank effluent (STE) feeding was significantly shorter than that of greywater feeding. The average capacities of both filter types were practically the same: 1.0–1.4 cm d⁻¹. The relatively high efficiencies of chemical oxygen demand (COD_Cr) and biochemical oxygen demand (BOD₅) removal (58.8–71.6% and 56.7–79.8%, respectively) were obtained thanks to the relatively low filtration velocity and effective diffusion of atmospheric air into the greywater. The relatively high efficiency of total suspended solids (TSS) removal (67.0–88.4%) was obtained by reducing the effective pore size of the filtration layer due to high biomass concentration and accumulation of suspended solids. Thanks to hydrostatic pressure, the filters can work practically with very low energy consumption. The pollutants removal efficiencies were satisfactory in respect to simple construction and maintenance, low investment and operational costs. Full article

Filtering nonwovens that constitute the base material for filtering facepiece respirators (FFRs) used for the protection of the respiratory system against bioaerosols may, in favourable conditions, promote the development of harmful microorganisms. There are no studies looking at the impact that different types of filtering nonwovens have on microorganism survival, which is an important issue for FFR producers and users. Five commercial filtering nonwovens manufactured using diverse textile technologies (i.e., needle-punching, melt-blown, spun-bonding) with different structural parameters and raw material compositions were used within our research. The survival of microorganisms on filtering nonwovens was determined for E. coli, S. aureus, B. subtilis bacteria; C. albicans yeast and A. niger mould. Samples of nonwovens were collected immediately after inoculum application (at 0 h) and after 4, 8, 24, 48, 72, and 96 h of incubation. The tests were carried out in accordance with the AATCC 100-1998 method. Survival depended strongly on microorganism species. E. coli and S. aureus bacteria grew the most on all nonwovens tested. The structural parameters of the nonwovens tested (mass per unit area and thickness) and contact angle did not significantly affect microorganism survival. Full article

The article deals with the preparation and possibilities of using combined filtration sorption systems usable for the construction of folded filters or respirators. The studied materials are made of several structural layers—a filter membrane made of polymeric nanofibers, an adsorbent containing active carbon or porous silicon dioxide nanofibers, and a supporting or cover nonwoven bicomponent fabric. The layers are connected only by pressure at an elevated temperature without the use of binders, according to utility model PUV 31 375. The result is a compact fabric material of textile character with a high permeability, good mechanical resistance, which effectively catches the submicron particles and the gases of the organic substances. The prepared samples of the filter sorptive material have been evaluated not only from the point of view of morphology and microstructure, but also from the point of view of the capture of pollutants. Full article
