Search Results (63)

An extensive experimental study of trivalent iron (Fe³⁺) ions in orthorhombic lithium gallate nanocrystals was undertaken. Various spectroscopic methods, such as Raman spectroscopy, extended X-ray absorption fine structure, the Mössbauer effect, electron paramagnetic resonance, photoluminescence, thermoluminescence, and cathodoluminescence were used to investigate the synthesized phosphor. This study revealed the existence of multiple Fe³⁺ sites, out of which the tetrahedral sites are preferentially occupied. Extensive optical studies showed that the Fe³⁺ doped lithium gallate phosphor is a promising candidate for various luminescence and thermoluminescence-related applications in the near-infrared regime. Full article

Porous nanocrystalline lanthanum perovskite La-Fe-O (LaFeO₃) powders were synthesized by the sol–gel self-combustion method, using polyvinyl alcohol as the colloidal medium. The perovskite structure of the material, without secondary phases, was obtained at a calcination temperature of 900 °C for 40 min. The obtained powder was tested for catalytic activity at moderate temperatures (50–550 °C) for ethanol, methanol, acetone, benzene, and Pb-free gasoline vapors. Catalytic combustion begins at quite low temperatures (60–200 °C), compared to normal combustion, and this can be attributed to the nanometric crystallites, the large specific surface area, and the presence of iron cations with different valences, Fe³⁺/Fe²⁺, resulting from the method we used to obtain the material. The degree of conversion reaches values of over 99% for acetone and ethanol vapors at a temperature of 270 °C and 310 °C, respectively, and over 97% for methanol vapors at a temperature of 330 °C. The degree of conversion for Pb-free gasoline and benzene reaches somewhat lower values, over 88% at much higher temperatures, 470 °C and 550 °C, respectively. The lanthanum perovskite catalyst, LaFeO₃, obtained by the presented preparation method, can be recommended for the combustion of acetone, ethanol, and methanol vapors. The performance of this catalyst is remarkable and can be compared to that of a catalyst containing noble metals in its composition. Full article

Medium-entropy alloys (MEAs) exhibit properties comparable or even superior to high-entropy alloys (HEAs). Due to their very good resistance in thermomechanical conditions and corrosive environments and unique electrical and magnetic properties, medium-entropy alloys are good candidates for coating applications. One of the most economically effective methods of producing metallic coatings is electrodeposition. In this work, the structure of an electrodeposited CoFeNi medium-entropy alloy coating on a copper substrate from a metal chlorides solution (FeCl₂ ∙ 4H₂O + CoCl₂ ∙ 6H₂O + NiCl₂ ∙ 6H₂O) with the addition of boric acid (H₃BO₃) was investigated. The coating was characterized by a nanocrystalline structure identified by transmission electron microscopy examination and X-ray diffraction methods. Based on XRD and TEM, the face-centered cubic (FCC) phase of the CoFeNi MEA coating was identified. The high corrosion resistance of the MEA coating in a 3.5% NaCl environment at 25 °C was confirmed by electrochemical tests. Full article

This study investigates the structural and catalytic properties of pure and Sr-doped LaCoO₃ and LaFeO₃ thin films for potential use as resistive gas sensors. Thin films were deposited via pulsed laser deposition (PLD) and characterized using X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), scanning electron microscopy (SEM), atomic force microscopy (AFM), nanoindentation, and scratch tests. XRD analysis confirmed the formation of the desired perovskite phases without secondary phases. XPS revealed the presence of La³⁺, Co³⁺/Co⁴⁺, Fe³⁺/Fe⁴⁺, and Sr²⁺ oxidation states. SEM and AFM imaging showed compact, nanostructured surfaces with varying morphologies (shape and size of surface irregularities) depending on the composition. Sr doping led to surface refinement and increased nanohardness and adhesion. Transmission electron microscopy (TEM) analysis confirmed the columnar growth of nanocrystalline films. Sr-doped LaCoO₃ demonstrated enhanced sensitivity and stability in the presence of NO₂ gas compared to pure LaCoO₃, as evidenced by electrical resistivity measurements within 230 ÷ 440 °C. At the same time, it was found that Sr doping stabilizes the catalytic activity of LaFeO₃ (in the range of 300 ÷ 350 °C), although its behavior in the presence of NO₂ differs from that of LaCo(Sr)O₃—especially in terms of response and recovery times. These findings highlight the potential of Sr-doped LaCoO₃ and LaFeO₃ thin films for NO₂ sensing applications. Full article

Co_1−xMn_xFe₂O₄ nanoparticles (0 ≤ x ≤ 1) have been prepared via the hydrothermal method. The prepared samples were studied using X-ray diffraction measurements (XRD), transmission electron microscopy (TEM), Raman spectroscopy, and magnetic measurements. All studied samples were found to be single phases and to have a cubic Fd-3m structure. The average crystalline sizes are between 7.8 and 15 nm. EDS analysis confirmed the presence of cobalt, manganese, iron, and oxygen in all prepared samples. It was found by Raman spectroscopy that Fe³⁺ would be placed on octahedral sites while Fe²⁺ would, in turn, be displaced to tetrahedral sites while Mn ions will be placed on both sites. Both Mn²⁺ and Mn⁴⁺ are present in studied ferrites. The experimental saturation magnetizations for doped samples are much higher when compared with previous reports, reaching values between 3.71 and 6.7 μ_B/f.u. The doping with Mn in nanocrystalline cobalt ferrite enhanced the magnetic properties due to changes in the cation distribution between the two sublattices. The higher magnetic moments are explained by the presence of Mn⁴⁺ ions located preferentially on tetrahedral sites while Mn²⁺ prefer octahedral sites, and by the high quality and crystallinity of our samples the nanoparticles being almost monodomain. Large values of the coercive field were found at 4.2 K while the hysteresis is almost absent in all investigated samples at room temperature. Full article

In this study, magnetic binary/ternary Zn_xCo_1−xFe₂O₄ (x = 0, 0.5, 1) nanoparticles were synthesized using a straightforward one-step microwave technique. To produce the Zn_xCo_1−xFe₂O₄ nanoparticles, iron (III) nitrate nonahydrate, zinc nitrate hexahydrate, and cobalt nitrate hexahydrate were used as metal sources, with urea used as the fuel and ammonium nitrate as the oxidizer. These materials were combined in an alumina crucible covered by a CuO jacket to absorb microwave energy and facilitate calcination. The thermal treatment involved placing the alumina crucible in a domestic microwave oven at 450 W for 30 min. The key strengths of this experimental strategy include its simplicity, cost-effectiveness, and rapidity, aligning with green chemistry principles. The synthesized nanoparticles were characterized using X-ray diffraction (XRD), Fourier transform infrared (FT-IR) spectroscopy, a vibrating sample magnetometer (VSM), and Brunauer–Emmett–Teller (BET) analysis. XRD analysis confirmed the presence of the pure ferrite nanocrystalline phase. Scanning electron microscopy (SEM), employed with energy-dispersive X-ray spectroscopy (EDS), was used to study the surface morphology and analyze the elemental composition. The SEM analysis revealed that the synthesized magnetic nanoparticles had particle sizes ranging from 30 to 50 nm. Furthermore, we explored the potential use of these magnetic nanoparticles as photocatalysts for degrading organic pollutants such as methylene blue in aqueous solutions. Full article

Soft magnetic composite cores were produced by spark plasma sintering (SPS) from Ni₃Fe@ZnFe₂O₄ and NiFeMo@ZnFe₂O₄ pseudo-core-shell powders. In the Fe-Ni alloys@ZnFe₂O₄ pseudo-core-shell composite powders, the core is a large nanocrystalline Permalloy or Supermalloy particle obtained by mechanical alloying, and the shell is a pseudo continuous layer of Zn ferrite particles. The pseudo-core-shell powders have been compacted by SPS at temperatures between 500–700 °C, with a holding time of 0 min. Several techniques were used for the characterisation of the powders and sintered compacts: X-ray diffraction, scanning electron microscopy, energy dispersive X-ray spectroscopy, magnetic hysteresis measurements (DC and AC), and electrical resistivity. The electrical resistivity is stabilised at values of about 7 × 10⁻³ Ω·m for sintering temperatures between 600–700 °C and this value is three orders of magnitude higher than the electrical resistivity of sintered Fe compacts. The best relative initial permeability was obtained for the Supermalloy/ZnFe₂O₄ composite compacts sintered at 600 °C, which decreases linearly for the entire frequency range studied, from around 95 to 50. At a frequency of 2000 Hz, the power losses are smaller than 1.5 W/kg. At a frequency of 10 kHz, the power losses are larger, but they remain at a reduced level. In the case of Supermalloy/ZnFe₂O₄ composite compact SPS-ed at 700 °C, the specific power losses are even lower than 5 W/kg. The power losses’ decomposition proved that intra-particle losses are the main type of losses. Full article

The potential of aerogels as catalysts for the synthesis of a relevant class of bis-heterocyclic compounds such as bis(indolyl)methanes was investigated. In particular, the studied catalyst was a nanocomposite aerogel based on nanocrystalline nickel ferrite (NiFe₂O₄) dispersed on amorphous porous silica aerogel obtained by two-step sol–gel synthesis followed by gel drying under supercritical conditions and calcination treatments. It was found that the NiFe₂O₄/SiO₂ aerogel is an active catalyst for the selected reaction, enabling high conversions at room temperature, and it proved to be active for three repeated runs. The catalytic activity can be ascribed to both the textural and acidic features of the silica matrix and of the nanocrystalline ferrite. In addition, ferrite nanocrystals provide functionality for magnetic recovery of the catalyst from the crude mixture, enabling time-effective separation from the reaction environment. Evidence of the retention of species involved in the reaction into the catalyst is also pointed out, likely due to the porosity of the aerogel together with the affinity of some species towards the silica matrix. Our work contributes to the study of aerogels as catalysts for organic reactions by demonstrating their potential as well as limitations for the room-temperature synthesis of bis(indolyl)methanes. Full article

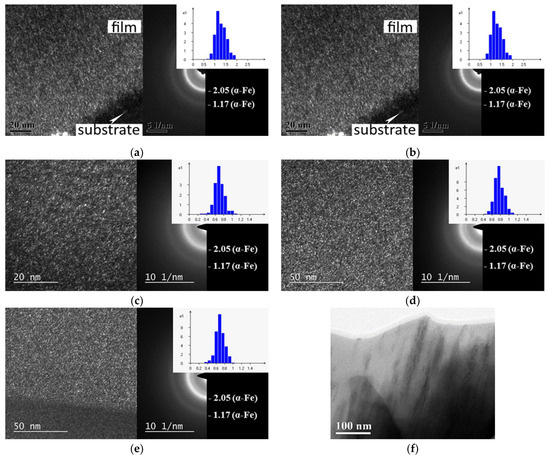

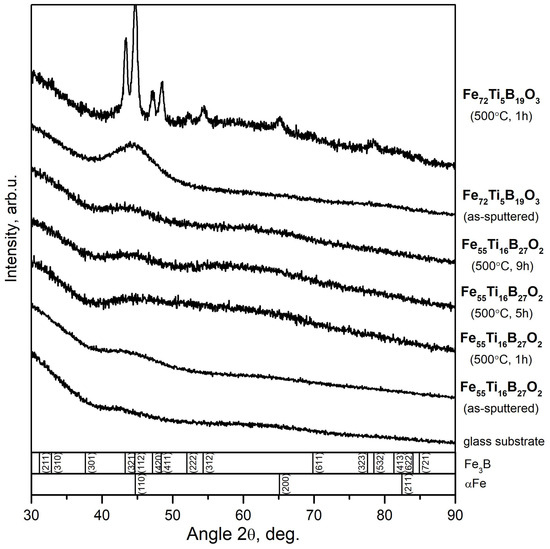

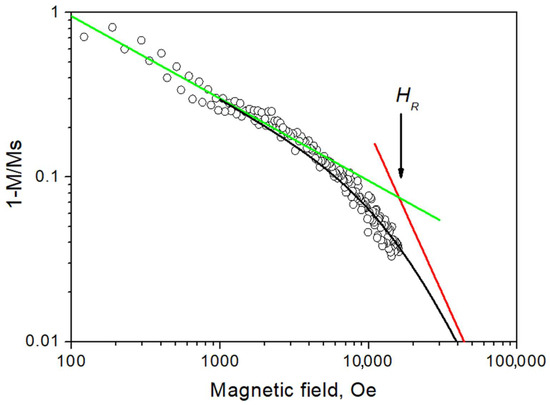

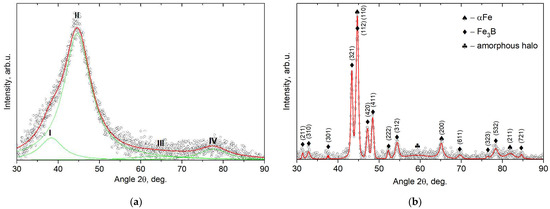

Results of XRD and TEM studies of a metastable phase state in Fe₇₃Ti₅B₁₉O₃ and Fe₅₅Ti₁₆B₂₇O₂ films, which is formed upon magnetron deposition under preset conditions, and of the evolution of the state in the course of subsequent annealing at 500 °C for 1, 5, and 9 h and experimental data on the magnetic microstructure and magnetic properties are reported. The annealed films were found to be characterized by a nanocrystalline structure, which is represented by two crystalline phases, namely, the ferromagnetic solid solution αFe(Ti), and nonferromagnetic boride Fe_nB. The Ti content in the films determines the grain size of the αFe(Ti) phase, whereas the content of B localized within the grain boundaries determines the ratio of the volume fractions of amorphous and nanocrystalline phases in the structure. In contrast to the ferromagnetic Fe₇₃Ti₅B₁₉O₃ films, the Fe₅₅Ti₁₆B₂₇O₂ films are superparamagnets both in the deposited state and after annealing at 500 °C for 1 and 5 h because of the higher volume fraction of the amorphous phase in the structure. The 9 h annealing of the Fe₅₅Ti₁₆B₂₇O₂ films transfers them into the ferromagnets owing to the development of the amorphous phase crystallization, increase in the content of nanocrystalline ferromagnetic phase αFe(Ti) grains, and realization of exchange interaction between them. Full article

Multifunctional nanocomposites from an equimolar As₄S₄/Fe₃O₄ cut section have been successfully fabricated from coarse-grained bulky counterparts, employing two-step mechanochemical processing in a high-energy mill operational in dry- and wet-milling modes (in an aqueous solution of Poloxamer 407 acting as a surfactant). As was inferred from the X-ray diffraction analysis, these surfactant-free and surfactant-capped nanocomposites are β-As₄S₄-bearing nanocrystalline–amorphous substances supplemented by an iso-compositional amorphous phase (a-AsS), both principal constituents (monoclinic β-As₄S₄ and cubic Fe₃O₄) being core–shell structured and enriched after wet milling by contamination products (such as nanocrystalline–amorphous zirconia), suppressing their nanocrystalline behavior. The fluorescence and magnetic properties of these nanocomposites are intricate, being tuned by the sizes of the nanoparticles and their interfaces, dependent on storage after nanocomposite fabrication. A specific core–shell arrangement consisted of inner and outer shell interfaces around quantum-confined nm-sized β-As₄S₄ crystallites hosting a-AsS, and the capping agent is responsible for the blue-cyan fluorescence in as-fabricated Poloxamer capped nanocomposites peaking at ~417 nm and ~442 nm, while fluorescence quenching in one-year-aged nanocomposites is explained in terms of their destroyed core–shell architectures. The magnetic co-functionalization of these nanocomposites is defined by size-extended heterogeneous shells around homogeneous nanocrystalline Fe₃O₄ cores, composed by an admixture of amorphous phase (a-AsS), nanocrystalline–amorphous zirconia as products of contamination in the wet-milling mode, and surfactant. Full article

In recent years, fluoride pollution in water is a problem that has attracted much attention from researchers. The removal of fluoride-containing wastewater by adsorption with metal oxide as an adsorbent is the most common treatment method. Based on this, the effect of the doping ratio of La₂O₃, Fe₂O_3, and Al₂O₃ on the fluoride-removal performance was discussed by constructing a phase diagram. In this study, the adsorption mechanism of nanocrystalline lanthanum oxide terpolymer was investigated by density functional theory calculation and experiment. The optimal pH condition selected in the experiment was three, and the adsorption kinetics of fluoride ions were more consistent with the quasi-second-order kinetic model. The adsorption thermodynamics was more consistent with the Langmuir model. When the La-Fe-Al ternary composite oxides achieved the optimal adsorption efficiency for fluoride ions, the mass synthesis ratio was Al₂O₃:(Fe₂O₃:La₂O₃ = 1:2) = 1:100, resulting in a fluoride ion removal rate of up to 99.78%. Density functional calculations revealed that the La-Fe-Al ternary composite oxides had three important adsorption sites for La, Fe, and Al. Among them, the adsorption capacity for HF was Fe₂O₃ > La₂O₃ > Al₂O₃, and for F⁻ was La₂O₃ > Al₂O₃ > Fe₂O₃. This provided good guidance for designing adsorbents to remove fluoride. Full article

The paper shows the obtaining of nanocrystalline iron manganite (FeMnO₃) powders and their investigation in terms of catalytic properties for a series of volatile organic compounds. The catalyst properties were tested in the catalytic combustion of air-diluted vapors of ethanol, methanol, toluene and xylene at moderate temperatures (50–550 °C). Catalytic combustion of the alcohols starts at temperatures between 180 °C and 230 °C. In the case of ethanol vapors, the conversion starts at 230 °C and increases rapidly reaching a value of around 97% at 300 °C. For temperatures higher than 300 °C, the degree of conversion is kept at the same value. In the case of methanol vapors, the conversion starts at a slightly lower temperature (180 °C), and the degree of conversion reaches the value of 97% at a higher temperature (440 °C) than in the case of ethanol, and it also remains constant as the temperature increases. Catalytic combustion of the hydrocarbons starts at lower temperatures (around 50 °C), the degree of conversion is generally lower, and it increases proportionally with the temperature, with the exception of toluene, which shows an intermediate behavior, reaching values of over 97% at 430 °C. The studied iron manganite can be recommended to achieve catalysts that operate at moderate temperatures for the combustion of some alcohols and, especially, ethanol. The performance of this catalyst with regard to ethanol is close to that of a catalyst that uses noble metals in its composition. Full article

Nanocrystalline cellulose (NCC) can be converted into carbon materials for the fabrication of lithium-ion batteries (LIBs) as well as serve as a substrate for the incorporation of transition metal oxides (TMOs) to restrain the volume expansion, one of the most significant challenges of TMO-based LIBs. To improve the electrochemical performance and enhance the longer cycling stability of LIBs, a nanocrystalline cellulose-supported iron oxide (Fe₂O₃) composite (denoted as NCC–Fe₂O₃) is synthesized and utilized as electrodes in LIBs. The obtained NCC–Fe₂O₃ electrode exhibited stable cycling performance, better capacity, and high-rate capacity, and delivered a specific discharge capacity of 576.70 mAh g⁻¹ at 100 mA g⁻¹ after 1000 cycles. Moreover, the NCC–Fe₂O₃ electrode was restored and showed an upward trend of capacity after working at high current densities, indicating the fabricated composite is a promising approach to designing next-generation high-energy density lithium-ion batteries. Full article

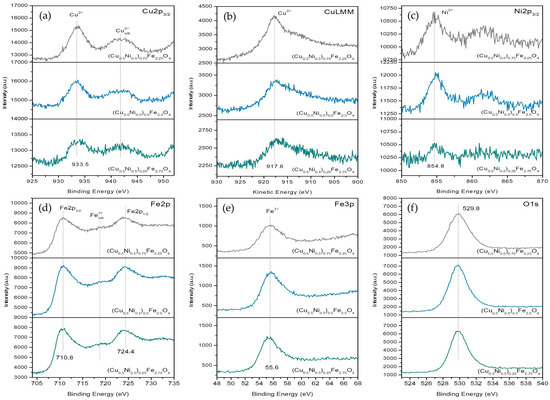

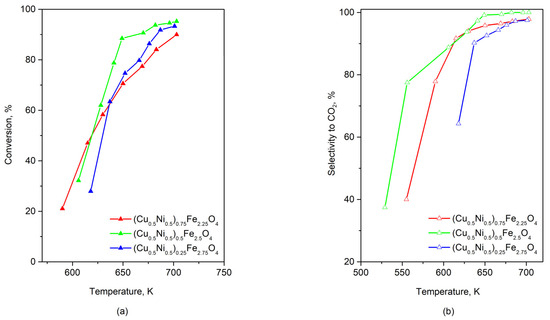

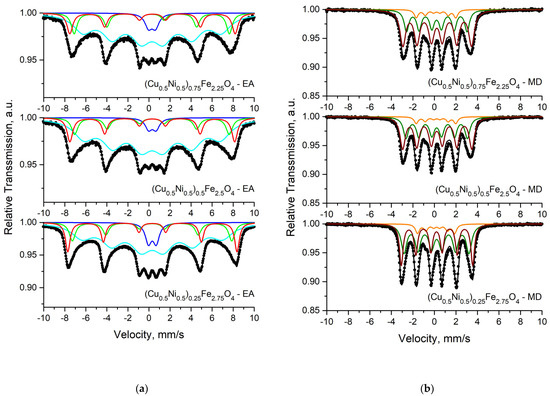

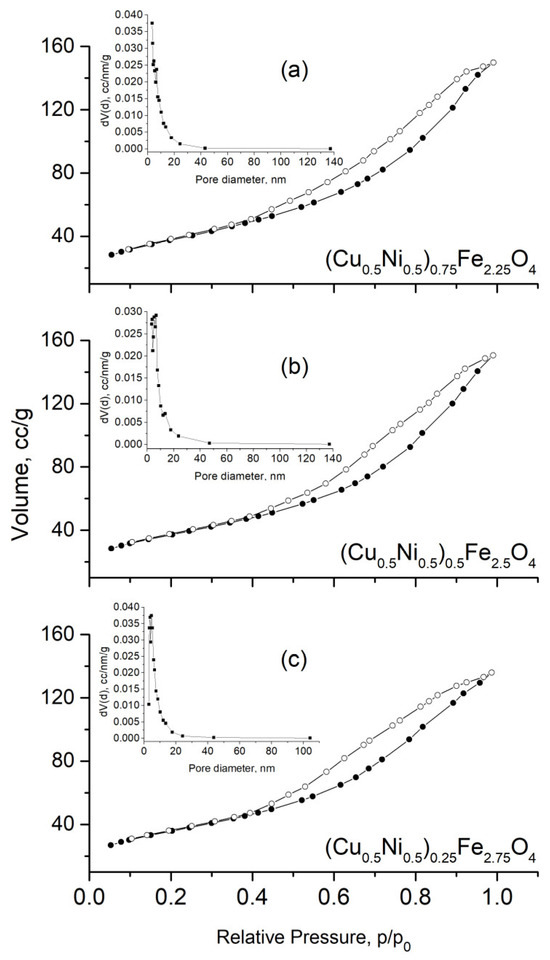

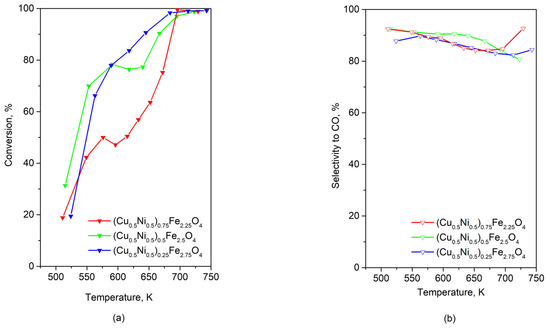

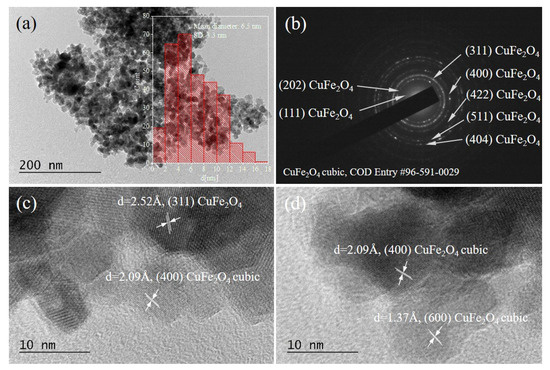

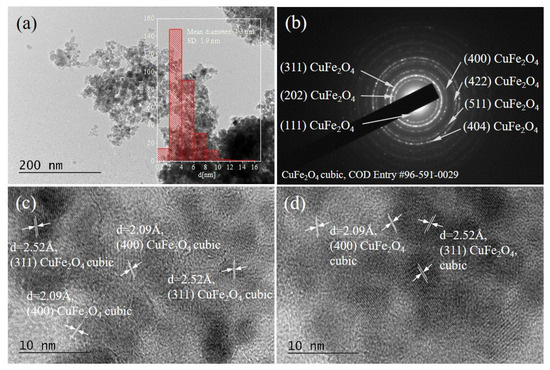

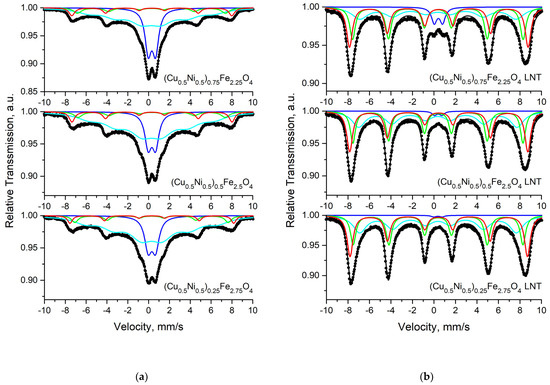

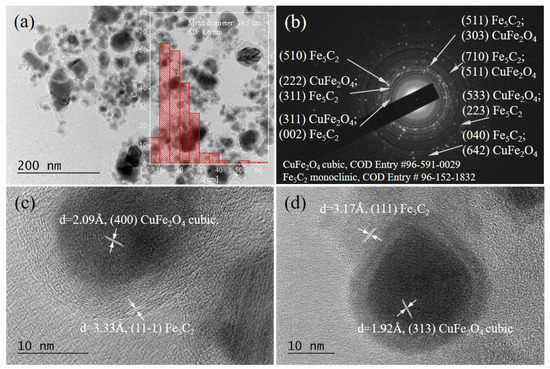

Nanocrystalline materials with the composition of (Cu_0.5Ni_0.5)_yFe_3−yO₄ and a spinel structure were synthesized by the auto-combustion sol–gel method. The materials were characterized by powder X-ray diffraction, Mössbauer spectroscopy, transmission electron microscopy, X-ray photoelectron spectroscopy, and N₂ physisorption. A decrease in the unit cell parameter and increase in the crystallite size with a decrease in the copper and nickel content in ferrites were evidenced. Mössbauer analysis determined that iron ions are in the 3+ states in all compositions. Transmission electron microscopy showed that synthesized ferrite materials consisted of nanoparticles with narrow size distributions. The catalytic properties of synthesized ferrites were studied in the reaction of ethyl acetate oxidation and methanol decomposition. The conversion of ethyl acetate and CO₂ selectivity increased with temperature, and this effect was most pronounced for (Cu_0.5Ni_0.5)_0.5Fe_2.5O₄, for which the main part of the particles possessed sizes below 10 nm, and the mean diameter was calculated to be 4.3 nm. The catalytic activity in the reaction of methanol decomposition was the highest for (Cu_0.5Ni_0.5)_0.25Fe_2.75O₄, and it decreased with the increase in Cu and Ni content in the samples. The analysis of the samples after the catalytic test indicated significant reduction transformations within the catalysts. Under the reaction medium, the spinel phase decomposed through the formation of Hägg carbide. Full article

The sintering of iron ammonia synthesis catalysts (nanocrystalline iron promoted with: Al₂O₃, CaO and K₂O) was studied under a hydrogen atmosphere, in a temperature range of 773 to 973 K to obtain stationary states. The catalysts were characterized by measuring the nitriding reaction rate under an ammonia atmosphere at 748 K to obtain steady states and the measurement of specific surface area. Chemical processes were conducted in a tubular differential reactor enabling thermogravimetric measurements and the chemical composition analysis of a gas phase under conditions allowing experiments to be carried out in the kinetic region of chemical reactions. An extended model of the active surface of the iron ammonia synthesis catalyst was presented, taking into account the influence of the gas phase composition and process temperature. The surface of iron nanocrystallites was wetted using promoters in an exothermic process associated with the formation of the surface Fe^s-O- bond and the change in the surface energy of iron nanocrystallites. Promoters formed on the surface of iron nanocrystallites with different structures of chemisorbed dipoles, depending on the composition of the gas phase. The occupied sites stabilized the structure, and the free sites were active sites in the process of adsorption of chemical reagents and in sintering. Based on the bonding energy of the promoter oxides and the difference in surface energy between the covered and uncovered surfaces, the wetting abilities of promoters, which can be arranged according to the order K₂O > Fe₃O₄ > Al₂O₃ > CaO, were estimated. By increasing the temperature in the endothermic sintering process, the degree of surface coverage with dipoles of promoters decreased, and thus the catalyst underwent sintering. The size distribution of nanocrystallites did not change with decreasing temperature. Only the equilibrium between the glass phase and the surface of iron nanocrystallites was then established. Full article
