Search Results (45)

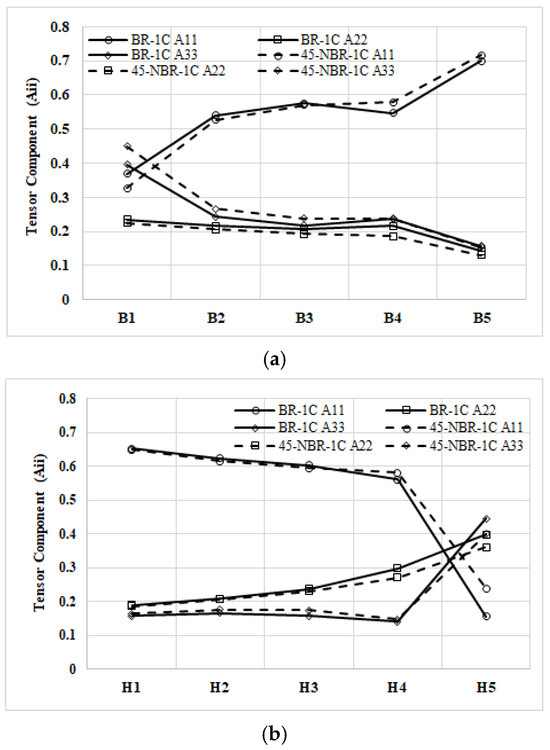

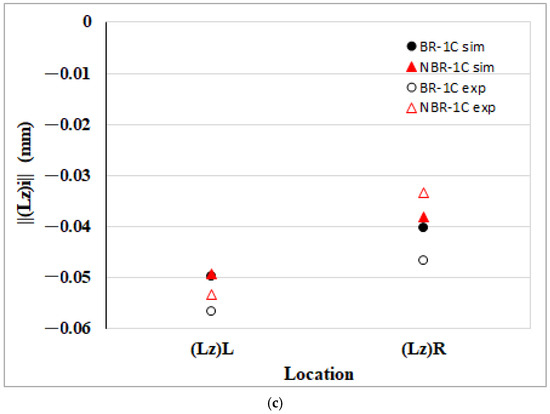

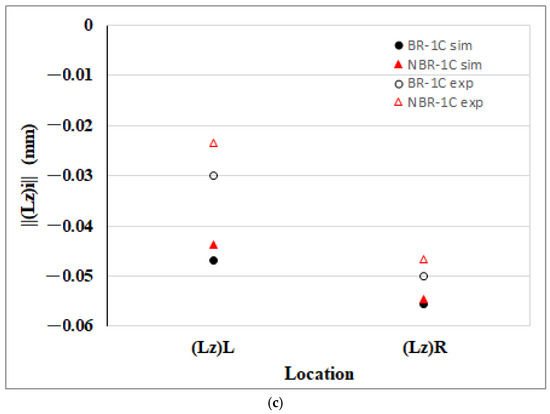

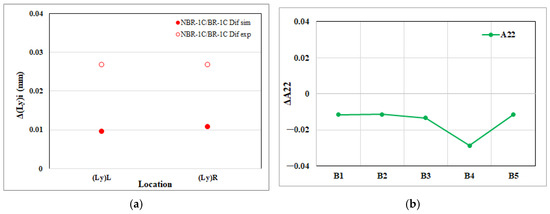

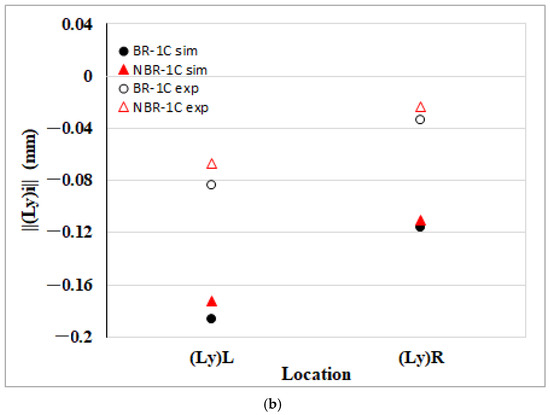

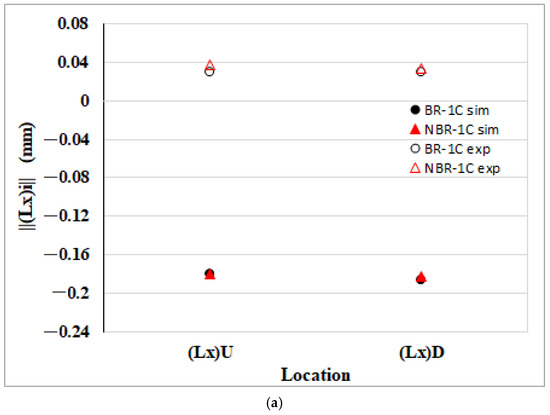

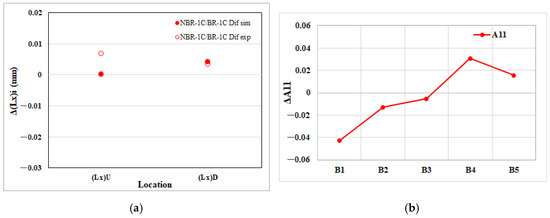

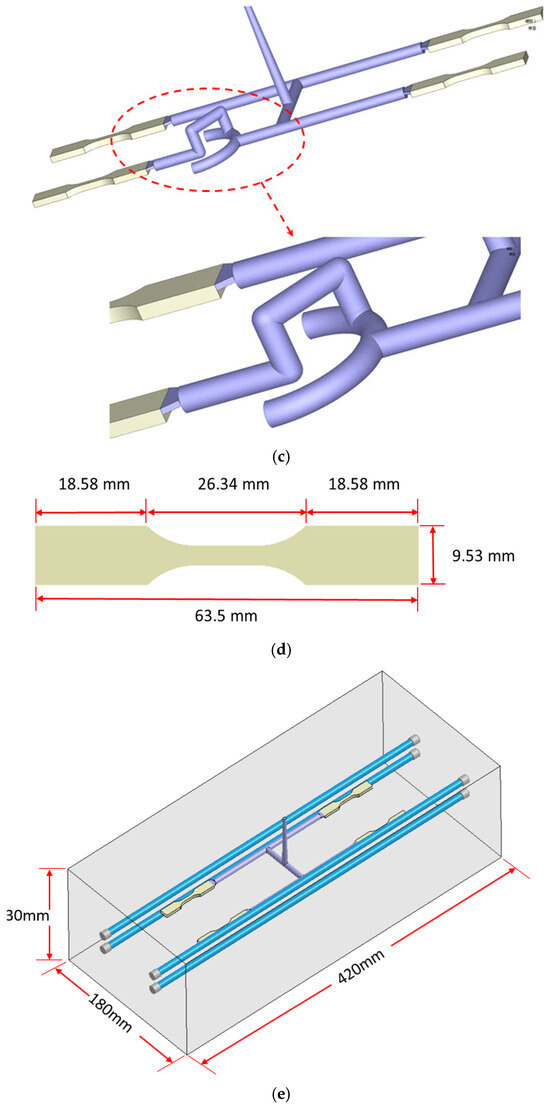

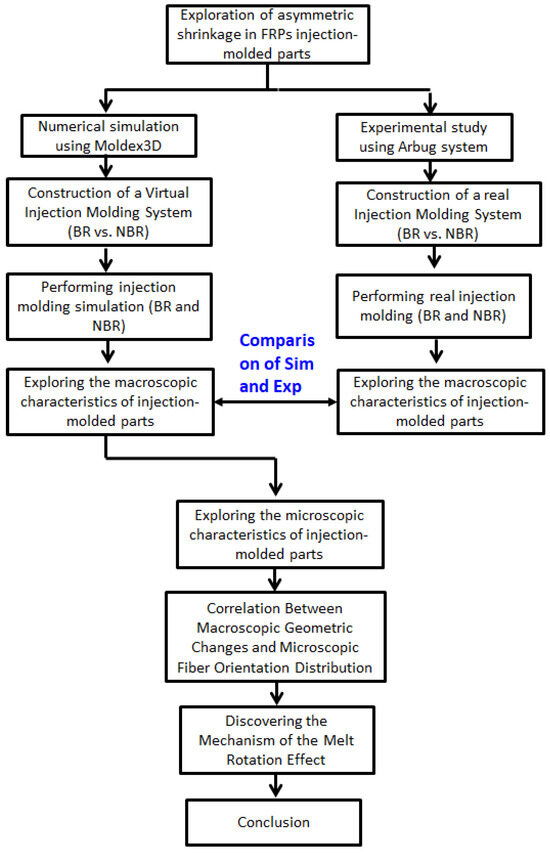

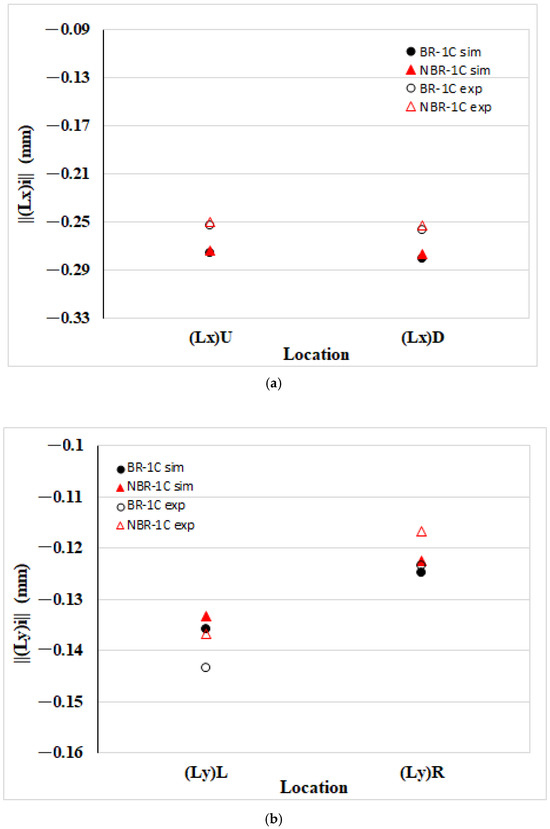

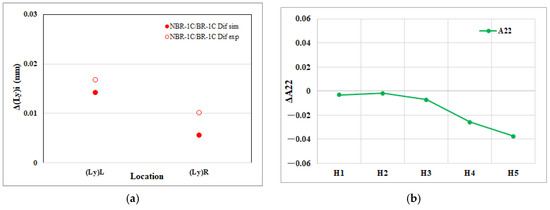

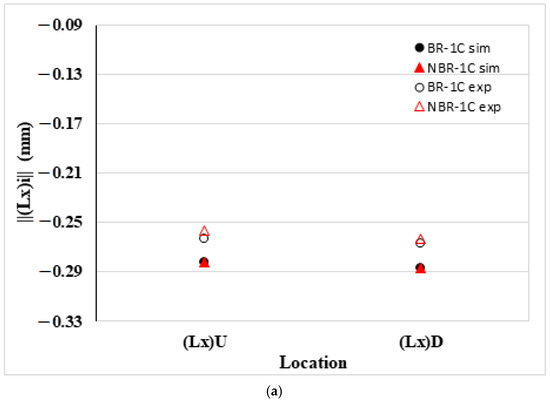

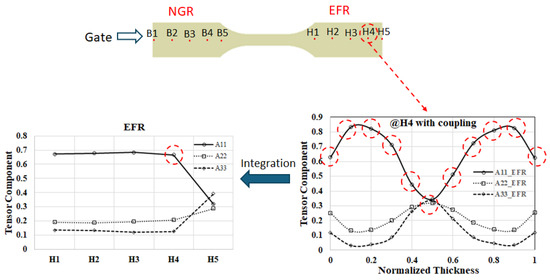

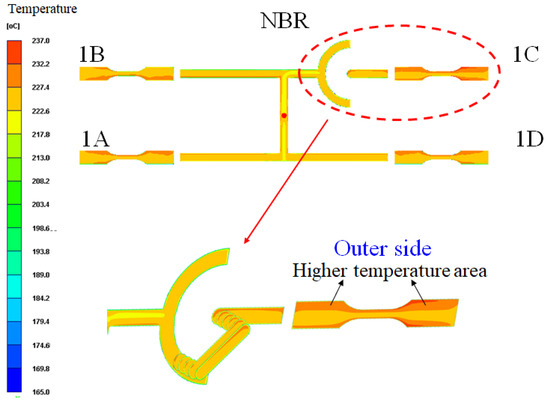

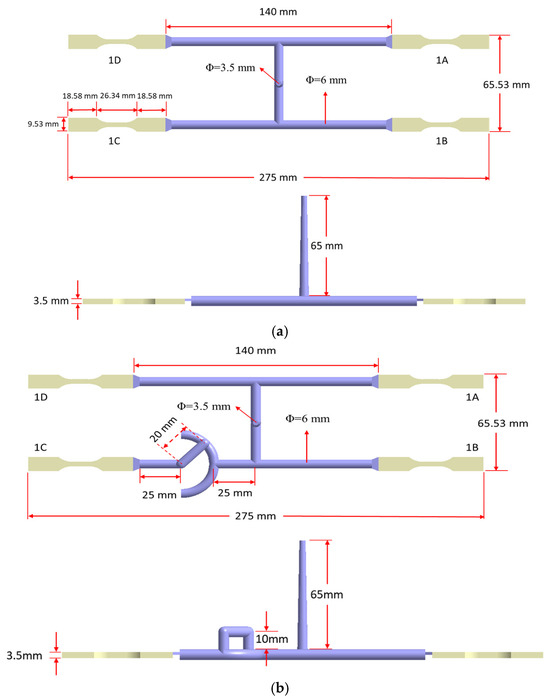

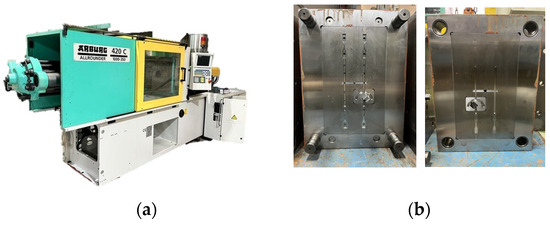

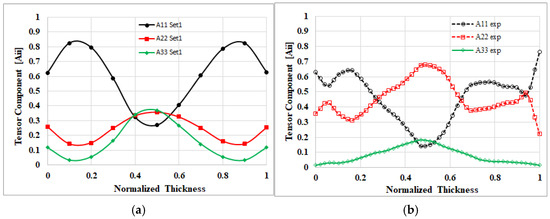

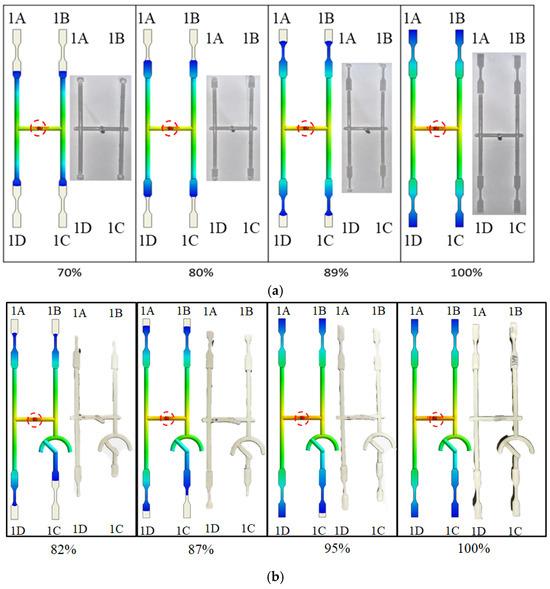

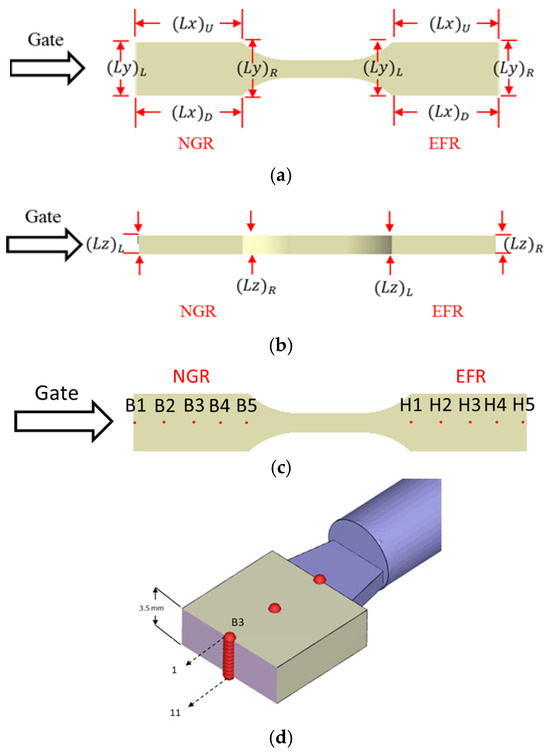

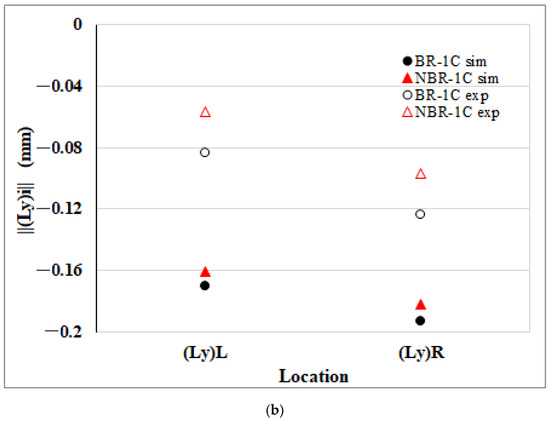

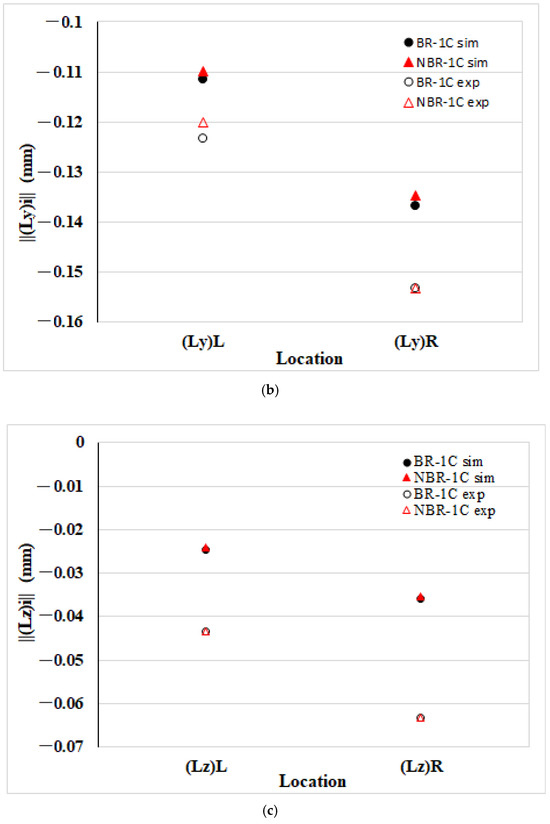

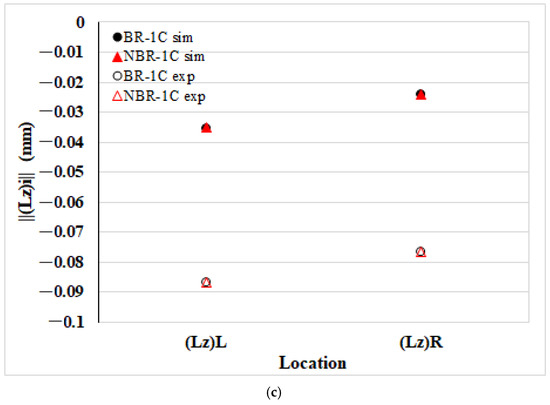

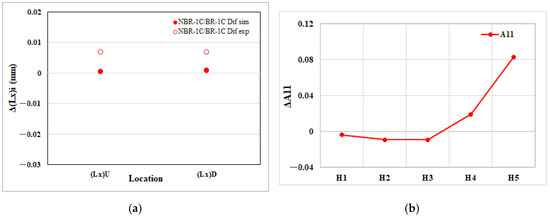

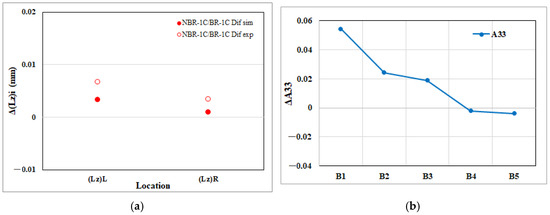

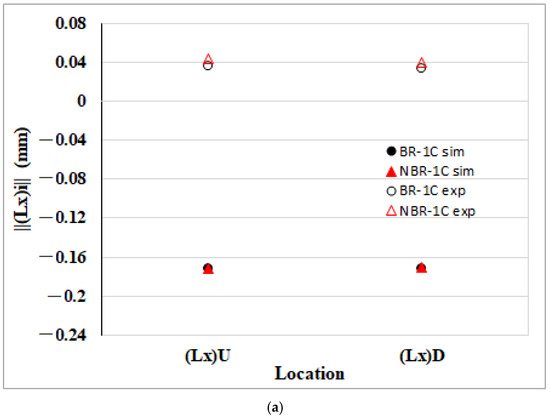

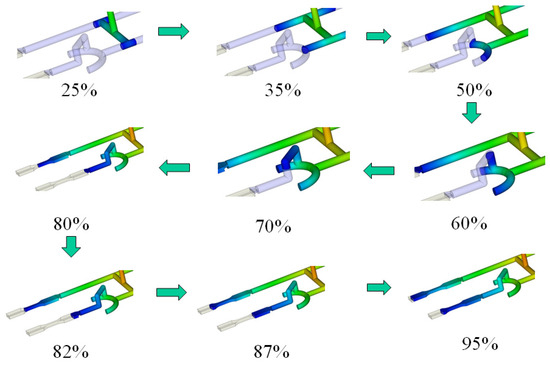

The study focuses on the asymmetric shrinkage typically occurring between the upstream and downstream regions of FRP injection-molded products, a challenge that is particularly difficult to manage and improve. Specifically, two sets of four-cavity systems in one mold were utilized as the experimental platform. One set used a balanced runner (BR) system, and the other used a non-balanced runner (NBR) system. Each cavity in the four-cavity systems contained an ASTM D638 standard specimen with dimensions of 63.5 mm × 9.53 mm × 3.5 mm. Both CAE simulation and experimental methods were applied. The results show that the filling patterns from the simulation analysis closely matched those from the experimental study for both BR and NBR systems. Furthermore, by comparing the geometric shrinkage of the injected parts, significant differences were observed in the dimensional deformation in three directions (x, y, and z) between the NBR and BR systems. Specifically, at the end of the filling region (EFR), there was no noticeable difference in shrinkage along the flow direction, but the shrinkage in the cross-flow and thickness directions was reduced in the NBR system. Additionally, for the same cavity (1C) in both BR and NBR systems, the melt-rotation effect significantly reduced shrinkage in both the cross-flow and thickness directions. These findings strongly suggest that melt rotation can effectively modify the dimensional shrinkage of injection-molded parts. Moreover, fiber orientation analyses of the 1C cavity were also performed using CAE simulation for both BR and NBR systems. The results show that in the NBR system, the melt-rotation effect substantially alters the fiber orientation. Specifically, the fiber orientation tensors in the cross-flow (A₂₂) direction exhibit a decreasing trend. It can be speculated that the melt rotation alters the flow field, which subsequently changes the fiber orientation by reducing the flow-fiber coupling effect, thereby reducing the upstream-to-downstream asymmetry in the cross-flow direction. Through in-depth analysis, it is demonstrated that the correlation between the macroscopic geometric shrinkage and the microscopic fiber orientation changes is highly consistent. Specifically, in the EFR, ΔA₂₂ decreased by 0.0376, improving upstream/downstream shrinkage asymmetry in the cross-flow direction (Ly). Future work will investigate alternative melt-rotation designs and the optimization of model-internal parameters in FOD prediction. Full article

USP (usual temperature pitch)-modified asphalt optimizes its rheological properties through reactions between the modifier and the asphalt. This significantly enhances the high- and low-temperature adaptability and environmental friendliness of asphalt. It has now become an important research direction in the field of highway engineering. This article systematically investigates the impact of different dosages of USP warm mix modifier on asphalt binders through rheological and microstructural analysis. Base asphalt and SBS-modified asphalt were blended with USP at varying ratios. Conventional tests (penetration, softening point, ductility) were combined with dynamic shear rheometry (DSR, AASHTO T315) and bending beam rheometry (BBR, AASHTO T313) to characterize temperature/frequency-dependent viscoelasticity. High-temperature performance was quantified via multiple stress creep recovery (MSCR, ASTM D7405), while fluorescence microscopy and FTIR spectroscopy elucidated modification mechanisms. Key findings reveal that (1) optimal USP thresholds exist at 4.0% for base asphalt and 4.5% for SBS modified asphalt, beyond which the rutting resistance factor (G*/sin δ) decreases by 20–31% due to plasticization effects; (2) USP significantly improves low-temperature flexibility, reducing creep stiffness at −12 °C by 38% (USP-modified) and 35% (USP/SBS composite) versus controls; (3) infrared spectroscopy displays that no new characteristic peaks appeared in the functional group region of 4000–1300 cm⁻¹ for the two types of modified asphalt after the incorporation of USP, indicating that no chemical changes occurred in the asphalt; and (4) fluorescence imaging confirmed that the incorporation of USP led to disintegration of the spatial network structure of the control asphalt, explaining the reason for the deterioration of high-temperature performance. Full article

The algae-derived bio-binder (ADBB) from hydrothermal liquefaction has been reported to be an effective and sustainable new alternative to petroleum-based curing agents for epoxy resin. However, there is still room for the epoxy/ADBB system to attain the comprehensive mechanical performance of conventional epoxy-based nanocomposites, typically reinforced with surface-functionalized nanofillers (e.g., glass nanoparticles (GNPs)) by petroleum-based silane coupling agents. Herein, we explored the use of ADBB as an innovative surface-modifying agent to functionalize GNPs and evaluated the potential of ADBB surface-functionalized GNPs (ADBB-GNPs) as a reinforcing agent in the epoxy/ADBB matrix nanocomposite by comparing them to pristine GNPs and (3-aminopropyl) triethoxysilane (APTES) (a popular silane coupling agent) surface-modified GNPs (APTES-GNPs). The surface functionalization of GNPs with ADBB was carried out and characterized by scanning electron microscopy (SEM), dynamic light scattering (DLS), and Fourier-transform infrared spectroscopy (FTIR). Material performance including tensile, flexural, and Izod impact properties and thermal properties of the resulting epoxy/ADBB nanocomposites were investigated by corresponding ASTM mechanical test standards and thermogravimetric analysis (TGA). Our results revealed that the ADBB is a sustainable and effective surface-modifying agent that can functionalize GNPs. The obtained ADBB-GNPs significantly improved the mechanical performance of the epoxy/ADBB system at ultra-low loading (0.5 wt.%) by up to 42% and the maximum decomposition rate temperature increased from 419 °C to 422 °C, both of which outperformed APTES-GNPs. This research sheds light on developing sustainable surface-modifying agents for nanofillers to create high-performance sustainable polymer composite materials. Full article

The environmental challenges posed by laboratory plastic waste, particularly single-use items, underscore the urgent need for sustainable alternatives. This study investigated the development of reusable and biodegradable labware, addressing both functional and environmental demands. The content of the biodegradable additive in the polypropylene (PP) varied from 1% to 2% by weight via twin-screw extrusion, followed by injection molding to fabricate test specimens. Three different grades of PP were also compared. Optical, mechanical, and thermal properties were systematically assessed before and after repetitive autoclave sterilization for up to 10 cycles (121 °C, 15 min, 0.11 MPa). Additionally, cytotoxicity following electron beam irradiation (E-Beam 25 and 50 kGy) was evaluated in compliance with ISO 10993-5, alongside biodegradability studies conducted under ASTM D5511 conditions. The results demonstrate that the biodegradable additive stabilized the appearance and enhanced the flexural and impact strengths of PP without compromising thermal stability, particularly after five autoclave cycles. Cytotoxicity assays confirmed the biocompatibility of the additive-modified PP, while biodegradability tests indicated moderate degradation, with 12% biodegradation achieved over 6 months compared to negligible degradation in the negative control. These findings highlight the potential of additive-modified PP as a sustainable solution for reusable labware, balancing durability with improved environmental performance and providing a viable step toward more sustainable laboratory practices. Full article

The investment casting of titanium and its alloys relies on a high resistance of the crucibles and shell molds in terms of temperature and reactivity. The availability of ceramic crucibles that offer sufficient resistance to the titanium melt enables vacuum induction melting (VIM). CaZrO₃ prepared from a mixture of CaO and ZrO₂ as a raw material for refractory ceramics shows a high corrosion resistance against metallic melts even under very high temperatures up to 1800 °C. Crucibles and shell molds of CaZrO₃ were successfully produced and used in subsequent casting trials. This study is focused on the refractory crucibles suitable for casting Ti-6Al-4V (Ti-64) using a tilt casting machine. In order to evaluate the crucible reaction and, therefore, the quality of the castings, chemical analyses, investigations of the microstructures and hardness measurements were carried out. Careful control of the melting duration is mandatory to avoid crucible reactions that otherwise result in contamination of the cast with oxygen and zirconium. This was achieved by modified coil geometries. Under optimized casting conditions, the oxygen and zirconium impurity limits of ASTM B367-09 for titanium castings were met. Based on the correlations found, optimized casting parameters with regard to material quantity, coil geometry and heating power could be determined in order to provide guidance for a high-quality casting process with VIM. Full article

Anti-wear and anti-oxidation abilities are two key properties of lubricants that play a crucial role in ensuring long-term stable equipment operation. In this study, we aimed to develop a base oil with good anti-oxidation and anti-wear properties for use under extreme pressure. The as-prepared metallocene polyalphaolefin (mPAO) was chemically modified using the trifluoromethanesulfonic acid (TfOH) catalysis through an alkylating reaction with triphenyl phosphorothioate (TPPT). During the experiments, when the reaction temperature exceeded 70 °C or the concentration of TfOH exceeded 2.67%, the $\beta$-scission reaction in the alkylation process became significantly more pronounced. The physical and chemical properties of TPPT-modified mPAO (T-mPAO) were evaluated by nuclear magnetic resonance spectroscopy, Fourier trans-form infrared spectroscopy, gel–permeation chromatography, and ASTM standards. T-mPAO showed significantly improved antioxidant capacity, with the initial oxidation temperature increasing by 32 °C compared to the base oil, and it exhibited the slowest increase in acid number in the 96-h oven oxidation test. The tribological tests showed that T-mPAO had the lowest friction coefficient, wear track, and wear rate (72.7% lower than that of mPAO) as well as the highest P_B (238 kg) and P_D (250 kg) among all tested samples. Compared to mPAO, the average friction coefficient of TPPT-modified mPAO in the four-ball friction test was reduced by 30.5%, and by 16.4% in the TE77 reciprocating friction test. Based on the experimental results, T-mPAO had strong anti-oxidation ability and excellent lubricating performance.The successful synthesis of multifunctional mPAO has enabled lubricant base oil additization, making it possible to use it in more demanding work scenarios, greatly broadening its application scope and making lubricant formulation blending more flexible. Full article

The decarbonization of transportation plays a crucial role in mitigating climate change, and biodiesel has emerged as a promising solution due to its renewable and eco-friendly nature. However, in order to maintain the momentum of the “green trend” and ensure energy security, an ecologically friendly pathway is important to produce efficient biodiesel. In this work, activated carbon (AC) obtained from rice husk (RH) is hydrothermally prepared and modified through cobalt transition metal for catalyst support for the transesterification process. The physicochemical characteristics of the synthesized catalysts are examined using XRD, FTIR, SEM and EDS, TGA, and BET, while the produced biodiesel is also characterized using Gas Chromatography and Mass Spectroscopy (GC-MS). To optimize the transesterification process, Fatty Acid Methyl Esters (FAME) are produced by the conversion of waste cooking oil. Response Surface Methodology (RSM) is used to validate temperature (75 °C), the methanol-to-oil molar ratio (1:9), catalyst weight percentage (2 wt.%), and retention time (52.5 min). The highest conversion rate of waste cooking oil (WCO) to biodiesel was recorded at 96.3% and tested as per American Society for Testing and Materials (ASTM) standards. Based on the results, it is clear that cobalt-loaded rice husk-based green catalyst (RHAC-Co) enhanced catalytic activity and yield for biodiesel production. Further research should focus on engine performance evaluation and scaling up of the catalyst by optimizing it for the industrial scale. Full article

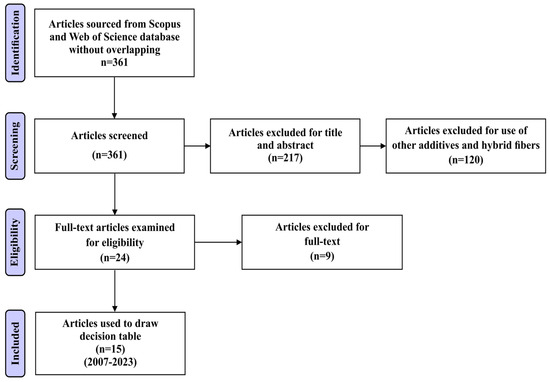

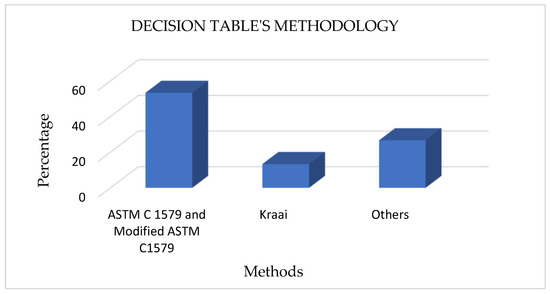

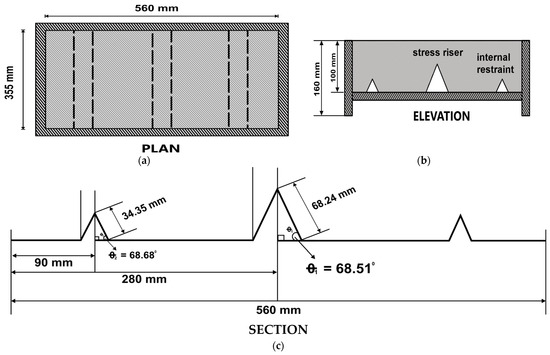

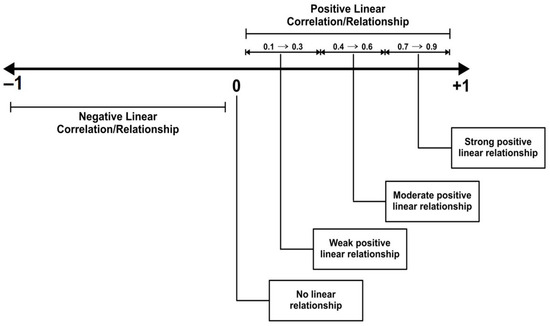

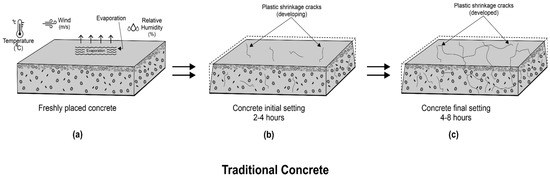

Multiple studies have investigated the use of steel, synthetic fibers, and natural fibers to reduce plastic shrinkage cracks in concrete, which are mostly caused by water evaporation from the surface of the material. This review used original published research articles from the Web of Science and Scopus database to evaluate the performance and relationship between the fiber volume, aspect ratio, compressive strength, and plastic shrinkage cracking. This review also discussed the most widely used technique for evaluating plastic shrinkage cracking, the ASTM C 1579, with two bottom restraints and a central stress riser to induce cracking, and its modified version with additional reinforcement for further restraining the ASTM C 1579 mold. Longer fibers function better than shorter fibers because of their larger surface area, which allows them to bridge fissures. It was also observed that crack initiation time is delayed when fibers are added to concrete. In addition, as the volume proportion of the fibers increased, the plastic shrinkage cracks decreased, but the compressive strength declined. Furthermore, the volume fraction of the fibers had a greater effect on reducing cracking than the aspect ratio. It was also concluded that a fiber volume inclusion below 1% is best. Full article

With the continuous advancement of industrial technology, higher demands have been placed on the properties of gear oils, such as oxidation stability and shear resistance. Herein, the oxidation stability of high-viscosity metallocene poly-$\alpha$-olefins (mPAOs) was improved by chemical modification via aromatic amine alkylation. The modified mPAO base oils were synthesized separately with diphenylamine (mPAO-DPA) and N-phenyl-$\alpha$-naphthylamine (mPAO-NPA), and their applicability in industrial gear oil formulations was evaluated. The composition and physicochemical properties of the obtained samples were assessed using ¹H NMR spectroscopy, Fourier transform infrared spectroscopy, gel permeation chromatography, and the American Society for Testing and Materials standards (ASTM D445, ASTM D2270, ASTM D92, etc.) confirming the successful completion of the alkylation reaction. The oxidation stability of the samples was also evaluated using pressurized differential scanning calorimetry. The initial oxidation temperature of mPAO-NPA (230 °C) was 53 °C higher than that of mPAO, and the oxidation induction period of mPAO-DPA was nearly twice that of mPAO-NPA. Thermogravimetric analysis in air revealed the increased thermal decomposition temperature and improved thermal stability of modified mPAO. ISO VG 320 industrial gear oils were formulated using mPAO alkylated with N-phenyl-$\alpha$-naphthylamine(Lub-2) and commercially purchased PAO100 (Lub-1) as base oil components. The antioxidant performance of two industrial gear oils was evaluated through oven oxidation and rotating oxygen bomb tests. The oxidation induction period of Lub-2 was 30% higher than that of Lub-1, with the latter having a lower acid number and a smaller increase in viscosity at 40 °C. Finally, the friction performance of the samples was assessed on a four-ball friction tester, revealing the synergistic effect of the mPAO-NPA base oil with the HiTEC 3339 additive, forming a more stable oil film with a smaller wear scar diameter. Full article

Austenitic stainless steels used in structural applications suffer from stress corrosion cracking due to residual stresses during welding. Much research is being conducted to prevent the stress corrosion cracking of austenitic steels by inducing compressive residual stresses. One method is ultrasonic shot peening (USP), which is used to apply compressive stress by modifying the mechanical properties of the material’s surface. In this study, 304L stainless steel was butt-welded by gas tungsten arc welding (GTAW) and subsequently subjected to compressive residual stress to a depth of 1 mm from the surface by a USP treatment. The influence of USP on microstructural changes in the base metal, the HAZ and weldment, and the corrosion properties was analyzed. A microstructural analysis was conducted using SEM-EDS, XRD, and EBSD methods alongside residual stress measurements. The surface and cross-sectional corrosion behavior was evaluated and analyzed using a potentiodynamic polarization test, electrochemical impedance spectroscopy (EIS) measurements, a double-loop electrochemical potentiokinetic reactivation (DL-EPR) test, and an ASTM A262 Pr. C test. The surface was deformed and roughened by the USP. The deformed areas formed crevices, and the inside of the crevices contained some cracks. The crevices and internal cracks caused pitting, which reduced the resistance of the passivation film. The cross-section was subjected to compressive residual stress to a depth of 1 mm from the surface, and the outermost area of the cross-section had fine grain refinement, forming a solid passivation film that improved the corrosion resistance. Full article

The production of biomass fly ash has been increasing every year in Europe, reaching 5.5 million tons in 2020. Fly ash produced by burning biomass is not yet accepted in the standards as a substitute material for cement in mortar and concrete. In a first approach, the substitution limit of biomass ash is determined by comparing the mechanical strengths (among others, compressive strength), fresh state properties and hardened properties of mortars produced with fly ash with those of mortars produced with coal fly ash (EN 450-1 and ASTM C618). Masonry and rendering mortars have been designed with different substitution rates of fly ashes from wood combustion in thermal power plants. Although there is an overall decrease in performance, mortars made with biomass ash retain properties that make them suitable for use in masonry (loss of 13% compressive strength for masonry mortars with 10% substitution rate after 90 days) or rendering (loss of 20% compressive strength for rendering mortars with 10% substitution rate after 90 days). Water absorption and porosity (24.1 and 23.7% for masonry and rendering mortars, respectively) are, however, not significantly modified, which potentially contributes to good durability properties. Full article

Modified asphalt binders are still considered important in asphalt pavement. However, the comprehensive use of various modifiers is limited due to storage stability issues. Moreover, there is a scarcity of detailed analyses regarding the degree of separation for asphalt binders among each method despite the utilization of various methods to assess the storage stability of binders. Therefore, a comprehensive analysis was conducted to assess the storage stability of asphalt binder modified with a crumb rubber modifier (CRM) and styrene–isoprene–styrene (SIS), utilizing five evaluation factors following the ASTM D7173 guidelines based on four mixing methods (A: high-shear mixing method, B: low-speed agitating method, C: high-shear mixing method + low mixing method, D: low-speed agitating method + low mixing method). To produce the modified asphalt binder, the proportions of the CRM were 5% and 10% for each binder, and 10% SIS was added to all binders. The results in this study convey that (1) the addition of the modifier led to an increase in G*/sin δ with different mixing methods, but using mixing methods (C and D) for a relatively long time resulted in a lower G*/sin δ, indicating suboptimal performance; (2) through the multiple stress creep recovery (MSCR), rheological properties of J_nr and % rec exhibited trends similar to G*/sin δ evaluation, highlighting an improved elastic recovery with a higher modifier content; (3) storage stability assessment revealed consistent trends in high-shear mixing groups (A and C), while low-speed mixing groups (B and D) exhibited an elevated separation index (SI), suggesting a sensitivity to modification conditions; (4) evaluation using the MSCR method indicated that % rec with a 3.2 kPa load is effective for the sensitive assessment of binder storage stability and J_nr showed a limited sensitivity across varying loads, advocating for % rec for precise evaluation; and (5) despite permitting various tests, achieving consistent results remains challenging. Future research should explore diverse modifiers and optimal evaluation methods to enhance knowledge of binder behavior and separation dynamics. Full article

This research work attempts to reveal the mechanism of alkali corrosion in cement composites in the presence of plasticizers based on polycarboxylates (PCE), naphtha-lene-formaldehydes (SPNF), and lignosulfonates by maintaining a high pH of the liquid phase and additionally containing monovalent alkali earth metals in cement stone, as well as stopping this process by introducing an active mineral additive. ASR is studied by changing the relative strain with time according to ASTM C-1260. Deformation changes were confirmed by SEM and RFA studies of hydration products and ASR in the microstructure. Separate use of PCE plasticizers in the cement composition increases deformation by 50% to the 56th day; the use of SPNF increases deformation by 10% compared with the additive-free composition. The use of PLS reduces the relative deformation by 25%. The introduction of silica fume into cementitious composites containing plasticizers actually stops ASR only for a short time. A reduction in deformation during MC use together with plasticizer based on naphthalene sulfonate and polycarboxylate occurs only when the dosage of MS is increased to 20–30%; at a lower dosage, the effect is negative, which also affects the phase composition of the composites. The introduction of MC increases the value of the relative deformation compared with plasticizer compositions based only on PLS. SEM studies have detected microcracks and dense fine-crystalline silicate gel, which cause deformation changes in cement composite samples. Research has shown that concrete modified with SPNF and PCE at the maximum dosage of MC (30%) has minimal deformation rates and can be used to select optimal concrete compositions. The results of this study could help to minimize risks, prevent unacceptable expansion, and ensure the high quality of concrete and concrete products during their use as part of various nature-modifying additives. Full article

Today, 7xxx aluminum alloys are widely used in aerospace and other fields due to their excellent properties such as low density, high specific strength, and good processing performance. The heat treatment process of 7xxx aluminum alloy is crucial in controlling the strengthening phases and grain size, which is a significant way to enhance the alloy’s performance. In this study, solution heat treatment tests of 7050 aluminum alloys were carried out at different temperatures, ranging from 440 °C to 470 °C, with a holding time ranging from 0.5 h to 8 h, using a DIL 805A thermomechanical test machine. The microstructural evolution during the solution heat treatment was characterized using an optical microscope (OM), a scanning electron microscope (SEM), and a transmission electron microscope (TEM). The effects of the solution parameters on the alloy’s microhardness were analyzed using a digital Vickers microhardness tester. According to the ASTM E112-13 standard, The Anelli grain growth models were established to illustrate the grain size evolution during solution heat treatment, and a modified Anelli grain growth model was established. The results indicated that the grain size significantly increases with the increase in the solution heat treatment time and temperature. The Anelli grain growth model can illustrate the phenomenon of grain growth more accurately in the solution heat treatment process of 7050 aluminum alloy. It was found that prolonging the time and elevating the temperature of the solution heat treatment reduced the microhardness of the aluminum alloy because of the dissolution of the precipitates. Full article

In recent years, there has been growing interest in using plant fibers to reinforce materials in modern manufacturing. This study focuses on the development of a novel biocomposite made from an enset fiber (EF) and polylactic acid (PLA) matrix using compression molding at a hot-pressing temperature of 170 °C and pressure of 7 MPa for 7 min. Before preparing the biocomposites, the fibers were chemically modified with different concentrations of sodium hydroxide (NaOH) and cut into shorter fibers with a 40 mm average length in size. Then, the extent of modifications on the mechanical properties, dynamic mechanical behavior, morphology, and water absorption were investigated. The tensile, flexural, and Charpy impact tests were carried out to evaluate the mechanical properties of the samples as per ASTM standards. Moreover, dynamic mechanical analysis (DMA) and the water absorbency of the biocomposites were investigated, and the results were graphically shown and explained. The results indicate that the biocomposite treated with 5% NaOH exhibited significant improvements in tensile strength, flexural strength, and impact strength compared to the untreated composite. The tensile modulus and flexural modulus of 5% NaOH-modified enset fiber biocomposite were also enhanced by 55.8% and 70.3% compared to untreated enset fiber biocomposite. The highest tensile strength, flexural strength, and impact strength found for the PLA composite reinforced by EF treated with 5% w/v NaOH solution were 20.16 MPa, 30.21 MPa, and 12.02 kJ/m², respectively. In general, the modification of natural fibers improves adhesion at the interface and therefore decreases the water absorption and improves the dynamic mechanical properties of biocomposites. Full article
