Search Results (53)

This study investigates the effects of repeated mechanical recycling on the structural, thermal, mechanical, and aesthetic properties of poly(butylene succinate) (PBS), a commercially available bio-based and biodegradable aliphatic polyester. PBS production scraps were subjected to five consecutive recycling cycles through semi-industrial extrusion compounding followed by injection molding to simulate realistic mechanical reprocessing conditions. Melt mass-flow rate (MFR) analysis revealed a progressive increase in melt fluidity. Initially, the trend of viscosity followed the melt flow rate; however, increasing the reprocessing number (up to 5) resulted in a partial recovery of viscosity, which was caused by chain branching mechanisms. The phenomenon was also confirmed by data of molecular weight evaluation. Differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA) confirmed the thermal stability of the polymer, with minimal shifts in glass transition, crystallization, and degradation temperatures during the reprocessing cycles. Tensile tests revealed a slight reduction in strength and stiffness, but an increase in elongation at break, indicating improved ductility. Impact resistance declined moderately from 8.7 to 7.3 kJ/m² upon reprocessing; however, it exhibited a pronounced reduction to 1.8 kJ/m² at −50 °C, reflecting brittle behavior under sub-ambient conditions. Despite these variations, PBS maintained excellent color stability (ΔE < 1), ensuring aesthetic consistency while retaining good mechanical and thermal properties. Full article

The degradation of polypropylene (PP) through thermal and mechanical stress, as well as the influence of oxygen, are unavoidable when processing on a co-rotating twin-screw extruder. In previous studies, a mathematical model was developed to predict the degradation while compounding on different twin-screw extruder sizes. Additionally, the examination of filled PPs was conducted. To this end, a range of operating parameters and extruder sizes were used to process PP, and the molar mass was then determined by melt flow rate (MFR) and gel permeation chromatography (GPC) measurements to derive the degree of degradation. The model was then modified by adjusting the sensitivity parameters to allow the degradation behavior of the PPs to be described independently of extruder size. Consistent with prior research, comprehensive measurements of a PP/titanium dioxide (TiO₂) compound revealed that, with a few exceptions, increasing temperatures and screw speeds and decreasing throughputs generally resulted in higher degradation. However, the application of the model to the compounds did not achieve good agreement with the measured degradation, indicating different degradation conditions due to the different thermodynamic and rheological properties of the compounds. Full article

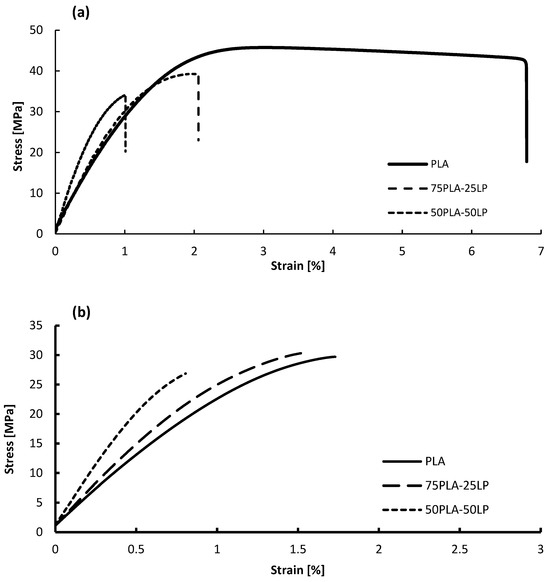

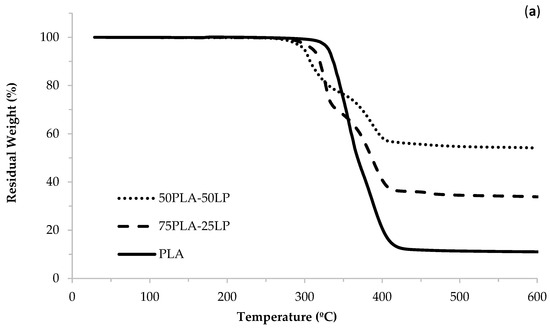

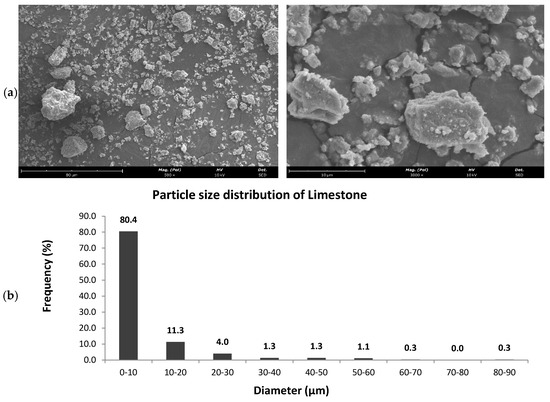

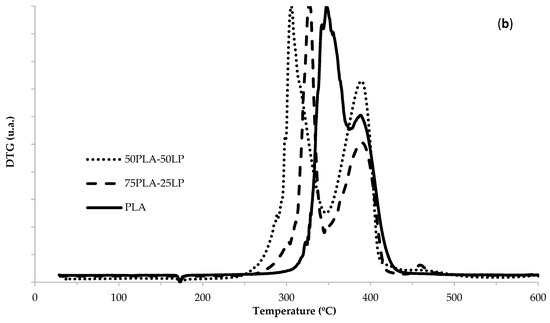

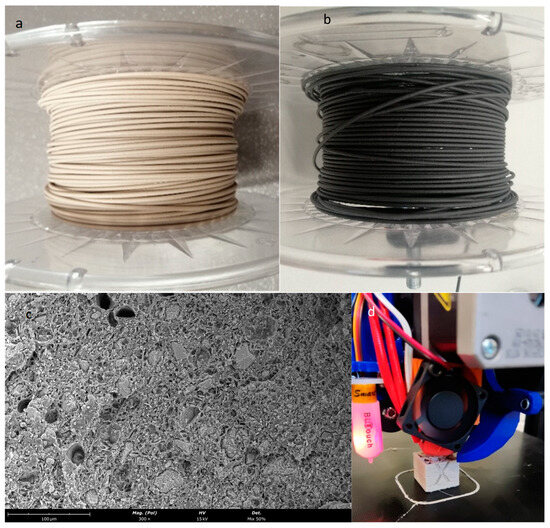

Waste stone sludge generated by the extractive industry has traditionally posed significant disposal challenges. This study redefines stone sludge as a valuable raw material by incorporating it into polylactic acid (PLA) to create sustainable composite materials. Pellets and filaments composed of up to 50% by weight of limestone powder and PLA were successfully produced using melt blending in a twin-screw extruder. Scanning electron microscopy (SEM), X-ray fluorescence (XRF), and X-ray diffraction (XRD) analyses revealed a uniform distribution of stone particles within the PLA matrix and confirmed the chemical and structural compatibility of the components. Thermogravimetric analysis (TGA) showed that the composites retained thermal stability, while mechanical testing demonstrated significant enhancements in stiffness, with an increase in elastic modulus for composites containing 50% limestone powder. The melt flow rate (MFR) decreases with increasing filler content. The brittleness also increased, reducing impact resistance. Mechanical tests were performed on injected and 3D-printed specimens. The filament produced was successfully used in 3D printing, with a small XYZ calibration cube. Full article

Polyvinyl butyral (PVB) is a specialty polymer primarily used as an interlayer in laminated glass applications with no current circularity plan after the end of its life. This study presents a comprehensive recycling strategy for postconsumed PVB wastes based on a remelting–restabilization approach. Thermo-oxidative degradation of PVB was analyzed under heat and shear stress conditions in an internal mixer apparatus. The degradation mechanism of plasticized PVB (p-PVB) and unplasticized PVB (u-PVB) was identified as chain scission through melt flow rate (MFR), intrinsic viscosity (IV), and yellowness index (YI) characterization. Six different antioxidant (AO) formulations were screened for their effectiveness in inhibiting degradation in both neat u-PVB and p-PVB, as well as retrieved PVB. The phenolic antioxidants 1,3,5-trimethyl-2,4,6-tris(3,5-di-tert-butyl-4-hydroxybenzyl)benzene and 4-[[4,6-bis(octylsulfanyl)-1,3,5-triazin-2-yl]amino]-2,6-di-tert-butylphenol were found to be the most effective ones based on MFR, oxidation onset temperature (OOT), and YI evaluations, while the optimal AO concentration was determined at 0.3% w/w. Furthermore, upscaling of the process was achieved by mixing virgin PVB and high-quality retrieved PVB wastes with AOs in a twin-screw extruder. Testing of the recycled samples confirmed that the selected AOs offered resilience against degradation at reprocessing and protection during the next service life of the material. Full article

This work aims to assess the possibility of using packaging industry waste to modify polypropylene products (PPs). The products were made in the form of extruded foil and injected samples. The products were produced using regranulate made of polypropylene cast foil. Maleic anhydride-modified polypropylene (MAPP) and polyolefin elastomer (POE) with a glycidyl ester functional group were used to modify the polypropylene. The samples were produced based on 50% foil waste reground and 50% pure PP. The rheological properties of the blends were assessed using the melt mass flow rate (MFR) technique; thermal properties using the differential scanning calorimetry method (DSC). The products manufactured using the injection molding method were subjected to an analysis of mechanical properties, such as tensile strength and impact strength. Also, in the case of film samples, tensile strength was assessed. Color-change assessments with CIE L*a*b* were carried out for all materials. Injection-molded products based on recycled metallized cast foil showed favorable mechanical properties such as tensile strength (1 MAPP = 26.7 MPa; 2 MAPP = 27.1 MPa), which was higher than the original material (cPP = 20.7 MPa). Also, for the films produced from regrind, the tensile strength was at a level similar (1 MAPP = 24.6 MPa; 2 MAPP/POE = 25.1 MPa) to the films extruded from virgin materials (cPP = 24.9 MPa). The introduction of a POE additive to the blends resulted in increased impact strength (1 MAPP/POE = 31 kJ/mol; 2MAPP/POE = 18 kJ/mol; 3 MAPP/POE = 11 kJ/mol) in relation to unmodified samples (cPP = 7 kJ/mol). The introduction of a POE additive to the tested mixtures improved the impact strength of the injected products by almost 4 times for sample 1 MAPP/POE and 2.5 times for sample 2 MAPP/POE in comparison to virgin cPP. These studies confirmed that foil waste can be successfully used to modify polypropylene products shaped both in the injection and extrusion processes. Full article

Polyoxymethylene (POM), polypropylene (PP), and poly(methyl methacrylate) (PMMA) have been blended with adhesive-grade ethylene vinyl acetate (EVA), propylene elastomer (VMX), isobutylene–isoprene rubber (IIR) and an acrylic block copolymer (MMA-nBA-MMA). The blends were prepared using a two-roll mill and injection molding. The mechanical properties of the blends, such as tensile strength, tensile modulus, elongation at maximum load, and impact resistance, were investigated. The water contact angle, melt flow rate (MFR), and differential scanning calorimetry were ascertained to evaluate the blends. The blend samples exhibited the following properties: all POM/EVA blends showed reduced crystallinity compared to neat POM; the 80% PMMA/20% MMA-nBA-MMA blend showed improved impact resistance by 243% compared to the neat PMMA. An antiplasticization effect was observed for POM/EVA 1% blends and PMMA/EVA 1% blends, with MFR reduced by 1% and 3%, respectively. The MFR of the PP/IIR 1% blend increased by 5%, then decreased below the MFR near the polymer for the remaining IIR concentrations. Full article

The extensive use of polypropylene (PP) in various industries has heightened interest in developing efficient methods for recycling and optimising its mixtures. This study focuses on formulating predictive models for the Melt Flow Rate (MFR) and shear viscosity of PP blends. The investigation involved characterising various grades, including virgin homopolymers, copolymers, and post-consumer recyclates, in accordance with ISO 1133 standards. The research examined both binary and ternary blends, utilising traditional mixing rules and symbolic regression to predict rheological properties. High accuracy was achieved with the Arrhenius and Cragoe models, attaining R² values over 0.99. Symbolic regression further enhanced these models, offering significant improvements. To mitigate overfitting, empirical noise and variable swapping were introduced, increasing the models’ robustness and generalisability. The results demonstrated that the developed models could reliably predict MFR and shear viscosity, providing a valuable tool for improving the quality and consistency of PP mixtures. These advancements support the development of recycling technologies and sustainable practices in the polymer industry by optimising processing and enhancing the use of recycled materials. Full article

This study investigates the potential for recycling fishing rope waste from the Magdalen Islands, Canada, into sustainable wall cladding panels, addressing both environmental concerns and waste management challenges. A comprehensive characterization of the fishing ropes was conducted using various analytical techniques to assess their suitability for recycling. Fourier transform infrared spectroscopy (FTIR) and X-ray diffraction (XRD) identified polyethylene (PE) and isotactic polypropylene (iPP) as the main polymers present in the ropes, with a composition of approximately 25% PE and 75% PP. The effects of photodegradation were evaluated through carbonyl index analysis, differential scanning calorimetry (DSC), tensile testing, and gel permeation chromatography (GPC). The results showed reduced crystallinity, a 20% decrease in tensile strength, and lower molecular weights due to environmental exposure in comparison with unused ropes. However, melt flow rate (MFR) measurements aligned with virgin HDPE and PP values used in rope manufacturing, indicating suitable processability for recycling. Panels produced from recycled fishing ropes exhibited lower flexural and impact properties compared to commercial alternatives due to the presence of mineral contaminants and voids in the panels as revealed by X-ray diffraction (XRD) and scanning electron microscopy (SEM). This comprehensive investigation provides valuable insights into the potential repurposing of fishing rope waste, contributing to the development of sustainable waste management strategies for coastal communities. Full article

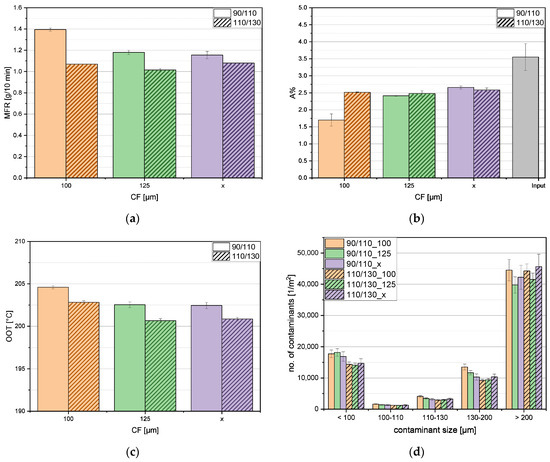

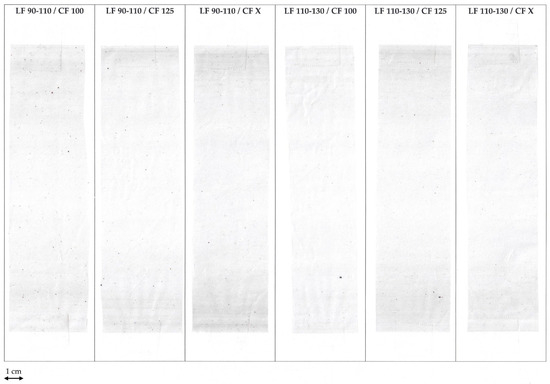

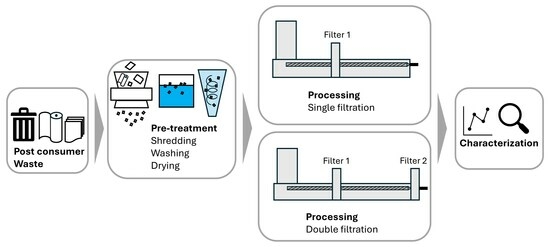

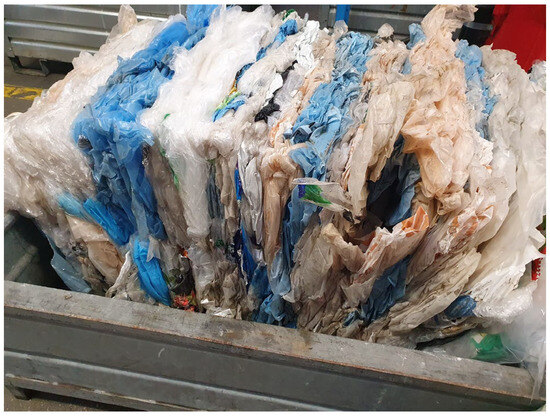

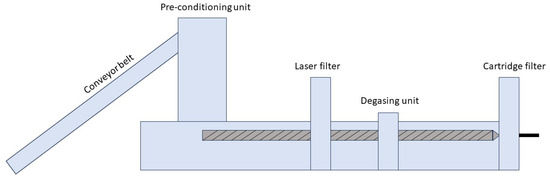

Due to the diversity of plastic film waste streams available on the market and the associated variety of contaminants’ size and number, the use of melt filtration is necessary. Currently, single and double filtration systems are state of the art in the plastic recycling industry, depending on the application of the produced post-consumer recyclate (PCR). Using PCR for thin films demands small contamination sizes, which are easier to reach using a second filtration step. In the case of relatively clean post-consumer input materials, it must be investigated whether the additional load from the second filter has a counterproductive effect on the material and whether single filtration would be sufficient. For this paper, polyethylene (PE) film waste stemming from a separate post-consumer collection in Austria was processed using an industrial-sized recycling machine with different combinations of filter sizes and systems. Melt flow rate (MFR), ash content, oxidation onset temperature (OOT), and optical contaminant detection were measured to investigate the influence of single and double filtration systems. The investigation showed that, even though the contamination amount and size were reduced, the second filter had a distinct effect on specific properties. Full article

This study aimed to assess the possibility of using post-production waste and the impact of the conditioning method on the mechanical and thermomechanical properties of polyamide injection molded parts. Samples containing 5, 10, and 15 wt.% of ground post-production waste were produced using injection molding technology. The rheological properties by oscillatory rheometry, the melt mass flow rate (MFR), and the thermal stability by thermogravimetric analysis (TGA) of polymer mixtures containing recycled fraction were determined. The samples were conditioned under the following conditions: 24 h and 14 days in distilled water, in a climatic chamber, and aged in a xenon-light-accelerated aging chamber. Then, the impact and static tensile strength and heat deflection temperature (HDT) were assessed. The results show that the addition of post-production waste in the form of grinding does not significantly affect the mechanical and thermomechanical properties of the finished products. This research provides valuable information regarding the possibility of using secondary materials for manufacturing high-performance construction products. Moreover, it was proven that the process of conditioning polyamide samples in a climatic chamber was the most effective and significantly increased the impact strength of the tested material. Full article

Designers actively pursue the use of novel materials and concepts in furniture and interior design. By providing insights into their processing behavior and suitability for 3D-printing processes, this research helps to highlight the potential of using waste materials to create more environmentally friendly and sustainable 3D-printing filaments that can be used in furniture and interior design. Furthermore, the study evaluates the effect of incorporating palm midrib nanoparticles (DPFNPs) to reinforce a high-density polyethylene (HDPE) matrix with different loadings such as 10, 20, 30, 40, and 50 wt.%. The composites were extruded into filaments using a manual extruder, which was then utilized to fabricate 3D-printed specimens using a 3D-printing pen. The effect of adding DPFNPs on the composite’s chemical, thermal, and mechanical properties was evaluated, with a particular focus on how these modifications influence the melt flow rate (MFR) and, subsequently, the material’s printability. The results revealed that HDPE and filament composites presented similar FTIR spectra. On the other hand, the filament composites presented an increase in the thermal stability and a decrease in the mechanical strength with increasing DPFNP content in the HDPE matrix. The filaments were successfully printed using a 3D-printing pen. Thus, using DPFNPs in the HDPE matrix presents a low-cost alternative for filament production and may expand 3D-printing applications in interior and furniture design with more sustainable materials. Future work will delve into optimizing these composites for improved printability and assessing their recyclability, aiming to broaden their applications in 3D printing and beyond. Full article

Additive manufacturing is still the fastest-developing technology in the modern world. Three-dimensional printing has become popular due to the method’s numerous advantages, such as its short time and low cost, compared to conventional methods such as injection molding. Therefore, the demand for new materials and material systems that will be characterized by the desired functional properties is clearly growing. As part of this work, work was carried out on the development and preparation of new polymer composites dedicated to 3D printing applications, especially in FDM/FFF/MEM technologies. The influence of the content and amount of fillers, such as silica modified with alumina (S) and bentonite modified with a quaternary ammonium salt (B), on the functional properties of a commercially available fiber made of traditional plastic, such as polycarbonate, obtained in the form of a filament (PCF), was determined. It was found that the addition of B significantly increased the fluidity of the polymer, the introduction of a filler in the amount of 1.5% allowed to obtain a result that was 6% higher compared to PCF (16.8 g/10 min), while the amount of 3% was 20% higher. The obtained mass melt flow rate (MFR) results were confirmed by determining the viscosity of the produced polymer composites. Satisfactory results of mechanical properties were obtained, including the following: it was found that the introduced modified fillers increased the elasticity of the material. The introduction of modified silica resulted in a reduction in Young’s modulus by 10.02% at the content of 0.5% S and at 1% S by 8.64% compared to the polymer. The introduced modified filler S significantly increased the thermostability of polycarbonate (T_5% equal to 449 °C) by 23 °C for PCF/0.5% S and 14 °C for PCF/1% S, respectively. The SEM and WAXS results confirmed the appropriate dispersion of the fillers in the polymer matrix, which indicates well-selected conditions for the homogenization process of the components and the subsequent production of samples. Detailed characterization of the influence of selected fillers on the functional properties of the polymer matrix-polycarbonate allowed for an increase in the range of polymer composites and their use in rapid prototyping technologies, as well as supplementing the literature on databases regarding the characteristics of the obtained materials. Full article

The incorporation of thermoplastics with pigments imparts diverse aesthetic qualities and properties to colored thermoplastic products. The selection of pigment type and content, along with specific processing conditions, plays a pivotal role in influencing color properties and overall product performance. This study focuses on optimizing these parameters to ensure the desired color quality and product functionality. Two types of polypropylene copolymer (PPCP) with different melt flow rates (MFRs) and acrylonitrile butadiene styrene (ABS) were compounded with ultramarine blue pigment masterbatch (MB) in concentrations ranging from 1 to 5 wt.% using a twin-screw extruder. The compounding process was conducted at a constant screw speed of 200 rpm and a die temperature of 210 °C. The effects of screw speed and die temperature were investigated at a constant MB of 3 wt.%. Colored samples were fabricated by injection molding. Microscopic analysis revealed a well-dispersed pigment within the PPCP matrix when using the MB. Rheological properties, assessed through the power law index, confirmed effective pigment dispersion, facilitated by shear thinning behavior and controlled shear rate via the manipulation of screw speed and die temperature. The effects of masterbatch contents and processing conditions on color spaces were evaluated using CIELAB and CIELCH, with one-way ANOVA employed to identify statistical significance. Higher opacity in high-MFR PPCP and ABS resulted in increased lightness and color strength, surpassing low-MFR PPCP by 15–40% at equivalent MB contents. Masterbatch content emerged as a significant factor influencing the color spaces of all colored thermoplastics. Further analysis, including Fisher pairwise comparisons of one-way ANOVA, revealed that screw speed influenced the redness and hue of low-MFR PPCP, whereas die temperature affected the lightness and hue of high-MFR PPCP and ABS. Interestingly, the blueness and chroma of colored thermoplastics were minimally affected by both screw speed and die temperature. Notably, regardless of processing conditions, the flexural properties of colored thermoplastics remained comparable to the neat polymer when incorporated with ultramarine blue pigment masterbatch. Full article

Biobased plastics have the potential to be sustainable, but to explore their circularity further, current end-of-life options need to be broadened. Mechanical recycling is one of the most accepted methods to bring back plastics into the loop. Polyhydroxybutyrates (PHBs) are biobased and biodegradable in nature with promising properties and varied applications in the market. This study focuses on their potential for mechanical recycling by multiple extrusion cycles (E1–E5) and multi-faceted characterization of the virgin (V) and reprocessed materials from E1 to E5. The behavior is compared to polypropylene (PP) as a reference with a similar property profile, which has also been reprocessed five times. The thermal properties of both series showed a stable melting point and thermal decomposition temperature from thermal analyses (differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA)). However, a steady increase in the degree of crystallinity was observed which could counterbalance the decrease in molecular weight due to repeated extrusion measured by gel permeation chromatography and resulted in similar values of tensile strength across the cycles. The strain at break was impacted after the first extrusion, but no significant change was observed thereafter; the same was observed for impact strength. Even in scanning electron microscopy (SEM) images, virgin and E5 samples appeared similar, showing the stability of morphological characteristics. Fourier transform infrared spectroscopy (FTIR) results revealed that no new groups are being formed even on repeated processing. The deviation between the PHB and PP series was more predominant in the melt mass flow rate (MFR) and rheology studies. There was a drastic drop in the MFR values in PHB from virgin to E5, whereas not much difference was observed for PP throughout the cycles. This observation was corroborated by frequency sweeps conducted with the parallel plate method. The viscosity dropped from virgin to E1 and E2, but from E3 to E5 it presented similar values. This was in contrast to PP, where all the samples from virgin to E5 had the same values of viscosity. This paper highlights the possibilities of mechanical recycling of PHB and explains why future work with the addition of virgin material and other additives is an area to be explored. Full article

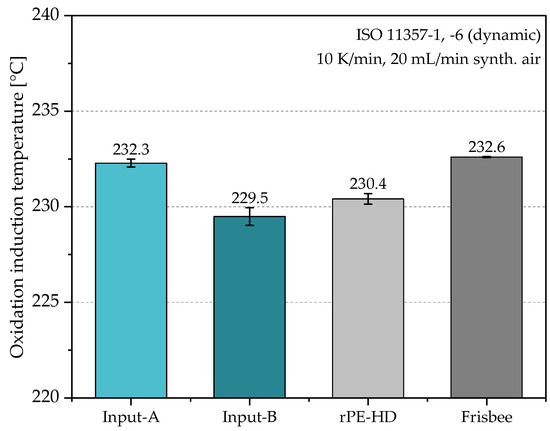

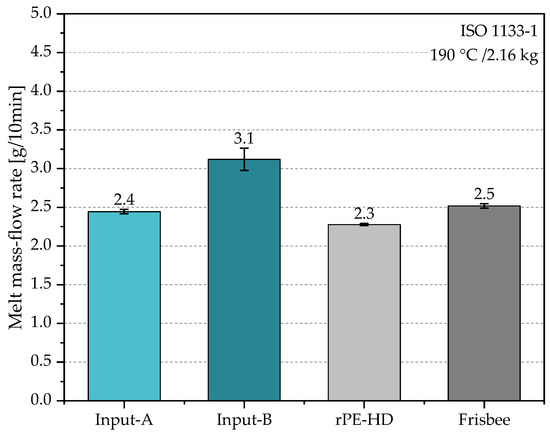

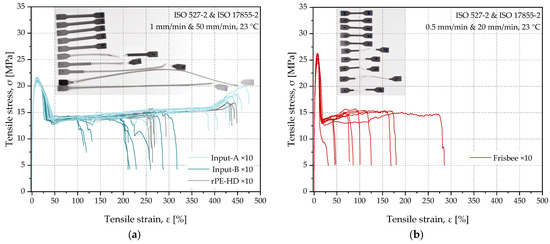

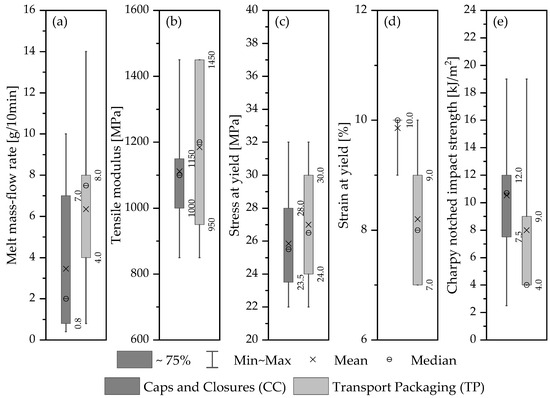

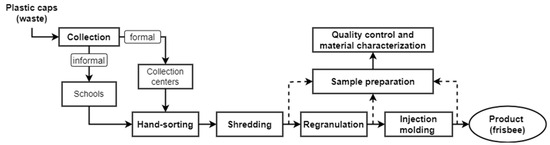

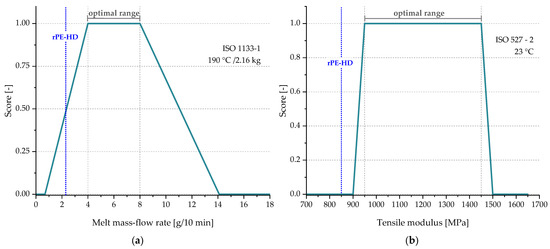

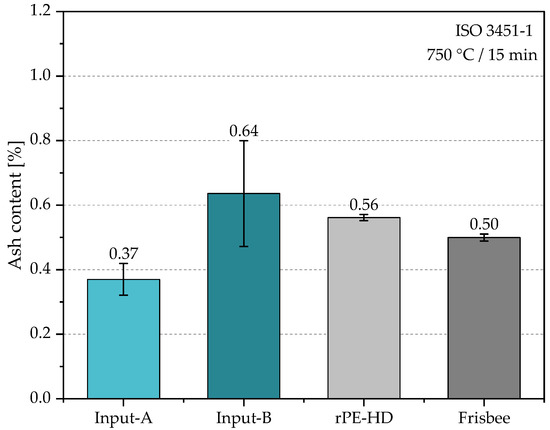

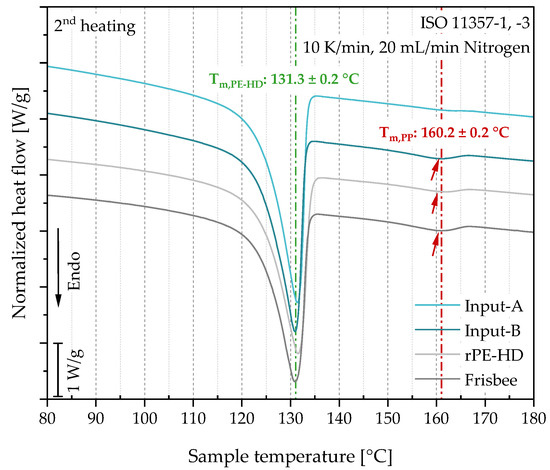

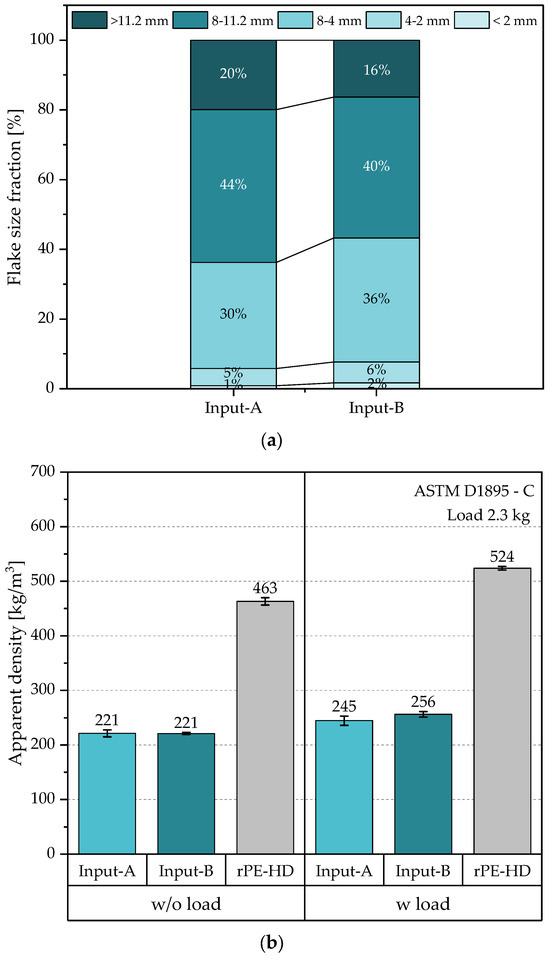

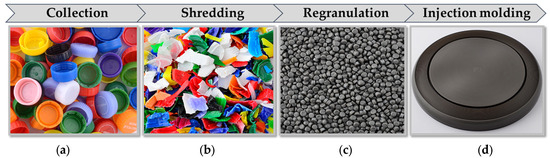

This study demonstrates an open-loop recycling process of a specific post-consumer plastic waste stream. The targeted input waste material was defined as high-density polyethylene beverage bottle caps. Two methods of waste collection, informal and formal, were employed. Thereafter, materials were hand-sorted, shredded, regranulated, and then injection-molded into a flying disc (i.e., frisbee) as a pilot product. To observe the potential changes in the material throughout the entire recycling process, eight different test methods including melt mass-flow rate (MFR), differential scanning calorimetry (DSC), and mechanical tests were carried out on the various material states. The study showed that the informal collection led to a relatively higher purity in the input stream, which also appeared to have a 23% lower MFR value compared to that of the formally collected materials. The DSC measurements revealed a cross-contamination by polypropylene, which clearly affected the properties of all investigated materials. The cross-contamination led to a slightly higher tensile modulus in the recyclate, while the Charpy notched impact strength declined after processing by approximately 15% and 8% compared to those of the informal and formal input materials, respectively. All materials and the processing data were documented and stored online as a practical implementation of a digital product passport as a potential digital traceability tool. Furthermore, the suitability of the resulting recyclate to be used in transport packaging applications was also investigated. It was found that a direct replacement of virgin materials for this specific application is not possible without proper material modification. Full article
