Search Results (15)

Quenched Co-based ribbon strips are widely used in the fields of magnetic amplifier, magnetic head material, magnetic shield, electric reactor, inductance core, sensor core, anti-theft system label, and so on. In this study, Co-based composite CoFeNiSiB ribbon strips with a micron width were fabricated by micro-electro-mechanical systems (MEMS) technology. The carbon and FeCoGa nanofilms were deposited for surface modification. The effect of carbon and FeCoGa nanofilm coatings on the crystal structure, surface morphology, magnetic properties, and magnetoimpedance (MI) effect of composite ribbon strips were systematically investigated. The results show that the surface roughness and coercivity of the composite ribbon strips are minimum at a thickness of the carbon coating of 60 nm. The maximum value of MI effect is 41% at 2 MHz, which is approximately 2.4 times greater than plain ribbon and 1.6 times greater than FeCoGa-coated composite ribbon strip. The addition of a carbon layer provides a conductive path for high frequency currents, which effectively reduces the characteristic frequency of the composite ribbon strip. The FeCoGa coating is able to close the flux path and reduce the coercivity, which, in turn, increases the transverse permeability and improves the MI effect. The findings indicate that a successful combination of carbon layer and magnetostrictive FeCoGa nanofilm layer can improve the MI effect and magnetic field sensitivity of the ribbon strips, demonstrating the potential of the composite strips for local and micro area field sensing applications. Full article

Deep learning technology is generally applied to analyze periodic data, such as the data of electromyography (EMG) and acoustic signals. Conversely, its accuracy is compromised when applied to the anomalous and irregular nature of the data obtained using a magneto-impedance (MI) sensor. Thus, we propose and analyze a deep learning model based on recurrent neural networks (RNNs) optimized for the MI sensor, such that it can detect and classify data that are relatively irregular and diverse compared to the EMG and acoustic signals. Our proposed method combines the long short-term memory (LSTM) and gated recurrent unit (GRU) models to detect and classify metal objects from signals acquired by an MI sensor. First, we configured various layers used in RNN with a basic model structure and tested the performance of each layer type. In addition, we succeeded in increasing the accuracy by processing the sequence length of the input data and performing additional work in the prediction process. An MI sensor acquires data in a non-contact mode; therefore, the proposed deep learning approach can be applied to drone control, electronic maps, geomagnetic measurement, autonomous driving, and foreign object detection. Full article

The results of a computer simulation and experimental study of the magnetoimpedance effect (MI) in amorphous Co_68.5Fe_4.0Si_15.0B_12.5 and Co_68.6Fe_3.9Mo_3.0Si_12.0B_12.5 ribbons in the ac frequency range from 0.01 to 100 MHz are presented. It was found that the maximum MI value exceeds 200%, which may be of interest in the development of magnetic field sensors. It is also shown that practically significant characteristics of the MI response strongly depend on the ac frequency, which is due to the inhomogeneous distribution of magnetic properties over the ribbon cross section. This distribution was studied using magnetoimpedance tomography based on the analysis of the experimental dependences of the reduced impedance on the ac frequency. Full article

The rectangular elements in magnetoimpedance (MI) configuration with a specific nanocomposite laminated structure based on FeNi and Cu layers were prepared by lift-off lithographic process. The properties of such elements are controlled by their shape, the anisotropy induced during the deposition, and by effects associated with the composite structure. The characterizations of static and dynamic properties, including MI measurements, show that these elements are promising for sensor applications. We have shown that competition between the shape anisotropy and the in-plane induced anisotropy of the element material is worth taking into account in order to understand the magnetic behavior of multilayered rectangular stripes. A possibility of the dynamic methods (ferromagnetic and spin-wave resonance) to describe laminated planar elements having a non-periodic modulation of both structure and magnetic parameters of a system is demonstrated. We show that the multilayered structure, which was originally designed to prevent the development of a “transcritical” state in magnetic layers and to reach the required thickness, also induces the effects that hinder the achievement of the goal, namely an increase in the perpendicular magnetic anisotropy energy. Full article

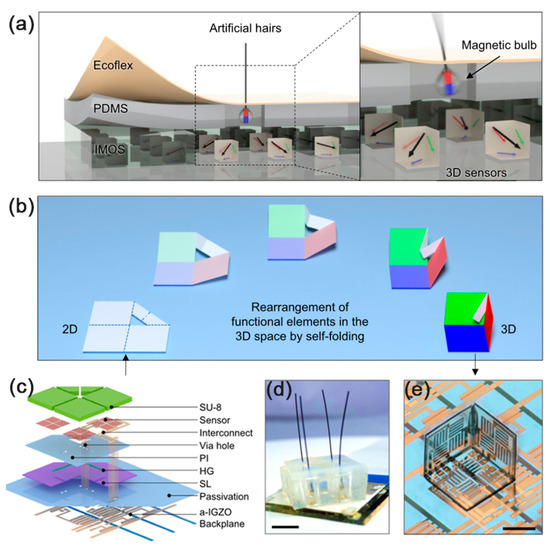

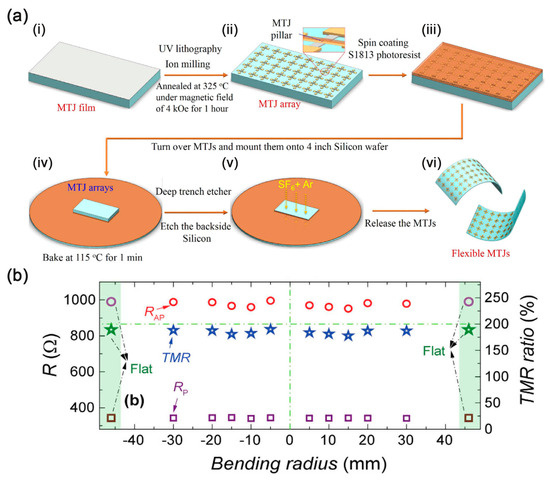

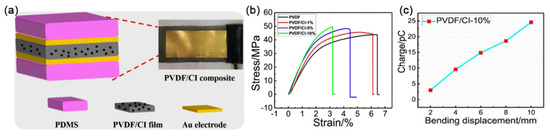

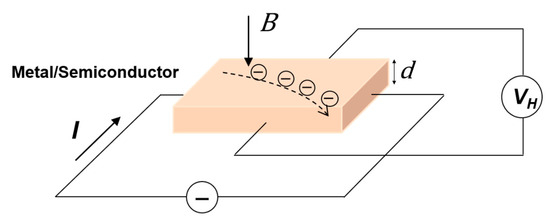

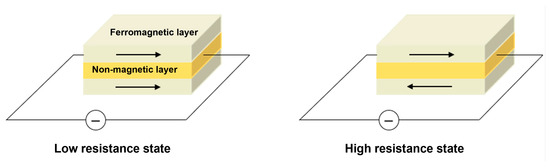

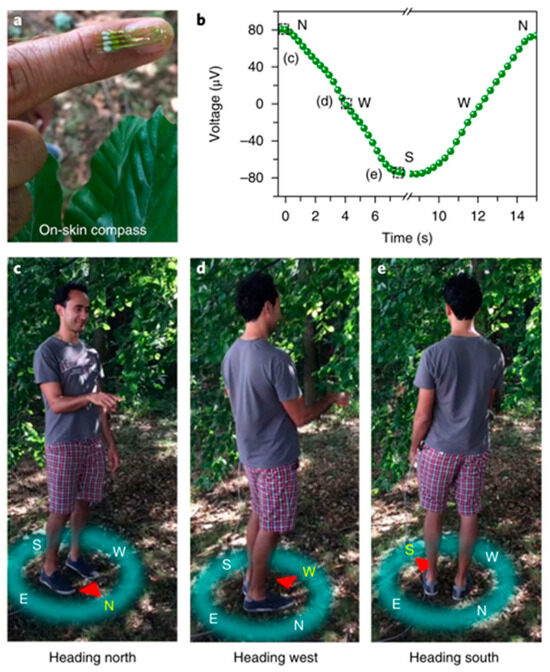

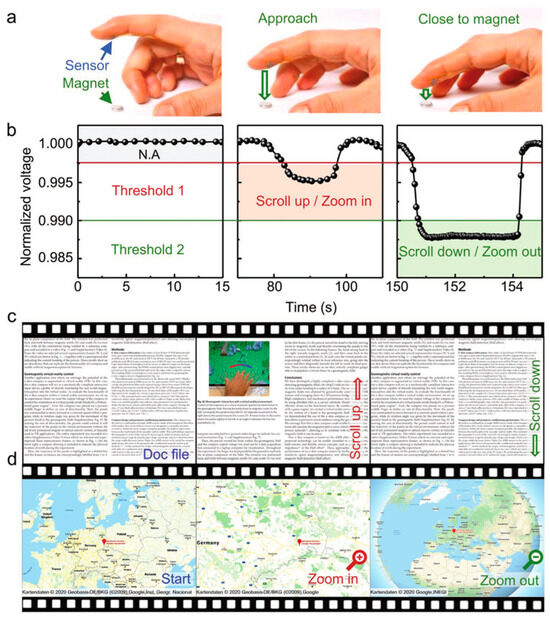

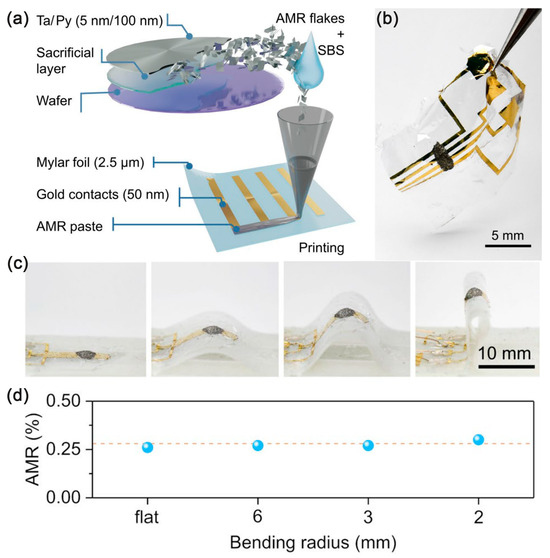

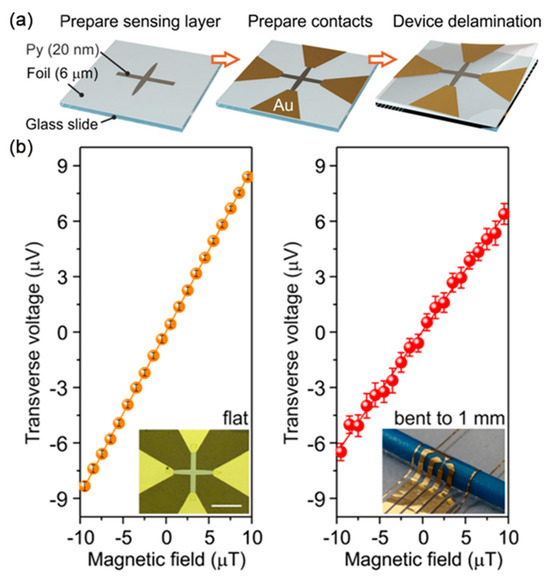

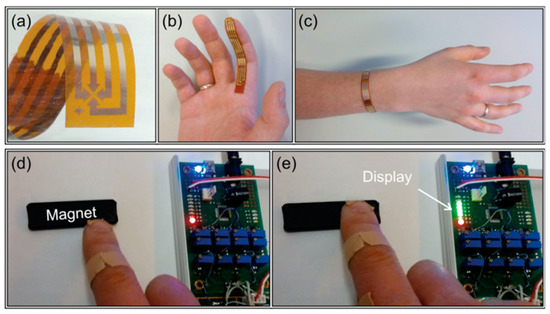

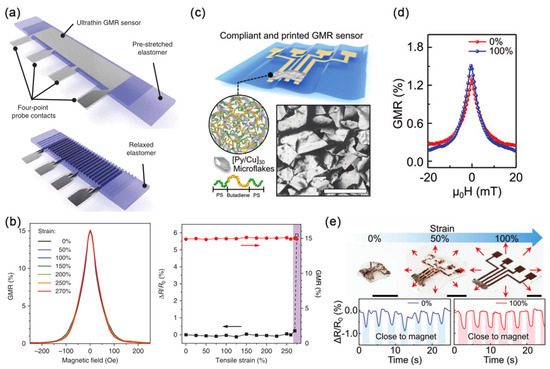

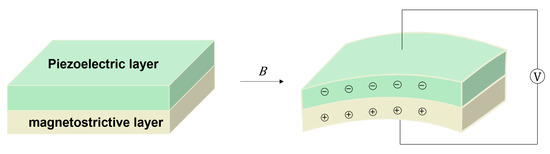

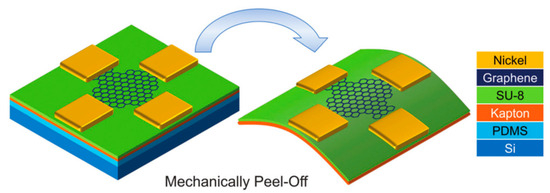

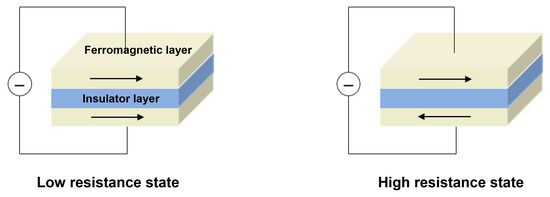

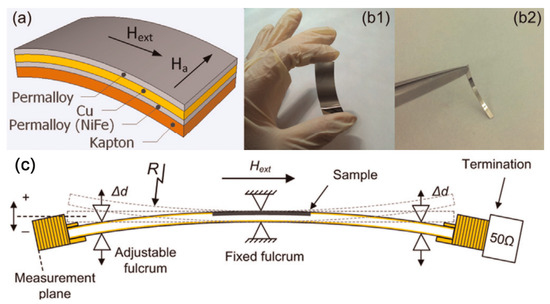

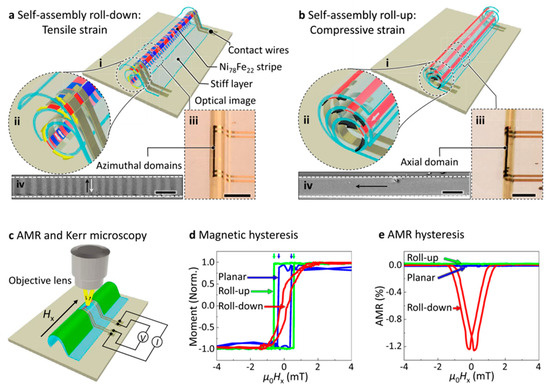

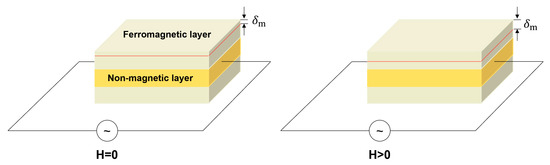

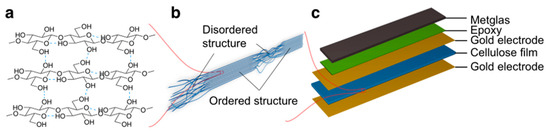

With the merits of high sensitivity, high stability, high flexibility, low cost, and simple manufacturing, flexible magnetic field sensors have potential applications in various fields such as geomagnetosensitive E-Skins, magnetoelectric compass, and non-contact interactive platforms. Based on the principles of various magnetic field sensors, this paper introduces the research progress of flexible magnetic field sensors, including the preparation, performance, related applications, etc. In addition, the prospects of flexible magnetic field sensors and their challenges are presented. Full article

Today, there is an increasing demand for progress in the magnetoimpedance (MI) response of cost-effective soft-magnetic materials for use in high-performance sensing devices. In view of this, we investigate here the field-annealing effects on soft-magnetic properties, magnetoimpedance response, and field sensitivity in the nanocrystalline (Fe₃Ni)₈₁Nb₇B₁₂ alloy ribbons. We observe that within the low-frequency regime, between 2 and 5 MHz, the zero-field-annealed (ZFA) ribbons exhibit the highest magnetoimpedance values. By magneto-optical Kerr effect measurements, we show that this result stems from the formation of irregular transversally patched magnetic domains after annealing, which in turn explains the induced transverse anisotropy necessary to increase the GMI response. In addition, we discuss this increment in terms of skin effect. Moreover, we report that the highest sensitivity of ca. 189%/(kA/m)—15%/Oe—is achieved for the field-annealed samples whose magnetic field was applied transverse to the ribbon axis. These findings are of practical importance to develop and refine highly sensitive magnetic sensors. Full article

Soft magnetic materials are widely requested in electronic and biomedical applications. Co-based amorphous ribbons are materials which combine high value of the magnetoimpedance effect (MI), high sensitivity with respect to the applied magnetic field, good corrosion stability in aggressive environments, and reasonably low price. Functional properties of ribbon-based sensitive elements can be modified by deposition of additional magnetic and non-ferromagnetic layers with required conductivity. Such layers can play different roles. In the case of magnetic biosensors for magnetic label detection, they can provide the best conditions for self-assembling processes in biological experiments. In this work, magnetic properties and MI effect were studied for the cases of rapidly quenched Co₆₇Fe₃Cr₃Si₁₅B₁₂ amorphous ribbons and magnetic Fe₂₀Ni₈₀/Co₆₇Fe₃Cr₃Si₁₅B₁₂/Fe₂₀Ni₈₀ composites obtained by deposition of Fe₂₀Ni₈₀ 1 μm thick films onto both sides of the ribbons by magnetron sputtering technique. Their comparative analysis was used for finite element computer simulations of MI responses with different types of magnetic and conductive coatings. The obtained results can be useful for the design of MI sensor development, including MI biosensors for magnetic label detection. Full article

Multilayered [FeNi (100 nm)/Cu (3 nm)]₅/Cu (500 nm)/[Cu (3 nm)/[FeNi (100 nm)]₅ structures were used as sensitive elements of the magnetoimpedance (MI) sensor prototype for model experiments of the detection of magnetic particles in blood vessel. Non-ferromagnetic cylindrical polymer rod with a small magnetic inclusion was used as a sample mimicking thrombus in a blood vessel. The polymer rod was made of epoxy resin with an inclusion of an epoxy composite containing 30% weight fraction of commercial magnetite microparticles. The position of the magnetic inclusion mimicking thrombus in the blood vessel was detected by the measurements of the stray magnetic fields of microparticles using MI element. Changes of the MI ratio in the presence of composite can be characterized by the shift and the decrease of the maximum value of the MI. We were able to detect the position of the magnetic composite sample mimicking thrombus in blood vessels. Comsol modeling was successfully used for the analysis of the obtained experimental results and the understanding of the origin the MI sensitivity in proposed configuration. We describe possible applications of studied configuration of MI detection for biomedical applications in the field of thrombus state evaluation and therapy. Full article

Magnetoimpedance (MI) in Co-based microwires with an amorphous and partially crystalline state was investigated at elevated frequencies (up to several GHz), with particular attention paid to the influence of tensile stress on the MI behavior, which is called stress-MI. Two mechanisms of MI sensitivity related to the DC magnetization re-orientation and AC permeability dispersion were discussed. Remarkable sensitivity of impedance changes with respect to applied tensile stress at GHz frequencies was obtained in partially crystalline wires subjected to current annealing. Increasing the annealing current enhanced the axial easy anisotropy of a magnetoelastic origin, which made it possible to increase the frequency of large stress-MI: for 90mA-annealed wire, the impedance at 2 GHz increased by about 300% when a stress of 450 MPa was applied. Potential applications included sensing elements in stretchable substrates for flexible electronics, wireless sensors, and tunable smart materials. For reliable microwave measurements, an improved SOLT (short-open-load-thru) calibration technique was developed that required specially designed strip cells as wire holders. The method made it possible to precisely measure the impedance characteristics of individual wires, which can be further employed to characterize the microwave scattering at wire inclusions used as composites fillers. Full article

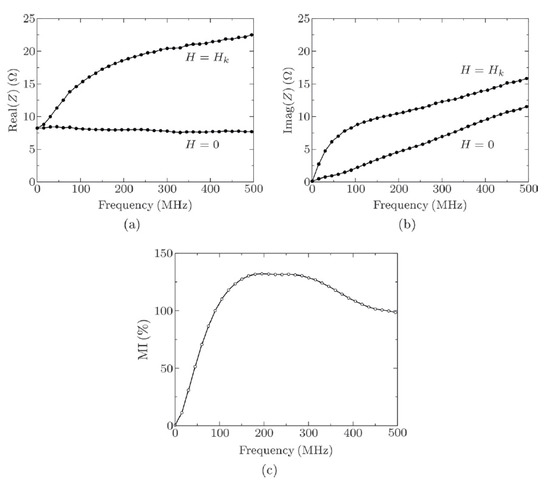

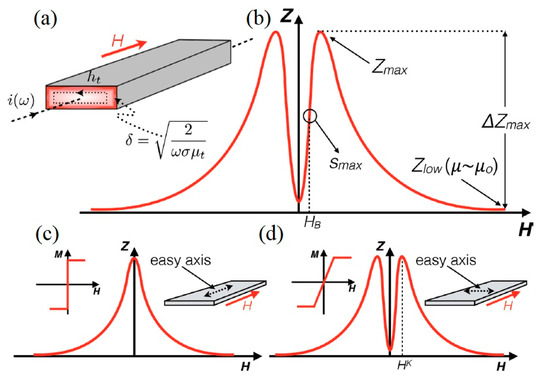

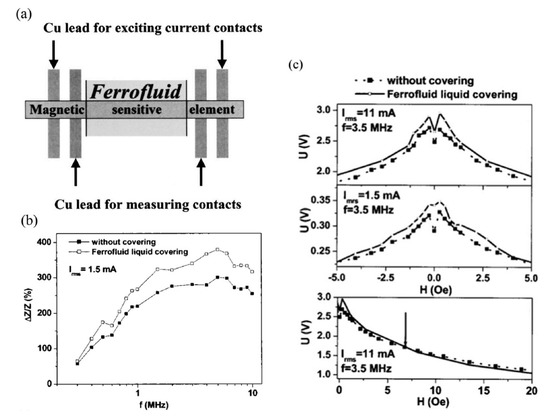

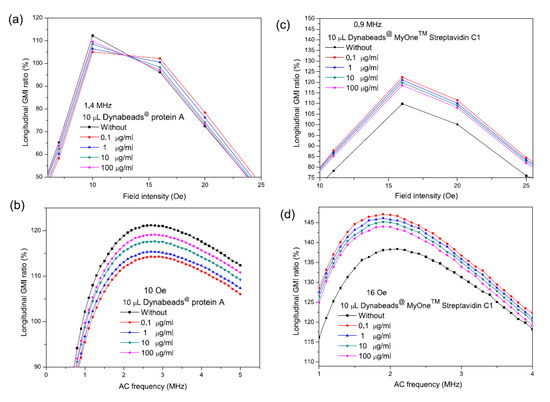

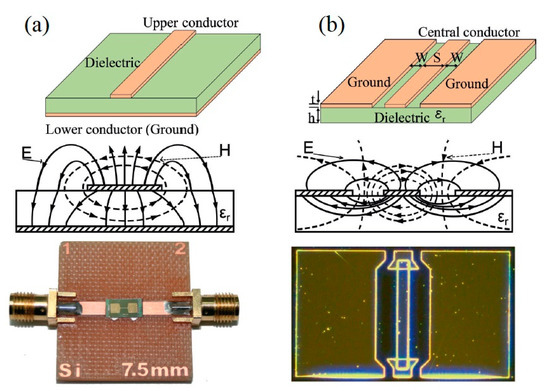

Biosensors based on magneto-impedance (MI) effect are powerful tools for biomedical applications as they are highly sensitive, stable, exhibit fast response, small in size, and have low hysteresis and power consumption. However, the performance of these biosensors is influenced by a variety of factors, including the design, geometry, materials and fabrication procedures. Other less appreciated factors influencing the MI effect include measuring circuit implementation, the material used for construction, geometry of the thin film sensing element, and patterning shapes compatible with the interface microelectronic circuitry. The type magnetic (ferrofluid, Dynabeads, and nanoparticles) and size of the particles, the magnetic particle concentration, magnetic field strength and stray magnetic fields can also affect the sensor sensitivity. Based on these considerations it is proposed that ideal MI biosensor sensitivity could be achieved when the sensor is constructed in sandwich thick magnetic layers with large sensing area in a meander shape, measured with circuitry that provides the lowest possible external inductance at high frequencies, enclosed by a protective layer between magnetic particles and sensing element, and perpendicularly magnetized when detecting high-concentration of magnetic particles. Full article

The temperature dependencies of magnetoimpedance (MI) and stress impedance (SI) were analyzed both in the as-quenched soft magnetic Co_68.5Fe₄Si₁₅B_12.5 ribbons and after their heat treatment at 425 K for 8 h. It was found that MI shows weak changes under the influence of mechanical stresses in the temperature range of 295–325 K and SI does not exceed 10%. At higher temperatures, the MI changes significantly under the influence of mechanical stresses, and SI variations reach 30%. Changes in the magnetoelastic properties for the different temperatures were taken into consideration for the discussion of the observed MI and SI responses. The solutions for the problem of thermal stability of the magnetic sensors working on the principles of MI or SI were discussed taking into account the joint contributions of the temperature and the applied mechanical stresses. Full article

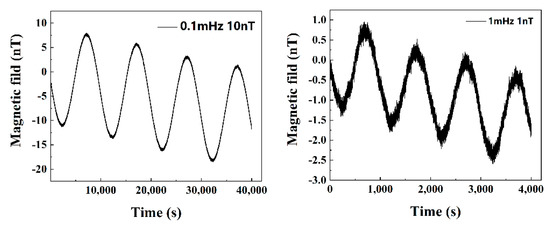

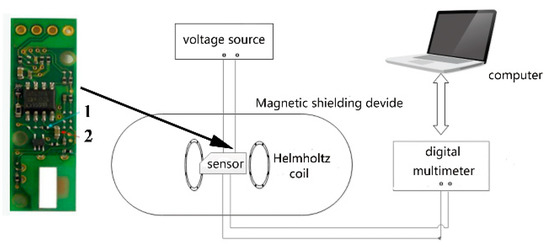

The purpose of this study was to measure the low-frequency noise and basic performance of a commercial magnetoimpedance (MI) sensor at sub-millihertz frequencies for use in space missions. Normally, space missions require measuring very weak magnetic fields with a long integration time, such as the space gravitational wave detection mission requiring sub-millihertz frequencies. We set up a platform for measuring the performance on this MI sensor, including low-frequency noise, measurement limit, linearity, and temperature stability. The results show that the low-frequency noise of the MI sensor is below 10 nT/√Hz at 1 mHz and below 100 nT/√Hz at 0.1 mHz; its measurement limit is 600 pT. The MI sensor is characterized by high precision, small size, and low noise, demonstrating considerable potential for application in magnetically sensitive experiments requiring long integration time. This is an effect way to solve the problem that there is on one suitable magnetic sensor at space magnetic field detection, but the sensor requires improvements in temperature stability. Full article

Amorphous and nanocrystalline soft magnetic materials have attracted much attention in the area of sensor applications. In this work, the magnetoimpedance (MI) effect of patterned soft ferromagnetic meander-shaped sensor elements has been investigated. They were fabricated starting from the cobalt-based amorphous ribbon using the lithography technique and chemical etching. Three-turn (S1: spacing s = 50 μm, width w = 300 μm, length l = 5 mm; S2: spacing s = 50 μm, width w = 400 μm, length l = 5 mm) and six-turn (S3: s = 40 μm, w = 250 μm, length l = 5 mm; S4: s = 40 μm, w = 250 μm and l = 8 mm) meanders were designed. The ‘n’ shaped meander part was denominated as “one turn”. The S4 meander possesses a maximum MI ratio calculated for the total impedance ΔZ/Z ≈ 250% with a sensitivity of about 36%/Oe (for the frequency of about 45 MHz), and an MI ratio calculated for the real part of the total impedance ΔR/R ≈ 250% with the sensitivity of about 32%/Oe (for the frequency of 50 MHz). Chemical etching and the length of the samples had a strong impact on the surface magnetic properties and the magnetoimpedance. A comparative analysis of the surface magnetic properties obtained by the magneto-optical Kerr technique and MI data shows that the designed ferromagnetic meander-shaped sensor elements can be recommended for high frequency sensor applications focused on the large drop analysis. Here we understand a single large drop as the water-based sample to analyze, placed onto the surface of the MI sensor element either by microsyringe (volue range 0.5–500 μL) or automatic dispenser (volume range 0.1–50 mL). Full article

A thin-film magnetic field sensor is useful for detecting foreign matters and nanoparticles included in industrial and medical products. It can detect a small piece of tool steel chipping or breakage inside the products nondestructively. An inspection of all items in the manufacturing process is desirable for the smart manufacturing system. This report provides an impressive candidate for realizing this target. A thin-film magneto-impedance sensor has an extremely high sensitivity, especially, it is driven by alternatiing current (AC) around 500 MHz. For driving the sensor in such high frequency, a special circuit is needed for detecting an impedance variation of the sensor. In this paper, a logarithmic amplifier for detecting a signal level of 400 MHz output of the sensor is proposed. The logarithmic amplifier is almost 5 mm × 5 mm size small IC-chip which is widely used in wireless devices such as cell phones for detecting high-frequency signal level. The merit of the amplifier is that it can translate hundreds of MHz signal to a direct current (DC) voltage signal which is proportional to the radio frequency (RF)signal by only one IC-chip, so that the combination of a chip Voltage Controlled Oscillator (VCO), a magneto-impedance (MI) sensor and the logarithmic amplifier can compose a simple sensor driving circuit. Full article

Hydrogels are biomimetic materials widely used in the area of biomedical engineering and biosensing. Ferrogels (FG) are magnetic composites capable of functioning as magnetic field sensitive transformers and field assisted drug deliverers. FG can be prepared by incorporating magnetic nanoparticles (MNPs) into chemically crosslinked hydrogels. The properties of biomimetic ferrogels for multifunctional biosensor applications can be set up by synthesis. The properties of these biomimetic ferrogels can be thoroughly controlled in a physical experiment environment which is much less demanding than biotests. Two series of ferrogels (soft and dense) based on polyacrylamide (PAAm) with different chemical network densities were synthesized by free-radical polymerization in aqueous solution with N,N’-methylene-diacrylamide as a cross-linker and maghemite Fe₂O₃ MNPs fabricated by laser target evaporation as a filler. Their mechanical, electrical and magnetic properties were comparatively analyzed. We developed a giant magnetoimpedance (MI) sensor prototype with multilayered FeNi-based sensitive elements deposited onto glass or polymer substrates adapted for FG studies. The MI measurements in the initial state and in the presence of FG with different concentrations of MNPs at a frequency range of 1–300 MHz allowed a precise characterization of the stray fields of the MNPs present in the FG. We proposed an electrodynamic model to describe the MI in multilayered film with a FG layer based on the solution of linearized Maxwell equations for the electromagnetic fields coupled with the Landau-Lifshitz equation for the magnetization dynamics. Full article
