Search Results (13)

Introducing and compacting lignocellulosic biomass in aluminum structures, though recommendable in terms of higher sustainability, the potential use of agro-waste and significant weight reduction, still represents a challenge. This is due to the variability of biomass performance and to its limited compatibility with the metal. Another question may concern possible moisture penetration in the structure, which may reduce environmental resistance and result in local degradation, such as wear or even corrosion. Despite these limitations, this hybridization enjoys increasing success. Two forms are possibly available for this: introduction into metal matrix composites (MMCs), normally in the form of char from biomass combustion, or laminate reinforcement as the core for fiber metal laminates (FMLs). These two cases are treated alongside each other in this review, first because they may represent two combined options for recycling the same biomass into high-profile structures, aimed primarily at the aerospace industry. Moreover, as discussed above, the effect on the aluminum alloy can be compared and the forces to which they are subjected might be of a similar type, most particularly in terms of their hardness and impact. Both cases considered, MMCs and FMLs involved over time many lignocellulosic residues, starting from the most classical bast species, i.e., flax, hemp, sisal, kenaf, etc., and extending also to less diffuse ones, especially in view of the introduction of biomass as secondary, or residual, raw materials. Full article

Palm oil mill effluent (POME) is a major contributor to industrial oily wastewater in Malaysia, demanding effective treatment solutions. This study explores the potential of esterified kenaf core (EKC) fiber as an oil adsorbent for oil removal from POME, optimized using a full central composite design (CCD) within the response surface methodology (RSM) framework. The optimum conditions achieved 76% oil removal efficiency, with a 1:0.5 ratio of mercerized kenaf core to stearic acid (MKC:SA), 15 wt% of catalyst, and 1 h reflux time during the esterification process. The regression model exhibited strong predictive capability, with a significant quadratic correlation and an R² value of 0.94. The Fourier transform infrared (FTIR) spectroscopy revealed the existence of ester functional groups characterized by significant hydrophobicity and a decrease in hydroxyl groups, indicating the chemical changes of EKC. Moreover, the scanning electron microscopy (SEM) research demonstrated structural alterations in EKC, including heightened surface roughness, fibrillation, and pore development, which improved oil adhesion relative to raw kenaf core (RKC). These findings indicate that EKC provides an effective, environmentally sustainable solution for managing oil wastewater issues in the palm oil sector, facilitating enhanced ecological sustainability and resource management. Full article

Hibiscus cannabinus (kenaf) is an annual fiber crop grown in warm seasons and known for its remarkable productivity; it has been cultivated worldwide for thousands of years as a fiber source. While every part of the plant can be utilized for some purpose, its primary significance lies in the diverse applications of its cellulosic fiber. Kenaf features a blend of long bast and short core fibers, rendering it suitable for various industrial uses. Initially utilized for cordage and livestock feed, kenaf’s applications have expanded over the last century to encompass its utilization as paper pulp, biocomposites, textiles, biomass energy, seed oil, filtration aids, industrial absorbents, and even as a component of potting medium or as a potential source of medicine. Although traditionally a niche crop, the discovery of its diverse applications positions kenaf for rapid expansion in production in the upcoming decades. This article aims to explore the manifold applications of kenaf, highlighting those with the greatest future potential and discussing those that hold promise for commercial-level application with additional research. Full article

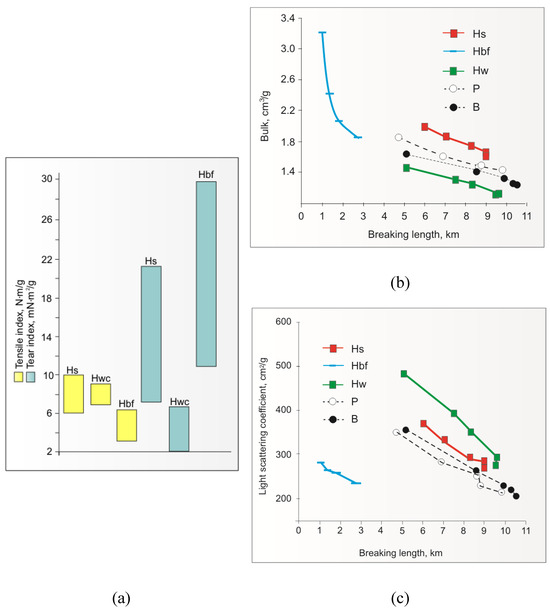

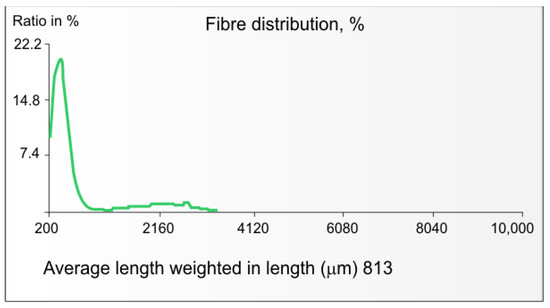

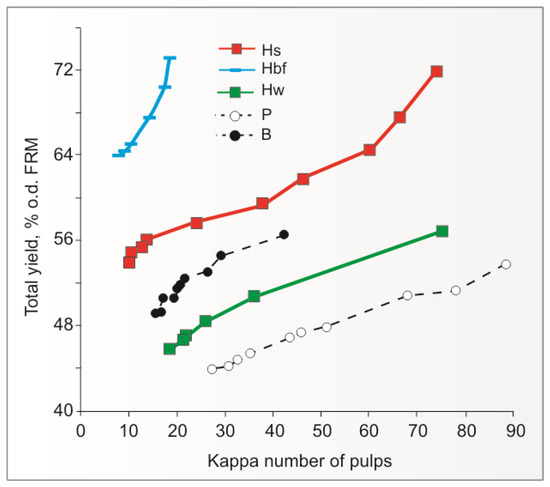

The suitability of industrial hemp (IH) as a source of fibres for European industrial-scale papermaking, including, in particular, European kraft pulp mills (EKMPs) (i.e., plants producing the predominant amount of virgin pulps in Europe), was discussed, considering the causal, cultivation, technological, and application aspects of this issue. The work showed that there are generally premises for using straw from nonwood crops in European papermaking. As for the IH, it was found that IH stalks are the best IH fibrous raw material for EKMPs. There are a few cultivation factors favouring the use of IH stalks in them and a few, though important (e.g., small cultivation areas), factors not conducive to this use. Most technological factors favour the use of IH stalks in EKPMs, apart from the large differences in the length of the IH bast and woody-core fibres. The analysis of application factors indicates lower usefulness of IH stalks than wheat, rye or triticale straws, stalks of Miscanthus × giganteus, Virginia mallow, and kenaf. This is due to the much greater availability of these cereal straws than IH and less variation in the fibre length of cereal straws, Miscanthus × giganteus, Virginia mallow, and kenaf than in IH stalks. The main conclusion from the conducted query is the statement that the presence of IH varieties with fibre lengths more similar to wood would reduce the number of technological and application factors unfavourable to their use in EKPMs and increase the competitiveness of hemp straw vs. wood as a raw material for European large-scale papermaking. Full article

This study investigated the capability of honeycomb core structures made of kenaf fibre-reinforced polylactic acid (PLA) composite. Two types of kenaf fibre were used in this study, these being woven kenaf and non-woven cotton/kenaf. Initially, the corrugated shape panel was manufactured using a hot moulding compression method. The panel was then cut into corrugated strips, bonded together using epoxy resin to form the honeycomb core structure, and balsa wood used as their skins. The effects of core height and crosshead displacement rate were investigated. The honeycomb core consisted of 20 mm, 30 mm and 40 mm core heights, and the crosshead displacement rate ranged from 2 mm/min to 500 min/min. Of all the samples, core structure with a height of 20 mm tested at 500 mm/min offered the highest value of compressive strength and specific energy absorption, which were 6.23 MPa and 12.36 kJ/kg, respectively. It was also discovered that the core height and loading rate have significant effects on the mechanical properties of the kenaf/PLA honeycomb core structure. Full article

Non-food lignocellulosic biomass is an attractive source owing to its abundance as a renewable resource and cost-effectiveness. Hibiscus cannabinus L., commonly known as kenaf, is a fiber-producing plant with high cellulose yield and non-food biomass. This study aimed to enhance the glucose recovery (GR) of kenaf biomass (KB). The bark and core fibers of KB are rich in glucan content and low in lignin content. Based on its glucan and lignin contents, KB has considerable potential as a feedstock for synthesizing monomer sugars, which can produce biofuel and high-value compounds. Therefore, the bark and core fibers were treated at a moderate temperature with various concentrations of phosphoric acid, followed by enzymatic hydrolysis. After pretreatment, the chemical composition of both feedstocks was changed. Phosphoric acid substantially affected the elimination of partial lignin and hemicellulose, which led to enhanced enzymatic hydrolysis. The maximum hydrolysis efficiency (HE) and GR of bark and core fibers were achieved when both feedstocks were treated with 75% phosphoric acid. Compared with untreated feedstocks, HE increased by approximately 5.6 times for bark and 4.7 times for core fibers. However, GR was enhanced approximately 4.9-fold for bark and 4.3-fold for core fibers. Full article

Rapid global population growth has led to an exponential increase in the use of disposable materials with a short life span that accumulate in landfills. The use of non-biodegradable materials causes severe damage to the environment worldwide. Polymers derived from agricultural residues, wood, or other fiber crops are fully biodegradable, creating the potential to be part of a sustainable circular economy. Ideally, natural fibers, such as the extremely strong fibers from hemp, can be combined with matrix materials such as the core or hurd from hemp or kenaf to produce a completely renewable biomaterial. However, these materials cannot always meet all of the performance attributes required, necessitating the creation of blends of petroleum-based and renewable material-based composites. This article reviews composites made from natural and biodegradable polymers, as well as the challenges encountered in their production and use. Full article

In this study, Kraft lignin was esterified with phthalic anhydride and was served as reinforcing filler for poly(butylene succinate) (PBS). Composites with different ratios of PBS, lignin (L), modified lignin (ML) and kenaf core fibers (KCF) were fabricated using a compounding method. The fabricated PBS composites and its counterparts were tested for thermal, physical and mechanical properties. Weight percent gain of 4.5% after lignin modification and the FTIR spectra has confirmed the occurrence of an esterification reaction. Better thermo-mechanical properties were observed in the PBS composites reinforced with modified lignin and KCF, as higher storage modulus and loss modulus were recorded using dynamic mechanical analysis. The density of the composites fabricated ranged from 1.26 to 1.43 g/cm³. Water absorption of the composites with the addition of modified lignin is higher than that of composites with unmodified lignin. Pure PBS exhibited the highest tensile strength of 18.62 MPa. Incorporation of lignin and KCF into PBS resulted in different extents of reduction in tensile strength (15.78 to 18.60 MPa). However, PBS composite reinforced with modified lignin exhibited better tensile and flexural strength compared to its unmodified lignin counterpart. PBS composite reinforced with 30 wt% ML and 20 wt% KCF had the highest Izod impact, as fibers could diverge the cracking propagation of the matrix. The thermal conductivity value of the composites ranged from 0.0903 to 0.0983 W/mK, showing great potential as a heat insulator. Full article

The thermal, thermo-mechanical and flammability properties of kenaf core hybrid polymer nanocomposites reinforced with unbleached and bleached nanocrystalline cellulose (NCC) were studied. The studied chemical composition found that unbleached NCC (NCC-UB) had 90% more lignin content compared to bleached NCC (NCC-B). Nanocelluloses were incorporated within polypropylene (PP) as the matrix, together with kenaf core as a main reinforcement and maleic anhydride grafted polypropylene (MAPP) as a coupling agent via a melt mixing compounding process. The result showed that the thermal stability of the nanocomposites was generally affected by the presence of lignin in NCC-UB and sulfate group on the surface of NCC-B. The residual lignin in NCC-UB appeared to overcome the poor thermal stability of the composites that was caused by sulfation during the hydrolysis process. The lignin helped to promote the late degradation of the nanocomposites, with the melting temperature occurring at a relatively higher temperature of 219.1 °C for PP/NCC-UB, compared to 185.9 °C for PP/NCC-B. Between the two types of nanocomposites, PP/NCC-B had notably lower thermo-mechanical properties, which can be attributed to the poor bonding and dispersion properties of the NCC-B in the nanocomposites blend. The PP/NCC-UB showed better thermal properties due to the effect of residual lignin, which acted as a compatibilizer between NCC-UB and polymer matrix, thus improved the bonding properties. The residual lignin in PP/NCC-UB helped to promote char formation and slowed down the burning process, thus increasing the flame resistance of the nanocomposites. Overall, the residual lignin on the surface of NCC-UB appeared to aid better stability on the thermal and flammability properties of the nanocomposites. Full article

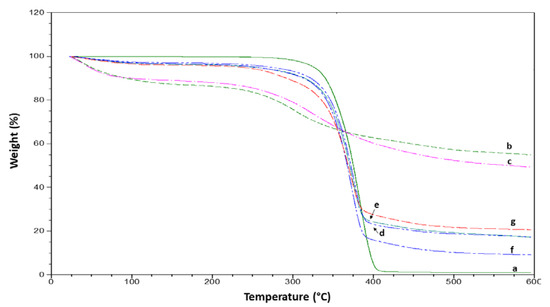

Mechanical strength, thermal conductivity and electrical breakdown of polypropylene/lignin/kenaf core fiber (PP/L/KCF) composite were studied. PP/L, PP/KCF and PP/L/KCF composites with different fiber and lignin loading was prepared using a compounding process. Pure PP was served as control. The results revealed that tensile and flexural properties of the PP/L/KCF was retained after addition of lignin and kenaf core fibers. Thermal stability of the PP composites improved compared to pure PP polymer. As for thermal conductivity, no significant difference was observed between PP composites and pure PP. However, PP/L/KCF composite has higher thermal diffusivity. All the PP composites produced are good insulating materials that are suitable for building. All PP composites passed withstand voltage test in air and oil state as stipulated in IEC 60641-3 except PP/L in oil state. SEM micrograph showed that better interaction and adhesion between polymer matrix, lignin and kenaf core fibers was observed and reflected on the better tensile strength recorded in PP/L/KCF composite. This study has successfully filled the gap of knowledge on using lignin and kenaf fibers as PP insulator composite materials. Therefore, it can be concluded that PP/Lignin/KCF has high potential as an insulating material. Full article

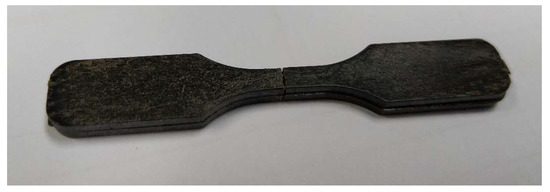

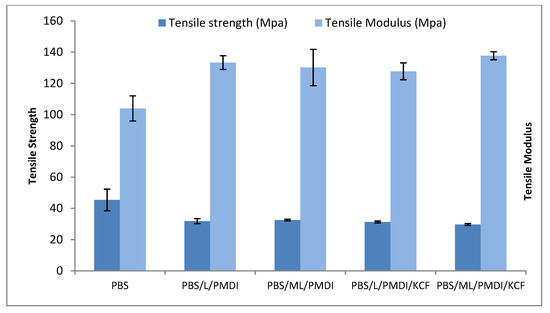

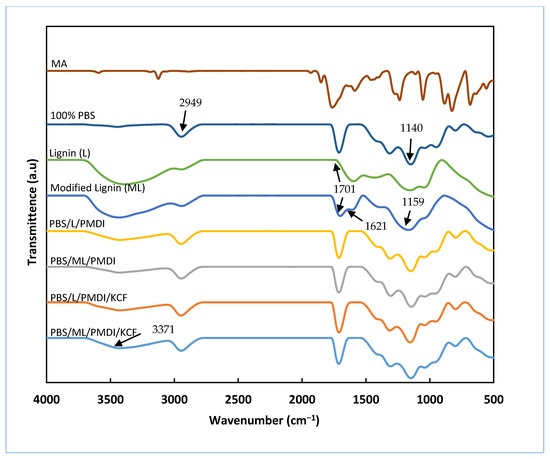

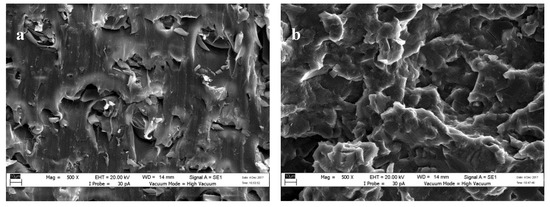

In this study, the effects of lignin modification on the properties of kenaf core fiber reinforced poly(butylene succinate) biocomposites were examined. A weight percent gain (WPG) value of 30.21% was recorded after the lignin were modified with maleic anhydride. Lower mechanical properties were observed for lignin composites because of incompatible bonding between the hydrophobic matrix and the hydrophilic lignin. Modified lignin (ML) was found to have a better interfacial bonding, since maleic anhydrides remove most of the hydrophilic hydrogen bonding (this was proven by a Fourier-transform infrared (FTIR) spectrometer—a reduction of broadband near 3400 cm⁻¹, corresponding to the –OH stretching vibration of hydroxyl groups for the ML samples). On the other hand, ML was found to have a slightly lower glass transition temperature, Tg, since reactions with maleic anhydride destroy most of the intra- and inter-molecular hydrogen bonds, resulting in a softer structure at elevated temperatures. The addition of kraft lignin was found to increase the thermal stability of the PBS polymer composites, while modified kraft lignin showed higher thermal stability than pure kraft lignin and possessed delayed onset thermal degradation temperature. Full article

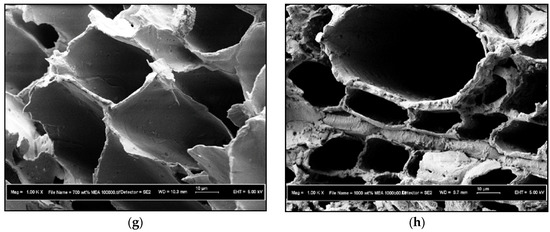

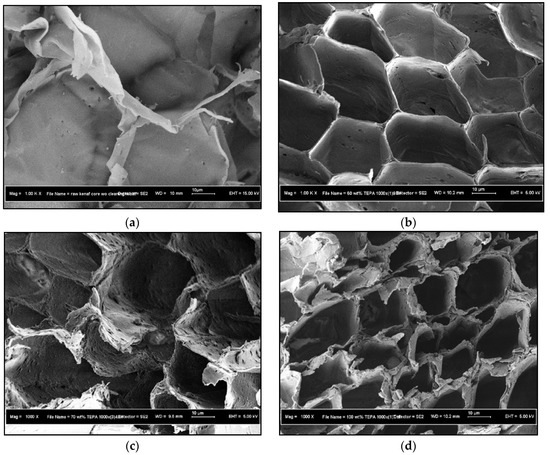

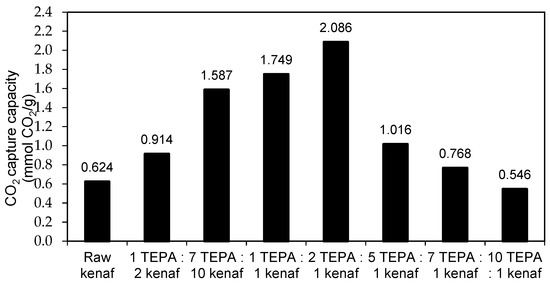

Amongst the strategies applicable for CO₂ capture and sequestration, the adsorption process has a high potential to be applied as an alternative CO₂ separation strategy as it offers large adsorption capacity, requires low energy for regeneration with economical equipment cost, prevents corrosion problems, and provides ease of applicability. Inspired by the most applicable amine-based chemical absorption for CO₂ capture, the modification of adsorbent by amine was first considered and then investigated. This study introduces kenaf (Hibiscus Cannabinus L.) as a potential low-cost material in evaluating the effect of amine functional group concentrations on CO₂ adsorption capacity. Monoethanolamine (MEA) and tetraethylenepentamine (TEPA) were impregnated on kenaf via a wetness impregnation method to achieve the aim. The ratios of amine to kenaf were varied at 1:2, 7:10, 1:1, 2:1, 5:1, 7:1, and 10:1. Then, the prepared amine-modified kenaf core sorbent was characterized using different morphology and structural characterization techniques such as a field emission scanning electron microscope (FESEM) analyzer and Fourier transform infrared (FTIR) spectroscopy. Results obtained through the analyses showed that amine (MEA and TEPA) were successfully impregnated on the kenaf core surfaces, and that amine concentrations have a significant effect on the morphological structures of the kenaf core support. The study on CO₂ adsorption capacity was conducted in a pressure swing adsorption system (PSA). Results revealed that the highest CO₂ adsorption capacity for MEA-modified kenaf adsorbent was achieved at an amine to kenaf ratio of 1:1 (2.070 mmol/g), while for TEPA-modified kenaf adsorbent at a ratio of 2:1 (2.086 mmol/g). The study on the effect of amine concentration on kenaf adsorbent is beneficial in introducing kenaf as a sorbent in capturing CO₂. Full article

This work investigated the effect of maleic anhydride (MA)-modified poly(lactic acid) (PLA), which is melt-blended with different untreated and aqueous borax (BR)-treated hybrid oil palm empty fruit bunch fibers (EFBF)/Kenaf core fibers (KCF), and compression-molded into corresponding hybrid biocomposites. These hybrid systems includes BR-treated EFBF/BR-treated KCF reinforced MA-modified PLA i.e., BR(EFBF-KCF)-MAPLA, BR-treated EFBF/BR-treated KCF reinforced unmodified PLA i.e., BR(EFBF-KCF)-PLA, untreated EFBF/untreated KCF reinforced MA-modified PLA i.e., EFBF-KCF-MAPLA, and untreated EFBF/untreated KCF reinforced unmodified PLA i.e., EFBF-KCF-PLA respectively. Characterizations of the hybrid systems revealed that optimal mechanical, physical, morphological, thermal and dynamic mechanical properties were provided by the BR(EFBF-KCF)-MAPLA, resulting from improved interface adhesion, consequent of the synergistic influence of BR treatment of natural fibers, and the compatibilization effect provided by the MA-modified PLA. The grafting degree and efficiency of MA onto the PLA backbone was appreciable, as indicated by direct titration, and through monitoring using Fourier Transform Infrared Spectroscopy (FTIR); thus the MA-modified PLA facilitated the formation of strong interface adhesion with the BR-treated hybrid fibers. The BR(EFBF-KCF)-MAPLA showed promising properties for usage as a bio-inspired, and sustainable alternative fiberboard article. Full article
