Search Results (7)

A fabric orientation angle has a significant influence on the failure mechanisms at the lamina level. Any change in this angle can lead to a sudden reduction in strength, potentially resulting in catastrophic failures due to variations in load-carrying capacity. This study examined the impact of off-axis fabric orientation angles (0°, 15°, 30°, 45°, 60°, and 90°) on the flexural properties of non-crimp basalt-fibre-reinforced acrylic thermoplastic composites. The basalt/Elium^® composite panels were manufactured using a vacuum-assisted resin transfer moulding technique. The results show that the on-axis (0°) composite specimens exhibited linear stress–strain behaviour and quasi-brittle failure characterised by fibre dominance, achieving superior strength and failure strain values of 1128 MPa and 3.85%, respectively. In contrast, the off-axis specimens exhibited highly nonlinear ductile behaviour. They failed at lower load values due to matrix dominance, with strength and failure strain values of 144 MPa and 6.0%, respectively, observed at a fabric orientation angle of 45°. The in-plane shear stress associated with off-axis angles influenced the flexural properties. Additionally, the degree of deformation and the fracture mechanisms were analysed. Full article

Recent pressure on scientists and industries to use renewable resources, as well as the need to produce environmentally friendly materials, has led researchers and manufacturers to use natural fibres as possible reinforcements for their composites. Although they seem to be “ideal” due to their low cost, light weight and interesting energy absorption properties, they cannot be compared to synthetic fibres. To solve this problem, hybridization techniques can be considered, since the combination of synthetic and natural fibres allows for good performances. The aim of this study was to characterize the delamination and in-plane crashworthiness behaviour of carbon, flax and hybrid composites from experimental and numerical points of view. Double Cantilever Beam and Four-Point End Notched Flexure tests were carried out to determine the interlaminar fracture modes. In-plane crashworthiness tests were then performed to investigate the delamination phenomenon and the energy absorption capacity considering two different geometries: flat and corrugated. Numerical models were created and validated on both geometries, comparing the obtained load–displacement curves with the experimental ones. Crush force efficiency and specific energy absorption were quantified to provide a proper comparison of the investigated materials. The good results achieved represent a promising starting point for the design of future and more complex structures. Full article

Confined masonry (CM) is a construction system that consists of loadbearing masonry wall panels enclosed by vertical and horizontal reinforced concrete confining elements. The presence of these confining elements distinguishes CM from unreinforced masonry systems, and makes this technology suitable for building construction in regions subject to intense seismic or wind activity. CM construction has been used in many countries and regions, and has performed well in past earthquakes. The purpose of this paper is to review experimental research studies related to the seismic in-plane and out-of-plane behaviour of CM structures. The authors identify the key design and construction parameters considered in previous research studies and perform statistical analyses to establish their influence on the seismic performance of CM walls. For the purposes of this study, the authors compiled databases of previous experimental studies on CM wall specimens, which were used for statistical analyses. Finally, the paper discusses research gaps and the need for future research studies that would contribute to the understanding of seismic behaviour and failure mechanisms of CM walls. Full article

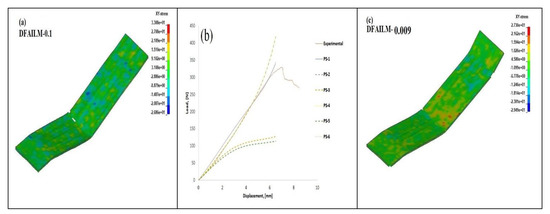

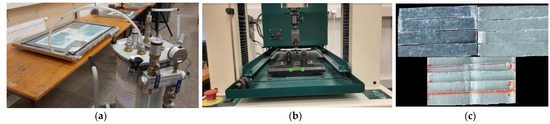

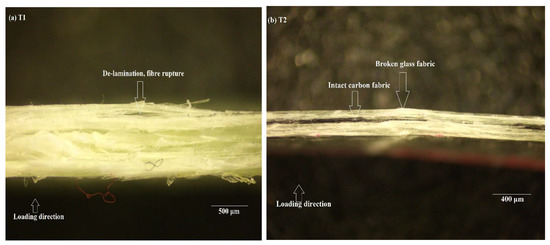

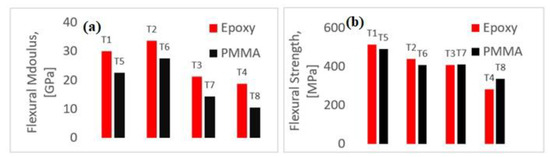

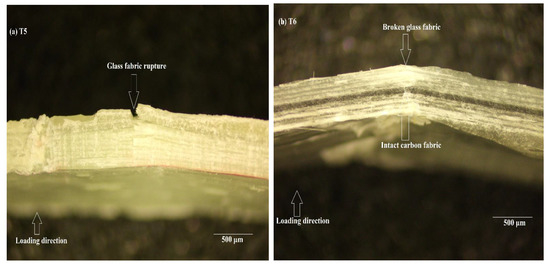

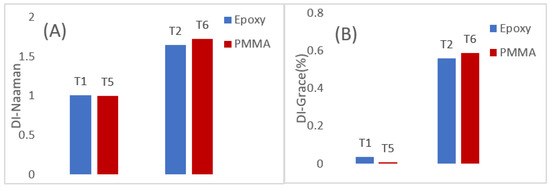

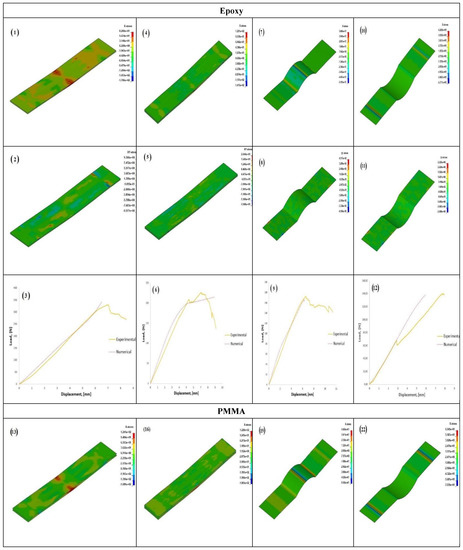

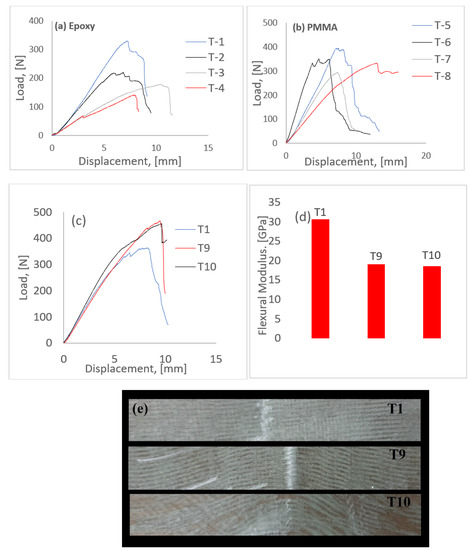

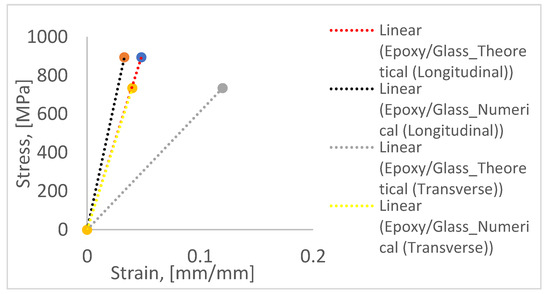

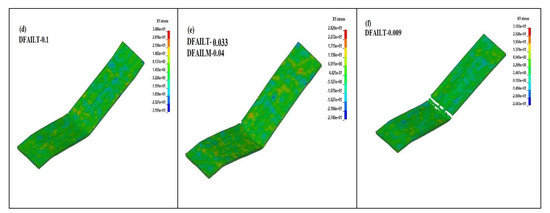

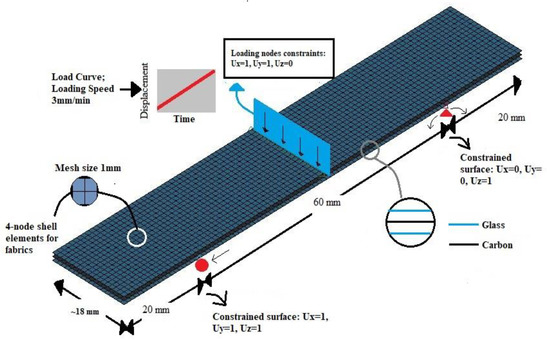

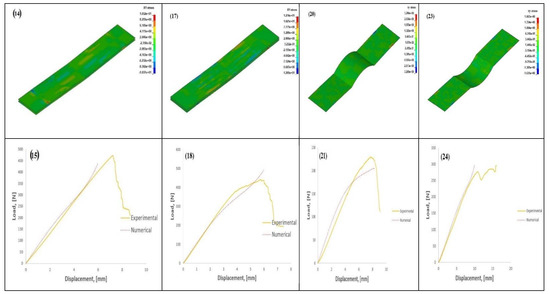

The study aims to ascertain the influence of hybridisation and ply waviness on the flexural behaviour of polymer composites. Two different resin systems, namely epoxy and Poly(methyl methacrylate)-PMMA, were chosen for the study, wherein two batches of carbon/glass hybrid composites (CGHC) were fabricated with the two resin systems. In addition to CGHC samples, four other neat batches with waviness (glass/epoxy and glass/PMMA) were prepared to study the effect of out-of-plane ply waviness. Two sets were additionally made with in-plane waviness (angles ranging from 15–35°) with epoxy to further understand the effect of waviness on flexural behaviour. Thereafter, two more batches of samples with neither waviness nor hybrid architectures were tested to achieve a better understanding of hybridization and the presence of waviness. It was seen that the hybridization of polymer composites introduces a pseudo-ductile behaviour in brittle composites, which makes the failure more predictable. An energy-based model was implemented to quantify the ductility introduced by hybridization. The presence of in-plane waviness increased the flexural load but reduced the modulus considerably. The presence of out-of-plane waviness decreased the flexural properties of composites drastically, though the displacement rate was seen to increase considerably. From the comparison between epoxy and PMMA, it was seen that PMMA exhibited similar flexural properties vis-à-vis epoxy. PMMA is easy to re-cycle and thus could serve as an ideal replacement for epoxy resin. Finally, a numerical model was built based on an LS-DYNA commercial solver; the model predicted the flexural behaviour close to what was seen in the experiments. The model could be calibrated correctly by ascertaining the influence of failure strain in the longitudinal direction, which is fibre dependent, and the failure strain in the transverse direction, which is matrix dependent. Full article

This paper presents the results of several numerical analyses aimed at investigating the in-plane resistance of masonry walls by means of two modelling approaches: a finite element model (FEM) and a discrete macro-element model (DMEM). Non-linear analyses are developed, in both cases, by changing the mechanical properties of masonry (compressive and tensile strengths, fracture energy in compression and tension, shear strength) and the value of the vertical compression stress applied on the walls. The reliability of both numerical models is firstly checked by means of comparisons with experimental tests available in the literature. The analyses show that the numerical results provided by the two modelling approaches are in good agreement, in terms of both failure loads and modes, while some differences are observed in their load-displacement curves, especially in the non-linear field. Finally, the numerical in-plane resistances are compared with the theoretical formulations provided by the Italian building code for both flexural and shear failure modes and an amendment for the shape factor ‘b’ introduced in the code formulation for squat walls is proposed. Full article

Through-Thickness Reinforcement (TTR) technologies are well suited to improving the mechanical properties in the out-of-plane direction of fibre-reinforced composites. However, besides the enhancement of delamination resistance and thus the prevention of overall catastrophic failure, the presence of additional reinforcement elements in the composite structure affects also the mechanical properties in in-plane direction. In this work, the flexural behaviour of a glass-polypropylene (GF/PP) hybrid yarn-based composite with TTR in form of metallic pins has been investigated experimentally and numerically. The insertion of the metallic pins is realized via thermoactivated pinning technology (TAP). In four-point-bending tests, it is shown that the flexural stiffness and strength decreases with an increase of the overall pin density. Hereby, it is observed that the pins act as crack initiators. For numerical modelling on specimen level, a continuum damage mechanic (CDM) model is used to predict the nonlinear deformation response of the composite, as well as fibre fracture and matrix cracking. A debonding and slipping phenomena of the pin in the composite is modelled by a cohesive zone modelling approach for the interface between pin and composite. Full article

Rock fractures in geological conditions are caused not only by applied stress, but also by stress corrosion. Stress corrosion is an environmentally activated chemical process, associated with the fluid-assisted crack growth. Crack growth due to stress corrosion is related to the time-dependent behaviours of rocks and is a crucial factor in determining the stability of underground structures over the long period of time. In this study, constant stress-rate tests including Brazilian tension and three-point flexural tests for the tensile strength, short-beam compression and single-shear tests for the in-plane shear strength, and a torsion test of rectangular section specimens and a circumferentially notched cylindrical specimen test for the out-of-plane shear strength were conducted at a different loading rate from 0.01 to 10 MPa/s using Coconino sandstone. The results show that the rock strength was proportional to the 1/(n+1)th power of the loading rate, where the parameter n indicates the stress corrosion index. The stress corrosion index (n) ranged from 34 to 38, with an average value of 36. The stress corrosion indices (n) were similar, irrespective of the loading configuration and specimen geometry. The stress corrosion index (n) can, therefore, be regarded as a material constant of rocks. Full article
