Search Results (29,839)

Purpose: This study sought to extract and characterize fucoidan from brown seaweed Padina tetrastromatica for the synthesis of fucoidan–gold nanoparticles (F-AuNPs) and to assess their physicochemical properties, as well as their antioxidant, anti-inflammatory, and anticancer activities, alongside potential molecular interactions with specific cancer-related targets. Methods: The extracted fucoidan-rich fraction was characterized for its sulfate content. Citrate-stabilized plain gold nanoparticles (plain AuNPs) were prepared and characterized as non-fucoidan nanoparticle controls. Comprehensive physicochemical characterization, including UV–Vis spectroscopy, Fourier-transform infrared spectroscopy (FTIR), transmission electron microscopy (TEM), X-ray diffraction (XRD), dynamic light scattering (DLS), zeta-potential analysis, and thermogravimetric analysis (TGA), was performed on the resultant fucoidan-functionalized AuNPs (F-AuNPs). Biological activities were assessed using different techniques: antioxidant potential (Ferric Reducing Antioxidant Power (FRAP) and 2,2-diphenyl-1-picrylhydrazyl (DPPH) assays), anti-inflammatory effects (NO inhibition in macrophages), and anticancer efficacy against HepG2 cells (MTT and flow cytometry). Potential molecular targets relevant to these activities were further explored in silico using molecular docking against key cancer-related proteins, providing hypotheses for future experimental validation. Results: The fucoidan-rich fraction showed a sulfate content of 10.08%. Strong antioxidant activity was observed, especially in FRAP (11.20 ± 0.29 mg TE g⁻¹ DW). F-AuNPs exhibited enhanced cytotoxicity against HepG2 cells (IC₅₀ 138.1 µg mL⁻¹) compared to plain AuNPs (IC₅₀ 271.2 µg mL⁻¹) and the fucoidan-rich fraction (IC₅₀ 390.2 µg mL⁻¹), inducing G1 phase arrest. In addition, F-AuNPs reduced nitric oxide production in LPS-stimulated RAW 264.7 macrophages, reaching 21.42 ± 1.29% inhibition at 100 µg mL⁻¹. As an exploratory, hypothesis-generating step, an in silico target-prioritization screen identified HPSE and MMP-2 as the highest-scoring candidate proteins, proposed solely as targets for future experimental validation. Conclusions: F-AuNPs represent a promising multifunctional nanoplatform with antioxidant, anti-inflammatory, and antiproliferative activities. The integration of in vitro biological evaluation with in silico target prediction supports the potential biomedical relevance of F-AuNPs and generates testable hypotheses regarding their molecular targets, which require experimental validation. Full article

Al-Cu-Fe quasicrystalline coatings were deposited on AISI 321 stainless steel substrates by high-velocity oxy-fuel (HVOF) spraying at oxygen pressures of 3.0, 3.5, and 4.0 bar. The influence of oxygen pressure on the phase composition, microstructure, porosity, corrosion behavior, thermal stability, and microhardness of the coatings was investigated using X-ray diffraction (XRD), scanning electron microscopy coupled with energy-dispersive spectroscopy (SEM/EDS), ImageJ porosity analysis, electrochemical corrosion testing in 3.5 wt.% NaCl solution, simultaneous thermal analysis (TGA/DSC), and microhardness measurements. XRD analysis revealed the formation of quasicrystalline-related intermetallic phases together with Al, Fe₃Al₁₃, FeAl, Fe₃O₄, CuFe₂O₄, Cu₂O, and CuO phases. The coating deposited at 3.5 bar exhibited the lowest porosity (5.37%), the most homogeneous microstructure, and the largest residual coating thickness after corrosion testing. SEM and EDS analyses indicated that corrosion preferentially initiated at pores, splat boundaries, and phase interfaces, while the coating produced at 3.5 bar demonstrated the most stable surface condition after exposure to a 3.5 wt.% NaCl solution. Thermal analysis showed that all coatings remained stable up to 900 °C. Sample (a) exhibited the lowest mass loss and the highest thermal stability, whereas sample (b) demonstrated the most favorable combination of structural integrity, phase ordering, coating density, corrosion-related performance, and thermal stability. Microhardness values of the coatings ranged from 754 to 778 HV, significantly exceeding that of the AISI 321 substrate. The results demonstrate that oxygen pressure is a critical parameter controlling the microstructure and functional properties of HVOF-sprayed Al-Cu-Fe coatings, with 3.5 bar providing the most balanced set of properties. Full article

The slag from electric arc furnace (EAF) steelmaking has potential for various applications, but its safe use requires the assessment of heavy metals, such as chromium leaching, to meet environmental standards. This study investigates the microstructure of EAF slag cooled in a slag pot and its effect on Cr immobilization. Slag samples were collected at full scale using a representative sampling method, dividing the slag pot into six zones (internal and external, top to bottom). Microstructural analysis was performed using scanning electron microscopy coupled with energy dispersive spectroscopy and X-ray diffraction, followed by leaching tests on the milled samples. Thermodynamic calculations were performed using FactSage 8.4 to evaluate phase stability and composition. The results indicate that cooling conditions inferred from slag-pot location, spinel size, and spinel zoning are correlated with variations in Cr leaching under neutral conditions. Slower cooling is associated with the formation of large, reverse-zoned spinel phases that may contribute to Cr stabilization, whereas rapid cooling is associated with smaller, homogeneous spinel phases that may increase leaching risk. These findings provide insights for the environmentally safe utilization of EAF slags and inform strategies to minimize Cr release during slag valorization. Full article

Radiation therapy is widely used for cancer treatment. To improve therapeutic efficacy, traditional radiosensitizers are often used in combination. However, their toxic side effects necessitate urgent development of safer alternative biogenic radiosensitizers. Herein, a green approach was used to synthesise ZnO NPs, CuO NPs, and ZnO-CuO NCs using S. africana Luteus, and their ability to enhance the radiosensitizing effect of proton irradiation on Michigan Cancer Foundation-7 (MCF7) breast cancer cell line was evaluated. The biogenic nanoparticles are characterised in detail through several analytical techniques, including Ultraviolet-visible (UV-Vis) spectroscopy, X-ray diffraction (XRD), Fourier Transform Infrared (FTIR) spectroscopy, and Scanning Electron Microscopy (SEM). Interestingly, the NPs showed concentration-dependent effects on MCF7 viability, with CuO NPs exhibiting the strongest effect (IC₅₀ = 42.90 µg/mL), followed by ZnO-CuO NCs (71.12 µg/mL) and ZnO NPs (103.43 µg/mL). Proton irradiation produced a dose-dependent decrease in clonogenic survival of MCF7 cells, and ZnO-CuO NCs displayed the highest enhancement of proton-induced cell death, with a Dose Enhancement Factor (DEF) of 1.69, compared with CuO NPs (1.46) and ZnO NPs (1.09). Holotomographic microscopy (HTM) data further confirmed that ZnO-CuO NCs impaired cellular macromolecules more than the individual NPs. Findings from this study suggest that the biogenic NPs are promising radiosensitizers for cancer radiotherapy. Full article

Tight oil reservoir quality and development effectiveness are highly dependent on microscopic pore structure characteristics and spatial heterogeneity. In this study, tight sandstones from the Chang 3, Chang 6, Chang 7, and Chang 8 members of the Triassic Yanchang Formation in the Xunyi exploration area, southern Ordos Basin, were selected as research objects. By integrating X-ray diffraction (XRD), cast thin sections, scanning electron microscopy (SEM), high-pressure mercury injection (HPMI) experiments, and multifractal theory, the multi-scale heterogeneity characteristics of pore structures in different layers were quantitatively characterized. The response relationships between multifractal parameters, macroscopic physical properties, and pore size distributions were discussed, and the geological control mechanisms of sedimentation and diagenesis on heterogeneity were revealed. The results indicate that the sedimentary environment plays a fundamental role in controlling reservoir physical properties. The Chang 3 and Chang 8 members, deposited in underwater distributary channels, are dominated by primary and dissolution pores, with physical properties significantly superior to the gravity flow-deposited Chang 6 and Chang 7 members. Multifractal analysis shows that the Chang 3 member has the largest singularity spectrum width (Δα =1.943 ± 0.56) and heterogeneity index (R_d = 1.782 ± 0.99), reflecting its broadest pore size distribution, strongest heterogeneity, and significant intra-layer differences; while the pore structures from Chang 6 to Chang 8 are relatively stable, with the Chang 8 member exhibiting high spatial connectivity. This study demonstrates that the quantitative evaluation method based on multifractal theory can effectively identify microscopic structural differences in tight sandstones, providing a critical supporting basis for reservoir classification characterization and favorable layer selection in the Yanchang Formation of the Ordos Basin. Full article

Sustainable and efficient removal of nutrients in decentralised wastewater treatment is still challenging. This work focused on the characterisation of natural clinoptilolite and chabasite as low-cost and recyclable ammonium adsorbents. Inductively coupled plasma analysis showed Si/Al ratios of 3.92 and 2.30 for clinoptilolite and chabasite, respectively. X-ray diffraction tests showed different material purities (93% for clinoptilolite and 73% for chabasite). The Brunauer–Emmett–Teller (BET) reported specific areas of 291.6 m²∙g⁻¹ and 29.9 m²∙g⁻¹ for chabasite and clinoptilolite, respectively. Single point pore volume at P/P₀ = 0.99 was 0.2 cm³ g⁻¹ and 0.12 cm³ g⁻¹ for chabasite and clinoptilolite, respectively. Adsorption capacities derived from batch adsorption tests were 1.66 ± 0.08 mg∙g⁻¹ and 1.47 ±0.03 mg∙g⁻¹ for clinoptilolite and chabasite, respectively (C_eq = 10 mg∙L⁻¹). In all column tests, the adsorption capacity of clinoptilolite was higher (2.48 ± 0.3 vs. 2.21 ± 0.2 mg∙g⁻¹), a result inconsistent with its lower exchange capacity and lower specific surface area. Although it is difficult to clearly define the leading mechanism for adsorption, the difference between the two materials is probably due to the slower adsorption kinetics of chabazite, while the purity of the material may also have contributed. Applications of these sustainable materials for ammonium adsorption in decentralised wastewater treatment is promising, although determining their detailed preliminary characterisation is fundamental. Full article

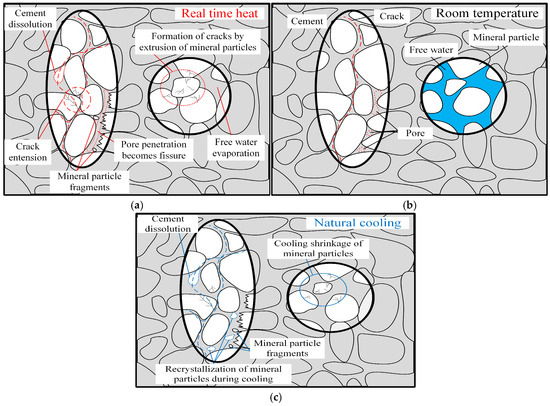

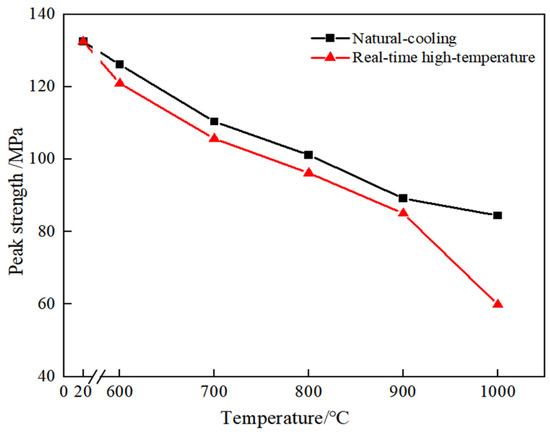

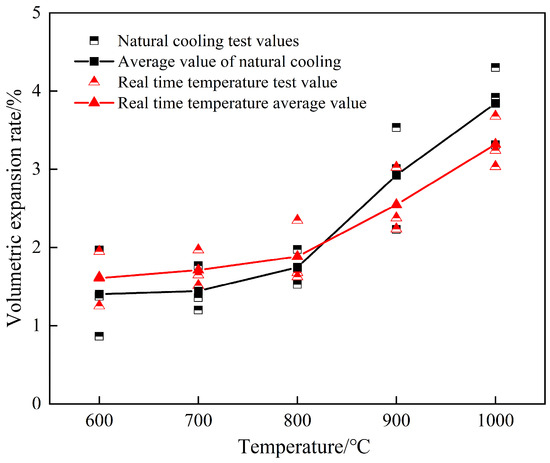

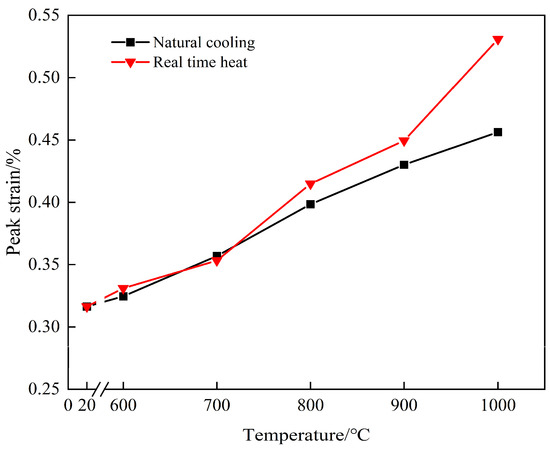

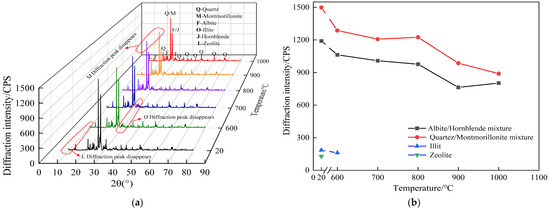

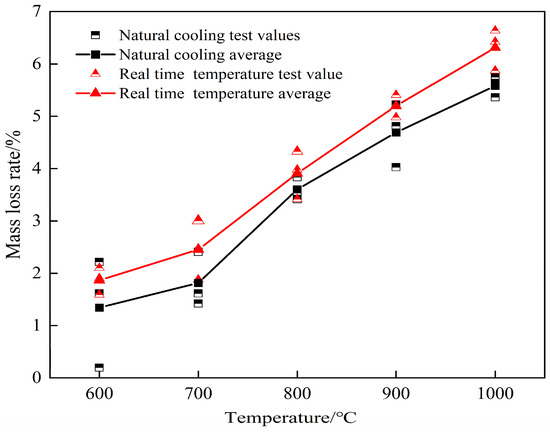

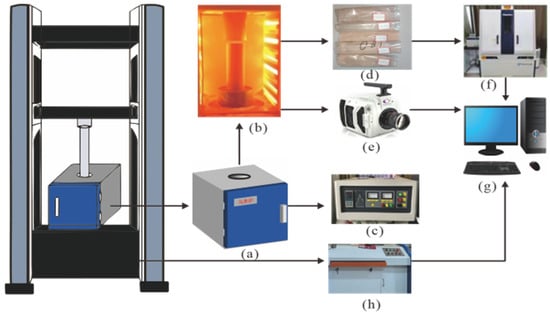

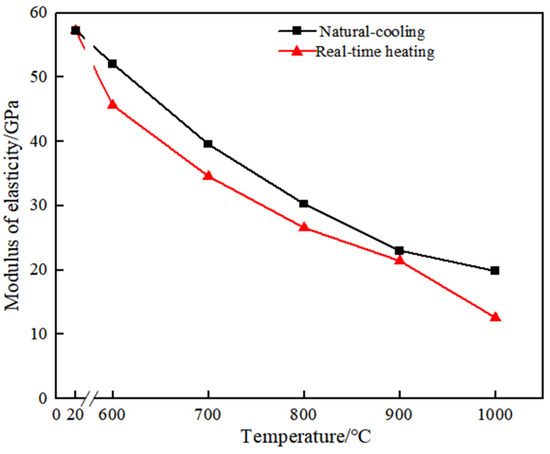

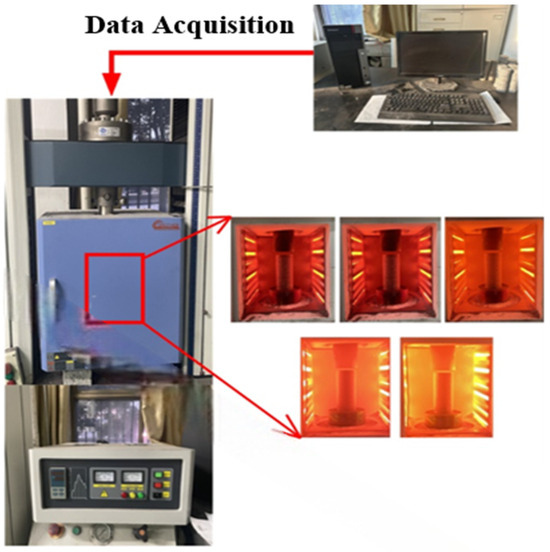

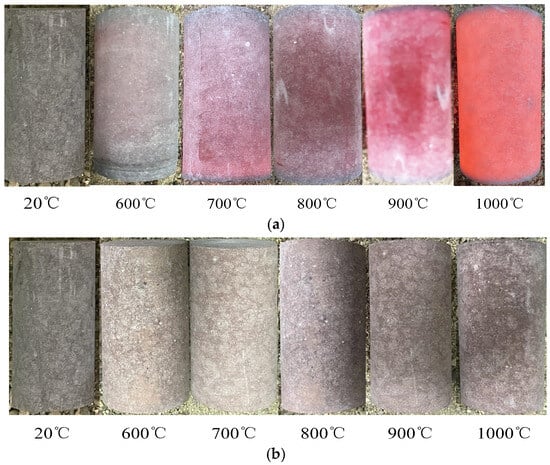

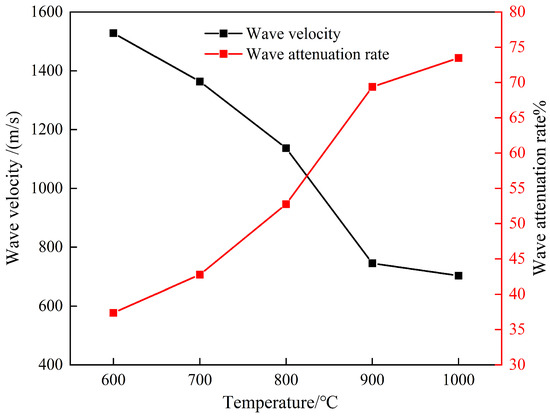

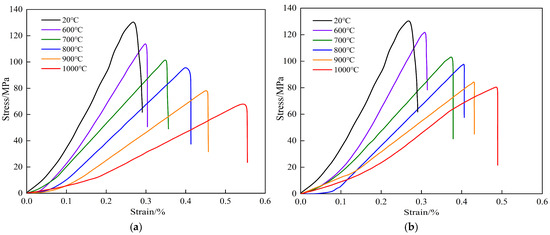

With the development of deep Earth engineering, the stability of surrounding rocks subjected to high temperatures from fire hazards has become an increasingly prominent issue. Therefore, studying the physical and mechanical properties of rocks under different thermal treatment modes is of great significance for the design of underground engineering. Taking red sandstone as the research object, this paper conducts physical parameter tests, uniaxial compression tests, and X-ray diffraction (XRD) on specimens under real-time high temperatures and natural cooling in the range of 600–1000 °C, to analyze the variations in specimen composition, the correlation between physical and mechanical properties and temperature, and to explore the underlying mechanisms. The results show that under both real-time high temperatures and natural cooling, the volume of sandstone increases while the mass decreases with rising temperature. At 1000 °C, the volume expansion rates are 3.30% and 3.80%, and the mass loss rates are 6.30% and 5.60%, respectively. Mechanical parameters, including peak strength, elastic modulus, and peak strain under the two treatments, all deteriorate significantly compared with those at room temperature. At 1000 °C, peak strength decreases by 54.83% and 36.26%, elastic modulus decreases by 74.55% and 67.96%, and peak strain increases by 65.63% and 43.75%, respectively. High-temperature-induced changes in the internal mineral structure and composition of sandstone are the main causes of rock mechanical property deterioration. During the cooling process, thermal shrinkage and recrystallization of mineral particles densify the rock structure; therefore, the compressive strength of naturally cooled sandstone is higher than that under real-time high temperatures. This study can provide theoretical guidance for the repair and reinforcement of rock engineering after high-temperature action. Full article

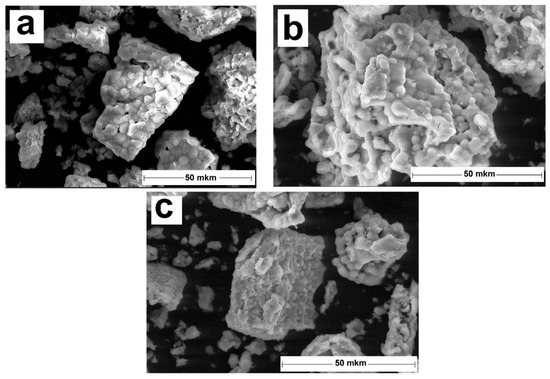

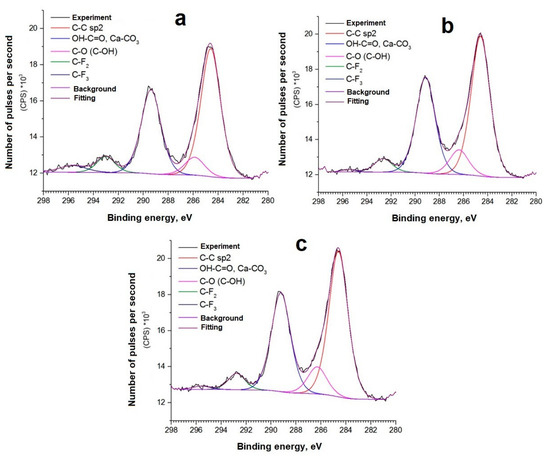

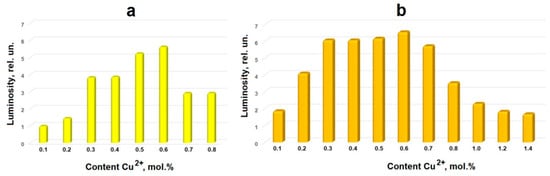

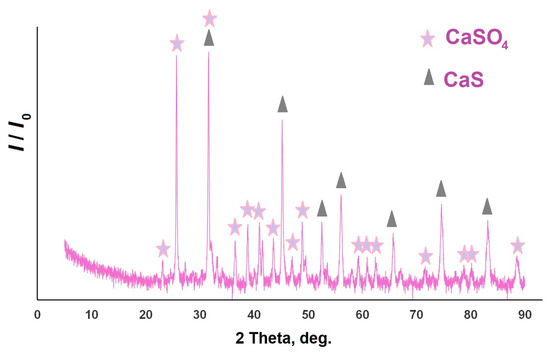

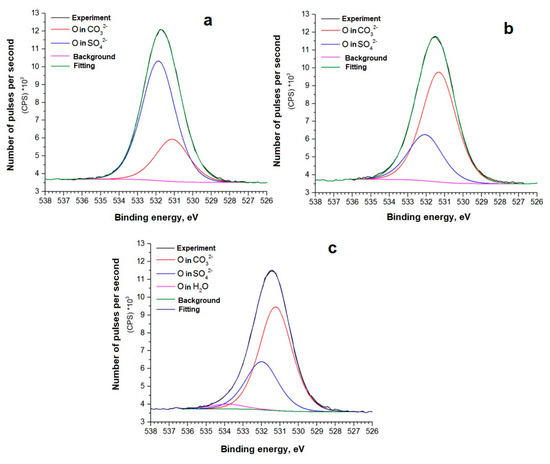

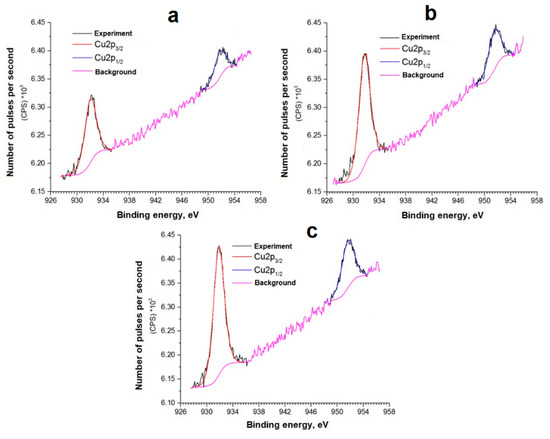

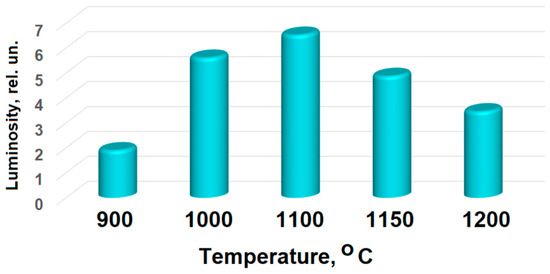

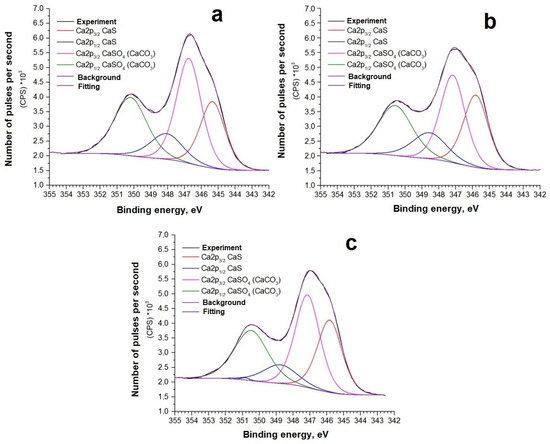

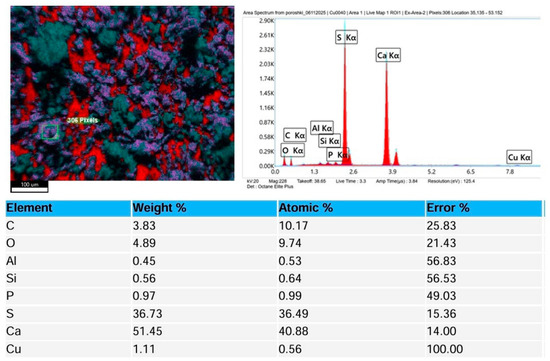

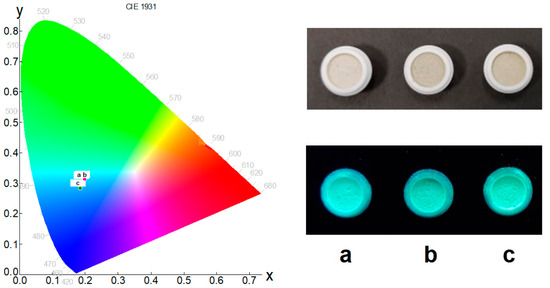

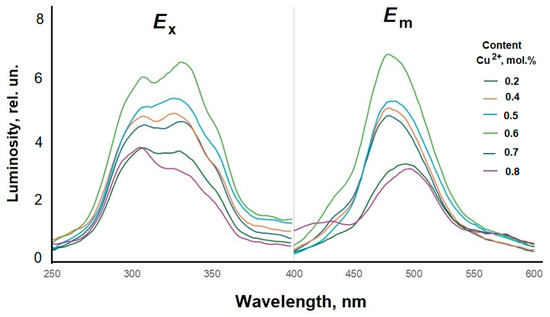

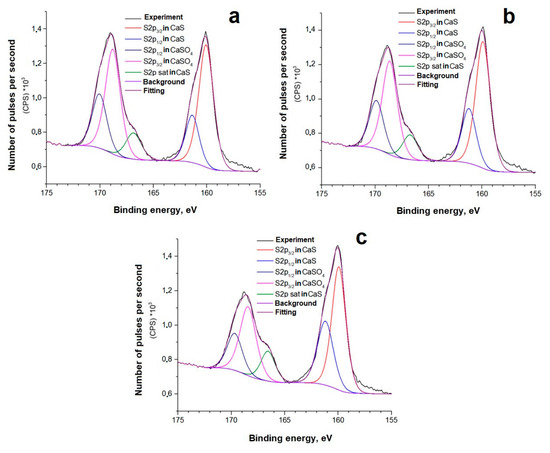

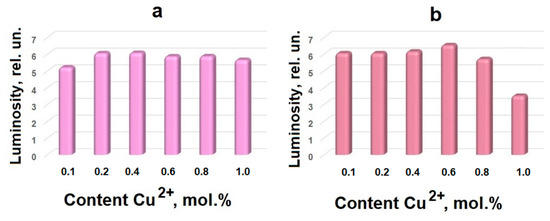

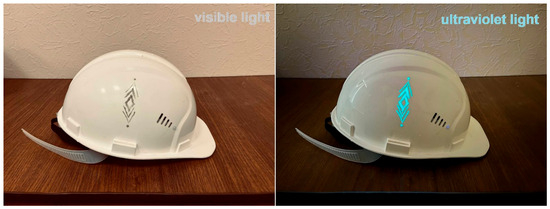

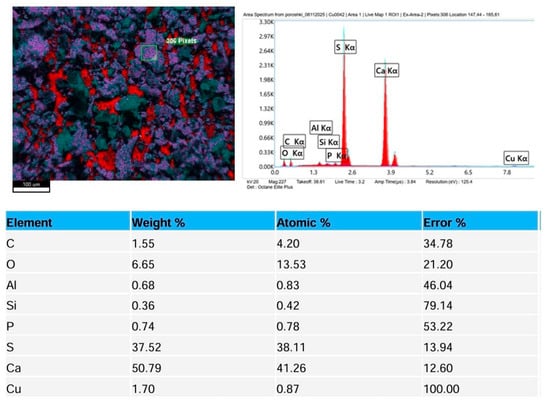

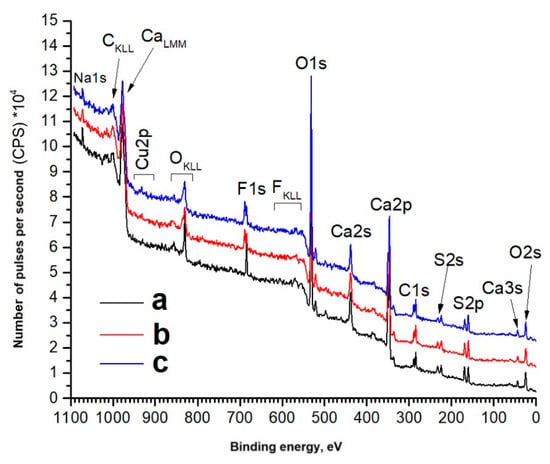

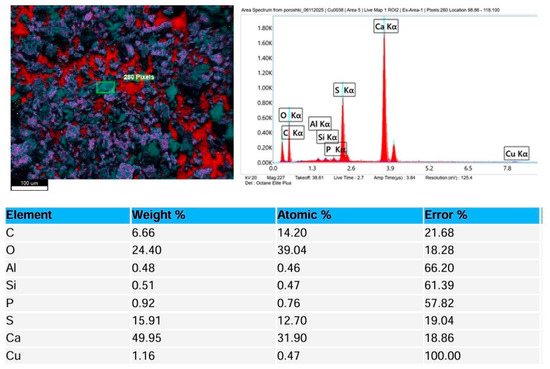

In this work, we introduce the novel possibility of producing blue fluorescent ultraviolet pigments from phosphogypsum. The obtained materials are characterized by X-ray diffraction (XRD), transmission electron microscopy, and X-ray photoelectron spectroscopy (XPS). The formation of the CaS phase in the sample during the reduction of calcium sulfate was established. Thermal treatment of phosphogypsum in the presence of a reducing agent (potato starch) under environmental isolation conditions is found to yield high-quality products with high added value. The highest luminosity is established in samples containing 0.6 mol. %, which were heat-treated under a temperature of 1100 °C for 60 min. The synthesized CaS:Cu materials are shown to emit light in the blue region of the spectrum, with an emission maximum at a wavelength of 480–490 nm. The developed technological methods open the possibility to recycle chemical industry waste, which contributes to the achievement of sustainable development goals, in particular, the goal of ensuring rational consumption and production patterns. Full article

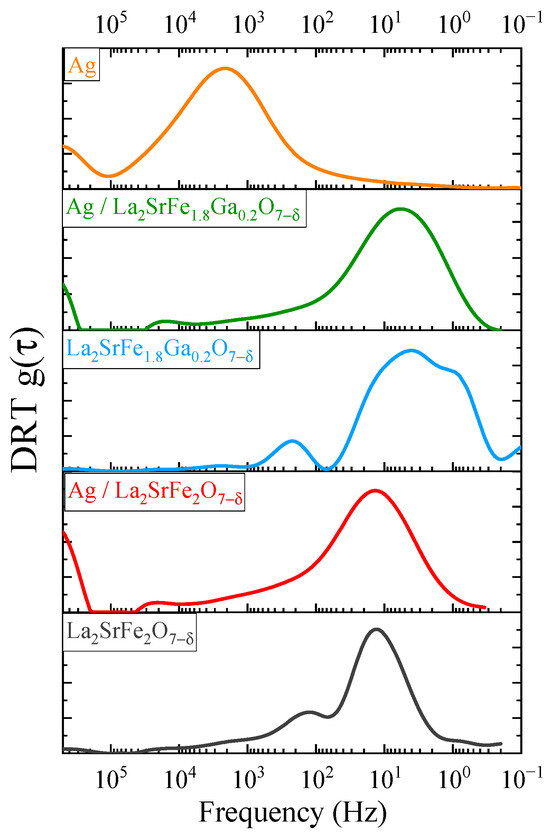

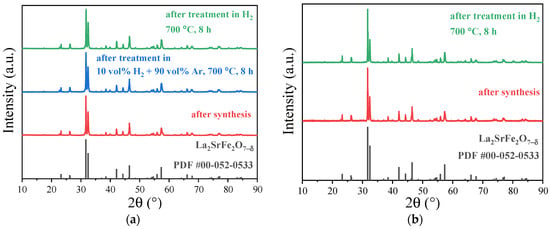

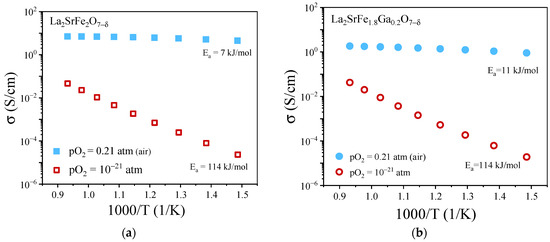

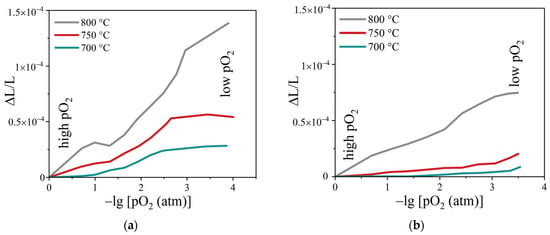

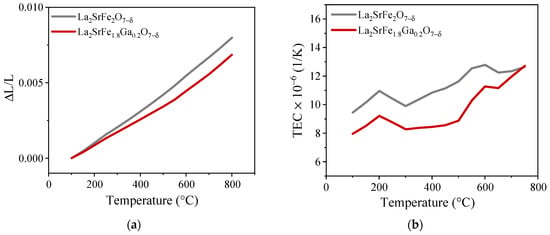

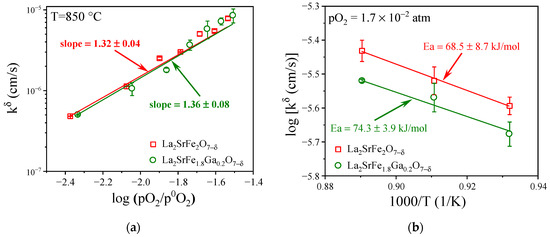

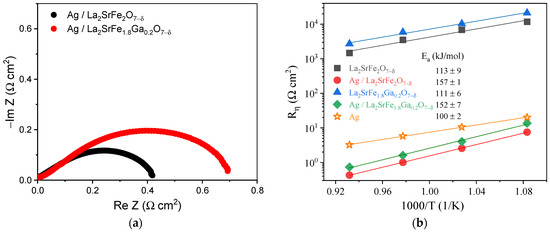

In this study, we report the results of the structural characterization and electrochemical evaluation of novel cobalt-free layered Ruddlesden–Popper (RP) oxides, La₂SrFe₂O_7−δ and La₂SrFe_1.8Ga_0.2O_7−δ, as electrode materials for intermediate-temperature solid oxide cells. X-ray diffraction confirmed the formation of RP phases and phase stability after reducing treatment. The materials showed compatible thermal expansion behavior, with slightly lower thermal expansion coefficients for the Ga-doped composition. Oxygen pressure relaxation measurements demonstrated that the oxygen surface exchange coefficient increases with temperature and pO₂, while Ga substitution slightly reduces the O₂/oxide exchange rate, which may be associated with a lower concentration of oxygen vacancies. The electrical conductivity in air was higher for La₂SrFe₂O_7−δ than for the Ga-doped sample, while both compositions showed much lower conductivity under reducing conditions. Symmetrical cell impedance spectroscopy showed high polarization resistance for the electrodes, which was substantially reduced by applying a Ag current collector (0.43 Ω cm² for La₂SrFe₂O_7−δ and 0.73 Ω cm² for La₂SrFe_1.8Ga_0.2O_7−δ at 800 °C), consistent with the limited electronic conductivity of the oxide layers. Overall, both oxides exhibit structural stability, acceptable thermomechanical compatibility, and measurable oxygen exchange activity, making them promising candidates for further development as cobalt-free electrodes in solid oxide cells. Full article

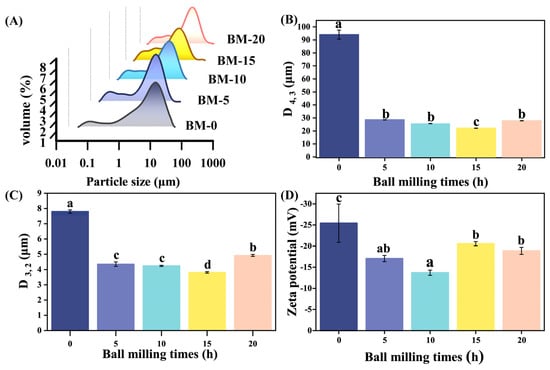

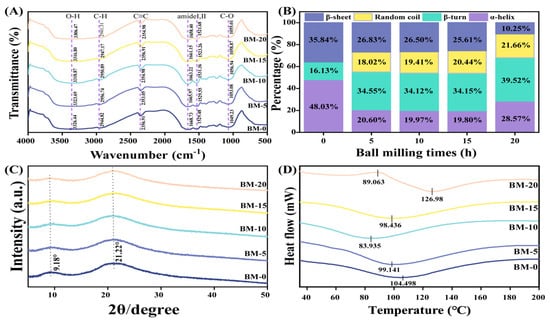

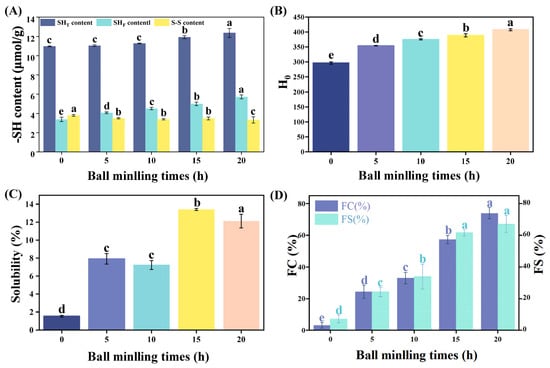

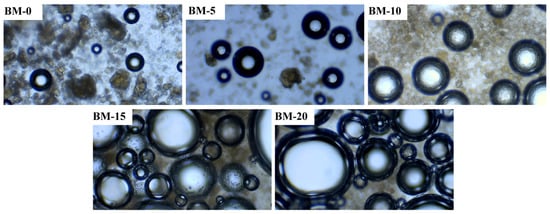

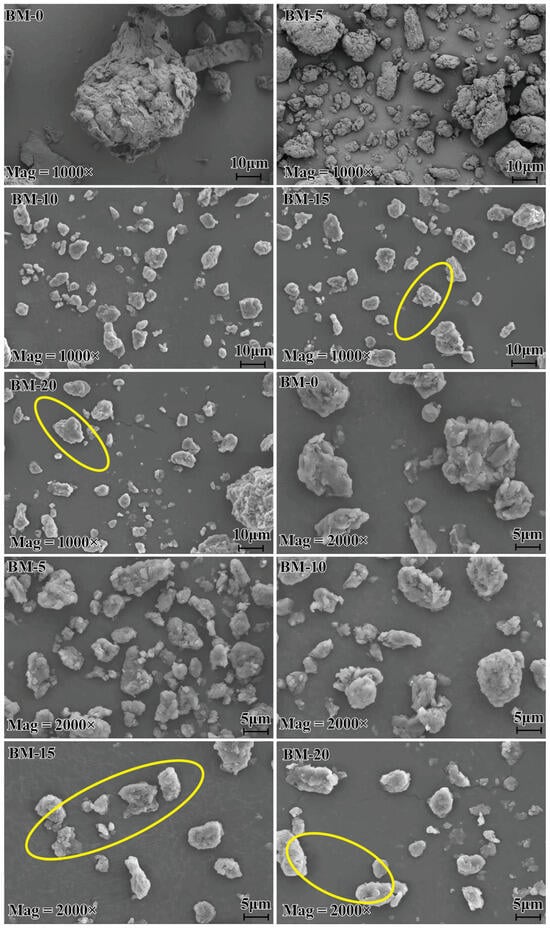

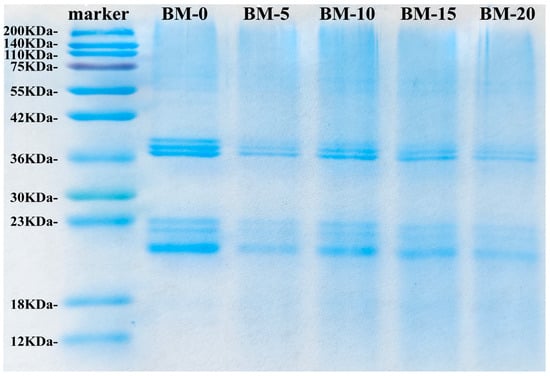

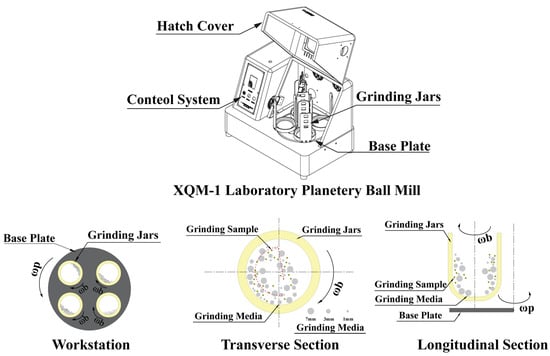

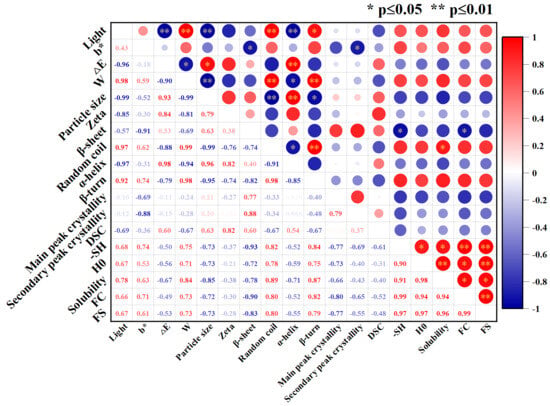

To evaluate the potential of defatted and dephenolized walnut meal as a modified functional food ingredient, this study examined how ball milling and processing time affect its structural, physicochemical, and functional properties. Walnut meal was ball-milled for 5, 10, 15, and 20 h. Ball milling increased the lightness and whiteness, reduced particle size, and broadened the particle size distribution into a characteristic three-peak pattern. Scanning electron microscopy revealed the progressive formation of flake-like surface structures. With increasing milling duration, free sulfhydryl groups, surface hydrophobicity, and solubility were increased, while dynamic surface tension decreased, leading to improved foaming capacity and foaming stability. SDS-PAGE confirmed that the primary structure remained unchanged, while Fourier transform infrared spectroscopy indicated a decrease in α-helix and β-sheet contents and an increase in random coil structures. X-ray diffraction revealed a reduction in the diffraction peak at 2θ = 8.963°, and differential scanning calorimetry showed irregular changes in the thermal stability with ball milling time. Overall, increasing ball milling time is beneficial for improving the functional properties of walnut meal, providing a preliminary theoretical reference for the potential application of walnut powder in foods with specific functional properties, such as aerated foods. Full article

Green synthesis of metal oxide nanoparticles is a promising route to reduce toxic reagents and energy consumption while enabling biocompatible nanomaterials for biomedical use. In this work, cerium oxide (CeO₂) nanoparticles were synthesized using lemon juice and sucrose as bio-based chelating, capping and stabilizing agents. Three synthesis routes were designed by varying the use of lemon juice, sucrose, or their combination. The synthesized materials were characterized using thermal analysis (DSC—Differential Scanning Calorimetry and TGA—Thermogravimetric Analysis), X-ray diffraction (XRD), Raman spectroscopy, and scanning electron microscopy (SEM). Additionally, their antibacterial activity was assessed against Gram positive bacterium Staphylococcus aureus (S. aureus). Thermal analysis showed that heat treatment at 600 °C promotes high crystallinity, as evidenced by the development of sharp diffraction peaks associated with the cubic fluorite CeO₂ structure, and a dominant F_2g Raman mode at 463 cm⁻¹. SEM micrographs revealed nanometric particles and highlighted that combining lemon juice and sucrose effectively suppresses coalesced structures, yielding more homogeneous morphologies. Crystallite size calculations gave average sizes of 17.2 nm, with the lemon juice-only route producing the largest crystallites. Antibacterial tests revealed a clear dose-dependent inhibition of S. aureus, with marked inhibition of bacterial growth at concentrations ≥5 mg/mL and a plateau effect above 25 mg/mL. This study confirms the feasibility of using plant-based extracts as sustainable reagents for CeO₂ nanoparticle synthesis, with promising structural and biological performance for potential biomedical applications. Full article

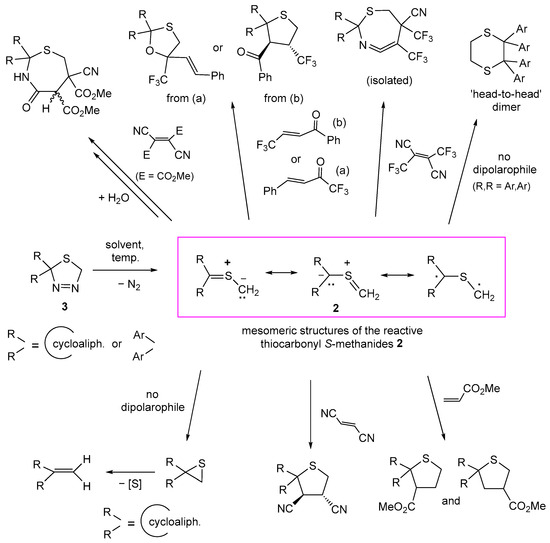

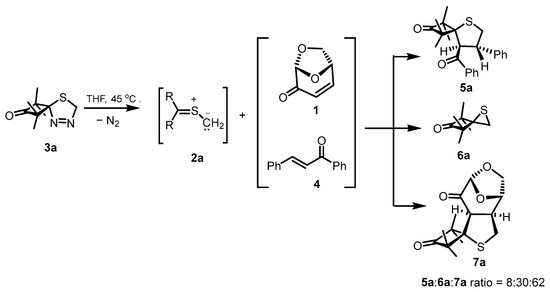

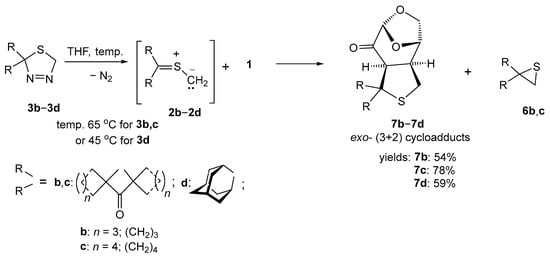

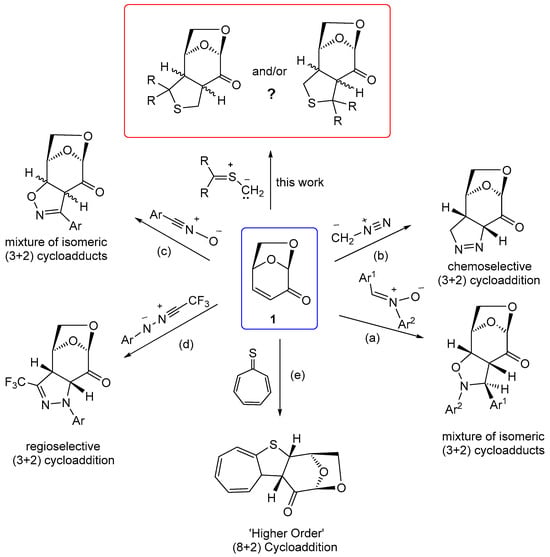

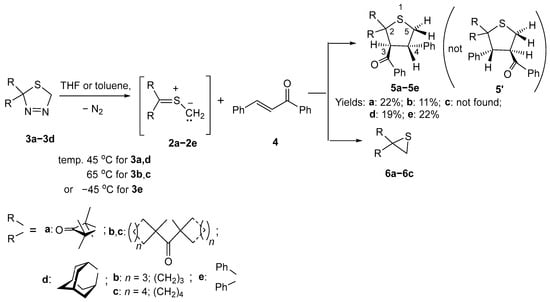

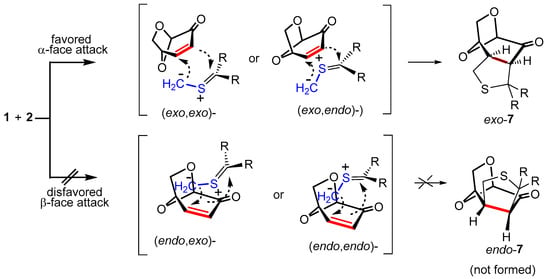

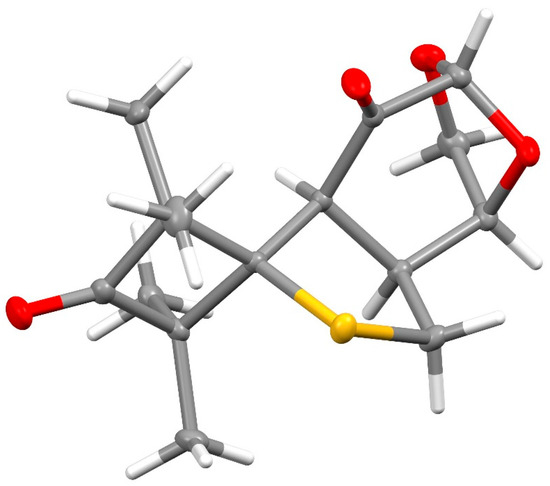

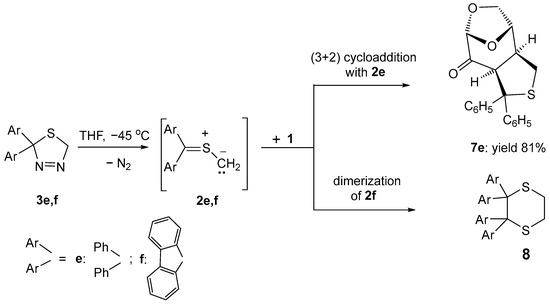

The in situ-generated thiocarbonyl S-methanides derived from cycloaliphatic thioketones undergo (3+2) cycloaddition onto the C=C bond of levoglucosenone yielding anticipated, polycyclic tetrahydrothiophene derivatives in a regio- and stereoselective manner. The cycloaddition process occurred stereoselectively via the less hindered exo-face approach; exo-diastereoisomers were formed in all studied reactions. Some of the obtained crystalline (3+2) cycloadducts were studied by the monocrystal X-ray diffraction analysis, which unambiguously confirmed the postulated structure. Stable (3+2) cycloadducts were isolated in good yields (50–80%). Full article

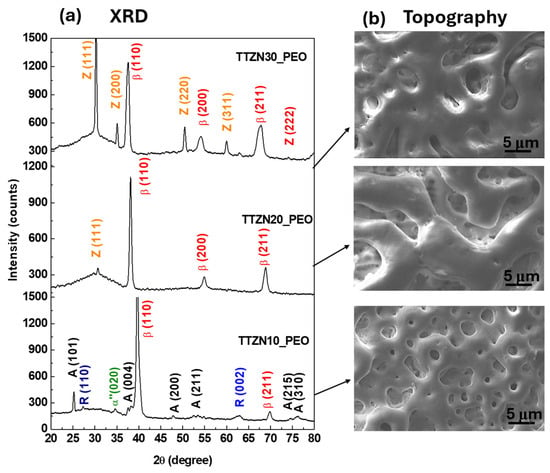

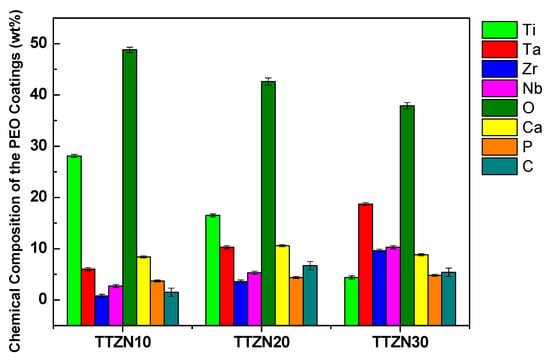

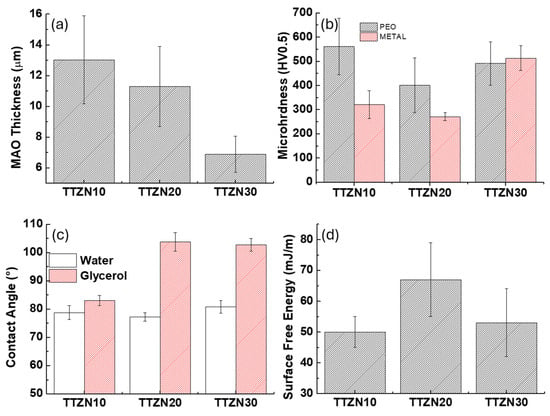

Quaternary β-Ti-xTa-xZr-xNb (TTZN) alloys (x = 10, 20, and 30 wt%) were surface-modified by plasma electrolytic oxidation (PEO) to improve their surface properties. This treatment promotes the incorporation of bioactive ions, such as Ca and P, and favors the formation of a porous anodic surface resulting from the oxidation of the precursor metals. This study investigated how the addition of alloying elements (Zr, Ta, and Nb) influences oxide formation, PEO-induced pore morphology, wettability, and coating hardness. The surfaces were characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM) coupled with energy-dispersive X-ray spectroscopy (EDS), Vickers microhardness testing, and wettability analysis. XRD analysis revealed that the TTZN10 alloy exhibited crystalline TiO₂ phases in the form of anatase and rutile. In contrast, the TTZN20 and TTZN30 alloys exhibited only cubic ZrO₂ diffraction peaks, while no TiO₂ peaks were detected within the detection limits of the XRD technique. Micrographs showed micrometric pores on all alloy surfaces. The TTZN20 alloy exhibited the highest porosity (31.8%), which correlated with lower hydrophilicity (θ = 79°) and high surface free energy (67 mJ/m²). After PEO treatment, all surfaces exhibited high hardness values ranging from 491 to 561 HV. The highest hardness was observed for TTZN10, attributed to the mixed anatase/rutile TiO₂ phase composition. Full article

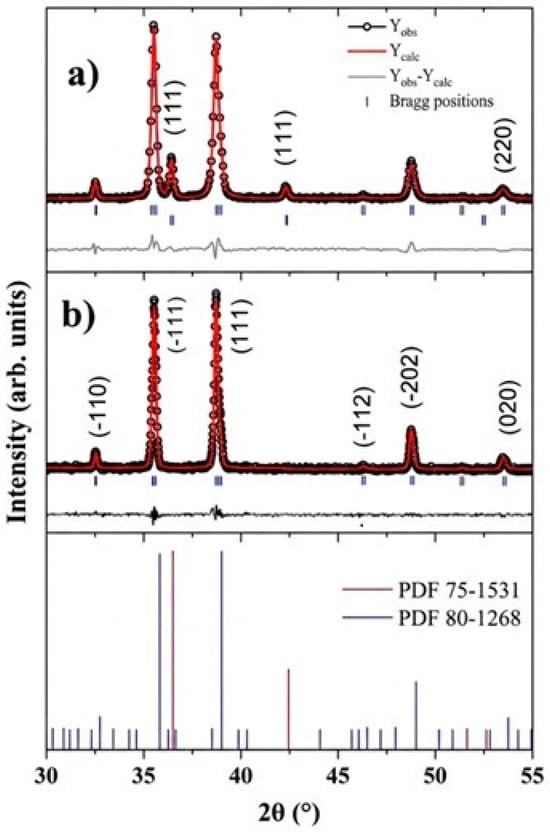

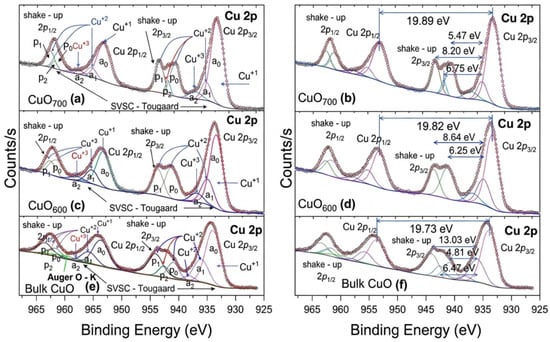

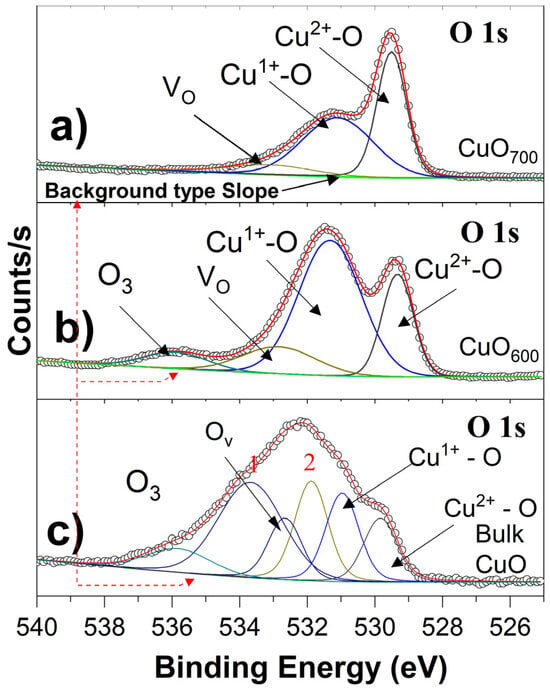

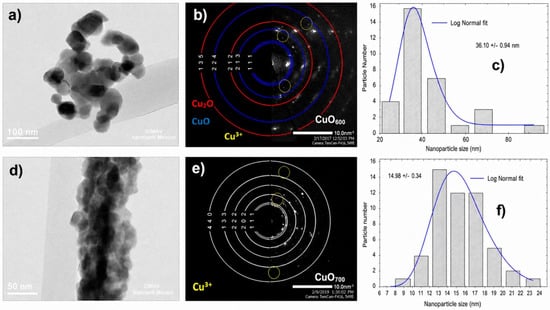

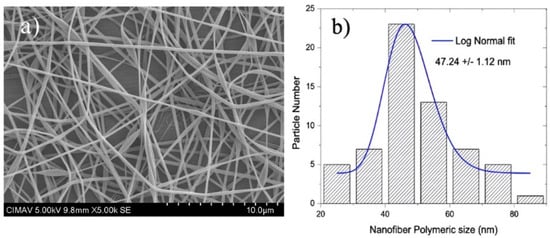

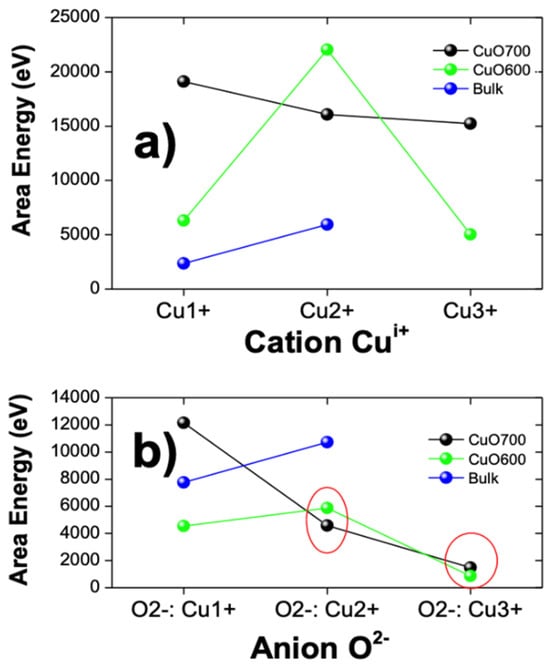

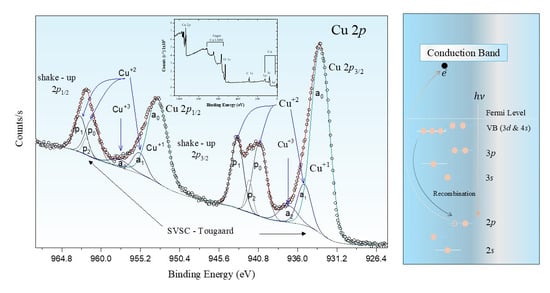

Cu³⁺-like species and oxygen vacancies (Vₒ) in electrospun CuO nanofibers were identified by X-ray photoelectron spectroscopy (XPS) via Cu 2p^3/2 and O 1s core-level spectra. Nanobeam electron diffraction (NBD) revealed a Cu³⁺-related superlattice. The geometrical topofactor method corroborated the chemical composition of samples thermally treated at 600 °C (CuO600) and 700 °C (CuO700). Bulk CuO served as a comparison. XPS peak fitting of the Cu 2p and O 1s regions used an SVSC-type background and a two-parameter Tougaard function. X-ray diffraction (XRD) confirmed the presence of tenorite and cuprite phases. Crystallite size was estimated using the Rietveld method; values ranged from 20.59 ± 0.06 nm to 31.06 ± 0.06 nm. High-resolution transmission electron microscopy (HR-TEM) produced sizes of 14.98 ± 0.34 nm and 36.10 ± 0.94 nm, highlighting the distinction between diffraction domains and physical particle dimensions. Cu³⁺-like species and oxygen vacancies modulate the nanofibers’ electronic structure, which is relevant to electronic applications. Full article

The development of highly sensitive luminescence sensing materials has attracted much attention in recent years. In this study, a new two-dimensional porous europium metal–organic framework (EuMOF, [Eu(DHDA)₁.₅·3H₂O]_n; DHDA = 2,2-dihydroxyacetic acid) is obtained, characterized by single-crystal X-ray diffraction, powder X-ray diffraction (PXRD), scanning electron microscopy (SEM), luminescence, and Fourier transform infrared spectroscopy (FT-IR). At the best excitation at 295 nm, EuMOF shows red luminescence (CIE: 0.6255, 0.3740) and has four obvious peaks at 582, 605, 641, and 689 nm, which are due to ⁵D₀ → ⁷F₁, ⁵D₀ → ⁷F₂, ⁵D₀ → ⁷F₃, and ⁵D₀ → ⁷F₄ transitions, respectively. Studies have shown that EuMOF is a stable, fast-responding, and highly sensitive luminescence sensor for isoprocarb and levofloxacin (Lvx) in aqueous solutions, apple peel and rice extract solutions, and real urine, which are closely associated with food safety and human health. The sensing behavior toward isoprocarb and Lvx may be attributed to the specific binding of the two analytes to EuMOF. The sensing of isoprocarb is a dynamic luminescence-quenching process, while that of Lvx is a dynamic luminescence-enhancing process. The limits of detection (LOD) for isoprocarb and Lvx are as low as 1.0 and 0.5 nM, respectively, which are much lower than the Chinese national standard (GB 28260-2011, 2.583 μM). EuMOF also demonstrates strong anti-interference detection of isoprocarb in apple peel and rice extract solutions, as well as Lvx in real urine, with excellent detection stability in a 0.01~9.0 nM range. The recovery rates for isoprocarb and Lvx in real samples are 99.12%~101.25%. This work provides the first bifunctional lanthanide sensor for pesticides and antibiotics. Full article
