Search Results (8)

Silver (Ag) nanoparticles were successfully prepared by using the in-liquid pulsed plasma technique. This method is based on a low voltage, pulsed spark discharge in a dielectric liquid. We explore the effect of the protecting ligands, specifically Cetyl Trimethylammonium Bromide (CTAB), Polyvinylpyrrolidone (PVP), and Sodium n-Dodecyl Sulphate (SDS), used as surfactant materials to prevent nanoparticle aggregation. The X-Ray Diffraction (XRD) patterns of the samples confirm the face-centered cubic crystalline structure of Ag nanoparticles with the presence of Ag₂O skin. Scanning Transmission Electron Microscopy (STEM) reveals that spherically shaped Ag nanoparticles with a diameter of 2.2 ± 0.8 nm were synthesised in aqueous solution with PVP surfactant. Similarly, silver nanoparticles with a peak diameter of 1.9 ± 0.4 nm were obtained with SDS surfactant. A broad size distribution was found in the case of CTAB surfactant. Full article

Gamma-alumina nanoparticles (γANPs) were obtained from a low-cost process by using natural bauxites. The γANPs materials were characterized by X-ray powder diffraction (XRPD), Fourier-transform infrared spectroscopy (FTIR), Brunauer–Emmett–Teller (BET) theory, scanning electron microscopy (SEM), atomic force microscopy (AFM), and were functionalized with N-cetyl-N, N, N, trimethylammonium bromide (CTAB), leading to CTAB modified γ-alumina nanoparticles (γANPs-CTAB). These novel functionalized γANPs-CTAB were characterized by XRPD, FTIR, and were used as an adsorbent for bisphenol-A (BPA) removal from water. Batch investigations were conducted under different experimental conditions (e.g., adsorbent dose, agitation time, initial concentration, and pH and surfactant loading) in order to optimize BPA adsorption and to identify the adsorption mechanisms in the system γANPs-CTAB-BPA. The effect of pH on the adsorption showed that the quantity of BPA removed increased remarkably until the pH value was 4, then remained almost constant until the pH value was up to 10, and then decreased for pH values greater than 10. For an initial BPA concentration of 20 mg/L and an adsorbent dose of 12.5 g/L at a pH value of 10, the removal efficiency achieved was 91.80 ± 0.21%. The adsorption mechanism was perfectly described by pseudo-second-order kinetics and the Langmuir isotherm. γANPs-CTAB materials were found to be effective adsorbents for BPA removal from water. Full article

In this research, filtration experiments were carried out by four types of surfactants as filter aid. Sodium dodecyl sulfate and sodium lauryl ether sulfate as anionic surfactant (SDS and SLES), polyethylene glycol as nonionic surfactant (PEG) and cetyl trimethylammonium bromide as cationic surfactant (CTAB) were used to were used in order to evaluate their effects on moisture reduction of concentrate and improvement of the filtration process. All of the tests were done at the optimal conditions include 60 KPa vacuum pressure, 120 s filtration time, 105 microns particle size and 60% (w/w) solid content of pulp. Results showed that in all of the tests, cake moisture decreased by adding surfactants; however, anionic surfactants SDS and SLES were better than other chemicals. By adding 100 g/t SDS and SLES to the pulp, the filter cake moisture content was reduced by 2%. SDS and SLES improves filtration performance by increasing the ratio of throughput to moisture. At the concentration of 100 g per ton SDS and SLES, the highest throughput and lowest moisture was achieved. Although both of SDS and SLES have similar chemical structure and action, SLES was selected due to better solubility in hard water, economic justification and availability. Full article

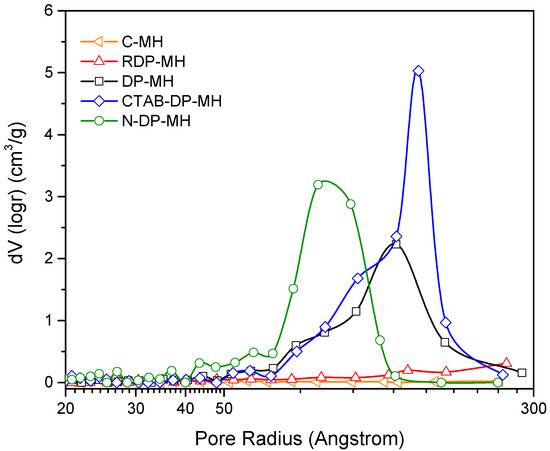

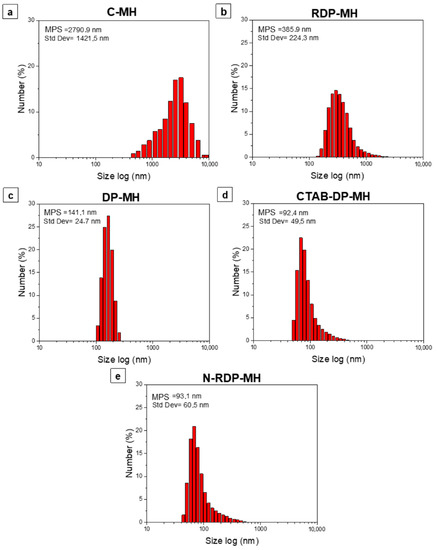

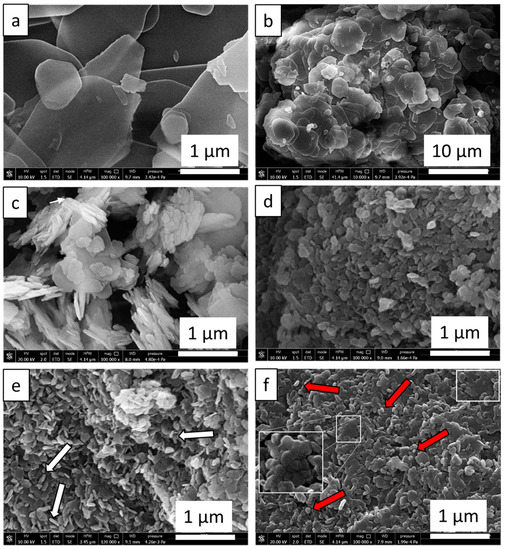

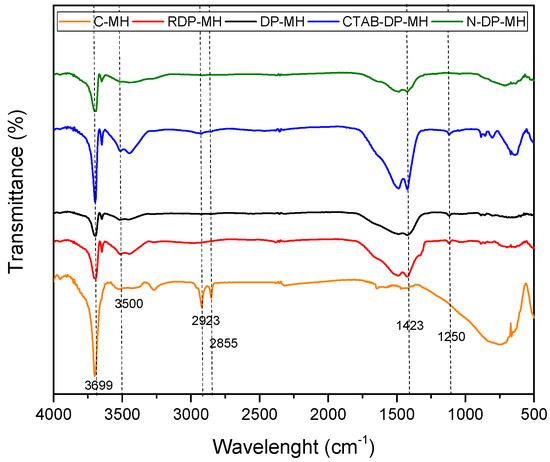

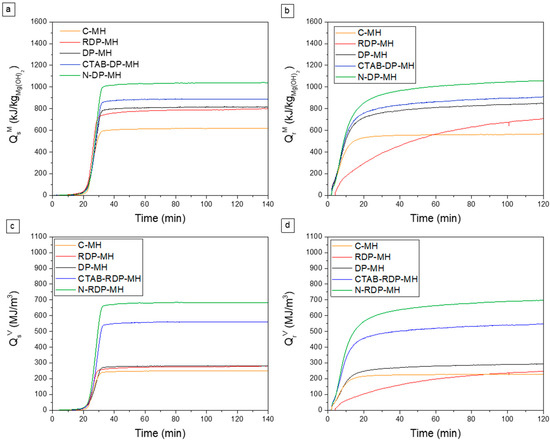

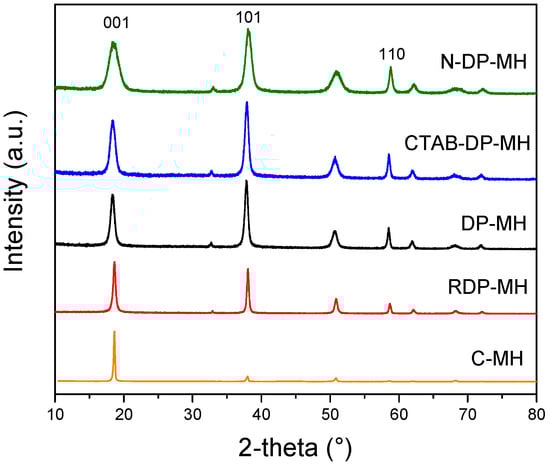

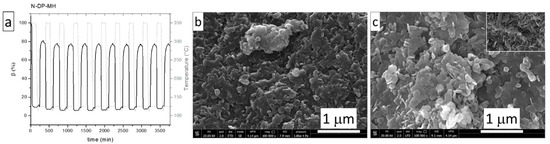

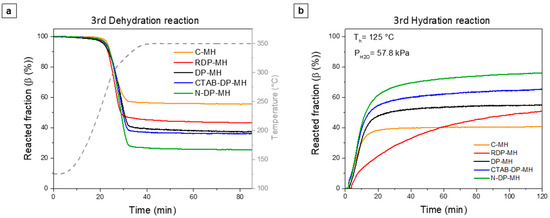

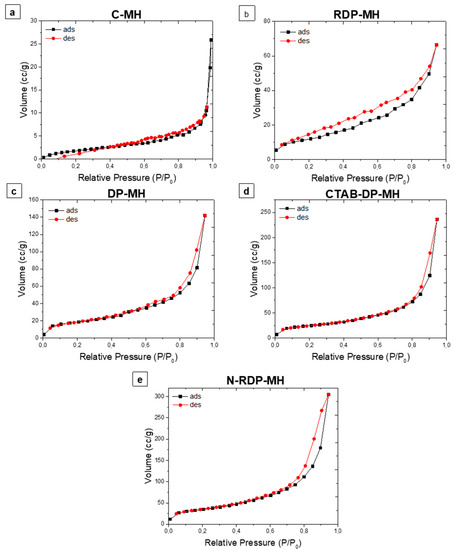

Thermochemical materials (TCM) are among the most promising systems to store high energy density for long-term energy storage. To be eligible as candidates, the materials have to fit many criteria such as complete reversibility of the reaction and cycling stability, high availability of the material at low cost, environmentally friendliness, and non-toxicity. Among the most promising TCM, the Mg(OH)₂/MgO system appears worthy of attention for its properties in line with those required. In the last few decades, research focused its attention on the optimization of attractive hydroxide performance to achieve a better thermochemical response, however, often negatively affecting its energy density per unit of volume and therefore compromising its applicability on an industrial scale. In this study, pure Mg(OH)₂ was developed using different synthesis procedures. Reverse deposition precipitation and deposition precipitation methods were used to obtain the investigated samples. By adding a cationic surfactant (cetyl trimethylammonium bromide), deposition precipitation Mg(OH)₂ (CTAB-DP-MH) or changing the precipitating precursor (N-DP-MH), the structural, physical and morphological characteristics were tuned, and the results were compared with a commercial Mg(OH)₂ sample. We identified a correlation between the TCM properties and the thermochemical behavior. In such a context, it was demonstrated that both CTAB-DP-MH and N-DP-MH improved the thermochemical performances of the storage medium concerning conversion (64 wt.% and 74 wt.% respectively) and stored and released heat (887 and 1041 $\mathrm{kJ}/{\mathrm{kg}}_{\mathrm{Mg}{\left(\mathrm{OH}\right)}_2}$). In particular, using the innovative technique not yet investigated for thermal energy storage (TES) materials, with NaOH as precipitating precursor, N-DP-MH reached the highest stored and released heat capacity per volume unit, ~684 MJ/m³. Full article

Death from tuberculosis has resulted in an increased need for early detection to prevent a tuberculosis (TB) epidemic, especially in closed and crowded populations. Herein, a sensitive electrochemical DNA biosensor based on functionalized iron oxide with mercaptopropionic acid (MPA-Fe₃O₄) nanoparticle and nanocellulose crystalline functionalized cetyl trimethyl ammonium bromide (NCC/CTAB) has been fabricated for the detection of Mycobacterium tuberculosis (MTB). In this study, a simple drop cast method was applied to deposit solution of MPA-Fe₃O₄/NCC/CTAB onto the surface of the screen-printed carbon electrode (SPCE). Then, a specific sequence of MTB DNA probe was immobilized onto a modified SPCE surface by using the 1-ethyl-3-(3-dimethylaminopropyl) carbodiimide/N-hydroxysuccinimide (EDC/NHS) coupling mechanism. For better signal amplification and electrochemical response, ruthenium bipyridyl Ru(bpy)₃²⁺ was assigned as labels of hybridization followed by the characteristic test using differential pulse voltammetry (DPV). The results of this biosensor enable the detection of target DNA until a concentration as low as 7.96 × 10⁻¹³ M with a wide detection range from 1.0 × 10⁻⁶ to 1.0 × 10⁻¹² M. In addition, the developed biosensor has shown a differentiation between positive and negative MTB samples in real sampel analysis. Full article

Hybrid materials prepared by encapsulation of plasmonic nanoparticles in porous silica systems are of increasing interest due to their high chemical stability and applications in optics, catalysis and biological sensing. Particularly promising is the possibility of obtaining gold@silica nanoparticles (Au@SiO₂ NPs) with Janus morphology, as the induced anisotropy can be further exploited to achieve selectivity and directionality in physical interactions and chemical reactivity. However, current methods to realise such systems rely on the use of complex procedures based on binary solvent mixtures and varying concentrations of precursors and reaction conditions, with reproducibility limited to specific Au@SiO₂ NP types. Here, we report a simple one-pot protocol leading to controlled crystallinity, pore order, monodispersity, and position of gold nanoparticles (AuNPs) within mesoporous silica by the simple addition of a small amount of sodium silicate. Using a fully water-based strategy and constant content of synthetic precursors, cetyl trimethylammonium bromide (CTAB) and tetraethyl orthosilicate (TEOS), we prepared a series of four silica systems: (A) without added silicate, (B) with added silicate, (C) with AuNPs and without added silicate, and (D) with AuNPs and with added silicate. The obtained samples were characterised by transmission electron microscopy (TEM), small angle X-ray scattering (SAXS), and UV-visible spectroscopy, and kinetic studies were carried out by monitoring the growth of the silica samples at different stages of the reaction: 1, 10, 15, 30 and 120 min. The analysis shows that the addition of sodium silicate in system B induces slower MCM-41 nanoparticle (MCM-41 NP) growth, with consequent higher crystallinity and better-defined hexagonal columnar porosity than those in system A. When the synthesis was carried out in the presence of CTAB-capped AuNPs, two different outcomes were obtained: without added silicate, isotropic mesoporous silica with AuNPs located at the centre and radial pore order (C), whereas the addition of silicate produced Janus-type Au@SiO₂ NPs (D) in the form of MCM-41 and AuNPs positioned at the silica–water interface. Our method was nicely reproducible with gold nanospheres of different sizes (10, 30, and 68 nm diameter) and gold nanorods (55 × 19 nm), proving to be the simplest and most versatile method to date for the realisation of Janus-type systems based on MCM-41-coated plasmonic nanoparticles. Full article

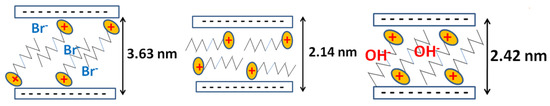

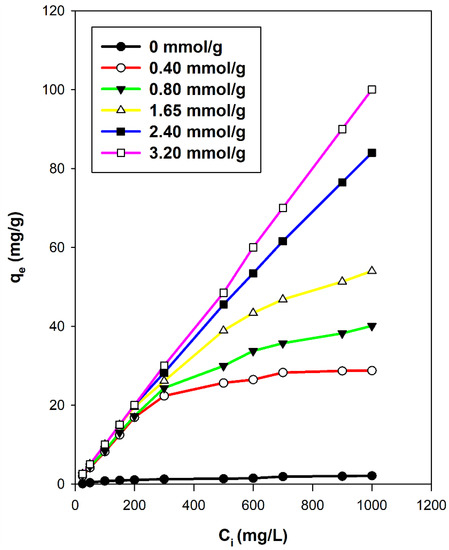

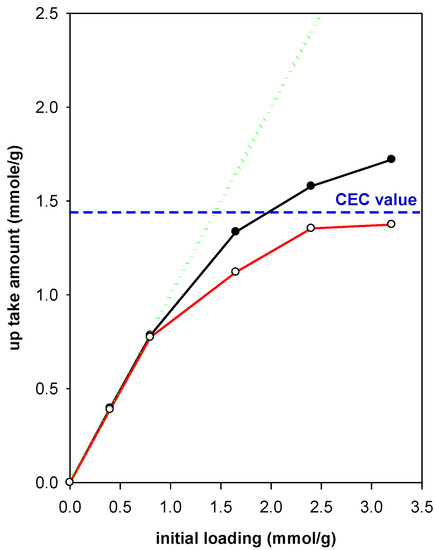

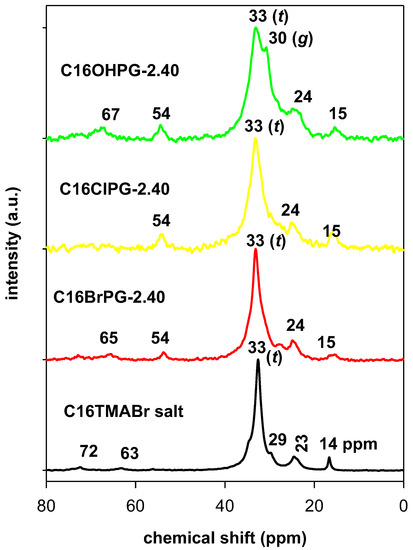

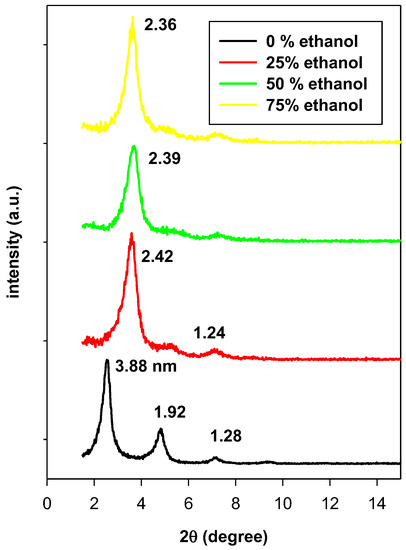

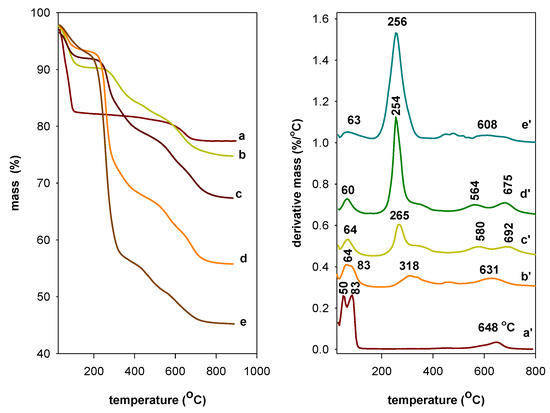

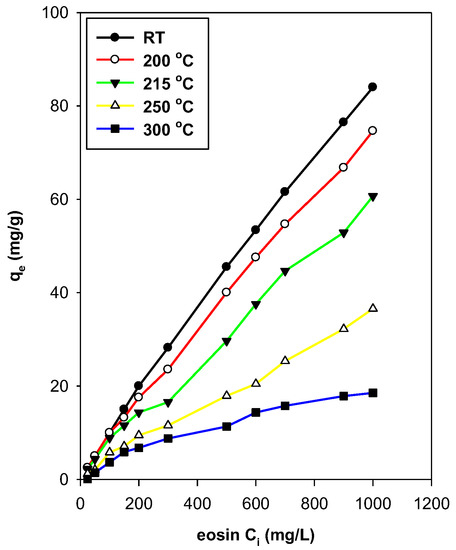

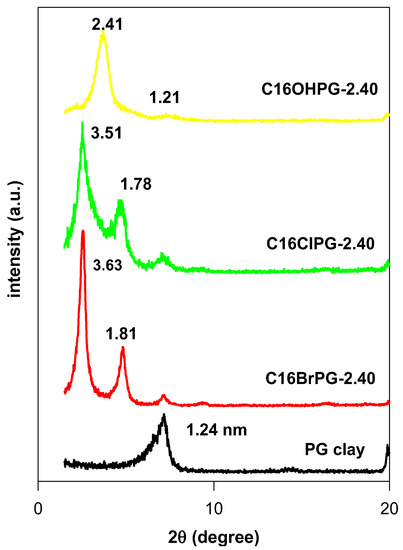

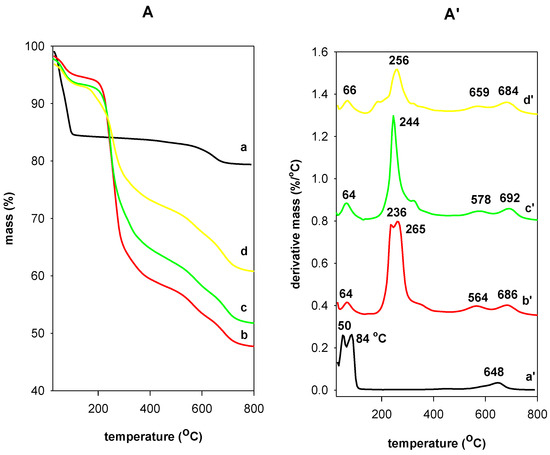

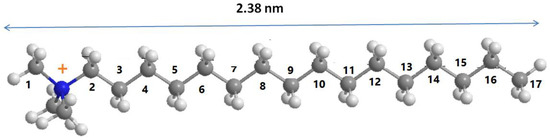

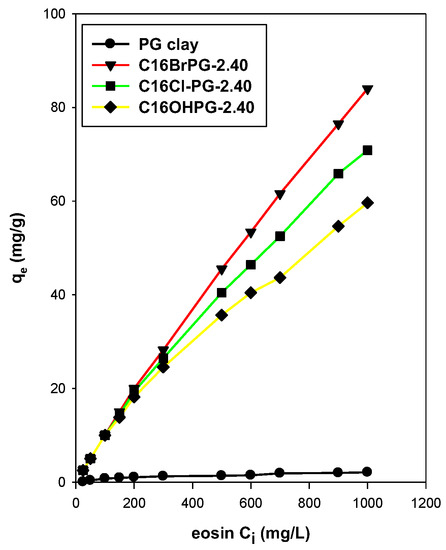

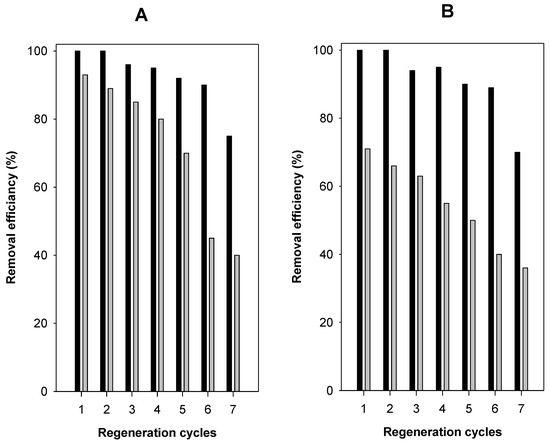

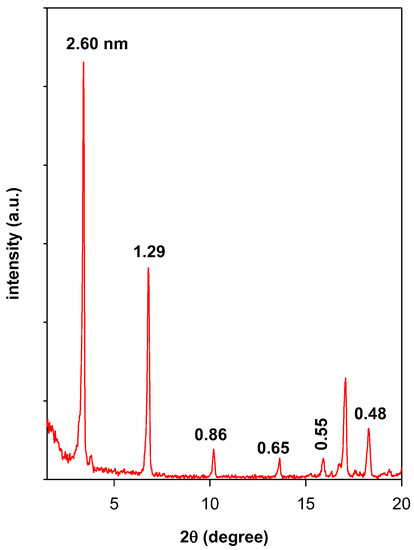

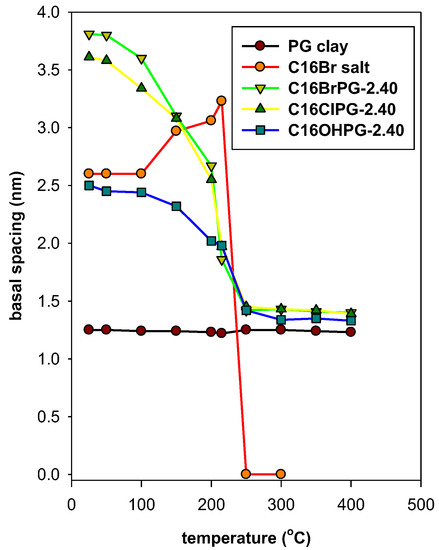

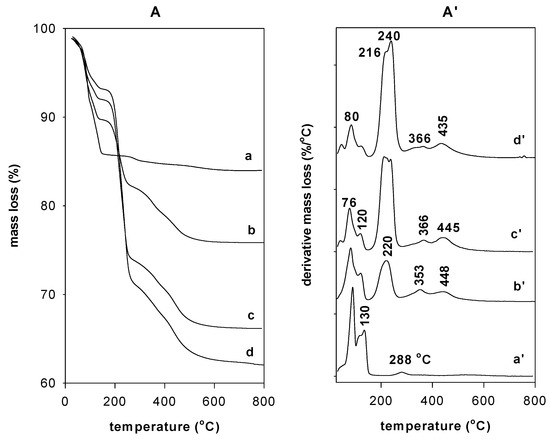

The organo-clays (OCs) were prepared by a cation exchange reaction between surfactant (cetyltrimethylammonium, C16TMA) from different counterions (Bromide, Chloride, and Hydroxide). The effect of the counterions was investigated on the physico-chemical properties of the prepared organo-clays. The highest uptake of organic cations (1.60 mmol/g) was achieved using cetyl trimethylammonium bromide solution and the lowest value (0.93 mmol/g) was obtained after modification with cetyl trimethylammonium hydroxide solution starting from the same initial ratio of mmol/g of clay greater than 2.40. The arrangement of C16TMA cations within the interlayer space was assumed to be perpendicular with a tilt angle of 32° to the plane of clay sheets instead of being parallel to the clay surface using C16TMAOH solution at the same ratio. Different techniques were used to characterize these materials. The thermal stability of these organ-clays was investigated using an in-situ X-ray diffraction (XRD) technique. The decomposition of the surfactant moiety occurred at temperatures higher than 215 °C and was accompanied with a shrinkage of the basal spacing value to 1.42 nm. These materials were applied in the removal of an acid dye “eosin.” The removed amount of eosin depended on the initial concentrations and the content of surfactants in the organo-clays. The removal of eosin was found to be an endothermic process. The maximum amount of 90 mg/g was achieved. The preheated treatment temperature of two selected OCs did affect the removal properties of eosin. A progressive reduction was observed at temperatures higher than 200 °C. The regeneration of spent OCs was studied and acceptable removal efficiency was maintained after 4 to 6 cycles depending on the used initial concentrations. Full article

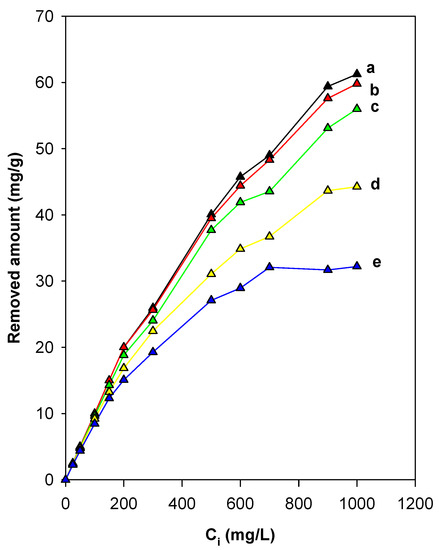

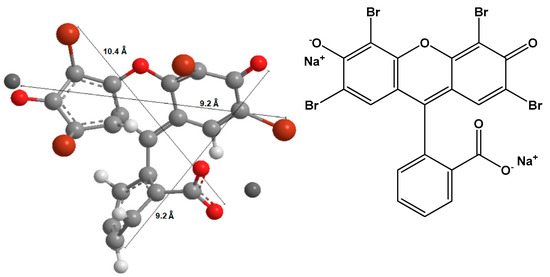

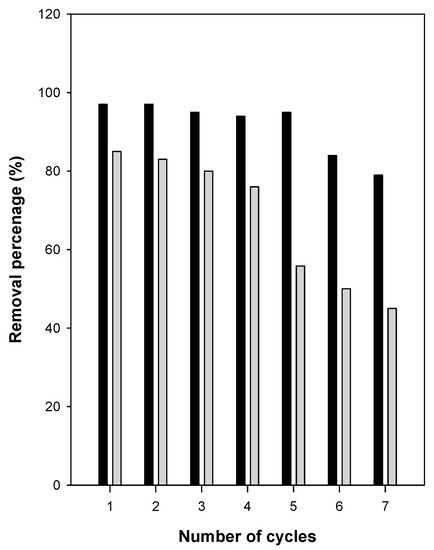

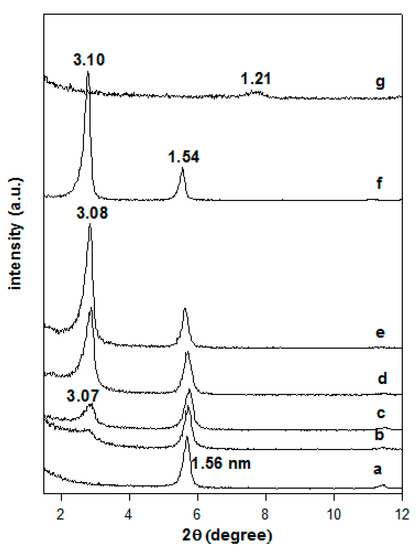

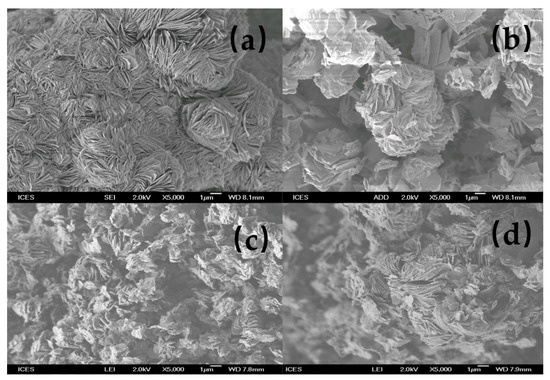

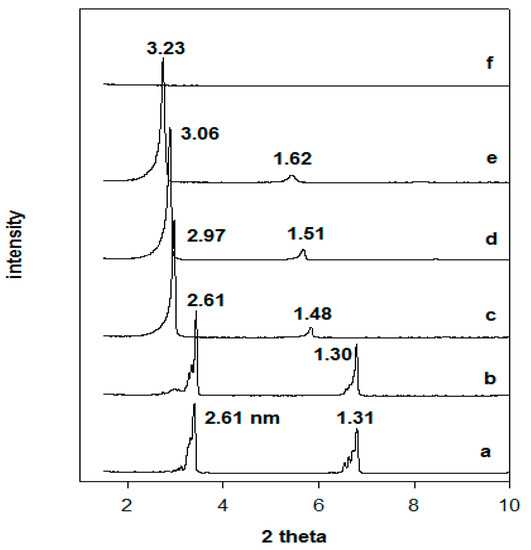

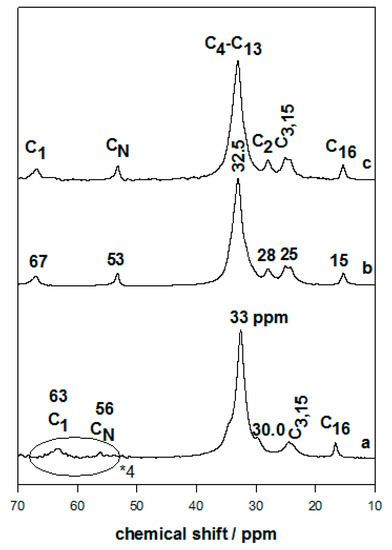

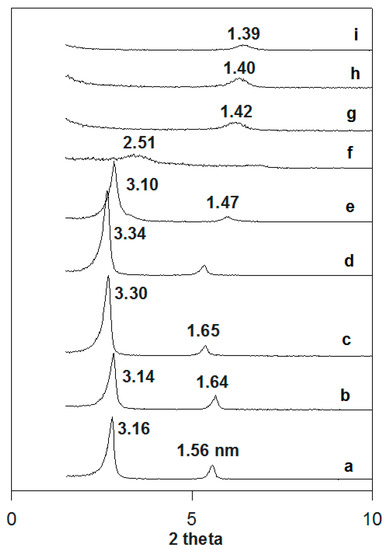

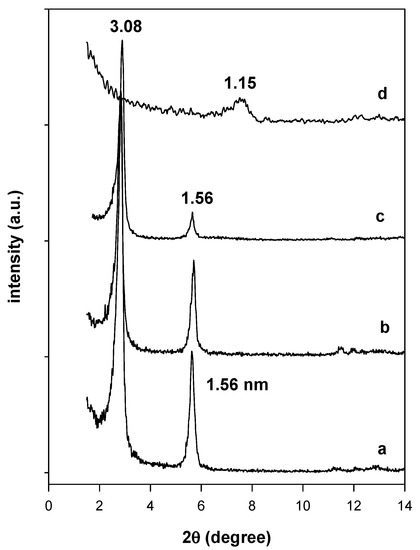

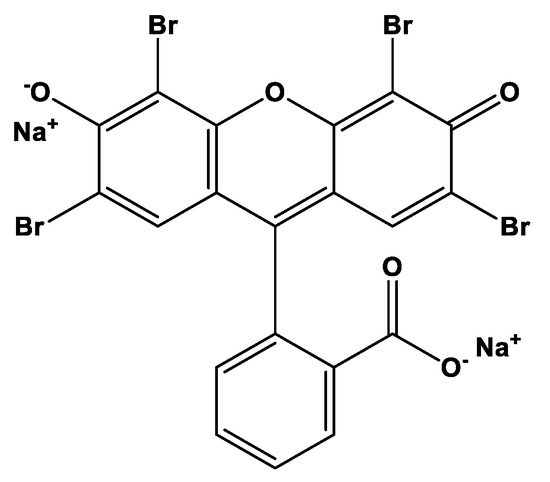

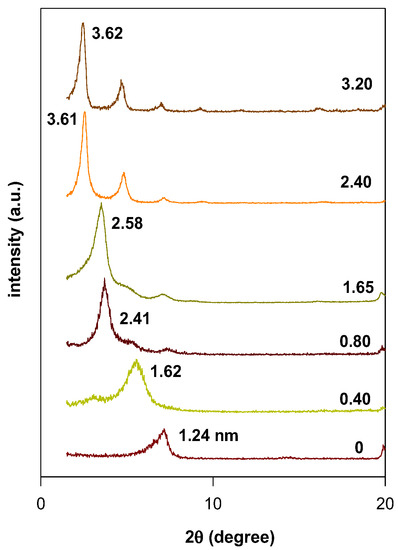

Na-magadiite exchanged with cetyl-trimethylammonium cations provided organophilic silicate materials that allowed for the effective removal of the acidic dye “eosin”. The organic cations were intercalated into the interlayer spacing of the layered silicate via an exchange reaction between the organic cations from their bromide salt and the solid Na-magadiite at room temperature. Different techniques were used to characterize the effect of the initial concentration of the surfactant on the structure of the organo-magadiites. The C, H, and N analysis indicated that a maximum of organic cations of 0.97 mmol/g was achieved and was accompanied by an expansion of the basal spacing of 3.08 nm, with a tilted angle of 59° to the silicate layers. The conformation of the organic surfactants was probed using solid-state ¹³C, finding mainly the trans conformation similar to that of the starting cetyl trimethylammonium bromide salt (C16TMABr). Thermal gravimetric analysis was carried out to study the thermal stability of the resulting organo-magadiites. The intercalated surfactants started to decompose at 200 °C, with a mass loss percentage of 8% to 25%, depending on the initial loading of the surfactant, and was accompanied by a decrease of the basal spacing from 3.16 nm to 2.51 nm, as deduced from the in situ X-ray diffraction studies. At temperatures below 220 °C, an expansion of the basal spacing from 3.15 to 3.34 nm occurred. These materials were used as a removal agent for the anionic dye eosin. The maximum amount of the dye removed was related to the organic cation content and to the initial concentration of eosin, with an improvement from 2.5 mg/g to 80.65 mg/g. This value decreased when the organo-magadiite was preheated at temperatures above 200 °C. The regeneration tests indicated that an 85% removal efficiency was maintained after six cycles of use for the organo-magadiite using C_i of 200 mg/L. Full article
