Search Results (15)

Friction-induced wear during the rolling process needs periodic remachining of caliber roll grooves, which increases operational costs and reduces roll fatigue life. Stress analysis showed that a regular reduction in the initial diameter by up to 3.5% results in a 12.2% increase in maximum stress amplitude, reducing the estimated fatigue life by a factor of 1.5. Although fatigue life is reduced, the risk of failure under normal operating conditions remains low. Further analysis, considering mill design and roll hardness, demonstrated the feasibility of additional roll diameter reduction, thereby enabling increased production using the same rolls. The findings support further diameter reduction without compromising performance and underscore the importance of integrating such analysis into the roller design process to optimize fatigue life and roll utilization. Full article

This study examines the use of ultrafine (~128 nm) microsilica (composed of a mixture of amorphous and microcrystalline silicon dioxide phases) particles, an industrial waste product, as a reinforcing material to create aluminum matrix composites (AMCs) via ultrasonic-assisted stir casting followed by T6 heat treatment. This study aimed to improve the mechanical properties of pure aluminum, which has insufficient strength for most engineering applications. The main objective of this study is to develop environmentally and economically efficient AMCs with improved properties, namely, the balance between strength and ductility, for further application in caliber rolling processes. Attention is also paid to minor reinforcements using a low concentration of microsilica (~0.36%wt), which minimizes the problems with the wettability of the reinforcing material particles. The composites reinforced with ultrafine microsilica exhibited enhanced mechanical performance, including a 59.7% increase in Vickers microhardness and a significant improvement in tensile strength, reaching 73 MPa. Additionally, T6 heat treatment synergistically improved ductility to 60.3% elongation while maintaining high strength, achieving a balanced performance suitable for forming processes. The study results confirm that using microsilica as a reinforcing material is an effective way to improve the performance of aluminum alloys, while minimizing costs and solving environmental problems. Full article

To overcome the possible gimbal lock problem of the dual-axis satcom-on-the-move (SOTM) antenna, a three-axis tracking satellite SOTM antenna structure appears. The three-axis SOTM antenna is realized by adding a roll axis to the azimuth axis and pitch axis in the dual-axis SOTM structure. There is coupling among the azimuth axis, pitch axis and roll axis in the mechanical structure of the three-axis SOTM antenna, which makes the kinematic modeling of the antenna difficult. This paper introduces a three-axis SOTM antenna kinematic modeling method based on the modified Denavit–Hartenberg (MDH) method, named the new modified Denavit–Hartenberg (NMDH) method. In order to meet the modeling requirements of the MDH method, the NMDH method adds virtual coordinate systems and auxiliary coordinate systems to the three-axis SOTM antenna and obtains the kinematic model of the three-axis SOTM antenna. During the motion of the carrier, the SOTM antenna needs to adjust the antenna pointing in real time according to the changes of the location and attitude of the moving carrier. Therefore, this paper designs a servo control system based on the active disturbance rejection controller (ADRC), introducing a smooth and continuous ADRC $\mathrm{f}\mathrm{a}\mathrm{l}$ function to enhance the tracking speed of the servo control system and reduce the overshoot of the output response. Finally, system experiments were carried out with a 60 cm caliber three-axis SOTM antenna. The experiment results show that the proposed servo control method achieves higher antenna tracking satellite accuracy and better communication effects. Full article

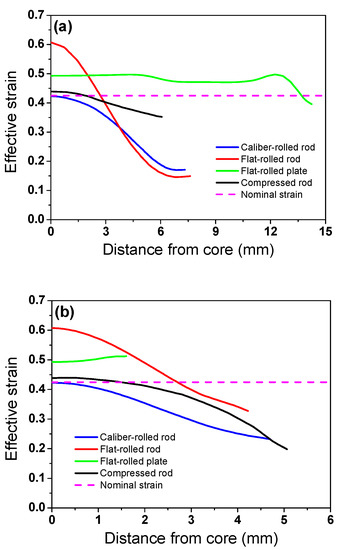

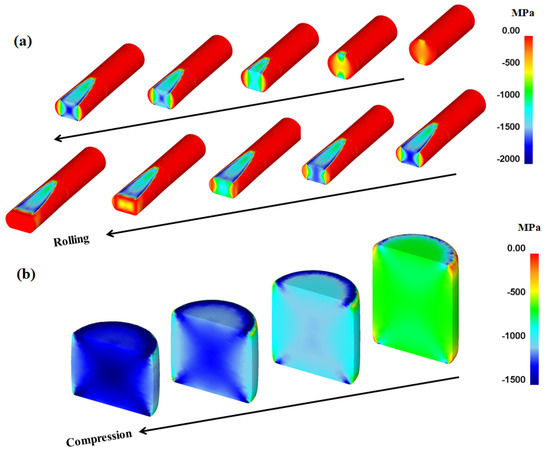

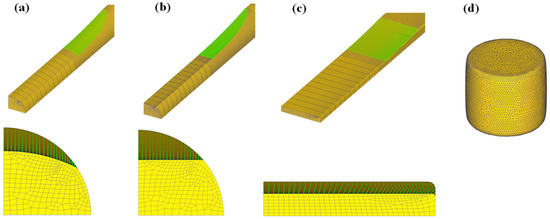

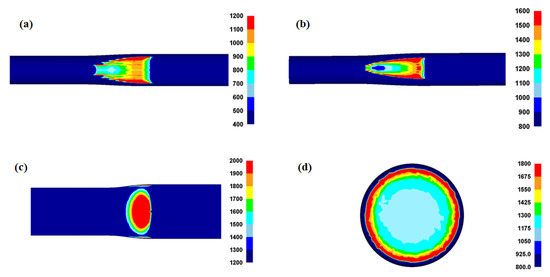

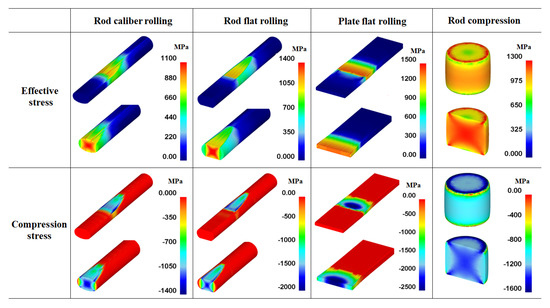

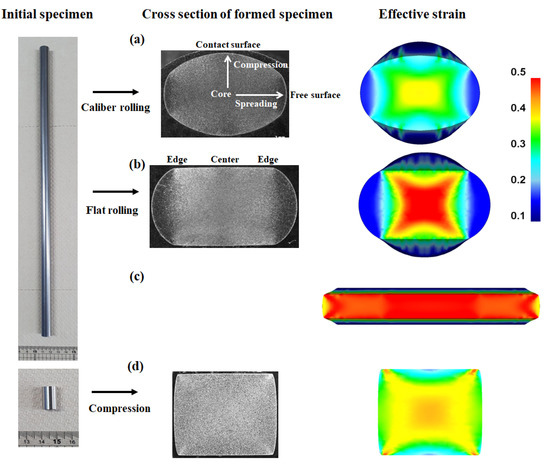

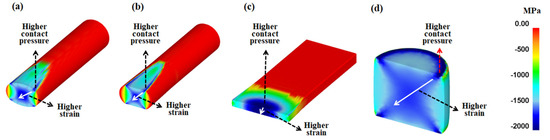

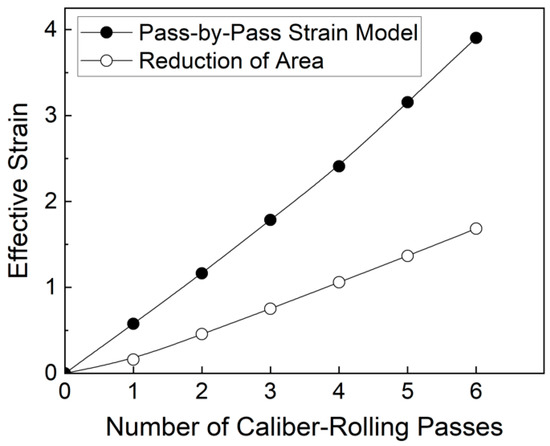

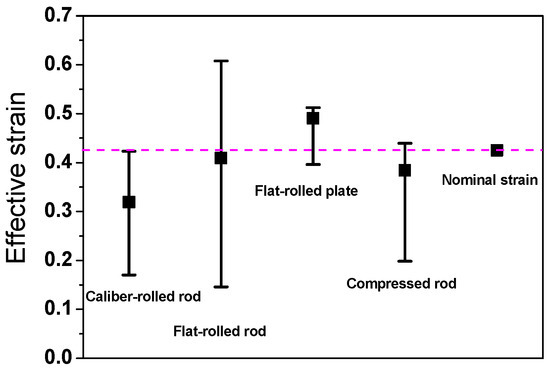

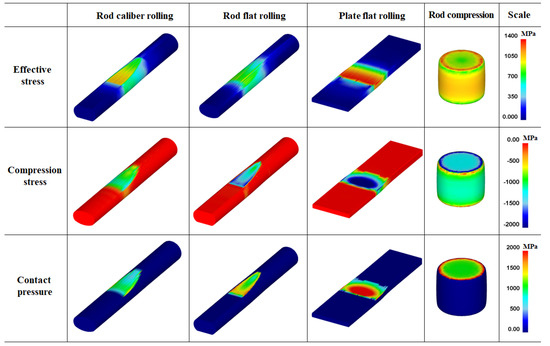

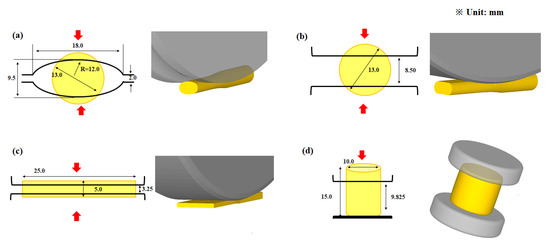

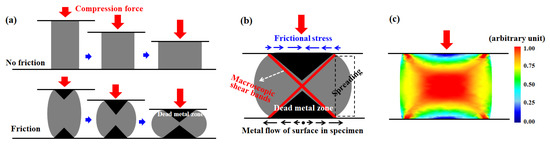

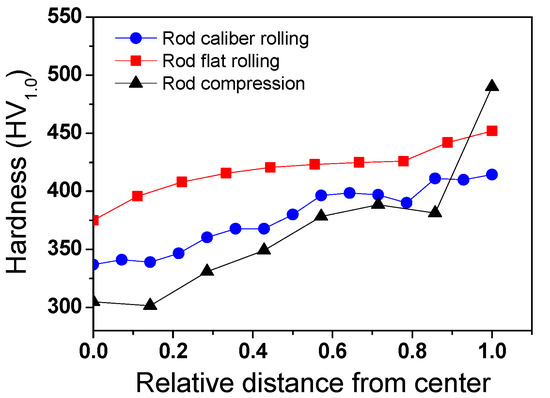

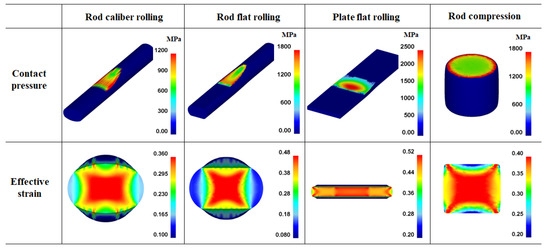

Inhomogeneity of the material properties of workpieces developed during compression-type bulk forming processes (CBFPs) is an important issue. The effect of contact pressure on the workpiece surface on the strain inhomogeneity in the workpiece was investigated to understand and reduce the formation of strain inhomogeneity during CBFPs. Workpieces fabricated via rod caliber rolling, rod flat rolling, plate flat rolling, and rod compression were analyzed and compared. The extent of strain inhomogeneity in a workpiece differs with the forming process, because the occurrence of macroscopic shear bands (MSBs) is dependent on the workpiece shape and tool design. A flat-rolled rod exhibits the maximum strain inhomogeneity, whereas a flat-rolled plate shows the minimum strain inhomogeneity. The occurrence of MSBs was influenced by the distribution of the normal contact pressure or compression stress. The MSBs were stronger when the contact pressure was higher in the edge region of the surface. For example, the flat-rolled plate exhibited weak MSBs due to the relatively uniform or higher contact pressure on the central region. In contrast, strong MSBs appeared in the flat-rolled rod and compressed rod, because the contact pressure in the edge region of these two processes was high. Thus, the strain inhomogeneity in a workpiece fabricated via CBFPs can be reduced by controlling the contact pressure distribution on the workpiece surface. Full article

The multi-pass caliber rolling (MPCR) of Mg alloy has attracted much attention due to its engineering and manufacturing advantages. The MPCR process induces a unique microhardness variation, which has only been predicted using a finite element analysis thus far. This study employed machine learning as an alternative method of microhardness prediction for the first time. For this purpose, two machine-learning approaches were evaluated: the artificial neural network (ANN) approach and that aided by generative adversarial networks (GANs). These approaches predicted microhardness variation in the most difficult case (i.e., after the final-pass MPCR deformation). The machine-learning approaches provided a good prediction for the center area of the cross-section, because the prediction was relatively easy due to the small deviation in microhardness. In contrast, the ANN failed to anticipate the shifted hardness variation in the side sections, leading to a low predictability. Such an issue was effectively improved by integrating the GAN with the ANN. Full article

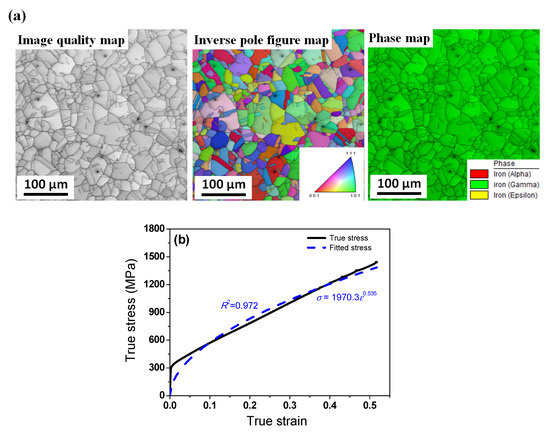

The different behaviors of the mechanical properties of drawn and caliber-rolled wires with applied strain were investigated to determine the appropriate process between wire drawing and caliber rolling with consideration of materials and process conditions. Ferritic, pearlitic, and TWIP steels were drawn and caliber-rolled under the same process conditions. Caliber-rolled wires exhibited a hardening behavior in the early deformation stage and softening behavior in the later deformation stage compared with the drawn wires, regardless of the steel. The hardening behavior of the caliber-rolled wires was explained by the higher strain induced by caliber rolling compared with wire drawing, especially the higher amount of redundant work in caliber-rolled wire. The caliber-rolled wire had approximately 36% higher strain than the drawn wire and approximately 85% higher strain than nominal strain. The softening behavior of the caliber-rolled wire in later deformation stages was related to the Bauschinger effect or low-cycle fatigue effect caused by the roll geometries and loading conditions during caliber rolling. The different intersection points of the tensile strength between drawn and caliber-rolled wires with the steels were attributed to the different strain hardening rates of each steel. Between the options of the caliber rolling and wire drawing processes, the appropriate process should be selected according to the strain hardening rate of the material and the amount of plastic deformation. For instance, when the wires need to deform at high levels, wire drawing is the better process because of the appearance of the Bauschinger effect in caliber-rolled wire. Full article

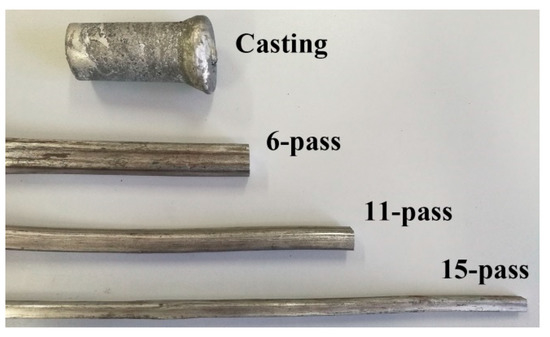

The paper presents the microstructure and mechanical property of pure aluminum (Al) fabricated by multi-pass caliber rolling at room temperature. The finite element modeling (FEM) simulation was performed to explore the changes in rolling force, effective stress and strain, and temperature under various rolling passes. As the number of rolling passes increased, the overall temperature, effective stress, and strain gradually increased, while the maximum rolling force decreased. In addition, due to the dynamic recrystallization (DRX), the average grain size reduced from 1 mm to 14 µm with the increase in rolling passes. The dislocation density increased and it gradually evolved into the high-angle grain boundaries (HAGBs). Moreover, the initial cubic texture rotated to the brass component and finally changed to a mixture of Cube and Brass types. The highest tensile yield strength (TYS), ultimate tensile strength (UTS) and elongation (El.) of caliber rolled pure Al (116 MPa, 135 MPa, and 17%, respectively) can be achieved after 13 rolling passes, which mainly attributed to grain refinement. Full article

Improving the balance of strength and toughness in structural materials is an ongoing challenge. Delamination and grain refinement are some of the methods used to do this. In this paper, two different steels, 0.15% C–0.3% Si–1.5% Mn–Fe and 0.4% C–2% Si–1% Cr–1% Mo–Fe (mass %), were prepared. Two steel bars with an ultrafine elongated grain (UFEG) structure were fabricated via multipass warm caliber rolling. The UFEG steels were characterized by a strong <110>//rolling-direction fiber texture. The transverse grain size, d_t, was 1.0 µm for the low-carbon steel and 0.26 µm for the medium-carbon steel. For comparison, conventional heat-treated steels were also fabricated. An instrumented Charpy impact test was performed, and the impact load (P) and deflection (u) during the test were recorded. The P–u relations at the test temperature at which delamination fracture occurred exhibited a unique curve. Delamination effectively enhances the low-temperature toughness, and this was characterized by a plateau region of constant load in the P–u curve. Assuming no delamination, two routes in the P–u curves, the ductile route and the brittle route, were proposed. The results showed that the proposed methods can be predicted by an energy curve for ultrafine grained steels. Delamination is a more effective method of enhancing toughness for ultra-high-strength steels. Full article

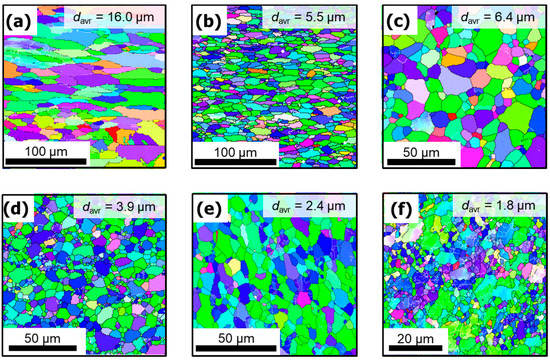

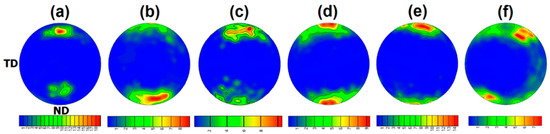

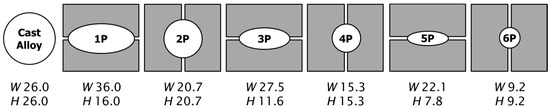

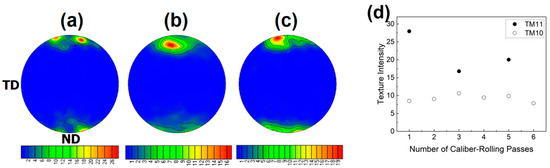

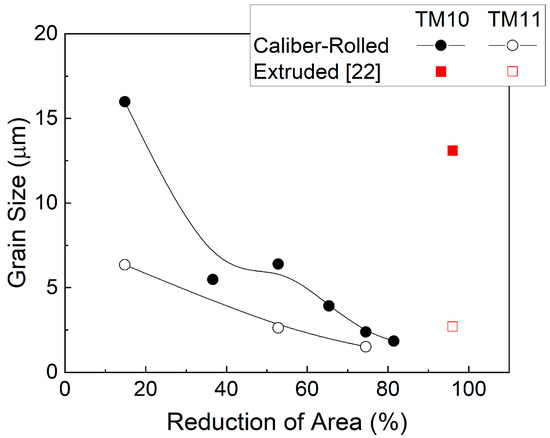

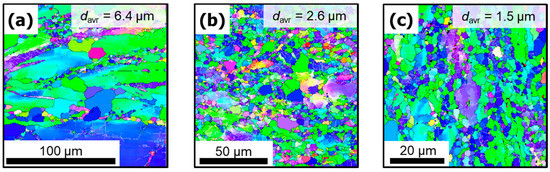

Multi-pass caliber rolling has proven its vast potential for ultrafine-scale grain refinement and mass production of various metals. Nevertheless, the studies related to Mg alloys have primarily focused only on a few commercial materials, such as AZ31 and ZK60 Mg alloys. This is the first study to investigate caliber-rolled Mg–1Sn (TM10) and Mg–1Sn–1Mn (TM11) alloys. Specifically, this work aims to elucidate the microstructural characteristics of these alloys, including grain refinement, recrystallization, and texture development. Such features were discussed from the viewpoints of alloying effects (i.e., Sn and Mn) and mechanical effects (i.e., caliber-rolling strains). The combination of the addition of Mn and high-redundant strain results in effective grain refinement of the caliber-rolled TM11 Mg alloys. In addition, both TM10 and TM11 Mg alloys exhibit a unique split basal texture, wherein the basal poles are tilted in the plane normal to the rolling direction. Full article

A Mg-1.32Bi-0.72Ca (BX11) alloy having bimodal grain structure was successfully prepared by a novel processing route of combining extrusion and three-pass caliber rolling. The first extruded and then caliber-rolled (E-CRed) alloy demonstrates a necklace-like grain structure with ultrafine grains formed around the microscale deformed grains, which is remarkably different from the uniform microstructure of the as-extruded alloy. In addition, the E-CRed BX11 alloy exhibits strong basal texture which is mainly original from the microscale deformed grains. Furthermore, the E-CRed BX11 alloy demonstrates excellent comprehensive mechanical properties, with an ultra-high yield strength of 351 MPa and a good elongation to failure of 13.2%. The significant strength improvement can be mainly attributed to the significant grain refinement and much stronger basal texture compared with the as-extruded sample. Full article

An AZ80 alloy with ultra-high strength and good ductility has been successfully prepared by a novel processing route of combining extrusion and caliber rolling. The caliber rolled (CRed) AZ80 alloy has a necklace grain structure with ultrafine dynamic recrystallized (DRXed) grains formed around the micro-scale deformed grains, which is remarkably different from the uniform microstructure of as-extruded sample free from caliber rolling. In addition, both the deformed region and the DRXed part in CRed AZ80 alloy exhibit more random basal texture than that of the as-extruded sample. Furthermore, the CRed AZ80 alloy demonstrates an excellent comprehensive mechanical property with the ultimate tensile strength of 446MPa and elongation of 13%, respectively. These good mechanical properties of CRed AZ80 alloy can be attributed to the synthetic effects of necklace bimodal microstructure containing ultra-fine grains, profuse Mg₁₇Al₁₂ precipitates, and the modified texture. Full article

An exceptionally high-strength rare-earth-free Mg–8Al–3Bi (AB83) alloy was successfully fabricated via extrusion and caliber rolling. After three-pass caliber rolling, the homogenous microstructure of the as-extruded AB83 alloy was changed to a necklace-like bimodal structure consisting of ultra-fine dynamic recrystallized (DRXed) grains and microscale deformed grains. Additionally, both Mg₁₇Al₁₂ and Mg₃Bi₂ nanoprecipitates, undissolved microscale Mg₁₇Al₁₂, and Mg₃Bi₂ particles were dispersed in the matrix of caliber-rolled (CRed) AB83 alloy. The CRed AB83 sample demonstrated a slightly weakened basal texture, compared with that of the as-extruded sample. Consequently, CRed AB83 showed a tensile yield strength of 398 MPa, an ultimate tensile strength of 429 MPa, and an elongation of 11.8%. The superior mechanical properties of the caliber-rolled alloy were mainly originated from the combined effects of the necklace-like bimodal microstructure containing ultra-fine DRXed grains, the homogeneously distributed nanoprecipitates and microscale particles, as well as the slightly modified basal texture. Full article

This study investigated the fabrication of Nb tubes via the caliber-rolling process at various rolling speeds from 1.4 m/min to 9.9 m/min at ambient temperature, and the effect of the caliber-rolling speed on the microstructural and microtextural evolution of the Nb tubes. The caliber-rolling process affected the grain refinement when the Nb tube had a higher fraction of low angle grain boundaries. However, the grain size was identical regardless of the rolling speed. The dislocation density of the Nb tubes increased with the caliber-rolling speed according to the Orowan equation. The reduction of intensity for the <111> fiber texture and the development of the <112> fiber texture with the increase of the strain rate are considered to have decreased the internal energy by increasing the fraction of the low-energy Σ3 boundaries. Full article

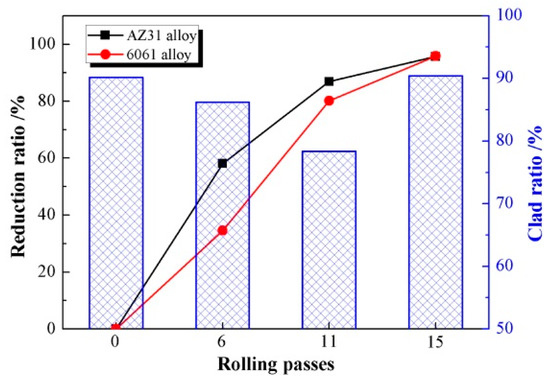

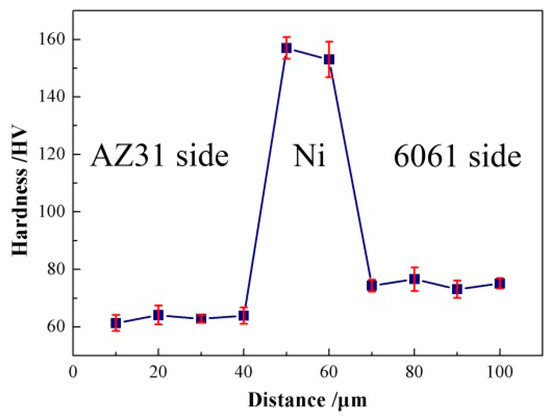

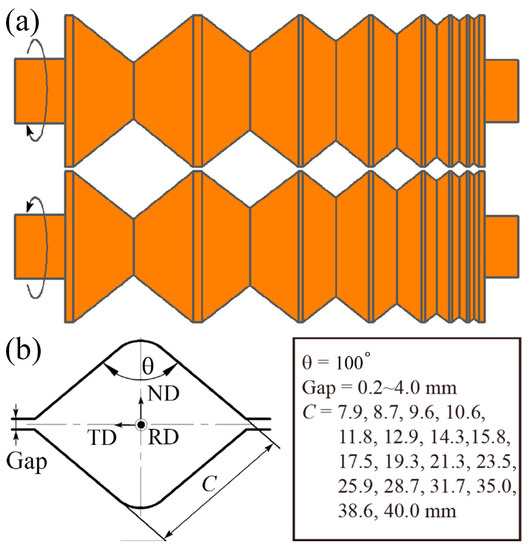

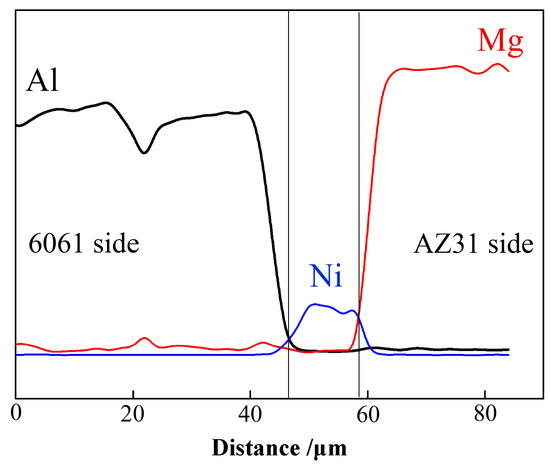

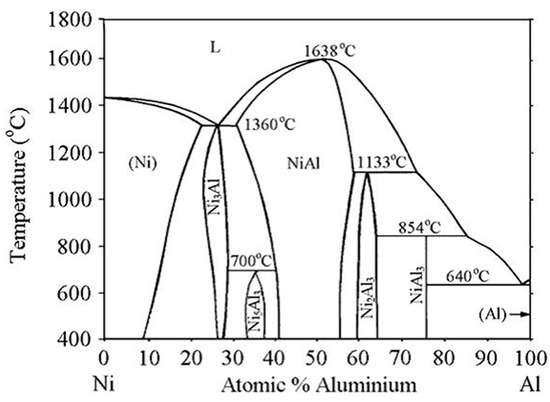

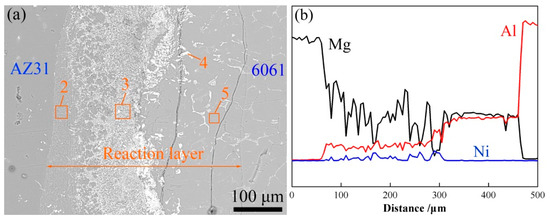

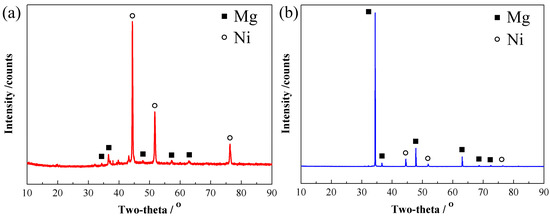

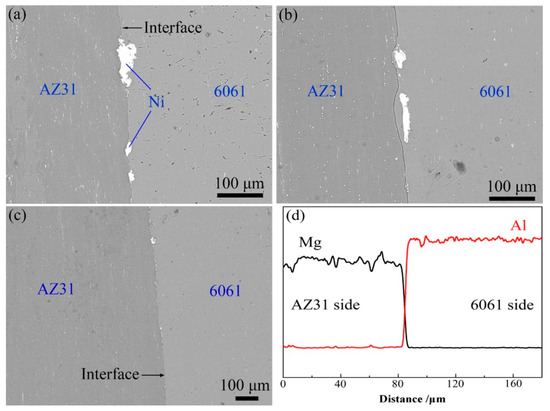

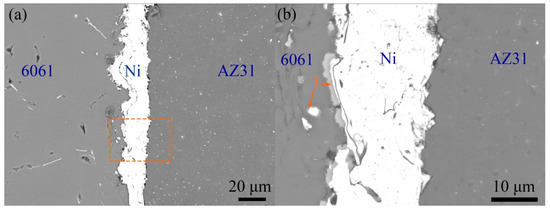

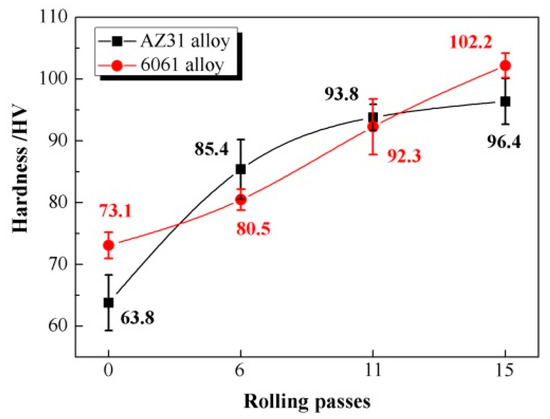

Magnesium/aluminium clad bars were fabricated by compound casting and multi-pass warm caliber rolling. A Ni interlayer prepared using a plasma spraying process was inserted between the parent metals to improve the interfacial characteristics during the casting process, and the effect of caliber rolling on the evolution of the interfacial microstructure and mechanical properties of the Mg/Ni/Al composites was investigated. The results show that the formation of Mg-Al intermetallic phases was impeded effectively by the Ni interlayer and a typical AZ31/Ni/6061 multilayer structure with metallurgical bonding was formed during the compound casting process. In addition, an inhomogeneous strain distribution in the AZ31 and 6061 alloys were characterized during the rolling process. The AZ31 clad layer accommodated a larger proportion of the plastic strain during the initial passes, while the strain in the Mg core layer increased with increasing number of passes. The Ni interlayer fragmented during the rolling process, and transformed into the dispersed particles at the interface. Meanwhile, the fresh AZ31 and 6061 base alloys squeezed out and bonded together under the rolling force, and a well-bonded interface with no visible defects was formed. Full article

Ultrafine-grained (UFG) Ti-6Al-4V alloy has attracted attention from the various industries due to its good mechanical properties. Although severe plastic deformation (SPD) processes can produce such a material, its dimension is generally limited to laboratory scale. The present work utilized the multi-pass caliber-rolling process to fabricate Ti-6Al-4V bulk rod with the equiaxed UFG microstructure. The manufactured alloy mainly consisted of alpha phase and showed the fiber texture with the basal planes parallel to the rolling direction. This rod was large enough to be used in the industry and exhibited comparable tensile properties at room temperature in comparison to SPD-processed Ti-6Al-4V alloys. The material also showed good formability at elevated temperature due to the occurrence of superplasticity. Internal-variable analysis was carried out to measure the contribution of deformation mechanisms at elevated temperatures in the manufactured alloy. This revealed the increasing contribution of phase/grain-boundary sliding at 1073 K, which explained the observed superplasticity. Full article
