Search Results (79)

The impact of 230-MeV Xe¹³² ion irradiation on the structural, optical, and luminescent properties of YAG:Ce single crystals is investigated over a fluence range of 10¹¹–10¹⁴ ions/cm². Optical absorption; cathodo-, X-ray, and photoluminescence; and X-ray diffraction are employed to analyze radiation-induced changes. Irradiation leads to the formation of Frenkel (F, F⁺) and antisite defects and attenuates Ce³⁺ emission (via enhanced nonradiative processes and Ce³⁺ → Ce⁴⁺ recharging). A redistribution between the fast and slow components of the Ce³⁺-emission is considered. Excitation spectra show the suppression of exciton-related emission bands, as well as a shift of the excitation onset due to increased lattice disorder. XRD data confirm partial amorphization and a high level of local lattice disordering, both increasing with irradiation fluence. These findings provide insight into radiation-induced processes in YAG:Ce, which are relevant for its application in radiation–hard scintillation detectors. Full article

A wide-bandgap AgInGaSe₂ (AIGS) thin film was fabricated using molecular beam epitaxy (MBE) via a three-stage method. The influence of Selenium (Se) pressure on the properties of AIGS films and solar cells was studied in detail. It was found that Se pressure played a very important role during the fabrication process, whereby Se pressure was varied from 0.8 × 10⁻³ Torr to 2.5 × 10⁻³ Torr in order to specify the effect of Se pressure. A two-stage mechanism during the production of AIGS solar cells was concluded according to the experimental results. With an increase in Se pressure, the grain size significantly increased due to the supply of the Ag–Se phase; the superficial roughness also increased. When Se pressure was increased to 2.1 × 10⁻³ Torr, the morphology of AIGS changed abruptly and clear grain boundaries were observed with a typical grain size of over 1.5 μm. AIGS films fabricated with a low Se pressure tended to show a higher bandgap due to the formation of anti-site defects such as In and Ga on Ag sites as a result of the insufficient Ag–Se phase. With an increase in Se pressure, the crystallinity of the AIGS film changed from the (220)-orientation to the (112)-orientation. When Se pressure was 2.1 × 10⁻³ Torr, the AIGS solar cell demonstrated its best performance of about 9.6% (Voc: 810.2 mV; Jsc: 16.7 mA/cm²; FF: 71.1%) with an area of 0.2 cm². Full article

Intrinsic point defects in NpO₂ significantly impact its chemical properties, but their formation mechanisms are not fully understood. Using first-principles plane-wave pseudopotential methods, this study systematically investigates the formation processes of Schottky, Frenkel, and substitutional impurity defects under various oxygen environments. Results show that formation energies vary with valence states, oxygen environments, and Fermi energy, and reveal the presence of antisite defects. Schottky, Frenkel, and antisite defects are rare in oxygen-rich conditions, but new defect pairs emerge in anoxic environments, including Schottky defect {2V_Np³⁻: 3V_O²⁺}, Np-Frenkel defects {V_Np³⁻: Np_i³⁺} and {V_Np⁴⁺: Np_i⁴⁺}, and pairs {O_Np⁵⁺: Np_O⁵⁻} and {O_Np⁶⁺: Np_O⁶⁻}. These findings provide new perspectives for understanding the intrinsic point defects in NpO₂. Full article

The objective of the proposed work was to investigate the electrical performance of a 250 µm-thick 4H-SiC p-n junction detector after irradiation with DT neutrons (14.1 MeV energy) at high temperature (500 °C). The results showed that the current–voltage (I-V) characteristics of the unirradiated SiC detector were ideal, with an ideality factor close to 1.5. A high electron mobility (µ_n) and built-in voltage (V_bi) were also observed. Additionally, the leakage current remained very low in the temperature range of 298–523 K. High-temperature irradiation caused a deviation from ideal behaviour, leading to an increase in the ideality factor, decreases in the µ_n and V_bi values, and a significant rise in the leakage current. Studying the capacitance–voltage (C-V) characteristics, it was observed that neutron irradiation induced reductions in both Al-doped (p⁺-type) and N-doped (n⁻-type) 4H-SiC carrier concentrations. A comprehensive investigation of the deep defect states and impurities was carried out using deep-level transient spectroscopy (DLTS) in the temperature range of 85–750 K. In particular, high-temperature neutron irradiation influenced the behaviours of both the Z_1/2 and EH_6/7 traps, which were related to carbon interstitials, silicon vacancies, or anti-site pairs. Full article

Magnesium silicate (MgSiO₃) is widely utilized in glass manufacturing, with its performance influenced by structural modifications. In this study, we employ classical and density functional theory (DFT) simulations to investigate the defect and dopant characteristics of MgSiO₃. Our results indicate that a small amount of Mg-Si anti-site defects can exist in the material. Additionally, MgO Schottky defects are viable, requiring only slightly more energy to form than anti-site defects. Regarding the solubility of alkaline earth dopant elements, Ca preferentially incorporates into the Mg site without generating charge-compensating defects, while Zn exhibits a similar behavior among the 3D block elements. Al and Sc are promising dopants for substitution at the Si site, promoting the formation of Mg interstitials or oxygen vacancies, with the latter being the more energetically favorable process. The solution of isovalent dopants at the Si site is preferred by Ge and Ti. Furthermore, we analyze the electronic structures of the most favorable doped configurations. Full article

Energy levels associated with several crystalline defects, such as zinc (V_Zn) and oxygen (V_O) vacancies, Zn and O interstitials (Zn_i and O_i respectively), Zn and O antisite defects, and charged oxygen vacancies Vo-, among others, are generated by the introduction of cobalt (Co) into the structure. The effective introduction of Co into the Zn occupancy site was evaluated by XRD and electron paramagnetic resonance. The EPR spectra remain consistent across all doping concentrations of Co²⁺ ions and revealed intriguing features linked to four distinct Co²⁺ paramagnetic centers; among them, a pair of Co²⁺ ions exhibited ferromagnetic coupling. ZnO nanocrystals doped with cobalt were produced by sol gel and their use as photocatalysts were evaluated in the degradation of the Congo red pollutant. The degradation efficiency improved by more than 50% when compared to the efficiency of pure ZnO nanocrystals at the same activity time. Full article

Quantum dot light-emitting diodes (QLEDs) have potential application prospects in new-type display fields due to their wide color gamut, high energy efficiency, as well as low-cost mass production. Research on lead-free and cadmium-free blue quantum dots (QDs) is urgently needed for the development of QLED technology. For I-III-VI QDs, multiple luminescent centers generated by imbalanced local charge distribution have a detrimental effect on the emission performance. Regulating the chemical composition is one of the effective methods to control the defect type of blue-emitting QDs. In this work, narrow-bandwidth (with a full width at half maximum of 53 nm) blue CuAlSe₂ QDs are achieved by altering the Cu/Al ratio. As the Cu/Al ratio increases from 0.2 to 1, the photoluminescence (PL) emission peak is red-shifted from 450 to 460 nm, with PL quantum yield up to 56%. The PL spectra are deconvoluted into three emission peaks by Gaussian fitting analysis, demonstrating the main luminescent contribution coming from the radiative recombination of electrons residing in the aluminum–copper antisite (Al_Cu) defect level with the holes in the valence band. This work provides a new approach for preparing eco-friendly and high-efficient blue-emitting QDs. Full article

Improving ferro-piezoelectric properties of niobate-based perovskites is highly desirable for developing eco-friendly high-performance sensors and actuators. Although electro-strain coupling is usually obtained by constructing multiphase boundaries via complex chemical compositions, defect engineering can also create opportunities for novel property and functionality advancements. In this work, a representative tetragonal niobate-based perovskite, i.e., KNbO₃, is studied by using first-principles calculations. Two intrinsic types of Nb antisite defect complexes are selected to mimic alkali-deficiency induced excess Nb antisites in experiments. The formation energy, electronic profiles, polarization, and piezoelectric constants are systematically analyzed. It is shown that the structural distortion and chemical heterogeneity around the energetically favorable antisite pair defects, i.e., (${\mathrm{Nb}}_{\mathrm{K}}^{4·}+{\mathrm{K}}_{\mathrm{Nb}}^{4\prime }$), lower the crystal symmetry of KNbO₃ from tetragonal to triclinic phase, and facilitate polarization emergence and reorientation to substantially enhance intrinsic ferro-piezoelectricity (i.e., spontaneous polarization P_s of 68.2 μC/cm² and piezoelectric strain constant d₃₃ of 228.3 pC/N) without complicated doping and alloying. Full article

Spinels are important materials for an application in bioimaging. The key advantage with spinel-type hosts is the presence of antisite defects, which act as charge reservoirs for trapping electrons and holes at complementary defect sites. This makes them a host system similar to a molecular system. Herein, we present a systematic approach to modulating the band gap of an inverse ${\mathrm{Zn}}_2$${\mathrm{TiO}}_4$ spinel. With a change in ZnO concentration, the absorption band at 375 nm diminishes and disappears at a ZnO:TiO₂ concentration of 1.40:1.00. The band gap of the material is modified from 3.30 to 4.40 eV. The crystal structure of the sample does not change drastically as determined using X-ray diffraction and Rietveld refinement. The ${\mathrm{Zn}}_2$${\mathrm{TiO}}_4$ emits in the UV-A region with a lifetime in the time domain of ‘ns’. The sample also shows persistent luminescence of at least 15 min upon excitation with 254 nm with prominent emission in the UV-A region (300–390 nm). The present results open a new avenue for the synthesis of spinel hosts where the band gap can be modified with ease. The UV emission thus observed is expected to find usage in interesting applications like photocatalysis, anti-counterfeiting, water disinfecting, etc. Full article

This investigation explores the structural and electronic properties of low-temperature-grown (InAs)₄(GaAs)₃/Be-doped InAlAs and InGaAs/Be-doped InAlAs multiple quantum wells (MQWs), utilizing migration-enhanced epitaxy (MEE) and conventional molecular beam epitaxy (MBE) growth mode. Through comprehensive characterization methods including transmission electron microscopy (TEM), Raman spectroscopy, atomic force microscopy (AFM), pump–probe transient reflectivity, and Hall effect measurements, the study reveals significant distinctions between the two types of MQWs. The (InAs)₄(GaAs)₃/Be-doped InAlAs MQWs grown via the MEE mode exhibit enhanced periodicity and interface quality over the InGaAs/Be-InAlAs MQWs grown through the conventional molecule beam epitaxy (MBE) mode, as evidenced by TEM. The AFM results indicate lower surface roughness for the (InAs)₄(GaAs)₃/Be-doped InAlAs MQWs by using the MEE mode. Raman spectroscopy reveals weaker disorder-activated modes in the (InAs)₄(GaAs)₃/Be-doped InAlAs MQWs by using the MEE mode. This originates from utilizing the (InAs)₄(GaAs)₃ short period superlattices rather than InGaAs, which suppresses the arbitrary distribution of Ga and In atoms during the InGaAs growth. Furthermore, pump–probe transient reflectivity measurements show shorter carrier lifetimes in the (InAs)₄(GaAs)₃/Be-doped InAlAs MQWs, attributed to a higher density of antisite defects. It is noteworthy that room temperature Hall measurements imply that the mobility of (InAs)₄(GaAs)₃/Be-doped InAlAs MQWs grown at a low temperature of 250 °C via the MEE mode is superior to that of InGaAs/Be-doped InAlAs MQWs grown in the conventional MBE growth mode, reaching 2230 cm²/V.s. The reason for the higher mobility of (InAs)₄(GaAs)₃/Be-doped InAlAs MQWs is that this short-period superlattice structure can effectively suppress alloy scattering caused by the arbitrary distribution of In and Ga atoms during the growth process of the InGaAs ternary alloy. These results exhibit the promise of the MEE growth approach for growing high-performance MQWs for advanced optoelectronic applications, notably for high-speed optoelectronic devices like THz photoconductive antennas. Full article

To address the issue of the lack of red light in traditional Ce³⁺: YAG-encapsulated blue LED white light systems, we utilized spark plasma sintering (SPS) to prepare spinel-based Cr³⁺-doped red phosphor ceramics. Through phase and spectral analysis, the SPS-sintered ZnAl₂O₄: 0.5%Cr³⁺ phosphor ceramic exhibits good density, and Cr³⁺ is incorporated into [AlO₆] octahedra as a red emitting center. We analyzed the reasons behind the narrow-band emission and millisecond-level lifetime of ZAO: 0.5%Cr³⁺, attributing it to the four-quadrupole interaction mechanism as determined through concentration quenching modeling. Additionally, we evaluated the thermal conductivity and thermal quenching performance of the ceramic. The weak electron-phonon coupling (EPC) effects and emission from antisite defects at 699 nm provide positive assistance in thermal quenching. At a high temperature of 150 °C, the thermal conductivity reaches up to 14 W·m⁻¹·K⁻¹, and the 687 nm PL intensity is maintained at around 70% of room temperature. Furthermore, the internal quantum efficiency (IQE) of ZAO: 0.5%Cr³⁺ phosphor ceramic can reach 78%. When encapsulated with Ce³⁺: YAG for a 450 nm blue LED, it compensates for the lack of red light, adjusts the color temperature, and improves the color rendering index (R9). This provides valuable insights for the study of white light emitting diodes (WLEDs). Full article

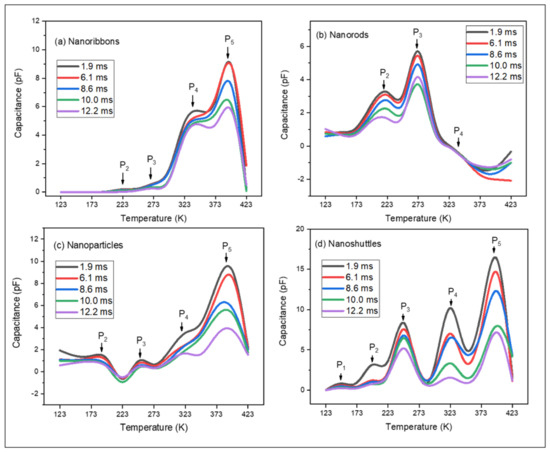

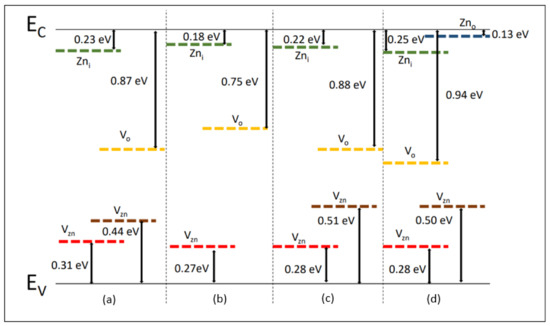

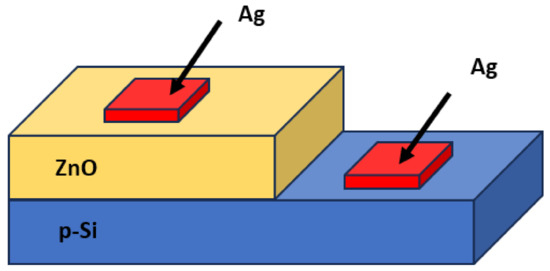

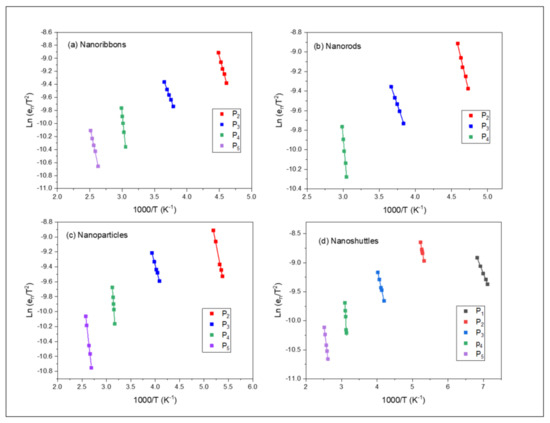

In this work, we described the variations in the defect energy levels of four different ZnO morphologies, namely nanoribbons, nanorods, nanoparticles, and nanoshuttles. All the ZnO morphologies were grown on a seeded 4% Boron-doped p-type silicon (p-Si) wafer by using two different synthesis techniques, which are chemical bath deposition and microwave-assisted methods. The defect energy levels were analyzed by using the Deep-Level Transient Spectroscopy (DLTS) characterization method. The DLTS measurements were performed in the 123 K to 423 K temperature range. From the DLTS spectra, we found the presence of different trap-related defects in the synthesized ZnO nanostructures. We labeled all the traps related to the four different ZnO nanostructures as P₁, P₂, P₃, P₄, and P₅. We discussed the presence of defects by measuring the activation energy (E_a) and capture cross-section ($\alpha$). The lowest number of defect energy levels was exhibited by the ZnO nanorods at 0.27 eV, 0.18 eV, and 0.75 eV. Both the ZnO nanoribbons and nanoparticles show four traps, which have energies of 0.31 eV, 0.23 eV, 0.87 eV, and 0.44 eV and 0.27 eV, 0.22 eV, 0.88 eV, and 0.51 eV, respectively. From the DLTS spectrum of the nanoshuttles, we observe five traps with different activation energies of 0.13 eV, 0.28 eV, 0.25 eV, 0.94 eV, and 0.50 eV. The DLTS analysis revealed that the origin of the nanostructure defect energy levels can be attributed to Zinc vacancies (V_zn), Oxygen vacancies (V_o), Zinc interstitials (Zn_i), Oxygen interstitials (O_i), and Zinc antisites (Zn_o). Based on our analysis, the ZnO nanorods showed the lowest number of defect energy levels compared to the other ZnO morphologies. Full article

In the wide group of thermoelectric compounds, the half-Heusler ZrNiSn alloy is one of the most promising materials thanks to its thermal stability and narrow band gap, which open it to the possibility of mid-temperature applications. A large variety of defects and doping can be introduced in the ZrNiSn crystalline structure, thus allowing researchers to tune the electronic band structure and enhance the thermoelectric performance. Within this picture, theoretical studies of the electronic properties of perfect and defective ZrNiSn structures can help with the comprehension of the relation between the topology of defects and the thermoelectric features. In this work, a half-Heusler ZrNiSn alloy is studied using different defective models by means of an accurate Density Functional Theory supercell approach. In particular, we decided to model the most common defects related to Ni, which are certainly present in the experimental samples, i.e., interstitial and antisite Ni and a substitutional defect consisting of the replacement of Sn with Sb atoms using concentrations of 3% and 6%. First of all, a comprehensive characterization of the one-electron properties is performed in order to gain deeper insight into the relationship between structural, topological and electronic properties. Then, the effects of the modeled defects on the band structure are analyzed, with particular attention paid to the region between the valence and the conduction bands, where the defective models introduce in-gap states with respect to the perfect ZrNiSn crystal. Finally, the electronic transport properties of perfect and defective structures are computed using semi-classical approximation in the framework of the Boltzmann transport theory as implemented in the Crystal code. The dependence obtained of the Seebeck coefficient and the power factor on the temperature and the carrier concentration shows reasonable agreement with respect to the experimental counterpart, allowing possible rationalization of the effect of the modeled defects on the thermoelectric performance of the synthesized samples. As a general conclusion, defect-free ZrNiSn crystal appears to be the best candidate for thermoelectric applications when compared to interstitial and antisite Ni defective models, and substitutional defects of Sn with Sb atoms (using concentrations of 3% and 6%) do not appreciably improve electronic transport properties. Full article

The growth of InGaAs quantum wells (QWs) epitaxially on InP substrates is of great interest due to their wide application in optoelectronic devices. However, conventional molecular beam epitaxy requires substrate temperatures between 400 and 500 °C, which can lead to disorder scattering, dopant diffusion, and interface roughening, adversely affecting device performance. Lower growth temperatures enable the fabrication of high-speed optoelectronic devices by increasing arsenic antisite defects and reducing carrier lifetimes. This work investigates the low-temperature epitaxial growth of InAs/GaAs short-period superlattices as an ordered replacement for InGaAs quantum wells, using migration-enhanced epitaxy (MEE) with low growth temperatures down to 200–250 °C. The InAs/GaAs multi-quantum wells with InAlAs barriers using MEE grown at 230 °C show good single crystals with sharp interfaces, without mismatch dislocations found. The Raman results reveal that the MEE mode enables the growth of (InAs)₄(GaAs)₃/InAlAs QWs with excellent periodicity, effectively reducing alloy scattering. The room temperature (RT) photoluminescence (PL) measurement shows the strong PL responses with narrow peaks, revealing the good quality of the MEE-grown QWs. The RT electron mobility of the sample grown in low-temperature MEE mode is as high as 2100 cm²/V∗s. In addition, the photoexcited band-edge carrier lifetime was about 3.3 ps at RT. The high-quality superlattices obtained confirm MEE’s effectiveness for enabling advanced III-V device structures at reduced temperatures. This promises improved performance for applications in areas such as high-speed transistors, terahertz imaging, and optical communications. Full article

P-type Bi_0.3Sb_1.7Te₃ polycrystalline pellets were fabricated using different methods: melting and mechanical alloying, followed by hot-press sintering. The effect of starting powder particle size on the thermoelectric properties was investigated in samples prepared using powders of different particle sizes (with micro- and/or nano-scale dimensions). A peak ZT (350 K) of ~1.13 was recorded for hot-pressed samples prepared from mechanical alloyed powder. Moreover, hot-pressed samples prepared from ≤45 μm powder exhibited similar ZT (~1.1). These high ZT values are attributed both to the presence of high-density grain boundaries, which reduced the lattice thermal conductivity, as well as the formation of antisite defects during milling and grinding, which resulted in lower carrier concentrations and higher Seebeck coefficient values. In addition, Bi_0.3Sb_1.7Te₃ bulk nanocomposites were fabricated in an attempt to further reduce the lattice thermal conductivity. Surprisingly, however, the lattice thermal conductivity showed an unexpected increasing trend in nanocomposite samples. This surprising observation can be attributed to a possible overestimation of the lattice thermal conductivity component by using the conventional Wiedemann–Franz law to estimate the electronic thermal conductivity component, which is known to occur in nanocomposite materials with significant grain boundary electrical resistance. Full article
