Miniature sensors are key components for applications in the Internet of Things (IoT), wireless sensor networks, autonomous vehicles, smart cities, and smart manufacturing. As a miniature and self-powered magnetic sensor, the Wiegand sensor possesses advantageous traits including changing-rate-independent output, low cost, and remarkable repeatability and reliability. A typical Wiegand sensor requires hard magnetic pole pieces that provide external fields for triggering voltage outputs that are called Wiegand pulses. However, the wire-shaped sensing element of Wiegand sensors is the critical issue that limits the design, selection, and adoption of the external triggering magnets. Currently, the widely used pole piece materials are rare-earth magnets. However, adopting rare-earth magnets brings strong stray fields, causing an electromagnetic interference (EMI) problem. In this study, patterned CoNiP hard magnets were electrodeposited on flexible substrates through microfabrication. Origami magnetization was utilized to control the resultant stray fields and thus the pole piece of CoNiP magnets can successfully trigger the output of the Wiegand pulse. In comparison, the output voltage of the triggered pulse acquired through the patterned CoNiP magnets is comparable to that acquired by using the rare-earth magnets. Furthermore, both the volume (and hence the weight) of the Wiegand sensor and the EMI issue can be significantly reduced and mitigated, respectively, by the CoNiP magnets. Full article

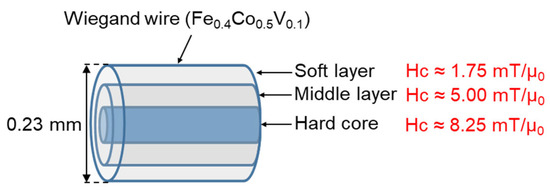

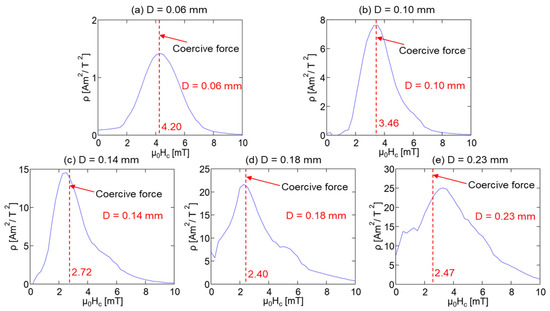

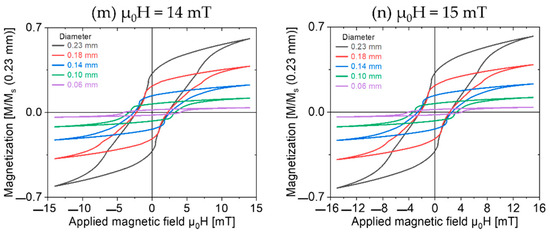

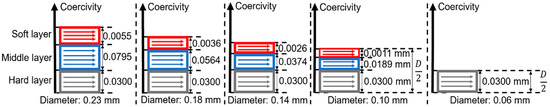

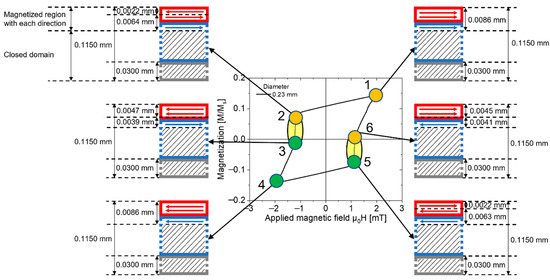

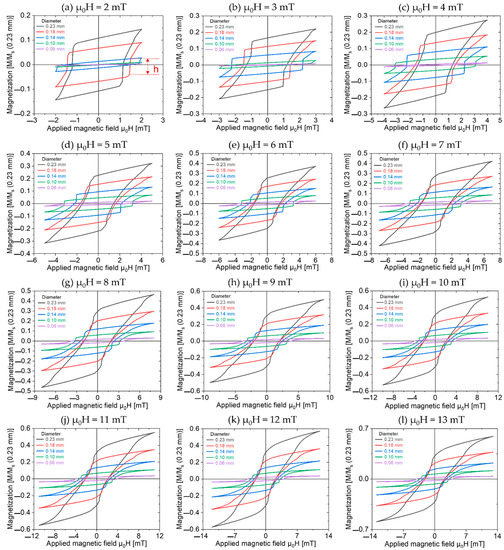

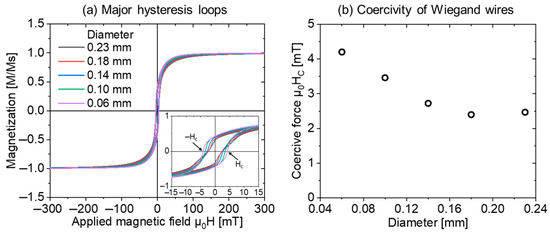

Wiegand wires are unique ferromagnetic materials that display rapid magnetization reversal and a large Barkhausen jump under an applied field. This stable reversal can be used to induce a periodic pulse voltage in a pickup coil wrapped around the Wiegand wire. To unlock the full potential of Wiegand wires for magnetic sensors and devices, the magnetic structure and magnetization state of the Wiegand wire must be fully elucidated. In this study, hysteresis loops were used to reveal the magnetic structure of Wiegand wires. Wiegand wires of different diameters magnetized under different applied magnetic field strengths were analyzed in detail. Our results show that Wiegand wires 0.06 mm in diameter are composed solely of a hard magnetic core. Wiegand wires above 0.10 mm in diameter have a hard magnetic core, a middle layer, and a soft layer that decreases in thickness but increases in coercivity as the wire diameter decreases. Then, theoretical models were built to predict the magnetic structure of Wiegand wires under an applied field for the first time. The magnetization process of Wiegand wires with different diameters under different applied magnetic fields was also analyzed. Full article

Self-powered magnetic sensors are fundamental for the development of Industry 4.0, the Internet of things (IoT), wireless sensor networks, unmanned vehicles, smart cities, and sustainability. This review aimed to elucidate the working principles, materials, manufacture, output properties, and perspectives of Wiegand sensors. A Wiegand sensor is composed of a magnetic sensing wire, which is called a Wiegand wire, and a pick-up coil for the output of an electrical signal and energy. The Wiegand sensor requires an external magnetic field of about 70 Gauss to induce Wiegand wire flux changes, which, in turn, generate an output pulse in the pick-up coil. Output energy of more than 3000 nJ per single pulse (open circuit) can be harvested. The output pulse is derived from the large Barkhausen effect. Therefore, the behavior of the sensor output is independent of the triggering and sensing frequencies. The objective of this review article was to comprehensively highlight research endeavors devoted to Wiegand sensors. Furthermore, application scenarios of current research results are highlighted to find potential gaps in the literature and future contributions. Perspectives and research opportunities of Wiegand sensors are proposed. Full article

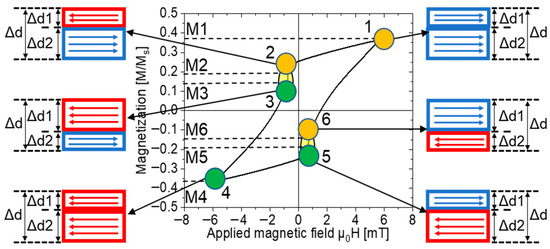

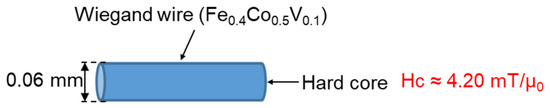

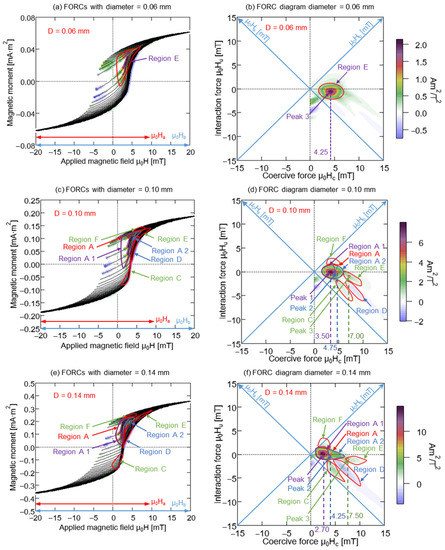

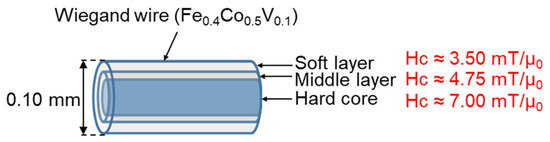

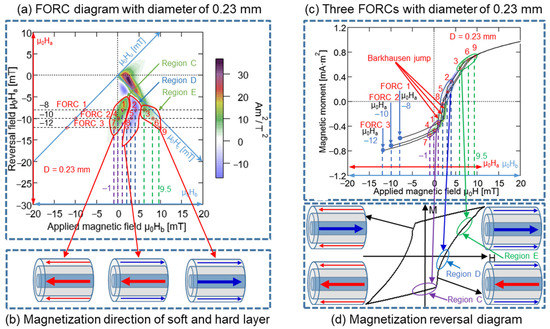

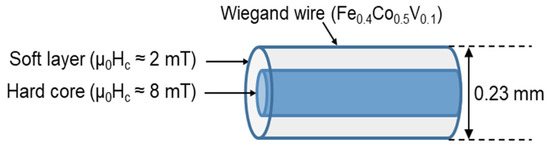

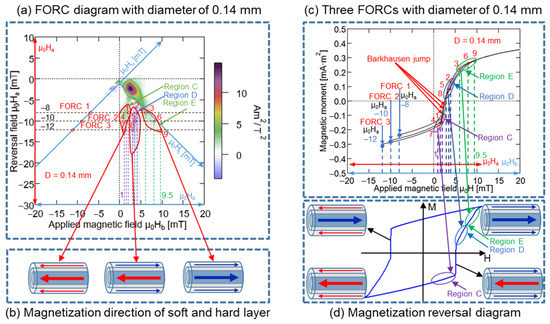

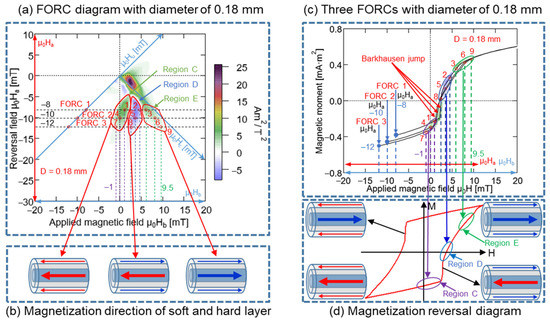

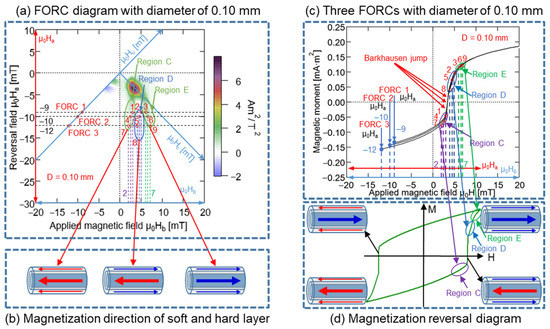

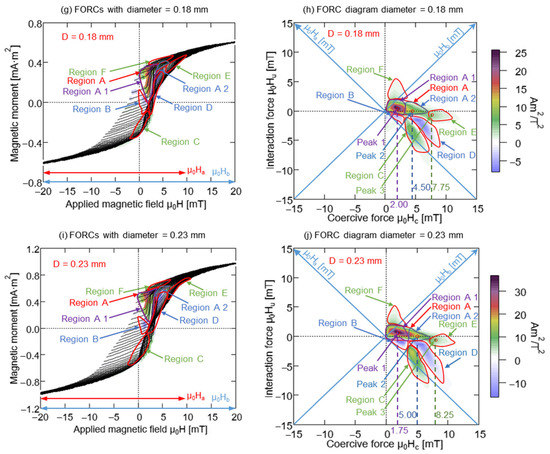

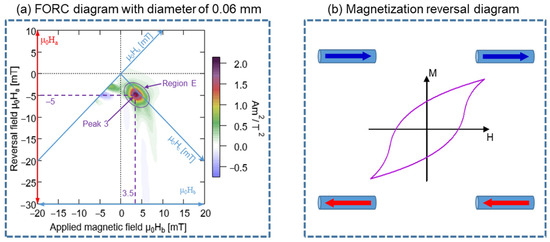

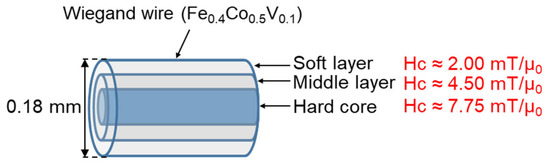

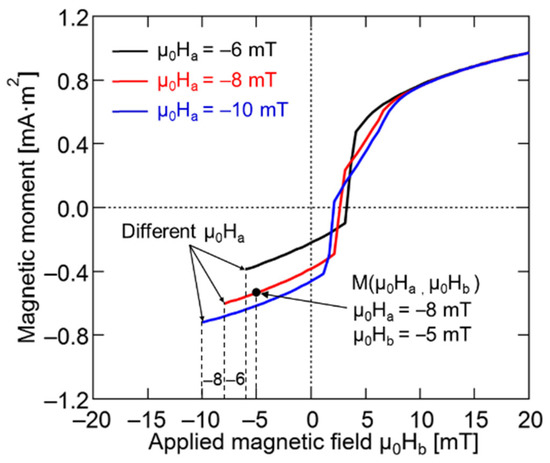

Various coercive force field components in Wiegand wire exhibit a significant magnetization reversal under an applied magnetic field. A fast magnetization reversal is accompanied by a large Barkhausen jump, which induces a pulse voltage in a pickup coil wound around the Wiegand wire which serves as a power source for the devices or sensors. This study aims to elucidate the magnetization reversal in the Wiegand wire by using a first-order reversal curve (FORC) diagram method. The magnetic structure of the Wiegand wire typically comprises three layers: a soft layer, middle layer, and hard layer. In this study, we analyze the coercive and interactive force fields between the adjacent layers. The results demonstrate a high coercivity of the center core and a lower coercivity of the outer layer of the wire. Full article

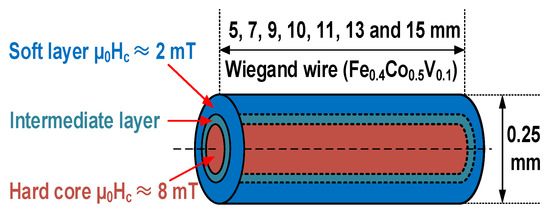

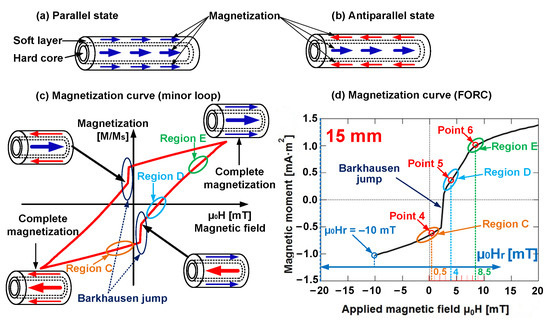

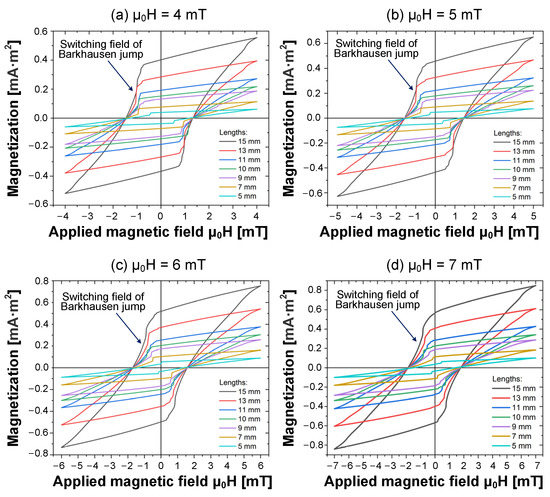

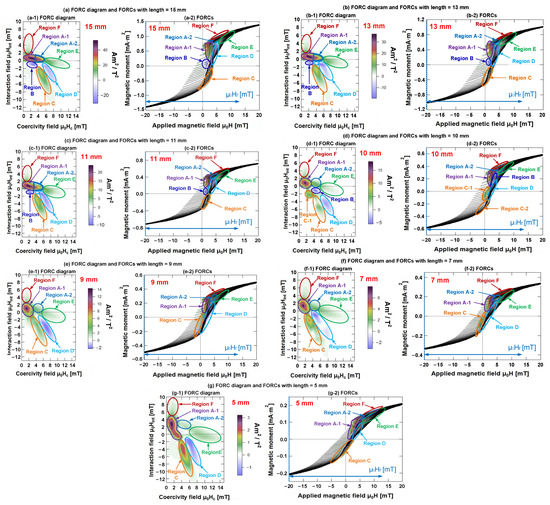

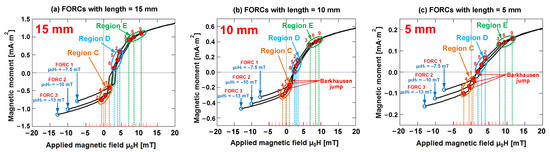

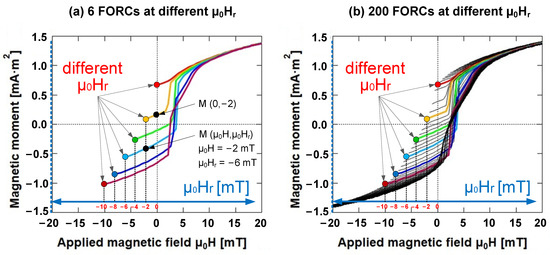

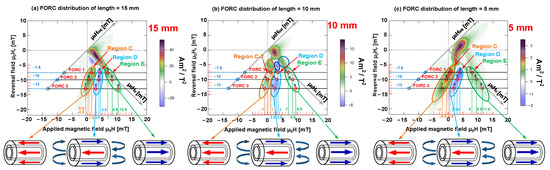

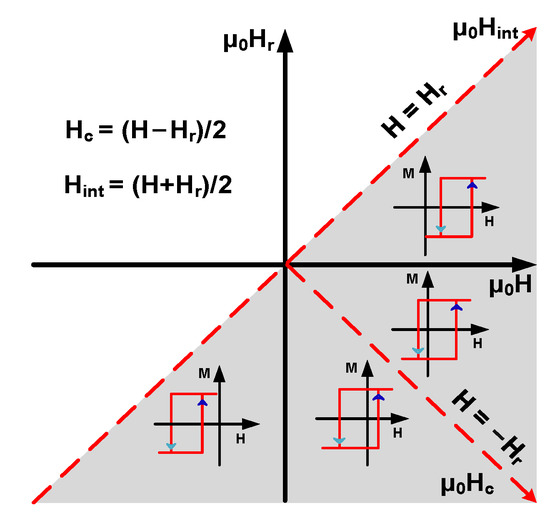

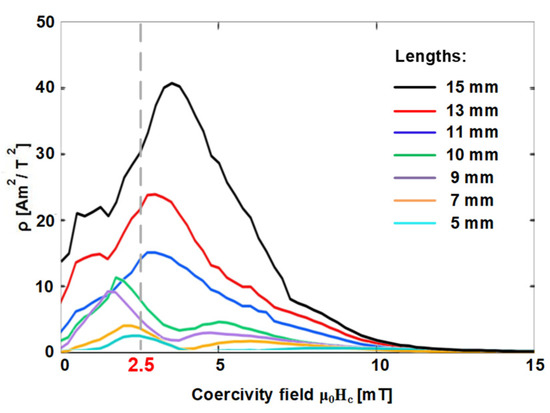

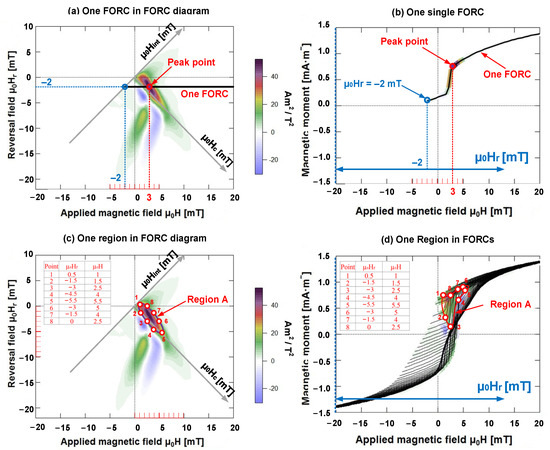

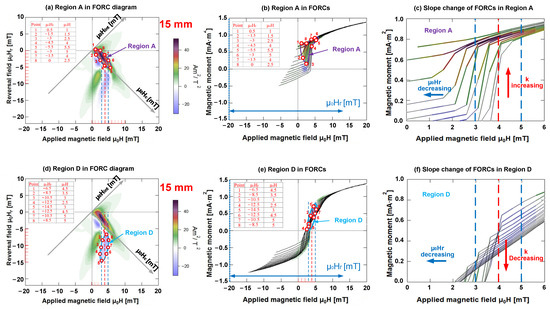

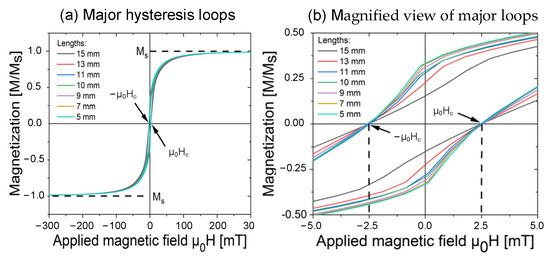

Wiegand wires exhibit a unique fast magnetization reversal feature in the soft layer that is accompanied by a large Barkhausen jump, which is also known as the Wiegand effect. However, the magnetic structure and interaction in Wiegand wires cannot be evaluated by conventional magnetization hysteresis curves. We analyzed the magnetic properties of Wiegand wires at various lengths by measuring the first-order reversal curves (FORCs) and by evaluating the FORC diagram from a series of FORCs. In particular, we used a FeCoV Wiegand wire with a magnetic soft outer layer, an intermediate layer, and a hard core. The magnetization of the various layers in the wire could be identified from the FORC diagrams. Furthermore, based on the interaction between multiple layers, the positive and negative polarity of the FORC distribution was clarified. Full article

A Wiegand sensor is composed of a strip of Wiegand wire and a pick-up coil. The research presented in this paper examines and characterizes the fast magnetization reversal in a Wiegand wire, which leads to changes in magnetic flux density in its pick-up coil to produce the so-called Wiegand pulse to be used as a reference mark in a linear positioning system. It was observed in this research that the magnitude and duration of the pulse voltage were independent of driving frequency, indicating that Wiegand effect sensors could be ideal for use as zero-speed transducers. The repeatability of the Wiegand pulse was found to vary with different magnetic flux intensities of external magnetic field, as well as the angle between the magnetic induction line and the Wiegand wire. Through calibrated experimental and numerical parametric studies, the mechanism for producing repeatable Wiegand pulses to be used as a reference mark for precision liner positioning systems was revealed, which represents the novelty of this research. On the basis of this mechanism, the optimal design combination of the Wiegand sensor’s position with respect to the magnetization source can be obtained. Utilizing commercially available Wiegand sensors, it was demonstrated in this research that with a Wiegand pulse serving as a magnetic reference mark, positioning repeatability of 0.3 um could be achieved, which is on the same order as optical scales. The work presented in this research has engineering implications as well as offering scientific insights into magnetization mechanisms for generating enough magnetic remanence to produce a Barkhausen jump, resulting in repeatable Wiegand for use as a reference mark in a linear positioning system. Full article

This study proposed an energy harvester that combines an eccentric pendulum with Wiegand wires to harvest the kinetic energy of a rotating plate. The energy harvester converts the kinetic energy into electrical energy to power sensors mounted on the rotating plate or wheel. The kinetic model is derived from the Euler–Lagrange equation. The eccentric pendulum generates a swing motion from the direction variation of the centrifugal force and the gravitational force. The magnetic circuit is designed such that, during the swing motion, an alternating magnetic field is formed to induce the output voltage of the Wiegand wire. COMSOL software was used to simulate magnetic flux density and optimize the geometric parameters of magnets. Response surface methodology was used to formulate the output voltage model. Magnetic flux density affects output voltage dramatically. However, the output voltage is not sensitive to the gradient of magnetic flux density. The experimental results indicate that when the Wiegand wire is 14.2 mm from the magnet, the generation power is 0.118–1.15 mW, in a speed range of 240–540 rpm. When the Wiegand wire is 7.0 mm from the magnet, the generation power is 0.741–1.06 mW, in a speed range of 480–660 rpm. Full article

The Wiegand wire is known to exhibit a unique feature of fast magnetization reversal in the magnetically soft region accompanied by a large Barkhausen jump. We clarified a significant difference between the magnetization reversals at the surface and at the entire cross section of a Wiegand wire. We conducted magnetization measurements based on the magneto-optical Kerr effect and applied conventional methods to determine the magnetization curves. The switching field of the magnetization reversal at the surface was greater than that at the initiation of a large Barkhausen jump. Our analysis suggests that the outer surface layer exhibits low coercivity. Full article

This paper introduces a new method of electricity generation using a Wiegand sensor. The Wiegand sensor consists of a magnetic wire and a pickup coil wound around it. This sensor generates a pulse voltage of approximately 5 V and 20 µs width as an induced voltage in the pickup coil. The aim of this study is to generate a DC voltage of 5 V from the sensor, which is expected to be used as a power source in self-powered devices and battery-less modules. We report on the design and verification of a self-oscillating boost converter circuit in this paper. A DC voltage obtained by rectifying and smoothing the pulse voltage generated from the Wiegand sensor was boosted by the circuit. A stable DC output voltage in the order of 5 V for use as a power supply in electronics modules was successfully obtained. A quantitative analysis of the power generated by the Wiegand sensor revealed a suitable voltage-current range for application in self-powered devices and battery-less modules. Full article

The magnetic structure of Wiegand wires cannot be evaluated using conventional magnetization hysteresis curves. We analyzed the magnetization reversal of a Wiegand wire by measuring the first-order reversal curves (FORCs). A FeCoV Wiegand wire with a magnetically soft outer layer and a hard magnetic core was used in this study. The magnetization reversal of the soft and hard regions in the wire was identified in the FORC diagrams. The magnetization reversal of the dominantly irreversible process of the soft layer and the magnetic intermediate region between the soft and hard regions was clarified. Full article

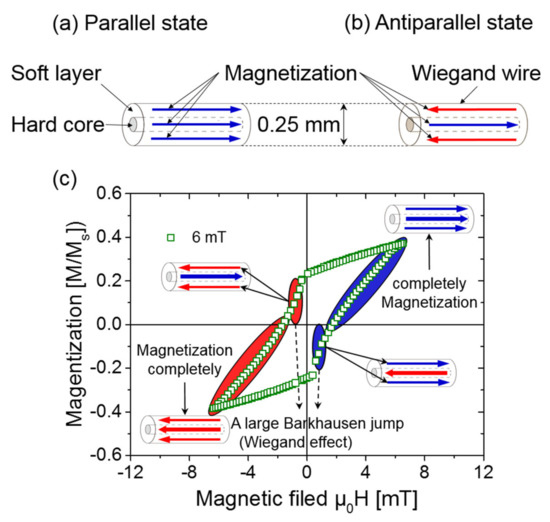

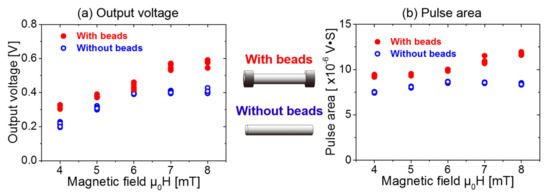

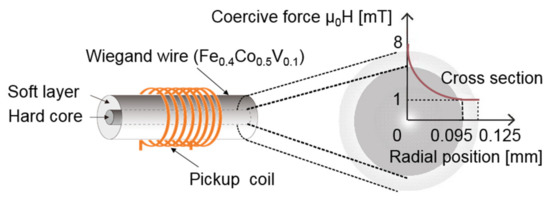

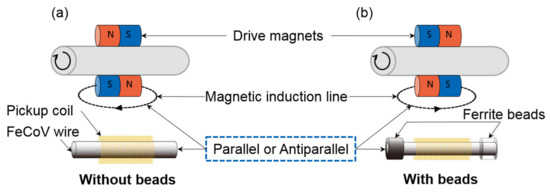

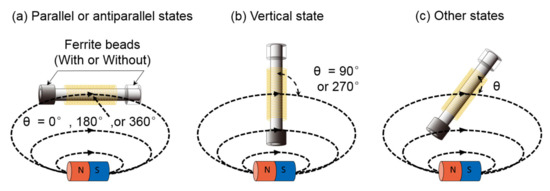

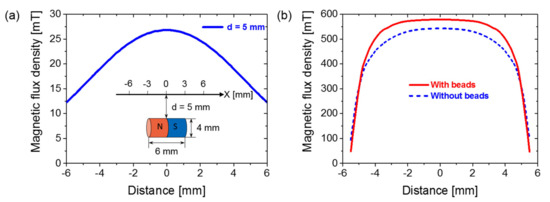

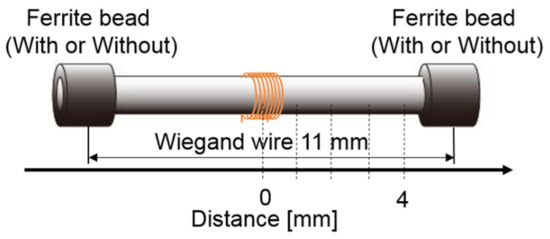

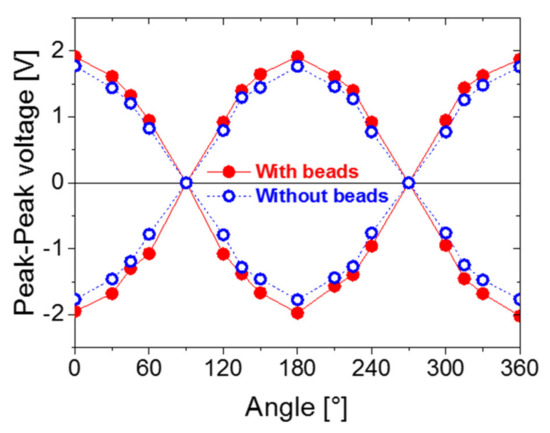

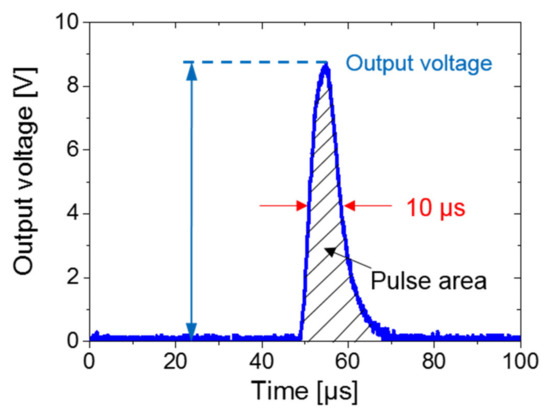

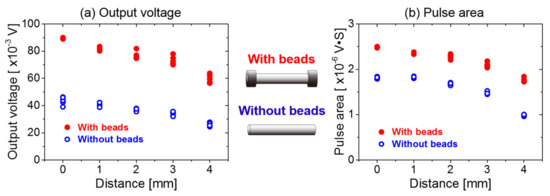

Magnetization reversal in a Wiegand wire induces a pulse voltage in the pickup coil around the wire, called the Wiegand pulse. The Wiegand sensor features the Wiegand wire and the pickup coil. The amplitude and width of the Wiegand pulse are independent of the frequency of the magnetic-field change. The pulse is generated by the Wiegand sensor, which facilitates the use of the Wiegand sensor as a power supply for equipment without batteries. In order to meet the power consumption requirements, it is necessary to maximize the energy of the pulse signal from the Wiegand sensor, without changing the external field conditions. The distributions of the magnetic field generated from the applied magnet in air and in the Wiegand wire were simulated before the experiments. Simulation predicted an increase in the magnetic flux density through the center of the Wiegand wire. This study determined that the magnetic flux density through the center of the Wiegand wire, the position of the pickup coil, and the angle between the Wiegand sensor and the magnetic induction line were the main factors that affected the energy of a Wiegand pulse. The relationship between these factors and the energy of the Wiegand pulse were obtained. Full article

A fast magnetization reversal in a twisted FeCoV wire induces a pulse voltage in a pick-up coil wound around a wire. The Wiegand sensor is composed of this magnetic wire and the pick-up coil. As the output pulse voltage does not depend on a changing ratio of the applied magnetic field to switch the magnetization of the wire, the Wiegand sensor is used for to perform rotation and other detections. Recently, the Wiegand sensor has attracted significant attention as a power supply for battery-less operation of electric devices and for energy harvesting. In this study, we propose a concept of obtaining an intrinsic pulse voltage from the Wiegand sensor as its power source, and demonstrate its effectiveness in circuit simulation. The equivalent circuit for the Wiegand sensor is expressed by the intrinsic pulse voltage, internal resistance, and inductance of the pick-up coil. This voltage as a power source and circuit parameters are determined by MATLAB/Simulink simulation. The output voltage calculated using the equivalent circuit of the Wiegand sensor agrees with the experimentally measured results. Full article

We previously demonstrated an efficient method of wireless power transmission using a Wiegand sensor for the application in implantable medical devices. The Wiegand sensor has an advantage in inducing sharp pulse voltage independent of the drive frequency. A down-sized receiver coil for wireless power transmission within blood vessels has been prepared, which enables medical treatment on any part of a human body. In order to develop practical applications of the Wiegand sensor as implantable medical devices, the circuit design is important. The circuit parameters in the circuit model of the Wiegand sensor must be clearly identified. However, a fast reversal of magnetization of the magnetic wire used in the Wiegand sensor, known as a large Barkhausen jump, and the induced nonlinear pulse signal make the inductance of the receiver coil time-dependent and inconsistent as conventionally considered in circuit analysis. In this study, the voltage and current responses of a wire-core coil are analyzed, and the time-dependent inductance is determined. The results showed that the inductance depends on the magnetization state of the wire, which can be negative during the fast reversal of magnetization. Full article
