Search Results (27)

A simple method is developed to produce free-standing films of polypyrrole (PPy) in one step. It consists of the interfacial polymerization (without surfactants) of pyrrole (dissolved in chloroform) with an oxidant (ammonium persulfate, dissolved in water). It is observed that the area of the formed film only depends on the size of the interface, achieving the manufacture of PPy films of up to 300 cm², with a thickness of 200 microns. Transmission electron microscopy (TEM) images show the presence of superimposed nanoplatelets of ca. 100 nm main axis. These nanoparticles seem to aggregate in two dimensions to form the free-standing film. Scanning electron microscopy (SEM) shows a compact surface with nanowires decorating the surface. PPy films show an electrical conductivity of 63 (±3) S cm⁻¹. PPy conductive films are then applied in the construction of an antenna that shows a response in two bands: at 1.52 GHz (−13.85 dB) and at 3.50 GHz (−33.55 dB). The values are comparable to those of other antennas built with different PPy films. The simple synthesis of large-area PPy films in a single step would allow the fabrication of large quantities of electronic elements (e.g., sensors) with uniform properties in a short time. Full article

Nickel hydroxide has ultra-high energy storage capacity in supercapacitors, but poor electrical conductivity limits their further application. The use of graphene to improve its conductivity is an effective measure, but how to suppress the stacking of graphene and improve the overall performance of composite materials has become a new challenge. In this work, a well-designed substrate of N-doped carbon nanowires with reduced graphene oxide (NCNWs/rGO) was fabricated by growing polypyrrole (PPy) nanowires between GO nanosheets layers and then calcining them at high temperatures. This NCNWs/rGO substrate can effectively avoid the stacking of rGO nanosheets, and provides sufficient sites for the subsequent in situ growth of Ni(OH)₂, forming a uniform and stable Ni(OH)₂/NCNWs/rGO composite material. Benefiting from the abundant pores, high specific surface area (107.2 m² g⁻¹), and conductive network throughout the NCNWs/rGO substrate, the deposited Ni(OH)₂ can not only realize an ultra-high loading ratio, but also exposes more active surfaces (221.3 m² g⁻¹). After a comprehensive electrochemical test, it was found that the Ni(OH)₂/NCNWs/rGO positive materials have a high specific capacitance of 2016.6 F g⁻¹ at a scan rate of 1 mV s⁻¹, and exhibit significantly better stability. The assembled Ni(OH)₂/NCNWs/rGO//AC asymmetric supercapacitor could achieve a high energy density of 85.2 Wh kg⁻¹ at power densities of 381 W kg⁻¹. In addition, the asymmetric supercapacitor has excellent stability and could retain 70.1% of initial capacitance after 10,000 cycles. These results demonstrate the feasibility of using NCNWs/rGO substrate to construct high-performance supercapacitor electrode materials, and it is also expected to be promoted in other active composite materials. Full article

Polypyrrole (PPy)-capped silver nanowire (Ag NW) nanomaterials (core–shell rod-shaped Ag NW@PPy) were synthesized using a one-port suspension polymerization technique. The thickness of the PPy layer on the 50 nm thickness/15 μm length Ag NW was effectively controlled to 10, 40, 50, and 60 nm. Thin films cast from one-dimensional conductive Ag NW@PPy formed a three-dimensional (3D) conductive porous network structure and provided excellent electrochemical performance. The 3D Ag NW@PPy network can significantly reduce the internal resistance of the electrode and maintain structural stability. As a result, a high specific capacitance of 625 F/g at a scan rate of 1 mV/s was obtained from the 3D porous Ag NW@PPy composite film. The cycling performance over a long period exceeding 10,000 cycles was also evaluated. We expect that our core–shell-structured Ag NW@PPy composites and their 3D porous structure network films can be applied as electrochemical materials for the design and manufacturing of supercapacitors and other energy storage devices. Full article

Aqueous zinc-ion batteries (AZIBs) have raised wide concern as a new generation energy storage device due to their high capacity, low cost, and environmental friendliness. It is a crucial step to develop the ideal cathode materials that match well with the Zn anode. In this work, we report polypyrrole-(PPy)-encapsulated MnO₂ nanowires as cathode materials for AZIBs. The assembled Zn//MnO₂@PPy batteries deliver a reversible capacity of 385.7 mAh g⁻¹ at a current density of 0.1 A g⁻¹. Also, they possess an energy density of 192 Wh kg⁻¹ at a power density of 50 W kg⁻¹. The cells show long-term cycling stability, with a retention rate of 96% after 1000 cycles. The outstanding electrochemical performance indicates their potential applications in large-scale energy storage. Full article

Sulfite determination in foods and alcoholic beverages is a common requirement by food and drug administration organisations in most countries. In this study, the enzyme, sulfite oxidase (SOx), is used to biofunctionalise a platinum-nanoparticle-modified polypyrrole nanowire array (PPyNWA) for the ultrasensitive amperometric detection of sulfite. A dual-step anodisation method was used to prepare the anodic aluminum oxide membrane used as a template for the initial fabrication of the PPyNWA. PtNPs were subsequently deposited on the PPyNWA by potential cycling in a platinum solution. The resulting PPyNWA-PtNP electrode was then biofuntionalised by adsorption of SOx onto the surface. The confirmation of the adsorption of SOx and the presence of PtNPs in the PPyNWA-PtNPs-SOx biosensor was verified by scanning electron microscopy and electron dispersive X-ray spectroscopy. Cyclic voltammetry and amperometric measurements were used to investigate the properties of the nanobiosensor and to optimise its use for sulfite detection. Ultrasensitive detection of sulfite with the PPyNWA-PtNPs-SOx nanobiosensor was accomplished by use of 0.3 M pyrrole, 10 U mL⁻¹ of SOx, adsorption time of 8 h, a polymerisation period of 900 s, and an applied current density of 0.7 mA cm⁻². The response time of the nanobiosensor was 2 s, and its excellent analytical performance was substantiated with a sensitivity of 57.33 μA cm⁻² mM⁻¹, a limit of detection of 12.35 nM, and a linear response range from 0.12 to 1200 μM. Application of the nanobiosensor to sulfite determination in beer and wine samples was achieved with a recovery efficiency of 97–103%. Full article

With the development of convergence technology, the Internet of Things (IoT), and artificial intelligence (AI), there has been increasing interest in the materials industry. In recent years, numerous studies have attempted to identify and explore multi-functional cutting-edge hybrid materials. In this paper, the international literature on the materials used in hybrid fibers and manufacturing technologies were investigated and their future utilization in the industry is predicted. Furthermore, a systematic review is also conducted. This includes sputtering, electrospun nanofibers, 3D (three-dimensional) printing, shape memory, and conductive materials. Sputtering technology is an eco-friendly, intelligent material that does not use water and can be applied as an advantageous military stealth material and electromagnetic blocking material, etc. Electrospinning can be applied to breathable fabrics, toxic chemical resistance, fibrous drug delivery systems, and nanoliposomes, etc. 3D printing can be used in various fields, such as core-sheath fibers and artificial organs, etc. Conductive materials include metal nanowires, polypyrrole, polyaniline, and CNT (Carbon Nano Tube), and can be used in actuators and light-emitting devices. When shape-memory materials deform into a temporary shape, they can return to their original shape in response to external stimuli. This study attempted to examine in-depth hybrid fiber materials and manufacturing technologies. Full article

The electrochemical polymerization of polypyrrole nanowires is carried out using potentiodynamic and galvanostatic methods in order to enhance the performance of the modified electrodes as capacitor devices. The electrochemical, spectroscopic, and morphological properties are determined through cyclic voltammetry, Raman spectroscopy and scanning electron microscopy, respectively, corroborating the presence of PPy-nw in dimensions of 30 nm in diameter. Characterization as a capacitor revealed that the nanowire structure enhances key parameters such as specific capacitance with 60 times greater value than bulk polymer modification, in addition to a significant increase in stability. In this way, it is verified that electrodes modified with polypyrrole nanowires obtained in situ by electrochemical methods constitute an excellent candidate for the development of capacitors Full article

Chronic exposure of 17β-estradiol (E2) even at low concentration can disorganize the endocrine system and lead to undesirable health problems in the long run. An electrochemical biosensor for rapid detection of E2 in water samples was successfully developed. The biosensor was based on split DNA aptamers attached onto poly (methacrylic acid-co-n butyl acrylate-succinimide) microspheres deposited on polypyrrole nanowires coated electrode (PPY/PMAA-NBA). The sandwich paired of split DNA aptamers used were truncated from 75 mer parent aptamers. These two strands of 12-mer and 14-mer split DNA aptamers were then immobilized on the PMAA-NBA microspheres. In the presence of E2, the split DNA aptamers formed an apt12-E2-apt14 complex, where the binding reaction on the electrode surface led to the detection of E2 by differential pulse voltammetry using ferrocyanide as a redox indicator. Under optimum conditions, the aptasensor detected E2 concentrations in the range of 1 $\times$ 10⁻⁴ M to 1 $\times$ 10⁻¹² M (R² = 0.9772) with a detection limit of 4.8 $\times$ 10⁻¹³ M. E2, which were successfully measured in a real sample with 97–104% recovery and showed a good correlation (R² = 0.9999) with the established method, such as high-performance liquid chromatography. Interactions between short and sandwich-type aptamers (split aptamers) demonstrated improvement in aptasensor performance, especially the selectivity towards several potential interferents. Full article

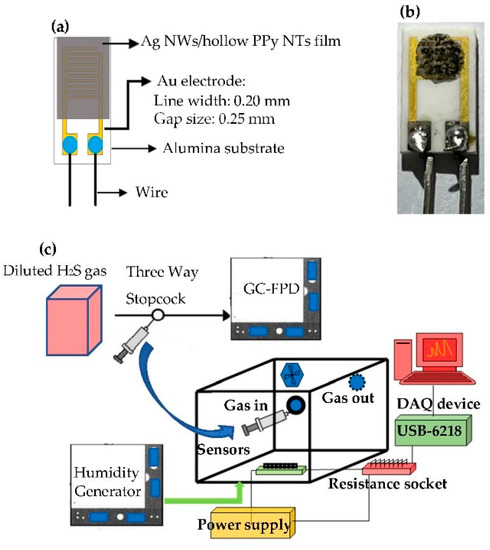

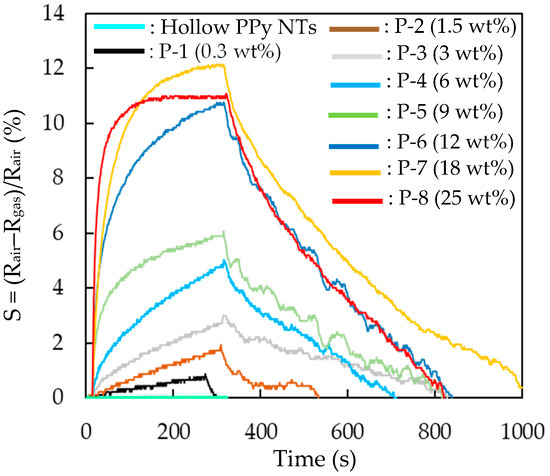

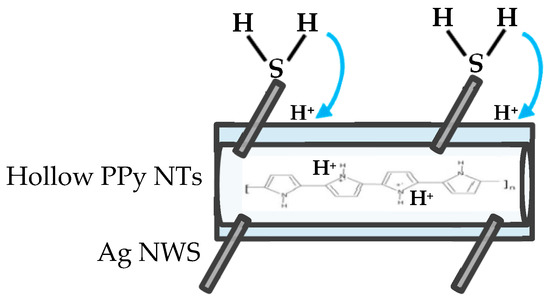

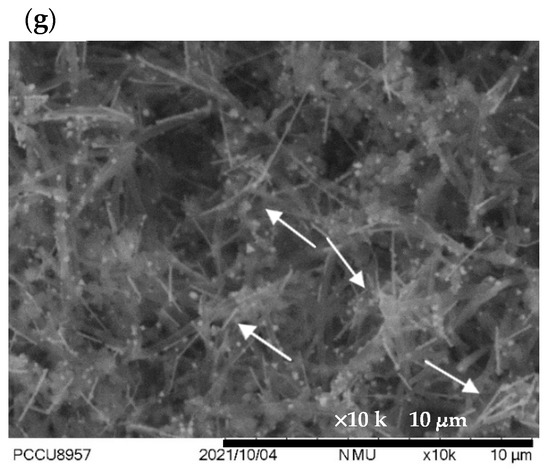

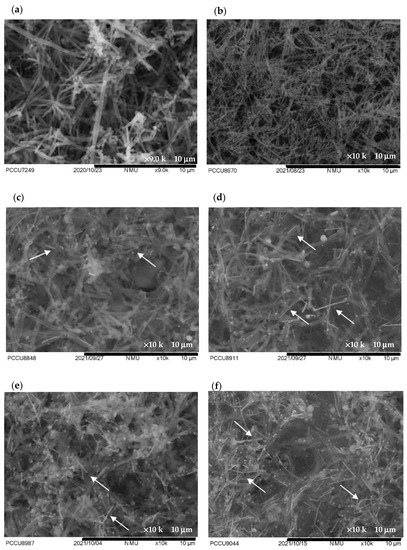

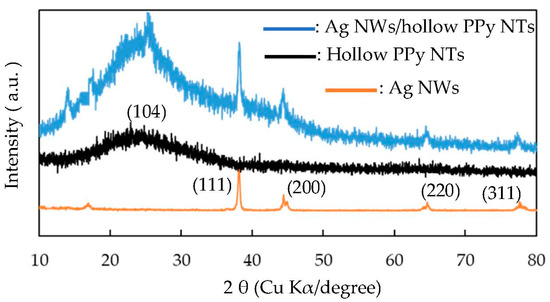

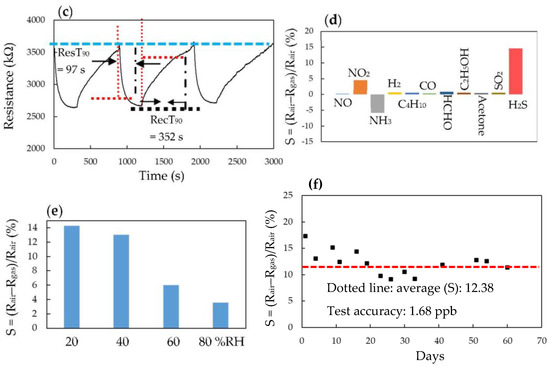

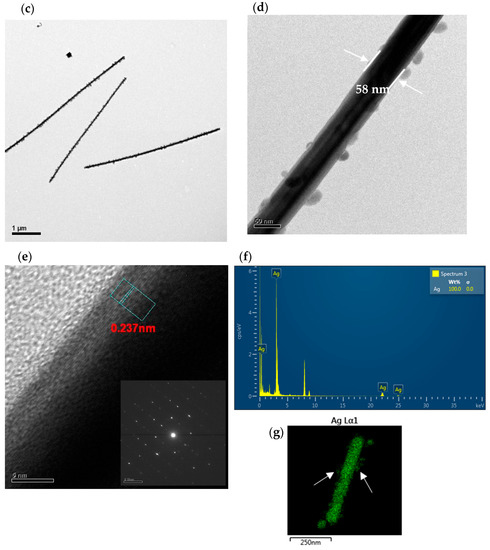

H₂S gas sensors were fabricated using Ag nanowire/hollow polypyrrole nanotube nanocomposite (Ag NW/hollow PPy NT) film for sensing ppb-level H₂S gas at room temperature. The morphology, phase composition and crystalline structure of Ag NW/hollow PPy NT nanocomposites were analyzed via scanning electron microscopy (SEM), transmission electron microscopy (TEM), X-ray diffractometry (XRD) and Fourier-transform infrared spectroscopy (FTIR). TEM and SEM images revealed that Ag NWs were well dispersed in the hollow PPy NT matrix. IR results showed no interaction between Ag NWs and hollow PPy NTs in the Ag NW/hollow PPy NT nanocomposites. The effect of the amount of added Ag NWs on the response of the Ag NW/hollow PPy NT nanocomposites to the ppb-level H₂S gas was investigated. Comparative gas-sensing results revealed that the introduction of Ag NWs onto hollow PPy NTs was effective in promoting the sensor response to H₂S gas. More importantly, the Ag NW/hollow PPy NT nanocomposite had a strong response to ppb-level H₂S gas at room temperature. Full article

In this work, the use of nanostructured conducting polymer deposits on energy-storing devices is described. The cathode and the anode are electrochemically modified with nanowires of polypyrrole and poly(3,4-ethylenedioxythiophene), respectively, prepared after the use of a mesoporous silica template. The effect of aqueous or ionic liquid medium is assayed during battery characterization studies. The nanostructured device greatly surpasses the performance of the bulk configuration in terms of specific capacity, energy, and power. Moreover, compared with devices found in the literature with similar designs, the nanostructured device prepared here shows better battery characteristics, including cyclability. Finally, considering the semi-conducting properties of the components, the device was adapted to the design of a solar-rechargeable device by the inclusion of a titanium oxide layer and cis-bis(isothiocyanate)-bis(2,2′-bipyridyl-4,4′-dicarboxylate) ruthenium (II) dye. The device proved that the nanostructured design is also appropriate for the implementation of solar-rechargeable battery, although its performance still requires further optimization. Full article

In this work, the CuCo₂O₄ nanowires (CuCo₂O₄ NWs) were grown on carbon cloth electrode (CCE) and then coated with polypyrrole (pPy) layer (CuCo₂O₄ NWs-pPy@CCE). The morphology and structure characterization of as-prepared CuCo₂O₄ NWs-pPy@CCE were carried out using Fourier-transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), energy-dispersive X-ray spectroscopy (EDX), field-emission scanning electron microscope (FESEM), thermogravimetric analysis (TGA), and transmission electron microscope (TEM). The CuCo₂O₄ NWs-pPy@CCE was applied directly as an electrocatalyst toward nonenzymatic glucose oxidation. Due to the advantages of this 3D structure, it offer high availability to the analyte/electrolyte, abundant electrochemical-active sites, and high stability and conductivity. As a glucose sensor, the CuCo₂O₄ NWs-pPy@CCE shows wide linear range (0.01 to 21.3 mM), excellent sensitivity (4.41 μA μM⁻¹ cm⁻²), good selectivity, low detection limit (0.2 μM), and rapid response time (<1 s) toward glucose detection. Furthermore, the designed sensor shows a great ability in detection of glucose in biological real samples. Full article

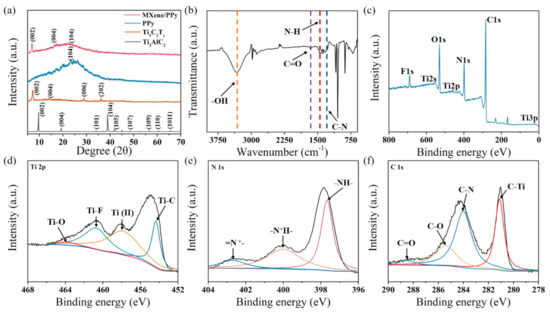

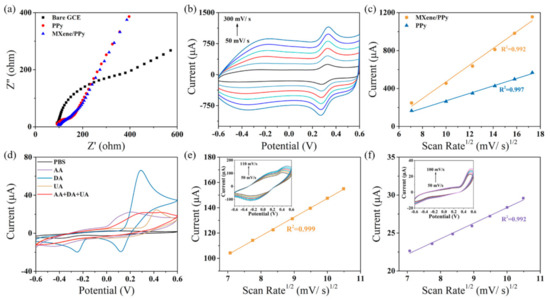

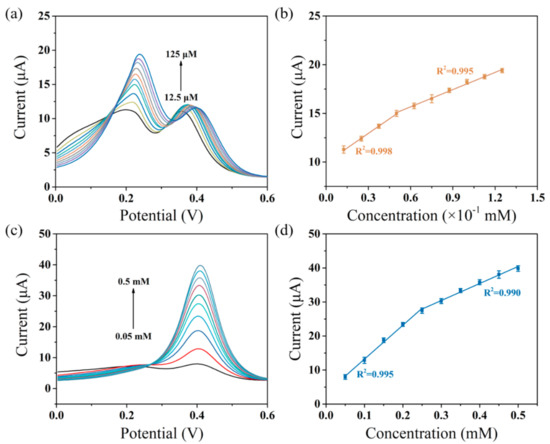

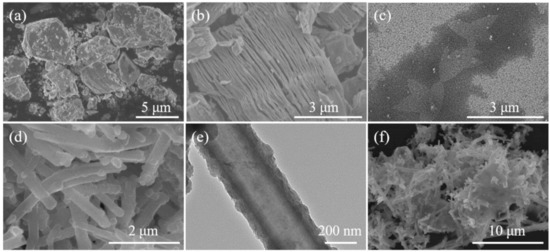

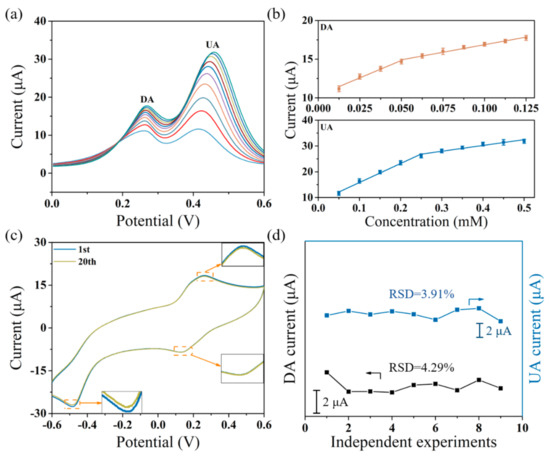

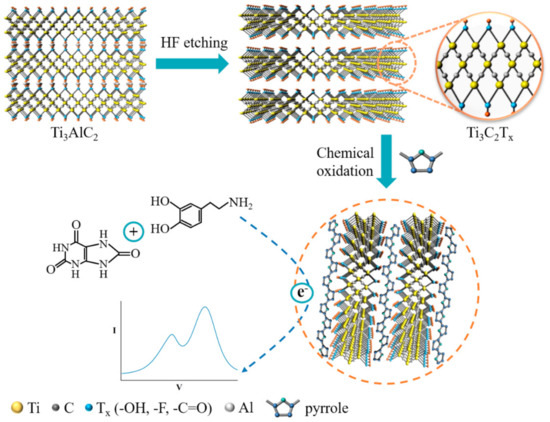

Two-dimensional (2D) MXenes have shown a great potential for chemical sensing due to their electric properties. In this work, a Ti₃C₂T_x/polypyrrole (MXene/PPy) nanocomposite has been synthesized and immobilized into a glassy carbon electrode to enable the simultaneous recognition of dopamine (DA) and uric acid (UA) under the interference of ascorbic acid (AA). The multilayer Ti₃C₂T_x MXene was prepared via the aqueous acid etching method and delaminated to a single layer nanosheet, benefiting the in-situ growth of PPy nanowires. The controllable preparation strategy and the compounding of PPy material remain great challenges for further practical application. A facile chemical oxidation method was proposed to regulate magnitude and density during the forming process of PPy nanowire, which promotes the conductivity and the electrochemical active site of this as-prepared nanomaterial. The MXene/PPy nanocomposite-modified electrode exhibited the selective determination of DA and UA in the presence of a high concentration of AA, as well as a wide linear range (DA: 12.5–125 μM, UA: 50–500 μM) and a low detection limit (DA: 0.37 μM, UA: 0.15 μM). More importantly, the simultaneous sensing for the co-existence of DA and UA was successfully achieved via the as-prepared sensor. Full article

Nowadays, metal oxide semiconductors (MOS)-reduced graphene oxide (rGO) nanocomposites have attracted significant research attention for gas sensing applications. Herein, a novel composite material is synthesized by combining two p-type semiconductors, i.e., Cu₂O and rGO, and a p-p-type gas sensor is assembled for NO₂ detection. Briefly, polypyrrole-coated cuprous oxide nanowires (PPy/Cu₂O) are prepared via hydrothermal method and combined with graphene oxide (GO). Then, the nanocomposite (rGO/PPy/Cu₂O) is obtained by using high-temperature thermal reduction under Ar atmosphere. The results reveal that the as-prepared rGO/PPy/Cu₂O nanocomposite exhibits a maximum NO₂ response of 42.5% and is capable of detecting NO₂ at a low concentration of 200 ppb. Overall, the as-prepared rGO/PPy/Cu₂O nanocomposite demonstrates excellent sensitivity, reversibility, repeatability, and selectivity for NO₂ sensing applications. Full article

Polypyrrole (PPy) is a promising conducting polymer in bone regeneration; however, due to the biological inertia of the PPy surface, it has poor cell affinity and bioactivity. Based on the excellent adhesion capacity, biocompatibility, and bioactivity of polydopamine (PDA), the PDA is used as a functional coating in tissue repair and regeneration. Herein, we used a two-step method to construct a functional conductive coating of polypyrrole/polydopamine (PPy/PDA) nanocomposite for bone regeneration. PPy nanowires (NWs) are used as the morphologic support layer, and a layer of highly bioactive PDA is introduced on the surface of PPy NWs by solution oxidation. By controlling the depositing time of PDA within 5 h, the damage of nano morphology and conductivity of the PPy NWs caused by the coverage of PDA deposition layer can be effectively avoided, and the thin PDA layer also significantly improve the hydrophilicity, adhesion, and biological activity of PPy NWs coating. The PPy/PDA NWs coating performs better biocombaitibility and bioactivity than pure PPy NWs and PDA, and has benefits for the adhesion, proliferation, and osteogenic differentiation of MC3T3-E1 cells cultured on the surface. In addition, PPy/PDA NWs can significantly promote the osteogenesis of MC3T3-E1 in combination with micro galvanostatic electrical stimulation (ES). Full article
