Search Results (104)

This study investigated the effect of adding polydimethylsiloxane (PDMS) on the processing, surface and mechanical properties of linear low-density polyethylene (rLLDPE) recyclate generated as post-production waste in the rotational molding process. Polymer blends containing 0.1, 0.2, 0.4, 1.0 and 2.0 wt.% of polydimethylsiloxane were produced during twin-screw extrusion, followed by cold granulation. The addition of the modifier at the adopted concentration range lowered the water absorption of the recyclate and contributed to a slight increase in processing shrinkage; however, it did not significantly affect its processability (MFR~const). The modification carried out increased the hydrophobic character of the recyclate surface (the wetting angle for water was enhanced) and decreased the value of the dynamic friction coefficient. It also contributed to an improvement in surface gloss. The deterioration of point hardness and scratch hardness of the recyclate was noted with an increase in the PDMS content in the mixture. The addition of polydimethylsiloxane caused changes in the nature of resulting cracks (increased width and reduced longitudinal deformation), which led to surface smoothing and increased the sliding effects. There was no negative effect of PDMS addition on the mechanical properties (static tensile) of the recyclate. The impact strength of rLLDPE deteriorated slightly. The research conducted shows the high application potential of PDMS as a modifier of the surface properties of low-density polyethylene linear recyclate and of selected processing properties, which can contribute to the shortening of the production cycle, thus potentially increasing its attractiveness compared to the original raw materials. Full article

This study uses the melt compounding method to recycle polypropylene-based car bumper waste (PP-CBW) in order to produce nanocomposite films for mulch application. The nanocomposite films were compounded by mixing virgin linear low-density polyethylene (LLDPE) with PP-CBW at a constant ratio of 4:1 in the presence of different percentages of nanofillers. Nanocomposites reinforced with nanoclays were compatibilized with an anhydride grafted polyethylene (PE-g-MAH), at a constant compatibilizer-to-clay ratio equal to 3, to improve the adherence between the nonpolar matrix and the hydrophilic nanoclay and acrylic paint present in the car bumper. An extruder with a corotating twin screw was used to produce blends of different compositions. To create nanocomposite films, the mixtures were further processed in a blown film extruder. The effect of the presence of nanoclays on the barrier, thermal, and mechanical properties of the nanocomposite films was investigated. The dispersion of clay layers in the matrix was examined by atomic force microscopy (AFM). The results indicate that 3 wt% of clay loading maximized the tensile strength in the transverse direction (TD) and machine direction (MD). A 1 wt% clay loading increased the MD tear resistance by 66% and manifested an optimum dart impact strength. Significant improvements in thermal and barrier properties were also achieved in the presence of 3 wt% clay loading. Full article

Linear low-density polyethylene (LLDPE) waste presents a major environmental concern due to its high and widespread use. This study explores the potential of fungal mycelium as a bioremediation solution for LLDPE degradation, by evaluating on mycelial growth efficiency, ligninolytic enzyme activity, weight loss, surface morphology changes, and economic feasibility. Among the tested fungal species, Schizophyllum commune WE032, Lentinus sajor-caju TBRC6266, and Trametes flavida AM011, S. commune demonstrated the most vigorous mycelial expansion (20.53 mm/day) and highest biomass accumulation (276.87 mg). Screening for ligninolytic enzymes revealed significant laccase (Lac) and manganese peroxidase (MnP) activity in all three species indicating their potential in polymer degradation. Weight loss analysis showed that S. commune achieved the greatest LLDPE degradation (1.182% after 30 days), highlighting its enzymatic and metabolic efficiency in breaking down synthetic polymers. Surface morphology studies supported these findings, revealing substantial erosion was observed in LLDPE sheets treated with S. commune and L. sajor-caju, confirming their effectiveness in polymer disruption. FTIR analysis indicated the formation of new functional groups and alterations in the carbon backbone, suggesting active depolymerization processes. Economic evaluation demonstrated that fungal biodegradation is a cost-effective and environmentally sustainable strategy, aligning with circular economy principles by enabling the generation of value-added products from plastic waste. Additionally, fungal-based waste treatment aligns with circular economy principles, generating value-added products while mitigating plastic pollution. These findings highlight fungal mycelium’s potential for plastic waste management, advocating for further research on optimizing growth conditions, enhancing enzyme expression, and scaling industrial applications. Future research will focus on integrating fungal bioremediation with biomass residues from agricultural and forestry sectors, offering a comprehensive solution for waste management and environmental sustainability. Full article

Foamed specimens were fabricated from virgin and recycled polyethylenes (linear low-density polyethylene, LLDPE, and low-density polyethylene, LDPE) using low-cost citric acid and sodium bicarbonate foaming agents. The foaming agents chosen showed decomposition behaviour either without phase change (sodium bicarbonate, NaB) or liquefaction followed by decomposition (citric acid, CA). The manufactured polyethylene foams were then benchmarked against a polyurethane foam. Two types of mixing were used prior to foaming, viz., solid-state pulverisation or high-shear internal mixing, and the effect of mixing on properties critical for foam viability were analysed. These properties included density, pore size, shape and distribution, crystallinity, and porosity. It was found that the virgin LLDPE and recycled LDPE showed similar trends in terms of narrow pore size distribution and reduced crystallinity, while the recycled LLDPE tended towards more pore coalescence. This difference in behaviour was attributed to the more mixed phase nature of the recycled LLDPE as opposed to the majorly single-phase virgin LLDPE and recycled LDPE. Lowered densities obtained for the NaB foaming compared to CA can be speculated to be because of the ionic and simple NaB decomposition as opposed to the complex radical pathway for the CA decomposition. Full article

This study explores the development of sustainable fire-resistant composites using a blend of recycled linear low-density polyethylene (rLLDPE) and low-density polyethylene (rLDPE) for construction applications. The incorporation of non-halogenated intumescent flame retardants (IFRs), specifically ammonium polyphosphate (APP) and melamine polyphosphate (MPP), was shown to enhance the flame retardance, thermal stability, and mechanical performance of these recycled polymer blends. IFRs were introduced at 5 wt.% and 10 wt.% concentrations, and their effects were evaluated using limiting oxygen index (LOI) testing and thermogravimetric analysis (TGA). Results showed that 10 wt.% APP and a combination of 5 wt.% APP with 5 wt.% MPP increased LOI values from 18.5% (neat polymer blend) to 21.2% and 22.4%, respectively, demonstrating improved fire resistance. Enhanced char formation, facilitated by IFRs, contributes to superior thermal stability and fire protection. TGA results confirmed higher char yields, with the rLLDPE/rLDPE/MPP5/APP5 composition exhibiting the highest residue (3.00%), indicating a synergistic effect between APP and MPP. Rheological and mechanical analysis showed that APP had more impact on viscoelastic behavior, while the combination of IFRs provided balanced mechanical properties despite a slight reduction in tensile strength. This research highlights the potential of recycled polyethylene composites in promoting circular economy principles by developing sustainable, fire-resistant materials for the construction industry, reducing plastic waste, and enhancing the safety of recycled polymer-based applications. Full article

Jute fibers are renewable, light, and strong, allowing them to be considered as attractive materials in composite manufacturing. In the present work, a simple and effective method for preparing continuous pre-preg tapes from short jute fiber bundles (without twist) is developed and its application in winding forming is evaluated. Linear low-density polyethylene film (LLDPE) with good flexibility and weather resistance was used as the thermoplastic matrix; jute fiber bundles were first spread parallel to each other on an LLDPE film and then rolled up to form a pre-roll. The pre-roll enclosing fiber bundles was hot-pressed in a designed mold to form a pre-preg tape, where the fiber bundles were more parallel to the tape than the fibers in twine. Although the untwisted structure exhibited a lower tensile strength for the fiber bundle, it could be processed into a continuous pre-preg with higher tensile strength than the jute twine-impregnated pre-preg. This is based on the good impregnation of the short fiber bundle and its unidirectional, uniform strengthening in the continuous pre-preg. The tensile strength and modulus of the fiber bundle-reinforced pre-preg increased by 16.70% and 257.14%, respectively, compared with jute twine-reinforced pre-preg (within the fiber proportion of 40.wt%). When applied to winding, the fiber bundle-reinforced pre-preg showed advantages of interlayer fusion, surface flatness, and ring stiffness. In contrast, the twisted continuous structure did not retain its advantage in pre-preg. The development of pre-preg tapes by discontinuous fibers might be a good way for utilizing natural fibers in the field of green engineering due to its diverse secondary processing. Full article

This study focused on developing pigmented linear low-density polyethylene (LLDPE) sheets while preserving their mechanical properties and infrared (IR) transparency. Six pigments—ZnO, ZnS, TiO₂, FeO yellow, FeO light brown, and FeO dark brown—were each mixed with polyethylene (PE) wax in a 1:1 ratio and blended with LLDPE at concentrations of 1, 3, and 5 wt%. Tensile strength tests showed minimal changes at lower pigment concentrations, with values near that of pure LLDPE (14 MPa), and slight reductions at 5 wt%. IR transparency tests, conducted using both direct and reflected heat sources, showed that white-pigmented sheets maintained over 85% transparency, while colored pigments exhibited slightly reduced IR transmittance, ranging from 70% to 91%. Fourier Transform Infrared Spectroscopy (FTIR) analysis confirmed that the critical IR transparency range of 8–12 μm remained unaffected with both pure and pigmented sheets. On the other hand, ultraviolet–visible (UV–VIS) testing showed that white-pigmented sheets experienced enhanced visible-light absorption with increasing pigment concentration and thickness, while color-pigmented sheets exhibited high opacity. Additionally, micro-structuring was performed on the LLDPE sheets to further modify their IR properties, which resulted in effective scattering of IR radiation. These findings highlight the potential of pigmented LLDPE sheets for applications requiring both visual opacity and IR transparency, such as thermal management and camouflage, as well as applications requiring tunable IR properties. Full article

Contributing to a sustainable economy requires the use of pure recycled materials. Analyzing polyolefin post-consumer materials and cross-contaminations in these materials is an essential part in ensuring consistent product quality. Therefore, the aim of this work was to quantify the linear low-density polyethylene (LLDPE) content in polypropylene (PP)-dominant strips. The materials investigated included virgin PP, custom PP-LLDPE blends and PP post-consumer recyclates. To this end, differential scanning calorimetry (DSC) and parallel-plate rheometry were used. For complementary measurements, Raman spectroscopy and atomic force microscopy (AFM) were employed, confirming the morphological occurrence of LLDPE enclosed in PP up to 30 wt%. The DSC measurements demonstrated that the evaluated specific melt and recrystallization enthalpies alone are insufficient to quantify the LLDPE content, especially at 1–10 wt%. The rheometric results showed a strong correlation between the cross-over point (COP) and zero-shear viscosity for pure PP grades, and there was a deviation from this correlation depending on the LLDPE content in the PP-LLDPE blends. An approach for determining low (1–15 wt%) and medium (up to 30 wt%) LLDPE quantities in PP via two mathematical models is proposed based on the rheometric measurements of custom blends and can be applied to assess the level of LLDPE contamination in PP post-consumer materials. Full article

Recent advancements highlight the utilization of vegetable oils as additives in polymeric materials, particularly for replacing conventional plasticizers. Buriti oil (BO), extracted from the Amazon’s Mauritia flexuosa palm tree fruit, boasts an impressive profile of vitamins, minerals, proteins, carotenoids, and tocopherol. This study investigates the impact of incorporating buriti oil as a plasticizer in linear low-density polyethylene (LLDPE) matrices. The aim of this research was to evaluate how buriti oil, a bioactive compound, influences the thermal and rheological properties of LLDPE. Buriti oil/LLDPE compositions were prepared via melt intercalation techniques, and the resulting materials were characterized through thermogravimetric analysis (TGA), differential scanning calorimetry (DSC), Fourier-transform infrared (FTIR) spectroscopy, scanning electron microscopy (SEM), mechanical property testing, and contact angle measurement. The addition of buriti oil was found to act as a processing aid and plasticizer, enhancing the fluidity of LLDPE polymer chains. TGA revealed distinct thermal stabilities for buriti oil/LLDPE under different degradation conditions. Notably, buriti oil exhibited an initial weight loss temperature of 402 °C, whereas that of LLDPE was 466.4 °C. This indicated a minor reduction in the thermal stability of buriti oil/LLDPE compositions. The thermal stability, as observed through DSC, displayed a nuanced response to the oil’s incorporation, suggesting a complex interaction between the oil and polymer matrix. Detailed mechanical testing indicated a marked increase in tensile strength and elongation at break, especially at optimal concentrations of buriti oil. SEM analysis showcased a more uniform and less brittle microstructure, correlating with the enhanced mechanical properties. Contact angle measurements revealed a notable shift in surface hydrophobicity, indicating a change in the surface chemistry. This study demonstrates that buriti oil can positively influence the processability and thermal properties of LLDPE, thus expanding its potential applications as an effective plasticizer. Full article

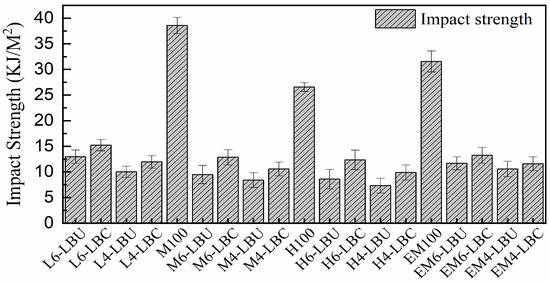

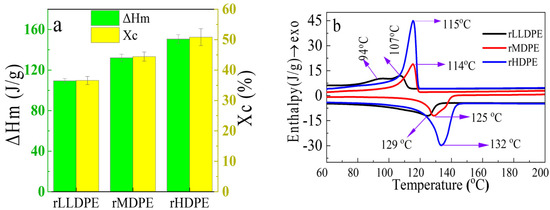

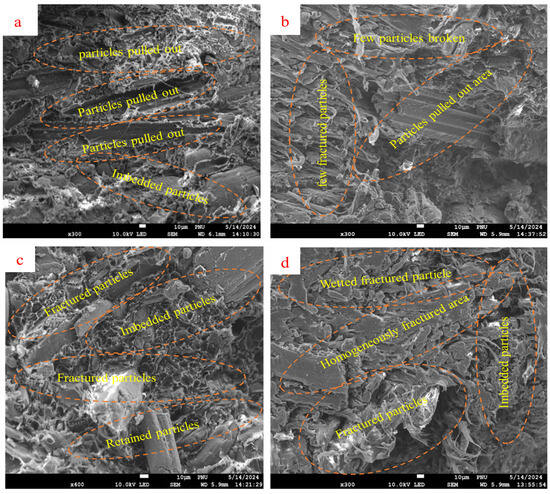

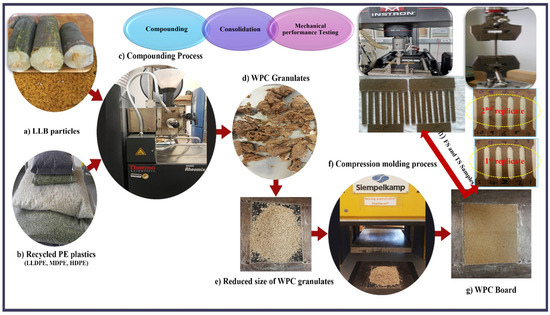

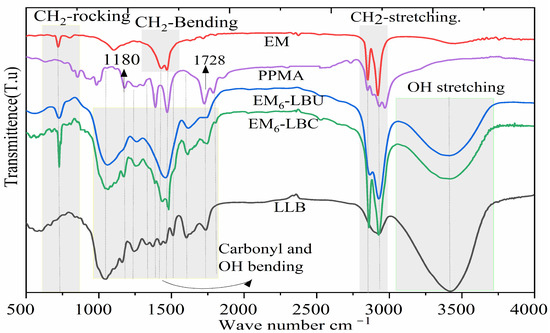

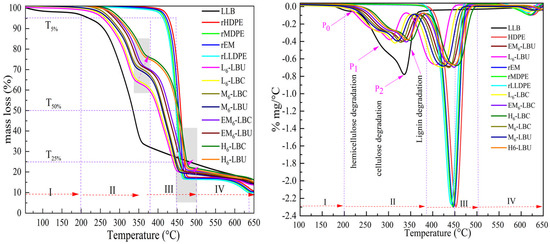

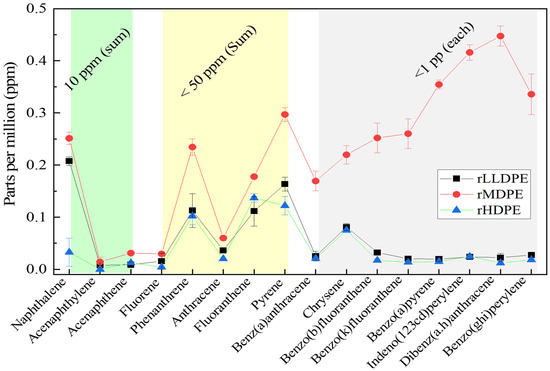

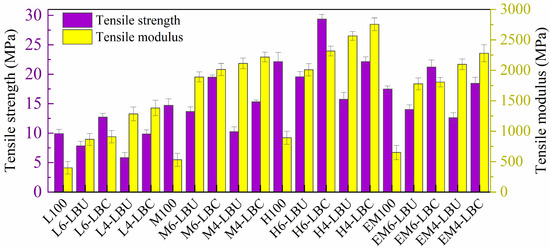

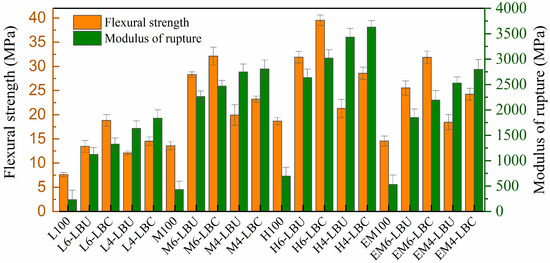

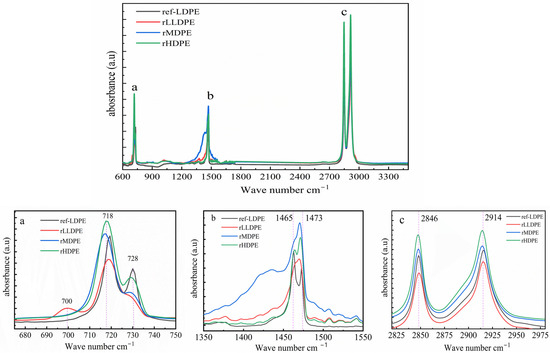

Valorization of potential thermoplastic waste is an effective strategy to address resource scarcity and reduce valuable thermoplastic waste. In this study, new ecofriendly biomass-derived wood polymer composites (WPCs) were produced from three different types of recycled polyethylene (PE) municipal waste, namely linear low-density polyethylene (LLDPE), medium-density polyethylene (MDPE), or high-density polyethylene (HDPE), and their blend with equal composition (33/33/33 by wt.%). Bamboo particle reinforcement derived from indigenous Ethiopian lowland bamboo (LLB), which had never been utilized before in a WPC formulation, was used as the dispersed phase. Before utilization, recycled LLDPE, MDPE, and HDPE were carefully characterized to determine their chemical compositions, residual metals, polycyclic aromatic hydrocarbons, and thermal properties. Similarly, the fundamental mechanical properties of the WPCs, such as tensile strength, modulus of elasticity, flexural strength, modulus of rupture, and unnotched impact strength, were evaluated. Finally, the thermal stability and interphase coupling efficiency of maleic-anhydride-grafted polypropylene (MAPP) were carefully investigated. WPCs formulated by melt-blending either of the recycled PEs or the blend of recycled PE with bamboo particles showed significant improvement due to MAPP enhancing interfacial adhesion and thermally induced crosslinking, despite inherent immiscibility. These results were confirmed using Fourier transform infrared spectroscopy, scanning electron microscopy, and thermogravimetric analysis. The formulated WPCs may promote PE waste cascading valorization, offering sustainable alternatives and maximizing LLB utilization. Furthermore, comparison with well-known standards for polyolefin-based WPCs indicated that the prepared WPCs can be used as alternative sustainable building materials and related applications. Full article

This experimental study evaluated the performance of modified asphalt mixtures prepared by incorporating 2%, 4%, and 6% linear low-density polyethylene (LLDPE) by weight of asphalt binder through a series of tests. The microstructural analyses using scanning electron microscopy (SEM) were conducted on asphalt samples to assess the engineering properties of the asphalt mixes. Finally, ANOVA statistical analysis has been employed to determine the statistical significance of the differences in all tests’ means. Based on laboratory findings, the Marshall stability test result showed that the modified asphalt mixes up to 4% LLDPE had enhanced performance by 12.7% compared to the control mix. A significant decrease (up to 31.3%) in binder penetration was demonstrated due to the incorporation of LLDPE into the asphalt mix. The softening point of the LLDPE–asphalt mixes was increased by up to 17.6%. It was also demonstrated that the incorporation of such LLDPE dosages maintains the flow limits within the specified range; however, the flow of the asphalt mix with 4% LLDPE was 3.17 mm which is the nearest to the average value of the upper and lower acceptable limits. The air voids of mixes with LLDPE content more than 4% by was decreased to less than 4% which is not recommended in high-temperature climates to control mixture bleeding. Microscopic analysis revealed an improvement in the densification of asphalt microstructures, attributed to the LLDPE particles significantly changing the rheology and viscosity of the base mixture and making the hot asphalt mixture more homogeneous. Based on the physical and rheological properties investigated in this study, it could be concluded that 4% LLDPE produces the best performance in asphalt mixtures. Overall, the ANOVA analysis demonstrated that the incorporation of LLDPE into asphalt mixes has a significant impact on all of their properties. Full article

A typical halogen-free flame-retardant (HFFR) formulation for electric cables may contain polymers, various additives, and fire-retardant fillers. In this study, composites are prepared by mixing natural magnesium hydroxide (n-MDH) with linear low-density polyethylene (LLDPE) and a few types of ethylene–octene copolymers (C₈-POE). Depending on the content of LLDPE and C₈-POE, we obtained composites with different crystallinities that affected the final mechanical properties. The nucleation effect of the n-MDH and the variations in crystallinity caused by the blending of C₈-POE/LLDPE/n-MDH were investigated. Notably, in the C₈-POE/LLDPE blend, we found a decrease in the crystallization temperature of LLPDE compared to pure LLDPE and an increase in the crystallization temperature of C₈-POE compared to pure C₈-POE. On the contrary, the addition of n-MDH led to an increase in the crystallization temperature of LLDPE. As expected, the increase in the crystallinity of the polyolefin matrix of composites led to higher elastic modulus, higher tensile strength, and lower elongation at break. It has been observed that crystallinity also influences fire performance. Overall, these results show how to obtain the required mechanical features for halogen-free flame-retardant compounds for electric cable applications, depending on the quantities of the two miscible components in the final blend. Full article

Microbial contamination can occur on the surfaces of blow-molded bottles, necessitating the development and application of effective anti-microbial treatments to mitigate the hazards associated with microbial growth. In this study, new methods of incorporating anti-microbial particles into linear low-density polyethylene (LLDPE) extrusion blow-molded bottles were developed. The anti-microbial particles were thermally embossed on the external surface of the bottle through two particle deposition approaches (spray and powder) over the mold cavity. The produced bottles were studied for their thermal, mechanical, gas barrier, and anti-microbial properties. Both deposition approaches indicated a significant enhancement in anti-microbial activity, as well as barrier properties, while maintaining thermal and mechanical performance. Considering both the effect of anti-microbial agents and variations in tensile bar weight and thickness, the statistical analysis of the mechanical properties showed that applying the anti-microbial agents had no significant influence on the tensile properties of the blow-molded bottles. The external fixation of the particles over the surface of the bottles would result in optimum anti-microbial activity, making it a cost-effective solution compared to conventional compounding processing. Full article

This research work focuses on the development and analysis of copper-filled linear low-density polyethylene (LLDPE) coatings deposited on LLDPE substrate via a thermocompression process. A dry mechanical mixing technique is employed to mix the copper–LLDPE powders. This relevant technology aims to develop new solid lubricating layered composite coatings without a negative environmental impact. Four different materials of the coatings are considered, i.e., LLDPE + 2 wt.% Cu, LLDPE + 6 wt.% Cu, LLDPE + 10 wt.% Cu and LLDPE + 20 wt.% Cu. The microstructural characterizations indicate a good degree of dispersion and adhesion between the continuous and dispersed phases at 20 wt.% Cu coatings. The mechanical properties of the pure polymer and the fully filled composite materials are investigated experimentally using tensile tests and Micro-Vickers hardness. The stiffness, hardness and mechanical strength of the composites are enhanced. Friction tests are also carried out via a linear reciprocating sliding tribometer. The incorporation of copper powder has a significant improvement on the friction and wear properties of the developed coatings. Higher copper powder loading provides a lower friction coefficient and wear volume loss. The best tribological performances are obtained with the LLDPE + 20 wt.% Cu coating. The wear mechanism of the LLDPE substrate is severe adhesive wear, and it becomes mild abrasive wear in case of the 20 wt.% Cu coating. Full article

This study examines the applicability of an unknown composition waste plastic bag sample as bitumen modifier. The waste components were initially characterized to identify the type of plastics and the level of impurity. Asphalt binder performance was examined for rutting, thermal, and age resistance. The results revealed that the waste plastic bags, predominantly consisted of Low-Density Polyethylene (LDPE) and Linear Low-Density Polyethylene (LLDPE) and contained 6.1% impurities. The binder tests indicated that the waste plastic bags enhanced the rutting resistance of bitumen by one grade, with its modification more similar to LLDPE, rather than LDPE. The thermal degradation and aging properties of the modified binders demonstrated that the bitumen modified by the waste plastic bags exhibited slightly lower resistance to temperature and aging compared to virgin LDPE and LLDPE. This was attributed to the impurities contained in the waste plastic. In conclusion, the analyzed waste plastic bags proved to be suitable for use in binder modification, presenting a viable alternative to virgin LLDPE. Full article
