Search Results (13)

The wear and degradation of tools applied in the high-pressure die casting of Al alloys induce significant financial losses. The formation of failures on the surface of mold parts caused by erosion, thermal fatigue, corrosion, and soldering negatively affects the surface quality of castings. In this study, the lifetime of inserts protected by physical-vapor-deposited coatings (TiN, TiAlN, and CrAlSiN) is examined under real manufacturing conditions while considering requirements for the castings’ surface quality (maximum average roughness Ra) defined by the customer. The goal was to identify the most suitable solution for HPDC in the foundry organization. After the deposition of PVD coatings on the inserts, the hardness (HRC) values increased from two to five depending on the coating used, and also the surface roughness was higher in the case of all inserts (Ra values increased from 0.24 to 0.36 µm). The lifetime of all PVD-coated inserts was higher compared to the uncoated insert. The highest lifetime was achieved by the application of a TiN coating, when 15,000 shots were achieved until the inserts’ wear negatively affected (increased) the surface roughness of castings, considering the customer requirements for the maximum Ra value. SEM analysis was used to identify examples of wear and degradation on the surface of the TiN coated insert. Full article

The Ti-5Al-5V-5Mo-3Cr (Ti-5553) alloy is a relatively novel difficult-to-cut material with limited machinability and tool life analysis available in the literature, and hence requires further investigation. This study focuses on the machining and tribological performance of Ti-5553 under high-speed finish turning (150 m/min, 175 m/min, and 200 m/min) via novel mono/bi-layered PVD-coated WC tools. A base AlTiN coating is used as the reference monolayer coating, with AlCrN, diamond-like ta-C, and TiAlSiN coatings each deposited on top of a base AlTiN coating, totaling four separate coated tools (one monolayer and three bi-layer). Tool life, cutting forces, workpiece surface quality, and tribological chip analysis are among the subjects of investigation in this study. Overall, the AlTiN/AlCrN coated tool outperformed all the other combinations: an improvement of ~19% in terms of tool life in reference to the base AlTiN coating when averaging across the three speeds; lowest surface roughness values: ~0.30, 0.33, and 0.64 µm; as well as the lowest chip back surface roughness values: ~0.80, 0.68, and 0.81 µm at 150, 175, and 200 m/min, respectively. These results indicate that the AlTiN/AlCrN coating is an excellent candidate for industrial applications involving high-speed machining of Ti-5553. Full article

This work aimed to ascertain the corresponding influences of several PVD-coated cutting tools on the susceptibility of the machined surface of super duplex stainless steel (SDSS) to stress corrosion cracking. Coatings comprised of AlCrN, AlCrN/TiSiN, and AlTiN were applied to cemented carbide cutting tools using the PVD method; these were then used to turn the outer surface of the SDSS tube section. During the cutting process, the material presents the following combination of features: (i) a tendency for strain hardening, reflected in microstructural modifications and residual stresses of the machined surface and (ii) high temperatures in the cutting region, reducing the tool life. The goal of this work was to evaluate the surface integrity (work hardening and corrosion behaviour) of the SDSS obtained after the machining process (finish turning) with cemented carbide tools coated with three different PVD coatings. Full article

This study investigates accelerated physical–chemical processes in a complex adaptive surface-engineered system represented by a nano-multilayer TiAlCrSiYN/TiAlCrN PVD coating under the extreme tribological conditions of ultra-high-performance dry machining of hardened H 13 tool steel. These processes are similar to the different catalyzing phenomena. Experimental results of tool life vs. wear rate, SEM/TEM data of the worn surfaces, XPS and EDS data of tribo-films formed on the friction surfaces, and chip surface morphology are presented in this study. The corresponding relationships between self-organization, self-organized criticality, and various catalyzing phenomena were evaluated on the basis of the accrued data. A method of enhancing these processes through the variation of machining conditions is also outlined, which resulted in the improvement of coated tool life by 35%. Full article

A nano-multilayer Ti_0.2Al_0.55Cr_0.2Si_0.03Y_0.02N/Ti_0.25Al_0.65Cr_0.1N PVD coating was deposited on Kennametal carbide K 313 inserts. These coatings are widely used to protect cutting tools under severe exploitation conditions. Under equilibrium conditions, it was found that the Al₂O₃ oxide possessed better adhesive properties than the TiO₂. The addition of chromium further enhanced the oxidation resistance of the coatings. Silicon significantly increased the oxidation resistance of this type of coating. The properties of the diffusion process in this coating have not been sufficiently investigated, despite the considerable number of articles published on this topic. For the purpose of this study, a multilayer ion-plasma (TiAlCrSiY)N/(TiAlCr)N coating was oxidized under equilibrium conditions; its chemical inhomogeneity was studied by time-of-flight mass spectroscopy using a TOF SIMS5-100 instrument. The data was collected from an area of 100 × 100 µ. A D-300 profilometer (KLA-Tencor Corp., Milpitas, California 95035, USA) was used to determine the rate of ion etching. It was found that oxidation commenced at the surface nanolayer of a TiAlCrN nitride, forming loose films of Cr₂O₃, TiO₂, and Al₂O₃ oxides. This passivating film had a thickness of around 140 nm. For the first time, the interlayer diffusion coefficients of Si and Y were determined in multilayer coatings based on Ti_0.2Al_0.55Cr_0.2Si_0.03Y_0.02N/Ti_0.25Al_0.65Cr_0.1N, under open air annealing at 700 °C. The physical nature of the differences in the diffusion of these elements is discussed. The diffusion rate in the near-surface volumes was lower than in the deep layers of the multilayer coating, most likely due to the formation of passivating oxide films on the surface. Full article

The micromechanism of the low-cycle fatigue of mono- and multilayer PVD coatings on cutting tools was investigated. Multilayer nanolaminate (TiAlCrSiY)N/(TiAlCr)N and monolayer (TiAlCrSiY)N PVD coatings were deposited on the cemented carbide ball nose end mills. Low-cycle fatigue resistance was studied using the cyclic nanoindentation technique. The obtained results were compared with the behaviour of the polycrystalline silicon reference sample. The fractal analysis of time-resolved curves for indenter penetration depth demonstrated regularities of damage accumulation in the coatings at the early stage of wear. The difference in low-cycle fatigue of the brittle silicon and nitride wear-resistant coatings is shown. It is demonstrated that when distinguished from the single layer (TiAlCrSiY)N coating, the nucleation and growth of microcracks in the multilayer (TiAlCrSiY)N/(TiAlCr)N coating is accompanied by acts of microplastic deformation providing a higher fracture toughness of the multilayer nanolaminate (TiAlCrSiY)N/(TiAlCr)N. Full article

The aim of this paper is to conduct an experimental study in order to obtain a roughness (Ra) prediction model for dry end-milling (with an AlTiCrSiN PVD-coated tool) of the Co–28Cr–6Mo and Co–20Cr–15W–10Ni biomedical alloys, a model that can contribute to more quickly obtaining the desired surface quality and shortening the manufacturing process time. An experimental plan based on the central composite design method was adopted to determine the influence of the axial depth of cut, feed per tooth and cutting speed process parameters (input variables) on the Ra surface roughness (response variable) which was recorded after machining for both alloys. To develop the prediction models, statistical techniques were used first and three prediction equations were obtained for each alloy, the best results being achieved using response surface methodology. However, for obtaining a higher accuracy of prediction, ANN models were developed with the help of an application made in LabView for roughness (Ra) prediction. The primary results of this research consist of the Co–28Cr–6Mo and Co–20Cr–15W–10Ni prediction models and the developed application. The modeling results show that the ANN model can predict the surface roughness with high accuracy for the considered Co–Cr alloys. Full article

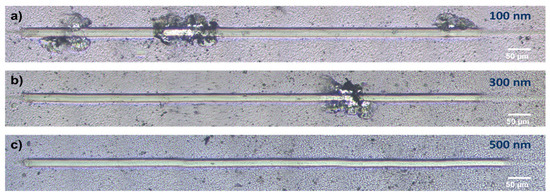

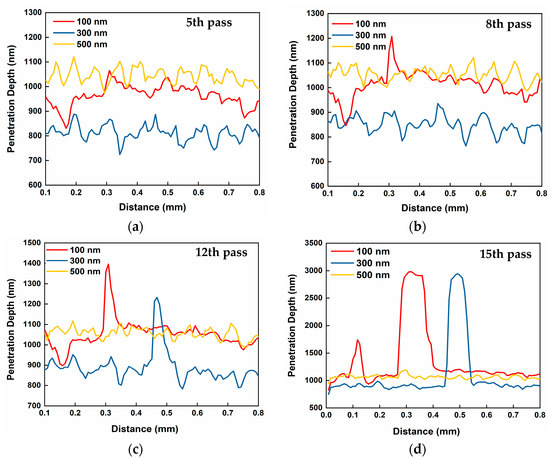

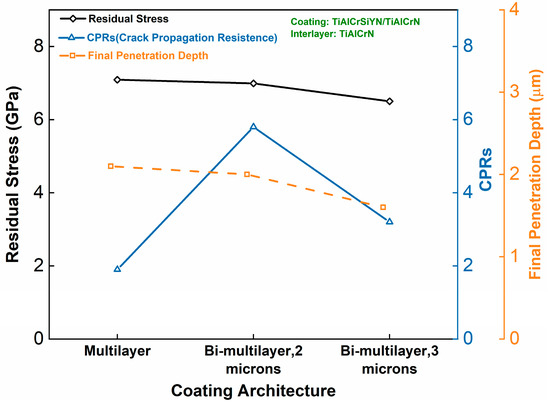

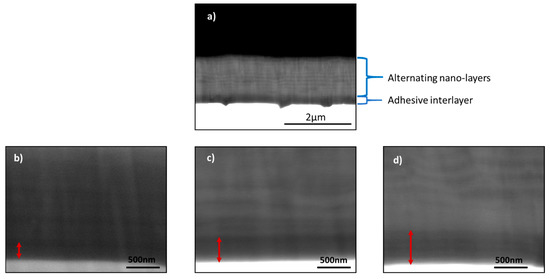

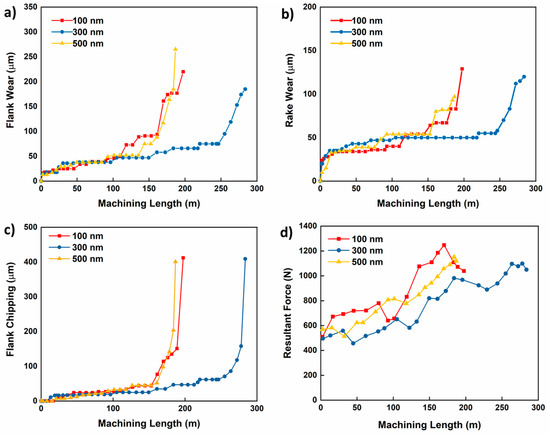

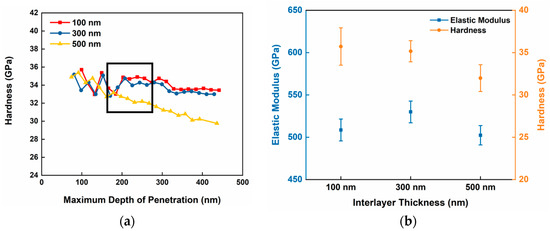

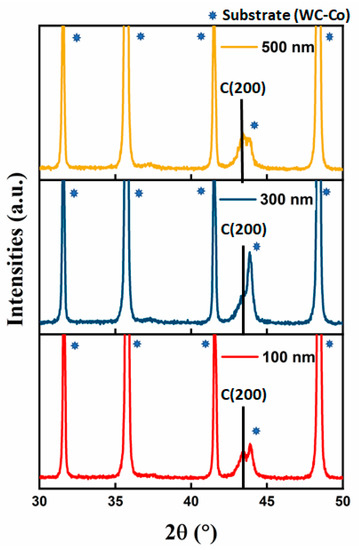

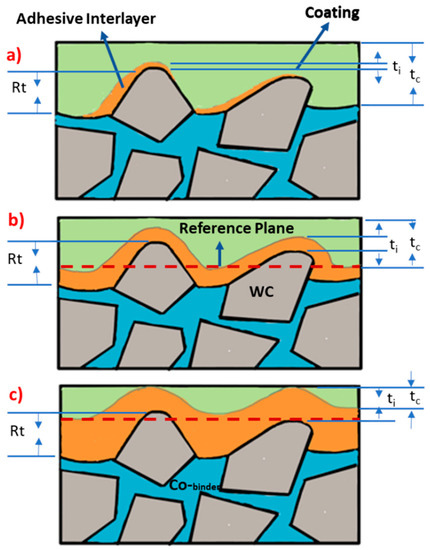

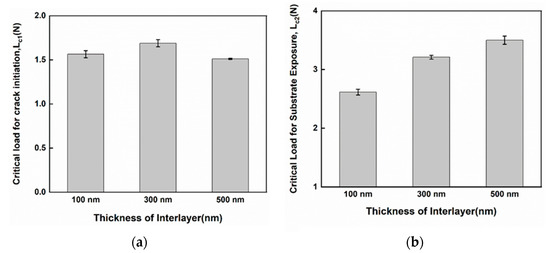

The TiAlCrSiYN-based family of physical vapor deposition (PVD) coatings were systematically designed through the incorporation of TiAlCrN interlayer to increase coating adhesion and consequently the tool life for extreme conditions that arise during dry high-speed milling of hardened tool steels. The investigation in the present paper intends to explain the effect of TiAlCrN interlayer thickness on the overall coating properties and cutting performance. A comprehensive characterization of the structure and properties of the coatings has been performed using focused ion beam (FIB), scanning electron microscope (SEM), X-ray powder diffraction (XRD), nanoindentation, ramped load scratch test, repetitive load wear test, and nano-impact test. The wear test at a subcritical load of 1.5 N showed that there was a gradual improvement in coating adhesion to the substrate as the interlayer thickness increased from 100 to 500 nm. However, the wear performance, being related to the ability of the coating layer to exhibit minimal surface damage under operation, was found to be associated with micro-mechanical characteristics (such as hardness, elastic modulus). Around a 40% increase in the cutting performance with 300 nm interlayer exhibited that a substantial increase in tool life can be achieved through interlayer thickness variation, by obtaining a balance between mechanical and tribological properties of the studied coatings. Full article

Experimental investigations of nano-scale spatio-temporal effects that occur on the friction surface under extreme tribological stimuli, in combination with thermodynamic modeling of the self-organization process, are presented in this paper. The study was performed on adaptive PVD (physical vapor deposited) coatings represented by the TiAlCrSiYN/TiAlCrN nano-multilayer PVD coating. A detailed analysis of the worn surface was conducted using scanning electron microscopy and energy dispersive spectroscopy (SEM/EDS), transmission electron microscopy (TEM), X-ray photoelectron spectroscopy (XPS), and Auger electron spectroscopy (AES) methods. It was demonstrated that the coating studied exhibits a very fast adaptive response to the extreme external stimuli through the formation of an increased amount of protective surface tribo-films at the very beginning of the running-in stage of wear. Analysis performed on the friction surface indicates that all of the tribo-film formation processes occur in the nanoscopic scale. The tribo-films form as thermal barrier tribo-ceramics with a complex composition and very low thermal conductivity under high operating temperatures, thus demonstrating reduced friction which results in low cutting forces and wear values. This process presents an opportunity for the surface layer to attain a strong non-equilibrium state. This leads to the stabilization of the exchanging interactions between the tool and environment at a low wear level. This effect is the consequence of the synergistic behavior of complex matter represented by the dynamically formed nano-scale tribo-film layer. Full article

In the aluminum die casting process, erosion, corrosion, soldering, and die sticking have a significant influence on tool life and product quality. A number of coatings such as TiN, CrN, and (Cr,Al)N deposited by physical vapor deposition (PVD) have been employed to act as protective coatings due to their high hardness and chemical stability. In this study, the wear performance of two nanocomposite AlTiN and AlCrN coatings with different structures were evaluated. These coatings were deposited on aluminum die casting mold tool substrates (AISI H13 hot work steel) by PVD using pulsed cathodic arc evaporation, equipped with three lateral arc-rotating cathodes (LARC) and one central rotating cathode (CERC). The research was performed in two stages: in the first stage, the outlined coatings were characterized regarding their chemical composition, morphology, and structure using glow discharge optical emission spectroscopy (GDOES), scanning electron microscopy (SEM), and X-ray diffraction (XRD), respectively. Surface morphology and mechanical properties were evaluated by atomic force microscopy (AFM) and nanoindentation. The coating adhesion was studied using Mersedes test and scratch testing. During the second stage, industrial tests were carried out for coated die casting molds. In parallel, tribological tests were also performed in order to determine if a correlation between laboratory and industrial tests can be drawn. All of the results were compared with a benchmark monolayer AlCrN coating. The data obtained show that the best performance was achieved for the AlCrN/Si₃N₄ nanocomposite coating that displays an optimum combination of hardness, adhesion, soldering behavior, oxidation resistance, and stress state. These characteristics are essential for improving the die mold service life. Therefore, this coating emerges as a novelty to be used to protect aluminum die casting molds. Full article

It is well known that injection of glass fibre–reinforced plastics (GFRP) causes abrasive wear in moulds’ cavities and runners. Physical vapour deposition (PVD) coatings are intensively used to improve the wear resistance of different tools, also being one of the most promising ways to increase the moulds’ lifespan, mainly when used with plastics strongly reinforced with glass fibres. This work compares four different thin, hard coatings obtained using the PVD magnetron sputtering process: TiAlN, TiAlSiN, CrN/TiAlCrSiN and CrN/CrCN/DLC. The first two are monolayer coatings while the last ones are nanostructured and consist of multilayer systems. In order to carry out the corresponding tribological characterization, two different approaches were selected: A laboratorial method, using micro-abrasion wear tests based on a ball-cratering configuration, and an industrial mode, analysing the wear resistance of the coated samples when inserted in a plastic injection mould. As expected, the wear phenomena are not equivalent and the results between micro-abrasion and industrial tests are not similar due to the different means used to promote the abrasion. The best wear resistance performance in the laboratorial wear tests was attained by the TiAlN monolayer coating while the best performance in the industrial wear tests was obtained by the CrN/TiAlCrSiN nanostructured multilayer coating. Full article

In this paper, we will develop a strategy for controlling the self-organized critical process using the example of extreme tribological conditions caused by intensive build-up edge (BUE) formation that take place during machining of hard-to-cut austentic superduplex stainless steel SDSS UNS32750. From a tribological viewpoint, machining of this material involves intensive seizure and build-up edge formation at the tool/chip interface, which can result in catastrophic tool failure. Built-up edge is considered to be a very damaging process in the system. The periodical breakage of the build-ups may eventually result in tool tip breakage and, thereby, lead to a catastrophe (complete loss of workability) in the system. The dynamic process of build-up edge formation is similar to an avalanche. It is governed by stick-slip phenomenon during friction and associated with the self-organized critical process. Investigation of wear patterns on the frictional surfaces of cutting tools using Scanning Electron Microscope (SEM), combined with chip undersurface characterization and frictional (cutting) force analyses, confirms this hypothesis. The control of self-organized criticality is accomplished through application of a nano-multilayer TiAl60CrSiYN/TiAlCrN thin film Physical Vapor Deposition (PVD) coating containing elevated aluminum content on a cemented carbide tool. The suggested coating enhanced the formation of protective nano-scale tribo-films on the friction surface under operation. Moreover, machining process optimization contributed to further enhancement of this beneficial process, as evidenced by X-ray Photoelectron Spectroscopy (XPS) studies of tribo-films. This resulted in a reduction of the scale of the build ups leading to overall wear performance improvement. A new thermodynamic analysis is proposed concerning entropy production during friction in machining with buildup edge formation. This model is able to predict various phenomena and shows a good agreement with experimental results. In the presented research we demonstrated a novel experimental approach for controlling self-organized criticality using an example of the machining with buildup edge formation, which is similar to avalanches. This was done through enhanced adaptive performance of the surface engineered tribo-system, in the aim of reducing the scale and frequency of the avalanches. Full article

Self-organization during friction in complex surface engineered tribosystems is investigated. The probability of self-organization in these complex tribosystems is studied on the basis of the theoretical concepts of irreversible thermodynamics. It is shown that a higher number of interrelated processes within the system result in an increased probability of self-organization. The results of this thermodynamic model are confirmed by the investigation of the wear performance of a novel Ti_0.2Al_0.55Cr_0.2Si_0.03Y_0.02N/Ti_0.25Al_0.65Cr_0.1N (PVD) coating with complex nano-multilayered structure under extreme tribological conditions of dry high-speed end milling of hardened H13 tool steel. Full article
