Search Results (27)

Scots pine (Pinus sylvestris L.) sapwood was modified using maleic anhydride (MA) and sodium hypophosphite (SHP) to improve its durability against wood-deteriorating fungi, mechanical strength, and fire retardancy (thermal stability). The modification significantly reduced mass loss caused by wood-decaying fungi (Trametes versicolor, Rhodonia placenta, and soft rot fungi) due to the formation of cross-links between wood, MA, and SHP, which limited the moisture uptake and altered the chemical structure of wood. On the other hand, the modification did not provide improved resistance to fungi growth on the wood surface, which indicated that the modification had little impact on the accessibility of nutrients on the surface. A bending test showed that the modulus of elasticity (MOE) was not affected by the treatment, whilst the modulus of rupture (MOR) decreased to half the value of untreated wood. Thermal resistance was improved, as demonstrated by micro-scale combustion calorimeter testing, where the total heat release was halved, and the residue percentage nearly doubled. These results indicate that phosphonate protects the modified wood via the formation of a protective char layer on the surface and the formation of radical moieties. Based on the results, wood modified with MA and SHP shows potential for possible use in outdoor, non-loadbearing structures. Full article

Wood and wood-based products are abundantly used, especially in structural applications, due to the impetus for sustainable development. The present work helps highlight the fire performance of plywood, one of the most used wood-based laminated structural components, under three different heat fluxes of 35 kW/m², 50 kW/m², and 65 kW/m². The effects on the various fire reaction properties, namely, time to ignition, heat release rate, peak heat release rate, time to peak heat release rate, time to flameout, total burn time, and mass loss, were observed and reported. The times to ignition (42.2% and 35.4%), peak heat release rate (27.7% and 18.9%), flameout (22.2% and 28.6%), burn time (10.6% and 16.1%), and residual mass (25% and 53.3%) were reduced with the increase in heat flux from 35 kW/m² to 65 kW/m², respectively, whereas the peak heat release (21.7% and 2.4%) and ignition temperature (6.5% and 6.6%) were observed to increase. The vertical burning test (UL-94) illustrated the plywood samples to have a V-1 rating, with self-extinguishing capabilities. A numerical predictive model has also been developed based on the Fire Dynamics Simulator to predict the time to ignition, time to flameout, and heat release rate trend along with the peak heat release rate—it is shown to have good agreement with the experimental results, with an average correlation coefficient of 0.87. Full article

This article reports the characterisation of pyrolysis of automotive shredder residue using in situ synchrotron IR, gas-phase IR, and thermal analyses to explore if the automotive shredder residue can be converted into value-added products. When heating to ~600 °C at different heating rates, thermal analyses suggested one- to two-stage pyrolysis. Transformations in the first stage, at lower temperatures, were attributed to the degradation of carbonyl, hydroxyl, or carboxyl functional stabilisers (aldehyde and ether impurities, additives, and stabilisers in the ASR). The second stage transformations, at higher temperatures, were attributed to the thermal degradation of the polymer char. Simultaneous thermal analyses and gas-phase IR spectroscopy confirmed the evolution of the gases (alkanes (CH₄), CO₂, and moisture). The synchrotron IR data have demonstrated that a high heating rate (such as 150 °C/min) results in an incomplete conversion of ASRs unless sufficient time is provided. The thermogravimetry data fit the linearised multistage kinetic model at different heating rates. The activation energy of reactions varied between 24.98 and 124.94 kJ/mol, indicating a surface-controlled reaction exhibiting high activation energy during the initial stages and a diffusion and mass transfer control showing lower activation energy at the final stages. The corresponding frequency factors were in the range of 3.34 × 10¹³–5.68 × 10¹ mg⁻¹/min for different pyrolysis stages. The evolution of the functional groups decreased with an increase in the heating rate. Full article

Composites can be divided into three groups based on their matrix materials, namely polymer, metal and ceramic. Composite materials fail due to micro cracks. Repairing is complex and almost impossible if cracks appear on the surface and interior, which minimizes reliability and material life. In order to save the material from failure and prolong its lifetime without compromising mechanical properties, self-healing is one of the emerging and best techniques. The studies to address the advantages and challenges of self-healing properties of different matrix materials are very limited; however, this review addresses all three different groups of composites. Self-healing composites are fabricated to heal cracks, prevent any obstructed failure, and improve the lifetime of structures. They can self-diagnose their structure after being affected by external forces and repair damages and cracks to a certain degree. This review aims to provide information on the recent developments and prospects of self-healing composites and their applications in various fields such as aerospace, automobiles etc. Fabrication and characterization techniques as well as intrinsic and extrinsic self-healing techniques are discussed based on the latest achievements, including microcapsule embedment, fibers embedment, and vascular networks self-healing. Full article

Guanyl-urea phosphate (GUP) was introduced into furfurylated wood in order to improve fire retardancy. Modified wood was produced via vacuum-pressure impregnation of the GUP–furfuryl alcohol (FA) aqueous solution, which was then polymerized at elevated temperature. The water leaching resistance of the treated wood was tested according to European standard EN 84, while the leached water was analyzed using ultra-performance liquid chromatography (UPLC) and inductively coupled plasma–sector field mass spectrometry (ICP-SFMS). This new type of furfurylated wood was further characterized in the laboratory by evaluating its morphology and elemental composition using optical microscopy and electron microscopy coupled with energy-dispersive X-ray spectrometry (SEM-EDX). The chemical functionality was detected using infrared spectroscopy (FTIR), and the fire resistance was tested using cone calorimetry. The dimensional stability was evaluated in wet–dry soaking cycle tests, along with the mechanical properties, such as the Brinell hardness and bending strength. The fire retardancy of the modified furfurylated wood indicated that the flammability of wood can be depressed to some extent by introducing GUP. This was reflected in an observed reduction in heat release rate (HRR₂) from 454.8 to 264.9 kW/m², without a reduction in the material properties. In addition, this leaching-resistant furfurylated wood exhibited higher fire retardancy compared to conventional furfurylated wood. A potential method for producing fire-retardant treated furfurylated wood stable to water exposure has been suggested. Full article

With the advent of “intelligent” materials, the design of smart bioadhesives responding to chemical, physical, or biological stimuli has been widely developed in biomedical applications to minimize the risk of wounds reopening, chronic pain, and inflammation. Intelligent bioadhesives are free-flowing liquid solutions passing through a phase shift in the physiological environment due to stimuli such as light, temperature, pH, and electric field. They possess great merits, such as ease to access and the ability to sustained release as well as the spatial transfer of a biomolecule with reduced side effects. Tissue engineering, wound healing, drug delivery, regenerative biomedicine, cancer therapy, and other fields have benefited from smart bioadhesives. Recently, many disciplinary attempts have been performed to promote the functionality of smart bioadhesives and discover innovative compositions. However, according to our knowledge, the development of multifunctional bioadhesives for various biomedical applications has not been adequately explored. This review aims to summarize the most recent cutting-edge strategies (years 2015–2021) developed for stimuli-sensitive bioadhesives responding to external stimuli. We first focus on five primary categories of stimuli-responsive bioadhesive systems (pH, thermal, light, electric field, and biomolecules), their properties, and limitations. Following the introduction of principal criteria for smart bioadhesives, their performances are discussed, and certain smart polymeric materials employed in their creation in 2015 are studied. Finally, advantages, disadvantages, and future directions regarding smart bioadhesives for biomedical applications are surveyed. Full article

To study the practicability of a micro combustion calorimeter to analyze the calorimetry kinetics of wood, a micro combustion calorimeter with 13 heating rates from 0.1 to 5.5 K/s was used to perform the analysis of 10 kinds of common hardwood and softwood samples. As a microscale combustion measurement method, MCC (microscale combustion calorimetry) can be used to judge the flammability of materials. However, there are two methods for measuring MCC: Method A and Method B. However, there is no uniform standard for the application of combustible MCC methods. In this study, the two MCC standard measurement Methods A and B were employed to check their practicability. With Method A, the maximum specific heat release rate, heat release temperature, and specific heat release of the samples were obtained at different heating rates, while for Method B, the maximum specific combustion rate, combustion temperature and net calorific values of the samples were obtained at different heating rates. The ignition capacity and heat release capacity were then derived and evaluated for all the common hardwood and softwood samples. The results obtained by the two methods have significant differences in the shape of the specific heat release rate curves and the amplitude of the characteristic parameters, which lead to the differences of the derived parameters. A comparison of the specific heat release and the net calorific heat of combustion with the gross caloric values and heating values obtained by bomb calorimetry was also made. The results show that Method B has the potentiality to evaluate the amount of combustion heat release of materials. Full article

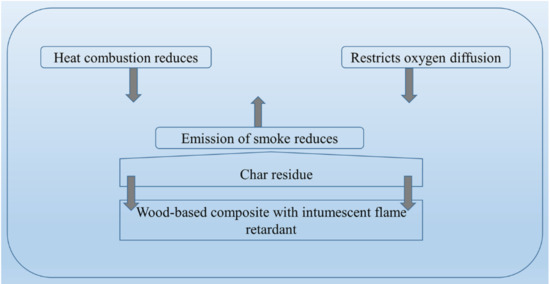

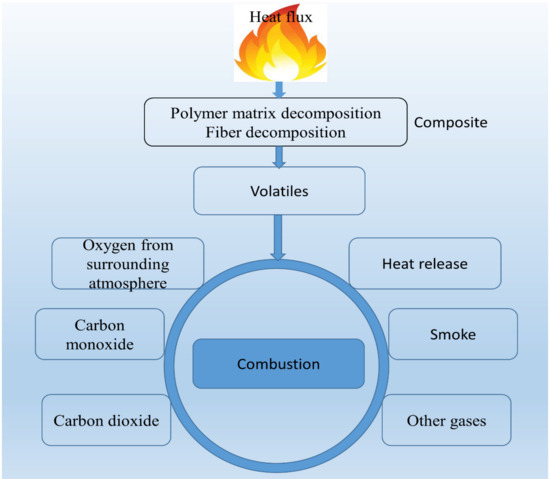

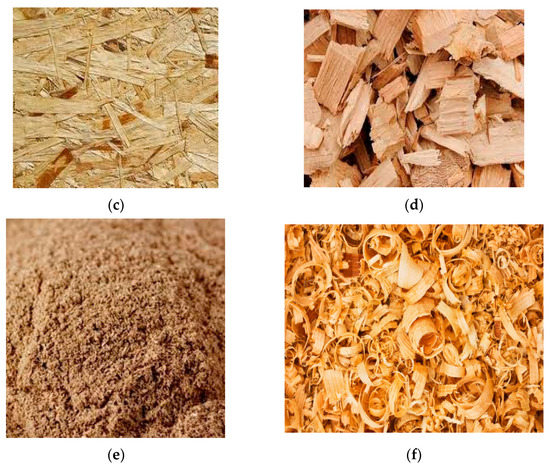

Wood-based composites such as wood plastic composites (WPC) are emerging as a sustainable and excellent performance materials consisting of wood reinforced with polymer matrix with a variety of applications in construction industries. In this context, wood-based composite materials used in construction industries have witnessed a vigorous growth, leading to a great production activity. However, the main setbacks are their high flammability during fires. To address this issue, flame retardants are utilized to improve the performance of fire properties as well as the flame retardancy of WPC material. In this review, flame retardants employed during manufacturing process with their mechanical properties designed to achieve an enhanced flame retardancy were examined. The addition of flame retardants and manufacturing techniques applied were found to be an optimum condition to improve fire resistance and mechanical properties. The review focuses on the manufacturing techniques, applications, mechanical properties and flammability studies of wood fiber/flour polymer/plastics composites materials. Various flame retardant of WPCs and summary of future prospects were also highlighted. Full article

The enhanced carbon footprint of the construction sector has created the need for CO₂ emission control and mitigation. CO₂ emissions in the construction sector are influenced by a variety of factors, including raw material preparation, cement production, and, most notably, the construction process. Thus, using biobased constituents in cement could reduce CO₂ emissions. However, biobased constituents can degrade and have a negative impact on cement performance. Recently, carbonised biomass known as biochar has been found to be an effective partial replacement for cement. Various studies have reported improved mechanical strength and thermal properties with the inclusion of biochar in concrete. To comprehend the properties of biochar-added cementitious materials, the properties of biochar and their effect on concrete need to be examined. This review provides a critical examination of the mechanical and thermal properties of biochar and biochar-added cementitious materials. The study also covers biochar’s life cycle assessment and economic benefits. Overall, the purpose of this review article is to provide a means for researchers in the relevant field to gain a deeper understanding of the innate properties of biochar imparted into biochar-added cementitious materials for property enhancement and reduction of CO₂ emissions. Full article

Phase transformations and the melting range of the interlayer BNi-3 were investigated by differential scanning calorimetry, which showed three stages of crystallization during heating. There were three exothermic peaks that indicated crystallization in the solid state. The cobalt-based X-45 and FSX-414 superalloys were bonded with interlayer BNi-3 at a constant holding time of 10 min with bonding temperatures of 1010, 1050, 1100, and 1150 °C using a vacuum diffusion brazing process. Examination of microstructural changes in the base metals with light microscopy and scanning electron microscopy coupled with X-ray spectroscopy based on the energy distribution showed that increasing temperature caused a solidification mode, such that the bonding centerline at 1010 °C/10 min included a γ-solid solution, Ni₃B, Ni₆Si₂B, and Ni₃Si. The athermally solidified zone of the transient liquid phase (TLP)-bonded sample at 1050 °C/10 min involved a γ-solid solution, Ni₃B, CrB, Ni₆Si₂B, and Ni₃Si. Finally, isothermal solidification was completed within 10 min at 1150 °C. The diffusion-affected zones on both sides had three distinct zones: a coarse block precipitation zone, a fine and needle-like mixed-precipitation zone, and a needle-like precipitation zone. By increasing the bonding temperature, the diffusion-affected zone became wider and led to dissolution. Full article

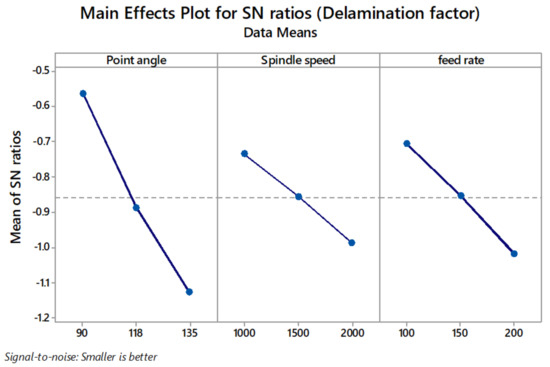

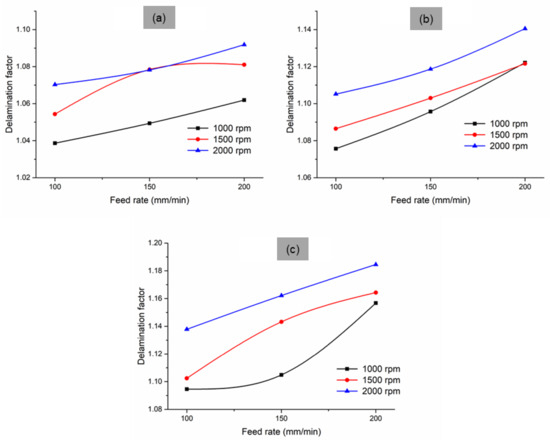

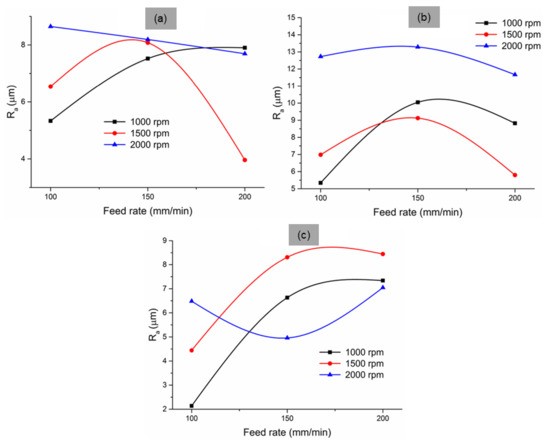

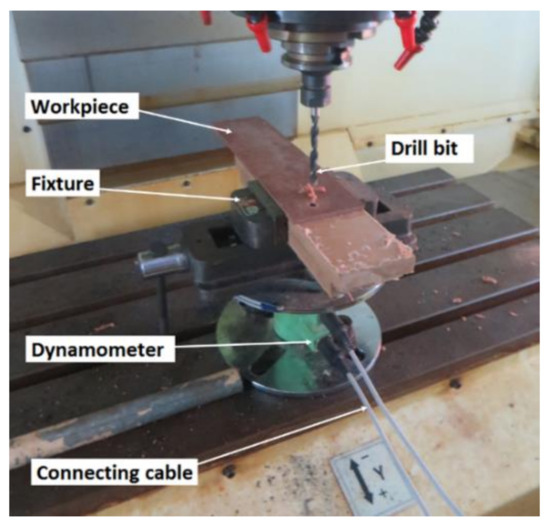

Filled hybrid composites are widely used in various structural applications where machining is critical. Hence, it is essential to understand the performance of the fibre composites’ machining behaviour. As such, a new hybrid structural composite was fabricated with redmud as filler and sisal fibre as reinforcement in polyester matrix. The composite was then tested for its drilling performance. A comprehensive drilling experiment was conducted using Taguchi L27 orthogonal array. The effect of the drill tool point angle, the cutting speed, the feed rate on thrust force, delamination, and burr formation were analysed for producing quality holes. The significance of each parameter was analysed, and the experimental outcomes revealed some important findings in the context of the drilling behaviour of sisal fibre/polyester composites with redmud as a filler. Spindle speed contributed 39% in affecting the thrust force, while the feed rate had the maximum influence of ca. 38% in affecting delamination. Full article

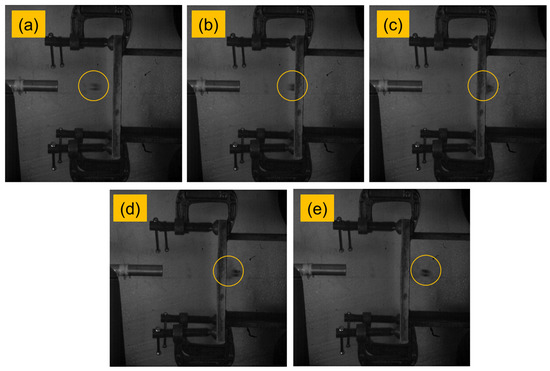

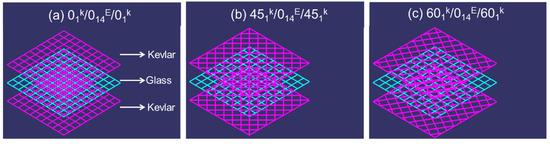

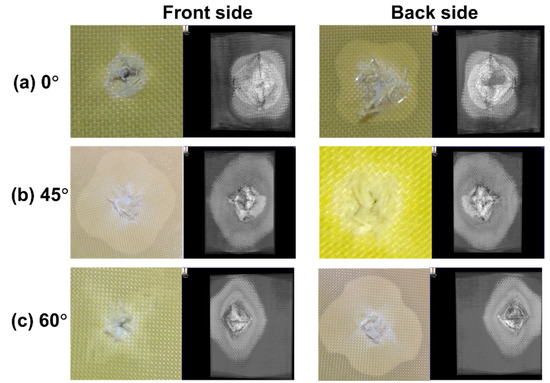

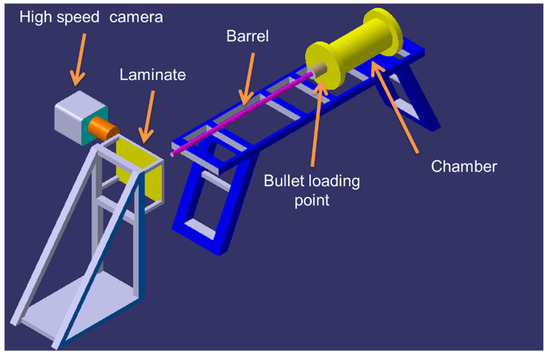

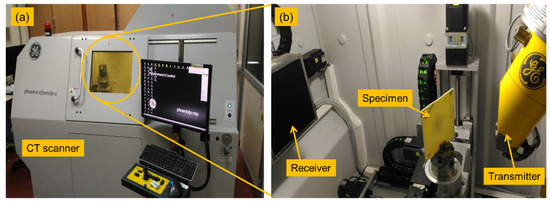

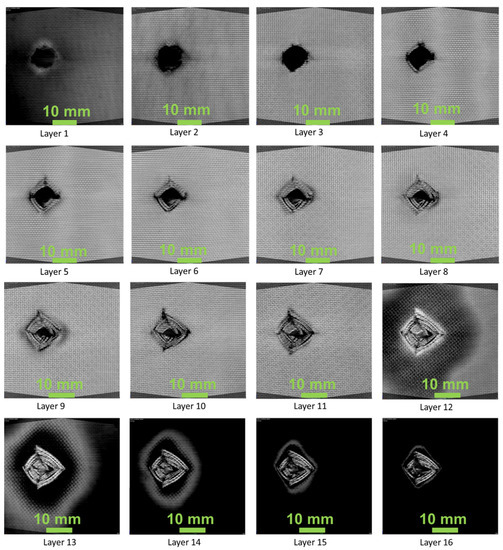

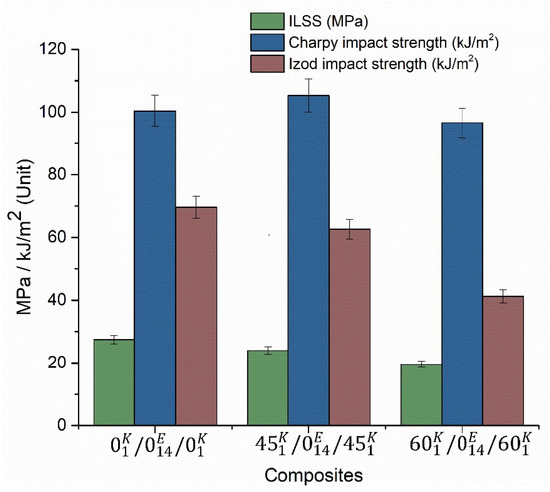

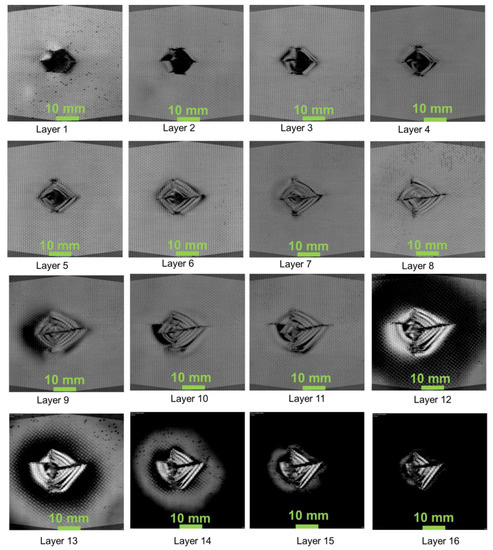

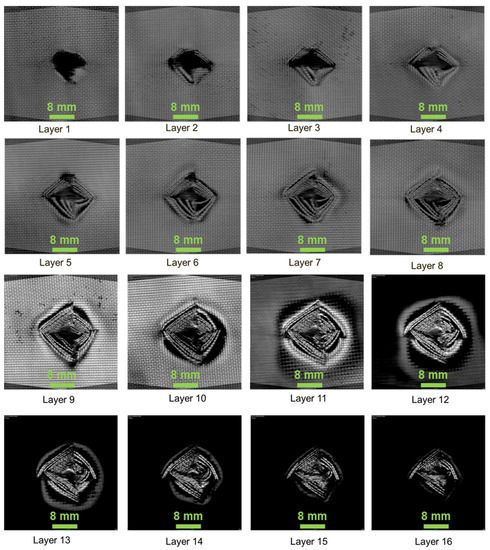

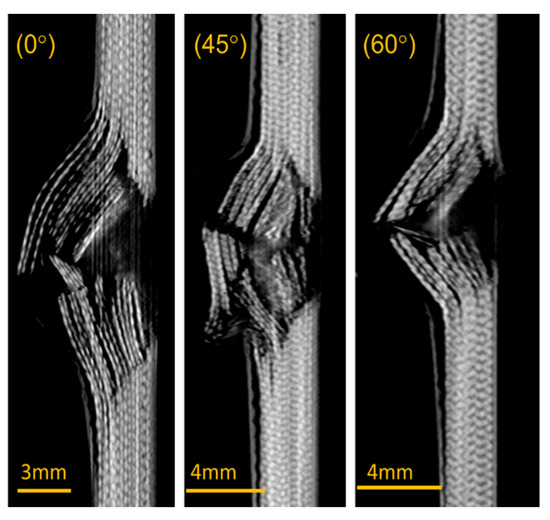

The present study is aimed at investigating the effect of hybridisation on Kevlar/E-Glass based epoxy composite laminate structures. Composites with 3 mm thickness and 16 layers of fibre (14 layers of E-glass centred and 2 outer layers of Kevlar) were fabricated using compression moulding technique. The fibre orientation of the Kevlar layers had 3 variations (0, 45 and 60°), whereas the E-glass fibre layers were maintained at 0° orientation. Tensile, flexural, impact (Charpy and Izod), interlaminar shear strength and ballistic impact tests were conducted. The ballistic test was performed using a gas gun with spherical hard body projectiles at the projectile velocity of 170 m/s. The pre- and post-impact velocities of the projectiles were measured using a high-speed camera. The energy absorbed by the composite laminates was further reported during the ballistic test, and a computerised tomographic scan was used to analyse the impact damage. The composites with 45° fibre orientation of Kevlar fibres showed better tensile strength, flexural strength, Charpy impact strength, and energy absorption. The energy absorbed by the composites with 45° fibre orientation was 58.68 J, which was 14% and 22% higher than the 0° and 60° oriented composites. Full article

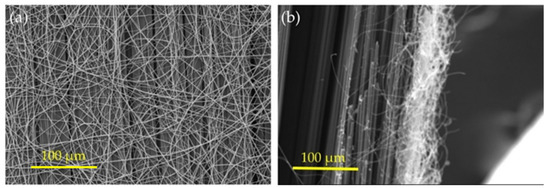

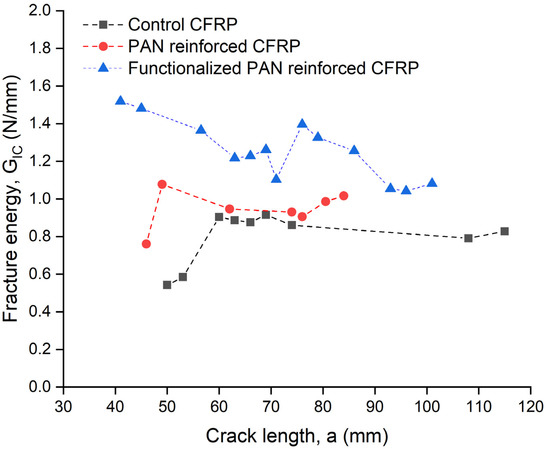

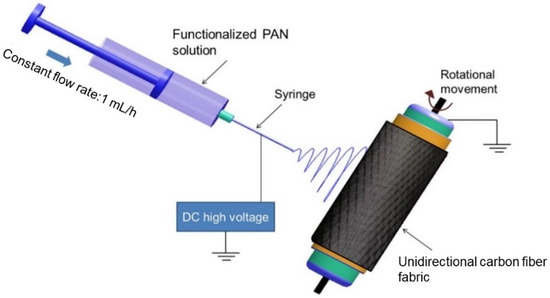

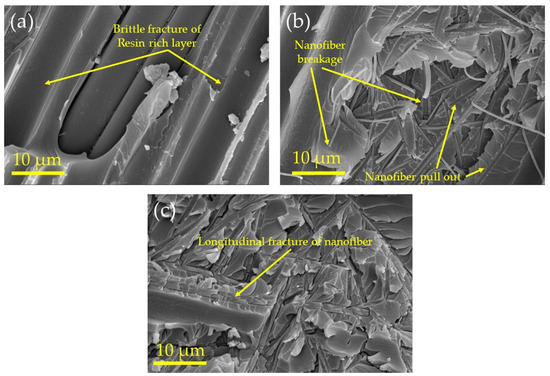

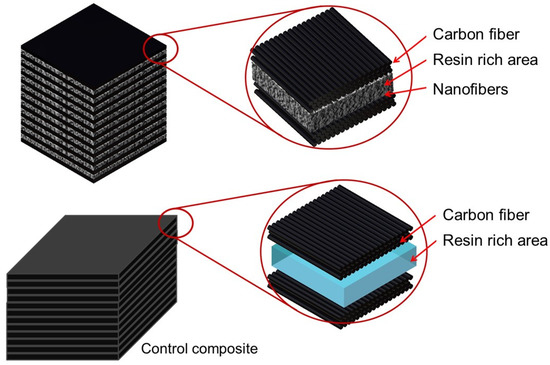

Functionalized polyacrylonitrile (PAN) nanofibers were used in the present investigation to enhance the fracture behavior of carbon epoxy composite in order to prevent delamination if any crack propagates in the resin rich area. The main intent of this investigation was to analyze the efficiency of PAN nanofiber as a reinforcing agent for the carbon fiber-based epoxy structural composite. The composites were fabricated with stacked unidirectional carbon fibers and the PAN powder was functionalized with glycidyl methacrylate (GMA) and then used as reinforcement. The fabricated composites’ fracture behavior was analyzed through a double cantilever beam test and the energy release rate of the composites was investigated. The neat PAN and functionalized PAN-reinforced samples had an 18% and a 50% increase in fracture energy, respectively, compared to the control composite. In addition, the samples reinforced with functionalized PAN nanofibers had 27% higher interlaminar strength compared to neat PAN-reinforced composite, implying more efficient stress transformation as well as stress distribution from the matrix phase (resin-rich area) to the reinforcement phase (carbon/phase) of the composites. The enhancement of fracture toughness provides an opportunity to alleviate the prevalent issues in laminated composites for structural operations and facilitate their adoption in industries for critical applications. Full article

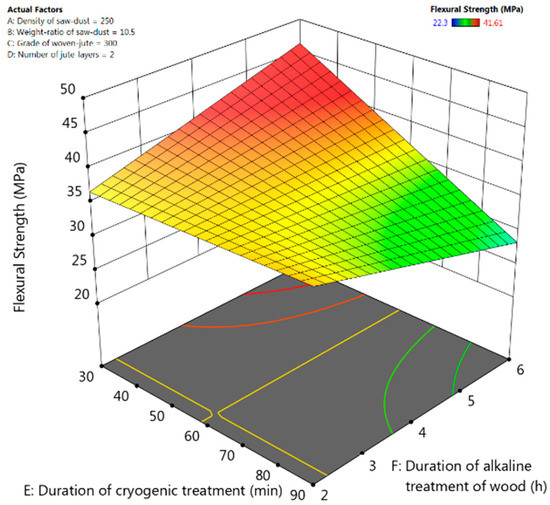

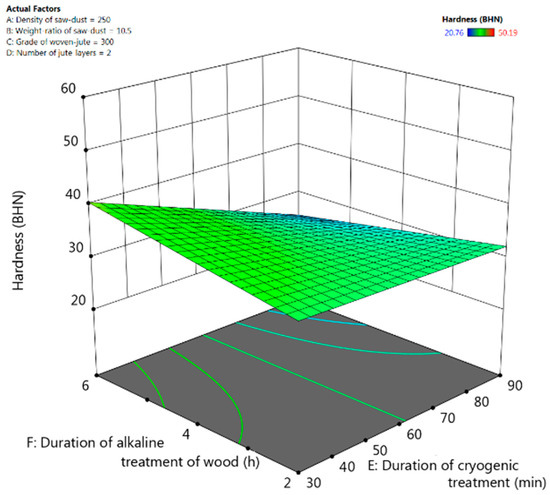

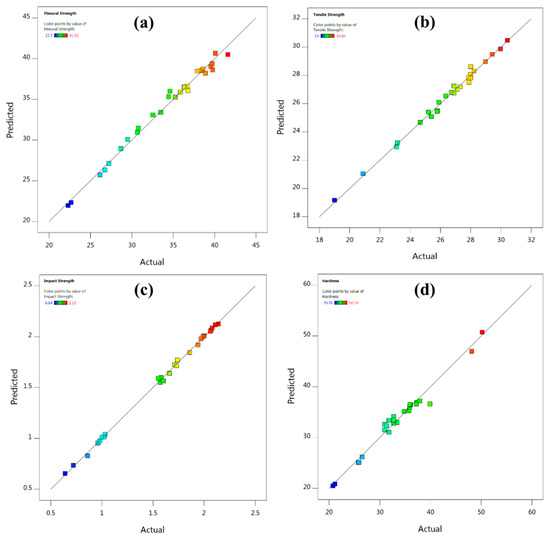

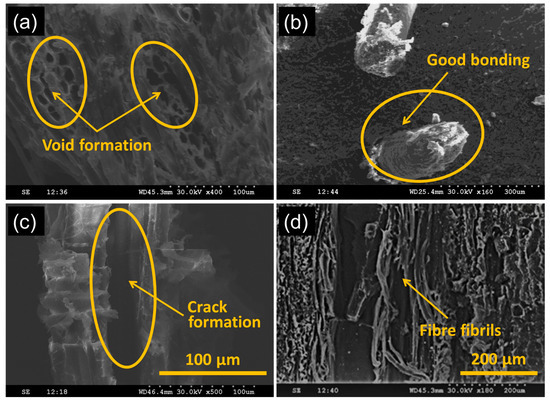

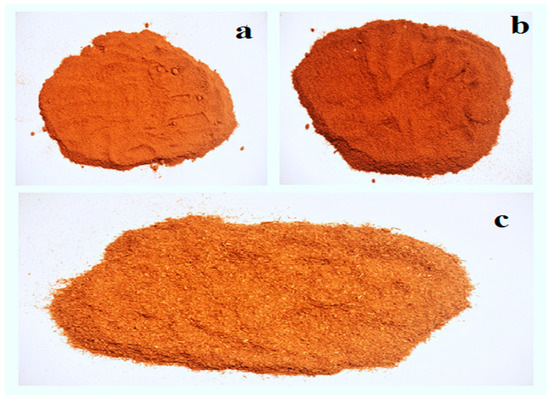

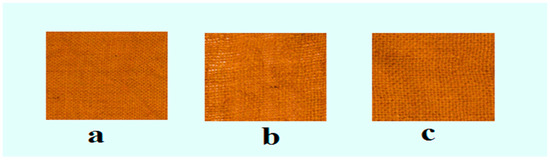

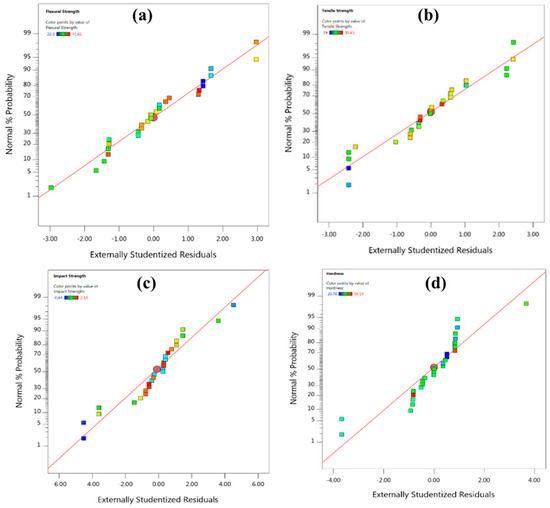

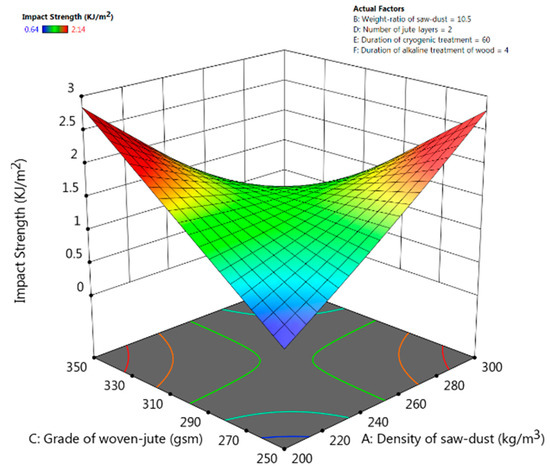

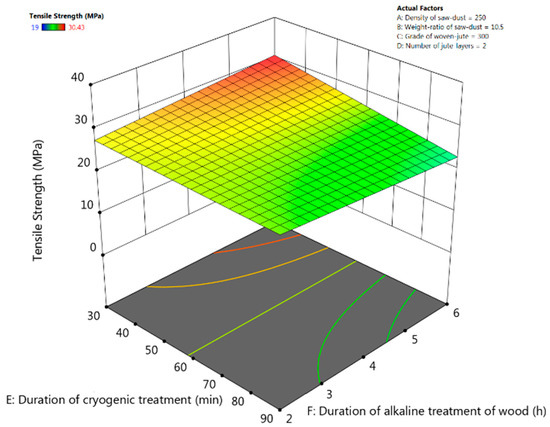

Natural fibre-based composites are replacing traditional materials in a wide range of structural applications that are used in different environments. Natural fibres suffer from thermal shocks, which affects the use of these composites in cold environment. Considering these, a goal was set in the present research to investigate the impact of cryogenic conditions on natural fibre composites. Composites were developed using polyester as matrix and jute-fibre and waste Teak saw-dust as reinforcement and filler, respectively. The effects of six parameters, viz., density of saw-dust, weight ratio of saw-dust, grade of woven-jute, number of jute layers, duration of cryogenic treatment of composite and duration of alkaline treatment of fibres on the mechanical properties of the composite was evaluated with an objective to maximise hardness, tensile, impact and flexural strengths. Taguchi method was used to design the experiments and response-surface methodology was used to model, predict and plot interactive surface plots. Results indicated that the duration of cryogenic treatment had a significant effect on mechanical properties, which was better only up to 60 min. The models were found to be statistically significant. The study concluded that saw-dust of density 300 kg/m³ used as a filler with a weight ratio of 13 wt.% and a reinforcement of a single layer of woven-jute-fibre mat of grade 250 gsm subjected to alkaline treatment for 4 h in a composite that has undergone 45 min of cryogenic treatment presented an improvement of 64% in impact strength, ca. 21% in flexural strength, ca. 158% in tensile strength and ca. 28% in hardness. Full article
