Residual Stress Prediction of Internal Helical Gear Profile Grinding Based on FEA and RBF Neural Network

Abstract

As one of the most important finishing machining means of internal helical gear, the residual stress that appears during profile grinding plays an important role in transmission performance and the service internal helical gear. In this research, the residual stress simulation model of internal helical gear profile grinding is established to optimize and predict grinding parameters by means of a neural network. The grinding process parameters (including grinding depth, grinding feed speed, and grinding wheel linear speed) are taken as variable factors. Through experimental verification, the maximum error of the simulation value is 12.8%. The radial basis function (RBF) neural network is introduced, and simulation data samples are used to train and test the residual stress prediction model. Three groups of unknown grinding parameters are predicted, and the relative errors between the predicted and measured values are 5.16%, 1.63%, and 3.39%, respectively. The results demonstrate that the RBF neural network residual stress prediction model proposed in this paper is accurate and feasible. At the same time, the residual stress prediction method provides a theoretical basis for optimizing and controlling the precision of internal helical gear profile grinding.

1. Introduction

Due to the advantages of low volume, high output power density, high transmission accuracy, and low noise, the internal helical gears are widely used in aero-engine, high-grade machine tools, new energy vehicles, and other fields. Profile grinding is the only precision manufacturing means of internal helical gears. The residual stress created during internal helical gear profile grinding is liable to lead to micro-cracks, deformation on the tooth surface, reduction in fatigue strength, the loading capacity, and service life of the transmission system, and consequently decrease the reliability and durability of the internal helical gear [1,2]. In addition, the severe heat generated during the grinding process can easily lead to grinding burns. Grinding burn and residual stress are also key surface integrity problems caused by grinding thermal–mechanical coupling, which are closely related. Excessive grinding temperature will lead to phase transformation of the surface material, which is often accompanied by tensile stress that is not conducive to fatigue performance [3,4]. Therefore, it is significant to predict the residual stress and optimize the grinding parameters to enhance the grinded gear surface quality.

Many scholars have used different methods to predict the residual stress caused by different machining methods for different machining objects. For example, Cheng et al. [5] measured the residual stresses perpendicular to the feed direction using an X-350A X-ray residual stress meter. The residual stresses under different geometric features and cutting parameters were studied. A new method for predicting residual stresses based on Gaussian process regression was proposed. The performance of the proposed method was verified by other machine learning algorithms. Shan et al. [6] put forward a prediction model of residual stress in cutting based on an analytical method considering mechanical stress and thermal stress. Through orthogonal cutting experiment of the Ti6Al4V tube verifies that the predicted values using this method are in good agreement with the experimental values. Yi et al. [7] obtained residual stress distribution of the workpiece at different depths layer by layer by electrolytic polishing and X-ray diffraction. Based on experimental data, a prediction model of milling residual stress was proposed by using a genetic algorithm and a BP neural network. Zhang et al. [8] proposed a new analytical model based on the equivalent stress method to predict cutting residual stress, taking into account the nonlinear flow characteristics and thermal–mechanical coupling effects of workpiece material at the tool–workpiece contact surface. Rissaki et al. [9] established two types of artificial neural network models to predict the axial and circumferential residual stress distribution of the weld centerline. The performance of the model was evaluated by a test set and a sensitivity study, and the output trend of the model was revealed. Yeong et al. [10] created a database of maximum residual stresses in shot peened Inconel 718 specimens based on Rayleigh wave dispersion data and utilized convolutional neural networks for residual stress prediction. Sembiring et al. [11] proposed a concept based on an artificial neural network to predict residual stresses in various nickel-based alloys treated by ultrasonic nanocrystalline surface modification (UNSM) by obtaining a large amount of residual stress data from experiments on Alloy600. Wu et al. [12] measured residual stresses in experimental samples using a PROTO LXRD stress apparatus. An artificial neural network was trained with experimental data of laser energy 5J and 7J, and the training results were tested with experimental data of 6J to predict the residual stress of laser shock-treated superalloy.

For the sake of figuring out the generating mechanism of residual stress during gear profile grinding, Yi et al. [13] calculated the residual stress caused by grinding based on thermal–structural coupling finite element method, analyzed the distribution characteristics of residual stress field, and the influence of the size of tooth root transition arc on the residual stress distribution at tooth root. Wen et al. [14] put forward a thermal–mechanical coupling calculation model considering the difference of tooth surfaces on both sides of the same gear. Grinding simulation was carried out on both tooth surfaces successively, and it was found that there was a difference in residual stress on both tooth surfaces. Su et al. [15] established the thermal–mechanical coupling model of cycloidal grinding by the moving heat source method and the load step loading method. By calculating Mises equivalent stress in the three-dimensional grinding area, the magnitude and force direction of the first, second, and third principal stresses were solved, and the influence of grinding process parameters on residual stress distribution was further discussed. Xiao et al. [16] put forward a gear grinding model to analyze the residual stress distribution of the gear tooth surface, considering the change in chip geometry. Wang et al. [17] established the mathematical model of grinding face gear with disc wheel, the calculation model of grinding force and grinding heat, further studied the three processes of elastic loading, plastic deformation, and stress release of face gear grinding, and established the mathematical model of residual stress of end grinding teeth. According to previous studies, the RBF neural network has been successfully used to predict photovoltaic power generation rate [18], reactor temperature [19], highway traffic situation [20], stock price trend [21], and many other fields.

In summary, numerous scholars have extensively investigated the prediction of residual stress resulting from various factors, simulated such stress in different gear types, and utilized RBF neural networks to forecast residual stress across diverse fields. However, limited research has been conducted on residual stress in internal helical gear profile grinding. Existing studies predominantly rely on conventional experimental approaches to gather residual stress data, necessitating significant resources in terms of labor, materials, and time. Consequently, this study proposes employing numerical simulation and neural network optimization techniques to predict residual stress in internal helical gear profile grinding. The study involves simulating residual stress in internal helical gear profile grinding by manipulating grinding process parameters (a_p, v_w, v_s) as variables, followed by utilizing RBF neural networks to predict residual stress during the profile grinding process.

2. Establishment and Verification of Residual Stress Simulation Model

The formation of residual stress in profile grinding of internal helical gear results in the profile grinding force–thermal coupling effect: mechanical stress results from Hertzian stress field induced by abrasive particles contacting workpiece, and thermal stress results from thermal elastoplastic deformation induced by grinding temperature. Controlling the residual stress generated by thermal–mechanical coupling can help reduce fatigue cracks and surface roughness on ground surfaces [22]. Therefore, numerical simulation of residual stress in profile grinding has important engineering significance for improving the service reliability of the gear as a key component.

2.1. Kinematic Analysis of Grinding Motion of Internal Helical Gear

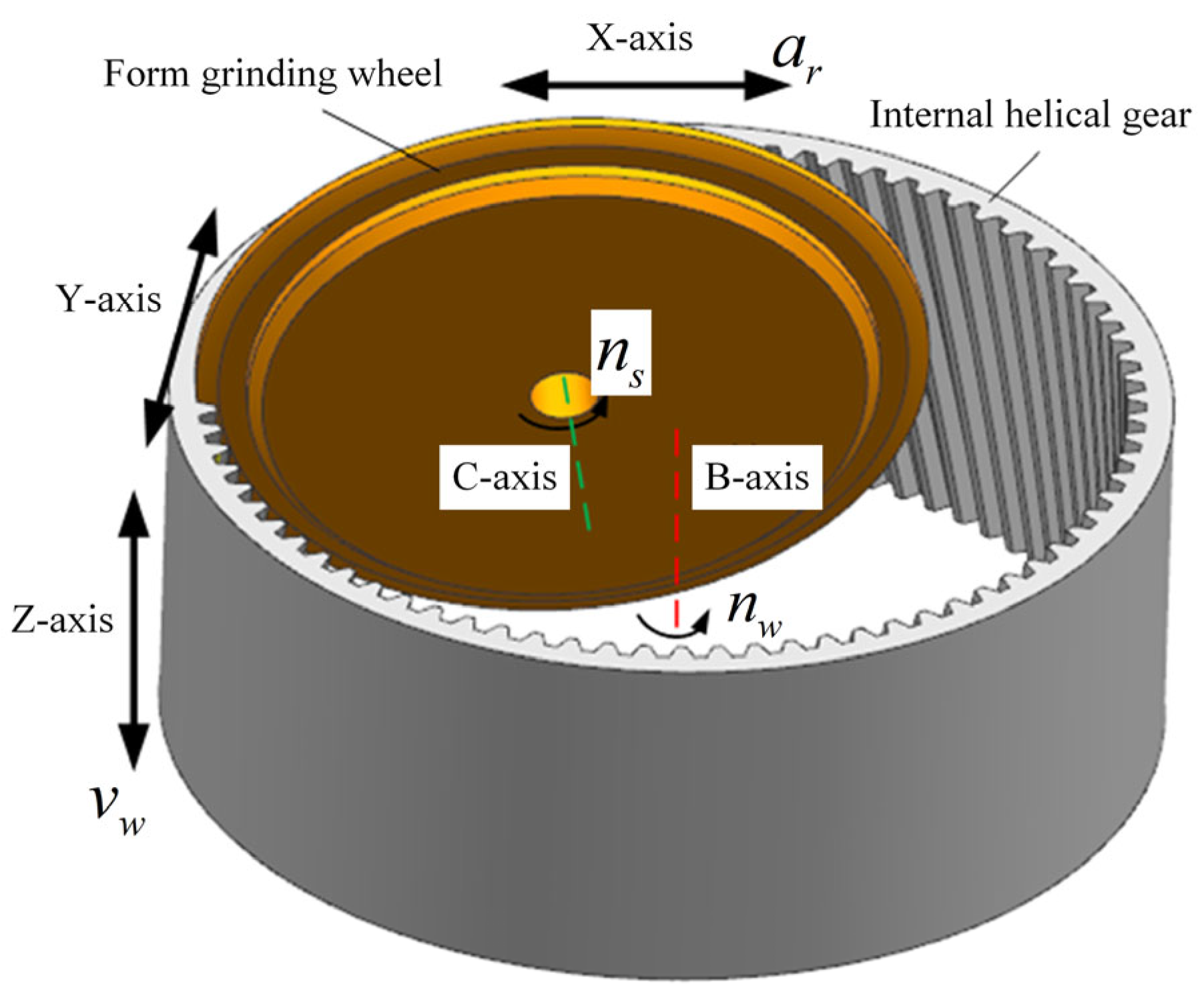

In the profile grinding wheel and gear movement relationship as shown in Figure 1, because the helical gear tooth surface is helical, so in the gear feed there needs to be an additional rotation along the B-axis, and along the Z-axis movement to form a helical movement to finally complete the grinding. The grinding wheel movement along the Z-axis is the feed speed v_w, the grinding wheel movement along the C-axis is the grinding wheel speed n_s, and the grinding wheel movement along the X-axis is the radial grinding depth a_r.

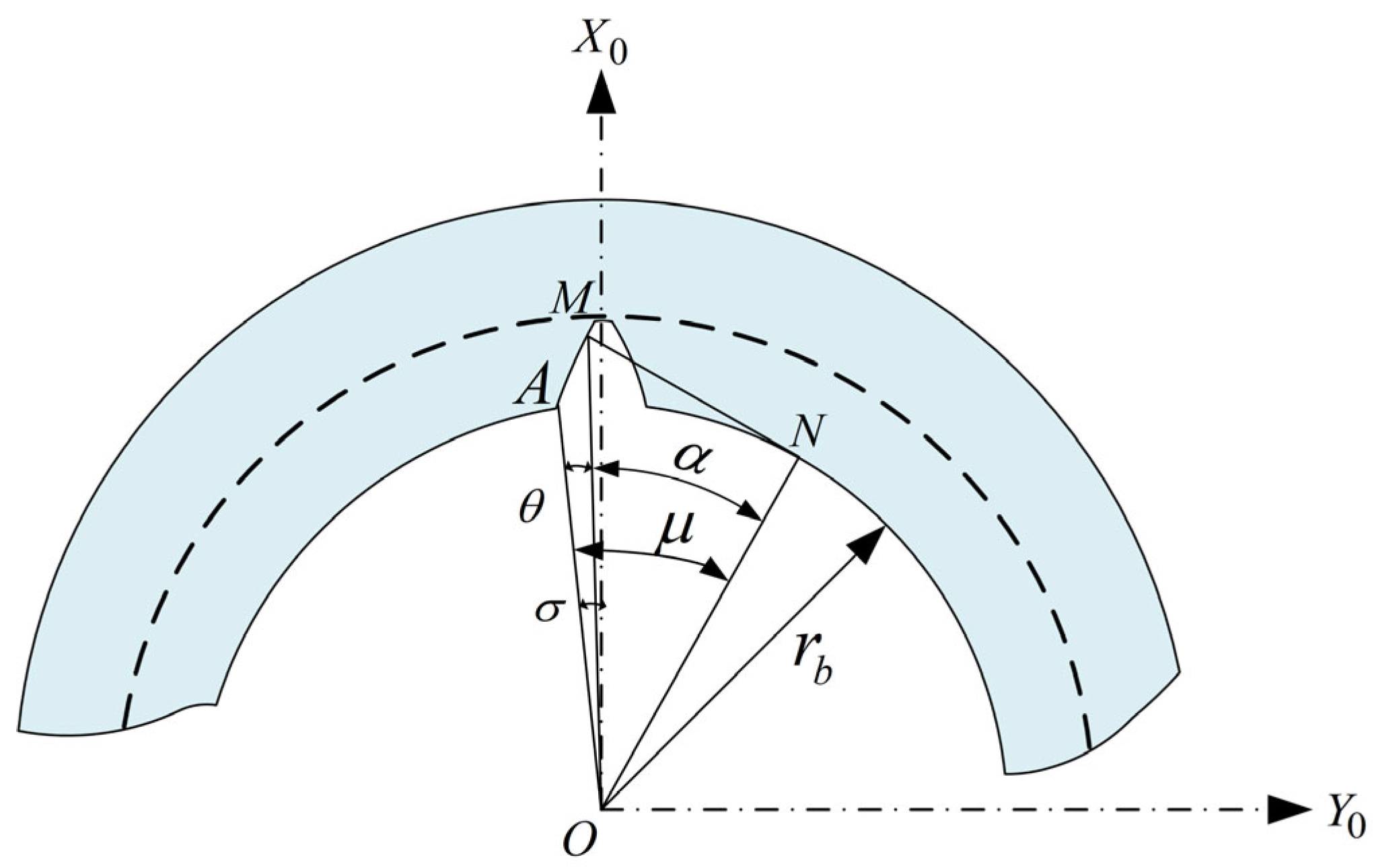

The tooth surface generation of an internal helical gear is a three-dimensional geometric construction process based on the involute principle and spiral motion, so the profile curve of the standard helical tooth surface at the end of arbitrary tooth width is involute. As shown in Figure 2, the involute tooth profile at the end section of the internal helical gear is established. The tooth surface coordinate system S₀ is established at the center of the gear. The tooth surface profile is symmetrical about the X₀ axis. Any point M on the involute of the tooth profile corresponds to the pressure angle α, the spread angle θ, μ is the sum of the spread angle and pressure angle, r_b is the radius of the base circle, and σ is the half angle of the base circle tooth slot.

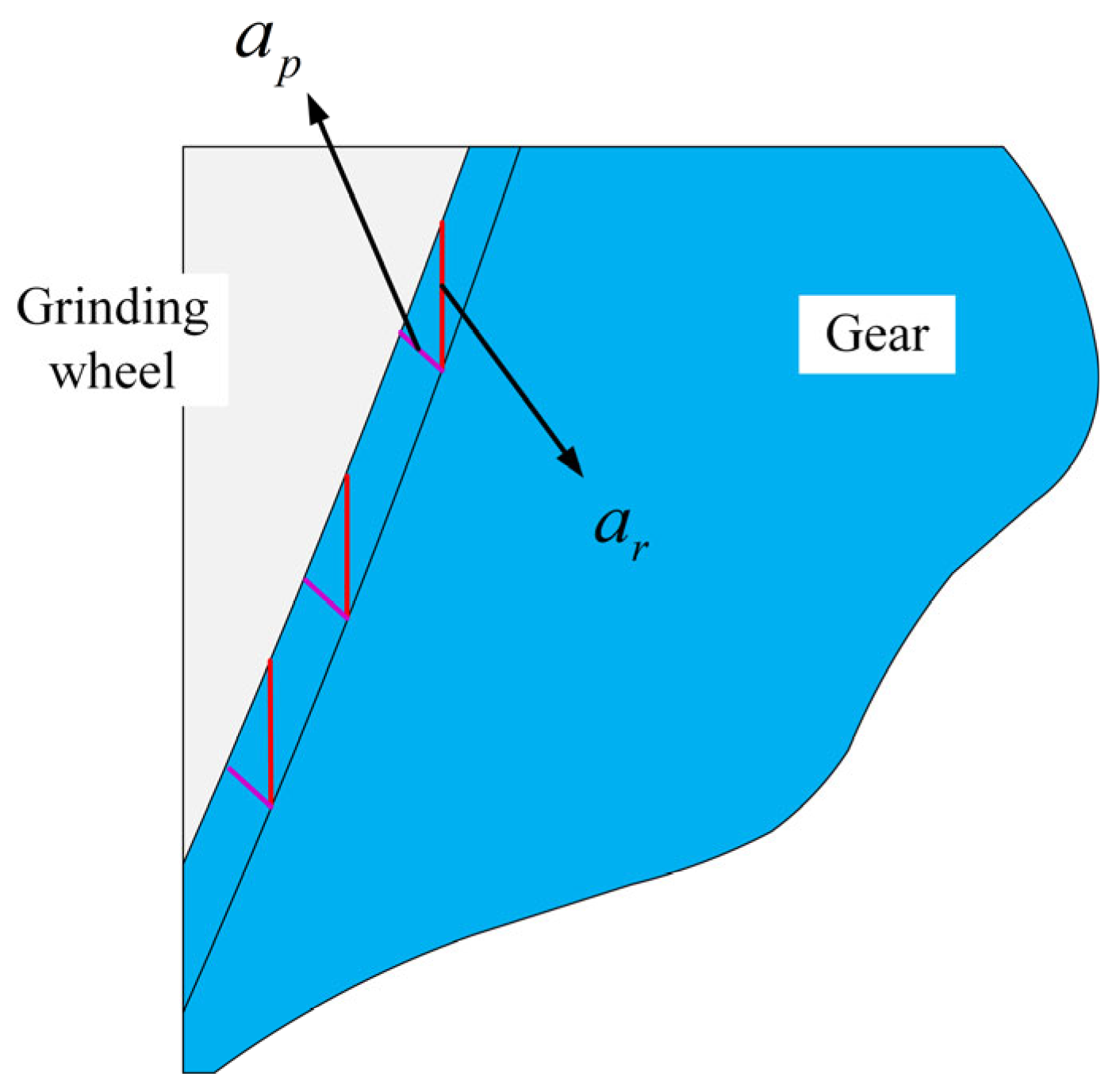

In the profile grinding of internal helical gears, as shown in Figure 3, the depth along the direction of the connection between the center of the grinding wheel and the center of the gear is the radial grinding depth. The direction of any point on the tooth surface perpendicular to the tooth surface is called the normal direction, and the grinding depth in this direction and pointing to the inside of the gear is the normal grinding depth. This parameter is one of the important parameters describing the gear profile grinding process. As shown in Figure 3, a_r is the radial grinding depth and a_p is the normal grinding depth. The relationship between the two is as follows:

$$a_p=a_r\sin (\arctan \mu )$$

(1)

During grinding the instantaneous grinding arc length l_c involved in grinding is as follows:

$$\left\{\begin{array}{l}{l}_c=\sqrt{a_p{R}_d}\\ R_d={\displaystyle \frac{R_l}{\sin (\mu -{\delta }_0)}}\\ R_l=R-r_f-r_b\cos (\mu -\arctan \mu -{\delta }_0)/\cos (\arctan \mu )\end{array}\right.$$

(2)

In Formula (2), R_d represents the equivalent grinding wheel diameter on the tooth surface. Because the grinding wheel needs to be trimmed to an ideal curved surface for grinding during the profile grinding process, the diameter of the grinding wheel at different points on the tooth surface is also different. Therefore, it is necessary to convert the actual diameter of the grinding wheel into the equivalent diameter. Where R_l represents the distance from any point on the tooth surface of the internal helical gear and the meshing surface of the grinding wheel to the axis of the grinding wheel, R and r_f represent the original radius of the grinding wheel and the radius of the tooth root circle.

The wheel speed n_s is converted into linear speed v_s as follows:

$$v_s={\displaystyle \frac{2n_s\pi R_d(\mu )}{60\times 1000}}$$

(3)

2.2. Temperature Field Model of Internal Helical Gear Profile Grinding

During the grinding process of a helical gear tooth slot, the grinding wheel exhibits a characteristic movement pattern of grinding inward from one end of the slot and outward from the other end. Consequently, the heat produced by the grinding wheel at various positions during grinding can be conceptualized as a mobile heat source model. Moving heat sources mainly include rectangular heat sources and triangular heat sources. The results show that the triangular heat source not only has the advantage of simple calculation in mathematical treatment, but also can reflect the heat flux distribution characteristics in the actual grinding process more accurately [23]. Then, the triangular moving heat source model is adopted for the following thermodynamic analysis and calculation. Suppose a triangular heat source moves along the Z-axis. The expression is as follows:

$$q(z)=2q_w\bullet z/l_c$$

(4)

The overall heat flux resulting from internal helical gear profile grinding is determined by the grinding force F_t. This force comprises axial, normal, and tangential components, with the axial force being negligible and thus disregarded. The primary force responsible for material removal and deformation is the tangential force. Therefore, the heat flux calculation is based solely on the tangential force, grinding wheel linear velocity v_s, grinding contact arc length l_c, and grinding width be, as expressed in the following formula [24]:

$$Q={\displaystyle \frac{F_t{v}_s}{l_c{b}_e}}$$

(5)

The total heat flux includes four parts: entering gear, grinding wheel, grinding debris, and grinding fluid, so it is necessary to introduce the heat distribution ratio, and focus on analyzing the heat entering the grinding wheel and the internal helical gear. According to the heat distribution model proposed by ROWE [25], the heat distribution ratio of the incoming workpiece is obtained as follows:

$$\left\{\begin{array}{l}{R}_w={\displaystyle \frac{q_w}{Q}}={\displaystyle \frac{R_{ws}{R}_{wch}}{R_{ws}+R_{wch}-R_{ws}{R}_{wch}((h_w-h_f)/h_w)}}\\ R_{ws}={\left(1+{\displaystyle \frac{0.974{\lambda }_g}{B_w\cdot \sqrt{r_0\cdot v_s}}}\right)}^{-1}\\ R_{wch}={\left(1+0.753\sqrt{v_s{t}_a/a_w\epsilon }\right)}^{-1}\\ B_w=\sqrt{K_w\cdot {\rho }_w\cdot c_w}\end{array}\right.$$

(6)

In the above Formula (6), λ_g is the thermal conductivity of abrasive grains of grinding wheel, B_w is the thermal contact coefficient of workpiece, r₀ is the effective contact radius of abrasive grains, t_a is the average thickness of deformed cutting, $\epsilon$ is the shear strain of chip forming zone, K_w, ρ_w, and c_w are the thermal conductivity, density, and specific heat capacity of internal helical gear wheel material, respectively, and the gear material is selected as 20CrMnTi. The specific thermal performance parameters are shown in

Table 1. Thermal performance parameters of gear material 20CrMnTi.

Name	Kw (W/(m·°C))	cw (J/(kg·°C))	ρw (kg/m3)
Value	40	460	7900

below.

From the above analysis, the heat flux density into the tooth surface can be calculated as follows:

$$q_w=R_{w}Q$$

(7)

During the grinding, in order to ensure the ideal surface processing quality, it is necessary to effectively cool the grinding zone with sufficient grinding fluid. Grinding fluid cools the grinding heat in the form of convection heat transfer during helical gear profile grinding. Convective heat transfer coefficients can be calculated based on the following model:

$$q_f={\displaystyle \frac{0.664(u{\rho }_f{l}_c/{\mu }_f{)}^{\frac{1}{2}}{(c_f{\mu }_f/{\lambda }_f)}^{\frac{1}{3}}{\lambda }_f}{l_c}}$$

(8)

In Equation (8), u = (v_s + v_w)/2, ρ_f is the density of the grinding fluid, c_f is the specific heat capacity of the grinding fluid, λ_f is the thermal conductivity of the grinding fluid, and μ_f is the dynamic viscosity of the grinding fluid. The grinding fluid used in this study is an oil-based grinding fluid, and its specific parameters are shown in

Table 2. Parameters of oil-based grinding fluid.

	ρf (kg/m3)	cf (J/(kg·°C))	λf (W/(m·°C))	μf (×103 m2/s)
Mineral oil	870	2100	0.14	17.0

.

2.3. Grinding Force Model

The grinding force in the grinding process can be divided into tangential, normal, and axial grinding forces. The axial force in the forming grinding process of the internal helical gear is small and can be ignored. The tangential grinding force is the premise of calculating the total grinding heat flux, and the grinding heat is the dominant mechanism leading to residual stress. Although the normal force has a certain influence on the residual stress through mechanical deformation, its contribution is secondary to the grinding heat.

During the internal helical gear profile grinding, the instantaneous contact line between the grinding wheel and gear tooth surface is a complex space curve. According to the principle of gear meshing, MATLAB R2020a is used to calculate this space curve. The result is shown in Figure 4.

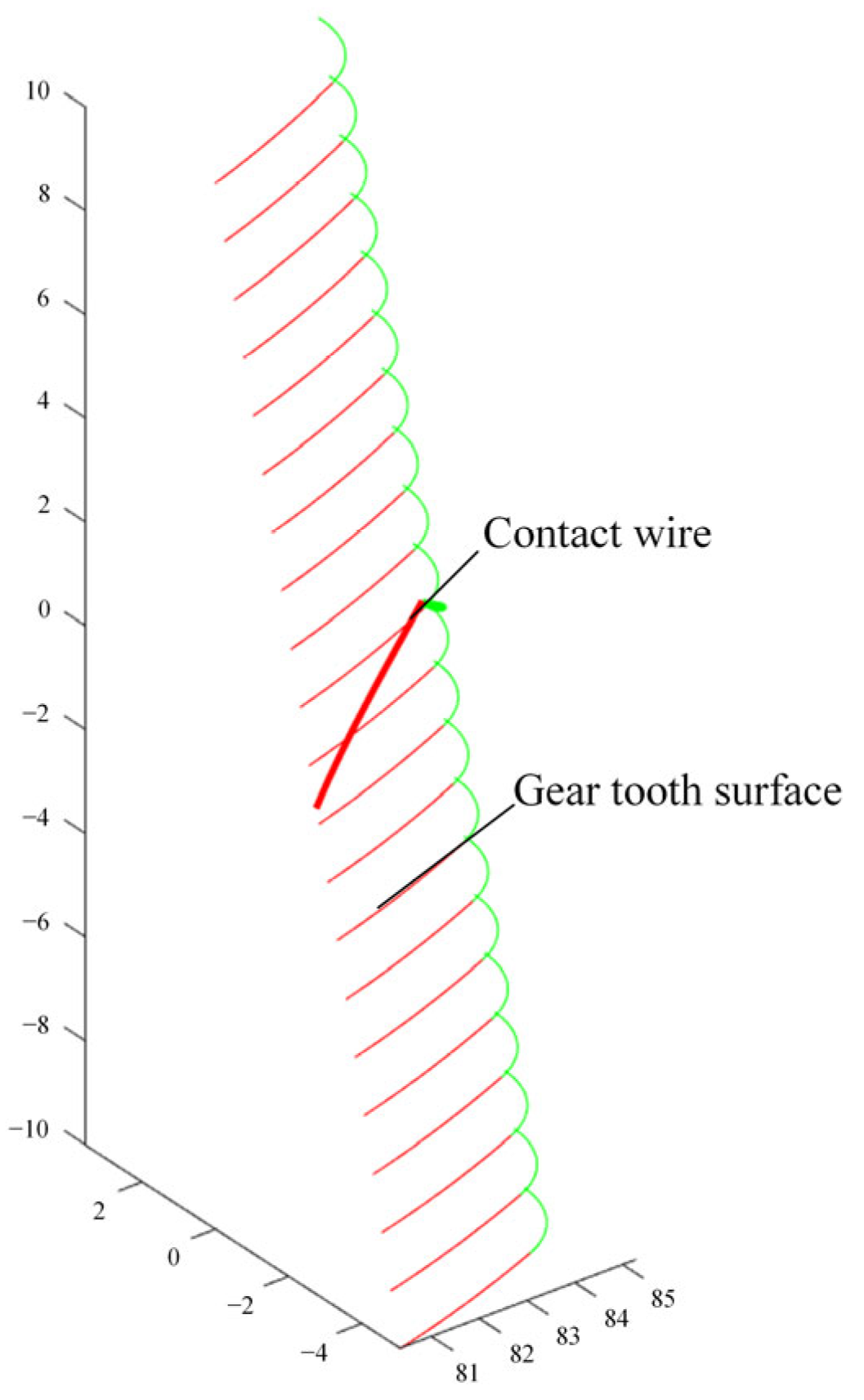

Fitting and analyzing the instantaneous contact line yielded the following parametric equation:

$$\left.\begin{array}{l}x=29.162{\mu }^2+5.3628\mu +75.602\\ y=22.577{\mu }^2-2.7385\mu -4.1604\\ z=-27.402{\mu }^2+38.154\mu -10.492\end{array}\right\},R^2=0.99$$

(9)

In the above formula, R² is the coefficient of determination of the fitting equation. When the coefficient of determination is close to 1, it means that the reliability of the fitting equation is high.

According to the principle of profile grinding, the grinding force acts on the contact line, so it is necessary to solve the grinding force along the contact line. According to the fitting equation, the arc length l of any point on the contact line can be obtained as follows:

$$dl={\displaystyle {\int }_0^{\mu }\sqrt{{\left[x^{\prime }(\mu )\right]}^2+{\left[y^{\prime }(\mu )\right]}^2+{\left[z^{\prime }(\mu )\right]}^2}}d\mu$$

(10)

Combined with the plane grinding force formula, integrating on any involute rolling angle 0 − μ, the internal helical gear profile grinding force formula can be obtained as follows:

$$F_t={\displaystyle {\int }_0^{\mu }(K_1+K_2\cdot \mathrm{Ln}\frac{v_s^{1.5}(\mu )}{a_p^{0.25}(\mu )\cdot v_w})\cdot \frac{v_w{a}_p(\mu )}{v_s(\mu )}+({\alpha }_0+{\beta }_0\cdot \frac{v_w}{2v_s(\mu )R_d(\mu )})\cdot \sqrt{a_p{R}_d(\mu )}dl}$$

(11)

2.4. Simulation of Residual Stress in Profile Grinding

In the actual process of internal helical gear profile grinding, the grinding method is adopted one by one until all the teeth are machined, so as to realize the grinding of the whole gear. When grinding a tooth slot, the left and right tooth surfaces are ground simultaneously, and the grinding process and process parameters of each tooth slot are consistent. In order to simplify the simulation process and reduce the calculation time cost, the gear model is reasonably simplified, and the simplified model is shown in Figure 5.

It is very important to characterize the thermal–mechanical behavior of the material accurately in the numerical simulation of residual stress on the tooth surface of an internal helical gear. Including Poisson’s ratio $v$, elastic modulus E, coefficient of linear expansion α′, and so on. Due to the significant temperature gradient changes at the tooth surface nodes of gears during heat treatment or service, the physical and mechanical properties of the material exhibit a strong temperature dependence. Therefore, when establishing a reliable residual stress prediction model, it is necessary to fully consider and input the functional relationship between the key physical parameters of materials and temperature. Ignoring the temperature dependence of these parameters will lead to deviation of simulation results from the actual physical state, which will significantly affect the accuracy of residual stress distribution prediction. Specifically, the key physical parameter data of the 20CrMnTi material at different temperatures on which this study is based are listed in

Table 3. Mechanical properties of 20CrMnTi material with temperature change.

Temp T (°C)	20	100	150	200	250	300
Modulus of elasticity E (GPa)	210	198	187	180	175	172
Poisson’s ratio $\mathit{v}$	0.3	0.3	0.3	0.3	0.3	0.3
Shear modulus Er (GPa)	77	73	70	67	64	60
Yield limit ${\mathit{\sigma }}_{\mathit{s}}$ (MPa)	850	775	725	668	635	525
Coefficient of linear expansion ${\mathit{\alpha }}^{\prime }$ (×10−5(m/°C))	0.12	1.123	1.132	1.15	1.21	1.24

.

The residual stress simulation method based on thermal–force coupling can be divided into two types: (1) Direct coupling and sequential coupling. Although direct coupling can reflect the interaction of the thermal–force field in real time, the calculation is complicated and time-consuming. (2) Sequential coupling decouples the one-way influence of the temperature field on the stress field. A transient thermal analysis is conducted first. The temperature field results are introduced into the structural stress field as loads. For the problems with low nonlinear coupling degree, the sequential coupling method has higher computational efficiency and flexibility while ensuring accuracy, especially suitable for transient analysis with multiple time nodes. Based on the above advantages, this research chooses the sequential coupling method to carry out the simulation; the specific flow is shown in Figure 6.

And the ultimate objective of the simulation is the final residual stress state that remains locked within the gear tooth after the entire process is complete, i.e., after the grinding heat source has moved away, the external mechanical loads are removed, and the workpiece has cooled down to room temperature.

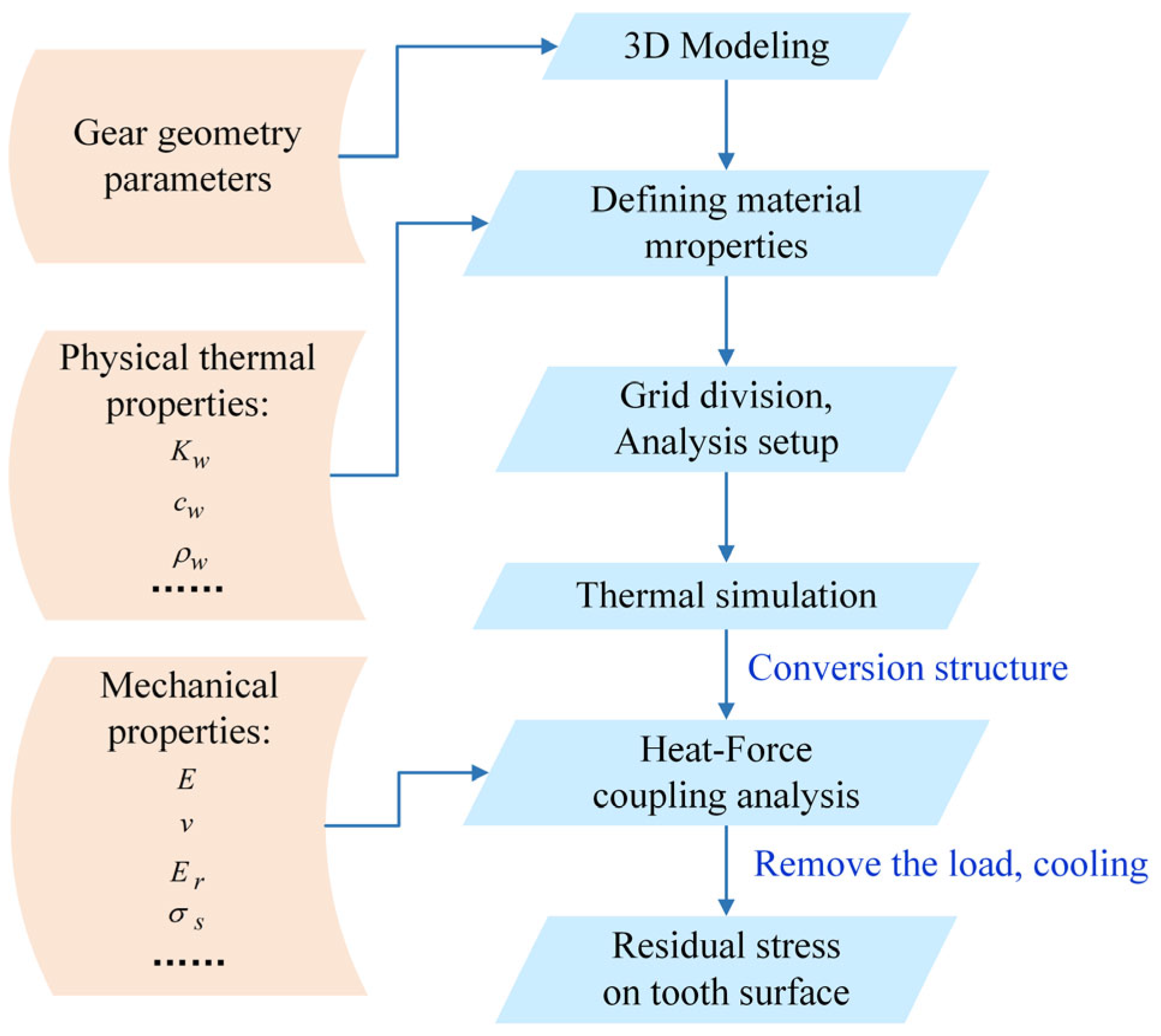

This paper’s finite element simulation relies on modeling key geometric parameters of the internal helical gear. These parameters are provided in

Table 4. Gear parameters.

Name	Value
Number of teeth z	79
Modulus m/mm	2
$\mathrm{Tooth} \mathrm{width} b/\left(\mathrm{mm}\right)$	45
$\mathrm{Pressure} \mathrm{angle} \alpha /(°)$	20
$\mathrm{Helix} \mathrm{angle} \beta /(°)$	15
$\mathrm{Diameter} \mathrm{of} \mathrm{tooth} \mathrm{apex} \mathrm{circle} d_a/\left(\mathrm{mm}\right)$	161.568
$\mathrm{Diameter} \mathrm{of} \mathrm{indexing} \mathrm{circle} d/\left(\mathrm{mm}\right)$	163.574
$\mathrm{Diameter} \mathrm{of} \mathrm{tooth} \mathrm{root} \mathrm{circle} d_f/\left(\mathrm{mm}\right)$	170.890

. These include core design elements: module, number of teeth, pressure angle, and helix angle. To accurately simulate the gear structure response and take into account the calculation efficiency, the geometric model is appropriately simplified, and high-precision hexahedral elements are used for spatial discretization. The finally generated finite element mesh model is shown in Figure 7. And to ensure the accuracy of the critical region solution, the global cell size is strictly controlled at 0.3 mm.

In the thermal–force coupling simulation, the grinding heat load is applied based on the actual process. The heat flux density representing grinding heat input is applied as a moving heat source within the grinding arc area (blue box in Figure 8). This load moves dynamically along the set grinding speed direction, which is tangential to the tooth surface. Meanwhile, to reflect the actual cooling effect during grinding, equivalent convective heat transfer coefficient boundary conditions are applied to the entire tooth surface outside the grinding arc area. This region is the non-abrasive zone. These conditions simulate the continuous cooling effect of the grinding fluid on the tooth surface during machining.

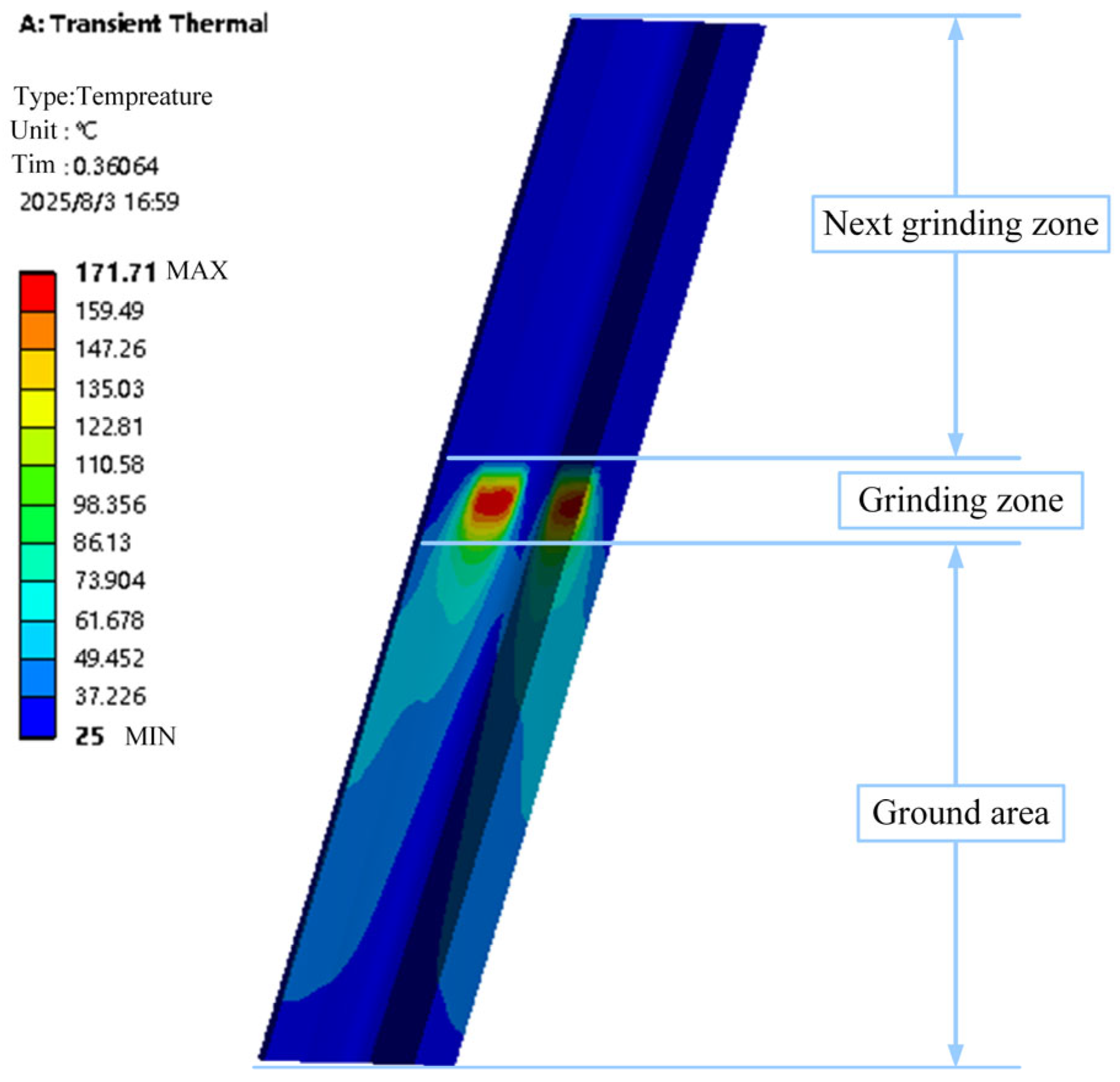

Figure 9 shows the temperature field cloud map at 0.36 s of grinding, when the grinding parameters are set to v_s = 38.5 m/s, v_w = 4 m/min, and a_p = 0.03 mm. It can be seen from the figure that the temperature near the bottom of the tooth groove in the grinding zone reaches the highest value of 171.7 °C. Due to the cooling effect of the grinding fluid, there is a significant temperature gradient between the grinding zone and the non-grinding zone.

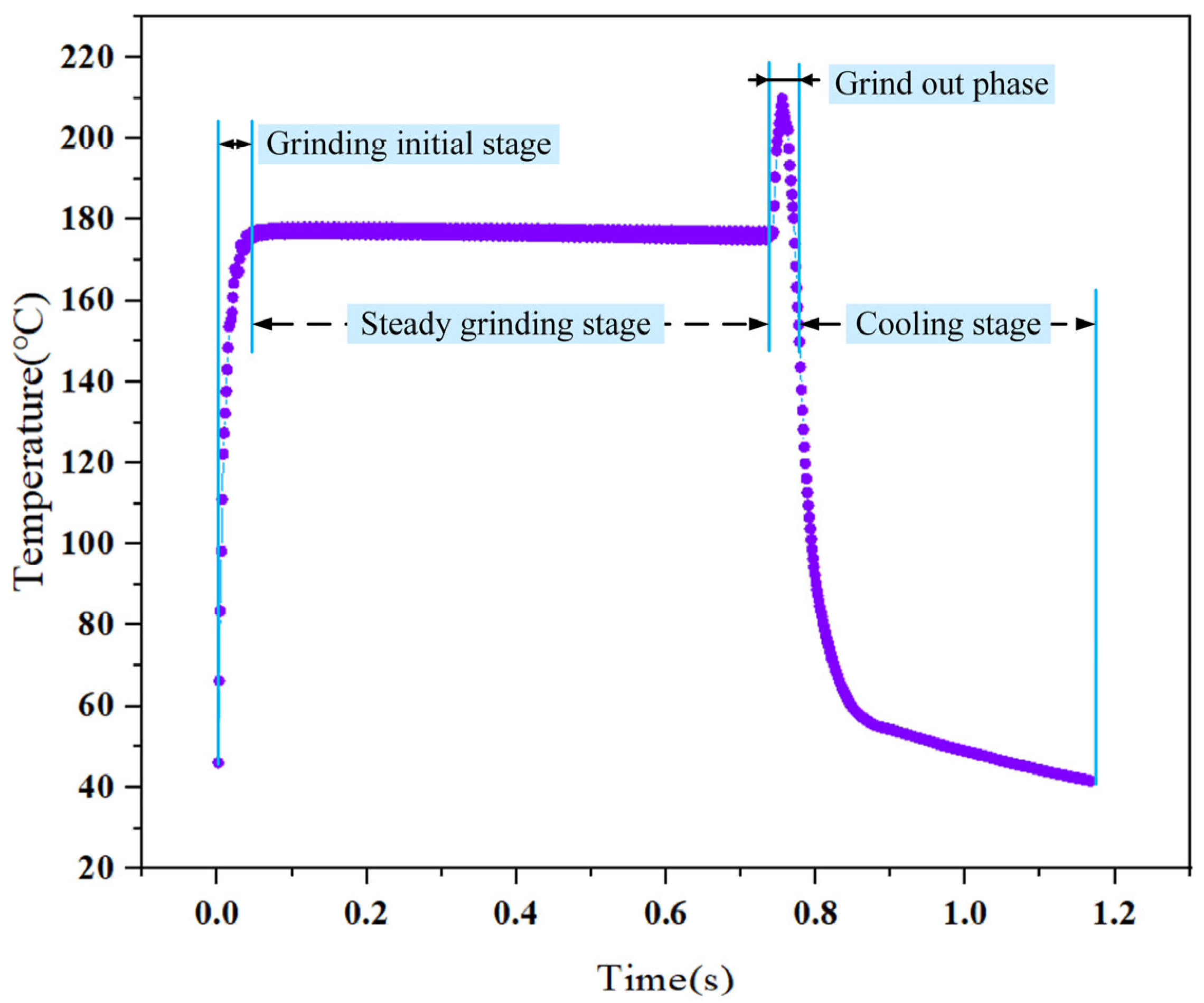

As shown in Figure 10, the maximum grinding temperature in the grinding zone of the tooth surface changes with time. It can be seen that the temperature increases rapidly when the grinding wheel enters the grinding zone during the grinding, and the temperature change rate increases significantly. With the heat source moving at the set grinding feed speed, the temperature variation trend in the grinding zone gradually tends to be gentle. However, when the grinding wheel is about to leave the gear surface, the temperature suddenly rises again and then drops rapidly. This peak phenomenon is mainly due to the grinding fluid not effectively spraying the gear surface in the grinding exit stage, and is accompanied by a heat accumulation phenomenon. This phenomenon matches actual machining observations. Grinding thermal damage easily occurs as the grinding wheel is about to exit the tooth surface. Thereafter, the temperature drops rapidly until it approaches room temperature.

The simulation of grinding residual stress in helical gear forming mainly involves two steps. First, after simulating the grinding temperature field, the analysis module is switched. The temperature results are loaded as input, and the grinding force is applied using the same process parameters to obtain the stress field. Second, all loads are removed. After a set time, the grinding residual stress is obtained once the temperature cools to room temperature.

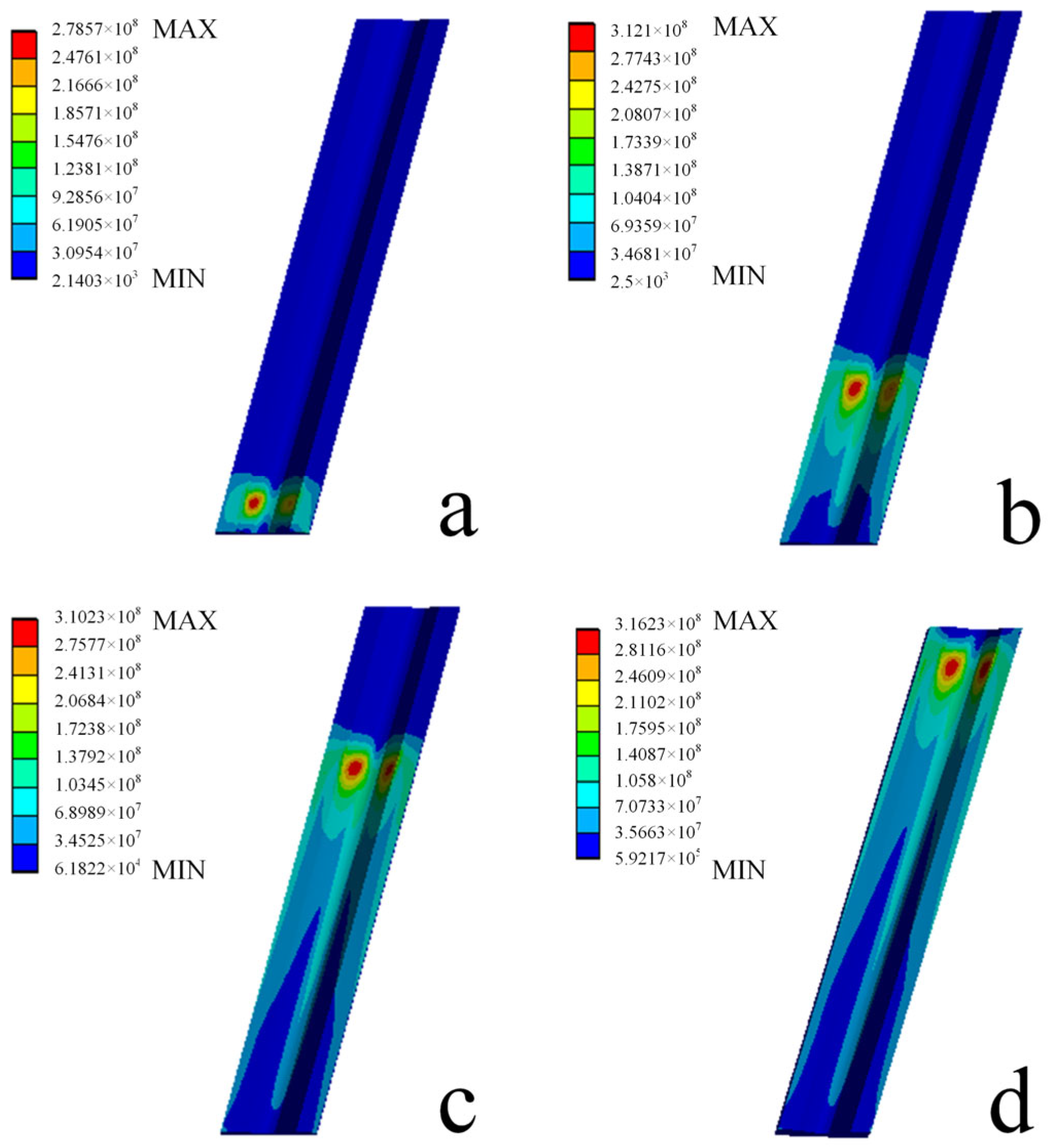

Figure 11 shows the typical process of grinding stress evolution at different stages in the process of internal helical gear profile grinding. The analysis results show that the grinding stress field and temperature field show a highly coupled variation trend, which is mainly due to the grinding heat being the dominant factor inducing grinding stress. Specifically, grinding stress increases sharply with the rapid accumulation of grinding heat in the tooth contact area at the initial stage of the grinding process. After that, when the grinding heat input and heat dissipation by conduction and convection reach a dynamic equilibrium, the grinding stress enters a relatively stable plateau. In the middle and late stages of grinding, the grinding stress increases slowly and fluctuates slightly on the basis of the steady stage due to the softening effect of the local material caused by continuous heat action. The three-stage characteristic of “sharp increase-steady-slow rise” reflects the complex mechanism of interaction between the dynamic load of the grinding heat source and the thermal response of the material.

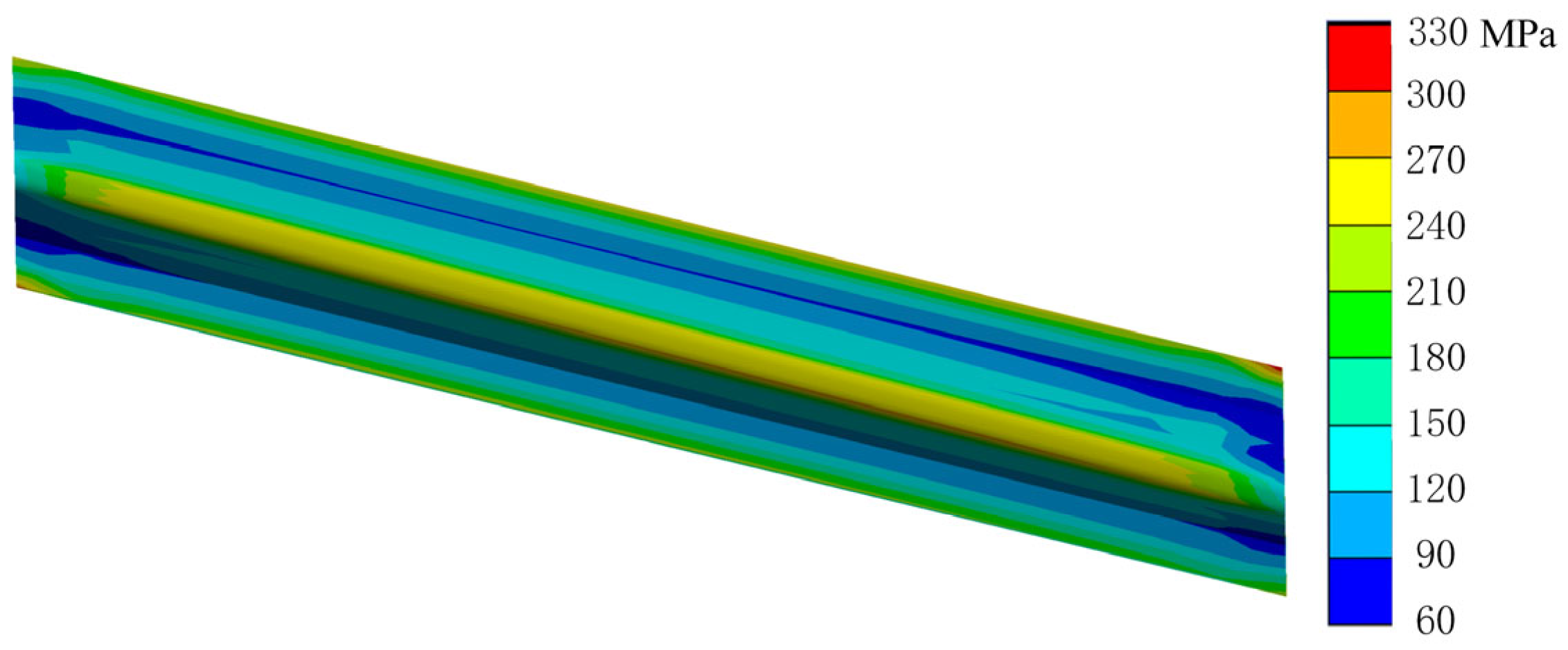

Figure 12 shows the final distribution nephogram of residual stress on the tooth surface of the internal helical gear after profile grinding. The results show that the residual stress decreases along the groove bottom to the tooth top. This phenomenon stems from the non-uniform thermal–mechanical coupling effect during grinding. Geometric constraints limit heat conduction, causing significantly higher grinding temperatures near the tooth root than at the top. This leads to greater thermal stress and thermal elastoplastic deformation. During cooling, stress release in this area is affected by geometric concentration, promoting localized residual stress in the root transition region. Based on the distribution law above, the maximum residual stress nephogram is selected as the key evaluation index for the subsequent process parameter optimization and fatigue performance evaluation.

3. Validity Verification of Simulation Model

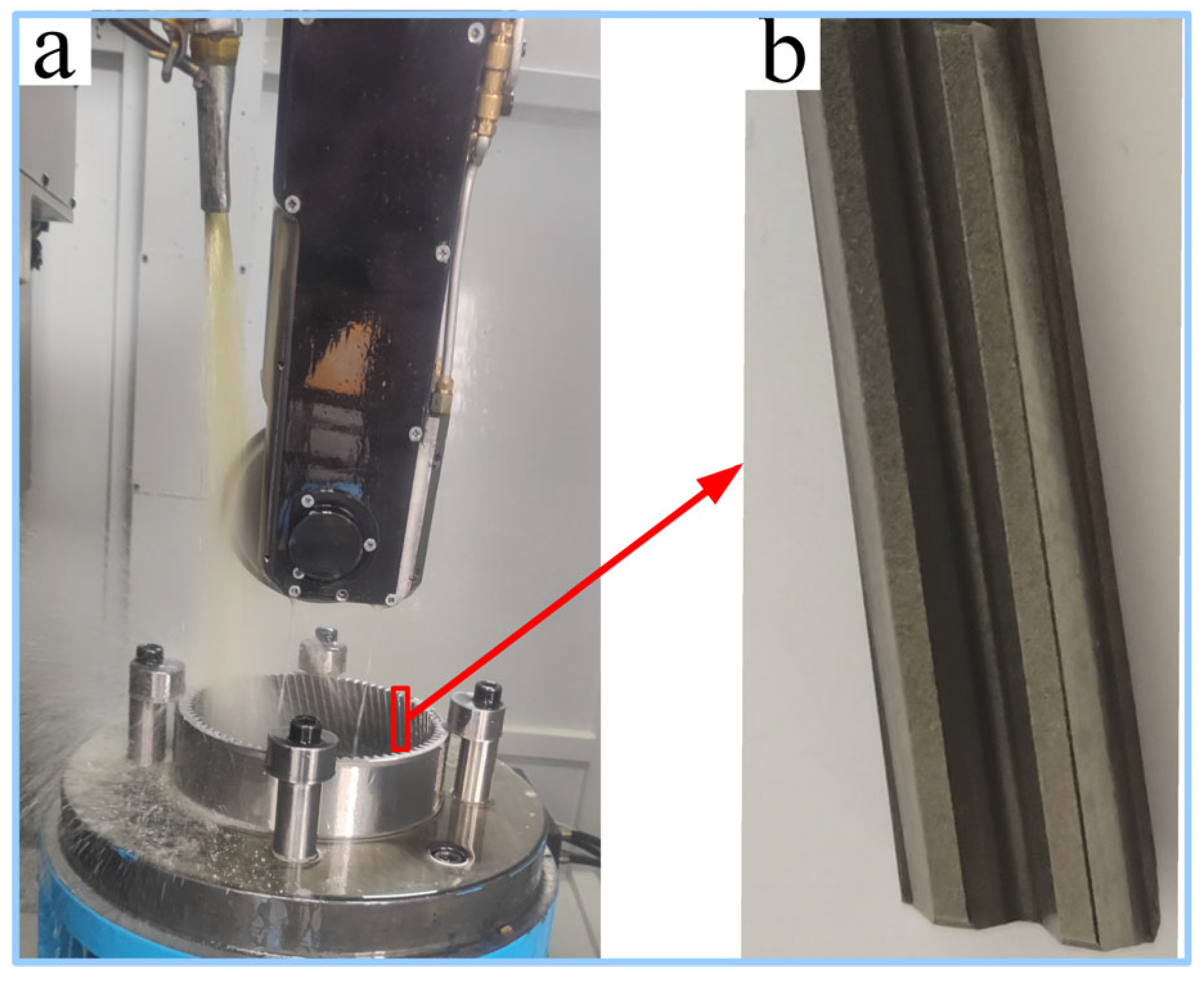

To verify the correctness of the numerical simulation method for residual stress, grinding was carried out on the independently developed YK7350N CNC gear grinding machine, as shown in Figure 13a, and the machined internal helical gear was divided into single-tooth samples, as shown in Figure 13b.

The specific operation process can include the following: (1) workpiece positioning, clamping, and installation of tools; (2) gear processing parameter input; (3) grinding wheel dressing; (4) adjusting tool; (5) input grinding process parameters; (6) grinding.

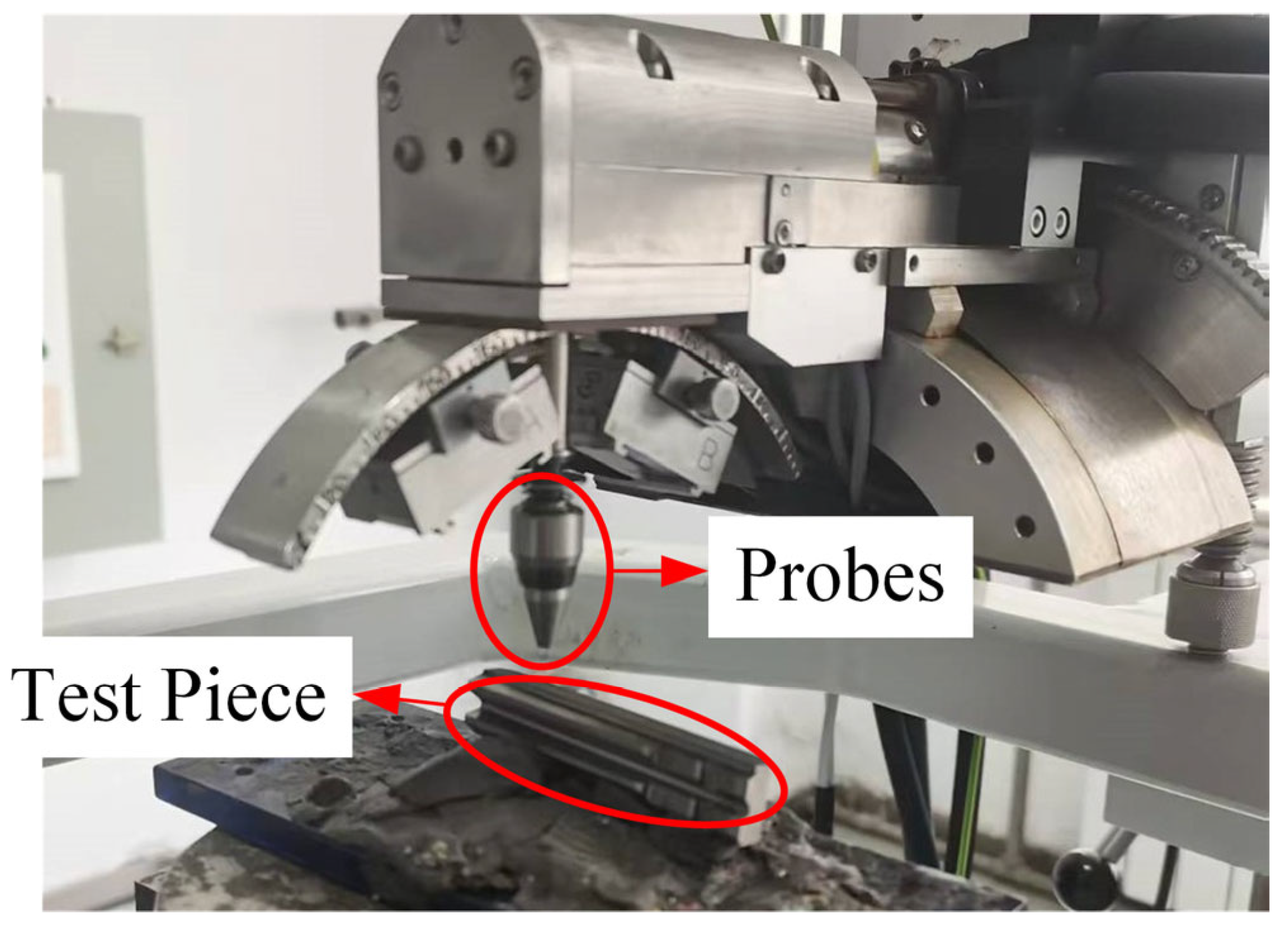

Profile grinding residual stress measurements were performed on the specimens using an XTRESS3000 stress analyzer, as shown in Figure 14. The specimen was placed on the workpiece table, and the X-ray head was positioned perpendicular to the flank of the tooth being measured. The working flow is as follows: X-ray tube generates X-ray with a specific wavelength, and forms a parallel beam through the collimator; the detector captures the diffraction peak and records the intensity distribution under different ψ angles; the central system and computer software automatically fit the diffraction peak position, calculate lattice strain, convert it into stress value, and obtain residual stress. It is noteworthy that the X-ray diffraction technique employed here primarily measures the macroscopic residual stress within the irradiated volume.

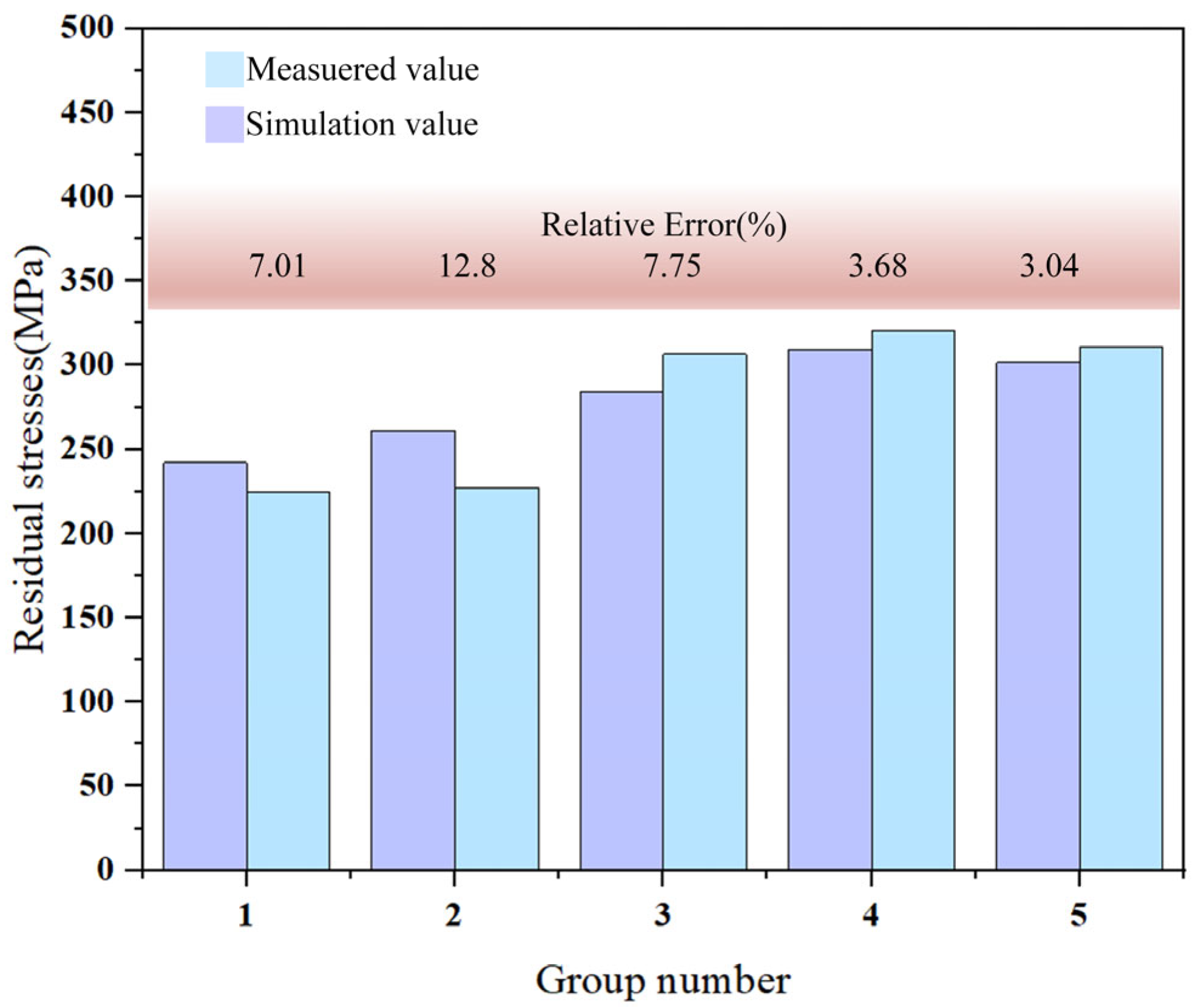

As shown in Figure 15, after five groups of different grinding process parameters in

Table 5. Grinding process parameters for validation.

Group Number	ap (mm)	vs (m/s)	vw (m/s)
1	0.01	46.2118	0.0833
2	0.02	53.9138
3	0.03	61.6158
4	0.04	69.3177
5	0.05	38.5098

are selected for simulation, grinding processing is carried out on the above gear grinding machine with the same process parameters. From the results measured on the stress analyzer and the simulation results, it can be seen that the maximum relative error is 12.8%. This is because the simulation analysis is carried out in an absolutely ideal environment, and the processing on the gear grinding machine will be affected by some external factors. Therefore, the simulation model of residual stress in helical gear profile grinding established in this study is reliable and can provide data support for follow-up research.

4. Prediction of Residual Stresses in Profile Grinding

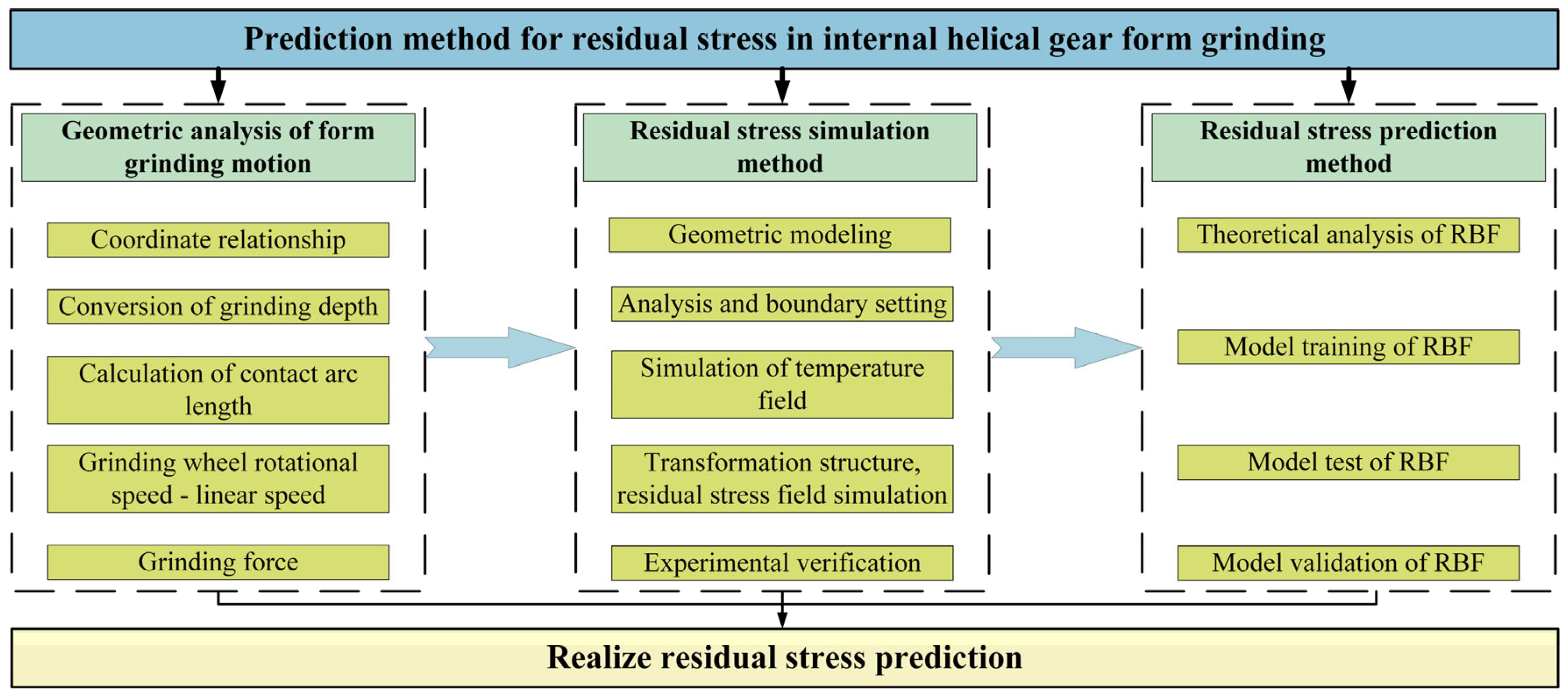

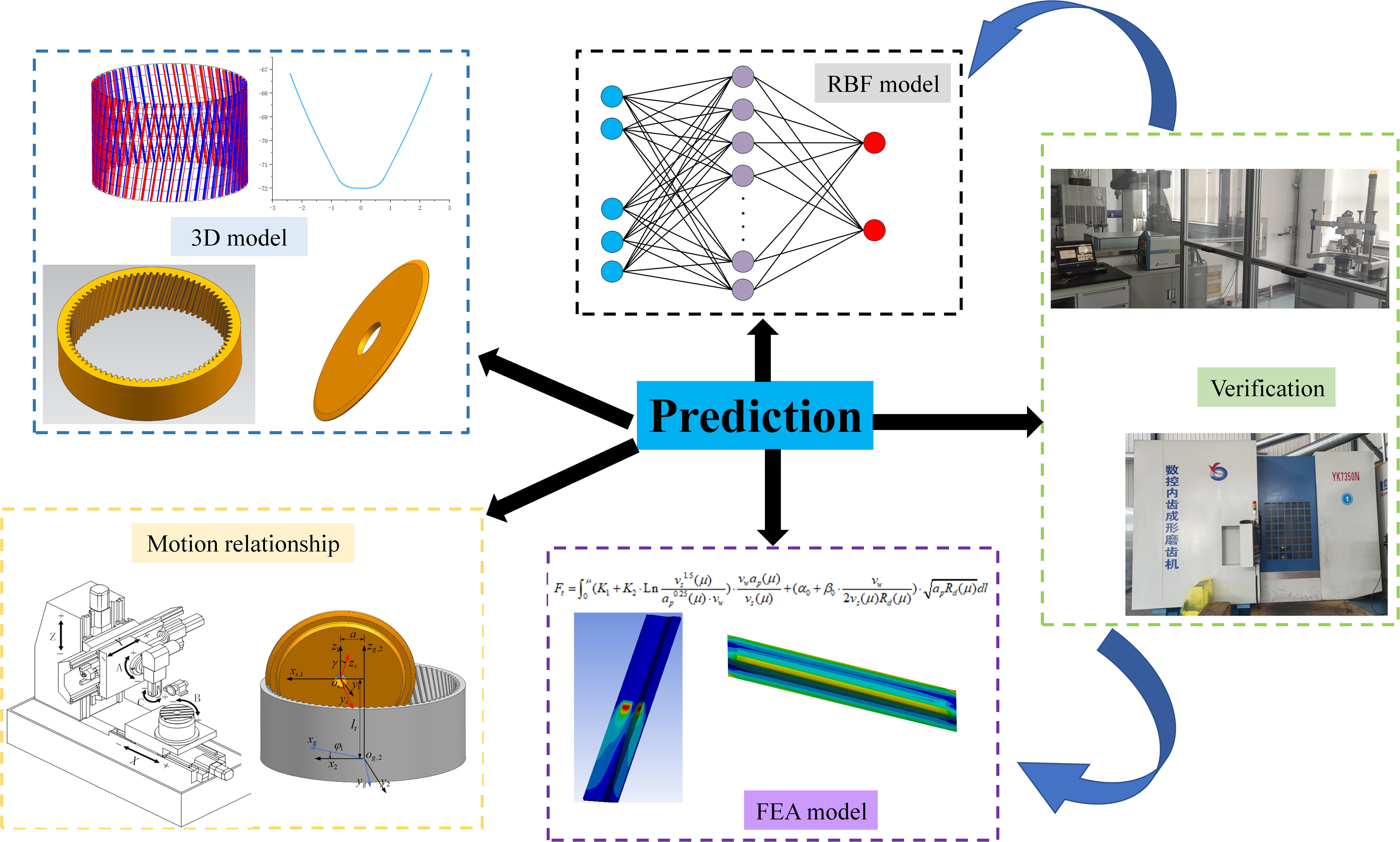

In this study, the geometric motion relationship of profile grinding and the simulation method of residual stress are discussed above, and they are verified by the actual profile grinding of internal helical gears and the measurement of residual stress. Next, the RBF neural network will be introduced to train and test the prediction model based on the data collected by simulation, and finally realize the effective prediction of residual stress caused by internal helical gear profile grinding. The framework of its specific content is shown in Figure 16.

4.1. RBF Neural Network Theory

According to previous studies, RBF shows inherent advantages over other models in specific aspects. Compared with the BP neural network, RBF adopts a local approximation strategy, which has faster training speed and does not easily fall into local minima. Compared with SVM, its decoupled two-step training method is more efficient in processing moderate-scale data, and the model structure is more intuitive. Compared with GPR, with computational complexity of O(N³), RBF only requires O(M) computation in forward prediction and is scalable. Therefore, RBF is selected as the prediction method of this study.

RBF neural network, which utilizes the local response characteristics of radial basis functions, is an effective tool for nonlinear modeling. It consists of three layers of forward network, including the input layer (the first layer), hidden layer (the second layer), and output layer (the third layer). Information flows in one direction from the input layer to the output layer through the hidden layer, without a loop or feedback connection. The number of nodes in the first layer and the third layer is the same as the input and output dimensions. Too few nodes in the second layer will lead to insufficient approximation ability, and too many nodes will lead to overfitting and increased calculation cost. Therefore, it needs to be determined according to the actual situation. Figure 17 shows an O-P-Q (O input nodes, P hidden layer nodes, Q output nodes) RBF neural network topology diagram.

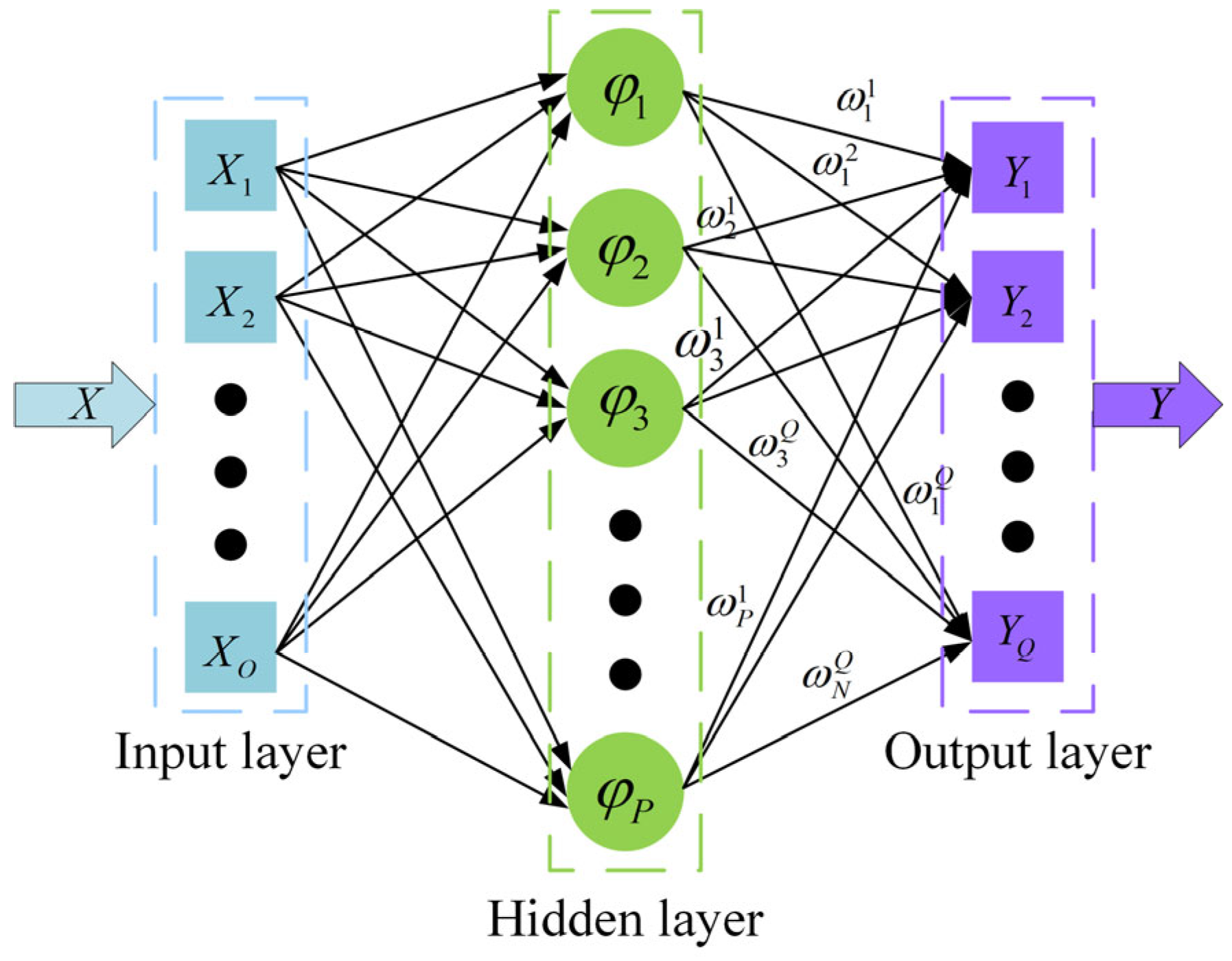

The X in the above figure indicates the input layer, and X = [X₁, X₂, …, X_O], which mainly serves to transmit the input samples to the hidden layer through mapping, so the output of the neurons in the input layer is as follows:

$$X(t)={\left[X_1(t),X_2(t),\cdots ,X_O(t)\right]}^T$$

(12)

The distance between the input and the center vector is regarded as the independent variable of the radial basis function in the hidden layer. When the center of each neuron in the hidden layer is determined, the input vector can be mapped directly to fit the function relationship between input and output. Thus, the output of the jth hidden layer neuron corresponding to the input layer is as follows:

$${\phi }_j(t)=\exp \left({\displaystyle \frac{-\Vert x(t)-c_j(t){\Vert }^2}{2{\mathit{\sigma }}_j^2(t)}}\right)$$

(13)

where $c_j(t)={[c_1(t),c_2(t),\cdots ,c_P(t)]}^{\mathrm{T}}$ is the center vector of the basis function, the selection method adopts the method of supervised selection center with better network promotion ability to train the neural network; ${\mathit{\sigma }}_j(t)$ is the width of the jth hidden layer neuron, which can be expressed as $d_{\max }/\sqrt{2P}$, d_max is the maximum distance between the selected centers.

From the hidden layer to the output layer, we need to fit each output result of the hidden layer linearly with the connection weight ${\omega }_j^k$, thus producing the network output. Its expression is as follows:

$$Y_k(t)={\displaystyle \sum _{j=1}^P{\omega }_j^k{\phi }_j(t)(j=1,2,\bullet \bullet \bullet ,P;k=1,2,\bullet \bullet \bullet ,Q)}$$

(14)

4.2. Prediction Model

For the process of internal helical gear profile grinding, the grinding depth, grinding feed speed, and grinding wheel linear speed are designed as variables. The simulation method is adopted to obtain data samples for training and prediction of neural network. The specific flow is shown in Figure 18.

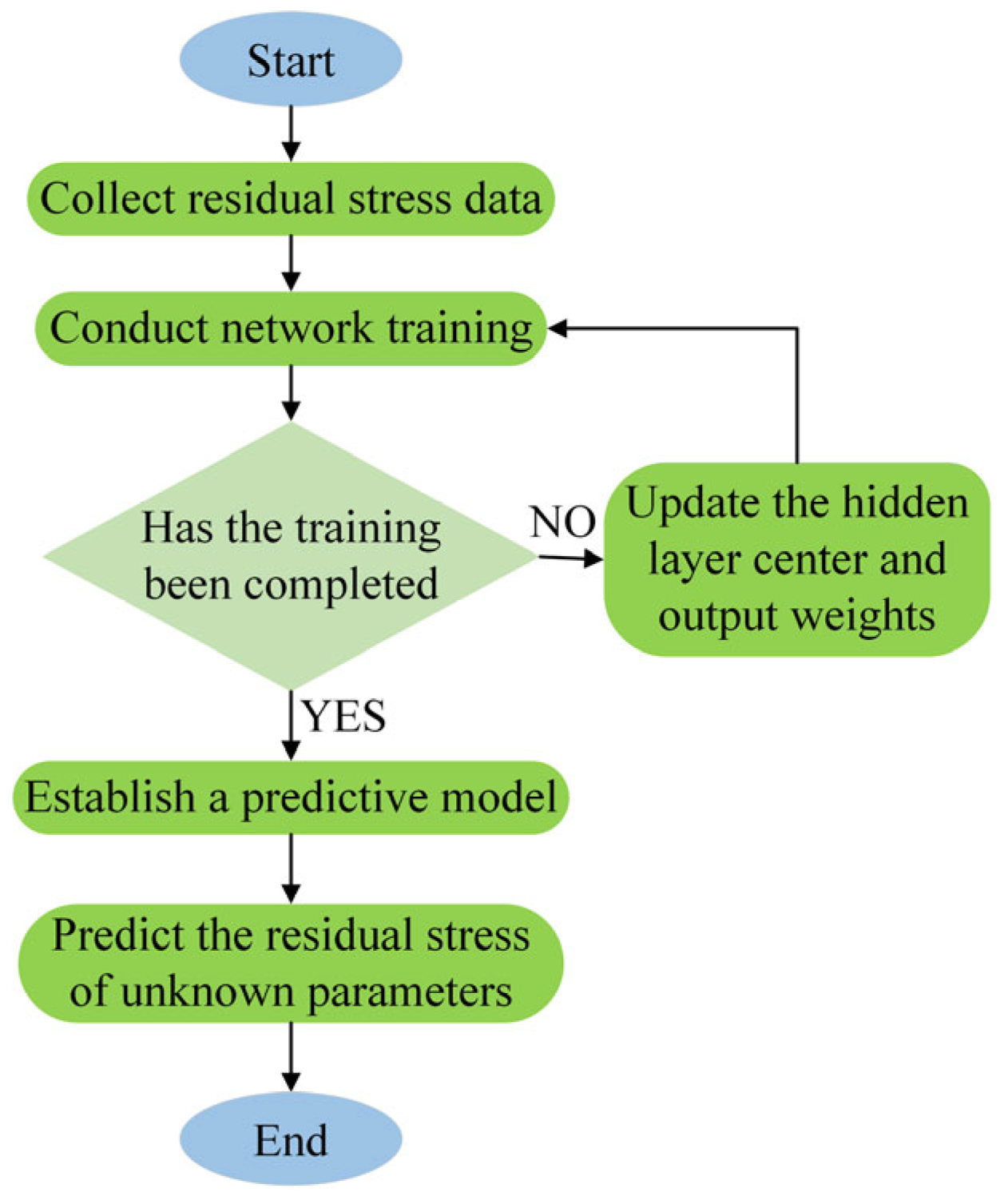

In this research, the residual stress prediction model based on an RBF neural network consists of three input nodes (grinding depth, grinding feed speed, grinding wheel linear velocity) and only one output node, namely the maximum residual stress to be predicted. The parameters of the neural network are shown in

Table 6. RBF network parameter settings.

Number of input neurons	3
Number of hidden layer nodes	30
Number of output neurons	1
Fitting error	0.001
Expansion coefficient	0.22

.

Conventional experimental methods are costly for obtaining data samples. This study adopts the previously established simulation model for residual stress in internal helical gear profile grinding. A data sample set of residual stress simulation results, shown in

Table 7. Data set of residual stress simulation results.

Sample Number	ap (mm)	vw (m/s)	vs (m/s)	Residual Stress (MPa)
1	0.01	0.0667	38.5098	222.1316
2	0.01	0.0749	42.3608	233.6248
3	0.01	0.0833	46.2118	244.6943
4	0.01	0.0915	50.0628	254.8018
5	0.01	0.1	53.9138	264.8047
6	0.01	0.1082	57.7648	273.8918
7	0.01	0.117	61.6158	283.3601
8	0.01	0.1252	65.4668	291.6476
9	0.01	0.133	69.3177	299.1267
10	0.015	0.0667	42.3608	233.1874
……	……	……	……	……
71	0.045	0.1252	57.7648	371.6884
72	0.045	0.133	61.6158	380.8538
73	0.05	0.0667	69.3177	262.1192
74	0.05	0.0749	38.5098	301.3237
75	0.05	0.0833	42.3608	315.2601
76	0.05	0.0915	46.2118	327.9848
77	0.05	0.1	50.0628	340.5973
78	0.05	0.1082	53.9138	352.0508
79	0.05	0.117	57.7648	364.0098
80	0.05	0.1252	61.6158	374.4653
81	0.05	0.133	65.4668	383.8947

, is obtained. Due to limited space, it is impossible to list them one by one, so some data are displayed.

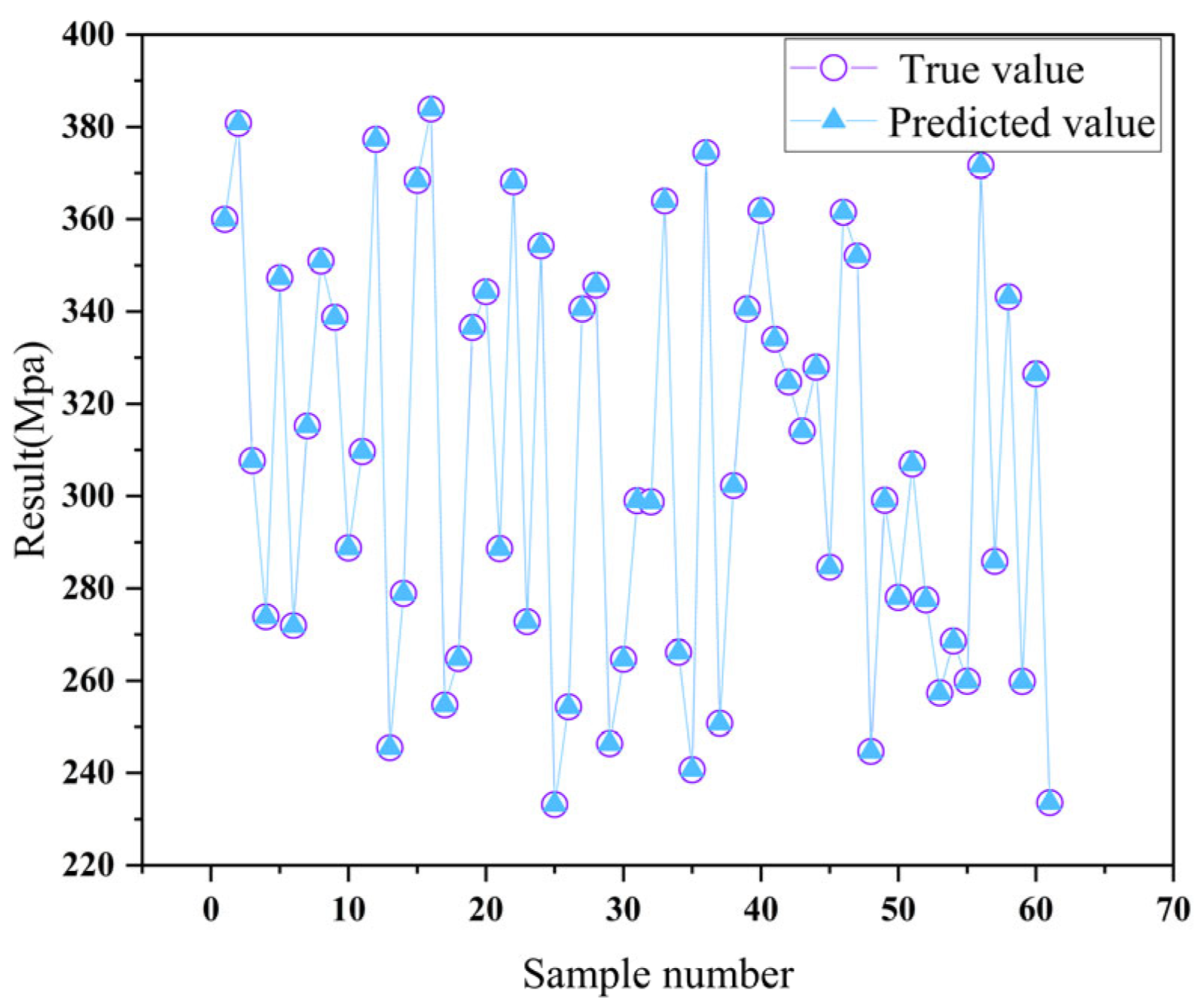

The first 61 sets of data are trained on the network, and the results are shown in Figure 19. The remaining data are predicted, and the results are shown in Figure 20. It can be seen from the figure that the fitting results of the RBF neural network to the sample data are very close to the experimental results, almost completely consistent. This fully proves that the RBF model on the sample point approximation effect reached the best state.

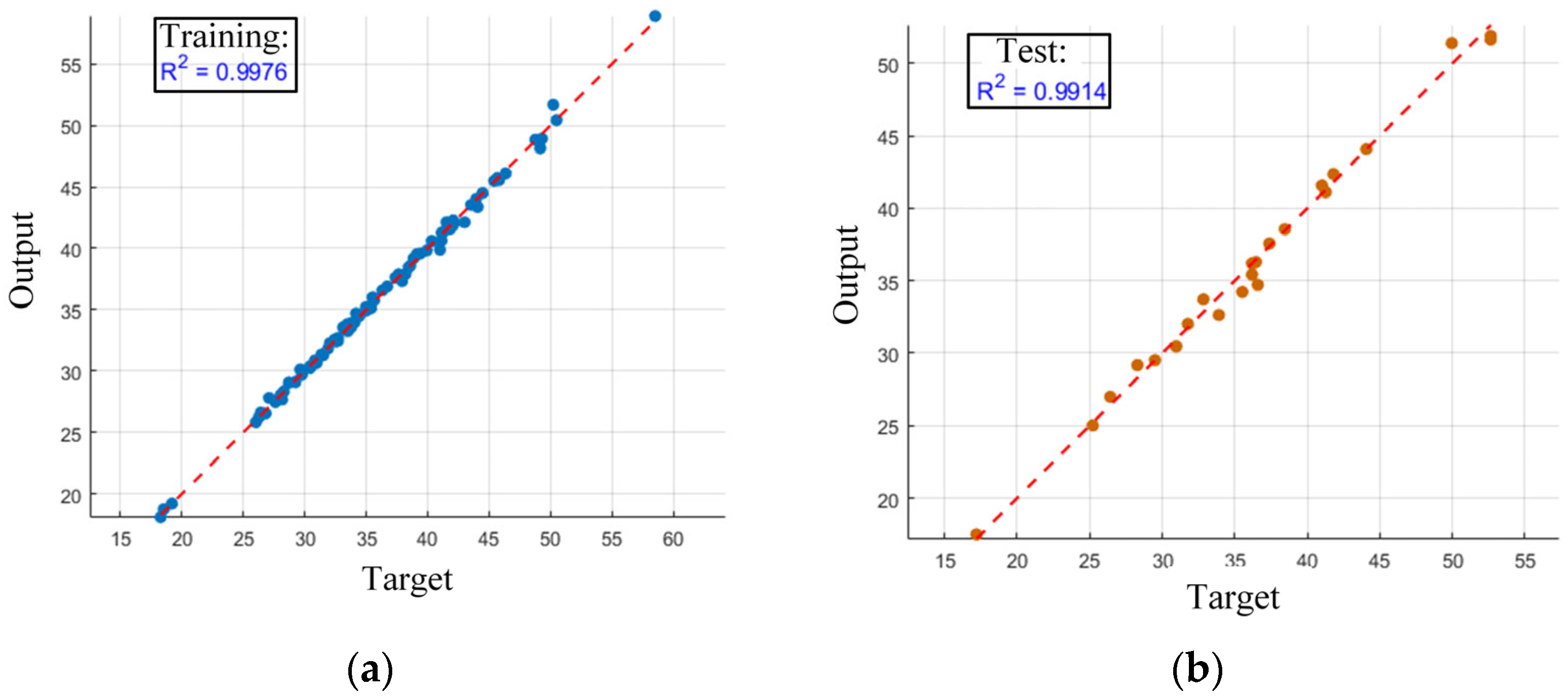

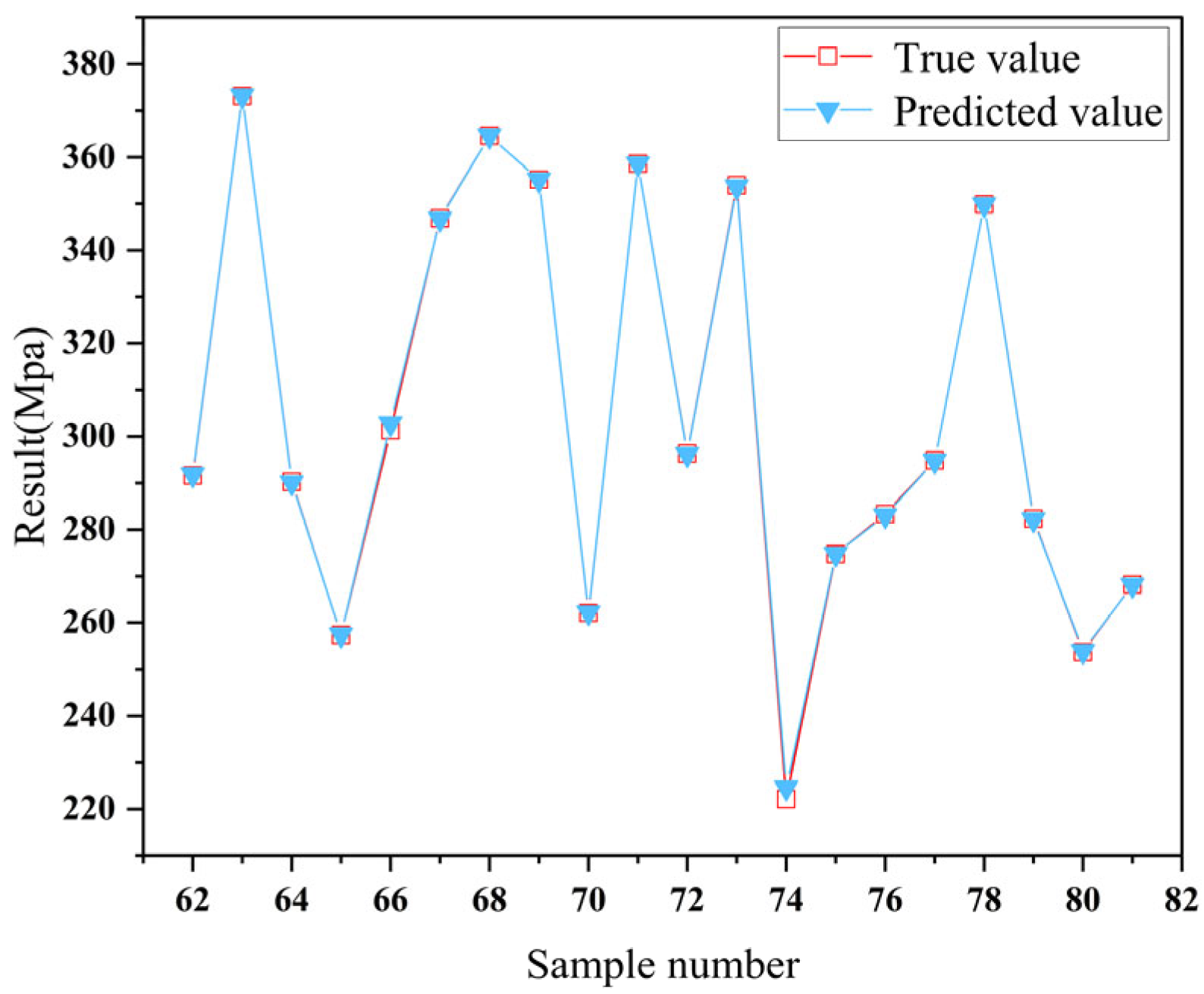

To assess the predictive accuracy of the RBF neural network model for residual stress prediction in profile grinding, the determination coefficient R² and root mean square error (RMSE) are employed as evaluation metrics. The determination coefficient, R², serves as a metric indicating the degree of covariance relationship between the independent and dependent variables in the regression model. A value closer to 1 signifies a more precise explanation of the covariance relationship by the prediction model, indicating superior fitting. On the other hand, RMSE serves as a measure of prediction accuracy, emphasizing larger errors through the square root calculation, effectively reflecting model performance across various datasets. A smaller RMSE value indicates higher prediction accuracy. In the training set, RMSE1 is 4.1115 × 10⁻¹², while in the test set, RMSE2 is 0.68408. Notably, the R² values for the training and test sets are 0.997 and 0.991, respectively, as depicted in Figure 21, underscoring the high predictive accuracy of the model on the training dataset.

4.3. Model Validation

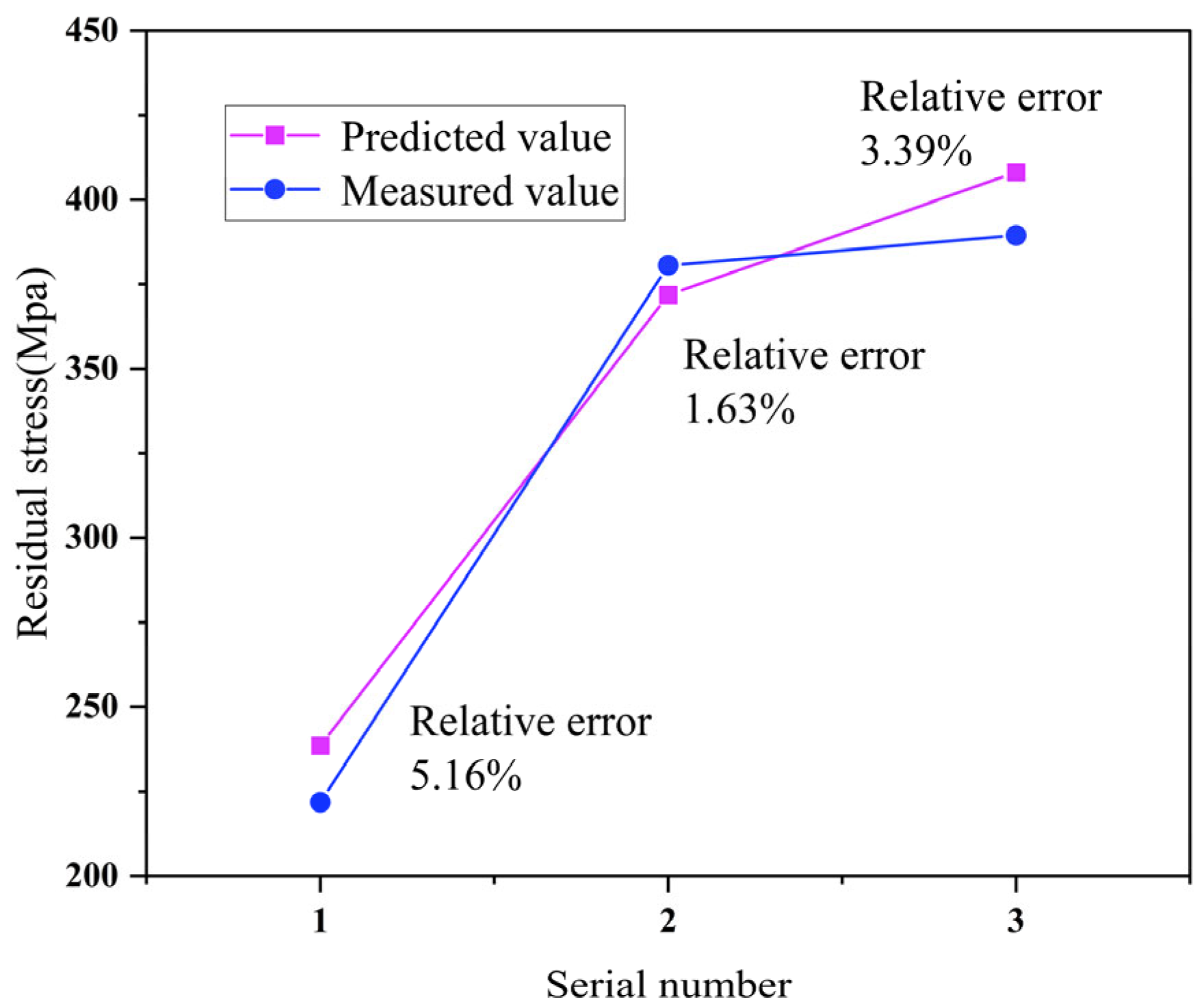

To assess the effectiveness of the developed neural network, the three sets of grinding process parameters in

Table 8. Predictions and measurements.

Serial Number	ap (mm)	vw (m/s)	vs (m/s)
1	0.005	0.0585	34.6588
2	0.055	0.1413	73.1687
3	0.06	0.1494	77.0197

are brought into the above-established prediction model, and these three sets of data are further used for grinding and measurement. The residual stress obtained by the prediction model is compared with the residual stress obtained by the actual machining measurement, and the resulting residual stress values are depicted in Figure 22. The relative errors between the predicted and actual results for the three distinct sets of grinding process parameters were found to be 5.16%, 1.63%, and 3.39%, respectively. These findings serve as direct evidence of the high accuracy of the RBF neural network-based prediction model.

5. Conclusions

This paper investigates the prediction of residual stress in internal helical gear profile grinding using an RBF neural network. The key findings are as follows:

• A simulation model is developed to analyze the temperature field during internal helical gear profile grinding. This model incorporates a triangular moving heat source and a heat distribution ratio model to examine the evolution of grinding temperature over time, and the grinding temperature shows a surge–stationary–rise again–decline rapidly.
• The grinding temperature data obtained from the simulation model were utilized as input for the internal helical gear under load conditions. Subsequently, the model is adjusted to simulate the cooling process from the grinding temperature to room temperature, thereby deriving the residual stress outcomes. By comparing the experimental value with the simulation value, the error is within 12.8%.
• Employing an RBF neural network, parameters such as grinding depth, grinding feed speed, and grinding wheel linear velocity are optimized to forecast the residual stress in internal helical gear profile grinding. By predicting three unknown grinding parameters, the workpiece is subjected to the same parameters and assessed using an XTRESS300 stress analyzer. The maximum deviation between the actual results and the predicted values was 5.16%.
