Beauvais Cathedral: The Ambition, Collapse and Legacy of Gothic Engineering

Abstract

The Cathedral of Beauvais remains one of the most enigmatic and ambitious architectural undertakings of the Gothic era. Conceived to surpass all other cathedrals in height and grandeur, it achieved unprecedented verticality but collapsed under the weight of its own aspirations. This article reexamines Beauvais as a case study in Gothic engineering—its structural daring, tragic failures, and enduring legacy—through a multidisciplinary approach combining historical research, technical analysis, and philosophical interpretation. Structured in accordance with standard academic conventions, the article outlines its methodology, presents a detailed reconstruction of the cathedral’s history, and discusses its broader cultural and conservation implications. A dedicated discussion section explores not only the engineering and symbolic significance of Beauvais but also the limitations of the present study and potential avenues for future research. Ultimately, the cathedral is framed not merely as a failed monument, but as a lasting testament to the human drive to build beyond known limits.

1. Introduction

There are monuments that survive because they were completed, celebrated, and preserved. Then there are others—rarer, more haunting—that persist because they failed. The Cathedral of Beauvais belongs to the latter. The Cathedral of Saint Peter of Beauvais, or La Cathédrale Saint-Pierre de Beauvais (Figure 1), stands not merely as a place of worship, but as a monument to the boundless ambition of the Gothic spirit—a spirit that dared to defy gravity in the name of divine aspiration. Nestled in the northern French city of Beauvais, this unfinished masterpiece of High Gothic architecture tells a story of human brilliance and hubris, of visionary aspiration confronted by the stark realities of physics and material limits. Though it remains incomplete (Figure 2) and though parts of it have collapsed multiple times throughout its turbulent history, Beauvais Cathedral is perhaps one of the most fascinating and telling architectural projects ever attempted in medieval Europe.

Rising from the northern plains of France, its chancel and choir defy expectation. There is no nave, no completed transept—only a fragment of a vision that once aimed to be the tallest, most awe-inspiring cathedral in Christendom. For over seven centuries, Beauvais has stood not as a triumphant monument to Gothic achievement but as an echo of ambition that exceeded the grasp of its time.

To understand Beauvais Cathedral is to delve into the medieval mind—its worldview, its cosmology, and its deep belief in the vertical as a metaphor for divine proximity. The Gothic style, which emerged in the 12th century and evolved throughout the 13th and 14th centuries, sought to replace the heavy horizontality of Romanesque architecture with soaring structures that appeared to defy earthly constraints. Light, space, and verticality became theological statements. Architects, engineers, and bishops collaborated to transform stone and glass into vessels of transcendence. Every cathedral was not only a religious site but a civic project, a manifestation of communal identity and divine favour.

The story of Beauvais, however, pushes this ideal to its most extreme edge. Conceived in 1225, during the height of the Gothic architectural revolution, the builders of Beauvais set out to construct the tallest cathedral in Christendom. Their ambition was not modest. The completed choir rose to an unprecedented height of 48 m (157 feet), surpassing every other Gothic structure of the time. And yet, from the beginning, the project was plagued by structural failures. The choir collapsed in 1284, less than 60 years after its construction. Later, the central tower—part of an ambitious plan to complete the structure—fell in 1573. Even today, engineers regard the standing parts of the cathedral as barely stable, sustained only through centuries of reinforcement and intervention.

Why, then, build such a cathedral in the first place? Why risk so much for a structure so precarious? These questions are central not only to understanding Beauvais but to appreciating the essence of Gothic architecture itself. The Gothic cathedral was a statement—not only of faith, but of technological mastery, of political power, and of cultural prestige. In the competition among medieval cities and bishops, height equalled glory. To be seen reaching toward heaven, literally and symbolically, was to occupy a place of preeminence in the Christian world.

The legacy of Beauvais Cathedral is paradoxical. On the one hand, it is a cautionary tale—a warning about the consequences of overreaching and ignoring material limits. On the other, it is a monument to imagination and daring. Its ambition forced advances in engineering and spurred reflection on the relationship between vision and feasibility. It inspired awe in its own time, and it continues to intrigue architects, historians, and visitors today. Indeed, though incomplete, Beauvais is often considered the pinnacle—or perhaps the final word—of the Gothic architectural project [1].

While the choir reached unprecedented heights of 48 m, structural failures—most notably the collapse of the choir in 1284 and the central tower in 1573—plagued its history. Despite its incompletion, Beauvais has continued to fascinate historians, architects, and engineers alike.

Scholarly attention to Beauvais is extensive. Foundational studies by Viollet-le-Duc [2], Branner [3], and Murray [4] have explored its planning and failures in depth, while more recent structural analyses by Heyman [5], Wolfe and Mark [6], and Como [7] have underscored its engineering significance. These works frame Beauvais as both an apex of Gothic aspiration and a crucial case in the history of architectural failure.

This article offers a comprehensive reassessment of Beauvais Cathedral, tracing its origins in the High Gothic period, its structural innovations and dramatic failures, and its enduring impact on architectural thinking. It examines how Beauvais embodies both the technological ambition and spiritual aspirations of its time—revealing, through its collapse, the limits of medieval engineering and the cost of reaching too far.

By adopting a multidisciplinary lens that combines historical narrative, structural analysis, and philosophical reflection, the study considers not only a singular monument but the broader tension at the heart of Gothic architecture: the desire to reach heaven through stone, and the consequences when vision exceeds material reality.

Structured into sections on methodology, results, discussion, and conclusions, the article highlights Beauvais not merely as a failed project, but as a lasting source of insight for engineers, historians, and architects—a cautionary tale and a monument to human striving that continues to mirror our modern ambitions and limitations.

2. Materials and Methods

This study adopts a multidisciplinary qualitative approach grounded in historical architectural analysis. Primary and secondary sources were consulted, including archival records, structural reconstructions, and historiographical commentary. Key references include architectural drawings by Viollet-le-Duc, empirical models by Wolfe and Mark, and theoretical frameworks by Heyman and Como.

In addition to archival and bibliographic research, original fieldwork was conducted by the author at Beauvais Cathedral. Photographic documentation and direct laser measurements were taken to verify the dimensional accuracy of historical and technical data reported by previous scholars. While thermographic imaging was also performed as part of a broader survey effort, it was ultimately excluded from the present analysis due to its limited relevance to the research questions addressed here. Nevertheless, this empirical component contributed to validating key structural observations discussed in the results.

The historical narrative was built through close reading of cathedral chronicles, comparative Gothic studies, and construction records. The technical perspective includes structural interpretations drawn from plastic theory, failure mechanics, and recent digital simulations. Philosophically, the article reflects on Beauvais as a symbol of ambition and collapse, drawing conceptual insights from architectural theory and heritage ethics.

3. Results: The Rise, Collapse, and Reinvention of Beauvais Cathedral

3.1. The Ambition: Building Higher than Heaven

In the early 13th century, northern France was the beating heart of Gothic architecture. The region witnessed an extraordinary flowering of ecclesiastical building, as cathedrals in Chartres, Amiens, Reims, and Bourges soared into the skies [8]. These structures were more than just places of worship—they were civic symbols, physical manifestations of a city’s prestige and the Church’s power, a marriage of spiritual longing and architectural daring. In this context, the city of Beauvais, a modest episcopal centre, sought its own architectural monument—one that would not only rival but surpass all others. Thus was born the dream of a cathedral that would reach higher than any before it: the Cathedral of Saint Peter of Beauvais [1].

Beauvais was not a major economic or political centre like Paris or Reims. However, it was the seat of a powerful bishop, and in the highly competitive ecclesiastical climate of the time, bishops often functioned as princely figures in their own right [8]. Bishop Milo of Nanteuil [9], who spearheaded the cathedral project in the 1220s, had previously participated in the Fourth Crusade and was deeply embedded in the networks of power and influence that defined the upper echelons of the medieval Church [10]. He envisioned a cathedral that would be a declaration of faith and power—a statement that Beauvais, though small, would host the most audacious sacred architecture of the Christian world [11].

The ambition was unmistakable. Whereas the nave of Notre-Dame de Paris reached a height of 35 m, and the choir of Amiens Cathedral climbed to 42 m, the choir of Beauvais Cathedral was planned to reach a stunning 48 m in height—nearly 160 feet [12] (Figure 3).

Table 1. Comparative dimensions of major Gothic cathedrals (table by author).

Cathedral	Vault Height (m)	Nave Width (m)	Total Width (with Aisles, m)	Approx. Construction Date
Notre-Dame de Paris (FR)	33.0	13.0	24.8	1163–1250
Chartres Cathedral (FR)	36.0	16.4	30.0	1194–1250
Reims Cathedral (FR)	38.0	14.65	30.0	1211–1275
Amiens Cathedral (FR)	42.3	14.6	32.0	1220–1288
Cologne Cathedral (DE)	43.0	14.0	45.0	1248–1880
Palma Cathedral (ES)	44.0	19.0	55.0	1229–1601
Milan Cathedral (IT)	45.0	16.5	57.0	1386–1965

presents interior vault heights, nave widths, and total widths including side aisles [13]. Beauvais Cathedral’s choir, though incomplete, surpasses all others in vertical height [14], while Milan and Palma de Mallorca [15] display exceptional overall span. Data reflect architectural averages based on historical and technical sources.

This was not a simple architectural decision; it was a theological and symbolic one. Height in Gothic architecture was equated with spiritual elevation [16]. The closer a structure came to the heavens, the more it was seen as an expression of divine aspiration [1]. For Bishop Milo and his successors, reaching unprecedented heights was not just a matter of aesthetics—it was a mission [17].

Behind this soaring vision was a powerful synthesis of engineering innovation and theological symbolism [8]. Gothic architecture had evolved in the preceding century through the development of the pointed arch, the ribbed vault, and, crucially, the flying buttress [18]. These elements allowed for buildings that were not only taller but also filled with stained glass—walls transformed into divine light. The so-called opus francigenum (the “French work”) had redefined the architectural landscape of Europe [19]. Beauvais sought to push this style to its limits [1].

Construction began in 1225 with the choir, which would be the first and most ambitious component of the new structure. From the outset, the builders employed the most advanced techniques available. Massive piers supported high vaults, while flying buttresses—taller and more angular than those used in earlier cathedrals—distributed lateral thrust away from the walls [20]. Despite these innovations, the ambition outstripped the available structural understanding. Beauvais was operating at the bleeding edge of medieval engineering, with little margin for error.

The political and spiritual motivations behind the project cannot be overstated. Gothic cathedrals were collaborative enterprises that drew on the resources and labour of entire communities [21]. In Beauvais, townspeople contributed funds, labour, and materials. Skilled artisans—stonemasons, glaziers, carpenters, and sculptors—worked under the direction of a master builder, whose role was as much artistic as it was managerial [1]. The effort was total, and the goal was clear: to make Beauvais the new standard-bearer for sacred architecture [11] (Figure 4).

This ambition was fed, in part, by rivalry. Nearby cathedrals such as Amiens, Reims, and Chartres had already earned renown. Their soaring vaults, intricate facades, and luminous interiors had drawn pilgrims, boosted local economies, and enhanced the reputations of their bishops. Beauvais, relatively obscure, sought to eclipse these monuments through sheer verticality. If it could not match their breadth or ornamentation, it would outdo them in height.

At the same time, Beauvais’ design was not simply an act of one-upmanship—it was deeply rooted in a theological vision. The medieval cosmos was hierarchical, with God enthroned above the celestial spheres. The vertical axis of the cathedral, from the crypt to the clerestory, mirrored this cosmic hierarchy. The faithful who entered its portals were meant to feel themselves drawn upward, lifted—both physically and spiritually—toward the divine. The builders of Beauvais were, quite literally, trying to bridge the gap between heaven and earth.

Yet such ambition came at a cost. The sheer height of the choir required structural supports to carry extraordinary loads, and the proportions of the building—tall and slender—left little tolerance for error. The cathedral was being built in a time before the development of modern materials, mathematical analysis, or detailed engineering plans. Much of Gothic construction was based on intuition, experience, and trial-and-error. And in the case of Beauvais, the margin for miscalculation proved dangerously thin.

Nonetheless, in the early years of construction, the vision seemed within reach. By the mid-13th century, the choir stood complete—an awe-inspiring space of unprecedented height, bathed in coloured light from vast stained-glass windows (Figure 5). Contemporary accounts describe the space as ethereal [3], even overwhelming in its majesty [1]. Visitors were struck by the sheer scale of the structure, the lightness of the vaults, and the impression of infinite upward movement. Beauvais had, for a brief moment, achieved what its builders had set out to do: to outstrip every other cathedral and to embody the ultimate expression of Gothic aspiration.

But this moment would not last. Even as the choir stood, cracks appeared. Tensions within the structure began to reveal themselves. Beneath the soaring ribs and flying buttresses lay a fatal flaw: the cathedral had reached too high, too fast, and without the empirical knowledge necessary to ensure its stability. The same ambition that had brought it into being would soon threaten to tear it apart.

Still, it is important not to view this early phase only through the lens of failure. The initial construction of the choir of Beauvais Cathedral remains one of the most remarkable achievements of Gothic engineering. It represents the culmination of a century of architectural experimentation and a cultural worldview in which the impossible was, quite literally, being built in stone. It was a project that combined faith, pride, and technical skill in equal measure—a project whose ambition continues to captivate and inspire, even as its legacy is marred by collapse.

The next chapter in Beauvais’ history would be marked by tragedy and setbacks. But its foundational ambition—to rise higher than any other cathedral—would never be forgotten. It remains etched into every rib and buttress, a bold testament to the human desire to reach beyond known limits and to touch the divine.

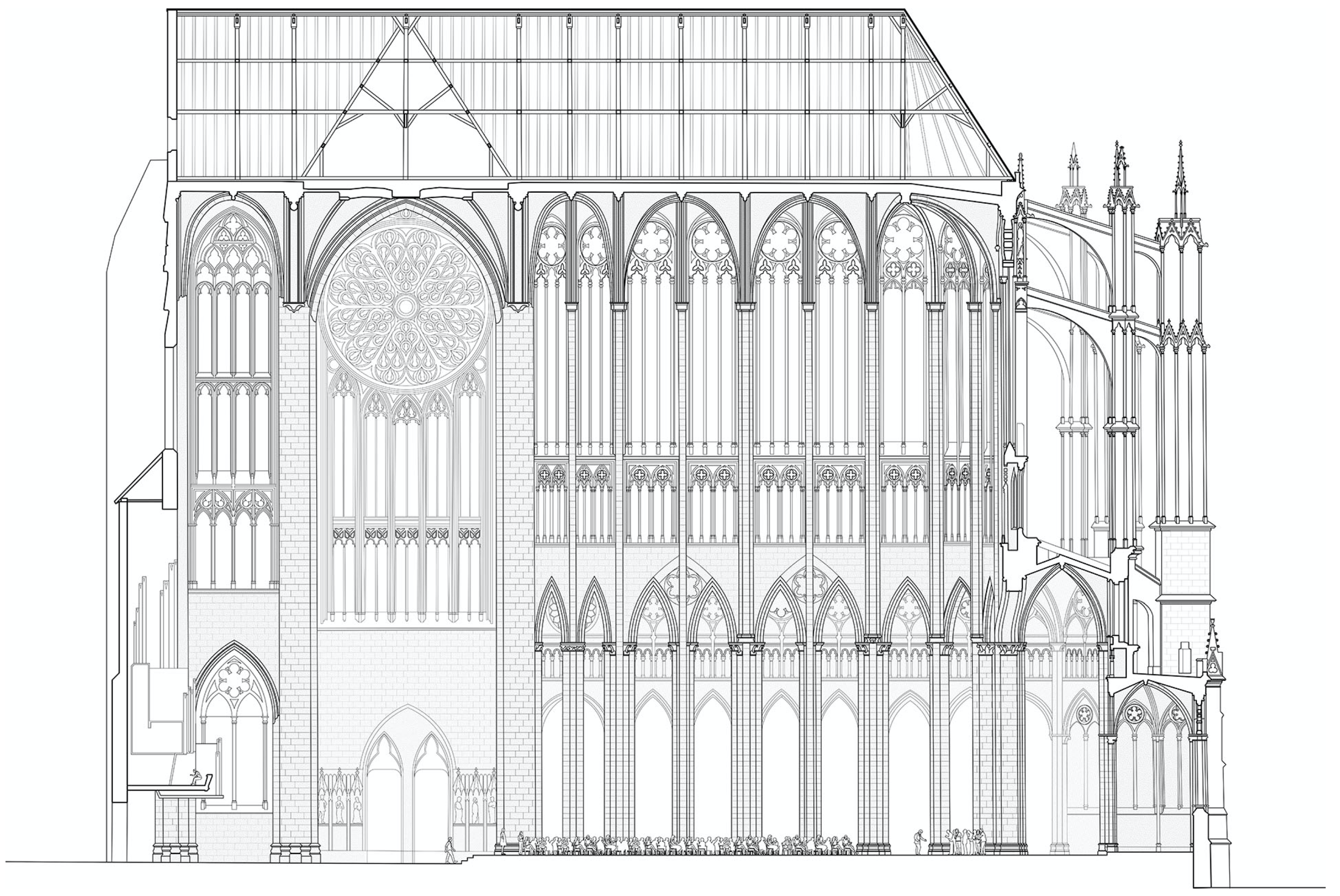

Figure 5. Current longitudinal section of Beauvais Cathedral (graphic by Chœur d’Hommes de La Villette [22]).

Figure 5. Current longitudinal section of Beauvais Cathedral (graphic by Chœur d’Hommes de La Villette [22]).

3.2. The Collapse: When Height Meets Limits

The Cathedral of Beauvais, from its earliest moments, stood on a precipice—not only figuratively, as a symbol of spiritual elevation, but literally, as a structure whose reach tested the physical limits of its time. The collapse of its choir in 1284, less than six decades after its completion, was not merely an architectural failure. It was the unravelling of a dream—a reckoning between aspiration and gravity, vision and material constraint.

The collapse of the choir vaults of Beauvais Cathedral on November 29, 1284, stands as one of the most enigmatic and debated structural failures in the history of Gothic architecture. Beyond halting liturgical use for decades, it left an indelible mark on the evolution of medieval engineering. Understanding this event demands a multidisciplinary approach—one that integrates structural analysis, historical documentation, construction archaeology, and critical reflection on the technological limitations of the thirteenth century (Figure 6).

Indeed, the collapse did not occur without warning. Cracks—both literal and metaphorical—had emerged over the years. Despite the ingenuity of its flying buttresses, the use of pointed arches, and ribbed vaulting, Beauvais was operating at the structural limits of what was viable in the Gothic age [4]. The very innovations that had enabled the rise of Gothic architecture were, at Beauvais, pushed to their extremes (Figure 7). The cathedral thus became an enduring cautionary tale about the perils of architectural overreach.

3.2.1. The 1284 Collapse: Anatomy of Failure

In 1284, the cathedral’s eastern choir—one of the tallest structures of its kind—partially collapsed. The vaults came crashing down, pulling with them part of the upper walls and causing a section of the flying buttresses to fail. What had once been seen as a triumph of Gothic engineering was now a ruin. The psychological impact of this collapse on the city and its clergy must have been profound. It was not just a loss of stone and glass, but a blow to the spiritual and civic pride of Beauvais.

A broad consensus has yet to emerge among architectural historians and structural engineers regarding the cause of the collapse, despite numerous competing hypotheses [23]:

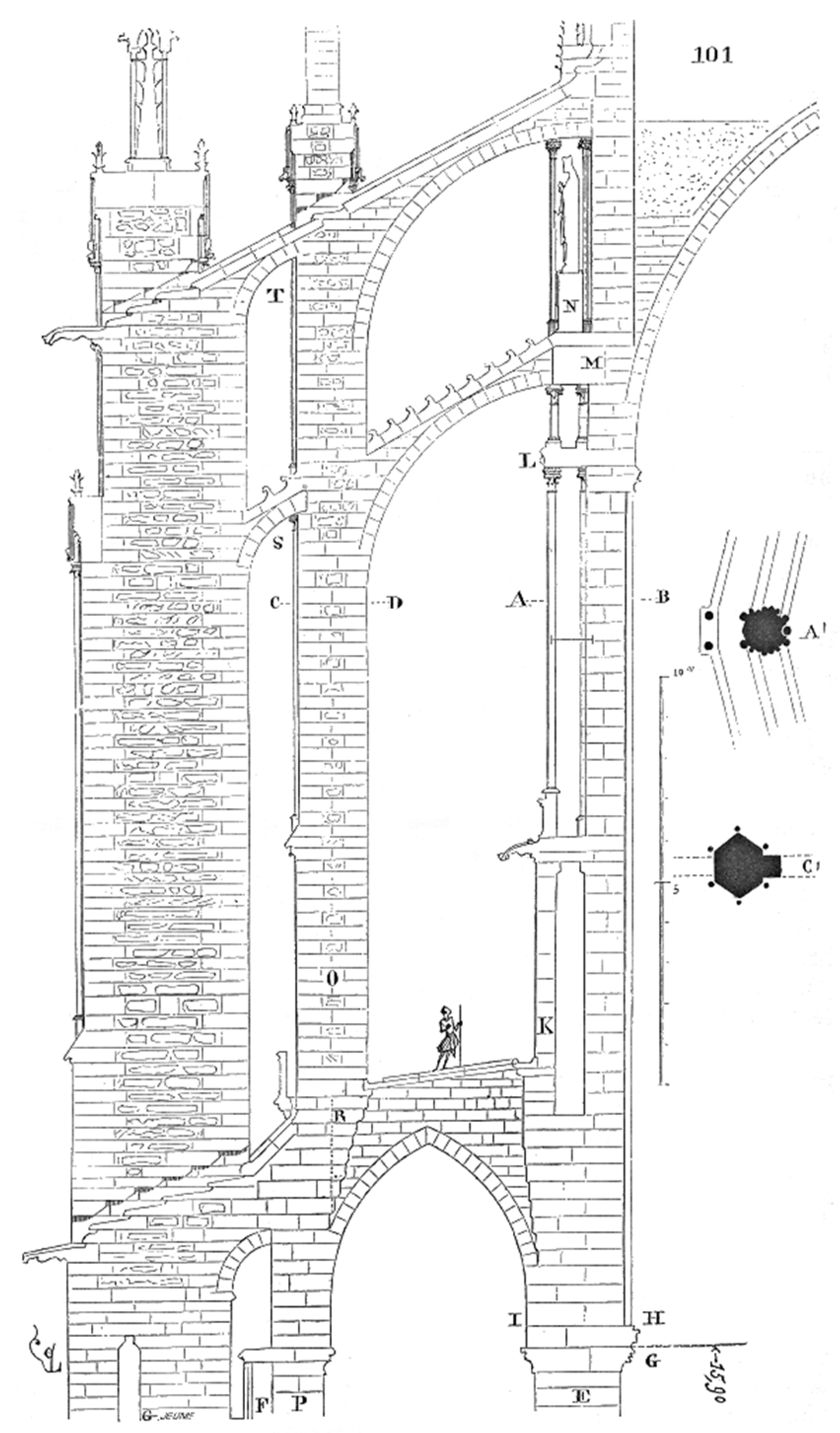

• Eugène-Emmanuel Viollet-le-Duc (1854) attributed the collapse of the choir at Beauvais Cathedral to a localised failure in the system of colonnettes supporting the statues between the upper and lower flying (Figure 8 and Figure 9) [2]. According to his analysis, these slender vertical elements played a critical role in transferring loads from the upper sections of the structure into the main piers. The rupture of these colonnettes—whether due to material weakness, poor execution, or cumulative settlement—would have destabilised the equilibrium of the vaults and arches [24] (Figure 10).

Viollet-le-Duc emphasised that the cathedral’s original design sought unprecedented height and lightness, minimising structural mass. However, this ambition led to a system that lacked sufficient redundancy, making it vulnerable to localised failures. Although later structural analyses, such as those by Jacques Heyman [5], have nuanced Viollet-le-Duc’s conclusions, his insight remains foundational: that in Gothic architecture, small-scale design elements can have catastrophic effects when pushed beyond their mechanical limits [25].

• Louis Pihan (1885) argued that the excessive spans between piers were responsible for the structural failure [26]. He noted that the solution adopted after the collapse—doubling the number of piers—proved effective, as evidenced by the absence of further subsidence symptoms in that area over subsequent centuries (1284-135 in Figure 4 and Figure 11).

Three-quarters of a century later, Robert Branner (1962) revisited this hypothesis, suggesting that the collapse resulted from a combination of excessively wide spans and the extreme slenderness of the piers—columns that were extraordinarily thin in proportion to their height and the loads they were required to bear [3].

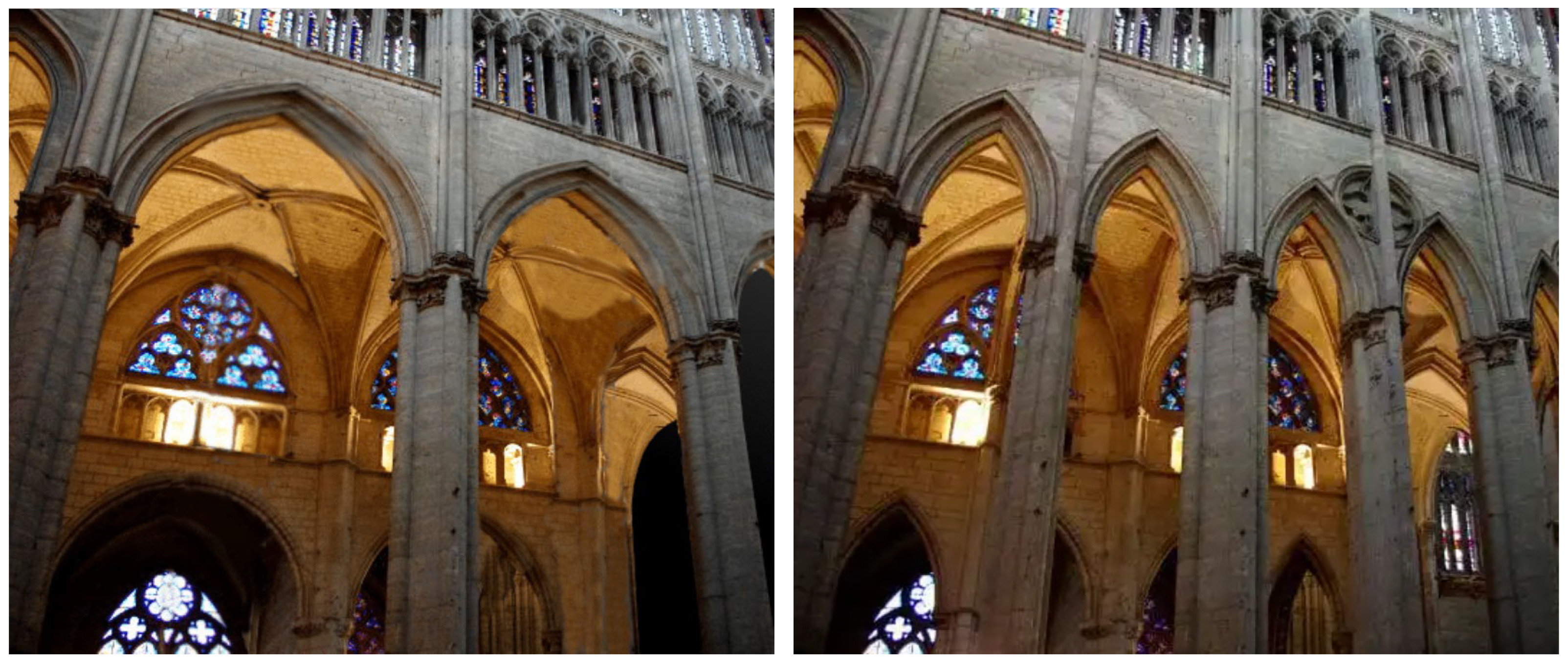

Figure 11. Comparison between the pre-collapse state (reconstruction, left) and the post-collapse state (right) of the Beauvais Cathedral choir after the 1284 collapse, highlighting the reinforcement achieved through the duplication of piers (diagrams by l’Association Beauvais Cathédrale [27]).

Figure 11. Comparison between the pre-collapse state (reconstruction, left) and the post-collapse state (right) of the Beauvais Cathedral choir after the 1284 collapse, highlighting the reinforcement achieved through the duplication of piers (diagrams by l’Association Beauvais Cathédrale [27]).

• Léon Benouville (1891) considered that the collapse resulted from poor execution during the final phases of construction and inadequately conceived modifications to the original design. For Benouville, this served to defend the soundness of the initial project, which, in his view, would have remained stable had it been properly implemented and preserved [28].
• Paul Frankl (1962) linked the collapse to the design and execution of inadequate foundations [29]. However, the absence of clear evidence for differential settlement has led to limited support for this hypothesis.
• Jacques Heyman (1967–1968) proposed that the primary cause was overstressing of the piers, rejecting the possibility of material failure on the grounds that stone has virtually infinite compressive strength. His static analysis, based on plastic theory, demonstrated that the structure was globally stable and had maintained equilibrium for twelve years—suggesting that the failure likely resulted from a localised and trivial trigger [5].
• Maury I. Wolfe and Robert Mark (1976) employed a photoelastic scale model to analyse internal stress patterns. They proposed that the failure originated in the central pier due to cracking induced by alternating wind loads [6]. Although their methodology is debated—particularly the application of elastic-plastic theory to masonry structures—they were the first to introduce wind as a decisive contributing factor.
• Stephen Murray (1989, 2011) offered a more complex interpretation, linking the collapse to construction inconsistencies exacerbated by financial crises [1]. In his detailed architectural analysis, he identified bays 7–8 of the choir as especially vulnerable, due to their exceptional span (over 15 m) and lack of adequate buttressing [10]. The collapse of this bay may have triggered a cascading structural failure [30].
• Jean-Louis Taupin (1993–96) emphasised the importance of iron as a stabilising element [31]—an idea that was controversial at the time but is now widely accepted as essential for the integrity of structures of such magnitude [32]. He argued that the collapse was more localised than previously believed [33] and that subsequent repairs were focused on two specific points.
• Mario Como (2009) formulated one of the most comprehensive and technically advanced theories, attributing the failure to creep-induced buckling of the masonry piers. According to his calculations, the combination of excessive slenderness, eccentric axial loading, and progressive mortar deformation would have led to lateral deflection of the piers and the development of vertical cracks [7]. This theory is particularly significant for introducing nonlinear and rheological parameters into the structural analysis of historical masonry [34].

Taken together, these theories offer a composite portrait of failure driven by excessive architectural ambition. Beauvais was a project of unprecedented audacity, built in non-uniform phases and subjected to severe environmental conditions—particularly the persistent winds typical of the northern French plains. In every respect, it constituted a critical threshold for Gothic engineering.

While some hypotheses—such as those advanced by Heyman [5] or Benouville [28]—maintain that the structure was fundamentally stable and failed only due to a localised incident, others—like that of Como—argue that the cathedral operated at the very edge of elastic instability. As the cited documentation aptly notes, even minor geometric deviations in a structure of such slender proportions can exponentially increase the risk of collapse.

The fact that the building stood for more than a decade after the vaults were completed suggests that the collapse was most likely triggered by a specific, isolated factor. Technically, it may also have resulted from a combination of interrelated causes:

• Excessive height-to-width ratio: The soaring verticality of the choir came at the expense of lateral stability. The bays were unusually tall and narrow, creating slender piers that bore enormous compressive loads [3]. This imbalance made the structure inherently unstable [7].
• Underdimensioned supports: The piers and columns that supported the vaults were elegant but insufficiently massive [35] to handle the vertical and lateral loads placed upon them [3]. Unlike more conservative designs (such as in Chartres [2]), Beauvais sacrificed mass for height, reducing the safety margin.
• Flying buttress configuration: While flying buttresses were a brilliant innovation, their effectiveness depended on careful calibration of angle, reach, and load distribution [35]. In Beauvais, the buttresses were among the tallest ever built, and their structural behaviour was not well understood [36]. They transmitted force away from the upper walls, but the supports they leaned on may have lacked sufficient foundation or counterthrust.
• Foundation instability: Subsurface conditions also played a role. The cathedral was built on a site with variable soil conditions [29]. Uneven settlement or shifting ground beneath one section of the choir could—and likely did—introduce stress concentrations that compromised the integrity of the whole.
• Material Limitations: The quality of stone used in Gothic cathedrals varied significantly [28]. Limestone, commonly used in the region, was durable but not uniform. Microcracks [6], weathering, or flaws in key structural elements may have exacerbated existing stresses.
• Lack of empirical engineering knowledge: Medieval builders worked with geometric intuition and traditional ratios rather than analytical structural calculations [2,37,38]. There were no finite element models or stress simulations [6]. When Beauvais exceeded existing precedent, it did so without the mathematical framework needed to predict what would happen at such unprecedented scales.

Be that as it may, the fact remains that since the collapse, the building has required constant reinforcement— through metal and wooden tie rods Figure 12 and Figure 13), auxiliary support structures, and periodic stabilisation interventions—underscoring its intrinsic structural fragility.

3.2.2. A Reconstruction Effort Marked by Caution

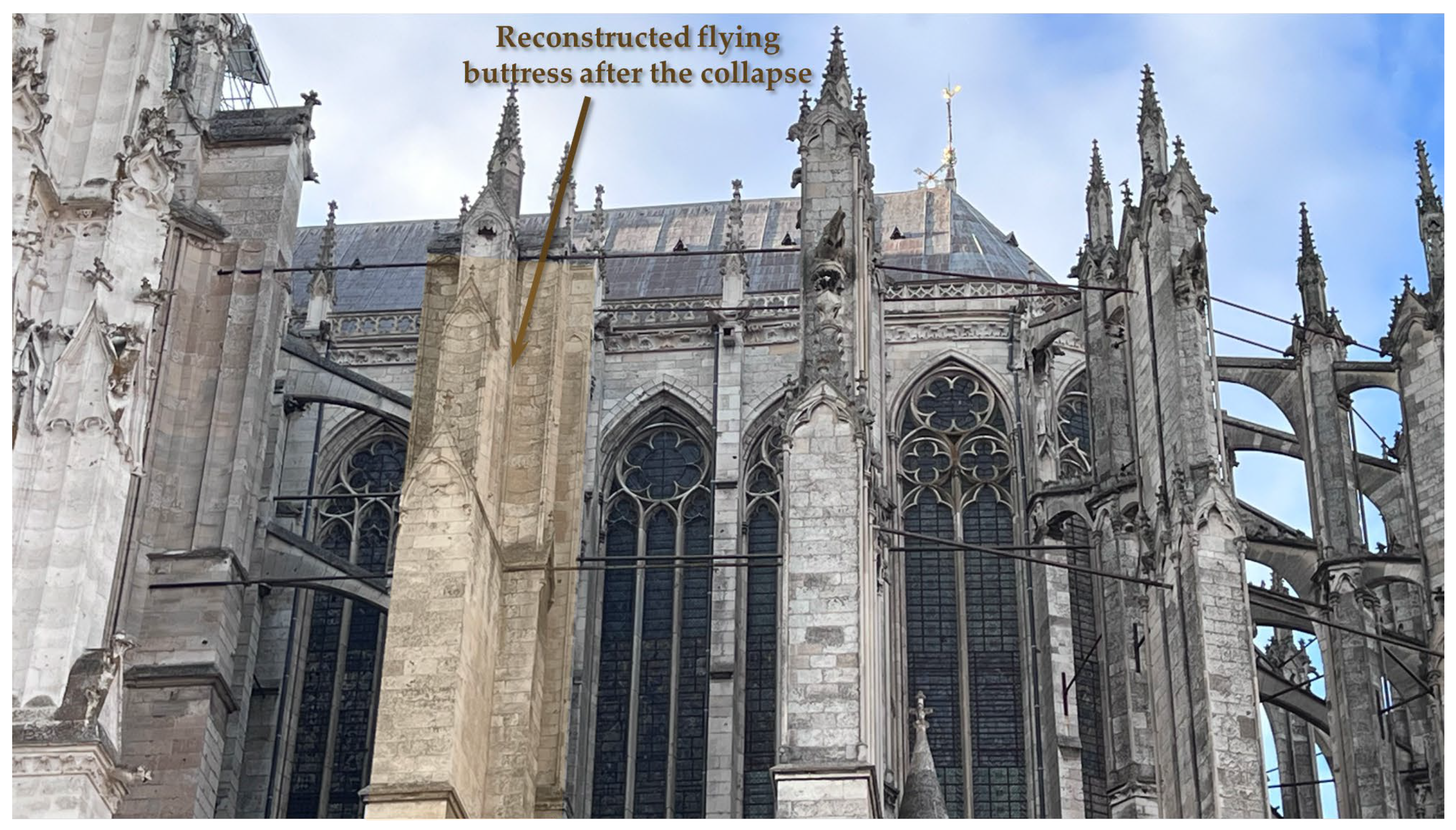

Despite the failure, the vision of Beauvais did not die. In the decades following the collapse, efforts were made to reconstruct the damaged choir and continue building toward the original design. But a note of caution had entered the project [39]. The rebuilt sections were reinforced, and some structural elements were overbuilt compared to their predecessors [40] (1284-135 in Figure 4, Figure 7 and Figure 11). The sense of risk was never fully banished [1], however, and the builders became increasingly aware that they were balancing on a knife’s edge [4].

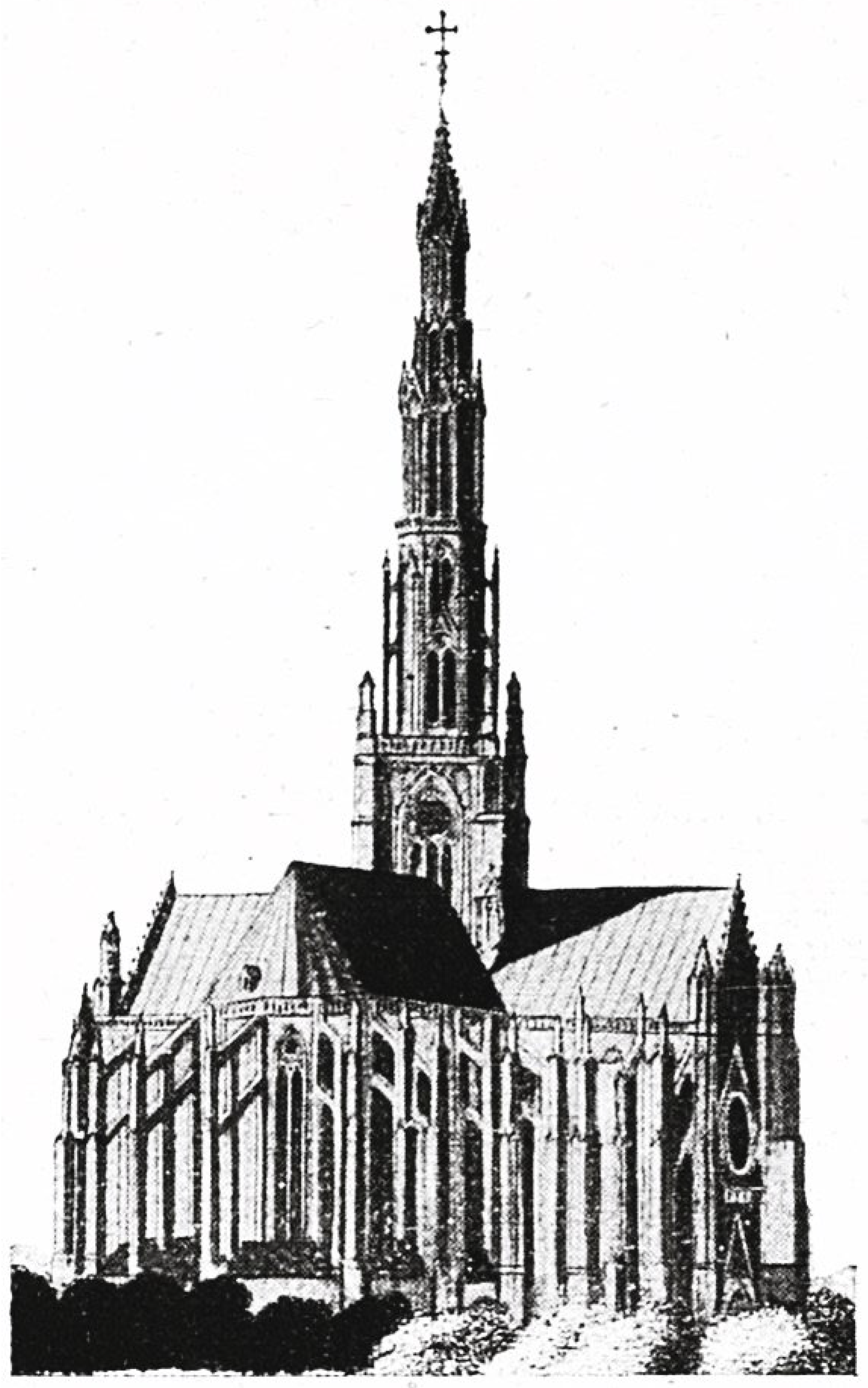

Nevertheless, in 1569—nearly three centuries after the cathedral’s inception—a new chapter of ambition began [13]. Plans were drawn for a central crossing tower, a magnificent lantern structure that would soar to over 150 m (nearly 500 feet), which would have made Beauvais the tallest human-made structure in the world (Figure 14).

Construction began, and for a few brief years, the spire rose above the town like a dream reborn [41].

But in 1573, that dream once again shattered.

3.2.3. The Fall of the Tower

On the morning of Ascension Day, 1573, the newly constructed central tower collapsed spectacularly [6], bringing down parts of the transept [5] and further damaging the fragile structure [40]. The reasons were, again, largely structural and predictable in hindsight [25]. The tower had been too tall, too heavy, and placed on a foundation already compromised [42] by centuries of stress and repair. It also introduced vertical loads at the crossing—a structurally vulnerable point where the nave, choir, and transepts intersect.

With this second catastrophic failure, the dream of a complete Beauvais Cathedral was definitively abandoned [1]. Plans to build the nave were scrapped. What remains today is a truncated marvel: the choir, the transept, and a solitary wall intended as the starting point of the nave—frozen in time.

3.2.4. Lessons in Load and Lightness

What makes Beauvais unique in the history of Gothic architecture is not just its collapse, but what it taught—and continues to teach—about structural design.

In architectural engineering, Beauvais became a case study in critical thresholds: the point beyond which structural systems cease to function as intended [42]. Where earlier cathedrals had gradually evolved from Romanesque models, cautiously extending their vertical reach, Beauvais represented a quantum leap—a prototype that was, in many ways, still experimental.

Subsequent Gothic builders learned from Beauvais [40]. Later cathedrals avoided its extremes, favouring more conservative ratios of height to width, thicker supports, and more complex flying buttress arrays [43]. In this sense, Beauvais functioned as a kind of negative innovation: a monument whose failure clarified the boundaries of possibility. Even centuries later, modern structural engineers who have studied Beauvais have remarked on how close it is to instability [44]. Computer simulations of stress distributions in the current structure reveal that it operates at near-critical thresholds of collapse even today [7].

Moreover, the flying buttresses of Beauvais—while innovative—lacked the redundancy found in more robust structures. Gothic cathedrals generally relied on what we might now call “distributed resilience,” where the failure of one element would not necessarily trigger a total collapse. At Beauvais, however, the system was so finely tuned, and the margins so thin [5], that failure in one part tended to cascade.

3.2.5. Between Hubris and Genius

It is tempting to assert that the collapse of Beauvais was the inevitable consequence of attempting to build “higher than the heavens” without the means to achieve it. However, a more balanced interpretation points to a convergence of factors: daring design, discontinuous execution, extreme slenderness, material and technological limitations, and external stresses [45]. The disaster was not merely the result of miscalculation or construction negligence—it was the price paid for crossing the fine line between structural brilliance and architectural recklessness [11].

Was Beauvais a failure? In one sense, yes: it was never completed, it collapsed multiple times, and it fell short of its goal to be the tallest and most magnificent cathedral in Christendom. Yet to dismiss it as merely a failure is to miss the essence of its legacy [1].

Beauvais is a masterpiece of Gothic engineering, not because it succeeded, but because it dared. It serves as a kind of architectural myth—a story of striving toward the heavens, of pushing boundaries, and of paying the price for ambition [40]. In many ways, Beauvais is more compelling than the cathedrals that were completed according to plan. Its incomplete form, its battle with gravity, and its enduring defiance of collapse imbue it with a tragic beauty.

The ambition of its creators—to build a house of God that touched the sky—remains visible in every ribbed vault, every arch thrust upward, every stone suspended against the laws of nature. The fact that it did not fully succeed makes it all the more human.

4. Discussion and Interpretation

4.1. The Legacy: A Cautionary Masterpiece

The Cathedral of Beauvais endures in fragments—its choir incomplete, its nave unbuilt, its soaring spire vanished into history. And yet, among scholars, architects, engineers, and historians of art and faith, Beauvais remains one of the most studied and discussed Gothic cathedrals in Europe. Its legacy lies not in what it became, but in what it attempted—and what it ultimately failed to be.

To this day, Beauvais is remembered not as the greatest cathedral ever built, but as the greatest cathedral never completed. The project’s ambition was unrivalled: to create the tallest structure in the Christian world, a building whose verticality would speak directly to the heavens. But instead of eternal glory, it became a cautionary monument—a testimony to the limits of human ambition when it outruns the knowledge and technology of its age.

4.1.1. A Monument of Unrealised Potential

The legacy of Beauvais begins with its towering vision. Had the full design been realised—had the nave been constructed, had the spire remained standing—it would have reached over 153 m (502 feet), far surpassing all other medieval structures and rivalling even modern skyscrapers in its vertical ambition. It would have stood taller than St. Peter’s Basilica in Rome and the later Cologne Cathedral [13]. For its time, it would have been not just the tallest church, but the tallest human-made structure on Earth.

That it did not succeed in this ambition is fundamental to how we remember it. Beauvais is often spoken of in the subjunctive: what might have been. Its incomplete form, rather than a mark of defeat, becomes a kind of haunting beauty. We are left with a ruin of genius—a skeletal monument to what medieval engineering could dare to imagine, even when it could not bring that vision to full fruition.

The collapse of the choir in 1284 and the fall of the central tower in 1573 did more than interrupt construction; they redefined the trajectory of Gothic architecture [29]. After Beauvais, no cathedral in Europe attempted to exceed it in height. In this way, Beauvais stands as a historical threshold—the moment where Gothic ambition reached its zenith and realised that it could go no higher without catastrophic consequence.

4.1.2. Engineering’s Tragic Threshold

Modern structural engineers often cite Beauvais in academic and professional discussions about architectural limits [24]. Today, with the help of computer simulations and digital modelling, we can understand exactly how close the structure operates to collapse, even now, centuries later [7]. Its high vaults still stand thanks only to a meticulous system of iron tie rods, inserted in later centuries to brace the structure from within.

For engineers, Beauvais has become a textbook example of limit-state design—the point at which a structure no longer has the capacity to withstand further loads without failure [40]. It is a live case study in how elegance, verticality, and the quest for lightness can compromise stability when not backed by empirical analysis. As noted by architectural and engineering historians such as Stephen Murray [1], Jacques Heyman [5], and Robert Mark [6], Beauvais is often considered the Gothic cathedral that most fully encapsulates the balance between audacity and fragility [46].

The cathedral is often compared to a body pushed past its physical endurance. One strain too many, one misalignment too far, and it falters [47]. As such, it has become a metaphor—not just for structural engineering, but for ambition itself.

4.1.3. A Shift in Architectural Mentality

The symbolic impact of Beauvais’ collapse reverberated throughout Europe. The fall of its central tower in 1573 occurred not in the Middle Ages, but during the Renaissance—a time when new architectural styles were emerging, and the classical ideals of proportion, symmetry [48], and restraint began to replace Gothic verticality and exuberance.

In this context, the fall of Beauvais marked more than just a structural failure—it signalled the end of the Gothic dream [4]. Architects and patrons in the late 16th century began to turn away from the fantastical heights and skeletal structures of the Gothic [25], embracing instead the geometric clarity and human scale of classical forms. In this sense, Beauvais was both culmination and coda—a final [1], luminous effort before the lights dimmed on the Gothic age.

And yet, the collapse did not erase its influence. Rather, it transformed Beauvais into a historical anchor point [6]. The structural daring of Beauvais has been retrospectively cited as a cautionary model in discussions of tall and slender architecture—from Baroque domes to the steel frames of modern skyscrapers [39]. Scholars have noted parallels with the works of Gaudí, Nervi, or even contemporary megastructures [49].

4.1.4. The Ruin as Revelation

What remains of Beauvais today is a kind of paradox: incomplete, and yet overwhelmingly majestic. The choir is still one of the tallest ever built. Visitors who enter the structure experience a sense of vertigo—an overwhelming verticality that seems to resist the eye’s ability to measure space. The light still filters through the stained glass like divine breath through stone lungs. But there is also an unmistakable absence—an awareness that something is missing, that the structure is wounded.

This absence is part of its legacy. Beauvais does not hide its wounds; it invites contemplation of failure as part of the human condition. Where other cathedrals inspire through perfection and completion, Beauvais inspires through imperfection and collapse. It embodies the idea that striving, even when it leads to ruin, is not meaningless. In a way, the ruin completes the narrative—it reveals the cost of vision, the tragedy of transcendence unmet.

Writers and artists have long been fascinated by this aspect of Beauvais [50]. In the Romantic period, ruins became emblems of lost grandeur, and Beauvais figured prominently in this cultural memory [51]. For modern scholars [52], it invites ethical and philosophical questions: Should we always pursue the highest aspiration, even when we know the risks? Does the failure of a great idea diminish its greatness, or does it affirm it?

4.1.5. Legacy in Modern Architecture and Thought

The story of Beauvais remains relevant in today’s world [1], where architecture once again pushes boundaries—this time with steel, concrete, and glass rather than stone. From the Burj Khalifa to experimental megastructures, we still confront questions of scale, stability, sustainability, and ambition [42]. Beauvais reminds us that limits exist, not to restrain us entirely, but to challenge our understanding of what is possible—and what is wise [53].

In contemporary engineering education, Beauvais appears in lectures on Gothic mechanics, material behaviour, and historical failure analysis [54]. Structural historians often point out that, paradoxically, Beauvais’ failures taught later generations more than many of the “successful” cathedrals ever could. Its legacy lies in what it forced humanity to learn.

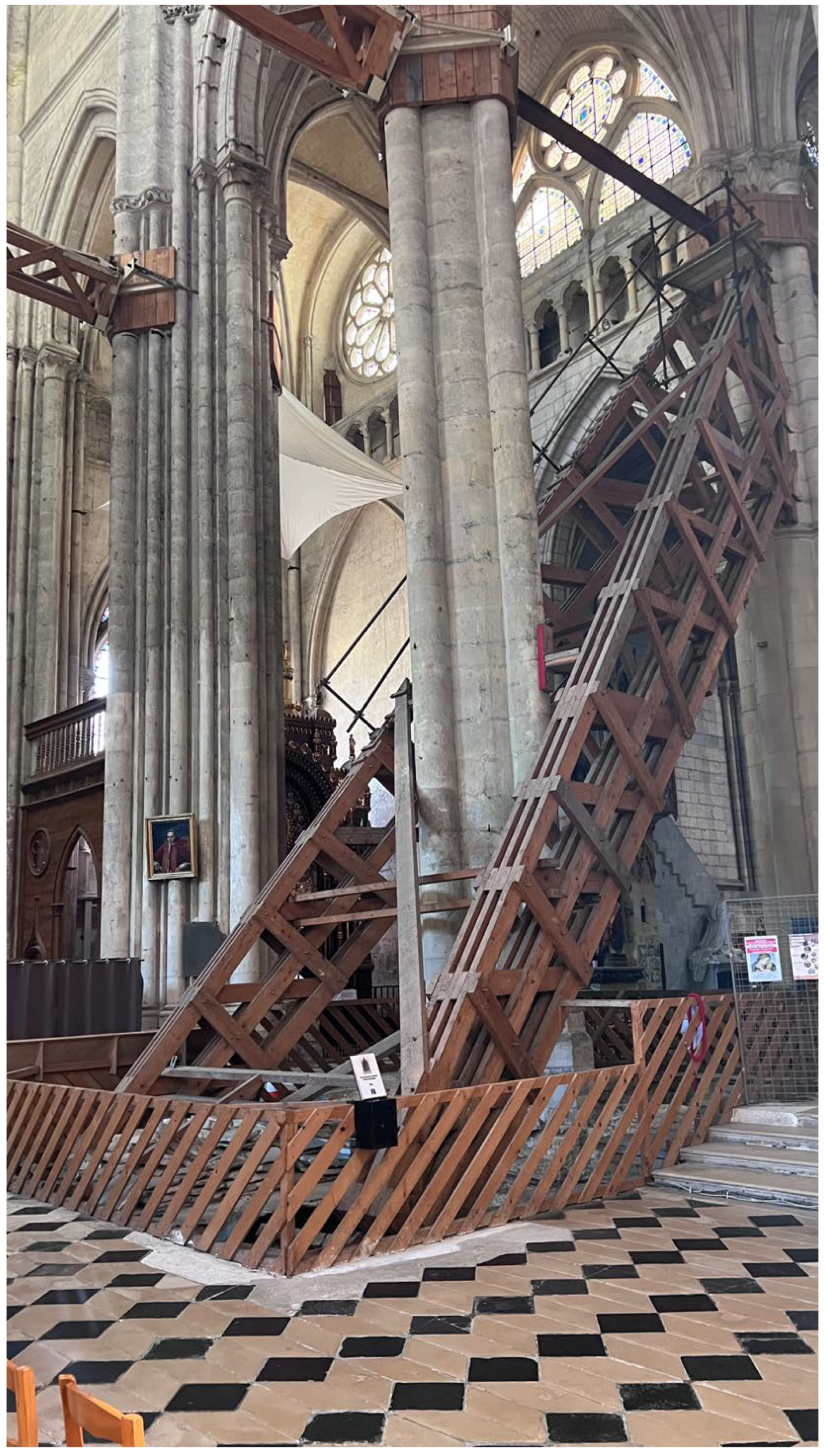

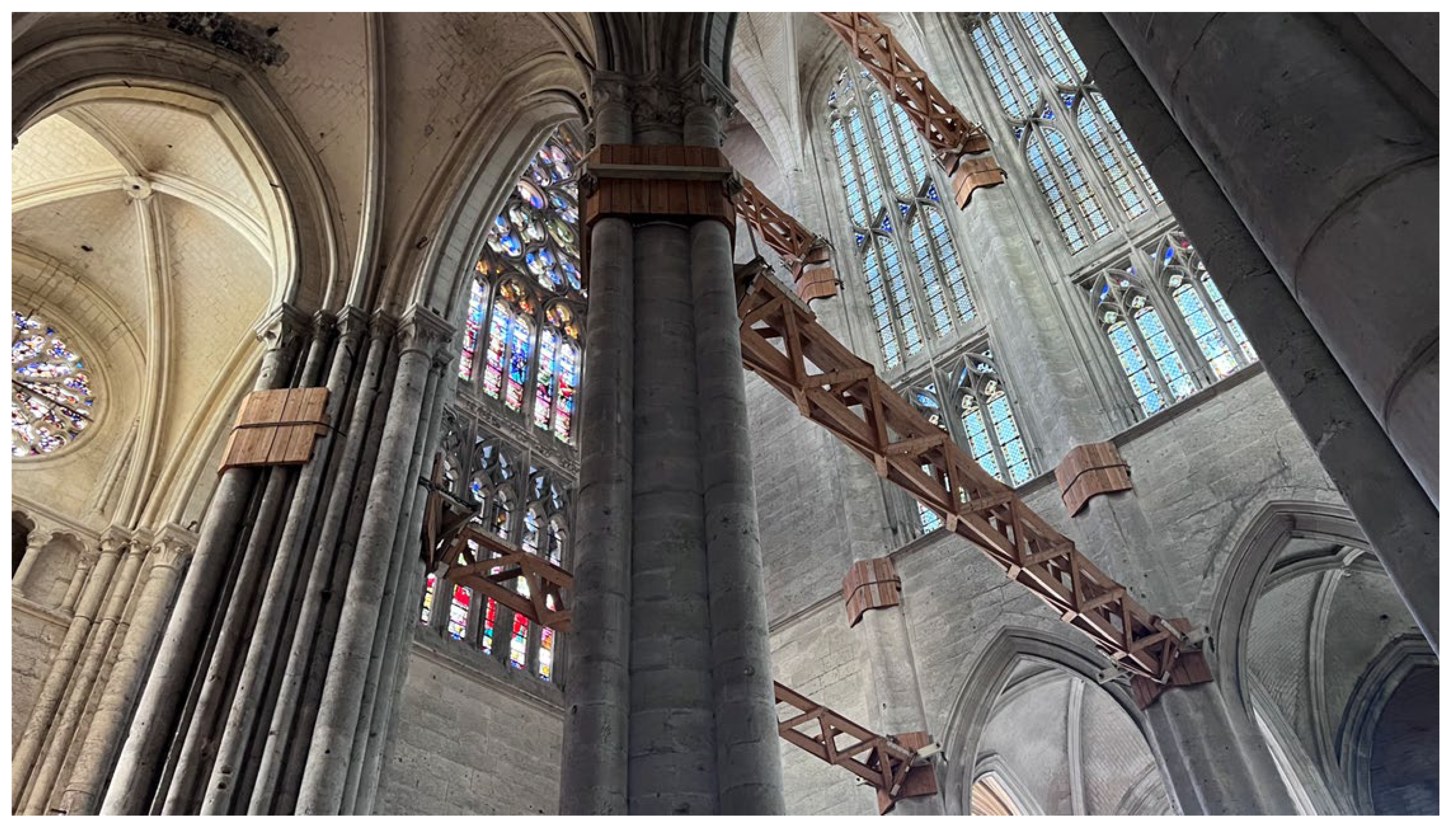

Even preservation efforts today are delicate dances with danger [44]. The cathedral, still vulnerable, is closely monitored and occasionally reinforced. It has become an active subject of conservation science—an ongoing project in how to preserve a fragile but extraordinary legacy without compromising its authenticity.

Examples of this legacy can be found in the soaring verticality and structural daring of later architectural icons, from Gaudí’s Sagrada Familia to contemporary skyscrapers like the Burj Khalifa. These structures echo the same ambition to transcend material limits, often relying on the very lessons of failure and resilience embodied by Beauvais.

4.1.6. Conclusion: A Legacy Carved in Shadow and Light

The legacy of Beauvais Cathedral is not one of perfect fulfilment, but of perfect striving [6]. It was meant to be the most magnificent of all Gothic cathedrals—the highest, the most awe-inspiring, the most audacious. And in that sense, it succeeded. But it also fell. Repeatedly. It collapsed under the weight of its own ambition, literally and metaphorically.

And yet, we return to it—not to lament its incompletion, but to marvel at its courage [10]. It remains the ultimate Gothic paradox: a monument whose greatest achievement is also its greatest failure. In its soaring ruins, we see the echo of a dream too big for stone, too bold for its time, and too beautiful to forget.

4.2. Conservation Challenges and Preservation Strategies

The preservation of Beauvais Cathedral poses a unique set of conservation challenges—challenges as monumental as the structure itself. From its inception, Beauvais has teetered on the edge of structural viability. Today, the cathedral endures not solely due to its original construction, but because of centuries of sustained intervention, adaptive reinforcement, and scientific monitoring.

The first and most pressing challenge is structural fragility. The very factors that made Beauvais architecturally revolutionary—its soaring verticality, slender supports, and audacious vaults—are also those that render it perpetually vulnerable. Modern structural assessments have confirmed that the cathedral operates near the threshold of collapse. The insertion of iron tie rods in the 19th century, as well as wooden stabilisation systems and ongoing load redistribution strategies, reflect the building’s continued dependence on external support systems.

Second, environmental exposure exacerbates the degradation of materials. The limestone used in Beauvais is susceptible to weathering, biological colonisation, and chemical decay—factors that are intensified by the northern French climate. Conservation efforts must thus reconcile the goals of material integrity and aesthetic preservation, often requiring non-invasive techniques and innovative materials that do not compromise historical authenticity.

Third, Beauvais exemplifies the difficulty of preserving a living ruin. As an active site of worship and tourism, any intervention must balance safety, accessibility, and the visitor experience with the ethics of minimal interference. The use of digital modelling and real-time structural monitoring—techniques unavailable to earlier restorers—now plays a vital role in predicting stress points and planning preventive measures.

Finally, the philosophical question looms: how does one preserve a structure defined as much by its failure as by its form? Conservation at Beauvais cannot aim to “complete” or restore a hypothetical original. Instead, it must embrace the cathedral’s incomplete state as integral to its meaning. The very notion of preservation here becomes an act of historical stewardship—sustaining not only the physical edifice but also the legacy of architectural ambition and limitation it embodies.

In this light, Beauvais is more than an engineering puzzle; it is a conservation paradigm. It challenges conservators to think beyond stabilisation toward the curation of imperfection, to protect not just stone, but the story it tells.

4.3. Limitations and Future Directions

While this study draws on extensive documentary and technical analysis, it is limited by the availability of empirical data regarding some structural behaviours and by the interpretive nature of its philosophical reflections. On-site structural monitoring data and advanced computational modelling could further refine hypotheses about past failures and current vulnerabilities. Additionally, the symbolic interpretation of architectural ambition is subject to contextual and disciplinary variation, which may affect the generalisability of certain conclusions. Future interdisciplinary studies combining digital heritage tools, material science, and phenomenological inquiry could expand and deepen the insights presented here.

5. Conclusions: Beauvais, or the Shape of Human Aspiration

The Cathedral of Beauvais is more than a building. It is an unfinished sentence in the language of stone—interrupted, yes, but resonant. For nearly eight centuries, it has stood as a monument to ambition that soared beyond its means, to beauty that defied gravity, and to failure that refused to vanish quietly. In its incomplete form, it speaks perhaps more eloquently than any completed cathedral ever could.

To walk through Beauvais is to enter a space where the medieval world’s deepest longings and boldest experiments remain suspended in midair. One stands beneath vaults that seem too high to be real, surrounded by structural forces that feel held in check by willpower as much as by physics. It is a place that reminds us that Gothic architecture was never merely a style—it was theology made geometry, a metaphysical belief carved into stone. And Beauvais was, quite simply, its most radical prayer.

And yet, Beauvais failed—technically, visibly, historically. Its choir collapsed in 1284, its tower fell in 1573, and its nave was never built. It did not fulfil the vision of its creators. Instead of joining the ranks of Chartres, Amiens, or Reims as a finished testament to Gothic ingenuity, it entered the historical imagination as a warning.

But here lies its paradox: it is precisely because it failed that it endures so vividly in our minds. It reminds us that ambition carries weight—sometimes literal, sometimes moral. To aim for the sky is to risk the fall, and yet the value of that aim is not nullified by the risk. Beauvais, like Icarus, soared too close to the sun, and for that, it commands our attention—not our scorn, but our awe.

Its legacy is not only architectural or historical; it is existential. Beauvais tells us something profound about the human condition: that we are creatures who dream in impossible proportions, who build cathedrals not only for shelter or glory, but to reach toward something greater than ourselves. And in doing so, we sometimes fall. The fall, however, is not the end of the story. The story is in the rising—the attempt, the vision, the audacity to begin.

Gothic architecture often masquerades as divine geometry. Its vertical lines, pointed arches, and luminous interiors seem almost inhuman in their elegance and precision. But Beauvais strips away that illusion. Here, the mechanics are laid bare; the danger is visible; the limitations are evident. You can see the strain in its ribs, the tension in its vaults, the gravity-defying drama of its height. In Beauvais, the Gothic becomes human again—not in its ornament, but in its vulnerability.

This is why Beauvais matters. It shifts our understanding of medieval builders—not as anonymous craftsmen in the service of God, but as visionaries pushing against the boundaries of their world. They were not blindly replicating formulas; they were experimenting, daring, failing, and trying again. In Beauvais, we see not just Gothic architecture but Gothic thinking at its most intense. It is the record of a problem posed and never fully solved.

In the modern age, where we build higher than ever—into clouds, into orbit, into digital space—the lesson of Beauvais is not outdated. It reminds architects, engineers, and dreamers alike that form and ambition must meet knowledge and material reality. It challenges the assumption that taller is always better, that every vision must be completed to have value. In an era of speed and spectacle, Beauvais offers a slower, quieter form of reflection.

It also offers inspiration. Despite its failures, the choir of Beauvais still stands—immense, improbable, luminous. It reminds us that even in collapse, beauty persists. That uncompleted dreams can leave deeper marks than fulfilled ones. And that, perhaps, in the fragments, we find a fuller picture of what it means to build.

There is something almost poetic in the way Beauvais has endured. For centuries, it has required constant vigilance, constant repair. Iron braces were added in the 19th century. Structural monitoring continues today. It is a living monument, always on the verge of falling, always held upright by a combination of science, art, and faith.

And perhaps this is the most human thing about it. Not the fall, and not even the dream—but the persistence. The refusal to let go of something incomplete. The effort to protect what remains. The belief that even failure deserves preservation.

In this light, Beauvais is no longer just the failed cathedral of France—it is the cathedral of human striving. A place where the limits of stone met the limits of imagination, and where something enduring was born, not in spite of that collision, but because of it.

While this study draws on extensive documentary and technical analysis, it is limited by the availability of empirical data regarding some structural behaviours and the interpretive nature of philosophical reflections. Further research using advanced modelling and on-site monitoring could deepen understanding of Beauvais’ ongoing structural dynamics.
