ChemEngineering 2022, 6(1), 14; https://doi.org/10.3390/chemengineering6010014
Received: 20 December 2021 / Revised: 24 January 2022 / Accepted: 28 January 2022 / Published: 2 February 2022

Abstract

The cultivation of Arthrospira platensis in tubular photobioreactors (tPBRs) presents a promising approach for the commercial production of nutraceuticals and food products as it can achieve high productivity and effective process control. In closed photobioreactors, however, high amounts of photosynthetically produced oxygen can accumulate. So far, there has been a wide range of discussion on how dissolved oxygen concentrations (DOCs) affect bioprocess kinetics, and the subject has mainly been assessed empirically. In this study, we used photorespirometry to quantify the impact of DOCs on the growth kinetics and phycocyanin content of the widely cultivated cyanobacterium A. platensis. The photorespirometric routine revealed that the illumination intensity and cell dry weight concentration are important interconnected process parameters behind the impact that DOCs have on the bioprocess kinetics. Unfavorable process conditions such as low biomass concentrations or high illumination intensities yielded significant growth inhibition and reduced the phycocyanin content of A. platensis by up to 35%. In order to predict the biomass productivity of the large-scale cultivation of A. platensis in tPBRs, a simple process model was extended to include photoautotrophic oxygen production and accumulation in the tPBR to evaluate the performance of two configurations of a 5000 L tPBR.
Keywords: photorespirometry; Arthrospira platensis; tubular photobioreactor; dissolved oxygen; process modeling photorespirometry; Arthrospira platensis; tubular photobioreactor; dissolved oxygen; process modeling

1. Introduction

Around 3000–4000 metric tons per annum of Arthrospira platensis (also known as Spirulina) biomass is produced commercially worldwide by companies such as Earthrise Nutritionals (Irvine, CA, USA) and the Siam Algae Company (Bangkok, Thailand) [1]. This underlines the rising interest in A. platensis in the food [1,2] and feed [3,4] industry for its high nutritive value, such as a high protein content of 43–65% (w/w), and a balanced profile of essential amino acids [2]. Besides the food sector, biomass from A. platensis is also commercially valued as a dietary supplement [1,2,5] since an intake of dried A. platensis has been proven to reduce blood cholesterol levels and improve patients’ lipid profiles [6,7]. Recent studies have further attributed anti-inflammatory, immunostimulatory, antioxidant, cancer-inhibiting [8,9] and antiviral [10] properties to cyanobacterial biomass and metabolites [11,12] such as phycocyanin (8–13% w/w of dry biomass [13]) and carotenoids (0.15–0.2% w/w of dry biomass [14]). As an example, Zeaxanthin is believed to reduce the risk of age-related macular degeneration [15,16]. A. platensis further contains lipids that are of medical interest (6–13% [17]), such as polyunsaturated γ-linolenic acid, known among other things for its anti-inflammatory properties and beneficial impact on the risk of coronary heart disease [18,19].
Basically, phototrophic microorganisms are cultivated in open or closed photobioreactors. Tubular photobioreactors (tPBRs) are common in industrial cultivation [20], since high volumetric biomass productivity and good process control can be achieved with a reduced risk of contamination compared to open cultivation systems [20,21]. However, a lower gas transfer efficiency in closed tubes is among the disadvantages of tPBR systems, resulting in photoautotrophically produced oxygen accumulation and the formation of oxygen gradients alongside the closed tPBRs [20,22]. Weissman et al. [23] showed that tPBRs can exhibit volumetric rates of oxygen evolution that are up to 25 times higher compared to open pond systems (20 cm depth). As an example, at the maximum photosynthesis rate of Chlorella sp., oxygen accumulation in tPBRs (tube diameter: 1 cm) can account for as much as 8–10 mgO2 L−1 min−1, resulting in an increase in the dissolved oxygen concentration (DOC) of 100 mg L−1 (assuming a tube length of 100 m) without any gas exchange [23]. Torzillo et al., observed a DOC rate of 2–3 mgO2 L−1 min−1 for outdoor cultivations of A. platensis (tPBR, tube diameter: 5 cm), resulting in a maximum DOC of 70–80 mgO2 L−1 [24,25]. This oxygen accumulation capacity indicates the high risk of the formation of spatial DOC gradients along the tube axis and the need to manage the gas-liquid mass transfer in tPBRs [25,26]. Kazbar et al. [26] compared the mass transfer parameter k L a and the maximum DOC attainable with several PBR systems and concluded that oxygen accumulation may result in the inhibition of growth rates of phototrophic microorganisms, especially in PBRs with k L a values smaller than 7 h−1. Only a few studies have examined the k L a of tPBRs, which revealed oxygen mass transfer parameters in the range of 3–7 h−1 [27,28]. Integrated airlift systems and advanced degassing units [28,29,30,31] are known to improve oxygen mass transfer in tPBRs to prevent oxygen accumulation [26,28]. However, high gas-flow rates and the pumping of the liquid phase may induce shear stress to the cells accompanied by considerable energy costs [32,33].
Mathematical models have been developed to predict the accumulation of oxygen in tPBRs considering the impact on the growth kinetics of microalgae. Rubio et al. [27] introduced a model for estimating DOC profiles in tPBRs that took into consideration oxygen mass transfer characteristics. However, the authors assumed the microalgal oxygen production rate to be average and did not take into account the impacts of dynamic changing illumination intensity or the DOC on the microalgal growth rate [27]. In contrast, Trentin et al. [34] developed a comprehensive model for C. protothecoides to predict biomass productivity in a tPBR taking into consideration various impact factors such as the DOC and illumination intensity. Although the oxygen mass transfer characteristics of the liquid phase were neglected, their model can predict how several environmental factors and design modifications to the tPBR affect the biomass productivity. To specifically describe the impact of DOCs on photoautotrophic growth, Costache et al. [35] have proposed a kinetic model based on product inhibition, describing the exponential decline in the oxygen production rate (OPR) at an increasing DOC for S. almeriensis. The model takes into account the competitive inhibition of RuBisCO’s carboxylase function by oxygen (photorespiration), which occurs increasingly at high DOCs [35]. Sforza et al. [36] investigated the extent of inhibition on the photosynthetic activity of the microalgae C. protothecoides at high DOCs and varying illumination intensities and biomass concentrations, indicating that the OPR at rising DOC levels differs in experiments under varying process conditions.
This study aims to quantify the impact of high DOCs on the growth kinetics and cellular phycocyanin content of A. platensis PCC7345 using a lab-scale photorespirometric approach. Kinetic parameters derived from photorespirometry were introduced to a simple process model describing photoautotrophic cyanobacterial growth taking into consideration the oxygen mass transfer characteristics in the liquid phase. This information was used to perform an in-silico scale-up study of two different 5000 L industrial tPBR configurations.

2. Materials and Methods

2.1. Strain and Cultivation Conditions

A. platensis PCC7345 was obtained from the Pasteur Culture Collection (PCC, Paris). Cyanobacterial cells were maintained and pre-cultured in a Spirulina medium [SAG Göttingen, Spirulina Medium] grown in 300 mL Erlenmeyer flasks at 26 °C, 150 rpm and 75 µmol m−2 s−1 fluorescent light (light/dark cycles of 16/8 h, WB750, mytron Bio- und Solartechnik GmbH, Heilbad Heiligenstadt, Germany). Liquid stock cultures were subcultivated weekly.
To prepare A. platensis PCC7345 cultures for respirometric analyses, a 25 L tPBR (MINT Engineering GmbH, Dresden, Germany) was inoculated from shake flasks and cultivated in batch airlift mode (10 L min−1 ambient air) for 10 days at room temperature (23–26 °C), leading to a final cell dry weight concentration ( c x ) of 1.1 g L−1. To obtain cyanobacterial cells under industrially relevant physiological conditions, the 25 L tPBR cultivation was carried out in a reduced Spirulina medium, replacing macro- and micro-nutrients with an inorganic plant fertilizer. For respirometric analysis, 1 L samples were taken from the tPBR and adjusted to the desired c x using the reduced Spirulina medium.

2.2. Cell Dry Weight Concentration ( c x ) & Optical Density (OD750)

Culture samples of A. platensis PCC7345 were analyzed using a GENESYS 150 UV/VIS spectrophotometer (Thermo Fisher, Waltham, MA, USA). The optical density (OD750) was measured at 750 nm and was calibrated against c x [g L−1] of A. platensis PCC7345 using the following correlation (n = 3):
c x = 0.86   ·   OD 750
To determine c x , 15 mL of A. platensis PCC7345 suspension was passed through a glass microfiber filter (VWR International, Delaware Valley, USA, mesh size: 1 μm, n = 3) followed by washing three times using 15 mL deionized water and drying for 24 h at 103 °C (Memmert GmbH + Co.KG, Schwabach, Germany). Finally, the weight difference of dried biomass was determined to calculate c x (Figure S1, Supplementary Materials).

2.3. Quantification of Incident Illumination Intensity ( I 0 ) and Calculation of Average Illumination Intensity (Iav)

The incident illumination intensity I 0 [μmol m−2 s−1] was detected by a DK-PHAR 2.010BS PAR-quantum sensor (deka Sensor + Technologie Entwicklungs- und Vertriebgesellschaft mbH, Teltow, Germany). The local illumination intensity I Z   [μmol m−2 s−1] was calculated using Lambert–Beer’s law:
I Z = I 0 · e c x · ε · Z
where I 0 is the incident illumination intensity (μmol m−2 s−1); ε (L g−1 cm−1) is the cell-specific light attenuation coefficient; c x (g L−1) the cell dry weight concentration of A. platensis PCC7345; and Z (cm) the light path lengths. The cell-specific light attenuation coefficient ε was determined experimentally using a measurement chamber developed in-house, as described recently [37]. Briefly, the chamber was filled with 130 mL of cyanobacterial suspension with c x ranging from 0.12 to 0.84 g L−1. An adjustable slide, carrying an encapsulated pyranometer (deka Sensor + Technologie Entwicklungs- und Vertriebgesellschaft mbH, Teltow, Germany) was moved along the light path ( Z ) while recording the local illumination intensities I Z , which were used to calculate ε with the least squares method using MATLAB 2012 (MathWorks, Natick, MA, USA). Since both absorption and scattering effects had to be taken into account at increasing c x , ε was introduced into the modeling approach with the following correlation:
ε [ L   cm 1   g 1 ] = 6.83 · c x + 5.34 ,     c x 0.355   g   L 1 0.045 · c x + 3.014 ,     c x > 0.355   g   L 1
To calculate the average illumination intensity I a v , local intensities I Z were averaged for eight light-path lengths Z across the diameter of the desired vessel (bottle or tPBR).
I a v = i = 0   8   I Z 8

2.4. Photorespirometry Analysis

Photorespirometry was recently developed by Sforza et al. as a quick and simple method to determine the growth kinetics of microalgae [36,38,39], the aim being to examine the effects of high DOCs on microalgae cultures [36].

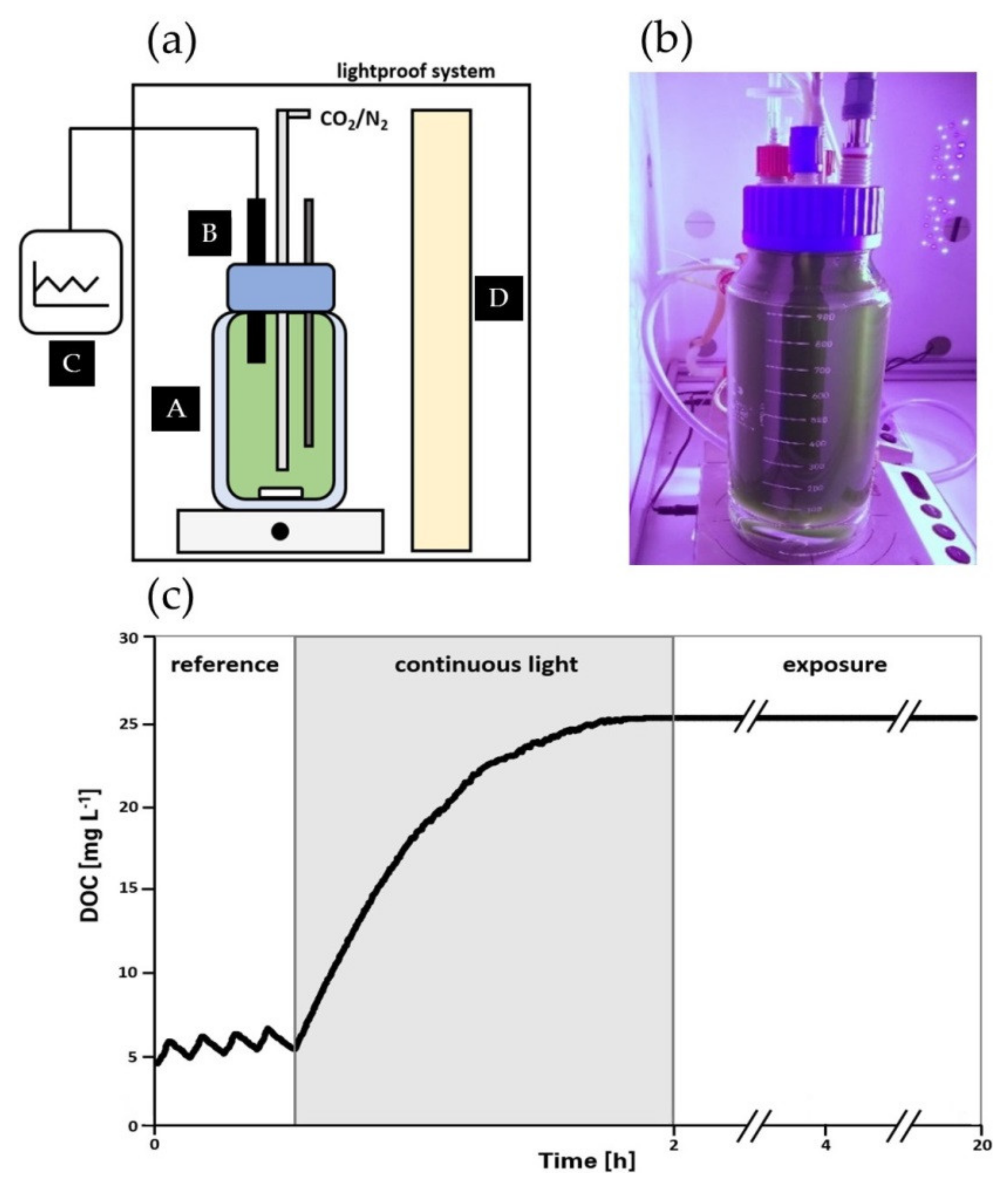

In this study, respirometry was performed in a 1000 mL DURAN GLS 80 double-walled laboratory bottle (diameter: 7 cm, DWK Life Sciences GmbH, Wertheim, Germany) equipped with oxygen, pH and temperature probes (Figure 1a,b). To avoid gas losses via the headspace, the bottle was filled completely with A. platensis PCC7345 liquid culture. The DOC was detected at short time intervals (10 s) by a GMH 3611 oximeter (GWO 3600 probe, GHM Messtechnik GmbH, Remscheid Germany) and the EBS 20 M monitoring software. The temperature was adjusted at 30 °C by using a circulating water thermostat mixing the cell suspension by a magnetic stirrer at 300 rpm. To decrease the DOC, a CO2/N2 (20% v/v) mixture was sparged into the liquid phase using sintered stone. The bottle cap was sealed with Teflon tape to create an airtight system. The photorespirometry set-up was illuminated on one side by plant-growth LEDs optimized for photosynthetically active radiation. I 0 was measured at the surface of the bottle using a PAR-quantum sensor DK-PHAR 2.010BS (deka Sensor + Technologie Entwicklungs- und Vertriebgesellschaft mbH, Teltow, Germany). All respirometric experiments were performed in a light-proof box to provide constant illumination conditions (Figure 1b).
The respirometric routine reported by Sforza et al. [36] in 2020 was modified by introducing an exposure phase as indicated in Figure 1c. The routine was carried out in three phases: (1) a reference phase exposing the cells to intermittent light/dark illumination cycles (reference values for oxygen production rate (OPR) and oxygen consumption rate (OCR)), (2) a continuous light phase providing supersaturated DOC conditions and (3) an exposure phase to investigate how high DOCs affected the cellular phycocyanin content. Before the reference phase was initiated, the DOC was adjusted to approx. 4.5 mgO2 L−1 by sparging a CO2/N2 mixture (20% v/v) followed by five alternating light/dark illumination cycles (10 min per phase). The data from the first light/dark cycle were discarded to take into account the cells’ adaptation to new environmental conditions. OPR data were derived from the reference phase by the following correlation taking into consideration the oxygen mass transfer coefficient k L a and the concentration difference of the current DOC ( c O 2 ) and the solubility concentration in the liquid c O 2 * :
r O 2 = d c O 2 d t = k L a · c O 2 * c O 2 + O P R
The solubility concentration of oxygen c O 2 * in water depends on the temperature and can be calculated by Henry’s Law [40]:
c O 2 * = H O 2 · p O 2
where H O 2 is the temperature-dependent Henry’s law constant and p O 2 the oxygen partial pressure in line with [40]:
H O 2 = H r e f · e C · 1 T 1 T r e f
The oxygen mass transfer coefficient k L a of the photorespirometry set-up (Figure 1b, T   = 30 °C, p O 2   = 0.21 atm) was determined to 0.187 ± 0.009 h−1 using the log deficit procedure (ASCE, 1993 [41]), as proposed by Sforza et al. [39]. Due to the low mass transfer coefficient of the setup, this parameter was neglected in further calculations. OPR data were connected to the adjusted c x , which was assumed to remain constant during the reference phase.
Respirometric tests were conducted under varying process conditions, i.e., at I 0 of 100, 150 and 400 μmol m−2 s−1 and c x of 0.1, 0.5, 0.8 and 1 g L−1. Using Equation (4), the range of I a v for the respirometry setup results in 13–131 μmol m−2 s−1. The impact of I a v on the photosynthetic activity, indicated by the c x -related OPR, can be described by the illumination half-saturation constant, K L (μmol photons m−2 s−1) and the c x -related maximum rate of photosynthesis, O P R m a x , s p e c :
O P R c x = O P R m a x , s p e c · I a v I a v + K L
This model approach neglects photoinhibition effects under high I a v conditions, which were not observed in this study. K L and O P R m a x , s p e c were obtained by fitting experimental data on the reference phase using the least square method in MATLAB® 2012 (MathWorks, USA). To take into account the compensation point, at which gross OPR by photosynthesis and the oxygen consumption rate by basal respiration is balanced out (net OPR = 0), OPR data were offset in line with the examples used by Vonshak (1997) [42] before applying fitting routines in MATLAB 2012 (Natick, MA, USA).

2.5. In-Vivo Phycocyanin Quantification of Suspended Cells

The quantification of the cellular phycocyanin content of cyanobacteria is usually carried out by consecutive steps of physical or chemical cell disruption (physical steps include ultrasound, high-pressure homogenization, cavitation, osmolysis and freezing cycles; chemical steps include acid/alkali treatments, detergents and enzymes), followed by buffer extraction, salt precipitation, phase separation and spectrometric quantification using empirical equations such as the Bennet and Bogorad correlation [43]. These routines are time-consuming and depend on the efficiency of the individual process steps. For that reason, in this work an optical in-vivo method was established for quantifying the intracellular phycocyanin content while avoiding the steps of cell disruption and phycocyanin purification.
The cellular phycocyanin content c P C (mg g−1) of A. platensis PCC7345 was quantified using fluorescence spectrometry (LS-55, Perkin Elmer Inc., Waltham, MA, USA). Culture samples were diluted using saline solution to achieve a final OD750 of 0.1 in a 3 mL cuvette that was clear on all sides and made from polystyrene. The diluted cell suspension was homogenized in the cuvette by a magnetic stirrer during the fluorescence measurement. The intracellular phycocyanin was excited with light in the spectral range of 600–630 nm; the maximum of phycocyanin absorption (step with 5 nm, measurement speed: 1200 nm min−1). Fluorescence emission was detected ranging from 650–670 nm, yielding a fluorescence heat map (Figure S2, Supplementary Materials). The peak fluorescence intensity (If, max) at 615–620 nm was detected in triplicate and used to calculate the cellular phycocyanin content employing the following correlation (Figure S3, Supplementary Materials):
c P C = 0 4484 · I f ,   m a x
Statistical analyses of in-vivo  c P C quantification were performed in the form of two-way analyses of variance (ANOVA) to investigate how the exposure time and the cultivation conditions influenced c P C using the software GraphPad prism and applying a significance level of 5% (p < 0.05). The c P C was determined after 2, 4, and 20 h of high DOC exposure as shown in Figure 1c.

2.6. Modeling Approaches

2.6.1. Modeling of Respirometric Data

In the literature, only a few models are presented that describe how high DOCs affect the OPR of photosynthetically active organisms. Among them, Costache et al. [35] and Sforza et al. [36] have introduced models for studying OPR and DOC correlation.
Sforza et al. [36] developed a comprehensive model taking into account phenomena that are believed to induce inhibitory effects at high DOCs, involving oxygen consumption due to basal respiration expressed by the oxygen respiration rate ( O C R r e s p ), the positive photosynthetic oxygen production rate ( O P R p h ) and the oxygen inhibition rate ( O C R i n h ) [36]:
O P R n e t = O P R p h O C R r e s p O C R i n h
O P R p h was described as a function of I a v , the maximum specific oxygen rate μ O 2 (d−1) and the O2:CO2 ratio to include the effects of photorespiration as a counterpart of photosynthesis [36]:
O P R p h = μ O 2 · f I a v · c x c C O 2 K C O 2 1 + c O 2 K P R + c C O 2
The oxygen respiration rate ( O C R r e s p ) in their model can be described by a Monod-type function depending on the DOC ( c O 2 ) including the maximum oxygen respiration rate k r e s p (d−1) and the respiration half-saturation constant K M , O 2   (mg L−1) [36,44]:
O C R r e s p = k r e s p · c O 2 K M , O 2 + c O 2 · c x
Analyzing C. protothecoides, Sforza et al. [36] found an exponential correlation to describe the oxygen inhibition rate O C R i n h under varying cultivation conditions, introducing the oxygen inhibition coefficient k i n h (d−1) and oxygen inhibition exponent ζ (L mg−1) [36]:
O C R i n h c x = k i n h · e ξ · c O 2
The model introduced by Costache et al. [35] originates in a description of product inhibition to take into account the competitive inhibition of the carboxylase function of RuBisCO by oxygen during photorespiration. By applying the oxygen inhibition constant K O 2 (mg L−1) and the form factor z (–), the normalized biomass-related O P R ¯ is described as a function of the DOC ( c O 2 ) [35]:
O P R c O 2 ¯ = 1 c O 2 K O 2 z

2.6.2. Photoautotrophic Growth Modeling

The biomass growth rate rx (gx L−1 h−1) of microorganisms is described by the specific growth rate μ (h−1) and the cell dry weight concentration c x (gx L−1):
r x = μ · c x
Assuming that there is an excess supply of nutrients and carbon source (HCO−3), a constant pH and constant temperature conditions, μ (h−1) can be expressed as a function of the average illumination intensity I a v (μmol m−2 s−1), the maximum growth rate μ m a x   (h−1) and the half-saturation constant K L (μmol photons m−2 s−1):
μ = μ m a x · I a v I a v + K L
It was reported that OPR ( r O 2 ) correlates to the photoautotrophic growth rate μ of cyanobacteria [25,45]. Therefore, OPR can be identified by the yield coefficient Y O 2 x :
O P R = r O 2 = Y O 2 x   · r x
Applying the model developed by Costache et al. [35], the rate of biomass growth can be formulated as a function of the DOC ( c O 2 ):
r x = μ m a x · I a v I a v + K L · 1 c O 2 K O 2 z · c x

2.7. In-Silico Scale-Up Study at Industry-Scale tPBR

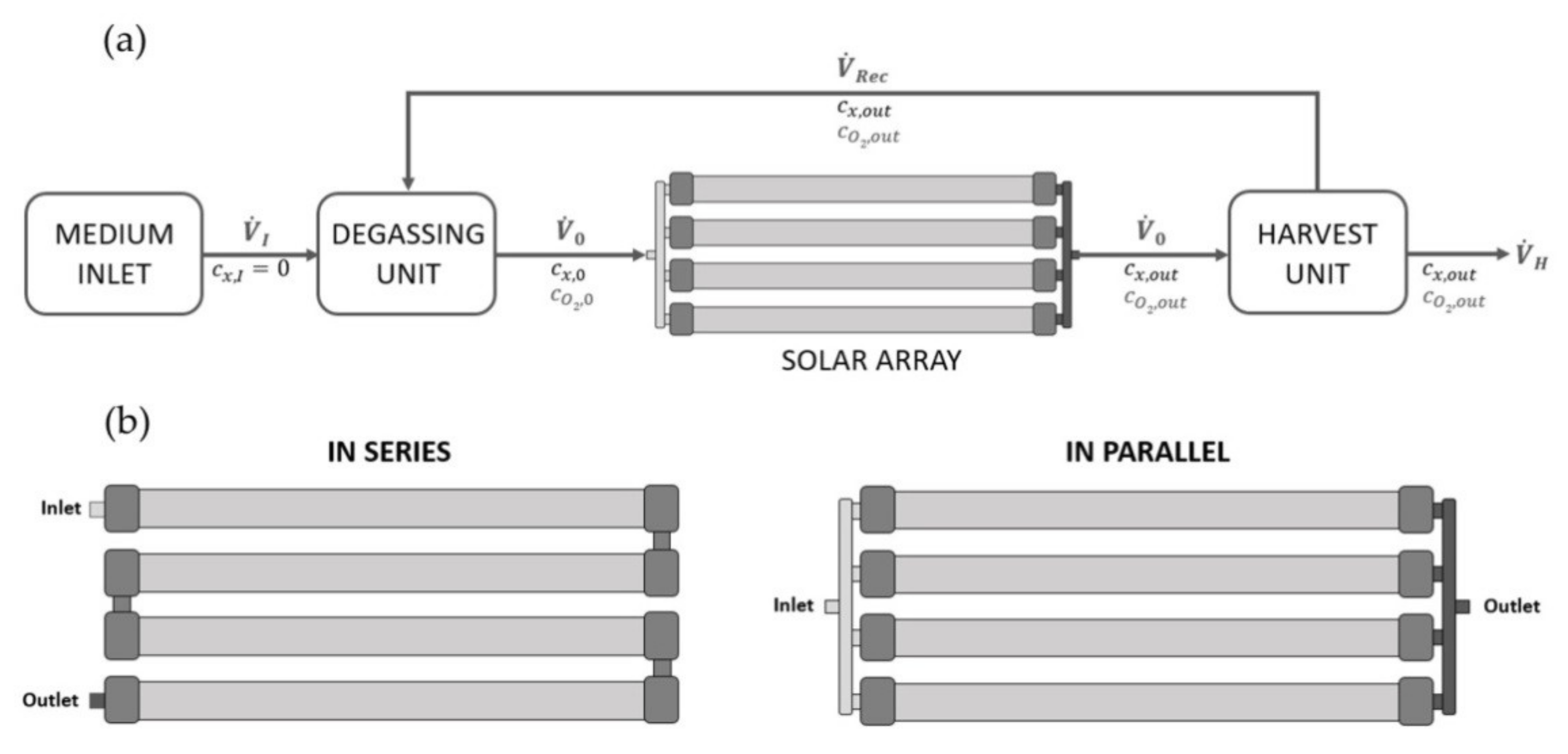

For in-silico studies on biomass growth of A. platensis PCC7345 in large-scale cultivation systems, a horizontal tPBR system for industrial use is assumed, consisting of a solar array, a degassing unit and a harvesting unit (Figure 2). The continuous system is based on the partial recycling of biomass that is grown in a solar array consisting of 4 tubes with a length of 450 m, a diameter of 6 cm and a total volume of 5000 L. The tubes can be operated in parallel or linked in series, resulting in a total tube length of 1800 m. Biomass growth and oxygen accumulation in the solar unit lead to an increased biomass concentration c x , o u t and DOC ( c O 2 , o u t ) at the end of the tube compared to the tube inlet ( c x , 0 ; c O 2 , 0 ). A sub-flow of the biomass-enriched suspension is removed from the system by a harvesting unit ( V ˙ H ). The residual flow ( V ˙ r e c ) is recycled to a degassing unit, where the DOC is reduced to air saturation ( c O 2 , 0 ) and the suspension is enriched with fresh medium ( V ˙ I ), before being recycled to the solar unit. Assuming that biomass growth occurs solely in the tubes of the solar unit and that operation is steady-state, then, in line with the plug flow reactor model, the biomass growth over the tube length l (running coordinate) can be described by the flow velocity v in the solar loop and the biomass growth rate r x [34]:
d c x d l = 1 v · r x
The accumulation of oxygen over the tube length depends on the OPR (rO2); the gas-liquid mass transfer of oxygen in the system, and the gas hold-up ε g [27,46]:
d c O 2 d l = O P R = 1 v · k L a · c O 2 * c O 2 + r O 2 · 1 ε g
Taking into account the increase in the biomass concentration over the tube length and the residence time τ in the solar loop, which can be determined by connecting the solar loop length L to the flow velocity v , the volumetric productivity P x of the continuously operated tPBR can be obtained. The increase in biomass over the tube length can be derived from the difference between the biomass concentration at the outlet of the solar loop c x , o u t and that at the inlet c x , 0 :
P x = c x , o u t c x , 0 τ

3. Results and Discussion

3.1. Impact of High Dissolved Oxygen Concentration (DOC) on the Oxygen Production Rate (OPR) of A. platensis PCC7345

Photorespirometric analyses were carried out to study how rising DOCs influence the OPR of A. platensis PCC7345 under varying c x (0.1, 0.5, and 1.0 g L−1) and incident illumination conditions ( I 0   = 100, 150 and 400 μmol m−2 s−1 equal to I a v of 13–131 μmol m−2 s−1).
Figure 3a presents the c x -related OPR and rate of oxygen consumption due to basal respiration (OCR) obtained in experiments with varying average illumination conditions.
The OPR increased at a constant rate under I a v conditions <64 μmol m−2 s−1 but remained at a constant level at I a v > 64 μmol m−2 s−1 indicating a light-saturated state. As described in several studies [45,47,48,49] for different phototrophic microorganisms, the dark respiration rate OCR correlates with their growth rate and the availability of photosynthetically active radiation, indicated by a 40% increase in OCR at 131 μmol m−2 s−1 compared to the low I a v conditions of 13 μmol m−2 s−1 in this study. Photoinhibitory effects were not observed under the illumination conditions considered in this study (max. I 0   = 400 μmol m−2 s−1, max. I a v   = 131 μmol m−2 s−1). Based on photorespirometric data on A. platensis PCC7345, the half-saturation constant K L was quantified to 49.4 μmol m−2 s−1 (SE: 10.9 μmol m−2 s−1; Equation (8)). According to Vonshak (1997), the light dependence of photoautotrophic growth of A. platensis, and thus the related OPRmax and K L value depend strongly on the experimental conditions, as photoadaptation effects, for example, may affect growth kinetics [42]. Moreover, K L values reported in the literature are derived from varying modeling approaches [50,51] or are based on incident illumination intensities (in contrast to the use of average illumination conditions I a v in this study). The half-saturation constant K L of A. platensis was quantified in recent studies as approx. 90 μmol m−2 s−1 assuming incident illumination intensities [52,53], whereas Vonshak (1997) proposed that the onset of light saturation in different Spirulina strains occurs at incident illumination intensities of 115–165 μmol m−2 s−1 [42]. However, the impact of cell-specific light attenuation under dynamically changing c x conditions due to mutual shading effects by the cells has not been taken into consideration in most studies.

3.2. Correlation of DOC and OPR of A. platensis PCC7345

Photorespirometry is a powerful tool for rapidly and reproducibly analyzing how environmental factors such as a high DOC affects the cellular physiology of photoautotrophic cells.

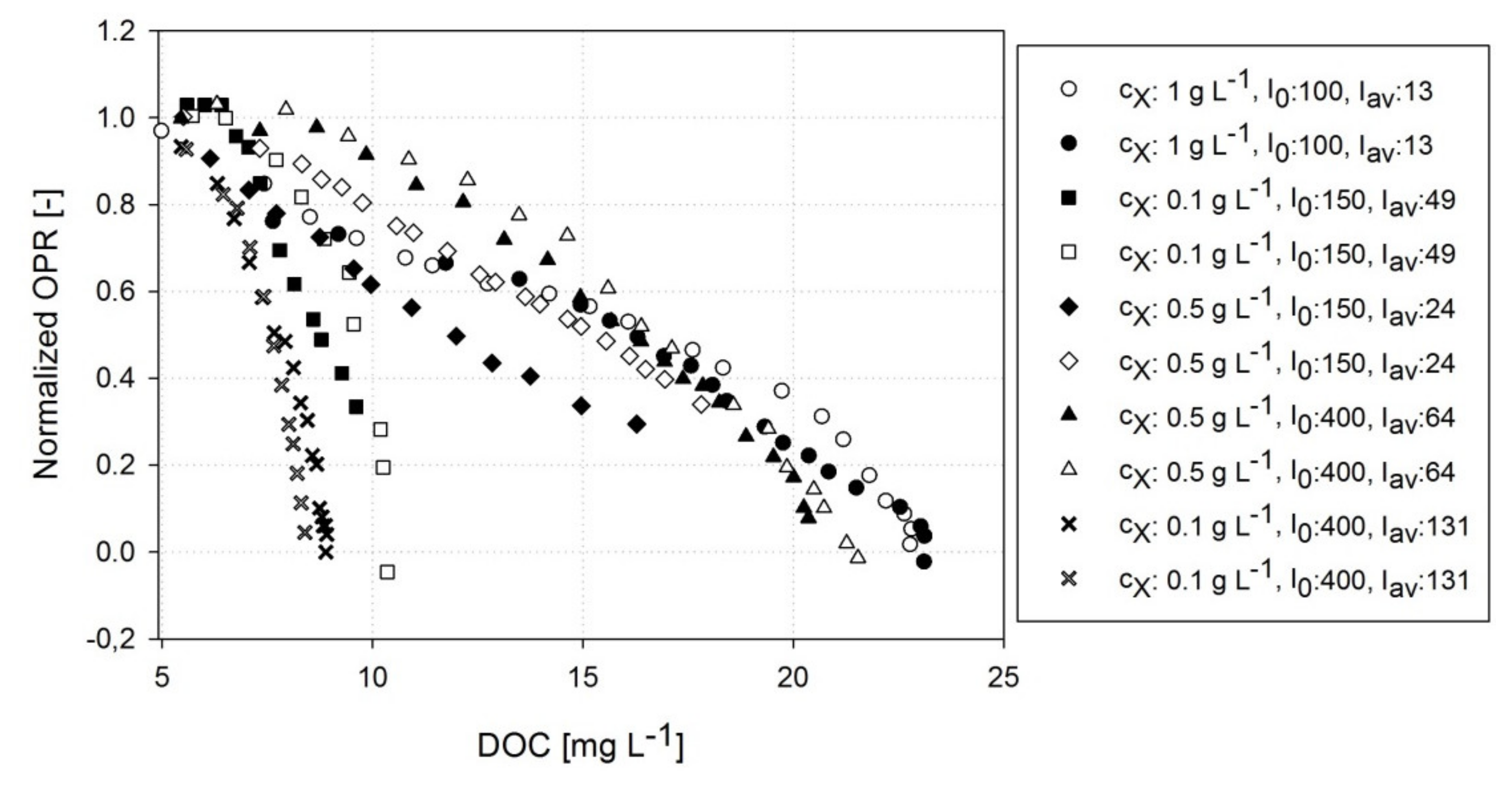

Figure 4 shows the course of a normalized OPR at DOCs rising to 24 mg L−1 (approx. 300% air saturation) with varying c x and I 0 conditions. The data indicate that a rising concentration of dissolved oxygen considerably affects the OPR. However, the inhibition kinetics are highly dependent on both the illumination conditions and adjusted c x . An exponential decrease in a normalized OPR was detected when low c x were exposed to incident illuminations >150 μmol m−2 s−1 yielding a full inhibition of the OPR at a DOC of approx. 10 mg L−1. The inhibitory effect of the DOC declined at higher c x (0.5 g L−1 and 1.0 g L−1) or under lower I a v conditions, causing a linear decrease in the normalized OPR up to a critical DOC of about 22 mg L−1. The OPR inhibition kinetics of Figure 4 indicate that A. platensis PCC7345 is highly sensitive to rising DOCs at low c x , which are representative for early phases of large-scale cultures; however, the effect is weakened under higher c x conditions.
A similar exponential decrease in OPRs has been reported in recent studies for microalgae such as S. almeriensis [35] or C. protothecoides [36] showing a comparable maximum DOC for C. protothecoides (20–30 mg L−1). The physiological reasons for inhibitory effects at high DOCs have been discussed variously in the literature. First, reversible effects such as photorespiration have been suggested as a cause of photosynthesis inhibition in microalgae at high DOCs [35,36]. Second, enhanced photo-oxidative processes are known to impair the photosynthetic activity of cells. It was reported that a high DOC is able to initialize destructive photo-oxidative effects even at low illumination intensities [24,54], i.e., the generation of harmful reactive oxygen species (ROSs) by Mehler (-peroxidase) reactions can affect important cellular repair and protection mechanisms [55,56] and interact with photosynthesis pigments [57]. In a previous study, Allahverdiyeva et al. [58] showed that the extent of “Mehler-like” reactions of cyanobacteria correlated with the illumination intensity. Raven et al. [59] stated that the degree of oxygen uptake, and the ROS generation by Mehler-peroxidase reactions, is significantly higher for cyanobacteria compared to eukaryotic green microalgae. Table 1 provides an overview of recent studies addressing how DOCs affect the growth kinetics and biomass composition of phototrophic microorganisms.
It was proposed that high DOCs do not affect the pigment content of microalgae at low illumination intensities [26,60]. However, for cyanobacteria the authors found a significant reduction in the cellular pigment content (e.g., chlorophyll, phycocyanin) at rising DOCs and low illumination intensities [61,62]. Table 1 reveals that the growth rate of A. platensis seems to be generally less affected by high DOCs compared to eukaryotic microalgae. Nevertheless, it was recommended to avoid DOCs >30 mg L−1 [25,63] or even >20 mg L−1 [64] when culturing A. platensis, which shows the need for a systematic analysis of this interplay of the process parameters. To take an example, the daily productivity of an outdoor tPBR cultivation was reduced by approximately 20% at high DOCs (53.0 ± 9.4 mg L−1) compared to similar process conditions at lower DOCs (20.8 ± 1.8 mg L−1) [64].

3.3. Estimating Kinetic Parameters with Photorespirometry

To study how the DOC affects growth kinetics, photorespirometry data were analyzed in line with Sforza et al. [36]. Since photorespirometry experiments carried out under carbon limitation (N2 sparging, data not shown) revealed no significant impact on OPR trends at rising DOCs, the OPRph term used by Sforza et al. [36] (Equation (11)) was assumed to be constant for A. platensis PCC7345 in this study and was calculated from the sum of OPR and OCR data obtained during the reference phase under moderate oxygen conditions.
To quantify the OCRresp—the negative contribution caused by basal respiration—(Equation (12)) and the OPRnet (Equation (10)), OCR data of the reference phase (Equation (12): k r e s p   = 0.266 d−1 SE: 0.006 d−1; K M , O 2 = 0.181 mg L−1 SE: 0.029 mg L−1 imply constant OCR data in the DOC range of air saturation and higher), and OPR data on the continuous illumination phase were applied, respectively. Thus, the inhibitory effect at high DOCs expressed by OCRinh was derived following Equation (10).

3.3.1. Model by Sforza et al.

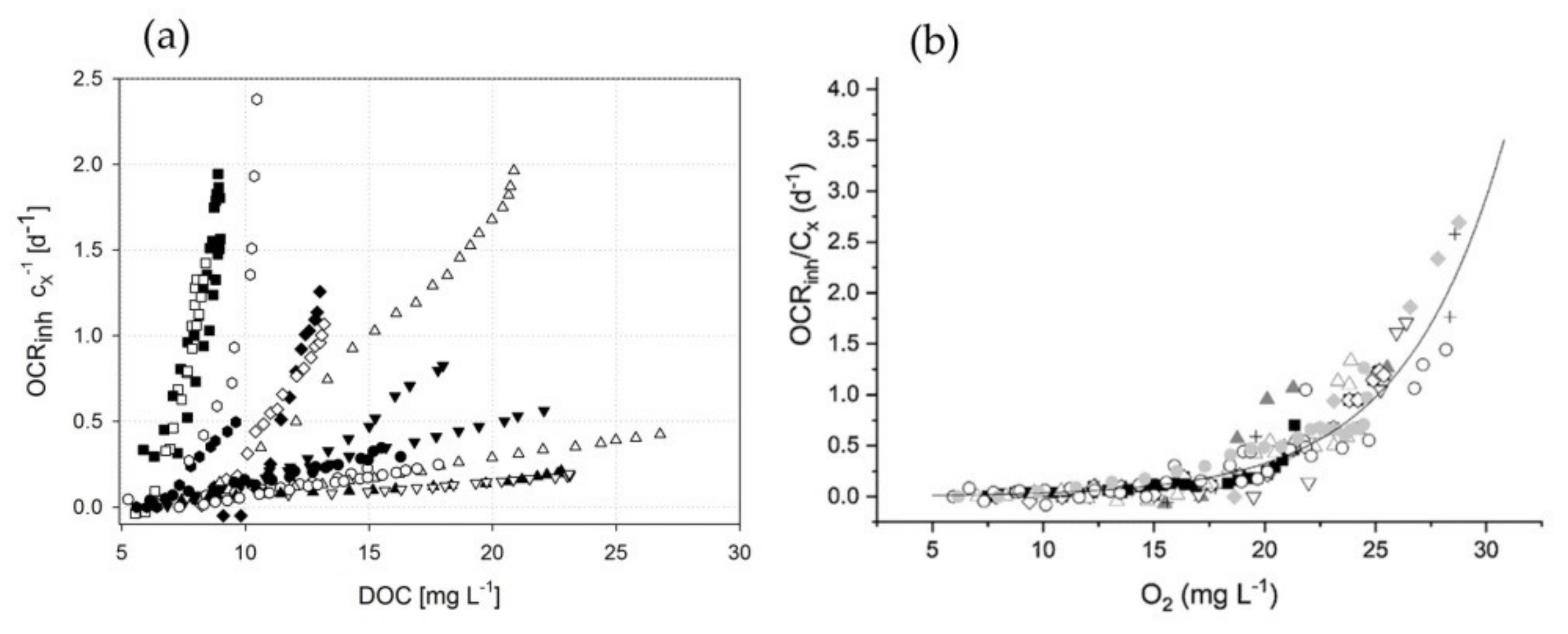

The experimental data on c x -related OCRinh are shown in Figure 5. Significant differences were observed between c x -related OCRinh for A. platensis PCC7345 in experiments performed under different process conditions (Figure 3 and Figure 4), indicating that OCRinh of A. platensis PCC7345 cannot be characterized by one set of kinetic parameters as shown for microalgae (Sforza et al. [36]; Figure 5b). Both the oxygen inhibition coefficient kinh and the oxygen inhibition exponent ζ ranged between 5.72 × 10−5 d−1 and 5.24 × 10−2 d−1; and 0.11 L mg−1 to 1.25 L mg−1, respectively. To conclude, in contrast to the study by Sforza et al. [36], the oxygen inhibition rate OCRinh was found to be light-dependent for A. platensis PCC7345 and the need was identified to take into account both the illumination intensity and c x conditions of each experimental setup.

3.3.2. Model by Costache et al.

As a second approach, the oxygen model developed by Costache et al. [35] (Equation (14)), was applied to the photorespirometry data. A typical fitting result of experimental data is presented in Figure 6b).
To compare the two modeling approaches, Table 2 summarizes the model parameters obtained. Both models were able to fit OPR data on the continuous light phase with a high coefficient of determination (Costache: R2 > 0.96; Sforza: R2 > 0.91). It was found that the oxygen inhibition constant K O 2 followed a correlation with the average illumination intensity I a v , which can be mathematically described by an exponential correlation (R2 > 0.83, Figure 6a):
K O 2   = 80.489   I a v ( 0.476 )
During the experimental data acquisition, high incident I 0 intensities were revealed to be mitigated by an increasing c x (higher K O 2 ) compared to equivalent I a v conditions at low c x (red circle in Figure 6a). This indicated that a buffering effect occurred under higher c x conditions, related to the DOC sensitivity.

3.4. Impact of DOCs on Cellular Phycocyanin Content ( c P C )

Besides the impact on growth kinetics, there has been little research so far on how DOCs affect the cellular metabolites of phototrophic microorganisms such as the phycobiliprotein phycocyanin of A. platensis. Here, the exposure phase was introduced in the photorespirometry routine to investigate the temporal impact of high DOCs (approx. 25 mg L−1) on the c P C of A. platensis PCC7345. Sampling and phycocyanin analytics were performed as shown in Section 2.5.

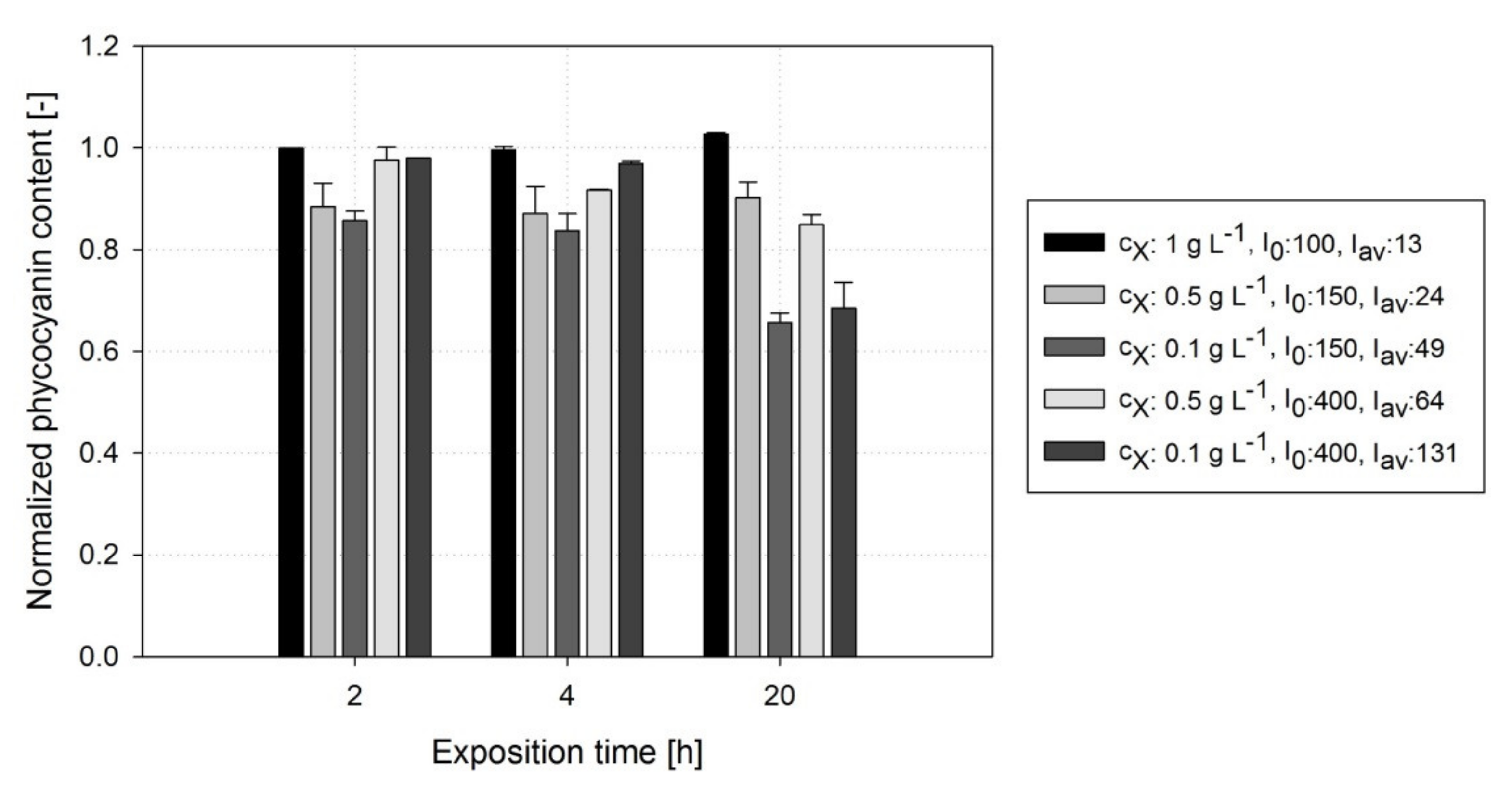

Figure 7 shows a constant c P C at a c x of >0.5 g L−1 exposed to low I a v of <49 μmol m−2 s−1 during 20 h of high DOC exposure. A significant reduction in c P C was obtained if either a low c x of 0.1 g L−1 was used (0.66 ± 0.02 at I a v   = 49 μE) or I a v was >49 μmol m−2 s−1, indicating that A. platensis PCC7345 cultures at low biomass concentrations are more strongly affected by high DOCs. Moreover, high exposure times seemed to exacerbate the harmful effects on c P C under high I a v conditions: after 2 and 4 h the c P C was reduced by less than 20% followed by a significant further reduction in c P C to 35% after 20 h of DOC exposure. Statistical analysis revealed that the phycocyanin content is significantly affected by the exposure duration and the cultivation conditions (p < 0.0001).
It was reported that A. platensis responds to high illumination intensities by reducing cellular light harvesting pigments to prevent the harmful effects of photoinhibition, among other things [42]. Vonshak et al. [64] detected a decrease in the cellular chlorophyll content of up to 30% for A. platensis exposed to high illumination intensities and oxygen gassing (DOC: 36 mg L−1) compared to experiments with air gassing. The authors reported that A. platensis cultures became chlorotic after exposure to both high DOCs and high illumination intensities ( I 0   = 350 μmol m−2 s−1), indicating that the cells were lastingly damaged by photo-oxidative processes. Marquez et al. [61] observed that after 72 h of cultivation the phycocyanin content of A. platensis was reduced by 85% when exposed to a DOC of 40 mg L−1 (connected to air saturation) and an I 0 of 140 μmol m−2 s−1 [61]. In conclusion, in the case of A. platensis, the cellular phycocyanin content—one of the major cellular constituents responsible for light harvesting and further industrial valorization—is highly susceptible to high DOC levels, particularly at high illumination intensities and under low c x conditions.
During outdoor cultivation, extreme values of incident illumination intensities (e.g., 1700 μmol m−2 s−1) and DOCs (e.g., 80 mg L−1) can be reached temporarily [24,25]. To tackle the challenges of high illumination intensities, shading devices for PBRs or gas stripping approaches were proposed to prevent cell damage and biomass losses and keep the DOC at a non-critical level. To name an example, Torzillo et al. [24] examined an increase of 50% in the volumetric biomass productivity of outdoor A. platensis cultivation in tPBRs caused by the application of nitrogen gassing, which lowered the average DOC in the tPBR from around 60 to 22 mg L−1.

3.5. Computational Scale-Up Study and Assessment of Biomass Productivity Using Industrial tPBRs with Different Configurations

The kinetic studies performed on the basis of photorespirometry were used for an in-silico scale-up study for the cultivation of A. platensis PCC7345 on an industrial scale. For this purpose, two different configurations of tPBR were assumed, as described in Section 2.7, having a constant total liquid volume of 5000 L but with different tube lengths: a serial configuration with an 1800 m tube and a parallel configuration with a 450 m tube. Table 3 lists the model input parameters including the experimental kinetic parameters which were examined in this study and process parameters derived from literature sources.
In order to investigate how DOC inhibition kinetics influence the process performance, first a comparative study was carried out assuming a continuously operated serial tPBR configuration (a) neglecting DOC inhibition kinetics (Figure 8a) and (b) taking into account DOC inhibition kinetics (Figure 8b).

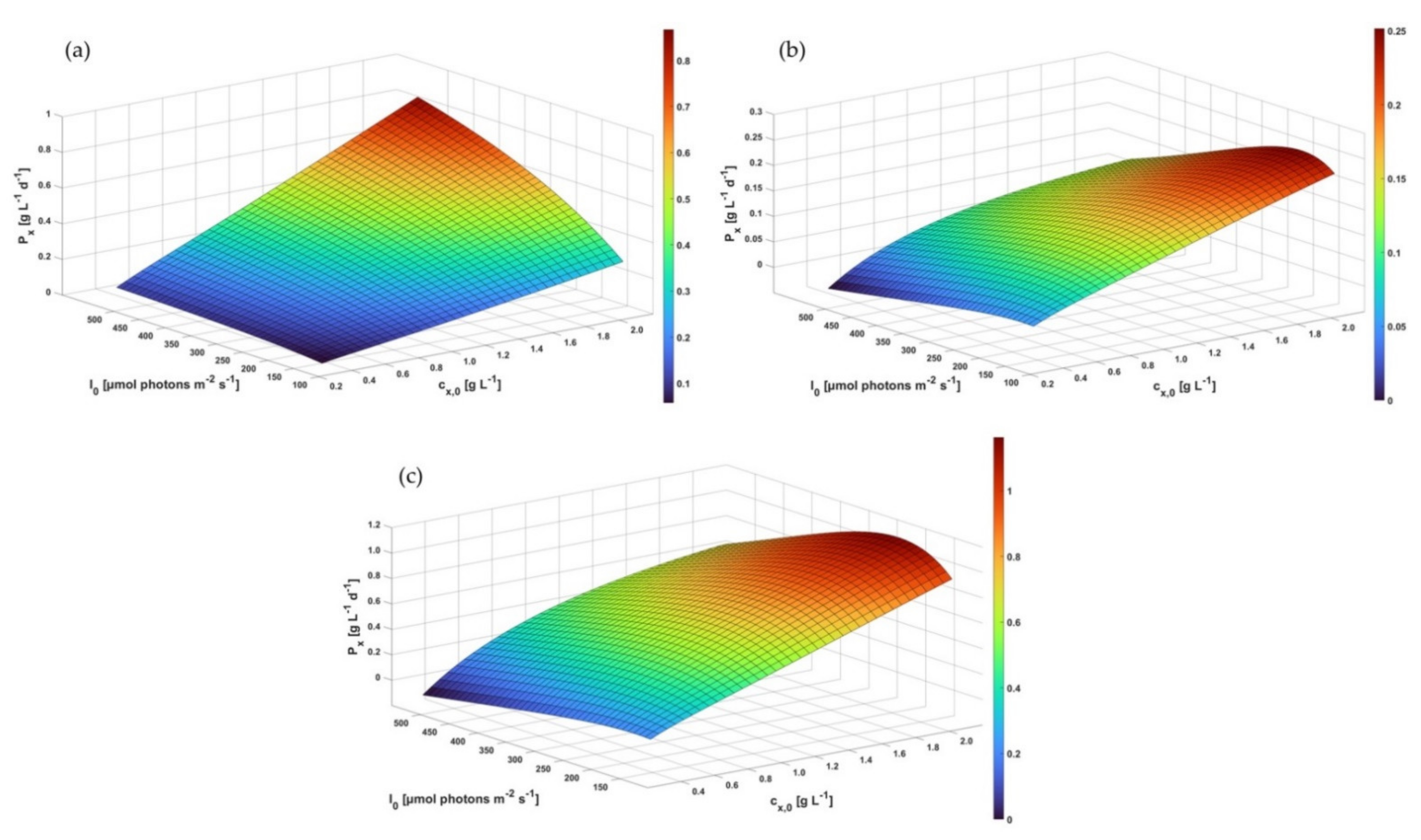

As can be seen from Figure 8a, the predicted biomass productivity at low incident illumination I 0 increases with a rising biomass concentration c x , 0 . In the case of rising I 0 conditions, the predicted P x increased steadily up to a maximum of approx. 0.8 g L−1 d−1. However, this scenario did not correspond to real process performances, as P x was reported to range between 0.4 and 0.6 g L−1 d−1 for A. platensis cultivations in tPBRs [70,71,72].
Considering the DOC inhibition kinetics in the model, a different process performance was indicated as the predicted P x was reduced by up to 300% (approx. 0.25 g L−1 d−1) compared to non-limited biomass growth. The maximum predicted P x of the continuous operating serial tPBR was reached under moderate illumination conditions in the range of 200–250 μmol m−2 s−1 with a high initial c x , 0 . This study found that the DOC inhibition effect is highly dependent on the illumination intensity (illumination-dependent K O 2 ) for A. platensis PCC7345. Accordingly, the predicted P x decreased significantly in the in-silico study with an increasing incident I 0 as a high illumination intensity triggers the photoautotrophic growth and oxygen production, leading to a rising DOC inhibition effect. In computational studies, Trentin et al. [34] investigated the growth-inhibiting effects of oxygen on the microalgae C. protothecoides in a continuously operated tPBR. This revealed a reduced biomass growth rate in the range of 200–280% alongside the tube length at high I 0 intensities (400–1000 μmol m−2 s−1) [34], which is in the same order of magnitude found in this study.
To reduce the DOC in the liquid phase and mitigate the inhibitory DOC effect, various PBR design options are available such as a reduced tube length and improved degassing units. To quantify the impact of the DOC on P x , a parallel tPBR configuration with a maximum tube length of 450 m was also analyzed (Figure 8c). Assuming the k L a and total liquid volume to be the same, the maximum P x during continuous operation was increased nearly five-fold to approx. 1.16 g L−1 d−1 ( I 0   = 190 μmol m−2 s−1), indicating the impact of DOC inhibition kinetics with non-optimal process configurations. Trentin et al. [34] predicted that the tube length for tPBRs would avoid the inhibitory effects of DOCs, ensuring stable r x in C. protothecoides. The authors concluded that to prevent growth from being limited by high DOCs, the tube length should not exceed 200 m, especially for tPBR cultivations with high c x , 0   (approx. 1 g L−1) and high I 0 (approx. 700–1000 μmol m−2 s−1) [34]. Further studies have confirmed that the tube length of tPBRs needs to be limited to prevent high levels of oxygen accumulation [25,63,73] because parts of the tPBRs become non-productive due to oxygen inhibition [27].
The kinetic studies and in-silico scale-up showed that the DOC had a significant impact on the productivity of photoautotrophic bioprocesses, which have to be taken into account in the PBRs’ design to ensure they perform optimally. However, the impact is a multidimensional problem, depending on a variety of factors such as the tube diameter, power input, degassing concepts, and the cells’ OPR capacity and sensitivity to the DOC. The authors would like to emphasize that the in-silico study was designed by assuming a set of hydrodynamic parameters which may be different for other PBR configurations.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/chemengineering6010014/s1. Supplementary materials can be downloaded at: Figure S1: Calibration line to quantify dry weight concentration from OD750; Figure S2: Calibration routine for in-vivo phycocyanin quantification from diluted suspended cells; Figure S3: Calibration line for in-vivo phycocyanin quantification from diluted suspended cells by fluorescence spectroscopy; Figure S4: Fluorescence intensity obtained at increasing cell density (OD750). An optimum range was detected between OD750 0.1–0.4. A higher cell density leads to a high re-absorption of fluorescence emission and should be avoided for fluorescence spectroscopy; Table S1: Experimental data of Figure 3 (OPRD/OCR and OPRL/OPR) and Figure 6a (KO2); Table S1: Experimental data of Figure 7.

Author Contributions

Conceptualization of the manuscript, S.F. and F.K.; methodology, S.F.; software, S.F.; validation, S.F., F.K.; resources, T.W. and J.S.; writing—original draft preparation, S.F. and F.K.; writing—review and editing, T.W. and J.S.; All authors have read and agreed to the published version of the manuscript.

Funding

We thank the German Research Foundation (DFG; grant no. KR 5050/2−1) for supporting this research.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data are available on request.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

SymbolDescriptionUnit
H O 2 Henry’s constant (Henry’s law)mol m−3 Pa−1
H r e f reference Henry’s constant (Henry’s law)mol m−3 Pa−1
I light intensityµmol photons m−2 s−1
I 0 incident light intensityµmol photons m−2 s−1
I a v average light intensityµmol photons m−2 s−1
I f ,   m a x maximum fluorescence intensity
K C O 2 half-saturation constant for CO2 (model by Sforza)kgC m−3
K L light half-saturation constantµmol photons m−2 s−1
K M , O 2 oxygen half-saturation constant for respiration (model by Sforza)kgO2 m−3
K O 2 oxygen inhibition constant (model by Costache)kg m−3
K P R photorespiration constant (model by Sforza)kgO2 m−3
L tube length of the solar unitm
O C R oxygen consumption rate
O C R i n h oxygen inhibition rate (model by Sforza)kgO2 m−3 s−1
O C R r e s p oxygen respiration rate (model by Sforza)kgO2 m−3 s−1
O P R oxygen production rate
O P R m a x biomass-related maximum rate of photosynthesiskgO2 kgx−1 s−1
O P R n e t net oxygen production rate (Sforza model)kgO2 m−3 s−1
O P R p h photosynthetic oxygen production (Sforza model)kgO2 m−3 s−1
O D 750 optical density at a light wavelength of 750 nm
T r e f reference temperature (Henry’s law)K
Y O 2 x   yield of oxygen produced per biomasskgO2 kgx−1
Z light path lengthm
c C O 2 concentration of dissolved CO2kgC m−3
c O 2 oxygen concentration in the liquid phasekgO2 m−3
c O 2 , 0 oxygen concentration at the inlet of the solar unitkgO2 m−3
c O 2 , o u t oxygen concentration at the outlet of the solar unitkgO2 m−3
c O 2 * saturation concentration of oxygen in the liquid phasekgO2 m−3
c P C phycocyanin content (biomass-related)kgPC kgx−1
c x biomass concentrationkg m−3
c x , 0 biomass concentration at the inlet of the solar unitkgx m−3
c x , o u t biomass concentration at the outlet of the solar unitkgx m−3
k L a oxygen mass transfer coefficients−1
l tube length of the solar unit (running coordinate)m
p O 2 oxygen partial pressurePa
r O 2 oxygen production ratekgO2 m−3 s−1
r x biomass growth ratekgx m−3 s−1
v flow velocitym s−1
z form factor (model by Costache)
ε cell-specific light attenuation coefficientm2 kg−1
ε g fractional gas hold-up
μ specific growth rates−1
μ O 2 maximum specific oxygen rate (model by Sforza)s−1
μ m a x maximum growth rates−1
ς oxygen inhibition exponent (model by Sforza)m3 kg−1
τ residence time s

References

  1. Borowitzka, M.A.; Gershwin, M.E.; Belay, A. (Eds.) Spirulina in Human nutrition and Health; CRC Press: Boca Raton, FL, USA, 2008; 312p. [Google Scholar]
  2. Lupatini, A.L.; Colla, L.M.; Canan, C.; Colla, E. Potential application of microalga Spirulina platensis as a protein source. J. Sci. Food Agric. 2017, 97, 724–732. [Google Scholar] [CrossRef] [PubMed]
  3. Mahmoud, M.M.A.; El-Lamie, M.M.M.; Kilany, O.E.; Dessouki, A.A. Spirulina (Arthrospira platensis) supplementation improves growth performance, feed utilization, immune response, and relieves oxidative stress in Nile tilapia (Oreochromis niloticus) challenged with Pseudomonas fluorescens. Fish Shellfish. Immunol. 2018, 72, 291–300. [Google Scholar] [CrossRef] [PubMed]
  4. Rosas, V.T.; Poersch, L.H.; Romano, L.A.; Tesser, M.B. Feasibility of the use of Spirulina in aquaculture diets. Rev. Aquac. 2019, 11, 1367–1378. [Google Scholar] [CrossRef]
  5. Eriksen, N.T. Production of phycocyanin-a pigment with applications in biology, biotechnology, foods and medicine. Appl Microbiol. Biotechnol. 2008, 80, 1–14. [Google Scholar] [CrossRef] [PubMed]
  6. Ramamoorthy, A.; Premakumari, S. Effect of supplementation of Spirulina on hypercholesterolemic patients. Food Sci. Technol. 1996, 33, 124–127. [Google Scholar]
  7. Samuels, R.; Mani, U.V.; Iyer, U.M.; Nayak, U.S. Hypocholesterolemic Effect of Spirulina in Patients with Hyperlipidemic Nephrotic Syndrome. J. Med. Food 2002, 5, 91–96. [Google Scholar] [CrossRef] [PubMed]
  8. Czerwonka, A.; Kaławaj, K.; Sławińska-Brych, A.; Lemieszek, M.K.; Bartnik, M.; Wojtanowski, K.; Zdzisińska, B.; Rzeski, W. Anticancer effect of the water extract of a commercial Spirulina (Arthrospira platensis) product on the human lung cancer A549 cell line. Biomed. Pharmacother. 2018, 106, 292–302. [Google Scholar] [CrossRef]
  9. Maryati, M.; Saifudin, A.; Wahyuni, S.; Rahmawati, J.; Arrum, A.; Priyunita, O.; Aulia, A.; Putra, F.; As'Hari, Y.; Rasyidah, U.; et al. Cytotoxic effect of Spirulina platensis extract and Ulva compressa Linn. on cancer cell lines. Food Res. 2020, 4, 1018–1023. [Google Scholar] [CrossRef]
  10. Joseph, J.; Thankamani, K.; Ajay, A.; Das, V.R.A.; Raj, V.S. The Use of Pseudotyped Coronaviruses for the Screening of Entry Inhibitors: Green Tea Extract Inhibits the Entry of SARS-CoV-1, MERS-CoV, and SARS-CoV-2 by Blocking Receptor-Spike Interaction. Curr. Pharm. Biotechno. 2021, 22, 1–12. [Google Scholar] [CrossRef]
  11. Abu-Taweel, G.M.; Mohsen, G.A.-M.; Antonisamy, P.; Arokiyaraj, S.; Kim, H.-J.; Kim, S.-J.; Park, K.H.; Kim, Y.O. Spirulina consumption effectively reduces anti-inflammatory and pain related infectious diseases. J. Infect. Public Health 2019, 12, 777–782. [Google Scholar] [CrossRef]
  12. Jensen, G.S.; Attridge, V.L.; Beaman, J.L.; Guthrie, J.; Ehmann, A.; Benson, K.F. Antioxidant and Anti-Inflammatory Properties of an Aqueous Cyanophyta Extract Derived from Arthrospira Platensis: Contribution to Bioactivities by the Non-Phycocyanin Aqueous Fraction. J. Med. Food 2015, 18, 535–541. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Taufikurahman, T.; Ilhamsyah, D.P.A.; Rosanti, S.; Ardiansyah, M.A. Preliminary Design of Phycocyanin Production from Spirulina platensis Using Anaerobically Digested Dairy Manure Wastewater. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2020; p. 012007. [Google Scholar]
  14. Jassby, A. Spirulina: A model for microalgae as human food. In Algae and Human Affairs; Lembi, C.A., Waaland, J.R., Eds.; Cambridge University Press: Cambridge, UK, 1988; pp. 149–179. [Google Scholar]
  15. Dawczynski, J.; Jentsch, S.; Schweitzer, D.; Hammer, M.; Lang, G.E.; Strobel, J. Long term effects of lutein, zeaxanthin and omega-3-LCPUFAs supplementation on optical density of macular pigment in AMD patients: The LUTEGA study. Graefes Arch. Clin. Exp. Ophthalmol. 2013, 251, 2711–2723. [Google Scholar] [CrossRef] [PubMed]
  16. Seddon, J.M.; Ajani, U.A.; Sperduto, R.D.; Hiller, R.; Blair, N.; Burton, T.C.; Farber, M.D.; Gragoudas, E.S.; Haller, J.; Miller, D.T.; et al. Dietary carotenoids, vitamins A, C, and E, and advanced age-related macular degeneration. Eye Disease Case-Control Study Group. JAMA 1994, 272, 1413–1420. [Google Scholar] [CrossRef]
  17. Cohen, Z. The chemicals of Spirulina. In Spirulina Platensis (Arthrospira): Physiology, Cell-Biology and Biotechnology; Vonshak, A., Ed.; CRC Press: London, UK, 1997; pp. 175–204. [Google Scholar]
  18. Fan, Y.Y.; Ramos, K.S.; Chapkin, R.S. Dietary gamma-linolenic acid suppresses aortic smooth muscle cell proliferation and modifies atherosclerotic lesions in apolipoprotein E knockout mice. J. Nutr. 2001, 131, 1675–1681. [Google Scholar] [CrossRef][Green Version]
  19. Van Hoorn, R.; Kapoor, R.; Kamphuis, J. A short review on sources and health benefits of GLA, The GOOD omega-6. Oléagineux Corps Gras Lipides 2008, 15, 262–264. [Google Scholar] [CrossRef][Green Version]
  20. Posten, C. Design principles of photo-bioreactors for cultivation of microalgae. Eng. Life Sci. 2009, 9, 165–177. [Google Scholar] [CrossRef]
  21. Carvalho, A.P.; Meireles, L.A.; Malcata, F.X. Microalgal Reactors: A Review of Enclosed System Designs and Performances. Biotechnol. Prog. 2006, 22, 1490–1506. [Google Scholar] [CrossRef] [PubMed]
  22. Lee, Y.-K. Microalgal mass culture systems and methods: Their limitation and potential. J. Appl. Phycol. 2001, 13, 307–315. [Google Scholar] [CrossRef]
  23. Weissman, J.C.; Goebel, R.P.; Benemann, J.R. Photobioreactor design: Mixing, carbon utilization, and oxygen accumulation. Biotechnol. Bioeng. 1988, 31, 336–344. [Google Scholar] [CrossRef]
  24. Torzillo, G.; Bernardini, P.; Masojídek, J. On-line monitoring of chlorophyll fluorescence to assess the extent of photoinhibition of photosynthesis induced by high oxygen concentration and low temperature and its effect on the productivity of outdoor cultures of Spirulina platensis (Cyanobacteria). J. Phycol. 1998, 34, 504–510. [Google Scholar] [CrossRef]
  25. Torzillo, G.; Chini Zittelli, G. Tubular Photobioreactors. In Algal Biorefineries; Prokop, A., Bajpai, R.K., Zappi, M.E., Eds.; Springer International Publishing: Cham, Switzerland, 2015; pp. 187–212. [Google Scholar]
  26. Kazbar, A.; Cogne, G.; Urbain, B.; Marec, H.; Le-Gouic, B.; Tallec, J.; Takache, H.; Ismail, A.; Pruvost, J. Effect of dissolved oxygen concentration on microalgal culture in photobioreactors. Algal Res. 2019, 39, 101432. [Google Scholar] [CrossRef][Green Version]
  27. Rubio, F.C.; Camacho, F.G.; Grima, E.M. Prediction of dissolved oxygen and carbon dioxide concentration profiles in tubular photobioreactors for microalgal culture. Biotechnol. Bioeng. 1999, 62, 16. [Google Scholar] [CrossRef]
  28. Babcock, R.W.; Malda, J.; Radway, J.C. Hydrodynamics and mass transfer in a tubular airlift photobioreactor. J. Appl. Phycol. 2002, 14, 169–184. [Google Scholar] [CrossRef]
  29. Chai, X.; Zhao, X. Enhanced removal of carbon dioxide and alleviation of dissolved oxygen accumulation in photobioreactor with bubble tank. Bioresour. Technol. 2012, 116, 360–365. [Google Scholar] [CrossRef]
  30. Ojanen, S.; Tyystjärvi, E.; Holmberg, H.; Ahtila, P. Porous membrane as a means of gas and nutrient exchange in a tubular photobioreactor. J. Appl. Phycol. 2015, 27, 1169–1175. [Google Scholar] [CrossRef]
  31. Ferreira, B.S.; Fernandes, H.L.; Reis, A.; Mateus, M. Microporous hollow fibres for carbon dioxide absorption: Mass transfer model fitting and the supplying of carbon dioxide to microalgal cultures. J. Chem. Technol. Biotechnol. 1998, 71, 61–70. [Google Scholar] [CrossRef]
  32. Pires, J.C.M.; Alvim-Ferraz, M.C.M.; Martins, F.G. Photobioreactor design for microalgae production through computational fluid dynamics: A review. Renew. Sustain. Energy Rev. 2017, 79, 248–254. [Google Scholar] [CrossRef]
  33. Massart, A.; Mirisola, A.; Lupant, D.; Thomas, D.; Hantson, A.-L. Experimental characterization and numerical simulation of the hydrodynamics in an airlift photobioreactor for microalgae cultures. Algal Res. 2014, 6, 210–217. [Google Scholar] [CrossRef]
  34. Trentin, G.; Barbera, E.; Bertucco, A.; Sforza, E. Role of oxygen in tubular photobioreactors: Model-Based design and operating conditions to minimize productivity losses. Chem. Eng. Processing-Process 2020, 157, 108151. [Google Scholar] [CrossRef]
  35. Costache, T.A.; Acién Fernández, F.G.; Morales, M.M.; Fernández-Sevilla, J.M.; Stamatin, I.; Molina, E. Comprehensive model of microalgae photosynthesis rate as a function of culture conditions in photobioreactors. Appl. Microbiol. Biotechnol. 2013, 97, 7627–7637. [Google Scholar] [CrossRef]
  36. Sforza, E.; Pastore, M.; Franke, S.M.; Barbera, E. Modeling the oxygen inhibition in microalgae: An experimental approach based on photorespirometry. New Biotechnol. 2020, 59, 26–32. [Google Scholar] [CrossRef] [PubMed]
  37. Krujatz, F.; Illing, R.; Krautwer, T.; Liao, J.; Helbig, K.; Goy, K.; Opitz, J.; Cuniberti, G.; Bley, T.; Weber, J. Light-field-characterization in a continuous hydrogen-producing photobioreactor by optical simulation and computational fluid dynamics. Biotechnol. Bioeng. 2015, 112, 2439–2449. [Google Scholar] [CrossRef] [PubMed]
  38. Rossi, S.; Bellucci, M.; Marazzi, F.; Mezzanotte, V.; Ficara, E. Activity assessment of microalgal-bacterial consortia based on respirometric tests. Water Sci. Technol. 2018, 78, 207–215. [Google Scholar] [CrossRef] [PubMed][Green Version]
  39. Sforza, E.; Pastore, M.; Barbera, E.; Bertucco, A. Respirometry as a tool to quantify kinetic parameters of microalgal mixotrophic growth. Bioprocess Biosyst. Eng. 2019, 42, 839–851. [Google Scholar] [CrossRef]
  40. Takors, R.; Weuster-Botz, D. Prozessmodelle. In Bioprozesstechnik, 4th ed.; Chmiel, H., Takors, R., Weuster-Botz, D., Eds.; Springer Spektrum: Berlin/Heidelberg, Germany, 2018; pp. 71–105. [Google Scholar]
  41. ASCE. Measurement of Oxygen Transfer in Clean Water, 2nd ed.; American Society of Civil Engineers: New York, NY, USA, 1993. [Google Scholar]
  42. Vonshak, A. Spirulina: Growth, Physiology and Biochemistry. In Spirulina Platensis Arthrospira: Physiology, Cell-Biology and Biotechnology; Vonshak, A., Ed.; CRC Press: London, UK, 1997; pp. 43–66. [Google Scholar]
  43. Bennett, A.; Bogorad, L. Complementary chromatic adaptation in a filamentous blue-green alga. J. Cell Biol. 1973, 58, 419–435. [Google Scholar] [CrossRef]
  44. Vanrolleghem, P.; Borchardt, D.; Henze, M.; Rauch, W.; Reichert, P.; Shanahan, P.; Somlyódy, L. River Water Quality Model no. 1 (RWQM1): III. Biochemical submodel selection. Water Sci. Technol. 2001, 43, 31–40. [Google Scholar] [CrossRef]
  45. Schuurmans, R.M.; van Alphen, P.; Schuurmans, J.M.; Matthijs, H.C.P.; Hellingwerf, K.J. Comparison of the photosynthetic yield of cyanobacteria and green algae: Different methods give different answers. PLoS ONE 2015, 10, e0139061. [Google Scholar] [CrossRef][Green Version]
  46. Grima, E.M.; Fernandez, F.G.A.; Camacho, F.G.; Chisti, Y. Photobioreactors: Light regime, mass transfer, and scaleup. J. Biotechnol. 1999, 70, 231–247. [Google Scholar] [CrossRef]
  47. Geider, R.J.; Osborne, B.A. Respiration and microalgal growth: A review of the quantitative relationship between dark respiration and growth. New Phytol. 1989, 112, 327–341. [Google Scholar] [CrossRef]
  48. Laws, E.A.; Bannister, T.T. Nutrient- and light-limited growth of Thalassiosira fluviatilis in continuous culture, with implications for phytoplankton growth in the ocean1. Limnol. Oceanogr. 1980, 25, 457–473. [Google Scholar] [CrossRef]
  49. Laws, E.; Caperon, J. Carbon and nitrogen metabolism by Monochrysis lutheri: Measurement of growth-rate-dependent respiration rates. Mar. Biol. 1976, 36, 85–97. [Google Scholar] [CrossRef]
  50. Ogbonna, J.; Tanaka, H. Light requirement and photosynthetic cell cultivation-Development of processes for efficient light utilization in photobioreactors. J. Appl. Phycol. 2000, 12, 207–218. [Google Scholar] [CrossRef]
  51. Béchet, Q.; Shilton, A.; Guieysse, B. Modeling the effects of light and temperature on algae growth: State of the art and critical assessment for productivity prediction during outdoor cultivation. Biotechnol. Adv. 2013, 31, 1648–1663. [Google Scholar] [CrossRef] [PubMed]
  52. Pruvost, J.; Cornet, J.F.; Goetz, V.; Legrand, J. Theoretical investigation of biomass productivities achievable in solar rectangular photobioreactors for the cyanobacterium Arthrospira platensis. Biotechnol. Prog. 2012, 28, 699–714. [Google Scholar] [CrossRef] [PubMed]
  53. Phélippé, M.; Gonçalves, O.; Thouand, G.; Cogne, G.; Laroche, C. Characterization of the polysaccharides chemical diversity of the cyanobacteria Arthrospira platensis. Algal Res. 2019, 38, 101426. [Google Scholar] [CrossRef]
  54. Krause, G. The Role of Oxygen in Photoinhibition of Photosynthesis. In Causes of Photooxidative Stress and Amelioration of Defense Systems in Plants, 2nd ed.; Foyer, C.H., Mullineaux, C.W., Eds.; CRC Press: New York, NY, USA, 1994; pp. 43–76. [Google Scholar]
  55. Latifi, A.; Ruiz, M.; Zhang, C.-C. Oxidative stress in cyanobacteria. FEMS Microbiol. Rev. 2009, 33, 258–278. [Google Scholar] [CrossRef][Green Version]
  56. Badger, M.R.; von Caemmerer, S.; Ruuska, S.; Nakano, H. Electron flow to oxygen in higher plants and algae: Rates and control of direct photoreduction (Mehler reaction) and rubisco oxygenase. Phil. Trans. R. Soc. Lond. B 2000, 355, 1433–1446. [Google Scholar] [CrossRef][Green Version]
  57. Hsieh, P.; Pedersen, J. Reactive oxygen species in cyanobacteria. In Cyanobacteria: Ecological Importance, Biotechnological Uses and Risk Management, 1st ed.; Davison, D., Ed.; Nova Science Publishers: New York, NY, USA, 2014; pp. 1–41. [Google Scholar]
  58. Allahverdiyeva, Y.; Isojärvi, J.; Zhang, P.; Aro, E.-M. Cyanobacterial Oxygenic Photosynthesis is Protected by Flavodiiron Proteins. Life 2015, 5, 716–743. [Google Scholar] [CrossRef]
  59. Raven, J.A.; Beardall, J. Respiration in aquatic photolithotrophs. In Respiration in Aquatic Ecosystem; Del Giorgio, P.E., Williams, P.J.L.B., Eds.; Oxford University Press: Oxford, UK; New York, NY, USA, 2005; pp. 36–46. [Google Scholar]
  60. Sousa, C.; Compadre, A.; Vermuë, M.H.; Wijffels, R.H. Effect of oxygen at low and high light intensities on the growth of Neochloris oleoabundans. Algal Res. 2013, 2, 122–126. [Google Scholar] [CrossRef]
  61. Marquez, F.J.; Sasaki, K.; Nishio, N.; Nagai, S. Inhibitory effect of oxygen accumulation on the growth of Spirulina platensis. Biotechnol. Lett. 1995, 17, 225–228. [Google Scholar] [CrossRef]
  62. Torzillo, G.; Giovannetti, L.; Bocci, F.; Materassi, R. Effect of oxygen concentration on the protein content of Spirulina biomass. Biotechnol. Bioeng. 1984, 26, 1134–1135. [Google Scholar] [CrossRef] [PubMed]
  63. Torzillo, G. Tubular bioreactors. In Spirulina platensis (Arthrospira): Physiology, Cell-Biology and Biotechnology, 1st ed.; CRC Press: London, UK, 1997; pp. 101–115. [Google Scholar]
  64. Vonshak, A.; Torzillo, G.; Accolla, P.; Tomaselli, L. Light and oxygen stress in Spirulina platensis (cyanobacteria) grown outdoors in tubular reactors. Physiol. Plant 1996, 97, 175–179. [Google Scholar] [CrossRef]
  65. Sousa, C.; de Winter, L.; Janssen, M.; Vermuë, M.; Wijffels, R.H. Growth of the microalgae Neochloris oleoabundans at high partial oxygen pressures and sub-saturating light intensity. Bioresour. Technol. 2012, 104, 565–570. [Google Scholar] [CrossRef] [PubMed]
  66. Raso, S.; van Genugten, B.; Vermuë, M.; Wijffels, R.H. Effect of oxygen concentration on the growth of Nannochloropsis sp. at low light intensity. J. Appl. Phycol. 2012, 24, 863–871. [Google Scholar] [CrossRef] [PubMed][Green Version]
  67. Beaumont, J.A.G. Impact of Oxygen on Cyanobacterium Arthrospira sp. PCC 8005, Master End Project; EHU-UPV: Leioa, Spain, 2015. [Google Scholar]
  68. Molina, E.; Fernández, J.; Acién, F.G.; Chisti, Y. Tubular photobioreactor design for algal cultures. J. Biotechnol. 2001, 92, 113–131. [Google Scholar] [CrossRef]
  69. Warneck, P.; Williams, J. Aqueous Phase Chemistry. In The Atmospheric Chemist’s Companion: Numerical Data for Use in the Atmospheric Sciences, 1st ed.; Warneck, P., Williams, J., Eds.; Springer: Dodrecht, The Netherlands, 2012; pp. 271–314. [Google Scholar]
  70. Converti, A.; Lodi, A.; Del Borghi, A.; Solisio, C. Cultivation of Spirulina platensis in a combined airlift-tubular reactor system. Biochem. Eng. J. 2006, 32, 13–18. [Google Scholar] [CrossRef]
  71. Torzillo, G.; Sacchi, A.; Materassi, R.; Richmond, A. Effect of temperature on yield and night biomass loss in Spirulina platensis grown outdoors in tubular photobioreactors. J. Appl. Phycol. 1991, 3, 103–109. [Google Scholar] [CrossRef]
  72. Travieso, L.; Hall, D.O.; Rao, K.K.; Benítez, F.; Sánchez, E.; Borja, R. A helical tubular photobioreactor producing Spirulina in a semicontinuous mode. Int. Biodeterior. Biodegrad. 2001, 47, 151–155. [Google Scholar] [CrossRef]
  73. Acién Fernández, F.G.; Fernández Sevilla, J.M.; Sánchez Pérez, J.A.; Grima, E.M.; Chisti, Y. Airlift-driven external-loop tubular photobioreactors for outdoor production of microalgae: Assessment of design and performance. Chem. Eng. Sci. 2001, 56, 2721–2732. [Google Scholar] [CrossRef][Green Version]
Figure 1. Photorespirometry setup (a) Schema of experimental setup including (A) a double-walled glass vessel, (B) an airtight cap equipped with pH, temperature and oxygen probe, (C) external monitoring software, and (D) photosynthetically active radiation LED light source; (b) Photograph of a running experiment; (c) Example of course of photorespirometry routine divided into (a) reference phase; (b) continuous illumination phase and (c) exposure phase.
Figure 1. Photorespirometry setup (a) Schema of experimental setup including (A) a double-walled glass vessel, (B) an airtight cap equipped with pH, temperature and oxygen probe, (C) external monitoring software, and (D) photosynthetically active radiation LED light source; (b) Photograph of a running experiment; (c) Example of course of photorespirometry routine divided into (a) reference phase; (b) continuous illumination phase and (c) exposure phase.
Chemengineering 06 00014 g001
Figure 2. (a) Assumptions behind a continuous operating tPBR system for an in-silico scale up study, (b) tPBR system in a serial configuration with a total tube length of 1800 m and in a parallel configuration with a total tube length of 450 m.
Figure 2. (a) Assumptions behind a continuous operating tPBR system for an in-silico scale up study, (b) tPBR system in a serial configuration with a total tube length of 1800 m and in a parallel configuration with a total tube length of 450 m.
Chemengineering 06 00014 g002
Figure 3. Biomass-related oxygen production rate at an increasing average illumination intensity ( I a v ) separated into measurable net photosynthetic OPR (positive) and respirometric OCR (negative): determination of the photosynthetic half-saturation constant K L (49.4 μmol m−2 s−1; SE: 10.9 μmol m−2 s−1) and maximum OPRmax (2.7 gO2 gx−1 d−1; SE: 0.3 gO2 gx−1 d−1) by fitting to a MONOD-type model. Data were obtained during light/dark cycles of the reference phase under air-saturated DOCs. Error bars represent standard deviation of two independent experiments.
Figure 3. Biomass-related oxygen production rate at an increasing average illumination intensity ( I a v ) separated into measurable net photosynthetic OPR (positive) and respirometric OCR (negative): determination of the photosynthetic half-saturation constant K L (49.4 μmol m−2 s−1; SE: 10.9 μmol m−2 s−1) and maximum OPRmax (2.7 gO2 gx−1 d−1; SE: 0.3 gO2 gx−1 d−1) by fitting to a MONOD-type model. Data were obtained during light/dark cycles of the reference phase under air-saturated DOCs. Error bars represent standard deviation of two independent experiments.
Chemengineering 06 00014 g003
Figure 4. Normalized OPR at increasing DOCs. Data were obtained during the continuous illumination phase of the photorespirometry experiments under varying cell dry weight concentrations and illumination conditions. Two independent experimental runs are presented per condition (legend).
Figure 4. Normalized OPR at increasing DOCs. Data were obtained during the continuous illumination phase of the photorespirometry experiments under varying cell dry weight concentrations and illumination conditions. Two independent experimental runs are presented per condition (legend).
Chemengineering 06 00014 g004
Figure 5. Comparison of the biomass-related inhibiting term OCRinh depending on the DOC conditions, using (a) the cyanobacterium A. platensis PCC7345 in this study—data are calculated using photorespirometry—and (b) C. protothecoides microalgae in the study by Sforza et al. [36] under varying c x and illumination conditions indicating that the two microorganisms behave differently at high DOCs. The figure shows that a kinetic relationship can be achieved for microalgae (right) under varying c x and I a v conditions (each symbol represents one experimental setting). Such a general kinetic correlation between DOC and OCRinh is not possible for A. platensis PCC7345.
Figure 5. Comparison of the biomass-related inhibiting term OCRinh depending on the DOC conditions, using (a) the cyanobacterium A. platensis PCC7345 in this study—data are calculated using photorespirometry—and (b) C. protothecoides microalgae in the study by Sforza et al. [36] under varying c x and illumination conditions indicating that the two microorganisms behave differently at high DOCs. The figure shows that a kinetic relationship can be achieved for microalgae (right) under varying c x and I a v conditions (each symbol represents one experimental setting). Such a general kinetic correlation between DOC and OCRinh is not possible for A. platensis PCC7345.
Chemengineering 06 00014 g005
Figure 6. (a) Estimation of the oxygen inhibition constants K O 2 by the model proposed by Costache et al. [35] depending on average illumination intensity I a v . The red circle corresponds to high I 0 illumination at high c x yielding (similar I a v conditions such as low I 0 and low c x ), indicating that high c x conditions may be less sensitive to high DOCs. The solid line marks the course of a power-type function that resulted from fitting the correlation between K O 2 and I a v (R2 = 0.83). (b) Example of a typical fitting process according to the model described by Costache et al. [35].
Figure 6. (a) Estimation of the oxygen inhibition constants K O 2 by the model proposed by Costache et al. [35] depending on average illumination intensity I a v . The red circle corresponds to high I 0 illumination at high c x yielding (similar I a v conditions such as low I 0 and low c x ), indicating that high c x conditions may be less sensitive to high DOCs. The solid line marks the course of a power-type function that resulted from fitting the correlation between K O 2 and I a v (R2 = 0.83). (b) Example of a typical fitting process according to the model described by Costache et al. [35].
Chemengineering 06 00014 g006
Figure 7. Course of the normalized cellular phycocyanin content c P C during exposure of A. platensis PCC7345 cultures to high DOC levels (≈25 mg L−1) during the exposure phase of photorespirometry conducted under different light conditions and biomass concentrations.
Figure 7. Course of the normalized cellular phycocyanin content c P C during exposure of A. platensis PCC7345 cultures to high DOC levels (≈25 mg L−1) during the exposure phase of photorespirometry conducted under different light conditions and biomass concentrations.
Chemengineering 06 00014 g007
Figure 8. Process modeling of the productivity P x related to cell dry weight concentration (g L−1 d−1) of A. platensis PCC7345 in industrial tPBRs: (a) serial tPBR with a tube length of 1800 m neglecting DOC inhibition,   c O 2 K O 2 z = 0 , (b) serial tPBR with a tube length of 1800 m considering DOC inhibition and (c) parallel tPBR with a tube length of 450 m considering DOC inhibition.
Figure 8. Process modeling of the productivity P x related to cell dry weight concentration (g L−1 d−1) of A. platensis PCC7345 in industrial tPBRs: (a) serial tPBR with a tube length of 1800 m neglecting DOC inhibition,   c O 2 K O 2 z = 0 , (b) serial tPBR with a tube length of 1800 m considering DOC inhibition and (c) parallel tPBR with a tube length of 450 m considering DOC inhibition.
Chemengineering 06 00014 g008
Table 1. Overview of the impact of highly dissolved oxygen concentrations (DOCs) on growth parameters such as the specific growth rate μ, volumetric biomass productivity P x , oxygen production rate OPR, biomass concentration c x and pigment composition of different microalgae and cyanobacteria. SS: sub-saturation light; NS: near-saturation light; IL: inhibiting light; c C h l : chlorophyll content; c C a r : carotenoid content; c P C : phycocyanin content; c P : protein content, Y(II): effective PS II quantum yield; the unit μE corresponds to μmol m−2 s−1.
Table 1. Overview of the impact of highly dissolved oxygen concentrations (DOCs) on growth parameters such as the specific growth rate μ, volumetric biomass productivity P x , oxygen production rate OPR, biomass concentration c x and pigment composition of different microalgae and cyanobacteria. SS: sub-saturation light; NS: near-saturation light; IL: inhibiting light; c C h l : chlorophyll content; c C a r : carotenoid content; c P C : phycocyanin content; c P : protein content, Y(II): effective PS II quantum yield; the unit μE corresponds to μmol m−2 s−1.
MicroorganismCulture Conditions DOC
(mg L−1)
Effects   on   the   Growth ( μ ,   P x ,   OPR ,   c x ) Effects on Pigment CompositionSource
Neochloris oleoabundans200 μE (SS);
25 °C

≈26
≈35
decrease in μ by:
<2%
≈23%
[65]
500 μE (NS);
25 °C
≈17
≈26
≈35
≈15%
≈32%
≈50%
no impact on c C h l and c C a r [60]
Nannochloropsis sp. 100 μE (SS);
25 °C
≥6
≈21
linear decrease in μ
≈38% of μ left
[66]
Chlorella vulgaris250 μE;
25 °C
≤25
31
no impacts
30% decrease in Px
no impact on pigments [26]
Scenedesmus almeriensis200 μE (SS);
25 °C
≤9
9–23
>23
32
maximum OPR
decrease in OPR ≤ 20%
exponential decline
OPR = 0
[35]
Chlorella protothecoides150 μE (SS);
24 °C
≤16
>16
≈21–26
constant OPR
exponential decline
OPR = 0
[36]
1000 μE(NS)
≈27
OPR = 0
1500 μE (IL)
≈30
OPR = 0
Arthrospira maxima
≈125 μE,
30 °C
≈16no significant effectsreduction of
c P (50%);
c P C (70%),
c C h l (20%)
[62]
Arthrospira platensis≈140 μE (SS);
30 °C

≈10
≈20
≈30
≈40
decrease in μ by:
10%
20%
33%
46%
reduction of c P C ; c C h l , c C a r (all up to approx. 80%) [61]
32 μE (SS);
30 °C

≈40
≈60
≥80
decrease in μ by:
≈13%
≈25%
no growth
[67]
350 μE
(NS-IL);
35 °C
36max. 18% lower c x ;
chlorotic after long exposure (>32 h)
reduction of c C h l (30%) [64]
Table 2. Comparison of model parameter resulted by fitting experimental photorespirometry data using the model developed by Costache et al. [35] and Sforza et al. [36].
Table 2. Comparison of model parameter resulted by fitting experimental photorespirometry data using the model developed by Costache et al. [35] and Sforza et al. [36].
Costache et al. Sforza et al.
I 0
(μmol m−2 s−1)
I a v
(μmol m−2 s−1)
c x
(g L−1)
K O 2
(mgO2 L−1)
z
(-)
R2
(-)
k i n h
(d−1)
ξ
(L mgO2−1)
R2
[-]
100160.516.132.350.98351.24 × 10−20.220.9463
16.452.300.98821.42 × 10−20.180.9947
13124.511.610.97612.58 × 10−20.090.9805
23.761.660.98312.67 × 10−20.080.9914
150490.110.165.490.96061.52 × 10−40.610.9103
10.448.690.97101.25 × 10−40.930.9378
240.519.141.620.96103.86 × 10−20.130.9126
21.402.070.98441.05 × 10−20.180.9413
210.822.801.780.98475.24 × 10−20.110.9442
27.361.710.98704.49 × 10−20.090.9466
4001310.18.975.080.98866.47 × 10−30.640.9896
8.456.700.99901.16 × 10−30.850.9971
640.521.092.800.99373.68 × 10−20.170.9763
21.373.190.99283.82 × 10−20.170.9831
Table 3. Input model parameter for in-silico scale-up study on A. platensis PCC7345 in industrial tPBRs with varying configurations.
Table 3. Input model parameter for in-silico scale-up study on A. platensis PCC7345 in industrial tPBRs with varying configurations.
ParameterValueRemarks/Source of Supply
d 6 cmAssumption; tube diameter equal to the light path length Z
L 1800 m
450 m
Serial configurationParallel configuration
I 0 variable
c x , 0 variable
k L a 4 h−1Assumption, inspired by [28]
ε g 0.02Assumption, inspired by [28]
c O 2 , 0 7.4 mgO2 L−1Solubility concentration of oxygen at 30 °C
v 0.35 m s−1Based on [68]
T 30 °CAssuming constant temperature conditions
p O 2 0.21 atm[39]
H r e f 1.2 × 10−5 mol m−3 Pa−1[69]
Kinetic parameters
K L 49.4 μmol m−2 s−1This work
Y O 2 X   1.97 gO2 gx−1[25]
ε ε   [L cm1 g1] =   6.83 · c x + 5.34 ,     c x 0.355   g   L 1 0.045 · c x + 3.014 ,     c x > 0.355   g   L 1 This work
K O 2 K O 2   = 80.489 · I a v (−0.476)This work
z 1.85This work
μ m a x 0.032 h−1Experimentally determined
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
